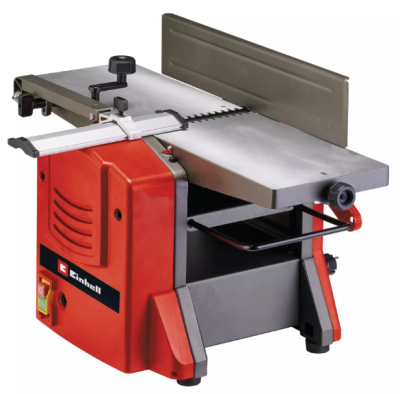

Einhell Stationary Planer TC-SP 204/2
Robust, solid construction
Powerful motor for processing and machining all types of wood
Planing precise aluminium dressing tables for exact results
Guide rail on the dressing table which can be tilted up to 45°
Easily adjustable material removal up to 3 mm
Thickness planer with workpiece support
Two planer blades for precise planing
Suction adapter (Ø 100 mm) for connecting an external suction
Vibration-damping feet ensure stability
Cable winder for neat storage
Restart protection for safe operation
Overload protection for long-lasting use
Article description
The Einhell planer TC-SP 204/2 is a high-quality solid machine with 1,500 Watts for precise, rapid thickness planing and dressing. With its high performance, the machine keeps the speed of the blade shaft constantly high up to 9,000 revolutions per minute, thereby ensuring optimal planing results. The thicknesser with extendable workpiece support and a fast, automatic insertion rate of maximum 6 m/min is easy to handle. Due to the provided height adjustment of up to 3 mm for dressing and 2 mm for thickness planing, the material removal can be finely adjusted by the hand crank. The planer is supplied with two durable HSS quality planer blades. With an opening height of up to 120 mm and an opening width of 204 mm, the planer is suitable for machining boards, strips or smaller beams. In order to keep the workplace clean, for example, a suction system can be connected to the Ø 100 mm suction adapter. The planing dressing table of the stationary planer is made of sturdy aluminium and provided with an inclinable end stop. In addition to the solid construction, the vibration-damping feet also provide the necessary stability. The planer is also equipped with an overload switch and a zero voltage switch, which prevents the machine from unintentionally starting up after a power failure.
Technical details
Max. removal 3 mm
Max. tilt angle rip fence 45 °
Outlet height 120 mm
Outlet width 204 mm
Product weight 26.47 Kg
Suction adapter diameter 100 mm
