Hyundai H212 Engine IPL Parts Diagram

Use this Hyundai H212 IPL parts diagram to identify replacement engine parts. Click any diagram to enlarge it, then use the linked Cutsmart SKU to open the matching part page or confirm availability.

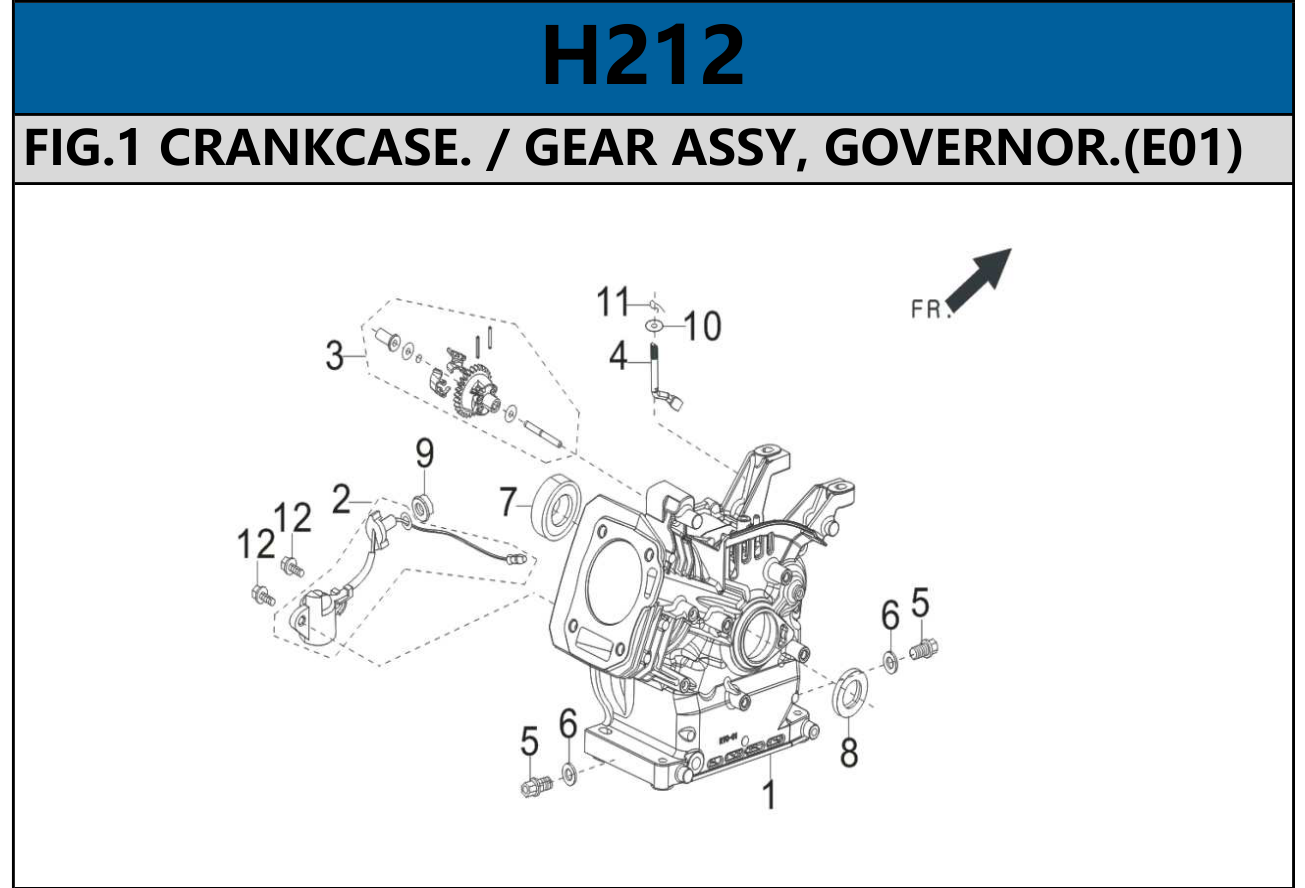

FIG.1 Crankcase / Gear Assy, Governor

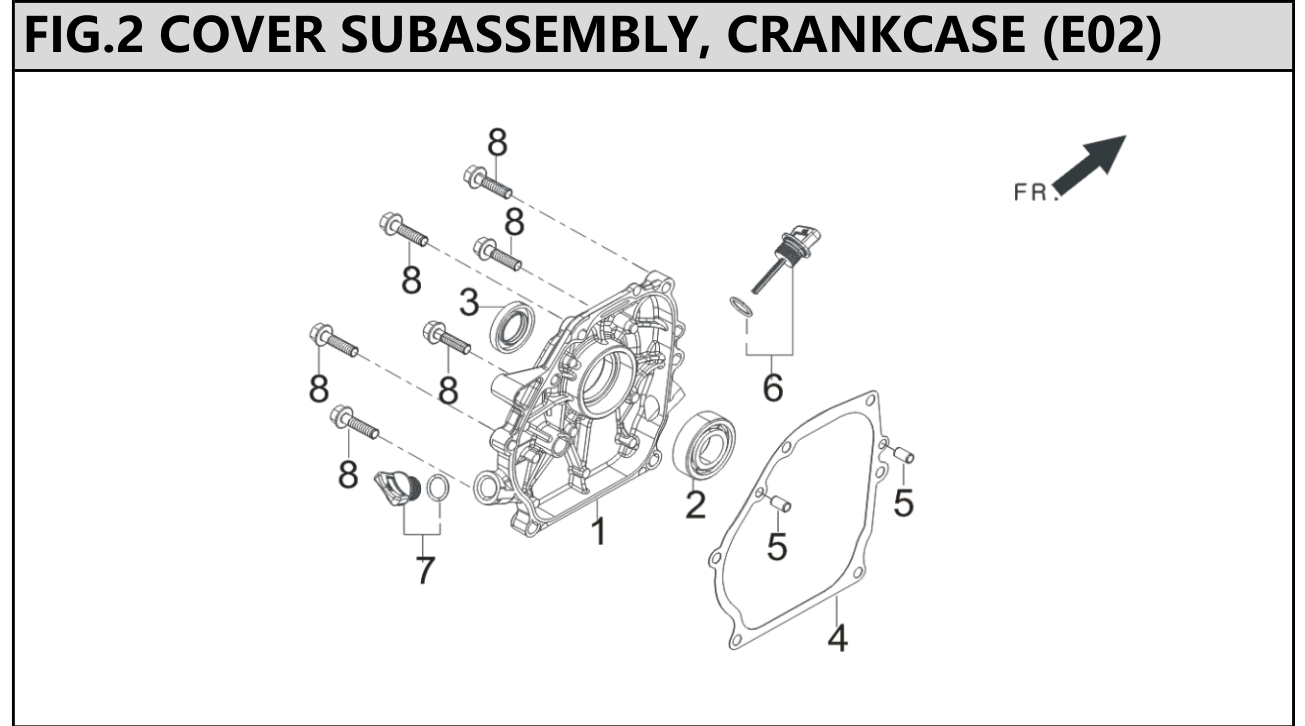

FIG.2 Cover Subassembly, Crankcase

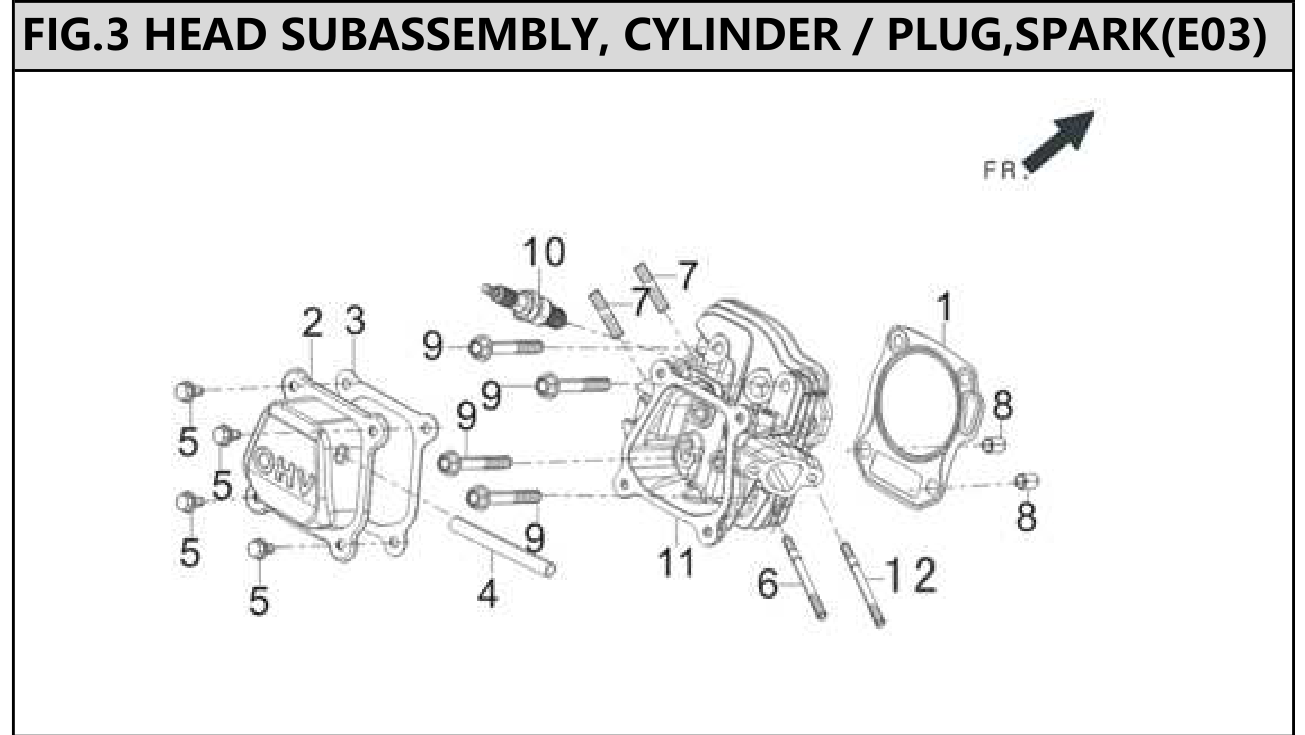

FIG.3 Head Subassembly, Cylinder / Plug, Spark

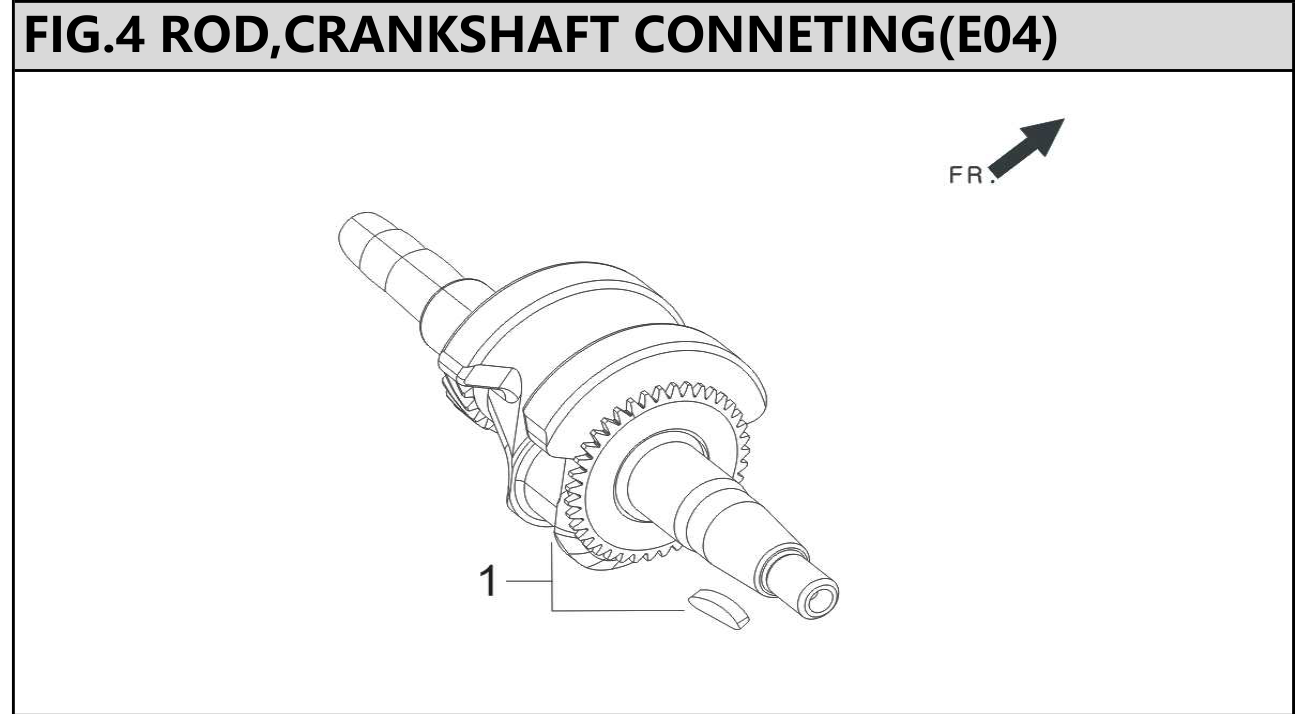

FIG.4 Rod / Crankshaft Connecting

FIG.5 Ring Set, Oil / Rod, Crankshaft Connecting

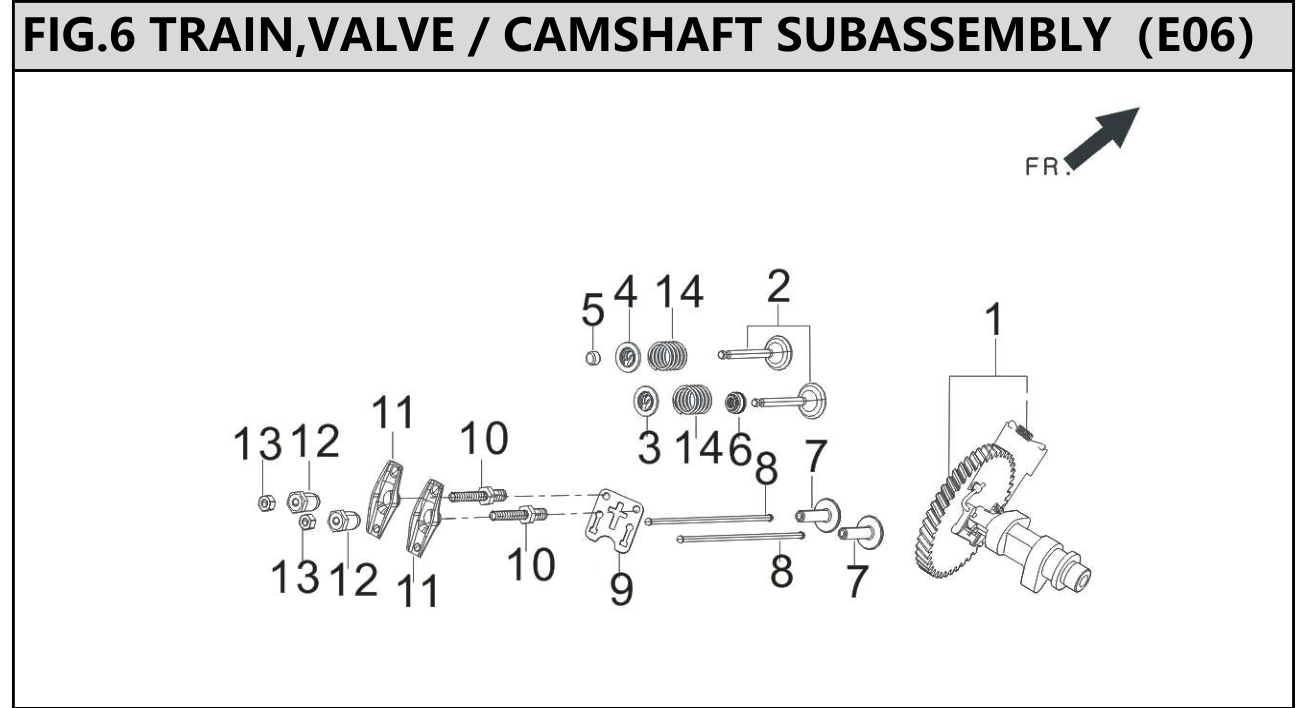

FIG.6 Train, Valve / Camshaft Subassembly

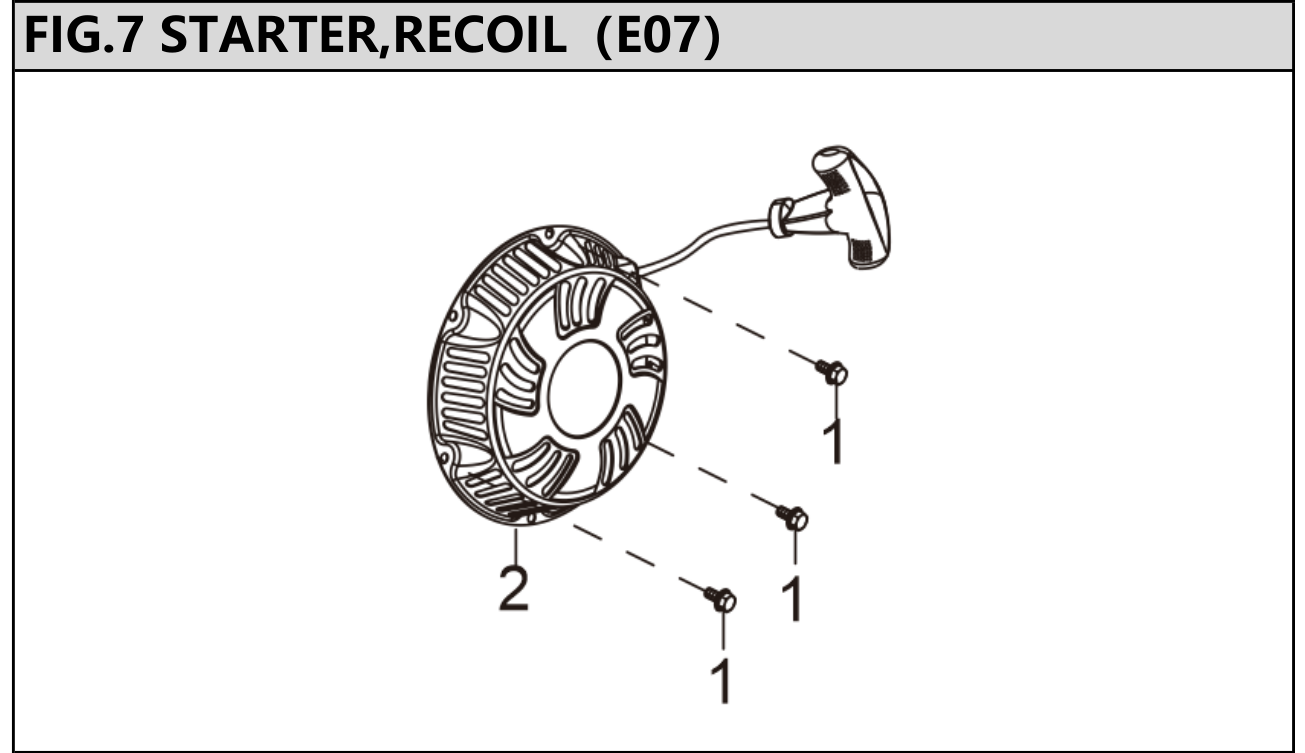

FIG.7 Starter / Recoil

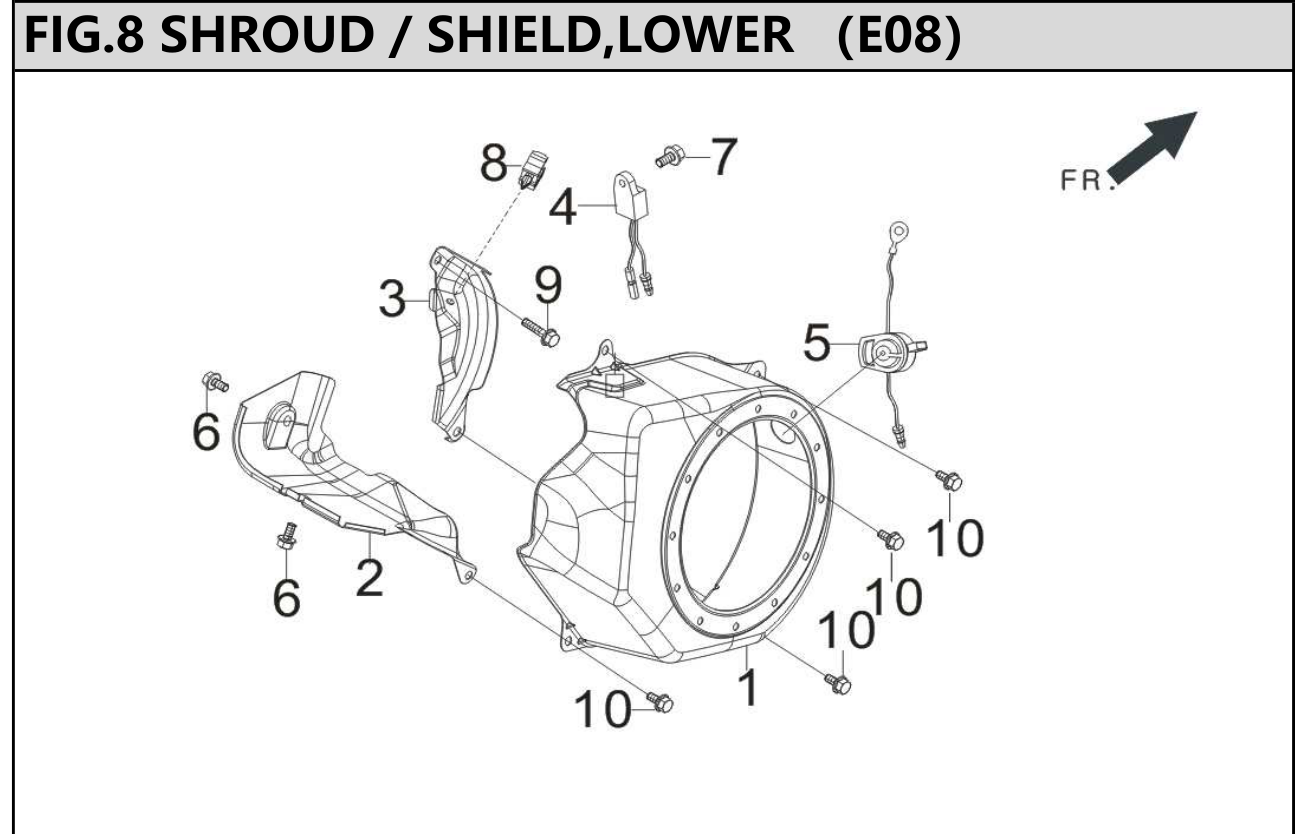

FIG.8 Shroud / Shield, Lower

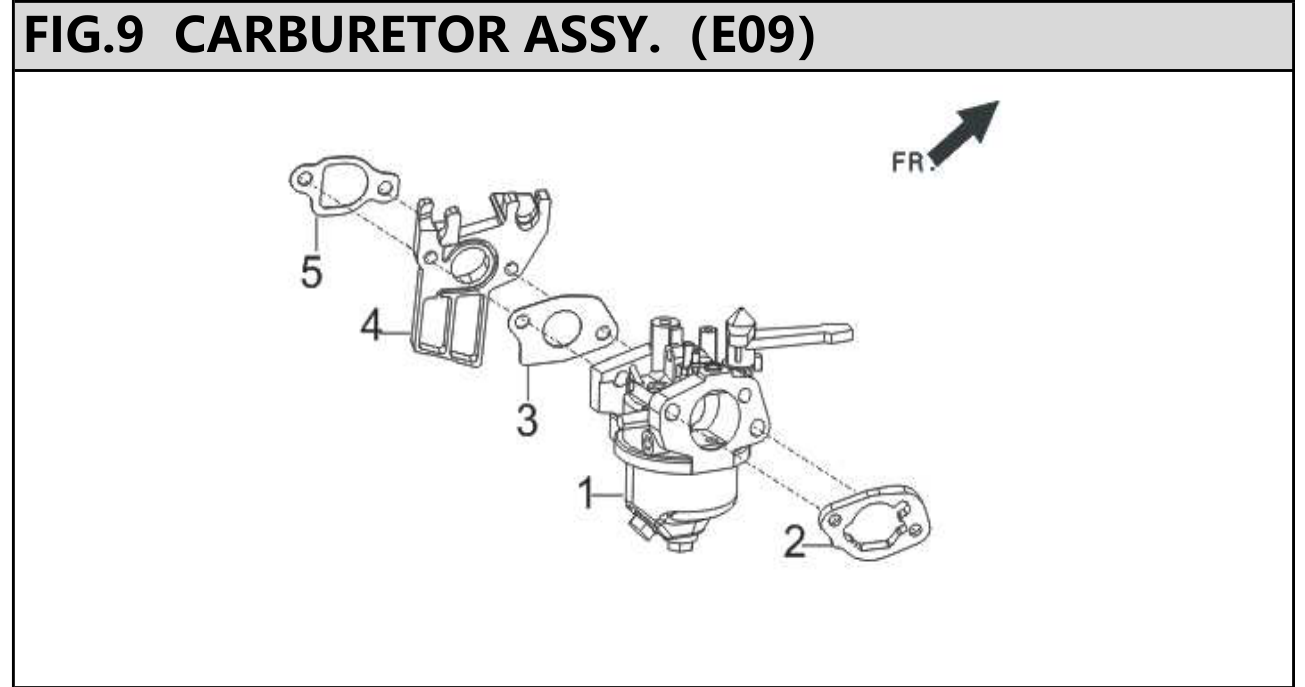

FIG.9 Carburetor Assy

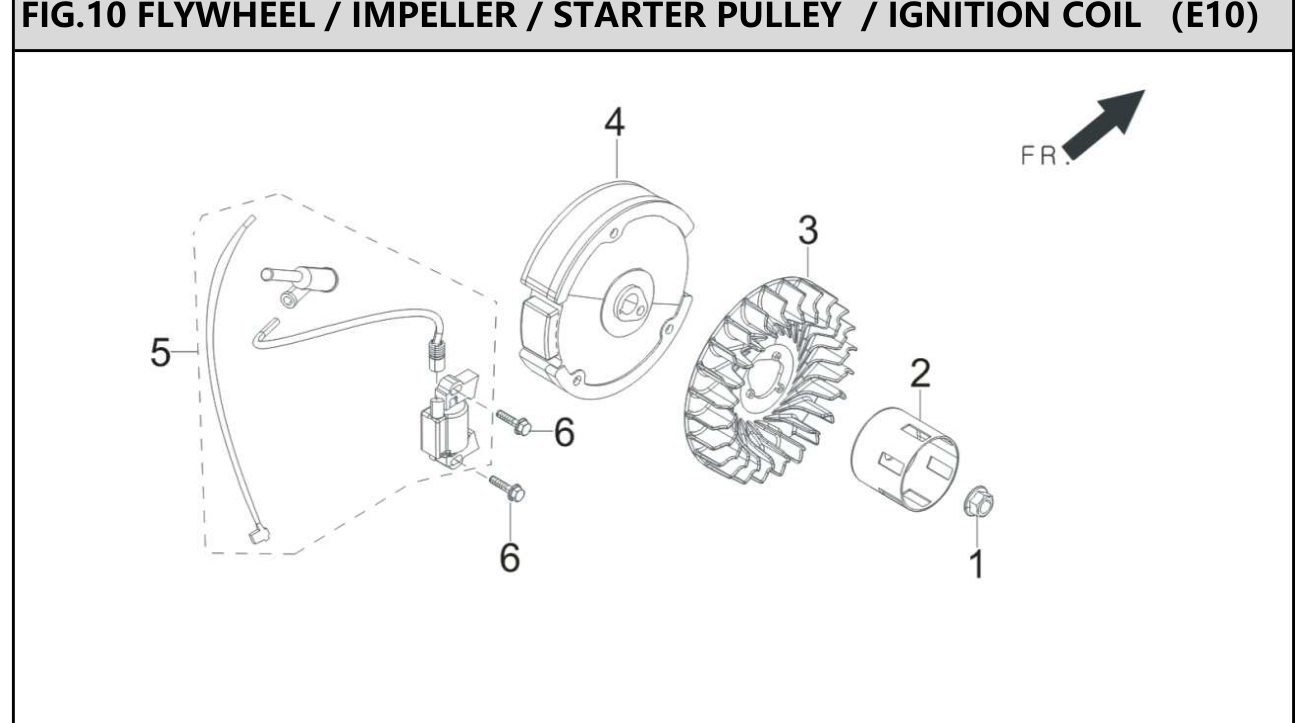

FIG.10 Flywheel / Impeller / Starter Pulley / Ignition Coil

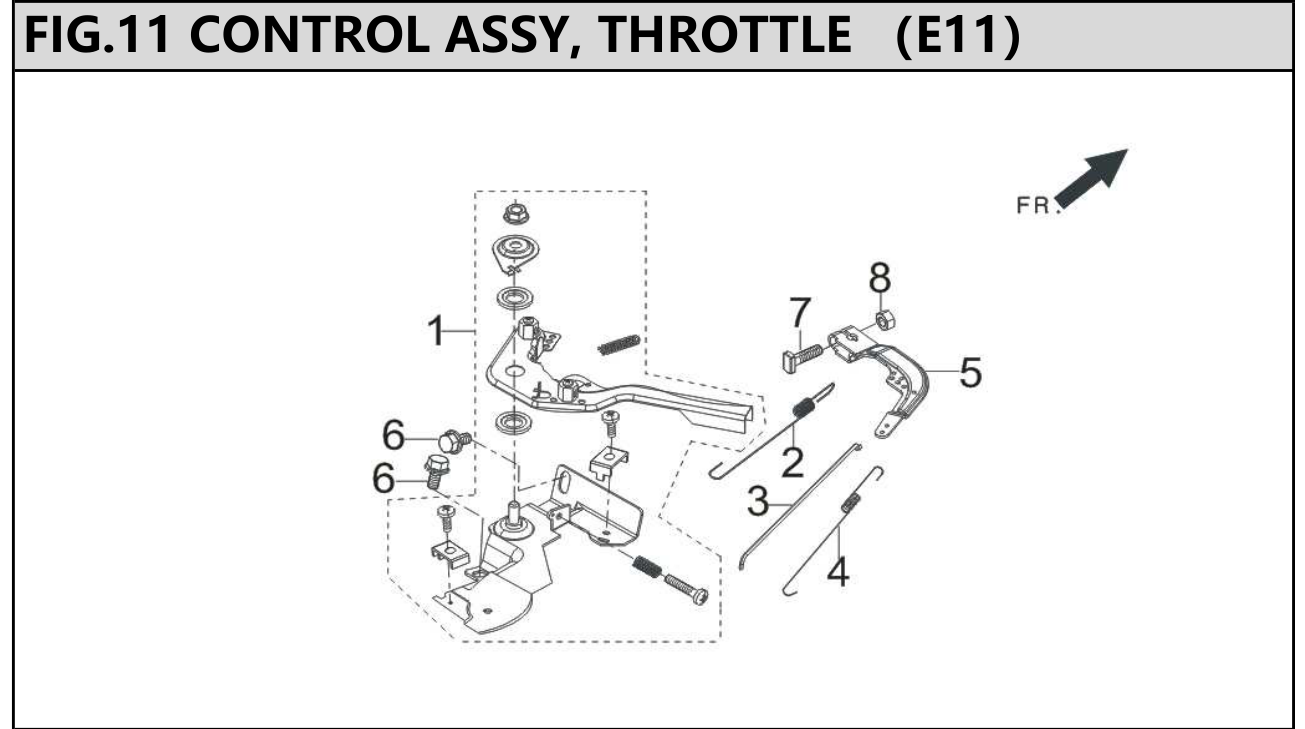

FIG.11 Control Assy, Throttle

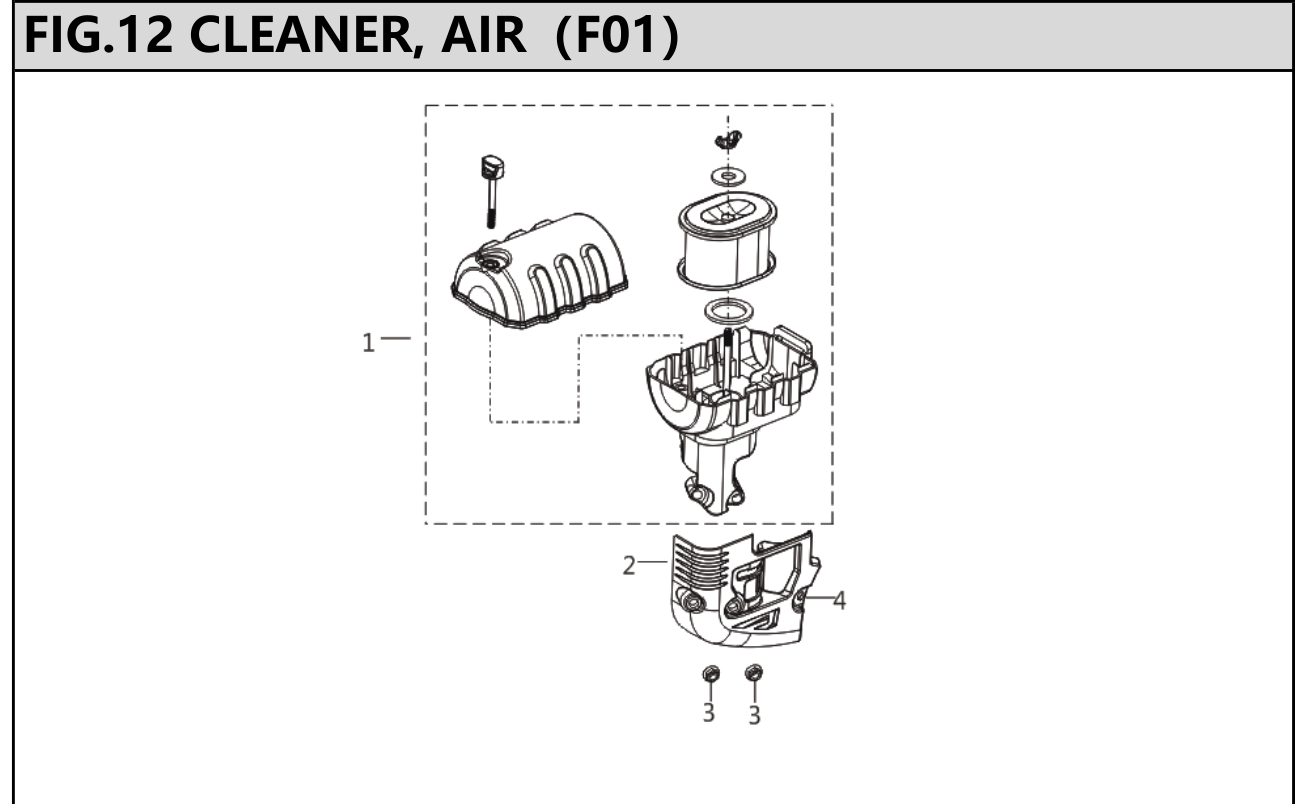

FIG.12 Cleaner, Air

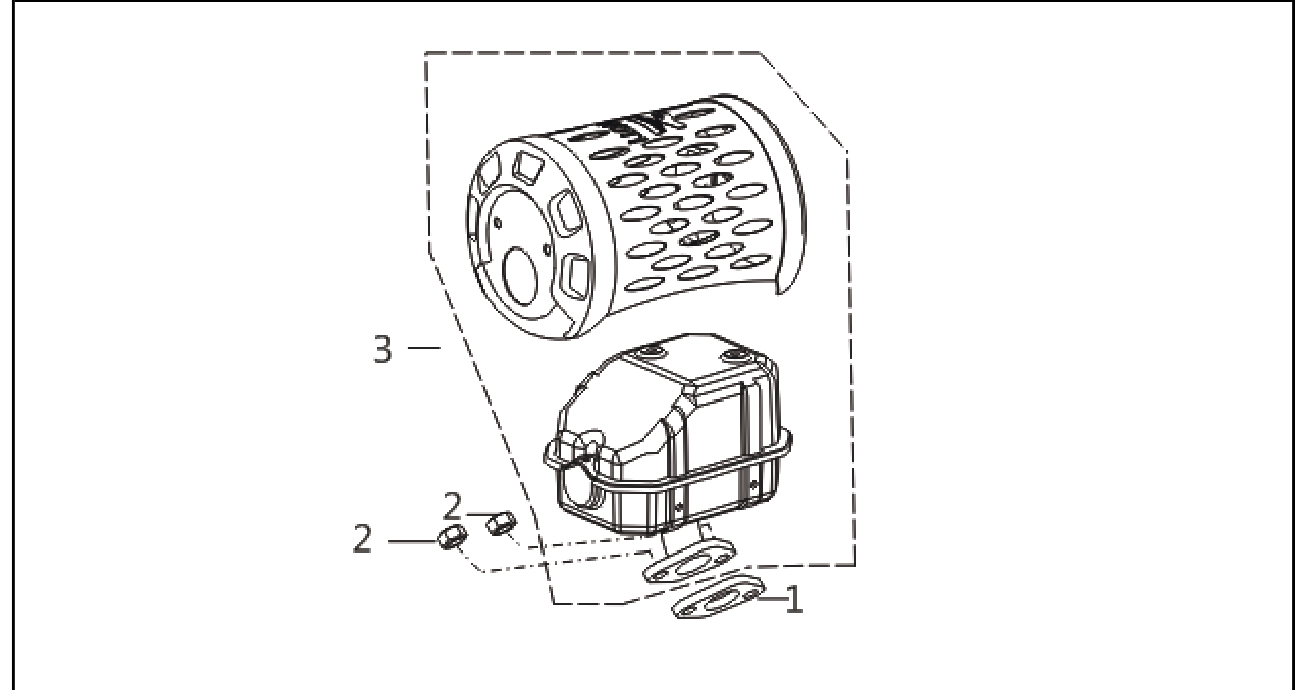

FIG.13 Muffler Assy

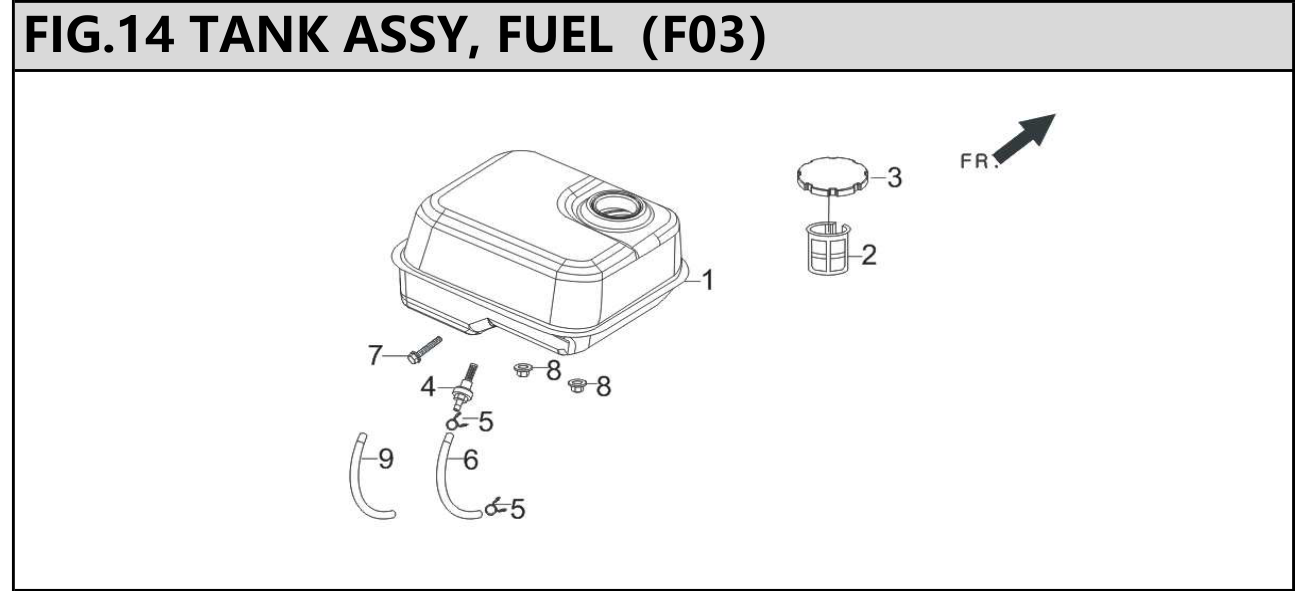

FIG.14 Tank Assy, Fuel
