Hyundai H740E Engine IPL Parts Diagram

Hyundai H740E engine IPL diagrams and spare parts list. Match the diagram reference number to the part number and Cutsmart SKU below.

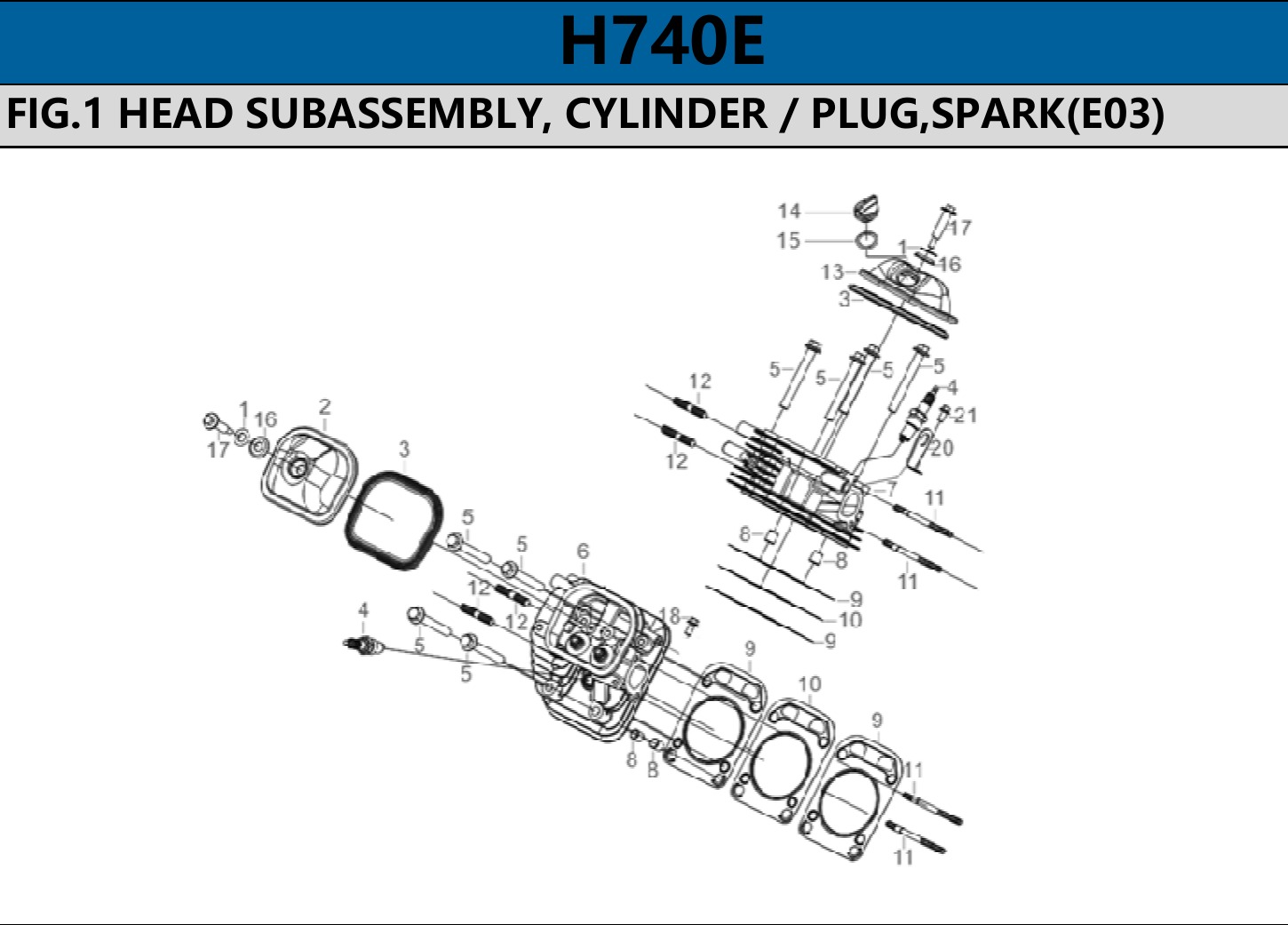

Fig.1 HEAD SUBASSEMBLY, CYLINDER / PLUG, SPARK (E03)

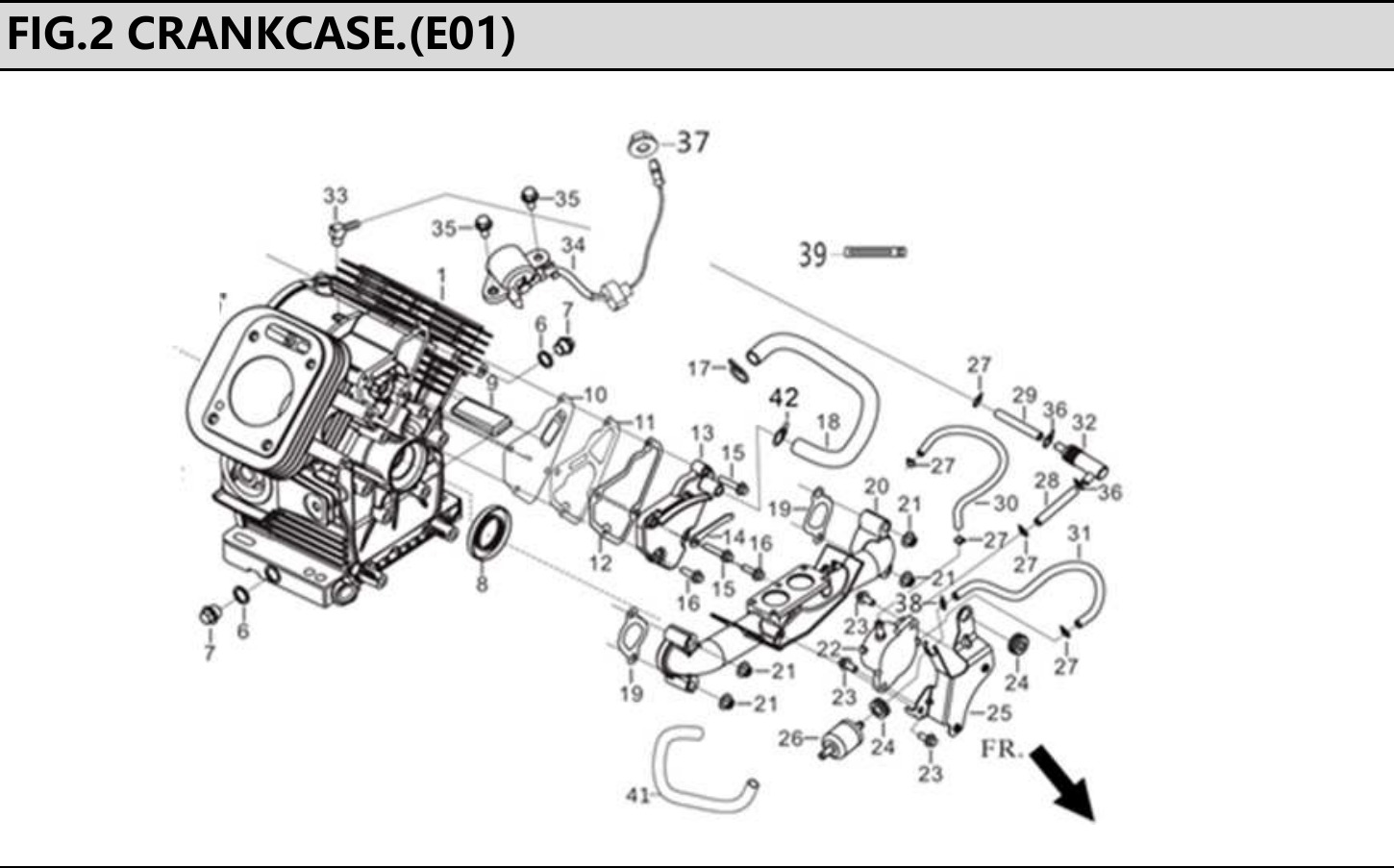

Fig.2 CRANKCASE (E01)

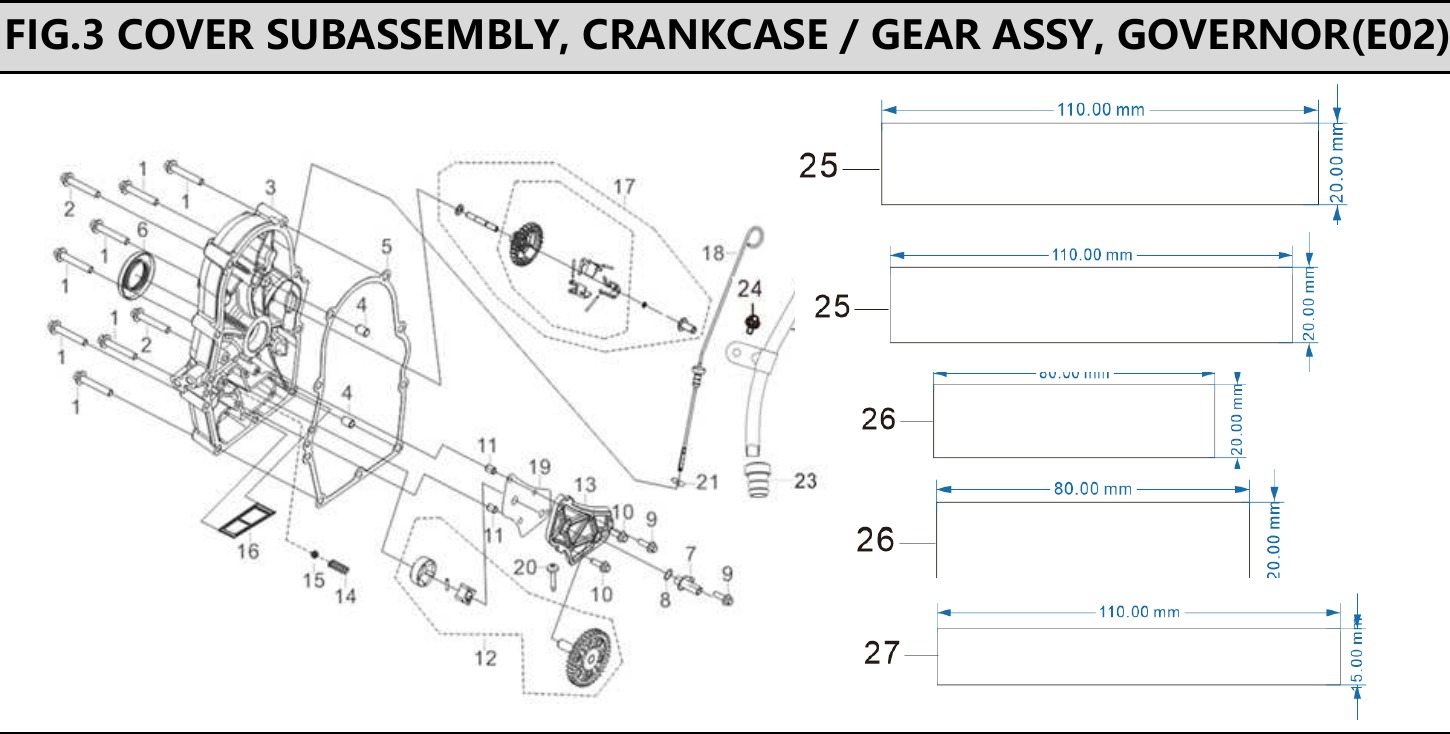

Fig.3 COVER SUBASSEMBLY, CRANKCASE / GEAR ASSY, GOVERNOR (E02)

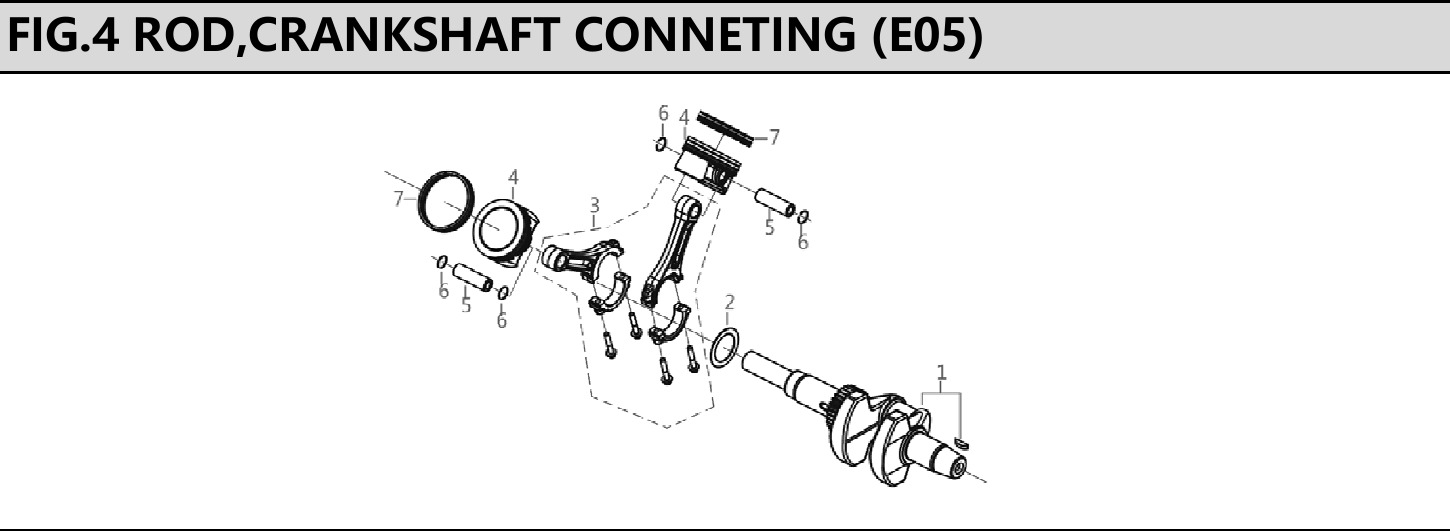

Fig.4 ROD, CRANKSHAFT CONNECTING (E05)

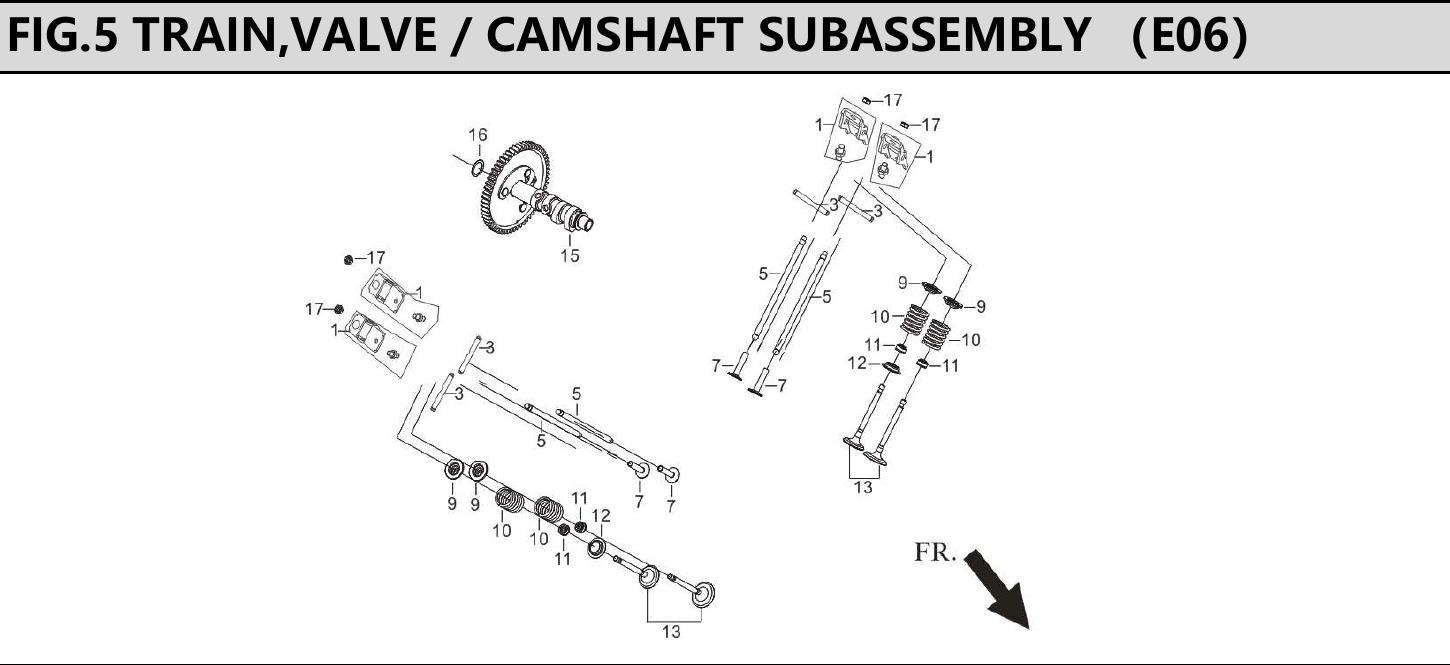

Fig.5 TRAIN, VALVE / CAMSHAFT SUBASSEMBLY (E06)

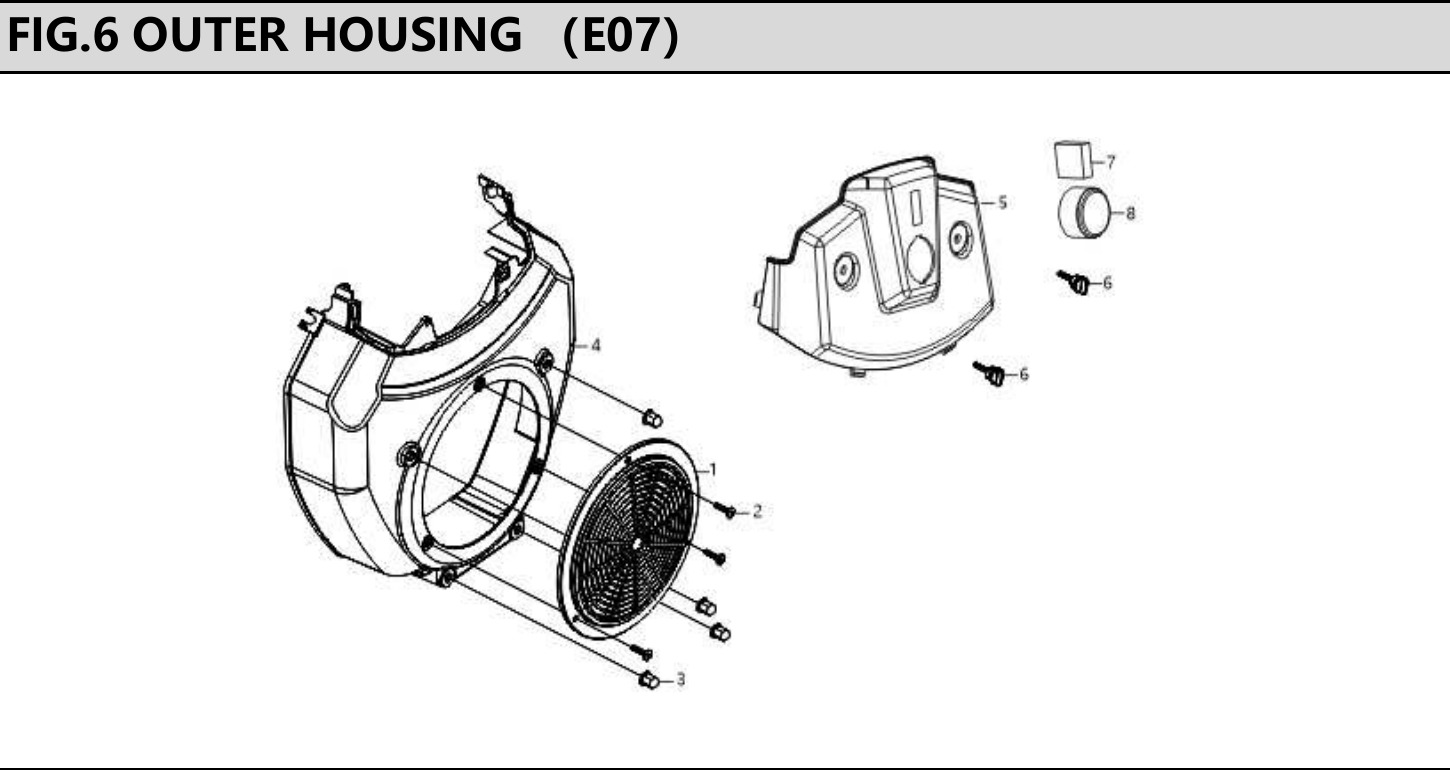

Fig.6 OUTER HOUSING (E07)

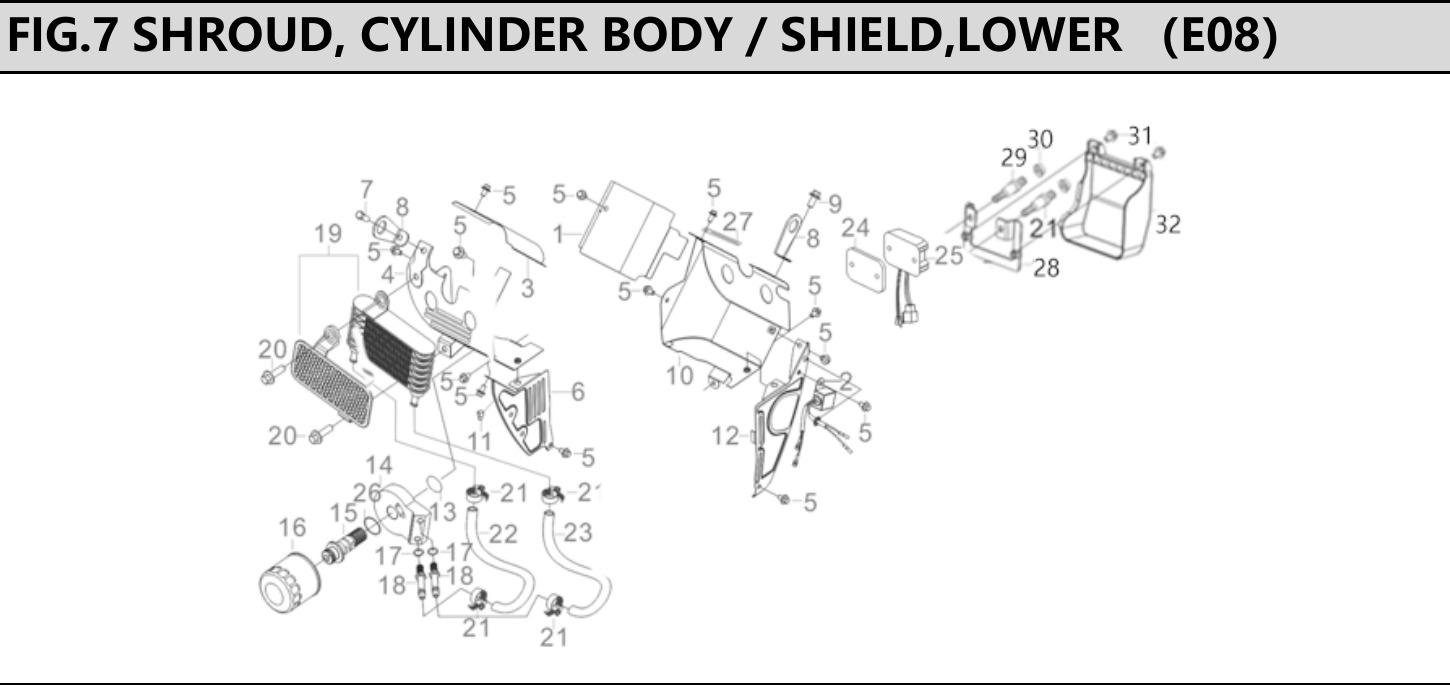

Fig.7 SHROUD, CYLINDER BODY / SHIELD, LOWER (E08)

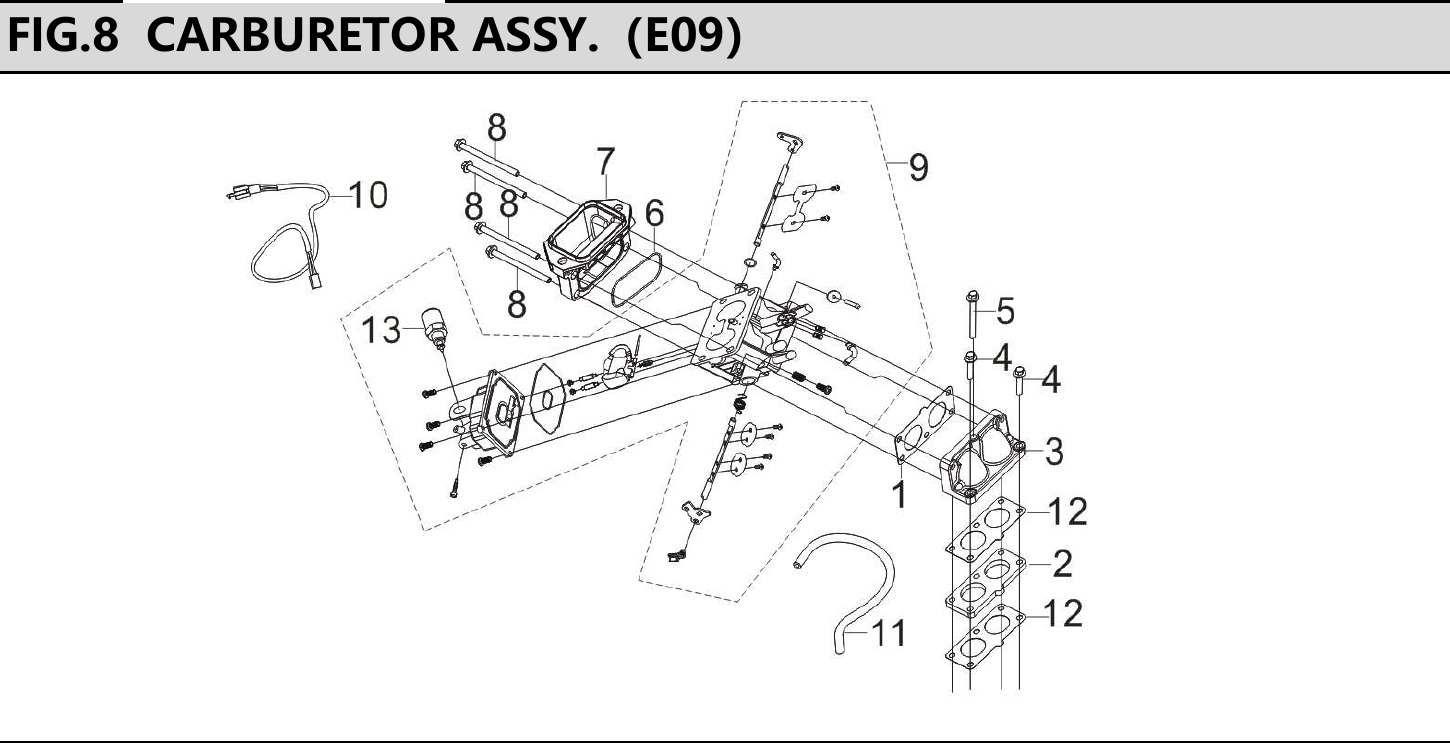

Fig.8 CARBURETOR ASSY. (E09)

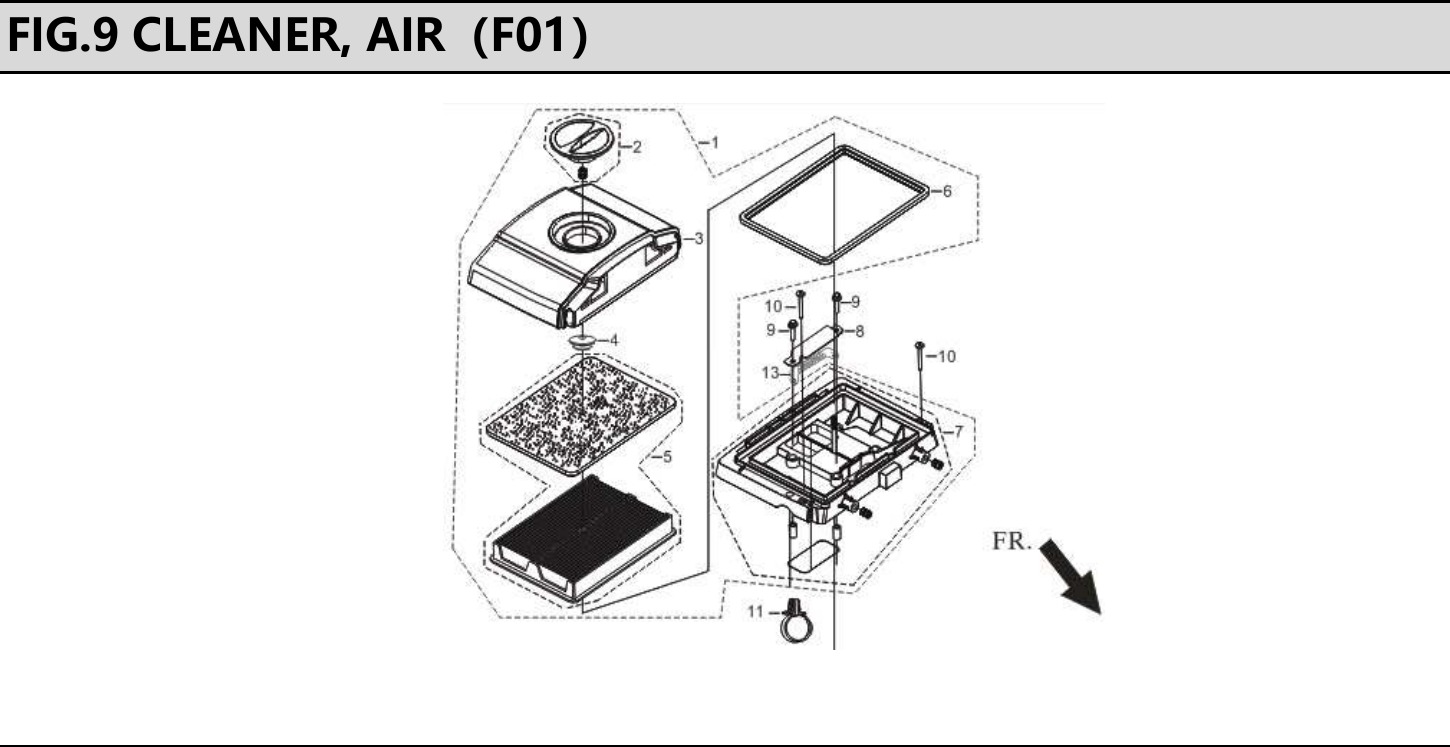

Fig.9 CLEANER, AIR (F01)

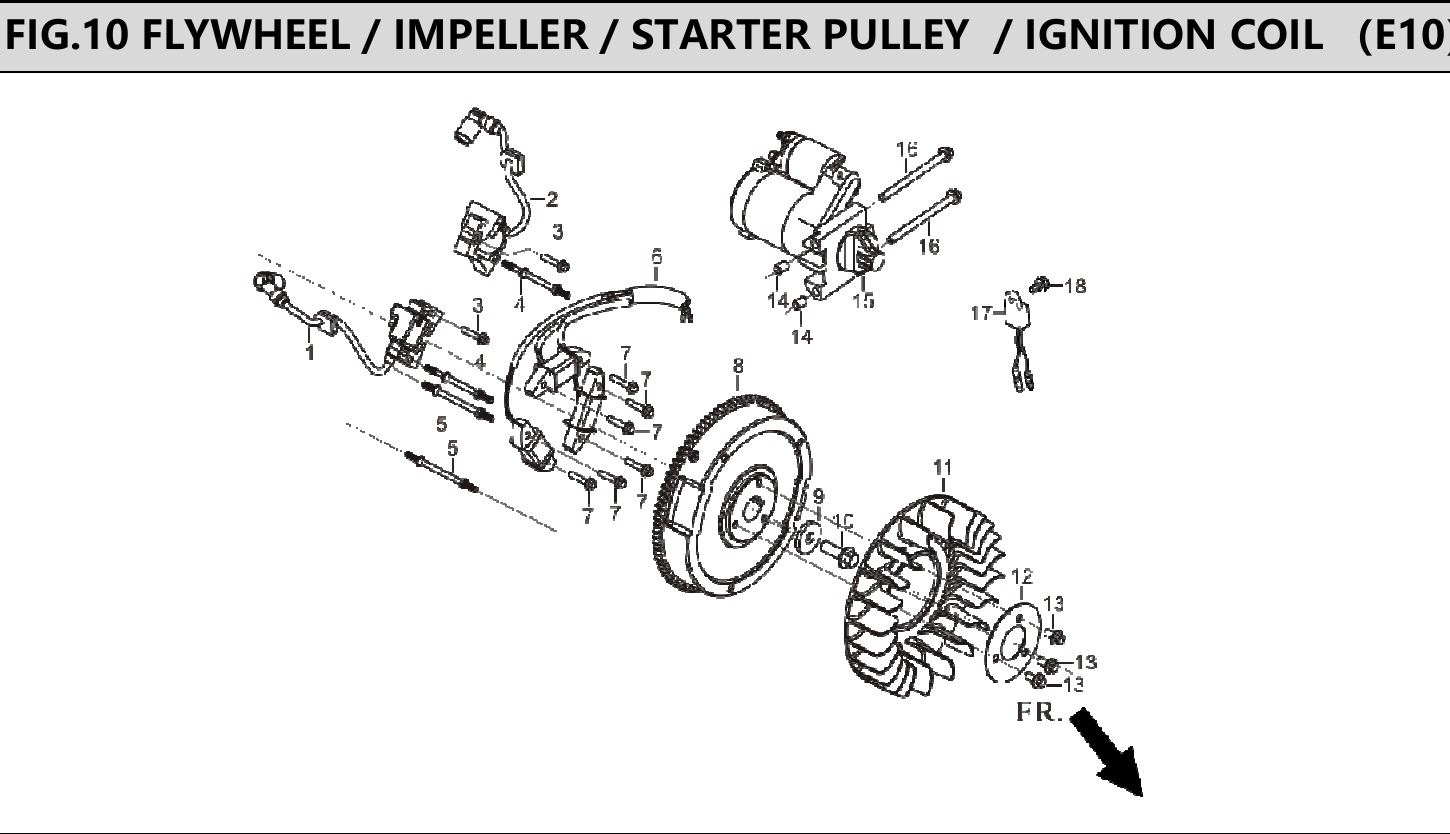

Fig.10 FLYWHEEL / IMPELLER / STARTER PULLEY / IGNITION COIL (E10)

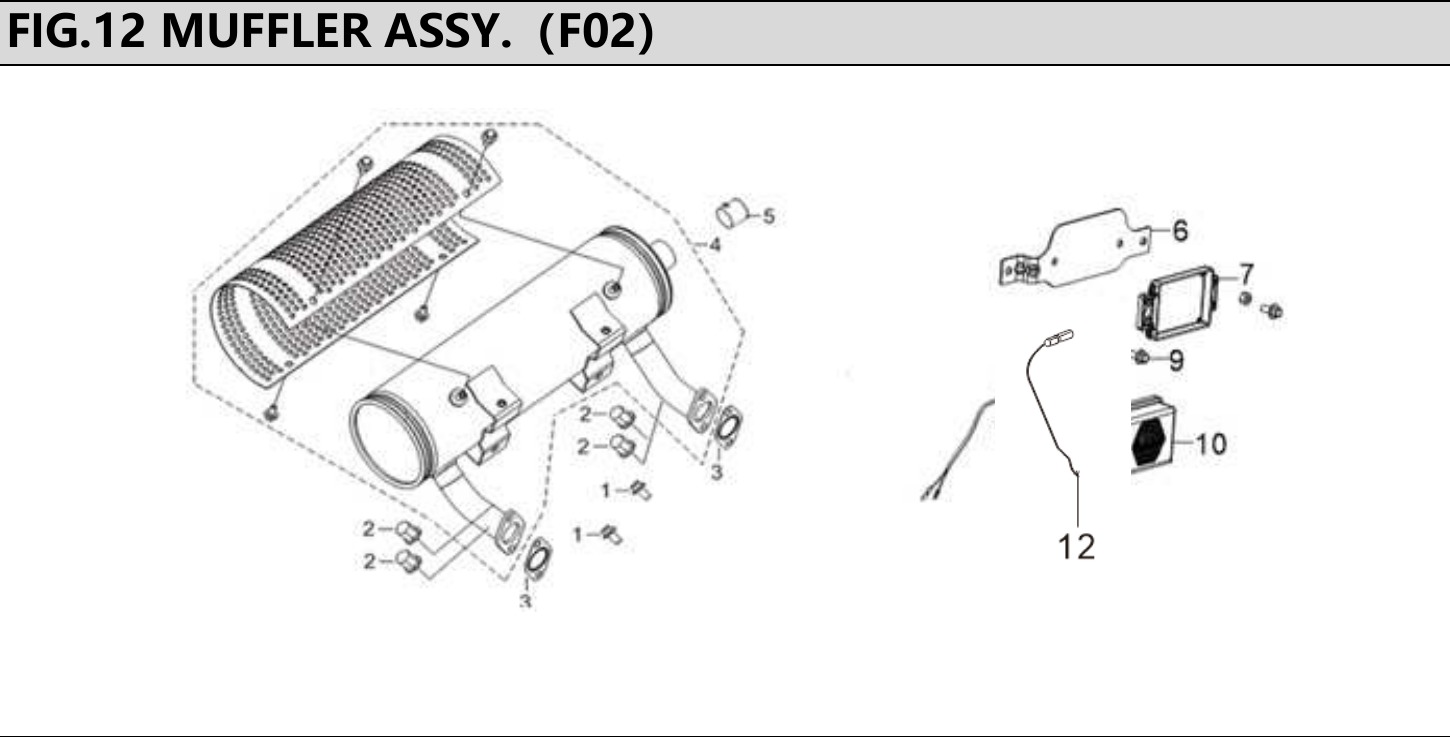

Fig.12 MUFFLER ASSY. (F02)
