Lawn Star LS 500 Classic Classic Trimmer Series IPL

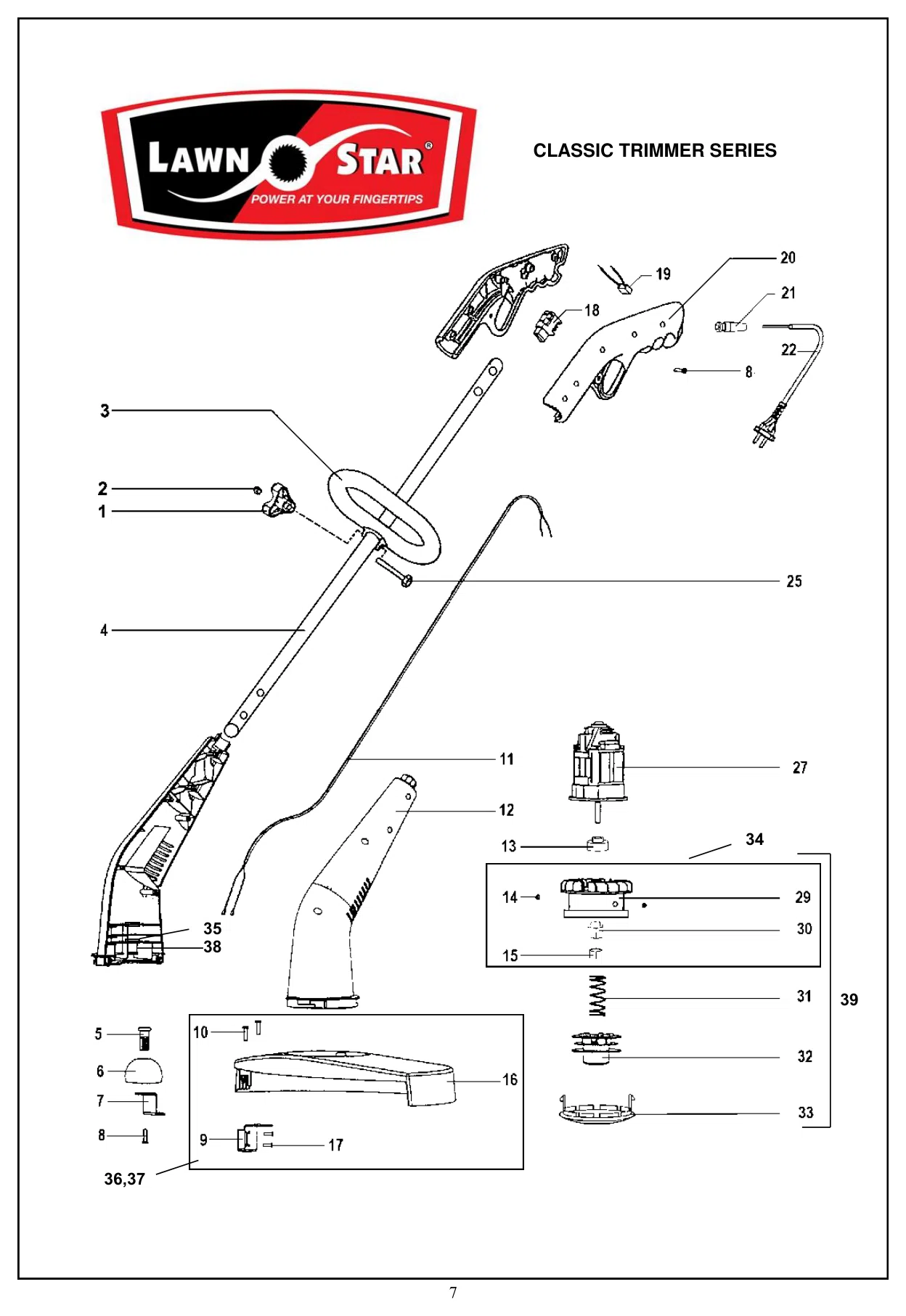

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Knob Universal | T-321-00 | T-321-00-Online | 1 |
| 2 | M6 Nyloc Nut | T-111-00 | T-111-00-Online | 1 |
| 3 | Assist Handle Classic | T-311-00 | T-311-00-Online | 1 |
| 4 | Tube Classic | T-210-20 | T-210-20-Online | 1 |
| 5 | Axle Edging Wheel | T-391-00 | T-391-00-Online | 1 |
| 6 | Edging Wheel | T-390-00 | T-390-00-Online | 1 |
| 7 | Wheel Bracket | T-250-00 | T-250-00-Online | 1 |
| 8 | Screw | T-150-00 | T-150-00-Online | 13 |
| 9 | Blade holder (9,10,16,17) | Refer to 34,35, Resolves to: TA-220-10, T-560-00 | TA-220-10-Online T-560-00-Online | 1 |
| 10 | Rivet (Bracket) , Black | T-120-00 | T-120-00-Online | 2 |
| 11 | Harness cw terminals | TA-540-00 | TA-540-00-Online | 1 |
| 12 | Housing set | T-340-10 | T-340-10-Online | 1 |
| 13 | Spacer motor / LS Spool housing | T-160-10 | T-160-10-Online | 1 |
| 14 | Eylet | T-201-00 | T-201-00-Online | 2 |
| 15 | Insert Spool | T-392-00 | T-392-00-Online | 1 |
| 16 | Guard | T-350-00 | T-350-00-Online | 1 |
| 17 | Rivet (Blade) | T-121-00 | T-121-00-Online | 2 |
| 18 | Switch | T-530-20 | T-530-20-Online | 1 |
| 19 | Suppressor | T-520-00 | T-520-00-Online | 1 |
| 20 | Trigger handle set Classic | T-301-00 | T-301-00-Online | 1 |
| 21 | Cord Protector | T-501-00 | T-501-00-Online | 1 |
| 22 | Pigtail | T-510-00 | T-510-00-Online | 1 |
| 25 | M6 x 50 mm Hex Head Bolt | T-110-10 | T-110-10-Online | 1 |
| 27 | Motor 525 W | T-650-00 | T-650-00-Online | 1 |
| 27 | Motor 700 W | T-665-50 | T-665-50-Online | 1 |
| 29 | Spool Housing | T-360-10 | T-360-10-Online | 1 |
| 30 | Special Nut M8 | T-100-10 | T-100-10-Online | 1 |
| 31 | Spring | T-240-00 | T-240-00-Online | 1 |
| 32 | Spool | T-370-10 | T-370-10-Online | 1 |
| 33 | Cap "Clip-on-cap" | T-380-10 | T-380-10-Online | 1 |
| 34 | Spool Housing assembly(14,15,29,30) | TA-220-10 | TA-220-10-Online | 1 |
| 35 | Housing Mounts | T-560-00 | T-560-00-Online | 8 |
| 36 | Guard assembly to suit LS 500, LS 600 | TA-350-12 | TA-350-12-Online | 1 |
| 37 | Guard assembly to suit LS 650, LS 700 | TA-350-13 | TA-350-13-Online | 1 |
| 38 | Adaptor motor housing (not used on LS1000) | T-344-00 | T-344-00-Online | 2 |
| 39 | Cutting head complete (LS 500-LS 700) | 80-37216 | 80-37216-Online | 1 |
| 39 | Cutting head complete (LS 900-LS 1000) | 80-37220 | 80-37220-Online | 1 |
