Lawn Star LS 600 F/O Handle Flip-Over Handle Trimmer Series IPL

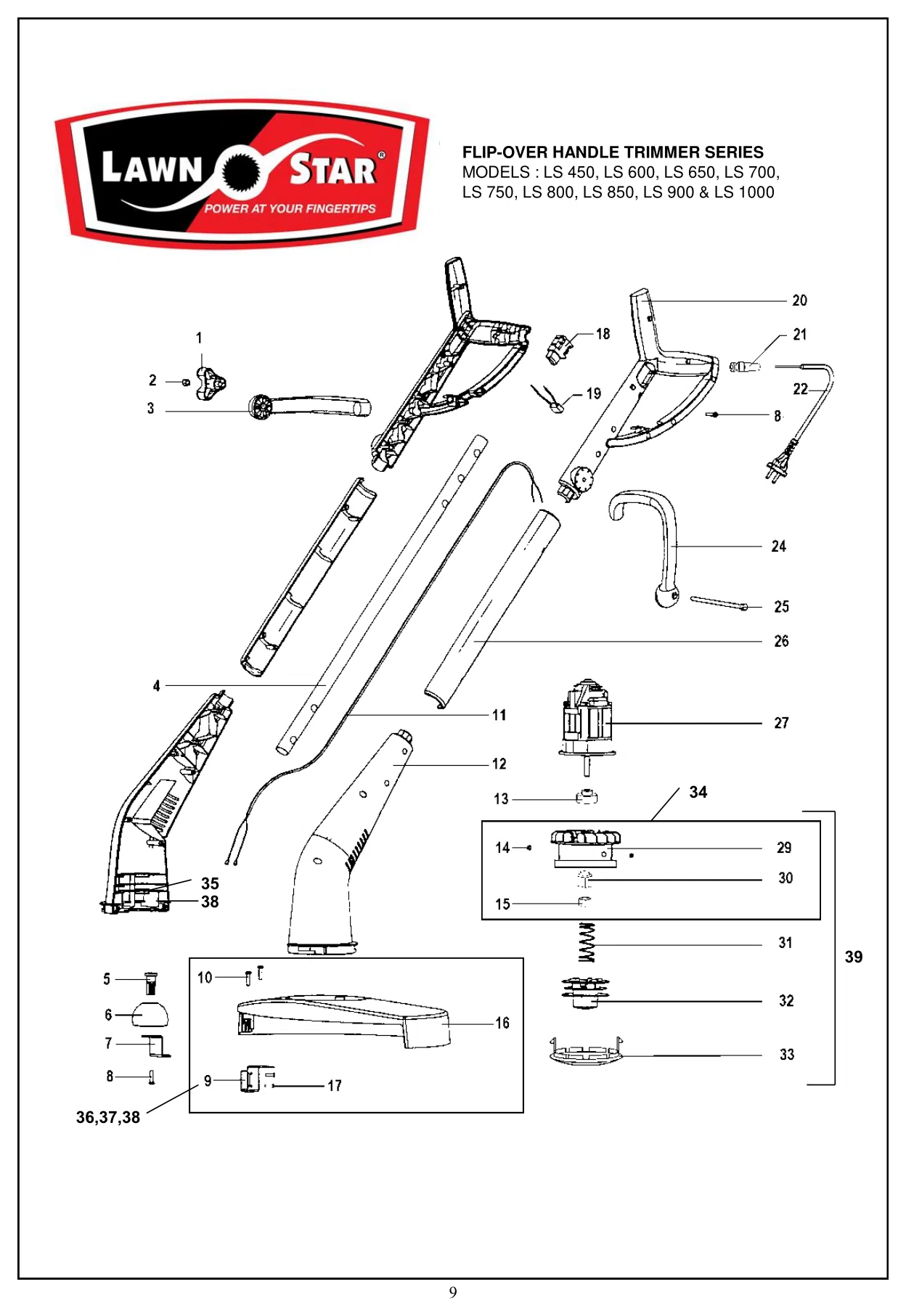

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Knob | T-320-00 | T-320-00-Online | 1 |
| 2 | M6 Nyloc Nut | T-111-00 | T-111-00-Online | 1 |
| 3,24 | Assist Handle | T-310-00 | T-310-00-Online | 1 |
| 4 | Tube | T-210-00 | T-210-00-Online | 1 |
| 5 | Axle Edging Wheel | T-391-00 | T-391-00-Online | 1 |
| 6 | Edging Wheel | T-390-00 | T-390-00-Online | 1 |
| 7 | Wheel Bracket | T-250-00 | T-250-00-Online | 1 |
| 8,23 | Screw | T-150-00 | T-150-00-Online | 21 |
| 9 | Blade holder (9,10,16,17) | Refer to 34,35,36 Resolves to: TA-220-10, T-560-00, TA-350-12 | TA-220-10-Online T-560-00-Online TA-350-12-Online | 1 |
| 10 | Rivet (Bracket) , Black | T-120-00 | T-120-00-Online | 2 |
| 11 | Harness cw terminals | TA-540-00 | TA-540-00-Online | 1 |
| 11 | Harness cw terminals( to suit LS 1000) | TA-540-75 | TA-540-75-Online | 1 |
| 12 | Housing set | T-340-10 | T-340-10-Online | 1 |
| 13 | Spacer motor / LS Spool housing | T-160-10 | T-160-10-Online | 1 |
| 14 | Eyelet | T-201-00 | T-201-00-Online | 2 |
| 15 | Insert Spool | T-392-00 | T-392-00-Online | 1 |
| 16 | Guard | T-350-00 | T-350-00-Online | 1 |
| 17 | Rivet (Blade) | T-121-00 | T-121-00-Online | 2 |
| 18 | Switch | T-530-20 | T-530-20-Online | 1 |
| 19 | Suppressor | T-520-00 | T-520-00-Online | 1 |
| 20 | Trigger handle set | T-300-00 | T-300-00-Online | 1 |
| 21 | Cord Protector | T-501-00 | T-501-00-Online | 1 |
| 22 | Pigtail | T-510-00 | T-510-00-Online | 1 |
| 25 | M6 Bolt | T-110-00 | T-110-00-Online | 1 |
| 26 | Tube Cover set | T-330-00 | T-330-00-Online | 1 |
| 27 | Motor 525 W | T-650-00 | T-650-00-Online | 1 |
| 27 | Motor 700 W | T-665-50 | T-665-50-Online | 1 |
| 27 | Motor 900 W | T-690-00 | T-690-00-Online | 1 |
| 27 | Motor 1000 W cw Overload protector | T-611-10 | T-611-10-Online | 1 |
| 29 | Spool Housing | T-360-10 | T-360-10-Online | 1 |
| 30 | Special Nut M8 | T-100-10 | T-100-10-Online | 1 |
| 31 | Spring | T-240-00 | T-240-00-Online | 1 |
| 32 | Spool | T-370-10 | T-370-10-Online | 1 |
| 33 | Cap "Clip-on-cap" | T-380-10 | T-380-10-Online | 1 |
| 34 | Spool Housing assembly(14,15,29,30) | TA-220-10 | TA-220-10-Online | 1 |
| 35 | Housing Mounts, Not shown | T-560-00 | T-560-00-Online | 1 |
| 36 | Guard assembly to suit LS 500, LS 600 | TA-350-12 | TA-350-12-Online | 1 |
| 37 | Guard assembly to suit LS 650, LS 700 | TA-350-13 | TA-350-13-Online | 1 |
| 38 | Guard assembly to suit LS 750, LS 800, LS 850, LS 900, LS 1000 | TA-350-14 | TA-350-14-Online | 1 |
| 38 | Adaptor motor housing (not used on LS1000) | T-344-00 | T-344-00-Online | 2 |
| 39 | Cutting head complete 1.6mm cutting line(LS 500-LS 700) | 80-37216 | 80-37216-Online | 1 |
| 39 | Cutting head complete 2.0mm cutting line(LS 900-LS 1000) | 80-37220 | 80-37220-Online | 1 |
