Lawn Star LSB 4321 Brush Cutter IPL

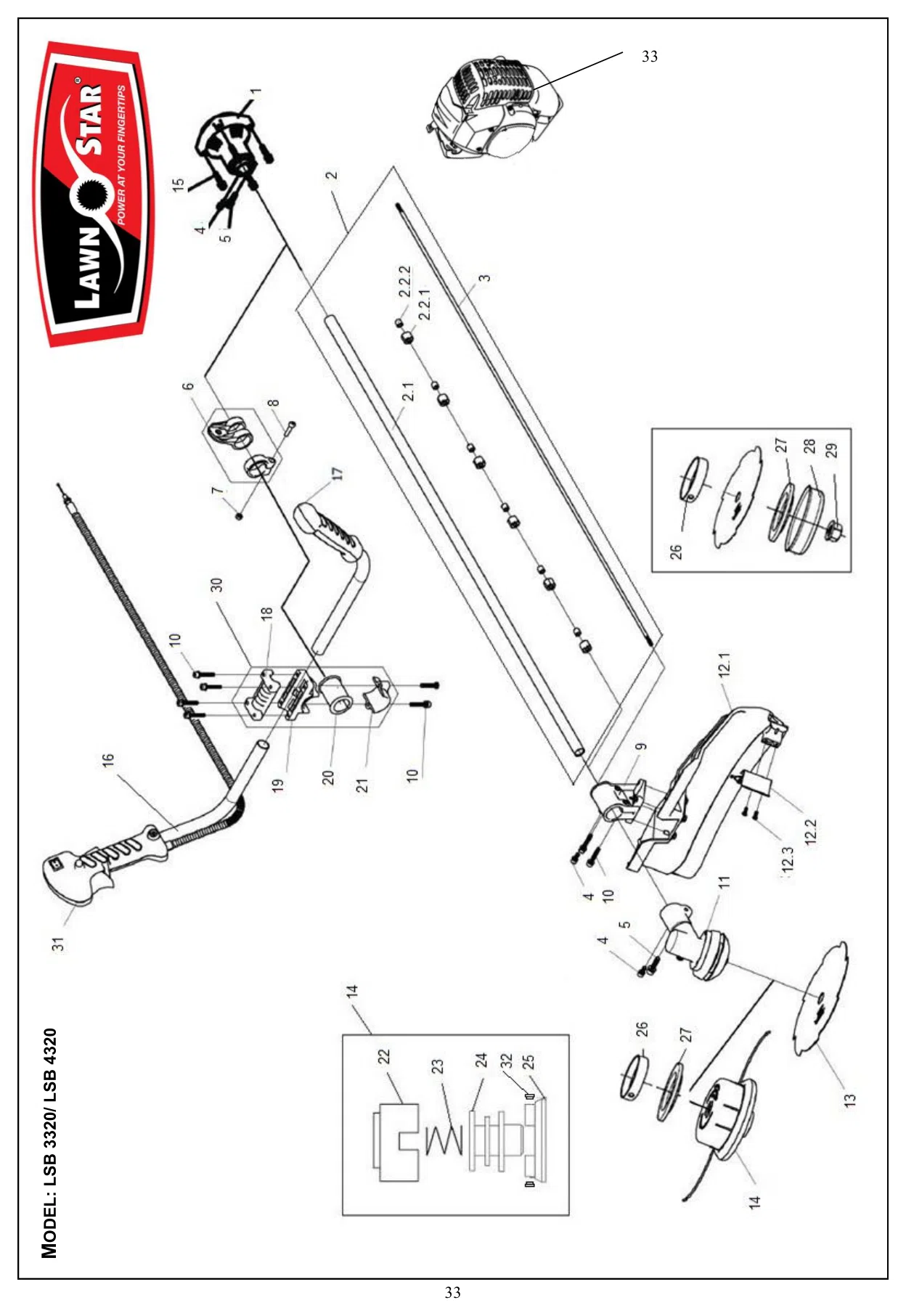

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Housing, bearing, clutch drum and tube attachment assembly(1;4;5) | P-331-01 | P-331-01-Online | 1 |
| 2 | Tube, bearing and drive shaft assembly (2.1, 2.2.1, 2.2.2, 3) | PA-331-02 | PA-331-02-Online | 1 |
| 3 | Drive shaft Dia 8 x1520mm | Refer to 2 Resolves to: PA-331-02 | PA-331-02-Online | 1 |
| 4 | Screw M5x12 | 3 | ||
| 5 | Screw M6x25 | 2 | ||
| 6 | Attachment shoulder harness assembly (7, 8) | P-331-06 | P-331-06-Online | 1 |
| 7 | Nyloc nut M5 | 1 | ||
| 8 | Screw M5x20 | 1 | ||
| 9 | Guard mount bracket (4; 9 & 10) | P-331-09 | P-331-09-Online | 1 |
| 10 | Screw M5x30 | 8 | ||
| 11 | Gear case assembly (4; 5; 26; 27; 28 & 29) | P-331-11 | P-331-11-Online | 1 |
| 12 | Guard assembly (12.1; 12.2 & 12.3) | PA-331-12 | PA-331-12-Online | 1 |
| 12.1 | Guard | Refer to 12 Resolves to: PA-331-12 | PA-331-12-Online | 1 |
| 12.2 | Blade, cutting line | Refer to 12 Resolves to: PA-331-12 | PA-331-12-Online | 1 |
| 12.3 | Screw 4.2x10 | 2 | ||
| 13 | Cutting blade disc | P-160-00 | P-160-00-Online | 1 |
| 14 | Cutting head complete LSB type 1 | PA-331-14 | PA-331-14-Online | 1 |
| 15 | Screw M6x30 | 4 | ||
| 16 | Bull horn handle right | P-331-16 | P-331-16-Online | 1 |
| 17 | Bull horn handle left | P-331-17 | P-331-17-Online | 1 |
| 18 | Handle bracket upper | Refer to 30 Resolves to: P-331-30 | P-331-30-Online | 1 |
| 19 | Handle bracket lower | Refer to 30 Resolves to: P-331-30 | P-331-30-Online | 1 |
| 20 | Anti-vibration rubber | Refer to 30 Resolves to: P-331-30 | P-331-30-Online | 1 |
| 21 | Tube clamp | Refer to 30 Resolves to: P-331-30 | P-331-30-Online | 1 |
| 22 | Spool housing, LSB type 1 | P-331-22 | P-331-22-Online | 1 |
| 23 | Spring, cutting head type 1 | P-331-23 | P-331-23-Online | 1 |
| 24 | Spool,LSB type 1 | P-331-24 | P-331-24-Online | 1 |
| 25 | Cap, spool LSB type 1 | P-331-25 | P-331-25-Online | 1 |
| 26 | Splined dust cover | P-331-26 | P-331-26-Online | 1 |
| 27 | Splined washer | P-110-40 | P-110-40-Online | 1 |
| 28 | Blade cover, blade disc | P-110-30 | P-110-30-Online | 1 |
| 29 | Nut, left hand | P-110-60 | P-110-60-Online | 1 |
| 30 | Handle bracket assembly(18,19,20,21) | P-331-30 | P-331-30-Online | 1 |
| 31 | Throttle control assembly | P-331-31 | P-331-31-Online | 1 |
| 32 | Eylet, Spool cap | P-331-32 | P-331-32-Online | 2 |
| 33 | Engine 33cc | Refer to page 28 | 1 | |
| 33 | Engine 43cc | Refer to page 28 | 1 |
