Lawn Star LSB 3321 Engine IPL

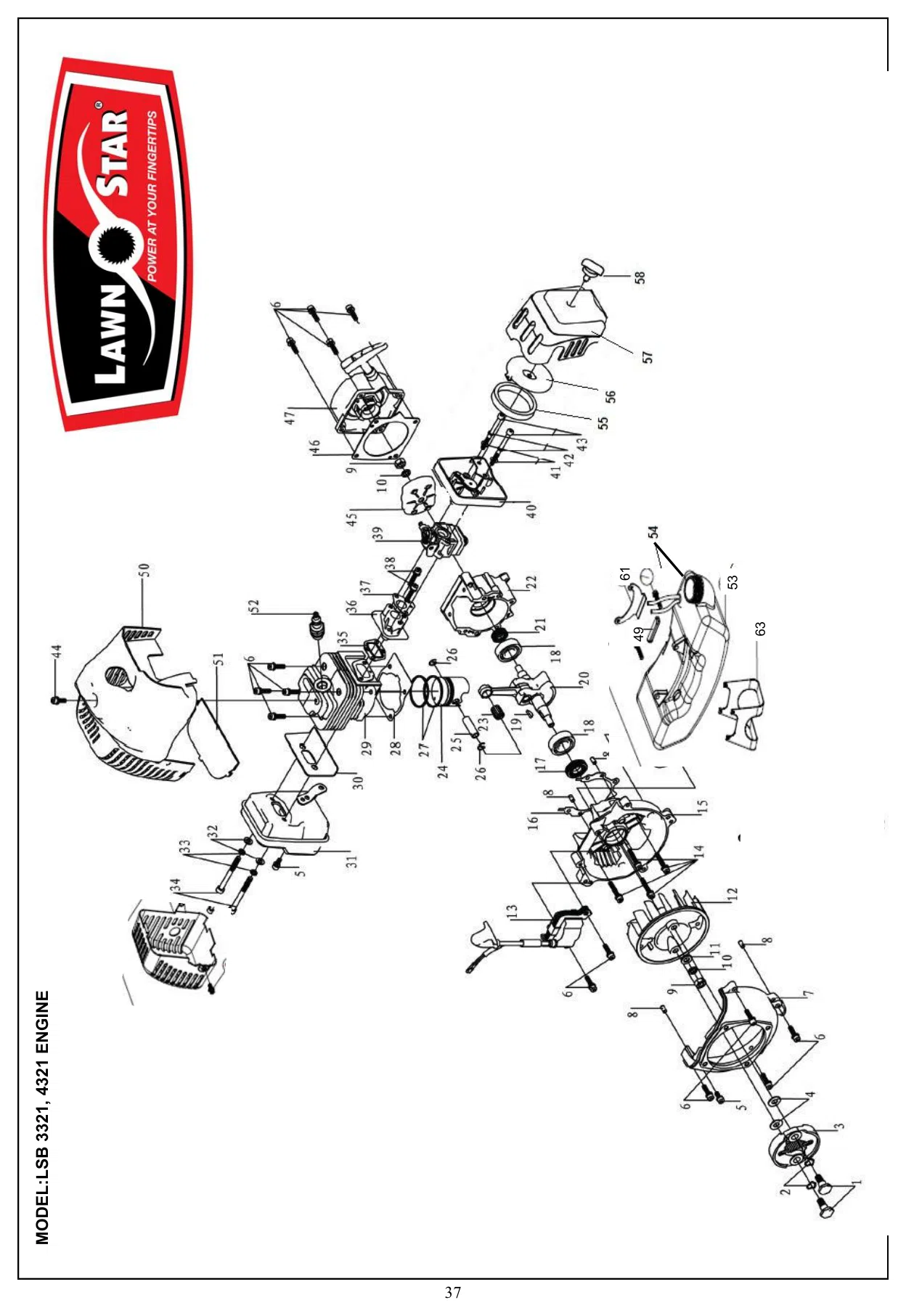

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | clutch stair screw CG-KW-430 E- B20 | P-431-27 | P-431-27-Online | 2 |
| 2 | Waveform washer CG-KW-430 E- B19 | P-431-26 | P-431-26-Online | 2 |
| 3 | clutch component CG-KW-430 E- B18 | P-431-25 | P-431-25-Online | 1 |
| 4 | clutch flat washer CG-KW-430 E- B17 | P-431-24 | P-431-24-Online | 2 |
| 5 | screw CG-KW-430 E- E3 | P-431-57 | P-431-57-Online | 2 |
| 6 | screw CG-KW-430 E- B10 | P-431-17 | P-431-17-Online | 2 |
| 6 | screw CG-KW-430 E- B22 | P-431-29 | P-431-29-Online | 4 |
| 6 | screw CG-KW-430 E-D4 | P-431-47 | P-431-47-Online | 4 |
| 7 | side cover CG-KW-430 E- B21 | P-431-28 | P-431-28-Online | 1 |
| 8 | locator pin CG-KW-430 E- B4 | P-431-11 | P-431-11-Online | 4 |
| 10 | screw CG-KW-430 E- B9 | P-431-16 | P-431-16-Online | 1 |
| 10 | gasketCG-KW-430 E- C6 | P-431-35 | P-431-35-Online | 1 |
| 12 | fly wheel CG-KW-430 E- B8 | P-431-15 | P-431-15-Online | 1 |
| 13 | ignitor CG-KW-430 E- B13 | P-431-20 | P-431-20-Online | 1 |
| 14 | screw CG-KW-430 E- B5 | P-431-12 | P-431-12-Online | 4 |
| 15 | left crankcase CG-KW-430 E- B1 | Ref to 65 Resolves to: PA-431-08 | PA-431-08-Online | 1 |
| 16 | gasketCG-KW-430 E- C4 | Ref to 65/67 Resolves to: PA-431-08, PA-431-50 | PA-431-08-Online PA-431-50-Online | 1 |
| 18 | bearing CG-KW-430 E- B2 | Ref to 65 Resolves to: PA-431-08 | PA-431-08-Online | 1 |
| 19 | key CG-KW-430 E- A2 | Ref to 66 Resolves to: PA-431-04 | PA-431-04-Online | 2 |
| 20 | crankshaft CG-KW-430 E- A1 | Ref to 65 Resolves to: PA-431-08 | PA-431-08-Online | 1 |
| 21 | right crankcase oil sealCG-KW-430 E- C5 | Ref to 65 Resolves to: PA-431-08 | PA-431-08-Online | 1 |
| 22 | left crankcase oil seal CG-KW-430 E- B3 | Ref to 65 Resolves to: PA-431-08 | PA-431-08-Online | 1 |
| 22 | right crankcaseCG-KW-430 E- C1 | Ref to 65 Resolves to: PA-431-08 | PA-431-08-Online | 1 |
| 24 | piston CG-KW-430 E- A4 | Ref to 66 Resolves to: PA-431-04 | PA-431-04-Online | 1 |
| 25 | Gudgeon pin CG-KW-430 E- A7 | Ref to 66 Resolves to: PA-431-04 | PA-431-04-Online | 1 |
| 26 | snap ring CG-KW-430 E- A5 | Ref to 66 Resolves to: PA-431-04 | PA-431-04-Online | 2 |
| 27 | piston ring CG-KW-430 E- A3 | Ref to 66 Resolves to: PA-431-04 | PA-431-04-Online | 1 |
| 28 | cylinder gasket CG-KW-430 E-D1 | P-431-44 | P-431-44-Online | 1 |
| 29 | cylinder CG-KW-430 E-D2 | P-431-45 | P-431-45-Online | 1 |
| 30 | muffler gasket CG-KW-430 E- E1 | Ref to 67 Resolves to: PA-431-50 | PA-431-50-Online | 1 |
| 31 | muffler CG-KW-430 E- E2 | P-431-56 | P-431-56-Online | 1 |
| 33 | spring washer CG-KW-430 E- E4 | P-431-58 | P-431-58-Online | 2 |
| 34 | screw CG-KW-430 E- E5 | P-431-59 | P-431-59-Online | 1 |
| 35 | inlet pipe gasket CG-KW-430 E- F1 | Ref to 67 Resolves to: PA-431-50 | PA-431-50-Online | 1 |
| 36 | out pipe gasket CG-KW-430 E- F2 | Ref to 67 Resolves to: PA-431-50 | PA-431-50-Online | 1 |
| 37 | caburetor gasket CG-KW-430 E- F4 | P-431-65 | P-431-65-Online | 1 |
| 38 | bolt CG-KW-430 E- F3 | P-431-64 | P-431-64-Online | 2 |
| 39 | caburetor component CG-KW-430 E- F5 | P-431-66 | P-431-66-Online | 1 |
| 40 | air filter component to suit lawnstar engine | P-431-67 | P-431-67-Online | 1 |
| 43 | screw CG-KW-430 E- F7 | P-431-68 | P-431-68-Online | 2 |
| 44 | bolt CG-KW-430 E-D9 | P-431-52 | P-431-52-Online | 1 |
| 45 | Starter Pawl To Suit lawnstar engine | P-431-36 | P-431-36-Online | 1 |
| 46 | Aluminium gasketCG-KW-430 E- C8 | Ref to 67 Resolves to: PA-431-50 | PA-431-50-Online | 1 |
| 47 | Starter Assembly CG-KW-430 E | PA-431-13 | PA-431-13-Online | 1 |
| 49 | oil can clamp setCG-KW-430 E- G5 | P-431-77 | P-431-77-Online | 1 |
| 50 | cylinder cover CG-KW-430 E-D8 | P-431-51 | P-431-51-Online | 1 |
| 51 | cylinder top cover CG-KW-430 E-D11 | P-431-54 | P-431-54-Online | 1 |
| 52 | spark plug CG-KW-430 E-D3 | P-260-55 | P-260-55-Online | 1 |
| 53 | bolt CG-KW-430 E-D10 | P-431-53 | P-431-53-Online | 1 |
| 53 | fuel tankCG-KW-430 E- G4 | P-431-76 | P-431-76-Online | 1 |
| 54 | Cap Fuel tank CG-KW-430 E- G1 | P-431-73 | P-431-73-Online | 1 |
| 55 | air element CG-KW-430 E- F9 | P-2022820 | P-2022820-Online | 1 |
| 56 | filter holder CG-KW-430 E- F10 | P-431-71 | P-431-71-Online | 1 |
| 57 | air filter cover CG-KW-430 E- F11 | P-431-72 | P-431-72-Online | 1 |
| 58 | muffler cover CG-KW-430 E- E6 | P-431-60 | P-431-60-Online | 1 |
| 59 | screw CG-KW-430 E- E7 | P-431-61 | P-431-61-Online | 1 |
| 60 | air filter pressure CG-KW-430 E- F8 | P-431-69 | P-431-69-Online | 1 |
| 61 | oil can clamp CG-KW-430 E- G6 | P-431-78 | P-431-78-Online | 1 |
| 62 | boltCG-KW-430 E- G7 | P-431-79 | P-431-79-Online | 2 |
| 63 | can supportCG-KW-430 E- G8 | P-431-80 | P-431-80-Online | 1 |
| 65 | Crank case assembly complete CG-KW-430 E- B1, | PA-431-08 | PA-431-08-Online | 1 |
| 66 | Piston kit assembly, | PA-431-04 | PA-431-04-Online | 1 |
| 67 | Gasket Kit set assembly | PA-431-50 | PA-431-50-Online | 1 |
