Lawn Star LSM 1200 EL Electric Mower IPL

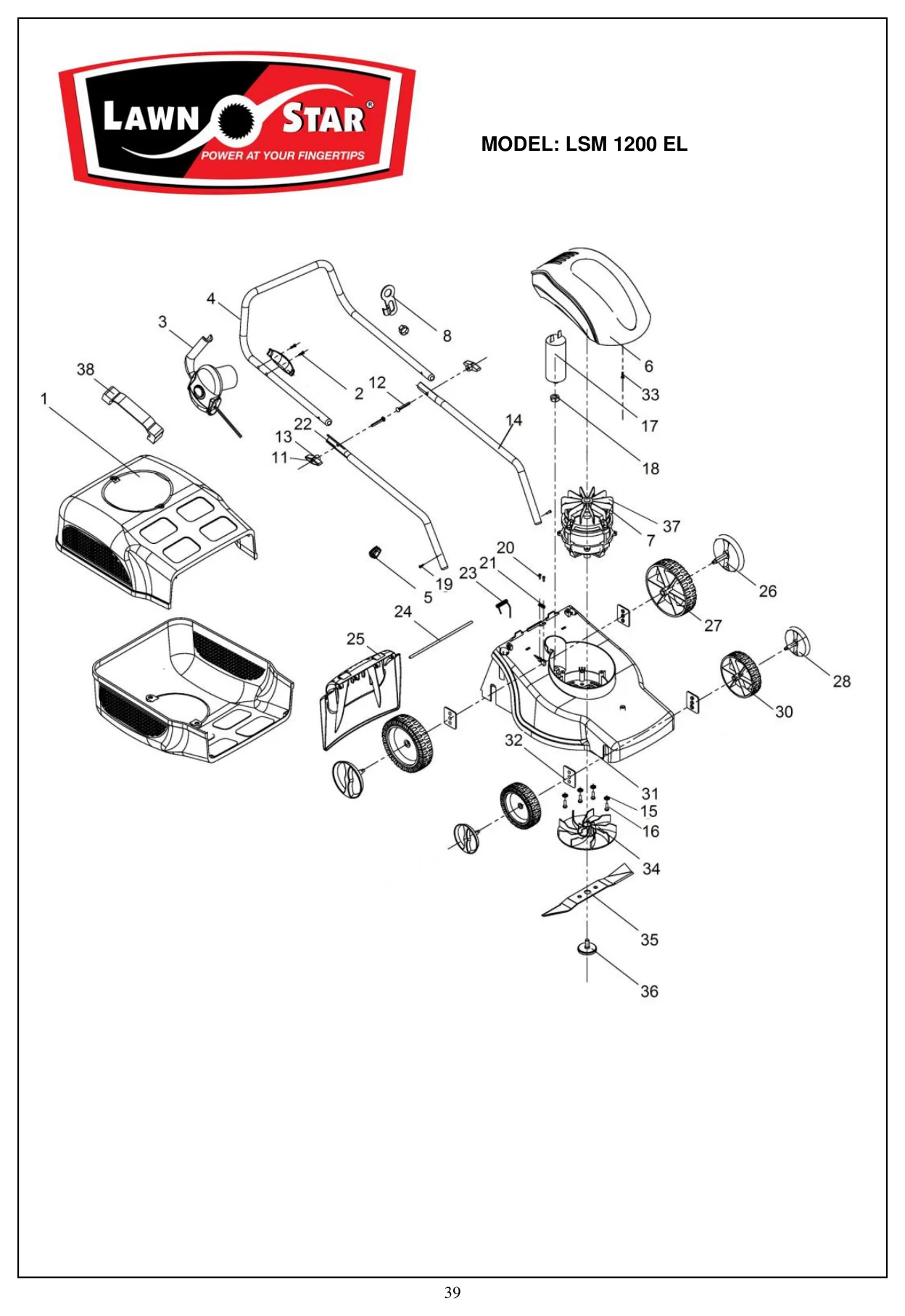

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Grass Catcher assembly (incl. handle) | M-002-01 | M-002-01-Online | 1 |
| 2 | Screw, Self-Tapper, 4.2 x 16mm | M-002-02 | M-002-02-Online | 2 |
| 3 | Switch | M-002-03 | M-002-03-Online | 1 |
| 4 | Handle, upper | M-002-04 | M-002-04-Online | 1 |
| 5 | Clamp | M-002-05 | M-002-05-Online | 1 |
| 6 | Lid, motor housing | M-002-06 | M-002-06-Online | 1 |
| 7 | Motor | M-002-07 | M-002-07-Online | 1 |
| 8 | Cord restraint | M-309-00 | M-309-00-Online | 1 |
| 11 | M6 Nyloc Nut | T-111-00 | T-111-00-Online | 2 |
| 12 | M6 x 50 mm Hex Bolt | T-110-10 | T-110-10-Online | 2 |
| 13 | Knob Universal RAL 3001 | T-321-00 | T-321-00-Online | 2 |
| 14 | Lower Handle, left | M-002-14 | M-002-14-Online | 1 |
| 15 | Washer, M8 | M-002-15 | M-002-15-Online | 4 |
| 16 | Bolt, M8x20 hex head | M-002-16 | M-002-16-Online | 4 |
| 17 | Capacitor, 14μF | M-002-17 | M-002-17-Online | 1 |
| 18 | Nut, M8 | M-002-18 | M-002-18-Online | 1 |
| 19 | Screw, Self-Tapper, 3.5 x 13.mm | M-002-19 | M-002-19-Online | 2 |
| 20 | Screw, Self-Tapper, 3.5 x 13.mm | M-002-20 | M-002-20-Online | 2 |
| 21 | Cable clamp | M-002-21 | M-002-21-Online | 1 |
| 22 | Lower Handle, right | M-002-22 | M-002-22-Online | 1 |
| 23 | Spring, flap | M-002-23 | M-002-23-Online | 1 |
| 24 | Rod, flap | M-002-24 | M-002-24-Online | 1 |
| 25 | Flap | M-002-25 | M-002-25-Online | 1 |
| 26 | Rear hub-cap including axle | M-002-26 | M-002-26-Online | 2 |
| 27 | Wheel, rear | M-002-27 | M-002-27-Online | 2 |
| 28 | Front hub-cap including axle | M-002-28 | M-002-28-Online | 2 |
| 30 | Wheel, front | M-002-30 | M-002-30-Online | 2 |
| 31 | Chassis | M-002-31 | M-002-31-Online | 1 |
| 32 | Wheel bracket | M-002-29 | M-002-29-Online | 4 |
| 33 | Screw, Self-Tapper, 3.9 x 13.5mm | M-002-33 | M-002-33-Online | 1 |
| 34 | Fan | M-002-34 | M-002-34-Online | 1 |
| 35 | Blade (M-002-35) | 80-02532 | 80-02532-Online | 1 |
| 36 | Bolt, blade | M-002-36 | M-002-36-Online | 1 |
| 37 | Fan, motor | M-002-37 | M-002-37-Online | 1 |
| 38 | Handle, grass catcher | Refer to 1 Resolves to: M-002-01 | M-002-01-Online | 1 |
