Lawn Star LSQ 2248 E Electric Mower IPL

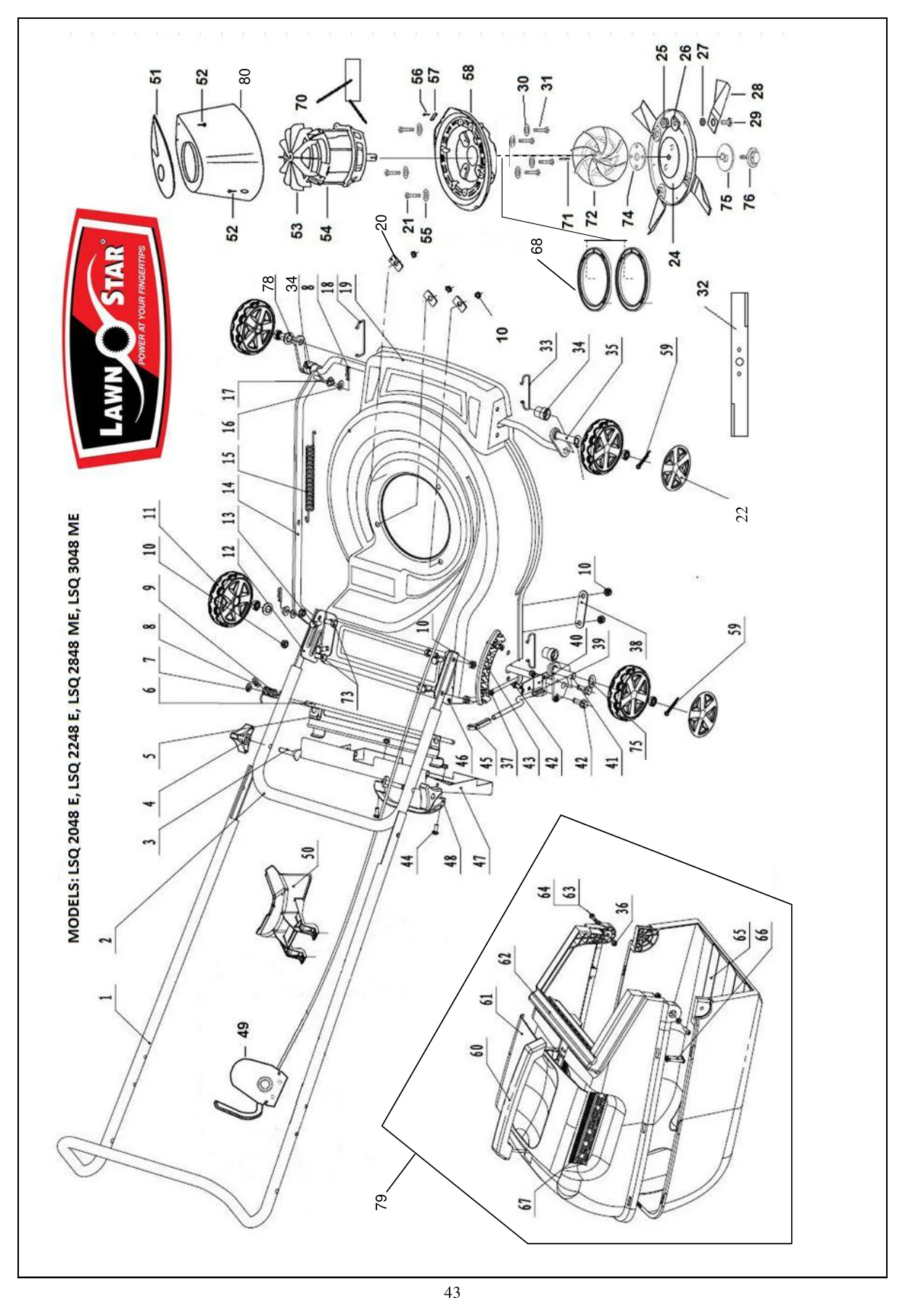

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Upper handle with insulation to suit electric mowers | M-212-48 | M-212-48-Online | 1 |
| 44 | Bolt M6x16 | T-110-20 | T-110-20-Online | 2 |
| 2 | Handle, lower | M-211-48 | M-211-48-Online | 1 |
| 45 | Knob, height adjuster | Refer to 39 Resolves to: M-220-47 | M-220-47-Online | 1 |
| 3 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 46 | Bracket, right - lower handle | M-222-48 | M-222-48-Online | 1 |
| 4 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 47 | Flap, steel | M-208-48 | M-208-48-Online | 1 |
| 5 | Hook, grass catcher | M-205-48 | M-205-48-Online | 1 |
| 48 | Handle, steel flap | M-315-48 | M-315-48-Online | 1 |
| 6 | Rod, flap | M-116-48 | M-116-48-Online | 1 |
| 49 | Switch assembly 16A | MA-501-16 | MA-501-16-Online | 1 |
| 7 | Washer, M8 | M-125-00 | M-125-00-Online | 3 |
| 50 | Mulch plug,(Only for LSQ 2848 ME and LSQ 3048 ME) | M-350-48 | M-350-48-Online | 1 |
| 8 | Split-pin | M-115-53 | M-115-53-Online | 3 |
| 51 | Lid, Lawnmower | M-301-00 | M-301-00-Online | 1 |
| 9 | Spring, flap | M-210-48 | M-210-48-Online | 1 |
| 52 | Screw, HiLo Pan Pozi#2, 4.8x22 | T-150-00 | T-150-00-Online | 2 |
| 10 | Nut M8, nyloc | M-113-00 | M-113-00-Online | 11 |
| 53 | Fan for motor M-618-20 | M-618-21 | M-618-21-Online | 1 |
| 11 | Wheel 7" with dual ball bearings and hub- cap (11,22,78) | M-360-70 | M-360-70-Online | 4 |
| 53 | Fan for motor M-626-10&M-620-10 | M-626-11 | M-626-11-Online | 1 |
| 12 | Bracket, left - lower handle | M-223-48 | M-223-48-Online | 1 |
| 54 | Motor to suit LSQ 2048 E | M-618-20 | M-618-20-Online | 1 |
| 13 | Bolt Hex Flange M8X20 | M-119-53 | M-119-53-Online | 8 |
| 54 | Motor to suit LSQ 2248 E and LSQ 2448 ME | M-620-10 | M-620-10-Online | 1 |
| 14 | Height adjuster bar | M-206-48 | M-206-48-Online | 1 |
| 54 | Motor to suit LSQ 2848 ME AND LSQ 3048ME | M-626-10 | M-626-10-Online | 1 |
| 15 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 55 | Washer 25x8x1.5 Base | M-124-00 | M-124-00-Online | 3 |
| 16 | Nylon washer | M-329-00 | M-329-00-Online | 2 |
| 56 | Screw self-tapper pan pozi #2 3.5X16 | T-151-00 | T-151-00-Online | 2 |
| 17 | Nylon bush | M-329-10 | M-329-10-Online | 2 |
| 57 | Cable Clamp, cowling | M-303-00 | M-303-00-Online | 1 |
| 18 | Clip, LSQ 48 axle left | M-201-47 | M-201-47-Online | 2 |
| 58 | Base, lawnmower | M-302-00 | M-302-00-Online | 1 |
| 19 | Mower deck 48 cm 1.5mm thick - colour red RAL 3001 | M-200-15 | M-200-15-Online | 1 |
| 59 | Split pin, LSQ wheel axle | M-110-47 | M-110-47-Online | 4 |
| 20 | Washer | M-112-53 | M-112-53-Online | 3 |
| 60 | Handle, grass catcher | M-306-48 | M-306-48-Online | 1 |
| 21 | Bolt M8x65 | M-129-00 | M-129-00-Online | 3 |
| 61 | Cover, grass catcher | M-307-48 | M-307-48-Online | 1 |
| 22 | Hub cap , LSQ 48 -7", Silver RAL 9022 | M-321-70 | M-321-70-Online | 4 |
| 62 | Grass catcher, upper | M-307-47 | M-307-47-Online | 1 |
| 24 | Disc | M-252-00 | M-252-00-Online | 1 |
| 63 | Screw M6 x 20 | M-116-20 | M-116-20-Online | 2 |
| 25 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 64 | Washer, M6 | T-131-00 | T-131-00-Online | 2 |
| 26 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 4 |
| 65 | Grass catcher, lower | M-307-46 | M-307-46-Online | 1 |
| 27 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 4 |
| 66 | Screw ST4.8x45 | M-131-45 | M-131-45-Online | 4 |
| 28 | Swing blade(M-254-00) | 80-02544 | 80-02544-Online | 4 |
| 67 | Filter, grass | M-307-45 | M-307-45-Online | 1 |
| 29 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 68 | Spacer ring, 8.5mm | M-315-00 | M-315-00-Online | 2 |
| 30 | Washer 17x8x1.0 | M-125-00 | M-125-00-Online | 4 |
| 70 | Capacitor 30uF to suit LSQ 2048 E | M-618-30 | M-618-30-Online | 1 |
| 31 | M8 x 16 Motor Bolts | M-123-16 | M-123-16-Online | 4 |
| 70 | Capacitor 20uF to suit LSQ 2248 E and LSQ 2448 E | M-621-20 | M-621-20-Online | 1 |
| 32 | Mulch blade, 46cm (Only for LSQ 2848 ME and LSQ 3048 ME)(M-255-10) | 80-02551 | 80-02551-Online | 1 |
| 70 | Capacitor 40uF to suit LSQ 2848 ME and LSQ 3048 ME | M-621-40 | M-621-40-Online | 1 |
| 33 | Clip, LSQ 48 axle right | M-202-47 | M-202-47-Online | 2 |
| 71 | Key, electric motor | M-130-00 | M-130-00-Online | 1 |
| 34 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 72 | Coupling / Fan 17mm, Black, Electric Motor | M-310-17 | M-310-17-Online | 1 |
| 35 | Axle assembly, front | M-203-47 | M-203-47-Online | 1 |
| 73 | Bolt, M8 lower handle | M-119-00 | M-119-00-Online | 4 |
| 36 | Nut M6, nyloc | T-111-00 | T-111-00-Online | 9 |
| 74 | Friction Washer, coupling fan | M-311-00 | M-311-00-Online | 4 |
| 37 | Pan head screw M6X16 | T-110-20 | T-110-20-Online | 2 |
| 75 | Friction Washer Bolt | M-312-00 | M-312-00-Online | 1 |
| 38 | Support plate, handle bracket | M-226-00 | M-226-00-Online | 2 |
| 76 | Insulated blade bolt | MA-313-00 | MA-313-00-Online | 1 |
| 39 | Height adjuster lever assembly (39, 40, 45) | M-220-47 | M-220-47-Online | 1 |
| 78 | Bearing wheel | M-150-00 | M-150-00-Online | 8 |
| 40 | Spring, height adjuster lever | Refer to 39 Resolves to: M-220-47 | M-220-47-Online | 1 |
| 79 | Grass box complete | MA-307-47 | MA-307-47-Online | 1 |
| 41 | Axle assembly rear | M-204-47 | M-204-47-Online | 1 |
| 80 | Cowling motor | M-300-00 | M-300-00-Online | 1 |
| 42 | Bolt M6x16 | T-110-20 | T-110-20-Online | 3 |
| 43 | Bracket, height adjuster | M-221-47 | M-221-47-Online | 1 |
