Lawn Star LSBV 3201 Vac/Blower/Mulcher IPL

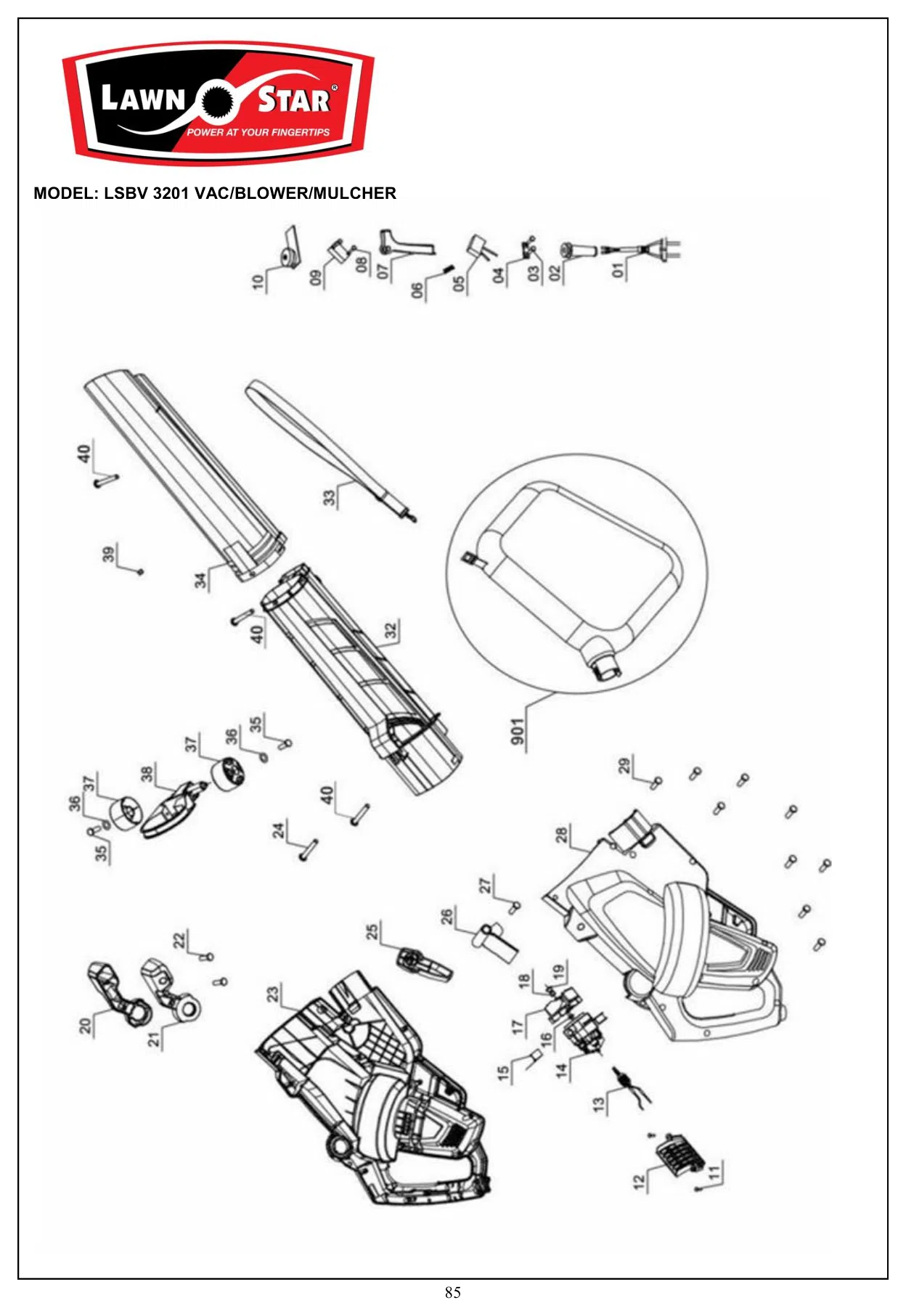

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Power cord with plug ZA | |||
| 2 | Cord sheath | |||
| 3 | Screw | |||
| 4 | Cord clamp plate | |||
| 5 | Capacitor | |||
| 6 | Reset spring | |||
| 7 | Switch trigger | |||
| 8 | Screw | |||
| 9 | Micro switch | |||
| 10 | Speed controller | |||
| 12 | Wind guide plate | |||
| 13 | Inductor | |||
| 15 | Shock pad | |||
| 16 | Shaft sheath | |||
| 17 | Fan | |||
| 18 | Nut | |||
| 19 | Rubber cap | |||
| 20 | Left handle | |||
| 21 | Right handle | |||
| 22 | Screw | |||
| 23 | Left housing Lawn Star | |||
| 24 | Screw M4x38 | |||
| 25 | Transfer lever | |||
| 26 | Wind defend plate | |||
| 27 | Screw | |||
| 28 | Right housing | |||
| 29 | Screw | |||
| 32 | Up tube | |||
| 33 | Shoulder strap | |||
| 34 | Down tube | |||
| 35 | Screw | |||
| 36 | Washer | |||
| 37 | Whee! | 343330001037 | 343330001037-Online | |
| 38 | Whee! base | |||
| 39 | Nut | |||
| 40 | screw M4x38 | |||
| 99 | color box | |||
| 800 | carbon brush pair | |||
| 901 | Collection bag with socket La | 343337201901 | 343337201901-Online | |
| 30 | Socket | 343330001030 | 343330001030-Online | |
| 31 | Collection bag Lawn Star | 343337201031 | 343337201031-Online |
