Lawn Star LSBH 2600 P Petrol Blower IPL

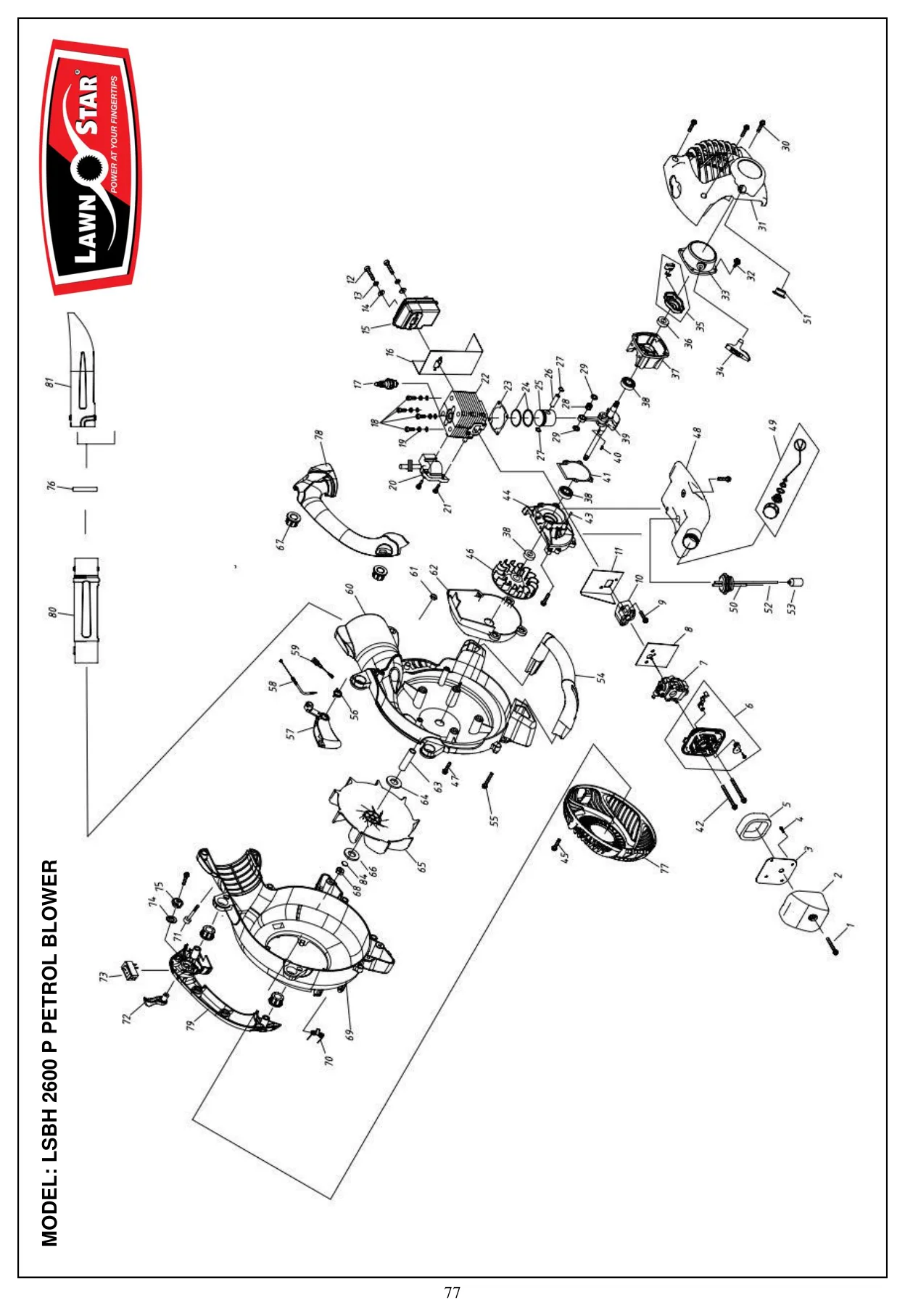

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Screw M4×30 | 1 | ||
| 2 | Air Filter Cover | Refer to 83 Resolves to: VA-260-83 | VA-260-83-Online | 1 |
| 3 | Plate-filter Cover | Refer to 83 Resolves to: VA-260-83 | VA-260-83-Online | 1 |
| 4 | Screw ST3.3×10 | Refer to 83 Resolves to: VA-260-83 | VA-260-83-Online | 1 |
| 5 | Air Filter | P-2022820 | P-2022820-Online | 1 |
| 6 | Air Filter Base | V-260-06 | V-260-06-Online | 1 |
| 7 | Carburetor | P-2020700 | P-2020700-Online | 1 |
| 8 | Gasket carburettor | Refer to 82 Resolves to: VA-260-82 | VA-260-82-Online | 1 |
| 9 | Screw M5×20 | 2 | ||
| 10 | Inlet Manifold | P-2023010 | P-2023010-Online | 1 |
| 11 | Gasket | Refer to 82 Resolves to: VA-260-82 | VA-260-82-Online | 1 |
| 12 | Screw M5×50 | 2 | ||
| 13 | Spring Washer 5 | 2 | ||
| 14 | Flat Washer 5 | 2 | ||
| 15 | Exhaust | V-260-15 | V-260-15-Online | 1 |
| 16 | Gasket-Exhaust | Refer to 82 Resolves to: VA-260-82 | VA-260-82-Online | 1 |
| 17 | Spark Plug | P-260-55 | P-260-55-Online | 1 |
| 18 | Screw M5×20 | 4 | ||
| 19 | Spring Washer 5 | 4 | ||
| 20 | Ignation Moudule | V-260-20 | V-260-20-Online | 1 |
| 21 | Screw M4×20 | 2 | ||
| 22 | Cylinder | V-260-22 | V-260-22-Online | 1 |
| 23 | Gasket, Cylinder head | Refer to 82 Resolves to: VA-260-82 | VA-260-82-Online | 1 |
| 24 | Piston ring | V-260-24 | V-260-24-Online | 2 |
| 25 | Piston | P-260-25 | P-260-25-Online | 1 |
| 26 | Gudgeon pin | P-260-40 | P-260-40-Online | 1 |
| 27 | Circlip, gudgeon pin | V-260-30 | V-260-30-Online | 2 |
| 28 | Needle Bearing | P-260-35 | P-260-35-Online | 1 |
| 29 | Clip, needle bearing | V-260-29 | V-260-29-Online | 2 |
| 30 | Screw ST4.8×14 | 3 | ||
| 31 | Cover, engine | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 32 | Screw M4×16 | 4 | ||
| 33 | Starter | Refer to 85 Resolves to: VA-260-85 | VA-260-85-Online | 1 |
| 34 | Starter Handle | Refer to 85 Resolves to: VA-260-85 | VA-260-85-Online | 1 |
| 35 | Starter Pulley | Refer to 85 Resolves to: VA-260-85 | VA-260-85-Online | 1 |
| 36 | Oil Seal | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 1 |
| 37 | Crankcase right side | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 1 |
| 38 | Bearing big end | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 2 |
| 39 | Crank Shaft assy | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 1 |
| 40 | Key | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 1 |
| 41 | Gasket | Refer to 82 Resolves to: VA-260-82 | VA-260-82-Online | 1 |
| 42 | Screw M5×50 | 4 | ||
| 43 | Pin 3×10 | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 2 |
| 44 | Crankcase left side | Refer to 87 Resolves to: VA-260-87 | VA-260-87-Online | 1 |
| 45 | Screw ST4.8×25 | 1 | ||
| 46 | Fly Wheel | V-260-46 | V-260-46-Online | 1 |
| 47 | Screw M5×16 | 4 | ||
| 48 | Fuel Tank | V-260-48 | V-260-48-Online | 1 |
| 49 | Fuel Cap | V-260-49 | V-260-49-Online | 1 |
| 50 | Fuel Line | Refer to 52 Resolves to: P-2026100 | P-2026100-Online | 1 |
| 51 | Eyelet | V-260-51 | V-260-51-Online | 1 |
| 52 | Fuel Line | P-2026100 | P-2026100-Online | 1 |
| 53 | Filter | P-2022790 | P-2022790-Online | 1 |
| 54 | Handle-right | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 55 | Screw ST4.8×25 | 2 | ||
| 56 | Spring-Triger | Refer to 86 Resolves to: VA-260-86 | VA-260-86-Online | 1 |
| 57 | Triger | Refer to 86 Resolves to: VA-260-86 | VA-260-86-Online | 1 |
| 58 | Throttle cable | Refer to 86 Resolves to: VA-260-86 | VA-260-86-Online | 1 |
| 59 | Stop Wire | Refer to 86 Resolves to: VA-260-86 | VA-260-86-Online | 1 |
| 60 | Case, blower inner | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 61 | Nut M6 | 1 | ||
| 62 | Cover-fly Wheel | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 63 | Supporting Tube | V-260-63 | V-260-63-Online | 1 |
| 64 | Washer | V-260-64 | V-260-64-Online | 1 |
| 65 | Impeller | V-260-65 | V-260-65-Online | 1 |
| 66 | Washer 8 | 1 | ||
| 67 | Rubber | V-260-67 | V-260-67-Online | 1 |
| 68 | Nut M8 | 1 | ||
| 69 | Case, blower outer | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 70 | Spring | V-260-70 | V-260-70-Online | 1 |
| 71 | Screw M6×30 | 1 | ||
| 72 | Lockout Handle | Refer to 86 Resolves to: VA-260-86 | VA-260-86-Online | 1 |
| 73 | Switch | V-260-73 | V-260-73-Online | 1 |
| 74 | Washer | V-260-74 | V-260-74-Online | 1 |
| 75 | Lockout | V-260-75 | V-260-75-Online | 1 |
| 76 | Tbe lower | V-260-76 | V-260-76-Online | 1 |
| 77 | Guard, impeller | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 78 | Handle right | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 79 | Handle left | Refer to 84 Resolves to: VA-260-84 | VA-260-84-Online | 1 |
| 80 | Tube upper | V-260-80 | V-260-80-Online | 1 |
| 81 | Spring Washer 8 | 1 | ||
| 82 | Gasket Kit(8,11,41,23,16) | VA-260-82 | VA-260-82-Online | 1 |
| 83 | Air filter cover assembly(2,3,4) | VA-260-83 | VA-260-83-Online | 1 |
| 84 | Housing assembly (31,54,60,62,69,77,78,79) | VA-260-84 | VA-260-84-Online | 1 |
| 85 | Starter assembly(33,34,35) | VA-260-85 | VA-260-85-Online | 1 |
| 86 | Trigger assembly(56,57,58,59,72) | VA-260-86 | VA-260-86-Online | 1 |
| 87 | Crank case assembly complete (36,37,38,39,40,41,43,44) | VA-260-87 | VA-260-87-Online | 1 |
