Lawn Star LSBB 8000 P Engine Petrol Blower Engine IPL

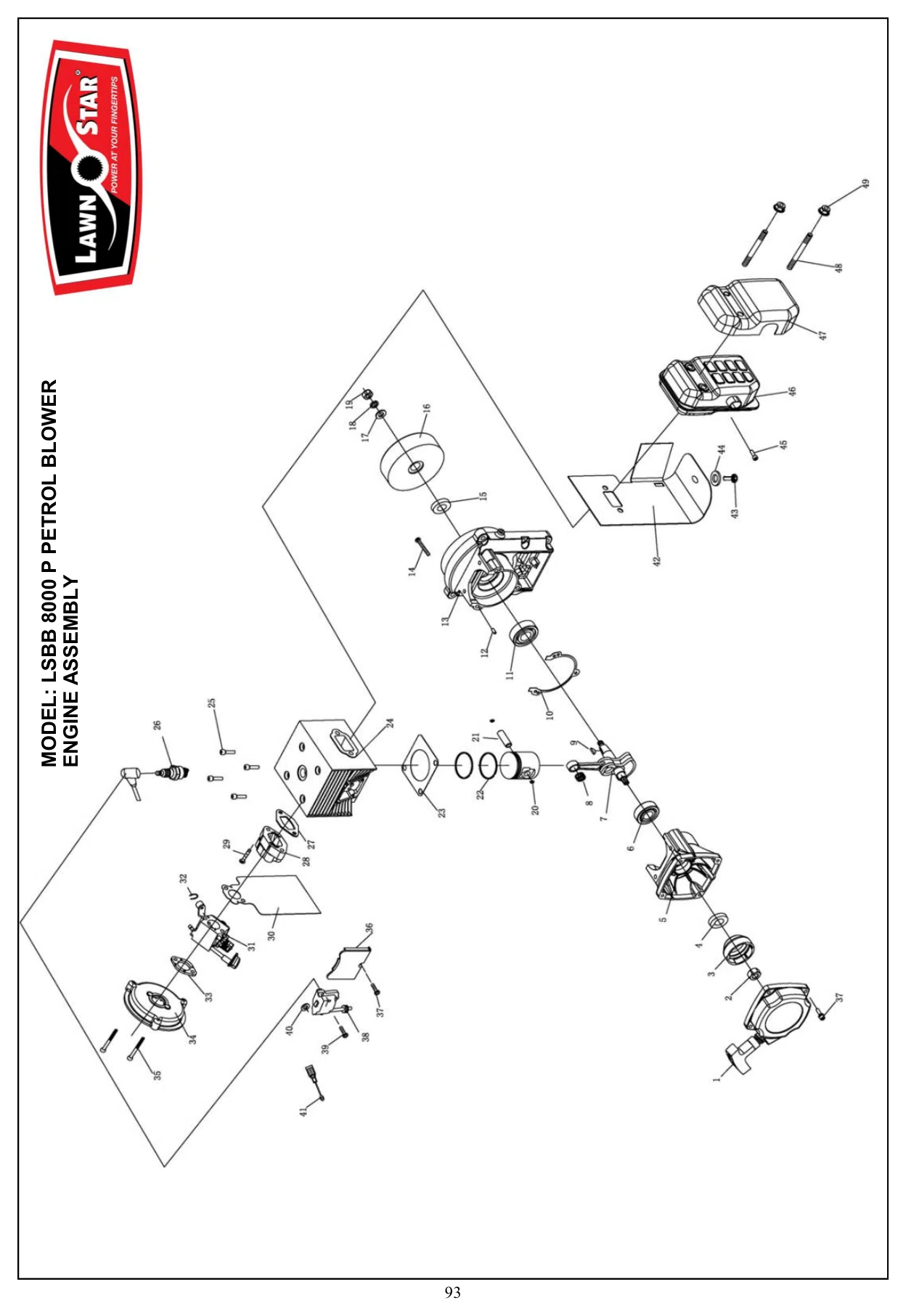

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER, EB-800-E.1.7 | V-800-001 | V-800-001-Online | 1 |
| 2 | NUT M10, GB/T6171 | 1 | ||
| 3 | STARTER REEL, EB-800-E.1-5 | V-800-003 | V-800-003-Online | 1 |
| 4 | OIL SEAL, 1E40FP-3Z-11 | REF TO 50/51 Resolves to: VA-800-50, VA-800-51 | VA-800-50-Online VA-800-51-Online | 1 |
| 5 | CRANKCASE BACK, 1E54FP.2-2 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 6 | BEARING 6202/P5, GB/T276 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 7 | CRANKSHAFT, EB-800-E.1.5.1 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 8 | BEARING, 6MF-30.1.4-3 | REF TO 52 Resolves to: VA-800-52 | VA-800-52-Online | 1 |
| 9 | KEY 3X5X13, GB1099 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 10 | GASKET CRANKCASE, 1E54FP.2-1 | REF TO 50/51 Resolves to: VA-800-50, VA-800-51 | VA-800-50-Online VA-800-51-Online | 1 |
| 11 | BEARING 6203/P5, GB/T276 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 12 | PIN 4H8X10, GB119.1 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 13 | CRANKCASE FRONT, EB-800-E.1.4-1 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 1 |
| 14 | SCREW M5X35, GB70,93,848 | REF TO 51 Resolves to: VA-800-51 | VA-800-51-Online | 3 |
| 15 | OIL SEAL, 1E40FR-3Z-11 | REF TO 50/51 Resolves to: VA-800-50, VA-800-51 | VA-800-50-Online VA-800-51-Online | 1 |
| 16 | FLYWHEEL, 1E46FP.1.1- | V-800-016 | V-800-016-Online | 1 |
| 17 | WASHER M10, GB97 | V-800-017 | V-800-017-Online | 1 |
| 18 | WASHER M10, GB93 | V-800-018 | V-800-018-Online | 1 |
| 19 | NUT M10X1, GB6171 | V-800-019 | V-800-019-Online | 1 |
| 20 | CIRCLIP, 1E58FL.6-5 | REF TO 52 Resolves to: VA-800-52 | VA-800-52-Online | 2 |
| 21 | GUDGEON PIN, 6MF-30.1.4-2 | REF TO 52 Resolves to: VA-800-52 | VA-800-52-Online | 1 |
| 22 | PISTON RING, 1E53FP.4-2 | REF TO 52 Resolves to: VA-800-52 | VA-800-52-Online | 2 |
| 23 | GASKET CYLINDER HEAD, EB-800-E.1-7 | REF TO 50 Resolves to: VA-800-50 | VA-800-50-Online | 1 |
| 24 | CYLINDER, EB-800-E.1.3 | V-800-24 | V-800-24-Online | 1 |
| 25 | SCREW M6X20, GB70 | V-800-025 | V-800-025-Online | 4 |
| 26 | SPARK PLUG BPMR 7 A, | V-800-026 | V-800-026-Online | 1 |
| 27 | GASKET INLET, EB-800-E.1-2 | REF TO 50 Resolves to: VA-800-50 | VA-800-50-Online | 1 |
| 28 | INLET ADAPTOR, EB-800-E.1.2 | V-800-028 | V-800-028-Online | 1 |
| 29 | SCREW M5X30, GB70,93,97 | V-800-029 | V-800-029-Online | 2 |
| 30 | GASKET CARB, EB-800-E.1-1A | REF TO 50 Resolves to: VA-800-50 | VA-800-50-Online | 1 |
| 31 | CARBURETOR, EB-800-E.1.1 | V-800-031 | V-800-031-Online | 1 |
| 32 | C-CLIP 8mm, GB894 | V-800-032 | V-800-032-Online | 1 |
| 33 | GASKET FILTER, EB-800-E1-1 | REF TO 50 Resolves to: VA-800-50 | VA-800-50-Online | 1 |
| 34 | CLEANER INSIDE FILTER COVER, EB-800-E2-7 | V-800-034 | V-800-034-Online | 1 |
| 35 | SCREW M5 X 55, GB70,93,97 | V-800-035 | V-800-035-Online | 2 |
| 36 | SHIELD, EB-800-E1-3 | V-800-036 | V-800-036-Online | 1 |
| 37 | SCREW M5X16, GB70,93,97 | V-800-037 | V-800-037-Online | 5 |
| 38 | MAGNETO, EB-800-E.1.9 | V-800-038 | V-800-038-Online | 1 |
| 39 | SCREW M4X20, GB9074.13 | V-800-039 | V-800-039-Online | 2 |
| 40 | GASKET WASHER, P40-5 | V-800-040 | V-800-040-Online | 2 |
| 41 | STOP WIRE, EB-800-E1-6 | V-800-041 | V-800-041-Online | 1 |
| 42 | GASKET EXHAUST SHIELD, EB-800-E.1-4A | REF TO 50 Resolves to: VA-800-50 | VA-800-50-Online | 1 |
| 43 | SCREW M5X8, GB70.1 | V-800-043 | V-800-043-Online | 1 |
| 44 | WASHER M5, GB96 | V-800-044 | V-800-044-Online | 1 |
| 45 | SCREW M5X12, GB70,93,97 | V-800-045 | V-800-045-Online | 1 |
| 46 | EXHAUST, EB-800-E.1.6 | V-800-046 | V-800-046-Online | 1 |
| 47 | EXHAUST COVER, EB-800-E.1.8 | V-800-047 | V-800-047-Online | 1 |
| 48 | STUD EXHAUST , 1E40F-5-13C | V-800-048 | V-800-048-Online | 2 |
| 49 | NUT M8, GB6187.1 | V-800-049 | V-800-049-Online | 2 |
| 50 | GASKET KIT ASSEMBLY(4,10,15,23,24,27,30,33,42) | VA-800-50 | VA-800-50-Online | |
| 51 | CRANK CASE ASSEMBLY(4,5,6,7,9,10,11,12,13,14,15) | VA-800-51 | VA-800-51-Online | |
| 52 | PISTON KIT(8,20X2,21,22X2) | VA-800-52 | VA-800-52-Online |
