Lawn Star LSH 2660 P2 Hedge Trimmer IPL

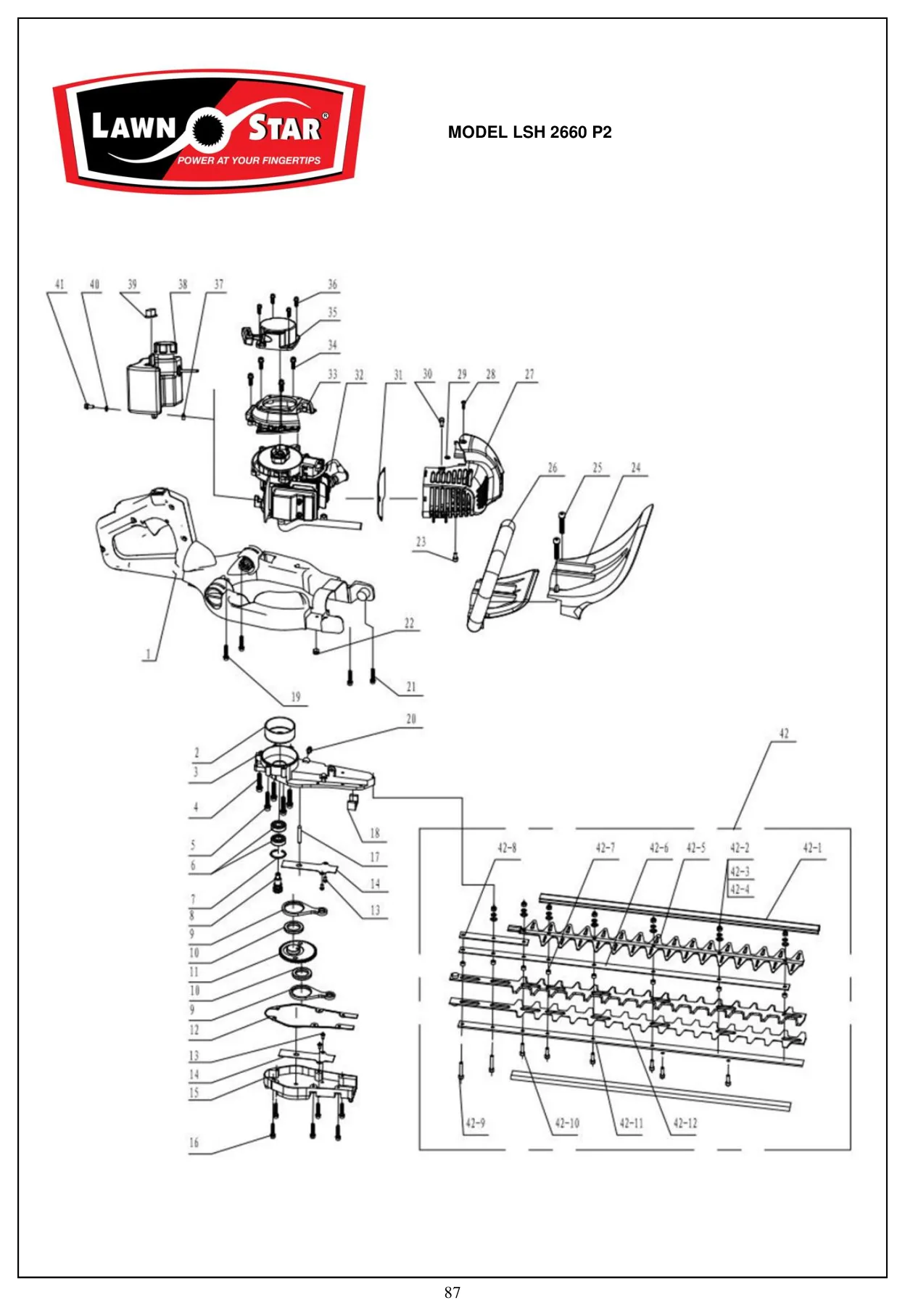

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Rear handle and base assy | HA-266-01 | HA-266-01-Online | 1 |
| 2 | Clutch cover | H-266-02/ Ref to 55 | H-266-02/-Ref-to-55-Online | 1 |
| 3 | Gear Case | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 4 | M5x20_Screw | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 5 | M5x20_Screw | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 4 |
| 6 | Bearing 6805-2Z | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 2 |
| 7 | Φ28 Clip | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 8 | Small gearwheel | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 9 | Blade crankshaft | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 2 |
| 10 | Bearing 6805-2Z | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 2 |
| 11 | Eccentric gearwheel | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 12 | Gear case gasket | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 13 | M4X8_Hexagon head screws | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 4 |
| 14 | Anti-washer | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 2 |
| 15 | Gear Case Cover | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 16 | M5x16_Screw | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 6 |
| 17 | Round pin 6x38 | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 18 | Wool gasket | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 19 | M5x20_Screw | 2 | ||
| 20 | M6 Butter mouth | Refer to 55 Resolves to: HA-266-55 | HA-266-55-Online | 1 |
| 21 | M5x16_Screw | 2 | ||
| 22 | M6_Non-metallic insert locknuts | 2 | ||
| 23 | M4x16_Screw | 1 | ||
| 24 | Transparent cover | H-266-24 | H-266-24-Online | 1 |
| 25 | M6x30_Screw | 2 | ||
| 26 | Handle | H-266-26 | H-266-26-Online | 1 |
| 27 | Engine cover | H-266-27 | H-266-27-Online | 1 |
| 28 | ST4.2x10-H-F_Screw | 1 | ||
| 29 | Ignition coil insulation pad | H-266-29 | H-266-29-Online | 1 |
| 30 | M5x12_Screw | 1 | ||
| 31 | Cylinder cover guides | H-266-31 | H-266-31-Online | 1 |
| 32 | Engine Part | H-266-32 | H-266-32-Online | 1 |
| 33 | Upper cover | H-266-33 | H-266-33-Online | 1 |
| 34 | M5x20_Screw | 4 | ||
| 35 | Easy-start starter assy | H-266-35 | H-266-35-Online | 1 |
| 36 | M4x16_Screw | 4 | ||
| 37 | Tank insulation pads | H-266-37 | H-266-37-Online | 1 |
| 38 | Fuel tank assy | H-266-38 | H-266-38-Online | 1 |
| 39 | Tank damping rubber | H-266-39 | H-266-39-Online | 1 |
| 40 | Flat Washer 5x15x1 | H-266-40 | H-266-40-Online | 1 |
| 41 | M5x16_Screw | 1 | ||
| 42 | Hedge Trimmer balde assy (42,43,44,45,46,47,48,49,50,51,52,53,54) | HA-266-42 | HA-266-42-Online | 1 |
| 43 | Blade cover | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 2 |
| 44 | M5_Non-metallic insert locknuts | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 7 |
| 45 | Spring Washer 5 | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 7 |
| 46 | Flat Washer 5 | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 7 |
| 47 | Block leaf plates | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 1 |
| 48 | Blade gasket | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 1 |
| 49 | Slider | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 7 |
| 50 | Adjusting washer | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 1 |
| 51 | M5x30_Screw | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 2 |
| 52 | M5x30_Screw | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 5 |
| 53 | Blade Gasket | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 1 |
| 54 | Double blade | Refer to 42 Resolves to: HA-266-42 | HA-266-42-Online | 2 |
| 55 | Gear case assembly(2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,20) | HA-266-55 | HA-266-55-Online | 1 |
