Lawn Star LSS 2240 SDS Chainsaw IPL

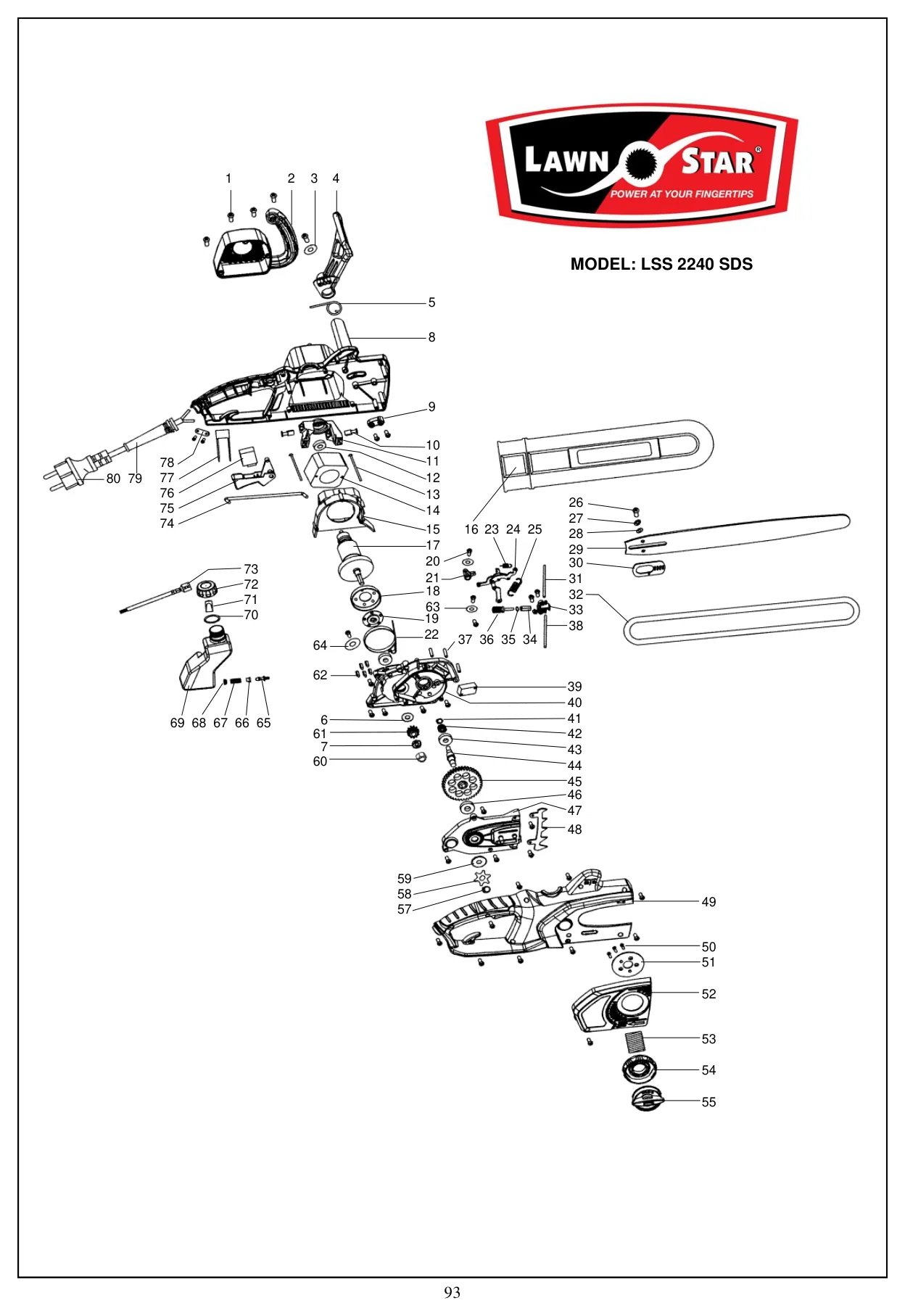

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Screw | C-224-01 | C-224-01-Online | 28 |
| 2 | Cover | C-224-02 | C-224-02-Online | 1 |
| 3 | Washer | C-224-03 | C-224-03-Online | 1 |
| 4 | Chain-brake guard | C-224-04 | C-224-04-Online | 1 |
| 5 | Torsion spring | C-224-05 | C-224-05-Online | 1 |
| 6 | Spacer | C-224-06 | C-224-06-Online | 1 |
| 7 | Spring washer | C-224-07 | C-224-07-Online | 1 |
| 8 | Left housing | C-224-08 | C-224-08-Online | 1 |
| 9 | Locking lever, chain brake | C-224-09 | C-224-09-Online | 1 |
| 10 | Motor brush | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 2 |
| 11 | Bracket, rear motor | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 12 | Bearing | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 13 | Screw | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 2 |
| 14 | Stator | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 15 | Coer, motor fan | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 16 | Chain bar -cover | C-224-16 | C-224-16-Online | 1 |
| 17 | Motor assembly (10-15; 17; 18- 25, 31; 33-38; 40; 62-64) | C-224-17 | C-224-17-Online | 1 |
| 18 | Brake wheel | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 19 | Disc coupling (welded to brake wheel) | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 20 | Screw | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 7 |
| 21 | Linkage | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 22 | Brake coil | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 23 | Spring | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 24 | Brake linkages | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 25 | Spring | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 26 | Screw | Refer to 29 Resolves to: C-224-29 | C-224-29-Online | 1 |
| 27 | Spring washer | Refer to 29 Resolves to: C-224-29 | C-224-29-Online | 1 |
| 28 | Washer | Refer to 29 Resolves to: C-224-29 | C-224-29-Online | 1 |
| 29 | Chain bar assembly, 40cm (26; 27; 28; 29; 30) | C-224-29 | C-224-29-Online | 1 |
| 30 | SDS tensioning plate | Refer to 29 Resolves to: C-224-29 | C-224-29-Online | 1 |
| 31 | Oil tube 1 | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 32 | Chain 3/8 56 Link TO suit LSS 2240 SDS(C-224-56) | 80-27224 | 80-27224-Online | 1 |
| 33 | Oil pump assembly (33; 34; 35; 36) | C-224-33 | C-224-33-Online | 1 |
| 34 | Sleeve, oil pump | Refer to 33 Resolves to: C-224-33 | C-224-33-Online | 1 |
| 35 | O-ring | Refer to 36 Resolves to: C-224-36 | C-224-36-Online | 1 |
| 36 | Oil pump drive with O-ring (35; 36) | C-224-36 | C-224-36-Online | 1 |
| 37 | Pin | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 3 |
| 38 | Oil tube 2 | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 39 | Microswitch | C-224-39 | C-224-39-Online | 1 |
| 40 | Gear & brake housing | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 41 | Circlip | C-224-41 | C-224-41-Online | 1 |
| 42 | Worm gear | C-224-42 | C-224-42-Online | 1 |
| 43 | Bearing | C-224-43 | C-224-43-Online | 2 |
| 44 | Drive shaft | C-224-44 | C-224-44-Online | 1 |
| 45 | Gear, big | C-224-45 | C-224-45-Online | 1 |
| 46 | Bearing | C-224-46 | C-224-46-Online | 1 |
| 47 | Gear cover | C-224-47 | C-224-47-Online | 1 |
| 48 | Metal claw | C-224-48 | C-224-48-Online | 1 |
| 49 | Right housing | C-224-49 | C-224-49-Online | 1 |
| 50 | Screw | Refer to 52 Resolves to: C-224-52 | C-224-52-Online | 3 |
| 51 | Spiral plate | Refer to 52 Resolves to: C-224-52 | C-224-52-Online | 1 |
| 52 | Sprocket cover (50; 51; 52; 53; 54; 55) | C-224-52 | C-224-52-Online | 1 |
| 53 | Spring | Refer to 52 Resolves to: C-224-52 | C-224-52-Online | 1 |
| 54 | SDS tension wheel | Refer to 52 Resolves to: C-224-52 | C-224-52-Online | 1 |
| 55 | Fastening knob, chain bar | Refer to 52 Resolves to: C-224-52 | C-224-52-Online | 1 |
| 57 | Circlip | C-224-57 | C-224-57-Online | 1 |
| 58 | Sprocket | C-224-58 | C-224-58-Online | 1 |
| 59 | Shield | C-224-59 | C-224-59-Online | 1 |
| 60 | Nut | C-224-60 | C-224-60-Online | 1 |
| 61 | Gear, small | C-224-61 | C-224-61-Online | 1 |
| 62 | Pin | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 5 |
| 63 | Washer | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 2 |
| 64 | Washer | Refer to 17 Resolves to: C-224-17 | C-224-17-Online | 1 |
| 65 | Connector fitting, oil tube | C-224-65 | C-224-65-Online | 1 |
| 66 | Ring seal | C-224-66 | C-224-66-Online | 1 |
| 67 | Spring | C-224-67 | C-224-67-Online | 1 |
| 68 | Stopper, filter | C-224-68 | C-224-68-Online | 1 |
| 69 | Oil tank | C-224-69 | C-224-69-Online | 1 |
| 70 | Seal | C-224-70 | C-224-70-Online | 1 |
| 71 | Breather valve | Refer to 72 Resolves to: C-224-72 | C-224-72-Online | 1 |
| 72 | Oil tank cap assembly (71; 72; 73) | C-224-72 | C-224-72-Online | 1 |
| 73 | Oil hose assembly | Refer to 72 Resolves to: C-224-72 | C-224-72-Online | 1 |
| 74 | Connecting rod | C-224-74 | C-224-74-Online | 1 |
| 75 | Trigger | C-224-75 | C-224-75-Online | 1 |
| 76 | Switch | C-224-76 | C-224-76-Online | 1 |
| 77 | Capacitor | C-224-77 | C-224-77-Online | 1 |
| 78 | Cable clamp | C-224-78 | C-224-78-Online | 1 |
| 79 | Cord protector | C-224-79 | C-224-79-Online | 1 |
| 80 | Pigtail | C-224-80 | C-224-80-Online | 1 |
