Lawn Star LSGS 6575 P Garden Shredder IPL

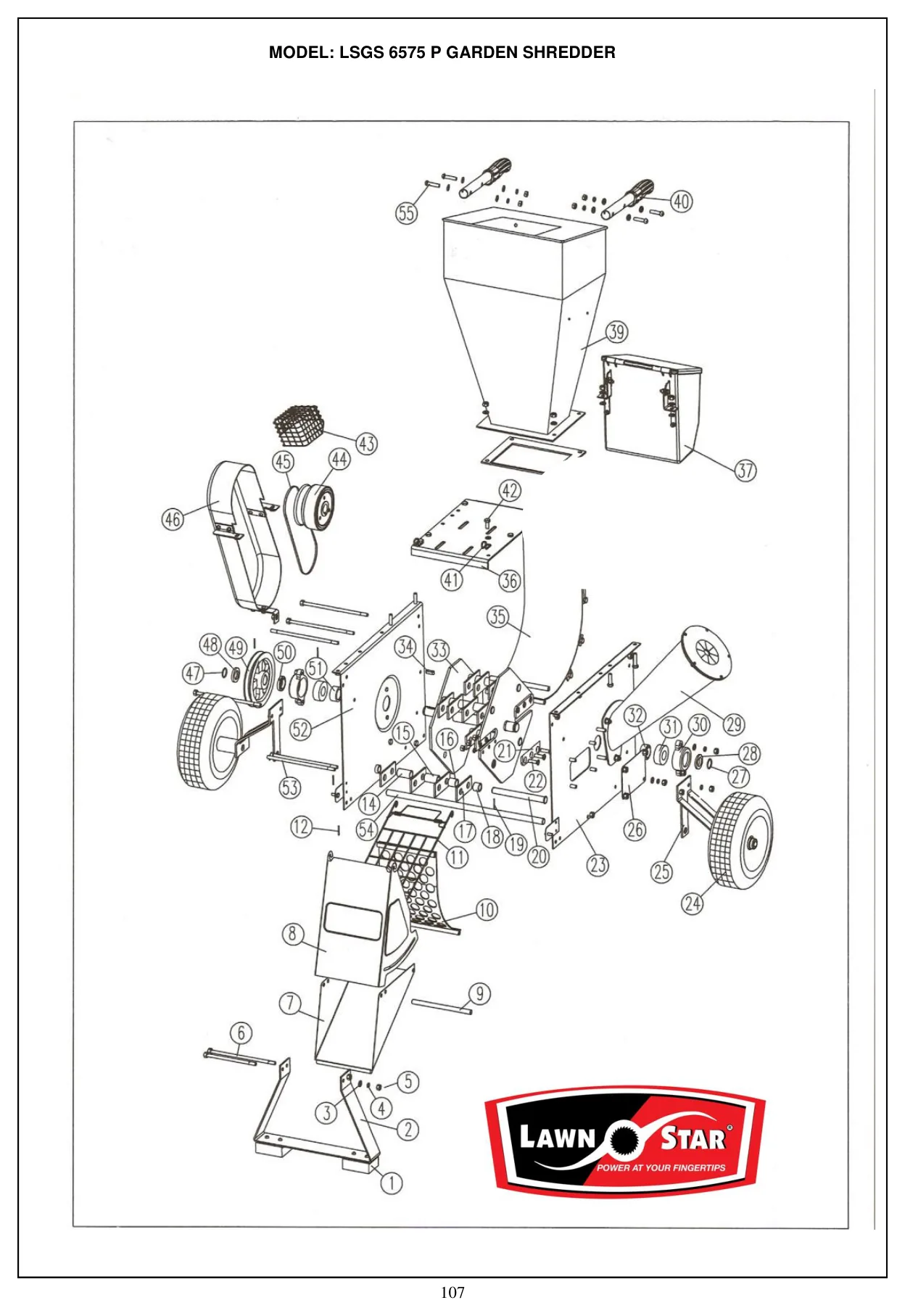

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | rubber foot | S-657-01 | S-657-01-Online | 2 |
| 2 | leg | S-657-02 | S-657-02-Online | 1 |
| 3 | flat washer | S-657-03 | S-657-03-Online | |
| 4 | hex nut | S-657-04 | S-657-04-Online | |
| 5 | lock washer | S-657-05 | S-657-05-Online | |
| 6 | hex bolt | S-657-06 | S-657-06-Online | 1 |
| 7 | discharge chute | S-657-07 | S-657-07-Online | 1 |
| 8 | movable door | S-657-08 | S-657-08-Online | 1 |
| 9 | tube | S-657-09 | S-657-09-Online | 3 |
| 10 | screen | S-657-10 | S-657-10-Online | 1 |
| 11 | side door plate | S-657-11 | S-657-11-Online | -- |
| 12 | hitch pin | S-657-12 | S-657-12-Online | 2 |
| 13 | door axle | S-657-13 | S-657-13-Online | 2 |
| 14 | spacer I | S-657-14 | S-657-14-Online | 4 |
| 15 | spacer II | S-657-15 | S-657-15-Online | 8 |
| 16 | spacer III | S-657-16 | S-657-16-Online | 4 |
| 17 | hammer | S-657-17 | S-657-17-Online | 16 |
| 18 | spacer VI | S-657-18 | S-657-18-Online | 4 |
| 19 | roll pin | S-657-19 | S-657-19-Online | 4 |
| 20 | hammer axle | S-657-20 | S-657-20-Online | 4 |
| 21 | blade | S-657-21 | S-657-21-Online | 2 |
| 22 | flat HD SCR | S-657-22 | S-657-22-Online | 6 |
| 23 | box frame side left | S-657-23 | S-657-23-Online | 1 |
| 24 | wheel | S-657-24 | S-657-24-Online | 2 |
| 25 | wheel support | S-657-25 | S-657-25-Online | 1 |
| 26 | blade cover plate | S-657-26 | S-657-26-Online | 1 |
| 27 | wire circ lip 1 | S-657-27 | S-657-27-Online | 1 |
| 28 | Washer (right) | S-657-28 | S-657-28-Online | 1 |
| 29 | chipping chute | S-657-29 | S-657-29-Online | 1 |
| 30 | bearing seat | S-657-30 | S-657-30-Online | 2 |
| 31 | ball bearing | S-657-31 | S-657-31-Online | 2 |
| 32 | spacer(right) | S-657-32 | S-657-32-Online | 1 |
| 33 | impeller | S-657-33 | S-657-33-Online | 1 |
| 34 | key | S-657-34 | S-657-34-Online | 1 |
| 35 | rear board | S-657-35 | S-657-35-Online | 1 |
| 36 | engine seat | S-657-36 | S-657-36-Online | 1 |
| 37 | tool box | S-657-37 | S-657-37-Online | 1 |
| 38 | rubber gasket | S-657-38 | S-657-38-Online | 1 |
| 39 | hopper | S-657-39 | S-657-39-Online | 1 |
| 40 | handles | S-657-40 | S-657-40-Online | 2 |
| 41 | hook | S-657-41 | S-657-41-Online | 2 |
| 42 | hex bolt | S-657-42 | S-657-42-Online | |
| 43 | burn-proof net | S-657-43 | S-657-43-Online | 1 |
| 44 | clutch | S-657-44 | S-657-44-Online | 1 |
| 45 | V-belt | S-657-45 | S-657-45-Online | 1 |
| 46 | pulley cover | S-657-46 | S-657-46-Online | 1 |
| 47 | Belt cover bracket | S-657-47 | S-657-47-Online | 1 |
| 48 | spacer | S-657-48 | S-657-48-Online | 1 |
| 49 | pulley | S-657-49 | S-657-49-Online | 1 |
| 50 | special washer(left) | S-657-50 | S-657-50-Online | 1 |
| 51 | washer (right) | S-657-51 | S-657-51-Online | 1 |
| 52 | box frame side | S-657-52 | S-657-52-Online | 1 |
| 53 | wheel tube | S-657-53 | S-657-53-Online | 2 |
| 54 | wheel axel | S-657-54 | S-657-54-Online | 1 |
| 55 | front handle | S-657-55 | S-657-55-Online | 2 |
