Husqvarna G5500P Generator IPL
Built in the same Hyundai-style IPL format: source diagrams are shown with clickable parts tables below. Husqvarna part numbers are linked as xxxxxxxxx-Online with spaces and hyphens removed from the source part number. The visible link starts with the reference number so it can be matched back to the drawing.

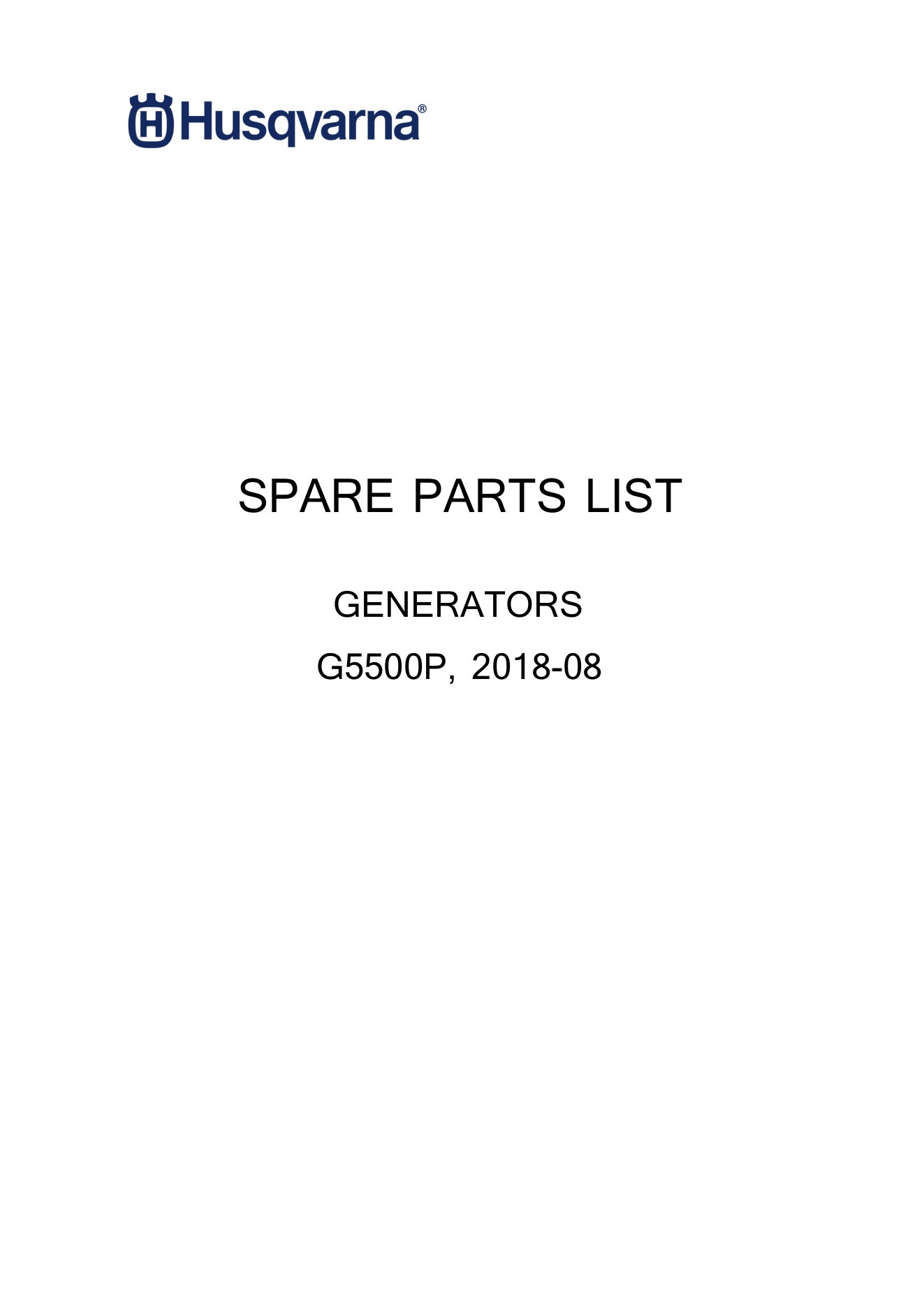

Cover page
Source page 1

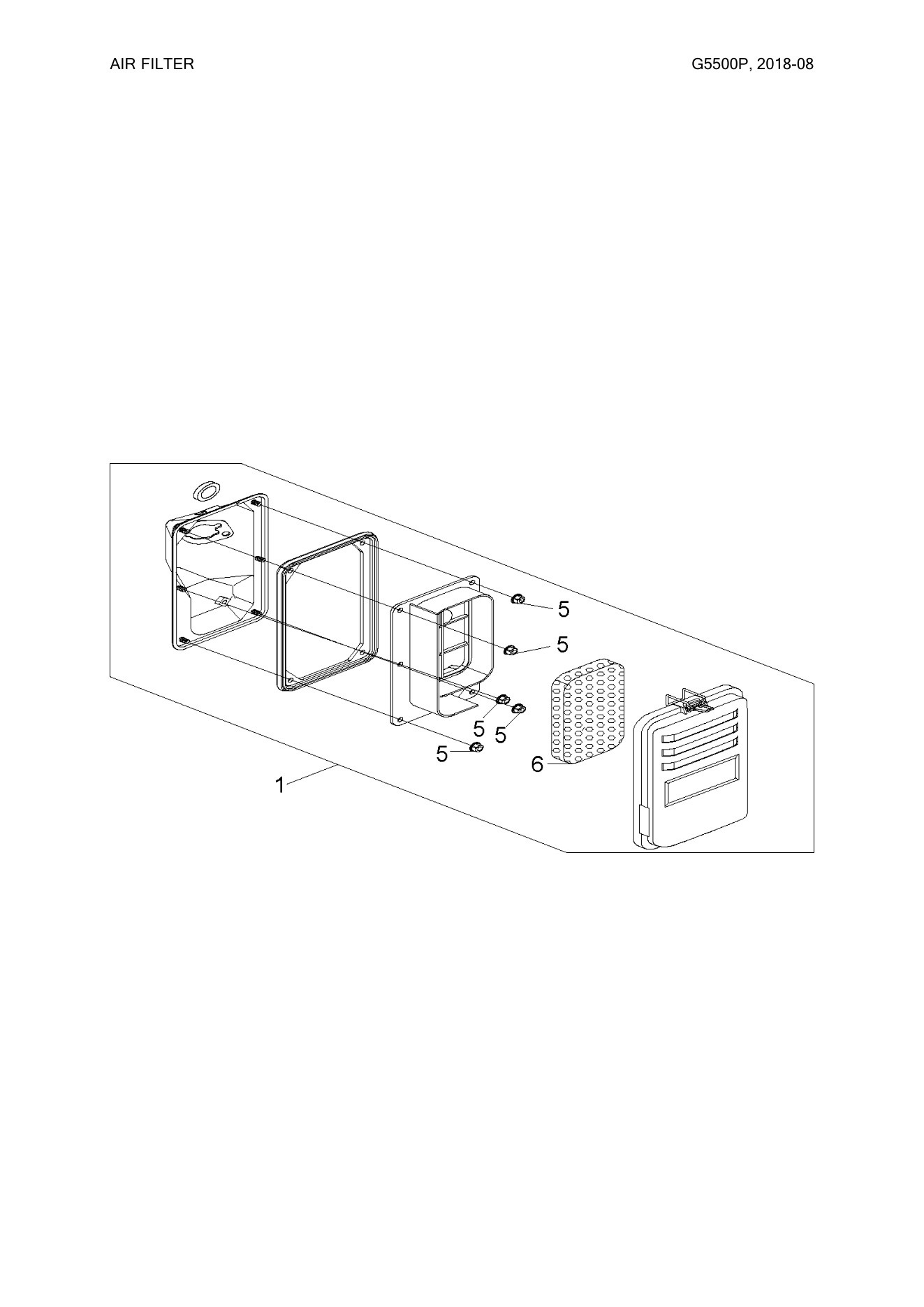

Air Filter diagram
Source page 2; parts table from source page 3
Air Filter clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 57 61-01 | AIR FILTER | 1 - 596576101-Online | 1 |
| 5 | 588 00 70-01 | NUT | 5 - 588007001-Online | 5 |
| 6 | 596 57 62-01 | AIR FILTER | 6 - 596576201-Online | 1 |

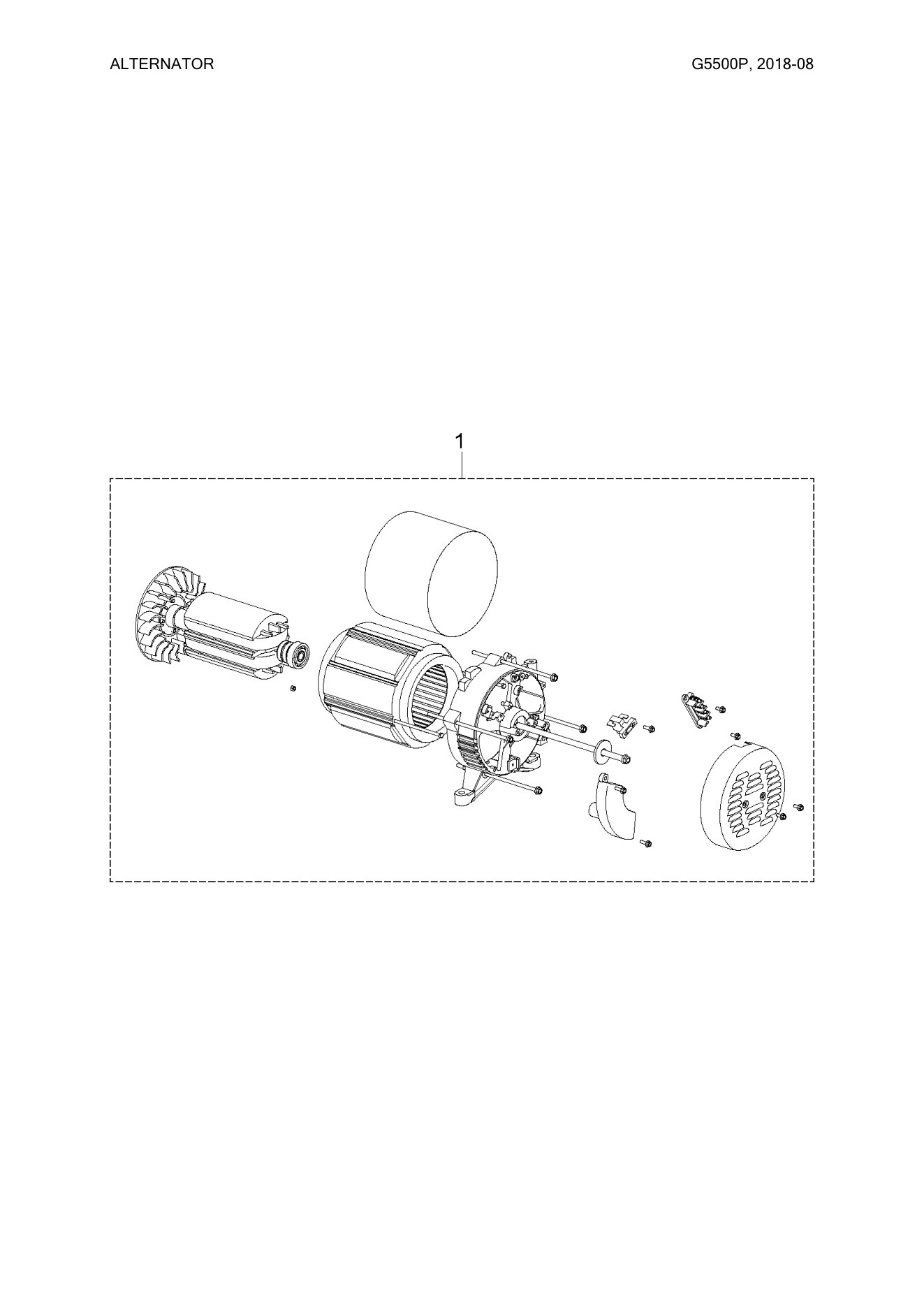

Alternator diagram
Source page 4; parts table from source page 5
Alternator clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 69 92-01 | ALTERNATOR | 1 - 596699201-Online | 1 |
Battery diagram
Source page 6; parts table from source page 7
Battery clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 594 95 61-01 | BATTERY | 1 - 594956101-Online | 1 |
Crankcase diagram
Source page 8; parts table from source page 9
Crankcase clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 60 21-01 | CRANKCASE ASSY | 1 - 596602101-Online | 1 |
| 6 | 587 94 02-01 | BEARING | 6 - 587940201-Online | 1 |
| 7 | 596 60 48-01 | SENSOR | 7 - 596604801-Online | 1 |
| 10 | 589 90 91-01 | BOLT | 10 - 589909101-Online | 2 |
| 11 | 590 63 89-01 | CONDUCTOR | 11 - 590638901-Online | 1 |
| 16 | 596 60 45-01 | SEAL | 16 - 596604501-Online | 1 |
Crankcase Cover diagram

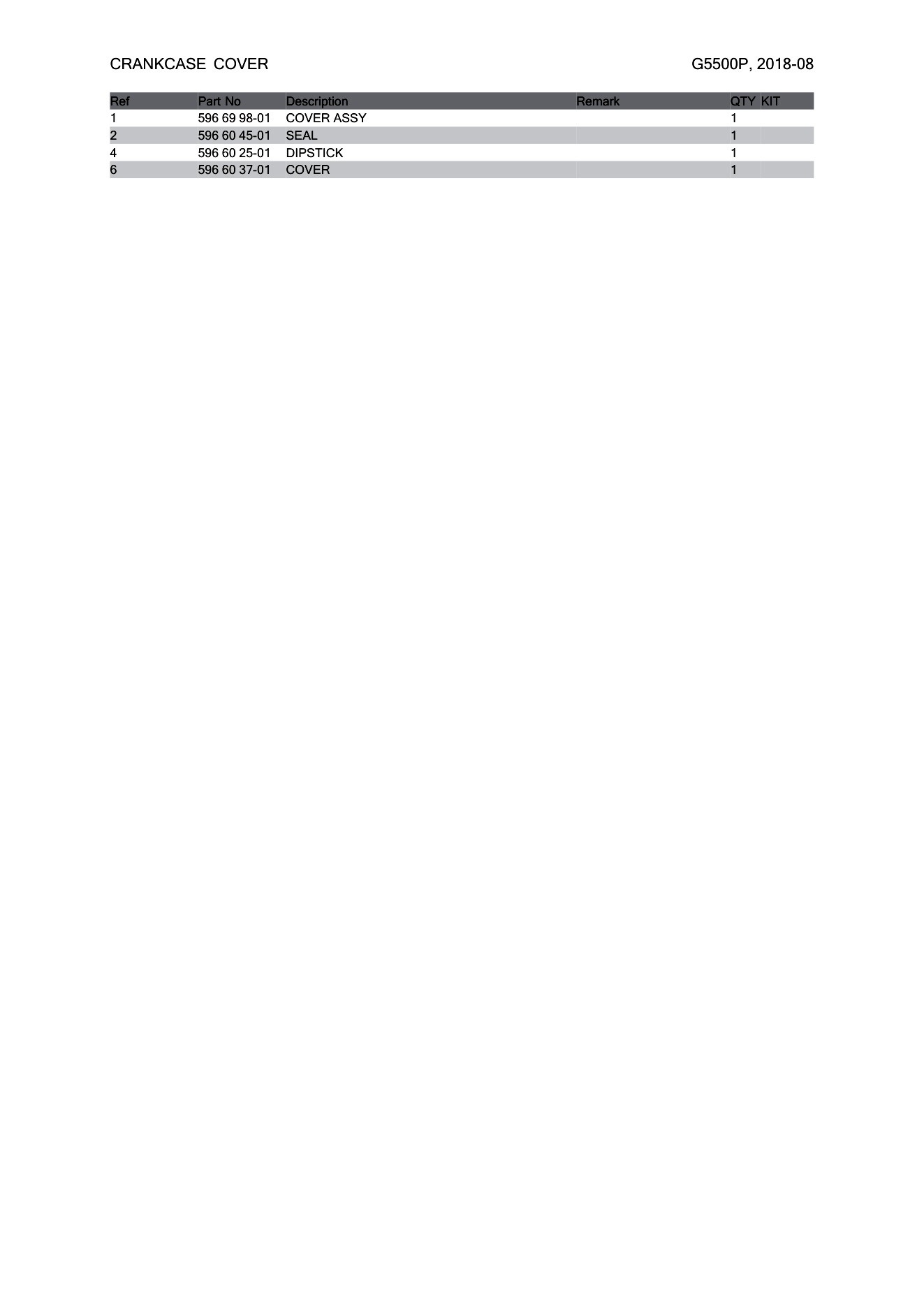

Source page 10; parts table from source page 11
Crankcase Cover clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 69 98-01 | COVER ASSY | 1 - 596699801-Online | 1 |
| 2 | 596 60 45-01 | SEAL | 2 - 596604501-Online | 1 |
| 4 | 596 60 25-01 | DIPSTICK | 4 - 596602501-Online | 1 |
| 6 | 596 60 37-01 | COVER | 6 - 596603701-Online | 1 |

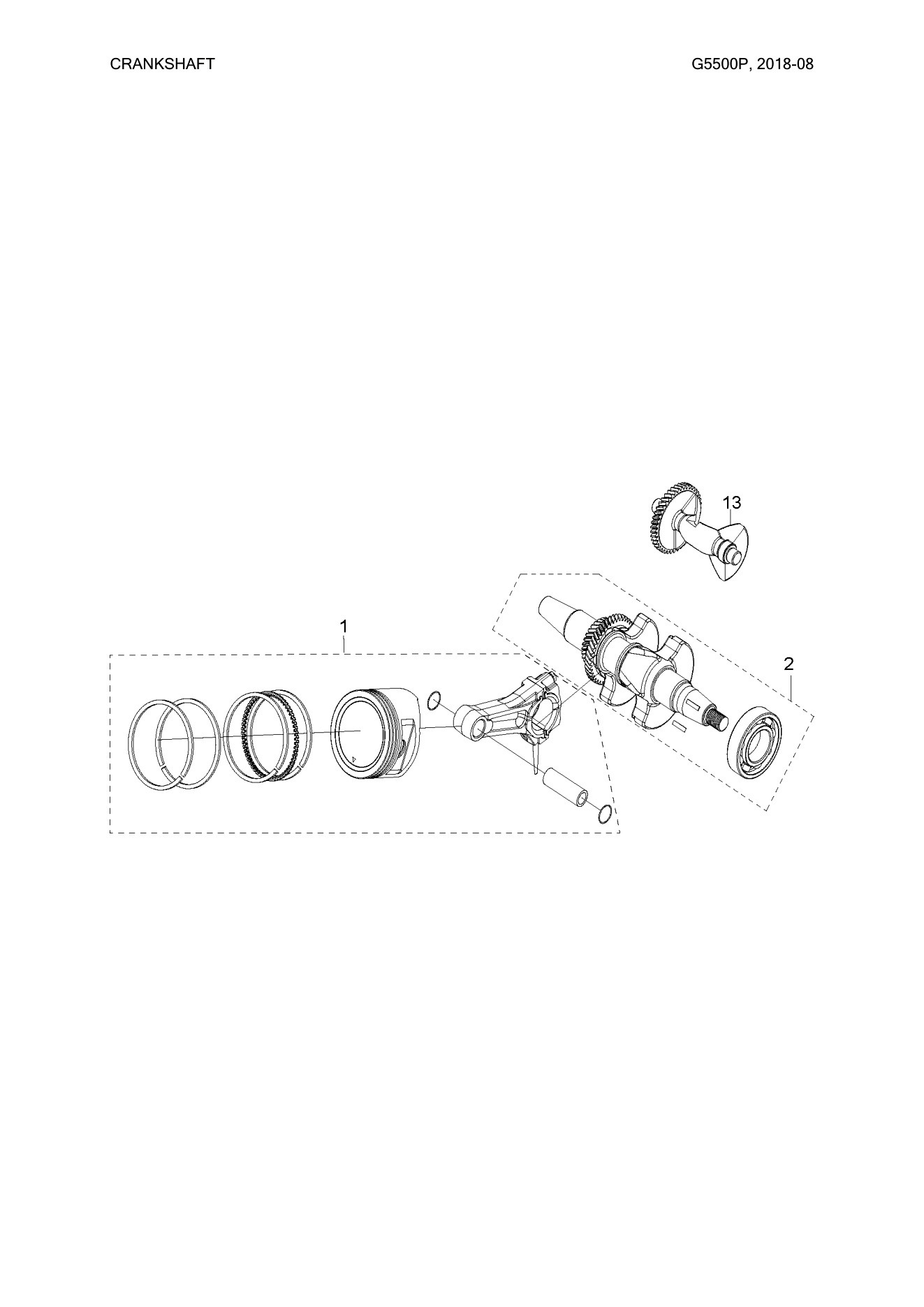

Crankshaft diagram
Source page 12; parts table from source page 13
Crankshaft clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 70 02-01 | PISTON ASSY | 1 - 596700201-Online | 1 |
| 2 | 596 60 19-01 | CRANKSHAFT ASSY | 2 - 596601901-Online | 1 |
| 3 | 588 00 30-01 | WOODRUFF KEY | 3 - 588003001-Online | 1 |
Cylinder diagram
Source page 14; parts table from source page 15
Cylinder clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 70 13-01 | CYLINDER HEAD KIT | 1 - 596701301-Online | 1 |
| 2 | 596 70 14-01 | EXHAUST PIPE | 2 - 596701401-Online | 1 |
| 3 | 590 37 79-01 | GASKET | 3 - 590377901-Online | 1 |
| 6 | 587 99 97-01 | SPARK PLUG | 6 - 587999701-Online | 1 |
| 11 | 596 60 39-01 | CYLINDER HEAD | 11 - 596603901-Online | 1 |
| 15 | 596 60 34-01 | GASKET | 15 - 596603401-Online | 1 |

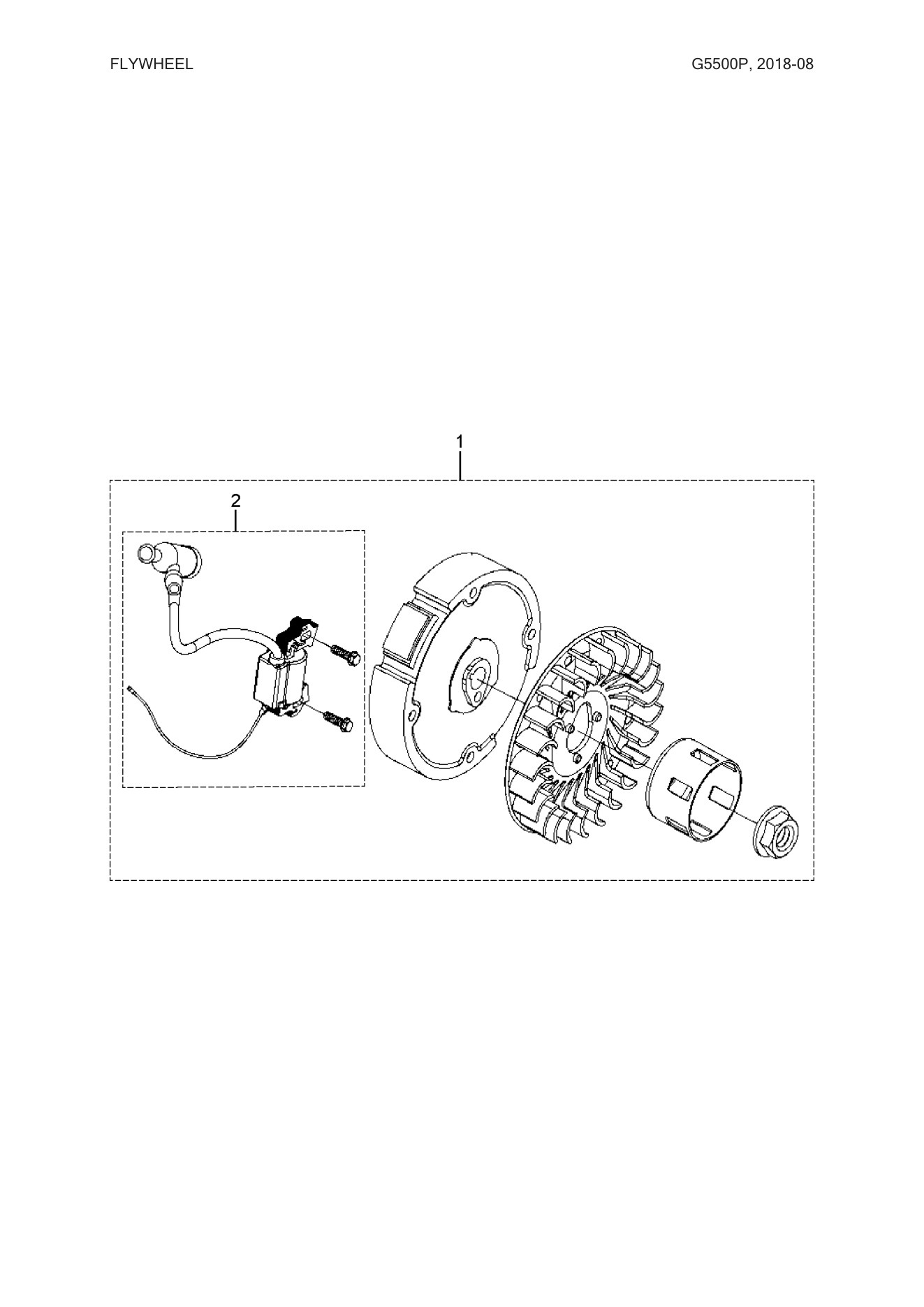

Flywheel diagram

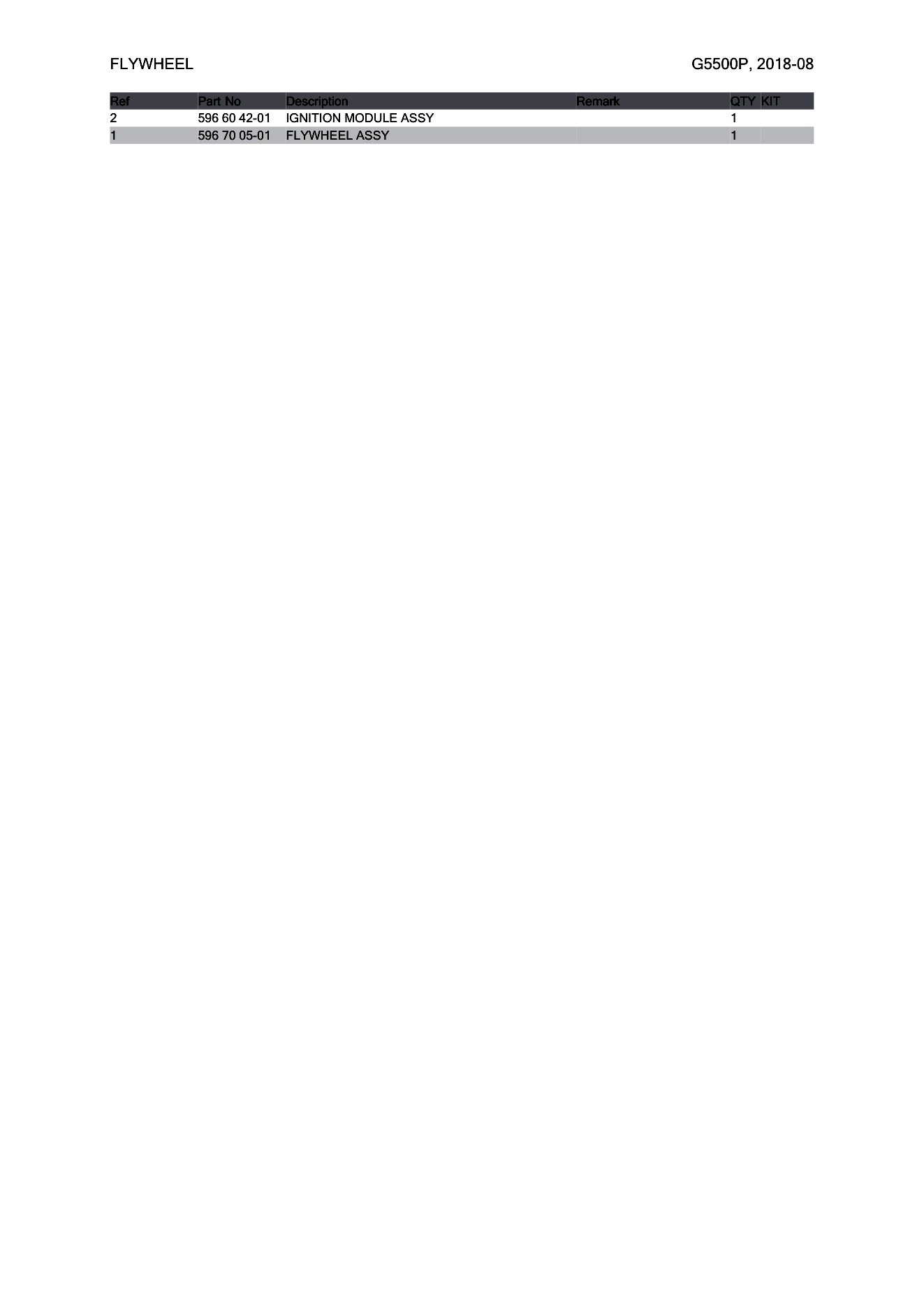

Source page 16; parts table from source page 17
Flywheel clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | 596 60 42-01 | IGNITION MODULE ASSY | 2 - 596604201-Online | 1 |
| 1 | 596 70 05-01 | FLYWHEEL ASSY | 1 - 596700501-Online | 1 |

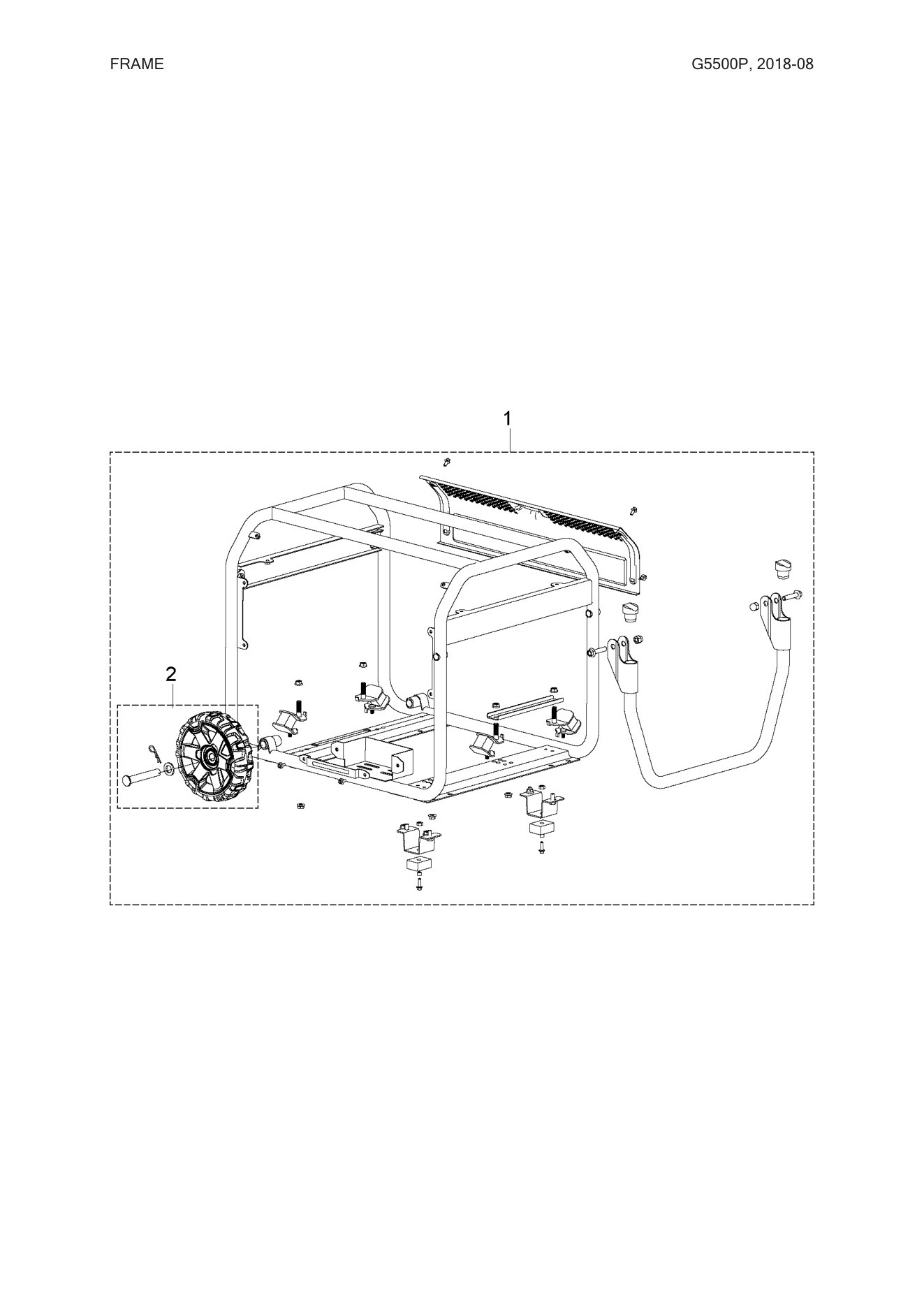

Frame diagram
Source page 18; parts table from source page 19
Frame clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | 596 70 08-01 | FRAME | 2 - 596700801-Online | 1 |
| 1 | 596 70 09-01 | FRAME | 1 - 596700901-Online | 1 |

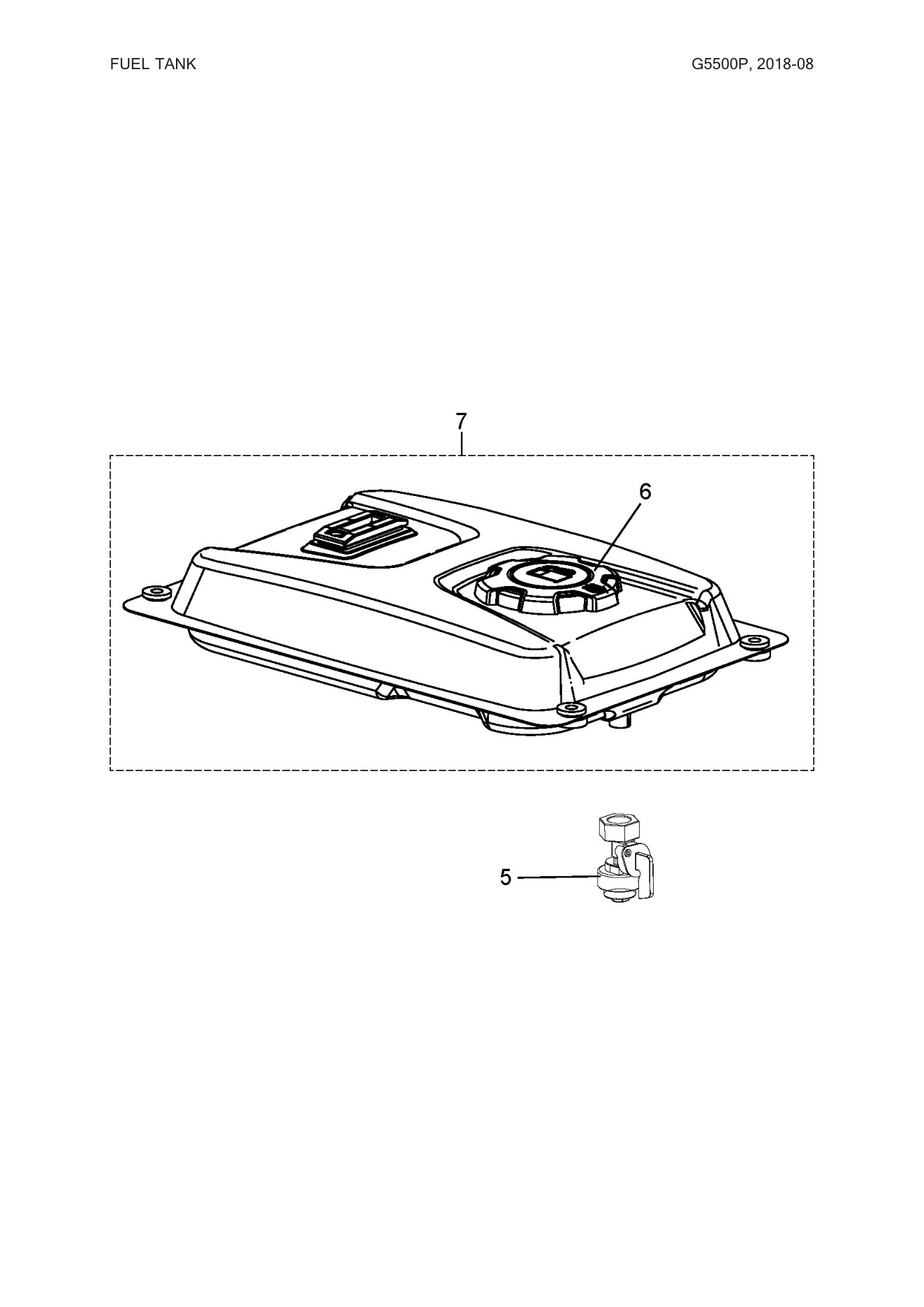

Fuel Tank diagram

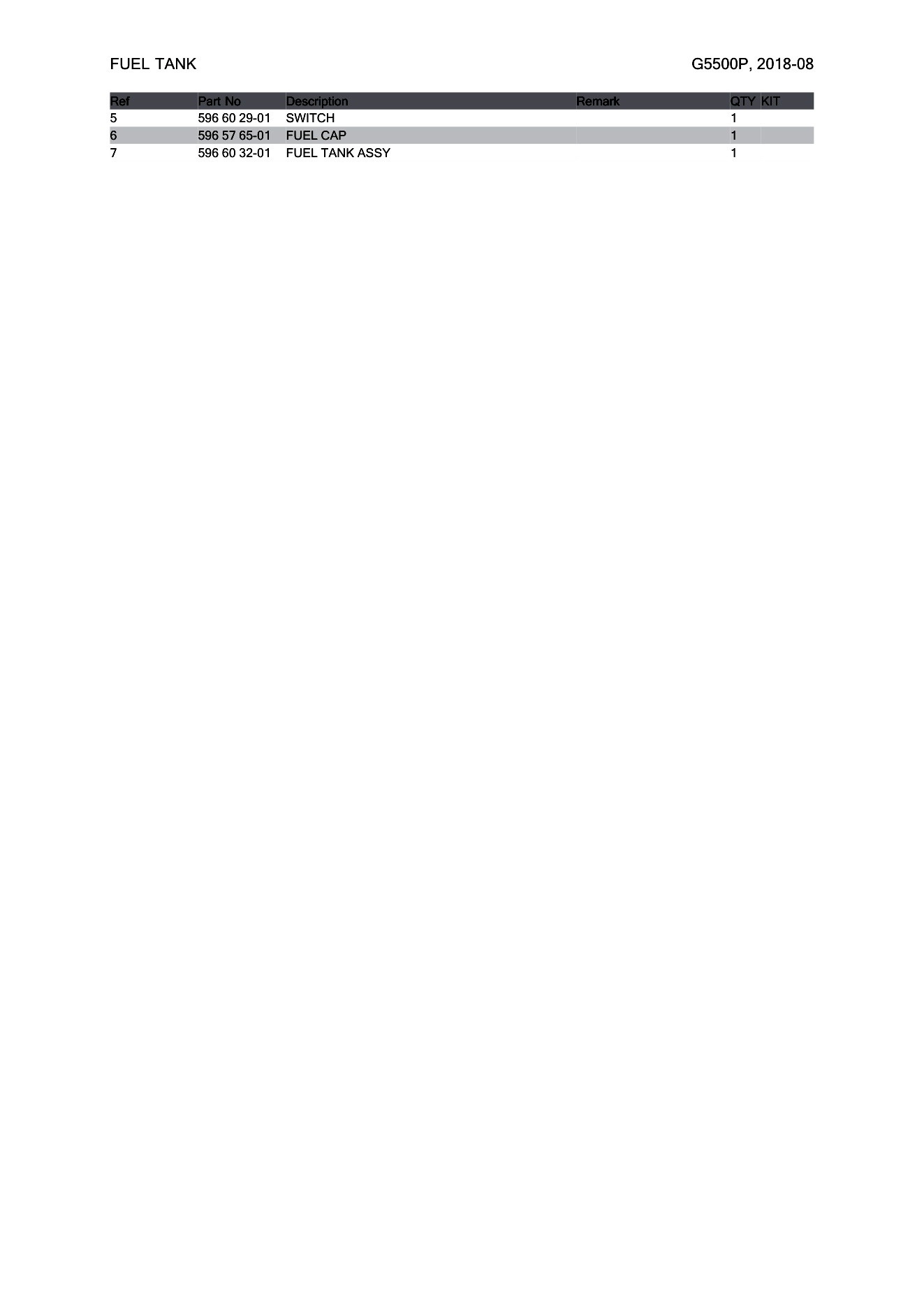

Source page 20; parts table from source page 21
Fuel Tank clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 5 | 596 60 29-01 | SWITCH | 5 - 596602901-Online | 1 |
| 6 | 596 57 65-01 | FUEL CAP | 6 - 596576501-Online | 1 |
| 7 | 596 60 32-01 | FUEL TANK ASSY | 7 - 596603201-Online | 1 |

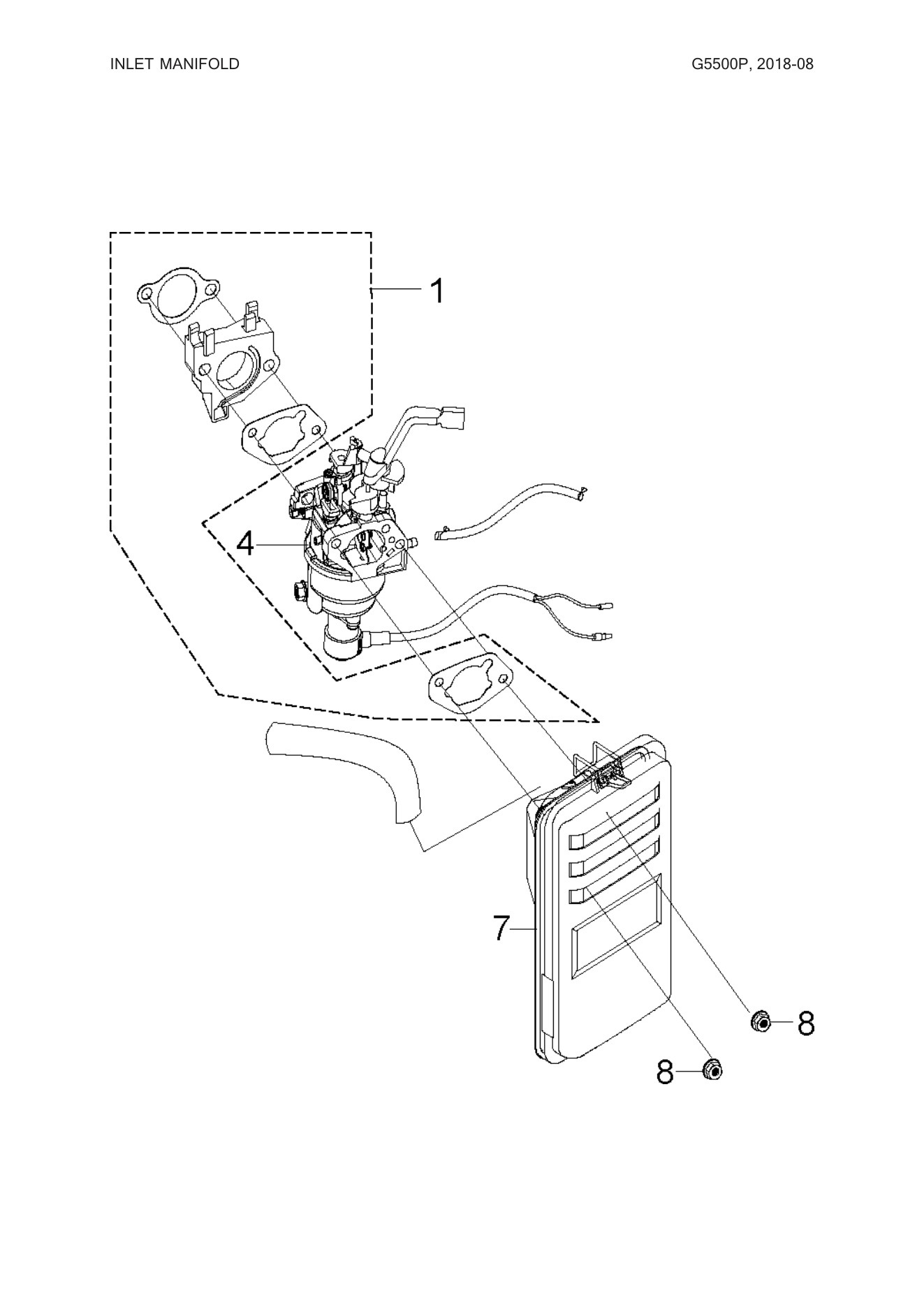

Inlet Manifold diagram
Source page 22; parts table from source page 23
Inlet Manifold clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 70 17-01 | INLET | 1 - 596701701-Online | 1 |
| 4 | 596 57 71-01 | CARBURETTOR | 4 - 596577101-Online | 1 |
| 7 | 596 57 61-01 | AIR FILTER | 7 - 596576101-Online | 1 |
| 8 | 588 00 70-01 | NUT | 8 - 588007001-Online | 1 |
Muffler diagram

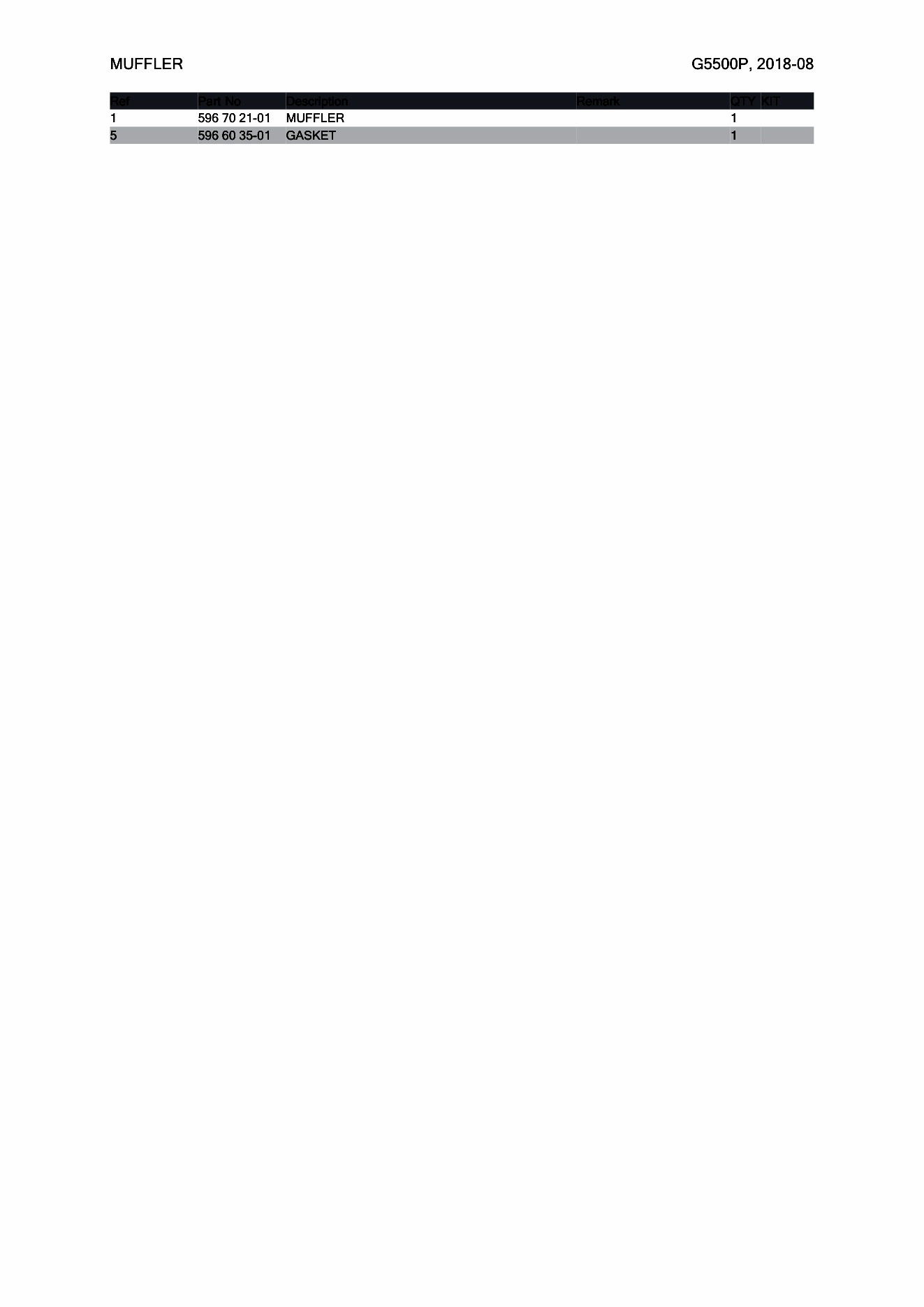

Source page 24; parts table from source page 25
Muffler clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 70 21-01 | MUFFLER | 1 - 596702101-Online | 1 |
| 5 | 596 60 35-01 | GASKET | 5 - 596603501-Online | 1 |
Panel diagram
Source page 26; parts table from source page 27
Panel clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 60 16-01 | CONTROL PANEL | 1 - 596601601-Online | 1 |

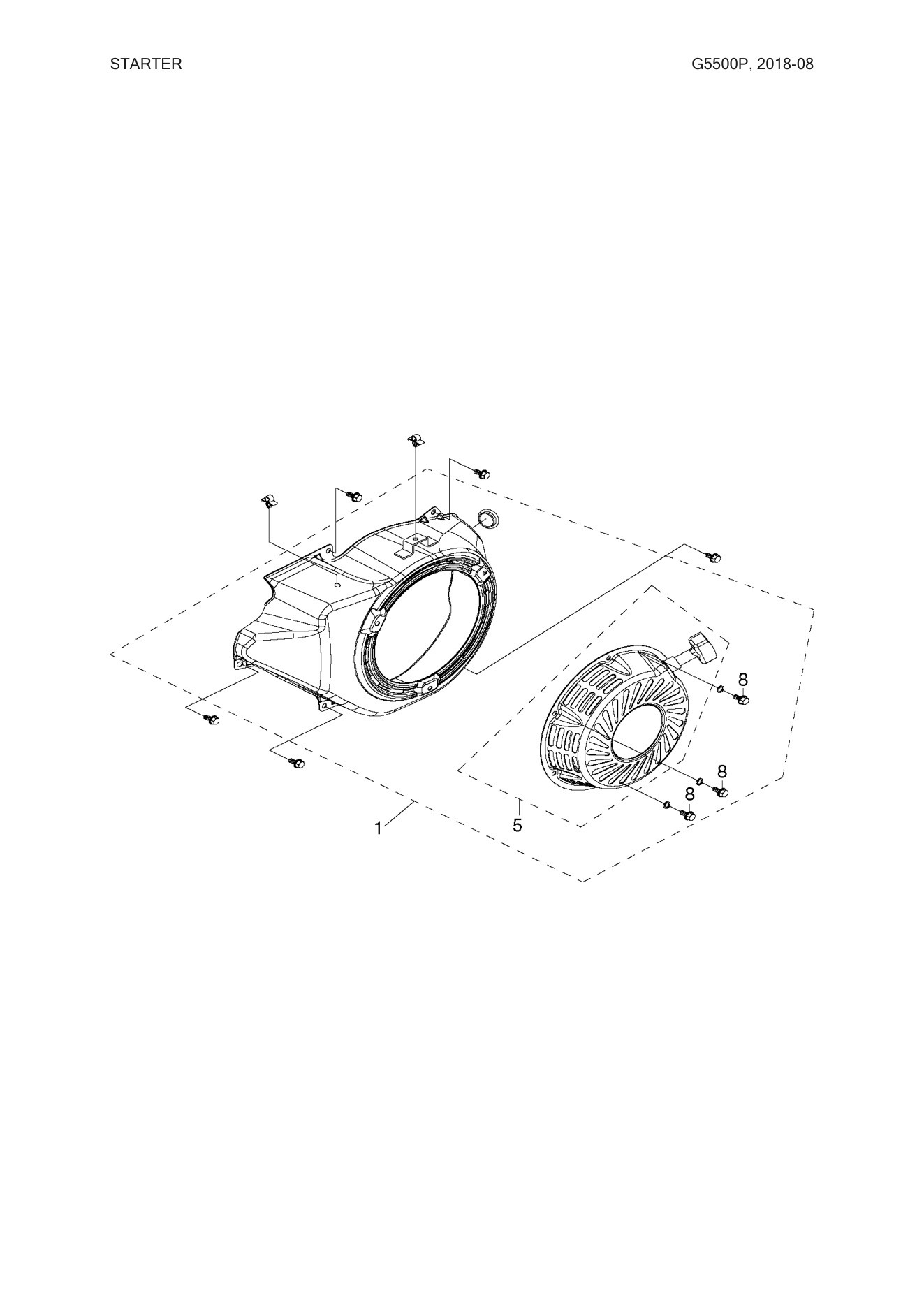

Starter diagram
Source page 28; parts table from source page 29
Starter clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 60 53-01 | STARTER ASSY | 1 - 596605301-Online | 1 |
| 5 | 596 60 61-01 | STARTER ASSY | 5 - 596606101-Online | 1 |
| 8 | 589 91 43-01 | BOLT | 8 - 589914301-Online | 3 |

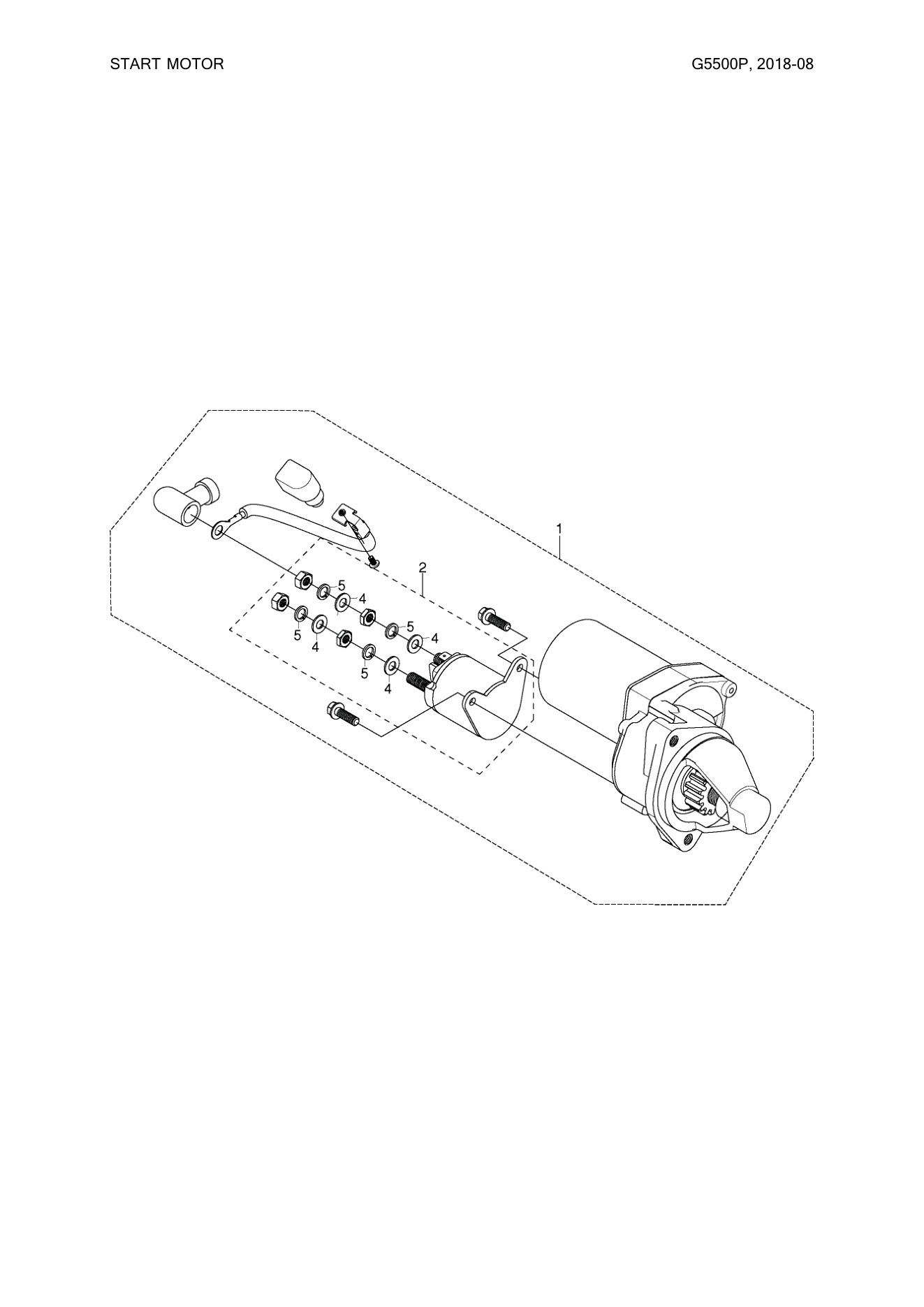

Start Motor diagram
Source page 30; parts table from source page 31
Start Motor clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 60 57-01 | STARTER MOTOR | 1 - 596605701-Online | 1 |
| 2 | 596 60 56-01 | RELAY | 2 - 596605601-Online | 1 |
| 4 | 588 46 90-01 | WASHER | 4 - 588469001-Online | 1 |
| 5 | 588 46 91-01 | SPRING WASHER | 5 - 588469101-Online | 1 |
Throttle Controls diagram

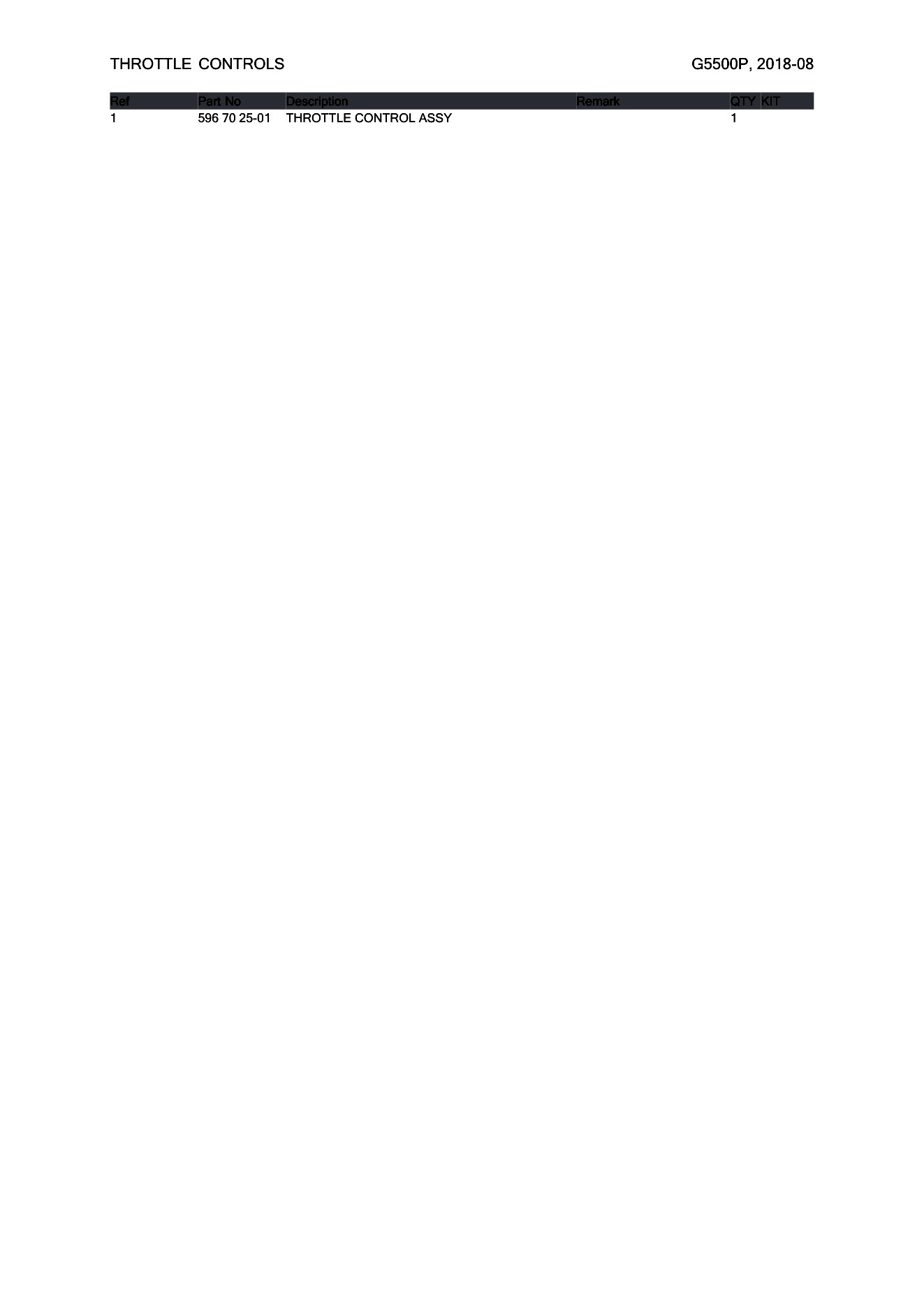

Source page 32; parts table from source page 33
Throttle Controls clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 70 25-01 | THROTTLE CONTROL ASSY | 1 - 596702501-Online | 1 |

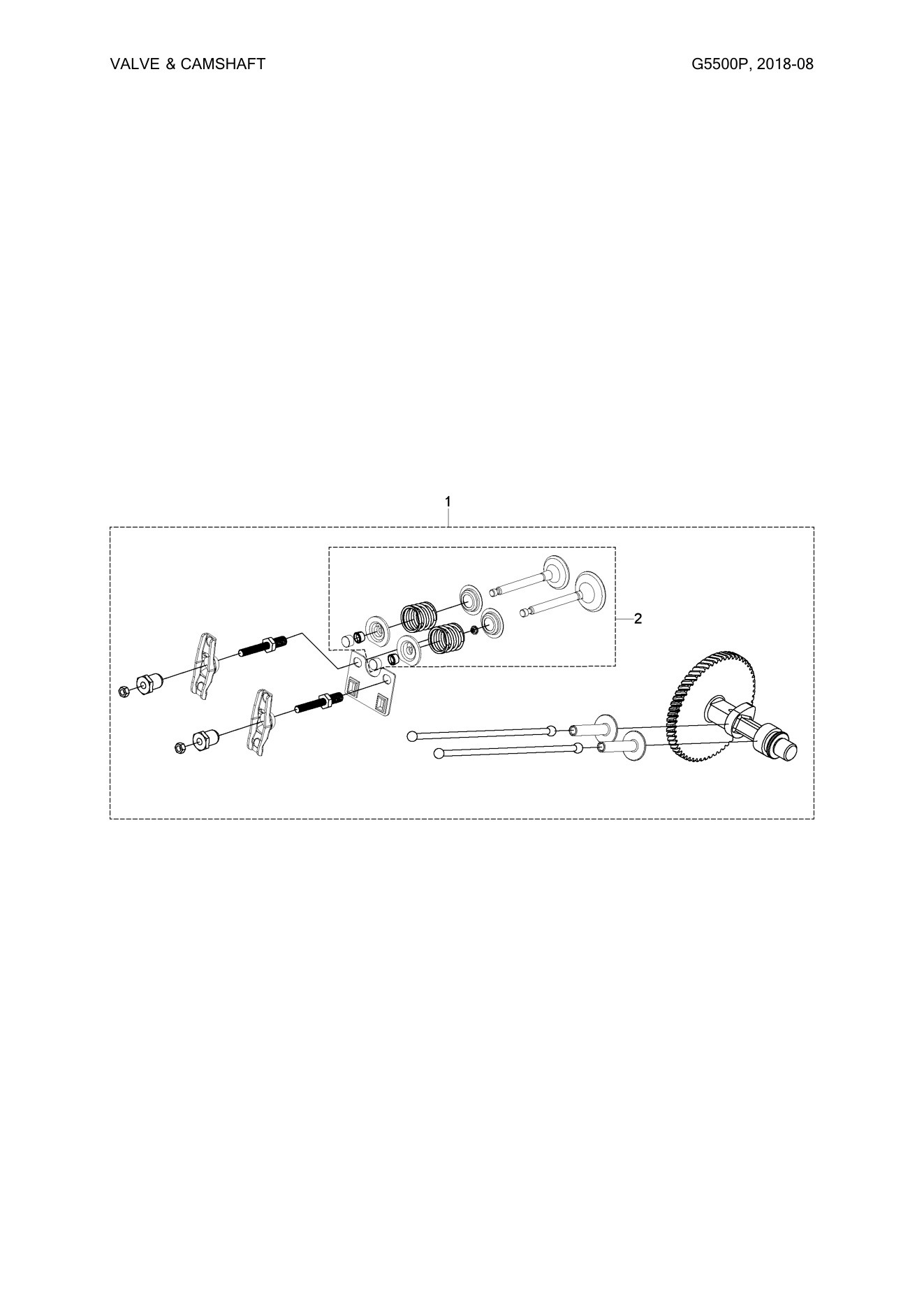

Valve & Camshaft diagram
Source page 34; parts table from source page 35
Valve & Camshaft clickable parts list
| Ref | Part number | Description | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | 596 70 29-01 | VALVE KIT | 1 - 596702901-Online | 1 |
| 2 | 596 70 33-01 | VALVE | 2 - 596703301-Online | 1 |
