Husqvarna 12 RC IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

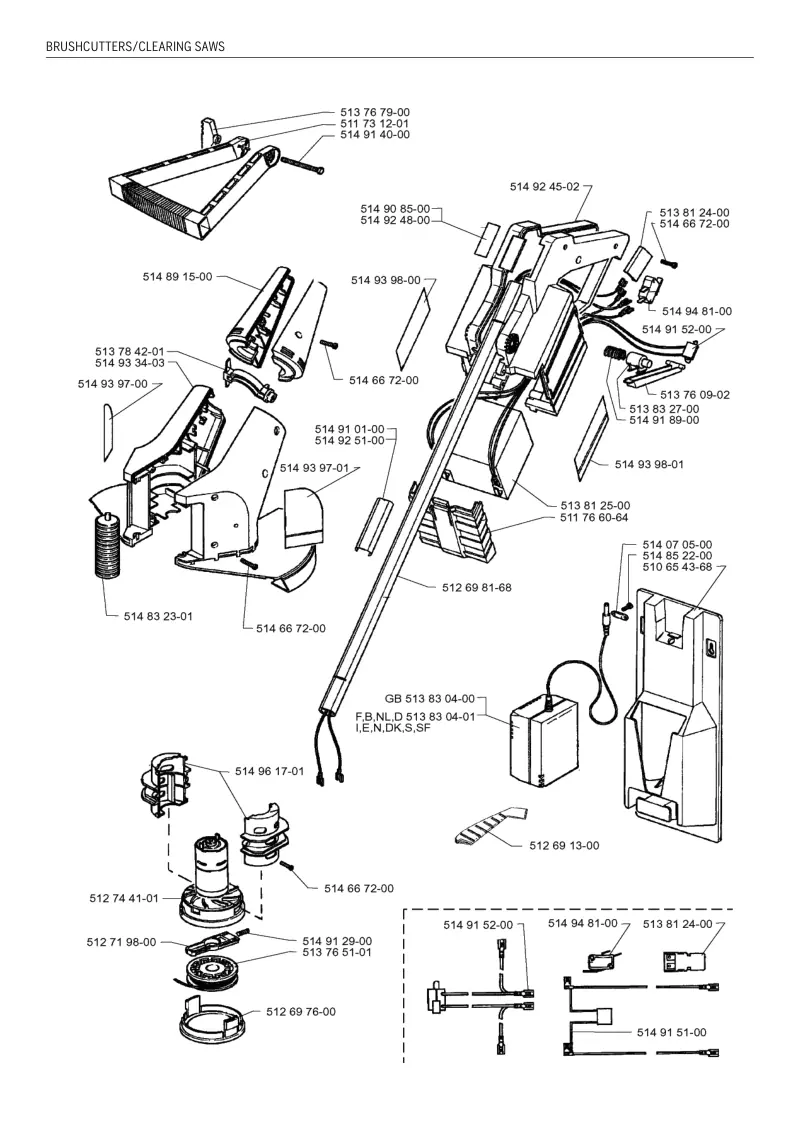

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 514 00 89 15- | SWIWELS PAIR | 514891500 | 514891500-Online | 1 |
| 513 01 78 42- | LOCKING BUTTON | 513784201 | 513784201-Online | 1 |
| 514 03 93 34- | COVER | 514933403 | 514933403-Online | 1 |
| 514 00 93 97- | DECAL | 514939700 | 514939700-Online | 1 |
| 514 01 83 23- | ROLLER GREY | 514832301 | 514832301-Online | 1 |
| 512 01 74 41- | CUTTING HEAD/MOTOR | 512744101 | 512744101-Online | 1 |
| 512 00 71 98- | LINE | 512719800 | 512719800-Online | 1 |
| 512 00 69 76- | COVER | 512697600 | 512697600-Online | 1 |
| 513 01 76 51- | SPOOL | 513765101 | 513765101-Online | 1 |
| 514 00 91 29- | SPRING | 514912900 | 514912900-Online | 1 |
| 514 00 66 72- | SCREW | 514667200 | 514667200-Online | 1 |
| 514 01 96 17- | ADAPTER | 514961701 | 514961701-Online | 1 |
| 514 01 93 97- | DECAL | 514939701 | 514939701-Online | 1 |
| 514 00 92 51- | DECAL | 514925100 | 514925100-Online | 1 |
| 514 00 91 01- | DECAL | 514910100 | 514910100-Online | 1 |
| 514 00 93 98- | DECAL | 514939800 | 514939800-Online | 1 |
| 514 00 92 48- | DECAL | 514924800 | 514924800-Online | 1 |
| 514 00 90 85- | DECAL | 514908500 | 514908500-Online | 1 |
| 514 00 91 40- | BOLT | 514914000 | 514914000-Online | 1 |
| 511 01 73 12- | HANDLE | 511731201 | 511731201-Online | 1 |
| 513 00 76 79- | WING NUT | 513767900 | 513767900-Online | 1 |
| 512 68 69 81- | HANDLE TUBE | 512698168 | 512698168-Online | 1 |
| 513 00 83 04- | BATTERY CHARGER GB | 513830400 | 513830400-Online | 1 |
| 513 01 83 04- | BATERY CHARGER F,B,NL,D I,E,N,DK,S,SF | 513830401 | 513830401-Online | 1 |
| 514 00 91 51- | HARNESS | 514915100 | 514915100-Online | 1 |
| 514 00 94 81- | SWITCH | 514948100 | 514948100-Online | 1 |
| 512 00 69 13- | GRASS RAKE | 512691300 | 512691300-Online | 1 |
| 510 68 65 43- | BRACKET | 510654368 | 510654368-Online | 1 |
| 514 00 85 22- | SCREW | 514852200 | 514852200-Online | 1 |
| 514 00 07 05- | MORSETTO | 514070500 | 514070500-Online | 1 |
| 511 64 76 60- | COVER | 511766064 | 511766064-Online | 1 |
| 513 00 81 25- | BATTERY | 513812500 | 513812500-Online | 1 |
| 514 01 93 98- | DECAL | 514939801 | 514939801-Online | 1 |
| 514 00 91 89- | SPRING | 514918900 | 514918900-Online | 1 |
| 513 00 83 27- | KNOB | 513832700 | 513832700-Online | 1 |
| 513 02 76 09- | LEVER | 513760902 | 513760902-Online | 1 |
| 514 00 91 52- | HARNESS | 514915200 | 514915200-Online | 1 |
| 513 00 81 24- | PROTECTOR | 513812400 | 513812400-Online | 1 |
| 514 02 92 45- | BOX | 514924502 | 514924502-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 514 00 89 15- | SWIWELS PAIR | 514891500 | 514891500-Online | 1 |
| 513 01 78 42- | LOCKING BUTTON | 513784201 | 513784201-Online | 1 |
| 514 03 93 34- | COVER | 514933403 | 514933403-Online | 1 |
| 514 00 97 03- | DECAL | 514970300 | 514970300-Online | 1 |
| 514 01 83 23- | ROLLER GREY | 514832301 | 514832301-Online | 1 |
| 512 01 74 41- | CUTTING HEAD/MOTOR | 512744101 | 512744101-Online | 1 |
| 512 00 71 98- | LINE | 512719800 | 512719800-Online | 1 |
| 512 00 69 76- | COVER | 512697600 | 512697600-Online | 1 |
| 513 01 76 51- | SPOOL | 513765101 | 513765101-Online | 1 |
| 514 00 91 29- | SPRING | 514912900 | 514912900-Online | 1 |
| 514 00 66 72- | SCREW | 514667200 | 514667200-Online | 1 |
| 514 01 96 17- | ADAPTER | 514961701 | 514961701-Online | 1 |
| 514 01 97 03- | DECAL | 514970301 | 514970301-Online | 1 |
| 514 00 92 51- | DECAL | 514925100 | 514925100-Online | 1 |
| 514 00 91 01- | DECAL | 514910100 | 514910100-Online | 1 |
| 514 00 97 04- | DECAL | 514970400 | 514970400-Online | 1 |
| 514 00 92 48- | DECAL | 514924800 | 514924800-Online | 1 |
| 514 00 90 85- | DECAL | 514908500 | 514908500-Online | 1 |
| 514 00 91 40- | BOLT | 514914000 | 514914000-Online | 1 |
| 511 01 73 12- | HANDLE | 511731201 | 511731201-Online | 1 |
| 513 00 76 79- | WING NUT | 513767900 | 513767900-Online | 1 |
| 512 68 69 81- | HANDLE TUBE | 512698168 | 512698168-Online | 1 |
| 513 00 83 04- | BATTERY CHARGER GB | 513830400 | 513830400-Online | 1 |
| 513 01 83 04- | BATERY CHARGER F,B,NL,D I,E,N,DK,S,SF | 513830401 | 513830401-Online | 1 |
| 512 00 76 12- | TOOL | 512761200 | 512761200-Online | 1 |
| 514 00 91 51- | HARNESS | 514915100 | 514915100-Online | 1 |
| 510 68 65 43- | BRACKET | 510654368 | 510654368-Online | 1 |
| 514 00 85 22- | SCREW | 514852200 | 514852200-Online | 1 |
| 514 00 07 05- | MORSETTO | 514070500 | 514070500-Online | 1 |
| 511 64 76 60- | COVER | 511766064 | 511766064-Online | 1 |
| 513 00 81 25- | BATTERY | 513812500 | 513812500-Online | 1 |
| 514 01 97 04- | DECAL | 514970401 | 514970401-Online | 1 |
| 514 00 91 89- | SPRING | 514918900 | 514918900-Online | 1 |
| 513 00 83 27- | KNOB | 513832700 | 513832700-Online | 1 |
| 513 02 76 09- | LEVER | 513760902 | 513760902-Online | 1 |
| 514 00 91 52- | HARNESS | 514915200 | 514915200-Online | 1 |
| 514 00 94 81- | SWITCH | 514948100 | 514948100-Online | 1 |
| 513 00 81 24- | PROTECTOR | 513812400 | 513812400-Online | 1 |
| 514 02 92 45- | BOX | 514924502 | 514924502-Online | 1 |
