Husqvarna 120 R IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS

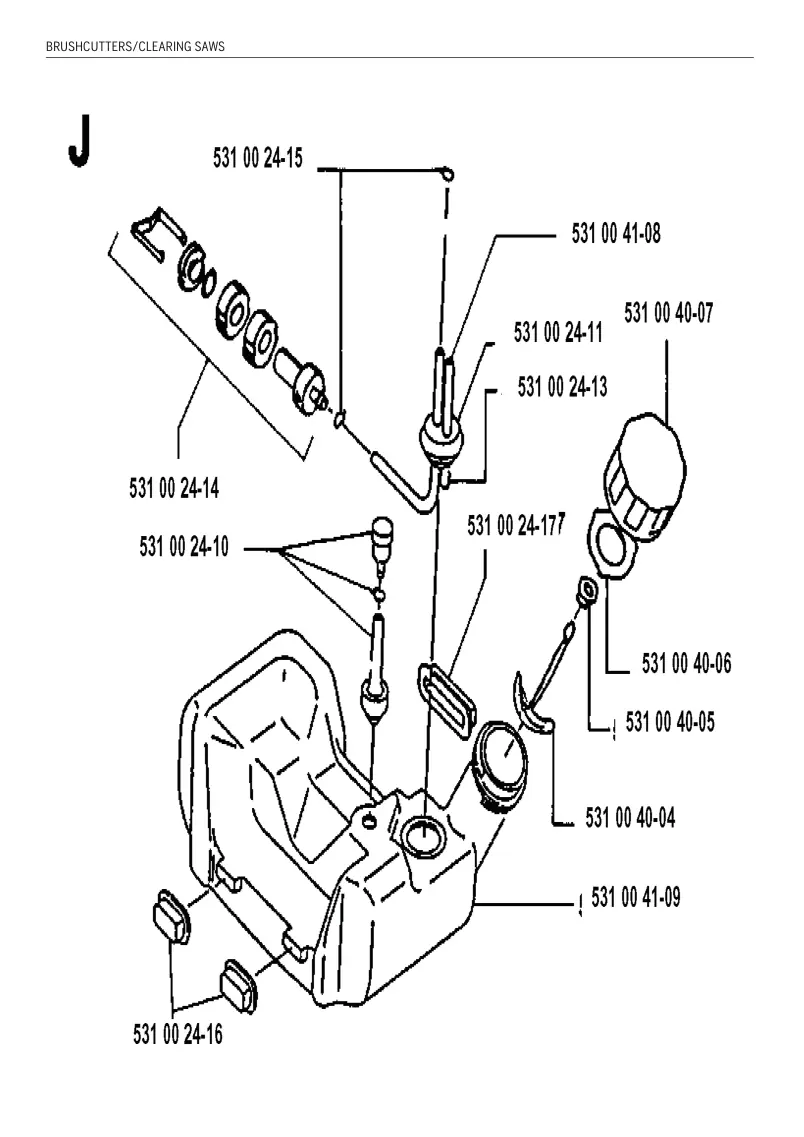

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 1 |
| 531 14 00 24- | FILTER | 531002414 | 531002414-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 16 00 24- | SLEEVE | 531002416 | 531002416-Online | 1 |
| 531 09 00 41- | TANK | 531004109 | 531004109-Online | 1 |
| 531 04 00 40- | HOLDER | 531004004 | 531004004-Online | 1 |
| 531 05 00 40- | BRACKET | 531004005 | 531004005-Online | 1 |
| 531 06 00 40- | GASKET | 531004006 | 531004006-Online | 1 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 13 00 24- | PIPE | 531002413 | 531002413-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 07 00 40- | TANK CAP | 531004007 | 531004007-Online | 1 |
| 531 08 00 41- | FUEL PIPE | 531004108 | 531004108-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 75 00 40- | MUFFLER COVER US, CAN | 531004075 | 531004075-Online | 1 |
| 531 76 00 40- | DEFLECTOR US, CAN | 531004076 | 531004076-Online | 1 |
| 531 89 00 40- | GASKET US, CAN | 531004089 | 531004089-Online | 1 |
| 531 77 00 40- | SPARK ARRESTOR US, CAN | 531004077 | 531004077-Online | 1 |
| 725 01 53 29- | SCREW IHSCM M5X16 | 725532901 | 725532901-Online | 1 |
| 531 78 00 40- | PROTECTOR | 531004078 | 531004078-Online | 1 |
| 531 79 00 40- | GASKET | 531004079 | 531004079-Online | 1 |
| 725 01 53 33- | SCREW IHSCM M5X25 | 725533301 | 725533301-Online | 1 |
| 531 83 00 40- | MUFFLER BODY US, CAN | 531004083 | 531004083-Online | 1 |
| 531 82 00 40- | MUFFLER BODY | 531004082 | 531004082-Online | 1 |
| 531 32 00 41- | DEFLECTOR | 531004132 | 531004132-Online | 1 |
| 531 81 00 40- | MUFFLER COVER | 531004081 | 531004081-Online | 1 |
| 531 80 00 40- | SCREW M5X20 | 531004080 | 531004080-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 18 00 41- | SHAFT | 531004118 | 531004118-Online | 1 |
| 502 01 18 05- | DRIVE TUBE | 502180501 | 502180501-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
| 502 01 02 61- | STOP | 502026101 | 502026101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
| 531 90 00 40- | CYLINDER COVER | 531004090 | 531004090-Online | 1 |
| 531 91 00 40- | CYLINDER COVER US, CAN | 531004091 | 531004091-Online | 1 |
| 531 64 00 23- | SPACER | 531002364 | 531002364-Online | 1 |
| 531 65 00 23- | RETAINER RING | 531002365 | 531002365-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 01 53 31- | SCREW IHSCM M5X20 | 725533101 | 725533101-Online | 1 |
| 531 84 00 40- | CYLINDER | 531004084 | 531004084-Online | 1 |
| 531 85 00 40- | GASKET | 531004085 | 531004085-Online | 1 |
| 531 86 00 40- | PISTON RING | 531004086 | 531004086-Online | 1 |
| 531 87 00 40- | PISTON | 531004087 | 531004087-Online | 1 |
| 531 88 00 40- | PISTON BOLT | 531004088 | 531004088-Online | 1 |
| 531 83 00 23- | CLIP | 531002383 | 531002383-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 87 00 23- | CLUTCH ASSY | 531002387 | 531002387-Online | 1 |
| 531 14 00 41- | CLUTCH CASE ASSY | 531004114 | 531004114-Online | 1 |
| 531 34 00 41- | BEARING | 531004134 | 531004134-Online | 1 |
| 531 15 00 41- | SCREW | 531004115 | 531004115-Online | 1 |
| 531 16 00 41- | CLUTCH CASE | 531004116 | 531004116-Online | 1 |
| 531 33 00 41- | SNAP RING | 531004133 | 531004133-Online | 1 |
| 501 01 78 29- | CLUTCH DRUM | 501782901 | 501782901-Online | 1 |
| 531 91 00 23- | WASHER | 531002391 | 531002391-Online | 1 |
| 531 92 00 23- | SCREW | 531002392 | 531002392-Online | 1 |
| 531 89 00 23- | SPRING | 531002389 | 531002389-Online | 1 |
| 531 88 00 23- | CLUTCH | 531002388 | 531002388-Online | 1 |
| 531 90 00 23- | WASHER | 531002390 | 531002390-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 88 03- | CLUTCH COVER ASSY | 501880301 | 501880301-Online | 1 |
| 531 30 00 41- | SCREW | 531004130 | 531004130-Online | 1 |
| 531 15 00 41- | SCREW | 531004115 | 531004115-Online | 1 |
| 503 03 25 01- | BALL BEARING | 503250103 | 503250103-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 735 41 31 14- | RETAINER RING | 735311441 | 735311441-Online | 1 |
| 531 31 00 41- | CLUTCH DRUM | 531004131 | 531004131-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 78 40- | HARNESS | 501784001 | 501784001-Online | 1 |
| 531 68 00 24- | HARNESS USA | 531002468 | 531002468-Online | 1 |
| 531 45 00 23- | HARNESS USA | 531002345 | 531002345-Online | 1 |
| 531 44 00 23- | HARNESS | 531002344 | 531002344-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 732 01 41 16- | WING NUT | 732411601 | 732411601-Online | 1 |
| 503 61 23 00- | WASHER | 503230061 | 503230061-Online | 1 |
| 503 31 23 00- | WASHER | 503230031 | 503230031-Online | 1 |
| 502 01 16 35- | DRIVE TUBE | 502163501 | 502163501-Online | 1 |
| 531 26 00 41- | SHAFT | 531004126 | 531004126-Online | 1 |
| 725 51 23 80- | SCREW EHHM | 725238051 | 725238051-Online | 1 |
| 502 01 18 15- | THROTTLE WIRE | 502181501 | 502181501-Online | 1 |
| 501 01 88 11- | DRIVE SHAFT | 501881101 | 501881101-Online | 1 |
| 531 25 00 41- | LEAD WIRE | 531004125 | 531004125-Online | 1 |
| 531 24 00 41- | TUBE | 531004124 | 531004124-Online | 1 |
| 502 01 14 86- | HANDLE | 502148601 | 502148601-Online | 1 |
| 531 23 00 41- | THROTTLE TRIGGER | 531004123 | 531004123-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 01 53 41- | SCREW IHSCM M5X50 | 725534101 | 725534101-Online | 1 |
| 531 53 00 24- | HOLDER | 531002453 | 531002453-Online | 1 |
| 531 54 00 24- | AIR FILTER | 531002454 | 531002454-Online | 1 |
| 531 65 00 23- | RETAINER RING | 531002365 | 531002365-Online | 1 |
| 531 93 00 40- | AIR FILTER COVER | 531004093 | 531004093-Online | 1 |
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
| 725 01 53 33- | SCREW IHSCM M5X25 | 725533301 | 725533301-Online | 1 |
| 531 50 00 23- | INSULSTER | 531002350 | 531002350-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
| 531 92 00 40- | PROTECTOR | 531004092 | 531004092-Online | 1 |
| 531 57 00 24- | SCREEN | 531002457 | 531002457-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 06 00 24- | PLUG | 531002406 | 531002406-Online | 1 |
| 725 01 53 31- | SCREW IHSCM M5X20 | 725533101 | 725533101-Online | 1 |
| 531 93 00 23- | COVER | 531002393 | 531002393-Online | 1 |
| 725 01 53 35- | SCREW IHSCM M5X30 | 725533501 | 725533501-Online | 1 |
| 531 07 00 41- | SEALING RING | 531004107 | 531004107-Online | 1 |
| 531 06 00 41- | SEALING RING | 531004106 | 531004106-Online | 1 |
| 531 05 00 41- | RETAINER RING | 531004105 | 531004105-Online | 1 |
| 531 04 00 41- | CRANKHOUSE | 531004104 | 531004104-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 46 00 24- | SCREW | 531002446 | 531002446-Online | 1 |
| 531 41 00 24- | PLUG | 531002441 | 531002441-Online | 1 |
| 531 52 00 24- | GASKET | 531002452 | 531002452-Online | 1 |
| 531 21 00 24- | O-RING | 531002421 | 531002421-Online | 1 |
| 531 22 00 24- | JET | 531002422 | 531002422-Online | 1 |
| 531 23 00 24- | GASKET | 531002423 | 531002423-Online | 1 |
| 531 24 00 24- | DIAPHRAGM | 531002424 | 531002424-Online | 1 |
| 531 25 00 24- | PLATE | 531002425 | 531002425-Online | 1 |
| 531 26 00 24- | GASKET | 531002426 | 531002426-Online | 1 |
| 531 27 00 24- | HOUSING | 531002427 | 531002427-Online | 1 |
| 531 28 00 24- | GASKET | 531002428 | 531002428-Online | 1 |
| 531 29 00 24- | DIAPHRAGM | 531002429 | 531002429-Online | 1 |
| 531 30 00 24- | HOUSING | 531002430 | 531002430-Online | 1 |
| 531 31 00 24- | DIAPHRAGM | 531002431 | 531002431-Online | 1 |
| 531 33 00 24- | SPRING | 531002433 | 531002433-Online | 1 |
| 531 34 00 24- | HOUSING | 531002434 | 531002434-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 38 00 24- | SCREW | 531002438 | 531002438-Online | 1 |
| 531 37 00 24- | COVER | 531002437 | 531002437-Online | 1 |
| 531 32 00 24- | HOLDER | 531002432 | 531002432-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 50 00 24- | SPRING | 531002450 | 531002450-Online | 1 |
| 531 47 00 24- | VALVE | 531002447 | 531002447-Online | 1 |
| 531 49 00 24- | O-RING | 531002449 | 531002449-Online | 1 |
| 531 48 00 24- | GASKET | 531002448 | 531002448-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 40 00 24- | THROTTLE VALVE | 531002440 | 531002440-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 44 00 24- | BRACKET | 531002444 | 531002444-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 1 |
| 531 22 00 41- | CARBURETTOR | 531004122 | 531004122-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 94 00 40- | RECOIL STARTER | 531004094 | 531004094-Online | 1 |
| 531 98 00 40- | RECOIL SPRING | 531004098 | 531004098-Online | 1 |
| 531 99 00 40- | STARTER PULLEY | 531004099 | 531004099-Online | 1 |
| 531 01 00 41- | STARTER PULLEY | 531004101 | 531004101-Online | 1 |
| 531 02 00 41- | SPRING | 531004102 | 531004102-Online | 1 |
| 531 03 00 41- | RATCHET | 531004103 | 531004103-Online | 1 |
| 724 01 13 27- | SCREW CRPANM M5X12 | 724132701 | 724132701-Online | 1 |
| 531 93 00 24- | WASHER | 531002493 | 531002493-Online | 1 |
| 531 97 00 40- | STARTER HOUSING | 531004097 | 531004097-Online | 1 |
| 531 95 00 40- | STARTER ROPE | 531004095 | 531004095-Online | 1 |
| 531 96 00 40- | HANDLE | 531004096 | 531004096-Online | 1 |
| 725 01 52 93- | SCREW IHSCM M4X16 | 725529301 | 725529301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 81 00 23- | SUPPORT BUSHING | 531002381 | 531002381-Online | 1 |
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 531 11 00 41- | CRANKSHAFT | 531004111 | 531004111-Online | 1 |
| 531 10 00 41- | BALL BEARING | 531004110 | 531004110-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
| 531 97 00 23- | CABLE | 531002397 | 531002397-Online | 1 |
| 531 95 00 23- | IGNITION COIL | 531002395 | 531002395-Online | 1 |
| 725 01 52 97- | SCREW IHSCM M4X25 | 725529701 | 725529701-Online | 1 |
| 531 13 00 41- | NUT | 531004113 | 531004113-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 1 |
| 531 01 00 24- | SLEEVE | 531002401 | 531002401-Online | 1 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 531 12 00 41- | FLYWHEEL | 531004112 | 531004112-Online | 1 |
| 531 05 00 24- | CABLE | 531002405 | 531002405-Online | 1 |
| 531 96 00 23- | CABLE ASSY | 531002396 | 531002396-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 51 23 33- | SCREW EHHM | 725233351 | 725233351-Online | 1 |
| 531 27 00 41- | SCREW | 531004127 | 531004127-Online | 1 |
| 502 01 10 47- | TRIMMER GUARD ASSY | 502104701 | 502104701-Online | 1 |
| 531 28 00 41- | BLADE SHAFT | 531004128 | 531004128-Online | 1 |
| 738 19 22 01- | BALL BEARING | 738220119 | 738220119-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 502 01 16 25- | BOSS | 502162501 | 502162501-Online | 1 |
| 531 29 00 41- | NUT | 531004129 | 531004129-Online | 1 |
| 503 03 20 00- | SCREW | 503200003 | 503200003-Online | 1 |
| 501 01 92 77- | BLADE KIT | 501927701 | 501927701-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 502 01 16 23- | GEAR HOUSING | 502162301 | 502162301-Online | 1 |
| 531 20 00 41- | BEARING CASE ASSY | 531004120 | 531004120-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 15 00 41- | SCREW | 531004115 | 531004115-Online | 1 |
| 503 41 21 83- | SCREW | 503218341 | 503218341-Online | 1 |
| 738 00 21 98- | BALL BEARING | 738219800 | 738219800-Online | 1 |
| 502 01 14 71- | GEAR WHEEL | 502147101 | 502147101-Online | 1 |
| 502 01 18 08- | AXIS | 502180801 | 502180801-Online | 1 |
| 531 21 00 41- | SCREW | 531004121 | 531004121-Online | 1 |
| 503 03 20 00- | SCREW L | 503200003 | 503200003-Online | 1 |
| 502 01 14 74- | AXLE | 502147401 | 502147401-Online | 1 |
| 738 01 21 99- | BALL BEARING | 738219901 | 738219901-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 738 00 21 99- | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 735 41 31 11- | RETAINER RING | 735311141 | 735311141-Online | 1 |
| 502 01 14 69- | GEAR HOUSING | 502146901 | 502146901-Online | 1 |
| 531 26 00 40- | BEVEL GEAR | 531004026 | 531004026-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 19 19- | SPACER | 502191901 | 502191901-Online | 1 |
| 502 01 18 09- | DRIVER | 502180901 | 502180901-Online | 1 |
| 502 01 18 10- | FLANGE | 502181001 | 502181001-Online | 1 |
| 502 01 04 55- | NUT | 502045501 | 502045501-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 22 21 83- | SCREW | 503218322 | 503218322-Online | 1 |
| 502 01 18 18- | DAMPER | 502181801 | 502181801-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 502 01 18 88- | CONNECTION | 502188801 | 502188801-Online | 1 |
| 531 19 00 41- | THROTTLE TRIGGER | 531004119 | 531004119-Online | 1 |
| 502 01 18 15- | THROTTLE WIRE | 502181501 | 502181501-Online | 1 |
| 502 01 18 17- | PROTECTOR | 502181701 | 502181701-Online | 1 |
| 502 01 18 16- | LEAD | 502181601 | 502181601-Online | 1 |
| 502 01 18 19- | HANDLE | 502181901 | 502181901-Online | 1 |
| 503 16 21 83- | SCREW | 503218316 | 503218316-Online | 1 |
| 501 01 78 33- | SUSPENSION BAIL | 501783301 | 501783301-Online | 1 |
| 502 01 18 14- | HANDLE | 502181401 | 502181401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 14 92- | HANDLE HALF | 502149201 | 502149201-Online | 1 |
| 502 01 14 94- | THROTTLE CONTROL | 502149401 | 502149401-Online | 1 |
| 502 01 14 96- | RECOIL SPRING | 502149601 | 502149601-Online | 1 |
| 502 01 14 93- | HANDLE HALF | 502149301 | 502149301-Online | 1 |
| 734 01 11 36- | WASHER | 734113601 | 734113601-Online | 1 |
| 724 61 12 93- | SCREW CRPANM | 724129361 | 724129361-Online | 1 |
| 503 21 21 83- | SCREW | 503218321 | 503218321-Online | 1 |
| 502 01 12 44- | HANDLEBAR RIGHT | 502124401 | 502124401-Online | 1 |
| 762 05 91 02- | TIE WRAP | 762910205 | 762910205-Online | 1 |
| 502 01 14 81- | HANDLEBAR BRACKET | 502148101 | 502148101-Online | 1 |
| 503 16 23 00- | WASHER | 503230016 | 503230016-Online | 1 |
| 503 31 23 00- | WASHER | 503230031 | 503230031-Online | 1 |
| 503 36 21 83- | SCREW | 503218336 | 503218336-Online | 1 |
| 502 02 12 43- | HANDLE LEFT SWEDEN ONLY | 502124302 | 502124302-Online | 1 |
| 502 01 12 43- | HANDLEBAR LEFT | 502124301 | 502124301-Online | 1 |
| 502 01 14 80- | HANDLEBAR BRACKET LO | 502148001 | 502148001-Online | 1 |
| 503 16 21 83- | SCREW | 503218316 | 503218316-Online | 1 |
| 501 01 78 33- | SUSPENSION BAIL | 501783301 | 501783301-Online | 1 |
| 502 01 14 79- | HANDLEBAR BRACKET UP | 502147901 | 502147901-Online | 1 |
| 503 35 21 83- | SCREW | 503218335 | 503218335-Online | 1 |
| 735 50 11 35- | WASHER | 735113550 | 735113550-Online | 1 |
| 502 01 14 95- | THROTTLE LOCKOUT | 502149501 | 502149501-Online | 1 |
| 502 01 18 11- | SWITCH CPL | 502181101 | 502181101-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 502 01 18 19- | HANDLE | 502181901 | 502181901-Online | 1 |
| 502 01 16 45- | THROTTLE CABLE ASSY | 502164501 | 502164501-Online | 1 |
| 502 01 18 12- | WIRE ASSY | 502181201 | 502181201-Online | 1 |
