Husqvarna 125 BT IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

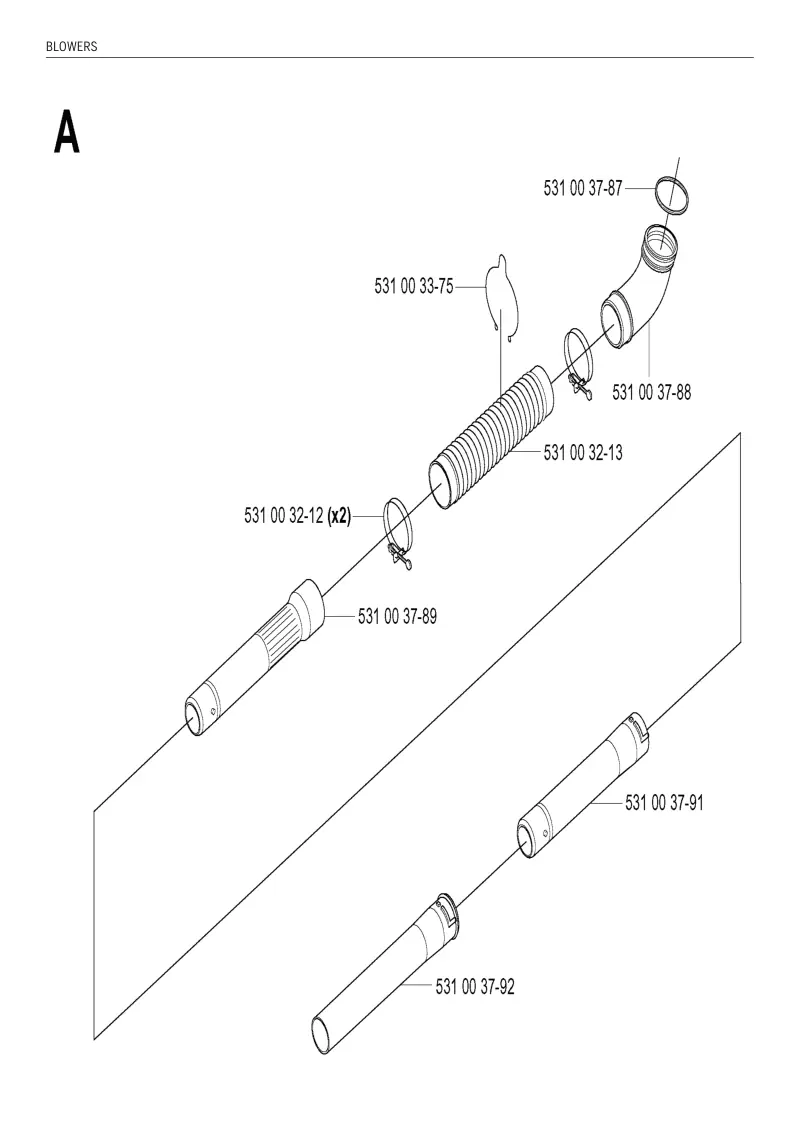

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 75 00 33- | HOLDER | 531003375 | 531003375-Online | 1 |
| 531 12 00 32- | CLAMP | 531003212 | 531003212-Online | 2 |
| 531 89 00 37- | PIPE | 531003789 | 531003789-Online | 1 |
| 531 92 00 37- | PIPE | 531003792 | 531003792-Online | 1 |
| 531 91 00 37- | PIPE | 531003791 | 531003791-Online | 1 |
| 531 13 00 32- | PIPE | 531003213 | 531003213-Online | 1 |
| 531 88 00 37- | PIPE | 531003788 | 531003788-Online | 1 |
| 531 87 00 37- | O-RING | 531003787 | 531003787-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 65 00 95- | PAWL | 531009565 | 531009565-Online | 1 |
| 531 62 00 95- | COVER | 531009562 | 531009562-Online | 1 |
| 531 70 00 95- | SPRING | 531009570 | 531009570-Online | 1 |
| 531 66 00 95- | STARTER PULLEY | 531009566 | 531009566-Online | 1 |
| 531 68 00 95- | SCREW | 531009568 | 531009568-Online | 1 |
| 531 65 00 33- | RETAINER RING | 531003365 | 531003365-Online | 1 |
| 531 69 00 95- | WASHER | 531009569 | 531009569-Online | 1 |
| 531 71 00 95- | SPRING | 531009571 | 531009571-Online | 1 |
| 531 61 00 95- | PAWL | 531009561 | 531009561-Online | 1 |
| 724 01 12 91- | SCREW CRPANM | 724129101 | 724129101-Online | 4 |
| 531 70 00 33- | NUT | 531003370 | 531003370-Online | 1 |
| 531 67 00 95- | STARTER ROPE | 531009567 | 531009567-Online | 1 |
| 531 64 00 95- | HANDLE | 531009564 | 531009564-Online | 1 |
| 531 58 00 33- | PLATE | 531003358 | 531003358-Online | 1 |
| 531 02 00 95- | DECAL | 531009502 | 531009502-Online | 1 |
| 531 63 00 95- | COVER | 531009563 | 531009563-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 43 00 95- | PLATE | 531009543 | 531009543-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 2 |
| 531 47 00 95- | HOLDER | 531009547 | 531009547-Online | 1 |
| 531 49 00 95- | COVER | 531009549 | 531009549-Online | 1 |
| 531 50 00 95- | KNOB | 531009550 | 531009550-Online | 1 |
| 531 48 00 95- | AIR FILTER | 531009548 | 531009548-Online | 1 |
| 531 45 00 95- | GASKET | 531009545 | 531009545-Online | 1 |
| 531 44 00 95- | SPACER | 531009544 | 531009544-Online | 1 |
| 724 01 13 31- | SCREW CRPANM | 724133101 | 724133101-Online | 2 |
| 531 42 00 95- | GASKET | 531009542 | 531009542-Online | 1 |
| 531 46 00 95- | SCREW | 531009546 | 531009546-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 72 00 95- | CARBURETTOR | 531009572 | 531009572-Online | 1 |
| 531 61 00 44- | O-RING | 531004461 | 531004461-Online | 1 |
| 531 75 00 95- | JET | 531009575 | 531009575-Online | 1 |
| 531 36 00 44- | GASKET | 531004436 | 531004436-Online | 1 |
| 531 53 00 44- | DIAPHRAGM | 531004453 | 531004453-Online | 1 |
| 531 43 00 44- | FILTER | 531004443 | 531004443-Online | 1 |
| 531 74 00 95- | PLATE | 531009574 | 531009574-Online | 1 |
| 531 46 00 44- | VALVE | 531004446 | 531004446-Online | 1 |
| 531 63 00 44- | SPRING | 531004463 | 531004463-Online | 1 |
| 531 42 00 44- | LEVER | 531004442 | 531004442-Online | 1 |
| 531 60 00 44- | PIN RETAINING SCREW | 531004460 | 531004460-Online | 1 |
| 531 57 00 44- | SCREW | 531004457 | 531004457-Online | 1 |
| 531 58 00 44- | SCREW | 531004458 | 531004458-Online | 4 |
| 531 44 00 44- | COVER | 531004444 | 531004444-Online | 1 |
| 531 55 00 44- | PRIMER | 531004455 | 531004455-Online | 1 |
| 531 48 00 44- | PLATE | 531004448 | 531004448-Online | 1 |
| 531 52 00 44- | DIAPHRAGM | 531004452 | 531004452-Online | 1 |
| 531 38 00 44- | GASKET | 531004438 | 531004438-Online | 1 |
| 531 54 00 44- | RING | 531004454 | 531004454-Online | 1 |
| 531 59 00 44- | RING | 531004459 | 531004459-Online | 1 |
| 531 64 00 44- | WASHER | 531004464 | 531004464-Online | 1 |
| 531 50 00 44- | LEVER | 531004450 | 531004450-Online | 1 |
| 531 73 00 95- | BRACKET | 531009573 | 531009573-Online | 1 |
| 531 56 00 44- | SCREW | 531004456 | 531004456-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 59 00 95- | HOSE | 531009559 | 531009559-Online | 1 |
| 531 33 00 44- | GROMMET | 531004433 | 531004433-Online | 1 |
| 531 32 00 44- | CLAMP | 531004432 | 531004432-Online | 1 |
| 531 58 00 95- | FILTER | 531009558 | 531009558-Online | 1 |
| 531 11 00 95- | TANK UNIT | 531009511 | 531009511-Online | 1 |
| 531 09 00 95- | SCREW | 531009509 | 531009509-Online | 3 |
| 531 47 00 33- | VALVE | 531003347 | 531003347-Online | 1 |
| 531 99 00 33- | TANK CAP | 531003399 | 531003399-Online | 1 |
| 531 60 00 95- | HOSE | 531009560 | 531009560-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 23 00 95- | CRANKSHAFT | 531009523 | 531009523-Online | 1 |
| 531 22 00 95- | PISTON RING | 531009522 | 531009522-Online | 1 |
| 531 21 00 95- | PISTON BOLT | 531009521 | 531009521-Online | 1 |
| 531 27 00 95- | RETAINER RING | 531009527 | 531009527-Online | 2 |
| 531 28 00 95- | NEEDLE BEARING | 531009528 | 531009528-Online | 1 |
| 531 29 00 95- | KEY | 531009529 | 531009529-Online | 1 |
| 531 26 00 95- | WASHER T=0,6 MM | 531009526 | 531009526-Online | 1 |
| 531 25 00 95- | WASHER T=0,4 MM | 531009525 | 531009525-Online | 1 |
| 531 24 00 95- | WASHER T=0,2 MM | 531009524 | 531009524-Online | 1 |
| 531 20 00 95- | PISTON | 531009520 | 531009520-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 19 00 95- | SCREW | 531009519 | 531009519-Online | 4 |
| 531 13 00 95- | GASKET | 531009513 | 531009513-Online | 1 |
| 531 14 00 95- | CRANKCASE | 531009514 | 531009514-Online | 1 |
| 531 16 00 95- | SCREW | 531009516 | 531009516-Online | 3 |
| 738 10 21 00- | BALL BEARING | 738210010 | 738210010-Online | 2 |
| 531 15 00 95- | CRANKCASE | 531009515 | 531009515-Online | 1 |
| 531 18 00 95- | SEALING | 531009518 | 531009518-Online | 1 |
| 531 17 00 95- | PIN RETAINING SCREW | 531009517 | 531009517-Online | 2 |
| 531 12 00 95- | CYLINDER | 531009512 | 531009512-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 732 01 25 16- | HEXAGON LOCKING NUT | 732251601 | 732251601-Online | 1 |
| 734 41 11 54- | WASHER | 734115441 | 734115441-Online | 1 |
| 531 98 00 37- | SCREW | 531003798 | 531003798-Online | 2 |
| 531 99 00 37- | PROTECTOR | 531003799 | 531003799-Online | 1 |
| 531 97 00 37- | HOUSING | 531003797 | 531003797-Online | 1 |
| 531 96 00 37- | FAN | 531003796 | 531003796-Online | 1 |
| 531 95 00 37- | HOUSING | 531003795 | 531003795-Online | 1 |
| 732 01 25 14- | HEXAGON LOCKING NUT | 732251401 | 732251401-Online | 2 |
| 531 01 00 95- | SCREW | 531009501 | 531009501-Online | 4 |
| 531 94 00 37- | ABSORBER | 531003794 | 531003794-Online | 2 |
| 503 01 22 66- | SQUARE NUT | 503226601 | 503226601-Online | 2 |
| 531 93 00 37- | COVER | 531003793 | 531003793-Online | 1 |
| 531 27 00 37- | SCREW | 531003727 | 531003727-Online | 3 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 90 00 37- | THROTTLE TRIGGER | 531003790 | 531003790-Online | 1 |
| 531 05 00 95- | CABLE ASSY | 531009505 | 531009505-Online | 1 |
| 531 69 00 44- | LEVER | 531004469 | 531004469-Online | 1 |
| 531 83 00 44- | SCREW | 531004483 | 531004483-Online | 1 |
| 531 77 00 44- | SCREW | 531004477 | 531004477-Online | 5 |
| 531 73 00 44- | WASHER | 531004473 | 531004473-Online | 2 |
| 531 75 00 44- | RETAINER RING | 531004475 | 531004475-Online | 1 |
| 531 74 00 44- | WASHER | 531004474 | 531004474-Online | 1 |
| 531 03 00 95- | HANDLE | 531009503 | 531009503-Online | 1 |
| 531 04 00 95- | HANDLE | 531009504 | 531009504-Online | 1 |
| 531 71 00 44- | SHAFT | 531004471 | 531004471-Online | 1 |
| 531 70 00 44- | LEVER | 531004470 | 531004470-Online | 1 |
| 531 72 00 44- | WASHER | 531004472 | 531004472-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 732 01 25 16- | HEXAGON LOCKING NUT | 732251601 | 732251601-Online | 1 |
| 734 41 11 54- | WASHER | 734115441 | 734115441-Online | 1 |
| 531 06 00 95- | HARNESS | 531009506 | 531009506-Online | 1 |
| 531 07 00 95- | CLIP | 531009507 | 531009507-Online | 4 |
| 531 08 00 95- | PAD | 531009508 | 531009508-Online | 1 |
| 725 71 23 68- | SCREW EHHM | 725236871 | 725236871-Online | 1 |
| 531 10 00 95- | FRAME | 531009510 | 531009510-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 79 00 32- | SPRING | 531003279 | 531003279-Online | 1 |
| 531 32 00 95- | HUB CAP | 531009532 | 531009532-Online | 1 |
| 503 11 23 50- | SPARK PLUG NGK BPMR6A | 503235011 | 503235011-Online | 1 |
| 531 40 00 95- | SCREW | 531009540 | 531009540-Online | 1 |
| 531 34 00 95- | CABLE | 531009534 | 531009534-Online | 1 |
| 531 35 00 95- | CABLE | 531009535 | 531009535-Online | 1 |
| 531 39 00 95- | WASHER | 531009539 | 531009539-Online | 2 |
| 531 41 00 95- | NUT | 531009541 | 531009541-Online | 1 |
| 531 38 00 95- | SHAFT | 531009538 | 531009538-Online | 1 |
| 531 33 00 95- | IGNITION COIL | 531009533 | 531009533-Online | 1 |
| 531 36 00 95- | SCREW | 531009536 | 531009536-Online | 2 |
| 531 31 00 95- | FLYWHEEL | 531009531 | 531009531-Online | 1 |
| 531 30 00 95- | INSULATION | 531009530 | 531009530-Online | 2 |
| 531 37 00 95- | SEALING | 531009537 | 531009537-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 51 00 95- | MUFFLER | 531009551 | 531009551-Online | 1 |
| 531 57 00 95- | SCREW | 531009557 | 531009557-Online | 2 |
| 531 56 00 95- | GASKET | 531009556 | 531009556-Online | 1 |
| 531 52 00 95- | SPARK ARRESTOR | 531009552 | 531009552-Online | 1 |
| 531 53 00 95- | GASKET | 531009553 | 531009553-Online | 1 |
| 531 54 00 95- | RING | 531009554 | 531009554-Online | 1 |
| 531 55 00 95- | SCREW | 531009555 | 531009555-Online | 1 |
