Husqvarna 125BVX IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

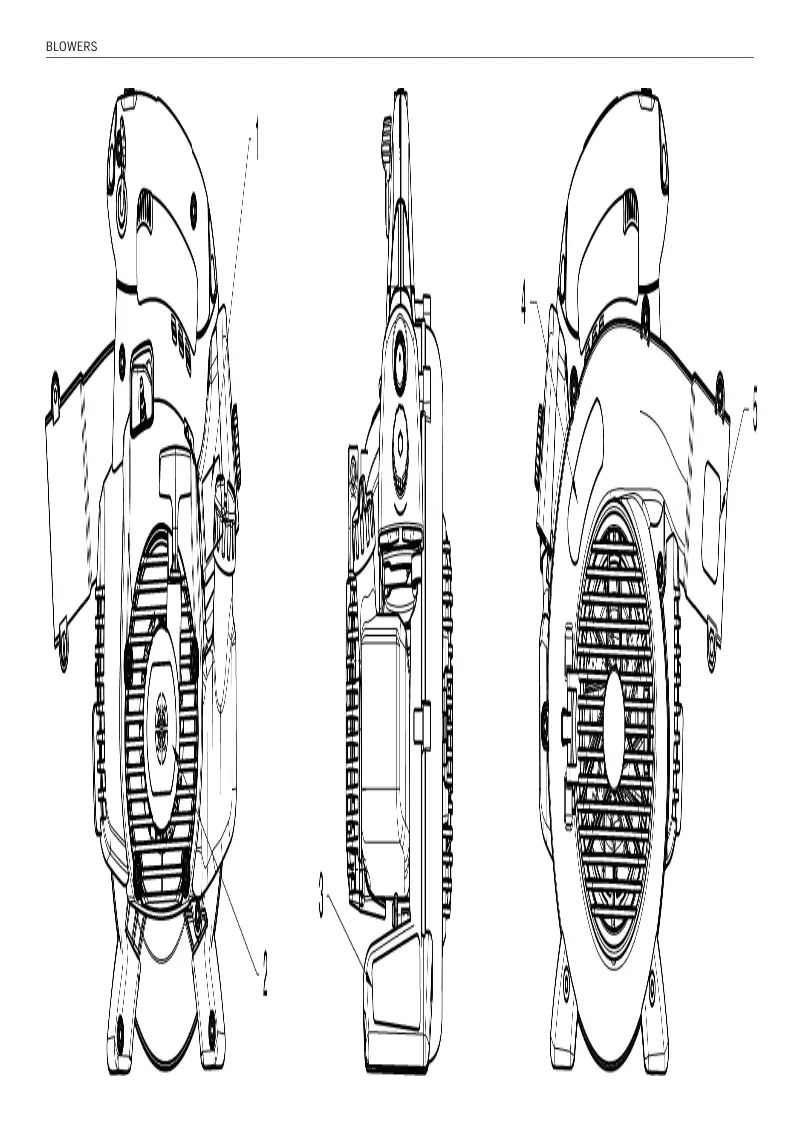

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | DECAL Starter Housing | 545134803 | 545134803-Online | 1 |
| 4 | NOT USED Not Used | N.U. | NU-Online | 1 |
| KIT DECAL Starting (North America) & Warning Decals | 545081860 | 545081860-Online | 1 | |
| LABEL Starting (Outside & North Warning America) Decals | 545081861 | 545081861-Online | 1 |
BLOWERS
BLOWERS
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 545008036 | MULCHING BLADE Serial 201923XXXXX Number - and lower | 545008036 | 545008036-Online | 1 |
| 597536701 | BLADE KIT Serial 201924XXXXX Number - and higher | 597536701 | 597536701-Online | 1 |
| 545119601 | TUBE Serial 201923XXXXX Number - and lower | 545119601 | 545119601-Online | 1 |
| 594954401 | TUBE Serial 201924XXXXX Number - and higher | 594954401 | 594954401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530150350 | TANK Serial 201212XXXXX Number - and lower | 530150350 | 530150350-Online | 1 |
| 545108901 | FUEL TANK ASSY Serial 201212XXXXX Number - and lower | 545108901 | 545108901-Online | 1 |
| 578931503 | FUEL CAP ASSY Serial 201213XXXXX Number - and higher | 578931503 | 578931503-Online | 1 |
| 581337209 | TANK Serial 201213XXXXX Number - and higher | 581337209 | 581337209-Online | 1 |
| 545173201 | IMPELLER Serial 201414XXXXX Number - and lower | 545173201 | 545173201-Online | 1 |
| 545164501 | WASHER Serial 201414XXXXX Number - and lower | 545164501 | 545164501-Online | 1 |
| 545081816 | KIT Serial 201414XXXXX Number - and lower | 545081816 | 545081816-Online | 1 |
| 581449402 | IMPELLER Serial 201415XXXXX Number - and higher | 581449402 | 581449402-Online | 1 |
| 588199401 | CRANKSHAFT KIT Serial 201415XXXXX Number - and higher | 588199401 | 588199401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 545081816 | KIT Serial 201414XXXXX Number - and lower | 545081816 | 545081816-Online | 1 |
| 588199401 | CRANKSHAFT KIT Serial 201415XXXXX Number - and higher | 588199401 | 588199401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ASSY, UPPER VAC TUBE Assy adapter - Upper vac tube with | 545131201 | 545131201-Online | 1 |
| 2 | SCREW Screw | 545144101 | 545144101-Online | 1 |
| 3 | SEE SERVICE REFERENCE Tube - Lower vac | ***** | 1 | |
| 4 | TUBE Elbow - Vac | 575478801 | 575478801-Online | 1 |
| 5 | STRAP SHOULDER Strap - Carrying | 545132903 | 545132903-Online | 1 |
| 6 | BAG Assy - Vac bag | 595839701 | 595839701-Online | 1 |
| 7 | TUBE Assy w/barrier - Tube - upper blower | 590569201 | 590569201-Online | 1 |
| 8 | TUBE Tube - Lower blower (round) | 545118001 | 545118001-Online | 1 |
| 9 | NOZZLE Tube - Lower blower (flare) | 545119501 | 545119501-Online | 1 |
