Husqvarna 132 R IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

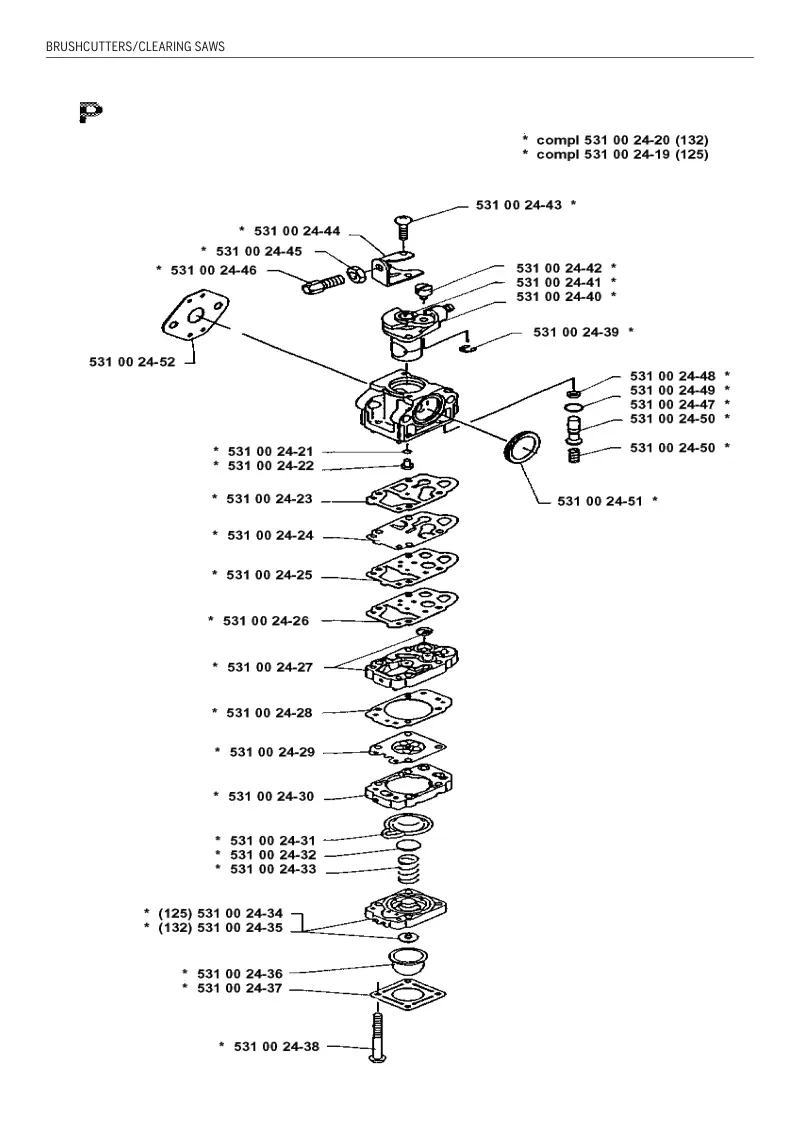

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 44 00 24- | BRACKET | 531002444 | 531002444-Online | 1 |
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 46 00 24- | SCREW | 531002446 | 531002446-Online | 1 |
| 531 52 00 24- | GASKET | 531002452 | 531002452-Online | 1 |
| 531 21 00 24- | O-RING | 531002421 | 531002421-Online | 1 |
| 531 22 00 24- | JET | 531002422 | 531002422-Online | 1 |
| 531 23 00 24- | GASKET | 531002423 | 531002423-Online | 1 |
| 531 24 00 24- | DIAPHRAGM | 531002424 | 531002424-Online | 1 |
| 531 25 00 24- | PLATE | 531002425 | 531002425-Online | 1 |
| 531 26 00 24- | GASKET | 531002426 | 531002426-Online | 1 |
| 531 27 00 24- | HOUSING | 531002427 | 531002427-Online | 1 |
| 531 28 00 24- | GASKET | 531002428 | 531002428-Online | 1 |
| 531 29 00 24- | DIAPHRAGM | 531002429 | 531002429-Online | 1 |
| 531 30 00 24- | HOUSING | 531002430 | 531002430-Online | 1 |
| 531 31 00 24- | DIAPHRAGM | 531002431 | 531002431-Online | 1 |
| 531 32 00 24- | HOLDER | 531002432 | 531002432-Online | 1 |
| 531 33 00 24- | SPRING | 531002433 | 531002433-Online | 1 |
| 531 34 00 24- | HOUSING 125 | 531002434 | 531002434-Online | 1 |
| 531 35 00 24- | HOUSING 132 | 531002435 | 531002435-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 37 00 24- | COVER | 531002437 | 531002437-Online | 1 |
| 531 38 00 24- | SCREW | 531002438 | 531002438-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 50 00 24- | SPRING | 531002450 | 531002450-Online | 1 |
| 531 47 00 24- | VALVE | 531002447 | 531002447-Online | 1 |
| 531 49 00 24- | O-RING | 531002449 | 531002449-Online | 1 |
| 531 48 00 24- | GASKET | 531002448 | 531002448-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 40 00 24- | THROTTLE VALVE | 531002440 | 531002440-Online | 1 |
| 531 41 00 24- | PLUG | 531002441 | 531002441-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 1 |
| 531 19 00 24- | CARBURETTOR 125 | 531002419 | 531002419-Online | 1 |
| 531 20 00 24- | CARBURETTOR 132 | 531002420 | 531002420-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 96 00 24- | COVER 125 US,CAN | 531002496 | 531002496-Online | 1 |
| 531 97 00 24- | COVER 132 US,CAN | 531002497 | 531002497-Online | 1 |
| 531 01 00 40- | TUBE US,CAN | 531004001 | 531004001-Online | 1 |
| 531 02 00 40- | GASKET US,CAN | 531004002 | 531004002-Online | 1 |
| 531 03 00 40- | SPARK ARRESTOR US,CAN | 531004003 | 531004003-Online | 1 |
| 725 01 53 29- | SCREW IHSCM M5 X 16 | 725532901 | 725532901-Online | 1 |
| 531 58 00 23- | GASKET 132 | 531002358 | 531002358-Online | 1 |
| 531 57 00 23- | GASKET 125 | 531002357 | 531002357-Online | 1 |
| 531 18 00 24- | SPACER | 531002418 | 531002418-Online | 1 |
| 725 01 53 33- | SCREW IHSCM M5 X 25 | 725533301 | 725533301-Online | 1 |
| 531 99 00 24- | MUFFLER 132 US,CAN | 531002499 | 531002499-Online | 1 |
| 531 98 00 24- | MUFFLER 125 US,CAN | 531002498 | 531002498-Online | 1 |
| 531 55 00 23- | MUFFLER 132 | 531002355 | 531002355-Online | 1 |
| 531 54 00 23- | MUFFLER 125 | 531002354 | 531002354-Online | 1 |
| 531 56 00 23- | PLATE | 531002356 | 531002356-Online | 1 |
| 531 60 00 23- | MUFFLER 132 | 531002360 | 531002360-Online | 1 |
| 531 59 00 23- | MUFFLER 125 | 531002359 | 531002359-Online | 1 |
| 725 01 53 31- | SCREW IHSCM M5 X 20 | 725533101 | 725533101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 1 |
| 531 14 00 24- | FILTER | 531002414 | 531002414-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 16 00 24- | SLEEVE | 531002416 | 531002416-Online | 1 |
| 531 08 00 24- | TANK 132 | 531002408 | 531002408-Online | 1 |
| 531 07 00 24- | TANK 125 | 531002407 | 531002407-Online | 1 |
| 531 09 00 24- | TANK CAP ASSY | 531002409 | 531002409-Online | 1 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 13 00 24- | PIPE | 531002413 | 531002413-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 12 00 24- | HOSE | 531002412 | 531002412-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 62 00 24- | SPRING | 531002462 | 531002462-Online | 1 |
| 531 63 00 24- | STARTER PULLEY | 531002463 | 531002463-Online | 1 |
| 531 64 00 24- | CARRIER | 531002464 | 531002464-Online | 1 |
| 531 65 00 24- | NUT | 531002465 | 531002465-Online | 1 |
| 724 01 13 27- | SCREW CRPANM M5 X 12 | 724132701 | 724132701-Online | 1 |
| 531 93 00 24- | WASHER | 531002493 | 531002493-Online | 1 |
| 531 61 00 24- | STARTER HOUSING | 531002461 | 531002461-Online | 1 |
| 531 60 00 24- | SLEEVE | 531002460 | 531002460-Online | 1 |
| 531 59 00 24- | STARTER ROPE | 531002459 | 531002459-Online | 1 |
| 531 58 00 24- | HANDLE | 531002458 | 531002458-Online | 1 |
| 725 01 52 93- | SCREW IHSCM M4 X 16 | 725529301 | 725529301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 01 53 41- | SCREW IHSCM M5 X 50 | 725534101 | 725534101-Online | 1 |
| 531 53 00 24- | HOLDER | 531002453 | 531002453-Online | 1 |
| 531 54 00 24- | AIR FILTER | 531002454 | 531002454-Online | 1 |
| 531 65 00 23- | RETAINER RING | 531002365 | 531002365-Online | 1 |
| 531 56 00 24- | COVER | 531002456 | 531002456-Online | 1 |
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
| 725 01 53 33- | SCREW IHSCM M5 X 25 | 725533301 | 725533301-Online | 1 |
| 531 50 00 23- | INSULSTER | 531002350 | 531002350-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
| 531 52 00 23- | PLATE 132 | 531002352 | 531002352-Online | 1 |
| 531 51 00 23- | PLATE 125 | 531002351 | 531002351-Online | 1 |
| 531 57 00 24- | SCREEN | 531002457 | 531002457-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 19 47- | HANDLE | 502194701 | 502194701-Online | 1 |
| 725 51 23 33- | SCREW EHHM | 725233351 | 725233351-Online | 1 |
| 502 01 19 50- | BRACKET | 502195001 | 502195001-Online | 1 |
| 502 01 19 49- | HOLDER | 502194901 | 502194901-Online | 1 |
| 502 01 19 48- | HOLDER | 502194801 | 502194801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 87 00 23- | CLUTCH ASSY | 531002387 | 531002387-Online | 1 |
| 502 01 19 11- | CLUTCH ASSY | 502191101 | 502191101-Online | 1 |
| 725 71 23 29- | SCREW EHHM | 725232971 | 725232971-Online | 1 |
| 734 01 11 46- | WASHER | 734114601 | 734114601-Online | 1 |
| 725 71 23 33- | SCREW EHHM | 725233371 | 725233371-Online | 1 |
| 502 01 19 17- | CLUTCH COVER | 502191701 | 502191701-Online | 1 |
| 502 01 19 16- | ANTIVIBRATION ELEMENT | 502191601 | 502191601-Online | 1 |
| 502 01 19 15- | WASHER | 502191501 | 502191501-Online | 1 |
| 502 01 19 14- | BEARING HOLDER | 502191401 | 502191401-Online | 1 |
| 738 02 21 00- | BALL BEARING | 738210002 | 738210002-Online | 1 |
| 735 10 31 27- | CIRCLIP | 735312710 | 735312710-Online | 1 |
| 502 02 19 12- | CLUTCH DRUM | 502191202 | 502191202-Online | 1 |
| 531 92 00 23- | SCREW | 531002392 | 531002392-Online | 1 |
| 531 91 00 23- | WASHER | 531002391 | 531002391-Online | 1 |
| 531 89 00 23- | SPRING | 531002389 | 531002389-Online | 1 |
| 531 88 00 23- | CLUTCH | 531002388 | 531002388-Online | 1 |
| 531 90 00 23- | WASHER | 531002390 | 531002390-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
| 531 97 00 23- | CABLE | 531002397 | 531002397-Online | 1 |
| 531 01 00 24- | SLEEVE | 531002401 | 531002401-Online | 1 |
| 531 95 00 23- | IGNITION COIL | 531002395 | 531002395-Online | 1 |
| 725 01 52 97- | SCREW IHSCM M4 X 25 | 725529701 | 725529701-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 1 |
| 531 03 00 24- | NUT | 531002403 | 531002403-Online | 1 |
| 531 94 00 23- | FLYWHEEL | 531002394 | 531002394-Online | 1 |
| 531 05 00 24- | CABLE | 531002405 | 531002405-Online | 1 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 531 96 00 23- | CABLE ASSY | 531002396 | 531002396-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 67 00 23- | CRANKCASE 132 | 531002367 | 531002367-Online | 1 |
| 531 66 00 23- | CRANKCASE 125 | 531002366 | 531002366-Online | 1 |
| 531 73 00 23- | RETAINER RING 125 | 531002373 | 531002373-Online | 1 |
| 531 74 00 23- | RETAINER RING 132 | 531002374 | 531002374-Online | 1 |
| 531 72 00 23- | SEALING RING 125 | 531002372 | 531002372-Online | 1 |
| 531 71 00 23- | SEAL RING 132 | 531002371 | 531002371-Online | 1 |
| 531 06 00 24- | PLUG | 531002406 | 531002406-Online | 1 |
| 531 93 00 23- | COVER | 531002393 | 531002393-Online | 1 |
| 725 01 53 31- | SCREW IHSCM M5 X 20 | 725533101 | 725533101-Online | 1 |
| 725 01 53 35- | SCREW IHSCM M5 X 30 | 725533501 | 725533501-Online | 1 |
| 531 70 00 23- | SEAL RING | 531002370 | 531002370-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 78 40- | HARNESS | 501784001 | 501784001-Online | 1 |
| 531 68 00 24- | HARNESS USA | 531002468 | 531002468-Online | 1 |
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
| 502 01 02 61- | STOP | 502026101 | 502026101-Online | 1 |
| 501 01 95 49- | SAFETY GLASSES | 501954901 | 501954901-Online | 1 |
| 531 45 00 23- | HARNESS USA | 531002345 | 531002345-Online | 1 |
| 531 44 00 23- | HARNESS | 531002344 | 531002344-Online | 1 |
| 531 04 00 40- | HOLDER FRANCE ONLY | 531004004 | 531004004-Online | 1 |
| 531 05 00 40- | BRACKET FRANCE ONLY | 531004005 | 531004005-Online | 1 |
| 531 06 00 40- | GASKET FRANCE ONLY | 531004006 | 531004006-Online | 1 |
| 531 07 00 40- | TANK CAP FRANCE ONLY | 531004007 | 531004007-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 81 00 23- | SUPPORT BUSHING 125 | 531002381 | 531002381-Online | 1 |
| 531 82 00 23- | SUPPORT BUSHING 132 | 531002382 | 531002382-Online | 1 |
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 531 86 00 23- | CRANKSHAFT 132 | 531002386 | 531002386-Online | 1 |
| 531 85 00 23- | CRANKSHAFT 125 | 531002385 | 531002385-Online | 1 |
| 531 69 00 23- | BEARING 132 | 531002369 | 531002369-Online | 1 |
| 531 68 00 23- | BEARING 125 | 531002368 | 531002368-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
| 531 61 00 23- | COVER 125 | 531002361 | 531002361-Online | 1 |
| 531 62 00 23- | COVER 132 | 531002362 | 531002362-Online | 1 |
| 531 94 00 24- | COVER 125 US, CAN | 531002494 | 531002494-Online | 1 |
| 531 95 00 24- | COVER 132 US, CAN | 531002495 | 531002495-Online | 1 |
| 531 64 00 23- | SPACER | 531002364 | 531002364-Online | 1 |
| 531 65 00 23- | RETAINER RING | 531002365 | 531002365-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 26 00 40- | BEVEL GEAR | 531004026 | 531004026-Online | 1 |
| 725 51 23 33- | SCREW EHHM | 725233351 | 725233351-Online | 1 |
| 735 50 11 35- | WASHER | 735113550 | 735113550-Online | 1 |
| 503 41 21 83- | SCREW | 503218341 | 503218341-Online | 1 |
| 502 01 14 69- | GEAR HOUSING | 502146901 | 502146901-Online | 1 |
| 738 00 21 98- | BALL BEARING | 738219800 | 738219800-Online | 1 |
| 502 01 14 71- | GEAR WHEEL | 502147101 | 502147101-Online | 1 |
| 738 04 21 02- | BALL BEARING | 738210204 | 738210204-Online | 1 |
| 735 10 31 25- | CIRCLIP | 735312510 | 735312510-Online | 1 |
| 503 03 20 00- | SCREW | 503200003 | 503200003-Online | 1 |
| 502 01 14 74- | AXLE | 502147401 | 502147401-Online | 1 |
| 738 00 21 99- | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 738 01 21 99- | BALL BEARING | 738219901 | 738219901-Online | 1 |
| 735 41 31 11- | RETAINER RING | 735311141 | 735311141-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 19 19- | SPACER | 502191901 | 502191901-Online | 1 |
| 502 01 18 09- | DRIVER | 502180901 | 502180901-Online | 1 |
| 502 01 18 10- | FLANGE | 502181001 | 502181001-Online | 1 |
| 531 22 00 40- | CARRIER | 531004022 | 531004022-Online | 1 |
| 502 01 04 55- | NUT | 502045501 | 502045501-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 18 06- | THROTTLE HANDLE ASSY | 502180601 | 502180601-Online | 1 |
| 502 01 14 92- | HANDLE HALF | 502149201 | 502149201-Online | 1 |
| 502 01 14 94- | THROTTLE CONTROL | 502149401 | 502149401-Online | 1 |
| 502 01 14 96- | RECOIL SPRING | 502149601 | 502149601-Online | 1 |
| 502 01 14 93- | HANDLE HALF | 502149301 | 502149301-Online | 1 |
| 734 01 11 36- | WASHER | 734113601 | 734113601-Online | 1 |
| 724 61 12 93- | SCREW CRPANM | 724129361 | 724129361-Online | 1 |
| 502 01 12 44- | HANDLEBAR RIGHT | 502124401 | 502124401-Online | 1 |
| 762 05 91 02- | TIE WRAP | 762910205 | 762910205-Online | 1 |
| 502 01 14 81- | HANDLEBAR BRACKET | 502148101 | 502148101-Online | 1 |
| 503 36 21 83- | SCREW | 503218336 | 503218336-Online | 1 |
| 502 02 12 43- | HANDLE LEFT SWEDEN ONLY | 502124302 | 502124302-Online | 1 |
| 502 01 12 43- | HANDLEBAR LEFT | 502124301 | 502124301-Online | 1 |
| 502 01 14 80- | HANDLEBAR BRACKET LO | 502148001 | 502148001-Online | 1 |
| 503 16 21 83- | SCREW | 503218316 | 503218316-Online | 1 |
| 501 01 78 33- | SUSPENSION BAIL | 501783301 | 501783301-Online | 1 |
| 502 01 14 79- | HANDLEBAR BRACKET UP | 502147901 | 502147901-Online | 1 |
| 503 21 21 83- | SCREW | 503218321 | 503218321-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 502 01 18 11- | SWITCH CPL | 502181101 | 502181101-Online | 1 |
| 502 01 14 95- | THROTTLE LOCKOUT | 502149501 | 502149501-Online | 1 |
| 735 50 11 35- | WASHER | 735113550 | 735113550-Online | 1 |
| 503 35 21 83- | SCREW | 503218335 | 503218335-Online | 1 |
| 503 31 23 00- | WASHER | 503230031 | 503230031-Online | 1 |
| 503 16 23 00- | WASHER | 503230016 | 503230016-Online | 1 |
| 502 01 18 19- | HANDLE | 502181901 | 502181901-Online | 1 |
| 502 01 16 45- | THROTTLE CABLE ASSY | 502164501 | 502164501-Online | 1 |
| 502 01 18 12- | WIRE ASSY | 502181201 | 502181201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 18 18- | DAMPER | 502181801 | 502181801-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 502 01 14 65- | THROTTLE CONTROL | 502146501 | 502146501-Online | 1 |
| 502 01 18 16- | LEAD | 502181601 | 502181601-Online | 1 |
| 502 01 18 15- | THROTTLE WIRE | 502181501 | 502181501-Online | 1 |
| 502 01 18 17- | PROTECTOR | 502181701 | 502181701-Online | 1 |
| 502 01 18 88- | CONNECTION | 502188801 | 502188801-Online | 1 |
| 502 01 18 19- | HANDLE | 502181901 | 502181901-Online | 1 |
| 503 16 21 83- | SCREW | 503218316 | 503218316-Online | 1 |
| 501 01 78 33- | SUSPENSION BAIL | 501783301 | 501783301-Online | 1 |
| 503 22 21 83- | SCREW | 503218322 | 503218322-Online | 1 |
| 502 01 18 14- | HANDLE | 502181401 | 502181401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 02 00 22- | SCREW | 531002202 | 531002202-Online | 1 |
| 531 01 00 22- | HANDLE | 531002201 | 531002201-Online | 1 |
| 531 23 00 40- | CLUTCH TUBE RJD | 531004023 | 531004023-Online | 1 |
| 531 08 00 22- | COUPLING LD | 531002208 | 531002208-Online | 1 |
| 531 07 00 22- | NUT | 531002207 | 531002207-Online | 1 |
| 531 09 00 40- | TUBE RD RJD | 531004009 | 531004009-Online | 1 |
| 531 09 00 22- | DRIVER LD | 531002209 | 531002209-Online | 1 |
| 531 25 00 40- | BUSHING | 531004025 | 531004025-Online | 1 |
| 531 10 00 22- | DRIVE SHAFT | 531002210 | 531002210-Online | 1 |
| 531 03 00 22- | UPPER DRIVE TUBE | 531002203 | 531002203-Online | 1 |
| 531 04 00 22- | DRIVE SHAFT | 531002204 | 531002204-Online | 1 |
| 531 05 00 22- | ADAPTER | 531002205 | 531002205-Online | 1 |
| 531 11 00 22- | ADAPTER | 531002211 | 531002211-Online | 1 |
| 531 24 00 40- | SCREW | 531004024 | 531004024-Online | 1 |
| 531 06 00 22- | NUT | 531002206 | 531002206-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 18 05- | DRIVE TUBE | 502180501 | 502180501-Online | 1 |
| 502 02 19 10- | SHAFT | 502191002 | 502191002-Online | 1 |
| 531 67 00 24- | TUBE | 531002467 | 531002467-Online | 1 |
