Husqvarna 132 RD IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

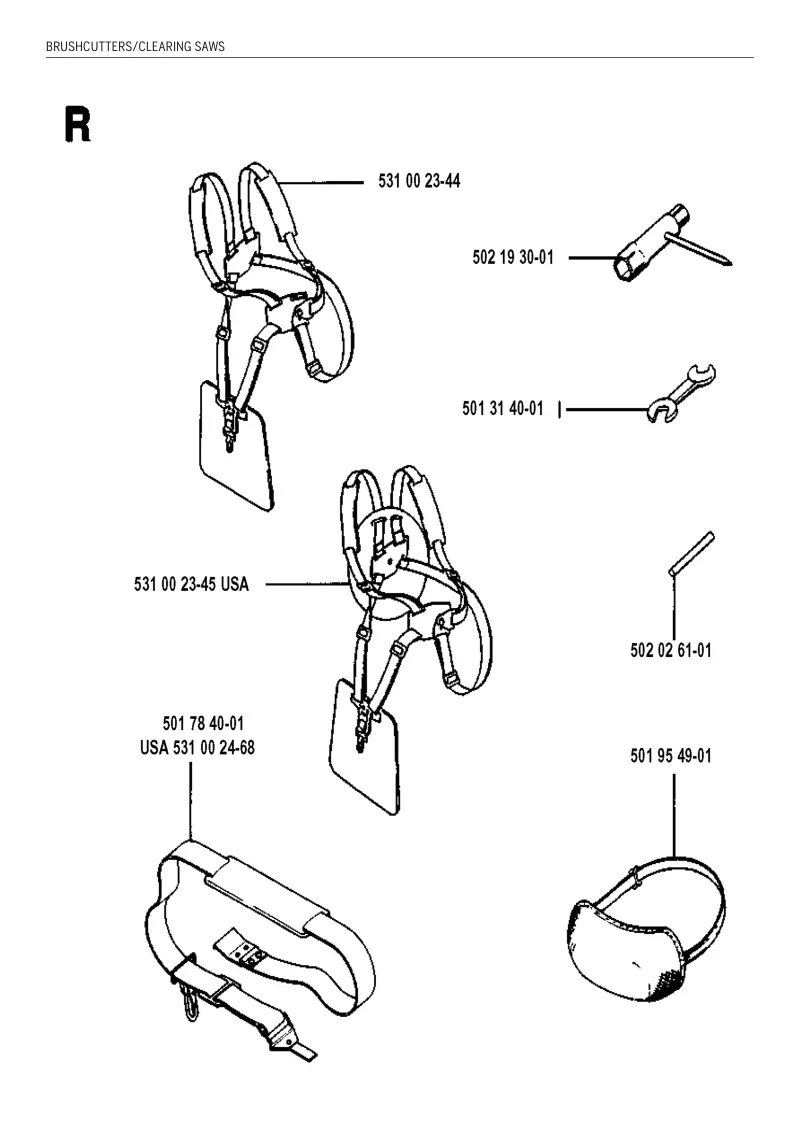

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 45 00 23- | HARNESS USA | 531002345 | 531002345-Online | 1 |
| 501 01 78 40- | HARNESS | 501784001 | 501784001-Online | 1 |
| 531 68 00 24- | HARNESS USA | 531002468 | 531002468-Online | 1 |
| 501 01 95 49- | SAFETY GLASSES | 501954901 | 501954901-Online | 1 |
| 502 01 02 61- | STOP | 502026101 | 502026101-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
| 531 44 00 23- | HARNESS | 531002344 | 531002344-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 97 00 23- | CABLE | 531002397 | 531002397-Online | 1 |
| 531 01 00 24- | SLEEVE | 531002401 | 531002401-Online | 1 |
| 531 95 00 23- | IGNITION COIL | 531002395 | 531002395-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 1 |
| 725 01 52 97- | SCREW IHSCM M4 X 25 | 725529701 | 725529701-Online | 1 |
| 531 03 00 24- | NUT | 531002403 | 531002403-Online | 1 |
| 531 94 00 23- | FLYWHEEL | 531002394 | 531002394-Online | 1 |
| 531 05 00 24- | CABLE | 531002405 | 531002405-Online | 1 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
| 531 96 00 23- | CABLE ASSY | 531002396 | 531002396-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 48 00 23- | GASKET 125 | 531002348 | 531002348-Online | 1 |
| 531 49 00 23- | GASKET 132 | 531002349 | 531002349-Online | 1 |
| 531 75 00 23- | PISTON 125 | 531002375 | 531002375-Online | 1 |
| 531 76 00 23- | PISTON 132 | 531002376 | 531002376-Online | 1 |
| 531 79 00 23- | PISTON BOLT 125 | 531002379 | 531002379-Online | 1 |
| 531 80 00 23- | PISTON BOLT 132 | 531002380 | 531002380-Online | 1 |
| 531 84 00 23- | CLIP 132 | 531002384 | 531002384-Online | 1 |
| 531 83 00 23- | CLIP 125 | 531002383 | 531002383-Online | 1 |
| 531 78 00 23- | PISTON RING 132 | 531002378 | 531002378-Online | 1 |
| 531 77 00 23- | PISTON RING 125 | 531002377 | 531002377-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
| 531 47 00 23- | CYLINDER 132 | 531002347 | 531002347-Online | 1 |
| 531 46 00 23- | CYLINDER 125 | 531002346 | 531002346-Online | 1 |
| 725 01 53 31- | SCREW IHSCM M5 X 20 | 725533101 | 725533101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 01 52 93- | SCREW IHSCM M5 X 16 | 725529301 | 725529301-Online | 1 |
| 531 62 00 24- | SPRING | 531002462 | 531002462-Online | 1 |
| 531 63 00 24- | STARTER PULLEY | 531002463 | 531002463-Online | 1 |
| 531 53 00 41- | PAWL | 531004153 | 531004153-Online | 1 |
| 531 54 00 41- | SPRING | 531004154 | 531004154-Online | 1 |
| 531 52 00 41- | STARTER PULLEY | 531004152 | 531004152-Online | 1 |
| 724 01 13 27- | SCREW CRPANM M5 X 12 | 724132701 | 724132701-Online | 1 |
| 531 93 00 24- | WASHER | 531002493 | 531002493-Online | 1 |
| 531 61 00 24- | STARTER HOUSING | 531002461 | 531002461-Online | 1 |
| 531 59 00 24- | STARTER ROPE | 531002459 | 531002459-Online | 1 |
| 531 58 00 24- | HANDLE | 531002458 | 531002458-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 87 00 23- | CLUTCH ASSY | 531002387 | 531002387-Online | 1 |
| 502 01 19 11- | CLUTCH ASSY | 502191101 | 502191101-Online | 1 |
| 735 10 31 27- | CIRCLIP | 735312710 | 735312710-Online | 1 |
| 725 71 23 29- | SCREW EHHM | 725232971 | 725232971-Online | 1 |
| 734 01 11 46- | WASHER | 734114601 | 734114601-Online | 1 |
| 725 01 53 33- | SCREW IHSCM | 725533301 | 725533301-Online | 1 |
| 725 71 23 33- | SCREW EHHM | 725233371 | 725233371-Online | 1 |
| 502 01 19 16- | ANTIVIBRATION ELEMENT | 502191601 | 502191601-Online | 1 |
| 502 01 19 14- | BEARING HOLDER | 502191401 | 502191401-Online | 1 |
| 738 02 21 00- | BALL BEARING | 738210002 | 738210002-Online | 1 |
| 502 02 19 12- | CLUTCH DRUM | 502191202 | 502191202-Online | 1 |
| 531 92 00 23- | SCREW | 531002392 | 531002392-Online | 1 |
| 531 91 00 23- | WASHER | 531002391 | 531002391-Online | 1 |
| 531 89 00 23- | SPRING | 531002389 | 531002389-Online | 1 |
| 531 88 00 23- | CLUTCH | 531002388 | 531002388-Online | 1 |
| 531 90 00 23- | WASHER | 531002390 | 531002390-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 19 00 24- | CARBURETTOR 125 | 531002419 | 531002419-Online | 1 |
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 46 00 24- | SCREW | 531002446 | 531002446-Online | 1 |
| 531 52 00 24- | GASKET | 531002452 | 531002452-Online | 1 |
| 531 21 00 24- | O-RING | 531002421 | 531002421-Online | 1 |
| 531 22 00 24- | JET | 531002422 | 531002422-Online | 1 |
| 531 23 00 24- | GASKET | 531002423 | 531002423-Online | 1 |
| 531 24 00 24- | DIAPHRAGM | 531002424 | 531002424-Online | 1 |
| 531 55 00 41- | PUMP BODY | 531004155 | 531004155-Online | 1 |
| 531 28 00 24- | GASKET | 531002428 | 531002428-Online | 1 |
| 531 29 00 24- | DIAPHRAGM | 531002429 | 531002429-Online | 1 |
| 531 30 00 24- | HOUSING | 531002430 | 531002430-Online | 1 |
| 531 31 00 24- | DIAPHRAGM | 531002431 | 531002431-Online | 1 |
| 531 33 00 24- | SPRING | 531002433 | 531002433-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 56 00 41- | SCREW | 531004156 | 531004156-Online | 1 |
| 531 37 00 24- | COVER | 531002437 | 531002437-Online | 1 |
| 531 35 00 24- | HOUSING 132 | 531002435 | 531002435-Online | 1 |
| 531 34 00 24- | HOUSING 125 | 531002434 | 531002434-Online | 1 |
| 531 32 00 24- | HOLDER | 531002432 | 531002432-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 50 00 24- | SPRING 132 | 531002450 | 531002450-Online | 1 |
| 531 47 00 24- | VALVE | 531002447 | 531002447-Online | 1 |
| 531 49 00 24- | O-RING | 531002449 | 531002449-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 40 00 24- | THROTTLE VALVE | 531002440 | 531002440-Online | 1 |
| 531 41 00 24- | PLUG | 531002441 | 531002441-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 44 00 24- | BRACKET | 531002444 | 531002444-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 01 00 40- | TUBE US,CAN | 531004001 | 531004001-Online | 1 |
| 531 02 00 40- | GASKET US, CAN | 531004002 | 531004002-Online | 1 |
| 531 03 00 40- | SPARK ARRESTOR US, CAN | 531004003 | 531004003-Online | 1 |
| 725 01 53 33- | SCREW IHSCM M5 X 25 | 725533301 | 725533301-Online | 1 |
| 531 18 00 24- | SPACER | 531002418 | 531002418-Online | 1 |
| 725 01 53 29- | SCREW IHSCM M5 X 16 | 725532901 | 725532901-Online | 1 |
| 531 58 00 23- | GASKET 132 | 531002358 | 531002358-Online | 1 |
| 531 57 00 23- | GASKET 125 | 531002357 | 531002357-Online | 1 |
| 531 99 00 24- | MUFFLER 132 US, CAN | 531002499 | 531002499-Online | 1 |
| 531 98 00 24- | MUFFLER 125 US, CAN | 531002498 | 531002498-Online | 1 |
| 531 55 00 23- | MUFFLER 132 | 531002355 | 531002355-Online | 1 |
| 531 54 00 23- | MUFFLER 125 | 531002354 | 531002354-Online | 1 |
| 531 60 00 23- | MUFFLER 132 | 531002360 | 531002360-Online | 1 |
| 531 59 00 23- | MUFFLER 125 | 531002359 | 531002359-Online | 1 |
| 531 56 00 23- | PLATE | 531002356 | 531002356-Online | 1 |
| 531 97 00 24- | COVER 132 US, CAN | 531002497 | 531002497-Online | 1 |
| 531 96 00 24- | COVER 125 US, CAN | 531002496 | 531002496-Online | 1 |
| 725 01 53 31- | SCREW IHSCM M5 X 20 | 725533101 | 725533101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 14 00 24- | FILTER | 531002414 | 531002414-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 16 00 24- | SLEEVE | 531002416 | 531002416-Online | 1 |
| 531 08 00 24- | TANK 132 | 531002408 | 531002408-Online | 1 |
| 531 07 00 24- | TANK 125 | 531002407 | 531002407-Online | 1 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 04 00 40- | HOLDER | 531004004 | 531004004-Online | 1 |
| 531 05 00 40- | BRACKET | 531004005 | 531004005-Online | 1 |
| 531 06 00 40- | GASKET | 531004006 | 531004006-Online | 1 |
| 531 13 00 24- | PIPE | 531002413 | 531002413-Online | 1 |
| 531 07 00 40- | TANK CAP | 531004007 | 531004007-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 12 00 24- | HOSE | 531002412 | 531002412-Online | 1 |
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 51 23 33- | SCREW EHHM | 725233351 | 725233351-Online | 1 |
| 502 01 19 48- | HOLDER | 502194801 | 502194801-Online | 1 |
| 502 01 19 49- | HOLDER | 502194901 | 502194901-Online | 1 |
| 502 01 19 50- | BRACKET | 502195001 | 502195001-Online | 1 |
| 502 01 19 47- | HANDLE | 502194701 | 502194701-Online | 1 |
| 531 55 00 40- | THROTTLE TRIGGER | 531004055 | 531004055-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 18 06- | THROTTLE HANDLE ASSY RD/R | 502180601 | 502180601-Online | 1 |
| 502 01 14 92- | HANDLE HALF | 502149201 | 502149201-Online | 1 |
| 502 01 14 94- | THROTTLE CONTROL | 502149401 | 502149401-Online | 1 |
| 502 01 14 96- | RECOIL SPRING | 502149601 | 502149601-Online | 1 |
| 502 01 14 93- | HANDLE HALF | 502149301 | 502149301-Online | 1 |
| 734 01 11 36- | WASHER | 734113601 | 734113601-Online | 1 |
| 724 61 12 93- | SCREW CRPANM | 724129361 | 724129361-Online | 1 |
| 503 21 21 83- | SCREW | 503218321 | 503218321-Online | 1 |
| 735 50 11 35- | WASHER | 735113550 | 735113550-Online | 1 |
| 502 01 14 79- | HANDLEBAR BRACKET UP | 502147901 | 502147901-Online | 1 |
| 502 01 12 44- | HANDLEBAR RIGHT | 502124401 | 502124401-Online | 1 |
| 762 05 91 02- | TIE WRAP | 762910205 | 762910205-Online | 1 |
| 502 01 14 80- | HANDLEBAR BRACKET LO | 502148001 | 502148001-Online | 1 |
| 502 01 14 81- | HANDLEBAR BRACKET | 502148101 | 502148101-Online | 1 |
| 503 16 23 00- | WASHER | 503230016 | 503230016-Online | 1 |
| 503 36 21 83- | SCREW | 503218336 | 503218336-Online | 1 |
| 502 02 12 43- | HANDLE LEFT SWEDEN ONLY | 502124302 | 502124302-Online | 1 |
| 502 01 12 43- | HANDLEBAR LEFT | 502124301 | 502124301-Online | 1 |
| 501 01 78 33- | SUSPENSION BAIL | 501783301 | 501783301-Online | 1 |
| 503 16 21 83- | SCREW | 503218316 | 503218316-Online | 1 |
| 502 01 16 45- | THROTTLE CABLE ASSY | 502164501 | 502164501-Online | 1 |
| 502 01 18 12- | WIRE ASSY | 502181201 | 502181201-Online | 1 |
| 503 31 23 00- | WASHER | 503230031 | 503230031-Online | 1 |
| 503 35 21 83- | SCREW | 503218335 | 503218335-Online | 1 |
| 502 01 14 95- | THROTTLE LOCKOUT | 502149501 | 502149501-Online | 1 |
| 502 01 18 11- | SWITCH CPL | 502181101 | 502181101-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 02 19 10- | SHAFT | 502191002 | 502191002-Online | 1 |
| 502 01 18 05- | DRIVE TUBE 125 | 502180501 | 502180501-Online | 1 |
| 531 67 00 24- | TUBE 132 | 531002467 | 531002467-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 51 23 78- | SCREW EHHM M6 X 40 | 725237851 | 725237851-Online | 1 |
| 531 50 00 41- | GRIP | 531004150 | 531004150-Online | 1 |
| 734 41 11 54- | WASHER | 734115441 | 734115441-Online | 1 |
| 731 01 23 16- | HEXAGON NUT M6 | 731231601 | 731231601-Online | 1 |
| 531 24 00 40- | SCREW | 531004024 | 531004024-Online | 1 |
| 531 09 00 40- | TUBE RD RJD | 531004009 | 531004009-Online | 1 |
| 531 09 00 22- | DRIVER LD | 531002209 | 531002209-Online | 1 |
| 531 25 00 40- | BUSHING | 531004025 | 531004025-Online | 1 |
| 531 03 00 22- | UPPER DRIVE TUBE | 531002203 | 531002203-Online | 1 |
| 531 04 00 22- | DRIVE SHAFT | 531002204 | 531002204-Online | 1 |
| 531 05 00 22- | ADAPTER | 531002205 | 531002205-Online | 1 |
| 531 10 00 22- | DRIVE SHAFT | 531002210 | 531002210-Online | 1 |
| 531 11 00 22- | ADAPTER | 531002211 | 531002211-Online | 1 |
| 531 06 00 22- | NUT | 531002206 | 531002206-Online | 1 |
| 531 96 00 41- | WASHER LD | 531004196 | 531004196-Online | 1 |
| 531 62 00 41- | CLUTCH RJD | 531004162 | 531004162-Online | 1 |
| 531 02 00 22- | SCREW | 531002202 | 531002202-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
| 531 61 00 23- | COVER 125 | 531002361 | 531002361-Online | 1 |
| 531 62 00 23- | COVER 132 | 531002362 | 531002362-Online | 1 |
| 531 94 00 24- | COVER 125 US, CAN | 531002494 | 531002494-Online | 1 |
| 531 95 00 24- | COVER 132 US, CAN | 531002495 | 531002495-Online | 1 |
| 531 64 00 23- | SPACER | 531002364 | 531002364-Online | 1 |
| 531 65 00 23- | RETAINER RING | 531002365 | 531002365-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 01 53 41- | SCREW IHSCM M5 X 50 | 725534101 | 725534101-Online | 1 |
| 531 53 00 24 | HOLDER | 531002453 | 531002453-Online | 1 |
| 531 54 00 24- | AIR FILTER | 531002454 | 531002454-Online | 1 |
| 531 51 00 41- | RETAINER RING | 531004151 | 531004151-Online | 1 |
| 531 56 00 24- | COVER | 531002456 | 531002456-Online | 1 |
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
| 725 01 53 33- | SCREW IHSCM M5X 25 | 725533301 | 725533301-Online | 1 |
| 531 50 00 23- | INSULSTER | 531002350 | 531002350-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
| 531 52 00 23- | PLATE 132 | 531002352 | 531002352-Online | 1 |
| 531 51 00 23- | PLATE 125 | 531002351 | 531002351-Online | 1 |
| 531 57 00 24- | SCREEN | 531002457 | 531002457-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 51 23 33- | SCREW EHHM | 725233351 | 725233351-Online | 1 |
| 735 50 11 35- | WASHER | 735113550 | 735113550-Online | 1 |
| 503 41 21 83- | SCREW | 503218341 | 503218341-Online | 1 |
| 502 01 14 69- | GEAR HOUSING | 502146901 | 502146901-Online | 1 |
| 738 00 21 98- | BALL BEARING | 738219800 | 738219800-Online | 1 |
| 502 01 14 71- | GEAR WHEEL | 502147101 | 502147101-Online | 1 |
| 502 01 18 08- | AXIS | 502180801 | 502180801-Online | 1 |
| 738 04 21 02- | BALL BEARING | 738210204 | 738210204-Online | 1 |
| 735 10 31 25- | CIRCLIP | 735312510 | 735312510-Online | 1 |
| 503 03 20 00- | SCREW | 503200003 | 503200003-Online | 1 |
| 531 26 00 40- | BEVEL GEAR | 531004026 | 531004026-Online | 1 |
| 502 01 14 74- | AXLE | 502147401 | 502147401-Online | 1 |
| 738 00 21 99- | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 735 41 31 11- | RETAINER RING | 735311141 | 735311141-Online | 1 |
| 738 01 21 99- | BALL BEARING | 738219901 | 738219901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 19 19- | SPACER | 502191901 | 502191901-Online | 1 |
| 502 01 18 09- | DRIVER | 502180901 | 502180901-Online | 1 |
| 502 01 18 10- | FLANGE | 502181001 | 502181001-Online | 1 |
| 502 01 04 55- | NUT | 502045501 | 502045501-Online | 1 |
| 531 22 00 40- | CARRIER | 531004022 | 531004022-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 502 01 18 14- | HANDLE | 502181401 | 502181401-Online | 1 |
| 503 22 21 83- | SCREW | 503218322 | 503218322-Online | 1 |
| 502 01 18 18- | DAMPER | 502181801 | 502181801-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 502 01 18 16- | LEAD | 502181601 | 502181601-Online | 1 |
| 502 01 18 15- | THROTTLE WIRE | 502181501 | 502181501-Online | 1 |
| 502 01 18 17- | PROTECTOR | 502181701 | 502181701-Online | 1 |
| 502 01 14 65- | THROTTLE CONTROL | 502146501 | 502146501-Online | 1 |
| 502 01 18 19- | HANDLE | 502181901 | 502181901-Online | 1 |
| 502 01 18 88- | CONNECTION | 502188801 | 502188801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 67 00 23- | CRANKCASE 132 | 531002367 | 531002367-Online | 1 |
| 531 66 00 23- | CRANKCASE 125 | 531002366 | 531002366-Online | 1 |
| 531 73 00 23- | RETAINER RING 125 | 531002373 | 531002373-Online | 1 |
| 531 74 00 23- | RETAINER RING 132 | 531002374 | 531002374-Online | 1 |
| 531 93 00 23- | COVER | 531002393 | 531002393-Online | 1 |
| 531 06 00 24- | PLUG | 531002406 | 531002406-Online | 1 |
| 725 01 53 31- | SCREW IHSCM M5 X 20 | 725533101 | 725533101-Online | 1 |
| 725 01 53 35- | SCREW IHSCM M5 X 30 | 725533501 | 725533501-Online | 1 |
| 531 71 00 23- | SEAL RING 132 | 531002371 | 531002371-Online | 1 |
| 531 72 00 23- | SEALING RING 125 | 531002372 | 531002372-Online | 1 |
| 531 70 00 23- | SEAL RING | 531002370 | 531002370-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 81 00 23- | SUPPORT BUSHING 125 | 531002381 | 531002381-Online | 1 |
| 531 80 00 23- | PISTON BOLT 132 | 531002380 | 531002380-Online | 1 |
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 531 68 00 23- | BEARING 125 | 531002368 | 531002368-Online | 1 |
| 531 86 00 23- | CRANKSHAFT 132 | 531002386 | 531002386-Online | 1 |
| 531 85 00 23- | CRANKSHAFT 125 | 531002385 | 531002385-Online | 1 |
| 531 69 00 23- | BEARING 132 | 531002369 | 531002369-Online | 1 |
