Husqvarna 133R IPL

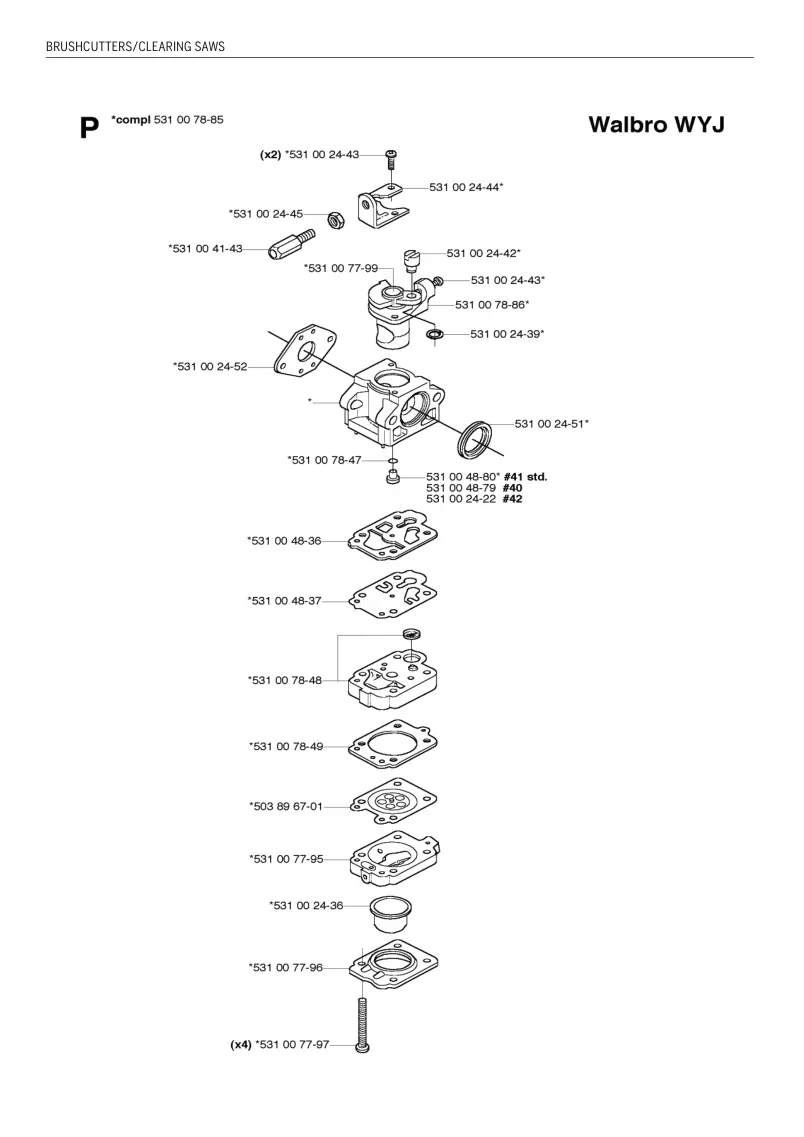

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 85 00 78- | CARBURETTOR | 531007885 | 531007885-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 2 |
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 43 00 41- | SCREW | 531004143 | 531004143-Online | 1 |
| 531 99 00 77- | PLUG | 531007799 | 531007799-Online | 1 |
| 531 52 00 24- | GASKET | 531002452 | 531002452-Online | 1 |
| 531 47 00 78- | O-RING | 531007847 | 531007847-Online | 1 |
| 531 36 00 48- | MOULDING | 531004836 | 531004836-Online | 1 |
| 531 37 00 48- | SPANNHJUL | 531004837 | 531004837-Online | 1 |
| 531 48 00 78- | HOUSING | 531007848 | 531007848-Online | 1 |
| 531 49 00 78- | GASKET | 531007849 | 531007849-Online | 1 |
| 503 01 89 67- | DIAPHRAGM | 503896701 | 503896701-Online | 1 |
| 531 95 00 77- | HOUSING | 531007795 | 531007795-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 96 00 77- | PLATE | 531007796 | 531007796-Online | 1 |
| 531 97 00 77- | SCREW | 531007797 | 531007797-Online | 4 |
| 531 22 00 24- | JET #42 | 531002422 | 531002422-Online | 1 |
| 531 79 00 48- | JET #40 | 531004879 | 531004879-Online | 1 |
| 531 80 00 48- | JET #41 STD. | 531004880 | 531004880-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 86 00 78- | THROTTLE | 531007886 | 531007886-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 44 00 24- | BRACKET | 531002444 | 531002444-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 34 00 47- | CLUTCH | 531004734 | 531004734-Online | 1 |
| 502 01 19 15- | WASHER | 502191501 | 502191501-Online | 1 |
| 725 01 53 33- | SCREW IHSCM | 725533301 | 725533301-Online | 1 |
| 531 58 00 78- | CLUTCH COVER | 531007858 | 531007858-Online | 1 |
| 502 01 19 16- | ANTIVIBRATION ELEMENT | 502191601 | 502191601-Online | 1 |
| 531 15 00 41- | SCREW | 531004115 | 531004115-Online | 4 |
| 531 57 00 78- | BEARING HOUSING | 531007857 | 531007857-Online | 1 |
| 531 33 00 47- | SCREW | 531004733 | 531004733-Online | 4 |
| 735 10 31 27- | CIRCLIP | 735312710 | 735312710-Online | 1 |
| 738 02 21 00- | BALL BEARING | 738210002 | 738210002-Online | 1 |
| 501 01 78 29- | CLUTCH DRUM | 501782901 | 501782901-Online | 1 |
| 531 36 00 47- | BOLT | 531004736 | 531004736-Online | 2 |
| 531 91 00 23- | WASHER | 531002391 | 531002391-Online | 2 |
| 531 70 00 40- | SPRING | 531004070 | 531004070-Online | 1 |
| 531 35 00 47- | CLUTCH | 531004735 | 531004735-Online | 2 |
| 531 90 00 23- | WASHER | 531002390 | 531002390-Online | 2 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 67 00 23- | CRANKCASE | 531002367 | 531002367-Online | 1 |
| 531 71 00 23- | SEAL RING | 531002371 | 531002371-Online | 1 |
| 531 40 00 78- | HOUSING | 531007840 | 531007840-Online | 1 |
| 531 45 00 78- | PLUG | 531007845 | 531007845-Online | 1 |
| 725 01 53 31- | SCREW IHSCM | 725533101 | 725533101-Online | 4 |
| 725 01 53 35- | SCREW IHSCM | 725533501 | 725533501-Online | 3 |
| 531 74 00 23- | RETAINER RING | 531002374 | 531002374-Online | 1 |
| 531 72 00 23- | SEALING RING | 531002372 | 531002372-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 531 69 00 23- | BEARING | 531002369 | 531002369-Online | 1 |
| 531 86 00 23- | CRANKSHAFT | 531002386 | 531002386-Online | 1 |
| 531 82 00 23- | SUPPORT BUSHING | 531002382 | 531002382-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 01 53 31- | SCREW IHSCM | 725533101 | 725533101-Online | 4 |
| 531 47 00 23- | CYLINDER | 531002347 | 531002347-Online | 1 |
| 531 35 00 78- | GASKET | 531007835 | 531007835-Online | 1 |
| 531 78 00 23- | PISTON RING | 531002378 | 531002378-Online | 1 |
| 531 39 00 78- | PISTON | 531007839 | 531007839-Online | 1 |
| 531 82 00 23- | SUPPORT BUSHING | 531002382 | 531002382-Online | 1 |
| 531 80 00 23- | PISTON BOLT | 531002380 | 531002380-Online | 1 |
| 531 84 00 23- | CLIP | 531002384 | 531002384-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
| 531 28 00 48- | SPARK PLUG NGK BPMR6Y | 531004828 | 531004828-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 78 33- | SUSPENSION BAIL | 501783301 | 501783301-Online | 1 |
| 503 16 21 83- | SCREW | 503218316 | 503218316-Online | 1 |
| 502 01 18 19- | HANDLE | 502181901 | 502181901-Online | 1 |
| 502 02 19 10- | SHAFT | 502191002 | 502191002-Online | 1 |
| 531 67 00 24- | TUBE | 531002467 | 531002467-Online | 1 |
| 537 01 02 76- | LABEL | 537027601 | 537027601-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 84 00 78- | STARTER HOUSING | 531007884 | 531007884-Online | 1 |
| 531 54 00 41- | SPRING | 531004154 | 531004154-Online | 1 |
| 531 52 00 41- | STARTER PULLEY | 531004152 | 531004152-Online | 1 |
| 724 01 13 27- | SCREW CRPANM | 724132701 | 724132701-Online | 1 |
| 531 93 00 24- | WASHER | 531002493 | 531002493-Online | 1 |
| 531 53 00 41- | PAWL | 531004153 | 531004153-Online | 1 |
| 531 63 00 24- | STARTER PULLEY | 531002463 | 531002463-Online | 1 |
| 531 62 00 24- | SPRING | 531002462 | 531002462-Online | 1 |
| 544 01 32 87- | LABEL | 544328701 | 544328701-Online | 1 |
| 531 59 00 24- | STARTER ROPE | 531002459 | 531002459-Online | 1 |
| 531 58 00 24- | HANDLE | 531002458 | 531002458-Online | 1 |
| 725 01 52 93- | SCREW IHSCM | 725529301 | 725529301-Online | 4 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 537 01 21 63- | HARNESS | 537216301 | 537216301-Online | 1 |
| 503 01 73 40- | FRONT PIECE | 503734001 | 503734001-Online | 1 |
| 503 02 73 41- | BUCKLE | 503734102 | 503734102-Online | 1 |
| 502 02 02 28- | WELT HOOK | 502022802 | 502022802-Online | 1 |
| 537 01 31 29- | TRANSPORT GUARD 200-275 MM | 537312901 | 537312901-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
| 502 01 02 61- | STOP | 502026101 | 502026101-Online | 1 |
| 502 01 21 58- | WRENCH | 502215801 | 502215801-Online | 1 |
| 503 01 97 64- | GREASE | 503976401 | 503976401-Online | 1 |
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 36 00 41- | NUT | 531004136 | 531004136-Online | 1 |
| 531 08 00 78- | SCREW | 531007808 | 531007808-Online | 2 |
| 531 40 00 79- | DECAL | 531007940 | 531007940-Online | 1 |
| 531 51 00 41- | RETAINER RING | 531004151 | 531004151-Online | 1 |
| 531 37 00 41- | HOLDER | 531004137 | 531004137-Online | 1 |
| 531 54 00 78- | CHOKE FLAP | 531007854 | 531007854-Online | 1 |
| 531 40 00 41- | WASHER | 531004140 | 531004140-Online | 1 |
| 531 39 00 41- | WASHER | 531004139 | 531004139-Online | 1 |
| 531 41 00 41- | SCREW | 531004141 | 531004141-Online | 1 |
| 531 54 00 24- | AIR FILTER | 531002454 | 531002454-Online | 1 |
| 531 57 00 24- | SCREEN | 531002457 | 531002457-Online | 1 |
| 531 55 00 78- | KNOB | 531007855 | 531007855-Online | 1 |
| 531 56 00 24- | COVER | 531002456 | 531002456-Online | 1 |
| 725 01 53 33- | SCREW IHSCM | 725533301 | 725533301-Online | 2 |
| 531 32 00 47- | INSULATOR | 531004732 | 531004732-Online | 1 |
| 531 53 00 23- | GASKET | 531002353 | 531002353-Online | 1 |
| 531 36 00 78- | DEFLECTOR | 531007836 | 531007836-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 38 00 78- | COVER | 531007838 | 531007838-Online | 1 |
| 544 01 32 86- | LABEL | 544328601 | 544328601-Online | 1 |
| 531 65 00 23- | RETAINER RING | 531002365 | 531002365-Online | 1 |
| 531 64 00 23- | SPACER | 531002364 | 531002364-Online | 1 |
| 531 63 00 23- | SCREW | 531002363 | 531002363-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 03 00 24- | NUT | 531002403 | 531002403-Online | 1 |
| 725 01 52 97- | SCREW IHSCM | 725529701 | 725529701-Online | 2 |
| 531 94 00 23- | FLYWHEEL | 531002394 | 531002394-Online | 1 |
| 531 01 00 24- | SLEEVE | 531002401 | 531002401-Online | 1 |
| 531 42 00 78- | CABLE | 531007842 | 531007842-Online | 1 |
| 531 43 00 78- | PIPE | 531007843 | 531007843-Online | 1 |
| 531 41 00 78- | IGNITION MODULE | 531007841 | 531007841-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 2 |
| 531 44 00 78- | SHORTING LEAD | 531007844 | 531007844-Online | 2 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 60 00 23- | MUFFLER | 531002360 | 531002360-Online | 1 |
| 725 01 53 33- | SCREW IHSCM | 725533301 | 725533301-Online | 2 |
| 531 56 00 23- | PLATE | 531002356 | 531002356-Online | 1 |
| 531 18 00 24- | SPACER | 531002418 | 531002418-Online | 1 |
| 725 01 53 29- | SCREW IHSCM | 725532901 | 725532901-Online | 1 |
| 531 37 00 78- | DEFLECTOR | 531007837 | 531007837-Online | 1 |
| 531 55 00 23- | MUFFLER | 531002355 | 531002355-Online | 1 |
| 725 01 53 31- | SCREW IHSCM | 725533101 | 725533101-Online | 4 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 537 02 33 32- | BEVEL GEAR 1=25,4MM | 537333202 | 537333202-Online | 1 |
| 738 00 21 98- | BALL BEARING | 738219800 | 738219800-Online | 1 |
| 503 01 25 24- | BALL BEARING | 503252401 | 503252401-Online | 1 |
| 735 10 31 28- | CIRCLIP | 735312810 | 735312810-Online | 1 |
| 503 01 85 63- | NUT | 503856301 | 503856301-Online | 1 |
| 537 01 28 56- | SUPPORT FLANGE | 537285601 | 537285601-Online | 1 |
| 537 01 29 26- | CUP | 537292601 | 537292601-Online | 1 |
| 537 01 23 49- | DRIVER ASSY | 537234901 | 537234901-Online | 1 |
| 503 01 93 55- | CLAMP.GUARD | 503935501 | 503935501-Online | 1 |
| 735 10 31 25- | CIRCLIP | 735312510 | 735312510-Online | 1 |
| 735 00 31 11- | CIRCLIP | 735311100 | 735311100-Online | 1 |
| 738 02 21 99- | BALL BEARING | 738219902 | 738219902-Online | 1 |
| 738 00 21 99- | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 503 12 20 07- | SCREW IHSCFM | 503200712 | 503200712-Online | 1 |
| 503 25 20 07- | SCREW IHSCFM | 503200725 | 503200725-Online | 1 |
| 725 51 23 70- | SCREW | 725237051 | 725237051-Online | 1 |
| 503 12 20 14- | SCREW IHSCFMO | 503201412 | 503201412-Online | 1 |
| 503 01 20 15- | SCREW | 503201501 | 503201501-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 37 00 47- | FILTER | 531004737 | 531004737-Online | 1 |
| 531 12 00 24- | HOSE | 531002412 | 531002412-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 56 00 78- | TANK UNIT | 531007856 | 531007856-Online | 1 |
| 531 16 00 24- | SLEEVE | 531002416 | 531002416-Online | 2 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 06 00 40- | GASKET | 531004006 | 531004006-Online | 1 |
| 531 09 00 24- | TANK CAP ASSY | 531002409 | 531002409-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 38 00 47- | HOSE | 531004738 | 531004738-Online | 1 |
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 2 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 02 93 42- | COMBINATION GUARD | 503934202 | 503934202-Online | 1 |
| 503 01 97 71- | TRIMMER GUARD ASSY | 503977101 | 503977101-Online | 1 |
| 503 16 21 07- | SCREW IHSCT | 503210716 | 503210716-Online | 1 |
| 503 01 79 88- | BLADE | 503798801 | 503798801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 33 00 78- | THROTTLE TRIGGER | 531007833 | 531007833-Online | 1 |
| 724 01 13 35- | SCREW CRPANM | 724133501 | 724133501-Online | 1 |
| 531 64 00 78- | SCREW | 531007864 | 531007864-Online | 2 |
| 531 59 00 78- | HANDLE | 531007859 | 531007859-Online | 1 |
| 531 61 00 78- | LEVER | 531007861 | 531007861-Online | 1 |
| 531 32 00 78- | HANDLE | 531007832 | 531007832-Online | 1 |
| 531 30 00 78- | HOLDER | 531007830 | 531007830-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 2 |
| 725 71 23 72- | SCREW EHHM | 725237271 | 725237271-Online | 4 |
| 531 65 00 78- | COVER | 531007865 | 531007865-Online | 1 |
| 531 63 00 78- | RETURN SPRING | 531007863 | 531007863-Online | 1 |
| 531 66 00 78- | CABLE ASSY | 531007866 | 531007866-Online | 1 |
| 531 62 00 78- | THROTTLE LOCK | 531007862 | 531007862-Online | 1 |
| 531 43 00 47- | HANDLE | 531004743 | 531004743-Online | 1 |
| 531 31 00 78- | HANDLE | 531007831 | 531007831-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 1 |
| 531 60 00 78- | HANDLE | 531007860 | 531007860-Online | 1 |
| 531 81 00 78- | WIRE | 531007881 | 531007881-Online | 1 |
