Husqvarna 152 RB IPL

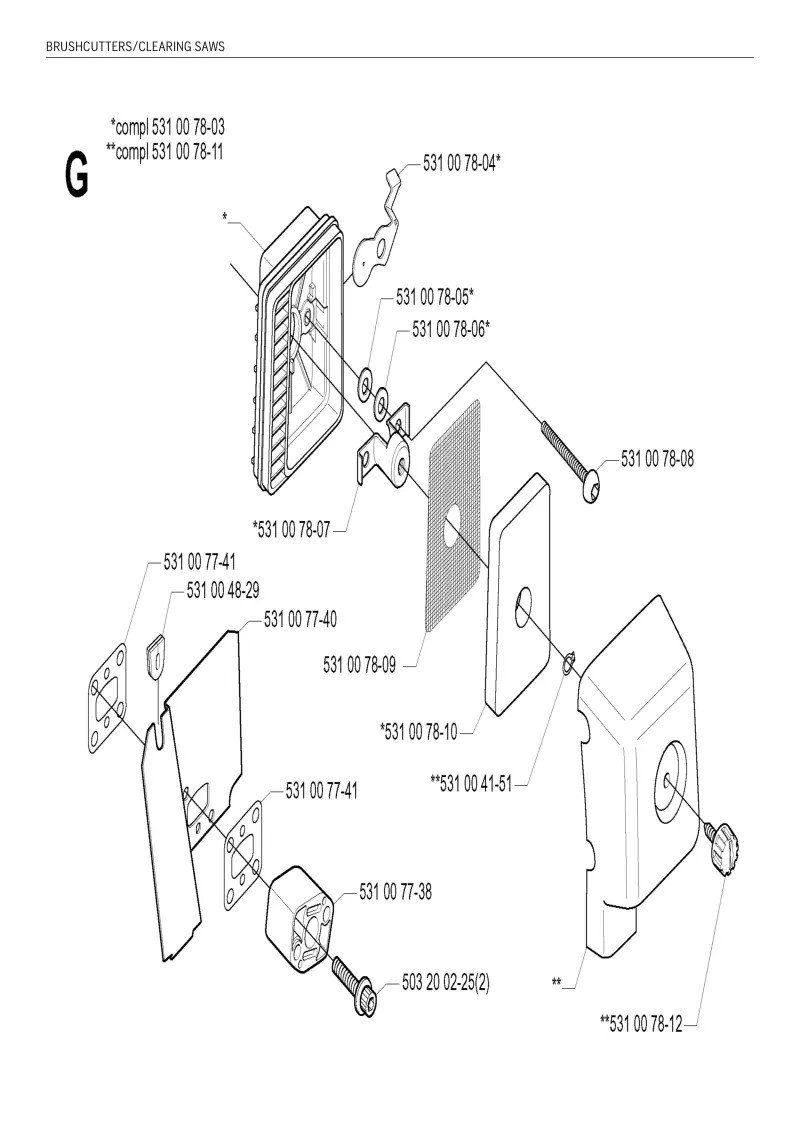

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 03 00 78- | HOUSING | 531007803 | 531007803-Online | 1 |
| 531 11 00 78- | COVER | 531007811 | 531007811-Online | 1 |
| 531 29 00 48- | ATTACHMENT | 531004829 | 531004829-Online | 1 |
| 531 40 00 77- | PROTECTOR | 531007740 | 531007740-Online | 1 |
| 531 41 00 77- | GASKET | 531007741 | 531007741-Online | 1 |
| 531 38 00 77- | SPACER | 531007738 | 531007738-Online | 1 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 2 |
| 531 51 00 41- | RETAINER RING | 531004151 | 531004151-Online | 1 |
| 531 10 00 78- | AIR FILTER | 531007810 | 531007810-Online | 1 |
| 531 09 00 78- | SCREEN | 531007809 | 531007809-Online | 1 |
| 531 07 00 78- | BRACKET | 531007807 | 531007807-Online | 1 |
| 531 04 00 78- | CHOKE FLAP | 531007804 | 531007804-Online | 1 |
| 531 05 00 78- | WASHER | 531007805 | 531007805-Online | 1 |
| 531 06 00 78- | RING | 531007806 | 531007806-Online | 1 |
| 531 12 00 78- | SCREW | 531007812 | 531007812-Online | 1 |
| 531 08 00 78- | SCREW | 531007808 | 531007808-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 90 00 77- | CARBURETTOR | 531007790 | 531007790-Online | 1 |
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 43 00 41- | SCREW | 531004143 | 531004143-Online | 1 |
| 531 99 00 77- | PLUG | 531007799 | 531007799-Online | 1 |
| 531 02 00 78- | GASKET | 531007802 | 531007802-Online | 1 |
| 531 91 00 77- | RING | 531007791 | 531007791-Online | 1 |
| 531 36 00 48- | MOULDING | 531004836 | 531004836-Online | 1 |
| 531 37 00 48- | SPANNHJUL | 531004837 | 531004837-Online | 1 |
| 531 93 00 77- | HOUSING | 531007793 | 531007793-Online | 1 |
| 531 94 00 77- | GASKET | 531007794 | 531007794-Online | 1 |
| 531 29 00 24- | DIAPHRAGM | 531002429 | 531002429-Online | 1 |
| 531 95 00 77- | HOUSING | 531007795 | 531007795-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 96 00 77- | PLATE | 531007796 | 531007796-Online | 1 |
| 531 97 00 77- | SCREW | 531007797 | 531007797-Online | 1 |
| 531 80 00 78- | JET #52 | 531007880 | 531007880-Online | 1 |
| 531 79 00 78- | JET #51 | 531007879 | 531007879-Online | 1 |
| 531 78 00 78- | JET #49 | 531007878 | 531007878-Online | 1 |
| 531 77 00 78- | JET #48 | 531007877 | 531007877-Online | 1 |
| 531 92 00 77- | JET #50 STD. | 531007792 | 531007792-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 98 00 77- | THROTTLE | 531007798 | 531007798-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 39 00 79- | BRACKET | 531007939 | 531007939-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 04 00 77- | BRACKET | 531007704 | 531007704-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 5 |
| 734 01 11 46- | WASHER | 734114601 | 734114601-Online | 5 |
| 531 01 00 77- | COMBINATION GUARD | 531007701 | 531007701-Online | 1 |
| 531 06 00 77- | PROTECTOR | 531007706 | 531007706-Online | 1 |
| 531 03 00 77- | BRACKET | 531007703 | 531007703-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 2 |
| 735 01 11 46- | SPRING WASHER | 735114601 | 735114601-Online | 2 |
| 531 05 00 77- | BLADE | 531007705 | 531007705-Online | 1 |
| 725 71 23 29- | SCREW EHHM | 725232971 | 725232971-Online | 5 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 2 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 65 00 77- | HOUSING | 531007765 | 531007765-Online | 1 |
| 503 20 20 02- | SCREW IHSCFM | 503200220 | 503200220-Online | 4 |
| 531 50 00 77- | SEALING RING | 531007750 | 531007750-Online | 1 |
| 531 49 00 77- | CRANKCASE | 531007749 | 531007749-Online | 1 |
| 503 40 20 02- | SCREW IHSCFM | 503200240 | 503200240-Online | 4 |
| 735 10 31 33- | CIRCLIP | 735313310 | 735313310-Online | 1 |
| 531 51 00 77- | SEALING RING | 531007751 | 531007751-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 57 00 77- | NEEDLE BEARING | 531007757 | 531007757-Online | 1 |
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 738 25 22 02- | BALL BEARING | 738220225 | 738220225-Online | 1 |
| 531 59 00 77- | CRANKSHAFT | 531007759 | 531007759-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 97 64- | GREASE | 503976401 | 503976401-Online | 1 |
| 502 02 03 55- | TRANSPORTSKYDD KPL | 502035502 | 502035502-Online | 1 |
| 531 19 00 78- | PIN RETAINING SCREW | 531007819 | 531007819-Online | 1 |
| 531 20 00 78- | GREASE | 531007820 | 531007820-Online | 1 |
| 531 21 00 78- | BAND | 531007821 | 531007821-Online | 1 |
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
| 502 03 03 55- | TRANSPORT GUARD | 502035503 | 502035503-Online | 1 |
| 502 01 21 58- | WRENCH | 502215801 | 502215801-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW EHHM | 725236671 | 725236671-Online | 1 |
| 2 | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 3 | SCREW | 590268501 | 590268501-Online | 1 |
| 4 | BALL BEARING | 587742601 | 587742601-Online | 1 |
| 5 | GEAR WHEEL SHAFT | 590268601 | 590268601-Online | 1 |
| 7 | BALL BEARING | 587742801 | 587742801-Online | 1 |
| 8 | CIRCLIP | 587742901 | 587742901-Online | 1 |
| 9 | SEALING | 587743001 | 587743001-Online | 1 |
| 11 | CARRIER | 590268301 | 590268301-Online | 1 |
| 12 | FLANGE | 531007890 | 531007890-Online | 1 |
| 13 | BLADE NUT | 502291101 | 502291101-Online | 1 |
| 14 | GEAR HOUSING | 588235201 | 588235201-Online | 1 |
| 15 | PINION | 590269901 | 590269901-Online | 1 |
| 16 | BALL BEARING | 738210000 | 738210000-Online | 1 |
| 17 | BALL BEARING | 738210001 | 738210001-Online | 1 |
| 18 | CIRCLIP | 735311200 | 735311200-Online | 1 |
| 19 | CIRCLIP | 735312710 | 735312710-Online | 1 |
| 20 | GEARBOX ASSY | 588235101 | 588235101-Online | 1 |
| 21 | STOP | 502026101 | 502026101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 71 23 70- | SCREW EHHM | 725237071 | 725237071-Online | 4 |
| 531 18 00 77- | CLUTCH COVER | 531007718 | 531007718-Online | 1 |
| 531 17 00 77- | RETAINER RING | 531007717 | 531007717-Online | 1 |
| 738 19 22 02- | BALL BEARING | 738220219 | 738220219-Online | 1 |
| 735 10 31 33- | CIRCLIP | 735313310 | 735313310-Online | 1 |
| 531 15 00 77- | CLUTCH DRUM | 531007715 | 531007715-Online | 1 |
| 531 64 00 77- | SCREW | 531007764 | 531007764-Online | 1 |
| 531 63 00 77- | WASHER | 531007763 | 531007763-Online | 1 |
| 531 61 00 77- | SPRING | 531007761 | 531007761-Online | 1 |
| 531 60 00 77- | CLUTCH | 531007760 | 531007760-Online | 1 |
| 531 62 00 77- | WASHER | 531007762 | 531007762-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 45 00 77- | CYLINDER COVER | 531007745 | 531007745-Online | 1 |
| 503 25 98 12- | LABEL | 503981225 | 503981225-Online | 1 |
| 503 26 98 12- | LABEL | 503981226 | 503981226-Online | 1 |
| 531 48 00 77- | RETAINER RING | 531007748 | 531007748-Online | 1 |
| 531 47 00 77- | RING | 531007747 | 531007747-Online | 1 |
| 531 46 00 77- | SCREW | 531007746 | 531007746-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 4 |
| 531 58 00 77- | RETAINER RING | 531007758 | 531007758-Online | 1 |
| 531 56 00 77- | PISTON BOLT | 531007756 | 531007756-Online | 1 |
| 531 57 00 77- | NEEDLE BEARING | 531007757 | 531007757-Online | 1 |
| 531 53 00 77- | PISTON 152 | 531007753 | 531007753-Online | 1 |
| 531 52 00 77- | PISTON 142 | 531007752 | 531007752-Online | 1 |
| 531 55 00 77- | PISTON RING 152 | 531007755 | 531007755-Online | 1 |
| 531 54 00 77- | PISTON RING 142 | 531007754 | 531007754-Online | 1 |
| 531 37 00 77- | GASKET | 531007737 | 531007737-Online | 1 |
| 531 36 00 77- | CYLINDER 152 | 531007736 | 531007736-Online | 1 |
| 531 35 00 77- | CYLINDER 142 | 531007735 | 531007735-Online | 1 |
| 531 28 00 48- | SPARK PLUG | 531004828 | 531004828-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 13 00 78- | TANK UNIT | 531007813 | 531007813-Online | 1 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 1 |
| 531 17 00 78- | FILTER | 531007817 | 531007817-Online | 1 |
| 531 15 00 78- | HOSE | 531007815 | 531007815-Online | 1 |
| 531 18 00 78- | SLEEVE | 531007818 | 531007818-Online | 1 |
| 531 06 00 40- | GASKET | 531004006 | 531004006-Online | 1 |
| 531 14 00 78- | TANK CAP | 531007814 | 531007814-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 16 00 78- | PIPE | 531007816 | 531007816-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 40 20 02- | SCREW IHSCFM | 503200240 | 503200240-Online | 2 |
| 725 06 53 66- | SCREW IHSCM | 725536606 | 725536606-Online | 1 |
| 731 51 71 16- | HEXAGON NUT FLANGE | 731711651 | 731711651-Online | 3 |
| 725 71 23 25- | SCREW EHHM | 725232571 | 725232571-Online | 3 |
| 531 20 00 77- | BRACKET | 531007720 | 531007720-Online | 1 |
| 738 02 21 01- | BALL BEARING | 738210102 | 738210102-Online | 1 |
| 531 21 00 77- | BEARING HOUSING | 531007721 | 531007721-Online | 1 |
| 531 17 00 79- | NUT | 531007917 | 531007917-Online | 1 |
| 531 22 00 77- | ABSORBER | 531007722 | 531007722-Online | 1 |
| 731 51 71 14- | HEXAGON NUT FLANGE | 731711451 | 731711451-Online | 4 |
| 531 19 00 77- | FRAME | 531007719 | 531007719-Online | 1 |
| 725 71 23 31- | SCREW EHHM | 725233171 | 725233171-Online | 4 |
| 503 01 73 86- | HARNESS | 503738601 | 503738601-Online | 1 |
| 531 89 00 77- | PLATE | 531007789 | 531007789-Online | 1 |
| 503 16 20 02- | SCREW IHSCFM | 503200216 | 503200216-Online | 2 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 66 00 77- | FLYWHEEL | 531007766 | 531007766-Online | 1 |
| 731 51 71 20- | HEXAGON NUT FLANGE | 731712051 | 731712051-Online | 1 |
| 503 25 20 25- | SCREW IHSCM | 503202525 | 503202525-Online | 2 |
| 531 67 00 77- | IGNITION MODULE | 531007767 | 531007767-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 1 |
| 531 75 00 77- | CABLE | 531007775 | 531007775-Online | 1 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 531 72 00 77- | PROTECTOR | 531007772 | 531007772-Online | 1 |
| 531 68 00 77- | CABLE | 531007768 | 531007768-Online | 1 |
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 44 00 77- | SCREW | 531007744 | 531007744-Online | 2 |
| 503 16 20 02- | SCREW IHSCFM | 503200216 | 503200216-Online | 1 |
| 531 43 00 77- | DEFLECTOR | 531007743 | 531007743-Online | 1 |
| 531 42 00 77- | MUFFLER | 531007742 | 531007742-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 08 00 77- | HANDLE | 531007708 | 531007708-Online | 1 |
| 531 64 00 78- | SCREW | 531007864 | 531007864-Online | 4 |
| 531 74 00 78- | SCREW | 531007874 | 531007874-Online | 1 |
| 724 01 13 35- | SCREW CRPANM | 724133501 | 724133501-Online | 1 |
| 531 76 00 78- | HANDLE | 531007876 | 531007876-Online | 4 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 4 |
| 725 01 53 33- | SCREW IHSCM | 725533301 | 725533301-Online | 2 |
| 531 09 00 77- | CONNECTION | 531007709 | 531007709-Online | 1 |
| 531 11 00 77- | TUBE | 531007711 | 531007711-Online | 1 |
| 531 13 00 77- | RING | 531007713 | 531007713-Online | 1 |
| 531 07 00 77- | HANDLE | 531007707 | 531007707-Online | 1 |
| 531 73 00 78- | LEVER | 531007873 | 531007873-Online | 1 |
| 531 62 00 78- | THROTTLE LOCK | 531007862 | 531007862-Online | 1 |
| 531 75 00 78- | HANDLE | 531007875 | 531007875-Online | 1 |
| 531 68 00 78- | CABLE ASSY | 531007868 | 531007868-Online | 1 |
| 531 71 00 78- | RETURN SPRING | 531007871 | 531007871-Online | 1 |
| 531 72 00 78- | COVER | 531007872 | 531007872-Online | 1 |
| 531 12 00 77- | SHAFT | 531007712 | 531007712-Online | 1 |
| 537 01 02 76- | LABEL | 537027601 | 537027601-Online | 1 |
| 531 10 00 77- | SHAFT | 531007710 | 531007710-Online | 1 |
| 531 14 00 77- | SHAFT | 531007714 | 531007714-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 2 |
| 531 83 00 78- | WIRE | 531007883 | 531007883-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 77 00 77- | STARTER HOUSING | 531007777 | 531007777-Online | 1 |
| 531 85 00 77- | PAWL | 531007785 | 531007785-Online | 1 |
| 531 86 00 77- | SPRING | 531007786 | 531007786-Online | 1 |
| 531 87 00 77- | PLATE | 531007787 | 531007787-Online | 1 |
| 531 88 00 77- | RETAINER RING | 531007788 | 531007788-Online | 1 |
| 731 01 23 18- | HEXAGON NUT | 731231801 | 731231801-Online | 1 |
| 531 84 00 77- | SCREW | 531007784 | 531007784-Online | 1 |
| 531 83 00 77- | WASHER | 531007783 | 531007783-Online | 1 |
| 531 82 00 77- | STARTER PULLEY | 531007782 | 531007782-Online | 1 |
| 531 81 00 77- | RETURN SPRING | 531007781 | 531007781-Online | 1 |
| 531 79 00 77- | STARTER ROPE | 531007779 | 531007779-Online | 1 |
| 503 16 20 25- | SCREW IHSCM | 503202516 | 503202516-Online | 4 |
| 531 78 00 77- | HANDLE | 531007778 | 531007778-Online | 1 |
| 531 80 00 77- | INSERT | 531007780 | 531007780-Online | 1 |
| 537 02 09 74- | LABEL | 537097402 | 537097402-Online | 1 |
| 537 01 09 74- | LABEL | 537097401 | 537097401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 2 |
| 531 03 00 77- | BRACKET | 531007703 | 531007703-Online | 1 |
| 531 06 00 77- | PROTECTOR | 531007706 | 531007706-Online | 1 |
| 531 01 00 77- | COMBINATION GUARD | 531007701 | 531007701-Online | 1 |
| 531 04 00 77- | BRACKET | 531007704 | 531007704-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 5 |
| 734 01 11 46- | WASHER | 734114601 | 734114601-Online | 5 |
| 735 01 11 46- | SPRING WASHER | 735114601 | 735114601-Online | 2 |
| 531 05 00 77- | BLADE | 531007705 | 531007705-Online | 1 |
| 725 71 23 29- | SCREW EHHM | 725232971 | 725232971-Online | 5 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 2 |
