Husqvarna 155 B IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

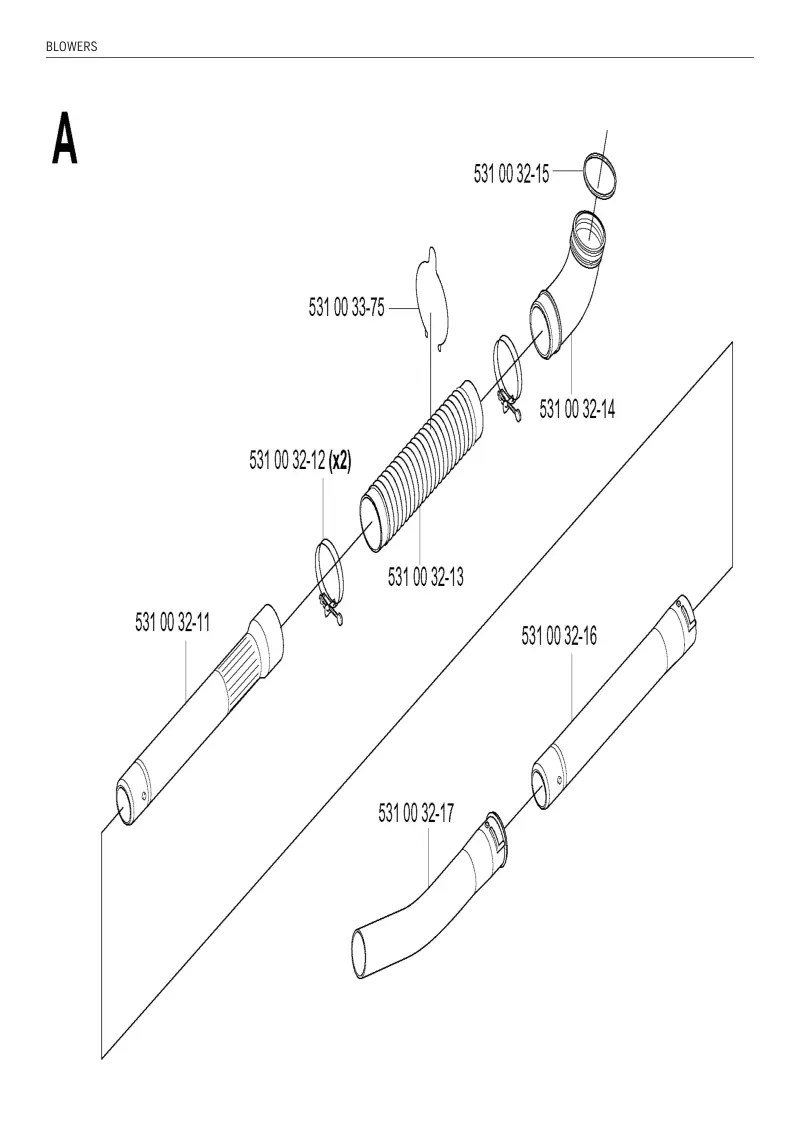

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 75 00 33- | HOLDER | 531003375 | 531003375-Online | 1 |
| 531 12 00 32- | CLAMP | 531003212 | 531003212-Online | 2 |
| 531 11 00 32- | PIPE | 531003211 | 531003211-Online | 1 |
| 531 17 00 32- | PIPE | 531003217 | 531003217-Online | 1 |
| 531 13 00 32- | PIPE | 531003213 | 531003213-Online | 1 |
| 531 16 00 32- | PIPE | 531003216 | 531003216-Online | 1 |
| 531 14 00 32- | PIPE | 531003214 | 531003214-Online | 1 |
| 531 15 00 32- | O-RING | 531003215 | 531003215-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 51 00 44- | ADAPTER | 531004451 | 531004451-Online | 1 |
| 531 87 00 44- | GASKET | 531004487 | 531004487-Online | 1 |
| 531 28 00 44- | HOLDER | 531004428 | 531004428-Online | 1 |
| 531 29 00 44- | PLATE | 531004429 | 531004429-Online | 1 |
| 531 89 00 44- | SCREW | 531004489 | 531004489-Online | 2 |
| 531 65 00 44- | SCREW | 531004465 | 531004465-Online | 2 |
| 531 40 00 44- | GASKET | 531004440 | 531004440-Online | 1 |
| 531 66 00 44- | SCREW | 531004466 | 531004466-Online | 2 |
| 531 30 00 44- | AIR FILTER | 531004430 | 531004430-Online | 1 |
| 531 31 00 44- | COVER | 531004431 | 531004431-Online | 1 |
| 531 88 00 44- | GASKET | 531004488 | 531004488-Online | 1 |
| 531 86 00 44- | SPACER | 531004486 | 531004486-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 31 00 37- | HOUSING | 531003731 | 531003731-Online | 1 |
| 531 27 00 37- | SCREW | 531003727 | 531003727-Online | 9 |
| 531 97 00 44- | PROTECTOR | 531004497 | 531004497-Online | 1 |
| 531 28 00 37- | HOUSING | 531003728 | 531003728-Online | 1 |
| 531 98 00 44- | DECAL | 531004498 | 531004498-Online | 1 |
| 531 87 00 36- | ABSORBER | 531003687 | 531003687-Online | 2 |
| 531 30 00 37- | FAN | 531003730 | 531003730-Online | 1 |
| 531 96 00 44- | SCREW | 531004496 | 531004496-Online | 2 |
| 531 86 00 36- | ABSORBER | 531003686 | 531003686-Online | 1 |
| 531 79 00 36- | SCREW | 531003679 | 531003679-Online | 3 |
| 531 48 00 32- | SCREW | 531003248 | 531003248-Online | 4 |
| 732 01 25 16- | HEXAGON LOCKING NUT | 732251601 | 732251601-Online | 2 |
| 531 29 00 37- | HOUSING | 531003729 | 531003729-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 84 00 44- | BLOWER NOZZLE | 531004484 | 531004484-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 04 00 37- | HOLDER | 531003704 | 531003704-Online | 1 |
| 531 98 00 33- | THROTTLE CABLE ASSY | 531003398 | 531003398-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 48 00 32- | SCREW | 531003248 | 531003248-Online | 4 |
| 531 97 00 36- | CRANKCASE | 531003697 | 531003697-Online | 1 |
| 531 58 00 32- | SCREW | 531003258 | 531003258-Online | 4 |
| 531 57 00 32- | SCREW | 531003257 | 531003257-Online | 1 |
| 531 60 00 32- | GASKET | 531003260 | 531003260-Online | 1 |
| 738 25 22 02- | BALL BEARING | 738220225 | 738220225-Online | 2 |
| 531 51 00 32- | GASKET | 531003251 | 531003251-Online | 1 |
| 531 56 00 32- | SEALING | 531003256 | 531003256-Online | 2 |
| 531 53 00 32- | CRANKCASE | 531003253 | 531003253-Online | 1 |
| 531 59 00 32- | PIN RETAINING SCREW | 531003259 | 531003259-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 07 00 37- | MUFFLER | 531003707 | 531003707-Online | 1 |
| 531 43 00 33- | SCREW | 531003343 | 531003343-Online | 2 |
| 531 23 00 37- | SCREW | 531003723 | 531003723-Online | 1 |
| 531 01 00 37- | SPARK ARRESTOR | 531003701 | 531003701-Online | 1 |
| 531 93 00 36- | GASKET | 531003693 | 531003693-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 08 00 37- | PAWL | 531003708 | 531003708-Online | 1 |
| 531 57 00 33- | STARTER PAWL | 531003357 | 531003357-Online | 1 |
| 531 15 00 37- | SPRING | 531003715 | 531003715-Online | 1 |
| 531 65 00 33- | RETAINER RING | 531003365 | 531003365-Online | 1 |
| 531 06 00 37- | WASHER | 531003706 | 531003706-Online | 2 |
| 531 02 00 37- | NUT | 531003702 | 531003702-Online | 1 |
| 531 64 00 33- | SCREW | 531003364 | 531003364-Online | 1 |
| 531 14 00 37- | WASHER | 531003714 | 531003714-Online | 1 |
| 531 12 00 37- | STARTER PULLEY | 531003712 | 531003712-Online | 1 |
| 531 16 00 37- | RETURN SPRING | 531003716 | 531003716-Online | 1 |
| 725 01 52 93- | SCREW IHSCM | 725529301 | 725529301-Online | 4 |
| 531 13 00 37- | STARTER ROPE | 531003713 | 531003713-Online | 1 |
| 531 24 00 37- | COVER | 531003724 | 531003724-Online | 1 |
| 531 25 00 37- | DECAL | 531003725 | 531003725-Online | 1 |
| 531 03 00 37- | STARTER HOUSING | 531003703 | 531003703-Online | 1 |
| 531 97 00 12- | SLEEVE | 531001297 | 531001297-Online | 1 |
| 531 60 00 33- | HANDLE | 531003360 | 531003360-Online | 1 |
| 531 58 00 33- | PLATE | 531003358 | 531003358-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 83 00 33- | FLYWHEEL | 531003383 | 531003383-Online | 1 |
| 531 83 00 32- | WASHER | 531003283 | 531003283-Online | 1 |
| 531 89 00 32- | NUT | 531003289 | 531003289-Online | 1 |
| 531 84 00 33- | IGNITION COIL | 531003384 | 531003384-Online | 1 |
| 531 87 00 32- | SCREW | 531003287 | 531003287-Online | 2 |
| 531 82 00 33- | CABLE | 531003382 | 531003382-Online | 1 |
| 531 86 00 32- | GROMMET | 531003286 | 531003286-Online | 1 |
| 531 98 00 36- | RING | 531003698 | 531003698-Online | 1 |
| 503 13 23 50- | SPARK PLUG NGK BPMR 7A | 503235013 | 503235013-Online | 1 |
| 531 79 00 32- | SPRING | 531003279 | 531003279-Online | 1 |
| 531 78 00 32- | HUB CAP | 531003278 | 531003278-Online | 1 |
| 531 85 00 32- | PIPE | 531003285 | 531003285-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 11 00 37- | CRANKSHAFT | 531003711 | 531003711-Online | 1 |
| 531 96 00 36- | PISTON RING | 531003696 | 531003696-Online | 1 |
| 531 95 00 36- | PISTON BOLT | 531003695 | 531003695-Online | 1 |
| 531 69 00 32- | RETAINER RING | 531003269 | 531003269-Online | 2 |
| 531 70 00 32- | NEEDLE BEARING | 531003270 | 531003270-Online | 1 |
| 531 84 00 32- | KEY | 531003284 | 531003284-Online | 1 |
| 531 68 00 32- | WASHER T=0,6 MM | 531003268 | 531003268-Online | 1 |
| 531 67 00 32- | WASHER T=0,4 MM | 531003267 | 531003267-Online | 1 |
| 531 66 00 32- | WASHER T=0,2 MM | 531003266 | 531003266-Online | 1 |
| 531 65 00 32- | WASHER T=0,1 MM | 531003265 | 531003265-Online | 1 |
| 531 94 00 36- | PISTON | 531003694 | 531003694-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 73 86- | HARNESS | 503738601 | 503738601-Online | 1 |
| 725 55 53 80- | SCREW IHSCM | 725538055 | 725538055-Online | 2 |
| 531 81 00 36- | BRACKET | 531003681 | 531003681-Online | 1 |
| 725 55 53 76- | SCREW IHSCM | 725537655 | 725537655-Online | 2 |
| 503 01 75 62- | LOCK | 503756201 | 503756201-Online | 1 |
| 503 01 85 84- | BELT | 503858401 | 503858401-Online | 1 |
| 503 01 75 63- | BUCKLE | 503756301 | 503756301-Online | 1 |
| 531 80 00 36- | BRACKET | 531003680 | 531003680-Online | 1 |
| 502 01 12 33- | PEN | 502123301 | 502123301-Online | 1 |
| 503 01 75 64- | HAIR PIN COTTER | 503756401 | 503756401-Online | 1 |
| 531 22 00 37- | SCREW | 531003722 | 531003722-Online | 2 |
| 734 01 11 52- | WASHER | 734115201 | 734115201-Online | 2 |
| 531 05 00 37- | FRAME | 531003705 | 531003705-Online | 1 |
| 503 03 22 23- | LOCK NUT | 503222303 | 503222303-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 91 00 33- | HANDLE ASSY | 531003391 | 531003391-Online | 1 |
| 531 49 00 32- | BAND | 531003249 | 531003249-Online | 1 |
| 503 03 22 23- | LOCK NUT | 503222303 | 503222303-Online | 1 |
| 734 01 11 52- | WASHER | 734115201 | 734115201-Online | 1 |
| 531 78 00 33- | SCREW | 531003378 | 531003378-Online | 1 |
| 531 69 00 44- | LEVER | 531004469 | 531004469-Online | 1 |
| 531 67 00 44- | HANDLE | 531004467 | 531004467-Online | 1 |
| 531 76 00 44- | CABLE ASSY | 531004476 | 531004476-Online | 1 |
| 531 74 00 44- | WASHER | 531004474 | 531004474-Online | 1 |
| 531 72 00 44- | WASHER | 531004472 | 531004472-Online | 2 |
| 531 80 00 44- | BRACKET | 531004480 | 531004480-Online | 1 |
| 531 77 00 44- | SCREW | 531004477 | 531004477-Online | 2 |
| 531 83 00 44- | SCREW | 531004483 | 531004483-Online | 1 |
| 531 90 00 33- | HOLDER | 531003390 | 531003390-Online | 1 |
| 531 88 00 33- | HANDLE | 531003388 | 531003388-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 531 81 00 44- | BRACKET | 531004481 | 531004481-Online | 1 |
| 531 79 00 44- | NUT | 531004479 | 531004479-Online | 2 |
| 531 68 00 44- | HANDLE | 531004468 | 531004468-Online | 1 |
| 531 82 00 44- | SPACER WASHER | 531004482 | 531004482-Online | 2 |
| 531 78 00 44- | SCREW | 531004478 | 531004478-Online | 2 |
| 531 71 00 44- | SHAFT | 531004471 | 531004471-Online | 1 |
| 531 70 00 44- | LEVER | 531004470 | 531004470-Online | 1 |
| 531 73 00 44- | WASHER | 531004473 | 531004473-Online | 2 |
| 531 75 00 44- | RETAINER RING | 531004475 | 531004475-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 32 00 44- | CLAMP | 531004432 | 531004432-Online | 1 |
| 531 34 00 44- | HOSE | 531004434 | 531004434-Online | 1 |
| 531 33 00 44- | GROMMET | 531004433 | 531004433-Online | 1 |
| 531 47 00 33- | VALVE | 531003347 | 531003347-Online | 1 |
| 531 99 00 33- | TANK CAP | 531003399 | 531003399-Online | 1 |
| 531 26 00 37- | DECAL | 531003726 | 531003726-Online | 1 |
| 531 91 00 36- | TANK UNIT | 531003691 | 531003691-Online | 1 |
| 514 00 74 09- | FILTER | 514740900 | 514740900-Online | 1 |
| 531 35 00 44- | HOSE | 531004435 | 531004435-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 95 00 33- | SCREW | 531003395 | 531003395-Online | 2 |
| 531 10 00 37- | CYLINDER COVER | 531003710 | 531003710-Online | 1 |
| 531 09 00 37- | PLATE | 531003709 | 531003709-Online | 1 |
| 531 73 00 32- | SCREW | 531003273 | 531003273-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 92 00 36- | CYLINDER | 531003692 | 531003692-Online | 1 |
| 531 94 00 33- | GASKET | 531003394 | 531003394-Online | 1 |
| 531 92 00 33- | SCREW | 531003392 | 531003392-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 99 00 36- | CARBURETTOR | 531003699 | 531003699-Online | 1 |
| 531 49 00 44- | PLATE | 531004449 | 531004449-Online | 1 |
| 531 57 00 44- | SCREW | 531004457 | 531004457-Online | 1 |
| 531 60 00 44- | PIN RETAINING SCREW | 531004460 | 531004460-Online | 1 |
| 531 42 00 44- | LEVER | 531004442 | 531004442-Online | 1 |
| 531 63 00 44- | SPRING | 531004463 | 531004463-Online | 1 |
| 531 46 00 44- | VALVE | 531004446 | 531004446-Online | 1 |
| 531 43 00 44- | FILTER | 531004443 | 531004443-Online | 1 |
| 531 53 00 44- | DIAPHRAGM | 531004453 | 531004453-Online | 1 |
| 531 36 00 44- | GASKET | 531004436 | 531004436-Online | 1 |
| 531 21 00 37- | JET | 531003721 | 531003721-Online | 1 |
| 531 61 00 44- | O-RING | 531004461 | 531004461-Online | 1 |
| 531 58 00 44- | SCREW | 531004458 | 531004458-Online | 4 |
| 531 44 00 44- | COVER | 531004444 | 531004444-Online | 1 |
| 531 55 00 44- | PRIMER | 531004455 | 531004455-Online | 1 |
| 531 48 00 44- | PLATE | 531004448 | 531004448-Online | 1 |
| 531 52 00 44- | DIAPHRAGM | 531004452 | 531004452-Online | 1 |
| 531 38 00 44- | GASKET | 531004438 | 531004438-Online | 1 |
| 531 54 00 44- | RING | 531004454 | 531004454-Online | 1 |
| 531 59 00 44- | RING | 531004459 | 531004459-Online | 1 |
| 531 64 00 44- | WASHER | 531004464 | 531004464-Online | 1 |
| 531 50 00 44- | LEVER | 531004450 | 531004450-Online | 1 |
| 531 37 00 44- | BRACKET | 531004437 | 531004437-Online | 1 |
| 531 56 00 44- | SCREW | 531004456 | 531004456-Online | 2 |
