Husqvarna 226R IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS

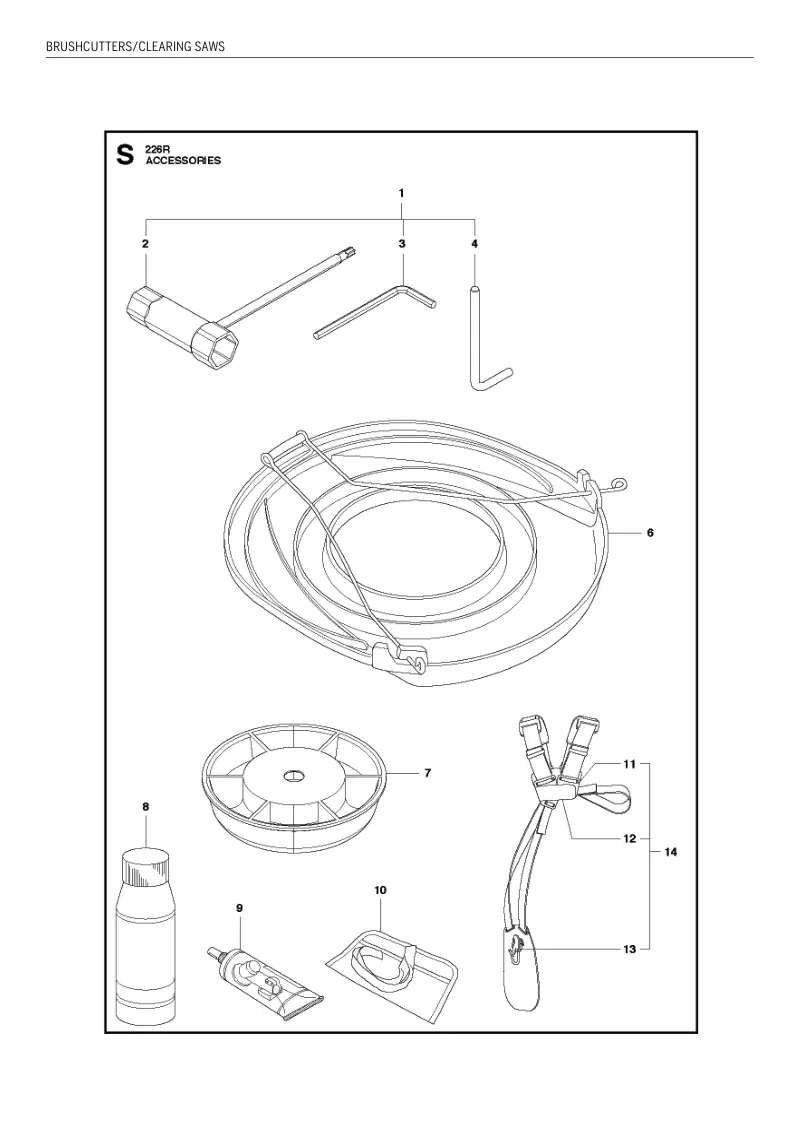

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TOOL-SET | 521817501 | 521817501-Online | 1 |
| 2 | WRENCH | 514099101 | 514099101-Online | 1 |
| 3 | WRENCH | 505311901 | 505311901-Online | 1 |
| 4 | TOOL | 505312001 | 505312001-Online | 1 |
| 6 | TRANSPORT GUARD | 537312901 | 537312901-Online | 1 |
| 7 | SUPPORT CUP | 503890101 | 503890101-Online | 1 |
| 8 | FILTER OIL | 531009248 | 531009248-Online | 1 |
| 9 | GREASE | 503976401 | 503976401-Online | 1 |
| 10 | TOOL | 501192201 | 501192201-Online | 1 |
| 11 | FRONT PIECE | 503734001 | 503734001-Online | 1 |
| 12 | BUCKLE | 503734102 | 503734102-Online | 1 |
| 13 | WELT HOOK | 502022802 | 502022802-Online | 1 |
| 14 | HARNESS | 537216301 | 537216301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BEVEL GEAR | 537333202 | 537333202-Online | 1 |
| 2 | SCREW | 503201501 | 503201501-Online | 1 |
| 3 | SCREW IHSCFMO M5X12 | 503201412 | 503201412-Online | 1 |
| 4 | SCREW IHSCFM M5X25 | 503200725 | 503200725-Online | 1 |
| 5 | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 6 | BALL BEARING | 738219902 | 738219902-Online | 1 |
| 7 | CIRCLIP | 735311100 | 735311100-Online | 1 |
| 8 | CIRCLIP | 735312510 | 735312510-Online | 1 |
| 9 | BALL BEARING | 738219800 | 738219800-Online | 1 |
| 11 | SCREW M6x20 | 537189501 | 537189501-Online | 1 |
| 12 | CLAMP.GUARD | 503935501 | 503935501-Online | 1 |
| 13 | BALL BEARING | 738210104 | 738210104-Online | 1 |
| 14 | CIRCLIP | 735312810 | 735312810-Online | 1 |
| 15 | DRIVER ASSY | 537234901 | 537234901-Online | 1 |
| 16 | CUP | 537292601 | 537292601-Online | 1 |
| 17 | SUPPORT FLANGE | 537285601 | 537285601-Online | 1 |
| 18 | NUT | 503856301 | 503856301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 527918501 | 527918501-Online | 1 |
| 2 | KNOB | 523071301 | 523071301-Online | 1 |
| 3 | SCREW | 510483101 | 510483101-Online | 2 |
| 4 | AIR FILTER | 515417301 | 515417301-Online | 1 |
| 5 | BODY | 512362701 | 512362701-Online | 1 |
| 6 | LEVER | 512362901 | 512362901-Online | 1 |
| 7 | SCREW | 506614001 | 506614001-Online | 1 |
| 8 | PLATE.CHOKE | 512362801 | 512362801-Online | 1 |
| 9 | SLEEVE | 513454901 | 513454901-Online | 2 |
| 10 | GASKET | 512382201 | 512382201-Online | 1 |
| 11 | PLATE | 521774801 | 521774801-Online | 1 |
| 12 | COVER | 506744201 | 506744201-Online | 1 |
| 13 | CARBURETOR-A | 527918301 | 527918301-Online | 1 |
| 14 | GASKET | 515409901 | 515409901-Online | 1 |
| 15 | SCREW | 510482301 | 510482301-Online | 2 |
| 16 | INSULATOR | 512359601 | 512359601-Online | 1 |
| 17 | GASKET | 515409001 | 515409001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETOR-A | 527918301 | 527918301-Online | 1 |
| 2 | BODY | 513410801 | 513410801-Online | 1 |
| 3 | SCREEN | 520957001 | 520957001-Online | 1 |
| 4 | VALVE.INLET | 521085401 | 521085401-Online | 1 |
| 5 | SPRING | 513410701 | 513410701-Online | 1 |
| 6 | PEN | 505055801 | 505055801-Online | 1 |
| 7 | SCREW | 505306101 | 505306101-Online | 1 |
| 8 | LEVER | 520977201 | 520977201-Online | 1 |
| 9 | BODY | 506740901 | 506740901-Online | 1 |
| 10 | COVER | 506741001 | 506741001-Online | 1 |
| 11 | PUMP | 505306701 | 505306701-Online | 1 |
| 12 | DIAPHRAGM | 505306801 | 505306801-Online | 1 |
| 13 | GASKET | 506740801 | 506740801-Online | 1 |
| 14 | DIAPHRAGM | 506689801 | 506689801-Online | 1 |
| 15 | GASKET | 506745101 | 506745101-Online | 1 |
| 17 | RETAINER RING | 506738601 | 506738601-Online | 1 |
| 18 | SWIVEL | 506741201 | 506741201-Online | 1 |
| 19 | SCREW | 505307901 | 505307901-Online | 2 |
| 20 | BRACKET | 506746001 | 506746001-Online | 1 |
| 23 | NEEDLE | 512373401 | 512373401-Online | 1 |
| 24 | SPRING | 513301501 | 513301501-Online | 1 |
| 25 | O-RING | 513437801 | 513437801-Online | 1 |
| 26 | WASHER | 513437701 | 513437701-Online | 1 |
| 27 | WASHER | 506746101 | 506746101-Online | 1 |
| 28 | SCREW | 506741101 | 506741101-Online | 4 |
| 29 | VALVE ASSY | 521770101 | 521770101-Online | 1 |
| 30 | RING | 505308401 | 505308401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HOUSING ASSY | 521771201 | 521771201-Online | 1 |
| 2 | SNAP RING | 516124101 | 516124101-Online | 1 |
| 3 | BEARING | 525953201 | 525953201-Online | 1 |
| 4 | SNAP RING | 506609901 | 506609901-Online | 1 |
| 5 | DRUM | 521609801 | 521609801-Online | 1 |
| 6 | ANTIVIBRATION ELEMENT | 512360501 | 512360501-Online | 1 |
| 7 | BRACKET | 521768301 | 521768301-Online | 1 |
| 8 | BRACKET | 521768201 | 521768201-Online | 1 |
| 9 | BOLT | 526734501 | 526734501-Online | 2 |
| 10 | BOLT | 526734401 | 526734401-Online | 1 |
| 11 | SCREW | 513189601 | 513189601-Online | 2 |
| 12 | WASHER | 521758201 | 521758201-Online | 2 |
| 13 | CLUTCH | 506629401 | 506629401-Online | 1 |
| 14 | SPRING | 506685801 | 506685801-Online | 1 |
| 15 | WASHER | 505054401 | 505054401-Online | 2 |
| 16 | GUARD | 511323601 | 511323601-Online | 1 |
| 17 | BOLT | 514234801 | 514234801-Online | 2 |
| 18 | CLAMP | 521758801 | 521758801-Online | 1 |
| 19 | SCREW | 510482301 | 510482301-Online | 2 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE | 515490001 | 515490001-Online | 1 |
| 2 | SEAL | 513488701 | 513488701-Online | 1 |
| 3 | SEAL | 506612901 | 506612901-Online | 1 |
| 4 | SNAP RING | 506609901 | 506609901-Online | 1 |
| 5 | GASKET | 515412401 | 515412401-Online | 1 |
| 6 | PIN | 505296101 | 505296101-Online | 1 |
| 7 | BOLT | 506609401 | 506609401-Online | 4 |
| 8 | GUARD | 515412601 | 515412601-Online | 1 |
| 9 | SCREW | 505299801 | 505299801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT | 526529101 | 526529101-Online | 1 |
| 2 | BEARING | 523071701 | 523071701-Online | 2 |
| 3 | KEY | 506689401 | 506689401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 527917801 | 527917801-Online | 1 |
| 2 | LABEL,COVER | 527918701 | 527918701-Online | 1 |
| 3 | SCREW | 505299801 | 505299801-Online | 1 |
| 4 | SCREW | 512361001 | 512361001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER | 525957001 | 525957001-Online | 1 |
| 2 | GASKET | 515408801 | 515408801-Online | 1 |
| 3 | BOLT | 513412501 | 513412501-Online | 2 |
| 4 | SPARKPLUGBPMR7A Plug (BPMR7A) | 515497401 | 515497401-Online | 1 |
| 5 | PISTON RING | 529251001 | 529251001-Online | 2 |
| 6 | RING | 505045201 | 505045201-Online | 2 |
| 7 | PIN | 505040701 | 505040701-Online | 1 |
| 8 | PISTON | 515491801 | 515491801-Online | 1 |
| 9 | WASHER | 505041001 | 505041001-Online | 2 |
| 10 | BEARING | 505040901 | 505040901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TANK ASSY | 521772001 | 521772001-Online | 1 |
| 2 | CAP | 521379701 | 521379701-Online | 1 |
| 3 | FILTER | 506617201 | 506617201-Online | 1 |
| 4 | HOLDER | 515447801 | 515447801-Online | 1 |
| 5 | PACKING | 515418301 | 515418301-Online | 1 |
| 6 | STOPPER | 506745801 | 506745801-Online | 1 |
| 7 | FILTER | 515418501 | 515418501-Online | 1 |
| 8 | CLIP | 506707001 | 506707001-Online | 1 |
| 9 | PIPE | 515418401 | 515418401-Online | 1 |
| 10 | CLIP | 506741501 | 506741501-Online | 1 |
| 11 | SCREW | 515418701 | 515418701-Online | 2 |
| 12 | SCREW | 515492501 | 515492501-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COMBINATION GUARD | 503934202 | 503934202-Online | 1 |
| 2 | SCREW IHSCT | 503210716 | 503210716-Online | 1 |
| 3 | BLADE | 503798801 | 503798801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE | 528817401 | 528817401-Online | 1 |
| 2 | HANDLE | 528817501 | 528817501-Online | 1 |
| 3 | BRACKET | 514395301 | 514395301-Online | 1 |
| 4 | BOLT | 510523201 | 510523201-Online | 3 |
| 4 | SCREW IHSCM South America only | 725533355 | 725533355-Online | 3 |
| 5 | CAP | 505294901 | 505294901-Online | 1 |
| 6 | BRACKET | 514395501 | 514395501-Online | 1 |
| 7 | CAP | 514395601 | 514395601-Online | 1 |
| 8 | BOLT | 526734501 | 526734501-Online | 2 |
| 9 | HANDLE | 537172802 | 537172802-Online | 1 |
| 10 | COVER | 537172901 | 537172901-Online | 1 |
| 11 | BOLT | 510909401 | 510909401-Online | 1 |
| 11 | SCREW IHSCFM South America only | 503200745 | 503200745-Online | 1 |
| 12 | NUT | 575960601 | 575960601-Online | 1 |
| 12 | HEXAGON NUT South America only | 731231401 | 731231401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ROTOR | 521769301 | 521769301-Online | 1 |
| 2 | COIL | 512361601 | 512361601-Online | 1 |
| 3 | SPRING | 521358701 | 521358701-Online | 1 |
| 4 | HUB CAP | 505298801 | 505298801-Online | 1 |
| 5 | CORD | 512361701 | 512361701-Online | 1 |
| 6 | HUB CAP | 505042801 | 505042801-Online | 1 |
| 7 | GROMMET | 505298701 | 505298701-Online | 1 |
| 8 | BOLT | 514186801 | 514186801-Online | 2 |
| 9 | SPACER | 521769701 | 521769701-Online | 2 |
| 10 | NUT | 504118001 | 504118001-Online | 1 |
| 11 | CORD | 512361901 | 512361901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PLATE.MUFFLER | 515412101 | 515412101-Online | 1 |
| 2 | SCREW | 510481601 | 510481601-Online | 1 |
| 3 | BOLT | 516071401 | 516071401-Online | 2 |
| 4 | MUFFLER | 512359701 | 512359701-Online | 1 |
| 5 | GASKET | 512332901 | 512332901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHAFT | 528841901 | 528841901-Online | 1 |
| 2 | PIPE-COMP | 528842001 | 528842001-Online | 1 |
| 3 | HANGER | 521822101 | 521822101-Online | 1 |
| 4 | LABEL.CAUTION | 510963101 | 510963101-Online | 1 |
| 5 | PROTECTION | 521538701 | 521538701-Online | 1 |
| 6 | SCREW | 510482301 | 510482301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 527918101 | 527918101-Online | 1 |
| 2 | SCREW | 506613001 | 506613001-Online | 1 |
| 3 | REEL | 513416801 | 513416801-Online | 1 |
| 4 | ROPE | 521759401 | 521759401-Online | 1 |
| 5 | SPIRAL SPRING | 504115001 | 504115001-Online | 1 |
| 6 | WASHER | 521759601 | 521759601-Online | 1 |
| 7 | SPRING | 521759901 | 521759901-Online | 1 |
| 8 | COLLAR | 521759801 | 521759801-Online | 1 |
| 9 | KNOB | 521759701 | 521759701-Online | 1 |
| 10 | SCREW | 512361001 | 512361001-Online | 4 |
| 11 | LABEL,RECOIL | 527918801 | 527918801-Online | 1 |
| 12 | PULLEY | 513417301 | 513417301-Online | 1 |
| 13 | RATCHET | 513417701 | 513417701-Online | 1 |
| 14 | SPRING | 513417801 | 513417801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | THROTTLE CABLE ASSY | 522036601 | 522036601-Online | 1 |
| 2 | HANDLE ASSY | 537183507 | 537183507-Online | 1 |
| 3 | HANDLE HALF | 537160302 | 537160302-Online | 1 |
| 4 | HANDLE HALF | 537160203 | 537160203-Online | 1 |
| 5 | THROTTLE CONTROL | 506497701 | 506497701-Online | 1 |
| 6 | THROTTLE LOCKOUT | 537160703 | 537160703-Online | 1 |
| 7 | SWITCH | 503718201 | 503718201-Online | 1 |
| 8 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 9 | SPRING | 537174301 | 537174301-Online | 1 |
| 10 | HEXAGON NUT | 503221013 | 503221013-Online | 1 |
| 11 | SCREW IHSCT | 503216674 | 503216674-Online | 2 |
| 12 | SCREW IHSCFM | 503200782 | 503200782-Online | 1 |
