Husqvarna 365 IPL
This rebuild restores the full set of source IPL images and uses live Cutsmart links. Husqvarna part numbers are linked as xxxxxxxxx-Online with spaces and hyphens removed from the original part number. The original PDF pages are included in the package image folder.

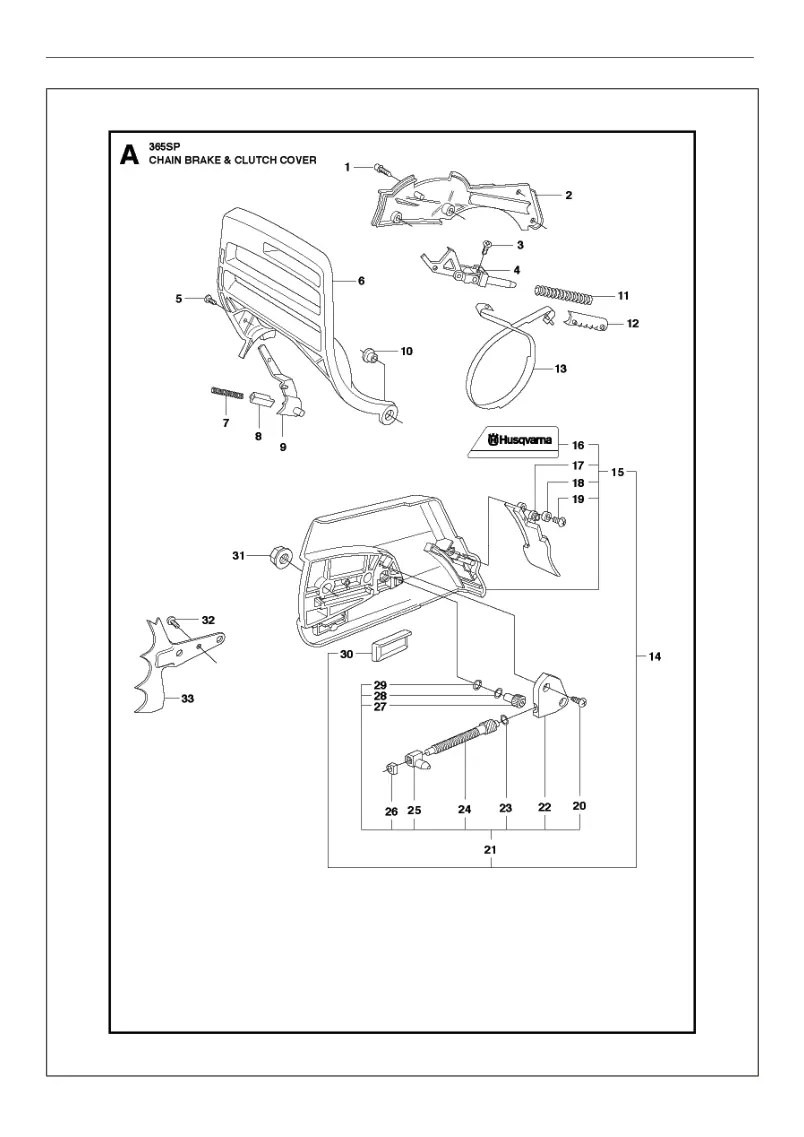

Cover page

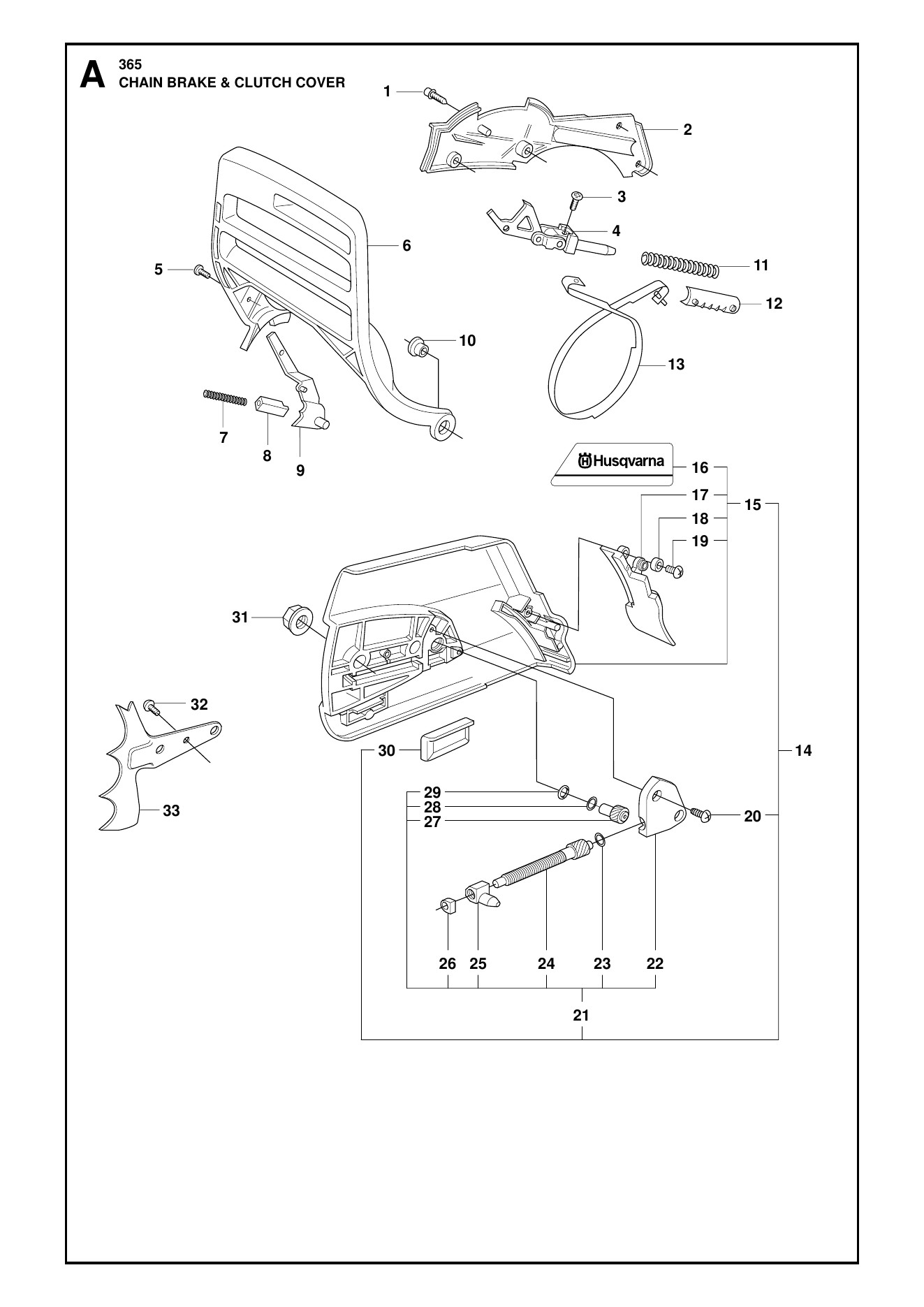

Source page 1
A - CHAIN BRAKE & CLUTCH COVER clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 20 02-12 | 503200212-Online | 4 | |
| 2 | 503 75 11-03 | 503751103-Online | 1 | |
| 3 | 503 21 28-10 | 503212810-Online | 1 | |
| 4 | 501 87 53-03 | 501875303-Online | 1 | |
| 5 | 503 20 25-12 | 503202512-Online | 1 | |
| 6 | 503 76 49-03 | 503764903-Online | 1 | |
| 7 | 503 43 65-01 | 503436501-Online | 1 | |
| 8 | 503 83 81-02 | 503838102-Online | 1 | |
| 9 | 537 00 87-01 | 537008701-Online | 1 | |
| 10 | 503 77 52-01 | 503775201-Online | 1 | |
| 11 | 503 70 99-01 | 503709901-Online | 1 | |
| 12 | 503 79 27-02 | 503792702-Online | 1 | |
| 13 | 503 75 22-02 | 503752202-Online | 1 | |
| 14 | 537 03 35-01 | 537033501-Online | 1 | |
| 15 | 537 03 35-71 | 537033571-Online | 1 | 14 |
| 16 | 537 03 38-03 | 537033803-Online | 1 | 14, 15 |
| 17 | 503 76 29-02 | 503762902-Online | 1 | 14, 15 |
| 18 | 503 89 70-01 | 503897001-Online | 1 | 14, 15 |
| 19 | 503 21 28-10 | 503212810-Online | 1 | 14, 15 |
| 20 | 503 21 28-10 | 503212810-Online | 2 | 14 |
| 21 | 537 04 41-02 | 537044102-Online | 1 | 14 |
| 22 | 537 01 68-01 | 537016801-Online | 1 | 14, 21 |
| 23 | 503 23 00-66 | 503230066-Online | 1 | 14, 21 |
| 24 | 537 07 95-02 | 537079502-Online | 1 | 14, 21 |
| 25 | 503 99 83-01 | 503998301-Online | 1 | 14, 21 |
| 26 | 537 01 74-01 | 537017401-Online | 1 | 14, 21 |
| 27 | 537 07 94-02 | 537079402-Online | 1 | 14, 21 |
| 28 | 503 23 00-63 | 503230063-Online | 1 | 14, 21 |
| 29 | 740 48 07-02 | 740480702-Online | 1 | 14, 21 |
| 30 | 501 51 72-01 | 501517201-Online | 1 | 14 |
| 31 | 503 22 00-01 | 503220001-Online | 2 | |
| 32 | 503 21 28-10 | 503212810-Online | 1 | |
| 33 | 503 71 97-01 | 503719701-Online | 1 |
B - CLUTCH & OIL PUMP diagram
Source page 4

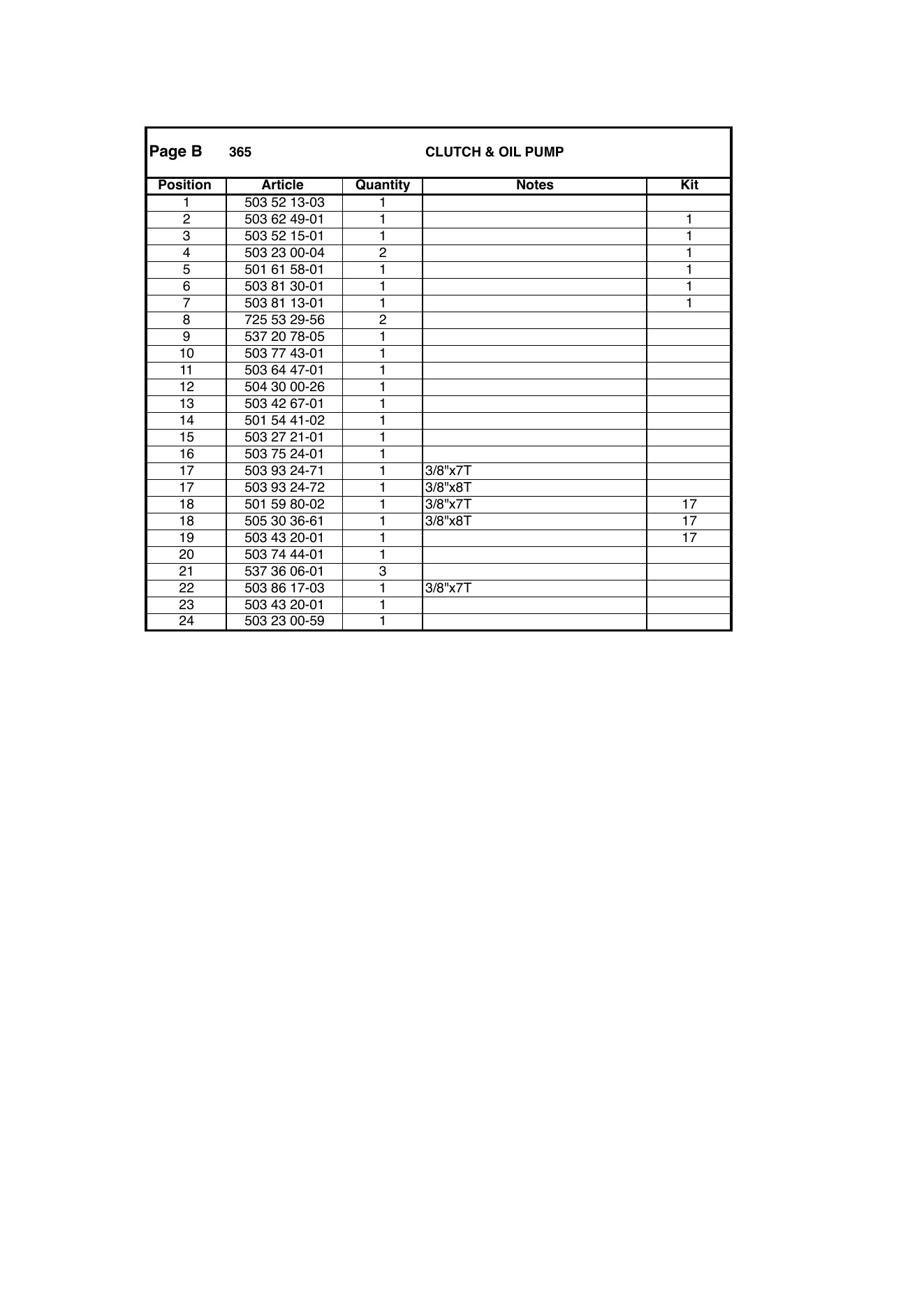

B - CLUTCH & OIL PUMP clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 52 13-03 | 503521303-Online | 1 | |
| 2 | 503 62 49-01 | 503624901-Online | 1 | 1 |
| 3 | 503 52 15-01 | 503521501-Online | 1 | 1 |
| 4 | 503 23 00-04 | 503230004-Online | 2 | 1 |
| 5 | 501 61 58-01 | 501615801-Online | 1 | 1 |
| 6 | 503 81 30-01 | 503813001-Online | 1 | 1 |
| 7 | 503 81 13-01 | 503811301-Online | 1 | 1 |
| 8 | 725 53 29-56 | 725532956-Online | 2 | |
| 9 | 537 20 78-05 | 537207805-Online | 1 | |
| 10 | 503 77 43-01 | 503774301-Online | 1 | |
| 11 | 503 64 47-01 | 503644701-Online | 1 | |
| 12 | 504 30 00-26 | 504300026-Online | 1 | |
| 13 | 503 42 67-01 | 503426701-Online | 1 | |
| 14 | 501 54 41-02 | 501544102-Online | 1 | |
| 15 | 503 27 21-01 | 503272101-Online | 1 | |
| 16 | 503 75 24-01 | 503752401-Online | 1 | |
| 17 | 503 93 24-71 | 503932471-Online | 1 | 3/8"x7T |
| 17 | 503 93 24-72 | 503932472-Online | 1 | 3/8"x8T |
| 18 | 501 59 80-02 | 501598002-Online | 1 | 3/8"x7T 17 |
| 18 | 505 30 36-61 | 505303661-Online | 1 | 3/8"x8T 17 |
| 19 | 503 43 20-01 | 503432001-Online | 1 | 17 |
| 20 | 503 74 44-01 | 503744401-Online | 1 | |
| 21 | 537 36 06-01 | 537360601-Online | 3 | |
| 22 | 503 86 17-03 | 503861703-Online | 1 | 3/8"x7T |
| 23 | 503 43 20-01 | 503432001-Online | 1 | |
| 24 | 503 23 00-59 | 503230059-Online | 1 |
C - CYLINDER COVER diagram
Source page 6
C - CYLINDER COVER clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 62 78-07 | 503627807-Online | 1 | Std |
| 1 | 503 62 78-08 | 503627808-Online | 1 | HD 1 |
| 2 | 503 98 74-01 | 503987401-Online | 1 | 1 |
| 3 | 503 20 34-25 | 503203425-Online | 3 | 1 |
| 4 | 503 62 80-01 | 503628001-Online | 1 | Std 1 |
| 4 | 503 81 77-01 | 503817701-Online | 1 | HD 1 |
| 5 | 503 74 01-02 | 503740102-Online | 2 | 1 |
| 6 | 537 01 65-01 | 537016501-Online | 1 |
D - CYLINDER PISTON diagram
Source page 8
D - CYLINDER PISTON clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 93 90-05 | 503939005-Online | 1 | EPA, EU, RU |
| 2 | 503 69 13-03 | 503691303-Online | 1 | 1 |
| 3 | 503 55 22-01 | 503552201-Online | 1 | 1 |
| 4 | 503 25 56-01 | 503255601-Online | 1 | 1 |
| 5 | 503 71 53-01 | 503715301-Online | 1 | |
| 6 | 725 53 33-55 | 725533355-Online | 4 | |
| 7 | 503 23 51-08 | 503235108-Online | 1 | RCJ 7Y |
| 8 | 503 96 15-01 | 503961501-Online | 1 | 13 |
| 9 | 503 28 90-15 | 503289015-Online | 1 | 1, 2 |
| 10 | 737 43 12-00 | 737431200-Online | 2 | 1, 2 |
| 11 | 503 77 59-01 | 503775901-Online | 1 | 13 |
| 12 | 503 77 58-02 | 503775802-Online | 1 | |
| 13 | 503 64 72-01 | 503647201-Online | 1 | A = Set of gaskets |

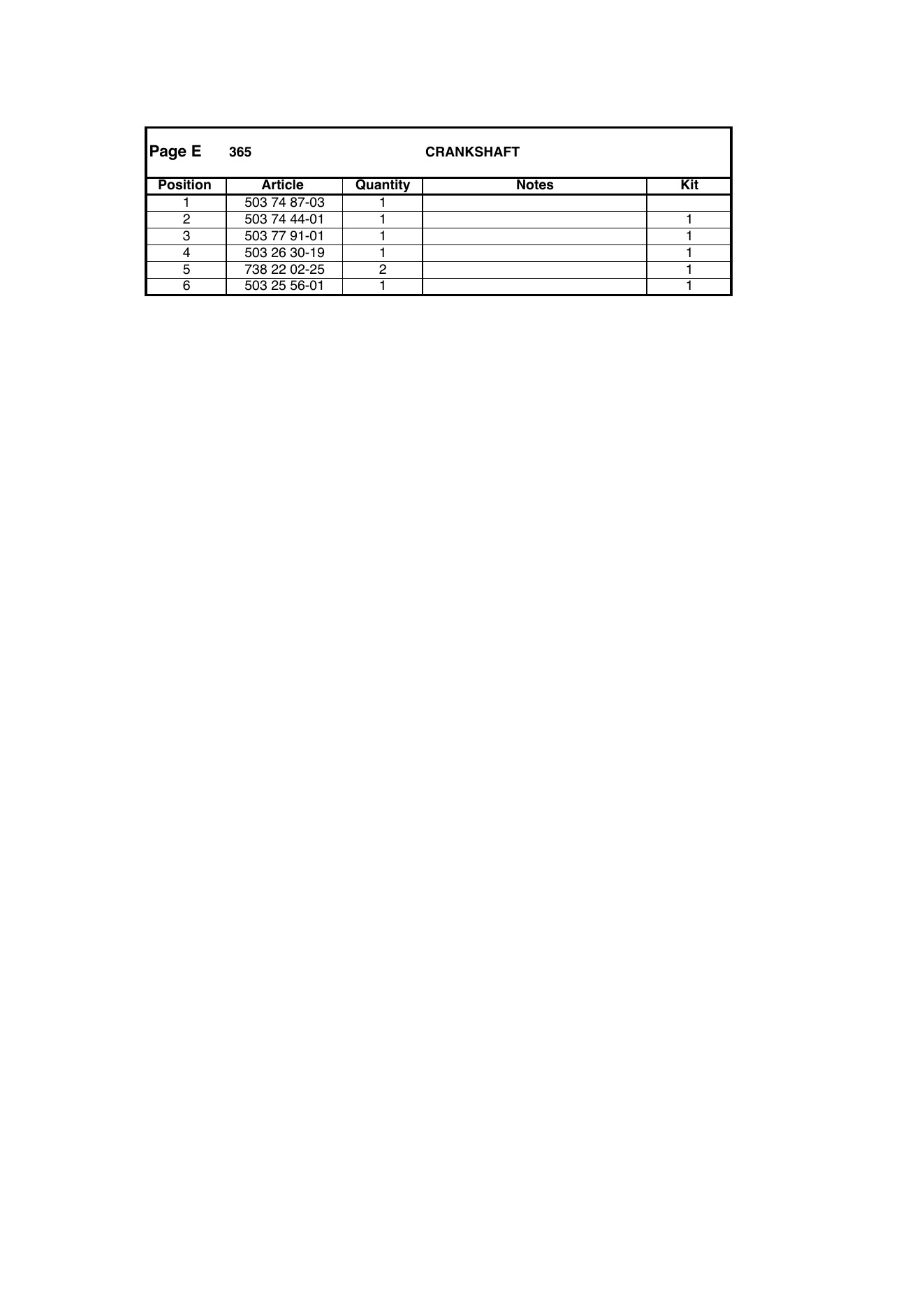

E - CRANKSHAFT diagram
Source page 10
E - CRANKSHAFT clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 74 87-03 | 503748703-Online | 1 | |
| 2 | 503 74 44-01 | 503744401-Online | 1 | 1 |
| 3 | 503 77 91-01 | 503779101-Online | 1 | 1 |
| 4 | 503 26 30-19 | 503263019-Online | 1 | 1 |
| 5 | 738 22 02-25 | 738220225-Online | 2 | 1 |
| 6 | 503 25 56-01 | 503255601-Online | 1 | 1 |

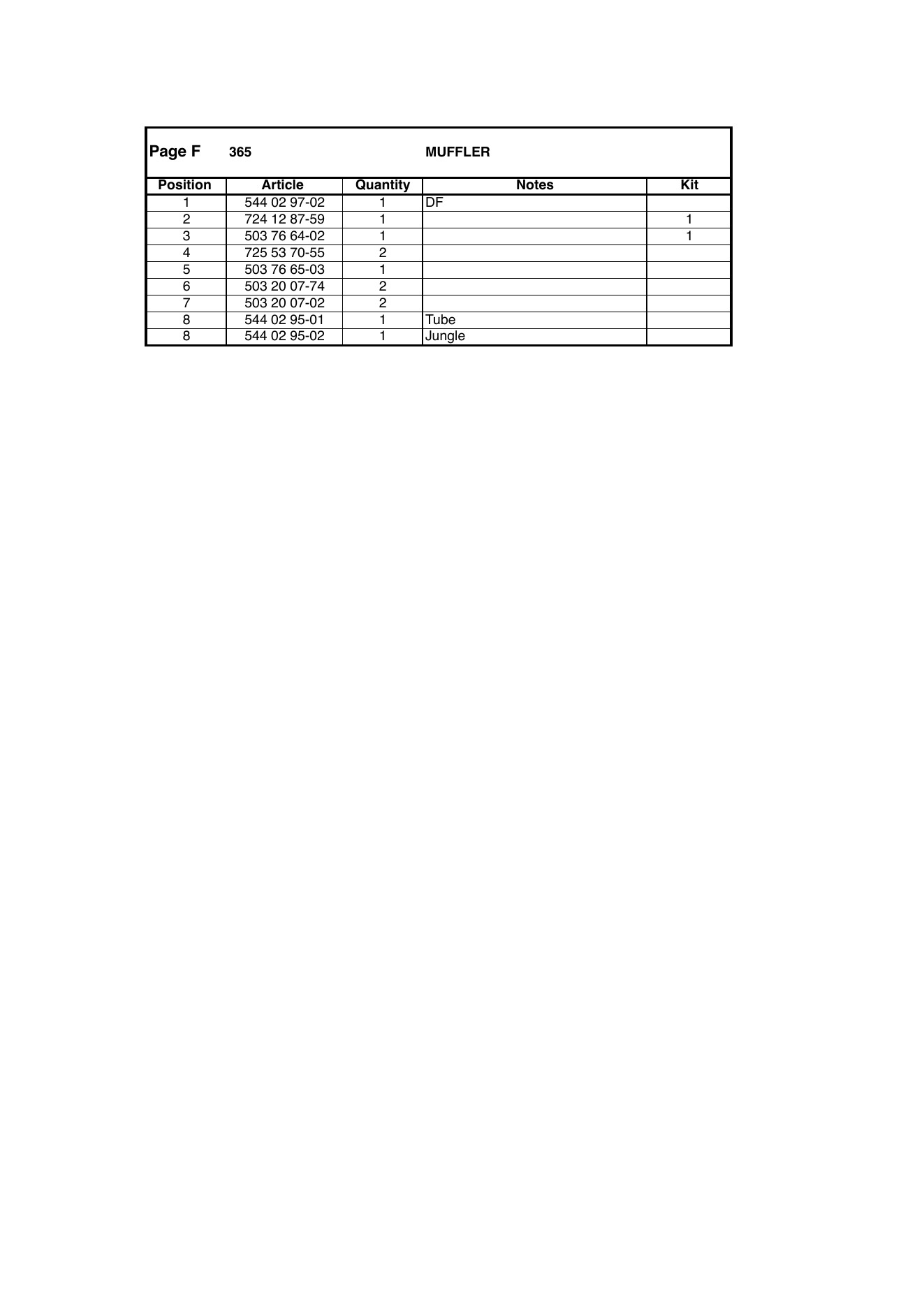

F - MUFFLER diagram
Source page 12
F - MUFFLER clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 544 02 97-02 | 544029702-Online | 1 | DF |
| 2 | 724 12 87-59 | 724128759-Online | 1 | 1 |
| 3 | 503 76 64-02 | 503766402-Online | 1 | 1 |
| 4 | 725 53 70-55 | 725537055-Online | 2 | |
| 5 | 503 76 65-03 | 503766503-Online | 1 | |
| 6 | 503 20 07-74 | 503200774-Online | 2 | |
| 7 | 503 20 07-02 | 503200702-Online | 2 | |
| 8 | 544 02 95-01 | 544029501-Online | 1 | Tube |
| 8 | 544 02 95-02 | 544029502-Online | 1 | Jungle |
G - CARBURETOR & AIR FILTER diagram
Source page 14
G - CARBURETOR & AIR FILTER clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 575 26 91-01 | 575269101-Online | 1 | 80µ |
| 1 | 575 26 91-02 | 575269102-Online | 1 | 44µ |
| 1 | 575 26 91-03 | 575269103-Online | 1 | Felt |
| 2 | 503 73 54-01 | 503735401-Online | 1 | |
| 3 | 537 21 32-04 | 537213204-Online | 1 | |
| 4 | 503 81 80-05 | 503818005-Online | 1 | 80µ |
| 4 | 503 81 80-06 | 503818006-Online | 1 | 44µ |
| 4 | 503 81 80-04 | 503818004-Online | 1 | Felt |
| 5 | 503 81 78-01 | 503817801-Online | 1 | |
| 6 | 731 23 14-01 | 731231401-Online | 1 | 5 |
| 7 | 725 53 05-55 | 725530555-Online | 2 | |
| 8 | 503 70 11-01 | 503701101-Online | 2 | |
| 9 | 503 62 75-01 | 503627501-Online | 1 | |
| 10 | 503 68 41-01 | 503684101-Online | 1 | |
| 11 | 503 66 53-01 | 503665301-Online | 1 | |
| 11 | 503 66 74-01 | 503667401-Online | 1 | EPA, EU |
| 12 | 503 28 18-04 | 503281804-Online | 1 | |
| 12 | 503 28 18-05 | 503281805-Online | 1 | EPA, EU |
| 13 | 503 40 06-06 | 503400606-Online | 1 | |
| 14 | 503 43 18-01 | 503431801-Online | 1 | |
| 15 | 503 71 27-01 | 503712701-Online | 1 | |
| 16 | 503 22 65-03 | 503226503-Online | 2 | 15 |
| 17 | 503 96 45-02 | 503964502-Online | 1 | RU |
| 17 | 503 96 45-01 | 503964501-Online | 1 | EPA, EU |
| 18 | 505 28 33-01 | 505283301-Online | 1 |

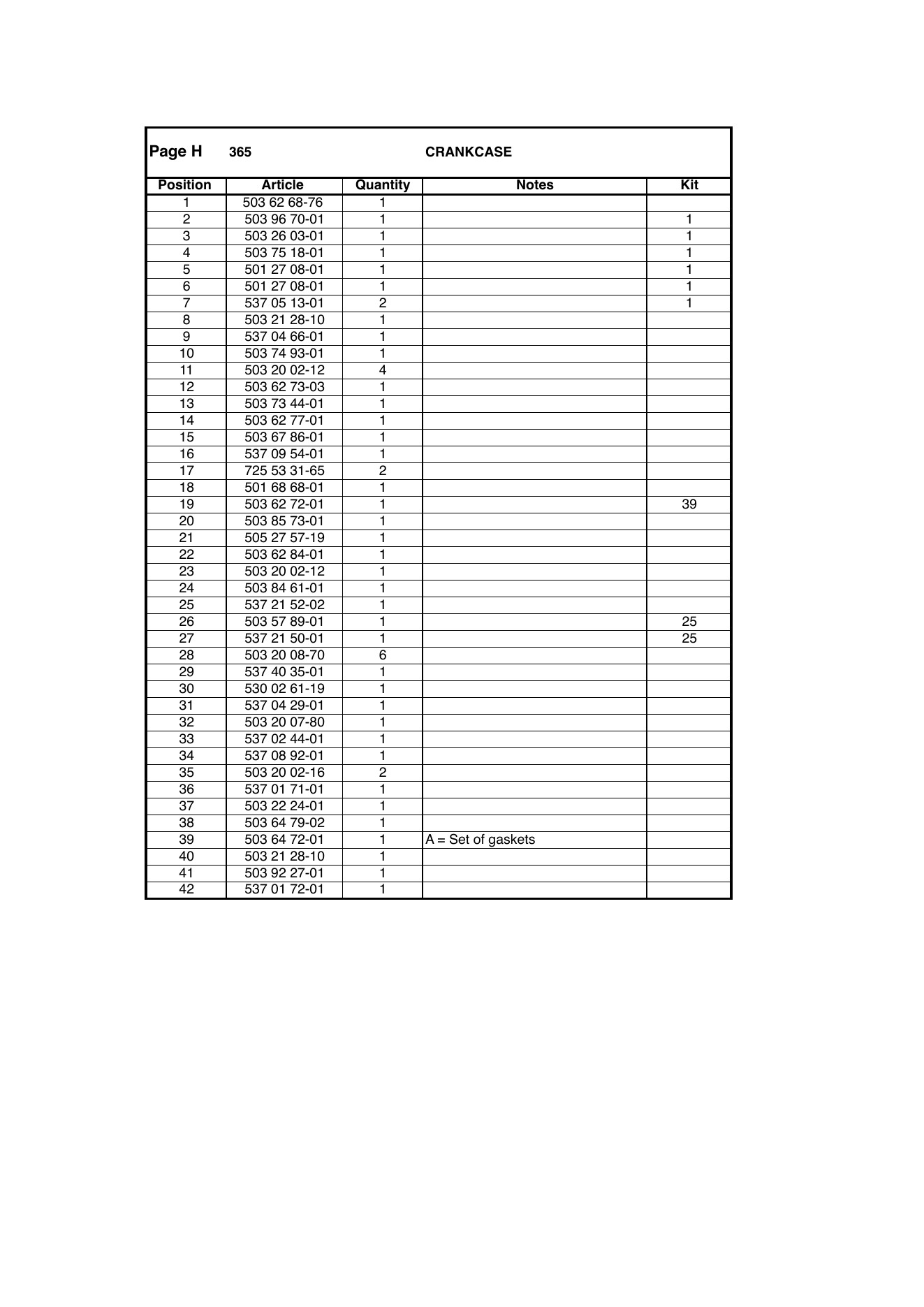

H - CRANKCASE diagram
Source page 16
H - CRANKCASE clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 62 68-76 | 503626876-Online | 1 | |
| 2 | 503 96 70-01 | 503967001-Online | 1 | 1 |
| 3 | 503 26 03-01 | 503260301-Online | 1 | 1 |
| 4 | 503 75 18-01 | 503751801-Online | 1 | 1 |
| 5 | 501 27 08-01 | 501270801-Online | 1 | 1 |
| 6 | 501 27 08-01 | 501270801-Online | 1 | 1 |
| 7 | 537 05 13-01 | 537051301-Online | 2 | 1 |
| 8 | 503 21 28-10 | 503212810-Online | 1 | |
| 9 | 537 04 66-01 | 537046601-Online | 1 | |
| 10 | 503 74 93-01 | 503749301-Online | 1 | |
| 11 | 503 20 02-12 | 503200212-Online | 4 | |
| 12 | 503 62 73-03 | 503627303-Online | 1 | |
| 13 | 503 73 44-01 | 503734401-Online | 1 | |
| 14 | 503 62 77-01 | 503627701-Online | 1 | |
| 15 | 503 67 86-01 | 503678601-Online | 1 | |
| 16 | 537 09 54-01 | 537095401-Online | 1 | |
| 17 | 725 53 31-65 | 725533165-Online | 2 | |
| 18 | 501 68 68-01 | 501686801-Online | 1 | |
| 19 | 503 62 72-01 | 503627201-Online | 1 | 39 |
| 20 | 503 85 73-01 | 503857301-Online | 1 | |
| 21 | 505 27 57-19 | 505275719-Online | 1 | |
| 22 | 503 62 84-01 | 503628401-Online | 1 | |
| 23 | 503 20 02-12 | 503200212-Online | 1 | |
| 24 | 503 84 61-01 | 503846101-Online | 1 | |
| 25 | 537 21 52-02 | 537215202-Online | 1 | |
| 26 | 503 57 89-01 | 503578901-Online | 1 | 25 |
| 27 | 537 21 50-01 | 537215001-Online | 1 | 25 |
| 28 | 503 20 08-70 | 503200870-Online | 6 | |
| 29 | 537 40 35-01 | 537403501-Online | 1 | |
| 30 | 530 02 61-19 | 530026119-Online | 1 | |
| 31 | 537 04 29-01 | 537042901-Online | 1 | |
| 32 | 503 20 07-80 | 503200780-Online | 1 | |
| 33 | 537 02 44-01 | 537024401-Online | 1 | |
| 34 | 537 08 92-01 | 537089201-Online | 1 | |
| 35 | 503 20 02-16 | 503200216-Online | 2 | |
| 36 | 537 01 71-01 | 537017101-Online | 1 | |
| 37 | 503 22 24-01 | 503222401-Online | 1 | |
| 38 | 503 64 79-02 | 503647902-Online | 1 | |
| 39 | 503 64 72-01 | 503647201-Online | 1 | A = Set of gaskets |
| 40 | 503 21 28-10 | 503212810-Online | 1 | |
| 41 | 503 92 27-01 | 503922701-Online | 1 | |
| 42 | 537 01 72-01 | 537017201-Online | 1 |

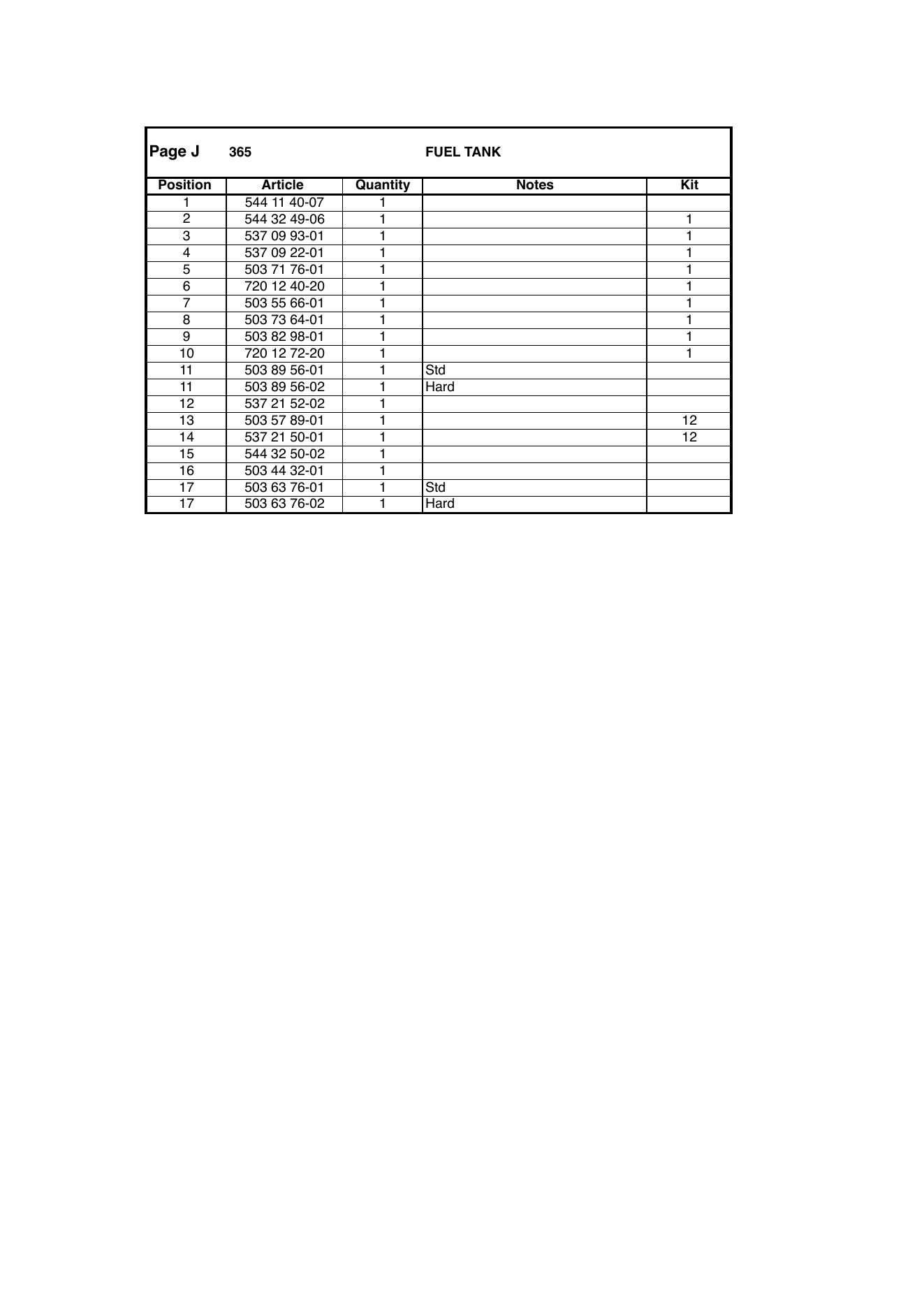

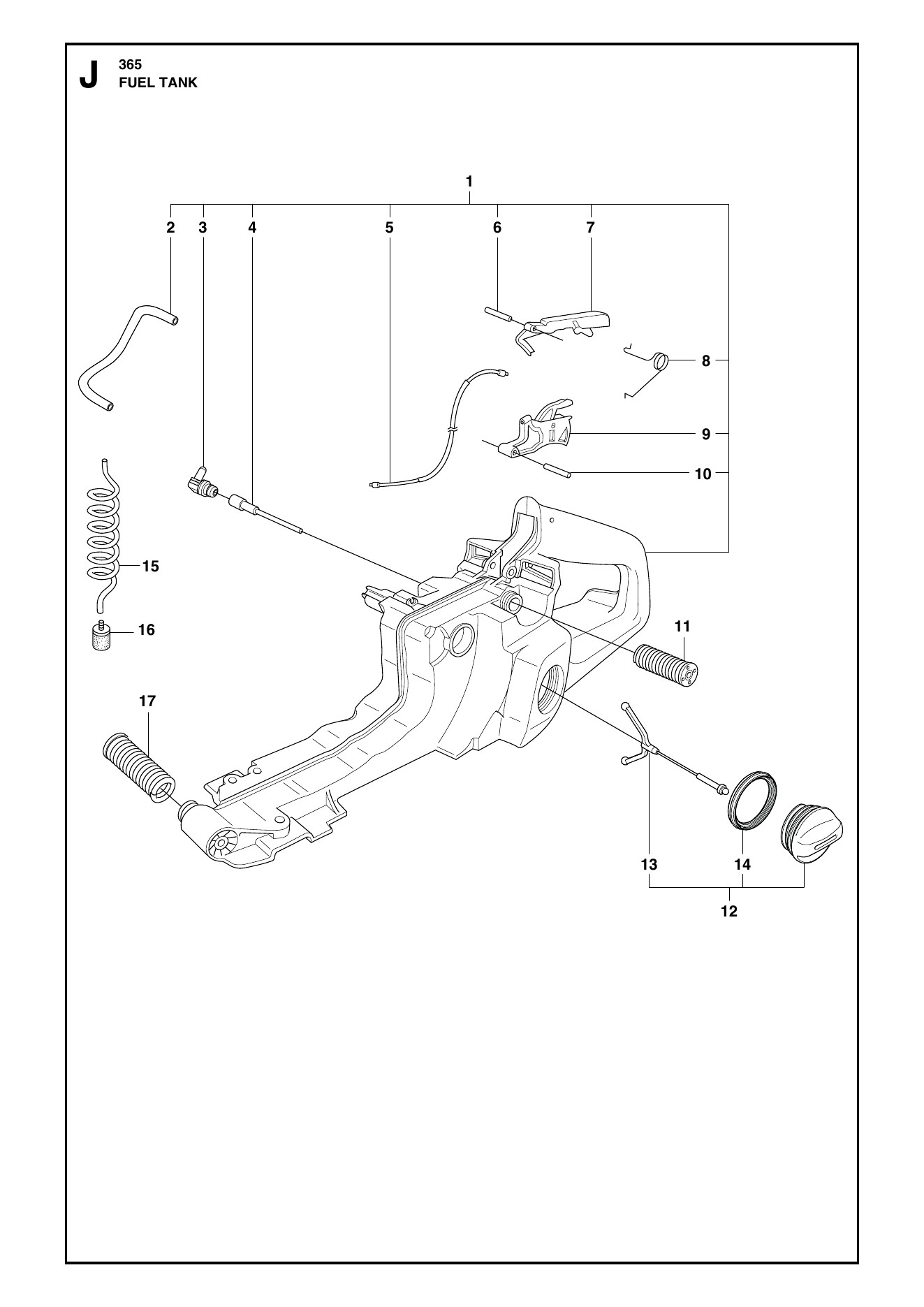

J - FUEL TANK diagram
Source page 18
J - FUEL TANK clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 544 11 40-07 | 544114007-Online | 1 | |
| 2 | 544 32 49-06 | 544324906-Online | 1 | 1 |
| 3 | 537 09 93-01 | 537099301-Online | 1 | 1 |
| 4 | 537 09 22-01 | 537092201-Online | 1 | 1 |
| 5 | 503 71 76-01 | 503717601-Online | 1 | 1 |
| 6 | 720 12 40-20 | 720124020-Online | 1 | 1 |
| 7 | 503 55 66-01 | 503556601-Online | 1 | 1 |
| 8 | 503 73 64-01 | 503736401-Online | 1 | 1 |
| 9 | 503 82 98-01 | 503829801-Online | 1 | 1 |
| 10 | 720 12 72-20 | 720127220-Online | 1 | 1 |
| 11 | 503 89 56-01 | 503895601-Online | 1 | Std |
| 11 | 503 89 56-02 | 503895602-Online | 1 | Hard |
| 12 | 537 21 52-02 | 537215202-Online | 1 | |
| 13 | 503 57 89-01 | 503578901-Online | 1 | 12 |
| 14 | 537 21 50-01 | 537215001-Online | 1 | 12 |
| 15 | 544 32 50-02 | 544325002-Online | 1 | |
| 16 | 503 44 32-01 | 503443201-Online | 1 | |
| 17 | 503 63 76-01 | 503637601-Online | 1 | Std |
| 17 | 503 63 76-02 | 503637602-Online | 1 | Hard |
K - HANDLE diagram
Source page 20
K - HANDLE clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 62 67-71 | 503626771-Online | 1 | |
| 2 | 503 21 49-16 | 503214916-Online | 4 | 1 |
| 3 | 503 21 05-22 | 503210522-Online | 1 | 1 |
| 4 | 503 63 75-02 | 503637502-Online | 1 | Std 1 |
| 4 | 503 63 75-03 | 503637503-Online | 1 | Hard |
| 5 | 503 62 86-71 | 503628671-Online | 1 | WRAP |
| 6 | 503 21 49-16 | 503214916-Online | 5 | 5 |
| 7 | 503 21 05-22 | 503210522-Online | 1 | 5 |
| 8 | 503 63 75-02 | 503637502-Online | 1 | 5 |

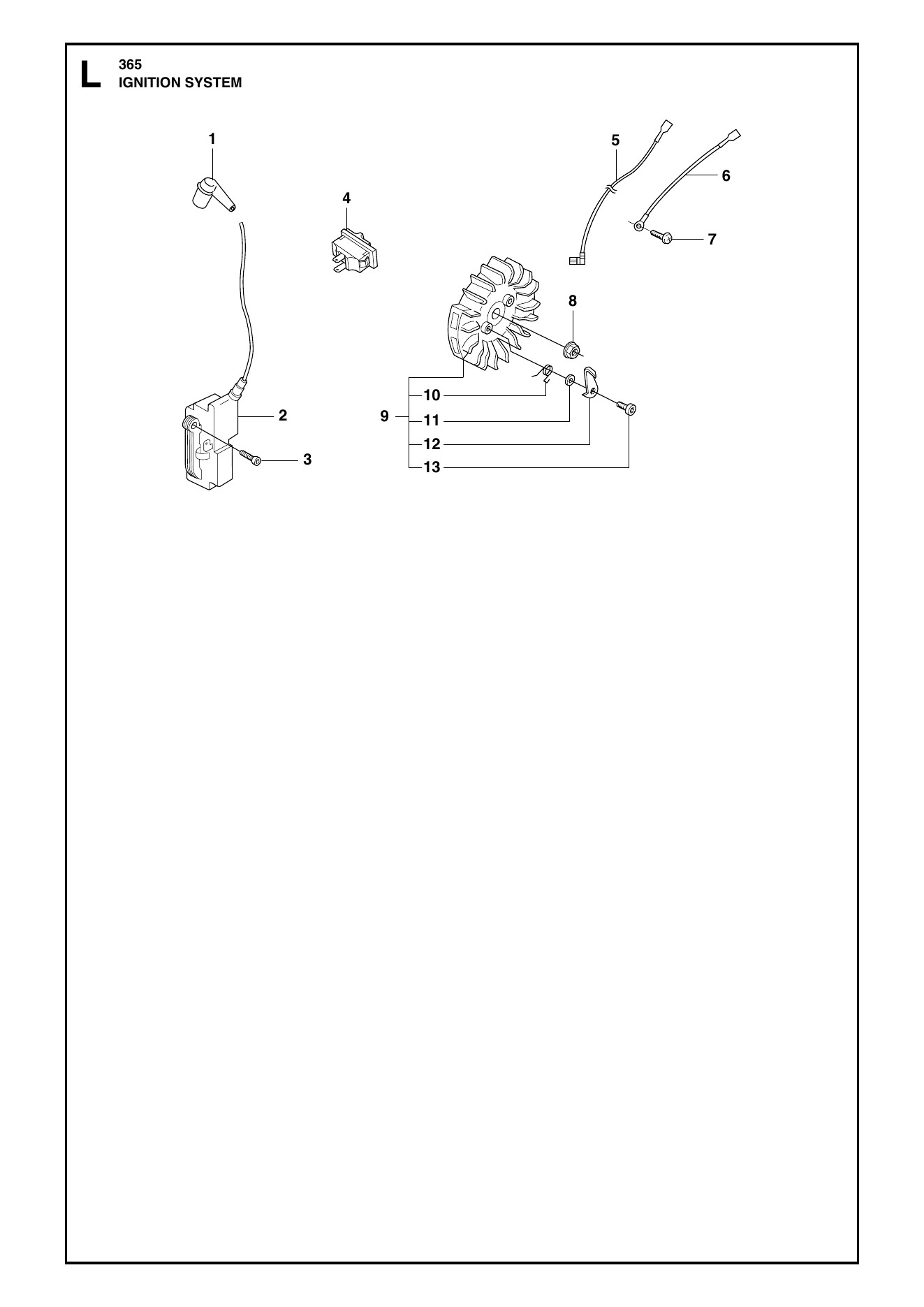

L - IGNITION SYSTEM diagram
Source page 22

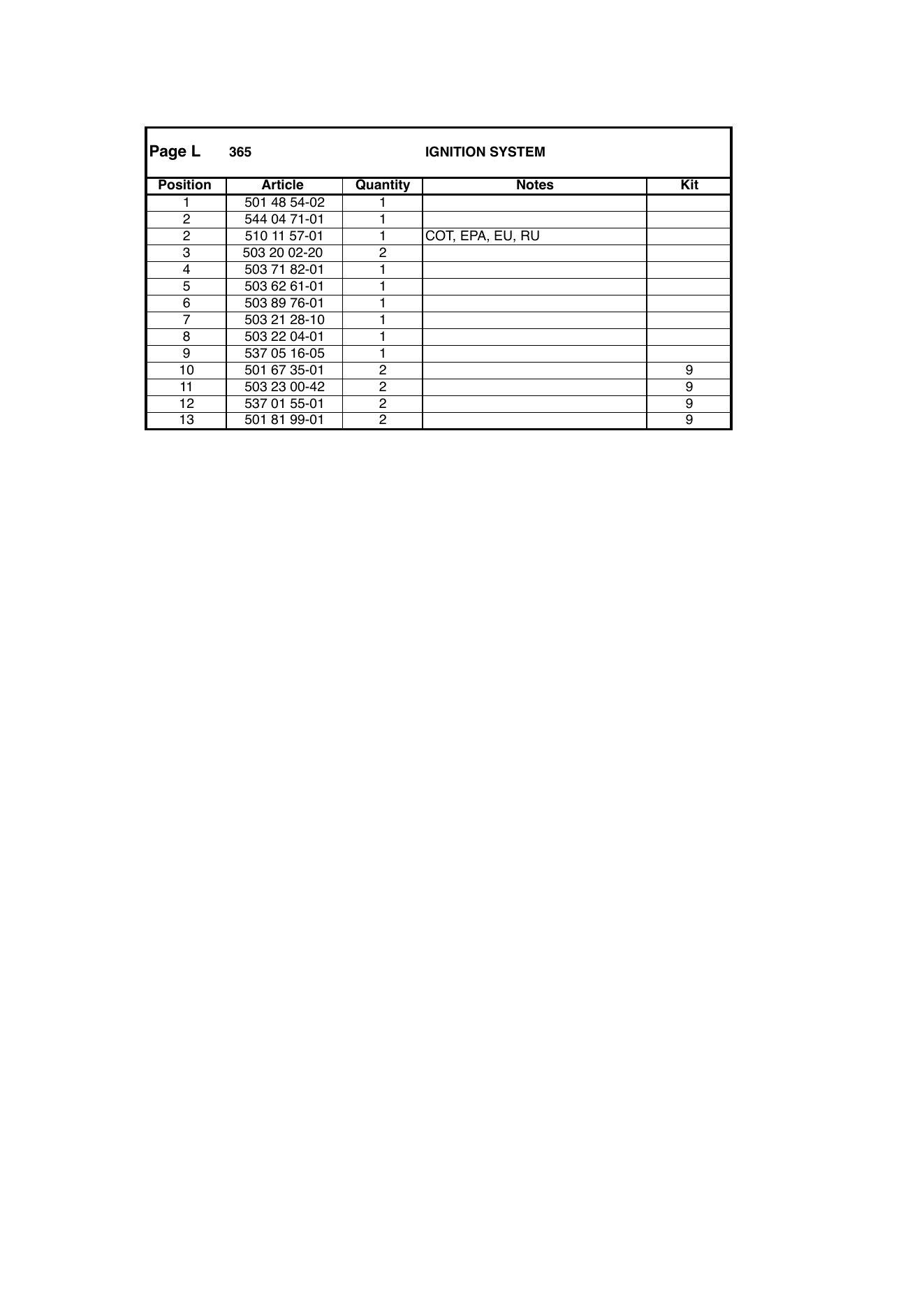

L - IGNITION SYSTEM clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 501 48 54-02 | 501485402-Online | 1 | |
| 2 | 544 04 71-01 | 544047101-Online | 1 | |
| 2 | 510 11 57-01 | 510115701-Online | 1 | COT, EPA, EU, RU |
| 3 | 503 20 02-20 | 503200220-Online | 2 | |
| 4 | 503 71 82-01 | 503718201-Online | 1 | |
| 5 | 503 62 61-01 | 503626101-Online | 1 | |
| 6 | 503 89 76-01 | 503897601-Online | 1 | |
| 7 | 503 21 28-10 | 503212810-Online | 1 | |
| 8 | 503 22 04-01 | 503220401-Online | 1 | |
| 9 | 537 05 16-05 | 537051605-Online | 1 | |
| 10 | 501 67 35-01 | 501673501-Online | 2 | 9 |
| 11 | 503 23 00-42 | 503230042-Online | 2 | 9 |
| 12 | 537 01 55-01 | 537015501-Online | 2 | 9 |
| 13 | 501 81 99-01 | 501819901-Online | 2 | 9 |

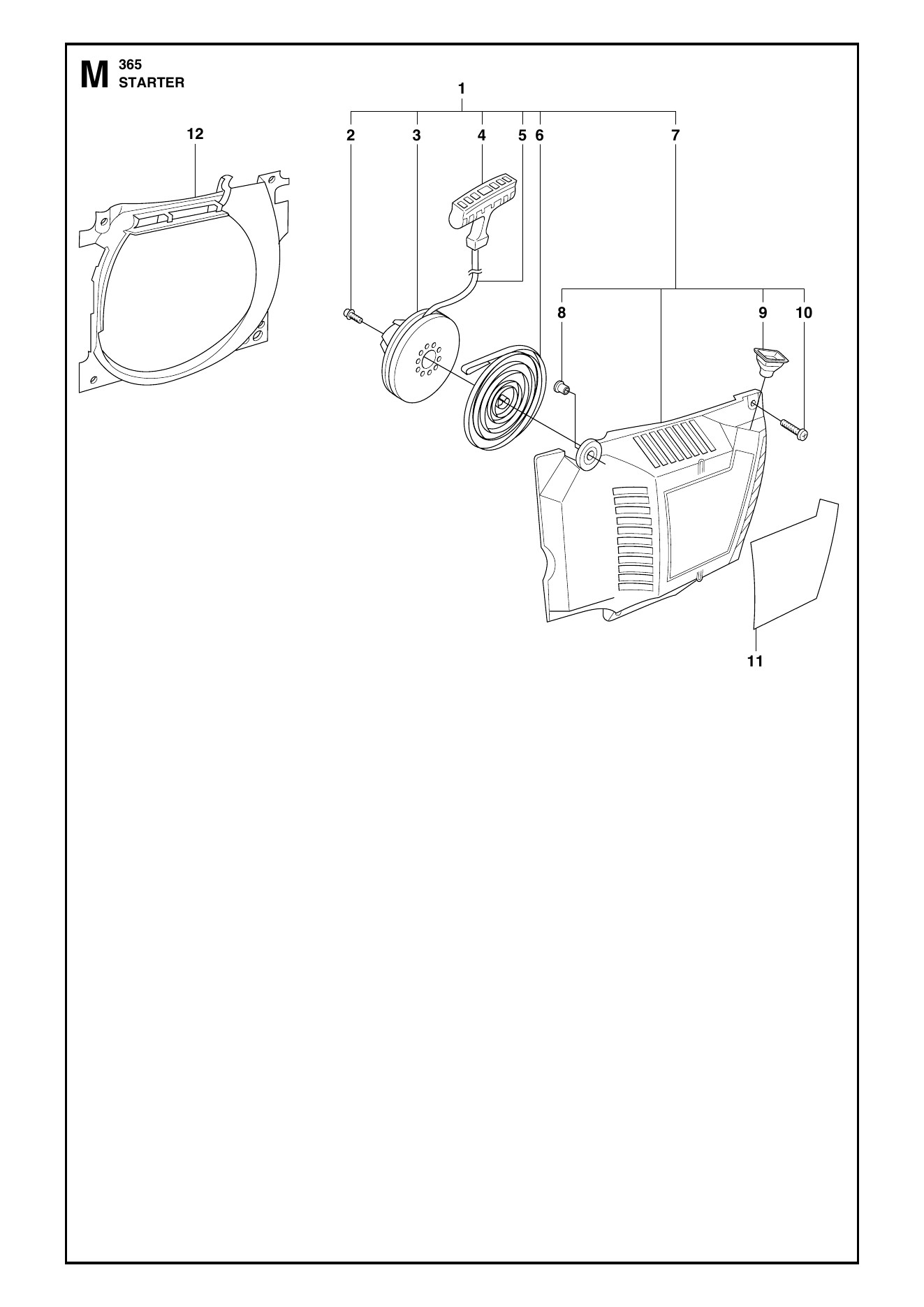

M - STARTER diagram
Source page 24
M - STARTER clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 62 81-71 | 503628171-Online | 1 | |
| 2 | 503 21 52-16 | 503215216-Online | 1 | 1 |
| 3 | 503 85 96-01 | 503859601-Online | 1 | 1 |
| 4 | 503 54 39-01 | 503543901-Online | 1 | 1 |
| 5 | 503 43 29-02 | 503432902-Online | 1 | 1 |
| 6 | 503 78 72-01 | 503787201-Online | 1 | 1 |
| 7 | 503 62 82-01 | 503628201-Online | 1 | 1 |
| 8 | 537 08 67-01 | 537086701-Online | 1 | 1, 7 |
| 9 | 501 63 06-01 | 501630601-Online | 1 | 1, 7 |
| 10 | 544 08 03-01 | 544080301-Online | 4 | 1, 7 |
| 11 | 537 23 02-03 | 537230203-Online | 1 | |
| 12 | 503 62 83-01 | 503628301-Online | 1 |
N - CARBURETOR diagram
Source page 26
N - CARBURETOR clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 28 18-04 | 503281804-Online | 1 | |
| 1 | 503 28 18-05 | 503281805-Online | 1 | EPA, EU |
| 2 | 501 46 69-01 | 501466901-Online | 1 | |
| 3 | 503 79 98-01 | 503799801-Online | 1 | |
| 4 | 501 66 69-01 | 501666901-Online | 1 | 1, 44 |
| 5 | 502 25 47-01 | 502254701-Online | 1 | 1, 44 |
| 6 | 501 66 61-01 | 501666101-Online | 1 | |
| 7 | 503 85 59-01 | 503855901-Online | 1 | |
| 8 | 503 80 14-01 | 503801401-Online | 1 | |
| 9 | 503 85 58-01 | 503855801-Online | 1 | |
| 10 | 537 01 91-01 | 537019101-Online | 1 | |
| 11 | 537 01 89-01 | 537018901-Online | 1 | 1, 10 |
| 12 | 501 46 87-01 | 501468701-Online | 1 | |
| 13 | 537 01 90-01 | 537019001-Online | 1 | |
| 14 | 501 46 85-01 | 501468501-Online | 1 | |
| 15 | 501 46 84-01 | 501468401-Online | 1 | |
| 16 | 501 46 87-01 | 501468701-Online | 1 | |
| 17 | 503 79 96-01 | 503799601-Online | 1 | |
| 18 | 503 80 15-01 | 503801501-Online | 1 | |
| 19 | 503 80 00-01 | 503800001-Online | 1 | |
| 20 | 503 80 09-01 | 503800901-Online | 1 | |
| 21 | 530 03 50-15 | 530035015-Online | 1 | |
| 22 | 503 79 99-01 | 503799901-Online | 1 | |
| 23 | 501 66 78-01 | 501667801-Online | 1 | |
| 24 | 503 80 08-01 | 503800801-Online | 1 | |
| 25 | 501 66 77-01 | 501667701-Online | 1 | |
| 26 | 503 80 11-01 | 503801101-Online | 1 | H |
| 26 | 503 94 39-01 | 503943901-Online | 1 | H EPA, EU |
| 27 | 503 91 39-01 | 503913901-Online | 1 | EPA, EU |
| 28 | 501 66 77-01 | 501667701-Online | 1 | |
| 29 | 504 02 72-13 | 504027213-Online | 1 | L |
| 29 | 503 94 38-01 | 503943801-Online | 1 | L EPA, EU |
| 30 | 503 91 40-01 | 503914001-Online | 1 | EPA, EU |
| 31 | 503 91 54-01 | 503915401-Online | 1 | EPA, EU |
| 32 | 503 57 42-01 | 503574201-Online | 1 | |
| 33 | 503 80 04-01 | 503800401-Online | 1 | |
| 33 | 503 94 36-01 | 503943601-Online | 1 | EPA, EU |
| 34 | 503 68 82-01 | 503688201-Online | 1 | |
| 34 | 537 00 33-01 | 537003301-Online | 1 | EPA, EU |
| 35 | 503 56 24-01 | 503562401-Online | 1 | |
| 35 | 503 94 37-01 | 503943701-Online | 1 | EPA, EU |
| 36 | 503 56 34-01 | 503563401-Online | 1 | |
| 37 | 501 66 83-01 | 501668301-Online | 1 | |
| 38 | 505 52 01-25 | 505520125-Online | 1 | |
| 39 | 505 31 67-17 | 505316717-Online | 1 | |
| 40 | 504 13 09-05 | 504130905-Online | 1 | 1, 44 |
| 41 | 503 80 07-01 | 503800701-Online | 1 | 1, 44 |
| 42 | 537 07 76-01 | 537077601-Online | 1 | |
| 43 | 503 10 87-01 | 503108701-Online | 4 | |
| 44 | 503 64 78-01 | 503647801-Online | 1 | B = Set of gaskets |

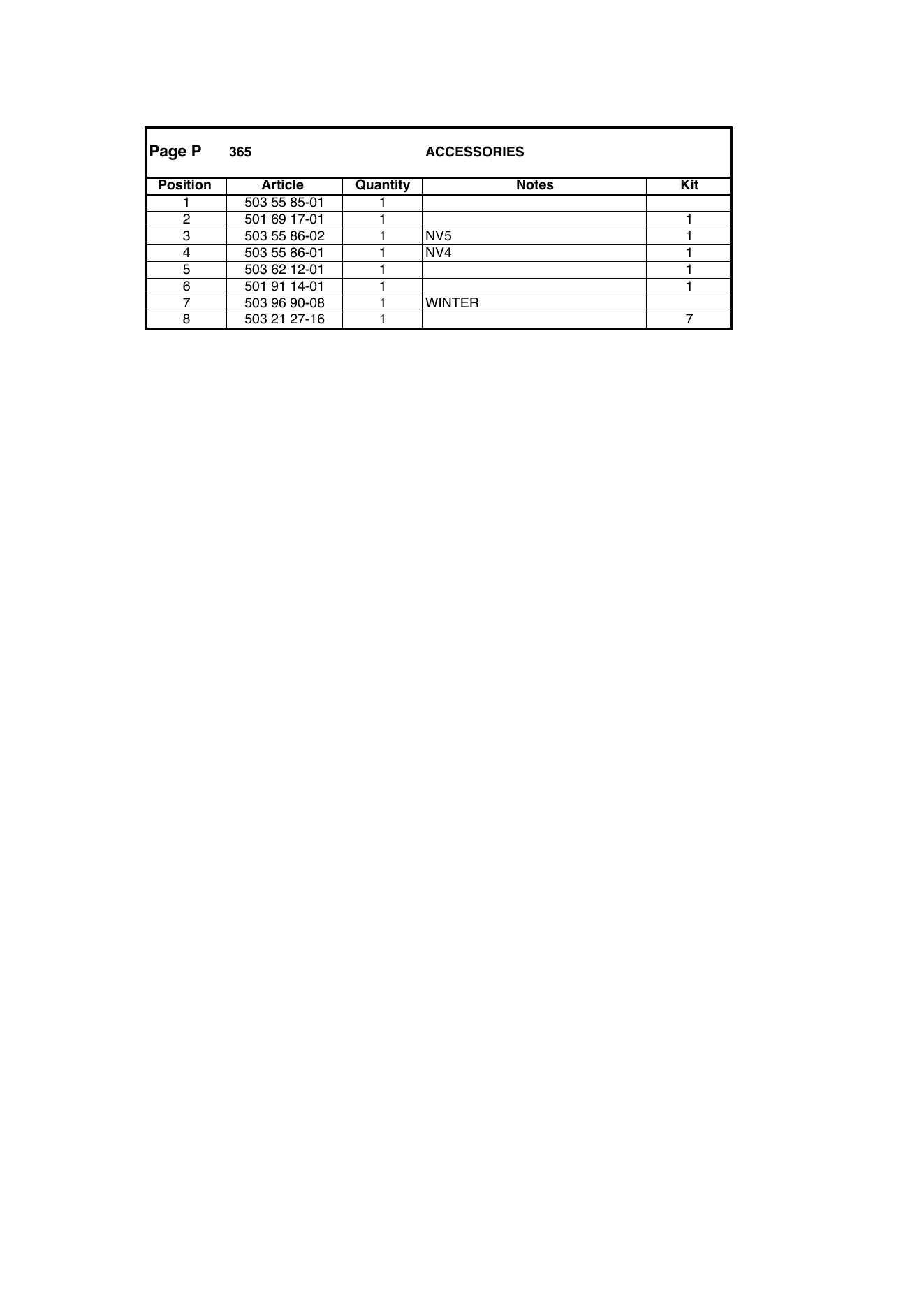

P - ACCESSORIES diagram
Source page 28
P - ACCESSORIES clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 55 85-01 | 503558501-Online | 1 | |
| 2 | 501 69 17-01 | 501691701-Online | 1 | 1 |
| 3 | 503 55 86-02 | 503558602-Online | 1 | NV5 1 |
| 4 | 503 55 86-01 | 503558601-Online | 1 | NV4 1 |
| 5 | 503 62 12-01 | 503621201-Online | 1 | 1 |
| 6 | 501 91 14-01 | 501911401-Online | 1 | 1 |
| 7 | 503 96 90-08 | 503969008-Online | 1 | WINTER |
| 8 | 503 21 27-16 | 503212716-Online | 1 | 7 |
Q - SERVICE UPDATE diagram
Source page 30
Q - SERVICE UPDATE clickable parts list
| Ref | Part number | Cutsmart SKU | Qty | Notes / Kit |
|---|---|---|---|---|
| 1 | 503 93 90-03 | 503939003-Online | 1 | |
| 2 | 503 69 13-03 | 503691303-Online | 1 | 1 |
| 3 | 503 28 90-15 | 503289015-Online | 1 | 1, 2 |
| 4 | 737 43 12-00 | 737431200-Online | 2 | 1, 2 |
| 5 | 503 25 56-01 | 503255601-Online | 1 | 1 |
| 6 | 503 96 45-01 | 503964501-Online | 1 | 1 |
| 7 | 505 28 33-01 | 505283301-Online | 1 | 1 |
