Husqvarna 550IBTX IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

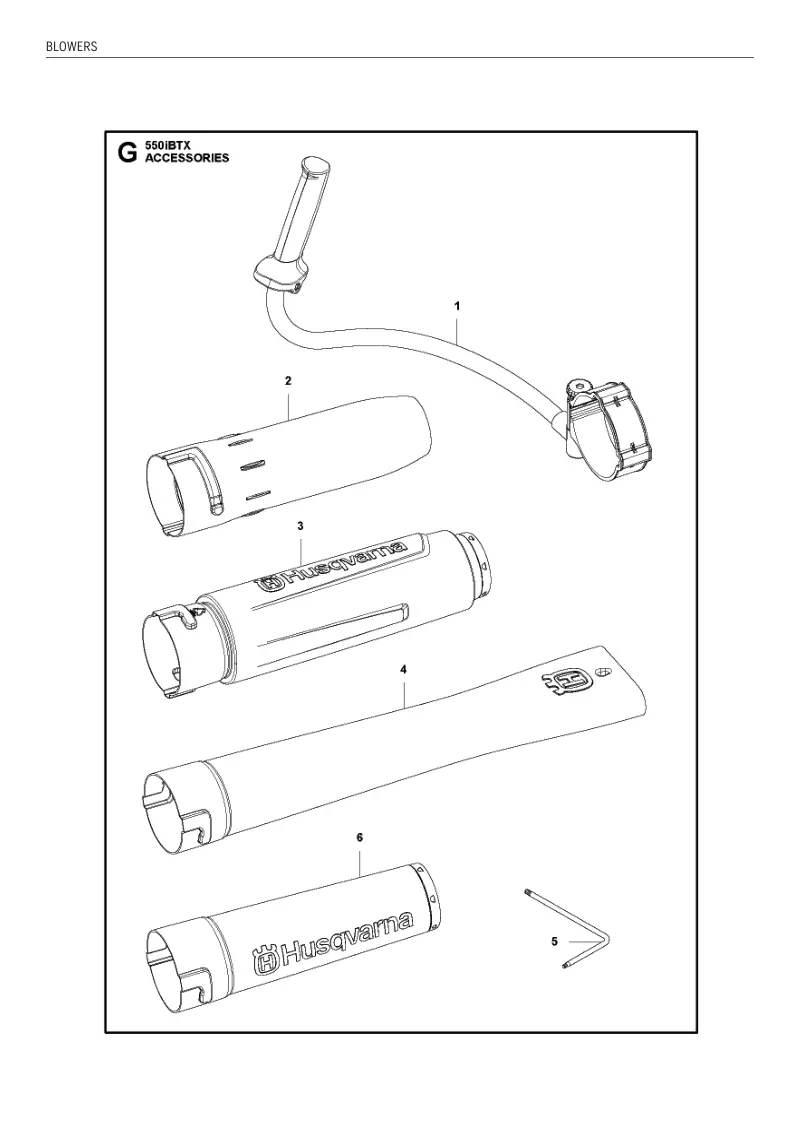

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLEBAR ASSY | 544400004 | 544400004-Online | 1 |
| 2 | PIPE | 576581801 | 576581801-Online | 1 |
| 3 | TUBE ASSY | 589811701 | 589811701-Online | 1 |
| 4 | NOZZLE | 579797501 | 579797501-Online | 1 |
| 5 | WRENCH | 575880701 | 575880701-Online | 1 |
| 6 | TUBE ASSY | 586106301 | 586106301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCT | 576356601 | 576356601-Online | 1 |
| 2 | WIRING ASSY | 593084001 | 593084001-Online | 1 |
| 3 | SCREW ITXSCFM | 525755107 | 525755107-Online | 5 |
| 4 | CONTROL UNIT PNC 967681102 967681101, | 593759201 | 593759201-Online | 1 |
| 4 | CONTROL UNIT PNC 967681104, 967681103, 967681105 | 597627602 | 597627602-Online | 1 |
| 5 | FERRITE CORE | 577976601 | 577976601-Online | 1 |
| 6 | WIRING ASSY | 593946201 | 593946201-Online | 1 |
| 7 | SPRING PLATE | 594035301 | 594035301-Online | 1 |
| 8 | SCREW ITXSCT | 580292901 | 580292901-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY | 593177901 | 593177901-Online | 1 |
| 2 | FAN PNC 967681104, 967681103, 967681105 | 529626301 | 529626301-Online | 1 |
| 2 | MOTOR ASSY PNC 967681102 967681101, | 597110302 | 597110302-Online | 1 |
| 3 | MUFFLER ASSY | 593178001 | 593178001-Online | 1 |
| 4 | ROTOR | 590818302 | 590818302-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PAD | 576625301 | 576625301-Online | 1 |
| 2 | SCREW ITXSCT | 576356601 | 576356601-Online | 5 |
| 3 | CLIP | 544270001 | 544270001-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCT | 576356601 | 576356601-Online | 2 |
| 2 | HOLDER | 593912501 | 593912501-Online | 1 |
| 3 | LOCKING HANDLE | 581036301 | 581036301-Online | 2 |
| 4 | BACKPLATE | 590845401 | 590845401-Online | 1 |
| 5 | STRAP | 594954101 | 594954101-Online | 1 |
| 6 | INLET | 591095101 | 591095101-Online | 1 |
| 7 | COVER | 590845501 | 590845501-Online | 1 |
| 8 | CABLE CLAMP | 581472301 | 581472301-Online | 1 |
| 9 | COVER | 592617901 | 592617901-Online | 1 |
| 10 | SCREW ITXSCT | 580292901 | 580292901-Online | 25 |
| 11 | HOUSING | 591458701 | 591458701-Online | 1 |
| 12 | FRAME | 591458501 | 591458501-Online | 1 |
| 13 | HOUSING | 591458601 | 591458601-Online | 1 |
| 14 | HOUSING | 591458301 | 591458301-Online | 1 |
| 15 | FRAME | 591458201 | 591458201-Online | 1 |
| 16 | HOUSING | 591458401 | 591458401-Online | 1 |
| 17 | DECAL BT symbol | 596194601 | 596194601-Online | 1 |
| 17 | DECAL | 596194602 | 596194602-Online | 1 |
| 18 | LABEL | 503709701 | 503709701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCT | 580292901 | 580292901-Online | 4 |
| 2 | BUTTON ASSY | 593841301 | 593841301-Online | 1 |
| 3 | HANDLE HALF | 593165402 | 593165402-Online | 1 |
| 4 | COVER | 593913001 | 593913001-Online | 1 |
| 5 | THROTTLE CONTROL ASSY | 593044301 | 593044301-Online | 1 |
| 6 | CONTROL PANEL PNC 967681102, 967681101, 967681105 | 593915001 | 593915001-Online | 1 |
| 6 | CONTROL PANEL PNC 967681104 967681103, | 592647803 | 592647803-Online | 1 |
| 7 | SPRING | 593838601 | 593838601-Online | 1 |
| 8 | HANDLE HALF | 593165501 | 593165501-Online | 1 |
| 9 | SCREW ITXSCFM | 525755109 | 525755109-Online | 1 |
| 10 | SCREW EHHM | 725234451 | 725234451-Online | 1 |
| 11 | KNOB | 502204001 | 502204001-Online | 1 |
| 12 | HANDLE HOLDER | 576579701 | 576579701-Online | 1 |
| 13 | HEXAGON NUT | 503221012 | 503221012-Online | 1 |
| 14 | HOLDER | 593734401 | 593734401-Online | 1 |
| 15 | SQUARE NUT | 503226504 | 503226504-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PIPE | 576581701 | 576581701-Online | 1 |
| 2 | NOZZLE | 576582701 | 576582701-Online | 1 |
| 3 | TUBE ASSY | 586106302 | 586106302-Online | 1 |
| 4 | TUBE | 593785101 | 593785101-Online | 1 |
| 5 | STRAP | 595338601 | 595338601-Online | 1 |
| 6 | JOINT | 576581401 | 576581401-Online | 1 |
| 7 | CLAMP | 544274101 | 544274101-Online | 2 |
| 8 | HOSE | 587555301 | 587555301-Online | 1 |
| 9 | SLEEVE | 594035001 | 594035001-Online | 1 |
| 10 | ELBOW | 576578301 | 576578301-Online | 1 |
