Husqvarna M53 S PRO IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

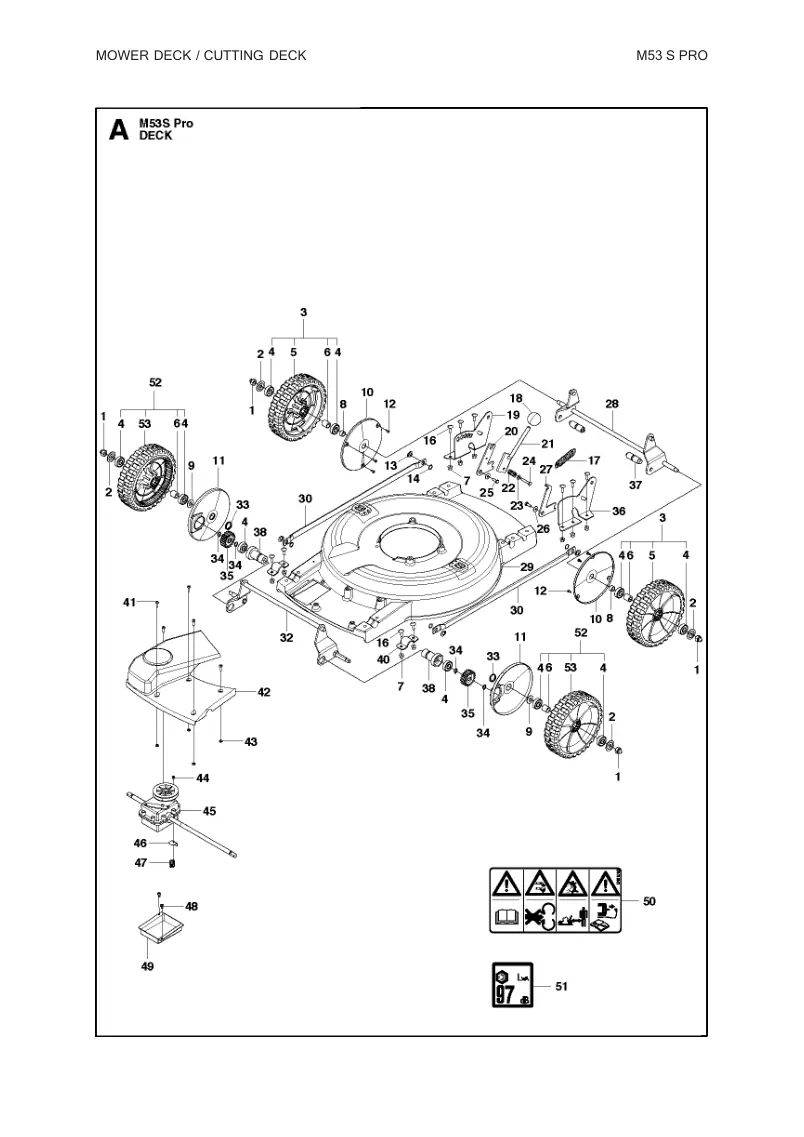

MOWER DECK / CUTTING DECK
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT | 295 67 71-05 | 295677105-Online | 4 |
| 2 | WASHER | 295 66 67-02 | 295666702-Online | 4 |
| 3 | WHEEL | 295 66 71-04 | 295667104-Online | 2 |
| 4 | BALL BEARING 6201 2RS/C3 | 295 67 42-01 | 295674201-Online | 10 3, 52 |
| 5 | WHEEL ASSY | 295 68 87-04 | 295688704-Online | 2 3 |
| 6 | SPACER | 295 66 72-01 | 295667201-Online | 4 3, 52 |
| 7 | LOCK NUT | 295 68 04-03 | 295680403-Online | 10 |
| 8 | SPACER | 295 66 62-01 | 295666201-Online | 2 |
| 9 | SPACER WASHER | 295 67 52-01 | 295675201-Online | 2 |
| 10 | SHIELD | 295 66 73-01 | 295667301-Online | 2 |
| 11 | SHIELD Valid to S/N 20131900066 | 295 66 93-02 | 295669302-Online | 2 |
| 11 | SHIELD | 579 58 06-01 | 579580601-Online | 2 |
| 12 | SCREW CRPANT | 729 57 74-01 | 729577401-Online | 6 |
| 13 | RING | 295 67 74-01 | 295677401-Online | 4 |
| 14 | O-RING | 740 42 10-00 | 740421000-Online | 4 |
| 16 | SCREW | 727 63 72-51 | 727637251-Online | 10 |
| 17 | SPRING | 295 67 43-01 | 295674301-Online | 1 |
| 18 | BALL | 295 67 81-01 | 295678101-Online | 1 |
| 19 | INDEX PLATE | 580 37 18-01 | 580371801-Online | 1 |
| 20 | LINK ARM | 295 66 18-01 | 295661801-Online | 1 |
| 21 | LEVER ASSY | 295 66 16-01 | 295661601-Online | 1 |
| 22 | SPRING | 295 61 36-01 | 295613601-Online | 1 |
| 23 | WASHER | 734 11 56-01 | 734115601-Online | 1 |
| 24 | SCREW EHHM | 725 23 76-51 | 725237651-Online | 1 |
| 25 | SCREW | 725 23 68-01 | 725236801-Online | 2 |
| 26 | WASHER | 734 11 54-41 | 734115441-Online | 2 |
| 27 | LEVER | 295 66 77-01 | 295667701-Online | 1 |
| 28 | AXLE | 295 66 09-01 | 295660901-Online | 1 |
| 29 | CHASSIS | 295 65 90-01 | 295659001-Online | 1 |
| 30 | ROD | 295 66 03-01 | 295660301-Online | 2 |
| 32 | AXLE Valid to S/N 20131900066 | 295 66 10-01 | 295661001-Online | 1 |
| 32 | AXLE | 579 58 11-01 | 579581101-Online | 1 |
| 33 | SPRING | 295 67 87-02 | 295678702-Online | 2 |
| 34 | CIRCLIP | 735 31 14-01 | 735311401-Online | 4 |
| 35 | PINION | 295 66 69-01 | 295666901-Online | 2 |
| 36 | HANDLE SUPPORT | 580 37 17-01 | 580371701-Online | 1 |
| 37 | SHAFT | 295 65 96-01 | 295659601-Online | 2 |
| 38 | SHAFT Valid to S/N 20131900066 | 295 65 97-01 | 295659701-Online | 2 |
| 38 | SHAFT | 579 58 10-01 | 579581001-Online | 2 |
| 40 | HOLDER | 295 66 17-01 | 295661701-Online | 2 |
| 41 | SCREW ITXPANM | 504 46 70-01 | 504467001-Online | 5 |
| 42 | FRONT COVER | 295 66 92-01 | 295669201-Online | 1 |
| 43 | WASHER | 575 88 48-01 | 575884801-Online | 4 |
| 44 | SCREW CCRPANT | 729 53 40-01 | 729534001-Online | 1 |
| 45 | GEARBOX Valid to S/N 20131900066 | 295 65 93-01 | 295659301-Online | 1 |
| 45 | GEARBOX | 579 58 08-01 | 579580801-Online | 1 |
| 46 | BRACKET | 295 67 89-01 | 295678901-Online | 1 |
| 47 | SPRING | 295 67 48-01 | 295674801-Online | 1 |
| 48 | SCREW ITXPANTT | 502 43 52-01 | 502435201-Online | 2 |
| 49 | CUP | 295 66 74-01 | 295667401-Online | 1 |
| 50 | DECAL | 579 73 39-01 | 579733901-Online | 1 |
| 51 | LABEL | 520 29 05-02 | 520290502-Online | 1 |
| 52 | WHEEL ASSY | 295 66 70-04 | 295667004-Online | 2 |
| 53 | WHEEL ASSY | 295 68 86-04 | 295688604-Online | 2 52 |
HANDLE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BAIL | 295 71 40-01 | 295714001-Online | 1 |
| 2 | SCREW IHCSFM | 579 69 88-01 | 579698801-Online | 1 |
| 3 | WEIGHT | 295 66 15-02 | 295661502-Online | 1 |
| 4 | TUBE | 295 66 75-01 | 295667501-Online | 2 |
| 5 | WASHER | 295 68 05-01 | 295680501-Online | 1 |
| 6 | PIN RETAINING SCREW For 967174801 | 531 20 51-69 | 531205169-Online | 1 27 |
| 6 | STARTER ROPE ASSY For 953534802 | 525 43 65-01 | 525436501-Online | 1 |
| 7 | HEXAGON NUT | 731 23 16-01 | 731231601-Online | 1 27 |
| 8 | LEVER | 295 68 80-01 | 295688001-Online | 1 |
| 9 | KNOB | 295 67 51-01 | 295675101-Online | 1 |
| 10 | HEXAGON LOCKING NUT | 732 25 16-01 | 732251601-Online | 4 |
| 11 | SCREW RSQM | 727 64 55-01 | 727645501-Online | 1 |
| 12 | WEIGHT | 295 66 15-01 | 295661501-Online | 1 |
| 13 | WASHER | 734 11 53-01 | 734115301-Online | 2 |
| 14 | SCREW EHHM | 725 23 78-51 | 725237851-Online | 1 |
| 15 | SCREW EHHM | 725 23 82-51 | 725238251-Online | 1 |
| 16 | THROTTLE CONTROL Kit: 5310092-56 | 295 67 40-01 | 295674001-Online | 1 |
| 17 | HANDLE | 295 66 00-01 | 295660001-Online | 1 |
| 18 | SCREW RSQM | 727 64 61-01 | 727646101-Online | 2 |
| 19 | HANDLE | 295 67 82-01 | 295678201-Online | 2 |
| 20 | SCREW RSQM | 727 64 51-01 | 727645101-Online | 3 |
| 21 | HOLDER | 295 68 18-01 | 295681801-Online | 2 |
| 22 | SCREW CCRPANT | 729 53 40-01 | 729534001-Online | 2 |
| 23 | HEXAGON LOCKING NUT | 732 25 18-01 | 732251801-Online | 1 |
| 24 | HEXAGON FLANGE NUT | 578 37 26-01 | 578372601-Online | 4 |
| 25 | CABLE | 295 67 39-01 | 295673901-Online | 1 |
| 26 | DRIVE CONTROL | 295 67 38-02 | 295673802-Online | 1 |
| 27 | STARTER ROPE GUIDE | 581 55 11-01 | 581551101-Online | 1 |
ENGINE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HEXAGON NUT | 731 23 18-01 | 731231801-Online | 4 |
| 2 | LOCKWASHER | 735 21 64-01 | 735216401-Online | 8 |
| 4 | SPACER | 295 66 06-01 | 295660601-Online | 1 |
| 5 | SCREW EHHM | 725 24 63-51 | 725246351-Online | 4 |
| 6 | BELT | 589 53 43-01 | 589534301-Online | 1 |
| 7 | SCREW IHSETM | 505 39 03-01 | 505390301-Online | 2 |
| 8 | PULLEY | 295 66 89-01 | 295668901-Online | 1 |
| 9 | BLADE SUPPORT | 295 68 82-01 | 295688201-Online | 1 15 |
| 10 | BLADE | 295 67 32-10 | 295673210-Online | 1 |
| 11 | SPRING | 295 67 44-01 | 295674401-Online | 1 15 |
| 12 | WASHER | 295 68 85-01 | 295688501-Online | 1 15 |
| 13 | BOLT | 295 67 46-02 | 295674602-Online | 1 |
| 14 | DECAL | 577 67 03-05 | 577670305-Online | 1 |
| 15 | KNIFE KIT | 531 00 92-73 | 531009273-Online | 1 |
