Titantec LML120P IPL Parts Diagram

Titantec LML120P IPL Parts Diagram

Titantec LML120P IPL Parts Diagram

Machine SKU: TT-LML120P-Online

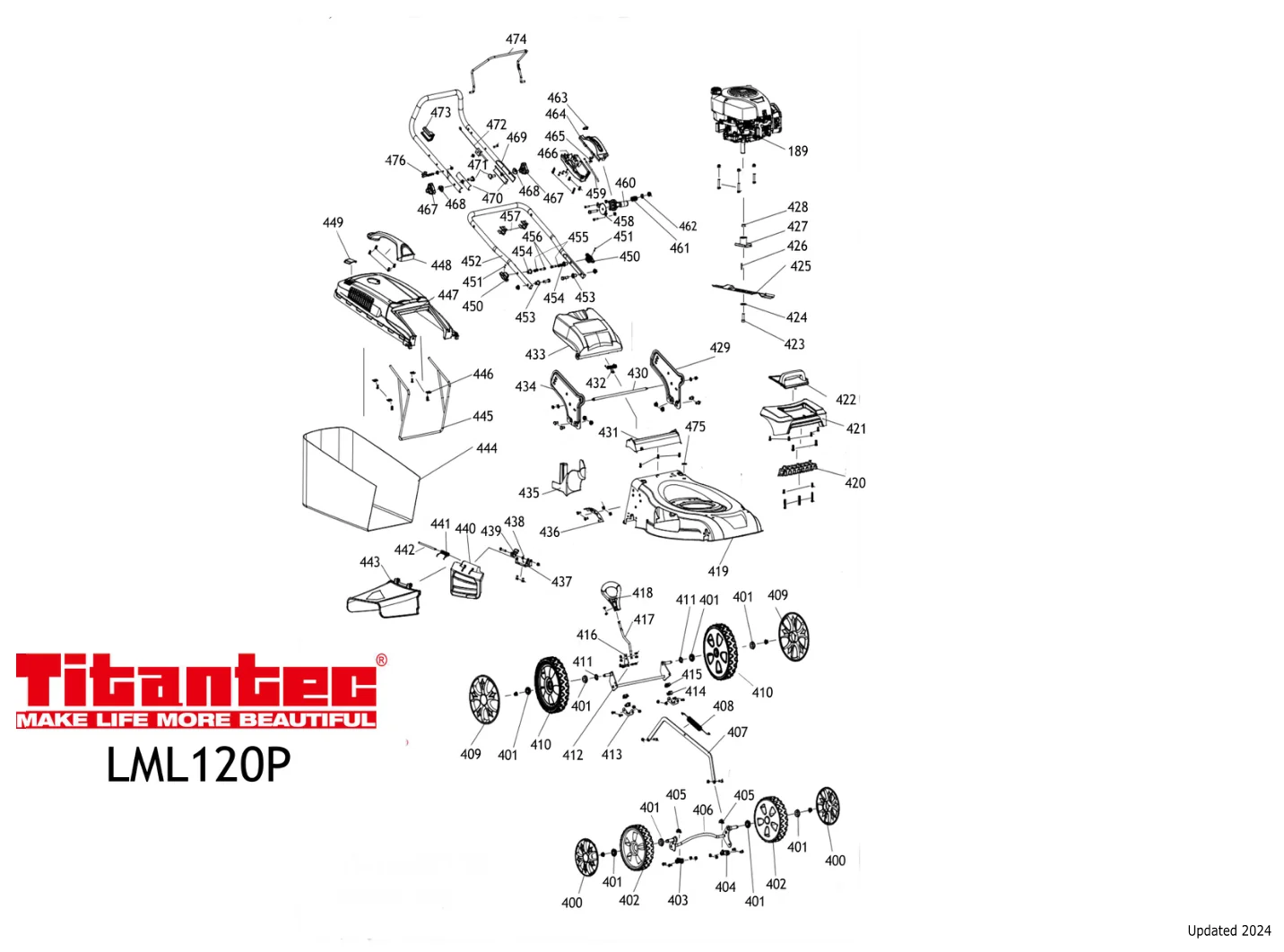

Titantec LML120P IPL exploded view 1

LML120P parts list

RefDescriptionPart numberCutsmart SKU
189enigneon request
438side row cover springTT43801TT-43801-Online
400wheel capTT400001TT-400001-Online
439side row cover pickTT43901TT-43901-Online
401wheel bearingTT40101TT-40101-Online
440side row coverTT4401TT-4401-Online
402wheelTT40201TT-40201-Online
441side cover springTT44101TT-44101-Online
403axle sleeve rightTT40301TT-40301-Online
442side row cover boltTT44201TT-44201-Online
404axle sleeve leftTT40401TT-40401-Online
443side row fan coverTT44301TT-44301-Online
405axle sleeve frontTT40501TT-40501-Online
444bagTT44401TT-44401-Online
406front axleTT40601TT-40601-Online
445bag supportTT44501TT-44501-Online
407heigth adjust barTT40701TT-40701-Online
446support press plateTT44601TT-44601-Online
408heigth adjust springTT40801TT-40801-Online
447bag top coverTT44701TT-44701-Online
409Wheel capTT40901TT-40901-Online
448bag handleTT44801TT-44801-Online
410wheelTT41001TT-41001-Online
449bag coverTT44901TT-44901-Online
411washerTT41101TT-41101-Online
450lower handle knobTT45001TT-45001-Online
412rear axleTT41201TT-41201-Online
451pinTT45101TT-45101-Online
413shaft sleeveTT41301TT-41301-Online
452lower handleTT45201TT-45201-Online
414rear down sleeveTT41401TT-41401-Online
453knob pin lowerTT45301TT-45301-Online
415rear up sleeveTT41501TT-41501-Online
454knob pin upperTT45401TT-45401-Online
416block rod spring plateTT41601TT-41601-Online
455knob pressure springTT45501TT-45501-Online
417height leverTT41701TT-41701-Online
456knob pin shaftTT45601TT-45601-Online
418adjusting height handTT41801TT-41801-Online
457cable clipTT45701TT-45701-Online
419chassisTT41901TT-41901-Online
458handle seatTT45801TT-45801-Online
420front panelTT42001TT-42001-Online
459throttle pullTT45901TT-45901-Online
421front panelTT42101TT-42101-Online
460throttle handleTT46001TT-46001-Online
422front coverTT42201TT-42201-Online
461thottle switch pressure springTT46101TT-46101-Online
423BoltTT42302TT-42302-Online
462WasherTT46201TT-46201-Online
424gasketTT42401TT-42401-Online
463mask button blockTT46301TT-46301-Online
425BladeTT42501TT-42501-Online
464upper rigth maskTT46401TT-46401-Online
426KeyTT42601TT-42601-Online
465throttle pull down plateTT46501TT-46501-Online
427apronTT42701TT-42701-Online
466lower right maskTT46601TT-46601-Online
428SpacerTT42801TT-42801-Online
467handle knobTT46701TT-46701-Online
429left handle plateTT42901TT-42901-Online
468saddle gasketTT46801TT-46801-Online
430Brck cover pinTT43001TT-43001-Online
469upper armrestTT46901TT-46901-Online
431rear coverTT43101TT-43101-Online
470insulating spacerTT47001TT-47001-Online
432rear cover springTT43201TT-43201-Online
471saddle boltTT47101TT-47101-Online
433rear cover plateTT43301TT-43301-Online
472start cableTT47201TT-47201-Online
434right handle plateTT43401TT-43401-Online
473pull rod right limit blockTT47301TT-47301-Online
435straw blockingTT43501TT-43501-Online
474starter leverTT47401TT-47401-Online
436gear plateTT43601TT-43601-Online
475coverTT47501TT-47501-Online
437side row coverTT43701TT-43701-Online
476cord buckleTT47601TT-47601-Online
