Titantec GD620T IPL Parts Diagram

Titantec GD620T IPL Parts Diagram

Titantec GD620T IPL Parts Diagram

Machine SKU: TT-GD620T-Online

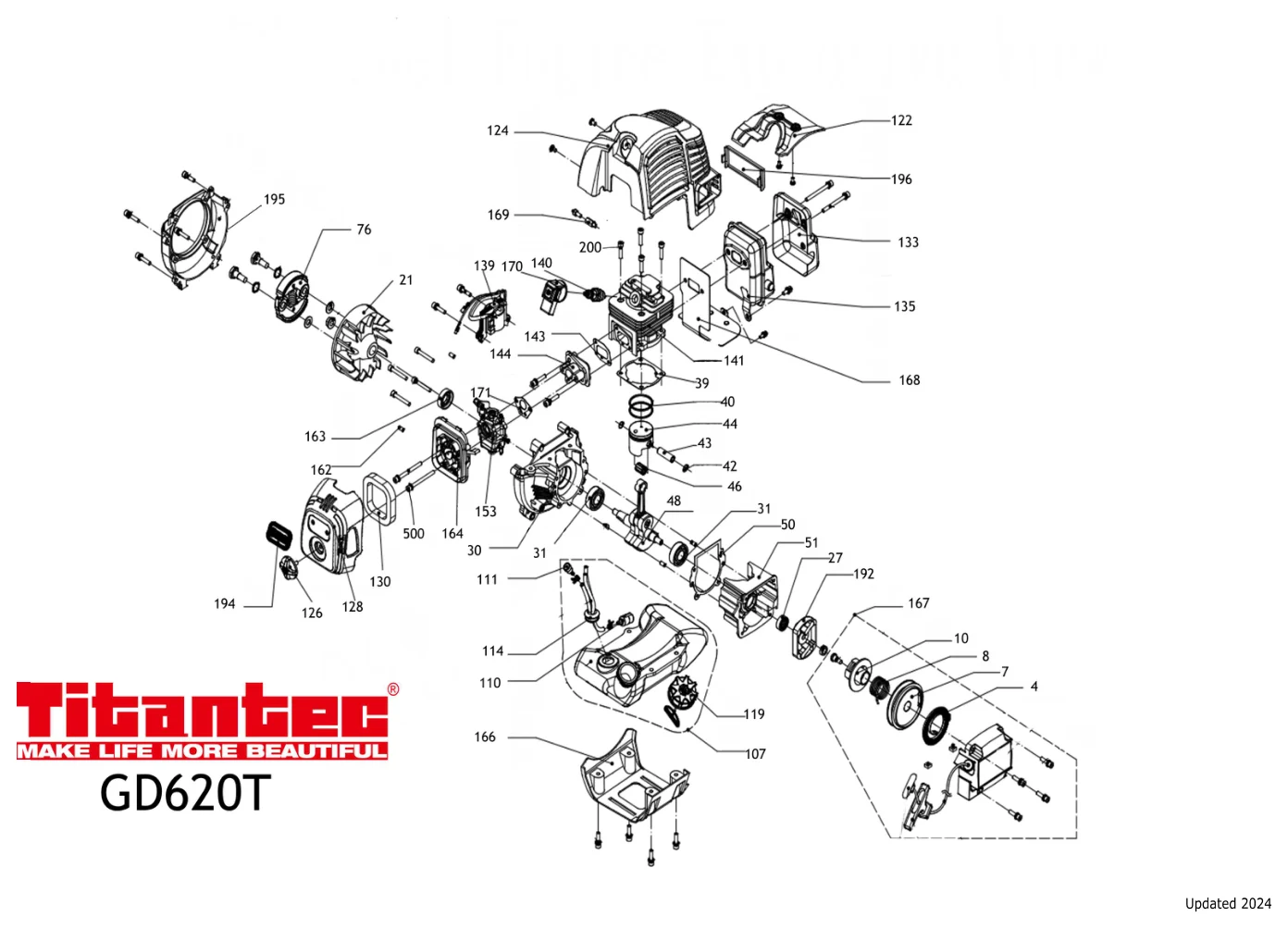

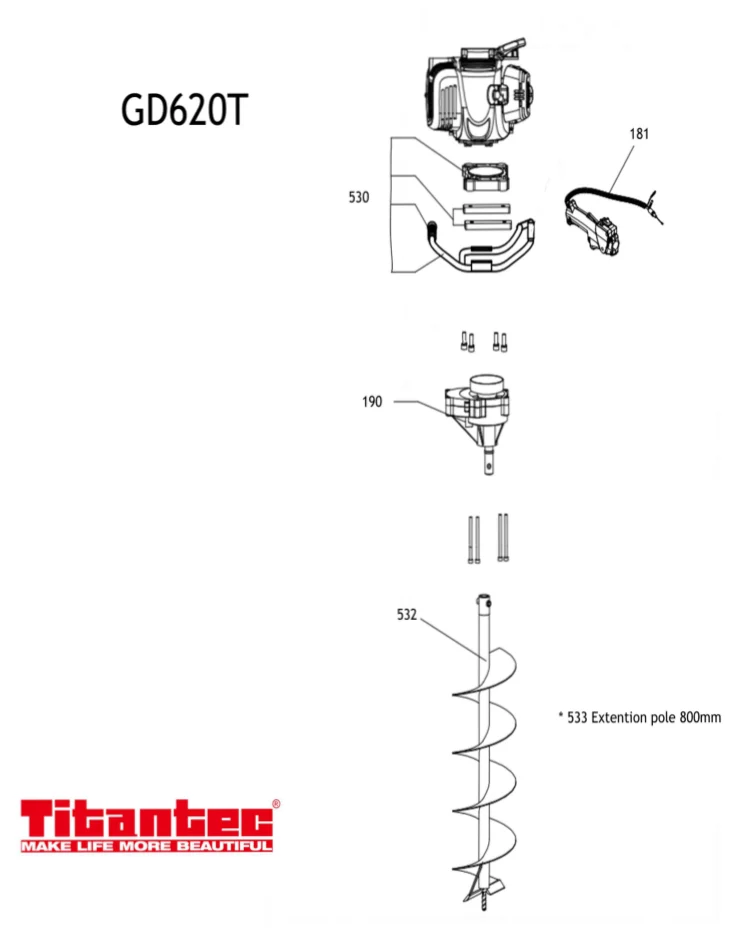

Titantec GD620T IPL exploded view 1 Titantec GD620T IPL exploded view 2

GD620T parts list

RefDescriptionPart numberCutsmart SKU
4SpringTT00401TT-00401-Online
139coilTT13903TT-13903-Online
7ReelTT00701TT-00701-Online
140spark plug BM6ATT14001TT-14001-Online
8Torsion SpringTT00801TT-00801-Online
141cylinderTT14103TT-14103-Online
10RatchetTT01001TT-01001-Online
143gasket inlet pipeTT14301TT-14301-Online
21FywheelTT02103TT-02103-Online
144inlet pipeTT14402TT-14402-Online
27oil seal 12x22x7TT02701TT-02701-Online
153carbTT15303TT-15303-Online
30Left CrankcaseTT03003TT-03003-Online
162Pin 5x10TT16201TT-16201-Online
31Bearing 6202TT03101TT-03101-Online
163oil seal 15x30x7TT16301TT-16301-Online
39Gasket, CylinderTT03903TT-03903-Online
164Air Filter SupporterTT16401TT-16401-Online
40Piston RingTT04003TT-04003-Online
166Bracket, TankTT16604TT-16604-Online
42Snap Ring, Piston PinTT04203TT-04203-Online
167starter assyTT16701TT-16701-Online
43Piston PinTT04303TT-04303-Online
168gasket mufflerTT16801TT-16801-Online
44PistonTT04403TT-04403-Online
169BoltTT16903TT-16903-Online
46Needle bearingTT04603TT-04603-Online
170Cap, Spark PlugTT17001TT-17001-Online
48CrankshaftTT04803TT-04803-Online
171gasket carburetorTT17101TT-17101-Online
50Gasket, CrankcaseTT05001TT-05001-Online
181Throttle AssyTT18104TT-18104-Online
51Right CrankcaseTT05103TT-05103-Online
190gearcasse assyTT19004TT-19004-Online
76ClutchTT07601TT-07601-Online
192pulleyTT19201TT-19201-Online
107fuel tankTT10710TT-10710-Online
194badgeTT19401TT-19401-Online
110Fuel FilterTT11001TT-11001-Online
195side coverTT19501TT-19501-Online
111BalancerTT11101TT-11101-Online
196badgeTT19601TT-19601-Online
114Pipe SeatTT11402TT-11402-Online
200Cylinder BoltsTT20001TT-20001-Online
119Cap fuel filterTT11902TT-11902-Online
500boltTT50001TT-50001-Online
122Top CoverTT12201TT-12201-Online
530Bracket assyTT53001TT-53001-Online
124Cover, CylinderTT12401TT-12401-Online
532Drill 100mmTT53201TT-53201-Online
126KnobTT12601TT-12601-Online
532Drill 150mmTT53202TT-53202-Online
128Cover FilterTT12801TT-12801-Online
532Drill 200mmTT53203TT-53203-Online
130elementTT13001TT-13001-Online
532Drill 250mmTT53204TT-53204-Online
133Muffler Heat ShieldTT13303TT-13303-Online
533Extention 800mmTT53301TT-53301-Online
135mufflerTT13501TT-13501-Online
