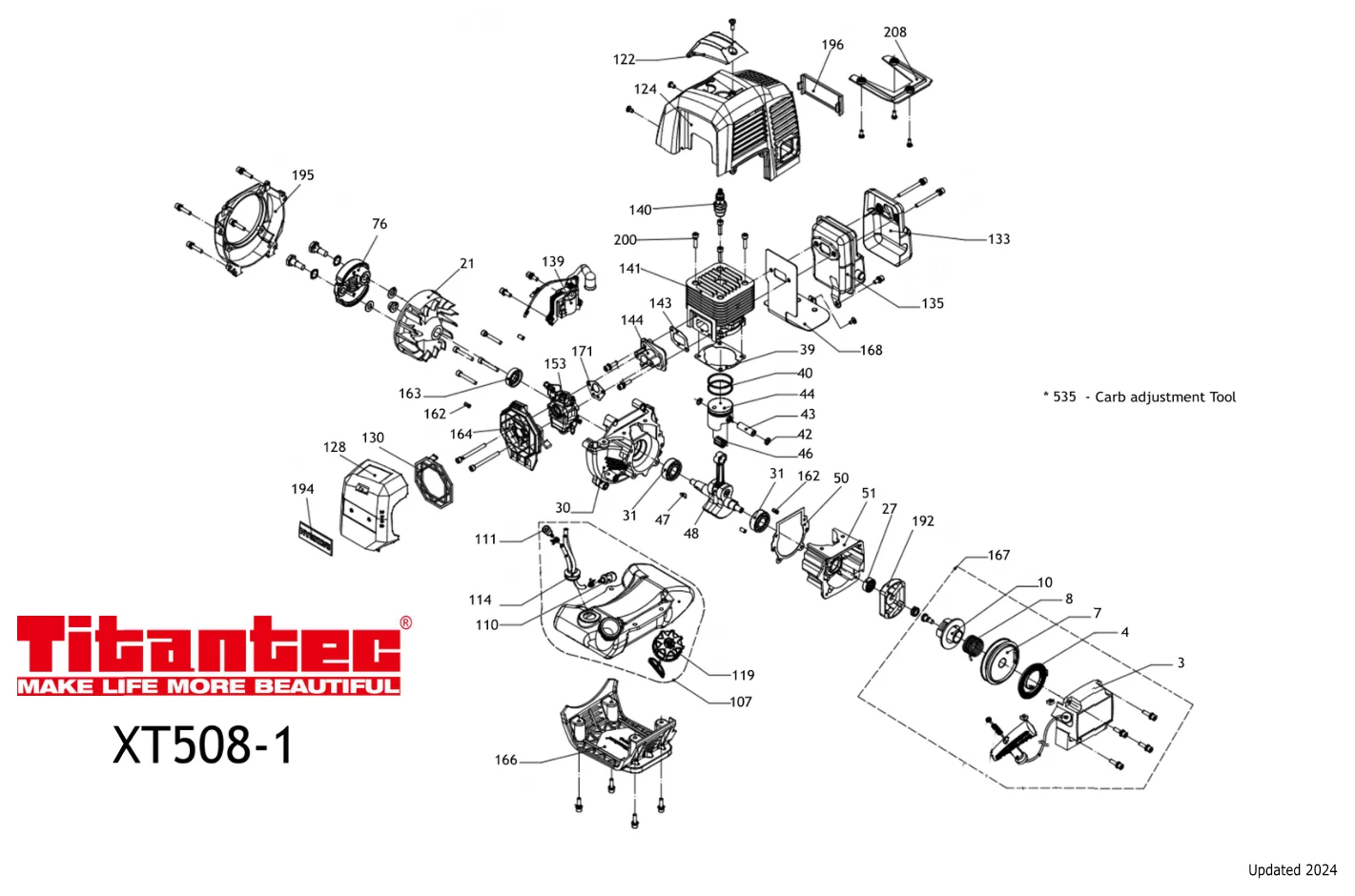

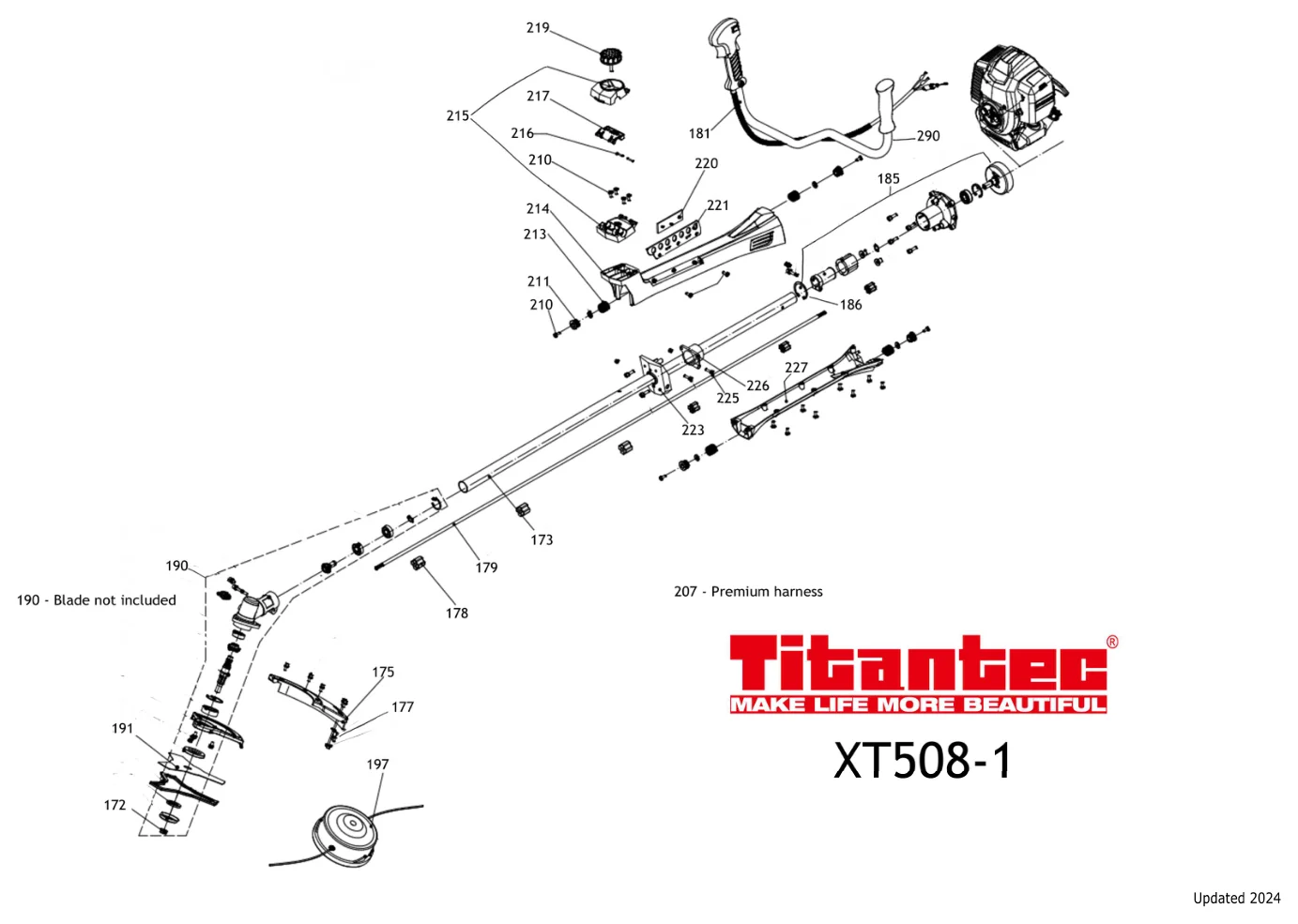

Titantec XT508-1 IPL Parts Diagram

XT508-1 parts list

Ref	Description	Part number	Cutsmart SKU
4	Spring	TT00402	TT-00402-Online
167	Starter assy	TT16701	TT-16701-Online
7	Reel	TT00702	TT-00702-Online
168	Gasket muffler	TT16802	TT-16802-Online
8	Torsion Spring	TT00802	TT-00802-Online
171	Gasket carburetor	TT17101	TT-17101-Online
10	Ratchet	TT01002	TT-01002-Online
172	Screw M10	TT17202	TT-17202-Online
21	Fywheel	TT02104	TT-02104-Online
173	Aluminum Pipe	TT17302	TT-17302-Online
27	Oil seal 12x22x7	TT02701	TT-02701-Online
175	Guard	TT17502	TT-17502-Online
30	Left Crankcase	TT03004	TT-03004-Online
177	Small Blade	TT17703	TT-17703-Online
31	Bearing 6202	TT03102	TT-03102-Online
178	Oil Bearing	TT17802	TT-17802-Online
39	Gasket, Cylinder	TT03904	TT-03904-Online
179	Drive Shaft	TT17902	TT-17902-Online
40	Piston Ring	TT04004	TT-04004-Online
181	Throttle Assy	TT18102	TT-18102-Online
42	Snap Ring, Piston Pin	TT04201	TT-04201-Online
185	Housing Assy	TT18502	TT-18502-Online
43	Piston Pin	TT04304	TT-04304-Online
186	Snap Ring φ45	TT18601	TT-18601-Online
44	Piston	TT04404	TT-04404-Online
190	Housing assy	TT19002	TT-19002-Online
46	Needle bearing	TT04604	TT-04604-Online
191	Blade 8T	TT19102	TT-19102-Online
47	Key 3x10	TT04701	TT-04701-Online
192	Pulley	TT19201	TT-19201-Online
48	Crankshaft	TT04804	TT-04804-Online
194	Badge	TT19402	TT-19402-Online
50	Gasket, Crankcase	TT05001	TT-05001-Online
195	Side cover	TT19502	TT-19502-Online
51	Right Crankcase	TT05104	TT-05104-Online
196	Plate	TT19602	TT-19602-Online
76	Clutch	TT07601	TT-07601-Online
197	Nylon head	TT19701	TT-19701-Online
107	Fuel tank	TT10702	TT-10702-Online
200	Cylinder bolt M5x20	TT20002	TT-20002-Online
110	Fuel Filter	TT11001	TT-11001-Online
207	Premium Harness	TT20703	TT-20703-Online
111	Balancer	TT11101	TT-11101-Online
208	Guide cover	TT20801	TT-20801-Online
114	Pipe Seat	TT11402	TT-11402-Online
209	Spring	TT20901	TT-20901-Online
119	Cap fuel filter	TT11902	TT-11902-Online
210	Screw ST5x14	TT21001	TT-21001-Online
122	Top Cover	TT12202	TT-12202-Online
211	Spring holder	TT21101	TT-21101-Online
124	Cover, Cylinder	TT12402	TT-12402-Online
213	Spring	TT21301	TT-21301-Online
128	Cover Filter	TT12802	TT-12802-Online
214	Upper cover anti vibration	TT21401	TT-21401-Online
130	Element	TT13002	TT-13002-Online
215	Bracket down & cover	TT21501	TT-21501-Online
133	Insulation pad muffler	TT13304	TT-13304-Online
216	Pin 3	TT21601	TT-21601-Online
135	Muffler	TT13501	TT-13501-Online
217	Bracket up	TT21701	TT-21701-Online
139	Coil	TT13904	TT-13904-Online
219	Locknut bracket	TT21901	TT-21901-Online
140	Spark plug L8RTF	TT14003	TT-14003-Online
220	Logo plate	TT22001	TT-22001-Online
141	Cylinder	TT14104	TT-14104-Online
221	Hanger plate	TT22101	TT-22101-Online
143	Gasket inlet pipe	TT14301	TT-14301-Online
223	Holder, anti vibration	TT22301	TT-22301-Online
144	Inlet pipe	TT14402	TT-14402-Online
225	Bolt M5x35	TT22501	TT-22501-Online
153	Carb	TT15304	TT-15304-Online
226	Holder anti vibration	TT22601	TT-22601-Online
162	Pin 5x10	TT16201	TT-16201-Online
227	Down cover anti vibration	TT22701	TT-22701-Online
163	Oil seal 15x30x7	TT16301	TT-16301-Online
290	Handle without throttle	TT29002	TT-29002-Online
164	Air Filter Supporter	TT16402	TT-16402-Online
535	Carb Adjustment Tool	TT53501	TT-53501-Online
166	Bracket, Tank	TT16602	TT-16602-Online
