Hustler Sport Parts Manual - 109706
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 109706Model: 601676Model: 602096Model: 768044Model: 929125CAModel: 929133CASKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Battery InstallHydro Transmission InstallationEngine Install Honda GXV 530Instrument Panel Install BriggsInstrument Panel Install HondaBattery Install
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 6.50 HX G5 | 601930 | 2 | 601930-Online |
| 2 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 3 | BATTERY CLAMP STRAP | 348417 | 1 | 348417-Online |
| 4 | CS .250-20 X .750 HX G5 ZN | 055939 | 2 | 055939-Online |
| 5 | LW .250 INT-EXT TOOTH ZN | 029868 | 4 | 029868-Online |
| 6 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 7 | BATTERY CBL BOOT-RED | 771428 | 1 | 771428-Online |
| 8 | CN .250-20X.150 MAX THK | 601982 | 2 | 601982-Online |
| 9 | GM 1.50 X 2.12 X 1.75 | 794644 | 1 | 794644-Online |
| 10 | BATTERY | 740696 | 1 | 740696-Online |

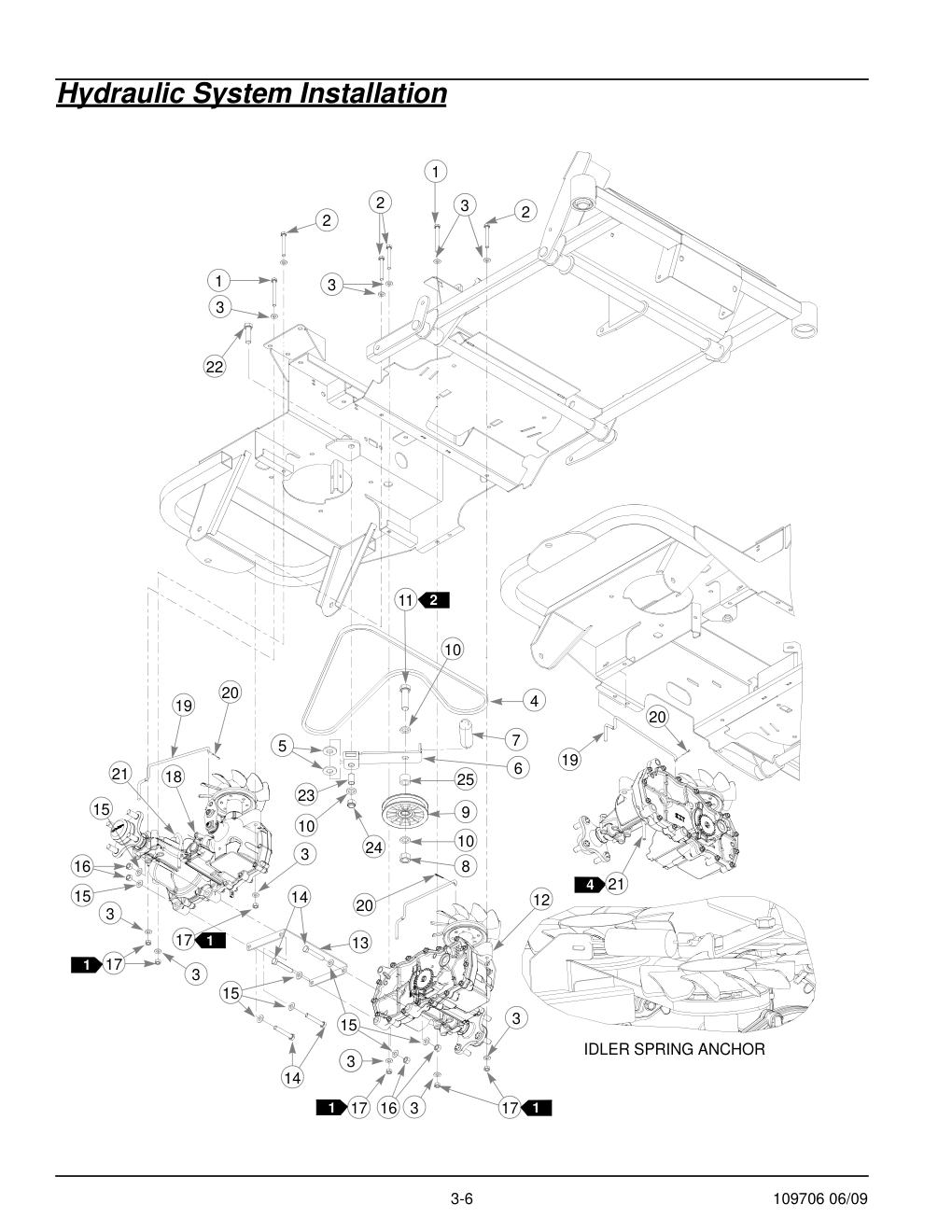

Hydro Transmission Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 4 CS .312-18X3.00 HX G5 Z | 043067 | 043067 | HT043067-Online |
| 2 | 4 CS .312-18X2.500 HX G5 | 710087 | 710087 | HT710087-Online |
| 3 | 16 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 4 | 1 BELT, A 67.24" EL | 769133 | 769133 | HT769133-Online |
| 5 | 2 BEARING DISC | 602026 | 602026 | 602026-Online |
| 6 | 1 PUMP IDLER, FORMED | 111079 | 111079 | 111079-Online |
| 7 | 1 SPRING 1/4 COIL PL 1.23 | 036384 | 036384 | HT036384-Online |
| 8 | 1 NT .625-11 HX G5 ZNYC | 016972 | 016972 | HT016972-Online |
| 9 | 1 PULLEY, IDLER, 4.00"OD, | 784827 | 784827 | HT784827-Online |
| 10 | 3 FW .625X1.00X.134 ZNYC | 028118 | 028118 | HT028118-Online |
| 11 | 1 CS .625-11 X 2.25 HXG5ZY | 601983 | 601983 | 601983-Online |
| 12 | 1 EZT, 19.2 LEFT TRANS | 601390 | 601390 | 601390-Online |
| 13 | 1 HYDROSTAT CROSS BRACE | 110042 | 110042 | 110042-Online |
| 14 | 4 CS .375-16X2.250 HX G5 | 056036 | 056036 | 056036-Online |
| 15 | 8 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 16 | 4 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 17 | 8 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 18 | 1 EZT, 19.2 RIGHT TRANS | 601391 | 601391 | 601391-Online |
| 19 | 2 TOWLINK ROD | 793174 | 793174 | HT793174-Online |
| 20 | 2 CP .062DX1.000 LG HML Z | 048553 | 048553 | 048553-Online |
| 21 | 2 OVERFLOW HOSE | 601018 | N/A | 601018-Online |
| 22 | 1 CS .500-13X1.750 HX G5 | 017616 | 017616 | HT017616-Online |
| 23 | 1 BUSHING, IGUS .500 I.D. | 602025 | 602025 | 602025-Online |
| 24 | 1 NT .500-13 HX G8 ZY NL | 781567 | 781567 | HT781567-Online |
| 25 | 1 SPACER, SPORT IDLER | 601398 | 601398 | 601398-Online |
Engine Install Honda GXV 530
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 28 | FUEL HOSE, 5MMX350MM | 602241 | 1 | 602241-Online |
| 29 | FUEL HOSE, 5MMX100MM | 602240 | 1 | 602240-Online |
| 30 | CLAMP, FUEL HOSE .375ID | 602239 | 4 | 602239-Online |
Instrument Panel Install Briggs
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321(FS) | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY (FS) | 785808 | 1 | 785808-Online |
| 3 | IGN SWITCH INDAK 3H463 | 045898 | 1 | HT045898-Online |
| 4 | RELAY | 601053 | 2 | HT601053-Online |
| 5 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 6 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 7 | THROTTLE/CHOKE CABLE ASSY | 601803 | 1 | 601803-Online |
| 8 | FW .219X .500X.048 ZNYC | 704932 | 2 | HT704932-Online |
| 9 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 10 | FW .281X.625X.051/.080H | 768515 | 3 | HT768515-Online |
| 11 | CS .250-20X .500 HX G5 | 055947 | 3 | 055947-Online |
| 12 | INSTRUMENT PANEL SPORT | 550224 | 1 | 550224-Online |
| 13 | DASH DECAL | 601811 | 1 | 601811-Online |
Instrument Panel Install Honda
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601097 | 1 | HT601097-Online |
| 2 | SWITCH, PTO 6201-321(FS) | 776476 | 1 | HT776476-Online |
| 3 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 4 | KEY ASSEMBLY (FS) | 785808 | 1 | 785808-Online |
| 5 | IGN SWITCH INDAK 3H463 | 045898 | 1 | HT045898-Online |
| 6 | RELAY | 601053 | 2 | HT601053-Online |
| 7 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 9 | THROTTLE CABLE | 601096 | 1 | 601096-Online |
| 10 | FW .219X .500X.048 ZNYC | 704932 | 2 | HT704932-Online |
| 11 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 12 | CS .250-20X .500 HX G5 | 055947 | 3 | 055947-Online |
| 13 | FW .281X.625X.051/.080H | 768515 | 3 | HT768515-Online |
| 14 | DASH DECAL INSTRUMENT | 602232 | 1 | 602232-Online |
| 15 | INSTRUMENT PANEL SPORT | 550225 | 1 | 550225-Online |
