Illustrated Parts List
Hustler® Raptor Parts Manual - 931741
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 931741Model: 931881Model: 931899Model: 931998USModel: 932004USModel: 604220Model: 117371Model: 117373Model: 117578Model: 117581+5 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameFenders & Instrument PanelBatteryHydraulic AssemblyTransmission AssemblyTransmission Service PartsSteering & BrakeSteering Cover AssemblyWheel & TireFront Wheel BreakdownDrive Wheel BreakdownEngine, Kawasaki FR651V & FR691V-W/O Carbon CanisterEngine, Kawasaki FR651V & FR691V-W/O Carbon CanisterEngine, Kawasaki FR651V-With Carbon CanisterEngine, Kawasaki FR651V-With Carbon CanisterEngine Service Parts, Kawasaki FR651V & FR691VFuel System-Without Carbon CanisterFuel System-With Carbon CanisterFuel Tank Service Parts42" Service Deck42" Deck Pulleys & Spindles42" Deck42" Deck Lift52" Service Deck52" Deck Pulleys & Spindles52" Deck52" Deck LiftSeatFrame

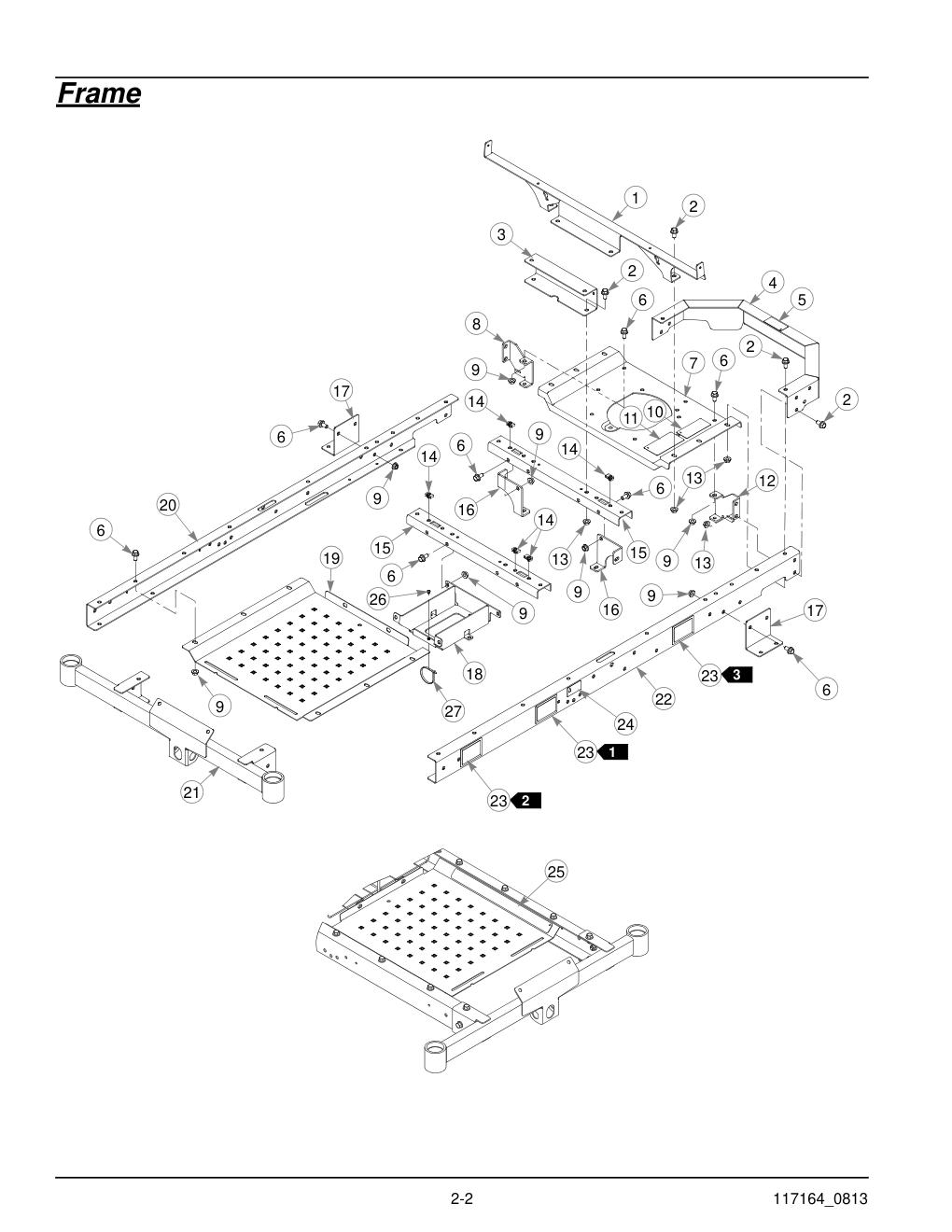

Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 116126 | 1 | 116126-Online |
| 2 | CS .375-16 X .75 HX FLK | 029629 | 10 | HT029629-Online |
| 3 | SPRING SUPPORT | 116127 | 1 | 116127-Online |
| 4 | BUMPER (WITH DECAL) | 551857 | 1 | 551857-Online |
| 5 | HOT DECAL | 602041 | 1 | 602041-Online |
| 6 | CS .375-16 X .75 HX FLK PLN | 604176 | 30 | 604176-Online |
| 7 | ENGINE PLATE (WITH DECALS) | 551858 | 1 | 551858-Online |
| 8 | RS REAR BRACKET | 551859 | 1 | HT551859-Online |
| 9 | NT .375-16 HX FLK PLN | 604177 | 30 | 604177-Online |
| 10 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 11 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 12 | LS REAR BRACKET | 551860 | 1 | HT551860-Online |
| 13 | NT .375-16 HX FLK ZNYC | 016899 | 10 | HT016899-Online |
| 14 | CN .250-20 X .15 MAX THK | 601982 | 5 | 601982-Online |
| 15 | CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | RS FRONT BRACKET | 551862 | 2 | HT551862-Online |
| 17 | HYDRO BRACKET | 551863 | 2 | HT551863-Online |
| 18 | BATTERY TRAY | 551864 | 1 | 551864-Online |
| 19 | FOOT PAN (WITH DECAL) | 551865 | 1 | 551865-Online |
| 20 | RS FRAME CHANNEL | 551866 | 1 | 551866-Online |
| 21 | FRONT CROSS FRAME | 551867 | 1 | HT551867-Online |
| 22 | LS FRAME CHANNEL (WITH DECALS) | 551868 | 1 | 551868-Online |
| 23 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 24 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 25 | SAFE OPERATION DECAL | 601981 | 1 | 601981-Online |
| 26 | PUSH BUTTON MOUNT | 604307 | 6 | 604307-Online |
| 27 | WIRE TIE | 000331 | 6 | 000331-Online |

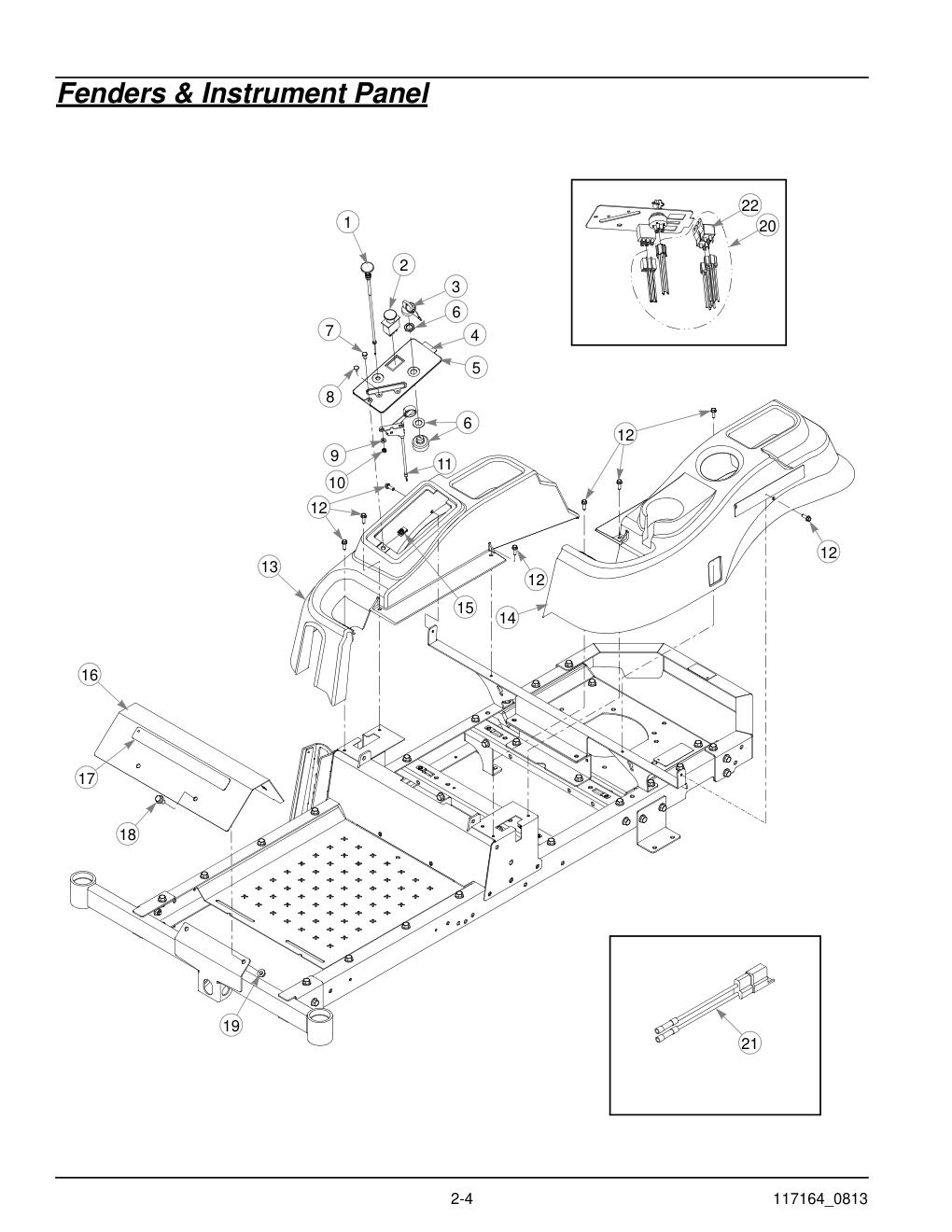

Fenders & Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601097 | 1 | HT601097-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | INSTRUMENT PANEL (WITH DECAL) | 551898 | 1 | 551898-Online |
| 5 | INSTRUMENT PANEL DECAL | 604196 | 1 | 604196-Online |
| 6 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 7 | CS .250-20 X .500 HX G5 | 055947 | 1 | 055947-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 9 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 11 | THROTTLE CABLE | 601096 | 1 | 601096-Online |
| 12 | CS .250-20 X .75 HX FLG | 604324 | 8 | 604324-Online |
| 13 | RS FENDER | 604124 | 1 | 604124-Online |
| 14 | LS FENDER | 604125 | 1 | 604125-Online |
| 15 | CN .250-20 X .15 MAX THK | 601982 | 1 | 601982-Online |
| 16 | FOOTREST | 116162 | 1 | 116162-Online |
| 17 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 18 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 19 | NT .375-16 HX FLK ZNYC | 016899 | 2 | HT016899-Online |
| 20 | WIRE HARNESS | 604181 | 1 | 604181-Online |
| 21 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 22 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |

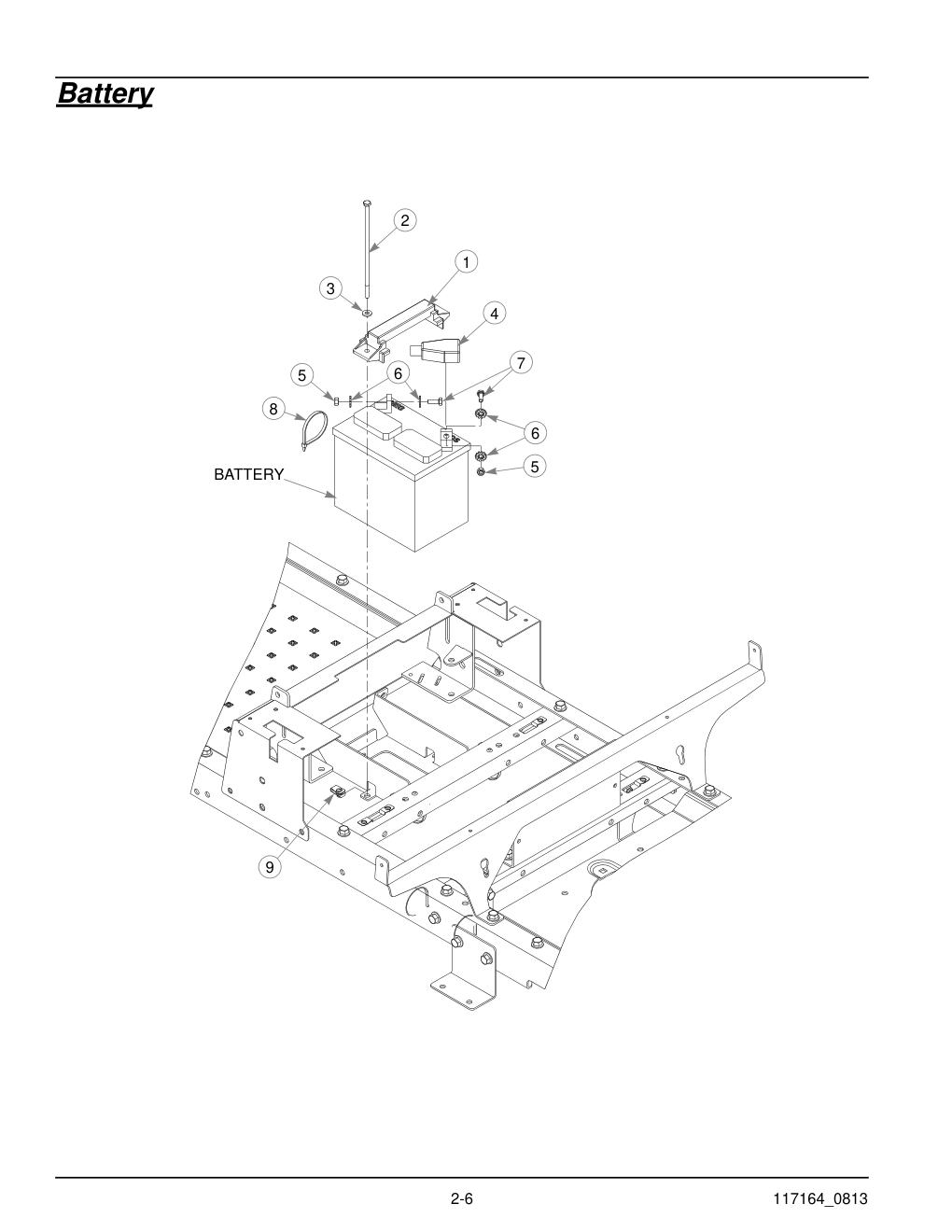

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIE DOWN STRAP | 604178 | 1 | 604178-Online |
| 2 | CS 0.250-20 X 7.50 HX G5 | 604465 | 2 | 604465-Online |
| 3 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 2 | HT768515-Online |
| 4 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 5 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 6 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 8 | WIRE TIE | 000331 | 2 | 000331-Online |
| 9 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |

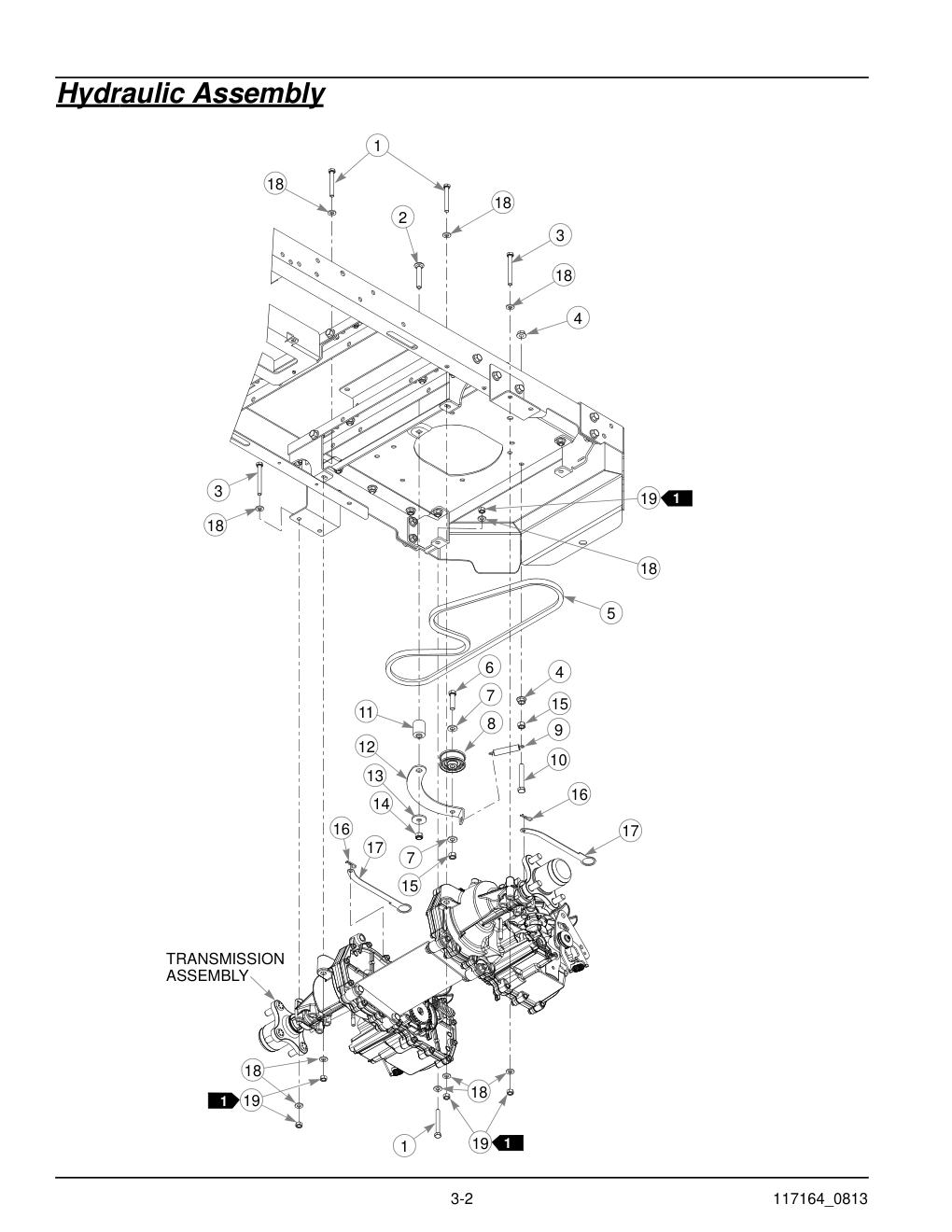

Hydraulic Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 2.50 HX G5 | 710087 | 4 | HT710087-Online |
| 2 | CB .375-16 X 2.25 STD ZN | 604343 | 1 | 604343-Online |
| 3 | CS .312-18 X 3.00 HX G5 Z | 043067 | 4 | HT043067-Online |
| 4 | NT .375-16 HX FLK ZNYC | 016899 | 2 | HT016899-Online |
| 5 | DRIVE BELT | 603907 | 1 | 603907-Online |
| 6 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 8 | PULLEY 2.0" IDLER | 604491 | 1 | 604491-Online |
| 9 | SPRING | 604490 | 1 | 604490-Online |
| 10 | CS .375-16 X 2.5 FULTH | 604487 | 1 | 604487-Online |
| 11 | IDLER SPACER | 116289 | 1 | HT116289-Online |
| 12 | IDLER ARM | 116287 | 1 | HT116287-Online |
| 13 | FW .406 X 1.25 X .12 HRD Z | 712893 | 1 | HT712893-Online |
| 14 | NT .375-16 HX ZY NL | 086660 | 1 | HT086660-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 16 | HP .080D X 1.19 | 706549 | 2 | HT706549-Online |
| 17 | TOW VALVE LINK | 116218 | 2 | HT116218-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 19 | NT .312-18 HX G5 ZNYC | 034272 | 8 | HT034272-Online |

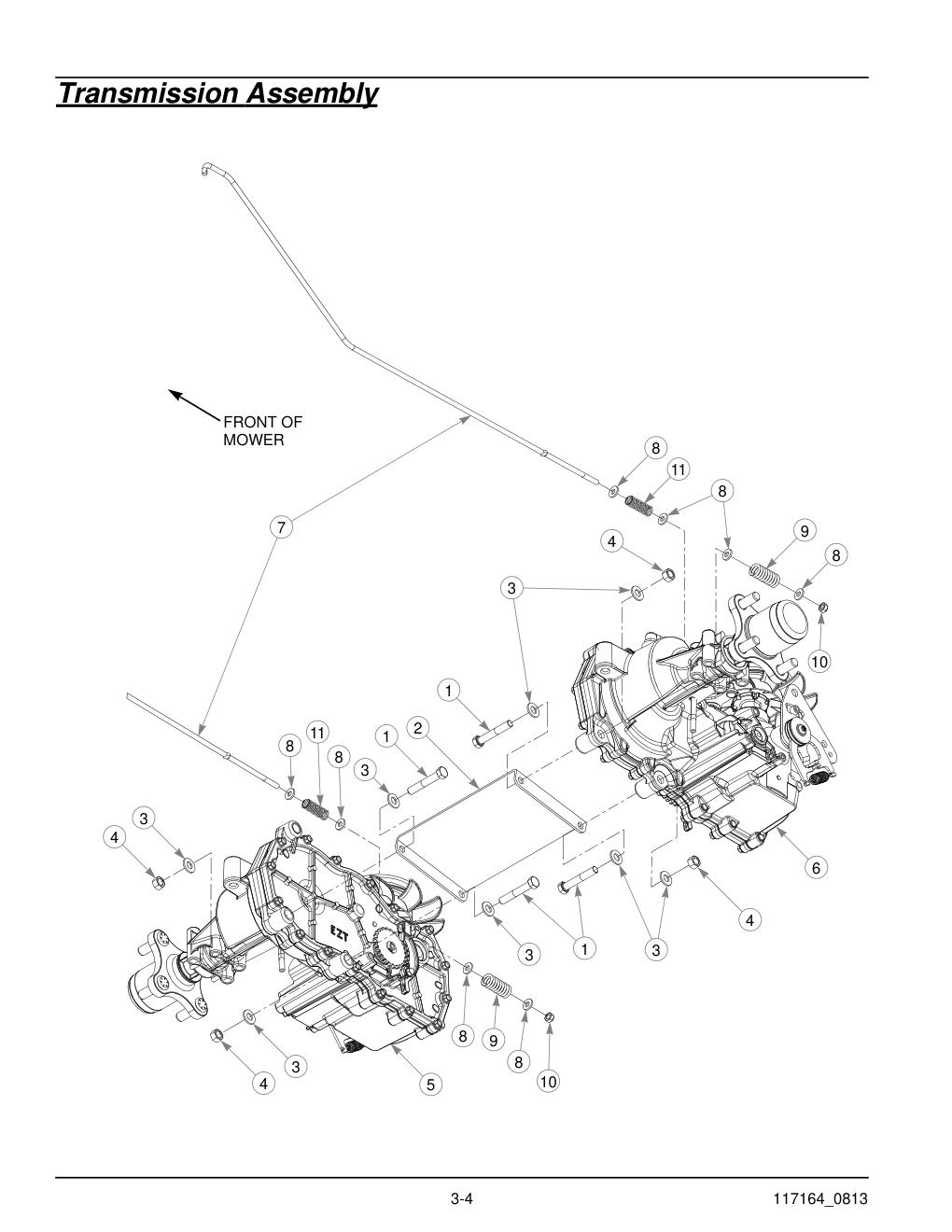

Transmission Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .375-16 X 2.25 HX G5 | 056036 | 4 | 056036-Online |
| 2 | HYDROSTAT CROSS BRACE | 110042 | 1 | 110042-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 4 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 5 | RS TRANSMISSION | 604127 | 1 | 604127-Online |
| 6 | LS TRANSMISSION | 604128 | 1 | 604128-Online |
| 7 | ACTUATOR | 116143 | 2 | HT116143-Online |
| 8 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 8 | HT768515-Online |
| 9 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 10 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 11 | SPRING | 601131 | 2 | HT601131-Online |

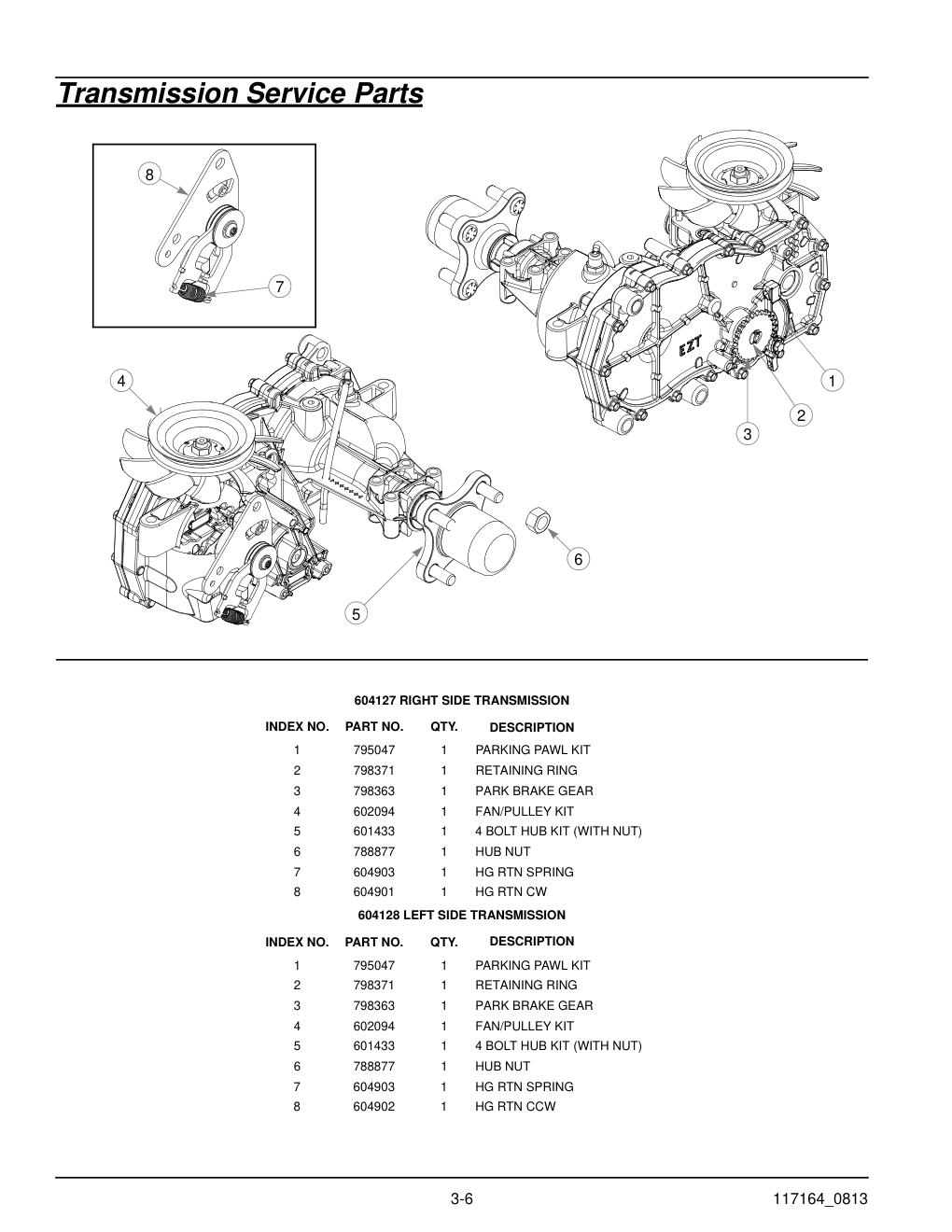

Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PARKING PAWL KIT | 795047 | 1 | HT795047-Online |
| 2 | RETAINING RING | 798371 | 1 | 798371-Online |
| 3 | PARK BRAKE GEAR | 798363 | 1 | HT798363-Online |
| 4 | FAN/PULLEY KIT | 602094 | 1 | 602094-Online |
| 5 | 4 BOLT HUB KIT (WITH NUT) | 601433 | 1 | 601433-Online |
| 6 | HUB NUT | 788877 | 1 | 788877-Online |
| 7 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 8 | HG RTN CW | 604901 | 1 | 604901-Online |
| 1 | PARKING PAWL KIT | 795047 | 1 | HT795047-Online |
| 2 | RETAINING RING | 798371 | 1 | 798371-Online |
| 3 | PARK BRAKE GEAR | 798363 | 1 | HT798363-Online |
| 4 | FAN/PULLEY KIT | 602094 | 1 | 602094-Online |
| 5 | 4 BOLT HUB KIT (WITH NUT) | 601433 | 1 | 601433-Online |
| 6 | HUB NUT | 788877 | 1 | 788877-Online |
| 7 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 8 | HG RTN CCW | 604902 | 1 | 604902-Online |

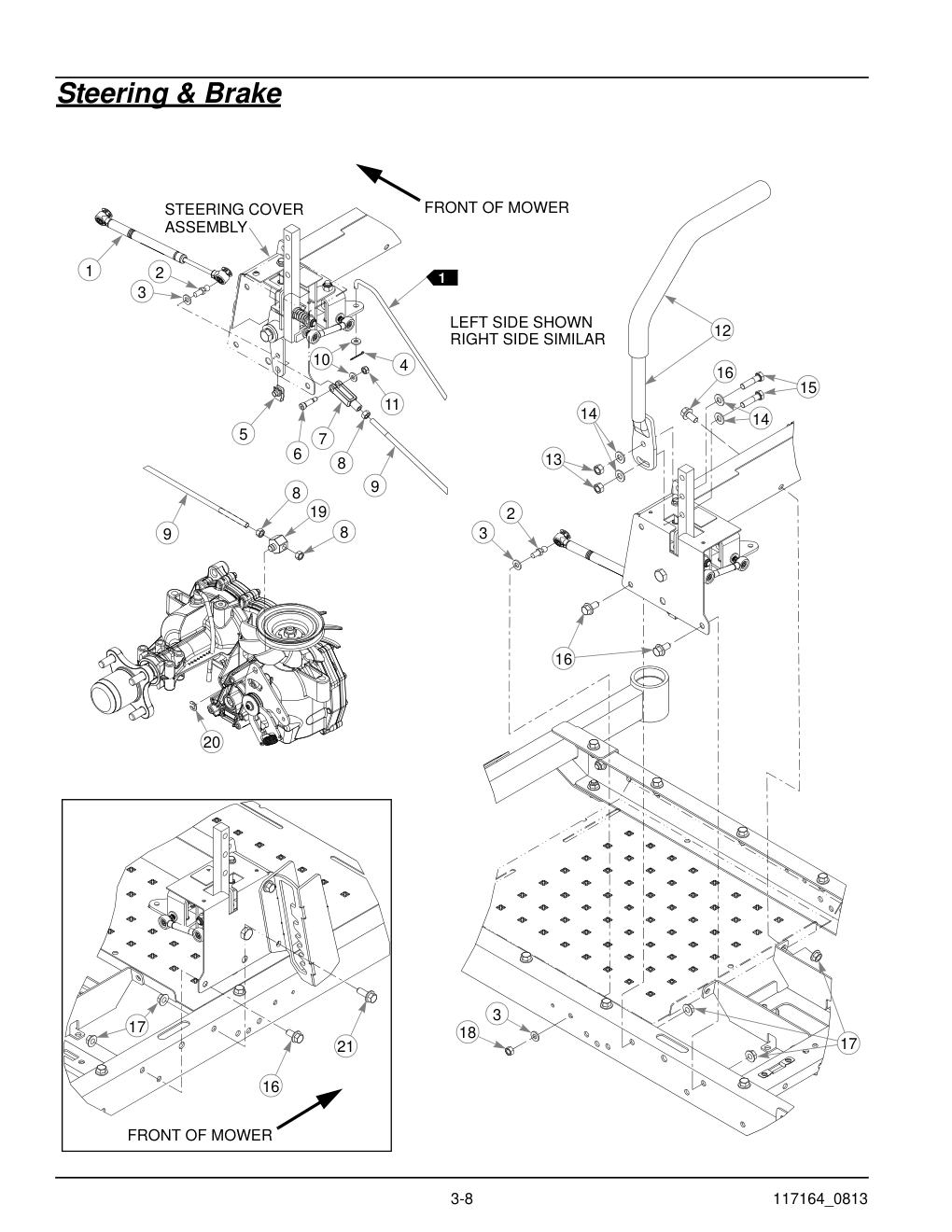

Steering & Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER | 603983 | 2 | 603983-Online |
| 2 | BALL STUD | 781922 | 4 | 781922-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 4 | CP .062D X 1.00 LG HML Z | 048553 | 2 | 048553-Online |
| 5 | CN .312-18 X .20 MAX THK | 601069 | 2 | HT601069-Online |
| 6 | SB .312 X .75 SH .250-20 | 772483 | 2 | HT772483-Online |
| 7 | YOKE, 5/16-24 | 604173 | 2 | 604173-Online |
| 8 | NT .312-24 HX ZNYC | 041152 | 6 | HT041152-Online |
| 9 | STEERING ROD | 603905 | 2 | 603905-Online |
| 10 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 11 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 12 | STEERING BAR (WITH GRIP) | 110370 | 2 | 110370-Online |
| 12 | STEERING BAR GRIP | 781260 | 1 | 781260-Online |
| 13 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 14 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 15 | CS .375-16 X 1.50 HX G5 | 080655 | 4 | HT080655-Online |
| 16 | CS .375-16 X .75 HX FLK | 029629 | 5 | HT029629-Online |
| 17 | NT .375-16 HX FLK ZNYC | 016899 | 6 | HT016899-Online |
| 18 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 19 | STEERING BUSHING | 116144 | 2 | HT116144-Online |
| 20 | CLIP | 603332 | 2 | 603332-Online |
| 21 | CS .375-16 X 1.00 HXFLK | 029751 | 1 | 029751-Online |

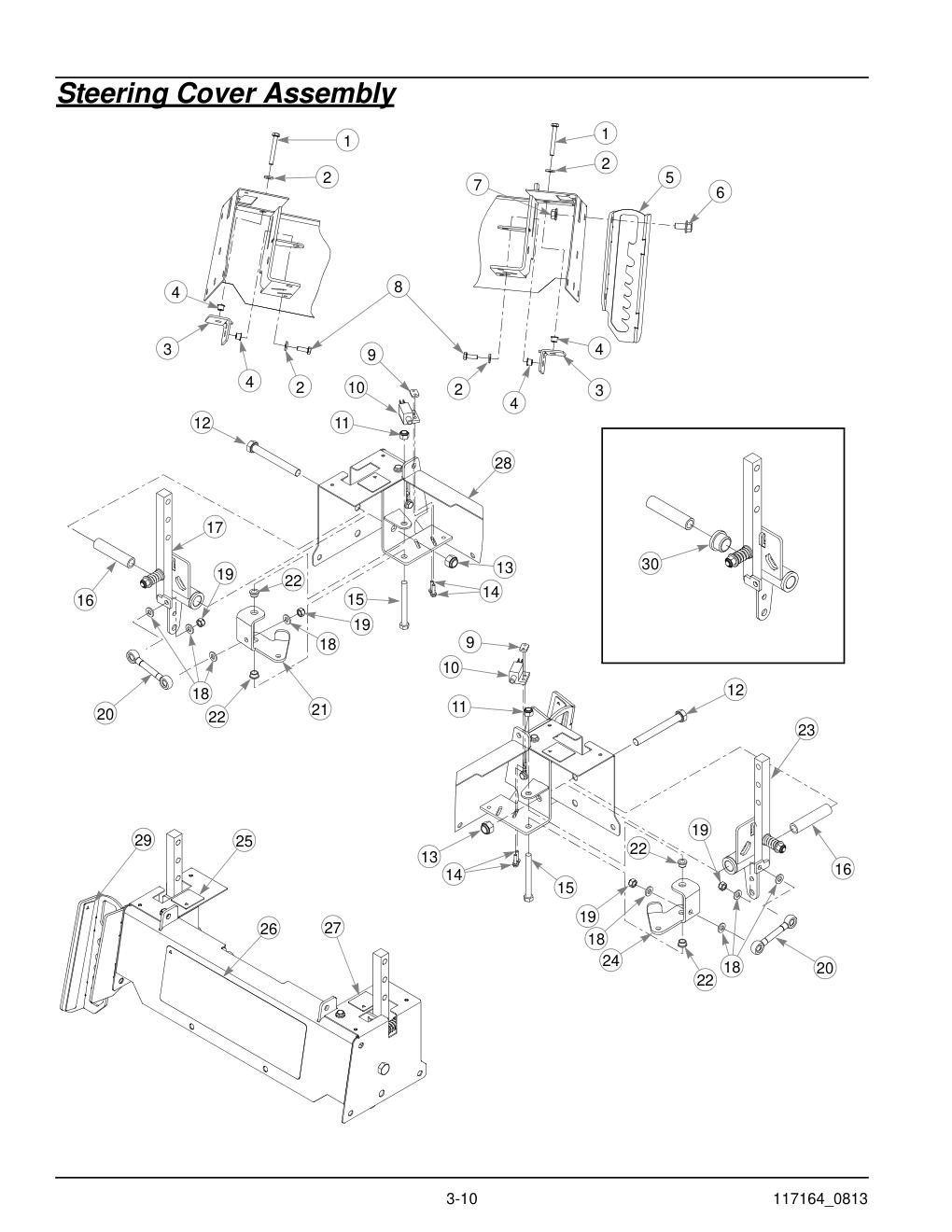

Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 2.00 HX FLTHD | 604452 | 2 | 604452-Online |
| 2 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 3 | DRIVE STRAIGHT STOP | 117540 | 2 | 117540-Online |
| 4 | 1/4-20 THREAD RIVET NUT | 808477 | 4 | 808477-Online |
| 5 | LATCH WITH DECAL | 551912 | 1 | HT551912-Online |
| 6 | CS .375-16 X .75 HX FLK | 029629 | 1 | HT029629-Online |
| 7 | NT .375-16 HX FLK ZNYC | 016899 | 1 | HT016899-Online |
| 8 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 9 | NUT PLATE .420 CENTERS | 601822 | 2 | 601822-Online |
| 10 | PUSH BUTTON SWITCH | 781211 | 2 | HT781211-Online |
| 11 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 12 | CS .500-13 X 4.25 HX G5 | 781708 | 2 | HT781708-Online |
| 13 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 14 | CS 10-24 X .75 HX FLK ZN | 063198 | 4 | 063198-Online |
| 15 | CS .375-16 X 3.50 HX G5 Z | 005108 | 2 | HT005108-Online |
| 16 | STEERING SPACER | 604288 | 2 | 604288-Online |
| 17 | LS STEERING BOX | 604300 | 1 | 604300-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 19 | NT .312-18 HX ZY NL | 058776 | 4 | HT058776-Online |
| 20 | BRAKE ROD | 604179 | 2 | 604179-Online |
| 21 | LS BRAKE BELLCRANK | 116142 | 1 | 116142-Online |
| 22 | BUSHING | 765339 | 4 | HT765339-Online |
| 23 | RS STEERING BOX | 604299 | 1 | 604299-Online |
| 24 | RS BRAKE BELLCRANK | 116141 | 1 | 116141-Online |
| 25 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 26 | RAPTOR ID DECAL | 604195 | 1 | 604195-Online |
| 27 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 28 | STEERING COVER | 116134 | 1 | 116134-Online |
| 29 | DECK HEIGHT DECAL | 604275 | 1 | 604275-Online |
| 30 | BUSHING | 781153 | 2 | HT781153-Online |
Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL ASSEMBLY | 604013 | 2 | 604013-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 4 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | LS FRONT WHEEL ASSEMBLY | 604358 | 1 | 604358-Online |
| 8 | RS FRONT WHEEL ASSEMBLY (NOT SHOWN) | 604357 | 1 | 604357-Online |

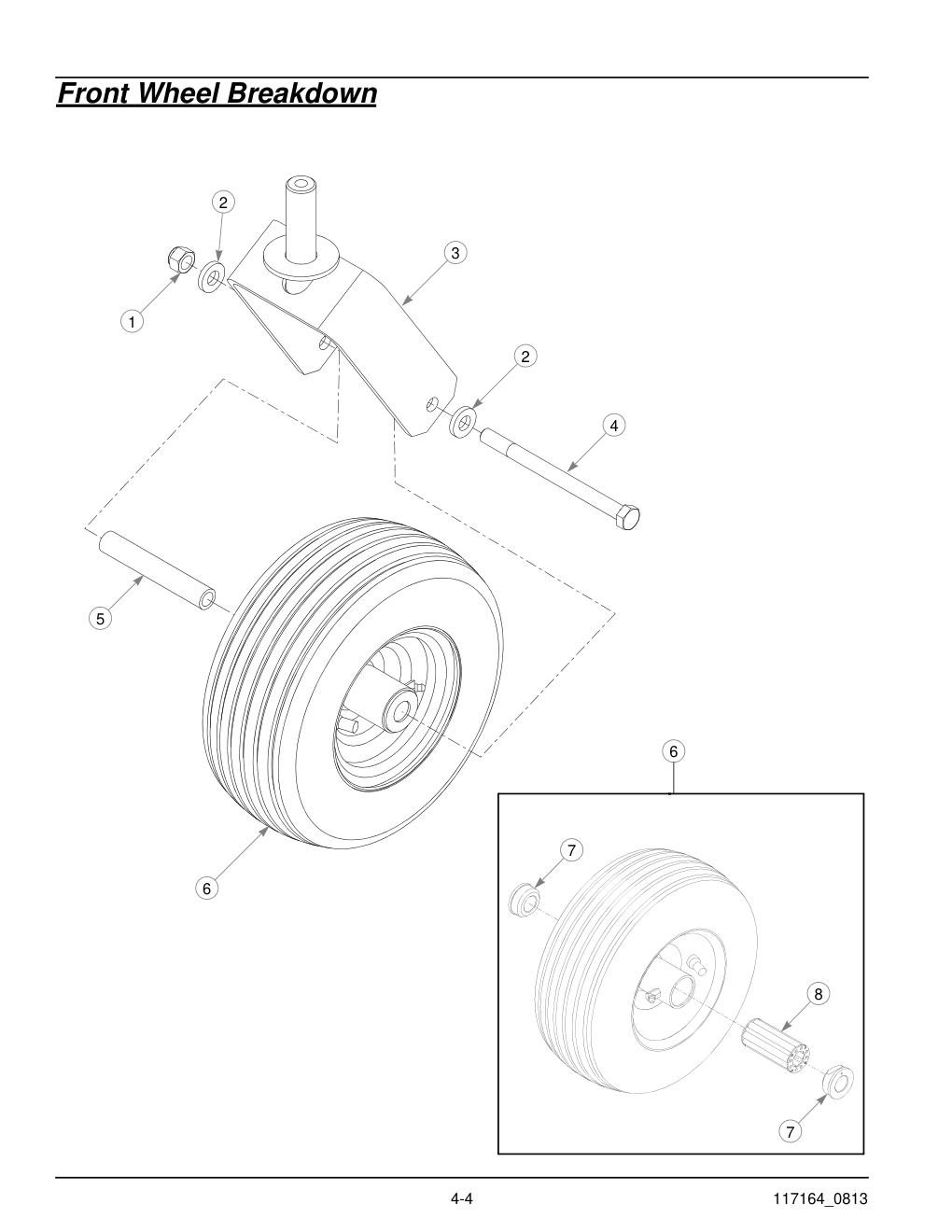

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 2 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 3 | CASTER FORK | 110116 | 1 | HT110116-Online |
| 4 | CS .500-13 X 6.50 HX G5 Z | 042630 | 1 | HT042630-Online |
| 5 | GAUGE WHEEL SPACER | 306969 | 1 | HT306969-Online |
| 6 | TIRE/WHEEL 11 X 4-5 RIBBED | 768044 | 1 | 768044-Online |
| 7 | BEARING CAP | 772806 | 2 | HT772806-Online |
| 8 | 3/4" ROLLER BEARING | 772814 | 1 | HT772814-Online |

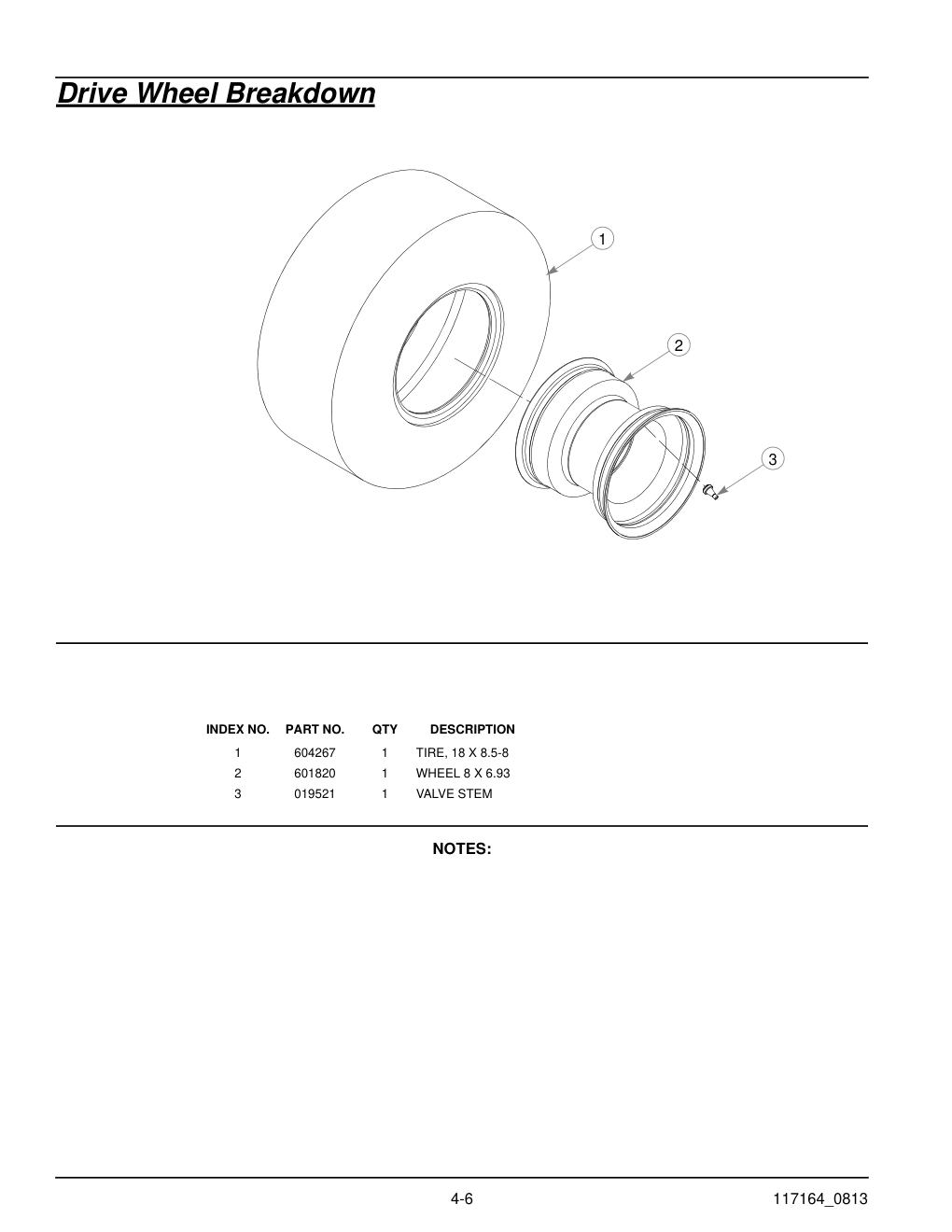

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE, 18 X 8.5-8 | 604267 | 1 | 604267-Online |
| 2 | WHEEL 8 X 6.93 | 601820 | 1 | 601820-Online |
| 3 | VALVE STEM | 019521 | 1 | HT019521-Online |

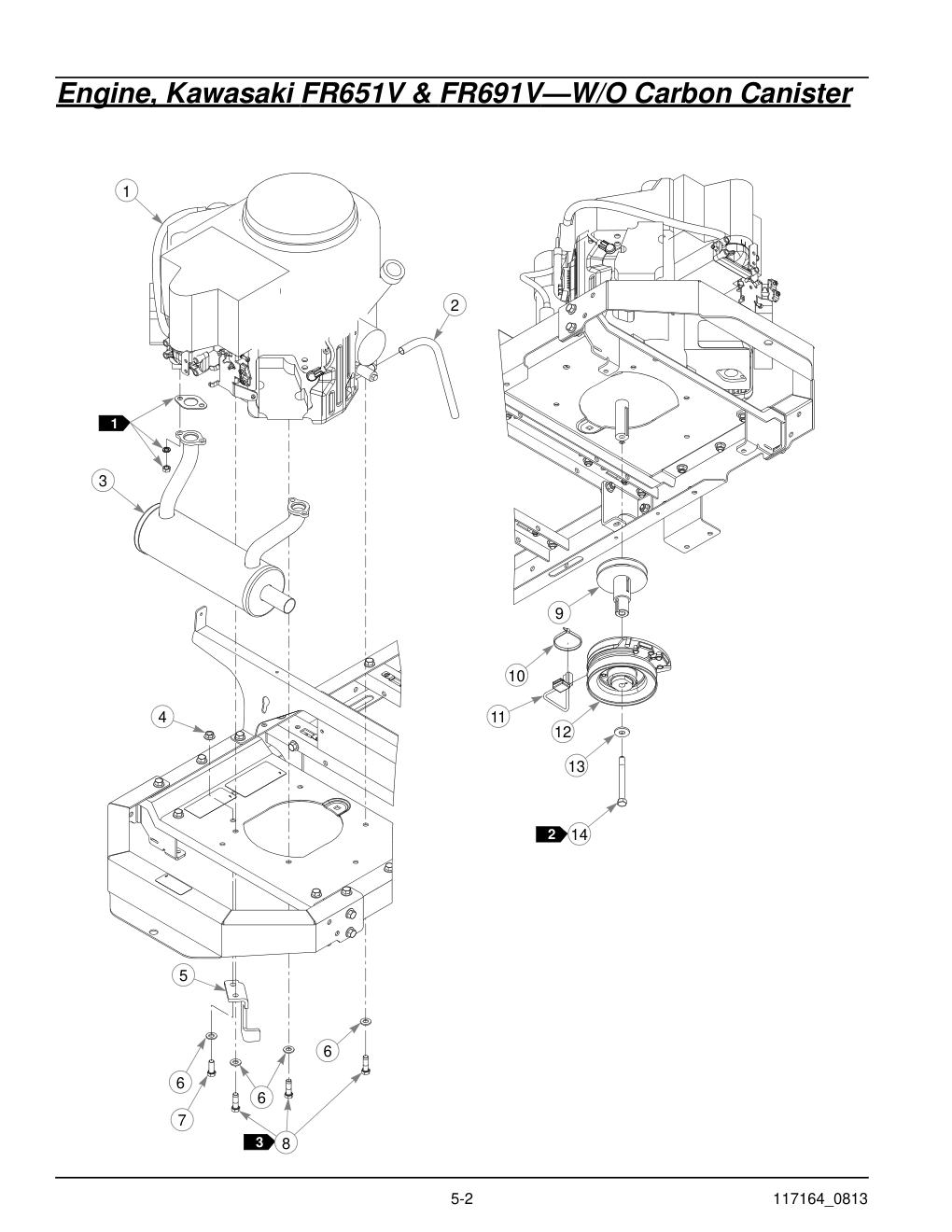

Engine, Kawasaki FR651V & FR691V-W/O Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR651V & FR691V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 HX FLK ZNYC | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 116290 | 1 | 116290-Online |
| 6 | FW .406 X .812 X .060 SAE | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
| 9 | STUB SHAFT PUMP PULLEY | 604185 | 1 | 604185-Online |
| 10 | WIRE TIE | 000331 | 3 | 000331-Online |
| 11 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 12 | CLUTCH KIT | 604244K | 1 | 604244K-Online |
| 13 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20 X 4.00 HX G5 | 604271 | 1 | 604271-Online |

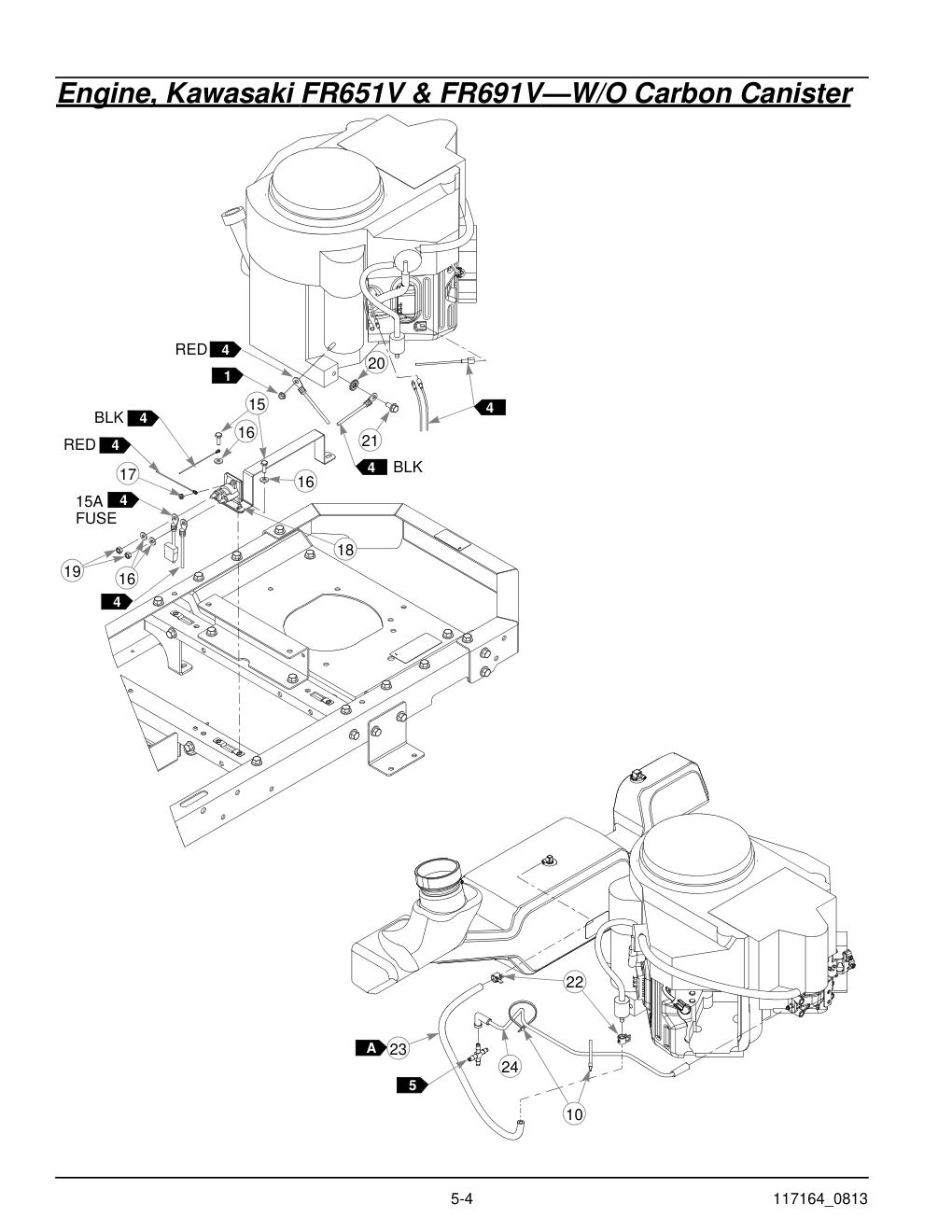

Engine, Kawasaki FR651V & FR691V-W/O Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 15 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 16 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 17 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 18 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 19 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 20 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 21 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 1 | 720516-Online |
| 22 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 23 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 24 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

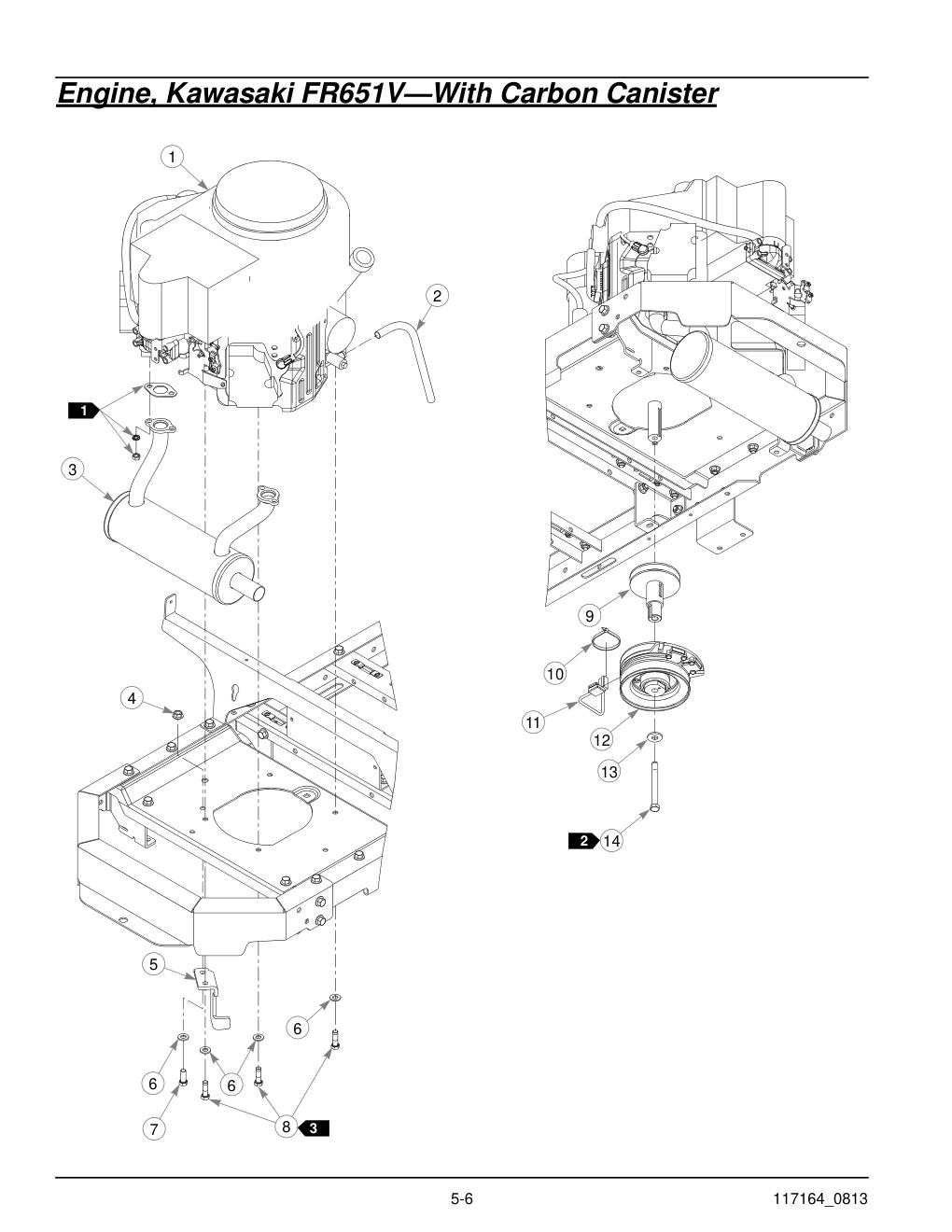

Engine, Kawasaki FR651V-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR651V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 HX FLK ZNYC | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 116290 | 1 | 116290-Online |
| 6 | FW .406 X .812 X .060 SAE | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
| 9 | STUB SHAFT PUMP PULLEY | 604185 | 1 | 604185-Online |
| 10 | WIRE TIE | 000331 | 4 | 000331-Online |
| 11 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 12 | CLUTCH | 604244 | 1 | 604244-Online |
| 13 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20 X 4.00 HX G5 | 604271 | 1 | 604271-Online |

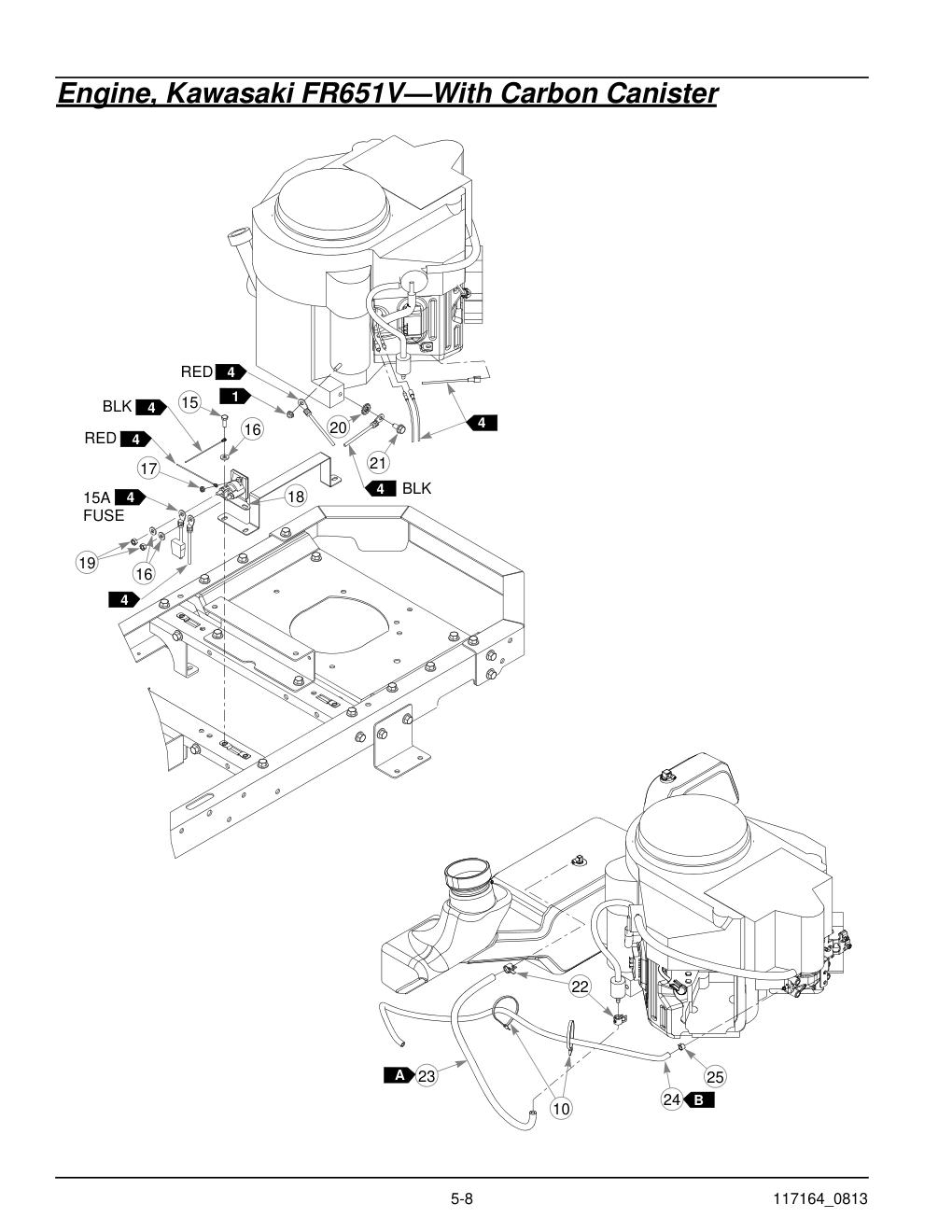

Engine, Kawasaki FR651V-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 15 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 16 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 17 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 18 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 19 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 20 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 21 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 1 | 720516-Online |
| 22 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 23 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 24 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 25 | CLAMP, 3/16" | 603112 | 1 | 603112-Online |

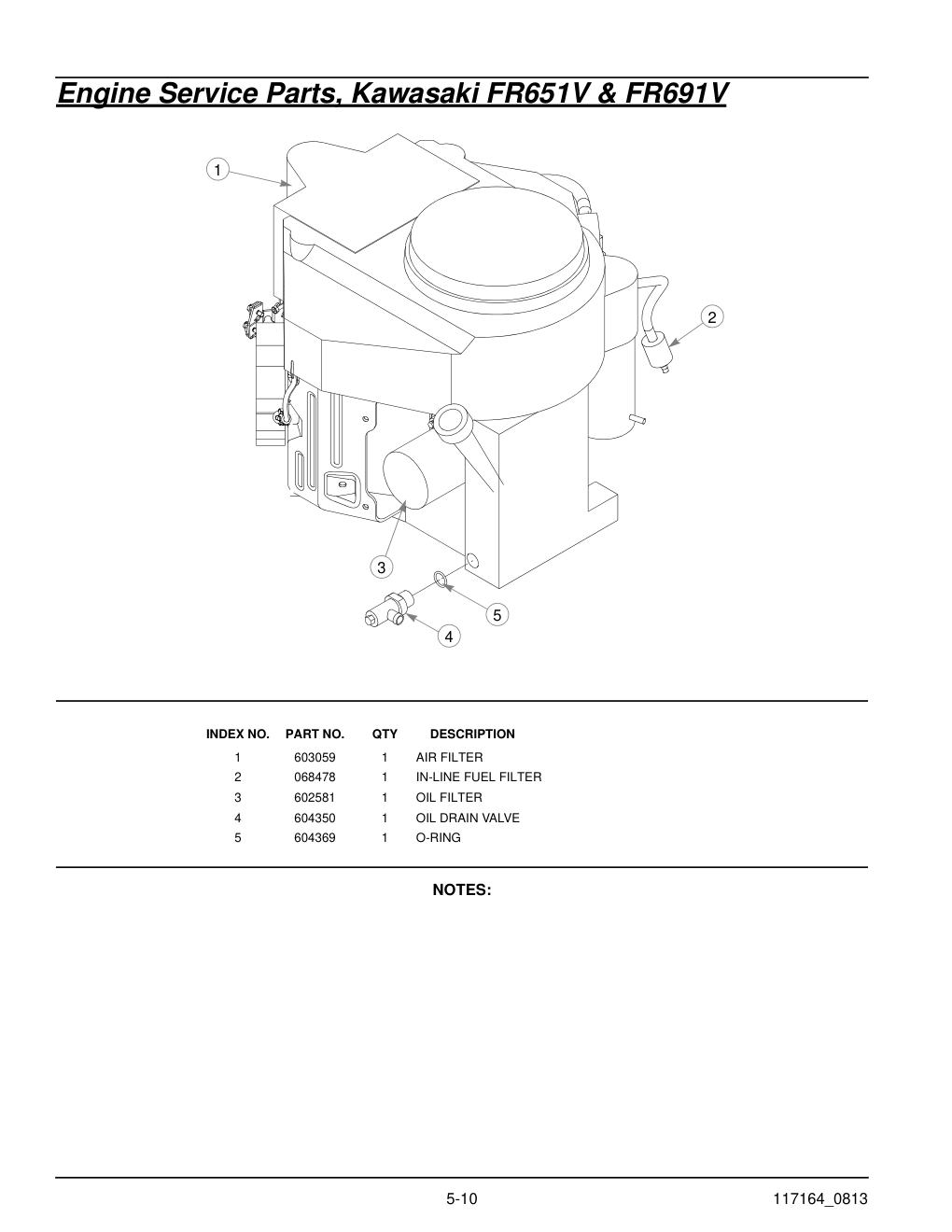

Engine Service Parts, Kawasaki FR651V & FR691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER | 603059 | 1 | 603059-Online |
| 2 | IN-LINE FUEL FILTER | 068478 | 1 | 068478-Online |
| 3 | OIL FILTER | 602581 | 1 | 602581-Online |
| 4 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 5 | O-RING | 604369 | 1 | 604369-Online |

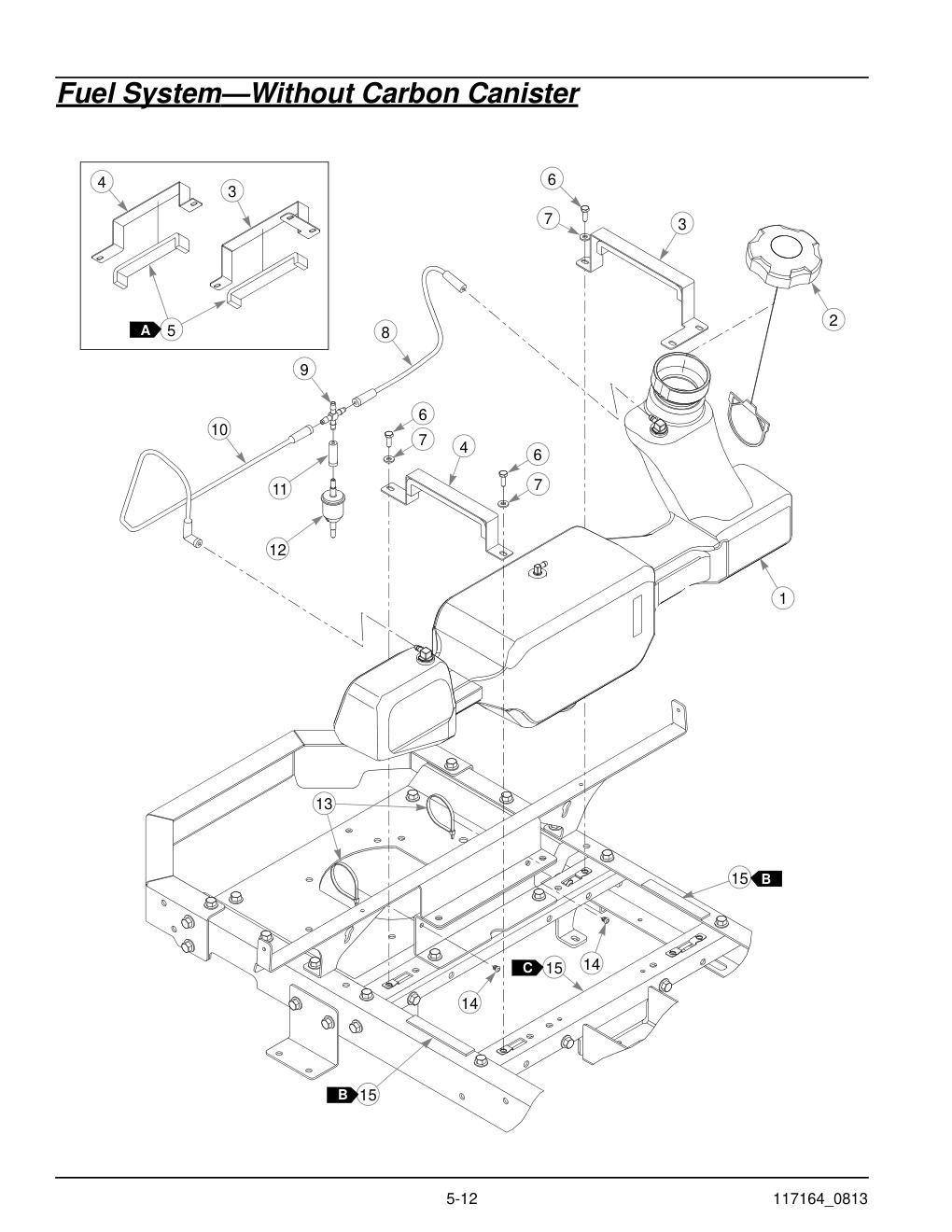

Fuel System-Without Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK ASSEMBLY | 604336 | 1 | 604336-Online |
| 2 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 3 | LEFT TANK MOUNT | 117059 | 1 | 117059-Online |
| 4 | RIGHT TANK MOUNT | 117060 | 1 | 117060-Online |
| 5 | SEAL 3/8 X 3/4 | 713198 | 18.5" | 713198-Online |
| 6 | CS .250-20 X .75 HX G5 | 055939 | 3 | 055939-Online |
| 7 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 3 | HT768515-Online |
| 8 | 3/16" FORMED VAPOR LINE | 604279 | 1 | 604279-Online |
| 9 | 1/4" HOSE BARB CROSS | 604322 | 1 | 604322-Online |
| 10 | 3/16" FORMED VAPOR LINE | 604273 | 1 | 604273-Online |
| 11 | BOOT, 3/16" TO 1/4" BARB | 604292 | 1 | 604292-Online |
| 12 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 13 | WIRE TIE | 000331 | 2 | 000331-Online |
| 14 | PUSH BUTTON MOUNT | 604307 | 2 | 604307-Online |
| 15 | WEATHERSTRIP | 033035 | 22" | 033035-Online |

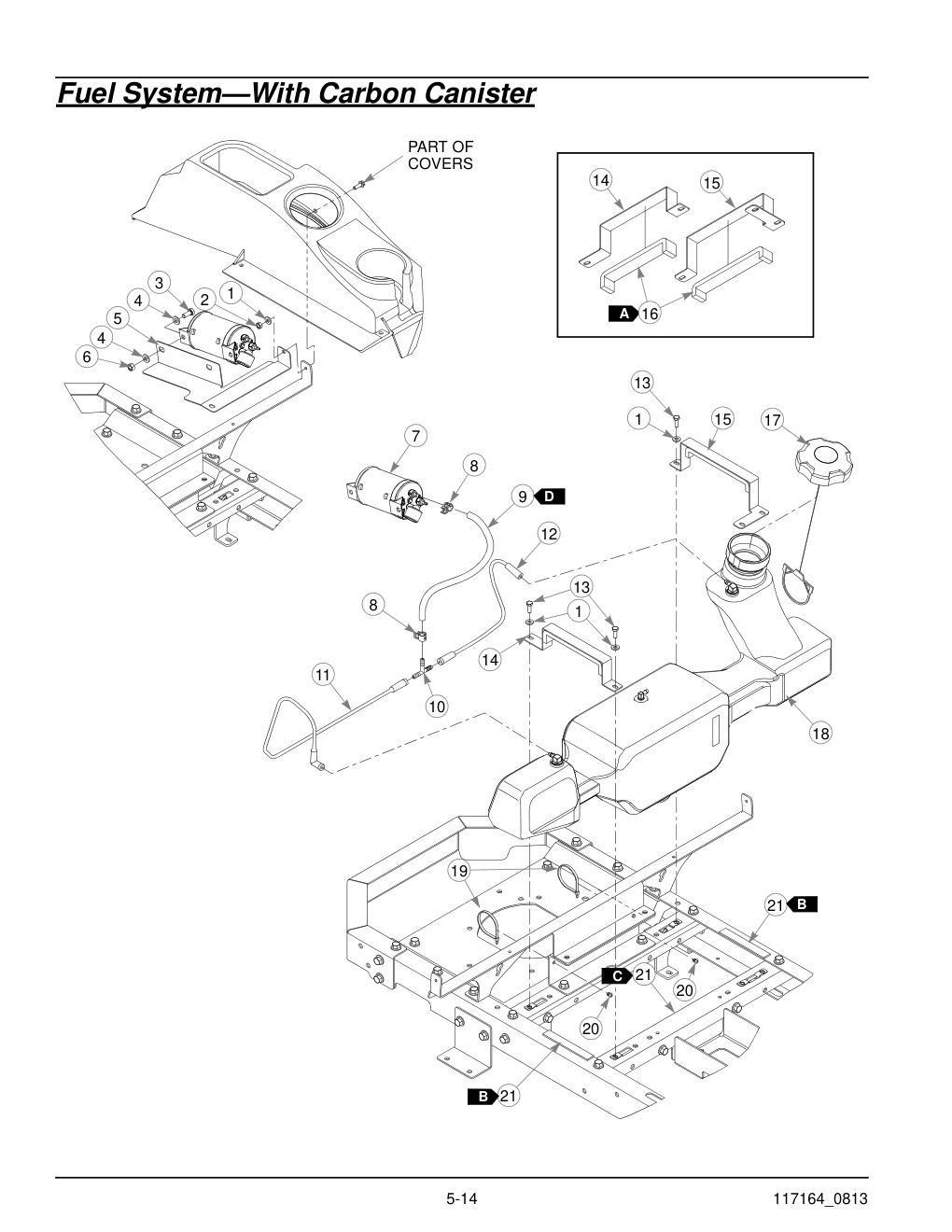

Fuel System-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 2 | NT .250-20 HX G5 ZNYC | 024927 | 1 | HT024927-Online |
| 3 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CARBON CANISTER MOUNT | 117463 | 1 | 117463-Online |
| 6 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 7 | CARBON CANISTER | 604376 | 1 | 604376-Online |
| 8 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 9 | 1/4" FUEL LINE | 015818 | 13" | HT015818-Online |
| 10 | PLASTIC TEE 1/4" | 603306 | 1 | 603306-Online |
| 11 | 3/16" FORMED VAPOR LINE | 604273 | 1 | 604273-Online |
| 12 | 3/16" FORMED VAPOR LINE | 604279 | 1 | 604279-Online |
| 13 | CS .250-20 X .75 HX G5 | 055939 | 3 | 055939-Online |
| 14 | RIGHT TANK MOUNT | 117060 | 1 | 117060-Online |
| 15 | LEFT TANK MOUNT | 117059 | 1 | 117059-Online |
| 16 | SEAL 3/8 X 3/4 | 713198 | 18.5" | 713198-Online |
| 17 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 18 | FUEL TANK ASSEMBLY | 604336 | 1 | 604336-Online |
| 19 | WIRE TIE | 000331 | 2 | 000331-Online |
| 20 | PUSH BUTTON MOUNT | 604307 | 2 | 604307-Online |
| 21 | WEATHERSTRIP | 033035 | 22" | 033035-Online |

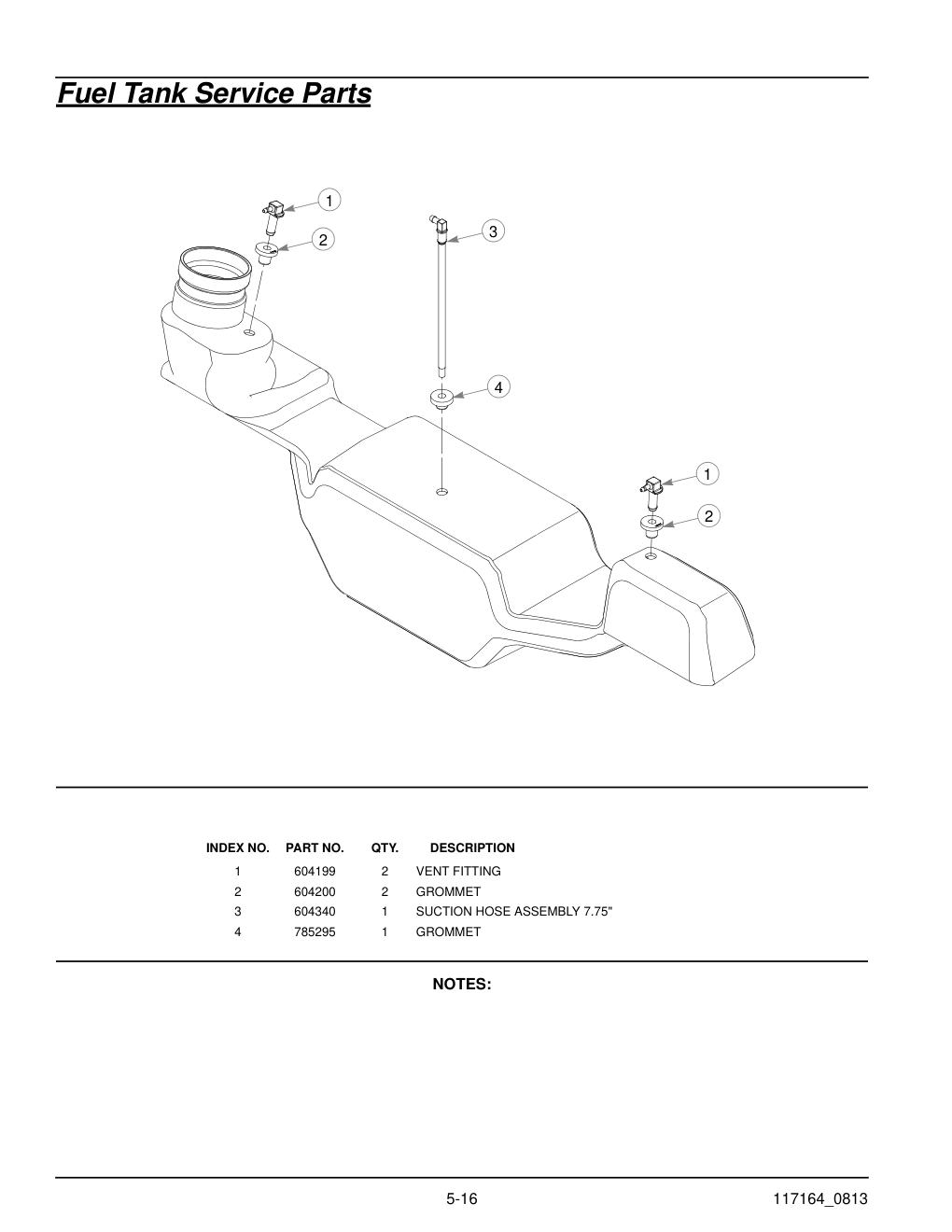

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING | 604199 | 2 | 604199-Online |
| 2 | GROMMET | 604200 | 2 | 604200-Online |
| 3 | SUCTION HOSE ASSEMBLY 7.75" | 604340 | 1 | 604340-Online |
| 4 | GROMMET | 785295 | 1 | HT785295-Online |
42" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 42" DECK (WITH DECALS) | 551896 | 1 | 551896-Online |
| 2 | DANGER/CHUTE DECAL | 604221 | 1 | 604221-Online |
| 3 | BELT ROUTING DECAL | 602243 | 1 | 602243-Online |
| 4 | DANGER/OBJECTS DECAL | 604222 | 1 | 604222-Online |
| 5 | 42" DECK ID DECAL | 793521 | 1 | 793521-Online |

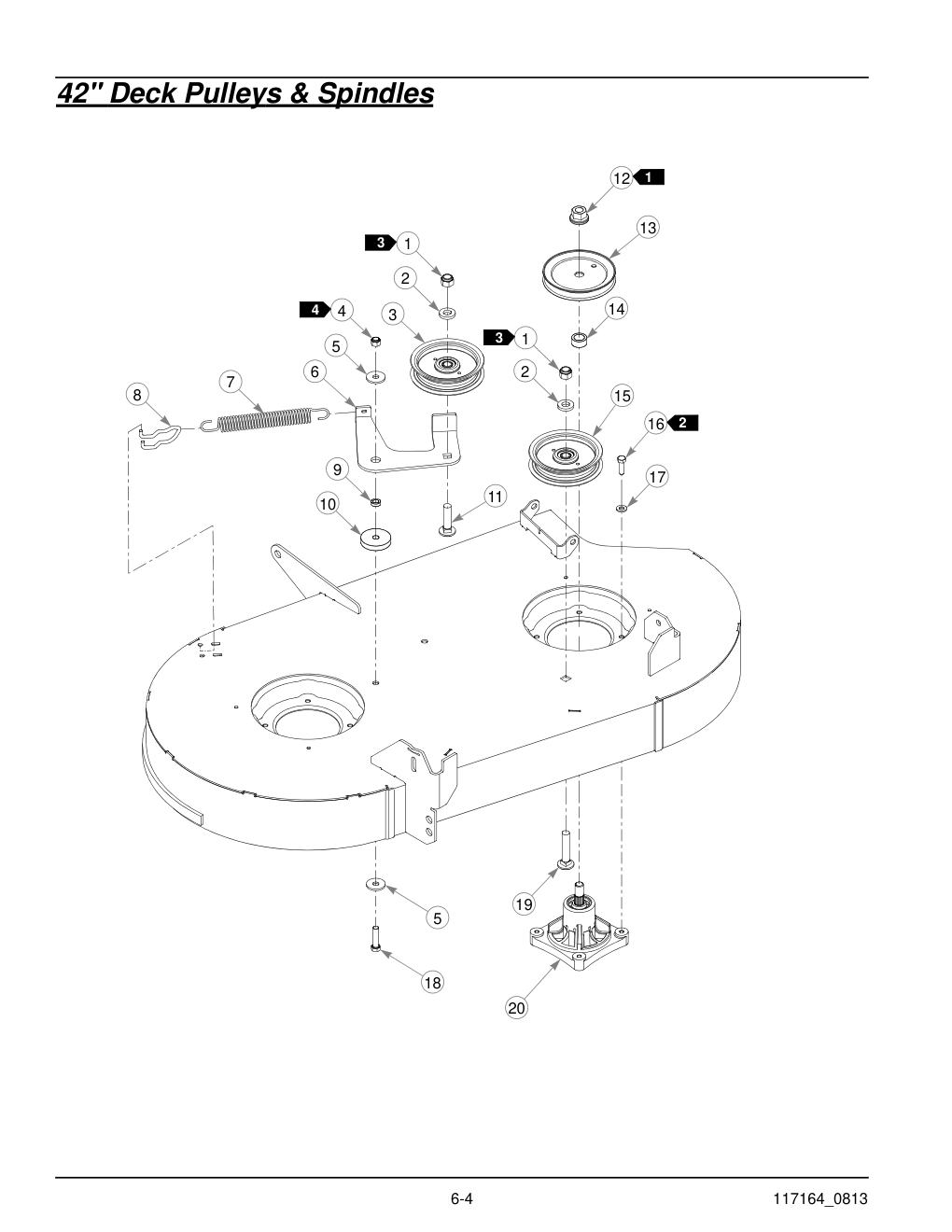

42" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 2 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .375-16 HX ZY NL | 086660 | 1 | HT086660-Online |
| 5 | FW .406 X 1.25 X .12 HRD Z | 712893 | 2 | HT712893-Online |
| 6 | IDLER ARM | 117512 | 1 | 117512-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | SPRING TENSIONER ANCHOR | 604110 | 1 | 604110-Online |
| 9 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 10 | SPACER | 117539 | 1 | HT117539-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | NT .562-18 HX G5 ZN | 604172 | 2 | 604172-Online |
| 13 | PULLEY | 603987 | 2 | 603987-Online |
| 14 | PULLEY SPACER | 604123 | 2 | 604123-Online |
| 15 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 16 | CS .312-18 X 1.00 HX G5 | 036236 | 8 | 036236-Online |
| 17 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 18 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 19 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 20 | SPINDLE ASSEMBLY | 604214 | 2 | 604214-Online |

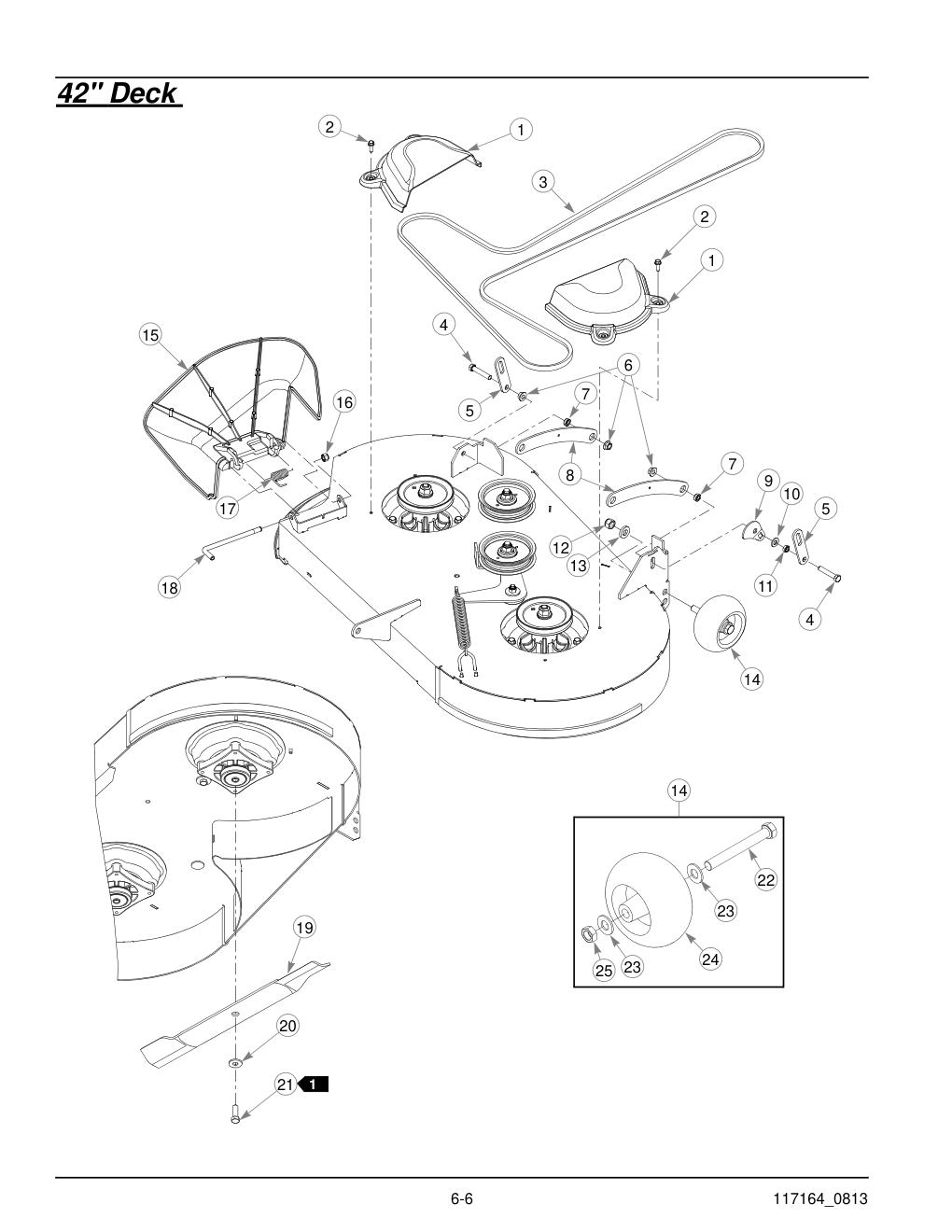

42" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 42" PULLEY COVER | 604403 | 2 | 604403-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, A SEC | 793828 | 1 | HT793828-Online |
| 4 | CS .375-16 X 2.00 G5 ZNYC | 016410 | 2 | HT016410-Online |
| 5 | DECK LIFT LINK | 116157 | 2 | HT116157-Online |
| 6 | NT .375-16 HX FLK ZNYC | 016899 | 3 | HT016899-Online |
| 7 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 8 | DECK LINK | 116155 | 2 | HT116155-Online |
| 9 | LEVELER CAM | 116911 | 1 | HT116911-Online |
| 10 | FW .406 X .812 X .060 SAE | 767954 | 1 | HT767954-Online |
| 11 | NT .375-16 HX JAM G5 Z | 706168 | 1 | HT706168-Online |
| 12 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 13 | FW .531 X 1.063 X .090 SAE | 767962 | 1 | HT767962-Online |
| 14 | PLASTIC WHEEL ASSEMBLY | 788166 | 1 | HT788166-Online |
| 15 | DISCHARGE CHUTE | 604268 | 1 | 604268-Online |
| 16 | NT .375-16 HX ZY NL | 086660 | 1 | HT086660-Online |
| 17 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 18 | DISCHARGE CHUTE PIN | 604346 | 1 | 604346-Online |
| 19 | BLADE, 20.50"-M-F-CW | 603992 | 2 | 603992-Online |
| 19 | BLADE, 20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| 19 | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| 19 | BLADE, 20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| 19 | BLADE, 20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| 19 | BLADE, 20.50" GAT-F-CW | 794230 | 2 | HT794230-Online |
| 20 | FW .453 X 1.12 X .119 HRD | 602680 | 2 | 602680-Online |
| 21 | CS .437-20 X 1.25 HX G5 ZNY | 754101 | 2 | HT754101-Online |
| 22 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 23 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 24 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 25 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

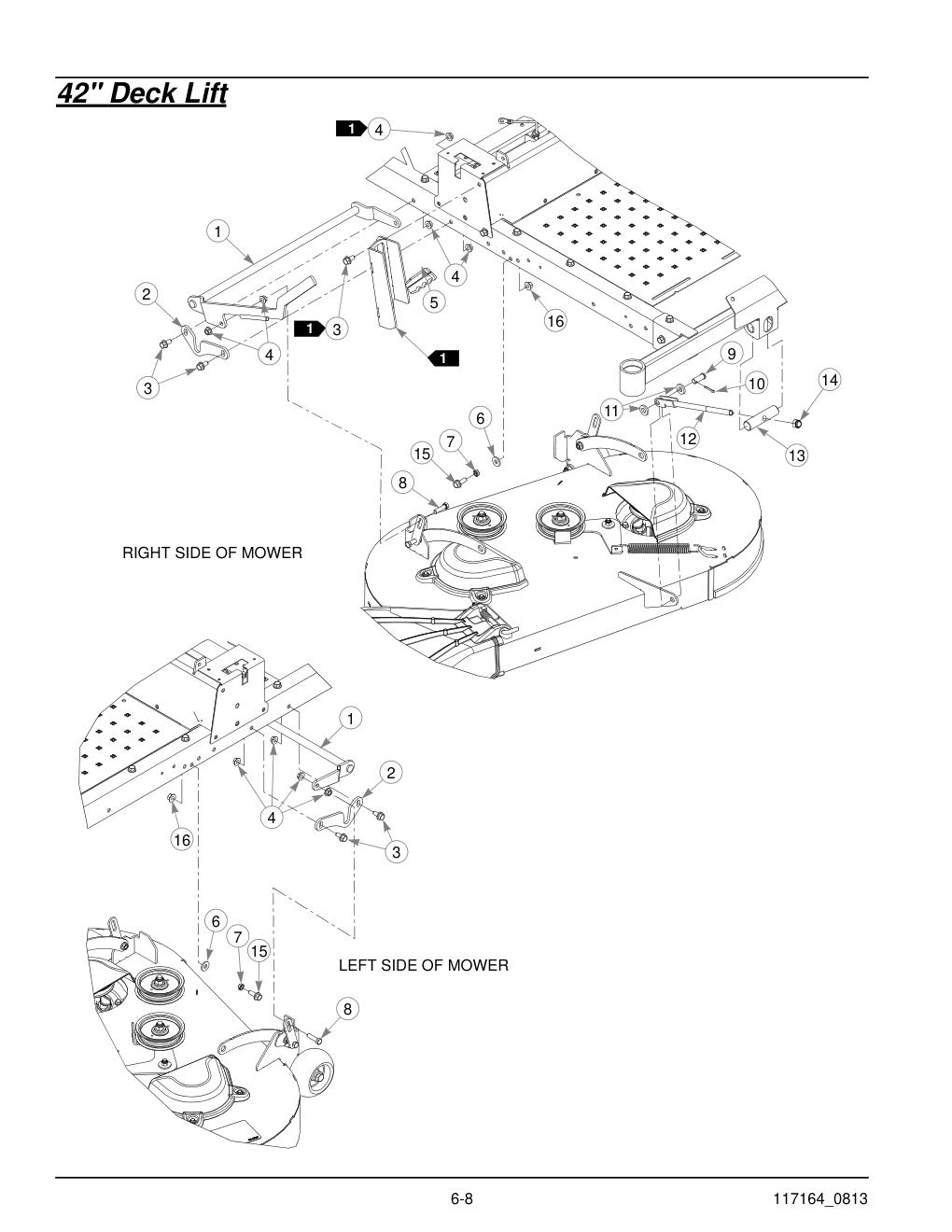

42" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LIFT HANDLE | 116156 | 1 | HT116156-Online |
| 2 | PIVOT BLOCK | 116151 | 2 | HT116151-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 4 | HT029629-Online |
| 4 | NT .375-16 HX FLK ZNYC | 016899 | 8 | HT016899-Online |
| 5 | GRIP | 604377 | 1 | 604377-Online |
| 6 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |
| 7 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 8 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 9 | CE .500 X 1.25 .156 X 1.093 | 027714 | 1 | HT027714-Online |
| 10 | CP .156D X 1.00 LG HML Z | 017251 | 1 | HT017251-Online |
| 11 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 12 | LIFT ROD | 603918 | 1 | 603918-Online |
| 13 | PIVOT PIN | 603920 | 1 | 603920-Online |
| 14 | NT .500-13 NL G5 | 781567 | 1 | HT781567-Online |
| 15 | CS .375-16 X 1.00 HX FLK | 029751 | 2 | 029751-Online |
| 16 | NT 0.375-16 FL NY GF | 604515 | 2 | 604515-Online |

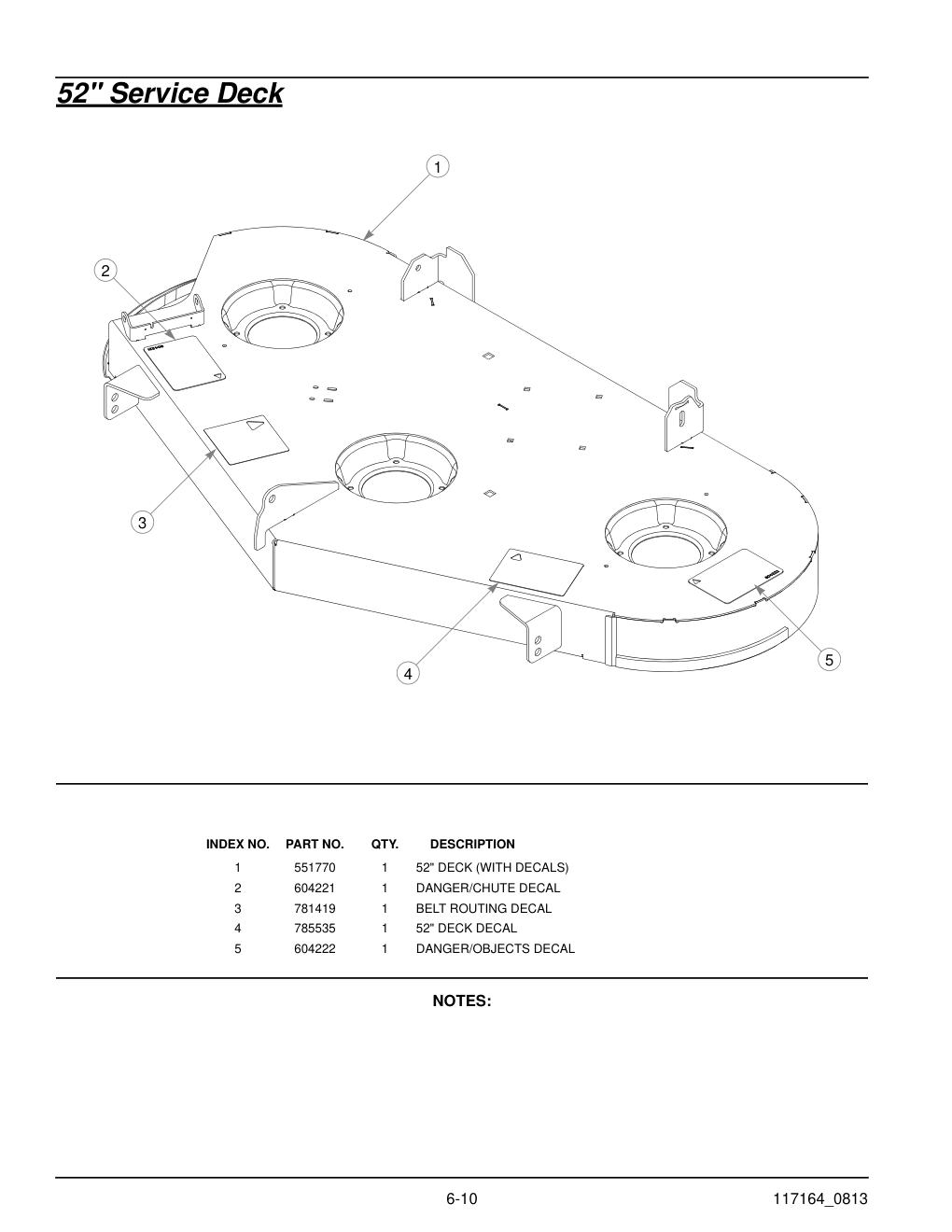

52" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 52" DECK (WITH DECALS) | 551770 | 1 | 551770-Online |
| 2 | DANGER/CHUTE DECAL | 604221 | 1 | 604221-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | 52" DECK DECAL | 785535 | 1 | 785535-Online |
| 5 | DANGER/OBJECTS DECAL | 604222 | 1 | 604222-Online |

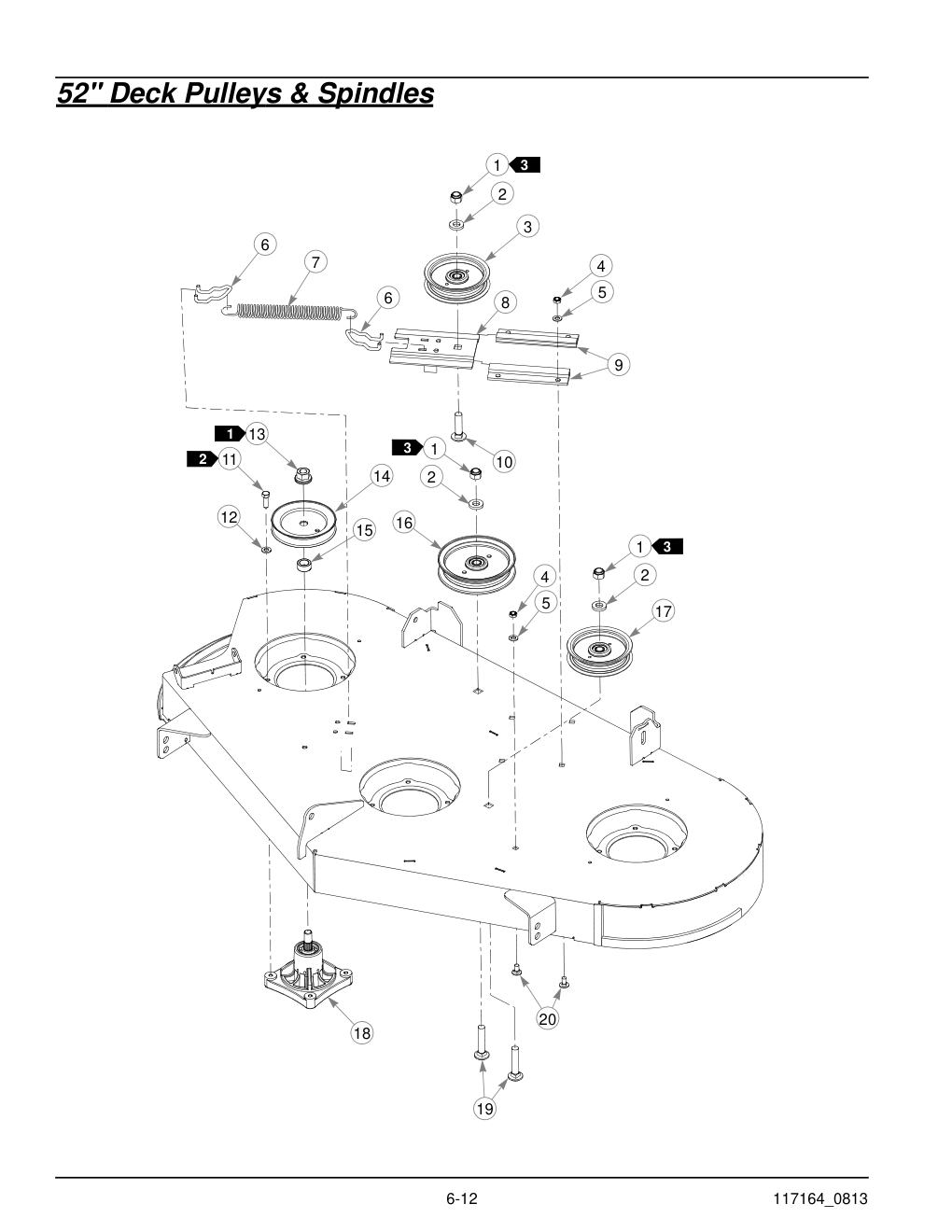

52" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 5 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 5 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604194 | 1 | 604194-Online |
| 9 | IDLER SLIDE | 604079 | 2 | 604079-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .312-18 X 1.00 HX G5 | 036236 | 12 | 036236-Online |
| 12 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 13 | NT .562-18 HX G5 ZN | 604172 | 3 | 604172-Online |
| 14 | DRIVE PULLEY "B-SEC" | 603988 | 3 | 603988-Online |
| 15 | PULLEY SPACER | 604123 | 3 | 604123-Online |
| 16 | IDLER PULLEY, 5.00" O.D. | 604231 | 1 | 604231-Online |
| 17 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 18 | SPINDLE ASSEMBLY | 604214 | 3 | 604214-Online |
| 19 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |
| 20 | CB .312-18 X .620 G5 ZN | 083147 | 5 | 083147-Online |

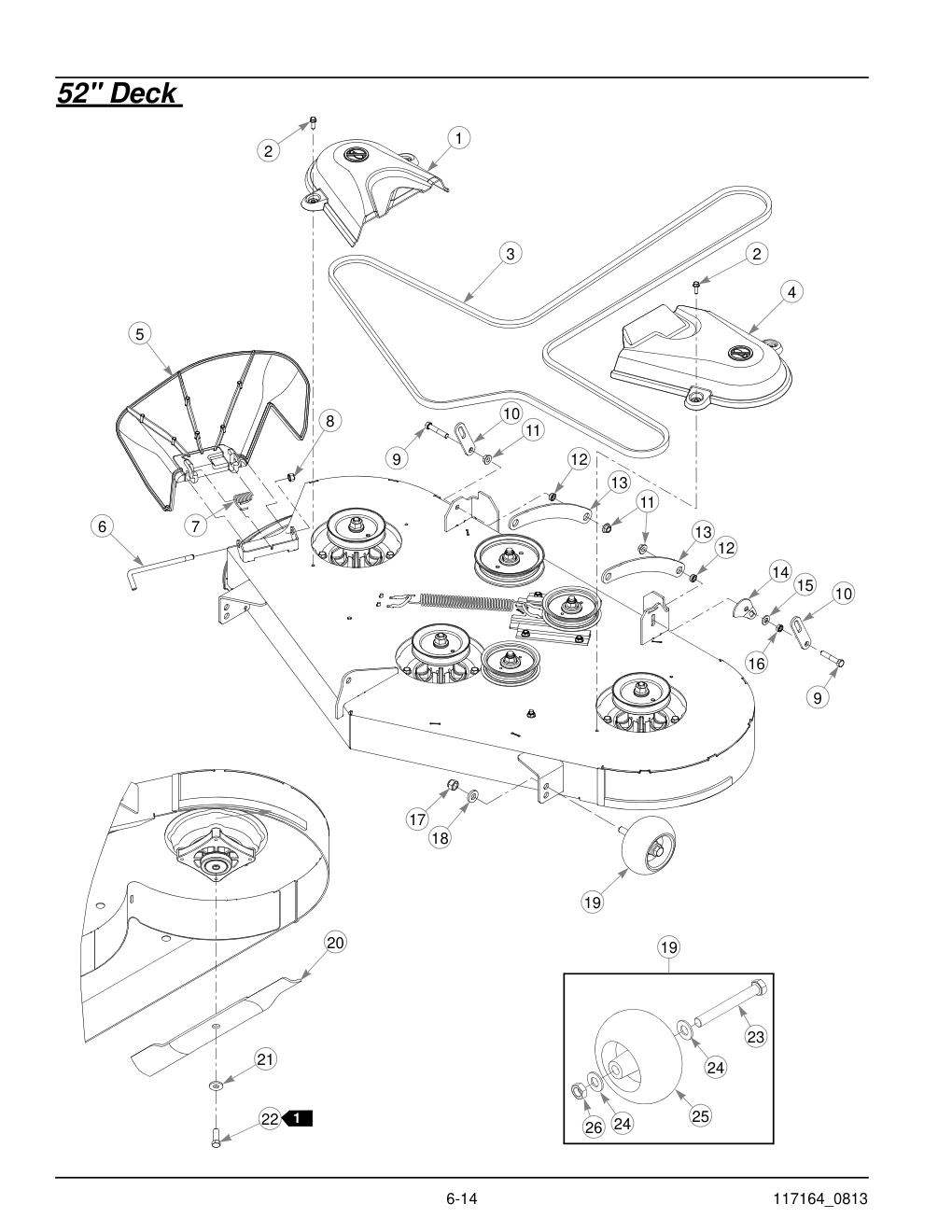

52" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 604337 | 1 | 604337-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, B 140.77" EL | 791988 | 1 | HT791988-Online |
| 4 | LS PULLEY COVER | 604338 | 1 | 604338-Online |
| 5 | DISCHARGE CHUTE | 604268 | 1 | 604268-Online |
| 6 | DISCHARGE CHUTE PIN | 604346 | 1 | 604346-Online |
| 7 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 8 | NT .375-16 HX ZY NL | 086660 | 1 | HT086660-Online |
| 9 | CS .375-16 X 2.00 G5 ZNYC | 016410 | 2 | HT016410-Online |
| 10 | DECK LIFT LINK | 116157 | 2 | HT116157-Online |
| 11 | NT .375-16 HX FLK ZNYC | 016899 | 3 | HT016899-Online |
| 12 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 13 | DECK LINK | 116155 | 2 | HT116155-Online |
| 14 | LEVELER CAM | 116911 | 1 | HT116911-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 1 | HT767954-Online |
| 16 | NT .375-16 HX JAM G5 Z | 706168 | 1 | HT706168-Online |
| 17 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 18 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 19 | PLASTIC WHEEL ASSEMBLY | 788166 | 2 | HT788166-Online |
| 20 | BLADE, 17.86" -M-F-CW | 603995 | 3 | 603995-Online |
| 20 | BLADE, 17.86"-L-F-CW | 783753 | 3 | 783753-Online |
| 20 | BLADE, 17.86"-H-F-CW | 787721 | 3 | HT787721-Online |
| 20 | BLADE, 17.86"-CAT-F-CW | 603848 | 3 | 603848-Online |
| 20 | BLADE, 17.86"-MUL-F-CW | 794198 | 3 | HT794198-Online |
| 20 | BLADE, 17.86"-GAT-F-CW | 785436 | 3 | 785436-Online |
| 21 | FW .453 X 1.12 X .119 HRD | 602680 | 3 | 602680-Online |
| 22 | CS .437-20 X 1.25 HX G5 ZNY | 754101 | 3 | HT754101-Online |
| 23 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 24 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 25 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 26 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

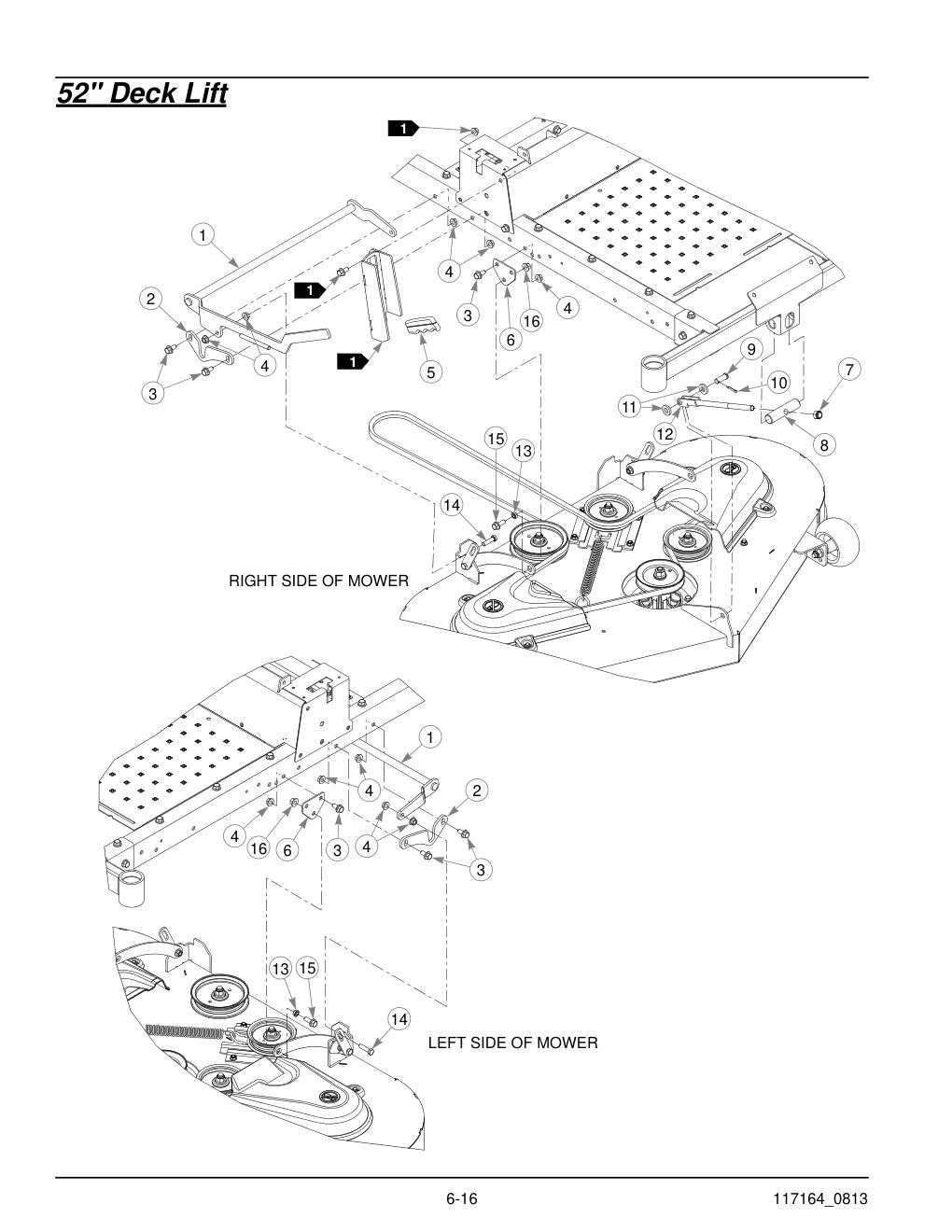

52" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LIFT HANDLE | 116156 | 1 | HT116156-Online |
| 2 | PIVOT BLOCK | 116151 | 2 | HT116151-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 8 | HT029629-Online |
| 4 | NT .375-16 HX FLK ZNYC | 016899 | 12 | HT016899-Online |
| 5 | GRIP | 604377 | 1 | 604377-Online |
| 6 | DECK LINK PLATE | 116916 | 2 | HT116916-Online |
| 7 | NT .500-13 NL G5 | 781567 | 1 | HT781567-Online |
| 8 | PIVOT PIN | 603920 | 1 | 603920-Online |
| 9 | CE .500 X 1.25 .156 X 1.093 | 027714 | 1 | HT027714-Online |
| 10 | CP .156D X 1.00 LG HML Z | 017251 | 1 | HT017251-Online |
| 11 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 12 | LIFT ROD | 603918 | 1 | 603918-Online |
| 13 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 14 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 15 | CS .375-16 X 1.00 HXFLK | 029751 | 2 | 029751-Online |
| 16 | NT .375-16 FL NY GF | 604515 | 2 | 604515-Online |

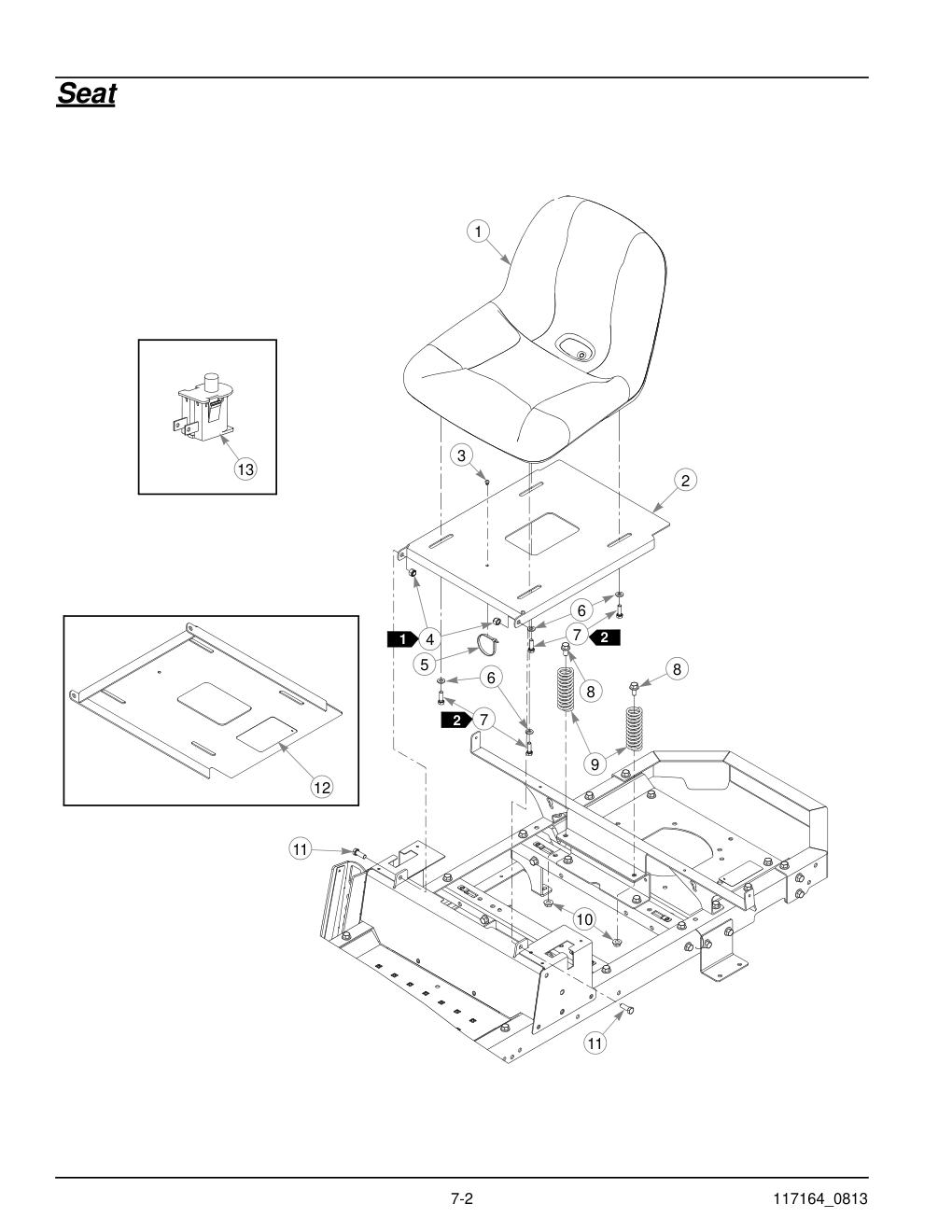

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 601807 | 1 | 601807-Online |
| 2 | SEAT PAN (WITH DECAL) | 551897 | 1 | 551897-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 5 | WIRE TIE | 000331 | 1 | 000331-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 7 | CS .312-18 X 1.00 HX G5 | 036236 | 4 | 036236-Online |
| 8 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 9 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 2 | HT793851-Online |
| 10 | NT .375-16 HX FLK ZNYC | 016899 | 2 | HT016899-Online |
| 11 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 12 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 13 | SEAT SWITCH | 793315 | 1 | 793315-Online |
