Illustrated Parts List
52" Raptor Parts Manual - 939116EX - HTRTRL052KAWFR691VE - 604214
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 604214Model: 939116EXSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameFenders, Instrument Panel & Wire Harness & FootrestBatteryEngine GuardTransmission Assembly & Drive Belt (Multi-Page)Transmission Service PartsSteering & BrakeSteering Cover AssemblyWheels & TiresFront Wheel Assembly BreakdownDrive Wheel BreakdownEngine, Muffler & Clutch (Multi-Page)Engine Service PartsFuel SystemFuel Tank Service PartsService DeckDeck Pulleys & SpindlesSpindle Service Parts - 604214Deck Belt, Discharge Chute, Pulley Covers & BladesDeck Lift & Mounting Hardware (Multi-Page)SeatFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 123637-1 | 1 | 123637-1-Online |
| 2 | SPRING SUPPORT | 123636-1 | 1 | 123636-1-Online |
| 3 | CS .375-16X0.75 HXF G5ZY | 029629 | 10 | HT029629-Online |
| 4 | SERVICE, BUMPER STAMPED | 553148 | 1 | 553148-Online |
| 5 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 6 | CS .375-16X.75 HXF NF | 604176 | 30 | 604176-Online |
| 7 | SVC, ENGINE PLATE | 551858 | 1 | 551858-Online |
| 8 | SVC, RS REAR BRKT | 551859 | 1 | HT551859-Online |
| 9 | NT .375-16 HXFLK PLN | 604177 | 30 | 604177-Online |
| 10 | SVC, HYDRO BRKT | 551863 | 2 | HT551863-Online |
| 11 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 12 | SVC, LS REAR BRKT | 551860 | 1 | HT551860-Online |
| 13 | NT .375-16 FLKG5 | 016899 | 10 | HT016899-Online |
| 14 | CN .250-20X .150 MAX THK | 601982 | 5 | 601982-Online |
| 15 | SVC, CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | SVC, FRONT BRKT | 551862 | 1 | HT551862-Online |
| 17 | SVC, BRACKET, LH FRONT | 116124-1 | 1 | 116124-1-Online |
| 18 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 19 | BATTERY TRAY | 552570 | 1 | 552570-Online |
| 20 | MOUNT, PUSH BUTTON | 604307 | 6 | 604307-Online |
| 21 | WIRE TIE, SMALL/SHORT | 000331 | 6 | 000331-Online |
| 22 | SVC, LS FRAME CHANNEL | 551868 | 1 | 551868-Online |
| 23 | SERIAL NUMBER / SPEC DECAL | N/A | 2 | No SKU |
| 24 | SVC, RS FRAME CHANNEL | 551866 | 1 | 551866-Online |
| 25 | SVC, FOOT PAN | 551865 | 1 | 551865-Online |
| 26 | SVC, FRONT CROSS W/A | 124803-1 | 1 | 124803-1-Online |
| 27 | DECAL, LEVEL FUEL BLOWM | 605782 | 1 | 605782-Online |
| 28 | DECAL, SAFE OPERATE-GRAY | 601981 | 1 | 601981-Online |
| 29 | WIRE HARNESS | 604876 | 1 | 604876-Online |
Fenders, Instrument Panel & Wire Harness & Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 601097 | 1 | HT601097-Online |
| 2 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | SERVICE, INSTR PANEL | 551898 | 1 | 551898-Online |
| 6 | DECAL, INST PANEL | 604196 | 1 | 604196-Online |
| 7 | CS .250-20X0.75 HX G5 ZY | 055939 | 1 | 055939-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 9 | FW 0.219X.50X.05 ZY | 704932 | 2 | HT704932-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 11 | CS .250-20 X .75 HX FLG | 604324 | 8 | 604324-Online |
| 12 | CABLE, THROTTLE | 601096 | 1 | 601096-Online |
| 13 | CN .250-20X .150 MAX THK | 601982 | 1 | 601982-Online |
| 14 | SVC, FENDER RS | 552809 | 1 | 552809-Online |
| 15 | SVC, FENDER LS | 552810 | 1 | 552810-Online |
| 16 | DECAL, RAPTOR FENDER | 604388 | 2 | 604388-Online |
| 17 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 18 | SVC, FOOTREST | 554778 | 1 | 554778-Online |
| 19 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 20 | CS .375-16X0.75 HXF G5ZY | 029629 | 2 | HT029629-Online |
| 21 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 22 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 23 | WIRE HARNESS | 604876 | 1 | 604876-Online |
| 24 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STRAP, TIE DOWN | 604178 | 1 | 604178-Online |
| 2 | CS .250-20X7.50 HX G5 ZC | 604465 | 2 | 604465-Online |
| 3 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 4 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 5 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 6 | LW .250 INTEXT ZY | 029868 | 4 | 029868-Online |
| 7 | CS .250-20X0.75 HX G5 ZY | 055939 | 2 | 055939-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 9 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ENGINE GUARD | 122817 | 1 | 122817-Online |
| 2 | DECAL, H LOGO, MFSD 36/4 | 604745 | 1 | 604745-Online |
| 3 | CS .375-16X0.75 HXF G5ZY | 029629 | 4 | HT029629-Online |
| 4 | NT .375-16 FLKG5 | 016899 | 4 | HT016899-Online |
| 5 | DECAL, HOT | 602041 | 1 | 602041-Online |
Transmission Assembly & Drive Belt (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | CB .375-16 X 2.25 STD ZN | 604343 | 1 | 604343-Online |
| 3 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 4 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 5 | DRIVE BELT | 607400 | 1 | 607400-Online |
| 6 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
| 7 | FW 0.379X.82X.06 HD ZY | 767954 | 10 | HT767954-Online |
| 8 | PULLEY, 2.0" IDLER | 604491 | 1 | 604491-Online |
| 9 | SPRING, 3.00 X .50 EXT | 604490 | 1 | 604490-Online |
| 10 | CS .375-16X3.500HXG5 | 005108 | 1 | HT005108-Online |
| 11 | SPACER, PIVOT IDLER | 116289 | 1 | HT116289-Online |
| 12 | IDLER ARM | 116287 | 1 | HT116287-Online |
| 13 | FW 0.406X1.25X.12 HD ZY | 712893 | 1 | HT712893-Online |
| 14 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 15 | NT .375-16HXG5 | 054502 | 5 | HT054502-Online |
| 16 | HP0.080X1.190 | 706549 | 2 | HT706549-Online |
| 17 | LINK, TOW VALVE | 116218 | 2 | HT116218-Online |
| 18 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 19 | NT .312-18NLG5 | 058776 | 8 | HT058776-Online |
| 20 | CS .375-16X2.250HXG5 | 056036 | 4 | 056036-Online |
| 21 | CROSS BRACE, HYDROSTAT | 123634-3 | 1 | 123634-3-Online |
| 22 | EZT, 19.2:1 TRANS | 604127 | 1 | 604127-Online |
| 23 | EZT, 19.2:1 TRANS | 604128 | 1 | 604128-Online |
| 24 | ROD, BRAKE ACTUATOR | 116143 | 2 | HT116143-Online |
| 25 | FW 0.281SAE | 768515 | 8 | HT768515-Online |
| 26 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 27 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 28 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |
Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PARKING PAWL KIT, EZT | 795047 | 1 | HT795047-Online |
| 2 | RING, RETAINING | 798371 | 1 | 798371-Online |
| 3 | GEAR, PARK BRAKE | 798363 | 1 | HT798363-Online |
| 4 | FAN / PULLEY KIT | 602094 | 1 | 602094-Online |
| 5 | FAN - 7.0" (10 BLADE) | 607729 | 1 | 607729-Online |
| 6 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 7 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |
| 8 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 9 | HG RTN CW | 604901 | 1 | 604901-Online |
| Not Shown | HG RTN CCW | 604902 | 1 | 604902-Online |
Steering & Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER | 603983 | 2 | 603983-Online |
| 2 | BALL STUD | 781922 | 4 | 781922-Online |
| 3 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 4 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 5 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 6 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 7 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 8 | SB0.312X0.750SH0.250-20 | 772483 | 2 | HT772483-Online |
| 9 | STEERING ROD S/A | 605273 | 2 | 605273-Online |
| 10 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 11 | CLIP, SAFETY | 606575 | 2 | 606575-Online |
| 12 | STEERING BAR W/ GRIP | 110370 | 2 | 110370-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 1 | 781260-Online |
| 13 | STEERING ASSEMBLY | N/A | 1 | No SKU |
| 14 | CS .375-16X0.75 HXF G5ZY | 029629 | 5 | HT029629-Online |
| 15 | FW 0.379X.82X.06 HD ZY | 767954 | 4 | HT767954-Online |
| 16 | CS .375-16X1.00 HX G5 ZY | 036244 | 4 | HT036244-Online |
| 17 | CS .375-16X1.00 HXF G5ZY | 029751 | 2 | 029751-Online |
| 18 | NT .375-16 FLKG5 | 016899 | 7 | HT016899-Online |
| 19 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 20 | YOKE, 5/16-24 | 604173 | 2 | 604173-Online |
| 21 | NT 0.312-24 HX G8 | 041152 | 6 | HT041152-Online |
| 22 | STEERING ROD S/A | 605273 | 2 | 605273-Online |
| 23 | BLOCK, STEERING CONTROL | 116144 | 2 | HT116144-Online |
Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20X2.00 HX FH ZY | 604452 | 2 | 604452-Online |
| 2 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 3 | STOP, STEERING | 605529 | 2 | 605529-Online |
| 4 | CS .250-20X0.75 HX G5 ZY | 055939 | 2 | 055939-Online |
| 5 | NUT PLATE, .420 CENTERS | 601822 | 2 | 601822-Online |
| 6 | SWITCH, PUSH BUTTON | 781211 | 2 | HT781211-Online |
| 7 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 8 | CS .500-13X4.25 HX G5 ZY | 781708 | 2 | HT781708-Online |
| 9 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 10 | CS #10-24X0.750FLKG5 | 063198 | 4 | 063198-Online |
| 11 | CS .375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 12 | STEERING BOX SUB, LH | 606106 | 1 | 606106-Online |
| 13 | SPACER, STEERING | 604288 | 2 | 604288-Online |
| 14 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 15 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 16 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 17 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 18 | BRAKE BLCRNK, LH | 116142 | 1 | 116142-Online |
| 19 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 20 | STEERING BOX SUB, RH | 606105 | 1 | 606105-Online |
| 21 | BRAKE BLCRNK, RH | 116141 | 1 | 116141-Online |
| 22 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 23 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 24 | STEERING COVER, SERVICE | 551698 | 1 | 551698-Online |
| 25 | DECAL ID, RAPTOR | 604195 | 1 | 604195-Online |
| 26 | SVC, DECK HEIGHT BRKT | 554780 | 1 | 554780-Online |
| 27 | CS .375-16X0.75 HXF G5ZY | 029629 | 1 | HT029629-Online |
| 28 | DECAL, DECK HEIGHT | 607109 | 1 | 607109-Online |
| 29 | BUSHING, UHMW | 781153 | 4 | HT781153-Online |
Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 18X8.50-8 SLV | 604013 | 2 | 604013-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13X1.25 HX G5 ZY | 705954 | 2 | HT705954-Online |
| 4 | FW .510X2.15X.19 ZY | 344267 | 2 | HT344267-Online |
| 5 | FW 0.531X1.38X.12 ZY | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
Front Wheel Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CASTER FORK W/A | 110116 | 1 | HT110116-Online |
| 2 | NT .500-13 JAM NY LK | 707398 | 1 | HT707398-Online |
| 3 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 4 | CS .500-13X6.00 HX G5 ZY | 604718 | 1 | 604718-Online |
| 5 | TIR/WHL 11X4.00-5 SLV | 607009 | 1 | 607009-Online |
| 6 | BEARING, BALL SEALED | 607026 | 2 | 607026-Online |
| 7 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 18X8.50-8 B2R GRMR | 604267 | 1 | 604267-Online |
| 2 | WHL 8X6.93 4X4.0 SLV | 601820 | 1 | 601820-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Engine, Muffler & Clutch (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | HOSE, OIL DRAIN | 604463 | 12" | 604463-Online |
| 3 | MUFFLER, FR730V | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 5 | FW 0.379X.82X.06 HD ZY | 767954 | 5 | HT767954-Online |
| 6 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 7 | CS .375-16X1.00 HX G5 ZY | 036244 | 1 | HT036244-Online |
| 8 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 9 | PULLEY, ENG 4.094OP | 605574 | 1 | 605574-Online |
| 10 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 12 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 13 | BUSHING, CLUTCH | 605595 | 1 | 605595-Online |
| 14 | CLUTCH KIT | 605827K | 1 | 605827K-Online |
| 15 | FW .453X1.12X.12 HRD ZY | 602680 | 1 | 602680-Online |
| 16 | CS .437-20X3.00 HXG5 P85 | 785048 | 1 | HT785048-Online |
| 17 | CS .250-20X0.75 HX G5 ZY | 055939 | 2 | 055939-Online |
| 18 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 19 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 20 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 21 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 22 | LW .312 INTEXT ZY | 029876 | 1 | 029876-Online |
| 23 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 24 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | FUEL LINE, 1/4" | 015818 | 18" | HT015818-Online |
| 26 | VAPOR LINE, 3/16 FORMED | 604274 | 1 | 604274-Online |
Engine Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER - MAIN | 603059 | 1 | 603059-Online |
| 2 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |
| 4 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |
| 5 | O-RING | 604369 | 1 | 604369-Online |

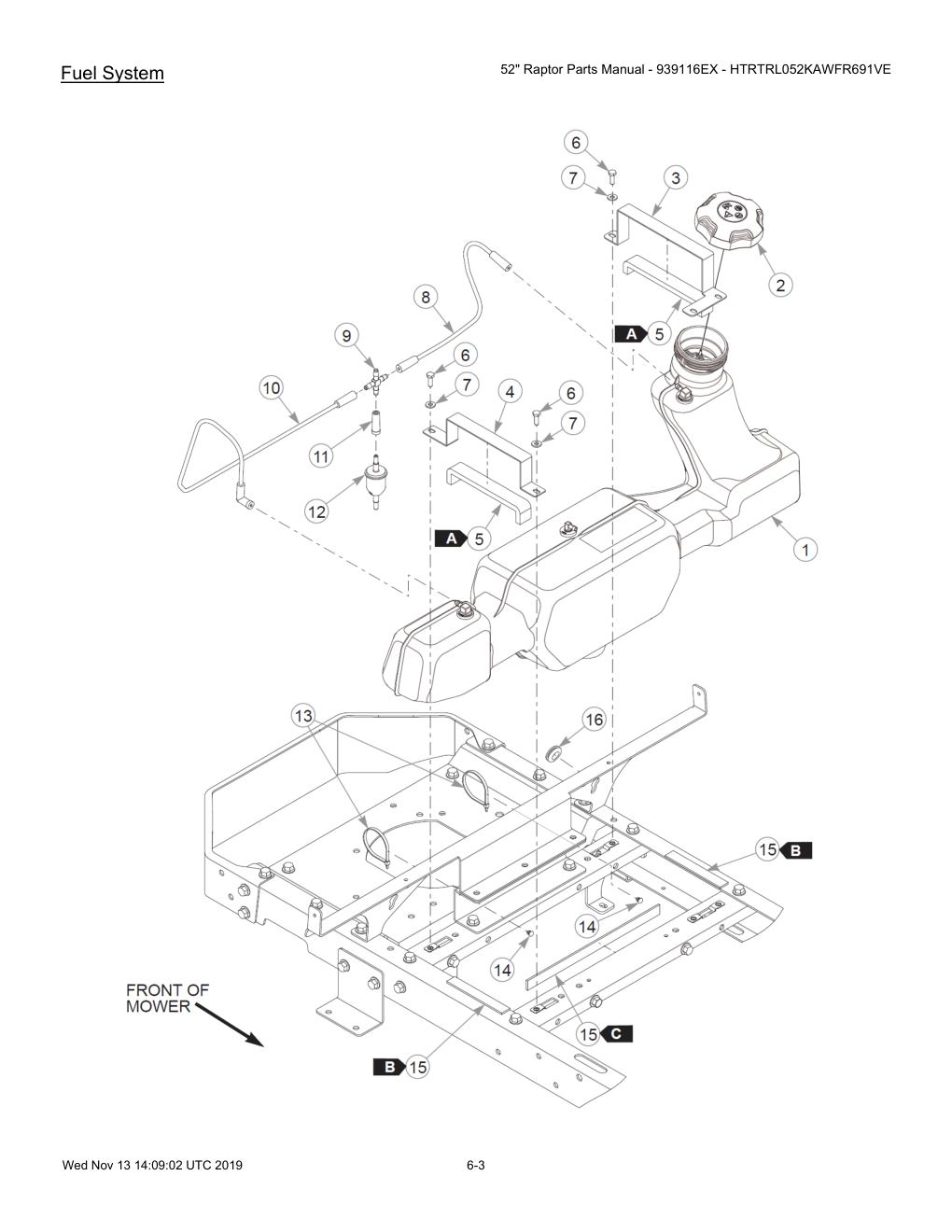

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK | 606432 | 1 | 606432-Online |
| 2 | CAP, 3.5" RATCHETING GAS | 603807 | 1 | 603807-Online |
| 3 | TANK MNT LEFT | 117059 | 1 | 117059-Online |
| 4 | TANK MNT RIGHT | 117060 | 1 | 117060-Online |
| 5 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 18.5" | 713198-Online |
| 6 | CS .250-20X0.75 HX G5 ZY | 055939 | 3 | 055939-Online |
| 7 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 8 | VAPOR LINE, 3/16 FORMED | 604279 | 1 | 604279-Online |
| 9 | 1/4" HOSE BARB CROSS | 604322 | 1 | 604322-Online |
| 10 | VAPOR LINE, 3/16 FORMED | 604273 | 1 | 604273-Online |
| 11 | BOOT, 3/16" TO 1/4" BARB | 604292 | 1 | 604292-Online |
| 12 | FILTER, VAPOR SYSTEM | 604323 | 1 | 604323-Online |
| 13 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 14 | MOUNT, PUSH BUTTON | 604307 | 2 | 604307-Online |
| 15 | WEATHERSTRIP .12X.75 | 033035 | 22" | 033035-Online |
| 16 | GM .63 x1.13 x.88 x .13 | 601400 | 1 | 601400-Online |
Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC KIT, VENT FITTING | 604199K | 2 | 604199K-Online |
| 2 | SVC KIT, GROMMET | 604200K | 3 | 604200K-Online |
| 3 | SVC KIT, SUCTION HOSE | 605126K | 1 | 605126K-Online |
Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 52" SERVICE DECK | 554647 | 1 | 554647-Online |
| 2 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
| 3 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
| 4 | DECAL, 52 DECK ID | 785535 | 1 | 785535-Online |
| 5 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | IDLER ARM | 124942-4 | 1 | 124942-4-Online |
| 5 | SPRING, DECK IDLER | 607616 | 1 | 607616-Online |
| 6 | ANCHOR, SPRING TENSIONER | 604110 | 1 | 604110-Online |
| 7 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 8 | FW 0.406X1.25X.12 HD ZY | 712893 | 2 | HT712893-Online |
| 9 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 10 | NT .562-18 HX NLG5 | 606943 | 3 | 606943-Online |
| 11 | PULLEY, DRIVE "B-SEC" | 603988 | 3 | 603988-Online |
| 12 | CS .312-18X1.000HXG5 | 036236 | 12 | 036236-Online |
| 13 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 14 | SPACER, PULLEY | 604123 | 3 | 604123-Online |
| 15 | PULLEY, IDLER 5.00" O.D. | 604231 | 1 | 604231-Online |
| 16 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 17 | SPACER, IDLER ARM | 117539 | 1 | HT117539-Online |
| 18 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 19 | NT .312-18 HXNL JAM G2ZN | 604251 | 2 | 604251-Online |
| 20 | TENSIONING PULLEY STOP | 122398 | 1 | 122398-Online |
| 21 | FW .440X1.00X0.08 ZY | 017129 | 1 | 017129-Online |
| 22 | SPINDLE ASSY, RAP/ALP | 604214 | 3 | 604214-Online |
| 23 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |
| 24 | CB .312-18X 1.000 FUL YZ | 037887 | 1 | HT037887-Online |
| 25 | CB .312-18X .620 G5 ZN | 083147 | 1 | 083147-Online |
| 26 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
Spindle Service Parts - 604214
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BEARING, SPINDLE | 604019 | 1 | 604019-Online |
| 2 | CAST HOUSING | 604218 | 1 | 604218-Online |
| 3 | SVC SHAFT | 607274 | 1 | 607274-Online |
Deck Belt, Discharge Chute, Pulley Covers & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER RH | 604337 | 1 | 604337-Online |
| 2 | PULLEY COVER LH | 604338 | 1 | 604338-Online |
| 3 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 4 | BELT, B-SEC 138.00" | 607162 | 1 | 607162-Online |
| 5 | DISCHARGE CHUTE | 606931 | 1 | 606931-Online |
| 6 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 7 | CLIP E .66 X .303 X .035 | 603332 | 1 | 603332-Online |
| 8 | PIN, CHUTE | 606981 | 1 | 606981-Online |
| 9 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 10 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 11 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 12 | CS .500-13X1.50 HX G5 ZY | 074252 | 2 | HT074252-Online |
| 13 | PULLER, RAPTOR | 124837-1 | 1 | 124837-1-Online |
| 14 | PIVOT SPACER BUSHING | 606250 | 2 | 606250-Online |
| 15 | BLADE, 17.86" -M-F-CW | 603995 | 3 | 603995-Online |
| Not Shown | BLADE,17.86"-L-F-CW | 783753 | 3 | 783753-Online |
| Not Shown | BLADE,17.86"-H-F-CW | 787721 | 3 | HT787721-Online |
| Not Shown | BLADE, 17.86"-CAT-F-CW | 603848 | 3 | 603848-Online |
| Not Shown | BLADE,17.86"-GAT-F-CW | 785436 | 3 | 785436-Online |
| Not Shown | BLADE,17.86"-MUL-F-CW | 794198 | 3 | HT794198-Online |
| 16 | FW .453X1.12X.12 HRD ZY | 602680 | 3 | 602680-Online |
| 17 | CS .437-20X1.250HXG5 | 754101 | 3 | HT754101-Online |
| 18 | CS .500-13X4.25 HX G5 ZY | 781708 | 1 | HT781708-Online |
| 19 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 20 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |
Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, .375X1.62 MAGNETIC | 607039 | 1 | 607039-Online |
| 2 | NT .375-16 FLKG5 | 016899 | 10 | HT016899-Online |
| 3 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 4 | FW 0.379X.82X.06 HD ZY | 767954 | 8 | HT767954-Online |
| 5 | FW .41X.94X.25 UHMW | 605114 | 4 | 605114-Online |
| 6 | PIVOT, DECK LIFT | 118018 | 4 | HT118018-Online |
| 7 | HANGER, DECK | 607017 | 4 | 607017-Online |
| 8 | CLIP E,.625x.480x.042 Z | 791673 | 8 | HT791673-Online |
| 9 | DECK LIFT W/A, REAR | 124792-1 | 1 | 124792-1-Online |
| 10 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 11 | CS .375-16X0.75 HXF G5ZY | 029629 | 10 | HT029629-Online |
| 12 | POLYURETHANE 2" (FS) | 722199 | 8" | 722199-Online |
| 13 | SPACER BRKT, DECK HEIGHT | 125224-4 | 1 | 125224-4-Online |
| 14 | PIVOT BLOCK, DECK LIFT | 116151 | 4 | HT116151-Online |
| 15 | CS .375-16X1.12 HX G5 Z | 005132 | 2 | 005132-Online |
| 16 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 17 | DECK LIFT LINK | 607119-4 | 1 | 607119-4-Online |
| 18 | DECK LIFT W/A, FRONT | 118084 | 1 | HT118084-Online |
| 19 | CP, RUE RING .054 X .392 | 607093 | 4 | 607093-Online |
| 20 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 21 | CS .500-13X1.50 HX G5 ZY | 074252 | 2 | HT074252-Online |
| 22 | PIVOT SPACER BUSHING | 606250 | 2 | 606250-Online |
| 23 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, SK100 | 607143 | 1 | 607143-Online |
| 2 | SVC, SEATPAN | 554779 | 1 | 554779-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 4 | HT767954-Online |
| 4 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 5 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 6 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 7 | CS .375-16X1.00 HXF G5ZY | 029751 | 2 | 029751-Online |
| 8 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 9 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 10 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| 11 | MOUNT, PUSH BUTTON | 604307 | 1 | 604307-Online |
| 12 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 13 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 14 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 15 | SEAT SWITCH, SEATS INC | 603535 | 1 | 603535-Online |
