Illustrated Parts List
42" Raptor X Parts Manual - 940494EX - HTRTXS042KAWFR651VE - 607745
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 607745Model: 607418Model: 940494EXSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

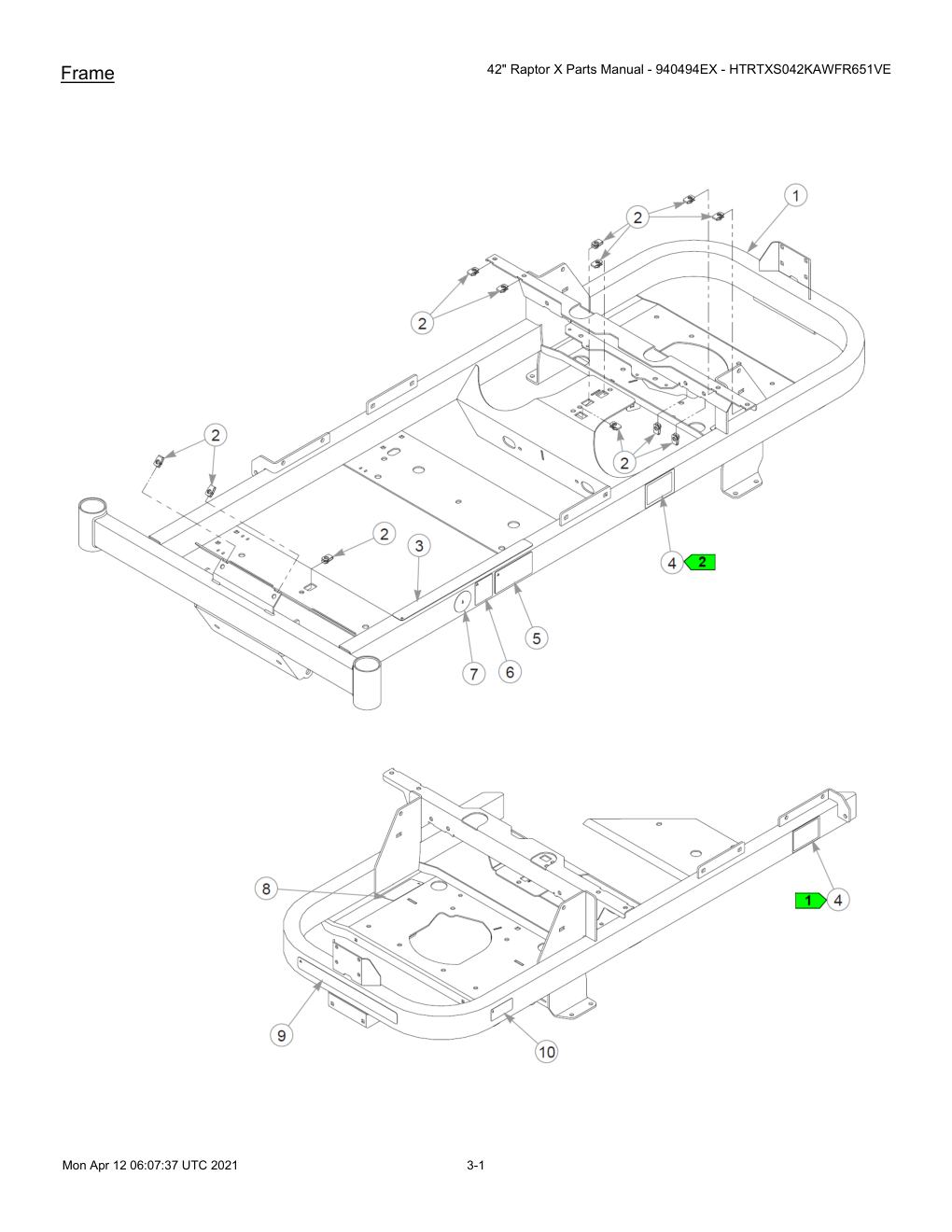

FrameFenders, Floor Pan, Footrest & Engine Guard (Multi-Page)Fenders, Floor Pan, Footrest & Engine Guard (Multi-Page)Instrument Panel & Wire Harness - S/N 20124969 & HIGHERInstrument Panel & Wire Harness - S/N PRIOR to 20124969BatteryTransmissionsTransmission Service PartsDrive Belt & ClutchSteering & BrakeSteering Assembly (Multi-Page)Wheels & TiresFront Wheel AssemblyDrive Wheel BreakdownEngine & Muffler (Multi-Page)Engine Service Parts - FR651VFuel SystemFuel Tank Service Parts - 607745Service DeckDeck Pulleys & SpindlesSpindle Service Parts - 607418Deck Belt, Pulley Covers & BladesDeck Lift & Mounting Hardware (Multi-Page)SeatFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC FRAME | 555653 | 1 | 555653-Online |
| 2 | CN .250-20X .150 MAX THK | 601982 | 12 | 601982-Online |
| 3 | DECAL, SAFE OPERATE-GRAY | 601981 | 1 | 601981-Online |
| 4 | SERIAL NUMBER / SPEC DECAL | N/A | 2 | No SKU |
| 5 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 6 | DECAL, DBA 115 ISO | 607782 | 1 | 607782-Online |
| 7 | DECAL, USA, F&D | 608127 | 1 | 608127-Online |
| 8 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 9 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 10 | DECAL, HOT | 602041 | 1 | 602041-Online |
Fenders, Floor Pan, Footrest & Engine Guard (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FENDER RIGHT | 607862 | 1 | 607862-Online |
| 2 | CS .250-20X0.75 BH TX BZ | 605473 | 12 | 605473-Online |
| 3 | FW 0.281X.63X.07 ZB | 605628 | 10 | 605628-Online |
| 4 | CN .250-20X .150 MAX THK | 601982 | 4 | 601982-Online |
| 5 | SVC, STEERING PLATE RH | 555696 | 1 | 555696-Online |
| Not Shown | SVC, STEERING PLATE LH | 555697 | 1 | 555697-Online |
| 6 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 7 | HEX NUT CAP, 1/2" | 607913 | 2 | 607913-Online |
| 8 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 9 | FENDER LEFT | 607861 | 1 | 607861-Online |
| 10 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 11 | DECAL, LEVEL FUEL BLOWM | 605782 | 1 | 605782-Online |
| 12 | SVC, COVER FRONT | 555694 | 1 | 555694-Online |
| 13 | DECAL, HUSTLER | 608095 | 1 | 608095-Online |
| 14 | PLUG, .312" PLASTIC | 608199 | 2 | 608199-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 17 | FOOTREST | 126416-1 | 1 | 126416-1-Online |
| 18 | SVC, FLOOR PAN | 555759 | 1 | 555759-Online |
| 19 | PUSH IN RIVET | 607868 | 6 | 607868-Online |
| 20 | FLOOR MAT | 607864 | 1 | 607864-Online |
| 21 | CS .250-20X1.000HXG5 | 056077 | 1 | 056077-Online |
| 22 | SVC, KICK PANEL | 555695 | 1 | 555695-Online |
| 23 | DECAL, RAPTOR X | 608091 | 1 | 608091-Online |
| 24 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 25 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 26 | CS #10-16 X 0.500 HX FLG | 607892 | 8 | 607892-Online |
| 27 | NT .312-18FLKG5 | 016832 | 8 | 016832-Online |
| 28 | LOWER COVER | 607901-6 | 1 | 607901-6-Online |
| 29 | ENGINE GUARD RH | 607903-1 | 1 | 607903-1-Online |
| 30 | ENGINE GUARD LH | 607902-1 | 1 | 607902-1-Online |
| 31 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 32 | SIDE MOLDING | 607906 | 2 | 607906-Online |
| 33 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 34 | FW .250SAE | 017079 | 2 | 017079-Online |
| 35 | FW 0.343SAE | 768523 | 4 | HT768523-Online |

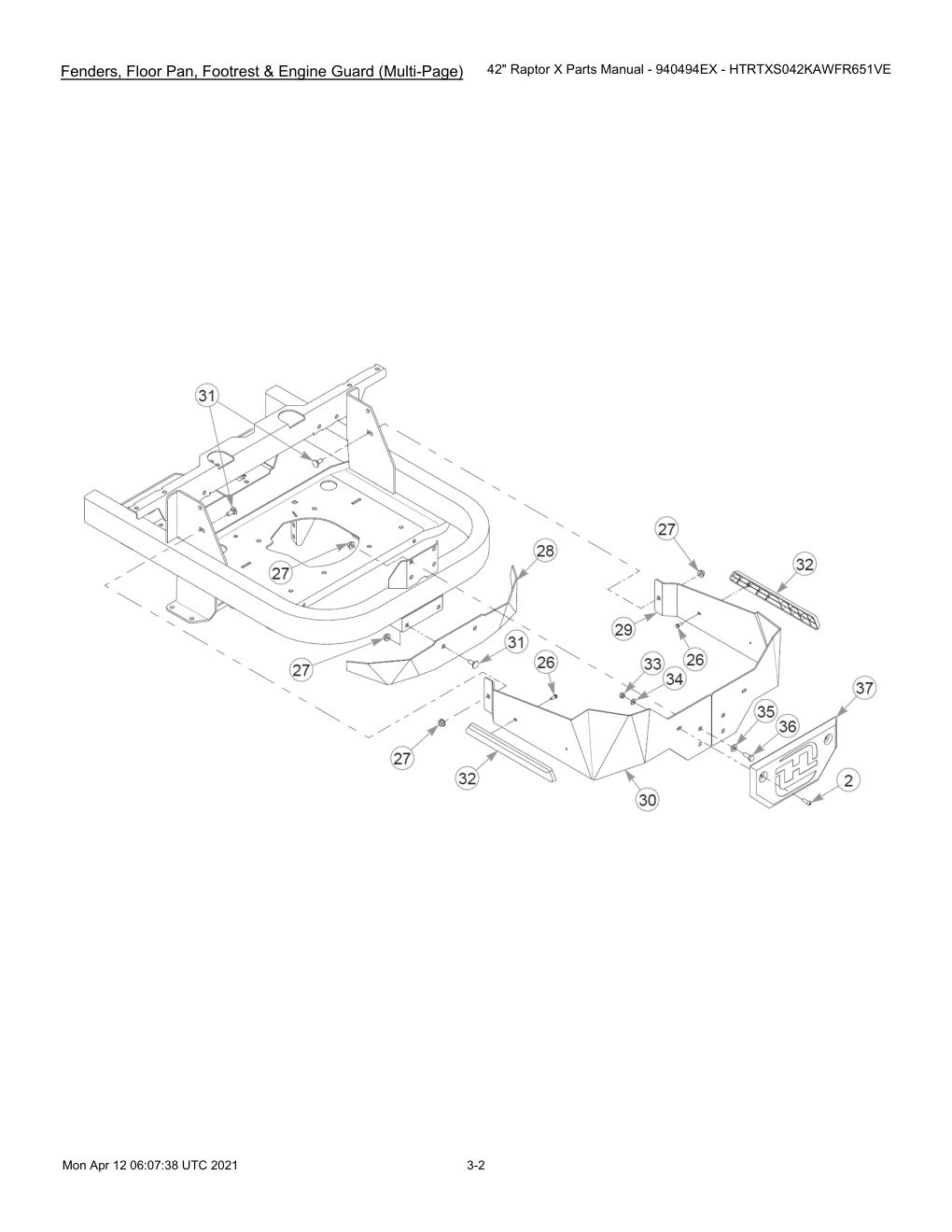

Fenders, Floor Pan, Footrest & Engine Guard (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | CS .312-18X0.750HXG5 | 034280 | 4 | HT034280-Online |
| 37 | LOGO BADGE | 607905 | 1 | 607905-Online |
Instrument Panel & Wire Harness - S/N 20124969 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | SVC, INSTRUMENT PANEL | 555705 | 1 | 555705-Online |
| 6 | DECAL, INST PANEL | 607973 | 1 | 607973-Online |
| 7 | CABLE, CHOKE | 608191 | 1 | HT608191-Online |
| 8 | CS 10-24X .500 PH SH ZN | 606851 | 2 | 606851-Online |
| 9 | CS .250-20X0.75 BH TX BZ | 605473 | 2 | 605473-Online |
| 10 | FW 0.281X.63X.07 ZB | 605628 | 2 | 605628-Online |
| 11 | CABLE, THROTTLE | 608190 | 1 | HT608190-Online |
| 12 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 13 | WIRE HARNESS | 607950 | 1 | HT607950-Online |
| 14 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
Instrument Panel & Wire Harness - S/N PRIOR to 20124969
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | SVC, INSTRUMENT PANEL | 555705 | 1 | 555705-Online |
| 6 | DECAL, INST PANEL | 607973 | 1 | 607973-Online |
| 7 | CABLE, CHOKE | 601097 | 1 | HT601097-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 9 | CS .250-20X0.75 BH TX BZ | 605473 | 2 | 605473-Online |
| 10 | FW 0.281X.63X.07 ZB | 605628 | 2 | 605628-Online |
| 11 | CABLE, THROTTLE | 601096 | 1 | 601096-Online |
| 12 | FW 0.219X.50X.05 ZN | 704932 | 2 | HT704932-Online |
| 13 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 14 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 15 | WIRE HARNESS | 607950 | 1 | HT607950-Online |

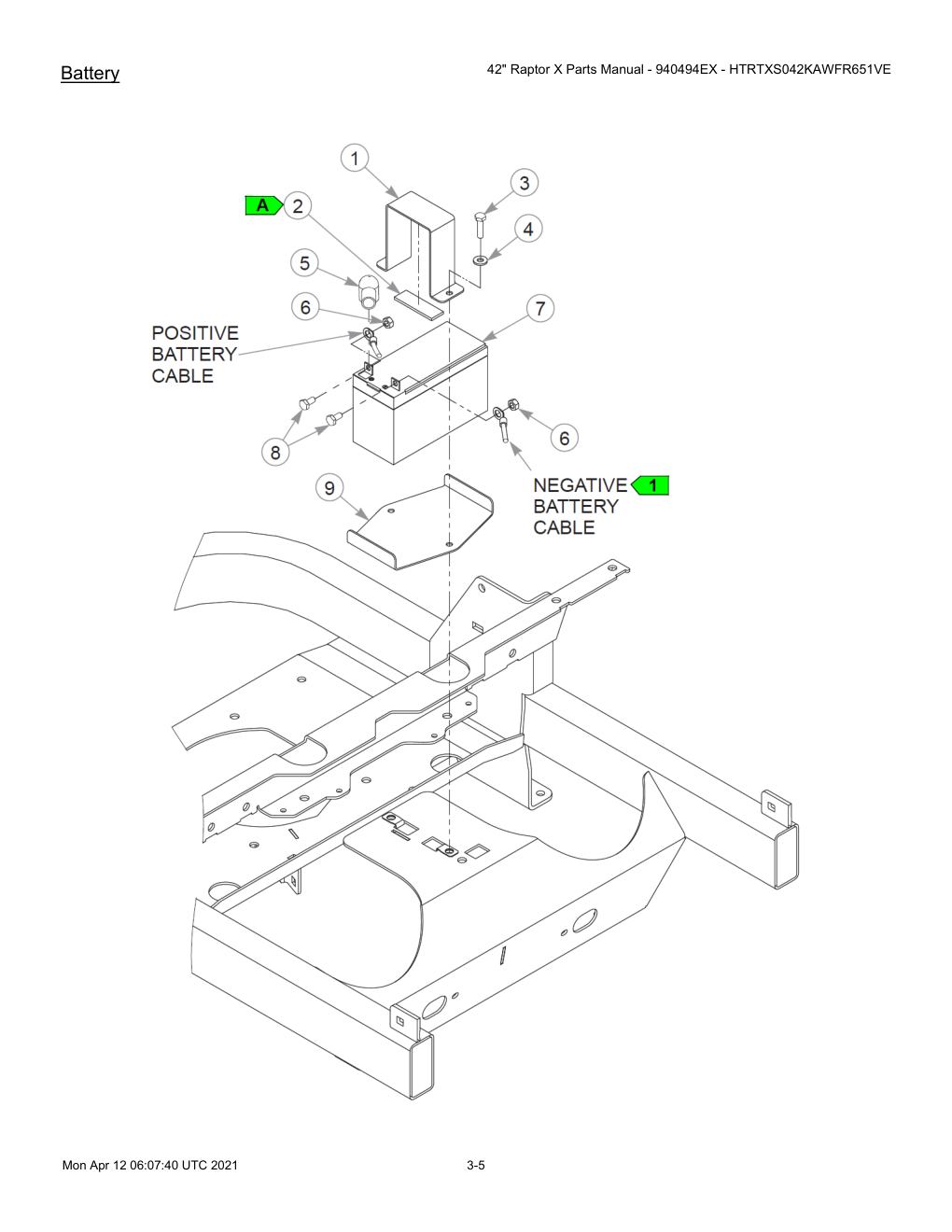

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BATTERY HOLD DOWN | 126384-1 | 1 | HT126384-1-Online |
| 2 | WEATHERSTRIP .12X.75 | 033035 | 2.35" | 033035-Online |
| 3 | CS .250-20X1.000HXG5 | 056077 | 2 | 056077-Online |
| 4 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 5 | POS. BATTERY CABLE BOOT | 601319 | 1 | 601319-Online |
| 6 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 7 | BATTERY, AGM 12V 9AMH | 607723 | 1 | 607723-Online |
| 8 | CS .250-20X0.50 HX G5 ZN | 055947 | 2 | 055947-Online |
| 9 | BATTERY BASE | 126383-1 | 1 | 126383-1-Online |

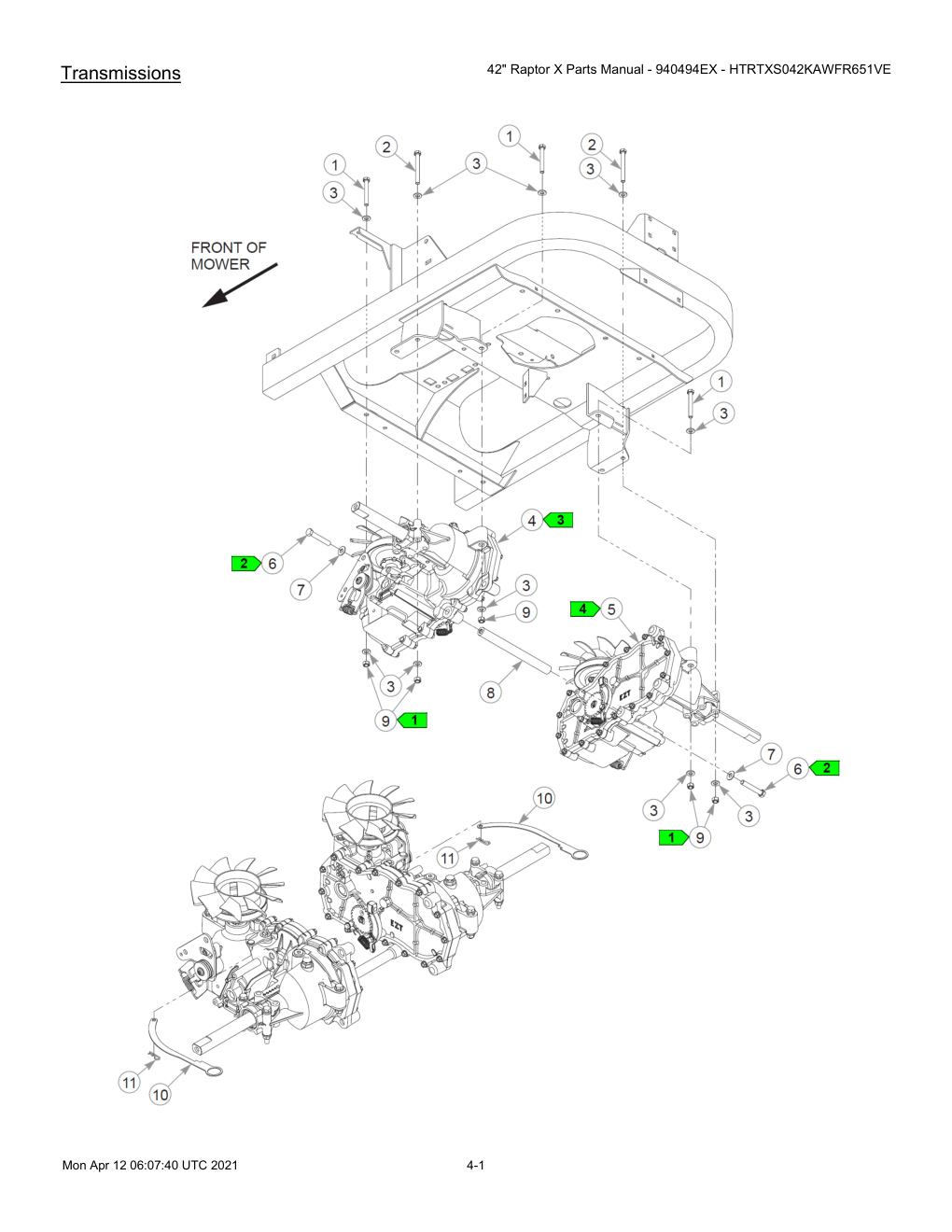

Transmissions
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 3 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 4 | EZT, 19.21:1 TRANS | 607749 | 1 | 607749-Online |
| 5 | EZT, 19.21:1 TRANS | 607750 | 1 | 607750-Online |
| 6 | CS .375-16X2.250HXG8 | 608241 | 2 | 608241-Online |
| 7 | FW 0.406X1.00X.12 HD ZN | 712919 | 2 | HT712919-Online |
| 8 | TORSION ROD, RTR | 607825 | 1 | 607825-Online |
| 9 | NT .312-18NLG5 | 058776 | 8 | HT058776-Online |
| 10 | LINK, TOW VALVE | 607826-1 | 2 | 607826-1-Online |
| 11 | HP0.080X1.190 | 706549 | 2 | HT706549-Online |

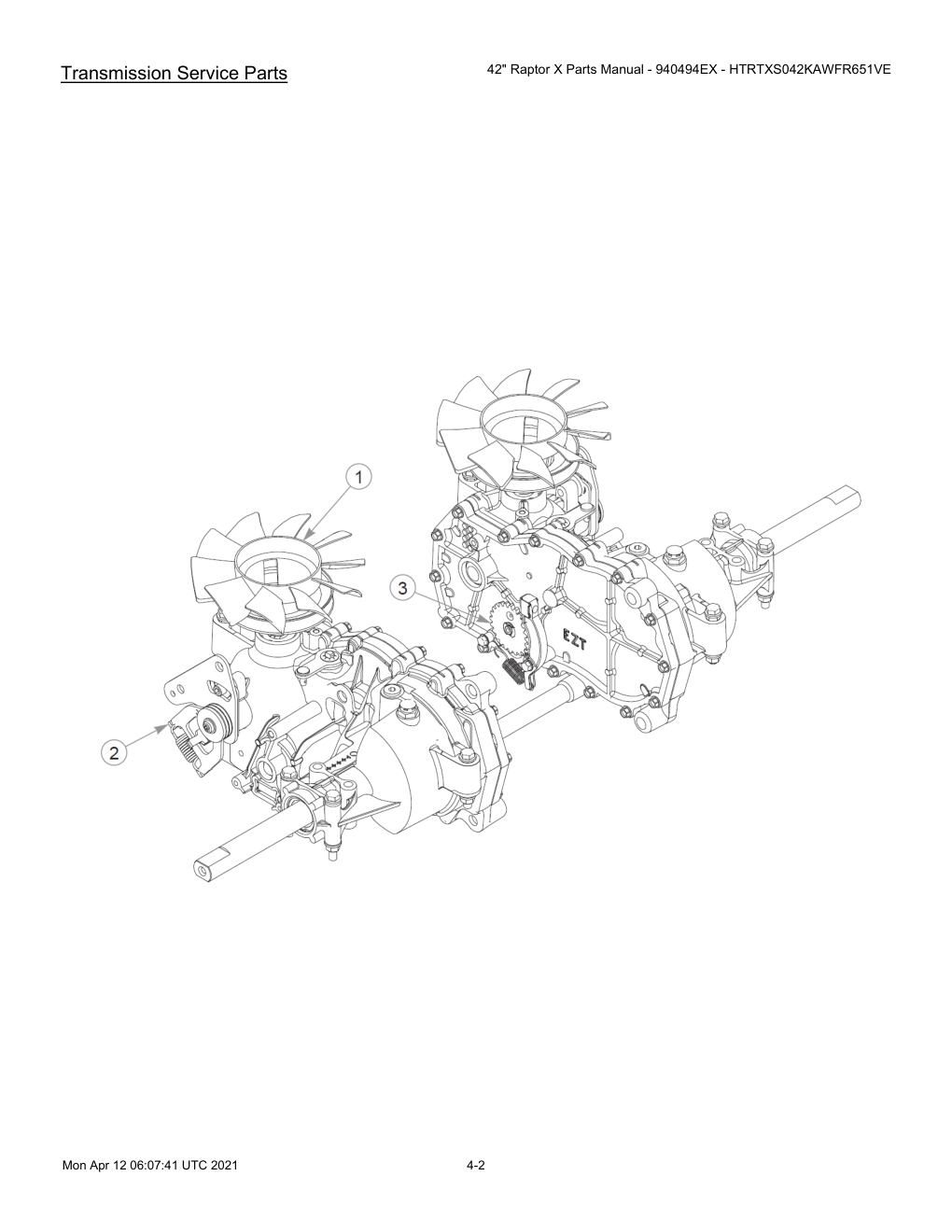

Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN/PULLEY KIT | 601941 | 1 | 601941-Online |
| 2 | BRAKE PAWL KIT | 607942 | 1 | 607942-Online |
| 3 | GEAR, PARK BRAKE | 798363 | 1 | HT798363-Online |

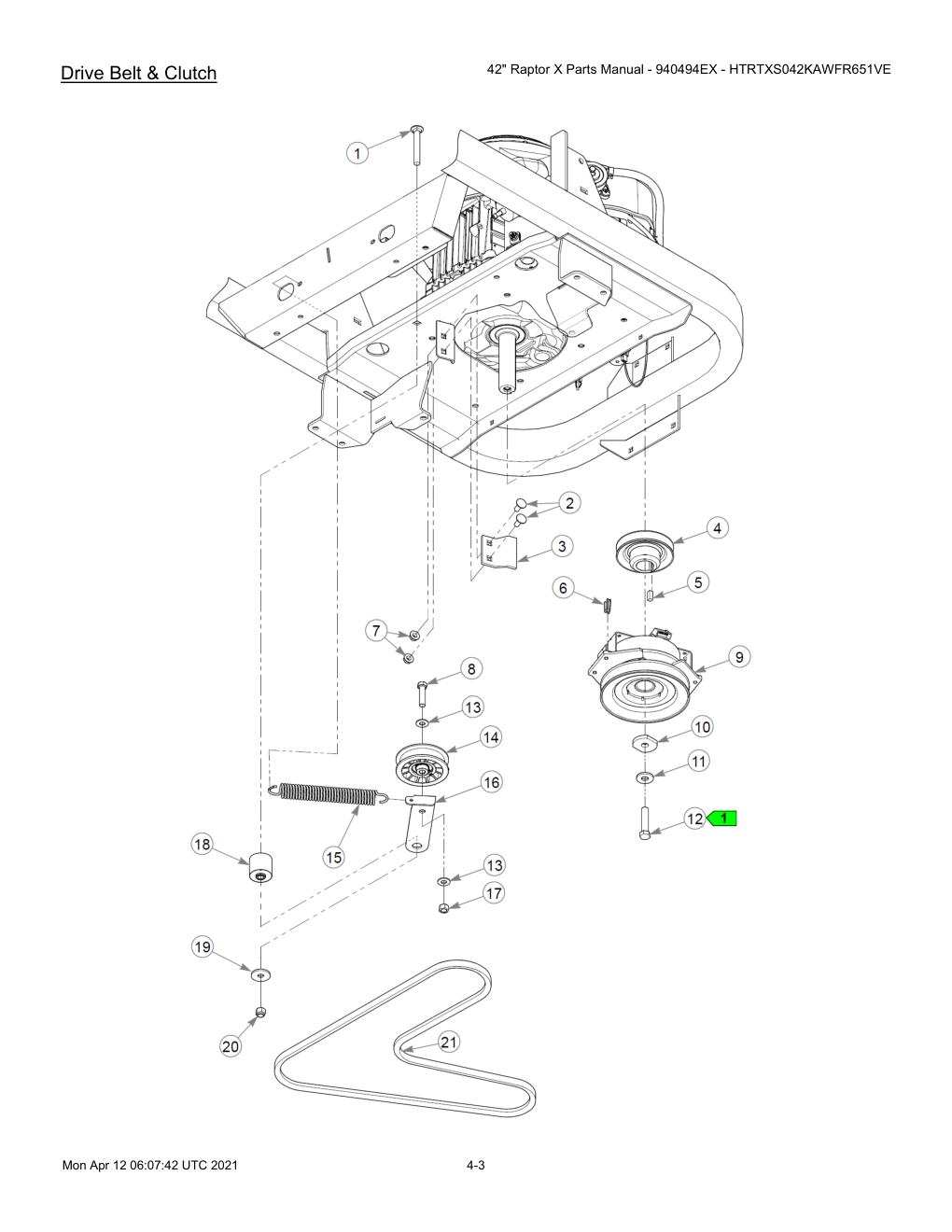

Drive Belt & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .375-16 X 2.25 STD ZN | 604343 | 1 | 604343-Online |
| 2 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 3 | CLUTCH ANCHOR | 126203-1 | 1 | 126203-1-Online |
| 4 | PULLEY, ENG 4.118OP | 607990 | 1 | 607990-Online |
| 5 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 6 | BUSHING, CLUTCH | 607827 | 1 | 607827-Online |
| 7 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 8 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
| 9 | KIT, CLUTCH | 607757K | 1 | 607757K-Online |
| 10 | FW .468X1.625X.25 DD | 607828 | 1 | 607828-Online |
| 11 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 12 | CS .437-20X2.00 HX G5 ZN | 607945 | 1 | 607945-Online |
| 13 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 14 | PULLEY, 3" FLAT POLY | 607163 | 1 | 607163-Online |
| 15 | SPRING, EXTENSION | 607585 | 1 | 607585-Online |
| 16 | TENSIONER | 607837 | 1 | 607837-Online |
| 17 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 18 | SPACER, PIVOT IDLER | 607763 | 1 | 607763-Online |
| 19 | FW 0.406X1.25X.12 HD ZN | 712893 | 1 | HT712893-Online |
| 20 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 21 | DRIVE BELT | 607830 | 1 | 607830-Online |

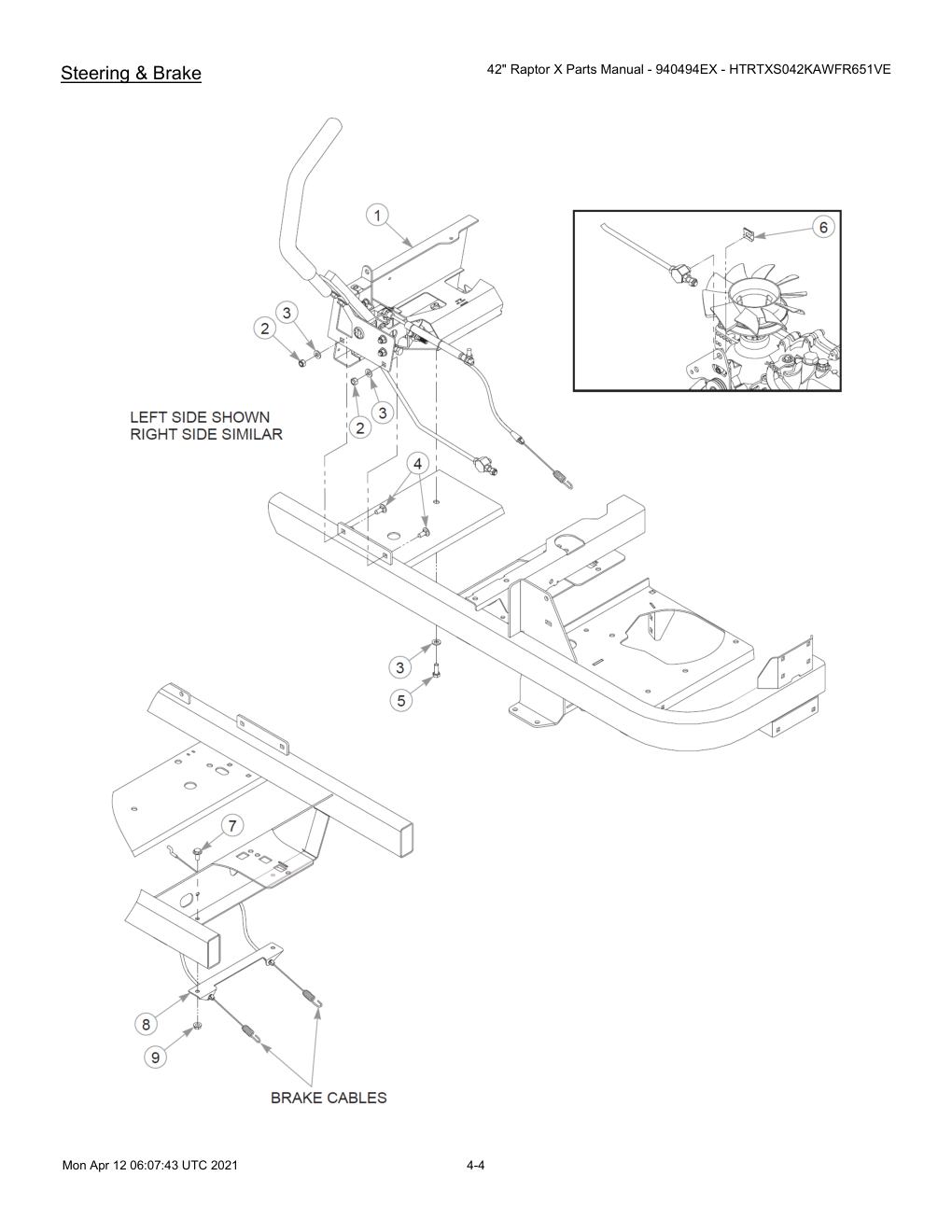

Steering & Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | REFER TO "STEERING ASSEMBLY" | N/A | 1 | No SKU |
| 2 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 3 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 4 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 5 | CS .312-18X0.875HXG5 | 064014 | 3 | 064014-Online |
| 6 | CLIP, SAFETY | 606575 | 2 | 606575-Online |
| 7 | CS .312-18X .750 HXFLK | 029710 | 2 | 029710-Online |
| 8 | MOUNTING BRKT BRAKE CABL | 126365-1 | 1 | 126365-1-Online |
| 9 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |

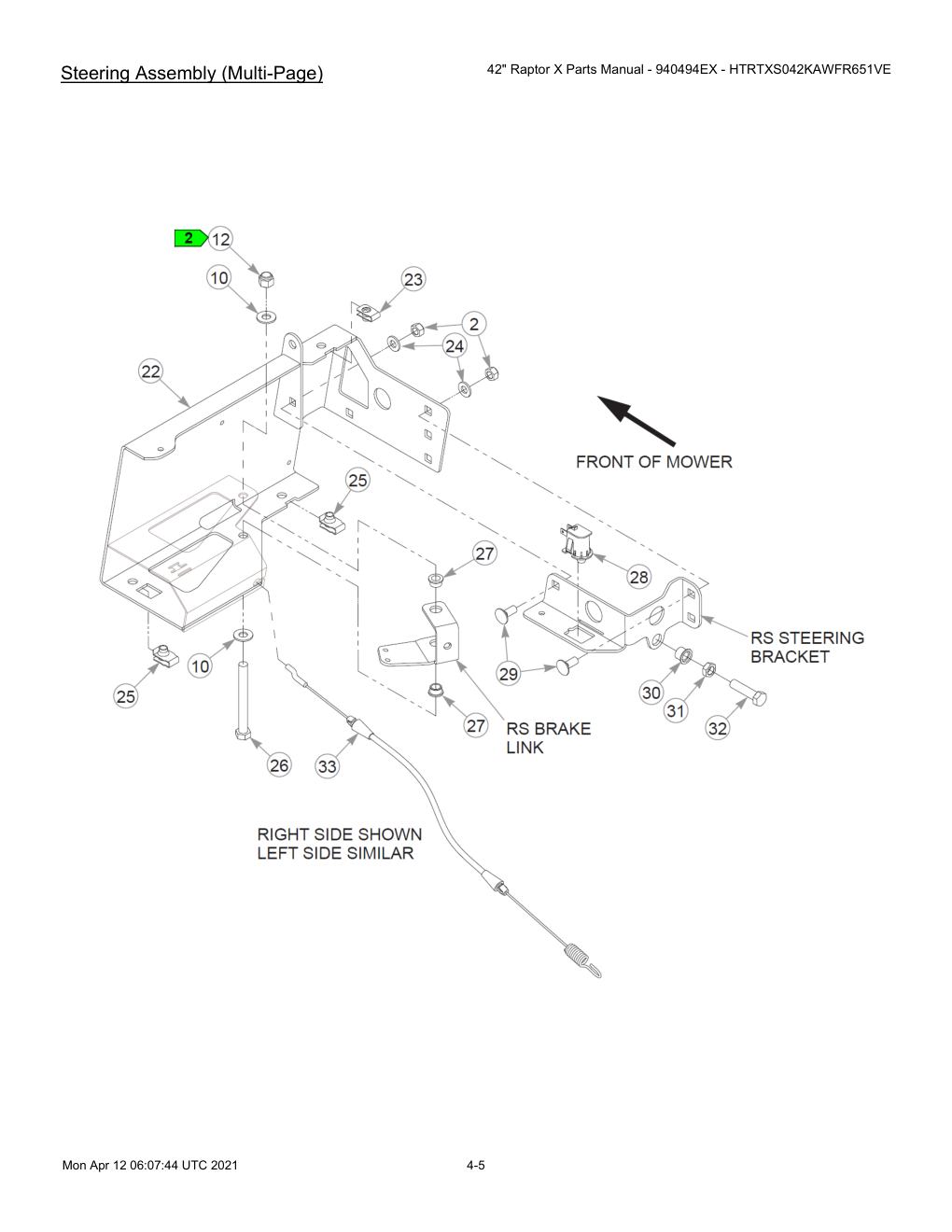

Steering Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BRAKE CRANK RIGHT | 126362-1 | 1 | 126362-1-Online |
| 2 | NT .312-18NLG5 | 058776 | 12 | HT058776-Online |
| 3 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 4 | STEERING BUSHING | 607078 | 4 | 607078-Online |
| 5 | STEERING BRACKET RIGHT | 126360-1 | 1 | 126360-1-Online |
| 6 | STEERING BLOCK A | 607077 | 2 | 607077-Online |
| 7 | STEERING BLOCK B | 607076 | 2 | 607076-Online |
| 8 | STEERING LEVER W/A | 607957-4 | 2 | HT607957-4-Online |
| 9 | STEERING BAR W/A | 607069 | 2 | 607069-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 1 | 781260-Online |
| 10 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 11 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 12 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 13 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 14 | STEERING LINKAGE MOUNT | 126361-1 | 1 | 126361-1-Online |
| 15 | DAMPER | 603983 | 2 | 603983-Online |
| 16 | BALL STUD | 781922 | 4 | 781922-Online |
| 17 | CS .375-16X2.250HXG5 | 056036 | 2 | 056036-Online |
| 18 | STEERING ROD S/A | 607938 | 2 | 607938-Online |
| 19 | STEERING LINKAGE LEFT | 126359-1 | 1 | 126359-1-Online |
| 20 | STEERING BRKT LH | 126358-1 | 1 | 126358-1-Online |
| 21 | BRAKE CRANK LEFT | 126363-1 | 1 | 126363-1-Online |
| 22 | STEERING COVER W/A | 126357-6 | 1 | 126357-6-Online |
| 23 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 24 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 25 | CN .312-18x.200 MAX THK | 601069 | 3 | HT601069-Online |
| 26 | CS .375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 27 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 28 | SWITCH, SNAP MOUNT | 793315 | 2 | 793315-Online |
| 29 | CB .312-18X .750 FUL ZN | 016253 | 6 | 016253-Online |
| 30 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 31 | NT .375-16JAMG5 | 706168 | 2 | HT706168-Online |
| 32 | CS .375-12X1.50 HX G5 ZN | 604365 | 2 | 604365-Online |
| 33 | BRAKE CABLE | 607965 | 2 | 607965-Online |

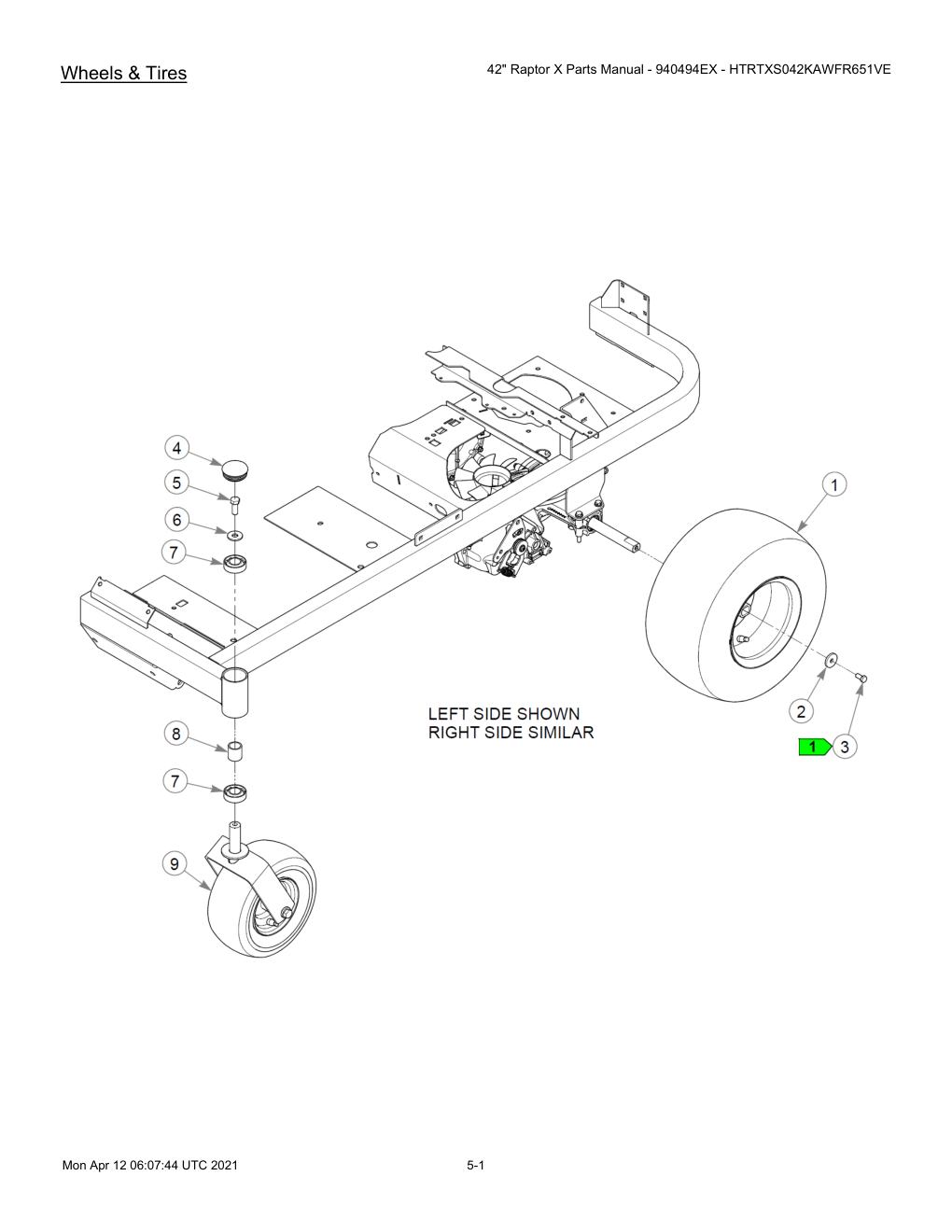

Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 18X8.50-8 BLK | 607809 | 2 | 607809-Online |
| 2 | FW .399X 1.375X.188 HDZN | 608019 | 2 | HT608019-Online |
| 3 | CS .375-16X0.75 HX G5 ZN | 055822 | 2 | HT055822-Online |
| 4 | BEARING CAP | 607831 | 2 | 607831-Online |
| 5 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 6 | FW 0.531X1.38X.12 ZN | 712976 | 2 | HT712976-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |
| 9 | REFER TO "FRONT WHEEL ASSEMBLY" | N/A | 2 | No SKU |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK WA YELLOW | 607834-1 | 1 | 607834-1-Online |
| 2 | NT .500-13 JAM NY LK | 707398 | 1 | HT707398-Online |
| 3 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 4 | CS .500-13X7.000HXG5 | 607943 | 1 | 607943-Online |
| 5 | TIR/WHL 11x5.00-5 BLK | 607934 | 1 | 607934-Online |
| 6 | BEARING, BALL SEALED | 607026 | 2 | 607026-Online |
| 7 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 18X8.50-8 B2R BGBT | 607795 | 1 | 607795-Online |
| 2 | WHL 8X7.00 0X0.0 BLK | 607791 | 1 | 607791-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

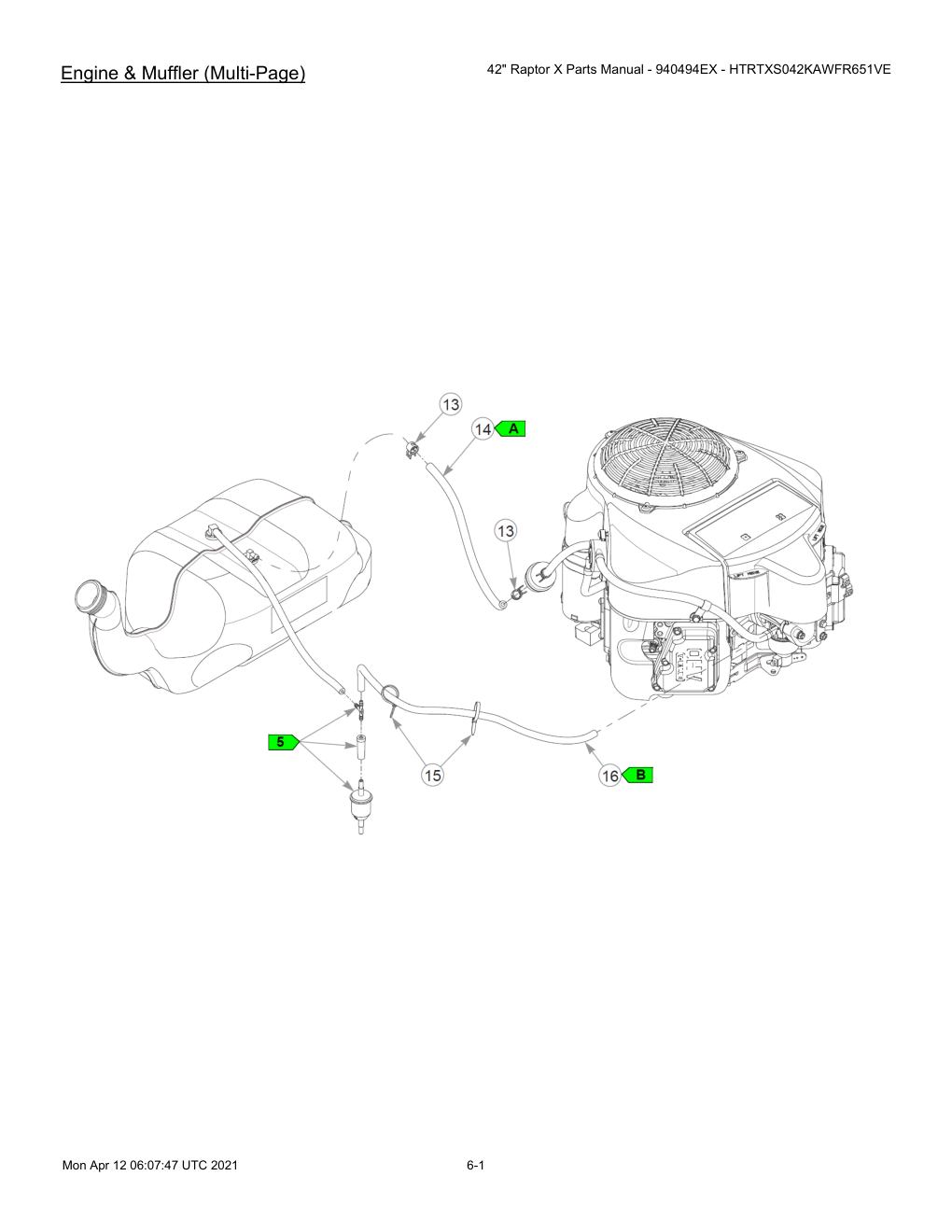

Engine & Muffler (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | HOSE, OIL DRAIN | 604463 | 1 | 604463-Online |
| 3 | MUFFLER | 607854 | 1 | 607854-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 5 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 6 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 8 | STARTER SOLENOID | 606445 | 1 | 606445-Online |
| 9 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 10 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 11 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 12 | NT 0.312-24 HX G8 | 041152 | 2 | HT041152-Online |
| 13 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 14 | FUEL LINE, 1/4" | 015818 | 13" | HT015818-Online |
| 15 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 16 | VAPOR LINE, 3/16" | 603326 | 25" | 603326-Online |

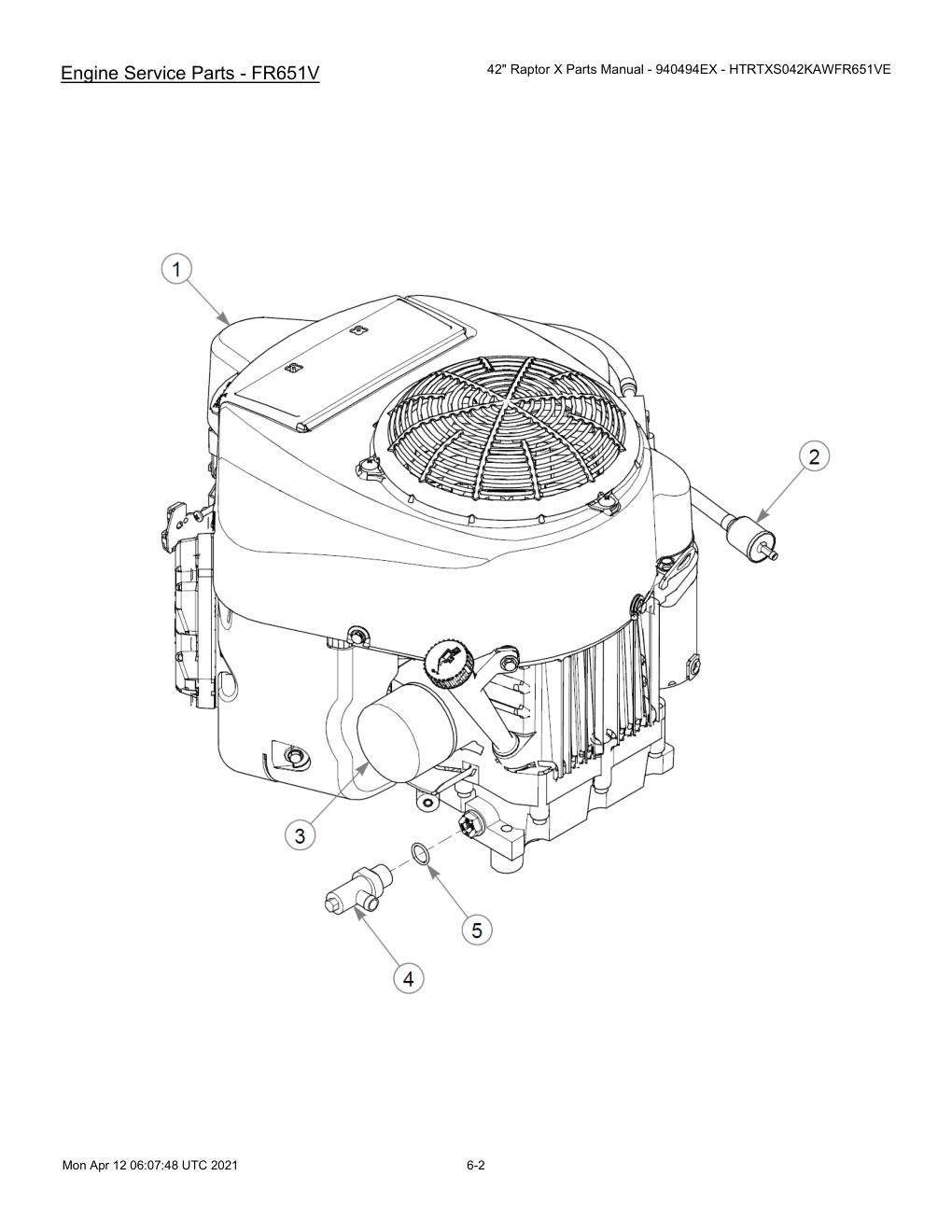

Engine Service Parts - FR651V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER - MAIN | 603059 | 1 | 603059-Online |
| 2 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |
| 4 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |
| 5 | O-RING | 604369 | 1 | 604369-Online |

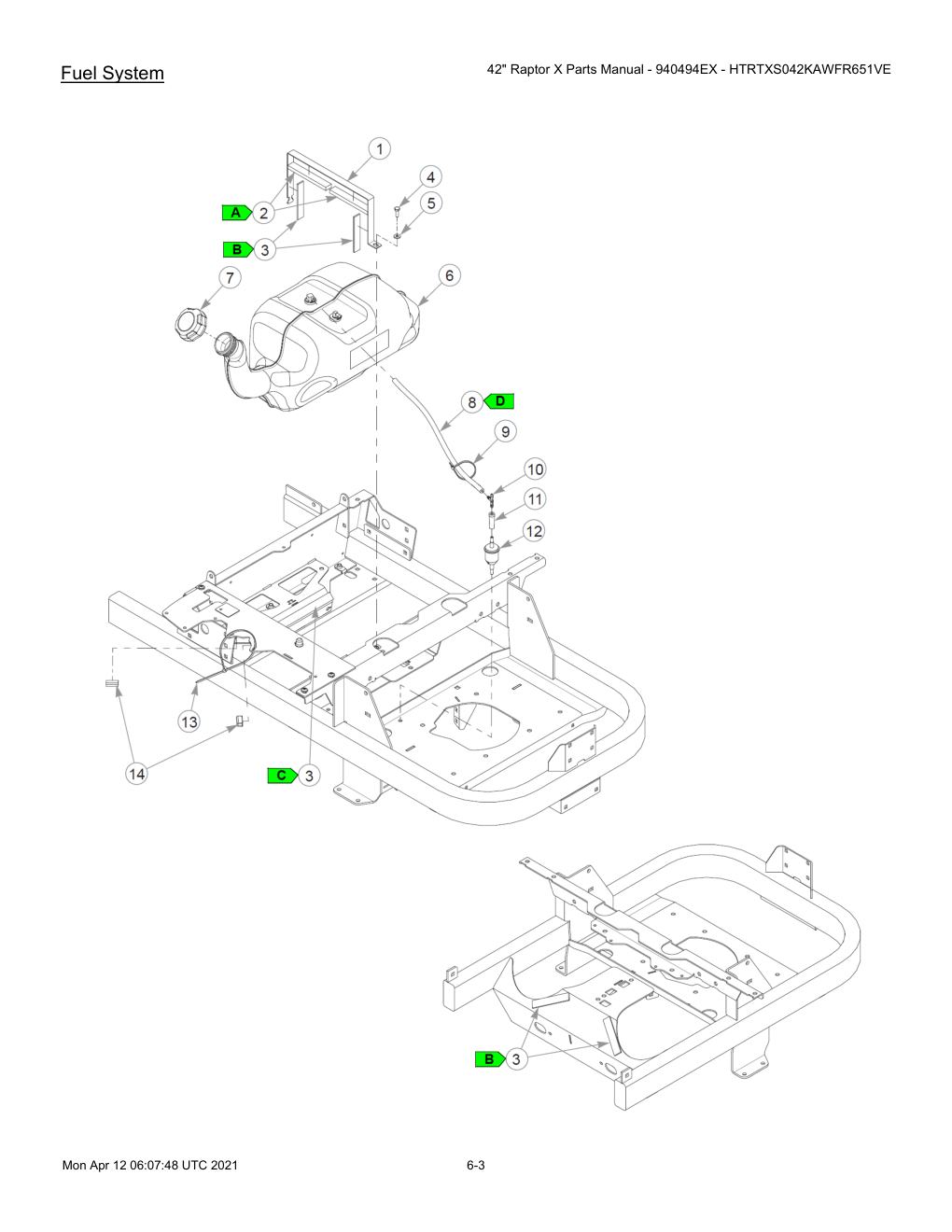

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | YELLOW, TANK MOUNT | 126202-1 | 1 | 126202-1-Online |
| 2 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 10 | 713198-Online |
| 3 | RUBBER STRIP | 608040 | 24 | 608040-Online |
| 4 | CS .250-20X0.75 HX G5 ZN | 055939 | 1 | 055939-Online |
| 5 | FW 0.281SAE | 768515 | 1 | HT768515-Online |
| 6 | FUEL TANK ASSY | 607745 | 1 | 607745-Online |
| 7 | CAP - 2.25" KELCH | 607731 | 1 | 607731-Online |
| 8 | VAPOR LINE, 3/16" | 603326 | 16.5 | 603326-Online |
| 9 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 10 | TEE, 3/16" PLASTIC | 605690 | 1 | 605690-Online |
| 11 | BOOT, 3/16 TO 3/16 | 605564 | 1 | 605564-Online |
| 12 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 13 | WIRE TIE, SMALL/LONG | 000430 | 1 | 000430-Online |
| 14 | TRIM LOCK, 1.13" | 604966 | 2 | 604966-Online |
Fuel Tank Service Parts - 607745
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUCTION HOSE SVC KIT | 605126K | 1 | 605126K-Online |
| 2 | VENT FITTING SVC KIT | 604287K | 1 | 604287K-Online |
| 3 | GROMMET SVC KIT | 604200K | 2 | 604200K-Online |

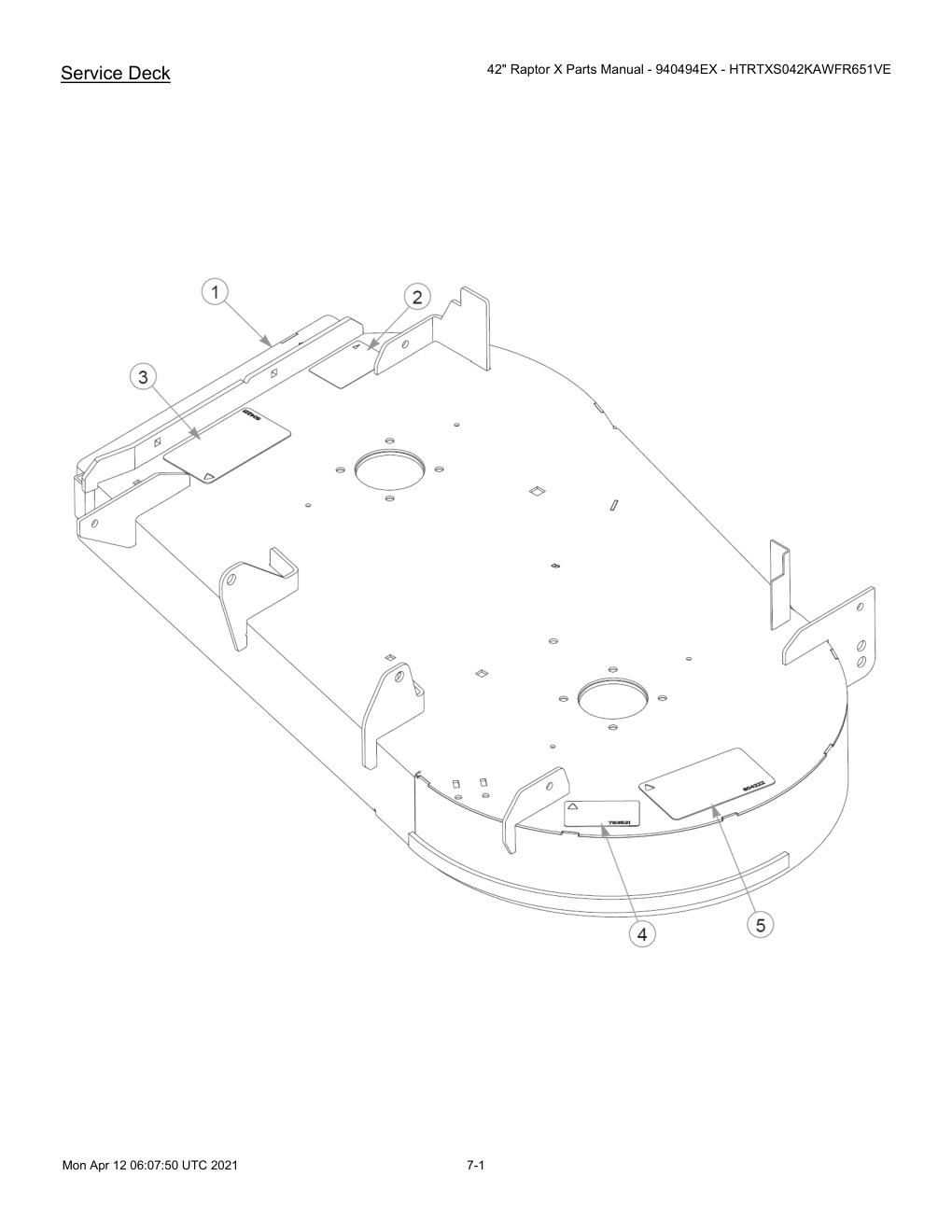

Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL | 555158 | 1 | 555158-Online |
| 2 | DECAL, BELT ROUTING | 602243 | 1 | 602243-Online |
| 3 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 4 | DECAL, 42" DECK ID | 793521 | 1 | 793521-Online |
| 5 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |

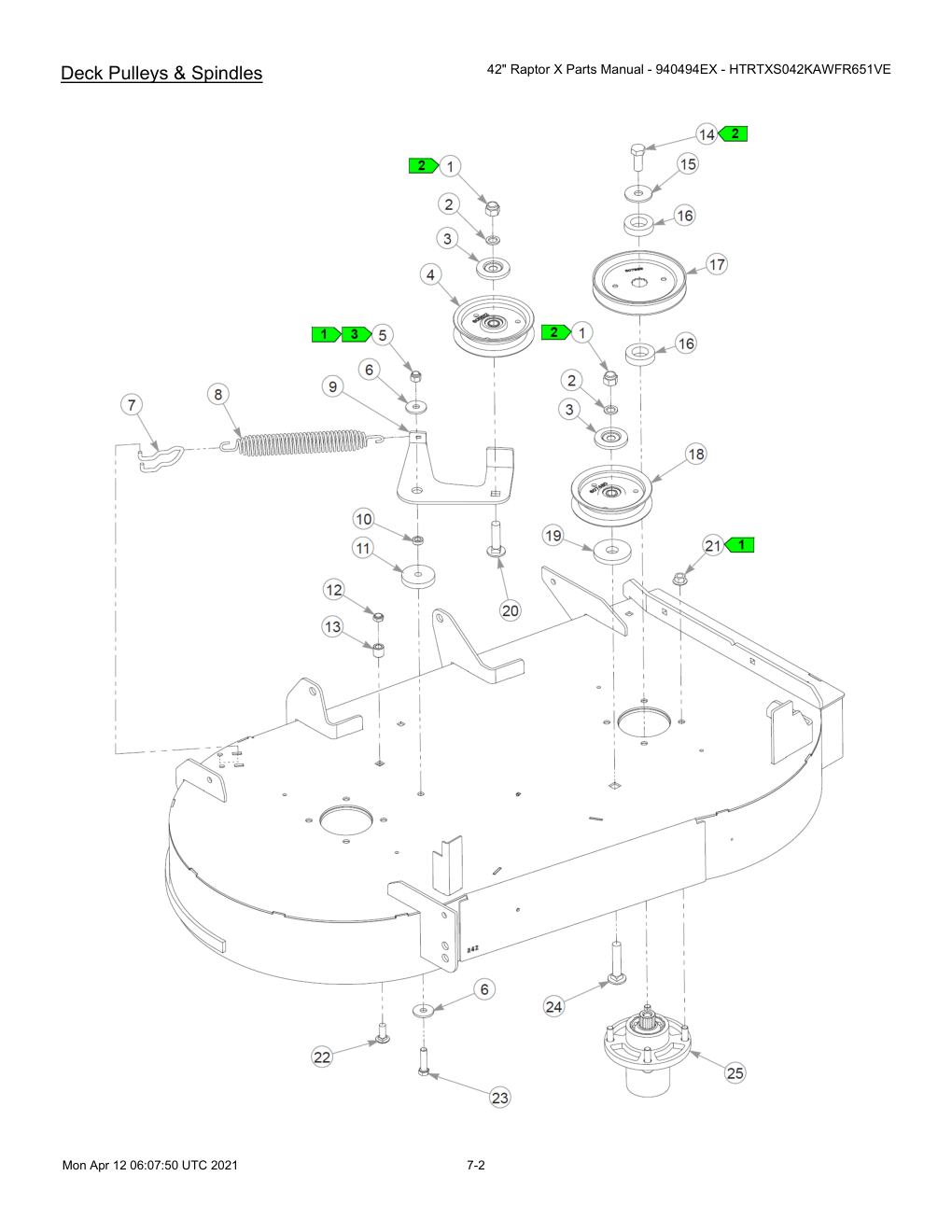

Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 2 | FW .531X.812X.089 HD | 604486 | 2 | 604486-Online |
| 3 | DUST SHIELD | 605467 | 2 | 605467-Online |
| 4 | 4" IDLER PULLEY | 605512 | 1 | 605512-Online |
| 5 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 6 | FW 0.406X1.25X.12 HD ZN | 712893 | 2 | HT712893-Online |
| 7 | ANCHOR, SPRING TENSIONER | 604110 | 1 | 604110-Online |
| 8 | SPRING, DECK IDLER | 607616 | 1 | 607616-Online |
| 9 | IDLER ARM, PIVOTING | 117512 | 1 | 117512-Online |
| 10 | PIVOT SPACER BUSHING | 608052 | 1 | HT608052-Online |
| 11 | SPACER, IDLER ARM | 117539 | 1 | HT117539-Online |
| 12 | NT .375-16 HX NL JAM ZN | 603846 | 1 | 603846-Online |
| 13 | TENSIONING PULLEY STOP | 122398 | 1 | 122398-Online |
| 14 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 15 | FW .515X1.65X.12 HD ZN | 798603 | 2 | 798603-Online |
| 16 | SPACER, SPINDLE PULLEY | 604661 | 4 | 604661-Online |
| 17 | DRIVE PULLEY, A-SEC | 607889 | 2 | 607889-Online |
| 18 | IDLER PULLEY, 4.00" | 607480 | 1 | 607480-Online |
| 19 | FW .73X2.25X.31 ZN | 605508 | 1 | 605508-Online |
| 20 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 21 | NT .375-16 FL NY GF | 604515 | 8 | 604515-Online |
| 22 | CB .375-16X 1.00 G5 ZN | 025395 | 1 | HT025395-Online |
| 23 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
| 24 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 25 | BLADE SPINDLE ASSY | 607418 | 2 | 607418-Online |

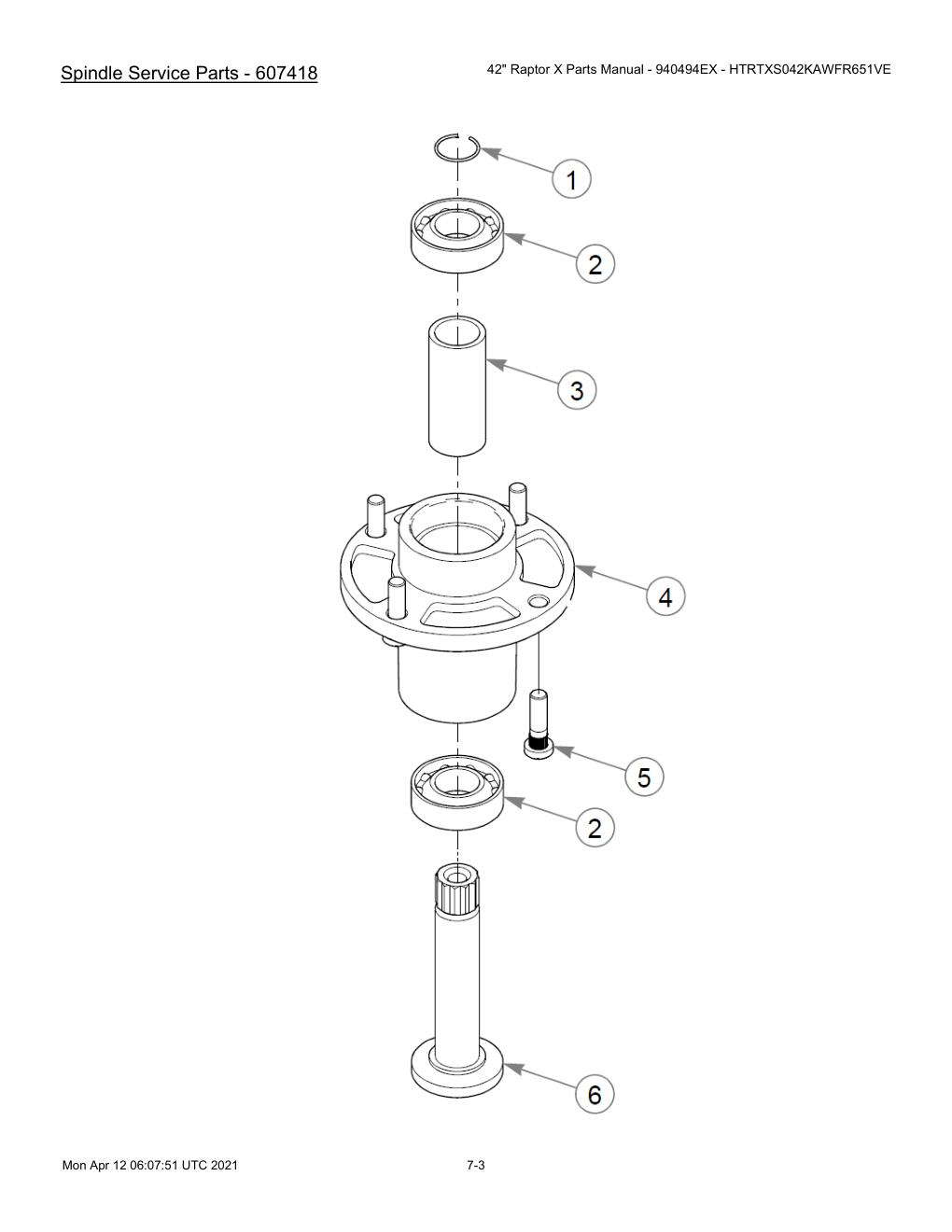

Spindle Service Parts - 607418
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RING, BLADE SPINDLE RET | 783548 | 1 | HT783548-Online |
| 2 | BEARING, 6205 2RST C3 | 601827 | 2 | 601827-Online |
| 3 | SPACER, BLADE SPINDLE | 601830 | 1 | 601830-Online |
| 4 | SVC, SPINDLE HOUSING | 607419 | 1 | 607419-Online |
| 5 | AXEL BOLT 3/8-16 X 1.375 | 607416 | 4 | 607416-Online |
| 6 | SHAFT, BLADE SPINDLE | 601829 | 1 | 601829-Online |
Deck Belt, Pulley Covers & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 607867 | 2 | 607867-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | DECK BELT | 771824 | 1 | 771824-Online |
| 4 | DISCHARGE CHUTE | 607961 | 1 | HT607961-Online |
| 5 | SPRING, TORSION | 607981 | 1 | HT607981-Online |
| 6 | CB .312-18X .750 FUL ZN | 016253 | 3 | 016253-Online |
| 7 | CP, RUE RING .054 X .392 | 607093 | 1 | 607093-Online |
| 8 | DISCHARGE CHUTE BRKT | 126410-4 | 1 | 126410-4-Online |
| 9 | NT 0.312-18 FL NY G5 | 608059 | 3 | HT608059-Online |
| 10 | FW .440X1.00X0.08 ZN | 017129 | 1 | 017129-Online |
| 11 | PIN, DISCHARGE CHUTE | 607991 | 1 | HT607991-Online |
| 12 | PULLER, DECK | 607016 | 2 | 607016-Online |
| 13 | FW .531x1.00x.090 ZN | 004168 | 2 | HT004168-Online |
| 14 | CP, RUE RING .062 X .520 | 607051 | 2 | 607051-Online |
| 15 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 16 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 17 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 18 | BLADE, 20.50"-L-F-CW | 607564 | 2 | 607564-Online |
| Not Shown | 10 PK, BLADE 20.50" | 607564X | 1 | 607564X-Online |
| Not Shown | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| Not Shown | 10PK BLADE, 20.50"-L-F-C | 600901X | 1 | 600901X-Online |
| Not Shown | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| Not Shown | 10PK BLADE, F20.50"-H-F- | 794685X | 1 | 794685X-Online |
| Not Shown | BLADE,20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| Not Shown | 10PK BLADE, 20.50"-MUL-F | 794214X | 1 | 794214X-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 2 | HT794230-Online |
| Not Shown | 10PK BLADE, 20.50"-GAT-F | 794230X | 1 | 794230X-Online |
| Not Shown | BLADE,20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| Not Shown | 10PK BLADE, 20.50"-CAT-F | 793935X | 1 | 793935X-Online |
| 19 | CW .678 X 1.500 X .135 | 607962 | 2 | HT607962-Online |
| 20 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
| 21 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |
| 22 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 23 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |
Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .312-18X 1.750 G5 | 771212 | 8 | 771212-Online |
| 2 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 4 | FW .41X.94X.25 UHMW | 605114 | 4 | 605114-Online |
| 5 | PIVOT, DECK LIFT | 607970 | 4 | 607970-Online |
| 6 | DECK LIFT W/A REAR | 126389-1 | 1 | HT126389-1-Online |
| 7 | DECK HANGER | 607912 | 4 | 607912-Online |
| 8 | BUSHING, DECK LIFT | 607907 | 8 | 607907-Online |
| 10 | NT .312-18 HXNL JAM G2ZN | 604251 | 8 | 604251-Online |
| 11 | DECK LIFT W/A FRONT | 126385-1 | 1 | HT126385-1-Online |
| 12 | CP, RUE RING .062 X .520 | 607051 | 2 | 607051-Online |
| 13 | FW .531x1.00x.090 ZN | 004168 | 2 | HT004168-Online |
| 14 | CP, RUE RING .054 X .392 | 607093 | 4 | 607093-Online |
| 15 | PIN, .375X1.62 MAGNETIC | 607039 | 1 | 607039-Online |
| 16 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 17 | SERVICE, DECK HEIGHT | 555668 | 1 | 555668-Online |
| 18 | DECAL, DECK HEIGHT | 605538 | 1 | 605538-Online |
| 19 | DECK LIFT LINK ZINC | 126374-4 | 1 | HT126374-4-Online |
| 20 | SPACER, DECK LIFT LINK | 118900 | 2 | HT118900-Online |
| 21 | DECK HEIGHT BRACKET | 126370-1 | 1 | 126370-1-Online |
| 22 | CB .375-16X1.250 G5 ZN | 603113 | 2 | 603113-Online |
| 23 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |

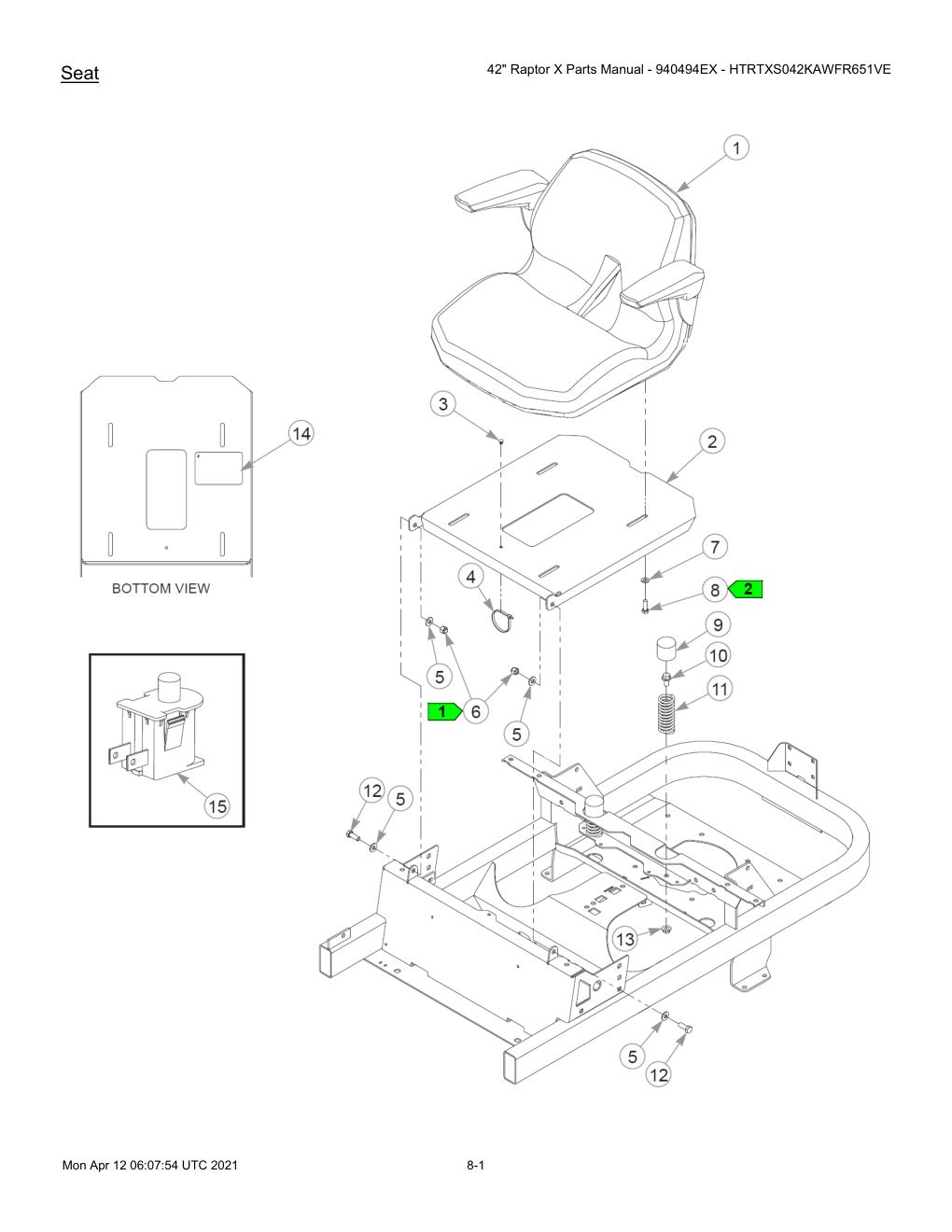

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, SK120 | 608266 | 1 | 608266-Online |
| 2 | SVC, SEAT PAN | 555767 | 1 | 555767-Online |
| 3 | MOUNT, PUSH BUTTON | 604307 | 1 | 604307-Online |
| 4 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 6 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 9 | CAP | 607838 | 2 | 607838-Online |
| 10 | CS .375-16X0.75 HXF G5ZN | 029629 | 2 | HT029629-Online |
| 11 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 12 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 13 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 14 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 15 | SWITCH, SNAP MOUNT | 793315 | 1 | 793315-Online |
