Illustrated Parts List
Hustler Sport Parts Manual (Export) - 604502
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 604502Model: 601810Model: 784264Model: 607418SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

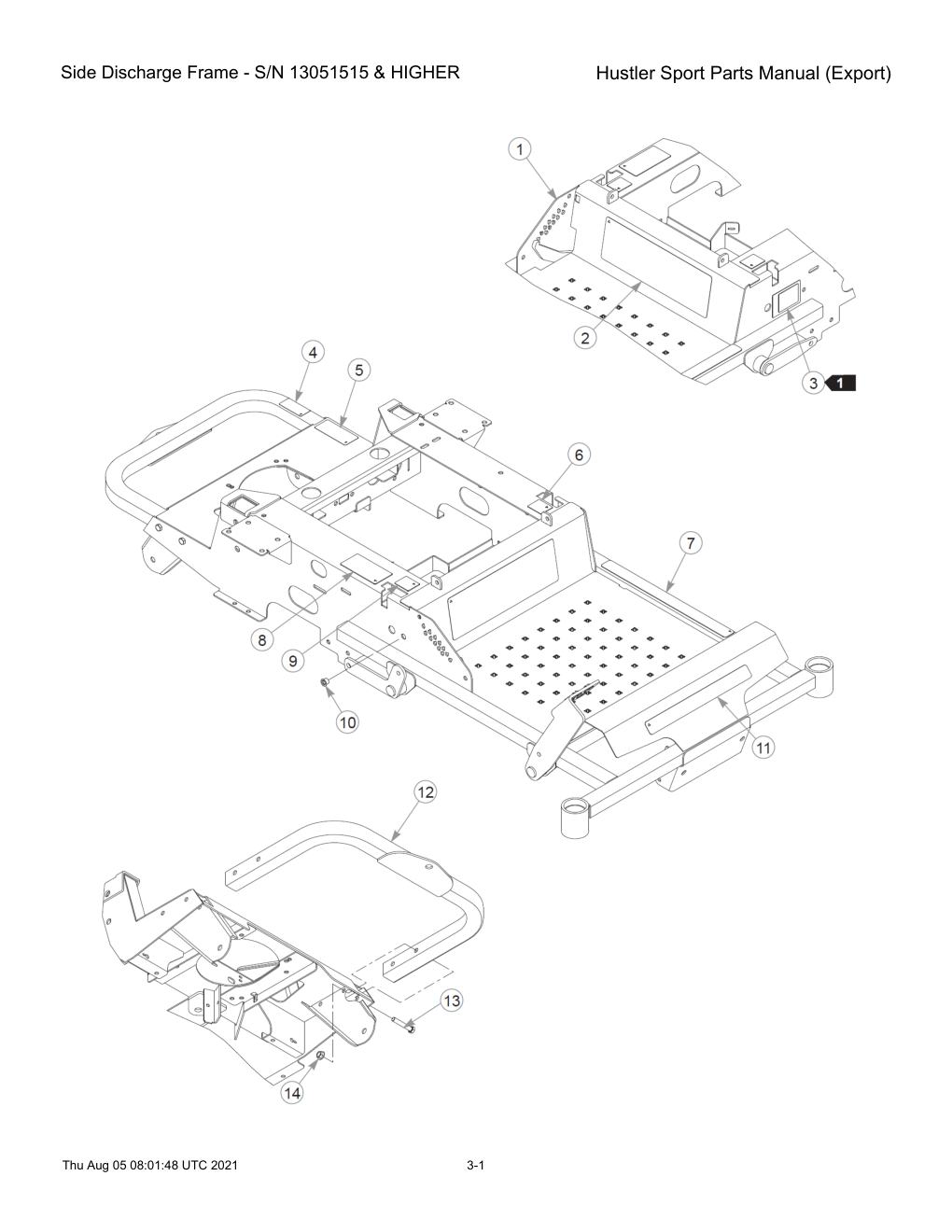

Side Discharge Frame - S/N 13051515 & HIGHERSide Discharge Frame - S/N PRIOR TO 13051515Rear Discharge FrameEngine GuardHydraulic System, Side DischargePump Belt, Side DischargeTransmission Assembly, Side DischargeHydraulic System, Rear DischargePump Belt, Rear DischargeTransmission Assembly, Rear DischargeTransmission Service PartsSteeringSteering AssemblyPark BrakeWheel & TireFront Wheel Breakdown604502 Tire/Wheel Assembly (36" RD Mower)601810 Tire/Wheel Assembly (42"/48" Mower)784264 Tire/Wheel Assembly (54" Mower)Engine, Briggs & Stratton 17.5/21 HP-S/N 12030001 & HigherFuel System, Briggs & Stratton 17.5/21 HP - S/N 12030001 & HIGHEREngine. Briggs & Stratton 17.5/21 HP-S/N Prior to 12030001Fuel System, Briggs & Stratton 17.5/21 HP-S/N Prior to 12030001Engine Service Parts, Briggs & Stratton 17.5 HP/21 HPEngine, Briggs & Stratton 26 HP-S/N 12030001 & Higher - Page 1 of 2Engine, Briggs & Stratton 26 HP-S/N 12030001 & Higher - Page 2 of 2Fuel System, Briggs & Stratton 26 HP - S/N 12030001 & HIGHEREngine, Briggs & Stratton 26 HP-S/N Prior to 12030001 - Page 1 of 2Engine, Briggs & Stratton 26 HP-S/N Prior to 12030001 - Page 2 of 2Fuel System, Briggs &Stratton 26 HP-S/N Prior to 12030001Engine Service Parts, Briggs & Stratton 26 HPEngine. Kawasaki FR541V & FR600V-S/N 12030001 & HigherFuel System, Kawasaki FR541V & FR600V - S/N 12030001 & HIGHEREngine, Kawasaki FR541V & FR600V-S/N Prior to 12030001Fuel System, Kawasaki FR541V & FR600V - S/N PRIOR TO 12030001Fuel System, Kawasaki FR541V & FR600V - S/N PRIOR TO 12030001Engine, Kawasaki FR651V - S/N 12030001 & HigherFuel System, Kawasaki FR651V - S/N 12030001 & HIGHEREngine, Kawasaki FR651V - S/N Prior to 12030001Fuel System, Kawasaki FR651V - S/N PRIOR TO 12030001Fuel System, Kawasaki FR651V - S/N PRIOR TO 12030001Engine, Kawasaki FR691VFuel System, Kawasaki FR691VEngine Service Parts, Kawasaki FR541V & FR600VEngine Service Parts, Kawasaki FR651VEngine Service Parts, Kawasaki FR691VFuel Tank & Fender - S/N PRIOR TO 11010000, 12030001 & HIGHERFuel Tank & Fender-S/N 11010000 to 12030001Instrument Panel. 17 & 21 Briggs & StrattonInstrument Panel, 26 Briggs & StrattonInstrument Panel. KawasakiBattery36" Rear Discharge Service Deck36" Rear Discharge Deck Pulleys & Spindles36" Rear Discharge Deck42" Side Discharge Service Deck42" Side Discharge Deck Pulleys & Spindles - S/N Prior to 11021630 and Higher Than 1102174042" Side Discharge Deck Pulleys & Spindles - S/N Between 11021630 and 1102174042" Side Discharge Deck48" Side Discharge Service Deck48" Side Discharge Deck Pulleys & Spindles48" Side Discharge Deck54" Side Discharge Service Deck54" Side Discharge Deck Pulleys & Spindles54" Side Discharge DeckSpindle Service Parts - 607418Deck LiftDeck Mounting HardwareSeatSide Discharge Frame - S/N 13051515 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE 42" FRAME, SPORT | 550668 | 1 | 550668-Online |
| Not Shown | SVC, 48"/54"FRAME, SPORT | 550669 | 1 | 550669-Online |
| 2 | DECAL, SPORT ID | 601812 | 1 | 601812-Online |
| 3 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 4 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 5 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 6 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 9 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 10 | RIVET NUT, 5/16-18 THRE | 808485 | 1 | HT808485-Online |
| 11 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 12 | SERVICE BUMPER, SPORT | 552098 | 1 | 552098-Online |
| 13 | CS .375-16X2.250HXG5 | 056036 | 4 | 056036-Online |
| 14 | NT .375-16 FLKG5 | 016899 | 4 | HT016899-Online |

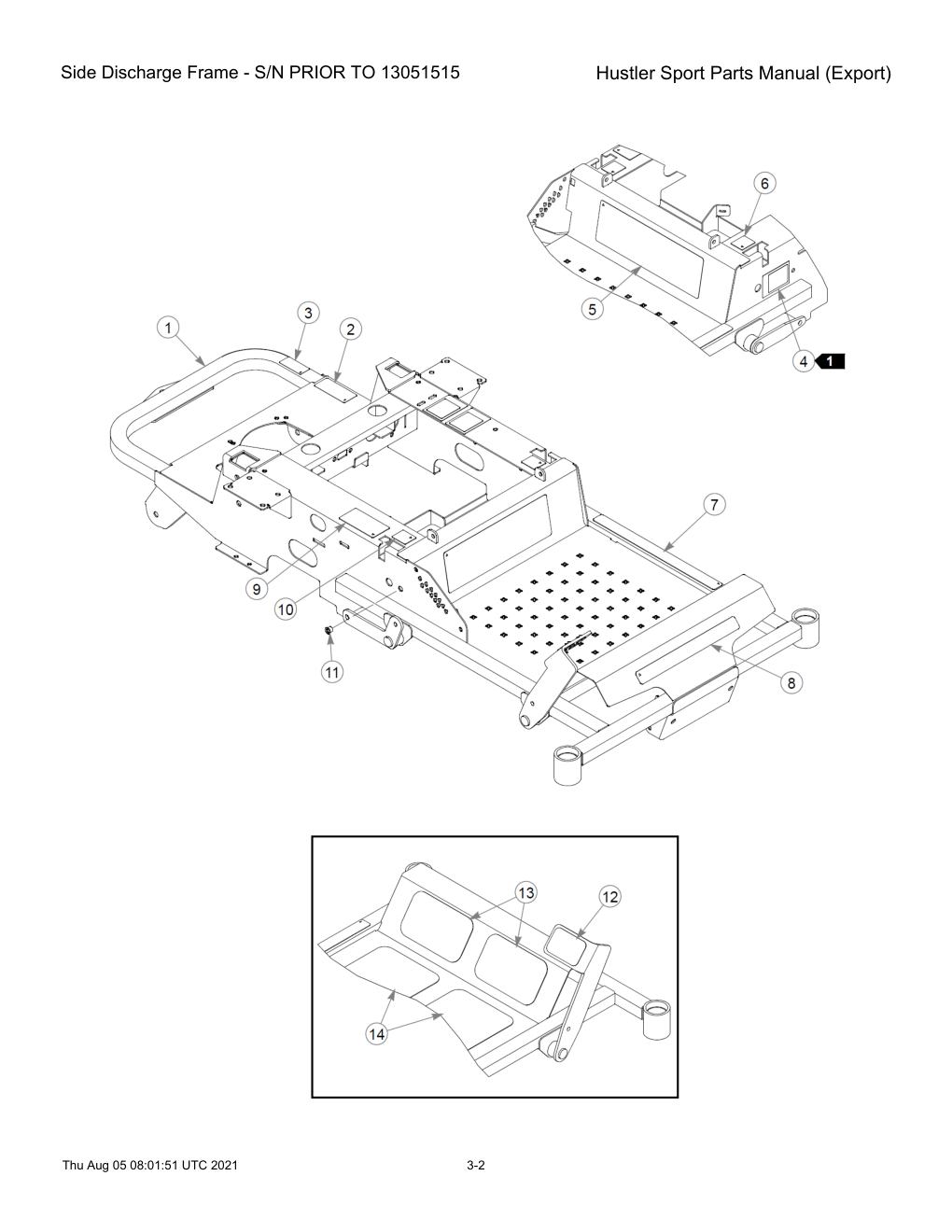

Side Discharge Frame - S/N PRIOR TO 13051515
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE 42" FRAME, SPORT | 550668 | 1 | 550668-Online |
| Not Shown | SVC, 48"/54"FRAME, SPORT | 550669 | 1 | 550669-Online |
| 2 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 3 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 4 | SERIAL NUMBER / SPEC. DECAL | N/A | 1 | No SKU |
| 5 | DECAL, SPORT ID | 601812 | 1 | 601812-Online |
| 6 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 9 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 10 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 11 | RIVET NUT, 5/16-18 THRE | 808485 | 1 | HT808485-Online |
| 12 | STEP TREAD, FOOT LIFT | 601987 | 1 | 601987-Online |
| 13 | GRIP TAPE | 110063 | 2 | 110063-Online |
| 14 | STEP TREAD, LOWER SPORT | 601986 | 2 | 601986-Online |

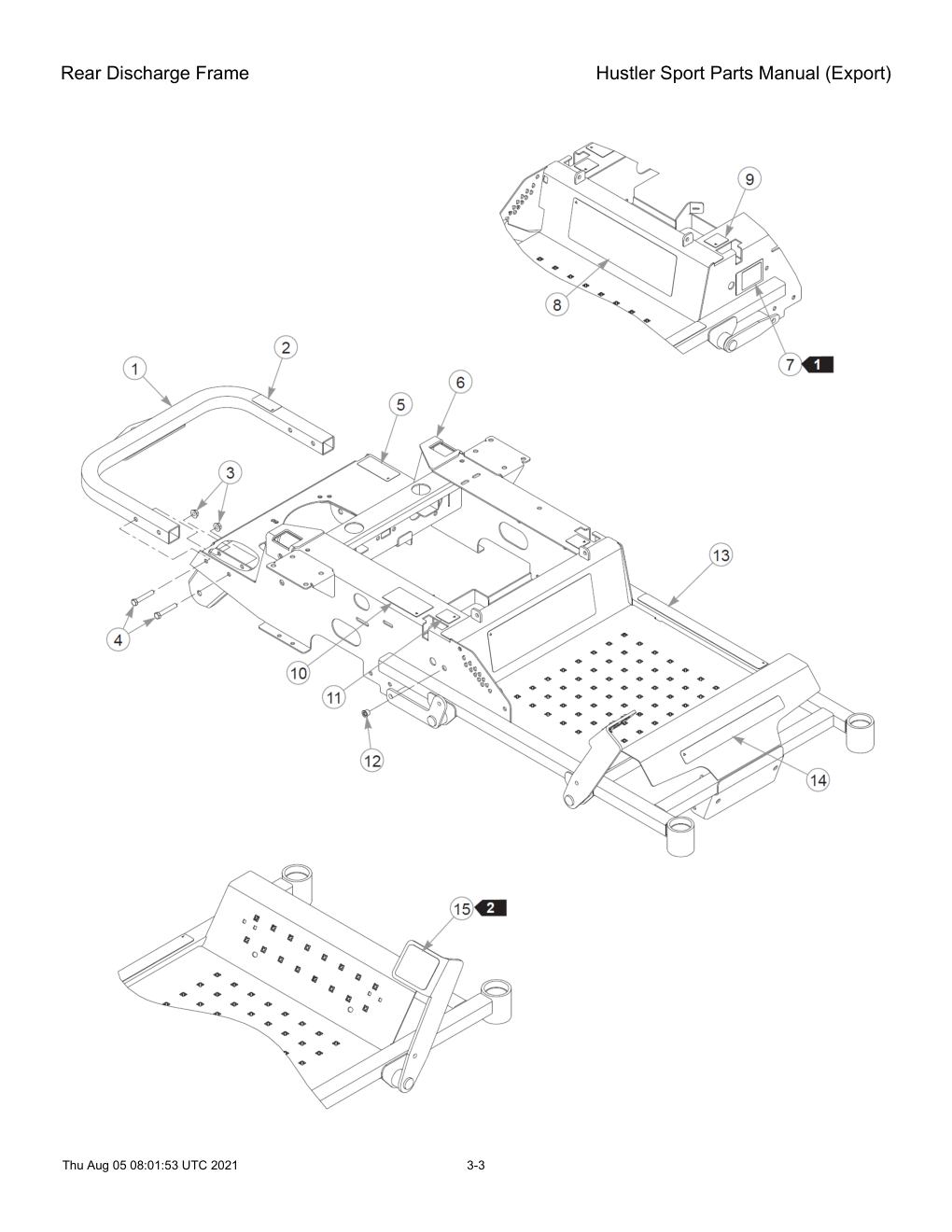

Rear Discharge Frame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BUMPER W/A, SPORT | 110860 | 1 | 110860-Online |
| 2 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 3 | NT .375-16 FLKG5 | 016899 | 4 | HT016899-Online |
| 4 | CS .375-16X2.250HXG5 | 056036 | 4 | 056036-Online |
| 5 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 6 | SVC FRAME, SPORT RD | 551962 | 1 | 551962-Online |
| 7 | SERIAL NO. / SPEC DECAL | N/A | 1 | No SKU |
| 8 | DECAL, SPORT ID | 601812 | 1 | 601812-Online |
| 9 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 10 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 11 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 12 | RIVET NUT, 5/16-18 THRE | 808485 | 1 | HT808485-Online |
| 13 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 14 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 15 | STEP TREAD, FOOT LIFT | 601987 | 1 | 601987-Online |

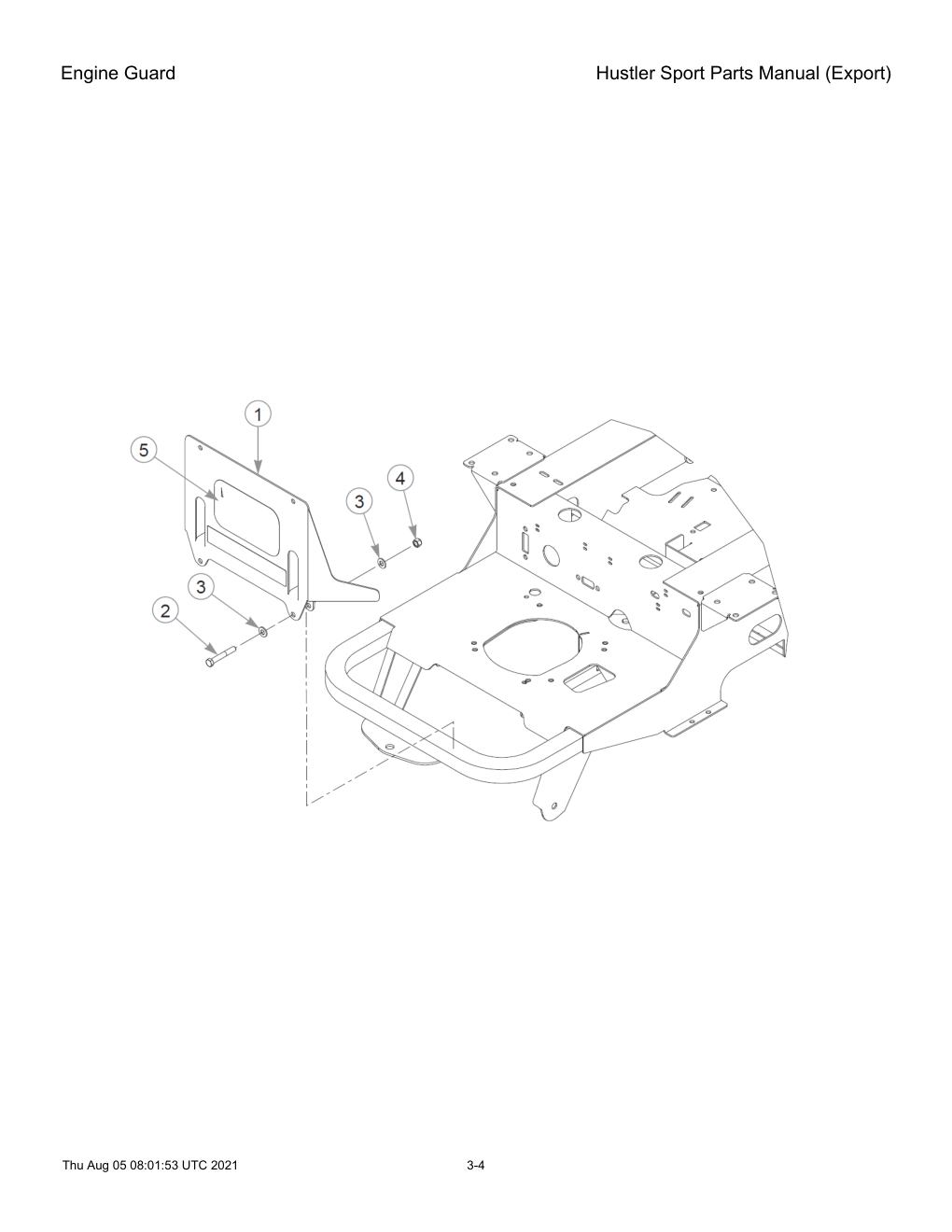

Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ENGINE GUARD SPORT | 111171 | 1 | 111171-Online |
| 2 | CS .375-16X2.500HXG5 | 016428 | 2 | 016428-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 4 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 5 | DECAL, "H" LOGO | 604770 | 1 | 604770-Online |

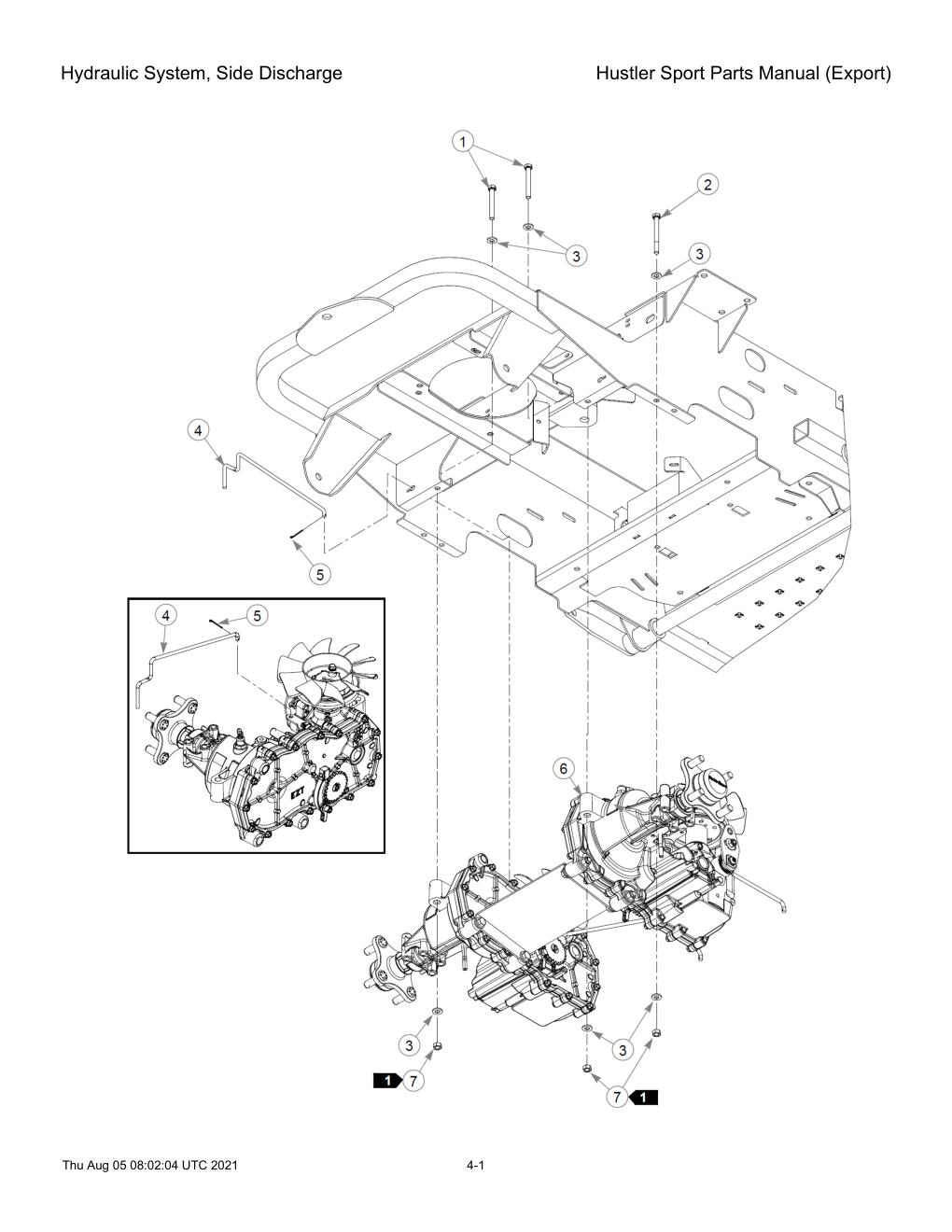

Hydraulic System, Side Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 3 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 4 | TOWLINK ROD | 793174 | 2 | HT793174-Online |
| 5 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 6 | TRANSMISSION ASSEMBLY | N/A | 1 | No SKU |
| 7 | NT .312-18HXG5 | 034272 | 8 | HT034272-Online |

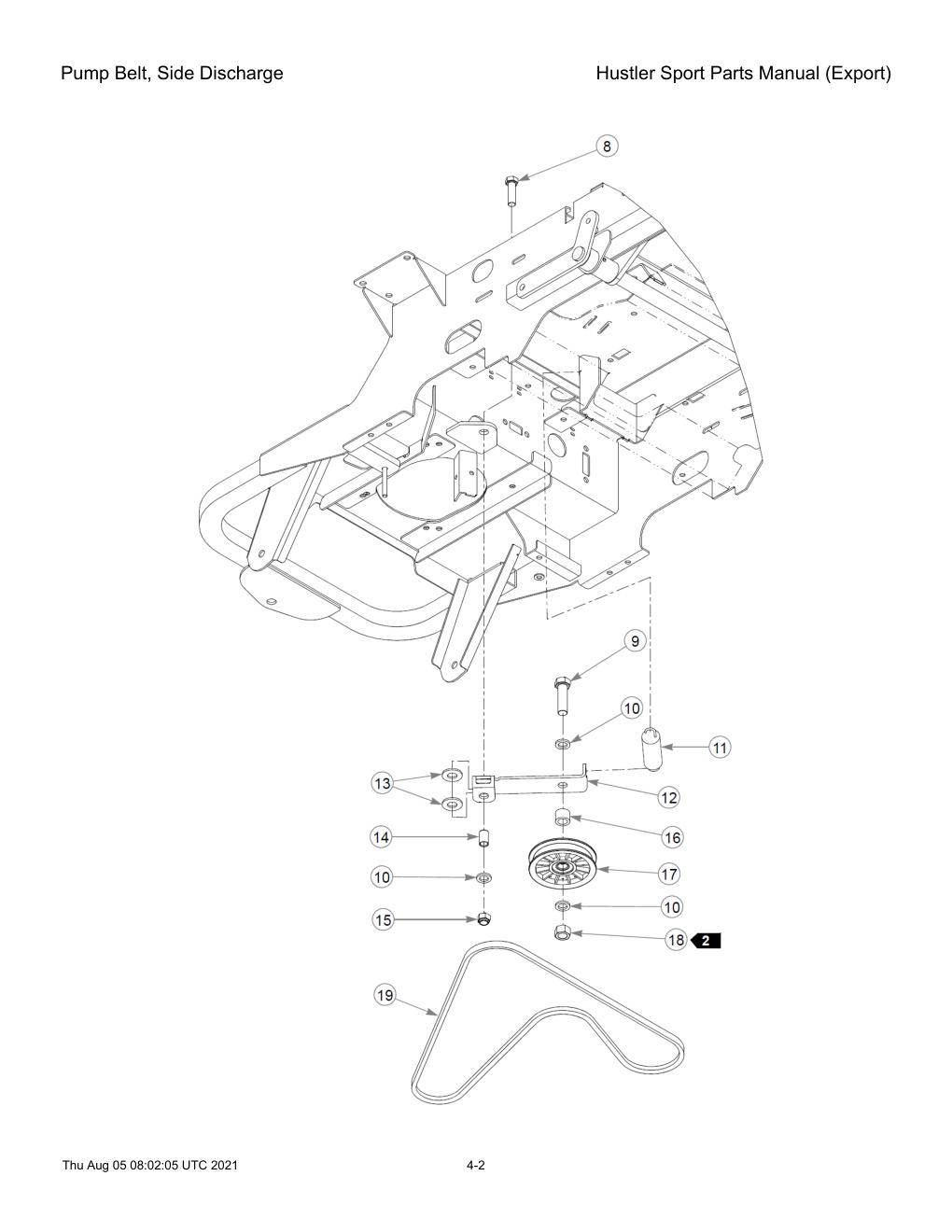

Pump Belt, Side Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 8 | CS .500-13X1.750HXG5 | 017616 | 1 | HT017616-Online |
| 9 | CS .625-11 X 2.25 HXG5ZN | 601983 | 1 | 601983-Online |
| 10 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 11 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 12 | PUMP IDLER, FORMED | 111079 | 1 | 111079-Online |
| 13 | BEARING DISC | 602026 | 2 | 602026-Online |
| 14 | BUSHING,IGUS .500id (FS) | 602025 | 1 | 602025-Online |
| 15 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 16 | SPACER, IDLER | 601398 | 1 | 601398-Online |
| 17 | PULLEY, IDLER, 4.00"OD, | 784827 | 1 | HT784827-Online |
| 18 | NT .625-11 HX G5 ZN | 016972 | 1 | HT016972-Online |
| 19 | DRIVE BELT | 769133 | 1 | HT769133-Online |

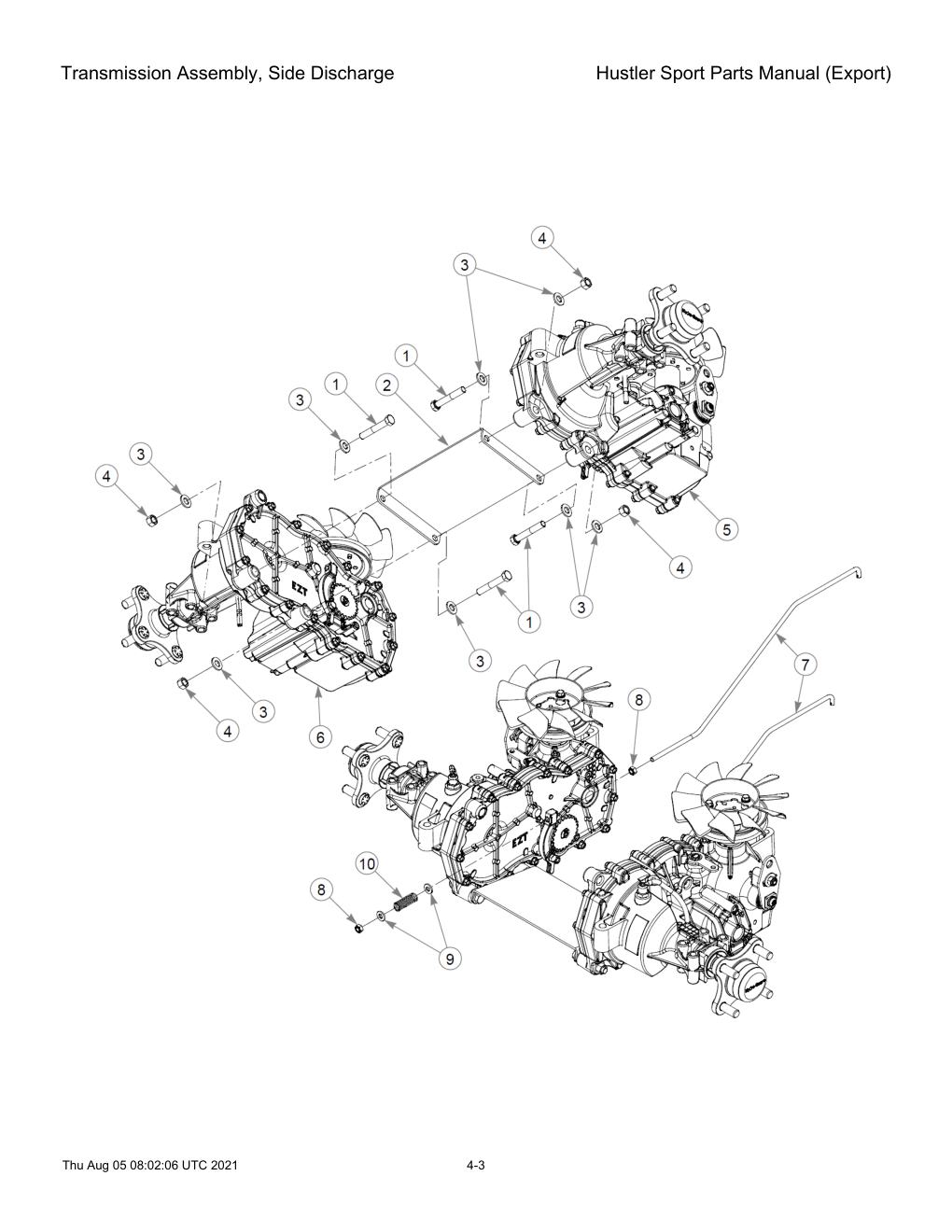

Transmission Assembly, Side Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .375-16X2.250HXG5 | 056036 | 4 | 056036-Online |
| 2 | CROSS BRACE, HYDROSTAT | 123634-3 | 1 | 123634-3-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 4 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 5 | EZT, 19.2:1 RIGHT TRANS | 603091 | 1 | 603091-Online |
| 6 | EZT, 19.2:1 LEFT TRANS | 603090 | 1 | 603090-Online |
| 7 | BRAKE ACTUATOR ROD | 110009 | 2 | 110009-Online |
| 8 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 9 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 10 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |

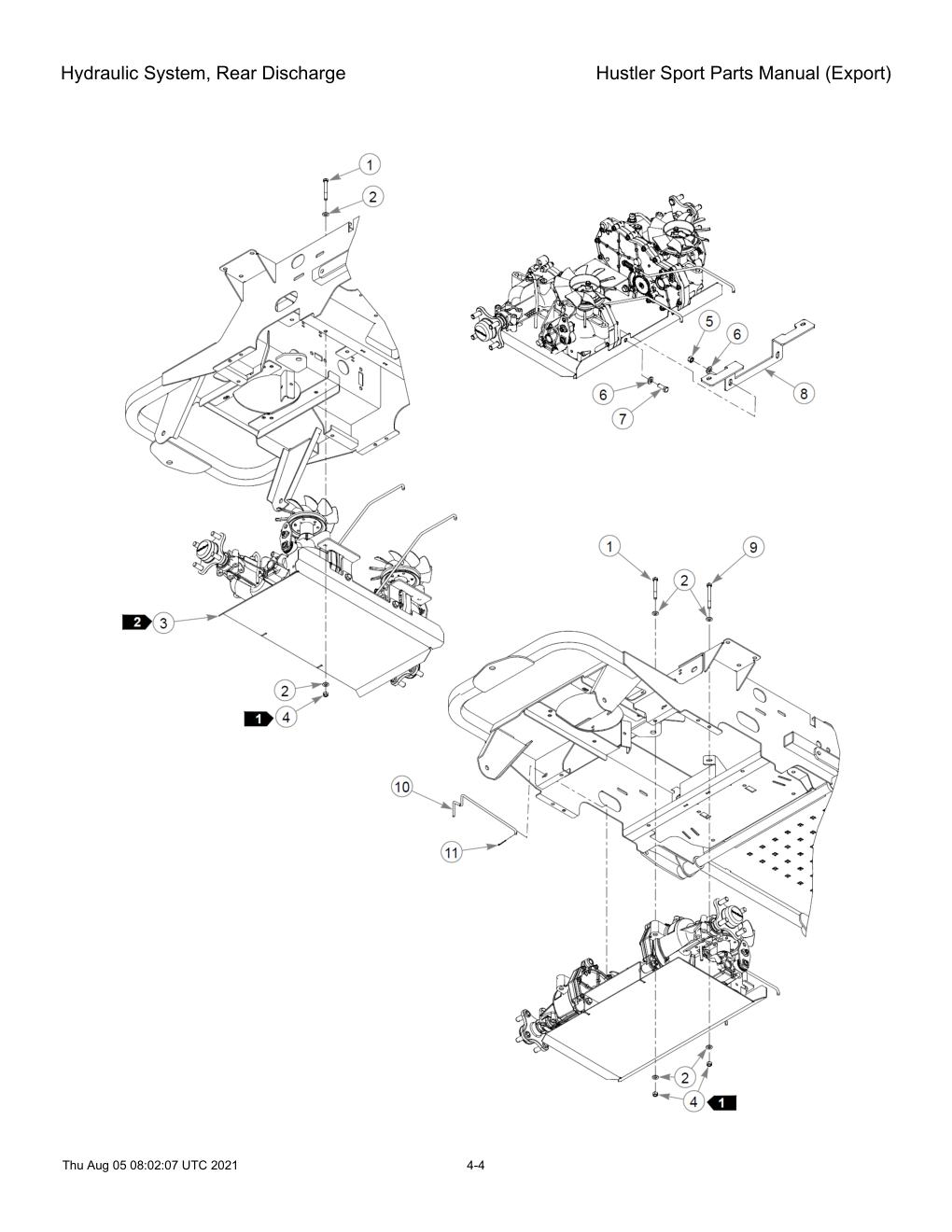

Hydraulic System, Rear Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 3 | TRANSMISSION ASSEMBLY | N/A | 1 | No SKU |
| 4 | NT .312-18HXG5 | 034272 | 8 | HT034272-Online |
| 5 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 7 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 8 | SHIELD TRANNY BRACKET | 117440 | 1 | 117440-Online |
| 9 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 10 | TOWLINK ROD | 793174 | 2 | HT793174-Online |
| 11 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
Pump Belt, Rear Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 12 | CS .500-13X1.750HXG5 | 017616 | 1 | HT017616-Online |
| 13 | CS .625-11 X 2.25 HXG5ZN | 601983 | 1 | 601983-Online |
| 14 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 15 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 16 | PUMP IDLER, FORMED | 111079 | 1 | 111079-Online |
| 17 | SPACER, IDLER | 601398 | 1 | 601398-Online |
| 18 | PULLEY, IDLER, 4.00"OD, | 784827 | 1 | HT784827-Online |
| 19 | NT .625-11 HX G5 ZN | 016972 | 1 | HT016972-Online |
| 20 | BEARING DISC | 602026 | 2 | 602026-Online |
| 21 | BUSHING,IGUS .500id (FS) | 602025 | 1 | 602025-Online |
| 22 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 23 | DRIVE BELT | 769133 | 1 | HT769133-Online |

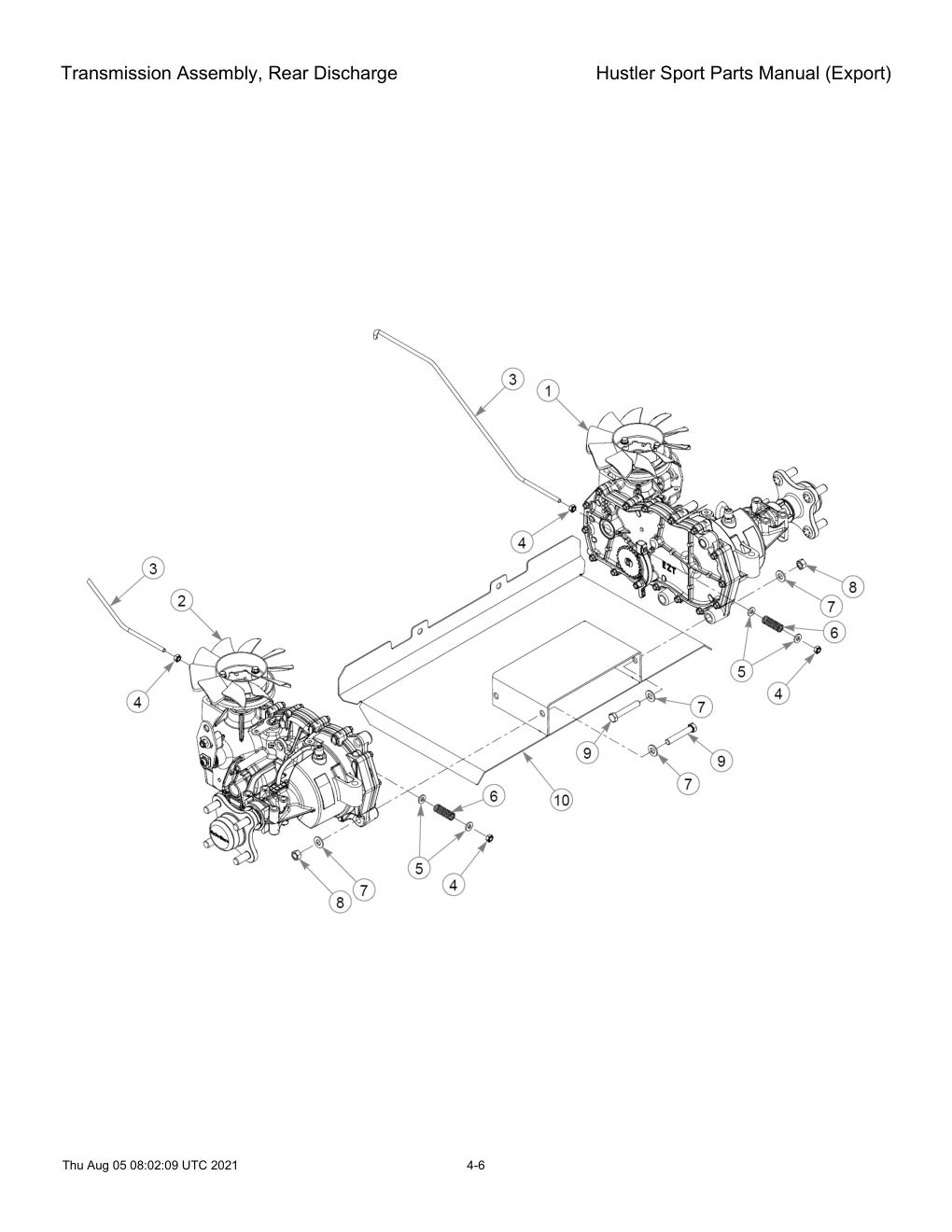

Transmission Assembly, Rear Discharge
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | EZT, 19.2:1 RIGHT TRANS | 603091 | 1 | 603091-Online |
| 2 | EZT, 19.2:1 LEFT TRANS | 603090 | 1 | 603090-Online |
| 3 | BRAKE ACTUATOR ROD | 110009 | 2 | 110009-Online |
| 4 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 5 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 6 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |
| 7 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 8 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 9 | CS .375-16X2.250HXG5 | 056036 | 4 | 056036-Online |
| 10 | SHIELD W/A | 116653 | 1 | 116653-Online |
Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PARKING PAWL KIT, EZT | 795047 | 1 | HT795047-Online |
| 2 | RING, RETAINING | 798371 | 1 | 798371-Online |
| 3 | GEAR, PARK BRAKE | 798363 | 1 | HT798363-Online |
| 4 | FAN/PULLEY KIT | 601941 | 1 | 601941-Online |
| 5 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 6 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |

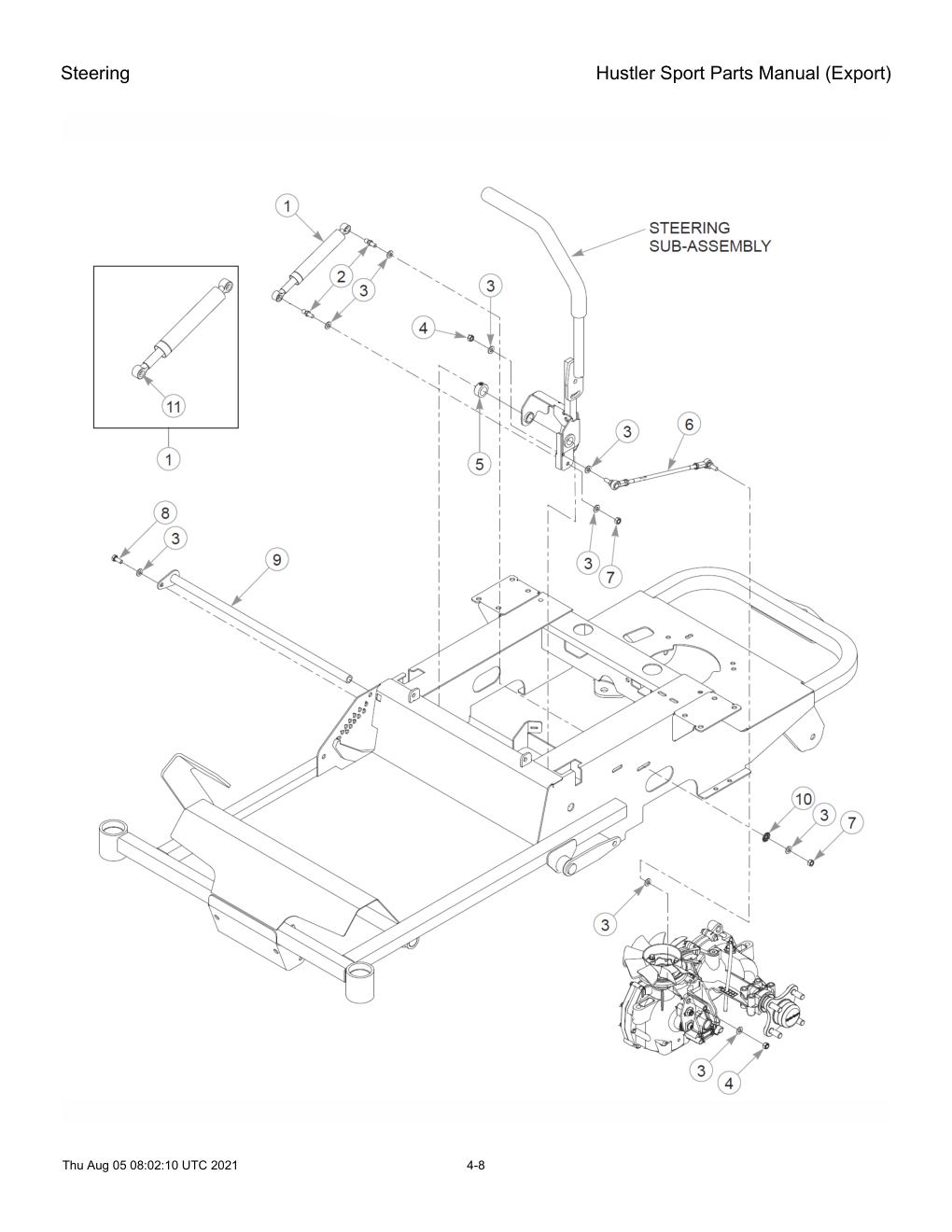

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 2 | BALL STUD | 781922 | 4 | 781922-Online |
| 3 | FW 0.343SAE | 768523 | 17 | HT768523-Online |
| 4 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 5 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 6 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 7 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 8 | CS .312-18X0.750HXG5 | 034280 | 1 | HT034280-Online |
| 9 | PIVOT TUBE ASSEMBLY | 110014 | 1 | HT110014-Online |
| 10 | LW .312 INTEXT ZN | 029876 | 2 | 029876-Online |
| 11 | CAP LOCK | 601426 | 1 | 601426-Online |

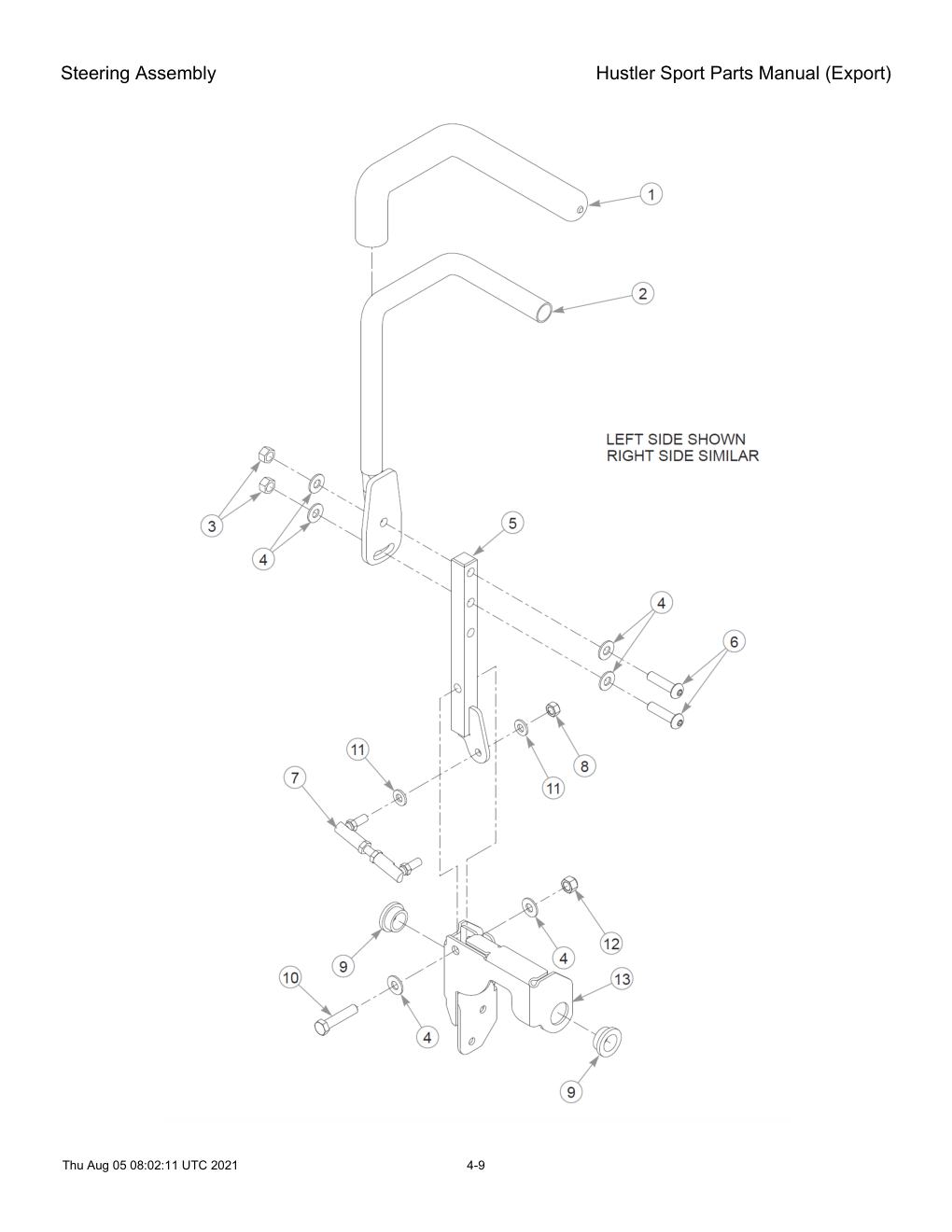

Steering Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 2 | STEERING BAR W/ GRIP | 110370 | 2 | 110370-Online |
| 3 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 5 | CONTROL LEVER W/A LH | 110089 | 2 | 110089-Online |
| 6 | CS .375-16X1.5 BH ZN | 604816 | 4 | 604816-Online |
| 7 | BALL JOINT LINK | 796615 | 2 | HT796615-Online |
| 8 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 9 | BUSHING, PLAS .750x1(FS) | 770867 | 4 | HT770867-Online |
| 10 | CS .375-16X1.750HXG5 | 705178 | 2 | HT705178-Online |
| 11 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 12 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 13 | STEERING BOX LH (PLATED) | 110008 | 1 | 110008-Online |
| REF | STEERING BOX RH (PLATED) | 110007 | 1 | 110007-Online |
Park Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BRAKE ACTUATOR LH | 110001 | 1 | 110001-Online |
| 2 | BRAKE ACUTATOR RH | 110000 | 1 | 110000-Online |
| 3 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 4 | NUT PLATE, .420 CENTERS | 601822 | 2 | 601822-Online |
| 5 | SWITCH, PUSH BUTTON | 781211 | 2 | HT781211-Online |
| 6 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 7 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 8 | CS .375-16X4.000HXG5 | 725796 | 2 | 725796-Online |
| 9 | CS #10-24X0.750FLKG5 | 063198 | 4 | 063198-Online |
| 10 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 11 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 12 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 13 | BRAKE ACTUATOR ROD | 110009 | 2 | 110009-Online |
| 14 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 15 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 16 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |

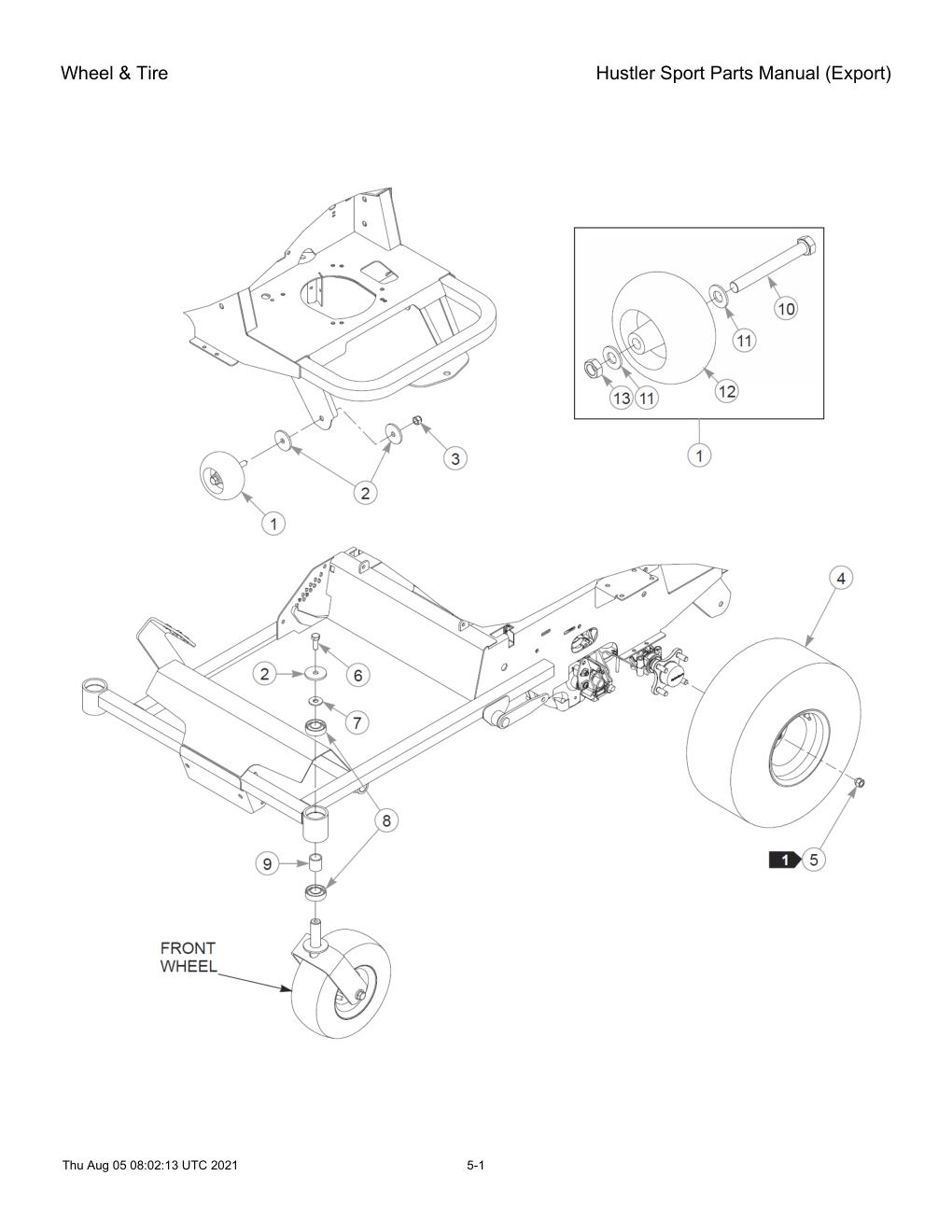

Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 2 | FW .510X2.15X.19 ZN | 344267 | 6 | HT344267-Online |
| 3 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 4 | TIR/WHL 18X8.50-8 SLV | 601810 | 2 | 601810-Online |
| REF | TIR/WHL 18X9.50-8 SLV | 784264 | 2 | 784264-Online |
| REF | TIRE/WHL ASSY, 20 X 6.50 | 604502 | 2 | 604502-Online |
| 5 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 6 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 7 | FW 0.531X1.38X.12 ZN | 712976 | 2 | HT712976-Online |
| 8 | BEARING | 784223 | 4 | HT784223-Online |
| 9 | SPACER | 784603 | 2 | HT784603-Online |
| 10 | CS .500-13X4.25 HX G5 ZN | 781708 | 2 | HT781708-Online |
| 11 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 12 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 13 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |

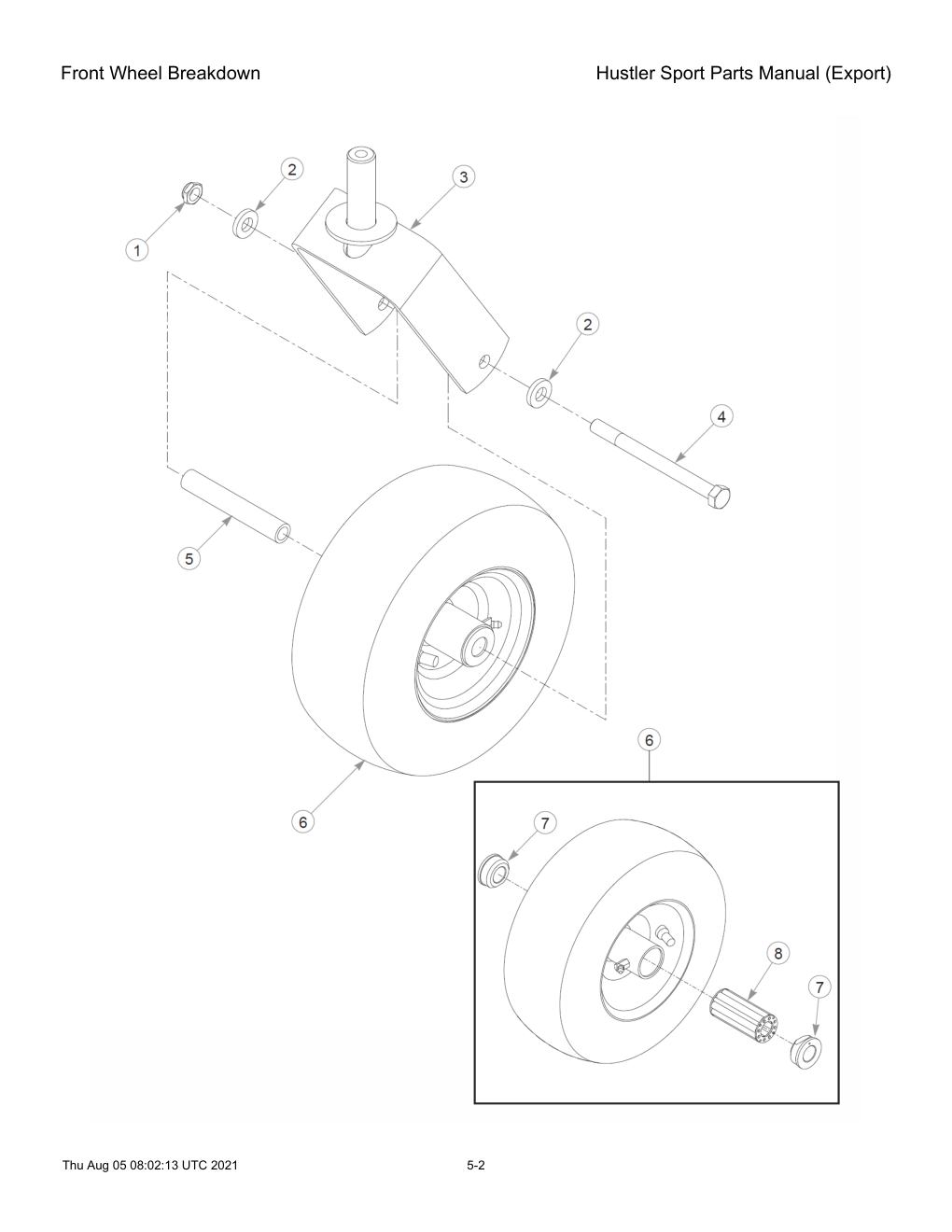

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 JAM NY LK | 707398 | 1 | HT707398-Online |
| 2 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 3 | CASTER FORK W/A | 110116 | 1 | HT110116-Online |
| 4 | CS .500-13X6.00 HX G5 ZN | 604718 | 1 | 604718-Online |
| 5 | GAGE WHEEL SPACER | 306969 | 1 | HT306969-Online |
| 6 | TIR/WHL 11X4.00-5 SLV | 605113 | 1 | 605113-Online |
| Not Shown | T/W 11X4.00-5 RIBBED | 768044 | 1 | 768044-Online |
| 7 | BEARING CAP | 772806 | 2 | HT772806-Online |
| 8 | BEARING, 3/4" ROLLER | 772814 | 1 | HT772814-Online |

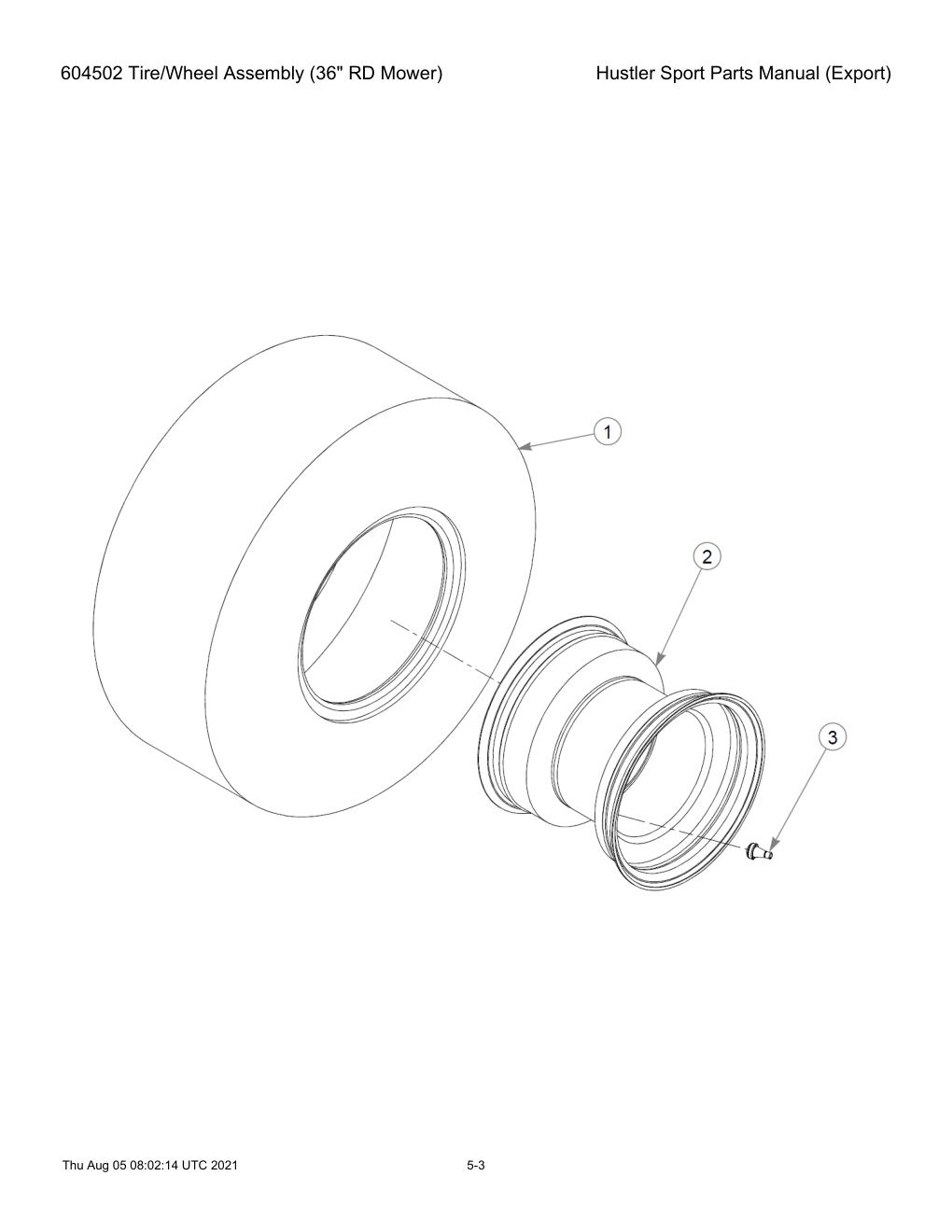

604502 Tire/Wheel Assembly (36" RD Mower)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 20X6.50-10 B4R GRMR | 604503 | 1 | 604503-Online |
| 2 | WHEEL 10 X 5.375, 4 BOLT | 604504 | 1 | 604504-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

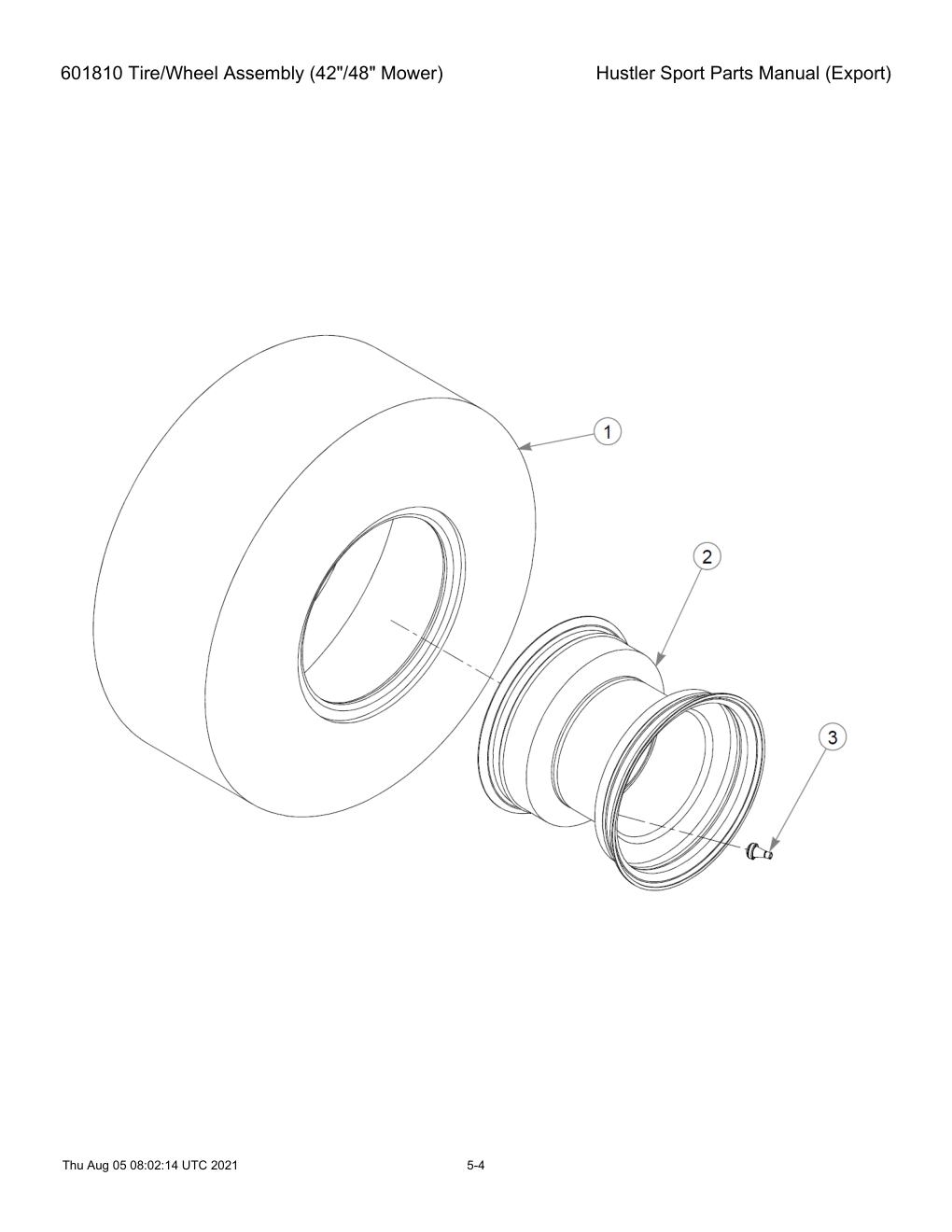

601810 Tire/Wheel Assembly (42"/48" Mower)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 18 X 8.5 | 601821 | 1 | 601821-Online |
| 2 | WHL 8X6.93 4X4.0 SLV | 601820 | 1 | 601820-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
784264 Tire/Wheel Assembly (54" Mower)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 18 X 9.5-8 | 784272 | 1 | HT784272-Online |
| 2 | WHL 8X6.19 4X4.0 SLV | 784280 | 1 | 784280-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

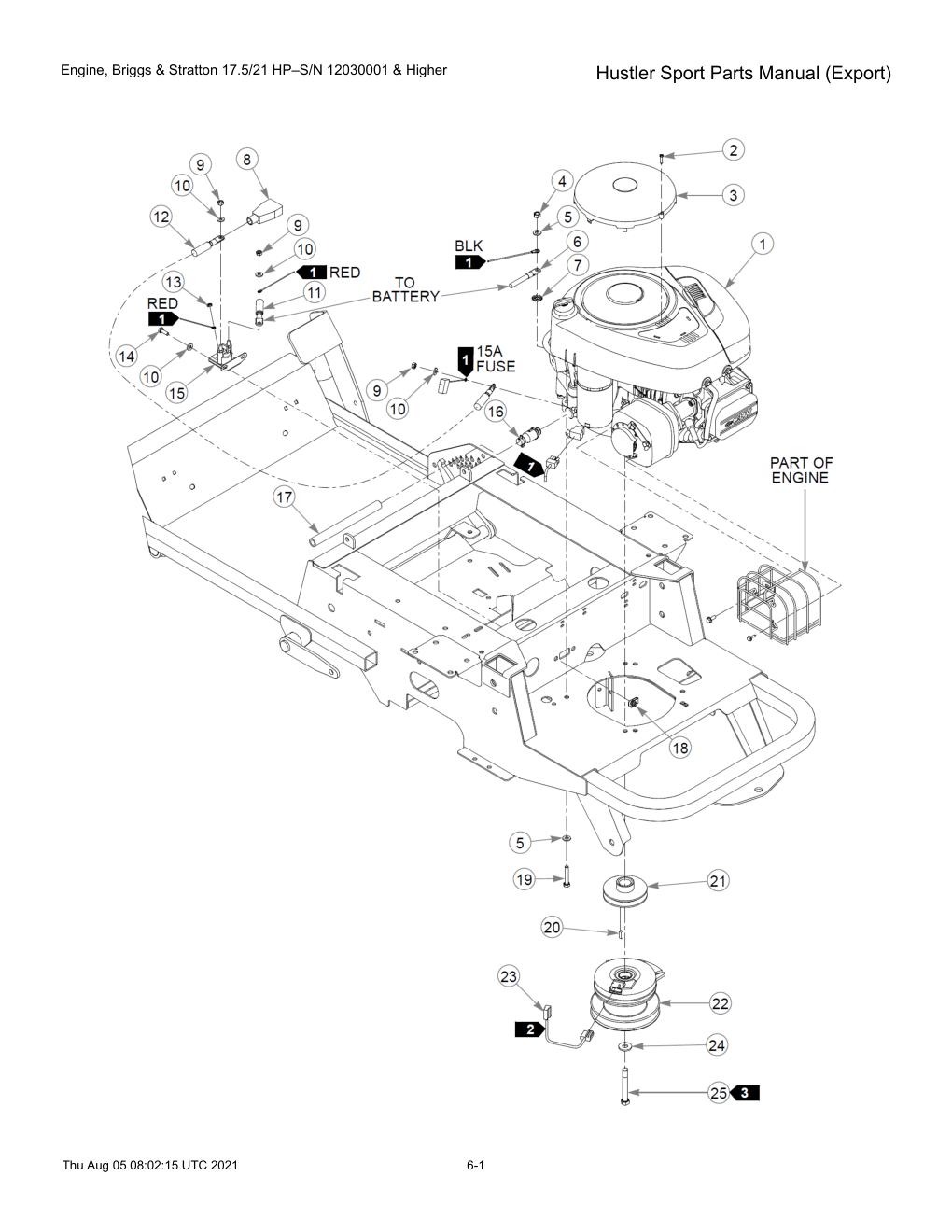

Engine, Briggs & Stratton 17.5/21 HP-S/N 12030001 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BRIGGS & STRATTON 17.5/21 HP ENGINE | N/A | 1 | No SKU |
| 2 | SC #8x1.00 PHCR BO | 602062 | 1 | 602062-Online |
| 3 | BRIGGS CONTACT COVER | 601844 | 1 | 601844-Online |
| 4 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 5 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 6 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 7 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 8 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 9 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 10 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 11 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 12 | BATTERY CABLE, POS. | 601840 | 1 | 601840-Online |
| 13 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 14 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 15 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 16 | OIL DRAIN - 3/8-18 NPTF | 601818 | 1 | 601818-Online |
| 17 | HOSE, OIL DRAIN | 604463 | 7 | 604463-Online |
| 18 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 19 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 20 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 21 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 22 | CLUTCH KIT | 601801K | 1 | 601801K-Online |
| 23 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 24 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 25 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |

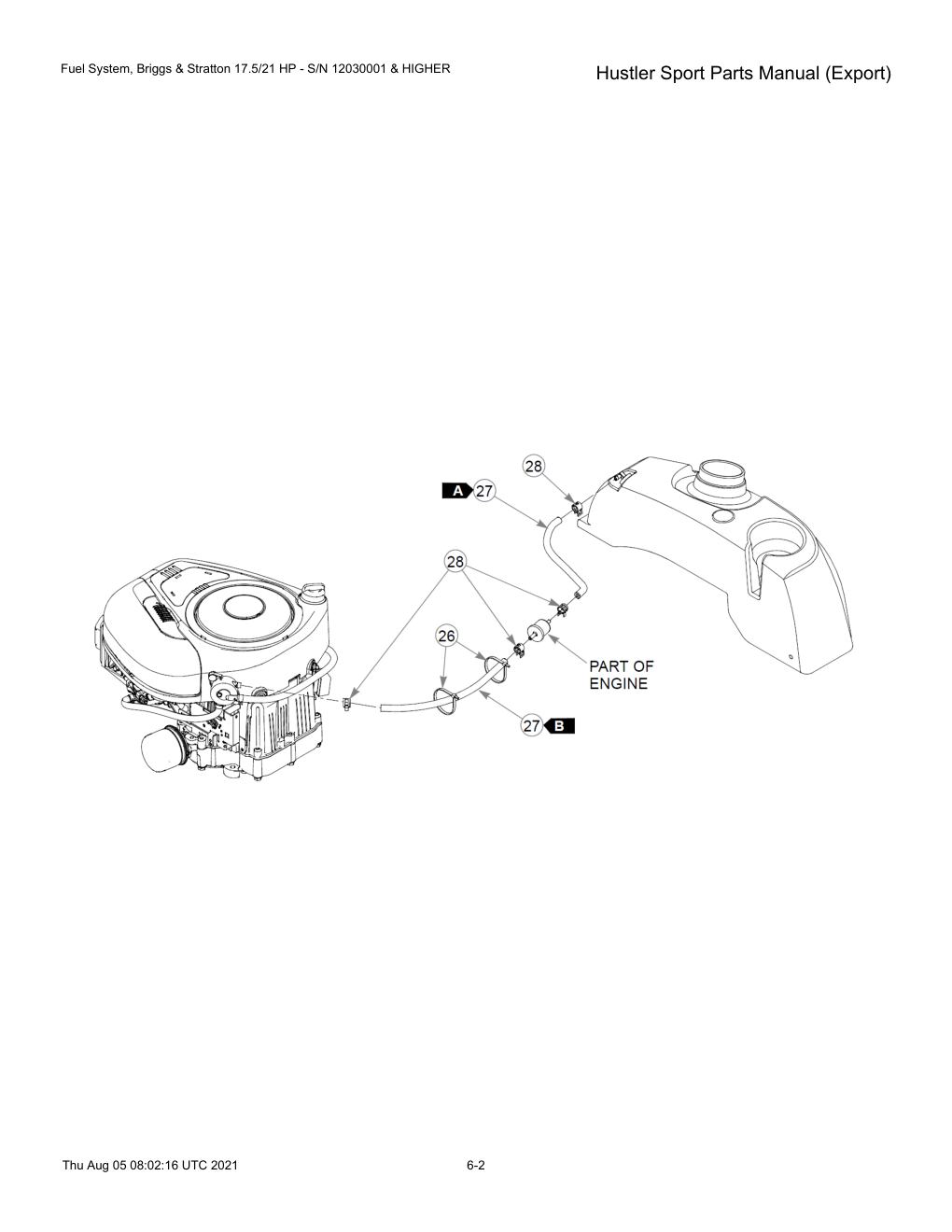

Fuel System, Briggs & Stratton 17.5/21 HP - S/N 12030001 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 26 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 27 | FUEL LINE, 1/4" | 015818 | 21 | HT015818-Online |
| 28 | CLIP, HOSE CLAMP | 000323 | 4 | 000323-Online |

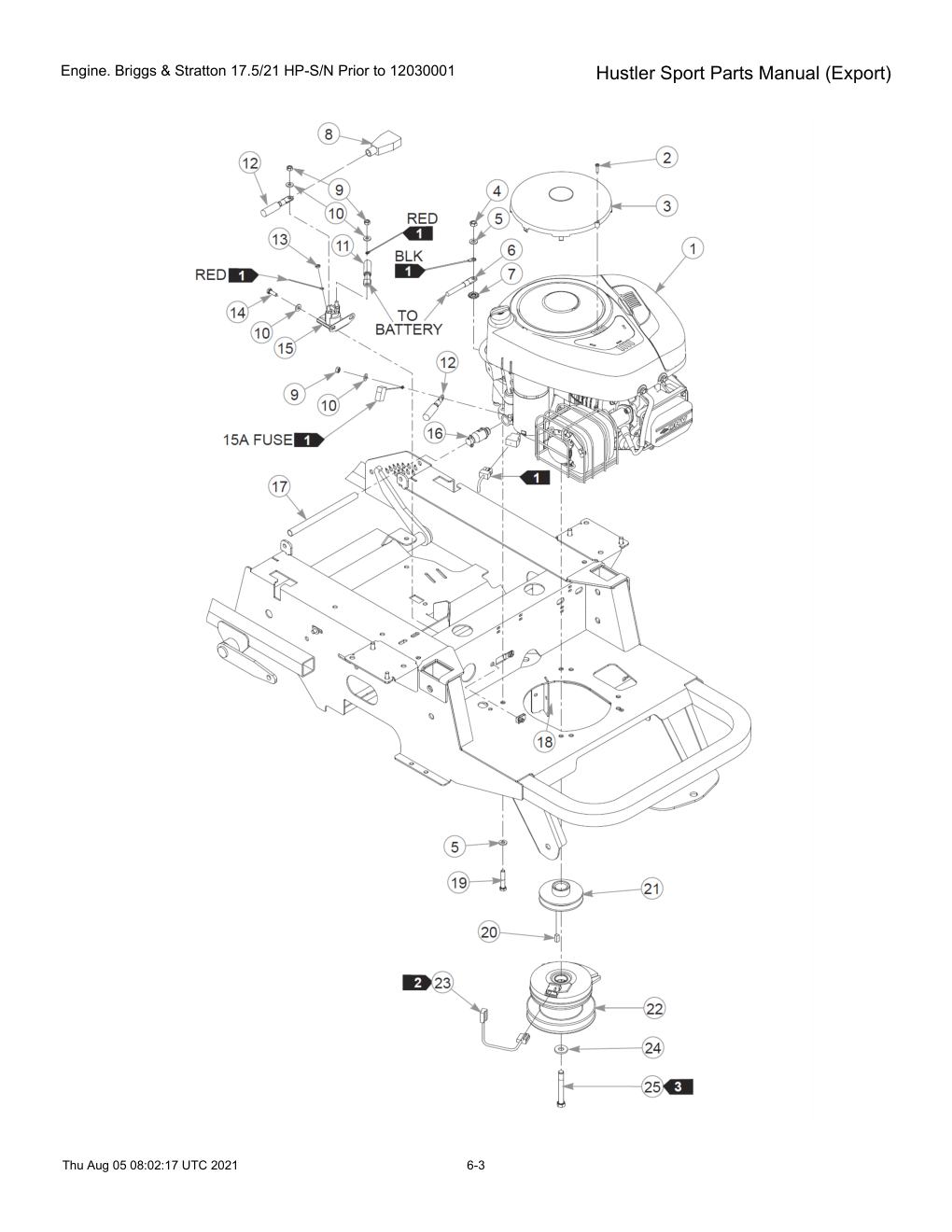

Engine. Briggs & Stratton 17.5/21 HP-S/N Prior to 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BRIGGS & STRATTON 17.5/21 HP ENGINE | N/A | 1 | No SKU |
| 2 | SC #8x1.00 PHCR BO | 602062 | 1 | 602062-Online |
| 3 | BRIGGS CONTACT COVER | 601844 | 1 | 601844-Online |
| 4 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 5 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 6 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 7 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 8 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 9 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 10 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 11 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 12 | BATTERY CABLE, POS. | 601840 | 1 | 601840-Online |
| 13 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 14 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 15 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 16 | OIL DRAIN - 3/8-18 NPTF | 601818 | 1 | 601818-Online |
| 17 | OIL DRAIN HOSE | 104786 | 1 | 104786-Online |
| 18 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 19 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 20 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 21 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 22 | CLUTCH KIT | 601801K | 1 | 601801K-Online |
| 23 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 24 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 25 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |

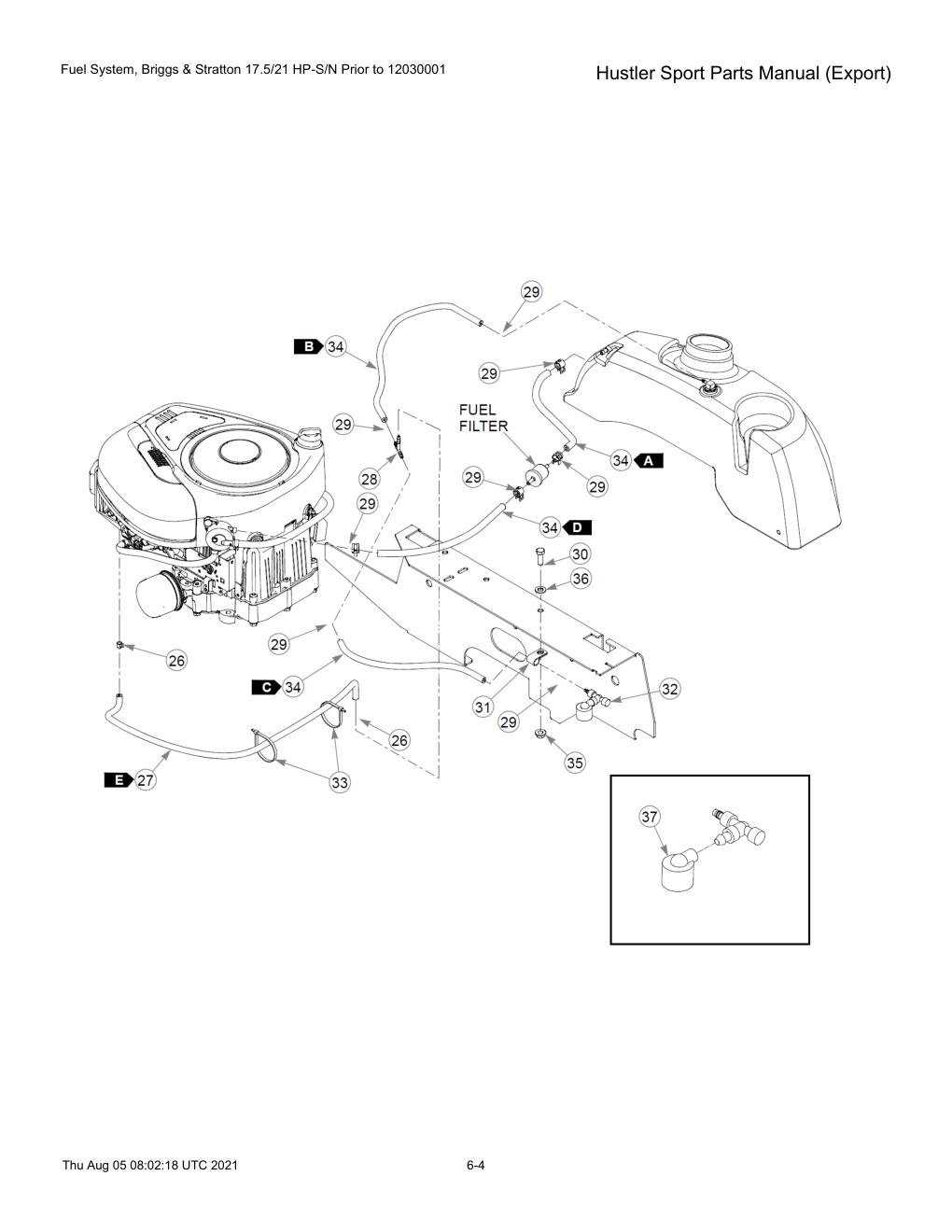

Fuel System, Briggs & Stratton 17.5/21 HP-S/N Prior to 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 26 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 27 | VAPOR LINE, 3/16" | 603326 | 32 | 603326-Online |
| 28 | TEE, 1/4x1/4x3/16 | 603025 | 1 | 603025-Online |
| 29 | CLIP, HOSE CLAMP | 000323 | 8 | 000323-Online |
| 30 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 31 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 32 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 33 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 34 | FUEL LINE, 1/4" | 015818 | 56 | HT015818-Online |
| 35 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 36 | FW 0.379X.82X.06 HD ZN | 767954 | 1 | HT767954-Online |
| 37 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

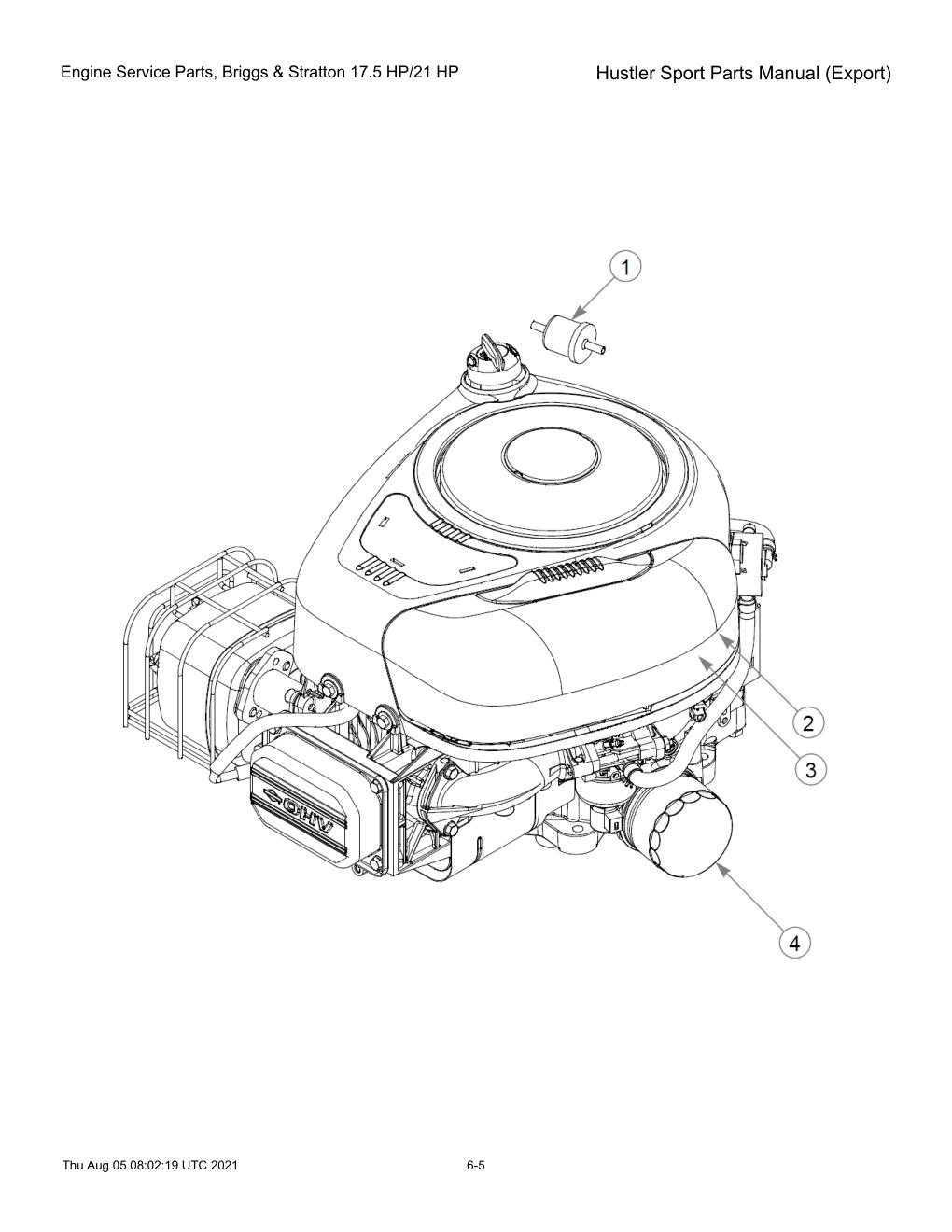

Engine Service Parts, Briggs & Stratton 17.5 HP/21 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 2 | FILTER, AIR PRECLEANER | 601846 | 1 | 601846-Online |
| Not Shown | FILTER, AIR PRECLEANER | 601848 | 1 | 601848-Online |
| 3 | AIR FILTER - MAIN | 601847 | 1 | 601847-Online |
| Not Shown | FILTER, AIR CARTRIDGE | 601849 | 1 | 601849-Online |
| 4 | ENGINE OIL FILTER | 601845 | 1 | 601845-Online |

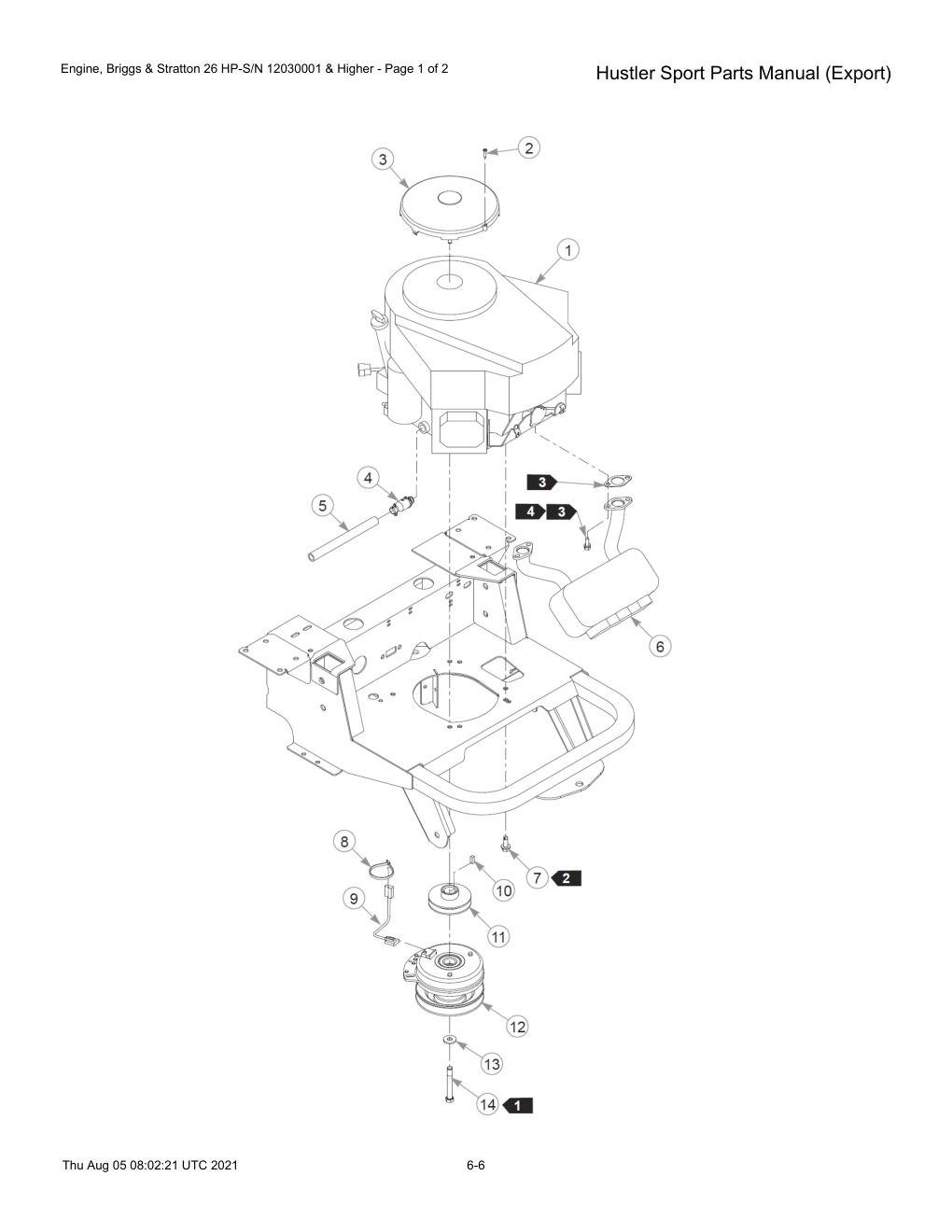

Engine, Briggs & Stratton 26 HP-S/N 12030001 & Higher - Page 1 of 2
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Briggs & Stratton 26 HP Engine | N/A | 1 | No SKU |
| 2 | SC #8x1.00 PHCR BO | 602062 | 1 | 602062-Online |
| 3 | STATIC COVER ASSEMBLY | 602422 | 1 | 602422-Online |
| 4 | OIL DRAIN - 3/8-18 NPTF | 601818 | 1 | 601818-Online |
| 5 | HOSE, OIL DRAIN | 604463 | 7 | 604463-Online |
| 6 | MUFFLER, BRIGGS 26 | 602389 | 1 | 602389-Online |
| 7 | SC0.375-16X1.000FLG | 792788 | 3 | 792788-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 9 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 10 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 11 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 12 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 13 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 14 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |

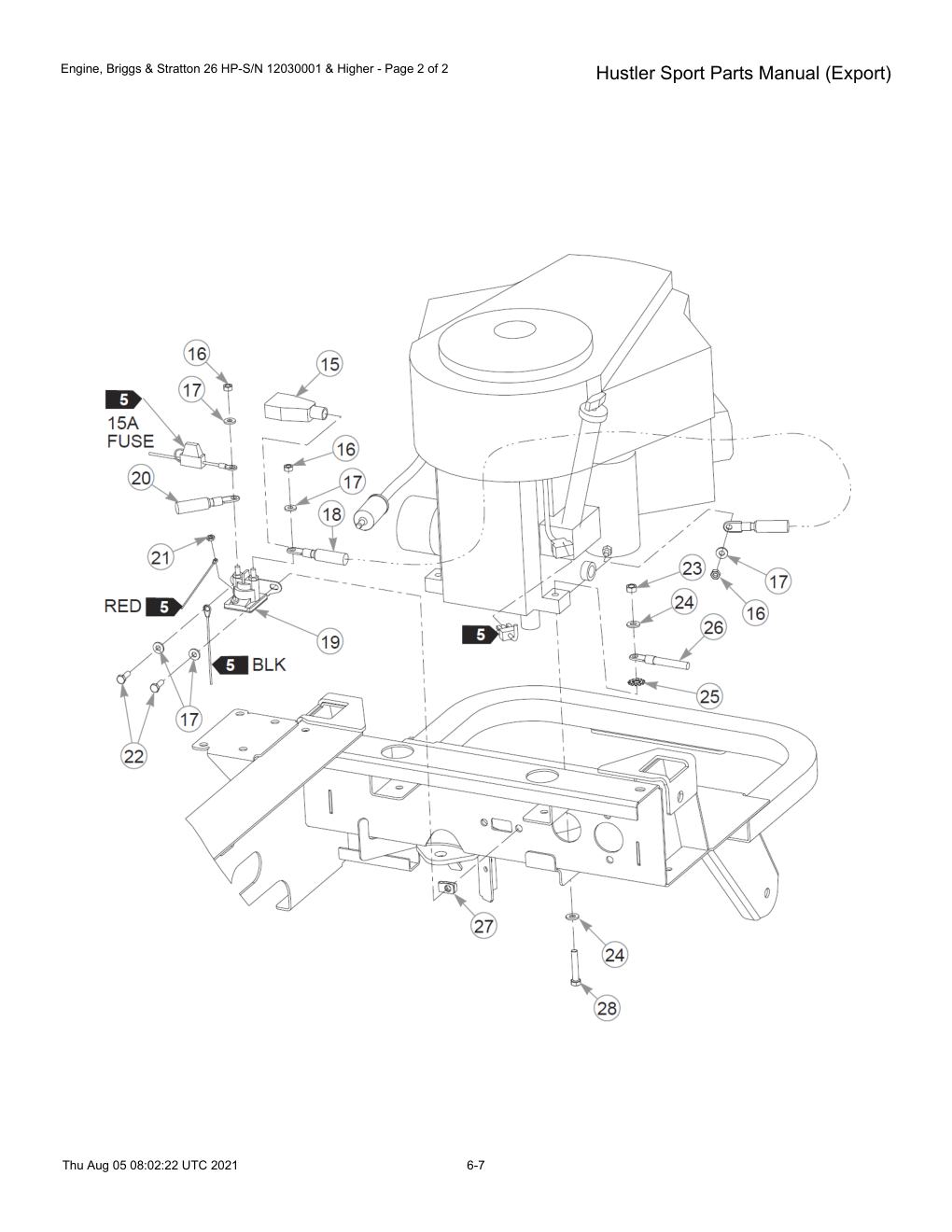

Engine, Briggs & Stratton 26 HP-S/N 12030001 & Higher - Page 2 of 2
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 15 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 16 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 17 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 18 | BATTERY CABLE, POS. | 601840 | 1 | 601840-Online |
| 19 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 20 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 21 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 22 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 23 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 24 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 25 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 26 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 27 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 28 | CS .312-18X1.750HXG5 | 050161 | 1 | 050161-Online |

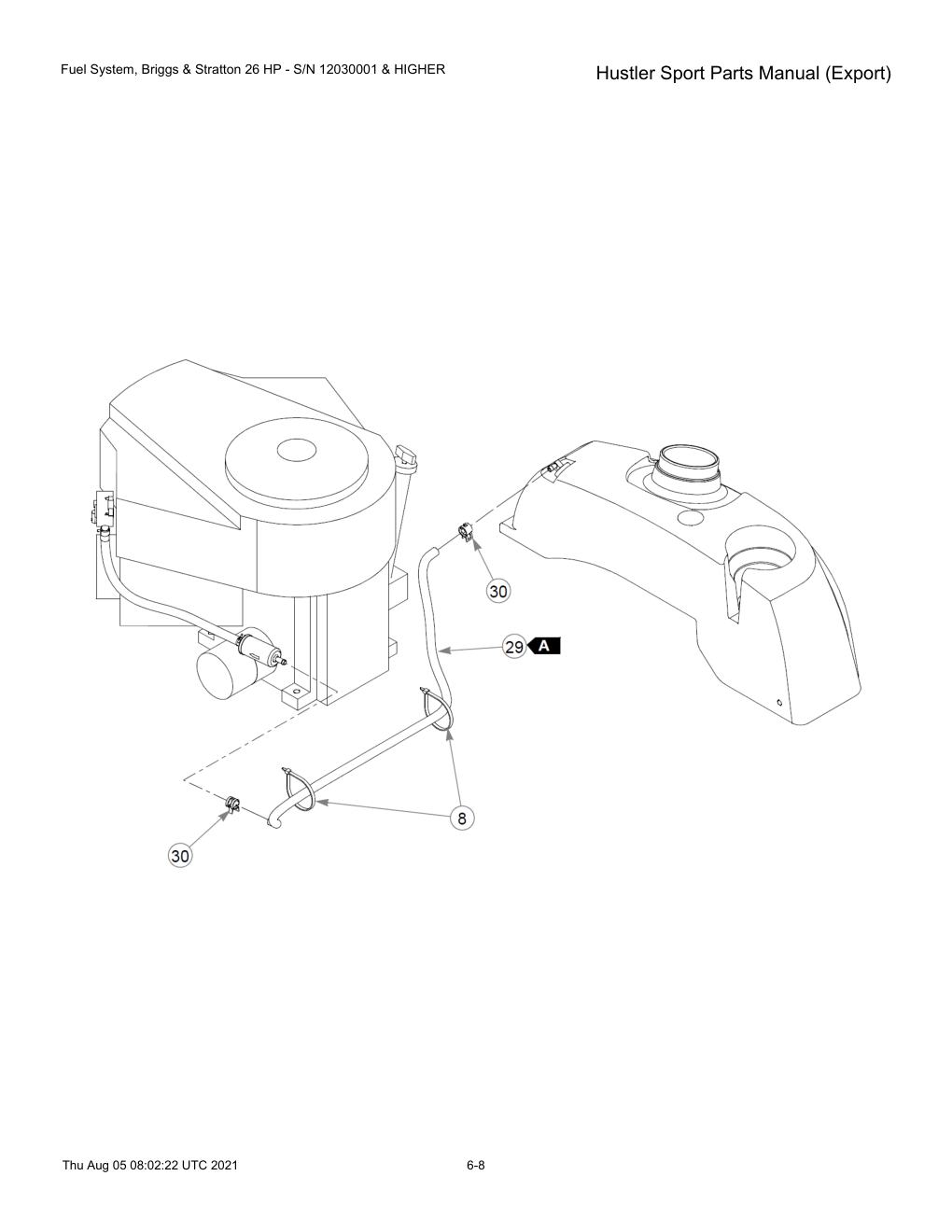

Fuel System, Briggs & Stratton 26 HP - S/N 12030001 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 29 | FUEL LINE, 1/4" | 015818 | 28 | HT015818-Online |
| 30 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |

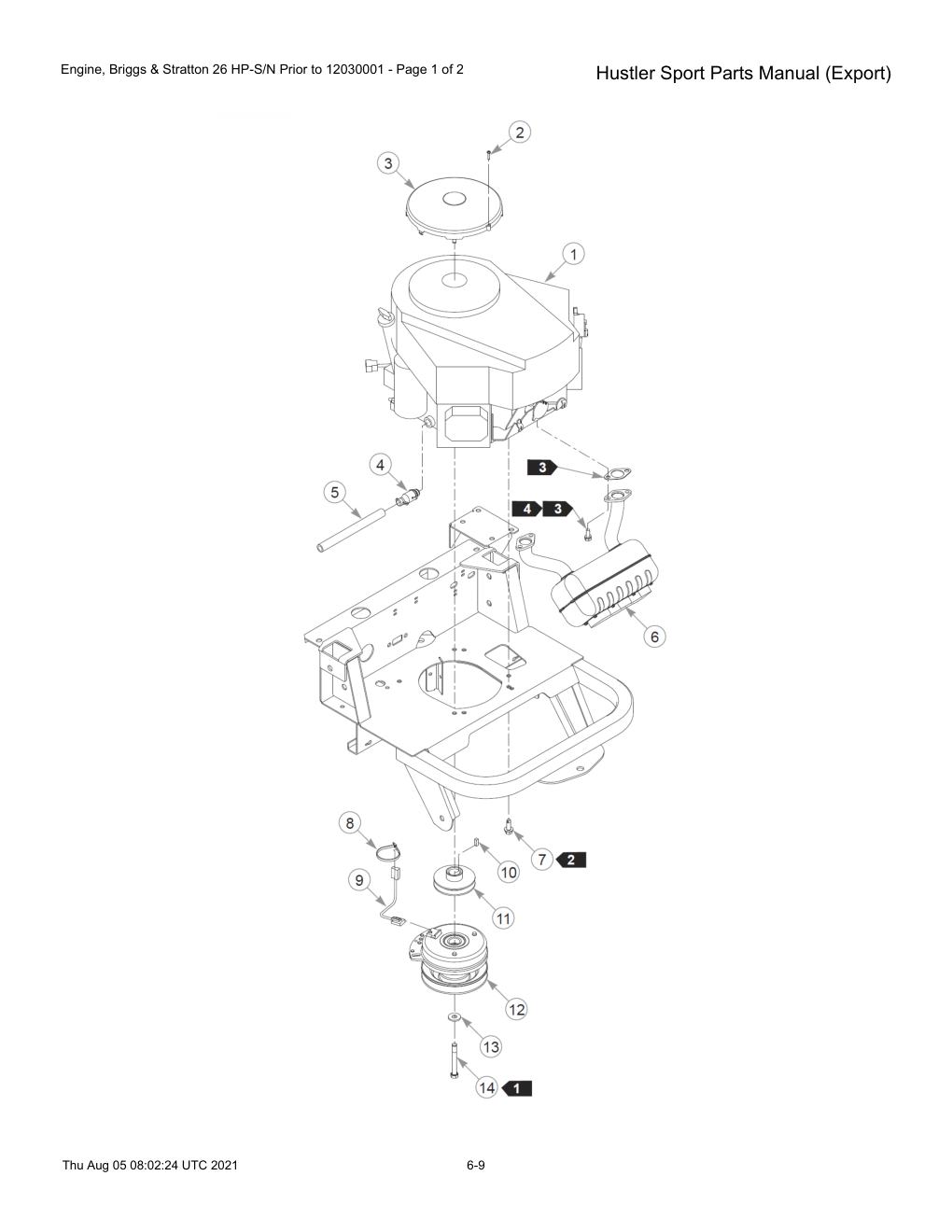

Engine, Briggs & Stratton 26 HP-S/N Prior to 12030001 - Page 1 of 2
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Briggs & Stratton 26 HP Engine | N/A | 1 | No SKU |
| 2 | SC #8x1.00 PHCR BO | 602062 | 1 | 602062-Online |
| 3 | STATIC COVER ASSEMBLY | 602422 | 1 | 602422-Online |
| 4 | OIL DRAIN - 3/8-18 NPTF | 601818 | 1 | 601818-Online |
| 5 | HOSE, OIL DRAIN | 604463 | 1 | 604463-Online |
| 6 | MUFFLER, BRIGGS 26 | 602389 | 1 | 602389-Online |
| 7 | SC0.375-16X1.000FLG | 792788 | 3 | 792788-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 9 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 10 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 11 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 12 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 13 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 14 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |

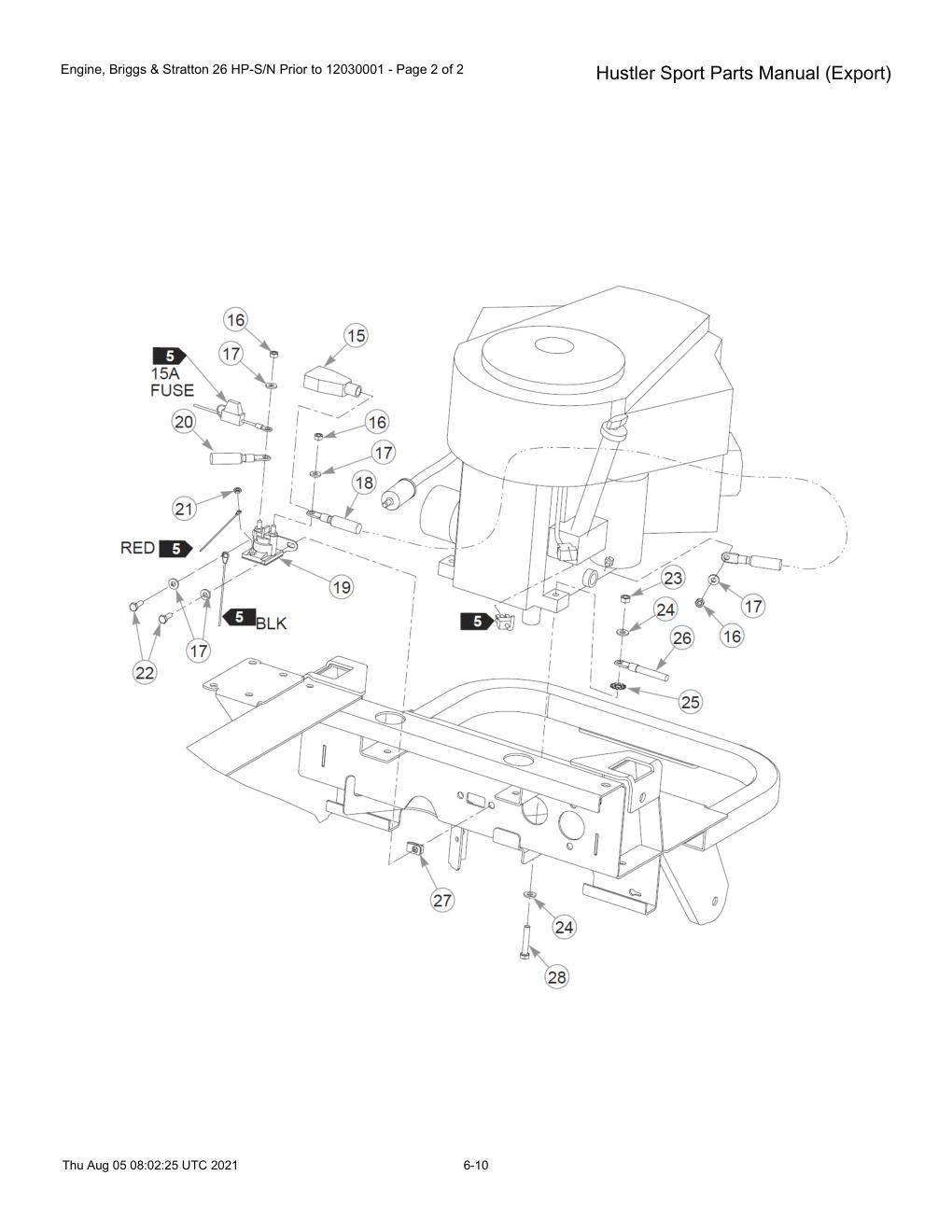

Engine, Briggs & Stratton 26 HP-S/N Prior to 12030001 - Page 2 of 2
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 15 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 16 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 17 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 18 | BATTERY CABLE, POS. | 601840 | 1 | 601840-Online |
| 19 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 20 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 21 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 22 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 23 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 24 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 25 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 26 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 27 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 28 | CS .312-18X1.750HXG5 | 050161 | 1 | 050161-Online |

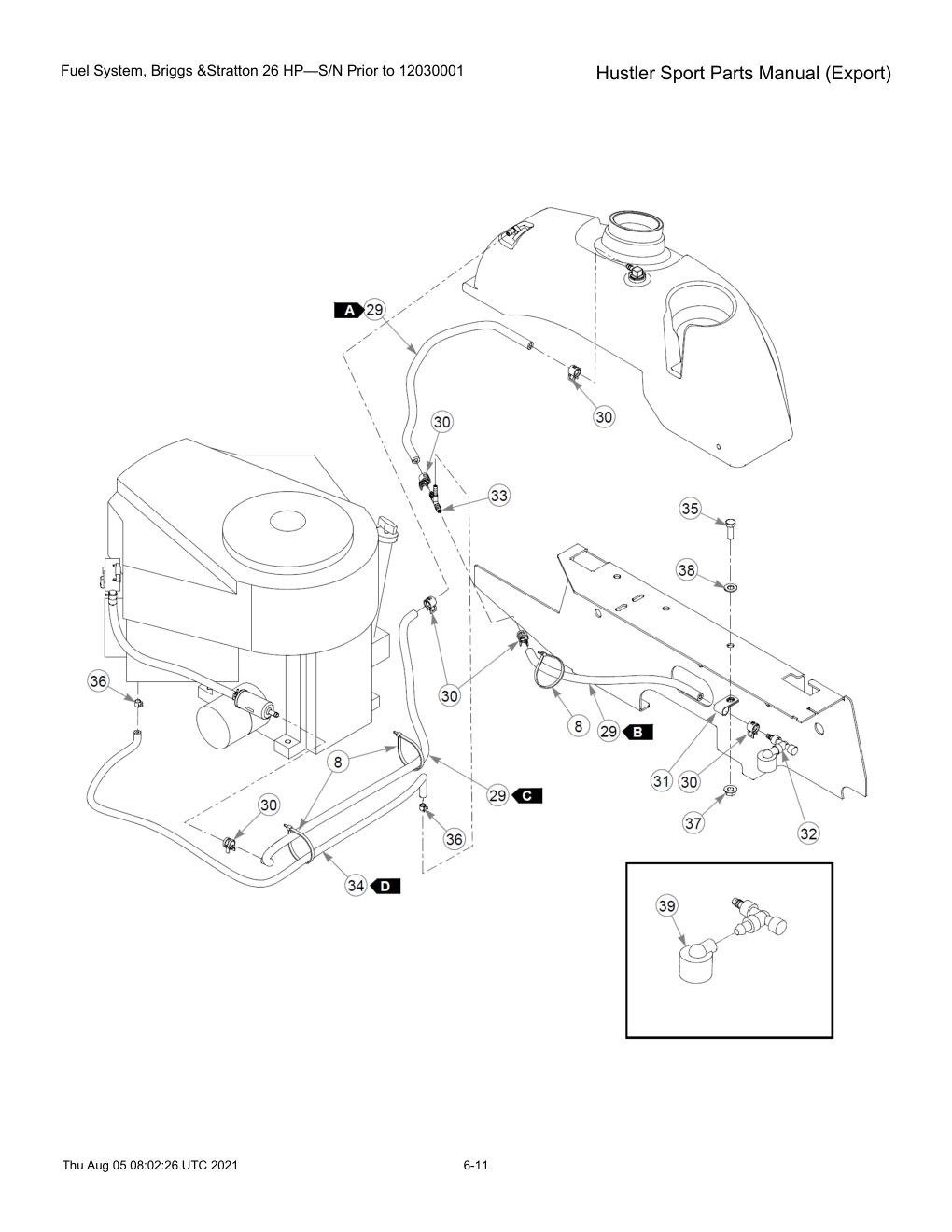

Fuel System, Briggs &Stratton 26 HP-S/N Prior to 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 29 | FUEL LINE, 1/4" | 015818 | 63 | HT015818-Online |
| 30 | CLIP, HOSE CLAMP | 000323 | 6 | 000323-Online |
| 31 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 32 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 33 | TEE, 1/4x1/4x3/16 | 603025 | 1 | 603025-Online |
| 34 | VAPOR LINE, 3/16" | 603326 | 40 | 603326-Online |
| 35 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 36 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 37 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 38 | FW 0.379X.82X.06 HD ZN | 767954 | 1 | HT767954-Online |
| 39 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

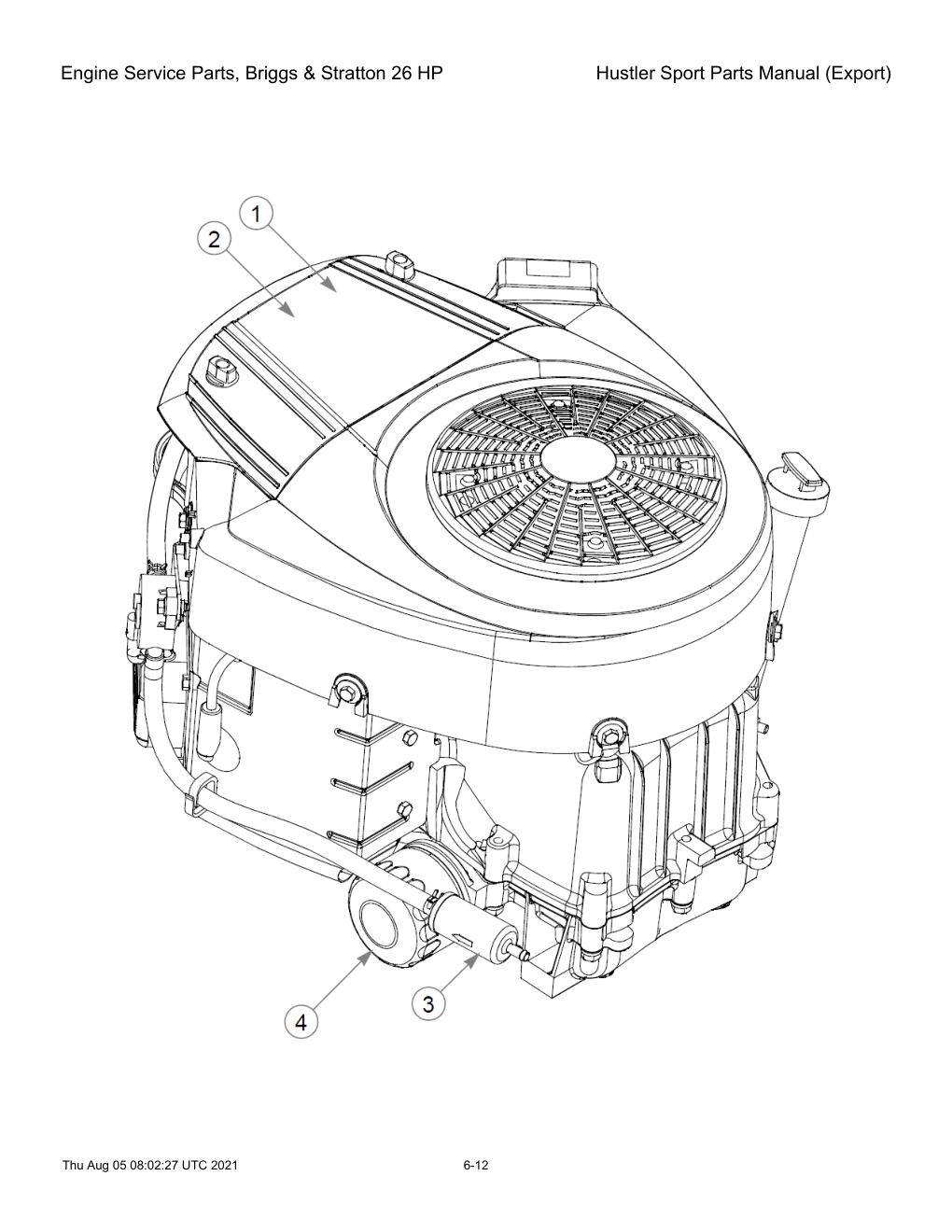

Engine Service Parts, Briggs & Stratton 26 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER, PRECLEANER | 602571 | 1 | 602571-Online |
| 2 | AIR FILTER, CARTRIDGE | 602570 | 1 | 602570-Online |
| 3 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 4 | OIL FILTER | 602572 | 1 | 602572-Online |
Engine. Kawasaki FR541V & FR600V-S/N 12030001 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 3 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 4 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 5 | HT767954-Online |
| 6 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 9 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 10 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 15 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 18 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 19 | MUFFLER, FR600V RITEFLO | 602999 | 1 | 602999-Online |
| 20 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 21 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 22 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 23 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 24 | CLUTCH KIT | 601801K | 1 | 601801K-Online |
| 25 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 26 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 27 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 28 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 29 | HOSE, OIL DRAIN | 604463 | 3 | 604463-Online |

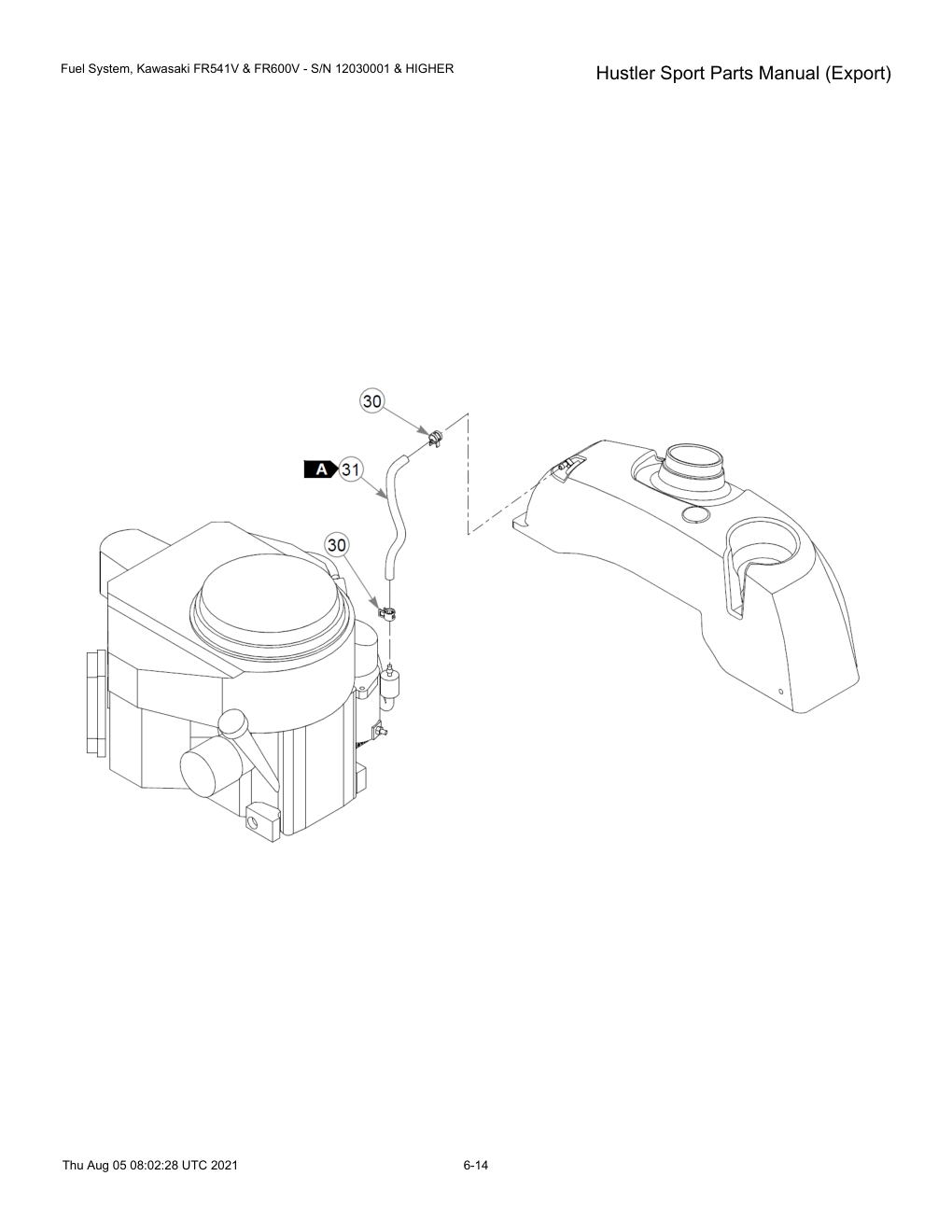

Fuel System, Kawasaki FR541V & FR600V - S/N 12030001 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 30 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 31 | FUEL LINE, 1/4" | 015818 | 5 | HT015818-Online |

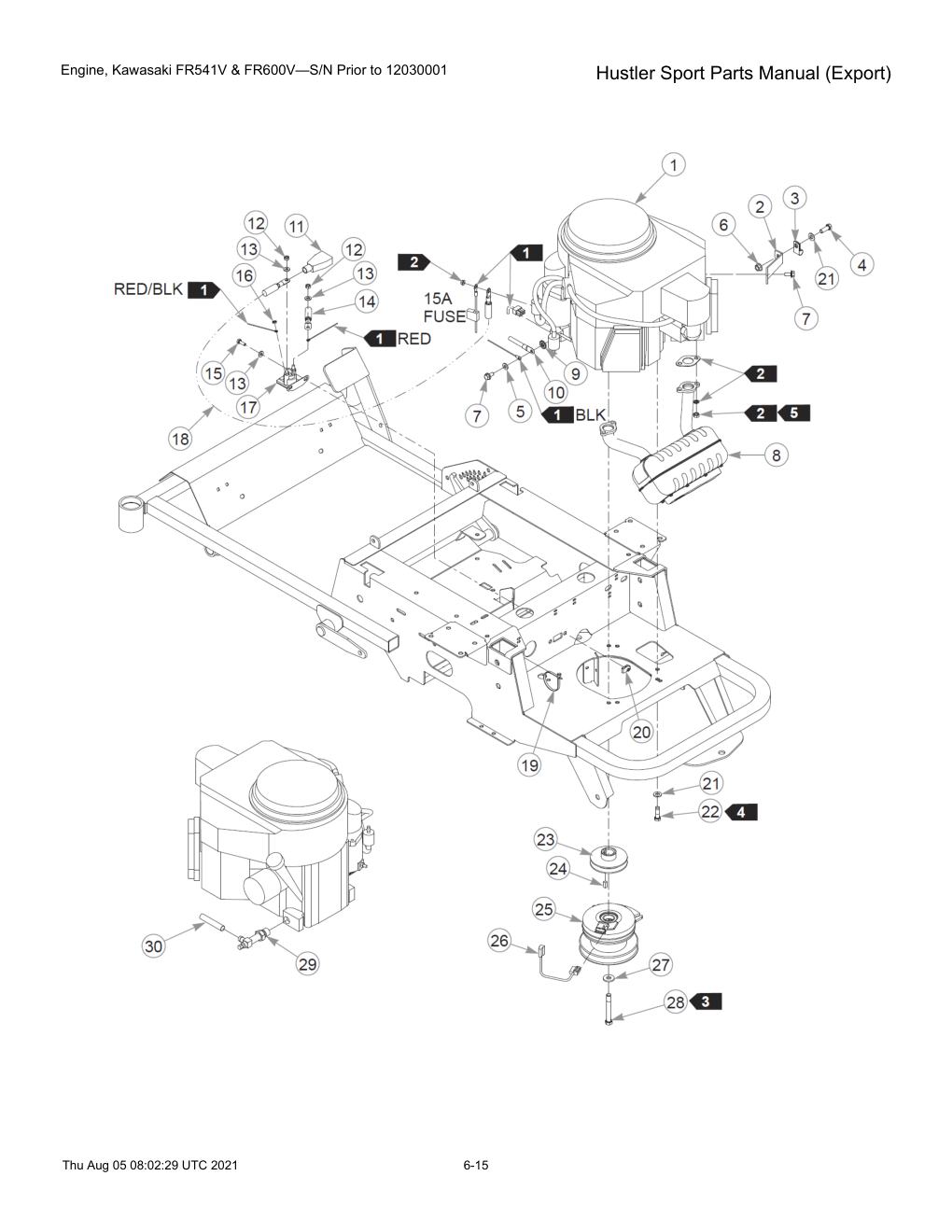

Engine, Kawasaki FR541V & FR600V-S/N Prior to 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | CLAMP - 50 CNT BAGS | 000398 | 2 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | MUFFLER, FR600V RITEFLO | 602999 | 1 | 602999-Online |
| 9 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 10 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 19 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 20 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 21 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 22 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 23 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 24 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 25 | CLUTCH KIT | 601801K | 1 | 601801K-Online |
| 26 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 27 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 28 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 29 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 30 | HOSE, OIL DRAIN | 604463 | 3 | 604463-Online |

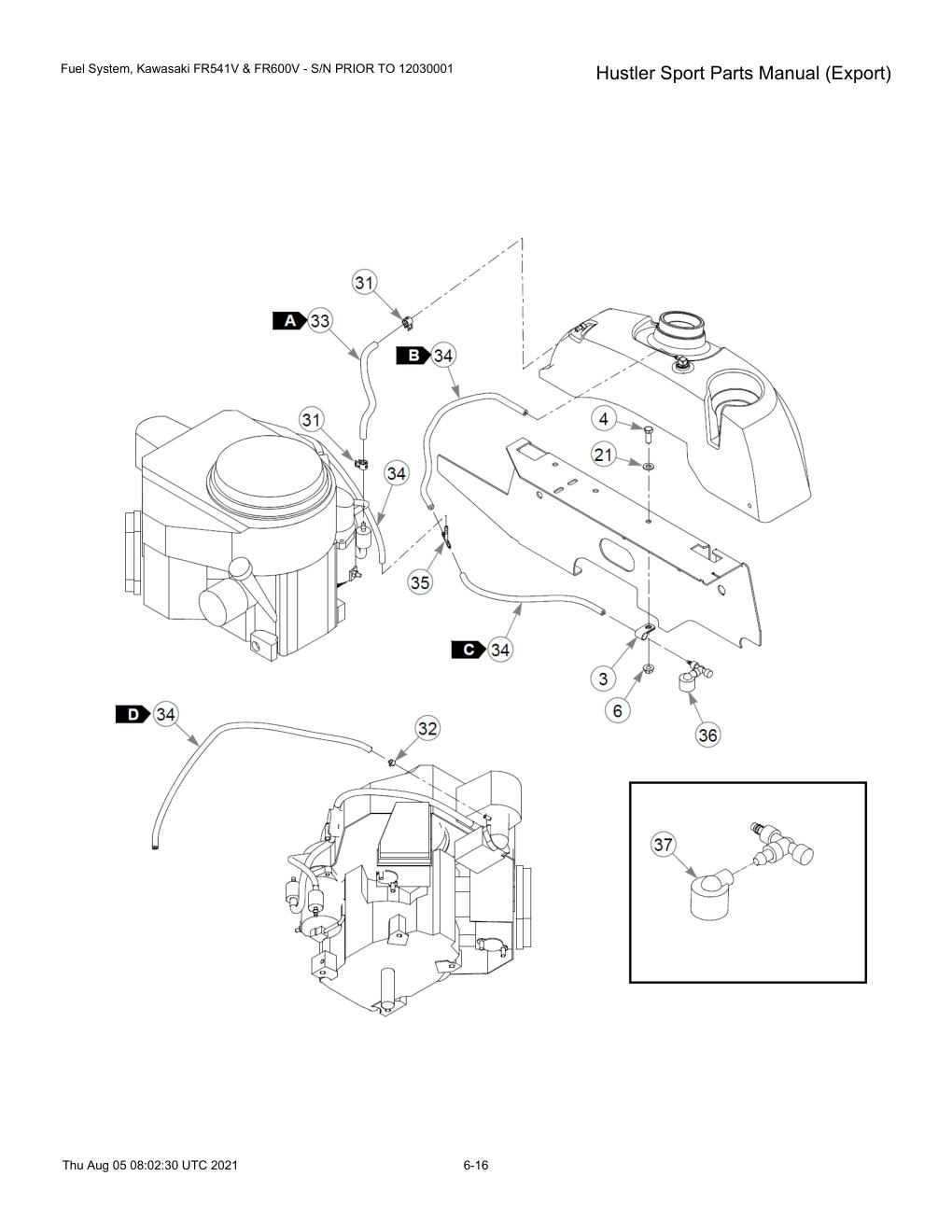

Fuel System, Kawasaki FR541V & FR600V - S/N PRIOR TO 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | CLAMP - 50 CNT BAGS | 000398 | 2 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | MUFFLER, FR600V RITEFLO | 602999 | 1 | 602999-Online |
| 9 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 10 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 19 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 20 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 21 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 22 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 23 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 24 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 25 | CLUTCH KIT | 601801K | 1 | 601801K-Online |
| 26 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 27 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 28 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 29 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 30 | HOSE, OIL DRAIN | 604463 | 3 | 604463-Online |
| 31 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 32 | CLAMP, 3/16 FUEL | 603112 | 1 | 603112-Online |
| 33 | FUEL LINE, 1/4" | 015818 | 5 | HT015818-Online |
Fuel System, Kawasaki FR541V & FR600V - S/N PRIOR TO 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | VAPOR LINE, 3/16" | 603326 | 59 | 603326-Online |
| 35 | TEE, 3/16" PLASTIC | 604281 | 1 | 604281-Online |
| 36 | VACUUM BREAKER | 604527 | 1 | 604527-Online |
| 37 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

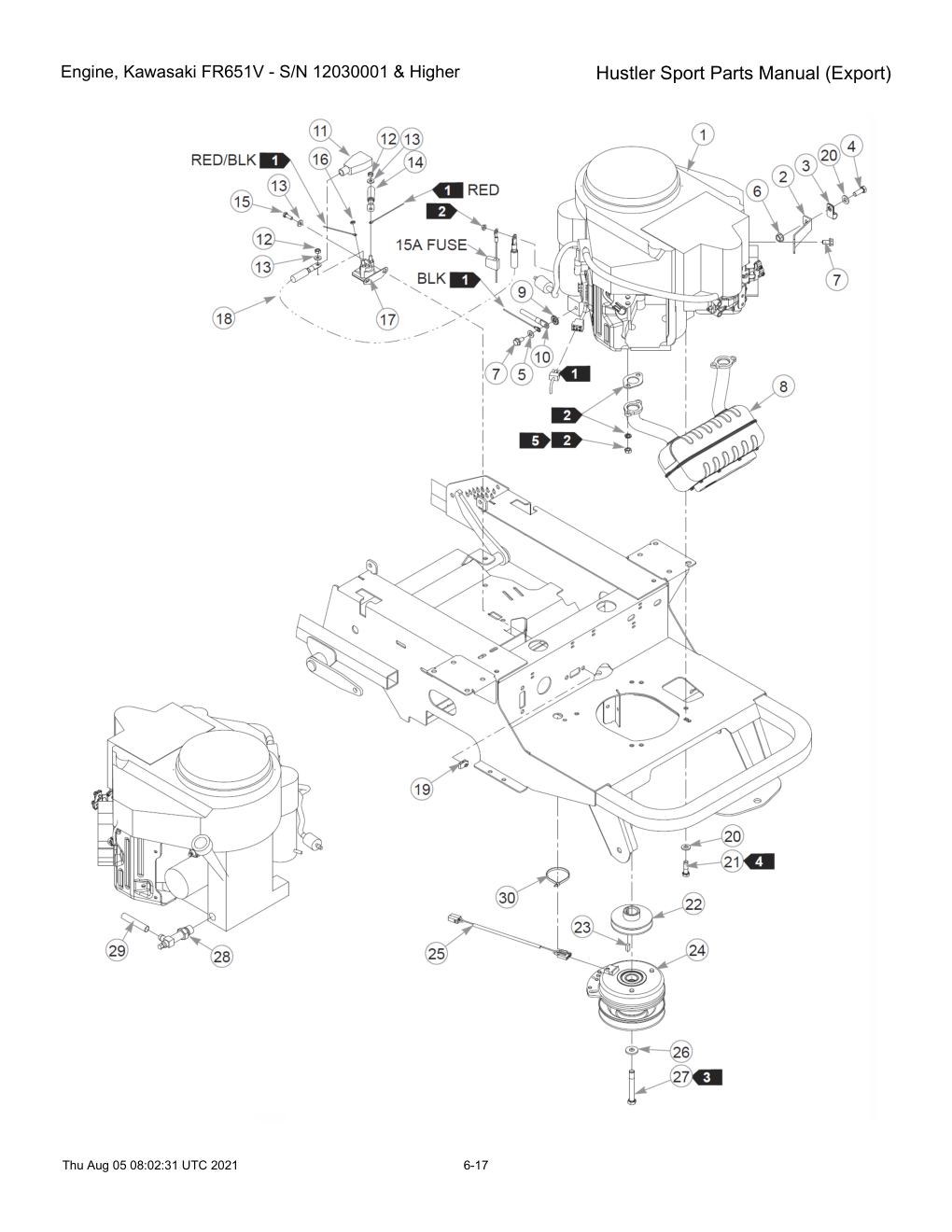

Engine, Kawasaki FR651V - S/N 12030001 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR651V ENGINE | N/A | 1 | No SKU |
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | MUFFLER, FR651V RITEFLO | 603150 | 1 | 603150-Online |
| 9 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 10 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 19 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 20 | FW 0.379X.82X.06 HD ZN | 767954 | 5 | HT767954-Online |
| 21 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 22 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 23 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 24 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 25 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 26 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 27 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 28 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 29 | HOSE, OIL DRAIN | 604463 | 3" | 604463-Online |
| 30 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |

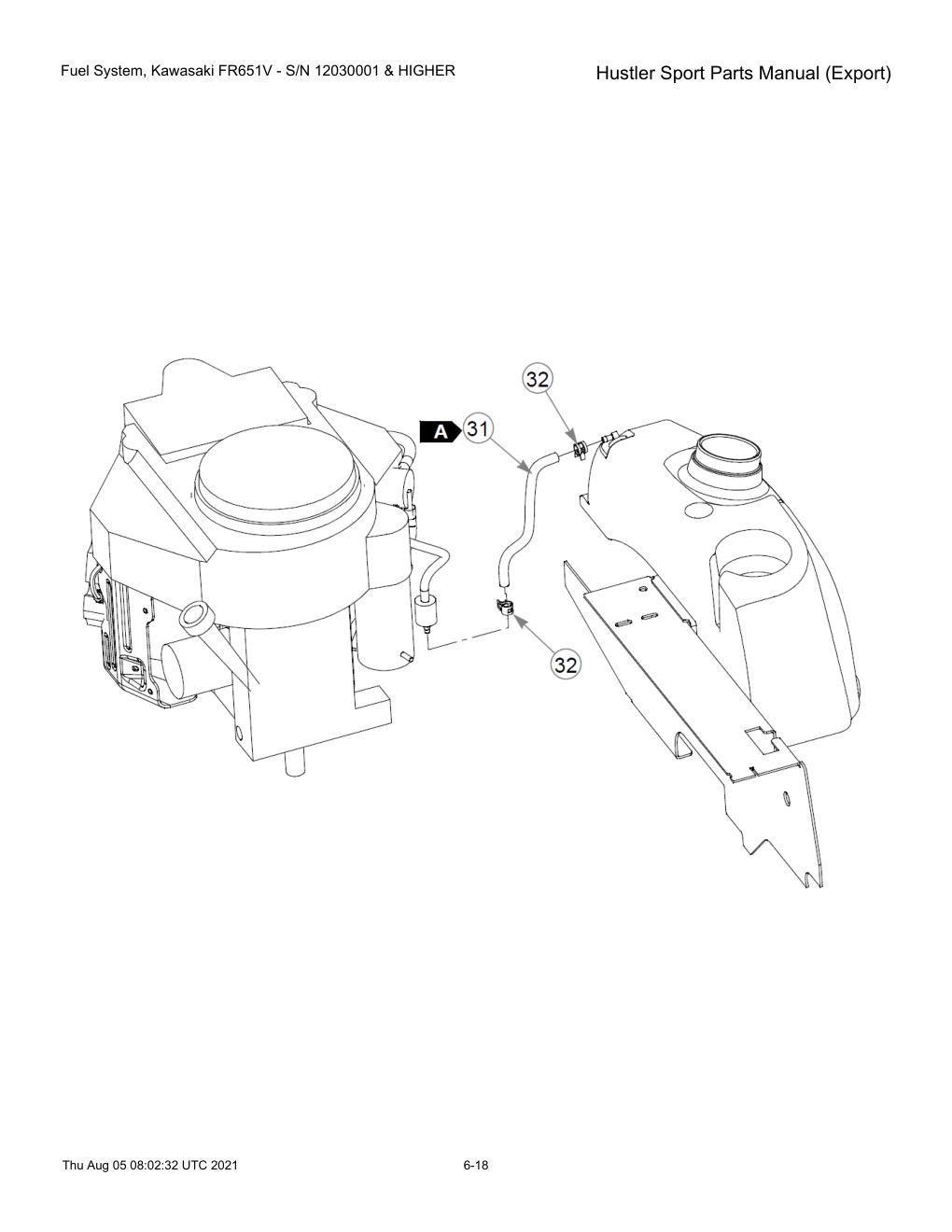

Fuel System, Kawasaki FR651V - S/N 12030001 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 31 | FUEL LINE, 1/4" | 015818 | 5 | HT015818-Online |
| 32 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |

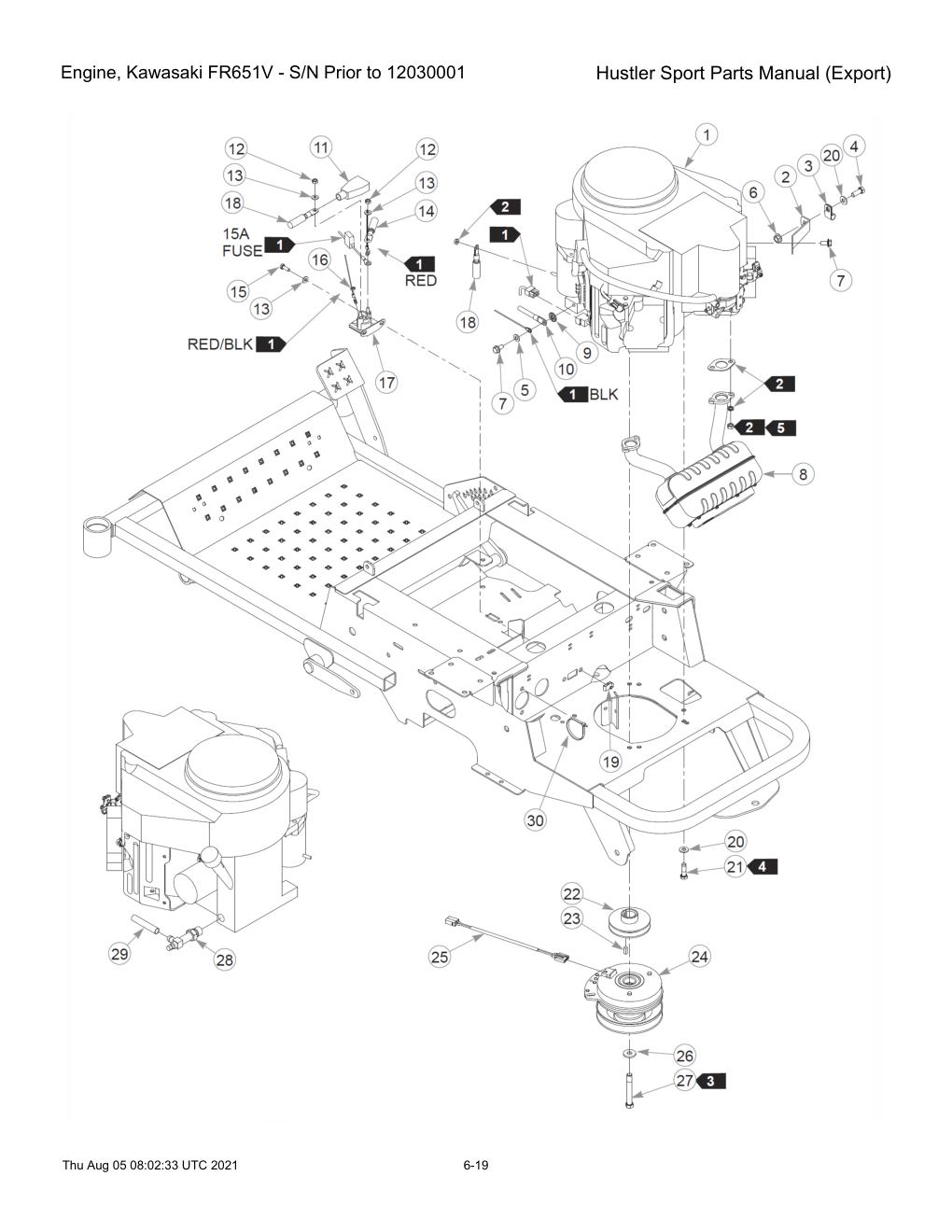

Engine, Kawasaki FR651V - S/N Prior to 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | MUFFLER, FR651V RITEFLO | 603150 | 1 | 603150-Online |
| 9 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 10 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 19 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 20 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 21 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 22 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 23 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 24 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 25 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 26 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 27 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 28 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 29 | HOSE, OIL DRAIN | 604463 | 3" | 604463-Online |
| 30 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |

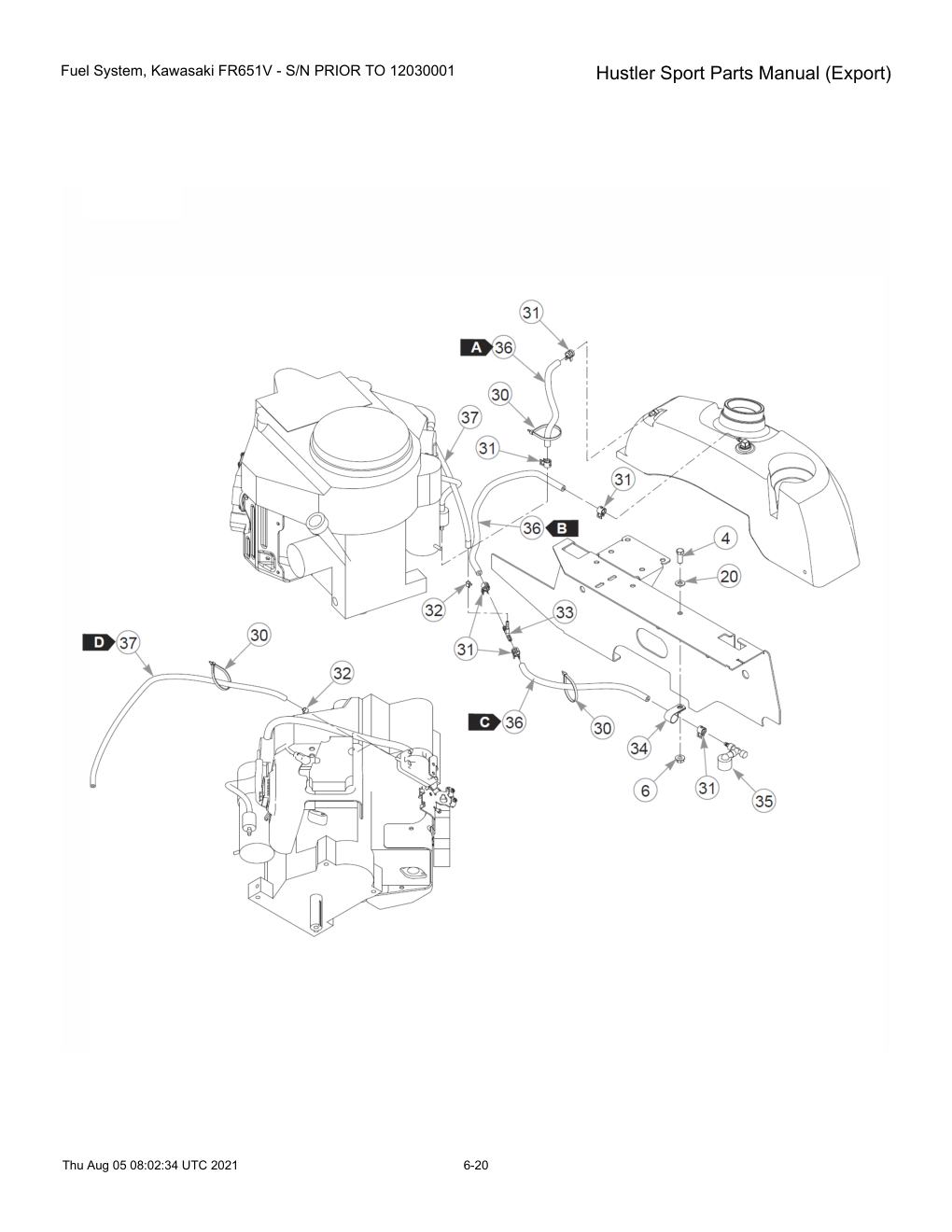

Fuel System, Kawasaki FR651V - S/N PRIOR TO 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR651V ENGINE | N/A | 1 | No SKU |
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | MUFFLER, FR651V RITEFLO | 603150 | 1 | 603150-Online |
| 9 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 10 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 19 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 20 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 21 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 22 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 23 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 24 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 25 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 26 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 27 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 28 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 29 | HOSE, OIL DRAIN | 604463 | 3" | 604463-Online |
| 30 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 31 | CLIP, HOSE CLAMP | 000323 | 6 | 000323-Online |
| 32 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 33 | TEE, 1/4x1/4x3/16 | 603025 | 1 | 603025-Online |
Fuel System, Kawasaki FR651V - S/N PRIOR TO 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CLIP - HOSE - SINGLE(FS) | 043570 | 1 | 043570-Online |
| 35 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 36 | FUEL LINE, 1/4" | 015818 | 40" | HT015818-Online |
| 37 | VAPOR LINE, 3/16" | 603326 | 24" | 603326-Online |
| 38 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

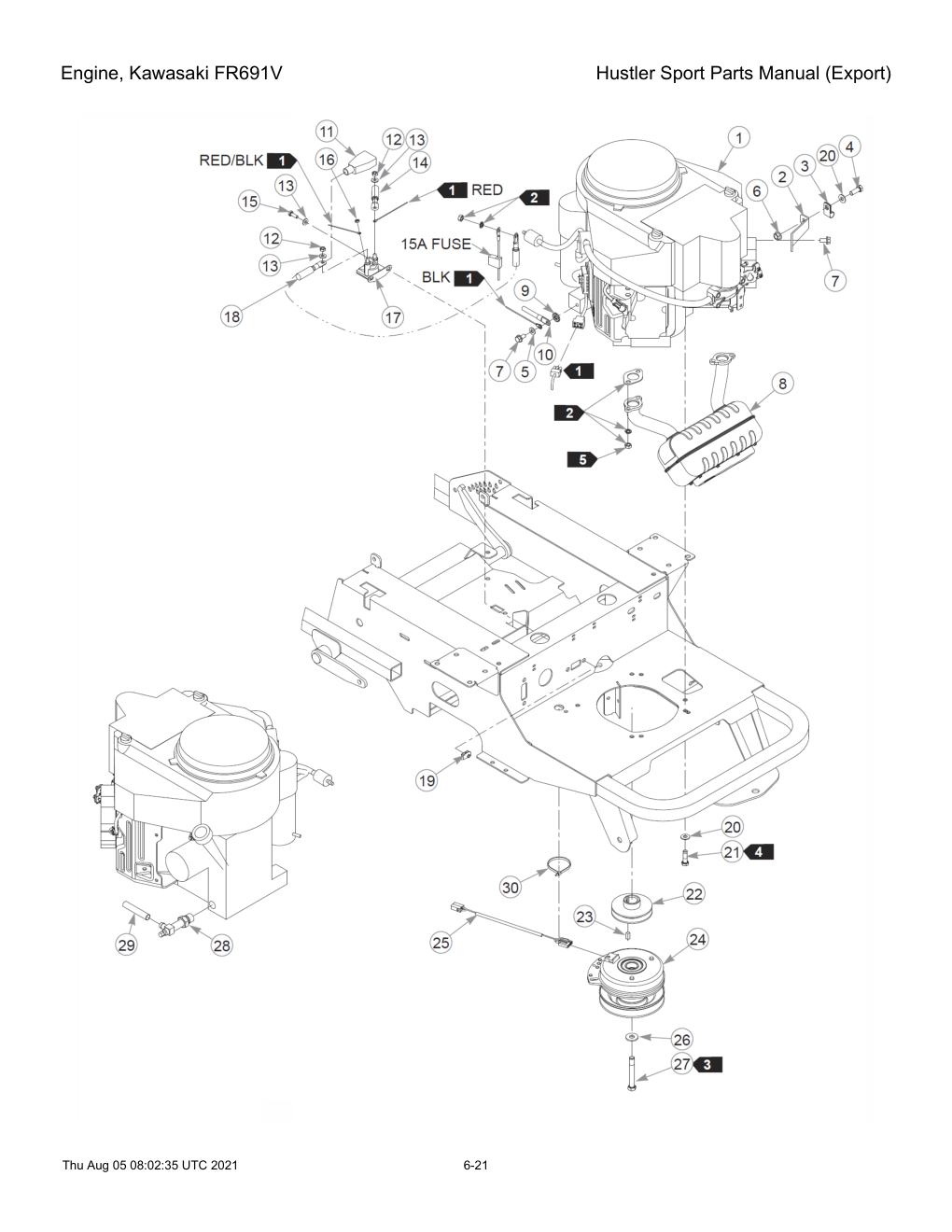

Engine, Kawasaki FR691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | CLAMP - 50 CNT BAGS | 000398 | 1 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 7 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 8 | MUFFLER, FR651V RITEFLO | 603150 | 1 | 603150-Online |
| 9 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 10 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 11 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 12 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 13 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 14 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 15 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 16 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 19 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 20 | FW 0.379X.82X.06 HD ZN | 767954 | 5 | HT767954-Online |
| 21 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 22 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 23 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 24 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 25 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 26 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 27 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 28 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 29 | HOSE, OIL DRAIN | 604463 | 3" | 604463-Online |
| 30 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |

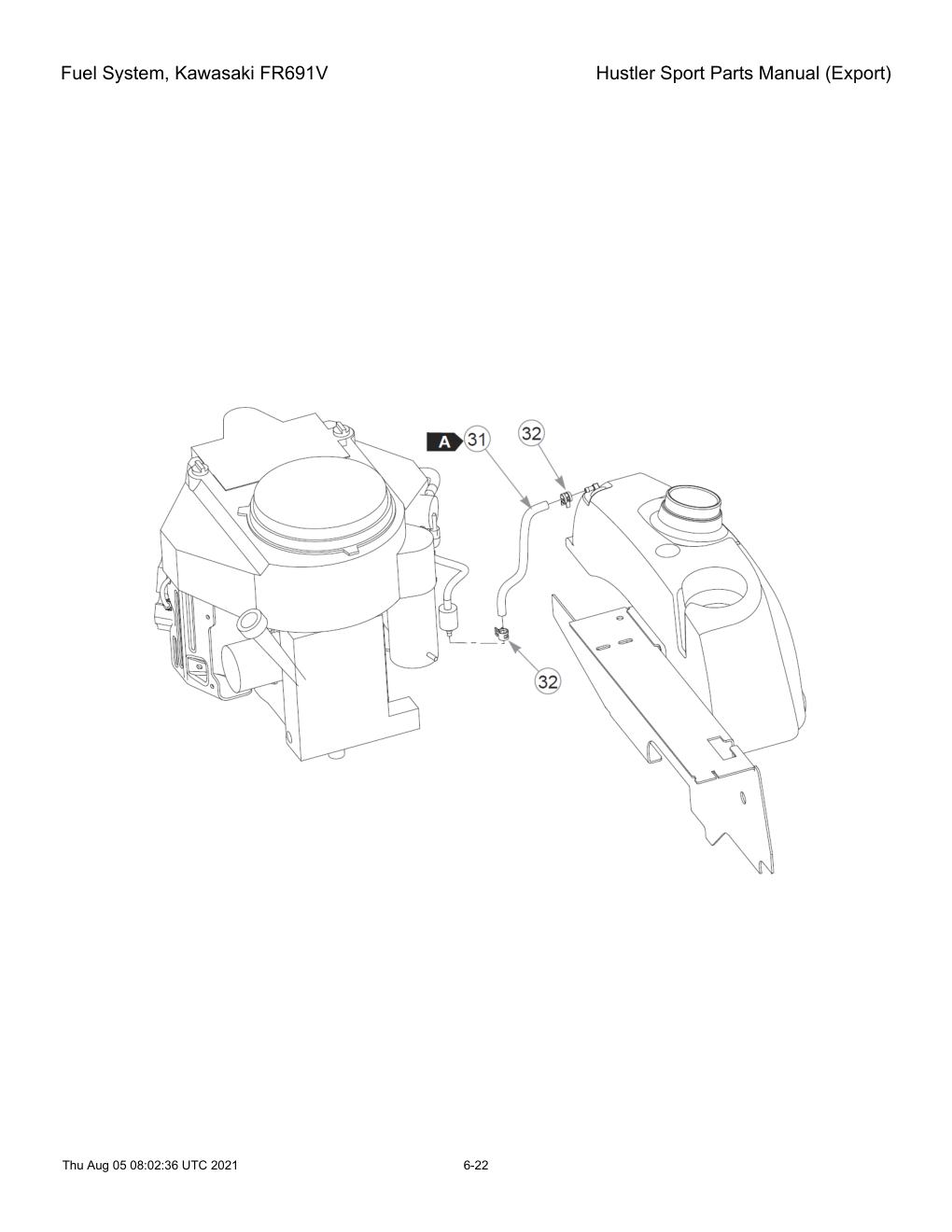

Fuel System, Kawasaki FR691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 31 | FUEL LINE, 1/4" | 015818 | 12" | HT015818-Online |
| 32 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |

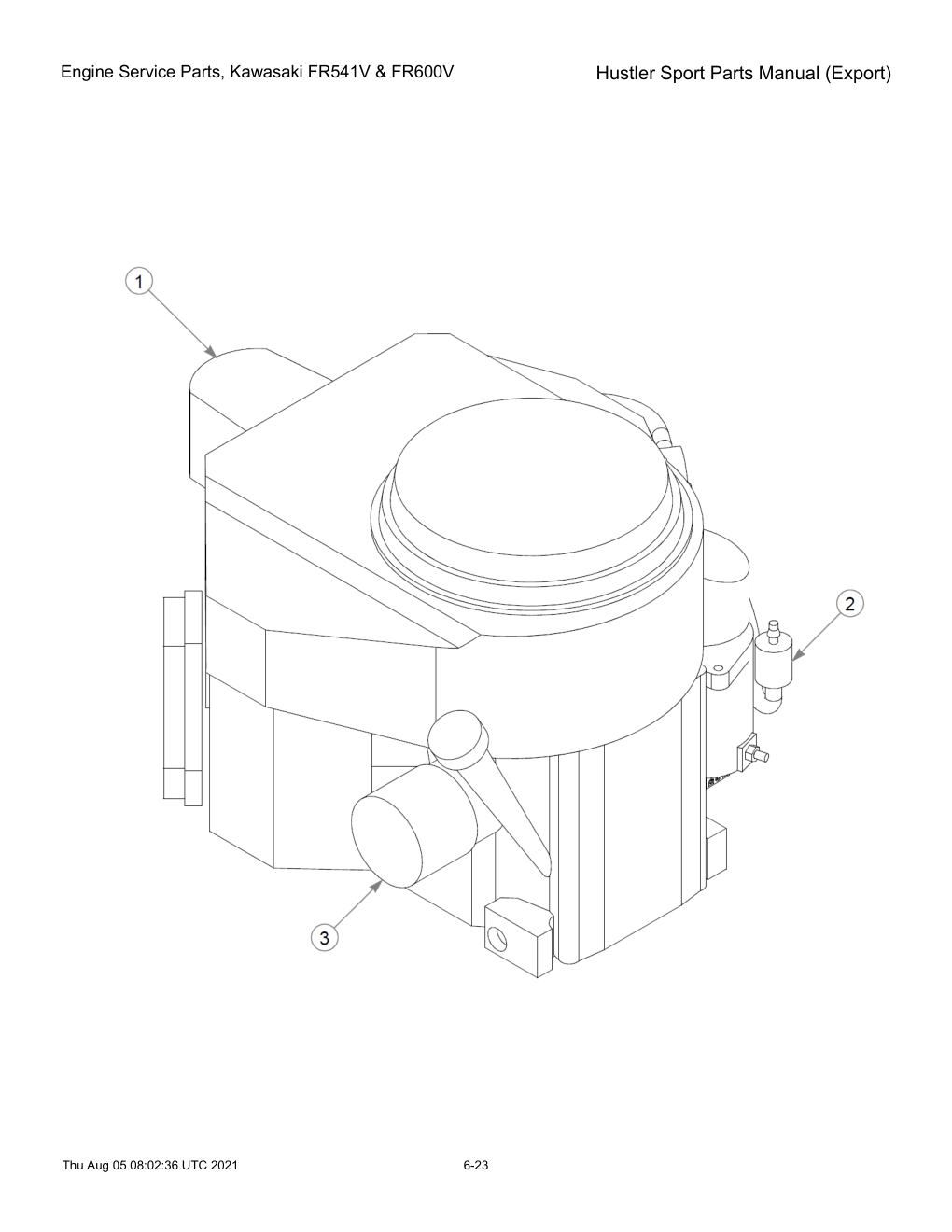

Engine Service Parts, Kawasaki FR541V & FR600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER, KAW W/CLAMP | 604240 | 1 | 604240-Online |
| 2 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |

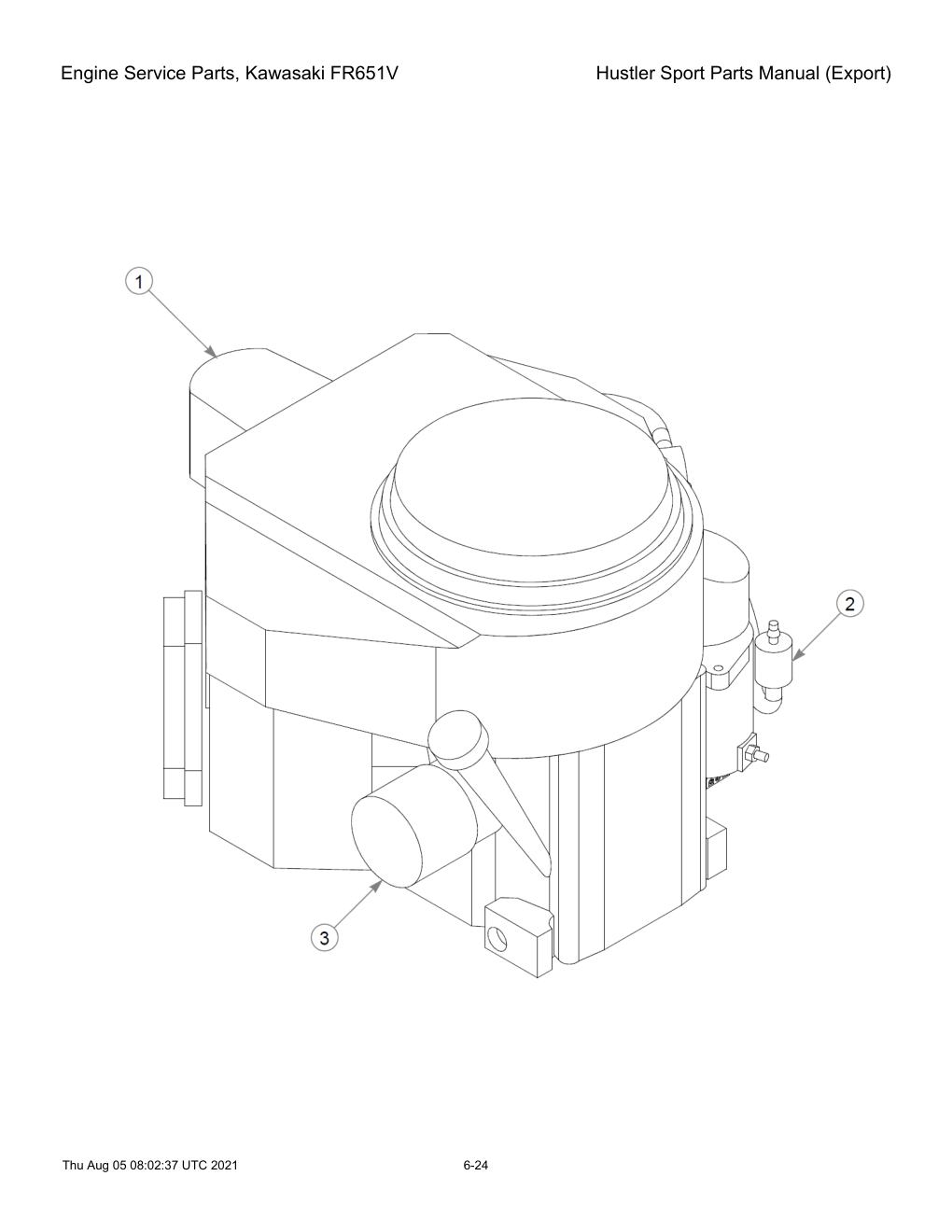

Engine Service Parts, Kawasaki FR651V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER - MAIN | 603059 | 1 | 603059-Online |
| 2 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |

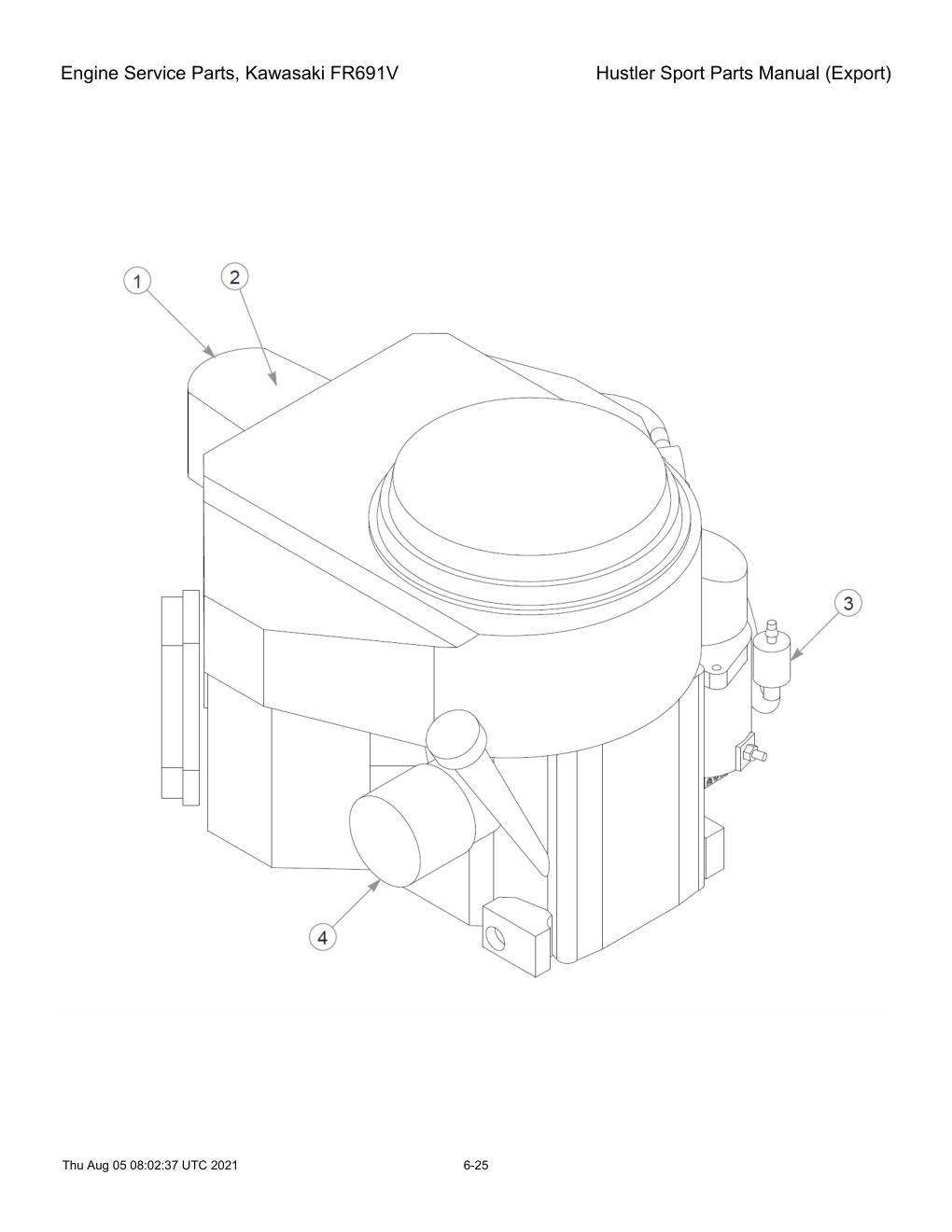

Engine Service Parts, Kawasaki FR691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PRE FILTER, KAW | 603058 | 1 | 603058-Online |
| 2 | AIR FILTER - MAIN | 603059 | 1 | 603059-Online |
| 3 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 4 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |

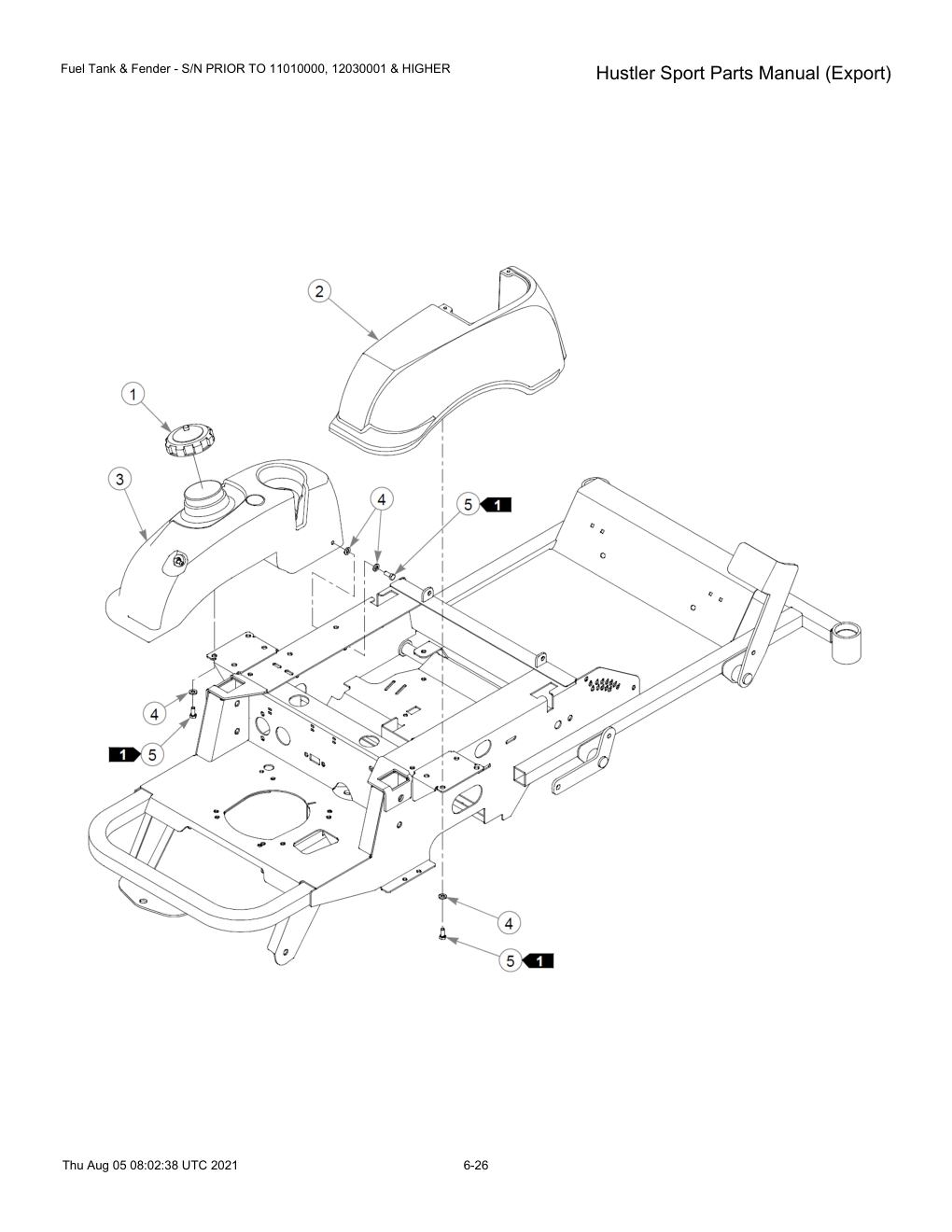

Fuel Tank & Fender - S/N PRIOR TO 11010000, 12030001 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP,3.5" | 779306 | 1 | HT779306-Online |
| 2 | FENDER RH, SPORT | 110080 | 1 | 110080-Online |
| 3 | FENDER TANK LH, SPORT | 110081 | 1 | 110081-Online |
| 4 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 5 | CS .312-18X0.750HXG5 | 034280 | 6 | HT034280-Online |

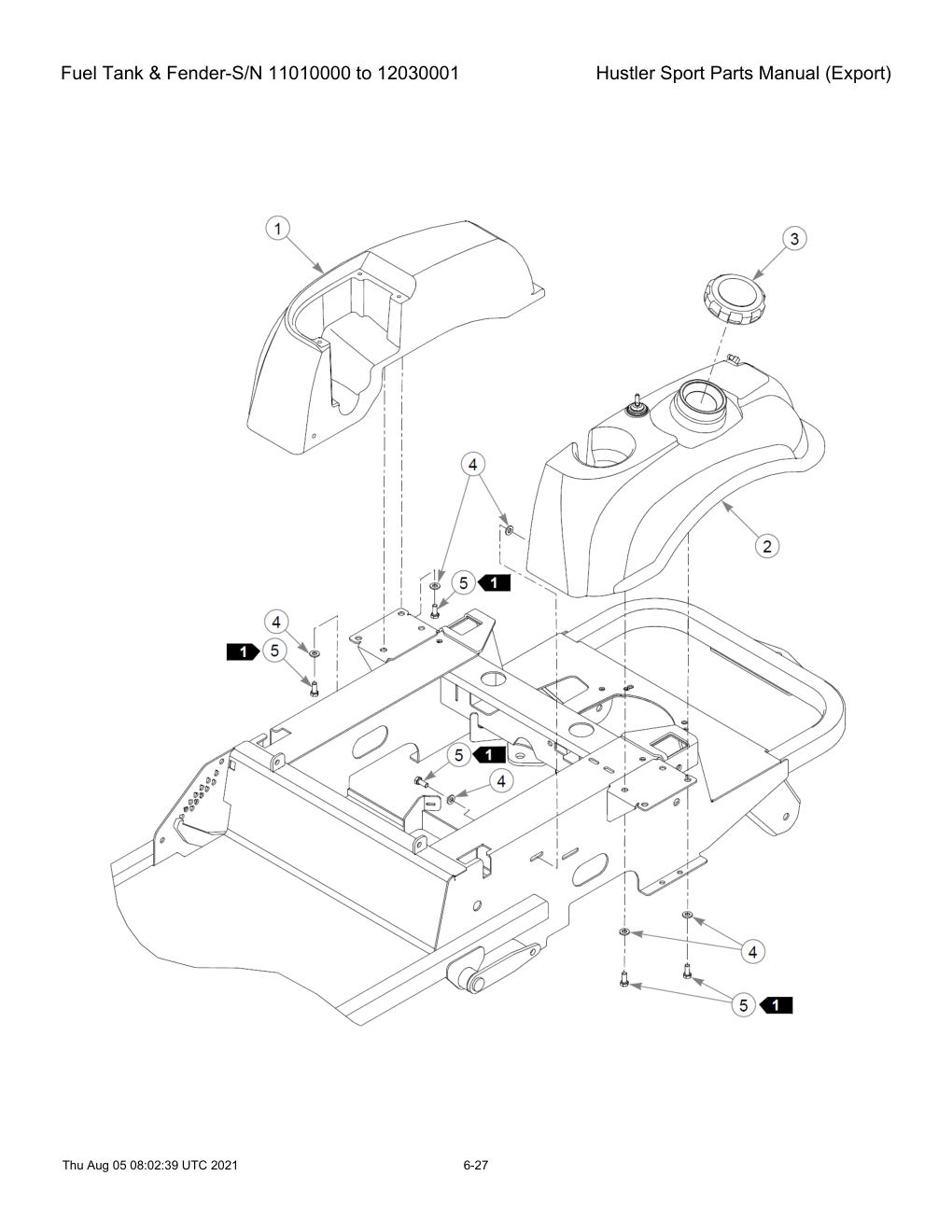

Fuel Tank & Fender-S/N 11010000 to 12030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FENDER RH, SPORT | 110080 | 1 | 110080-Online |
| 2 | SVC, FUEL TANK KIT | 603502K | 1 | 603502K-Online |
| 3 | CAP, 3.5" RATCHETING GAS | 603807 | 1 | 603807-Online |
| 4 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 5 | CS .312-18X0.750HXG5 | 034280 | 6 | HT034280-Online |

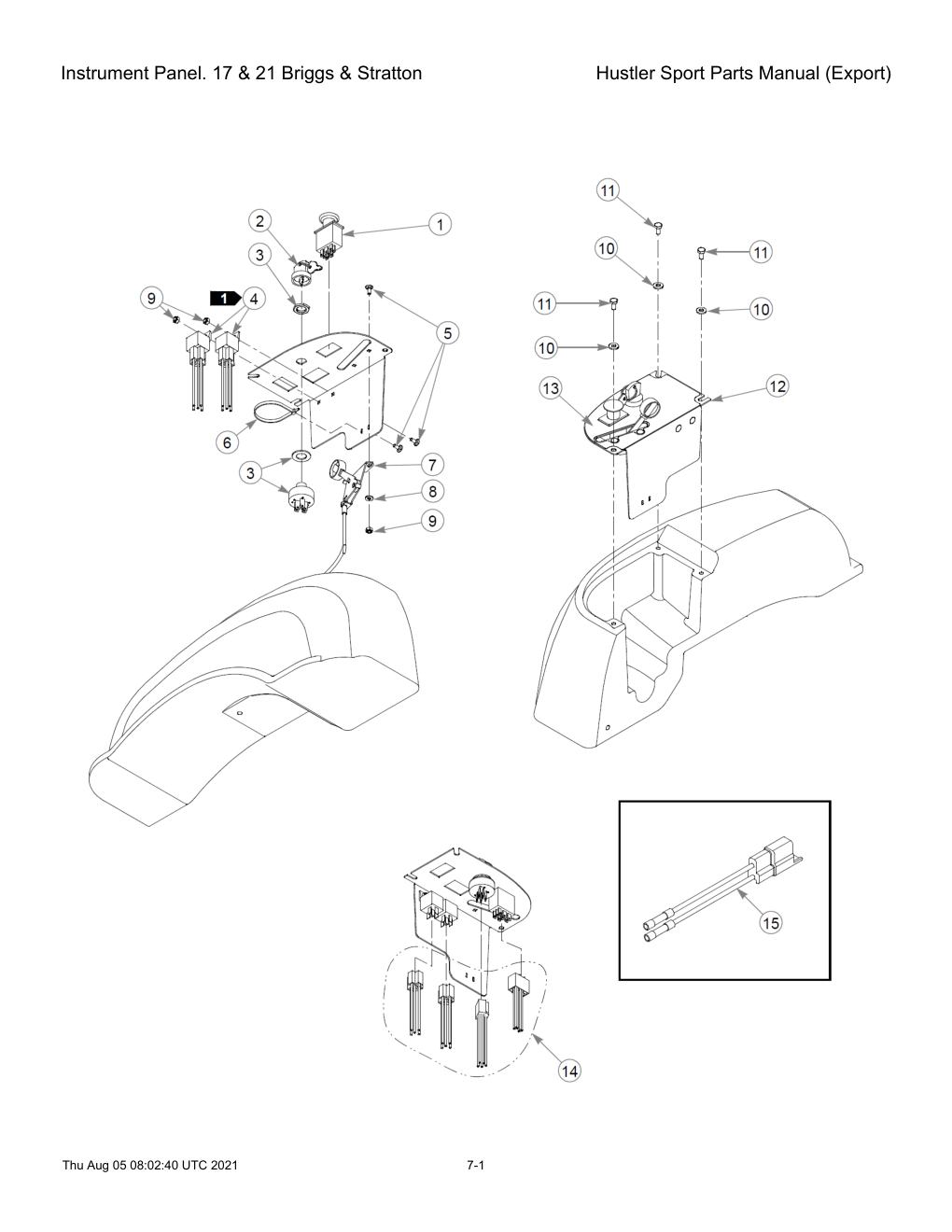

Instrument Panel. 17 & 21 Briggs & Stratton
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 4 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 5 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 6 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 7 | THROTTLE/CHOKE CABLE | 601803 | 1 | 601803-Online |
| 8 | FW 0.219X.50X.05 ZN | 704932 | 2 | HT704932-Online |
| 9 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 10 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 11 | CS .250-20X0.50 HX G5 ZN | 055947 | 3 | 055947-Online |
| 12 | INSTRUMENT PANEL, BRIGGS | 550224 | 1 | 550224-Online |
| 13 | DECAL, DASH INSTRUMENT | 601811 | 1 | 601811-Online |
| 14 | WIRE HARNESS, FST SPORT | 601676 | 1 | 601676-Online |
| 15 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
Instrument Panel, 26 Briggs & Stratton
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 4 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 5 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 6 | CABLE, THRTL/CHOKE 40" | 602555 | 1 | 602555-Online |
| 7 | FW 0.219X.50X.05 ZN | 704932 | 2 | HT704932-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 9 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 10 | CS .250-20X0.50 HX G5 ZN | 055947 | 3 | 055947-Online |
| 11 | INSTRUMENT PANEL, BRIGGS | 550224 | 1 | 550224-Online |
| 12 | DECAL, DASH INSTRUMENT | 601811 | 1 | 601811-Online |
| 13 | WIRE HARNESS, FST SPORT | 601676 | 1 | 601676-Online |
| 14 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 15 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
Instrument Panel. Kawasaki
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 601097 | 1 | HT601097-Online |
| 2 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 6 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 7 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 8 | CABLE, THROTTLE | 601096 | 1 | 601096-Online |
| 9 | FW 0.219X.50X.05 ZN | 704932 | 2 | HT704932-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 11 | CS .250-20X0.50 HX G5 ZN | 055947 | 3 | 055947-Online |
| 12 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 13 | DECAL, INST PANEL | 603109 | 1 | 603109-Online |
| 14 | SVC PART, INST PANEL | 550903 | 1 | 550903-Online |
| 15 | WIRE HARNESS, FST SPORT | 601676 | 1 | 601676-Online |
| 16 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |

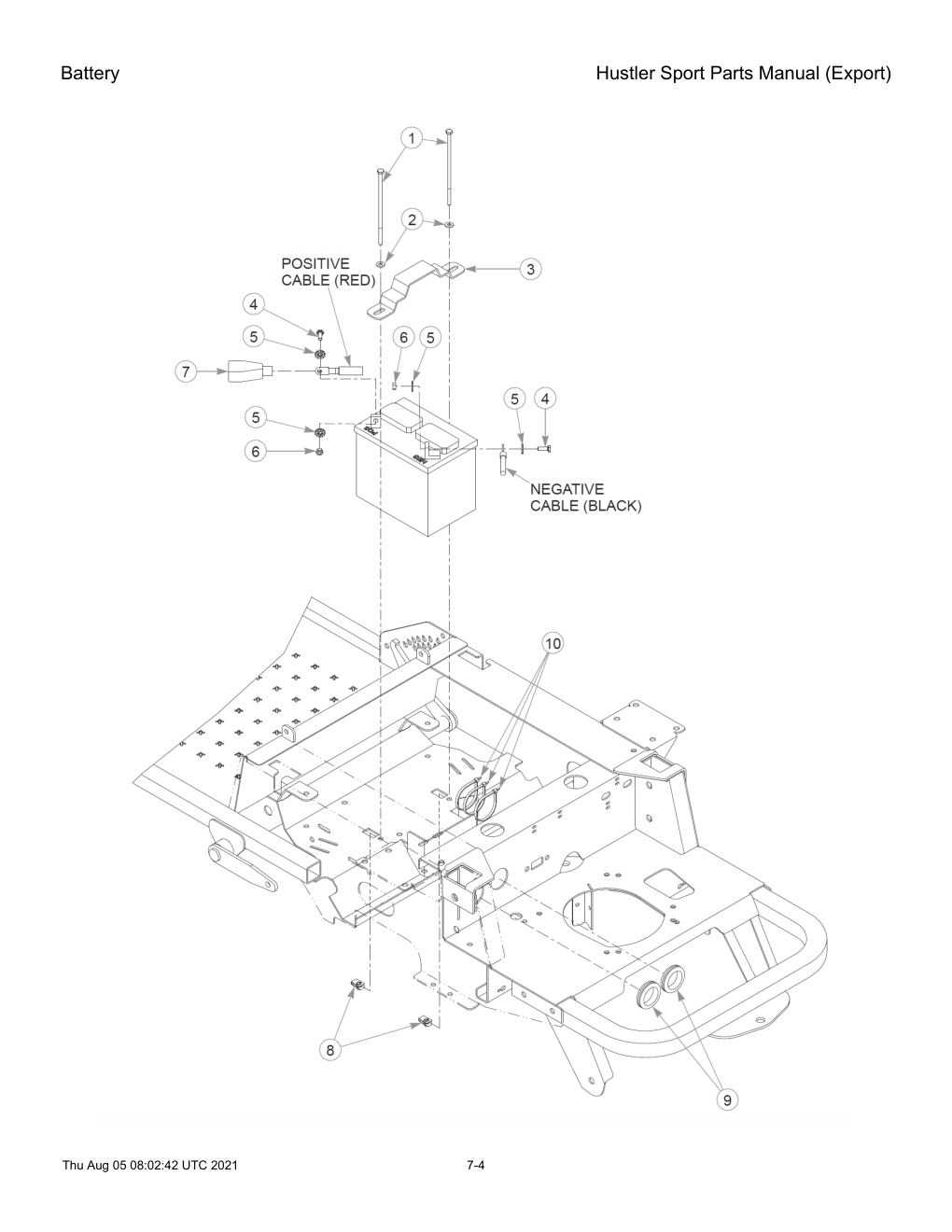

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 6.50 HX G5 | 601930 | 2 | 601930-Online |
| 2 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 3 | STRAP, BATTERY CLAMP | 348417 | 1 | 348417-Online |
| 4 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 5 | LW .250 INTEXT ZN | 029868 | 4 | 029868-Online |
| 6 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 7 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 8 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 9 | GM 1.50 X 2.12 X 1.75 | 794644 | 2 | 794644-Online |
| 10 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

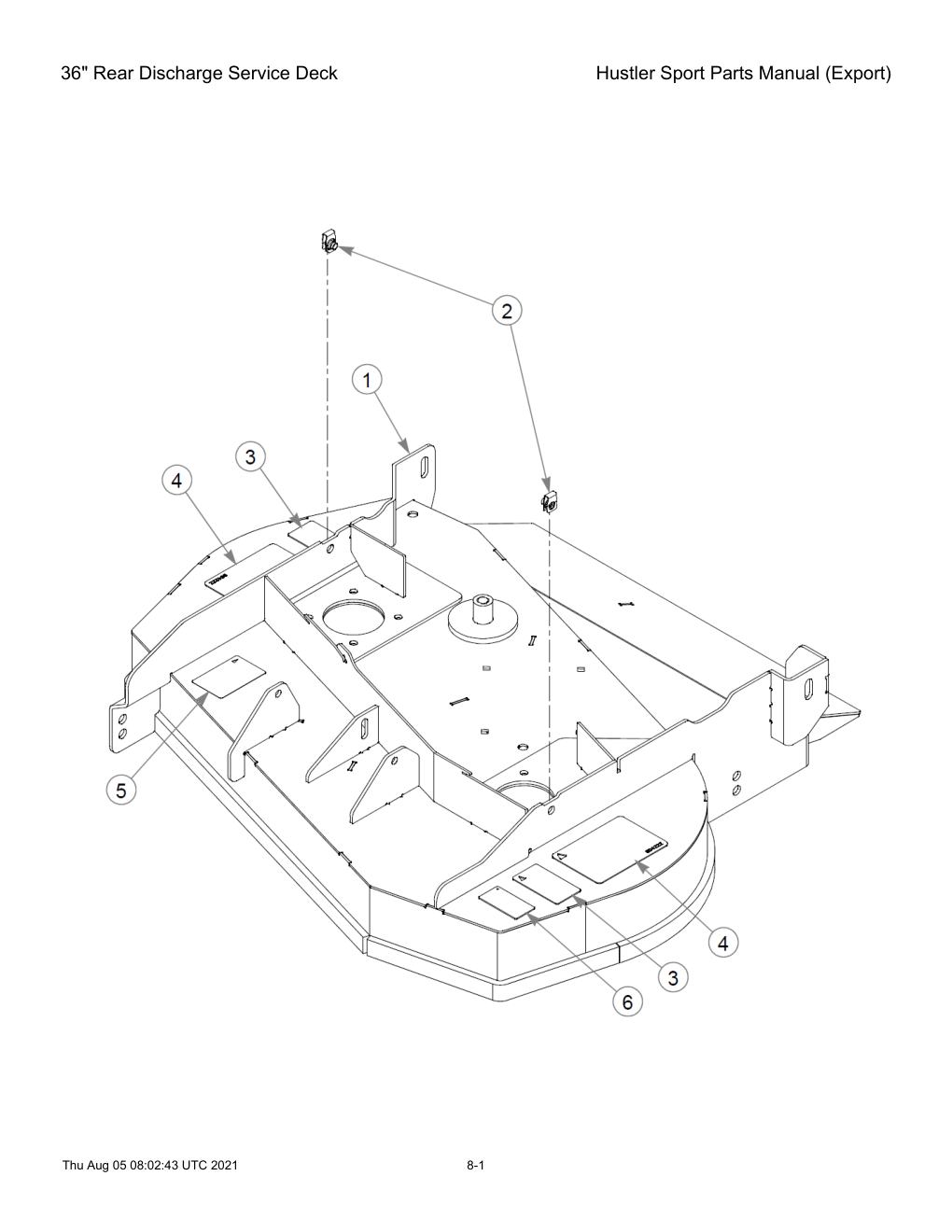

36" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC DECK | 551989 | 1 | 551989-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 3 | DECAL, RUBBER FLAP | 603391 | 2 | 603391-Online |
| 4 | DECAL, DANGER / OBJECTS | 604222 | 2 | 604222-Online |
| 5 | DECAL, BELT ROUTING | 602243 | 1 | 602243-Online |
| 6 | DECAL, 36" DECK ID | 793513 | 1 | 793513-Online |

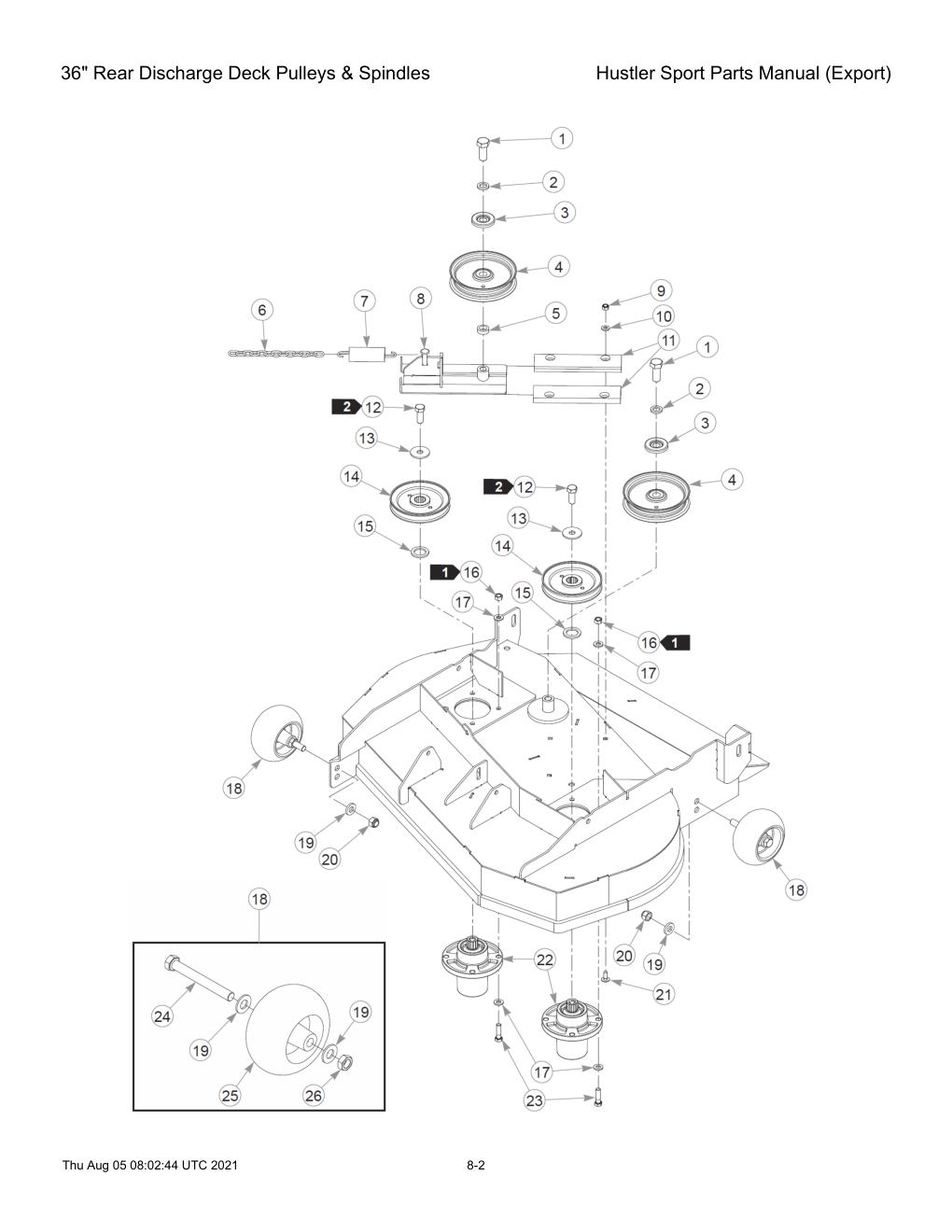

36" Rear Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 2 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 2 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 2 | 603057-Online |
| 4 | PULLEY, IDLER NHI 5.00" | 781856 | 2 | HT781856-Online |
| 5 | SPACER, DECK IDLER | 600296 | 1 | HT600296-Online |
| 6 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 7 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 8 | IDLER SLIDE W/A | 114433 | 1 | 114433-Online |
| 9 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 10 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 11 | IDLER SLIDE, SHORT | 603750 | 2 | 603750-Online |
| 12 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 13 | FW .515X1.65X.12 HD ZN | 798603 | 2 | 798603-Online |
| 14 | PULLEY, DRIVE 4.78 EOD | 603730 | 2 | 603730-Online |
| 15 | FW 1.030X1.50X.13 HD ZN | 045765 | 2 | HT045765-Online |
| 16 | NT .375-16HXG5 | 054502 | 8 | HT054502-Online |
| 17 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 18 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 19 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 20 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 21 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 22 | BLADE SPINDLE ASSY | 607418 | 2 | 607418-Online |
| 23 | CS .375-16X1.38 HX G5 ZN | 005116 | 8 | HT005116-Online |
| 24 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |
| 25 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 26 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |

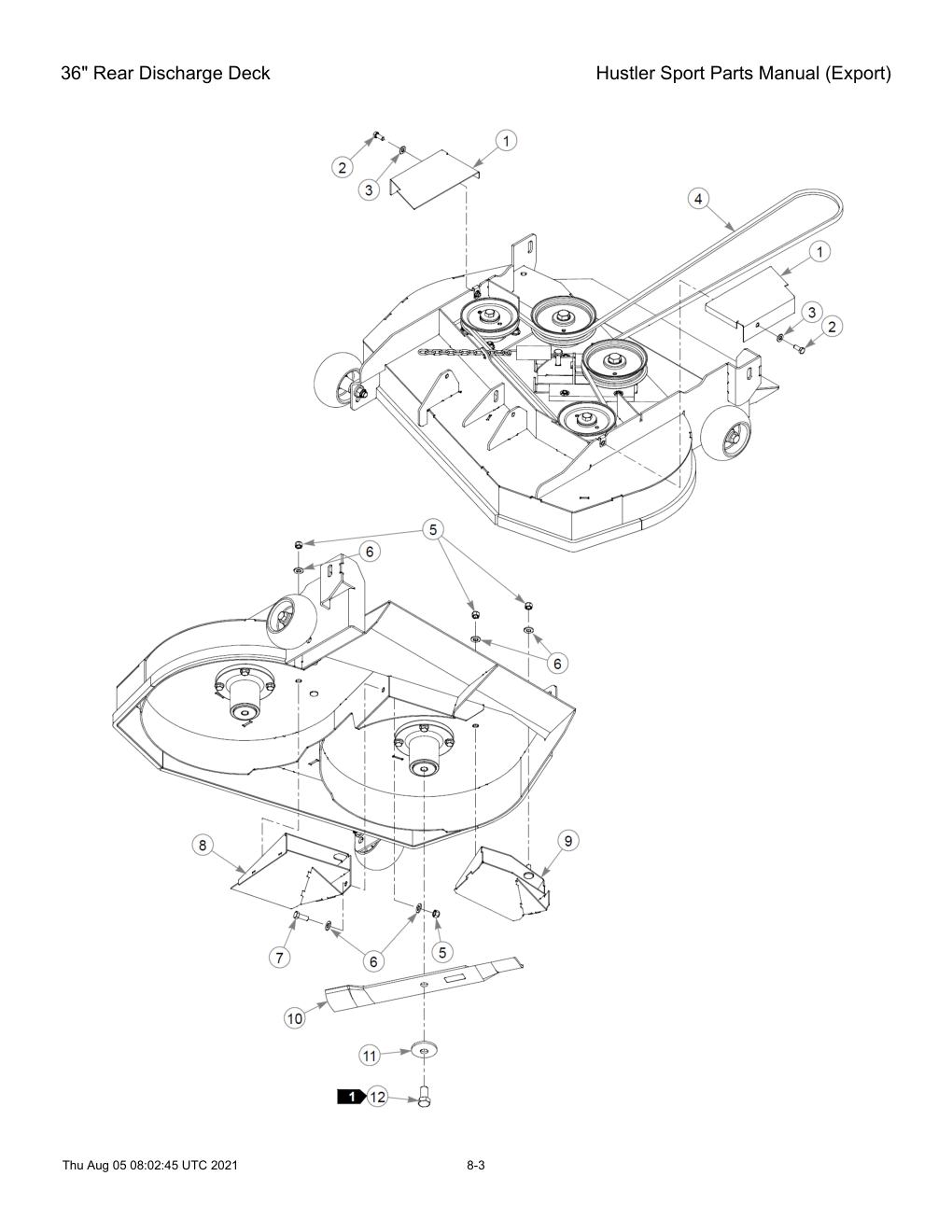

36" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC PULLEY COVER | 551990 | 2 | 551990-Online |
| 2 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 3 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 4 | DECK BELT | 793828 | 1 | HT793828-Online |
| 5 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 8 | RAMP, LEFT SIDE W/A | 116217 | 1 | 116217-Online |
| 9 | RAMP W/A RS | 117375 | 1 | 117375-Online |
| 10 | BLADE,17.86"-L-F-CW | 783753 | 2 | 783753-Online |
| Not Shown | BLADE,17.86"-GAT-F-CW | 785436 | 2 | 785436-Online |
| Not Shown | BLADE,17.86"-MUL-F-CW | 794198 | 2 | HT794198-Online |
| Not Shown | BLADE, F17.86"-H-F-CW | 795526 | 2 | 795526-Online |
| 11 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 12 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
42" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 42" SERVICE DECK | 550592 | 1 | 550592-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 5 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 6 | DECAL, BELT ROUTING | 602243 | 1 | 602243-Online |
| 7 | DECAL, 42" DECK ID | 793521 | 1 | 793521-Online |

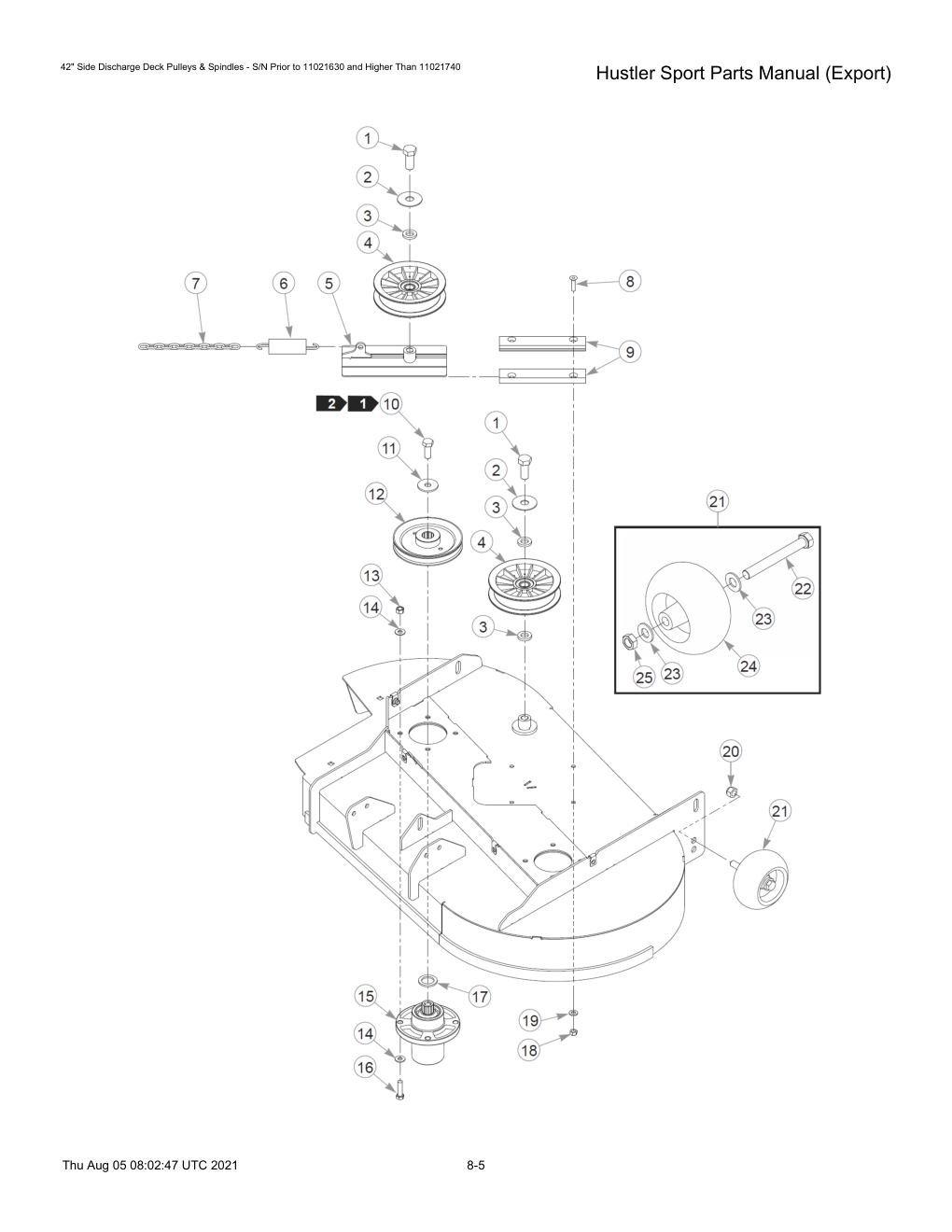

42" Side Discharge Deck Pulleys & Spindles - S/N Prior to 11021630 and Higher Than 11021740
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 2 | HT794446-Online |
| 2 | FW .656X2.00X.08 ZN | 046821 | 2 | HT046821-Online |
| 3 | FW .630X1.13X.18 ZN | 797449 | 3 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 2 | HT784504-Online |
| 5 | IDLER SLIDE W/A | 109770 | 1 | HT109770-Online |
| 6 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 7 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18X1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 11 | FW .515X1.65X.12 HD ZN | 798603 | 2 | 798603-Online |
| 12 | PULLEY,DECK SPINDLE 36/ | 793778 | 2 | 793778-Online |
| 13 | NT .375-16HXG5 | 054502 | 8 | HT054502-Online |
| 14 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 15 | BLADE SPINDLE ASSY | 607418 | 2 | 607418-Online |
| 16 | CS .375-16X1.38 HX G5 ZN | 005116 | 8 | HT005116-Online |
| 17 | FW 1.030X1.50X.13 HD ZN | 045765 | 2 | HT045765-Online |
| 18 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 19 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 20 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 21 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 22 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |
| 23 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 24 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 25 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |

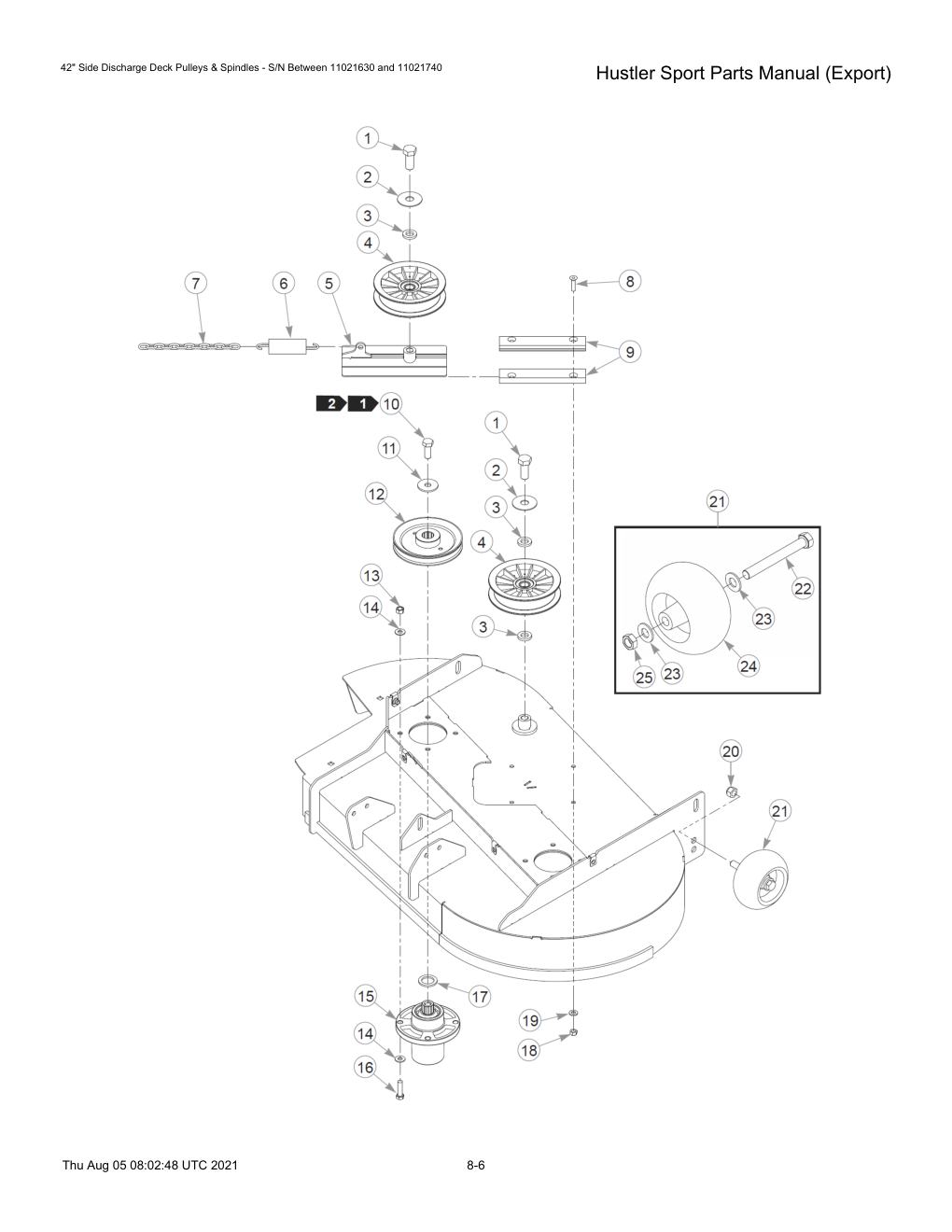

42" Side Discharge Deck Pulleys & Spindles - S/N Between 11021630 and 11021740
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 2 | HT794446-Online |
| 2 | FW .656X2.00X.08 ZN | 046821 | 2 | HT046821-Online |
| 3 | FW .630X1.13X.18 ZN | 797449 | 3 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 2 | HT784504-Online |
| 5 | IDLER SLIDE W/A | 109770 | 1 | HT109770-Online |
| 6 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 7 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18X1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
| 11 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 12 | PULLEY,DECK SPINDLE 36/ | 793778 | 2 | 793778-Online |
| 13 | NT .375-16HXG5 | 054502 | 8 | HT054502-Online |
| 14 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 15 | BLADE SPINDLE ASSEMBLY | 783506 | 2 | 783506-Online |
| 16 | CS .375-16X1.38 HX G5 ZN | 005116 | 8 | HT005116-Online |
| 17 | FW 1.030X1.50X.13 HD ZN | 045765 | 2 | HT045765-Online |
| 18 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 19 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 20 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 21 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 22 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |
| 23 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 24 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 25 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |

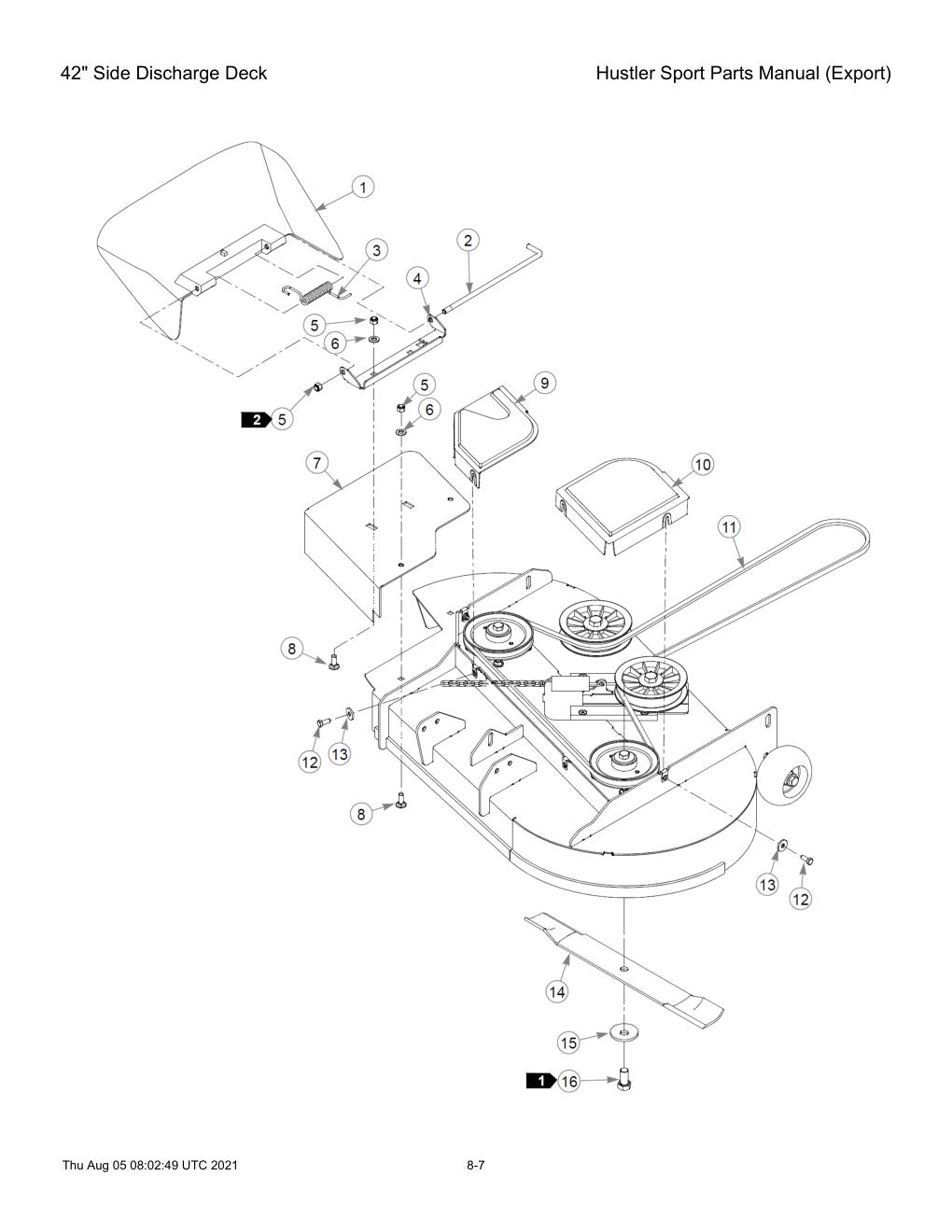

42" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 3 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 4 | BRACKET, CHUTE | 111067 | 1 | HT111067-Online |
| 5 | NT .375-16NLG8 | 086660 | 5 | HT086660-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 7 | PLATE, DISCHARGE CHUTE | 112429 | 1 | 112429-Online |
| 8 | CB .375-16X 1.00 G5 ZN | 025395 | 4 | HT025395-Online |
| 9 | 42C PULLEY COVER, RS | 602751 | 1 | 602751-Online |
| 10 | 42/46 PULLEY COVER, LS | 602752 | 1 | 602752-Online |
| 11 | DECK BELT | 600726 | 1 | HT600726-Online |
| 12 | CS .312-18X0.750HXG5 | 034280 | 4 | HT034280-Online |
| 13 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 14 | BLADE,20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| Not Shown | BLADE,20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 2 | HT794230-Online |
| Not Shown | BLADE,20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| Not Shown | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| Not Shown | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| 15 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 16 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |

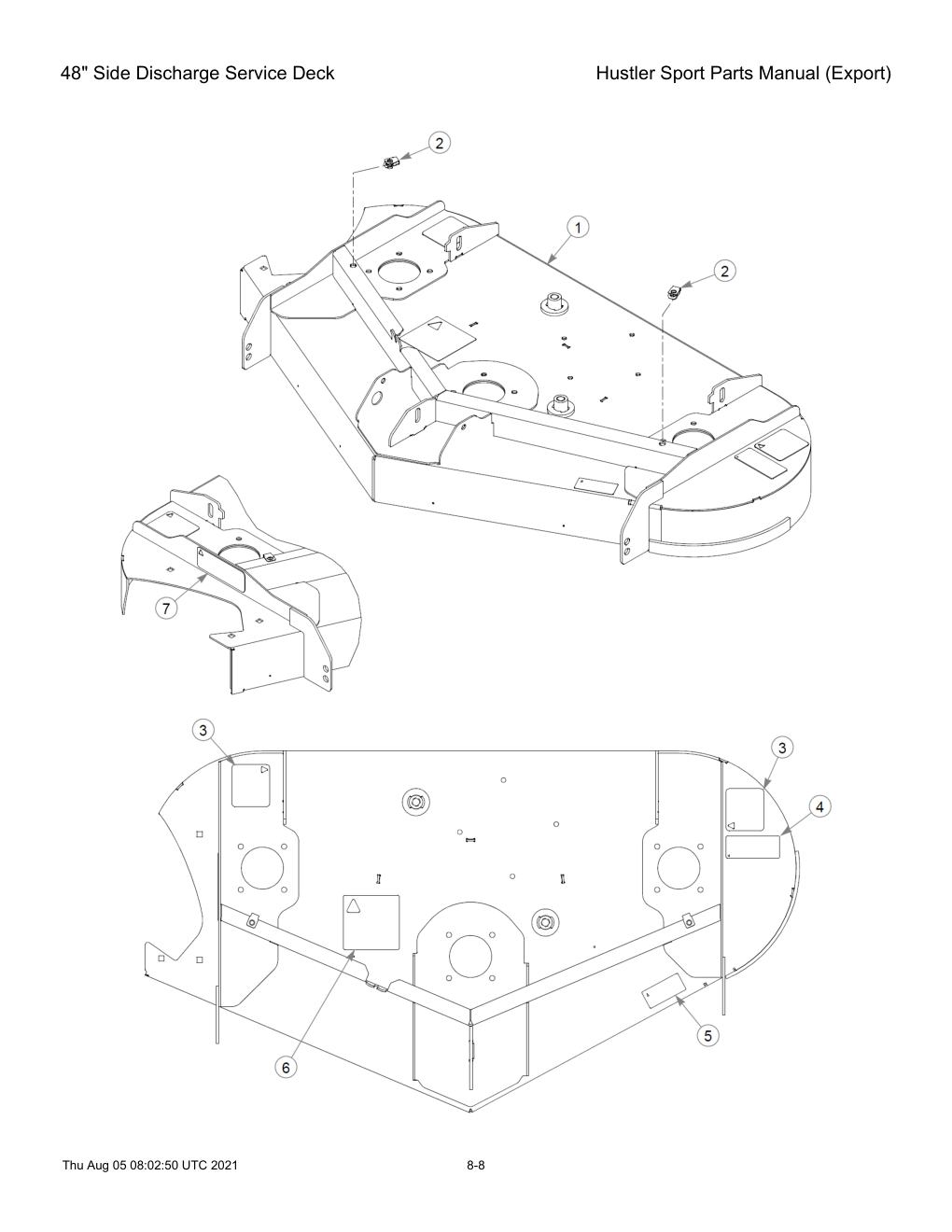

48" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" SERVICE DECK | 550017 | 1 | 550017-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 3 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 4 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 5 | DECAL,48"DECK ID | 793976 | 1 | 793976-Online |
| 6 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 7 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |

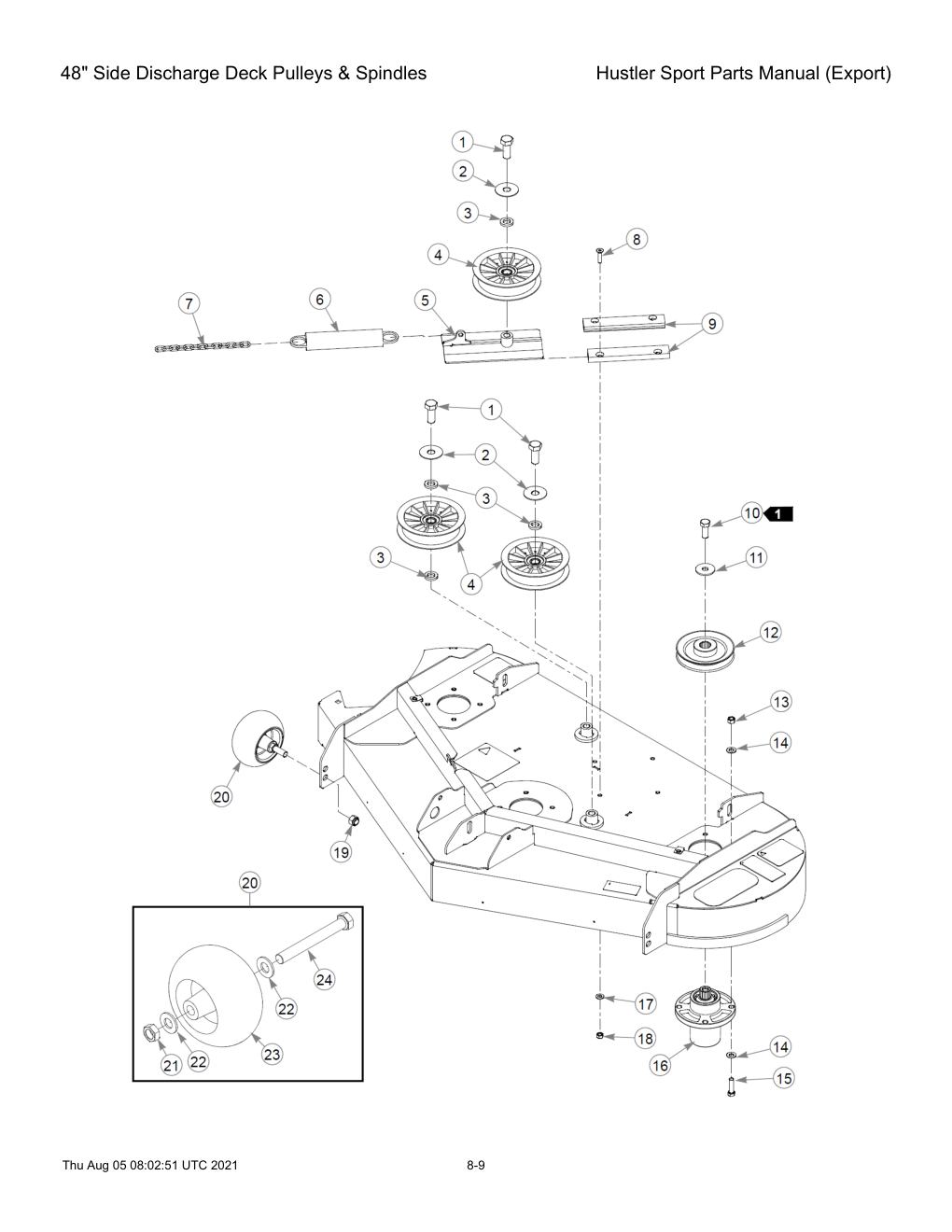

48" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 3 | HT794446-Online |
| 2 | FW .656X2.00X.08 ZN | 046821 | 3 | HT046821-Online |
| 3 | FW .630X1.13X.18 ZN | 797449 | 4 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 3 | HT784504-Online |
| 5 | IDLER SLIDE W/A | 109770 | 1 | HT109770-Online |
| 6 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18X1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .500-13X1.25 HX G5 ZN | 705954 | 3 | HT705954-Online |
| 11 | FW .515X1.65X.12 HD ZN | 798603 | 3 | 798603-Online |
| 12 | PULLEY, DRIVE 5.19 OP | 792689 | 3 | HT792689-Online |
| 13 | NT .375-16HXG5 | 054502 | 12 | HT054502-Online |
| 14 | FW 0.379X.82X.06 HD ZN | 767954 | 24 | HT767954-Online |
| 15 | CS .375-16X1.38 HX G5 ZN | 005116 | 12 | HT005116-Online |
| 16 | BLADE SPINDLE ASSY | 607418 | 3 | 607418-Online |
| 17 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 18 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 19 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 20 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 21 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 22 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 23 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 24 | CS .500-13X4.25 HX G5 ZN | 781708 | 2 | HT781708-Online |

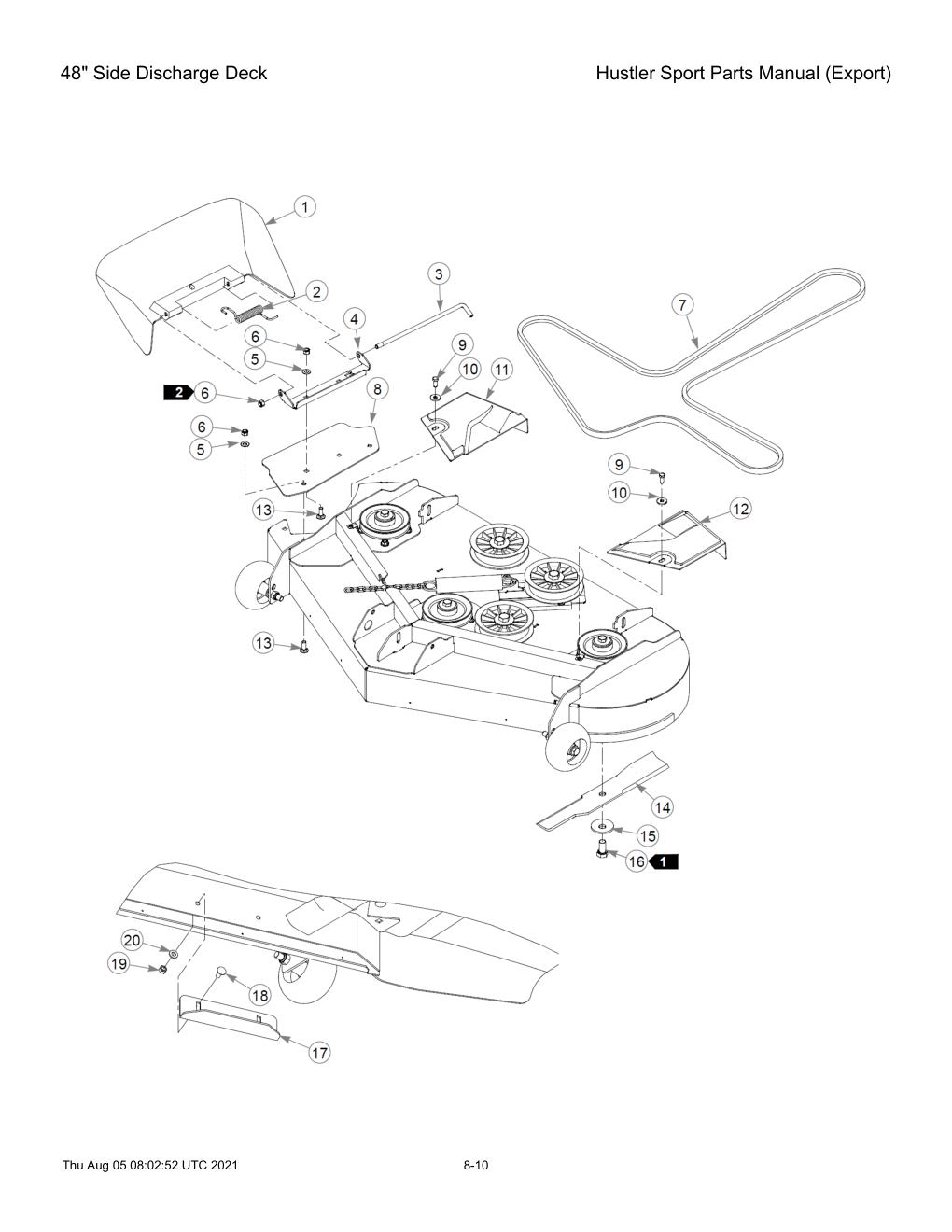

48" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 3 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 4 | BRACKET, CHUTE | 111067 | 1 | HT111067-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 6 | NT .375-16NLG8 | 086660 | 5 | HT086660-Online |
| 7 | DECK BELT | 771634 | 1 | HT771634-Online |
| 8 | PLATE, CHUTE ADPTR 48" | 110821 | 1 | HT110821-Online |
| 9 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 10 | FW 0.344X1.00X.12 HD ZN | 712927 | 2 | HT712927-Online |
| 11 | 48R PULLEY COVER, RS | 601984 | 1 | 601984-Online |
| 12 | 48R PULLEY COVER, LS | 601985 | 1 | 601985-Online |
| 13 | CB .375-16X 1.00 G5 ZN | 025395 | 4 | HT025395-Online |
| 14 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| Not Shown | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| Not Shown | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| Not Shown | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 15 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 17 | BAFFLE, "A" BLOWOUT | 111999 | 1 | HT111999-Online |
| 18 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 19 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 20 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
54" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" SERVICE DECK | 550533 | 1 | 550533-Online |
| 2 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 3 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 4 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 5 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
| 6 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 7 | DECAL, 54" DECK ID | 799171 | 1 | 799171-Online |

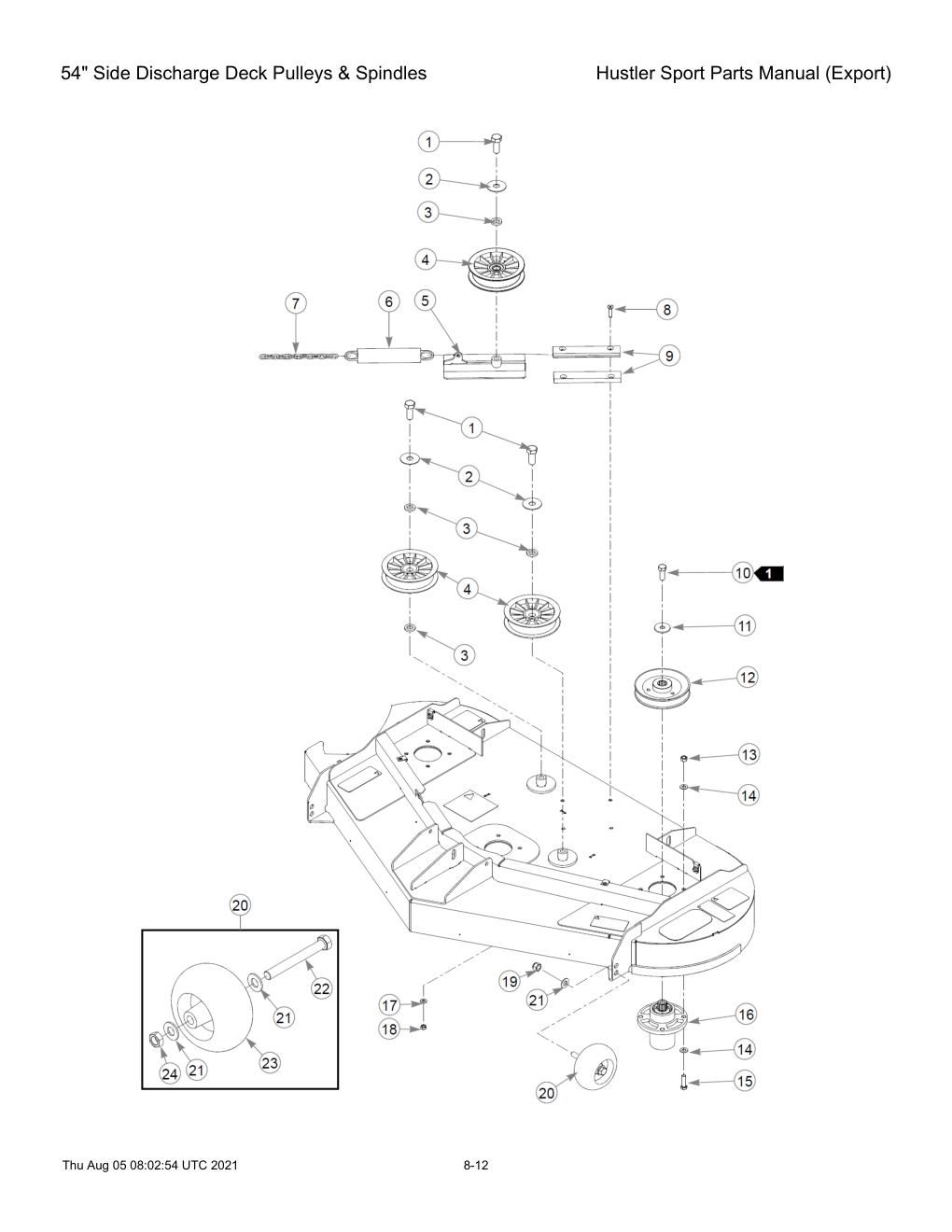

54" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 3 | HT794446-Online |
| 2 | FW .656X2.00X.08 ZN | 046821 | 3 | HT046821-Online |
| 3 | FW .630X1.13X.18 ZN | 797449 | 4 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 3 | HT784504-Online |
| 5 | IDLER SLIDE W/A | 109770 | 1 | HT109770-Online |
| 6 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18X1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .500-13X1.25 HX G5 ZN | 705954 | 3 | HT705954-Online |
| 11 | FW .515X1.65X.12 HD ZN | 798603 | 3 | 798603-Online |
| 12 | PULLEY, DRIVE 5.68 OP | 786889 | 3 | HT786889-Online |
| 13 | NT .375-16HXG5 | 054502 | 12 | HT054502-Online |
| 14 | FW 0.379X.82X.06 HD ZN | 767954 | 24 | HT767954-Online |
| 15 | CS .375-16X1.38 HX G5 ZN | 005116 | 12 | HT005116-Online |
| 16 | BLADE SPINDLE ASSY | 607418 | 3 | 607418-Online |
| 17 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 18 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 19 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 20 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 21 | FW .531 x 1.063 x .175 | 767962 | 6 | HT767962-Online |
| 22 | CS .500-13X4.25 HX G5 ZN | 781708 | 2 | HT781708-Online |
| 23 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 24 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |

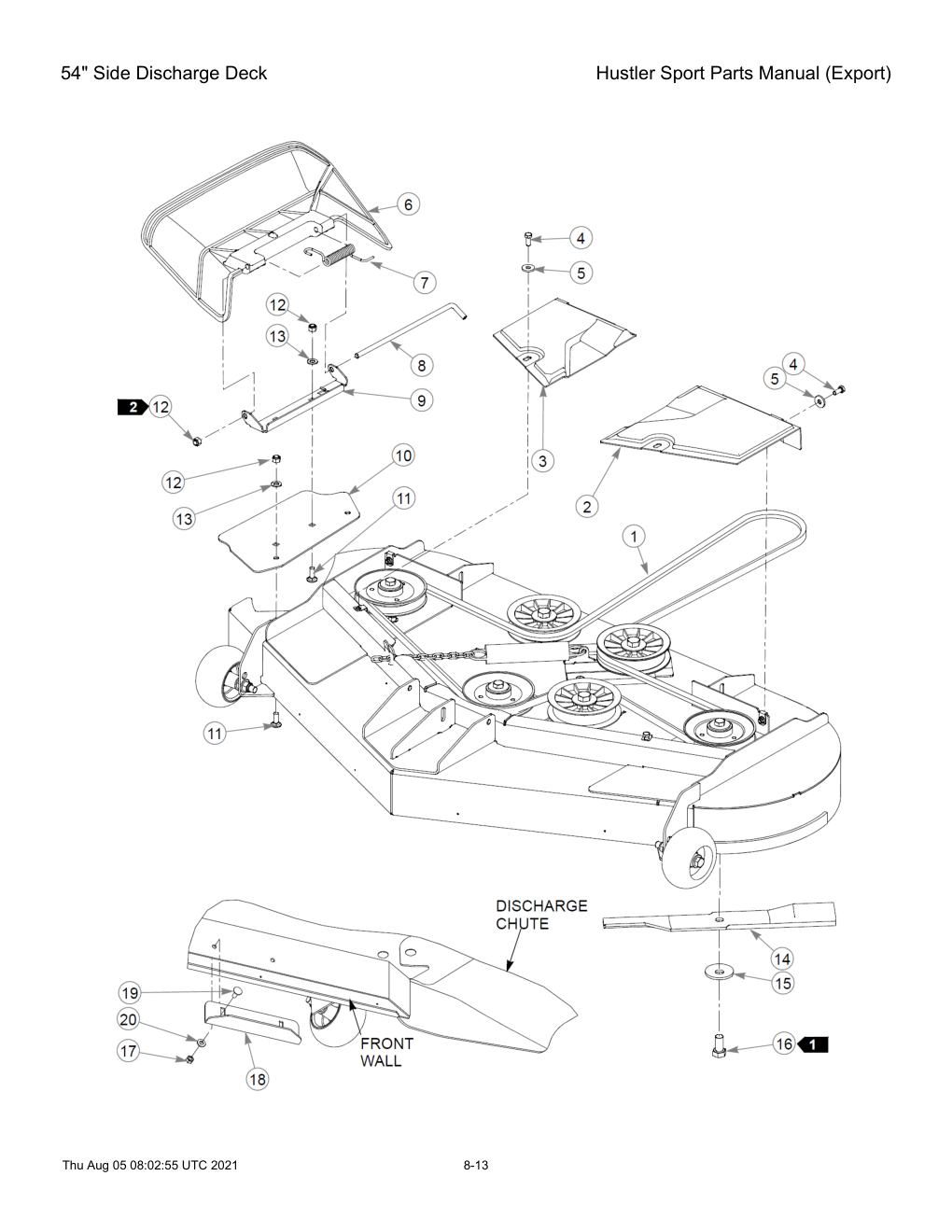

54" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 777185 | 1 | 777185-Online |
| 2 | 54R PULLEY COVER, LS | 602749 | 1 | 602749-Online |
| 3 | 54R PULLEY COVER, RS | 602748 | 1 | 602748-Online |
| 4 | CS .312-18X0.750HXG5 | 034280 | 4 | HT034280-Online |
| 5 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 6 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 7 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 8 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 9 | BRACKET, CHUTE | 111067 | 1 | HT111067-Online |
| 10 | PLATE, CHUTE ADPTR 48" | 110821 | 1 | HT110821-Online |
| 11 | CB .375-16X 1.00 G5 ZN | 025395 | 4 | HT025395-Online |
| 12 | NT .375-16NLG8 | 086660 | 5 | HT086660-Online |
| 13 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 14 | BLADE, 18.50"-L-F-CW | 601124 | 3 | HT601124-Online |
| Not Shown | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| Not Shown | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| Not Shown | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 15 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 17 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 18 | BAFFLE, "A" BLOWOUT | 111999 | 1 | HT111999-Online |
| 19 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 20 | FW 0.343SAE | 768523 | 2 | HT768523-Online |

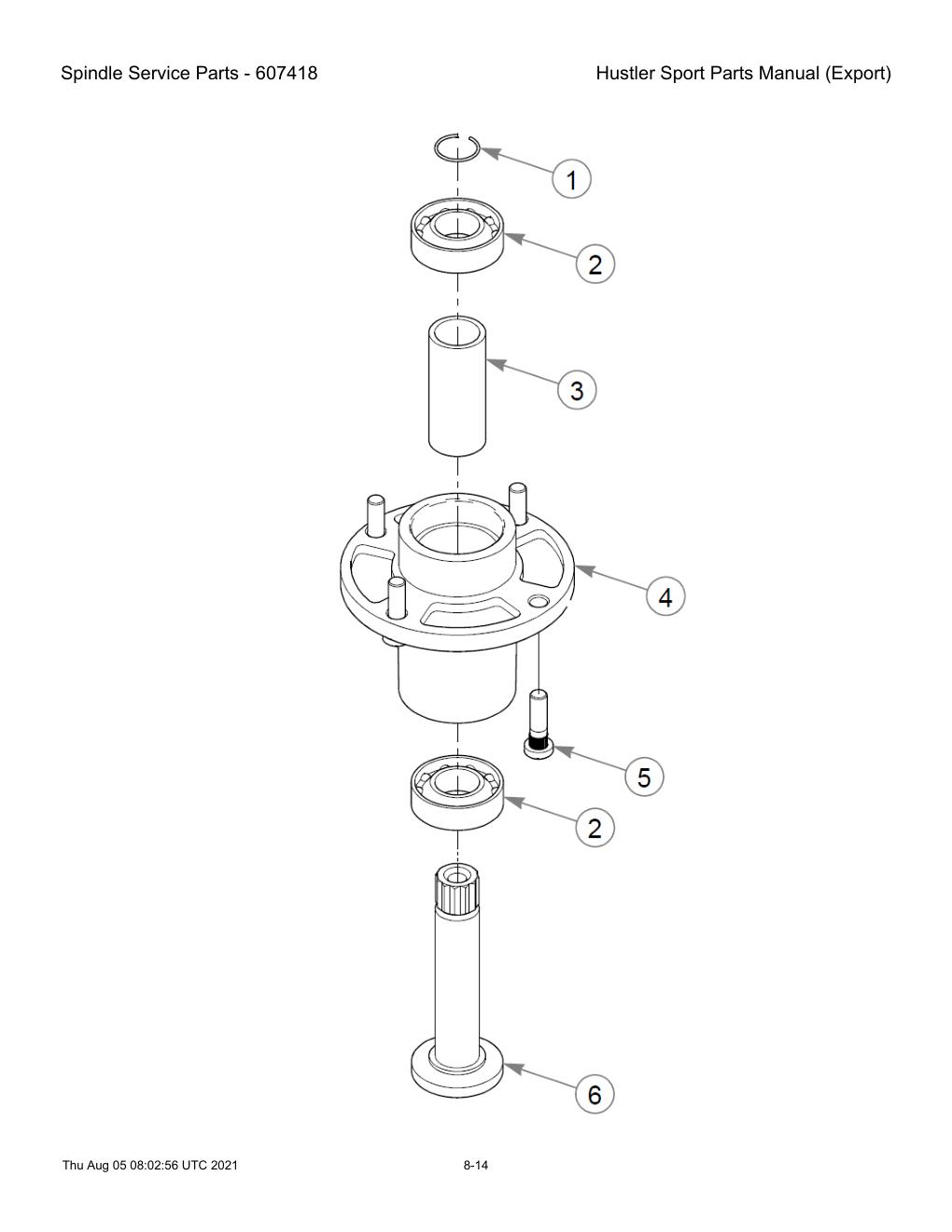

Spindle Service Parts - 607418
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RING, BLADE SPINDLE RET | 783548 | 1 | HT783548-Online |
| 2 | BEARING, 6205 2RST C3 | 601827 | 2 | 601827-Online |
| 3 | SPACER, BLADE SPINDLE | 601830 | 1 | 601830-Online |
| 4 | SVC, SPINDLE HOUSING | 607419 | 1 | 607419-Online |
| 5 | AXEL BOLT 3/8-16 X 1.375 | 607416 | 4 | 607416-Online |
| 6 | SHAFT, BLADE SPINDLE | 601829 | 1 | 601829-Online |

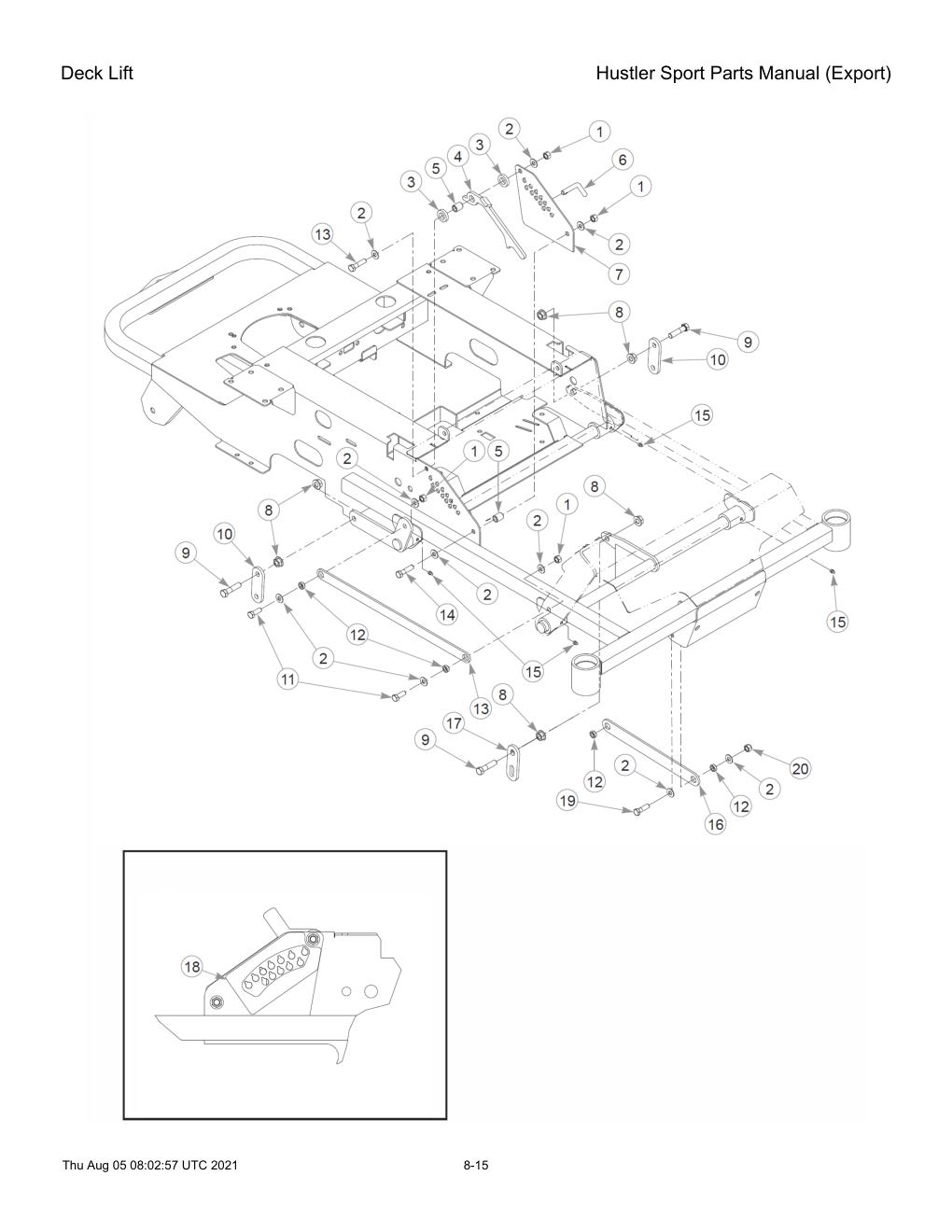

Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 2 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 3 | FW .656X 1.250X.250 ZN | 769257 | 2 | HT769257-Online |
| 4 | HANDLE, DECK HT LOCK | 110829 | 1 | HT110829-Online |
| 5 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 6 | PIN, DECK HEIGHT STOP | 601963 | 1 | 601963-Online |
| 7 | DECK ADJUSTMENT PLATE, | 550216 | 1 | 550216-Online |
| 8 | NT .437-14FLKG5 | 704643 | 12 | HT704643-Online |
| 9 | CS .437-14X1.750HXG5 | 055749 | 6 | HT055749-Online |
| 10 | DECK LIFT LINK, NON-SLOT | 110929 | 2 | HT110929-Online |
| 11 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 12 | PIVOT SPACER BUSHING | 601839 | 6 | 601839-Online |
| 13 | LIFT PEDAL LINK, | 110884 | 1 | HT110884-Online |
| 14 | CS .375-16X1.500HXG5 | 080655 | 2 | HT080655-Online |
| 15 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 16 | PULLER STRAP, | 110879 | 2 | HT110879-Online |
| 17 | DECK LIFT LINK, | 110880 | 1 | HT110880-Online |
| 18 | DECAL, DECK HEIGHT | 601814 | 1 | 601814-Online |
| 19 | CS .375-16X1.25 HX G5 ZN | 052860 | 4 | HT052860-Online |
| 20 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 2 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 3 | FW .656X 1.250X.250 ZN | 769257 | 2 | HT769257-Online |
| 4 | HANDLE, DECK HT LOCK | 110829 | 1 | HT110829-Online |
| 5 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 6 | PIN, DECK HEIGHT STOP | 601963 | 1 | 601963-Online |
| 7 | DECK ADJUSTMENT PLATE, | 550216 | 1 | 550216-Online |
| 8 | NT .437-14FLKG5 | 704643 | 12 | HT704643-Online |
| 9 | CS .437-14X1.750HXG5 | 055749 | 6 | HT055749-Online |
| 10 | DECK LIFT LINK, NON-SLOT | 110929 | 2 | HT110929-Online |
| 11 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 12 | PIVOT SPACER BUSHING | 601839 | 6 | 601839-Online |
| 13 | LIFT PEDAL LINK, | 110884 | 1 | HT110884-Online |
| 14 | CS .375-16X1.500HXG5 | 080655 | 2 | HT080655-Online |
| 15 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 16 | PULLER STRAP, | 110879 | 2 | HT110879-Online |
| 17 | DECK LIFT LINK, | 110880 | 1 | HT110880-Online |
| 18 | DECAL, DECK HEIGHT | 601814 | 1 | 601814-Online |
| 19 | CS .375-16X1.25 HX G5 ZN | 052860 | 4 | HT052860-Online |
| 20 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, MILSCO | 601807 | 1 | 601807-Online |
| 2 | SVC PART, SEAT PAN | 550853 | 1 | 550853-Online |
| 3 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 4 | CS .312-18X1.250HXG5 | 079186 | 4 | 079186-Online |
| 5 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 7 | CS .375-16X3.500HXG5 | 005108 | 1 | HT005108-Online |
| 8 | SB0.375X0.375SH0.312-18 | 754358 | 1 | 754358-Online |
| 9 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 10 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 11 | LATCH, SEAT | 603101 | 1 | 603101-Online |
| 12 | SPRING, TORSION | 783910 | 1 | HT783910-Online |
| 13 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 14 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 15 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 16 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 17 | SWITCH, SNAP MOUNT | 793315 | 1 | 793315-Online |
| 18 | SEAT, MICHIGAN STANDARD | 792226 | 1 | 792226-Online |
