Hustler FasTrak Super Duty 48-60 Parts Manual - 109188
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 109188Model: 601341Model: 786061Model: 783506Model: 928374Model: 928382Model: 928481Model: 600979Model: 068478Model: 791335+28 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Hydro Transmission InstallationHydro Transmission Installation

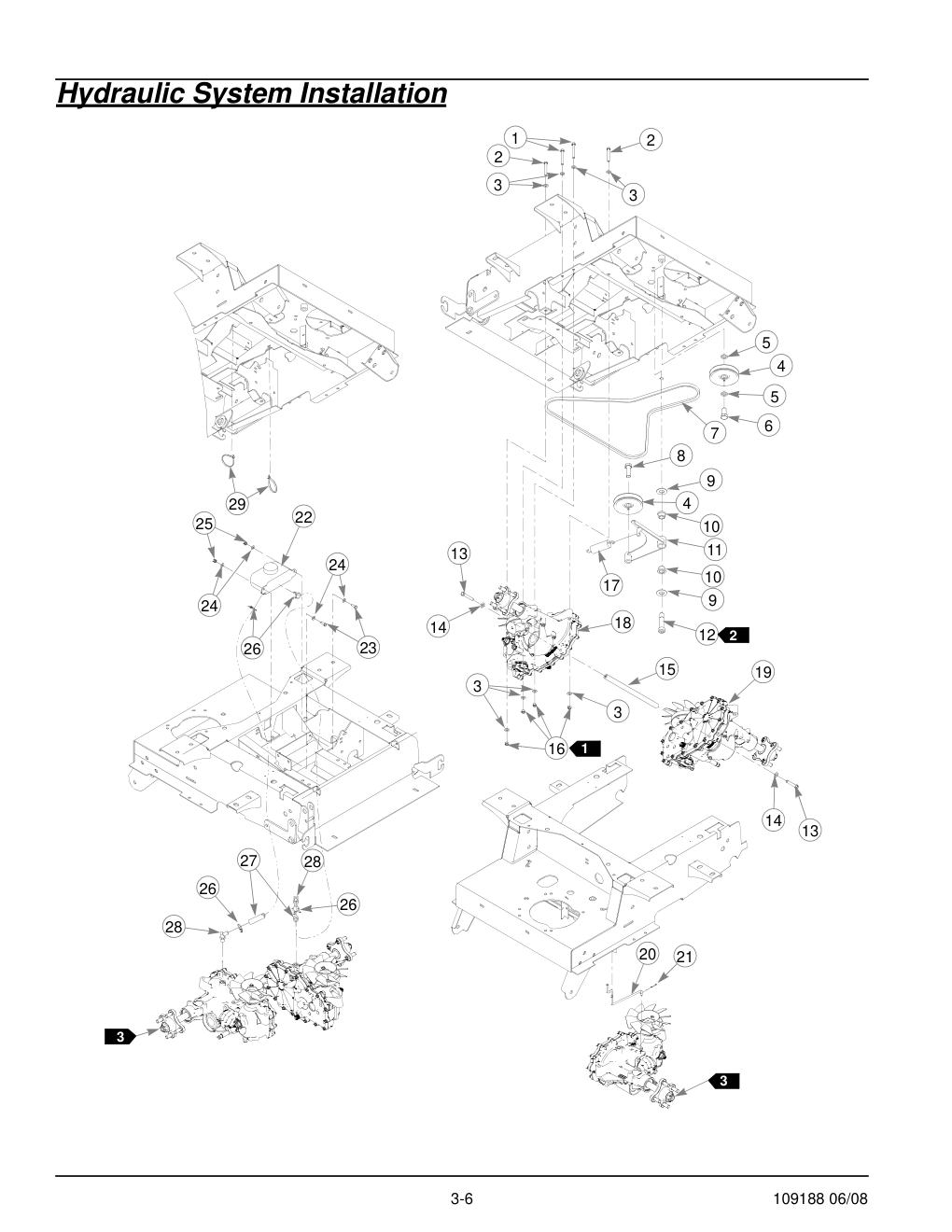

Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 4 CS .312-18X2.500 HX G5 | 710087 | 710087 | HT710087-Online |
| 2 | 4 CS .312-18X2.250 HX G5 | 038828 | 038828 | 038828-Online |
| 3 | 16 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 4 | 2 IDLER PULLEY 4.00"OD | 786848 | 786848 | 786848-Online |
| 5 | 2 FW .625X1.00X.134 ZNYC | 028118 | 028118 | HT028118-Online |
| 6 | 1 CS .625-11X1.500 HX G5 | 794446 | 794446 | HT794446-Online |
| 7 | 1 PUMP DRIVE BELT | 600979 | 600979 | HT600979-Online |
| 8 | 1 CS .625-11X1.750 HX G5 | 025007 | 025007 | HT025007-Online |
| 9 | 2 FW .760X 1.625X.08 ZNYC | 025296 | 025296 | HT025296-Online |
| 10 | 2 BUSHING | 781153 | 781153 | HT781153-Online |
| 11 | 1 PUMP IDLER W/A FASTRAK | 107881 | 107881 | HT107881-Online |
| 12 | 1 SB .750X 2.000 SH.625-11 | 601084 | 601084 | HT601084-Online |
| 13 | 2 CS .375-16X2.00 G5 ZNYC | 016410 | 016410 | HT016410-Online |
| 14 | 2 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 15 | 1 ZT SPACER TUBE | 600987 | 600987 | HT600987-Online |
| 16 | 8 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 17 | 1 SPRING 1/4 COIL PL 1.23 | 036384 | 036384 | HT036384-Online |
| 18 | 1 LH TRANS ZT2800 | 601404 | 601404 | 601404-Online |
| 19 | 1 RH TRANS ZT2800 | 601403 | 601403 | 601403-Online |
| 20 | 2 TOW LINK ROD 48/54 | 601088 | 601088 | 601088-Online |
| 21 | 2 CP .062DX1.000 LG HML Z | 048553 | 048553 | 048553-Online |
| 22 | 1 OVERFLOW TANK ASSY | 600759 | 600759 | HT600759-Online |
| 23 | 2 CS .250-20X .750 HX G5 | 055939 | 055939 | 055939-Online |
| 24 | 4 FW .281X.625X.051/.080H | 768515 | 768515 | HT768515-Online |
| 25 | 2 NT .250-20 HXZY NL | 068551 | 068551 | HT068551-Online |
| 26 | 4 SPRING CLAMP .75" DIA | 601001 | 601001 | 601001-Online |
| 27 | 2 OVERFLOW HOSE 10" LONG | 601018 | 601018 | 601018-Online |
| 28 | 2 HYD FITTING 45 DEG | 600880 | 600880 | 600880-Online |
| 29 | 2 WIRE TIE SMALL/SHORT | 000331 | 000331 | 000331-Online |
