Illustrated Parts List

not reflected in this parts manual, see your Hustler dealer - 786061

This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.

Model: 786061Model: 930107Model: 930107EXModel: 930115Model: 930115EXModel: 930784Model: 600976Model: 600979Model: 791335Model: 789388+25 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

Sections

FrameFootrestHydraulic SystemSteeringSteering Sub-AssemblyBrakeWheel and TireWheel & Tire InstallDrive Wheel BreakdownFront Wheel Breakdown-786061EngineFuel SystemTank and FenderBatteryInstrument Panel48" Service Deck54" Service Deck60" Service Deck48" Deck, Pulleys & Spindles54" Deck, Pulleys & Spindles60" Deck, Pulleys & Spindles48" Deck54" Deck60" DeckSpindle Assembly-783506Deck LiftDeck Mounting HardwareSeatSeatROPS

Frame

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Frame diagram
Tap/click to enlarge. Source page 8.
RefDescriptionPart numberQtyCutsmart SKU
1HOT DECAL6020411602041-Online
2ENGINE COMPARTMENT DECAL6019671601967-Online
3TOW VALVE DECAL6010991601099-Online
4MADE IN USA DECAL7271721727172-Online
5FASTRAK DECAL7847101784710-Online
6TURF PRODUCT SERIAL NO PLATEN/A3No SKU
7RIVET NUT, 3/8-16 THREAD6009942600994-Online
8RIVET NUT, 3/8-16 THREAD8084938808493-Online
9CN .312-18 X .200 MAX THK6010692HT601069-Online
10PUMP BELT WARNING DECAL6008991600899-Online
11RIVET NUT, 5/16-18 THREAD8084851HT808485-Online
12STEERING LS DECAL7851391785139-Online
13STEERING RS DECAL7852201785220-Online
14DECK HEIGHT INDICATOR DECAL7851541785154-Online
15SAFE OPERATION DECAL6019931601993-Online
16FRAME (WITH DECALS & HARDWARE)5506571550657-Online
16FRAME (WITH DECALS & HARDWARE)5506561550656-Online
16FRAME (WITH DECALS & HARDWARE)5507801550780-Online

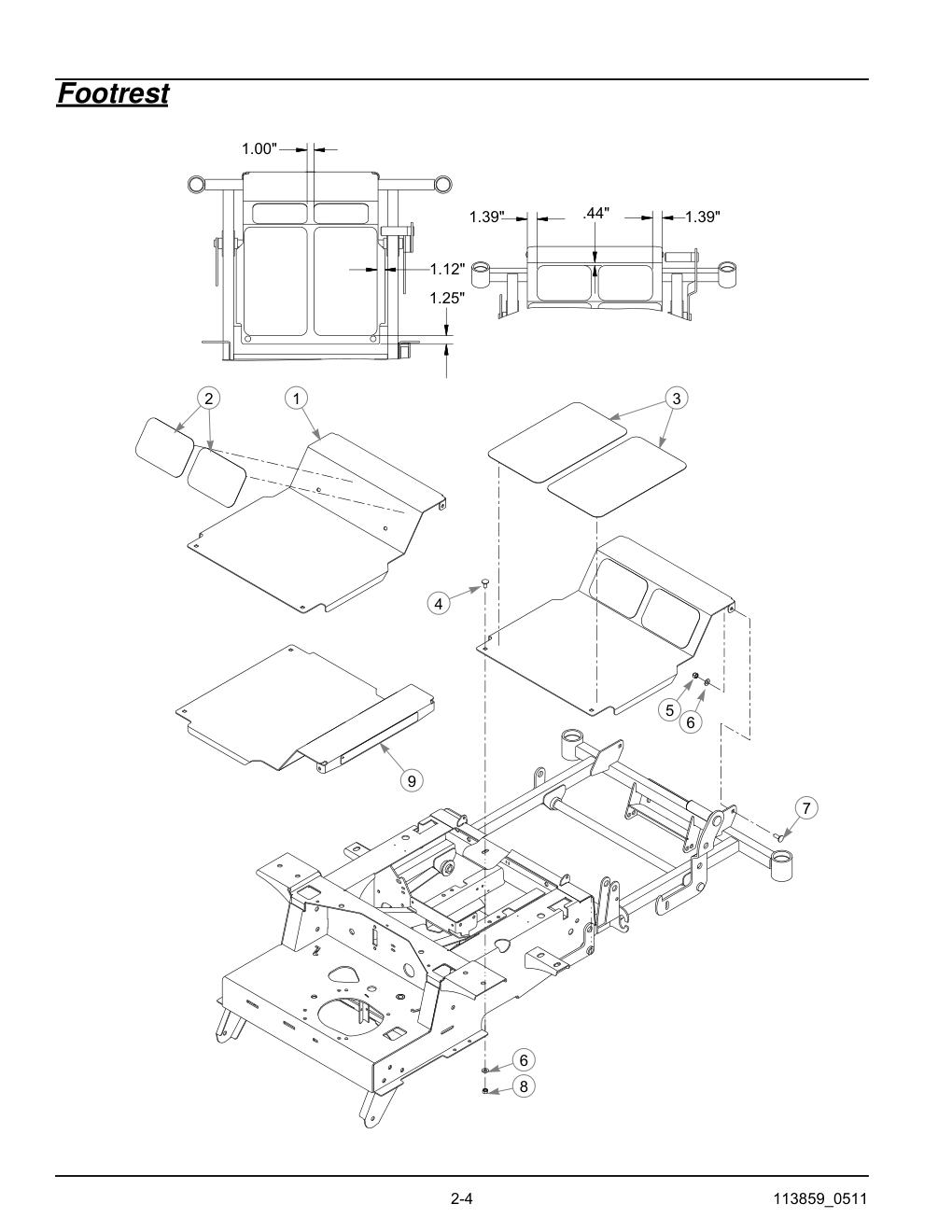

Footrest

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Footrest diagram
Tap/click to enlarge. Source page 10.
RefDescriptionPart numberQtyCutsmart SKU
1FLOOR PAN (WITH STEP TREADS)5487681548768-Online
2STEP TREAD, UPPER7854852785485-Online
3STEP TREAD, LOWER7854932785493-Online
4CB .375-16 X .750 STD ZN0113202011320-Online
5NT .375-16 HXZY NL0866602HT086660-Online
6FW .406 X .812 X .060 SAE7679544HT767954-Online
7CB .375-16 X 1.000 STD CD0253952HT025395-Online
8NT .375-16 HX G5 ZN0545022HT054502-Online
9HUSTLER ID DECAL6024071602407-Online

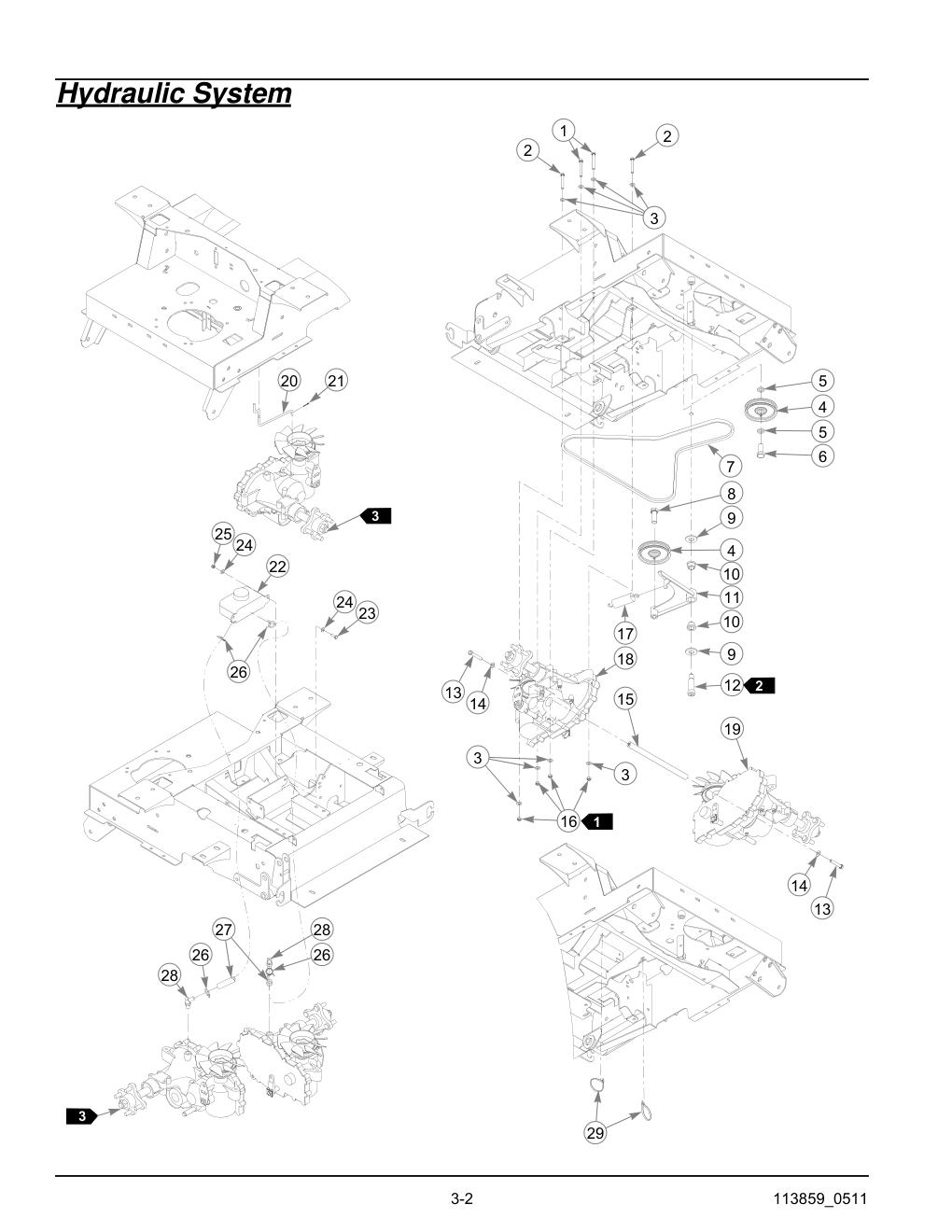

Hydraulic System

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Hydraulic System diagram
Tap/click to enlarge. Source page 16.
RefDescriptionPart numberQtyCutsmart SKU
1CS .312-18 X 2.500 HX G57100874HT710087-Online
2CS .312-18 X 2.250 HX G50388284038828-Online
3FW .343 X .687 X .051/.080 HD ZN/YL76852316HT768523-Online
4IDLER PULLEY 4.0 OD7868482786848-Online
5FW .625 X 1.00 X .134 ZNYC0281182HT028118-Online
6CS .625-11 X 1.500 HX G57944461HT794446-Online
7BELT, FASTRAK PUMP DRIVE6009791HT600979-Online
8CS .625-11 X 1.750 HX G50250071HT025007-Online
9FW .760 X 1.625 X .08 ZNYC0252962HT025296-Online
10UHMW BUSHING7811532HT781153-Online
11PUMP IDLER W/A, FASTRAK1078811HT107881-Online
12SB .750 X 2.000 SH .625-116010841HT601084-Online
13CS .375-16X2.00 G5 ZN0164102HT016410-Online
14FW .406 X .812 X .060 SAE7679542HT767954-Online
15ZT SPACER TUBE6009871HT600987-Online
16NT .312-18 HX G5 ZN0342728HT034272-Online
17SPRING 1/4 COIL PL 1.230363841HT036384-Online
18ZT3100 LH6014041601404-Online
19ZT3100 RH6014031601403-Online
20TOW LINK ROD6010882601088-Online
21CP .062DX1.000 LG HML Z0485532048553-Online
22OVERFLOW TANK6007591HT600759-Online
23CS .250-20X.750 HX G5 ZN0559392055939-Online
24FW .281X.625X.051/.080 HD ZN/YL7685154HT768515-Online
25NT .250-20 HXZY NL0685512HT068551-Online
26SPRING CLAMP 3/4" DIA6010014601001-Online
27OVERFLOW HOSE6010182601018-Online
28HYDRAULIC FITTING 45 DEG6008802600880-Online
29WIRE TIE, SMALL/SHORT0003312000331-Online

Steering

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Steering diagram
Tap/click to enlarge. Source page 18.
RefDescriptionPart numberQtyCutsmart SKU
1LOCK COLLAR .7507844392HT784439-Online
2NT .312-24 HX NL ZN0236552HT023655-Online
3FW .343 X .687 X .051/.080 HD ZN/YL76852317HT768523-Online
4DAMPER, STEERING6002212HT600221-Online
5PUMP ROD ASSEMBLY6009812HT600981-Online
6BALL STUD, DAMPER7819224781922-Online
7CS .250-20 X 2.000 HX G5 ZN7041632704163-Online
8FW .281 X .625 X .051/.080 HD ZN/YL76851512HT768515-Online
9NT .250-20 HX ZN NL0685512HT068551-Online
10PUMP ARM1093182HT109318-Online
11NT .312-18 HX G5 ZNYC0342724HT034272-Online
12NT .312-24 HX ZNYC0411522HT041152-Online
13CS .250-20 X .750 HX G5 ZN0559394055939-Online
14STEER TUBE SUPPORT1089682108968-Online
15CS .375-16 X 1.375 HX G5 ZN0051162HT005116-Online
16NT .375-16 HX JAM GR5 ZN7061682HT706168-Online
17CS .312-18 X 1.000 HX G5 ZN0362361036236-Online
18PIVOT TUBE3612951361295-Online
19LW .312 INT-EXT TOOTH ZN0298762029876-Online
20NT .250-20 HX GR5 ZN0249274HT024927-Online

Steering Sub-Assembly

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Steering Sub-Assembly diagram
Tap/click to enlarge. Source page 20.
RefDescriptionPart numberQtyCutsmart SKU
1STEERING BAR GRIP7812601781260-Online
2STEERING BAR (WITH GRIP)3604871360487-Online
3FW .406 X .812 X .060 SAE HD ZN76795412HT767954-Online
4CS .375-16 X 1.750 HX G57051783HT705178-Online
5NT .375-16 HXZY NL0866606HT086660-Online
6STEERING ARM LEFT (SHOWN)1078431HT107843-Online
6STEERING ARM RIGHT1078421HT107842-Online
7BUSHING, PLASTIC .750X17708672HT770867-Online
8STEER PIVOT, LEFT (SHOWN)1078481107848-Online
8STEER PIVOT RIGHT1078471107847-Online

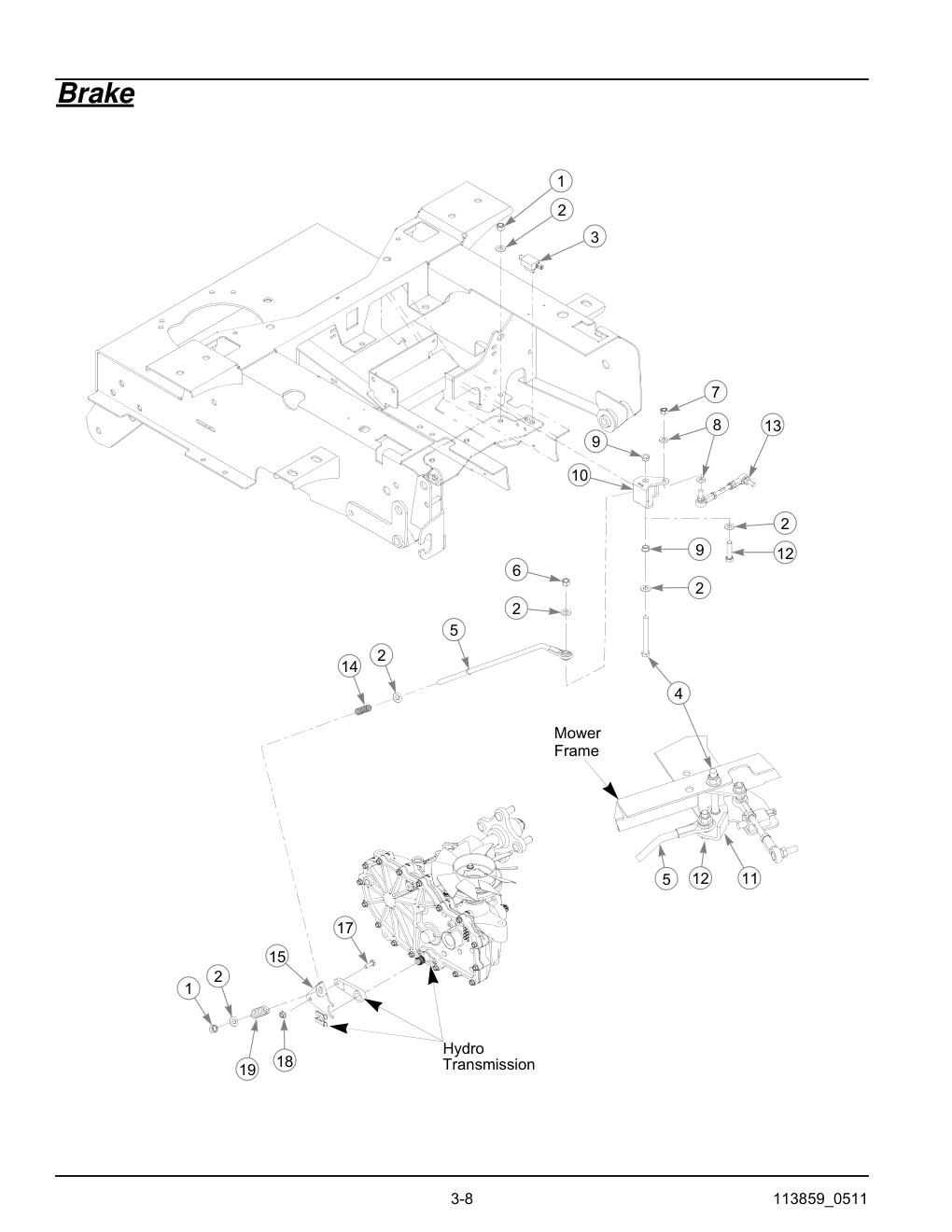

Brake

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Brake diagram
Tap/click to enlarge. Source page 22.
RefDescriptionPart numberQtyCutsmart SKU
1NT .375-16 HX LK NY0866604HT086660-Online
2FW .406 X .812 X .060 SAE HD ZN76795412HT767954-Online
3PLUNGER SWITCH6010872HT601087-Online
4CS .375-16X3.50 HX G5 Z0051082HT005108-Online
5BRAKE ROD ASSEMBLY6014102601410-Online
6NT .375-16 HX GRD 5 ZN0545022HT054502-Online
7NT .312-24 HXZY NL0236554HT023655-Online
8FW .34 3X .687 X .051/.080 HD ZN/YL7685238HT768523-Online
9BUSHING7653394HT765339-Online
10BRAKE BELL CRANK LS1078931HT107893-Online
11BRAKE BELL CRANK RS1078921HT107892-Online
12CS .375-16X1.500 HX G50806552HT080655-Online
13SHORT BRAKE LINK ROD6009912600991-Online
14BRAKE ARM RET. SPRING6011312HT601131-Online
15BRAKE SPRING LINK LS1092031109203-Online
16BRAKE SPRING LINK RS (NOT SHOWN)1092021HT109202-Online
17CS .250-20X .750 HX G50559392055939-Online
18NT .250-20 HX FL LK ZNY0168162016816-Online
19OVERTRAVEL SPRING6010512HT601051-Online

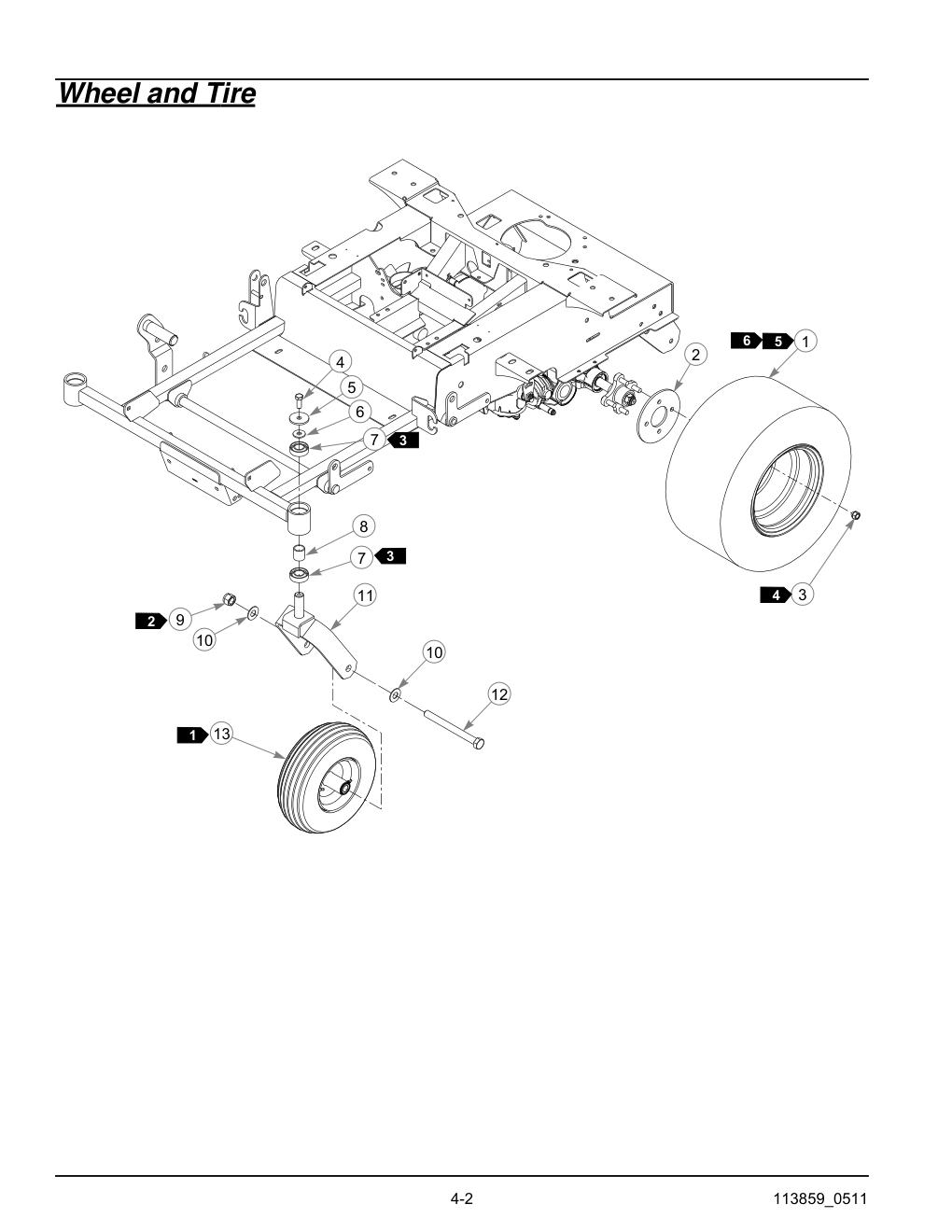

Wheel and Tire

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Wheel and Tire diagram
Tap/click to enlarge. Source page 26.
RefDescriptionPart numberQtyCutsmart SKU
1TIRE/WHEEL 20 X 12-106013492601349-Online
1TIRE/WHEEL 20 X 10-106006682HT600668-Online
2BACKUP PLATE, WHEEL1118752111875-Online
3WHEEL NUT0610778HT061077-Online
4CS .500-13 X 1.25 HX G5 ZN7059542HT705954-Online
5FW .510 X 2.15 X .187 SPL ZN3442672HT344267-Online
6FW .531 X 1.375 X .125 ZNYC7129762HT712976-Online
7BEARING W/O COLLAR7842234HT784223-Online
8SPACER7846032HT784603-Online
9NT .750-10 HX NL ZN0611012HT061101-Online
10FW .760 X 1.625 X .08 ZN0252964HT025296-Online
11FORK3666252HT366625-Online
12CS .750-10 X 8.00 HX GR5 ZNYC7867312HT786731-Online
13WHEEL & TIRE ASSY7860612786061-Online

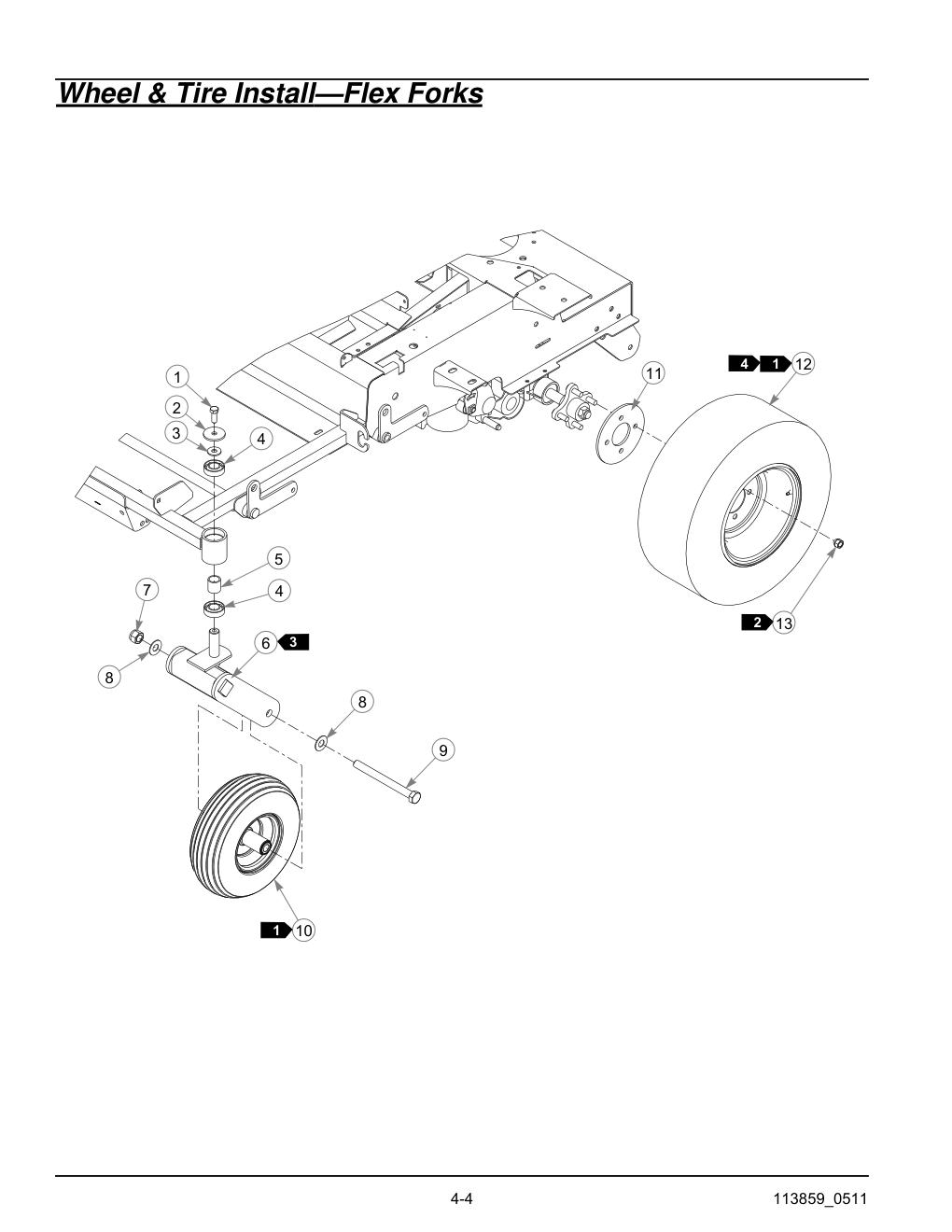

Wheel & Tire Install

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Wheel & Tire Install diagram
Tap/click to enlarge. Source page 28.
RefDescriptionPart numberQtyCutsmart SKU
1CS .500-13 X 1.25 HX G5 ZN7059542HT705954-Online
2FW .510 X 2.15 X .187 SPL ZN3442672HT344267-Online
3FW .531 X 1.375 X .125 ZNYC7129762HT712976-Online
4BEARING W/O COLLAR7842234HT784223-Online
5SPACER7846032HT784603-Online
6FLEX FORK KIT6002131600213-Online
7NT .750-10 HX NL ZN0611012HT061101-Online
8FW .760 X 1.625 X .08 ZN0252964HT025296-Online
9CS .750-10 X 8.00 HX GR5 ZNYC7867312HT786731-Online
10WHEEL & TIRE ASSY7860612786061-Online
11BACKUP PLATE, WHEEL1118752111875-Online
12TIRE/WHEEL 20 X 10-106006682HT600668-Online
12TIRE/WHEEL 20 X 12-106013492601349-Online
13WHEEL NUT0610778HT061077-Online

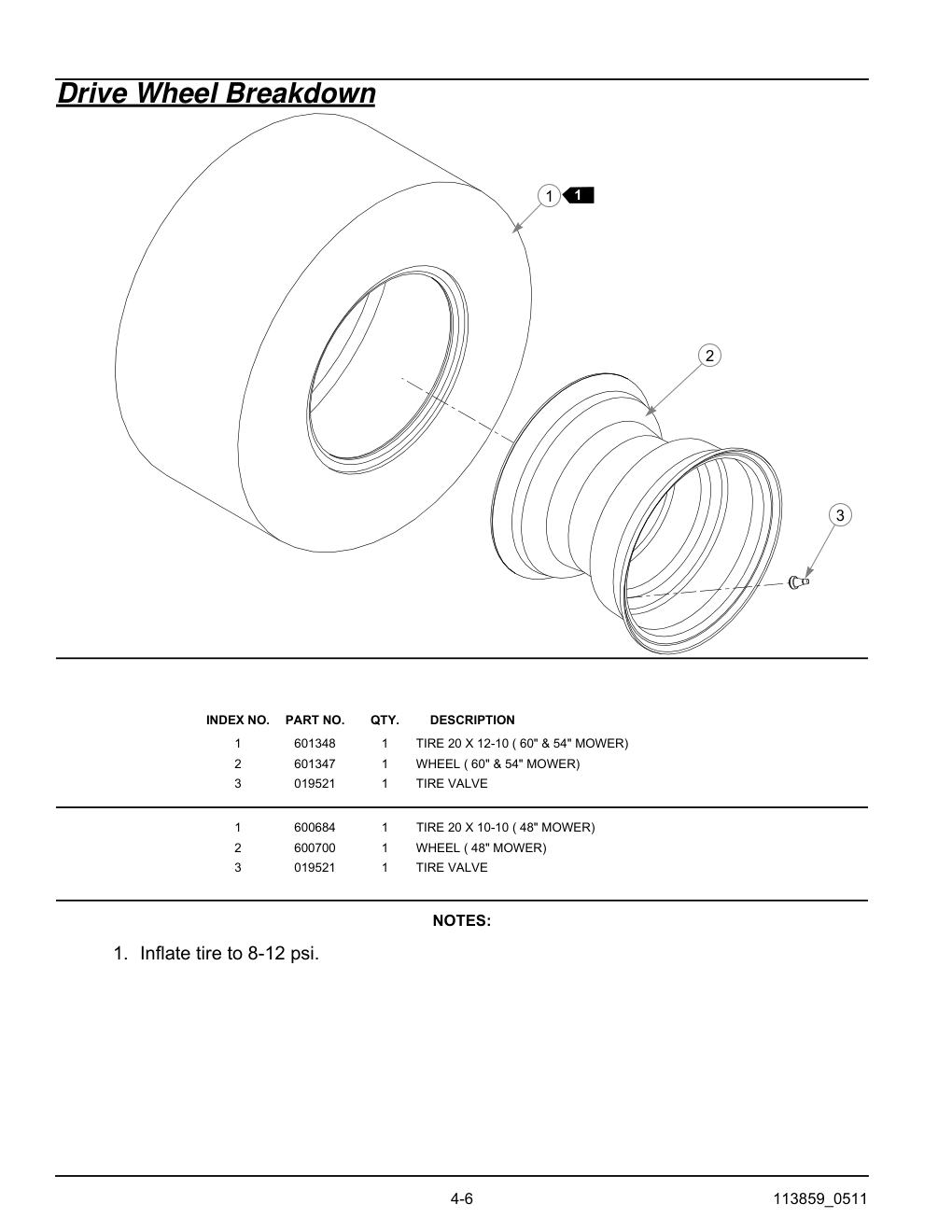

Drive Wheel Breakdown

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Drive Wheel Breakdown diagram
Tap/click to enlarge. Source page 30.
RefDescriptionPart numberQtyCutsmart SKU
1TIRE 20 X 12-10 ( 60" & 54" MOWER)6013481601348-Online
2WHEEL ( 60" & 54" MOWER)6013471601347-Online
3TIRE VALVE0195211HT019521-Online
1TIRE 20 X 10-10 ( 48" MOWER)6006841HT600684-Online
2WHEEL ( 48" MOWER)6007001HT600700-Online
3TIRE VALVE0195211HT019521-Online

Front Wheel Breakdown-786061

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Front Wheel Breakdown-786061 diagram
Tap/click to enlarge. Source page 31.
RefDescriptionPart numberQtyCutsmart SKU
1WHEEL BEARING7861032HT786103-Online
2TIRE 13 X 5.007474021747402-Online
3WHEEL7860791HT786079-Online
4TIRE VALVE0195211HT019521-Online
5GREASE FITTING 45 DEG 1/40155111HT015511-Online

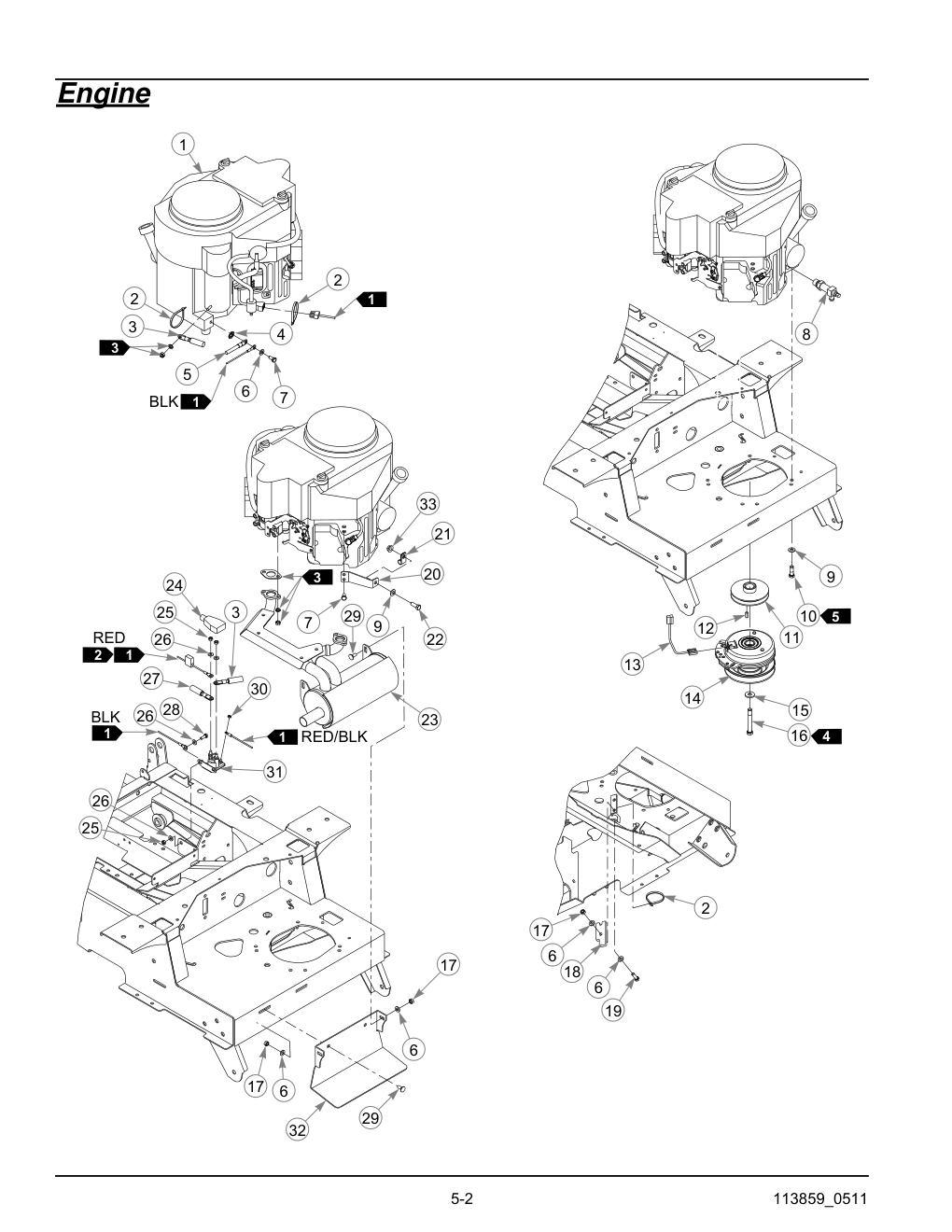

Engine

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Engine diagram
Tap/click to enlarge. Source page 34.
RefDescriptionPart numberQtyCutsmart SKU
1ENGINE, KAW FS651V, FS691V, FS730VN/A1No SKU
2WIRE TIE, SMALL/SHORT0003313000331-Online
3POSITIVE BATTERY CABLE6010621601062-Online
4LW .312 INT-EXT TOOTH0298761029876-Online
5NEGATIVE BATTERY CABLE7962191796219-Online
6FW .343 X .687 X .051/.080H7685239HT768523-Online
7CS M8 X 1.25 X 16 G10.9 HX7205163720516-Online
8OIL DRAIN VALVE7965241HT796524-Online
9FW .406 X .812 X .060 SAE7679545HT767954-Online
10CS .375-16 X 1.25 HXG5 P856025804602580-Online
11PULLEY7994291HT799429-Online
12KEY 1/4 SQ X 0.66 LG7123721HT712372-Online
13CLUTCH HARNESS PIGTAIL7912511HT791251-Online
14WARNER CLUTCH6017841601784-Online
15FW .453 X 1.12 X .119 HRD6026801602680-Online
16CS .437-20 X 3.250 HXG5P856018341601834-Online
17NT .312-18 HX G5 ZNYC0342726HT034272-Online
18CLUTCH ANCHOR1139461HT113946-Online
19CS .312-18 X 1.000 HX G50362362036236-Online
20CABLE GUIDE1139701113970-Online
21LOOP CLAMP0003981HT000398-Online
22CS .375-16 X 1.000 HX G50362441HT036244-Online
23MUFFLER6027041602704-Online
24RED BATTERY CABLE BOOT7714281771428-Online
25NT .250-20 HX GR.5 ZNYC0249274HT024927-Online
26FW .281 X .625 X .051/.080H7685156HT768515-Online
27POSITIVE BATTERY CABLE.6013121601312-Online
28CS .250-20 X .750 HX G50559392055939-Online
29CB .312-18 X .750 FUL ZN0162534016253-Online
30NT #10-32 HX ZN0442551044255-Online
31STARTER SOLENOID0308171HT030817-Online
32EXHAUST MOUNT1128281112828-Online
33NT .375-16 HXFLK ZNYC0168991HT016899-Online

Fuel System

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Fuel System diagram
Tap/click to enlarge. Source page 37.
RefDescriptionPart numberQtyCutsmart SKU
34HOSE CLAMP0003234000323-Online
35CLAMP, 3/16"6031122603112-Online
36VACUUM BREAKER6031141603114-Online
373/16" VAPOR LINE60332618"603326-Online
381/4" FUEL LINE01581842"HT015818-Online

Tank and Fender

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Tank and Fender diagram
Tap/click to enlarge. Source page 40.
RefDescriptionPart numberQtyCutsmart SKU
1RATCHETING GAS CAP, 3.5"6029161602916-Online
2LS FUEL TANK6035441603544-Online
3WIRE TIE, SMALL/SHORT0003311000331-Online
4CS .312-18 X .750 HX G50342801HT034280-Online
5FW .343 X .687 X .051/.080H7685231HT768523-Online
6LOOP CLAMP0435701043570-Online
7NT .312-18 HXFLK ZNYC0168321016832-Online
8FW .406 X 1.00 X.12 HRD Z7129198HT712919-Online
9CS .375-16 X .750 HX G50558228HT055822-Online
10RS FENDER6029091602909-Online
11ROLLOVER VALVE & GROMMET6031581603158-Online
12SUCTION HOSE GROMMET7852951HT785295-Online
13SUCTION HOSE 26.56015291601529-Online

Battery

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Battery diagram
Tap/click to enlarge. Source page 44.
RefDescriptionPart numberQtyCutsmart SKU
1CS .312-18X4.000 HX G57146182HT714618-Online
2FW .343X.687X.051/.080H7685232HT768523-Online
3STRAP, BATTERY CLAMP3484171348417-Online
4CS .250-20X .750 HX G50559392055939-Online
5LW .250 INT-EXT TOOTH Z0298684029868-Online
6NT .250-20 HX GR.5 ZNYC0249272HT024927-Online
7BATTERY CBL BOOT-RED7714281771428-Online
8GM 1.50 X 2.12 X 1.757946442794644-Online

Instrument Panel

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Instrument Panel diagram
Tap/click to enlarge. Source page 46.
RefDescriptionPart numberQtyCutsmart SKU
1CHOKE CABLE6010951HT601095-Online
2PTO SWITCH7764761HT776476-Online
3HOUR METER7691661HT769166-Online
4KEY ASSEMBLY7858081785808-Online
5IGNITION SWITCH0458981HT045898-Online
6RED INDICATOR LIGHT7122571HT712257-Online
7WIRE HARNESS6024301602430-Online
8CB 10-24 X .500 ZYNC6010984601098-Online
9INSTRUMENT PANEL (WITH DECAL)5504541550454-Online
10FW .219 X .500 X .048 ZNYC7049322HT704932-Online
11NT #10-24 HX NL ZN0598324059832-Online
12THROTTLE CABLE6010941HT601094-Online
13CS .250-20 X .500 HX G50559473055947-Online
14FW .281 X .625 X .051/.080H7685153HT768515-Online
15INSTRUMENT PANEL DECAL6022331602233-Online
16WIRE TIE, SMALL/SHORT0003316000331-Online

48" Service Deck

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 48" Service Deck diagram
Tap/click to enlarge. Source page 50.
RefDescriptionPart numberQtyCutsmart SKU
148" DECK5507521550752-Online
2CN .312-18 X .200 MAX THK6010694HT601069-Online
3THROWN OBJECTS DECAL6018921601892-Online
4DECK DANGERS DECAL6018372601837-Online
5MADE IN U.S.A. DECAL7271721727172-Online
6DECK STEP TREAD7945031794503-Online
7BELT ROUTING DECAL7814191781419-Online
8DISCHARGE CHUTE DECAL6016241601624-Online

54" Service Deck

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 54" Service Deck diagram
Tap/click to enlarge. Source page 52.
RefDescriptionPart numberQtyCutsmart SKU
1DECK W/A5507531550753-Online
2CN .312-18 X .200 MAX THK6010694HT601069-Online
3DECK DANGERS DECAL6018372601837-Online
4THROWN OBJECTS DECAL6018921601892-Online
5MADE IN U.S.A. DECAL7271721727172-Online
6STEP TREAD7850551785055-Online
7BELT ROUTING DECAL7814191781419-Online
8DISCHARGE CHUTE DECAL6016241601624-Online

60" Service Deck

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 60" Service Deck diagram
Tap/click to enlarge. Source page 54.
RefDescriptionPart numberQtyCutsmart SKU
160" DECK5507541550754-Online
2CN .312-18 X .200 MAX THK6010694HT601069-Online
3DISCHARGE CHUTE DECAL6016241601624-Online
4DECK DANGERS DECAL6018372601837-Online
5BELT ROUTING DECAL7814191781419-Online
6STEP TREAD 3.70 X 9.007850551785055-Online
7MADE IN U.S.A. DECAL7271721727172-Online
8THROWN OBJECTS DECAL6018921601892-Online

48" Deck, Pulleys & Spindles

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 48" Deck, Pulleys & Spindles diagram
Tap/click to enlarge. Source page 56.
RefDescriptionPart numberQtyCutsmart SKU
1CS .625-11 X 1.750 HX G50250071HT025007-Online
2FW .656 X 2.00 X .078 ZNYC0468213HT046821-Online
3FW .650 X 1.125 X .18 ZNYCG57974493797449-Online
4IDLER PULLEY 5.0" OD7845043HT784504-Online
5FW .625 X 1.00 X .134 ZNYC0281181HT028118-Online
6DECK IDLER SPACER6002961HT600296-Online
7DECK IDLER SLIDE3508841HT350884-Online
8TENSION SPRING7813021781302-Online
9CHAIN2598121HT259812-Online
10CS .312-18 X 1.50 FLT SH ZY7979106HT797910-Online
11UHMW IDLER SLIDE6014342601434-Online
12NT .625-11 HX G5 ZNYC0169722HT016972-Online
13CS .625-11 X 1.25 HX G5 Z7818723HT781872-Online
14CW .631 X 2.250 X .187 PNT7824745HT782474-Online
15DRIVE PULLEY 5.19 OP7926893HT792689-Online
16NT .375-16 HX GRD 5 ZNY05450212HT054502-Online
17FW .406 X .812 X .060 SAE76795424HT767954-Online
18CS .312-18 X .750 HX G50342802HT034280-Online
19FW .343 X .687 X .051/.080H76852310HT768523-Online
20ANTI-SCALP WHEEL7881664HT788166-Online
21NT .500-13 HX G8 ZY NL7815674HT781567-Online
22NT .312-18 HX G5 ZNYC0342722HT034272-Online
23RS PULLER AND PIN1092471HT109247-Online
24LS PULLER AND PIN1092481HT109248-Online
25CS .625-11 X 3.00 FULL HX7837382HT783738-Online
26NT .312-18 HXZY NL0587766HT058776-Online
27BLADE SPINDLE7835063783506-Online
28CS .375-16 X 1.375 HX G500511612HT005116-Online
29CS .500-13X4.250 HX G57817081HT781708-Online
30FW .531X 1.063X.090 SAE7679622HT767962-Online
31ANTI-SCALP WHEEL0319971HT031997-Online
32NT .500-13 HX JAM ZNYC0531991HT053199-Online

54" Deck, Pulleys & Spindles

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 54" Deck, Pulleys & Spindles diagram
Tap/click to enlarge. Source page 58.
RefDescriptionPart numberQtyCutsmart SKU
1CS .625-11 X 1.750 HX G50250071HT025007-Online
2FW .656 X 2.00 X .078 ZNYC0468213HT046821-Online
3FW .650 X 1.125 X .18 ZNYCG57974493797449-Online
4IDLER PULLEY 5.0" OD7845043HT784504-Online
5FW .625 X 1.00 X .134 ZNYC0281181HT028118-Online
6DECK IDLER SPACER6002961HT600296-Online
7DECK IDLER SLIDE3508841HT350884-Online
8TENSION SPRING7813021781302-Online
9CHAIN2598121HT259812-Online
10CS .312-18 X 1.50 FLT SH ZY7979106HT797910-Online
11UHMW IDLER SLIDE6014342601434-Online
12NT .625-11 HX G5 ZNYC0169722HT016972-Online
13CS .625-11 X 1.25 HX G5 Z7818723HT781872-Online
14CW .631 X 2.250 X .187 PNT7824745HT782474-Online
15DRIVE PULLEY 5.68 OP7868893HT786889-Online
16NT .375-16 HX GRD 5 ZNY05450212HT054502-Online
17FW .406 X .812 X .060 SAE76795424HT767954-Online
18CS .312-18 X .750 HX G50342802HT034280-Online
19FW .343 X .687 X .051/.080H76852310HT768523-Online
20ANTI-SCALP WHEEL7881664HT788166-Online
21NT .500-13 HX G8 ZY NL7815674HT781567-Online
22RS PULLER AND PIN1092471HT109247-Online
23LS PULLER AND PIN1092481HT109248-Online
24NT .312-18 HX G5 ZNYC0342722HT034272-Online
25CS .625-11 X 3.00 FULL HX7837382HT783738-Online
26NT .312-18 HXZY NL0587766HT058776-Online
27BLADE SPINDLE7835063783506-Online
28CS .375-16 X 1.375 HX G500511612HT005116-Online
29CS .500-13X4.250 HX G57817081HT781708-Online
30FW .531X 1.063X.090 SAE7679622HT767962-Online
31ANTI-SCALP WHEEL0319971HT031997-Online
32NT .500-13 HX JAM ZNYC0531991HT053199-Online

60" Deck, Pulleys & Spindles

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 60" Deck, Pulleys & Spindles diagram
Tap/click to enlarge. Source page 60.
RefDescriptionPart numberQtyCutsmart SKU
1CS .625-11 X 1.750 HX G50250071HT025007-Online
2FW .656 X 2.00 X .078 ZNYC0468213HT046821-Online
3FW .650 X 1.125 X .18 ZNYCG57974493797449-Online
4IDLER PULLEY 5.0" OD7845043HT784504-Online
5FW .625 X 1.00 X .134 ZNYC0281181HT028118-Online
6DECK IDLER SPACER6002961HT600296-Online
7DECK IDLER SLIDE3508841HT350884-Online
8TENSION SPRING7813021781302-Online
9CHAIN2598121HT259812-Online
10CS .312-18 X 1.50 FLT SH ZY7979106HT797910-Online
11UHMW IDLER SLIDE6014342601434-Online
12NT .625-11 HX G5 ZNYC0169722HT016972-Online
13CS .625-11 X 1.25 HX G5 Z7818723HT781872-Online
14CW .631 X 2.250 X .187 PNT7824745HT782474-Online
15PULLEY, DECK DRIVE6014473601447-Online
16NT .375-16 HX GRD 5 ZNY05450212HT054502-Online
17FW .406 X .812 X .060 SAE76795424HT767954-Online
18FW .343 X .687 X .051/.080H76852310HT768523-Online
19NT .312-18 HX G5 ZNYC0342722HT034272-Online
20CS .312-18 X .750 HX G50342802HT034280-Online
21PULLER AND PIN ASSY1128931112893-Online
22PULLER AND PIN ASSY1128941112894-Online
23NT .500-13 HX G8 ZY NL7815674HT781567-Online
24NT .312-18 HXZY NL0587766HT058776-Online
25CS .625-11 X 3.00 FULL HX7837382HT783738-Online
26CS .375-16 X 1.375 HX G500511612HT005116-Online
27BLADE SPINDLE7835063783506-Online
28ANTI-SCALP WHEEL7881664HT788166-Online
29CS .500-13X4.250 HX G57817081HT781708-Online
30FW .531X 1.063X.090 SAE7679622HT767962-Online
31ANTI-SCALP WHEEL0319971HT031997-Online
32NT .500-13 HX JAM ZNYC0531991HT053199-Online

48" Deck

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 48" Deck diagram
Tap/click to enlarge. Source page 62.
RefDescriptionPart numberQtyCutsmart SKU
1RS PULLEY COVER1081491HT108149-Online
2LS PULLEY COVER5501071HT550107-Online
348" DECK ID DECAL7939761793976-Online
4FW .343 X .687 X .051/.080H7685234HT768523-Online
5CS .312-18 X .625 HX G50640064064006-Online
6NT .375-16 HXZY NL0866603HT086660-Online
7FW .406 X .812 X .060 SAE7679542HT767954-Online
8DISCHARGE CHUTE6018061601806-Online
9TORSION SPRING6018241601824-Online
10CHUTE BRACKET1124481HT112448-Online
11CHUTE PIN6018431601843-Online
12BELT, B 143" EL7913351HT791335-Online
13CB .375-16 X 1.00 STD CD0253952HT025395-Online
14BLADE, F16.50"-L-F-CW6011233HT601123-Online
15CW .631 X 2.250 X .187 PNT7824743HT782474-Online
16CS .625-11 X 1.25 HX G5 Z7818723HT781872-Online

54" Deck

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 54" Deck diagram
Tap/click to enlarge. Source page 66.
RefDescriptionPart numberQtyCutsmart SKU
1RS PULLEY COVER1081241HT108124-Online
2LS PULLEY COVER (WITH DECAL)5501091550109-Online
354" DECK ID DECAL7991711799171-Online
4FW .343 X .687 X .051/.080H7685234HT768523-Online
5CS .312-18 X .625 HX G50640064064006-Online
6NT .375-16 HXZY NL0866603HT086660-Online
7FW .406 X .812 X .060 SAE7679542HT767954-Online
8DISCHARGE CHUTE6018061601806-Online
9TORSION SPRING6018241601824-Online
10CHUTE BRACKET1124481HT112448-Online
11CHUTE PIN6018431601843-Online
12BELT, B 152" EL7893881HT789388-Online
13CB .375-16 X 1.00 STD CD0253952HT025395-Online
14BLADE, 18.50"-L-F-CW6011243HT601124-Online
15CW .631 X 2.250 X .187 PNT7824743HT782474-Online
16CS .625-11 X 1.25 HX G5 Z7818723HT781872-Online

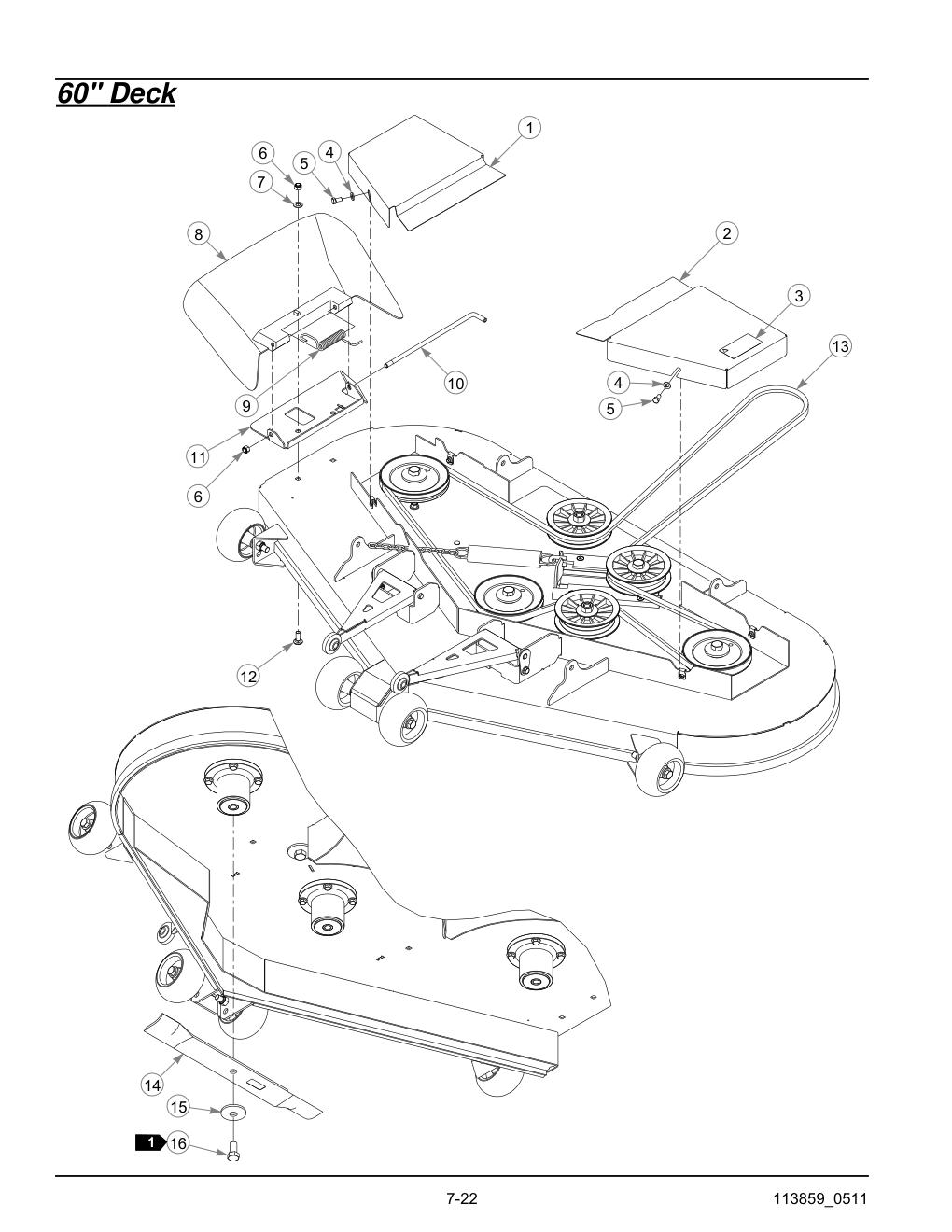

60" Deck

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - 60" Deck diagram
Tap/click to enlarge. Source page 70.
RefDescriptionPart numberQtyCutsmart SKU
1RS PULLEY COVER1093101HT109310-Online
2LS PULLEY COVER (WITH DECAL)1093091109309-Online
360" DECK DECAL7862771786277-Online
4FW .343 X .687 X .051/.080H7685234HT768523-Online
5CS .312-18 X .625 HX G50640064064006-Online
6NT .375-16 HXZY NL0866603HT086660-Online
7FW .406 X .812 X .060 SAE7679542HT767954-Online
8DISCHARGE CHUTE6018061601806-Online
9TORSION SPRING6018241601824-Online
10CHUTE PIN6018431601843-Online
11CHUTE BRACKET1124511112451-Online
12CB .375-16 X 1.00 G5 ZNY0253952HT025395-Online
13BELT, B 165.56" EL7822921HT782292-Online
14BLADE, F20.50"-L-F-CW6009013HT600901-Online
15CW .631 X 2.250 X .187 PNT7824743HT782474-Online
16CS .625-11 X 1.25 HX G5 Z7818723HT781872-Online

Spindle Assembly-783506

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Spindle Assembly-783506 diagram
Tap/click to enlarge. Source page 72.
RefDescriptionPart numberQtyCutsmart SKU
1BLADE SPINDLE RING RETAINER7835481HT783548-Online
2BLADE SPINDLE BEARING7835552783555-Online
3BLADE SPINDLE SPACER7835301HT783530-Online
4BLADE SPINDLE HOUSING7835141HT783514-Online
5BLADE SPINDLE SHAFT7835221HT783522-Online

Deck Lift

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Deck Lift diagram
Tap/click to enlarge. Source page 74.
RefDescriptionPart numberQtyCutsmart SKU
1STOP HANDLE3483181HT348318-Online
2HEIGHT ADJUSTMENT STOP3482841HT348284-Online
3DECK LIFT INDICATOR7844881HT784488-Online
4NT .437-14 HX FLG ZN70464316HT704643-Online
5FW .781 X1.50 X.120 ZNYC6016816601681-Online
6CLIP E, 1.00 X .625 X .0507812947HT781294-Online
7CS .312-18 X 1.50 FLTHR G7562701756270-Online
8NT .312-18 HX G5 ZNYC0342721HT034272-Online
9DECK LEVELER YOKE W/A3484581HT348458-Online
10FW .531 X 1.063 X .090 SAE7679626HT767962-Online
11STRAIGHT GREASE FITTING0154954HT015495-Online
12DECK LIFT SPRING7829952HT782995-Online
13CE .750 X 2.25 X 1.75 HEADLESS7812291781229-Online
14DECK LIFT CHAIN (3 LINKS)3601314HT360131-Online
15CS .437-14 X 1.750 HX G5 ZNYC0557497HT055749-Online
16CS .437-14 X 1.750 FULTH7818311HT781831-Online

Deck Mounting Hardware

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Deck Mounting Hardware diagram
Tap/click to enlarge. Source page 76.
RefDescriptionPart numberQtyCutsmart SKU
17CS .500-13X 2.00 GR ZN0789492HT078949-Online
18NT .500-13 HX G5 ZN0081932HT008193-Online

Seat

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Seat diagram
Tap/click to enlarge. Source page 80.
RefDescriptionPart numberQtyCutsmart SKU
1STANDARD SEAT7936611793661-Online
2CS .437-20 X1.00 HX G8 ZNYC7970762797076-Online
3FW .440 X 1.000 X.083 ZNY0171294017129-Online
4SEAT BELT6014441601444-Online
5BAR, SEAT BELT CROSS7946101794610-Online
6NT .437-20 HX GR5 ZNYC7046352704635-Online
7CS .312-18X .750 HX G50342803HT034280-Online
8FW .343X.687X.051/.080H76852313HT768523-Online
9RIVET NUT, 5/16-18 THREAD8084851HT808485-Online
10SEAT LATCH1083211HT108321-Online
11WIRE TIE, SMALL/SHORT0003312000331-Online
12SEAT PAN (WITH DECALS)5503681550368-Online
13NT .312-18 HXZY NL0587763HT058776-Online
14SEAT PAN STOP1092401109240-Online
15NT .312-18 HX G5 ZNYC0342724HT034272-Online
16CS .312-18X .875 HX G50640143064014-Online
17CS .375-16X1.250 HX G50528602HT052860-Online
18FW .406X .812 X.060 SAE7679542HT767954-Online
19SEAT SPRING6014502601450-Online
20BATTERY DECAL6018151601815-Online

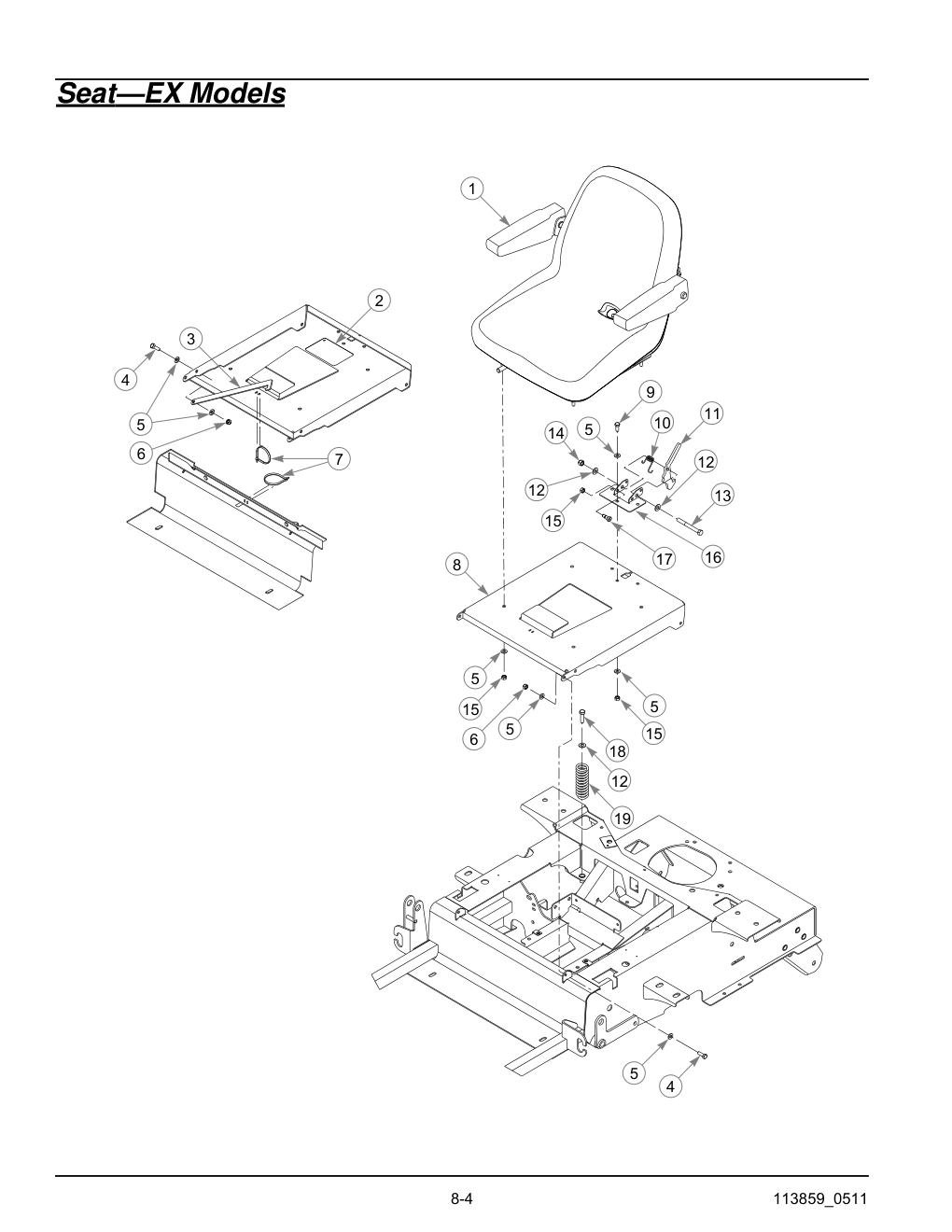

Seat

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - Seat diagram
Tap/click to enlarge. Source page 82.
RefDescriptionPart numberQtyCutsmart SKU
1STANDARD SEAT7936611793661-Online
2BATTERY WARNINGS DECAL6018151601815-Online
3SEAT PAN STOP1092401109240-Online
4CS .312-18 X .875 HX G5 ZN0640143064014-Online
5FW .343 X .687 X .051/.080H76852316HT768523-Online
6NT .312-18 HXZY NL0587763HT058776-Online
7WIRE TIE, SMALL/SHORT0003312000331-Online
8SEAT PAN (INCLUDES DECAL)5508551550855-Online
9CS .312-18 X .750 HX G50342803HT034280-Online
10TORSION SPRING7839101HT783910-Online
11SEAT LATCH6031011603101-Online
12FW .406 X .812 X .060 SAE7679544HT767954-Online
13CS .375-16 X 3.50 HX G5 Z0051081HT005108-Online
14NT .375-16 HXZY NL0866601HT086660-Online
15NT .312-18 HX G5 ZNYC0342728HT034272-Online
16SEAT PAN BRACKET1142031114203-Online
17SB .375 X .375 SH .312-187543581754358-Online
18CS .375-16 X 1.25 HX G5 ZN0528602HT052860-Online
19SEAT SPRING, 150 LB/IN6014502601450-Online

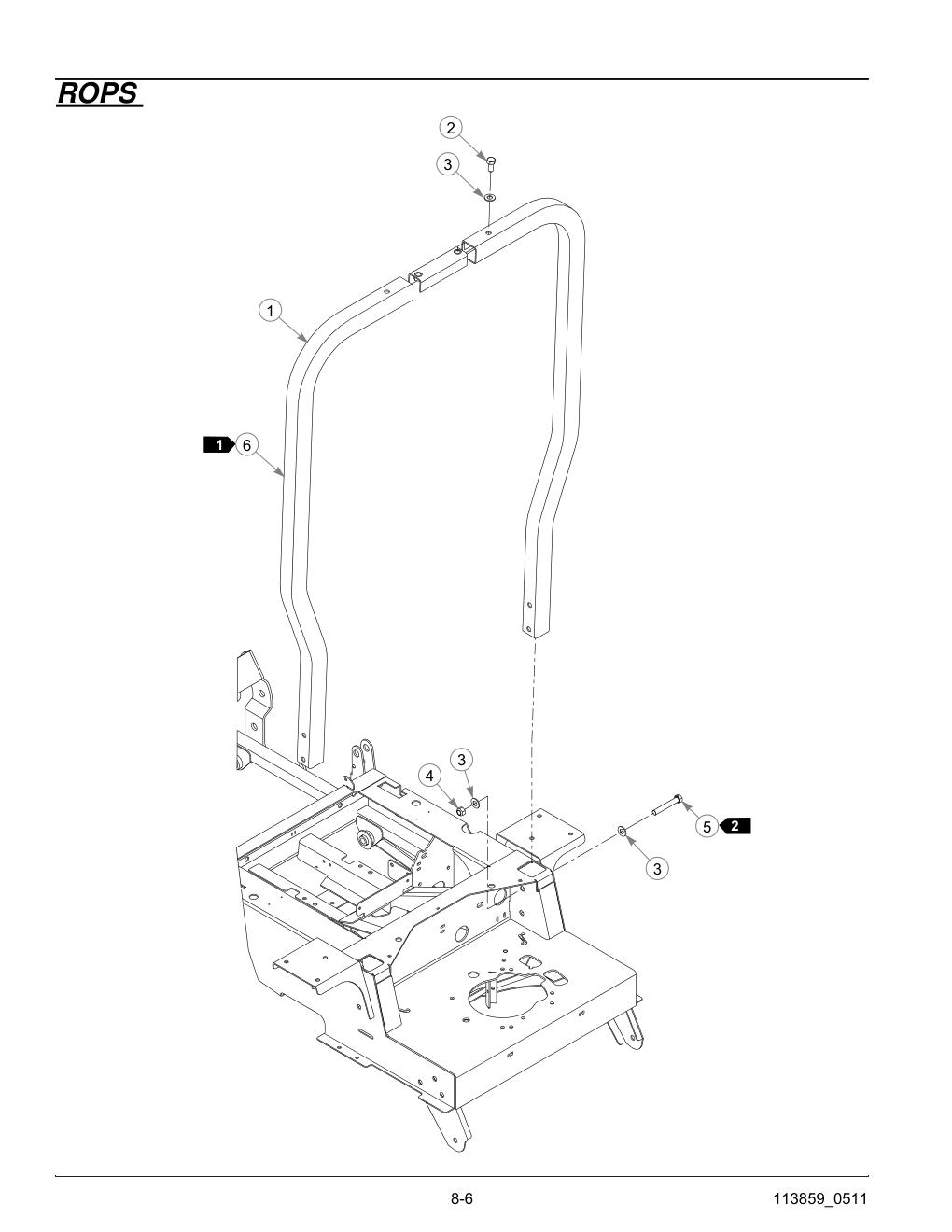

ROPS

Diagram

not reflected in this parts manual, see your Hustler dealer - 786061 - ROPS diagram
Tap/click to enlarge. Source page 84.
RefDescriptionPart numberQtyCutsmart SKU
1ROPS KIT (WITH DECAL & HARDWARE)6032781603278-Online
2CS .500-13 X 1.00 HX G5 ZN0165272016527-Online
3FW .531 X 1.063 X .090 SAE76796210HT767962-Online
4NT .500-13 UNT LK G8 ZN0233174023317-Online
5CS .500-13 X 3.250 HX G50778594077859-Online
6ROPS DECAL6019791601979-Online
Source manual: 20111013-862_930107.pdf. Extracted rows in this article: 455. Upload the images in this package to /images/ipl/Hustler/.
\n
\n
