Illustrated Parts List
Hustler FasTrak 48", 54", 60" Parts Manual (Export) - 601349
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 601349Model: 600668Model: 602041Model: 601967Model: 601099Model: 727172Model: 784710Model: 600994Model: 808493Model: 791848+10 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Frame-S/N 11120947 & HigherFrame-S/N Prior To 11120947FootrestEngine GuardHydraulic TransmissionTransmission Assembly-ZT3100Transmission Service PartsSteering-S/N 13023176 & HigherSteering-S/N 12120454-12121264, S/N 12121536-13023175Steering-S/N Prior To 12120454, S/N 12121265-12121535Steering Sub-AssemblyBrakeWheel & Tire - 13 X 5 Front TireFront Tire Breakdown - 13 X 5 TireDrive Wheel Breakdown 601349 Tire & Wheel Assembly (54" & 60" Mowers)Drive Wheel Breakdown 600668 Tire & Wheel Assembly (48" Mowers)Engine, Kawasaki-S/N 12040665 & Higher (P1 of 2)Engine, Kawasaki-S/N 12040665 & Higher (P2 of 2)Engine, Kawasaki-S/N Prior To 12040665Fuel System, Kaw FS651V & FS691V-S/N Prior To 12040665Engine Service Parts, KawasakiFuel Tanks-S/N 12040665 & HigherFuel Tank & Fender-S/N Prior To 12040665Fuel Tank Service Parts-Dual Tank Mowers-S/N 12040665 & HigherFuel Tank Service Parts-Single Tank Mowers-S/N Prior To 12040665BatteryInstrument Panel-60"Instrument Panel-54"/60"48" Service Deck48" Deck Pulleys & Spindles48" Deck54" Service Deck54" Deck Pulleys & Spindles54" Deck60" Service Deck60" Deck Pulleys & Spindles60" DeckSpindle AssemblyDeck LiftDeck Mounting HardwareSeatSeat Service PartsOptional ROPSFrame-S/N 11120947 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 2 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 3 | DECAL, TOW VALVE | 601099 | 1 | 601099-Online |
| 4 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 5 | DECAL, FASTRAK | 784710 | 1 | 784710-Online |
| 6 | SERIAL NO. / SPEC DECAL | N/A | 1 | No SKU |
| 7 | RIVET NUT, 3/8-16 THREAD | 600994 | 2 | 600994-Online |
| 8 | RIVET NUT, 3/8-16 THREA | 808493 | 8 | 808493-Online |
| 9 | DECAL FUEL INDICATOR- M | 791848 | 1 | 791848-Online |
| 10 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 11 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 12 | RIVET NUT, 5/16-18 THRE | 808485 | 1 | HT808485-Online |
| 13 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 14 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 15 | DECAL, DECK HEIGHT | 785154 | 1 | 785154-Online |
| 16 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 17 | SVC FRAME, 48" FST | 551421 | 1 | 551421-Online |
| 17 | SVC FRAME, 54" FST | 551422 | 1 | 551422-Online |
| 17 | SVC FRAME, 60" FST | 551423 | 1 | 551423-Online |
Frame-S/N Prior To 11120947
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 2 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 3 | DECAL, TOW VALVE | 601099 | 1 | 601099-Online |
| 4 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 5 | DECAL, FASTRAK | 784710 | 1 | 784710-Online |
| 6 | SERIAL NO. / SPEC DECAL | N/A | 1 | No SKU |
| 7 | RIVET NUT, 3/8-16 THREAD | 600994 | 2 | 600994-Online |
| 8 | RIVET NUT, 3/8-16 THREA | 808493 | 8 | 808493-Online |
| 9 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 10 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 11 | RIVET NUT, 5/16-18 THRE | 808485 | 1 | HT808485-Online |
| 12 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 13 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 14 | DECAL, DECK HEIGHT | 785154 | 1 | 785154-Online |
| 15 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 16 | SERVICE FRAME, 54" FST | 550657 | 1 | 550657-Online |
| 16 | SERVICE FRAME, 48" FST | 550656 | 1 | 550656-Online |
| 16 | SVC FRAME, 60" FST | 550780 | 1 | 550780-Online |
Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOOR PAN | 108840 | 1 | 108840-Online |
| 2 | CB .375-16X .750 STD ZN | 011320 | 2 | 011320-Online |
| 3 | NT 0.375-16NLG5 | 086660 | 2 | HT086660-Online |
| 4 | FW 0.379 x 0.813 x 0.063 | 767954 | 4 | HT767954-Online |
| 5 | CB .375-16X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 6 | NT 0.375-16HXG5 | 054502 | 2 | HT054502-Online |
| 7 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 8 | STEP TREAD, UPPER 5.00 | 785485 | 2 | 785485-Online |
| 9 | STEP TREAD, LOWER 9.00 | 785493 | 2 | 785493-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 2 | FW .510X 2.15X.187 SPL | 344267 | 4 | HT344267-Online |
| 3 | NT 0.500-13NLG5 | 781567 | 2 | HT781567-Online |
| 4 | CS .375-16X1.250 HX G5 | 052860 | 6 | HT052860-Online |
| 5 | FW 0.379 x 0.813 x 0.063 | 767954 | 6 | HT767954-Online |
| 6 | SERVICE ENGINE GUARD | 552176 | 1 | 552176-Online |
| 7 | DECAL, H LOGO | 604352 | 1 | 604352-Online |
| 8 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 9 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 10 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 11 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |
| 12 | ENGINE GUARD, FASTRAK | 107840 | 1 | 107840-Online |
Hydraulic Transmission
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | CS0.312-18X2.250HXG5 | 038828 | 4 | 038828-Online |
| 3 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 4 | BELT, FASTRAK PUMP DRIVE | 600979 | 1 | HT600979-Online |
| 5 | FW 0.625X1.000X0.134 | 028118 | 2 | HT028118-Online |
| 6 | PULLEY, IDLER 4"od x .6 | 786848 | 2 | 786848-Online |
| 7 | CS0.625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 8 | CS0.62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 9 | FW 0.781X1.250X0.024 | 704791 | 1 | 704791-Online |
| 10 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 11 | PUMP IDLER W/A, FASTRAK | 107881 | 1 | HT107881-Online |
| 12 | FW .760 X 1.625 X .08 ZNYC | 025296 | 1 | HT025296-Online |
| 13 | SB .750X 2.000 SH.625-11 | 601084 | 1 | HT601084-Online |
| 14 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 15 | NT 0.312-18HXG5 | 034272 | 8 | HT034272-Online |
| 16 | WIRE TIE | 000331 | 2 | 000331-Online |
| 17 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 18 | TOW LINK ROD 48/54 | 601088 | 2 | 601088-Online |
| 19 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 21 | OVERFLOW TANK ASSY | 600759 | 1 | HT600759-Online |
| 22 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 23 | CAP, OVERFLOW TANK | 600767 | 1 | 600767-Online |
Transmission Assembly-ZT3100
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ZT3100, 24.74:1 LH TRANS | 604432 | 1 | 604432-Online |
| 2 | ZT3100, 24.74:1 RH TRANS | 604431 | 1 | 604431-Online |
| 3 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 4 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 5 | BALL STUD, DAMPER (FS) | 781922 | 2 | 781922-Online |
| 6 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 7 | HYD FITTING, 45 DEG | 600880 | 2 | 600880-Online |
| 8 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 9 | OVERFLOW HOSE | 601018 | 2 | 601018-Online |
| 10 | CS0.375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 11 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 12 | ZT SPACER TUBE | 600987 | 1 | HT600987-Online |
| 13 | CAP LOCK | 601426 | 1 | 601426-Online |
Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN/PULLEY KIT | 601941 | 1 | 601941-Online |
| 2 | CLIP, RETAINING | 600972 | 1 | HT600972-Online |
| 3 | ZT2800 BRAKE ARM - 2007 | 601221 | 1 | 601221-Online |
| 4 | PUMP ARM | 604871 | 1 | 604871-Online |
| 5 | FILTER, OIL | 600976 | 1 | HT600976-Online |
| 6 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 7 | GUARD, FILTER, LH | 600975 | 1 | HT600975-Online |
| 7 | GUARD, FILTER, RH | 600974 | 1 | HT600974-Online |
| 9 | COVER, ZT3100 CHRG PUMP | 603572 | 1 | 603572-Online |
| .8 | O-RING, ZT28/3100 CHARGE | 603223 | 1 | 603223-Online |
Steering-S/N 13023176 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 2 | NT 0.312-24NLG5 | 023655 | 2 | HT023655-Online |
| 3 | FW 0.343SAE | 768523 | 13 | HT768523-Online |
| 4 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 5 | CS0.375-16X1.375 | 005116 | 2 | HT005116-Online |
| 6 | NT 0.375-16JAMG5 | 706168 | 2 | HT706168-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 4 | 055939-Online |
| 9 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 10 | CS0.312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 11 | PIVOT TUBE W/A PLATED | 361295 | 1 | 361295-Online |
| 12 | LW0.325INTEXT | 029876 | 2 | 029876-Online |
| 13 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 14 | BALL STUD, DAMPER (FS) | 781922 | 2 | 781922-Online |
| 15 | NT 0.250-20HXG5 | 024927 | 4 | HT024927-Online |
| 16 | SPACER, PUMP ARM | 604456 | 2 | 604456-Online |
| 17 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
Steering-S/N 12120454-12121264, S/N 12121536-13023175
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 2 | NT 0.312-24NLG5 | 023655 | 2 | HT023655-Online |
| 3 | FW 0.343SAE | 768523 | 17 | HT768523-Online |
| 4 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 5 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 6 | BALL STUD, DAMPER (FS) | 781922 | 4 | 781922-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 4 | 055939-Online |
| 9 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 10 | CS0.375-16X1.375 | 005116 | 2 | HT005116-Online |
| 11 | NT 0.375-16JAMG5 | 706168 | 2 | HT706168-Online |
| 12 | CS0.312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 13 | PIVOT TUBE W/A PLATED | 361295 | 1 | 361295-Online |
| 14 | LW0.325INTEXT | 029876 | 2 | 029876-Online |
| 15 | NT 0.312-18HXG5 | 034272 | 4 | HT034272-Online |
| 16 | NT 0.250-20HXG5 | 024927 | 4 | HT024927-Online |
| 17 | SPACER, PUMP ARM | 604456 | 2 | 604456-Online |
| 18 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 19 | CAP LOCK | 601426 | 1 | 601426-Online |
Steering-S/N Prior To 12120454, S/N 12121265-12121535
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 2 | NT 0.312-24NLG5 | 023655 | 2 | HT023655-Online |
| 3 | FW 0.343SAE | 768523 | 17 | HT768523-Online |
| 4 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 5 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 6 | BALL STUD, DAMPER (FS) | 781922 | 4 | 781922-Online |
| 7 | CS0.250-20X2.000HXG5 | 704163 | 2 | 704163-Online |
| 9 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 10 | PUMP ARM, ZT2800 | 109318 | 2 | HT109318-Online |
| 11 | NT 0.312-18HXG5 | 034272 | 4 | HT034272-Online |
| 12 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 13 | CS .250-20 X .75 HX G5 | 055939 | 4 | 055939-Online |
| 14 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 15 | CS0.375-16X1.375 | 005116 | 2 | HT005116-Online |
| 16 | NT 0.375-16JAMG5 | 706168 | 2 | HT706168-Online |
| 17 | CS0.312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 18 | PIVOT TUBE W/A PLATED | 361295 | 1 | 361295-Online |
| 19 | LW0.325INTEXT | 029876 | 2 | 029876-Online |
| 20 | NT 0.250-20HXG5 | 024927 | 4 | HT024927-Online |
| 21 | CAP LOCK | 601426 | 1 | 601426-Online |
Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR GRIP | 781260 | 2 | 781260-Online |
| 2 | STEERING BAR W/A | 360487 | 2 | 360487-Online |
| 3 | FW 0.379 x 0.813 x 0.063 | 767954 | 12 | HT767954-Online |
| 4 | CS0.375-16X1.750HXG5 | 705178 | 6 | HT705178-Online |
| 5 | NT 0.375-16NLG5 | 086660 | 6 | HT086660-Online |
| 6 | STEERING ARM W/A, LEFT | 107843 | 1 | HT107843-Online |
| 6 | STEERING ARM W/A, RIGHT | 107842 | 1 | HT107842-Online |
| 7 | BUSHING, PLAS .750x1(FS) | 770867 | 4 | HT770867-Online |
| 8 | LH STEER PIVOT W/A | 107848 | 1 | 107848-Online |
| 8 | RH STEER PIVOT W/A | 107847 | 1 | 107847-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT 0.375-16NLG5 | 086660 | 4 | HT086660-Online |
| 2 | FW 0.379 x 0.813 x 0.063 | 767954 | 12 | HT767954-Online |
| 3 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 4 | CS0.375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 5 | BRAKE ROD ASSEMBLY SD | 601410 | 2 | 601410-Online |
| 6 | NT 0.375-16HXG5 | 054502 | 2 | HT054502-Online |
| 7 | NT 0.312-24NLG5 | 023655 | 4 | HT023655-Online |
| 8 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 9 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 10 | BRAKE BELL CRANK, LS | 107893 | 1 | HT107893-Online |
| 11 | BRAKE BELL CRANK, RS | 107892 | 1 | HT107892-Online |
| 12 | CS .375-16 X 1.50 HX G5 | 080655 | 2 | HT080655-Online |
| 13 | SHORT BRAKE LINK ROD | 600991 | 2 | 600991-Online |
| 14 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |
| 15 | BRAKE SPRING LINK, LS | 109203 | 1 | 109203-Online |
| 15 | BRAKE SPRING LINK, RS | 109202 | 1 | HT109202-Online |
| 16 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 17 | NT 0.250-20FLKG5 | 016816 | 2 | 016816-Online |
| 18 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
Wheel & Tire - 13 X 5 Front Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BACKUP PLATE, WHEEL | 111875 | 2 | 111875-Online |
| 2 | TIRE/WHEEL ASSY | 600668 | 2 | HT600668-Online |
| REF | TIRE/WHEEL, 20X12-10 | 601349 | 2 | 601349-Online |
| 3 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 4 | CS0.500-13X1.250HSG5 | 705954 | 2 | HT705954-Online |
| 5 | FW .510X 2.15X.187 SPL | 344267 | 2 | HT344267-Online |
| 6 | FW 0.531X1.375X0.125 | 712976 | 2 | HT712976-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |
| 9 | FRONT TIRE ASSEMBLY | N/A | 1 | No SKU |
Front Tire Breakdown - 13 X 5 Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK W/A MINI Z | 366625 | 1 | HT366625-Online |
| 2 | CS .750-10 X 8.00 HX G5 | 786731 | 1 | HT786731-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 6 | TIRE 13 X 5.00 | 605039 | 1 | 605039-Online |
| REF | TIRE 13x5-6 4PLY RIB TL | 747402 | 1 | 747402-Online |
| 7 | WHEEL BEARING | 786103 | 2 | HT786103-Online |
| 8 | WHEEL | 786079 | 1 | HT786079-Online |
| 9 | TIRE VALVE | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown 601349 Tire & Wheel Assembly (54" & 60" Mowers)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE, 20X12-10 TRFMASTR | 601348 | 1 | 601348-Online |
| 2 | WHEEL, 10X8.5 1.25OFFSET | 601347 | 1 | 601347-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown 600668 Tire & Wheel Assembly (48" Mowers)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 20X10-10 | 600684 | 1 | HT600684-Online |
| 2 | WHEEL 10X7 RIM, 4-4BC | 600700 | 1 | HT600700-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
Engine, Kawasaki-S/N 12040665 & Higher (P1 of 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | WIRE TIE | 000331 | 3 | 000331-Online |
| 3 | LW0.325INTEXT | 029876 | 1 | 029876-Online |
| 4 | BATTERY CABLE,NEG 36" D | 796219 | 1 | 796219-Online |
| 5 | FW 0.343SAE | 768523 | 9 | HT768523-Online |
| 6 | CSM8-1.25X16FLG10.9 | 720516 | 3 | 720516-Online |
| 7 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 8 | NT 0.250-20HXG5 | 024927 | 4 | HT024927-Online |
| 10 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 11 | BATTERY CABLE, POS. | 601312 | 1 | 601312-Online |
| 12 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 13 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 14 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 15 | MUFFLER, FS730V FSD | 602704 | 1 | 602704-Online |
| 16 | NT 0.375-1FLKG5 | 016899 | 1 | HT016899-Online |
| 17 | CLAMP | 000398 | 1 | HT000398-Online |
| 18 | FW 0.379 x 0.813 x 0.063 | 767954 | 5 | HT767954-Online |
| 19 | CS0.375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 20 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 21 | CS .375-16x1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
Engine, Kawasaki-S/N 12040665 & Higher (P2 of 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 22 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 23 | FUEL LINE, 1/4" | 015818 | 8 | HT015818-Online |
| 24 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 25 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 26 | NT 0.312-18HXG5 | 034272 | 6 | HT034272-Online |
| 27 | EXHAUST MOUNT | 112828 | 1 | 112828-Online |
| 28 | PULLEY, A SEC, 4.5 OD | 799429 | 1 | HT799429-Online |
| 29 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 30 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 31 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 32 | FW .453X 1.12X .119 HRD | 602680 | 1 | 602680-Online |
| 33 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 34 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 35 | CS0.312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 2 | WIRE TIE | 000331 | 3 | 000331-Online |
| 5 | FW 0.343SAE | 768523 | 9 | HT768523-Online |

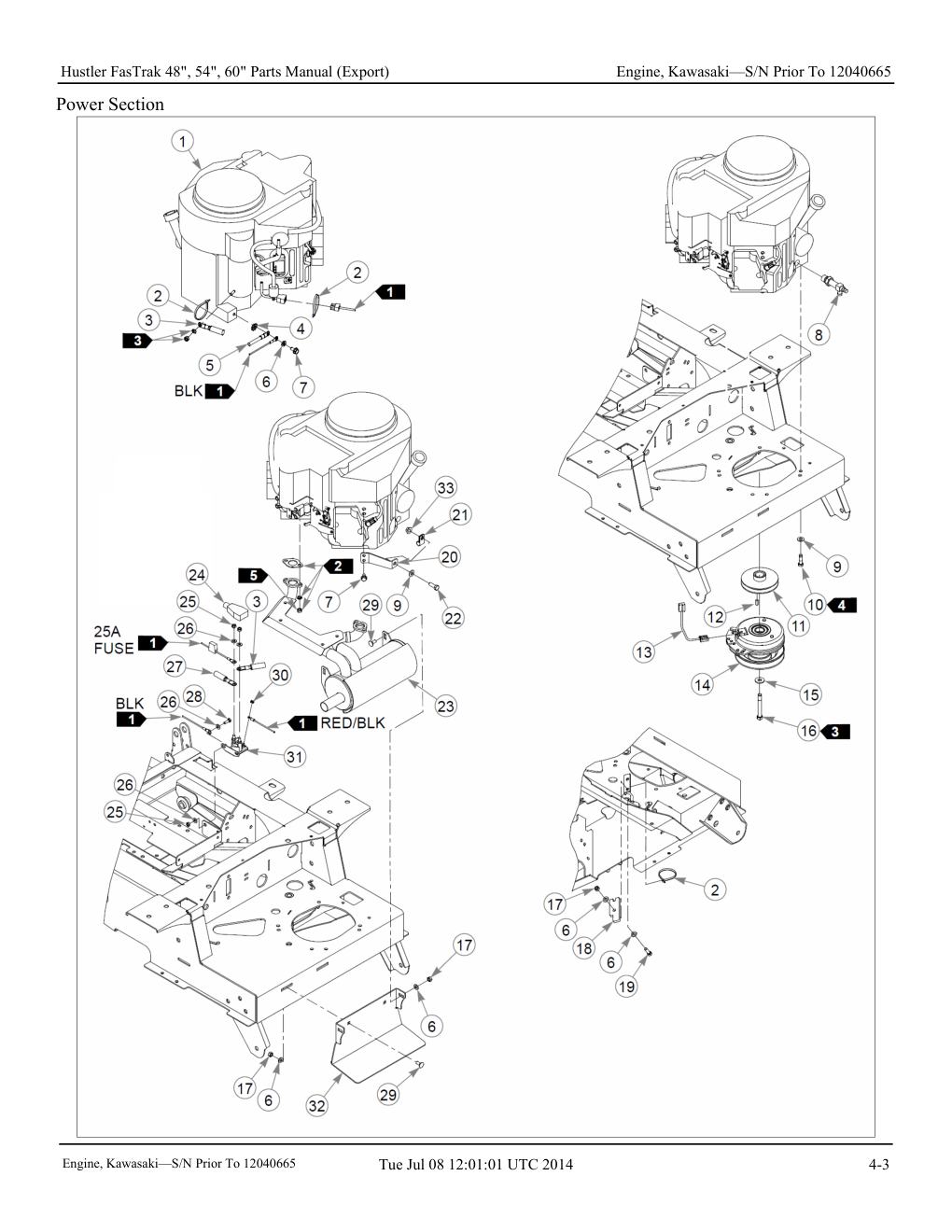

Engine, Kawasaki-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | WIRE TIE | 000331 | 3 | 000331-Online |
| 3 | BATTERY CABLE, POS. | 601062 | 1 | 601062-Online |
| 4 | LW0.325INTEXT | 029876 | 1 | 029876-Online |
| 5 | BATTERY CABLE,NEG 36" D | 796219 | 1 | 796219-Online |
| 6 | FW 0.343SAE | 768523 | 9 | HT768523-Online |
| 7 | CSM8-1.25X16FLG10.9 | 720516 | 3 | 720516-Online |
| 8 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 9 | FW 0.379 x 0.813 x 0.063 | 767954 | 5 | HT767954-Online |
| 10 | CS .375-16x1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 11 | PULLEY, A SEC, 4.5 OD | 799429 | 1 | HT799429-Online |
| 12 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 13 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 14 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 15 | FW .453X 1.12X .119 HRD | 602680 | 1 | 602680-Online |
| 16 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 17 | NT 0.312-18HXG5 | 034272 | 6 | HT034272-Online |
| 18 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 19 | CS0.312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 20 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 21 | CLAMP | 000398 | 1 | HT000398-Online |
| 22 | CS0.375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 23 | MUFFLER, FS730V FSD | 602704 | 1 | 602704-Online |
| 24 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 25 | NT 0.250-20HXG5 | 024927 | 4 | HT024927-Online |
| 27 | BATTERY CABLE, POS. | 601312 | 1 | 601312-Online |
| 28 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 29 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 30 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 31 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 32 | EXHAUST MOUNT | 112828 | 1 | 112828-Online |
| 33 | NT 0.375-1FLKG5 | 016899 | 1 | HT016899-Online |
Fuel System, Kaw FS651V & FS691V-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CLIP, HOSE CLAMP | 000323 | 4 | 000323-Online |
| 35 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 36 | VACUUM BREAKER | 603114 | 1 | 603114-Online |
| 37 | VAPOR LINE, 3/16" | 603326 | 18 | 603326-Online |
| 38 | FUEL LINE, 1/4" | 015818 | 42 | HT015818-Online |
| 39 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
Engine Service Parts, Kawasaki
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER, KAW W/CLAMP | 603059 | 1 | 603059-Online |
| 2 | PRE FILTER, KAW | 603058 | 1 | 603058-Online |
| 3 | OIL FILTER, KAW ENG. | 602581 | 1 | 602581-Online |
| 4 | FUEL FILTER IN-LINE | 068478 | 1 | 068478-Online |
Fuel Tanks-S/N 12040665 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP,3.5" | 779306 | 2 | HT779306-Online |
| 2 | FUEL TANK, RIGHT SIDE | 601320 | 1 | 601320-Online |
| 3 | FUEL TANK LEFT SIDE | 601321 | 1 | 601321-Online |
| 4 | FW 0.406X1.000X0.120HD | 712919 | 8 | HT712919-Online |
| 5 | CS0.375-16X0.750HXG5 | 055822 | 8 | HT055822-Online |
| 6 | CLIP, HOSE CLAMP | 000323 | 4 | 000323-Online |
| 7 | FUEL LINE, 1/4" | 015818 | 35 | HT015818-Online |
| 8 | CS0.312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 9 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 10 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 11 | WIRE TIE | 000331 | 1 | 000331-Online |
| 12 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 13 | CLAMP | 000398 | 2 | HT000398-Online |
Fuel Tank & Fender-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, 3.5" RATCHETING GAS | 602916 | 1 | 602916-Online |
| 2 | FUEL TANK, FENDER, LH | 603544 | 1 | 603544-Online |
| 3 | WIRE TIE | 000331 | 1 | 000331-Online |
| 4 | CS0.312-18X0.750HXG5 | 034280 | 1 | HT034280-Online |
| 5 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 6 | CLIP - HOSE - SINGLE(FS) | 043570 | 1 | 043570-Online |
| 7 | NT 0.312-18FLKG5 | 016832 | 1 | 016832-Online |
| 8 | FW 0.406X1.000X0.120HD | 712919 | 8 | HT712919-Online |
| 9 | CS0.375-16X0.750HXG5 | 055822 | 8 | HT055822-Online |
| 10 | FENDER, RIGHT SIDE | 602909 | 1 | 602909-Online |
Fuel Tank Service Parts-Dual Tank Mowers-S/N 12040665 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GROMMET, FUEL SHUTOFF V | 785295 | 1 | HT785295-Online |
| 2 | SUCTION HOSE ASSY 26.5 | 601529 | 1 | 601529-Online |
Fuel Tank Service Parts-Single Tank Mowers-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING | 604199 | 1 | 604199-Online |
| 2 | VITON GROMMET | 604200 | 1 | 604200-Online |
| 3 | GROMMET, FUEL SHUTOFF V | 785295 | 1 | HT785295-Online |
| 4 | SUCTION HOSE ASSY 26.5 | 601529 | 1 | 601529-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.312-18X4.000HXG5 | 714618 | 2 | HT714618-Online |
| 2 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 3 | STRAP, BATTERY CLAMP | 348417 | 1 | 348417-Online |
| 4 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 5 | LW0.250INTEXT | 029868 | 4 | 029868-Online |
| 6 | NT 0.250-20HXG5 | 024927 | 2 | HT024927-Online |
| 7 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 8 | GM 1.50 X 2.12 X 1.75 | 794644 | 2 | 794644-Online |

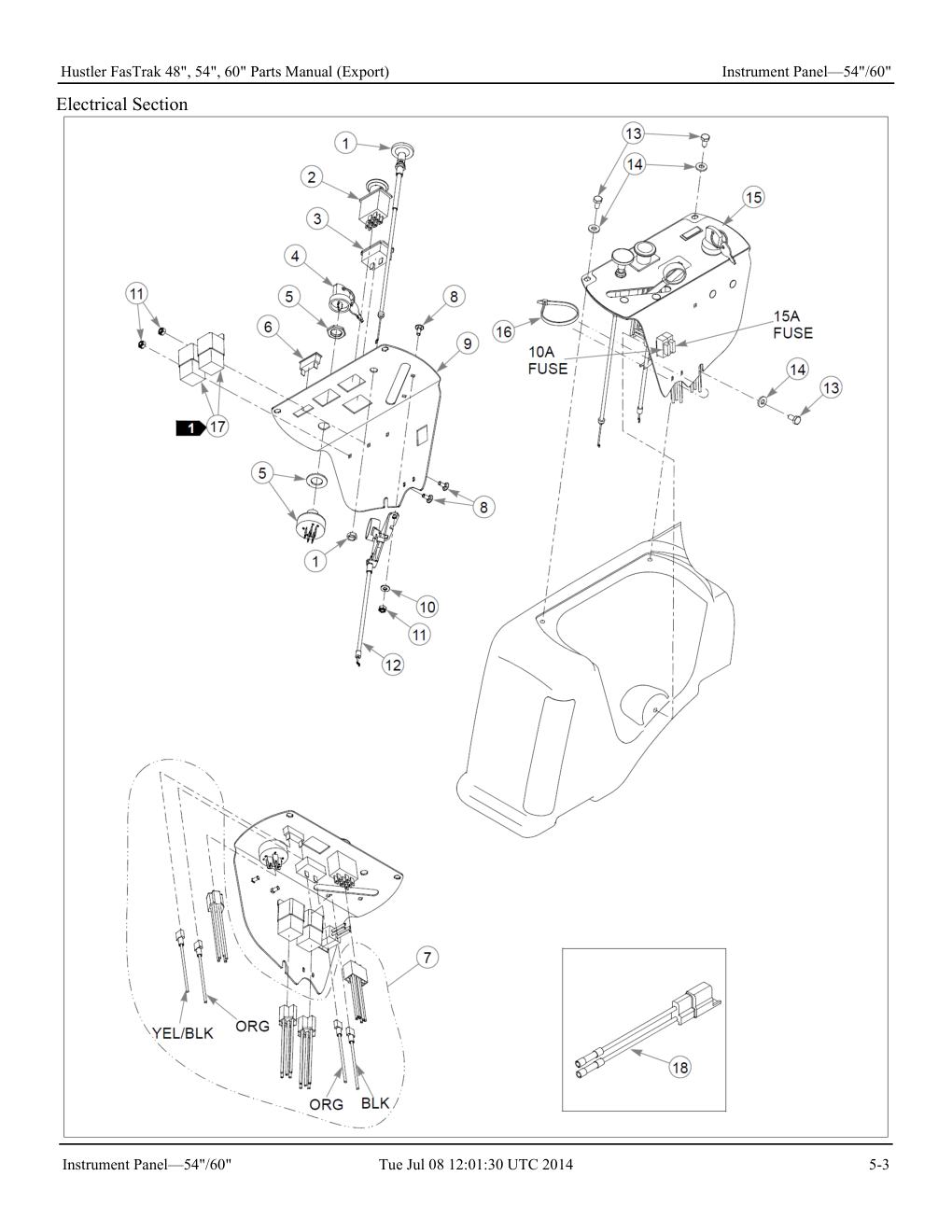

Instrument Panel-60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | HOUR METER | 769166 | 1 | HT769166-Online |
| 6 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 7 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 8 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 9 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 10 | SVC PART, INST PANEL | 551398 | 1 | 551398-Online |
| 11 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 12 | CABLE, THROTTLE | 601094 | 1 | HT601094-Online |
| 13 | CS0.250X0.500HXG5 | 055947 | 3 | 055947-Online |
| 15 | DECAL, INST PANEL | 603915 | 1 | 603915-Online |
| 16 | WIRE TIE | 000331 | 6 | 000331-Online |
| 17 | WIRE HARNESS | 602430 | 1 | 602430-Online |
| 17 | 114052 | 18 | CLUTCH CONNECTOR REPAIR | 18-Online |
Instrument Panel-54"/60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 6 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 7 | WIRE HARNESS | 602430 | 1 | 602430-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 9 | SVC PART INST PANEL X | 550454 | 1 | 550454-Online |
| 10 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 11 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 12 | CABLE, THROTTLE | 601094 | 1 | HT601094-Online |
| 13 | CS0.250X0.500HXG5 | 055947 | 3 | 055947-Online |
| 15 | DECAL, INST PANEL | 602233 | 1 | 602233-Online |
| 16 | WIRE TIE | 000331 | 6 | 000331-Online |
| 17 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 17 | 114052 | 18 | CLUTCH CONNECTOR REPAIR | 18-Online |
48" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE DECK, 48" FST | 550752 | 1 | 550752-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 5 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 6 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 7 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
48" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 2 | FW 0.656X2.000X0.078 | 046821 | 3 | HT046821-Online |
| 3 | FW 0.630X1.125X0.180 | 797449 | 3 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 3 | HT784504-Online |
| 5 | FW 0.625X1.000X0.134 | 028118 | 1 | HT028118-Online |
| 6 | SPACER, DECK IDLER | 600296 | 1 | HT600296-Online |
| 7 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 8 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | CS .312-18x1.50FLT SH ZY | 797910 | 6 | HT797910-Online |
| 11 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 13 | CS0.625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 14 | CW .631 2.250X .187 PNT | 782474 | 5 | HT782474-Online |
| 15 | PULLEY, DRIVE 5.19 OP | 792689 | 3 | HT792689-Online |
| 16 | NT 0.375-16HXG5 | 054502 | 12 | HT054502-Online |
| 17 | FW 0.379 x 0.813 x 0.063 | 767954 | 24 | HT767954-Online |
| 18 | CS0.312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 19 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 20 | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |
| 21 | NT 0.500-13NLG5 | 781567 | 4 | HT781567-Online |
| 22 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 23 | PULLER ASSY, 14.53 C/C | 113716 | 2 | 113716-Online |
| 23 | PULLER & PIN ASSY | 109247 | 1 | HT109247-Online |
| 23 | PULLER & PIN ASSY | 109248 | 1 | HT109248-Online |
| 24 | CS0.625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 25 | NT 0.312-18 NL G5 | 058776 | 6 | HT058776-Online |
| 26 | BLADE SPINDLE ASSEMBLY | 783506 | 3 | 783506-Online |
| 27 | CS0.375-16X1.375 | 005116 | 12 | HT005116-Online |
| 28 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 29 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 30 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |
48" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER RH 48" | 108149 | 1 | HT108149-Online |
| 2 | PULLEY COVER, SVC 48 LH | 550107 | 1 | HT550107-Online |
| 3 | DECAL,48"DECK ID | 793976 | 1 | 793976-Online |
| 4 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 5 | CS0.312-18X0.625HXG5 | 064006 | 4 | 064006-Online |
| 6 | NT 0.375-16NLG5 | 086660 | 3 | HT086660-Online |
| 7 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 10 | BRACKET, CHUTE 48/54 FST | 112448 | 1 | HT112448-Online |
| 11 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 12 | BELT, B 143" EL | 791335 | 1 | HT791335-Online |
| 13 | CB .375-16X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 14 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| REF | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| REF | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| REF | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 15 | CW .631 2.250X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS0.625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
54" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE DECK, 54" FSD | 550753 | 1 | 550753-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 4 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 5 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 6 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 7 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
54" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 2 | FW 0.656X2.000X0.078 | 046821 | 3 | HT046821-Online |
| 3 | FW 0.630X1.125X0.180 | 797449 | 3 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 3 | HT784504-Online |
| 5 | FW 0.625X1.000X0.134 | 028118 | 1 | HT028118-Online |
| 6 | SPACER, DECK IDLER | 600296 | 1 | HT600296-Online |
| 7 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 8 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | CS .312-18x1.50FLT SH ZY | 797910 | 6 | HT797910-Online |
| 11 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 13 | CS0.625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 14 | CW .631 2.250X .187 PNT | 782474 | 5 | HT782474-Online |
| 15 | PULLEY, DRIVE 5.68 OP | 786889 | 3 | HT786889-Online |
| 16 | NT 0.375-16HXG5 | 054502 | 12 | HT054502-Online |
| 17 | FW 0.379 x 0.813 x 0.063 | 767954 | 24 | HT767954-Online |
| 18 | CS0.312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 19 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 20 | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |
| 21 | NT 0.500-13NLG5 | 781567 | 4 | HT781567-Online |
| 22 | PULLER ASSY, 14.53 C/C | 113716 | 2 | 113716-Online |
| 22 | PULLER & PIN ASSY | 109247 | 1 | HT109247-Online |
| 22 | PULLER & PIN ASSY | 109248 | 1 | HT109248-Online |
| 23 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 24 | CS0.625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 25 | NT 0.312-18 NL G5 | 058776 | 6 | HT058776-Online |
| 26 | BLADE SPINDLE ASSEMBLY | 783506 | 3 | 783506-Online |
| 27 | CS0.375-16X1.375 | 005116 | 12 | HT005116-Online |
| 28 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 29 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 30 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER RS 54" | 108124 | 1 | HT108124-Online |
| 2 | PULLEY COVER, SVC 54 LH | 550109 | 1 | 550109-Online |
| 3 | DECAL, Z 54" Deck ID | 799171 | 1 | 799171-Online |
| 4 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 5 | CS0.312-18X0.625HXG5 | 064006 | 4 | 064006-Online |
| 6 | NT 0.375-16NLG5 | 086660 | 3 | HT086660-Online |
| 7 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 10 | BRACKET, CHUTE 48/54 FST | 112448 | 1 | HT112448-Online |
| 11 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 12 | BELT, B 152" EL | 789388 | 1 | HT789388-Online |
| 13 | CB .375-16X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 14 | BLADE, 18.50"-L-F-CW | 601124 | 3 | HT601124-Online |
| REF | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| REF | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| REF | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 15 | CW .631 2.250X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS0.625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
60" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE DECK, 60" FSD | 550754 | 1 | 550754-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 5 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 6 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 7 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
60" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 2 | FW 0.656X2.000X0.078 | 046821 | 3 | HT046821-Online |
| 3 | FW 0.630X1.125X0.180 | 797449 | 3 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD, | 784504 | 3 | HT784504-Online |
| 5 | FW 0.625X1.000X0.134 | 028118 | 1 | HT028118-Online |
| 6 | SPACER, DECK IDLER | 600296 | 1 | HT600296-Online |
| 7 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 8 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | CS .312-18x1.50FLT SH ZY | 797910 | 6 | HT797910-Online |
| 11 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 13 | CS0.625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 14 | CW .631 2.250X .187 PNT | 782474 | 5 | HT782474-Online |
| 15 | PULLEY, DECK DRIVE | 601447 | 3 | 601447-Online |
| 16 | NT 0.375-16HXG5 | 054502 | 12 | HT054502-Online |
| 17 | FW 0.379 x 0.813 x 0.063 | 767954 | 24 | HT767954-Online |
| 18 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 19 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 20 | CS0.312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 21 | PULLER ASSY, 10.9 C/C | 109444 | 2 | HT109444-Online |
| 112893 | PULLER ASSY, 10.9 C/C | 109444 | 1 | HT109444-Online |
| 112894 | PULLER ASSY, 10.9 C/C | 109444 | 1 | HT109444-Online |
| 22 | NT 0.500-13NLG5 | 781567 | 4 | HT781567-Online |
| 23 | NT 0.312-18 NL G5 | 058776 | 6 | HT058776-Online |
| 24 | CS0.625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 25 | CS0.375-16X1.375 | 005116 | 12 | HT005116-Online |
| 26 | BLADE SPINDLE ASSEMBLY | 783506 | 3 | 783506-Online |
| 27 | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |
| 28 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 29 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 30 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |
60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 109310 | 1 | HT109310-Online |
| 2 | PULLEY COVER, SVC 60 LH | 550111 | 1 | HT550111-Online |
| 3 | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 4 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 5 | CS0.312-18X0.625HXG5 | 064006 | 4 | 064006-Online |
| 6 | NT 0.375-16NLG5 | 086660 | 3 | HT086660-Online |
| 7 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 10 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 11 | BRACKET, CHUTE 60 FST | 112451 | 1 | 112451-Online |
| 12 | CB .375-16X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 13 | BELT, B 165.56" EL | 782292 | 1 | HT782292-Online |
| 14 | BLADE, F20.50"-L-F-CW | 600901 | 3 | HT600901-Online |
| REF | BLADE,20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| REF | BLADE,20.50"GAT-F-CW | 794230 | 3 | HT794230-Online |
| REF | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 15 | CW .631 2.250X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS0.625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
Spindle Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RING, BLADE SPINDLE RET | 783548 | 1 | HT783548-Online |
| 2 | BEARING, BLADE SPINDLE | 783555 | 2 | 783555-Online |
| 3 | SPACER, BLADE SPINDLE | 783530 | 1 | HT783530-Online |
| 4 | HOUSING, BLADE SPINDLE | 783514 | 1 | HT783514-Online |
| 5 | SHAFT, BLADE SPINDLE | 783522 | 1 | HT783522-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 2 | STOP, HEIGHT ADJ W/A | 348284 | 1 | HT348284-Online |
| 3 | INDICATOR, DECK LIFT S/ | 784488 | 1 | HT784488-Online |
| 4 | NT 0.437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 5 | FW .781x1.50x.120 ZNYC | 601681 | 6 | 601681-Online |
| 6 | CLIP E, 1.00 X.625X .05 | 781294 | 7 | HT781294-Online |
| 7 | CS0.312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 8 | NT 0.312-18HXG5 | 034272 | 1 | HT034272-Online |
| 9 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 10 | FW 0.531SAE | 767962 | 6 | HT767962-Online |
| 11 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 12 | DECK LIFT SPRING S/A | 782995 | 2 | HT782995-Online |
| 13 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 14 | CHAIN, DECK LIFT | 360131 | 4 | HT360131-Online |
| 15 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 16 | CS0.437-14X1.750HXG5 | 781831 | 1 | HT781831-Online |
Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 4 | NT 0.437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 10 | FW 0.531SAE | 767962 | 6 | HT767962-Online |
| 15 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 17 | CS .500-13X2.000 G5 ZNY | 078949 | 2 | HT078949-Online |
| 18 | NT 0.500-13HXG5 | 008193 | 2 | HT008193-Online |
Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, MICHIGAN STANDARD | 793661 | 1 | 793661-Online |
| 2 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 3 | SEAT PAN STOP | 109240 | 1 | 109240-Online |
| 4 | CS0.312-18X0.875HXG5 | 064014 | 3 | 064014-Online |
| 5 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 6 | NT 0.312-18 NL G5 | 058776 | 7 | HT058776-Online |
| 7 | WIRE TIE | 000331 | 2 | 000331-Online |
| 8 | SVC, SEAT PAN | 550855 | 1 | 550855-Online |
| 9 | CS0.312-18X0.750HXG5 | 034280 | 3 | HT034280-Online |
| 10 | SEAT LATCH ASSY | 603884 | 1 | 603884-Online |
| 11 | NT 0.312-18HXG5 | 034272 | 3 | HT034272-Online |
| 12 | CS .375-16X1.250 HX G5 | 052860 | 2 | HT052860-Online |
| 13 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 14 | SEAT SPRING, 150 LB/IN | 601450 | 2 | 601450-Online |
Seat Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ARMREST ASSY LH RND | 797464 | 1 | 797464-Online |
| 2 | ARMREST ASSY RH RND | 797472 | 1 | 797472-Online |
| 3 | ARMREST,STOP ASSY | 793273 | 1 | 793273-Online |
| 4 | 2 ARMRESTS, MOLDED RND | 797480 | 1 | 797480-Online |
| 5 | SLIDE KIT | 793307 | 1 | 793307-Online |
| 6 | SWITCH, SEAT | 793315 | 1 | 793315-Online |
| 7 | EXT. ARMREST KIT L.H. | 604458 | 1 | 604458-Online |
| 8 | EXT. ARMREST KIT R.H. | 604459 | 1 | 604459-Online |
Optional ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ROPS | 603278 | 1 | 603278-Online |
| 2 | CS0.500-13X1.000HXG5 | 016527 | 2 | 016527-Online |
| 3 | FW 0.531SAE | 767962 | 10 | HT767962-Online |
| 4 | NT 0.500-13UNTG8 | 023317 | 4 | 023317-Online |
| 5 | CS0.500-13X3.250HXG5 | 077859 | 4 | 077859-Online |
| 6 | DECAL, ATZ ROPS | 601979 | 1 | 601979-Online |
