Illustrated Parts List
60" FasTrak SDX Parts Manual - 940437EX - HTFSXS060KAWFX730VE - 607667
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 607667Model: 607208Model: 940437EXSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameEngine Guard & HitchTransmission Assembly & Drive BeltTransmission Service PartsSteering & Brake (Multi-Page)Steering Cover AssemblySteering Box AssemblyWheels & TiresFront Wheel AssemblyDrive Wheel BreakdownEngine, Muffler & ClutchEngine Service PartsFuel System (Multi-Page)Fuel Tank Service Parts - 607667Fenders & BatteryInstrument Panel & Wire HarnessService DeckDeck Pulleys & SpindlesSpindle Service Parts - 607208Deck Belt, Discharge Chute, Pulley Covers & BladesDeck Lift & Deck Mounting Hardware (Multi-Page)Seat, Footrest & Floor Pan (Multi-Page)Seat Service PartsROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC FRAME | 554673 | 1 | 554673-Online |
| 2 | RIVET NUT, 3/8-16 THREA | 808493 | 13 | 808493-Online |
| 4 | DECAL, DBA 115 ISO | 607782 | 1 | 607782-Online |
| 3 | SERIAL NUMBER / SPEC DECAL | N/A | 2 | No SKU |
| 5 | DECAL, HOT | 602041 | 2 | 602041-Online |
| 6 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 5" | 713198-Online |
| 7 | WEATHERSTRIP .12X.75 | 033035 | 9" | 033035-Online |
| 8 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 9 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
Engine Guard & Hitch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HITCH PLATE | 119977 | 1 | 119977-Online |
| 2 | CB .375-16X 1.00 G5 ZN | 025395 | 6 | HT025395-Online |
| 3 | NT .375-16HXG5 | 054502 | 6 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 5 | GUARD, RH | 121134 | 1 | 121134-Online |
| 6 | SVC PART, STAMPED BUMPER | 553123 | 1 | 553123-Online |
| 7 | DECAL, "H" LOGO | 604770 | 1 | 604770-Online |
| 8 | GUARD, LH | 121133 | 1 | 121133-Online |
| 9 | CS .375-16X1.25 HX G5 ZN | 052860 | 6 | HT052860-Online |
Transmission Assembly & Drive Belt
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 3 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 4 | FW .781X1.25X.02 ZN | 704791 | 1 | 704791-Online |
| 5 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 6 | DRIVE BELT | 605468 | 1 | 605468-Online |
| 7 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 8 | PULLEY, IDLER | 607525 | 1 | 607525-Online |
| 9 | SPACER, DECK IDLER | 600296 | 1 | HT600296-Online |
| 10 | KIT, TENSION ARM | 122722 | 1 | HT122722-Online |
| 11 | NT .625-11 HX G5 ZN | 016972 | 1 | HT016972-Online |
| 12 | CS .375-16X1.25 HX G5 ZN | 052860 | 1 | HT052860-Online |
| 13 | FW 0.406X1.00X.12 HD ZN | 712919 | 1 | HT712919-Online |
| 14 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 15 | BUSHING | 605481 | 1 | 605481-Online |
| 16 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 17 | FW .760X1.63X0.08 ZN | 025296 | 1 | HT025296-Online |
| 18 | SB .750X 2.000 SH.625-11 | 601084 | 1 | HT601084-Online |
| 19 | ZT3400, 21.04:1 | 605500 | 1 | 605500-Online |
| 20 | ZT3400, 21.04:1 | 605501 | 1 | 605501-Online |
| 21 | NT .312-18NLG5 | 058776 | 8 | HT058776-Online |
| 22 | CS .375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 23 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 24 | ZT SPACER TUBE | 600987 | 1 | HT600987-Online |
| 25 | CN .250-20X .150 MAX THK | 601982 | 4 | 601982-Online |
| 26 | RESERVOIR, SINGLE FTNG | 605217 | 2 | 605217-Online |
| Not Shown | CAP, OVERFLOW TANK | 600767 | 2 | 600767-Online |
| 27 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 28 | CS .250-20X0.75 HX G5 ZN | 055939 | 4 | 055939-Online |
| 29 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 30 | OVERFLOW HOSE, FST | 605218 | 2 | 605218-Online |
| 31 | LINK, TOW VALVE | 120126 | 2 | 120126-Online |
| 32 | HP0.080X1.190 | 706549 | 2 | HT706549-Online |

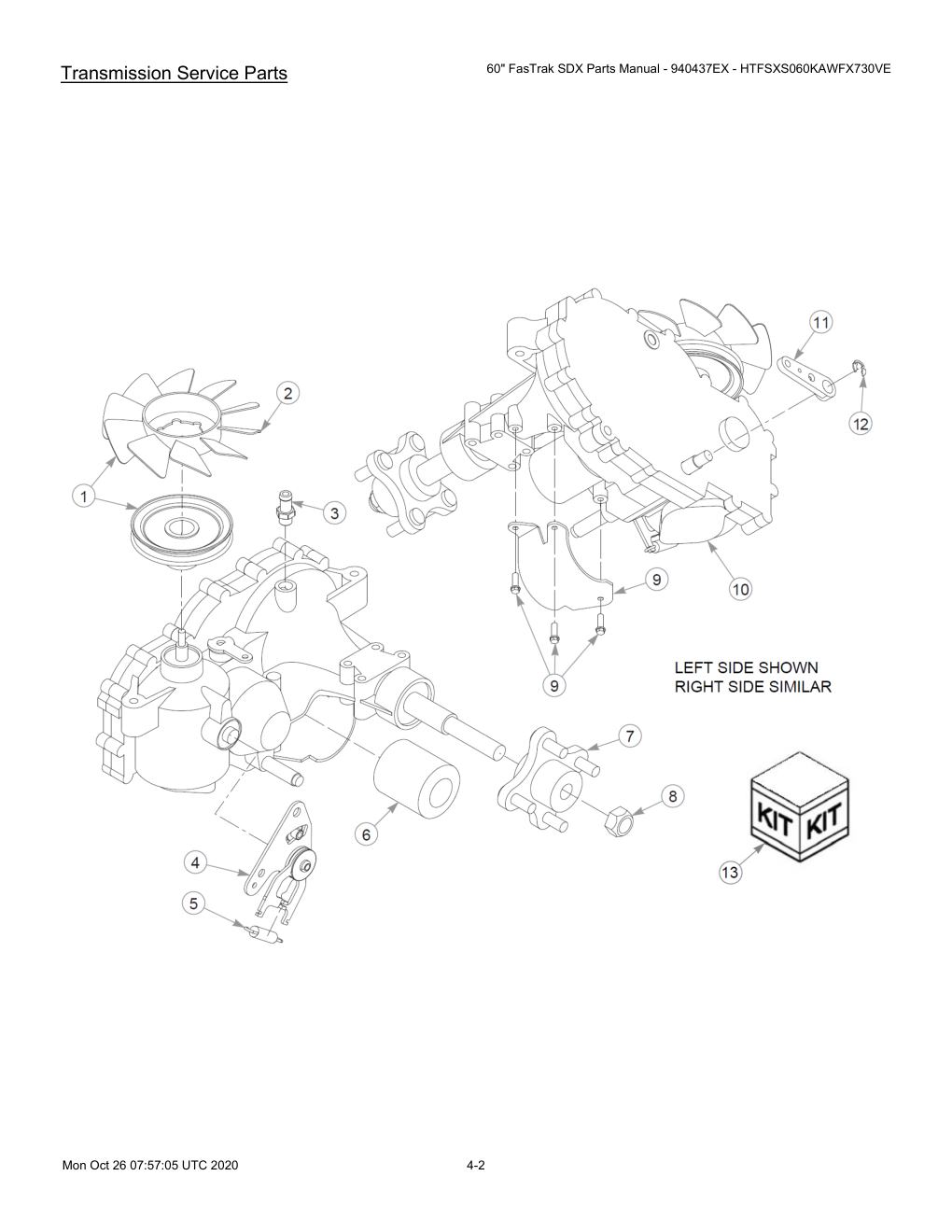

Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN/PULLEY KIT | 603866 | 1 | 603866-Online |
| 2 | FAN - 7.0" (10 BLADE) | 607728 | 1 | 607728-Online |
| 3 | FITTING, TRANSMISSION | 605608 | 1 | 605608-Online |
| 4 | RTN, LEFT | 605778 | 1 | 605778-Online |
| Not Shown | RTN, RIGHT | 605779 | 1 | 605779-Online |
| 5 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 6 | HYDRAULIC OIL FILTER | 600976 | 1 | HT600976-Online |
| 7 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 8 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |
| 9 | GUARD, TRANS FILTER | 600975 | 1 | HT600975-Online |
| Not Shown | GUARD, TRANS FILTER | 600974 | 1 | HT600974-Online |
| 10 | COVER, ZT3100 CHRG PUMP | 603572 | 1 | 603572-Online |
| 11 | ZT2800 BRAKE ARM - 2007 | 601221 | 1 | 601221-Online |
| 12 | CLIP, RETAINING | 600972 | 1 | HT600972-Online |
| 13 | OIL RETENSION KIT, | 606830 | 1 | 606830-Online |
| 14 | O-RING, ZT28/3100 CHARGE | 603223 | 1 | 603223-Online |

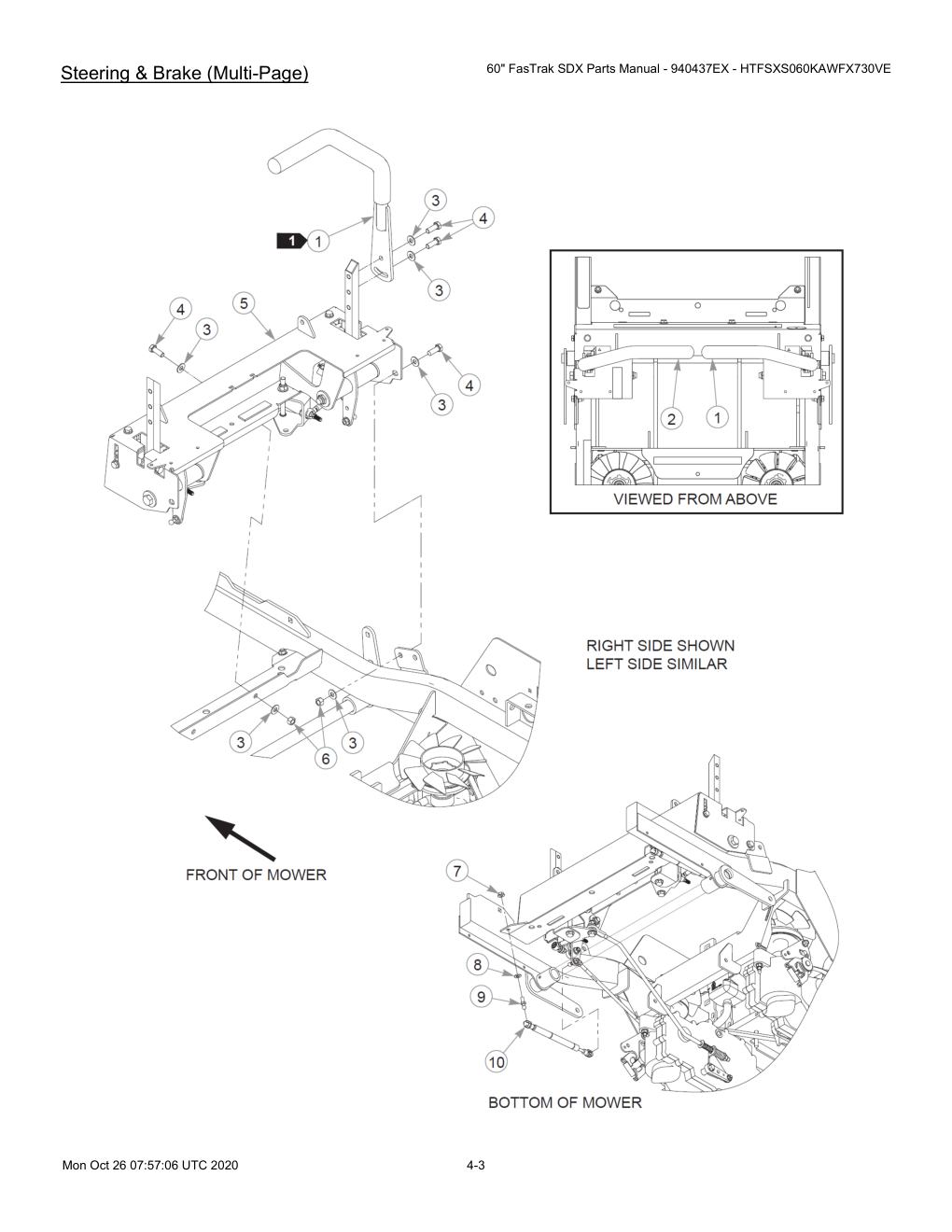

Steering & Brake (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR W/A, RH | 605383 | 1 | 605383-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 1 | 781260-Online |
| 2 | STEERING BAR W/A, LH | 605384 | 1 | 605384-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 1 | 781260-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 20 | HT767954-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 8 | HT036244-Online |
| 5 | REFER TO "STEERING COVER ASSEMBLY" | N/A | 1 | No SKU |
| 6 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 7 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 8 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 9 | BALL STUD | 781922 | 2 | 781922-Online |
| 10 | DAMPER | 603983 | 2 | 603983-Online |
| 11 | DECAL, USA, F&D | 608127 | 1 | 608127-Online |
| 12 | DECAL, FASTRAK SDX | 608097 | 1 | 608097-Online |
| 13 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 14 | BRAKE ROD ASSEMBLY | 605145 | 2 | 605145-Online |
| 15 | CS .375-16X1.500HXG5 | 080655 | 2 | HT080655-Online |
| 16 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |
| 17 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 18 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 19 | BRAKE SPRING LINK, RS | 120671 | 1 | 120671-Online |
| 20 | BRAKE SPRING LINK, LS | 120672 | 1 | 120672-Online |
| 21 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 22 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 23 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 24 | SPACER, PUMP ARM | 604456 | 2 | 604456-Online |
Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC STEERING COVER | 554690 | 1 | 554690-Online |
| 2 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 3 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 5 | WEATHERSTRIP .12X.75 | 033035 | 6" | 033035-Online |
| 6 | ISOLATOR | 605542 | 1 | 605542-Online |
| 7 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 8 | PROTECTIVE TAPE | 607286 | 4" | 607286-Online |
| 9 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 10 | BRAKE BELL CRANK, LS | 124352-1 | 1 | 124352-1-Online |
| 11 | CS .375-16X4.000HXG5 | 725796 | 2 | 725796-Online |
| 12 | NT .312-18FLKG5 | 016832 | 1 | 016832-Online |
| 13 | BRAKE BELL CRANK, RS | 124353-1 | 1 | 124353-1-Online |
| 14 | CS .312-18X2.000HXG5 | 064345 | 2 | 064345-Online |
| 15 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 16 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 17 | STOP, STEERING | 605518 | 2 | 605518-Online |
| 18 | CS .500-13X6.500HXG5 | 042630 | 2 | HT042630-Online |
| 19 | FW 0.531X1.38X.12 ZN | 712976 | 4 | HT712976-Online |
| 20 | NT .500-13 JAM NY LK | 707398 | 2 | HT707398-Online |
| 21 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 22 | REFER TO "STEERING BOX ASSEMBLY" | N/A | 1 | No SKU |
| 23 | BUSHING | 608000 | 4 | HT608000-Online |
| 24 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 25 | SPACER, STEERING | 119811 | 2 | 119811-Online |
| 26 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 27 | REFER TO "STEERING BOX ASSEMBLY" | N/A | 1 | No SKU |
Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEER LEVER W/A | 119807 | 1 | 119807-Online |
| 2 | STEER PIVOT W/A, RS | 119750 | 1 | 119750-Online |
| Not Shown | STEER PIVOT W/A, LS | 119749 | 1 | 119749-Online |
| 3 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 5 | CS .375-16X1.750HXG5 | 705178 | 1 | HT705178-Online |
| 6 | NT .312-18FLKG5 | 016832 | 1 | 016832-Online |
| 7 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 8 | BALL STUD | 781922 | 1 | 781922-Online |

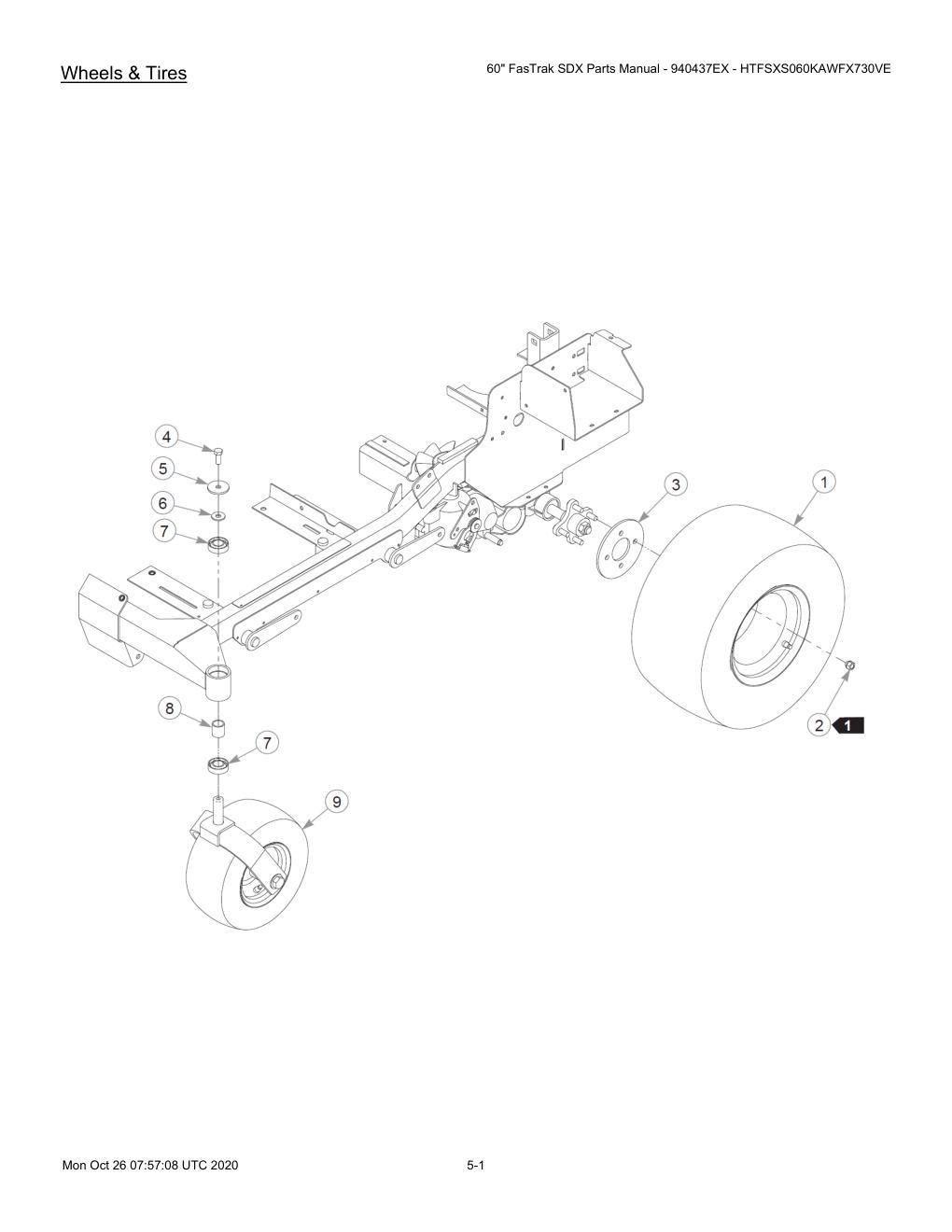

Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 23X11.00-10 BLK | 607818 | 2 | 607818-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | BACKUP PLATE, WHEEL | 111875-1 | 2 | 111875-1-Online |
| 4 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 5 | FW .510X2.15X.19 ZN | 344267 | 2 | HT344267-Online |
| 6 | FW 0.531X1.38X.12 ZN | 712976 | 2 | HT712976-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |
| 9 | REFER TO "FRONT WHEEL ASSEMBLY" | N/A | 2 | No SKU |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK W/A | 604691 | 1 | 604691-Online |
| 2 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZN | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZN | 041475 | 1 | HT041475-Online |
| 5 | WHEEL BEARING | 786103 | 2 | HT786103-Online |
| 6 | TIR/WHL 13X6.50-6 BLK | 605199 | 1 | 605199-Online |
| 7 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 8 | GREASE FITTING, M8X1.0 | 606126 | 1 | 606126-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 23X11.00-10 B4R BGBT | 607802 | 1 | 607802-Online |
| 2 | WHL 10X8.50 4X4.0 BLK | 603737 | 1 | 603737-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

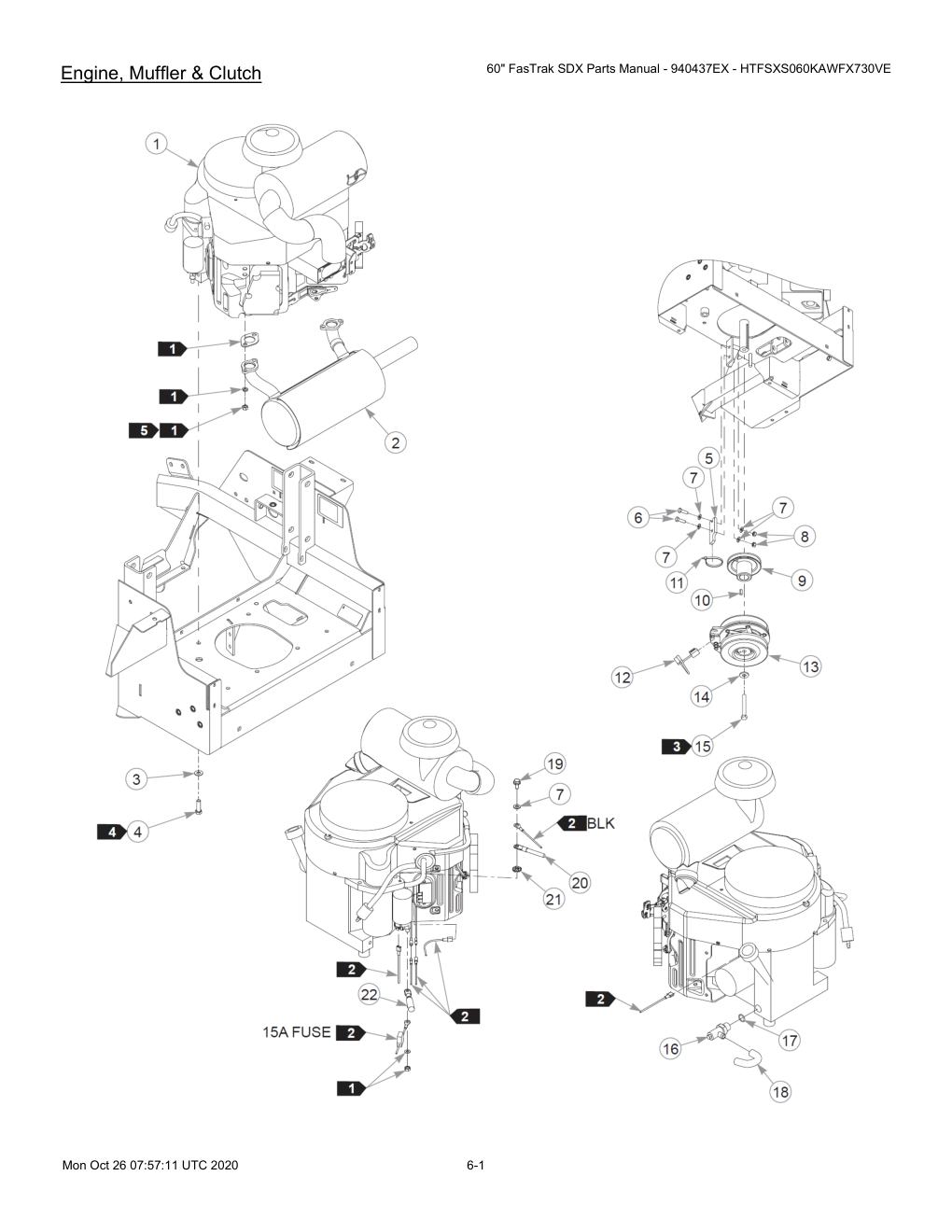

Engine, Muffler & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | MUFFLER | 604250 | 1 | 604250-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 4 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 5 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 6 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 7 | FW 0.343SAE | 768523 | 5 | HT768523-Online |
| 8 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 9 | PULLEY, ENG 4.58OP | 605490 | 1 | 605490-Online |
| 10 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 12 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 13 | CLUTCH KIT | 121809K | 1 | HT121809K-Online |
| 14 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 15 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 16 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |
| 17 | O-RING | 604369 | 1 | 604369-Online |
| 18 | HOSE, OIL DRAIN | 605317 | 1 | 605317-Online |
| 19 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 20 | BATTERY CABLE, NEG. | 601841 | 1 | 601841-Online |
| 21 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 22 | BATTERY CABLE, POSITIVE | 785063 | 1 | 785063-Online |

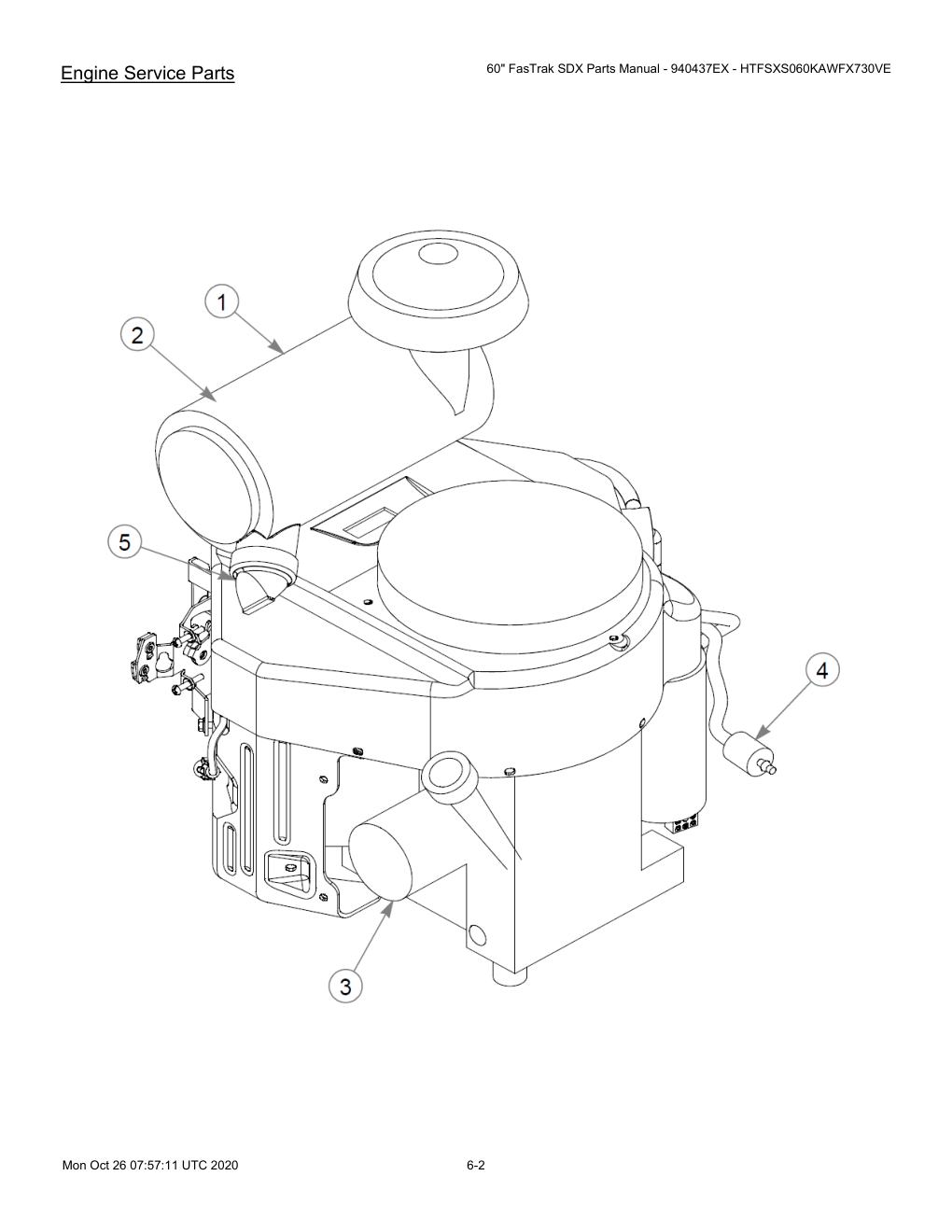

Engine Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER - MAIN | 785261 | 1 | 785261-Online |
| 2 | AIR FILTER - SAFETY | 785279 | 1 | 785279-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |
| 4 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 5 | VALVE, VACUATOR | 763318 | 1 | HT763318-Online |

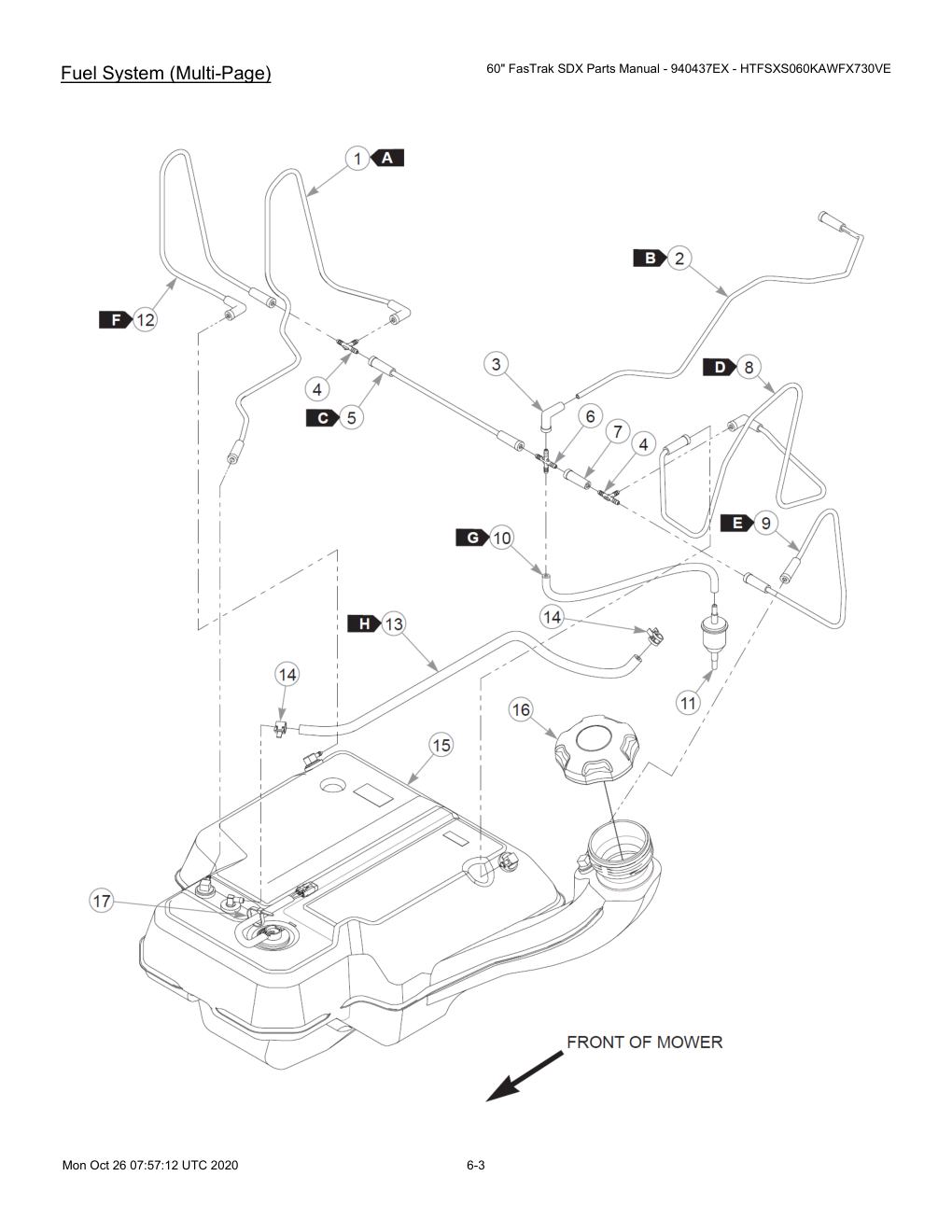

Fuel System (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VAPOR LINE, 3/16 FORMED | 605491 | 1 | 605491-Online |
| 2 | VAPOR LINE, 3/16 FORMED | 605493 | 1 | 605493-Online |
| 3 | BOOT, 3/16 TO 3/16 | 605565 | 1 | 605565-Online |
| 4 | TEE, 3/16" PLASTIC | 605690 | 2 | 605690-Online |
| 5 | VAPOR LINE, 3/16 FORMED | 605535 | 1 | 605535-Online |
| 6 | CROSS, 3/16" PLASTIC | 605425 | 1 | 605425-Online |
| 7 | BOOT, 3/16 TO 3/16 | 605564 | 1 | 605564-Online |
| 8 | VAPOR LINE, 3/16 FORMED | 605534 | 1 | 605534-Online |
| 9 | VAPOR LINE, 3/16 FORMED | 605492 | 1 | 605492-Online |
| 10 | VAPOR LINE, 3/16" | 603326 | 12" | 603326-Online |
| 11 | FILTER, VAPOR SYSTEM | 604323 | 1 | 604323-Online |
| 12 | VAPOR LINE, 3/16 FORMED | 605533 | 1 | 605533-Online |
| 13 | FUEL LINE, 1/4" | 015818 | 23" | HT015818-Online |
| 14 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 15 | FUEL TANK ASSY | 607667 | 1 | 607667-Online |
| 16 | CAP, 3.5" RATCHETING GAS | 603807 | 1 | 603807-Online |
| 17 | WIRE TIE, SMALL/SHORT | 000331 | 10 | 000331-Online |
| 18 | GM 1.12X1.75X1.37X.12 | 706531 | 2 | 706531-Online |
| 19 | MOUNT, PUSH BUTTON | 604307 | 3 | 604307-Online |
| 20 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 21 | CB .250-20 X .625 ZN | 601503 | 2 | 601503-Online |
| 22 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 23 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 24 | TANK NECK SUPPORT | 124348-1 | 1 | 124348-1-Online |
| 25 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 26 | ISOLATOR | 605542 | 1 | 605542-Online |
| 27 | NT .312-18FLKG5 | 016832 | 1 | 016832-Online |
| 28 | WIRE TIE, | 602725 | 2 | 602725-Online |

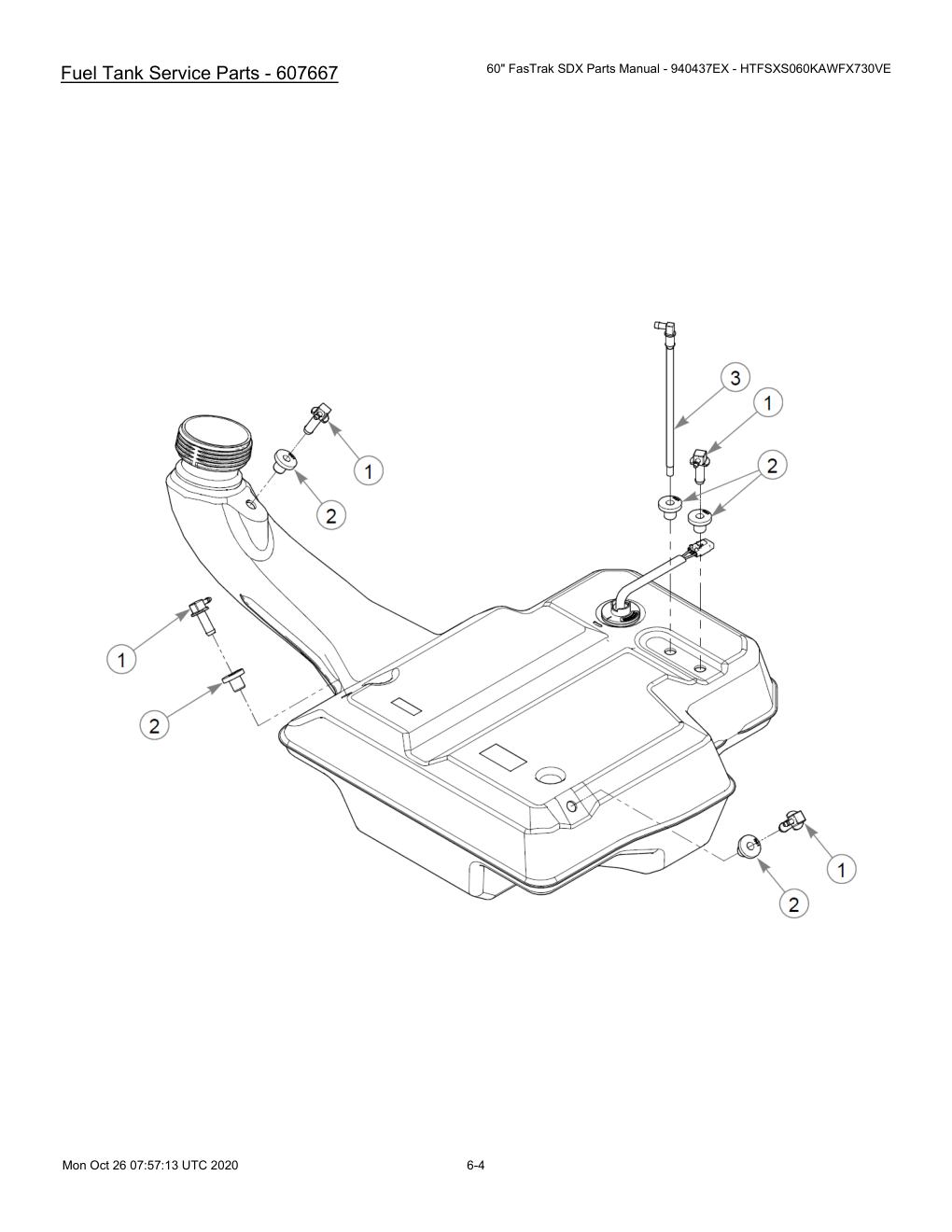

Fuel Tank Service Parts - 607667
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC KIT, VENT FITTING | 604287K | 3 | 604287K-Online |
| 2 | SVC KIT, GROMMET | 604200K | 5 | 604200K-Online |
| 3 | SVC KIT, SUCTION HOSE | 605126K | 1 | 605126K-Online |

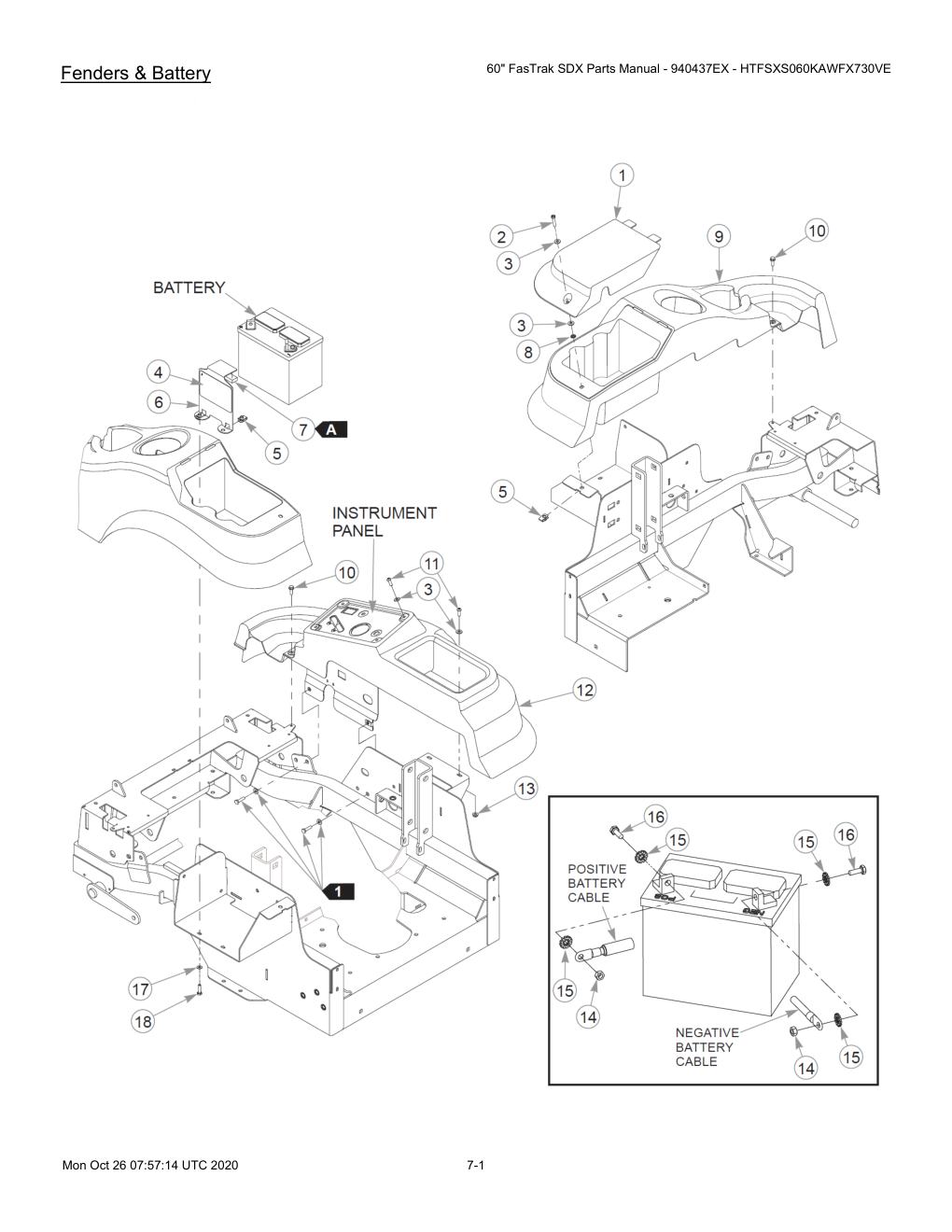

Fenders & Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FENDER LID | 605558 | 1 | 605558-Online |
| 2 | CS .250-20 X 1.25 HX | 605627 | 1 | 605627-Online |
| 3 | FW 0.281X.63X.07 ZB | 605628 | 8 | 605628-Online |
| 4 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 5 | CN .250-20X .150 MAX THK | 601982 | 3 | 601982-Online |
| 6 | BATTERY HOLD DOWN | 552858 | 1 | 552858-Online |
| 7 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 2.5" | 713198-Online |
| 8 | UNTHREADED PN 0.250 ID | 605629 | 1 | 605629-Online |
| 9 | LH FENDER | 605522 | 1 | 605522-Online |
| 10 | CS .250-20 X .75 HX FLG | 604324 | 2 | 604324-Online |
| 11 | CS .250-20X0.75 BH TX BZ | 605473 | 6 | 605473-Online |
| 12 | RH FENDER | 605521 | 1 | 605521-Online |
| 13 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 14 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 15 | LW .250 INTEXT ZN | 029868 | 4 | 029868-Online |
| 16 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 17 | FW .250SAE | 017079 | 2 | 017079-Online |
| 18 | CS .250-20X1.000HXG5 | 056077 | 2 | 056077-Online |
Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 786657 | 1 | HT786657-Online |
| 2 | GAUGE, SING NEEDLE 12V | 607452 | 1 | 607452-Online |
| 3 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 6 | DECAL, INST PANEL | 605605 | 1 | 605605-Online |
| 7 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 5 | 601098-Online |
| 9 | RIVET NUT, 1/4-20 THREA | 808477 | 4 | 808477-Online |
| 10 | INSTR PANEL (W/DECAL) | 552854 | 1 | 552854-Online |
| 11 | CABLE, THROTTLE | 778365 | 1 | HT778365-Online |
| 12 | FW 0.219X.50X.05 ZN | 704932 | 2 | HT704932-Online |
| 13 | NT #10-24 HX NL ZN | 059832 | 5 | 059832-Online |
| 14 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 15 | WIRE TIE, SMALL/SHORT | 000331 | 7 | 000331-Online |
| 16 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 17 | CS .250-20X1.000HXG5 | 056077 | 2 | 056077-Online |
| 18 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 19 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 20 | HOSE CLAMP 1" (FS) | 045088 | 2 | 045088-Online |
| 21 | CN .375-16x.200 MAX THK | 601758 | 2 | 601758-Online |
| 22 | WIRE HARNESS, FSD/SMP | 605458 | 1 | 605458-Online |
| 23 | RELAY, SEALED W/BRACKET | 601053 | 3 | HT601053-Online |
| 24 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
| 25 | HOLDER, FUSE | 601047 | 1 | HT601047-Online |
Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" SERVICE DECK | 554865 | 1 | 554865-Online |
| 2 | 0.25-20 X 0.625 | 607583 | 4 | 607583-Online |
| 3 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 4 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 5 | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 6 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 2 | BELT GUIDE, 4.00" IDLER | 125847-4 | 1 | HT125847-4-Online |
| 3 | FW 0.531 X 0.90 X 0.134 | 607428 | 1 | 607428-Online |
| 4 | DUST SHIELD | 605467 | 3 | 605467-Online |
| 5 | 4" IDLER PULLEY | 605512 | 1 | 605512-Online |
| 6 | SLED, TENSIONER | 121052 | 1 | HT121052-Online |
| 7 | SPRING, DECK IDLER | 607616 | 1 | 607616-Online |
| 8 | NT .312-18 HXNL JAM G2ZN | 604251 | 7 | 604251-Online |
| 9 | FW .340X.68X.04 ZN | 604252 | 6 | 604252-Online |
| 10 | IDLER SLIDE, EXTRUDED | 604790 | 2 | 604790-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | CS .500-13X1.25 HX G5 ZN | 705954 | 3 | HT705954-Online |
| 13 | FW .515X1.65X.12 HD ZN | 798603 | 3 | 798603-Online |
| 14 | SPINDLE SPACER | 604777 | 3 | 604777-Online |
| 15 | PULLEY, DECK DRIVE B-SEC | 604704 | 3 | 604704-Online |
| 16 | FW 1.030X1.50X.13 HD ZN | 045765 | 3 | HT045765-Online |
| 17 | DUST SHIELD | 606362 | 3 | 606362-Online |
| 18 | NT .375-16 FL NY GF | 604515 | 12 | 604515-Online |
| 19 | FW .531X.812X.089 HD | 604486 | 2 | 604486-Online |
| 20 | IDLER PULLEY, 5.00" | 607479 | 2 | 607479-Online |
| 21 | BASE, IDLER PULLEY MOUNT | 605465 | 1 | 605465-Online |
| 22 | FW .440X1.00X0.08 ZN | 017129 | 1 | 017129-Online |
| 23 | FW .73X2.25X.31 ZN | 605508 | 1 | 605508-Online |
| 24 | BLADE SPINDLE ASSY | 607208 | 3 | 607208-Online |
| 25 | CB .312-18X .750 FUL ZN | 016253 | 7 | 016253-Online |
| 26 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |

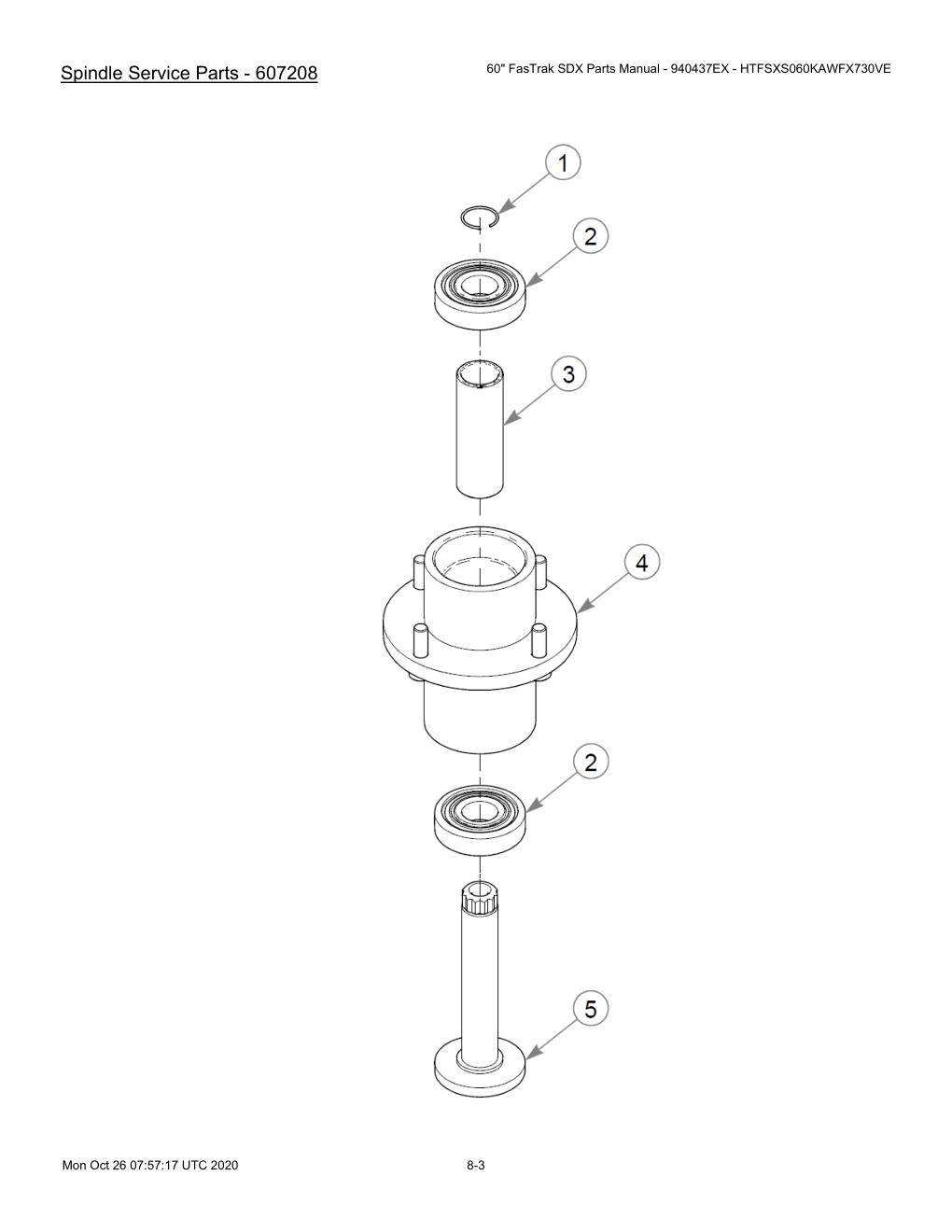

Spindle Service Parts - 607208
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RING, BLADE SPINDLE RET | 783548 | 1 | HT783548-Online |
| 2 | BLADE SPINDLE BEARING | 607275 | 2 | 607275-Online |
| 3 | BLADE SPINDLE SPACER | 607210 | 1 | 607210-Online |
| 4 | SVC, SPINDLE HOUSING | 607417 | 1 | 607417-Online |
| 5 | BLADE SPINDLE SHAFT | 607211 | 1 | 607211-Online |
Deck Belt, Discharge Chute, Pulley Covers & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, PULLEY COVER RH | 553064 | 1 | HT553064-Online |
| 2 | .25-20 FEMALE KNOB | 607186 | 4 | 607186-Online |
| 3 | SVC, PULLEY COVER LH | 553065 | 1 | HT553065-Online |
| 4 | DISCHARGE CHUTE | 605469 | 1 | 605469-Online |
| 5 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 6 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 7 | DECK BELT | 605510 | 1 | 605510-Online |
| 8 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 9 | WHEEL, ANTI-SCALP | 604780 | 2 | 604780-Online |
| 10 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
| 11 | PULLER W/A 14.53" C/C | 113717 | 2 | HT113717-Online |
| 12 | CS .500-13X6.500HXG5 | 042630 | 2 | HT042630-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 14 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 15 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 16 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 17 | CB .50-13 X 4.50 STD ZN | 602339 | 2 | 602339-Online |
| 18 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 19 | DECK BUMPER | 605376 | 1 | 605376-Online |
| 20 | FW 0.344X1.0X0.06 ZN | 079210 | 2 | 079210-Online |
| 21 | NT .312-18 HXNL JAM G2ZN | 604251 | 2 | 604251-Online |
| 22 | BLADE, 20.5"-H-F-CW | 606253 | 3 | 606253-Online |
| Not Shown | BLADE, F20.50"-L-F-CW | 600901 | 3 | HT600901-Online |
| Not Shown | BLADE,20.50"-L-F-CW | 793794 | 3 | HT793794-Online |
| Not Shown | BLADE,20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 3 | HT794230-Online |
| Not Shown | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 23 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 24 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |

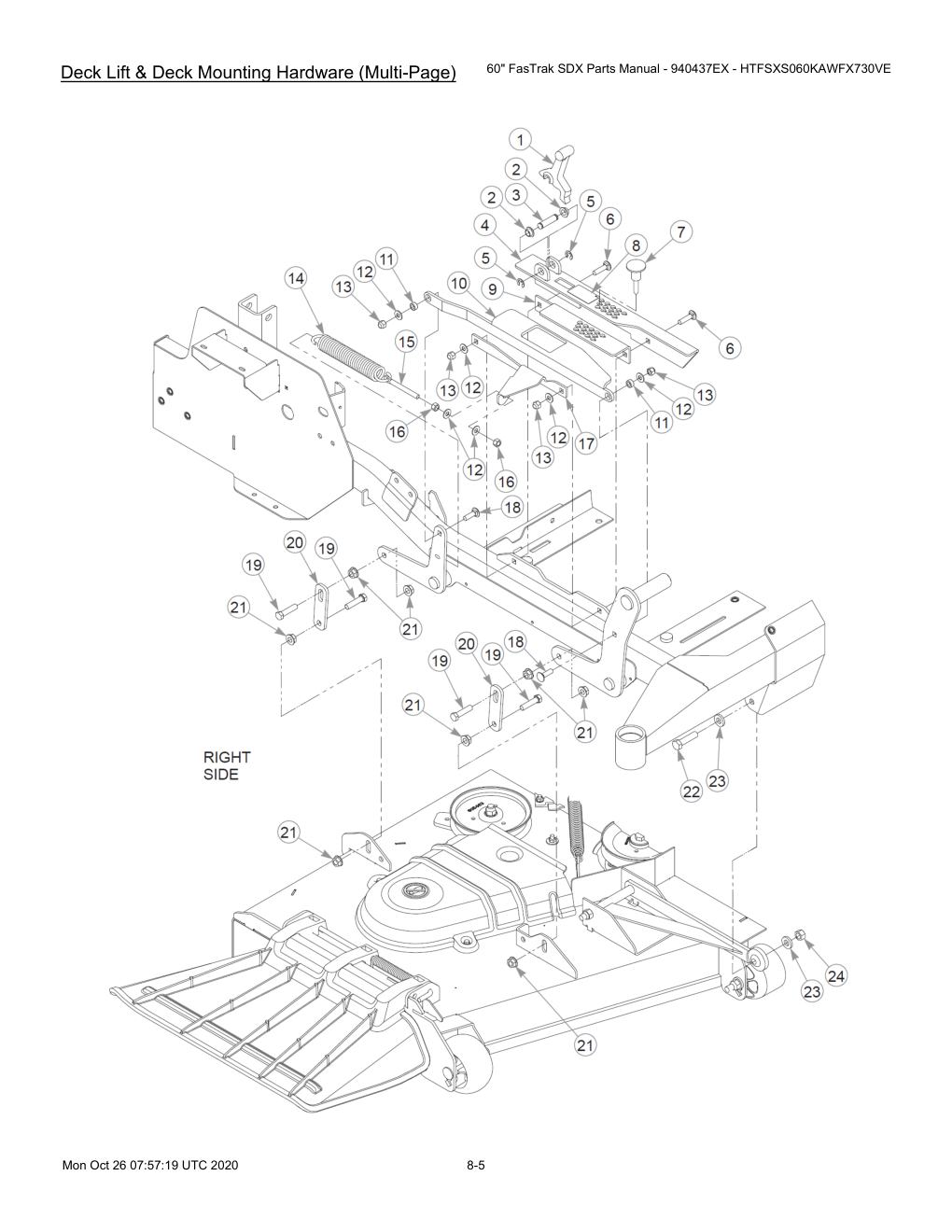

Deck Lift & Deck Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TRANSPORT LATCH | 605466 | 1 | 605466-Online |
| 2 | BUSHING,IGUS#0810 (FS) | 768259 | 2 | HT768259-Online |
| 3 | CE .500X2.00X1.63 | 605470 | 1 | 605470-Online |
| 4 | INDICATOR PLATE | 552859 | 1 | 552859-Online |
| 5 | CLIP E,(1/2").80X.396X. | 793059 | 2 | 793059-Online |
| 6 | CB .375-16X 1.50 STD G5 | 710194 | 2 | 710194-Online |
| 7 | PIN, .375X1.62 MAGNETIC | 607039 | 1 | 607039-Online |
| 8 | DECAL, DECK HEIGHT | 605538 | 1 | 605538-Online |
| 9 | CUT HEIGHT BRKT, INNER | 119970 | 1 | 119970-Online |
| 10 | INDICATOR BRACKET | 119969 | 1 | 119969-Online |
| 11 | SPACER, DECK LIFT LINK | 118900 | 2 | HT118900-Online |
| 12 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 13 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 14 | TENSION SPRING-PLATED | 008938 | 1 | HT008938-Online |
| 15 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 16 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 17 | ASSIST SPRING BRKT | 120779 | 1 | 120779-Online |
| 18 | CB .375-16X1.250 G5 ZN | 603113 | 2 | 603113-Online |
| 19 | CS .437-14X1.750HXG5 | 055749 | 8 | HT055749-Online |
| 20 | DECK LIFT LINK | 124354-1 | 4 | 124354-1-Online |
| 21 | NT .437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 22 | CS .500-13X2.000 FUL HX | 078949 | 2 | HT078949-Online |
| 23 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 24 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
Seat, Footrest & Floor Pan (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, SEATS INC 1110 | 608048 | 1 | 608048-Online |
| 2 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 11 | HT767954-Online |
| 4 | HYDRO GUARD, RH | 123688-1 | 1 | 123688-1-Online |
| 5 | HYDRO GUARD, LH | 123689-1 | 1 | 123689-1-Online |
| 6 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 7 | MOUNT, PUSH BUTTON | 604307 | 1 | 604307-Online |
| 8 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 9 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 10 | DECAL, HOT & HYD OIL | 779280 | 1 | 779280-Online |
| 11 | SVC SEAT PAN | 554679 | 1 | 554679-Online |
| 12 | DECAL, LEVEL FUEL BLOWM | 605782 | 1 | 605782-Online |
| 13 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 14 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 15 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 16 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 17 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 18 | SEAT STOP | 124558-4 | 1 | 124558-4-Online |
| 19 | CS .375-16X1.25 HX G5 ZN | 052860 | 4 | HT052860-Online |
| 20 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 15" | 713198-Online |
| 21 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 22 | SEAT SUPPORT (WITH TAPE) | 552848 | 1 | 552848-Online |
| 23 | FLOOR PAN | 124567-1 | 1 | 124567-1-Online |
| 24 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 25 | SVC FOOT REST | 554682 | 1 | 554682-Online |
| 26 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 27 | CS .375-16X0.75 HXF G5ZN | 029629 | 2 | HT029629-Online |
| 28 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 29 | SPRING, COMPRESSION | 607046 | 2 | 607046-Online |
| 30 | CS .312-18X1.500HXG5 | 756270 | 2 | 756270-Online |
| 31 | LATCH, SEAT | 124572-4 | 1 | 124572-4-Online |
| 32 | JUMPER HARNESS | 607088 | 1 | 607088-Online |

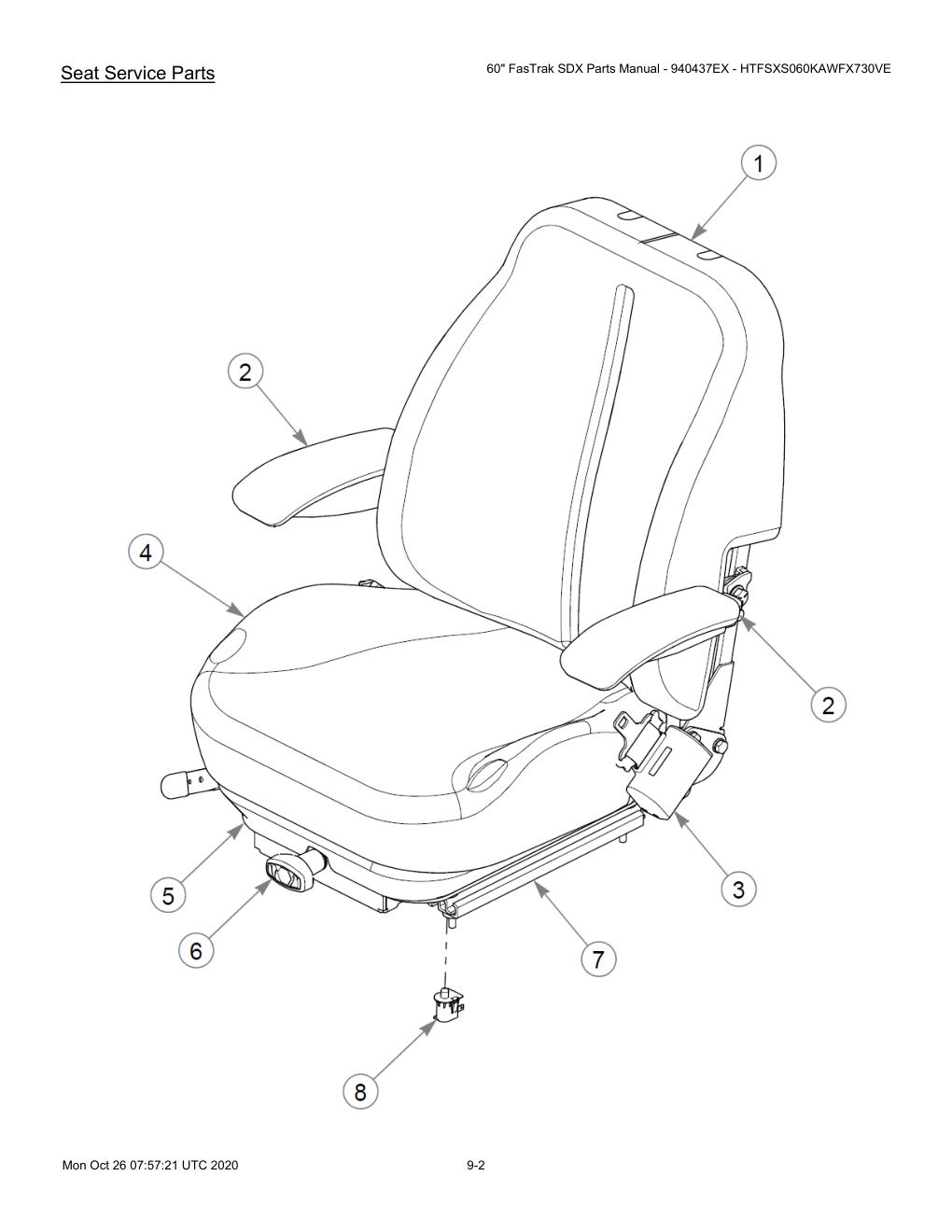

Seat Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, MID BACK COVER | 608051 | 1 | 608051-Online |
| 2 | SVC, ARMREST SET | 606080 | 1 | 606080-Online |
| 3 | SVC, SEAT BELT KIT | 607461 | 1 | 607461-Online |
| 4 | SVC, SEAT CUSHION COVER | 608049 | 1 | 608049-Online |
| 5 | SVC, RUBBER BELLOW | 607460 | 1 | 607460-Online |
| 6 | SVC RIDE ADJUST KNOB | 607214 | 1 | 607214-Online |
| 7 | SVC, SEAT TRACK KIT | 607459 | 1 | 607459-Online |
| 8 | SVC, OPS | 606082 | 1 | 606082-Online |

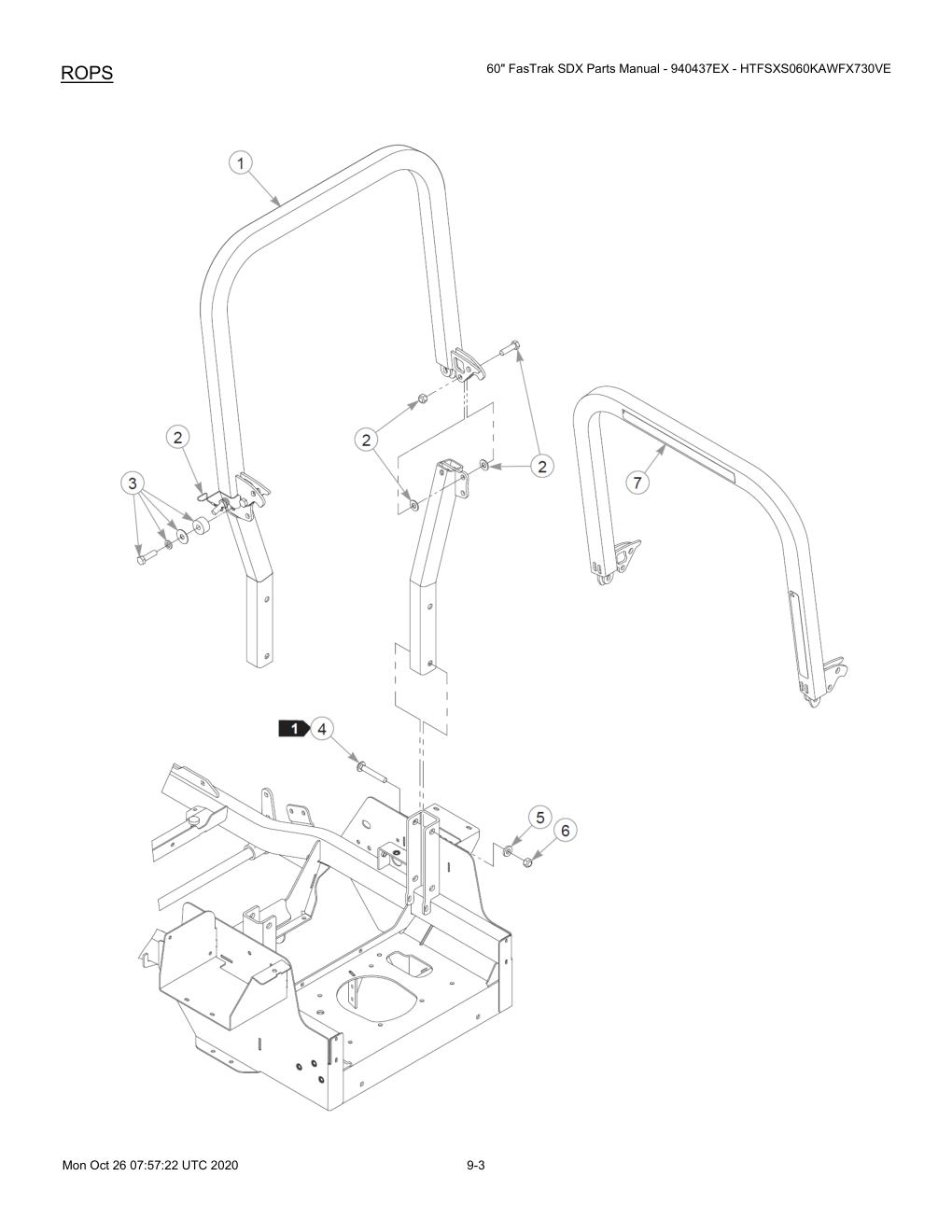

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS ASSY | 605479 | 1 | 605479-Online |
| 2 | KIT, ROPS HARDWARE | 605044 | 1 | 605044-Online |
| 3 | KIT, POLY STOP (PAIR) | 605646 | 2 | 605646-Online |
| 4 | CB .50-13 X 3.25 GR5 | 607008 | 4 | 607008-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 6 | NT .500-13UNTG8 | 023317 | 4 | 023317-Online |
| 7 | DECAL, COMMERCIAL DUTY | 605691 | 1 | 605691-Online |
