Illustrated Parts List
48" FasTrak Parts Manual - 941724EX - HTFSTS048KAWFT691VE
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 941724EXModel: 608512Model: 608513Model: 607362Model: 607363Model: 606745Model: 607208Model: 608047SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

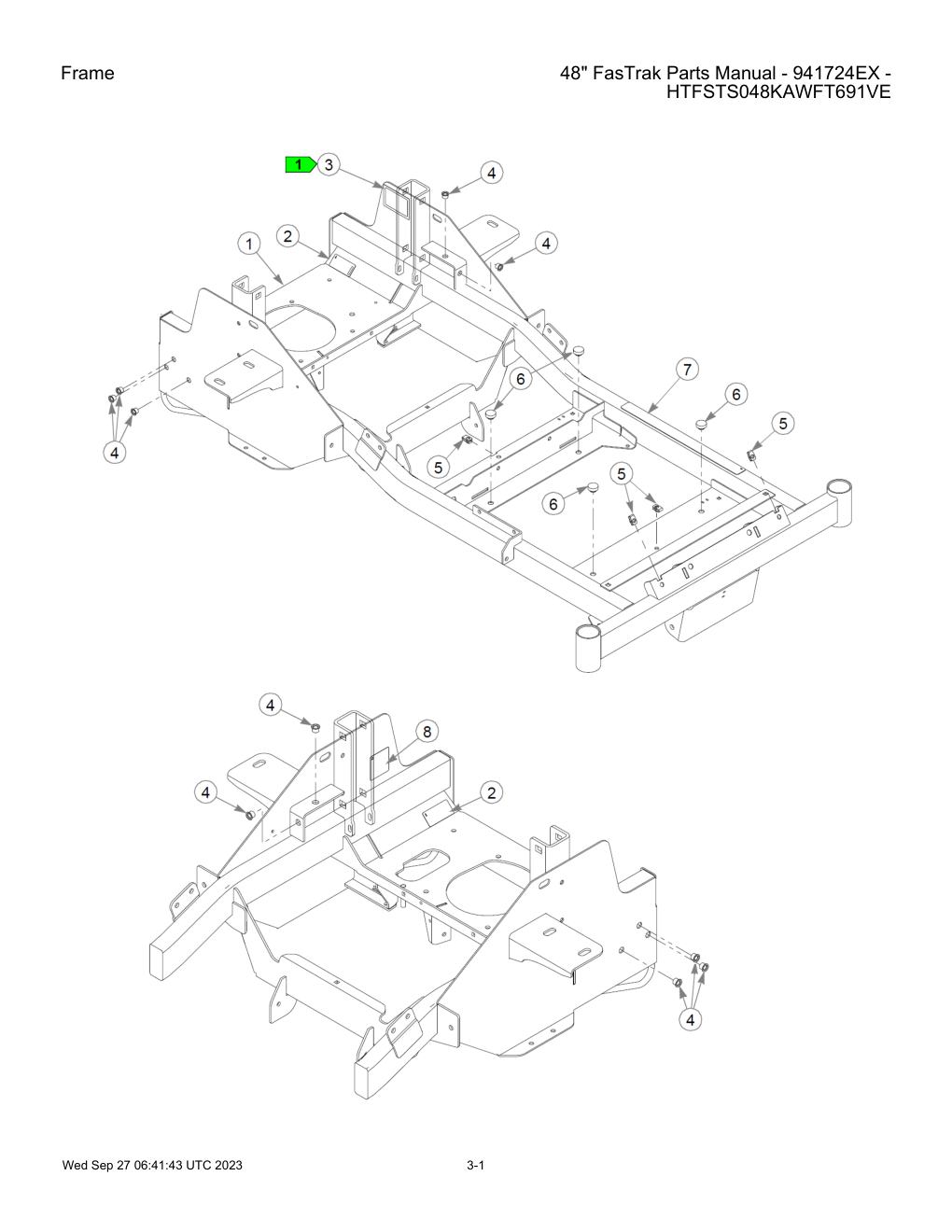

FrameEngine Guard & Hitch - Prior to S/N 21123313Engine Guard & Hitch - S/N 21123313 & HigherHydraulic Transmissions & Drive Belt (Multi-Transmission Service Parts - 608512 & 608513Steering & Brake (Multi-Page)Steering Cover AssemblySteering Box Assembly - 607362 & 607363Wheels & TiresFront Wheel AssemblyFront Wheel Service Parts - 606745Drive Wheel AssemblyEngine, Muffler & Clutch (Multi-Page)Engine Service PartsFuel System (Multi-Page)Fuel Tank Service PartsInstrument Panel & Wire HarnessBatteryService DeckDeck Pulleys & SpindlesSpindle Service Parts - 607208Deck, Deck Belt & BladesDeck, Deck Belt & BladesDeck Lift (Multi-Page) - PRIOR TO 21094865Deck Lift (Multi-Page) - 21094865 & HIGHERSeat & Footrest (Multi-Page)Seat & Footrest (Multi-Page)Seat Service Parts - 608047ROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC FRAME | 556146 | 1 | 556146-Online |
| 2 | DECAL, HOT | 602041 | 2 | 602041-Online |
| 3 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 4 | RIVET NUT, 3/8-16 THREA | 808493 | 10 | 808493-Online |
| 5 | CN .250-20X .150 MAX THK | 601982 | 4 | 601982-Online |
| 6 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | DECAL, DBA 115 ISO | 607782 | 1 | 607782-Online |
Engine Guard & Hitch - Prior to S/N 21123313
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HITCH PLATE | 127757-6 | 1 | 127757-6-Online |
| 2 | CB .375-16X 1.00 G5 ZN | 025395 | 10 | HT025395-Online |
| 3 | NT .375-16HXG5 | 054502 | 10 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 5 | GUARD, RH, YELLOW | 127754-1 | 1 | 127754-1-Online |
| 6 | ENGINE GUARD, BACKER | 127787-6 | 1 | 127787-6-Online |
| 7 | SVC, ENG. GUARD CENTER | 556143 | 1 | 556143-Online |
| 8 | DECAL, "H" LOGO | 604770 | 1 | 604770-Online |
| 9 | GUARD, LH, YELLOW | 127755-1 | 1 | 127755-1-Online |
| 10 | CS .375-16X1.25 HX G5 ZN | 052860 | 6 | HT052860-Online |
Engine Guard & Hitch - S/N 21123313 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 2 | BACKER H LOGO | 128420-6 | 1 | 128420-6-Online |
| 3 | NT .375-16HXG5 | 054502 | 6 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 5 | HITCH PLATE | 128419-6 | 1 | 128419-6-Online |
| 6 | MUFFLER SHIELD | 128418-6 | 1 | 128418-6-Online |
| 7 | ENGINE GUARD YELLOW | 128416-1 | 1 | 128416-1-Online |
| 8 | LOGO PLATE | 128417-6 | 1 | 128417-6-Online |
| 9 | FW 0.281X.63X.07 ZB | 605628 | 2 | 605628-Online |
| 10 | CS .250-20 X .625 BH TX | 608598 | 2 | 608598-Online |
| 11 | CB .375-16X 1.00 G5 ZN | 025395 | 6 | HT025395-Online |
| 12 | CS .375-16X1.25 HX G5 ZN | 052860 | 6 | HT052860-Online |

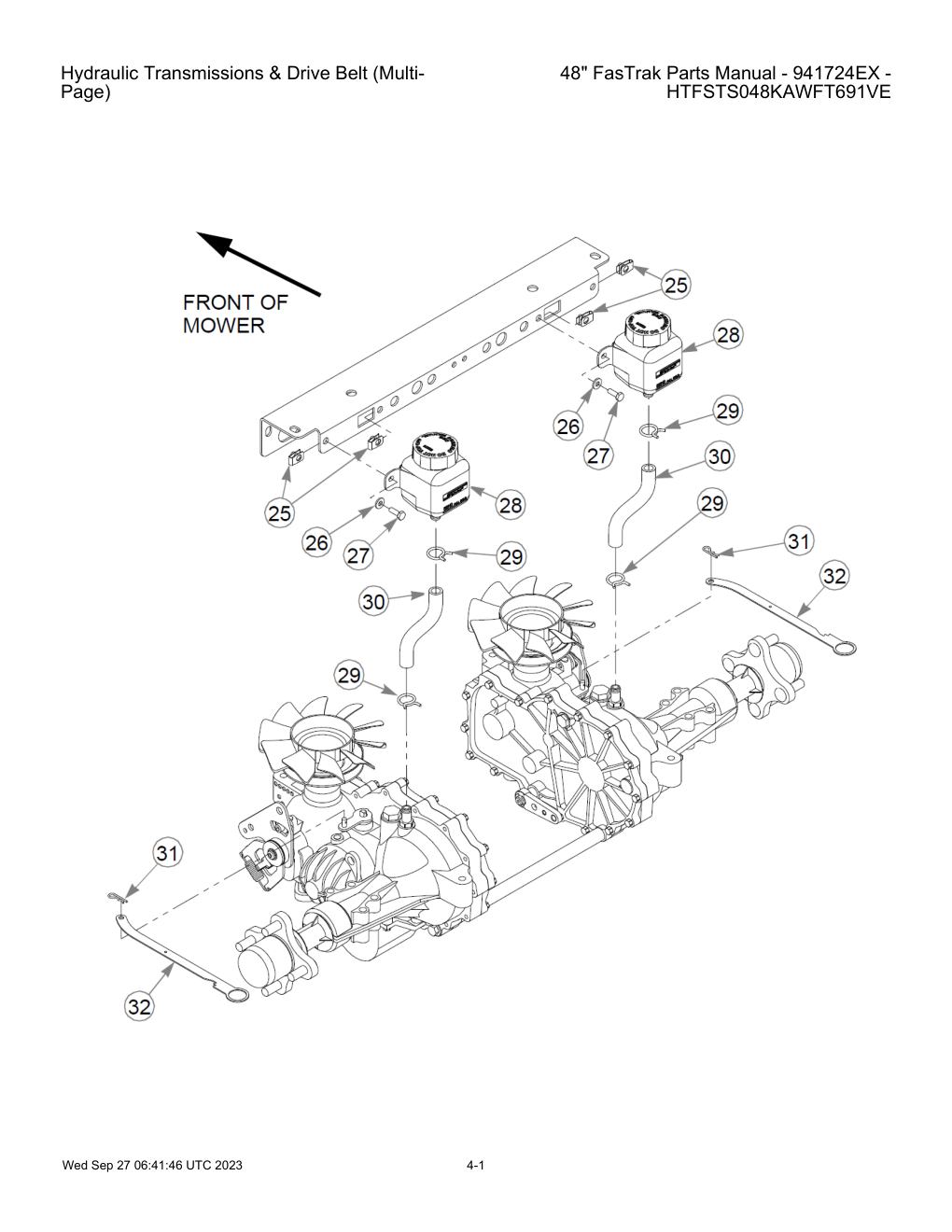

Hydraulic Transmissions & Drive Belt (Multi-
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 2 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 3 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 4 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 5 | FW .510X2.15X.19 ZN | 344267 | 1 | HT344267-Online |
| 6 | DRIVE BELT | 605468 | 1 | 605468-Online |
| 7 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
| 8 | FW 0.406X1.00X.12 HD ZN | 712919 | 3 | HT712919-Online |
| 9 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 10 | BUSHING | 605481 | 1 | 605481-Online |
| 11 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 12 | BUSHING, IDLER PIVOT | 602880 | 1 | 602880-Online |
| 13 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 14 | PULLEY, IDLER | 607525 | 1 | 607525-Online |
| 15 | TENSIONER, CAST | 608281 | 1 | 608281-Online |
| 16 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 17 | BUSHING, IDLER PIVOT | 602879 | 1 | 602879-Online |
| 18 | FW .531 x 1.063 x .175 | 767962 | 1 | HT767962-Online |
| 19 | CS .500-13X5.000HXG5 | 051151 | 1 | HT051151-Online |
| 20 | TRANS, ZT3200 20.69 | 608513 | 1 | 608513-Online |
| 21 | TRANS, ZT3200 20.69 | 608512 | 1 | 608512-Online |
| 22 | NT .312-18NLG5 | 058776 | 8 | HT058776-Online |
| 23 | CS .375-16X2.250HXG8 | 608241 | 2 | 608241-Online |
| 24 | ZT SPACER TUBE | 600987 | 1 | HT600987-Online |
| 25 | CN .250-20X .150 MAX THK | 601982 | 4 | 601982-Online |
| 26 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 27 | CS .250-20X0.75 HX G5 ZN | 055939 | 4 | 055939-Online |
| 28 | RESERVOIR, SINGLE FTNG | 605217 | 2 | 605217-Online |
| 29 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 30 | OVERFLOW HOSE, FST | 605218 | 2 | 605218-Online |
| 31 | HP0.080X1.190 | 706549 | 2 | HT706549-Online |
| 32 | LINK, TOW VALVE | 120126 | 2 | 120126-Online |

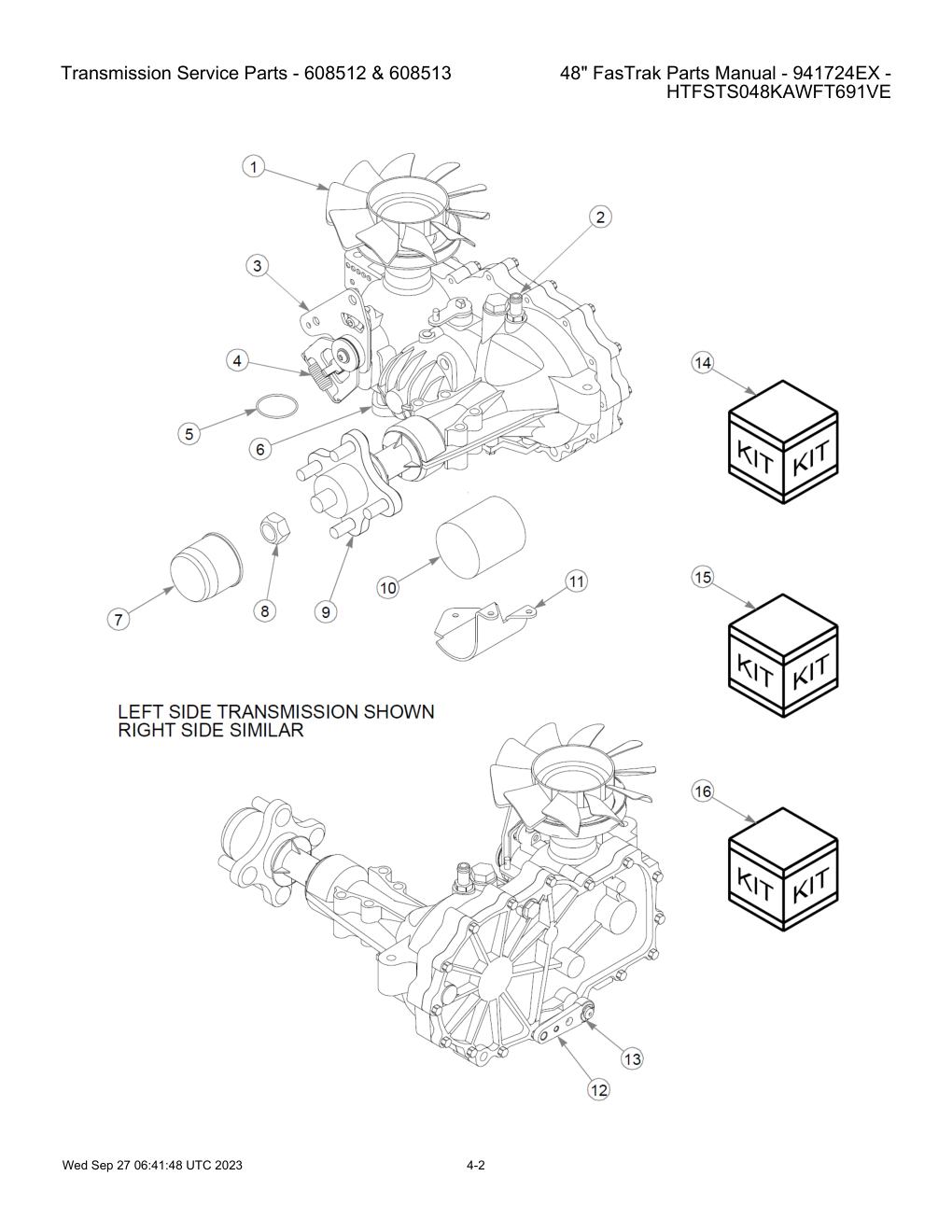

Transmission Service Parts - 608512 & 608513
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN - 7.0" (10 BLADE) | 607728 | 1 | 607728-Online |
| 2 | FITTING, TRANSMISSION | 605608 | 1 | 605608-Online |
| 3 | RTN, LEFT | 605778 | 1 | 605778-Online |
| 3 | RTN, RIGHT | 605779 | 1 | 605779-Online |
| 4 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 5 | O-RING, ZT28/3100 CHARGE | 603223 | 1 | 603223-Online |
| 6 | COVER, ZT3100 CHRG PUMP | 603572 | 1 | 603572-Online |
| 7 | CAP, AXLE LONG | 607111 | 1 | 607111-Online |
| 8 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |
| 9 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 10 | HYDRAULIC OIL FILTER | 600976 | 1 | HT600976-Online |
| 11 | GUARD, TRANS FILTER | 600975 | 1 | HT600975-Online |
| 11 | GUARD, TRANS FILTER | 600974 | 1 | HT600974-Online |
| 12 | ZT2800 BRAKE ARM - 2007 | 601221 | 1 | 601221-Online |
| 13 | CLIP, RETAINING | 600972 | 1 | HT600972-Online |
| 14 | FAN/PULLEY KIT | 601941 | 1 | 601941-Online |
| 15 | OIL RETENSION KIT | 606830 | 1 | 606830-Online |
| 16 | SEAL KIT | 607199 | 1 | 607199-Online |
Steering & Brake (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR W/A, RH | 605383 | 1 | 605383-Online |
| 1 | GRIP, STEERING BAR | 781260 | 1 | 781260-Online |
| 2 | STEERING BAR W/A, LH | 605384 | 1 | 605384-Online |
| 2 | GRIP, STEERING BAR | 781260 | 1 | 781260-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 20 | HT767954-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 8 | HT036244-Online |
| 6 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 7 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 8 | DAMPER | 603983 | 2 | 603983-Online |
| 9 | BALL STUD | 781922 | 2 | 781922-Online |
| 10 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 11 | DECAL, FASTRAK | 608096 | 1 | 608096-Online |
| 12 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 13 | CS .375-16X1.500HXG5 | 080655 | 2 | HT080655-Online |
| 14 | BRAKE ROD ASSEMBLY | 605145 | 2 | 605145-Online |
| 15 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |
| 16 | BRAKE SPRING LINK, RS | 120671 | 1 | 120671-Online |
| 17 | BRAKE SPRING LINK, LS | 120672 | 1 | 120672-Online |
| 18 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 19 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 20 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 21 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 22 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 23 | SPACER, PUMP ARM | 604456 | 2 | 604456-Online |

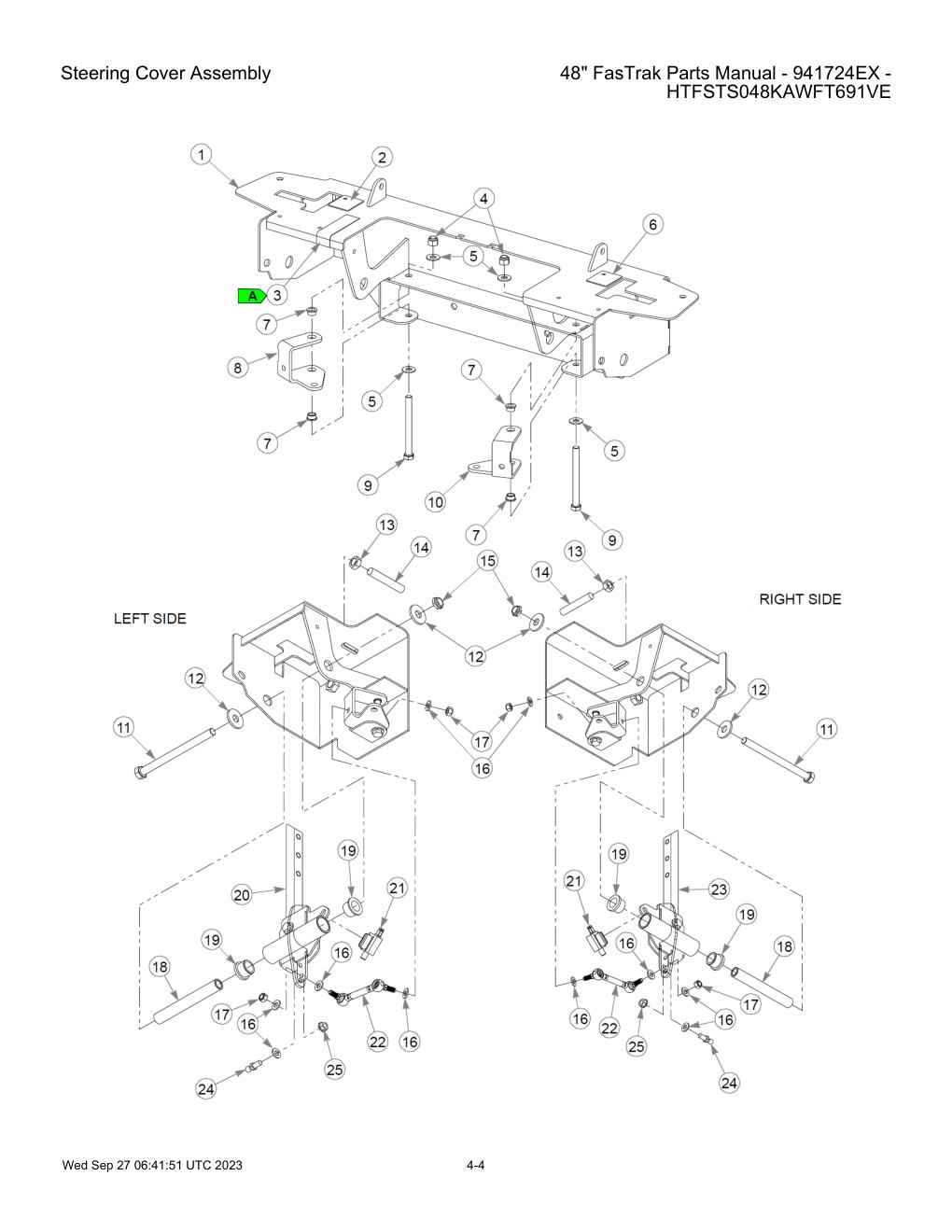

Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC STEERING COVER | 556155 | 1 | 556155-Online |
| 2 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 3 | PROTECTIVE TAPE - 1 FT | 607286P | 1 | 607286P-Online |
| 4 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 6 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 7 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 8 | BRAKE BELL CRANK, LS | 124352-1 | 1 | 124352-1-Online |
| 9 | CS .375-16X4.000HXG5 | 725796 | 2 | 725796-Online |
| 10 | BRAKE BELL CRANK, RS | 124353-1 | 1 | 124353-1-Online |
| 11 | CS .500-13X6.500HXG5 | 042630 | 2 | HT042630-Online |
| 12 | FW 0.531X1.38X.12 ZN | 712976 | 4 | HT712976-Online |
| 13 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 14 | SS .500-13 X 3.0 SH ZN | 608555 | 2 | 608555-Online |
| 15 | NT .500-13 JAM NY LK | 707398 | 2 | HT707398-Online |
| 16 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 17 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 18 | SPACER, STEERING | 119811 | 2 | 119811-Online |
| 19 | BUSHING | 608000 | 4 | HT608000-Online |
| 20 | STEERING BOX S/A, LH | 607363 | 1 | 607363-Online |
| 21 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 22 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 23 | STEERING BOX S/A, RH | 607362 | 1 | 607362-Online |
| 24 | BALL STUD | 781922 | 2 | 781922-Online |
| 25 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |

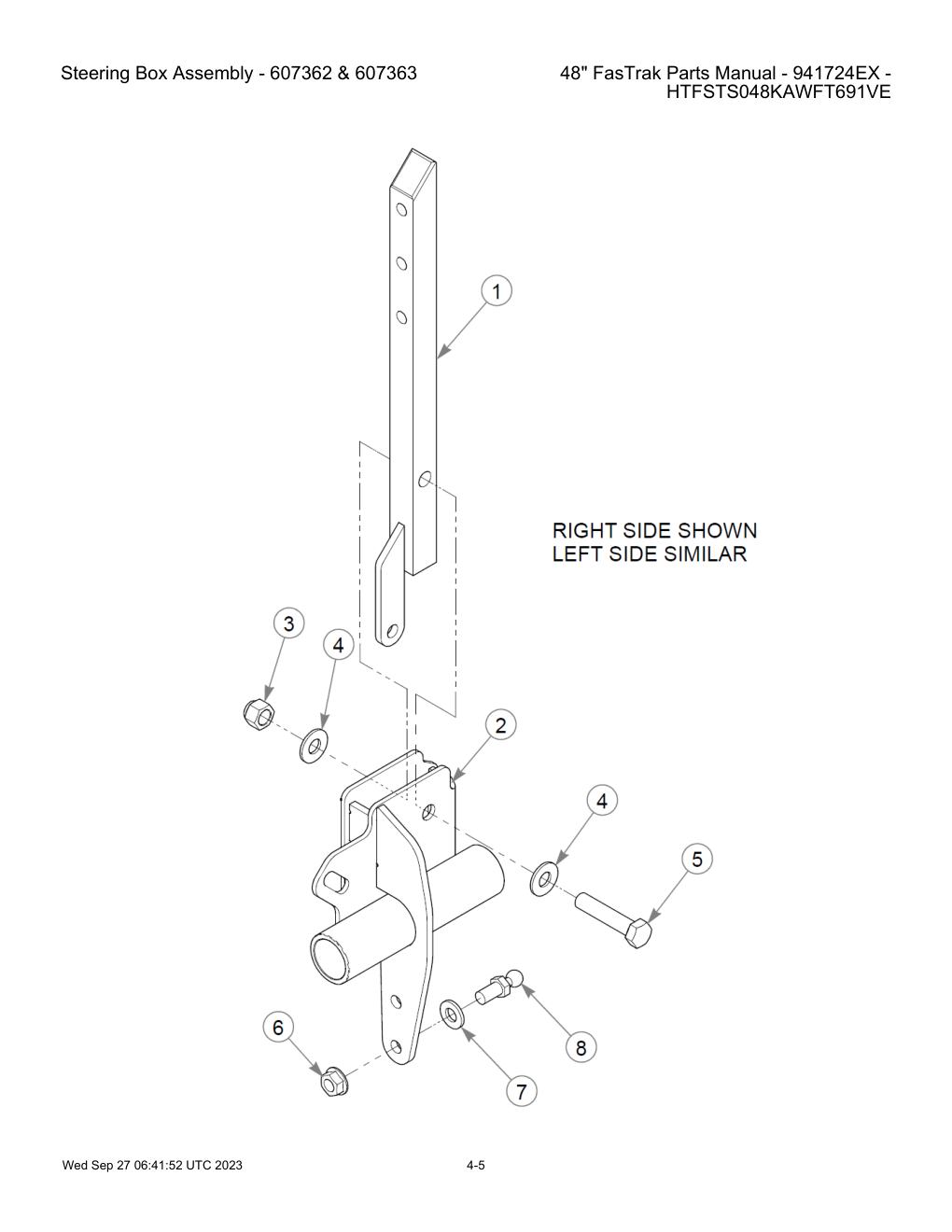

Steering Box Assembly - 607362 & 607363
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEER LEVER W/A | 119807 | 1 | 119807-Online |
| 2 | STEERING BOX S/A, RH | 607362 | 1 | 607362-Online |
| 2 | STEERING BOX S/A, LH | 607363 | 1 | 607363-Online |
| 3 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 5 | CS .375-16X1.750HXG5 | 705178 | 1 | HT705178-Online |
| 6 | NT .312-18FLKG5 | 016832 | 1 | 016832-Online |
| 7 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 8 | BALL STUD | 781922 | 1 | 781922-Online |

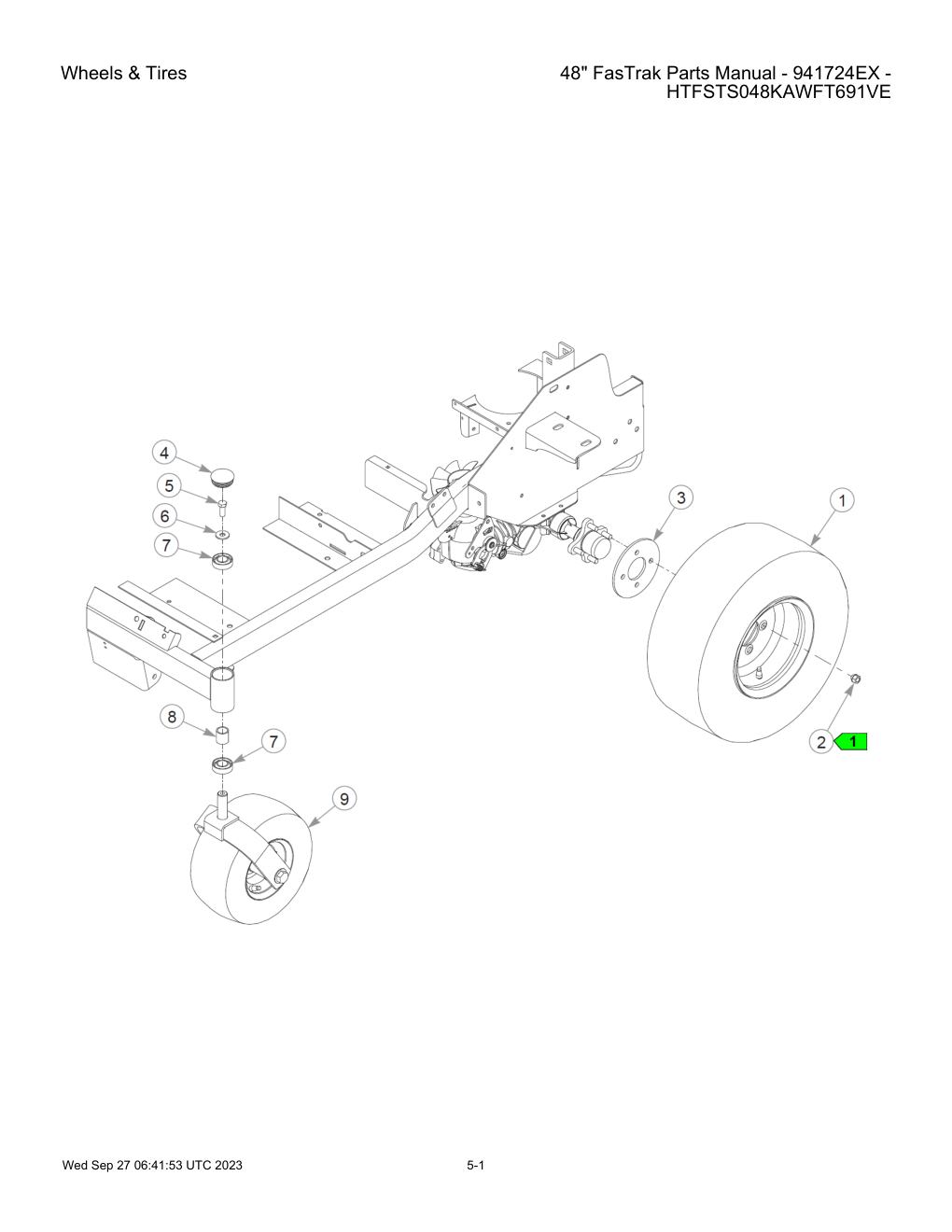

Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 23X9.50-10 BLK | 607817 | 2 | 607817-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | BACKUP PLATE, WHEEL | 111875-1 | 2 | 111875-1-Online |
| 4 | BEARING CAP | 607831 | 2 | 607831-Online |
| 5 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 6 | FW 0.531X1.38X.12 ZN | 712976 | 2 | HT712976-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |
| 9 | REFER TO "FRONT WHEEL ASSEMBLY" | N/A | 2 | No SKU |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK W/A | 604691 | 1 | 604691-Online |
| 2 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZN | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZN | 041475 | 1 | HT041475-Online |
| 5 | TIR/WHL 13X6.50-6 BLK | 606745 | 1 | 606745-Online |

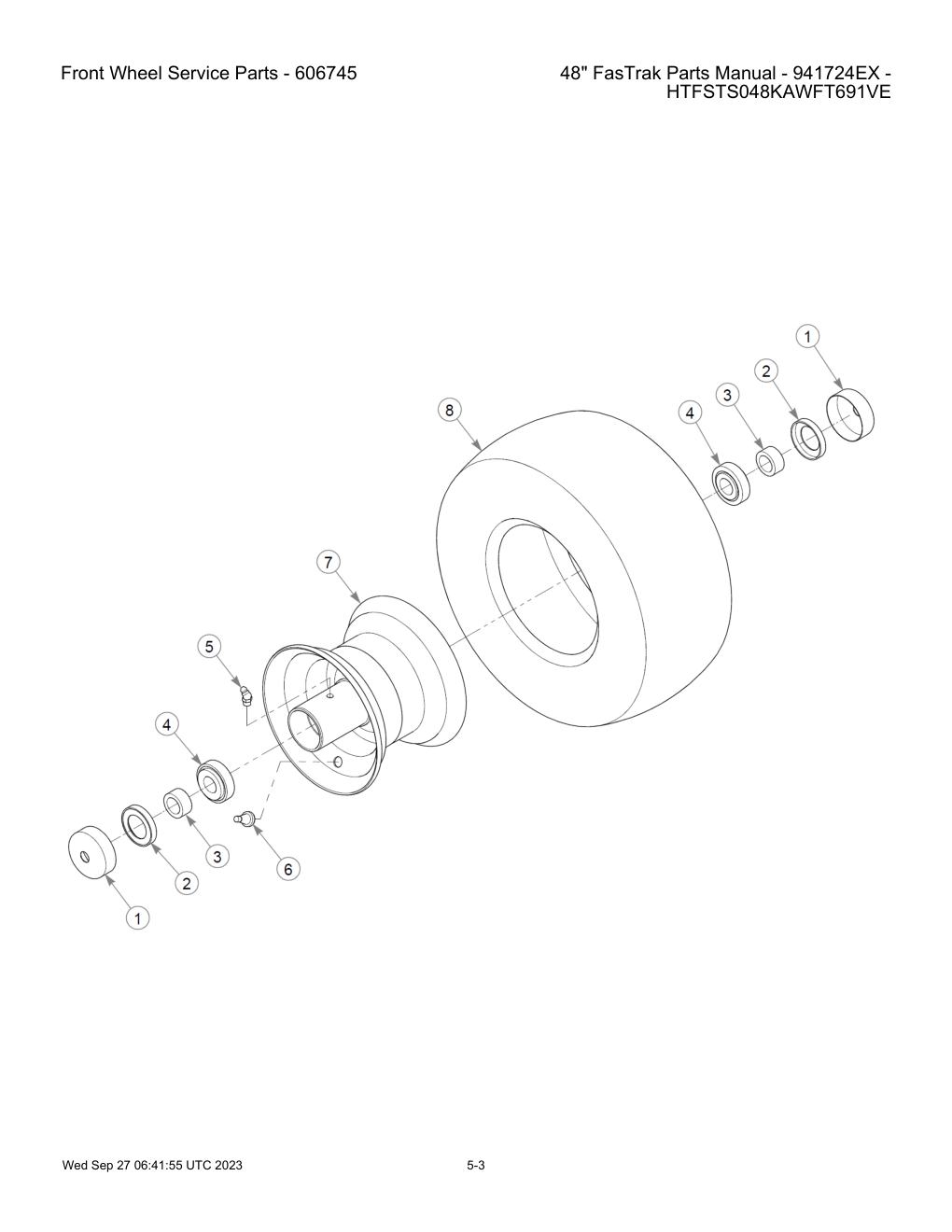

Front Wheel Service Parts - 606745
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DUST CAP, 0.752 ID | 606815 | 2 | 606815-Online |
| 2 | SEAL | 606780 | 2 | 606780-Online |
| 3 | SPACER, 0.531 | 606778 | 2 | 606778-Online |
| 4 | BEARING, TAPERED ROLLER | 606753 | 2 | 606753-Online |
| 5 | GREASE FITTING, M8X1.0 | 606126 | 1 | 606126-Online |
| 6 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 7 | WHL 6X4.50 BLK | 606752 | 1 | 606752-Online |
| 8 | TIR 13X6.50-6 B4R SMTH | 604843 | 1 | 604843-Online |

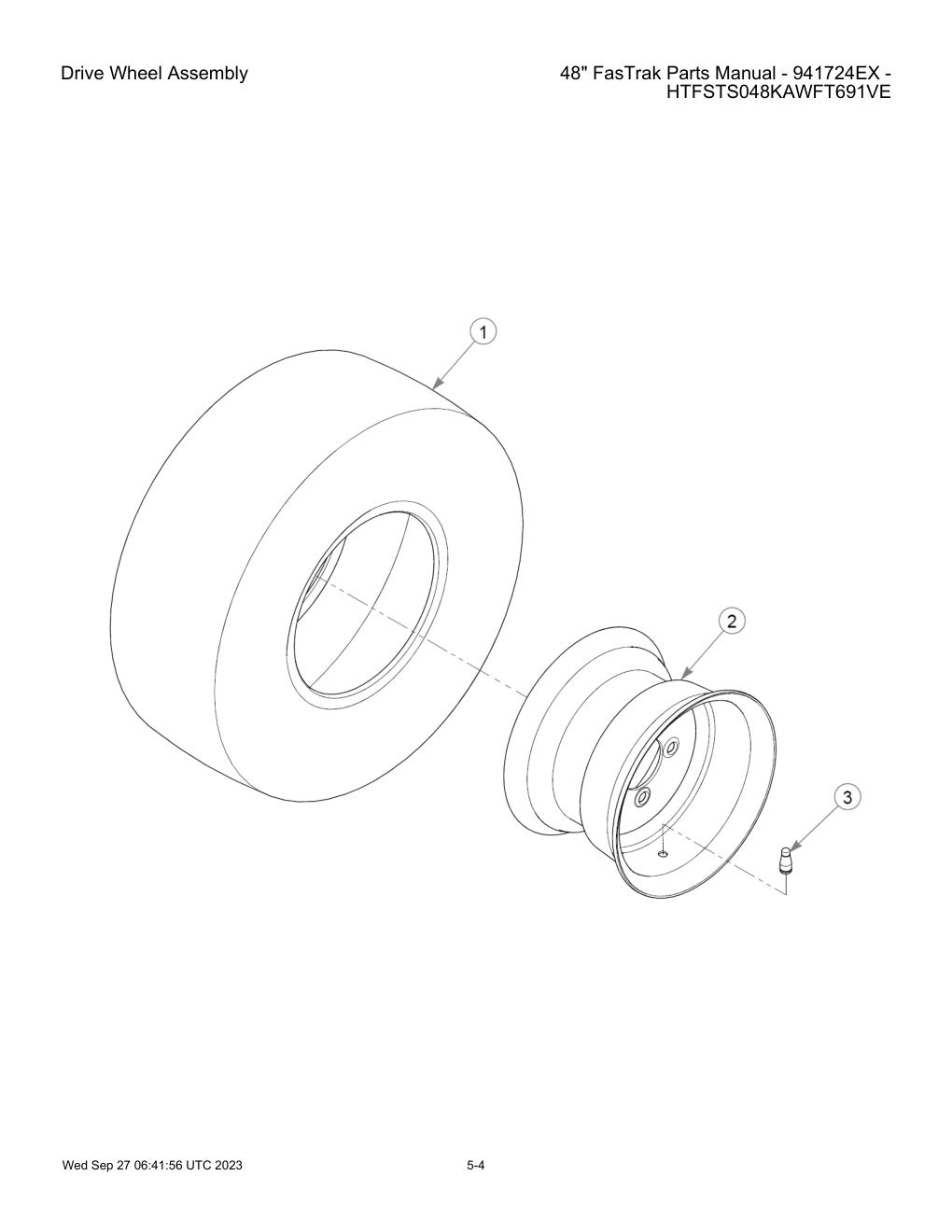

Drive Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 23X9.50-10 B4R BIG BITE TIRE | 607801 | 1 | 607801-Online |
| 2 | WHL 10X7.00 4X4.0 BLK | 605151 | 1 | 605151-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

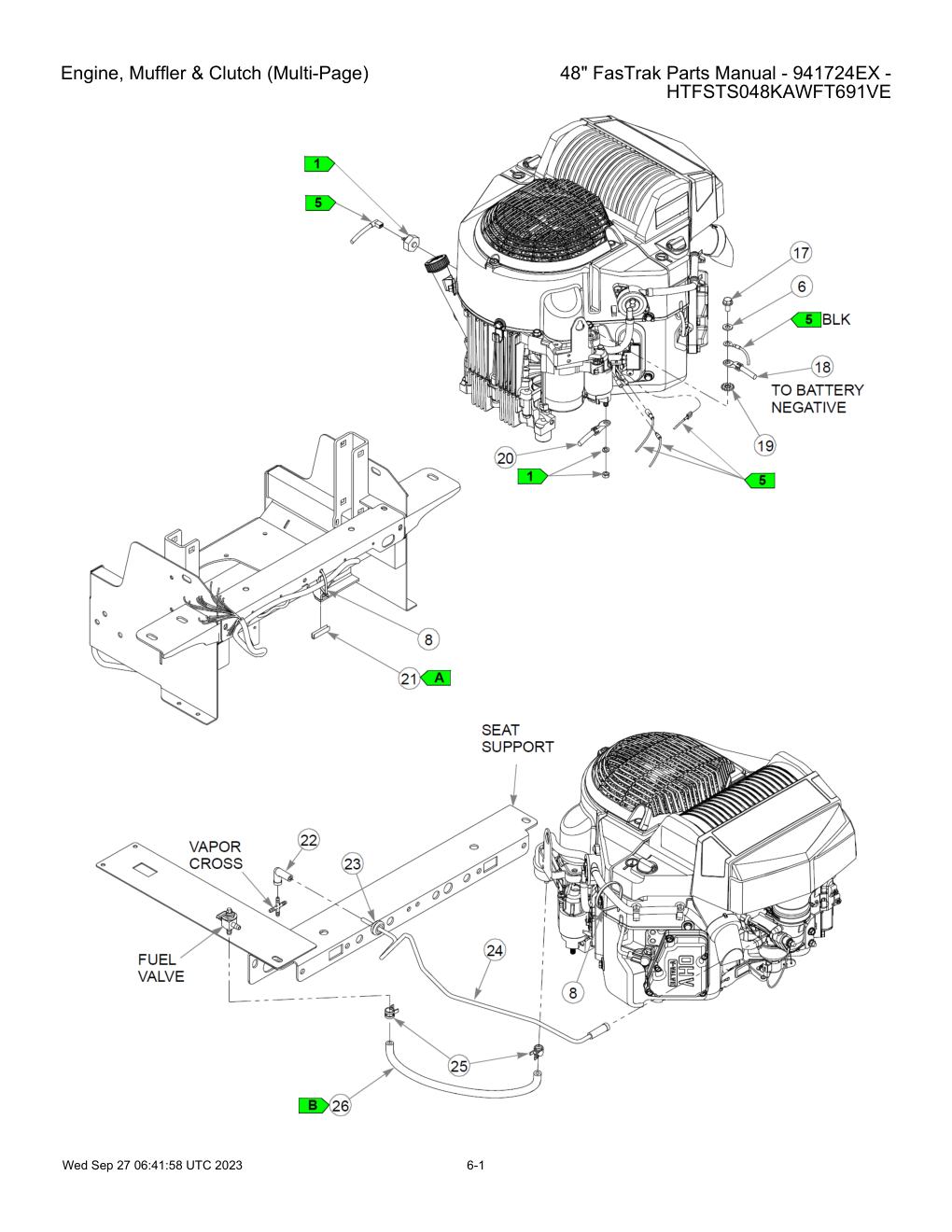

Engine, Muffler & Clutch (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | MUFFLER, 726CC KAW | 608006 | 1 | 608006-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 4 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 5 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 6 | FW 0.343SAE | 768523 | 5 | HT768523-Online |
| 7 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 9 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 10 | PULLEY, ENG 4.831 OP | 608524 | 1 | 608524-Online |
| 11 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 12 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 13 | CLUTCH KIT | 601785K | 1 | 601785K-Online |
| 14 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 15 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 16 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 17 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 18 | BATTERY CABLE NEGATIVE | 744284 | 1 | 744284-Online |
| 19 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 20 | BATTERY CABLE, POS RED | 786632 | 1 | 786632-Online |
| 21 | FLEX TRIM UNI-GRIP - 3 FT | 033001P | 1 | 033001P-Online |
| 22 | BOOT, 3/16 TO 3/16 | 605565 | 1 | 605565-Online |
| 23 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 24 | VAPOR LINE, 3/16 FORMED | 605493 | 1 | 605493-Online |
| 25 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 26 | FUEL LINE, 1/4" - 6 FT | 015818P | 1 | 015818P-Online |
Engine Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER, KAW FT | 607968 | 1 | 607968-Online |
| 2 | FILTER, KAWASAKI FUEL | 604558 | 1 | 604558-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |

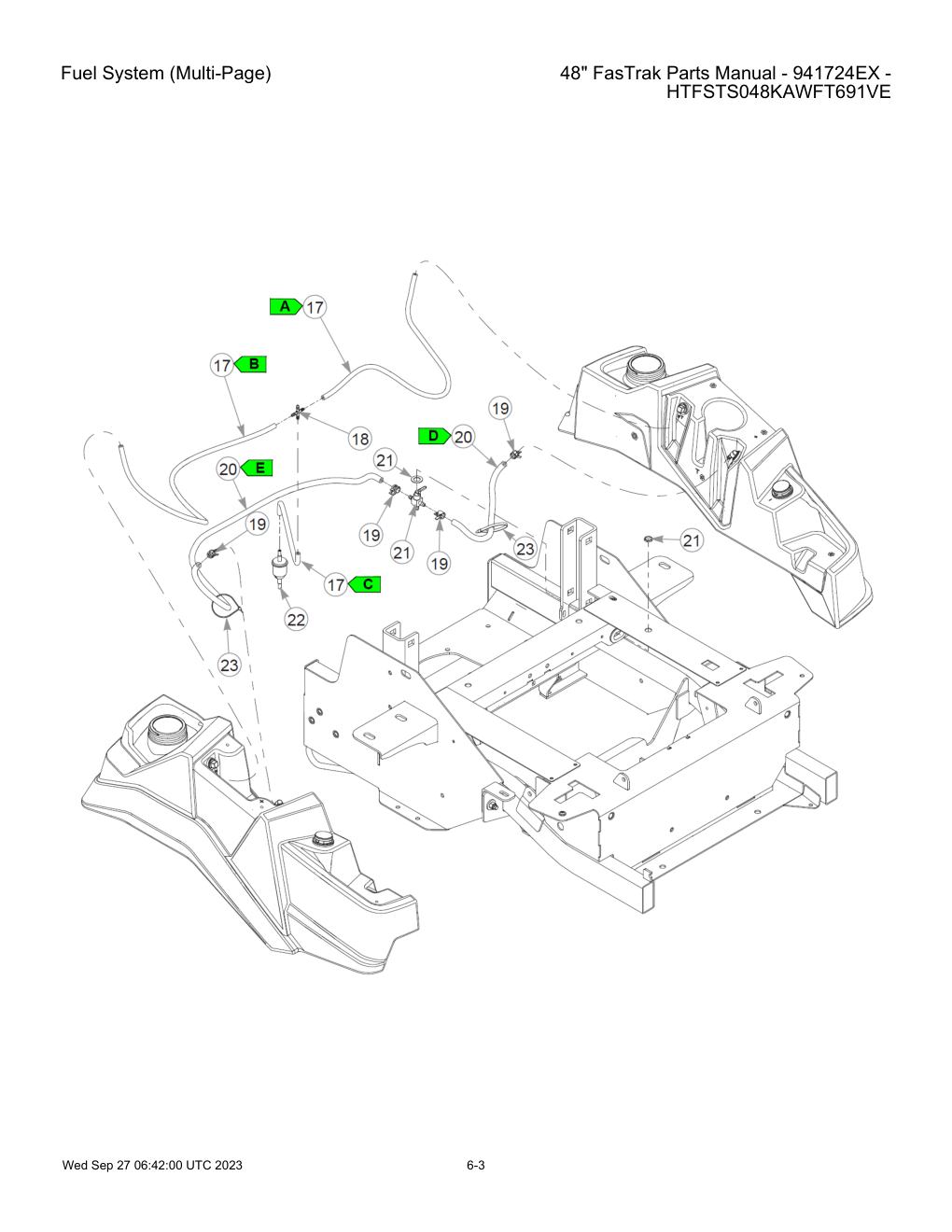

Fuel System (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, 3.5" RATCHETING GAS | 603807 | 2 | 603807-Online |
| 2 | FUEL TANK ASSY, LEFT | 608411 | 1 | 608411-Online |
| 3 | FW 0.406X1.00X.12 HD ZN | 712919 | 12 | HT712919-Online |
| 4 | CS .375-16X0.75 HX G5 ZN | 055822 | 4 | HT055822-Online |
| 5 | YELLOW, SPACER | 127925-1 | 2 | 127925-1-Online |
| 6 | YELLOW, BRACKET | 127924-1 | 2 | 127924-1-Online |
| 7 | CS .375-16X1.00 HX G5 ZN | 036244 | 6 | HT036244-Online |
| 8 | CS .250-20 X .625 BH TX | 608598 | 2 | 608598-Online |
| 9 | FW 0.281X.63X.07 ZB | 605628 | 2 | 605628-Online |
| 10 | GM 1.12X1.75X1.37X.12 | 706531 | 2 | 706531-Online |
| 11 | CN .375-16x.200 MAX THK | 601758 | 2 | 601758-Online |
| 12 | HOSE CLAMP 1" (FS) | 045088 | 2 | 045088-Online |
| 13 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 14 | FUEL TANK ASSY, RIGHT | 608412 | 1 | 608412-Online |
| 15 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 16 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 17 | VAPOR LINE, 3/16" - 7 FT | 603326P | 1 | 603326P-Online |
| 18 | CROSS, 3/16" PLASTIC | 605425 | 1 | 605425-Online |
| 19 | CLIP, HOSE CLAMP | 000323 | 4 | 000323-Online |
| 20 | FUEL LINE, 1/4" - 6 FT | 015818P | 1 | 015818P-Online |
| 21 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 22 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 23 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

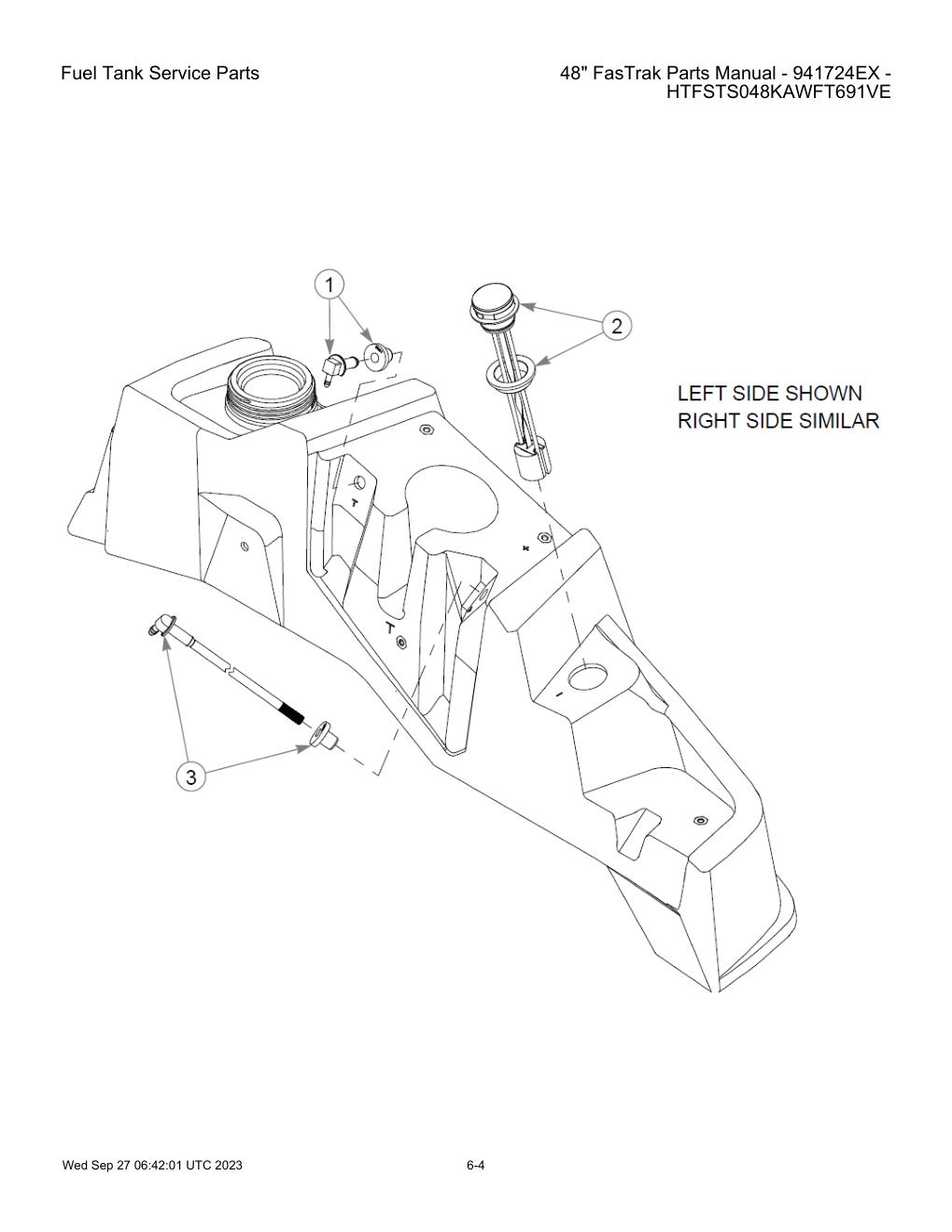

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING SVC KIT | 604287K | 1 | 604287K-Online |
| 2 | SVC KIT, FUEL GAUGE | 608497K | 1 | 608497K-Online |
| 3 | SVC, KIT, SUCTION HOSE | 608506K | 1 | 608506K-Online |

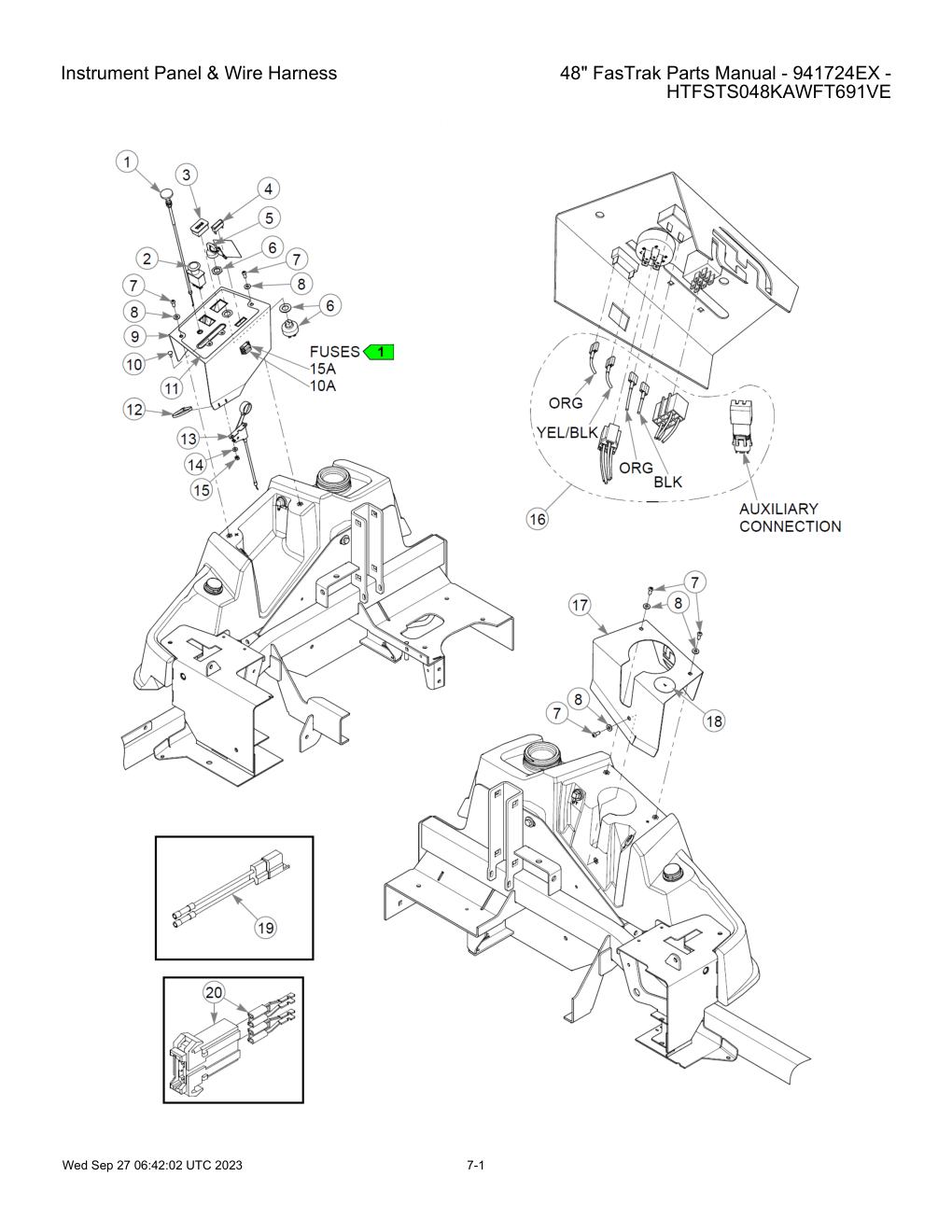

Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 786657 | 1 | HT786657-Online |
| 2 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 5 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 6 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 7 | CS .250-20 X .625 BH TX | 608598 | 5 | 608598-Online |
| 8 | FW 0.281X.63X.07 ZB | 605628 | 5 | 605628-Online |
| 9 | SVC INST. PANEL | 556156 | 1 | 556156-Online |
| 10 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 11 | DECAL, INSTR. PANEL | 608553 | 1 | 608553-Online |
| 12 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 13 | CABLE, THROTTLE | 778365 | 1 | HT778365-Online |
| 14 | FW 0.219X.50X.05 ZN | 704932 | 2 | HT704932-Online |
| 15 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 16 | WIRE HARNESS | 608472 | 1 | 608472-Online |
| 17 | COVER, FUEL FILLER | 127795-1 | 1 | 127795-1-Online |
| 18 | DECAL, USA, F&D | 608127 | 1 | 608127-Online |
| 19 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
| 20 | HOLDER, FUSE | 601047 | 1 | HT601047-Online |
| 21 | RELAY, SEALED W/BRACKET | 601053 | 3 | HT601053-Online |

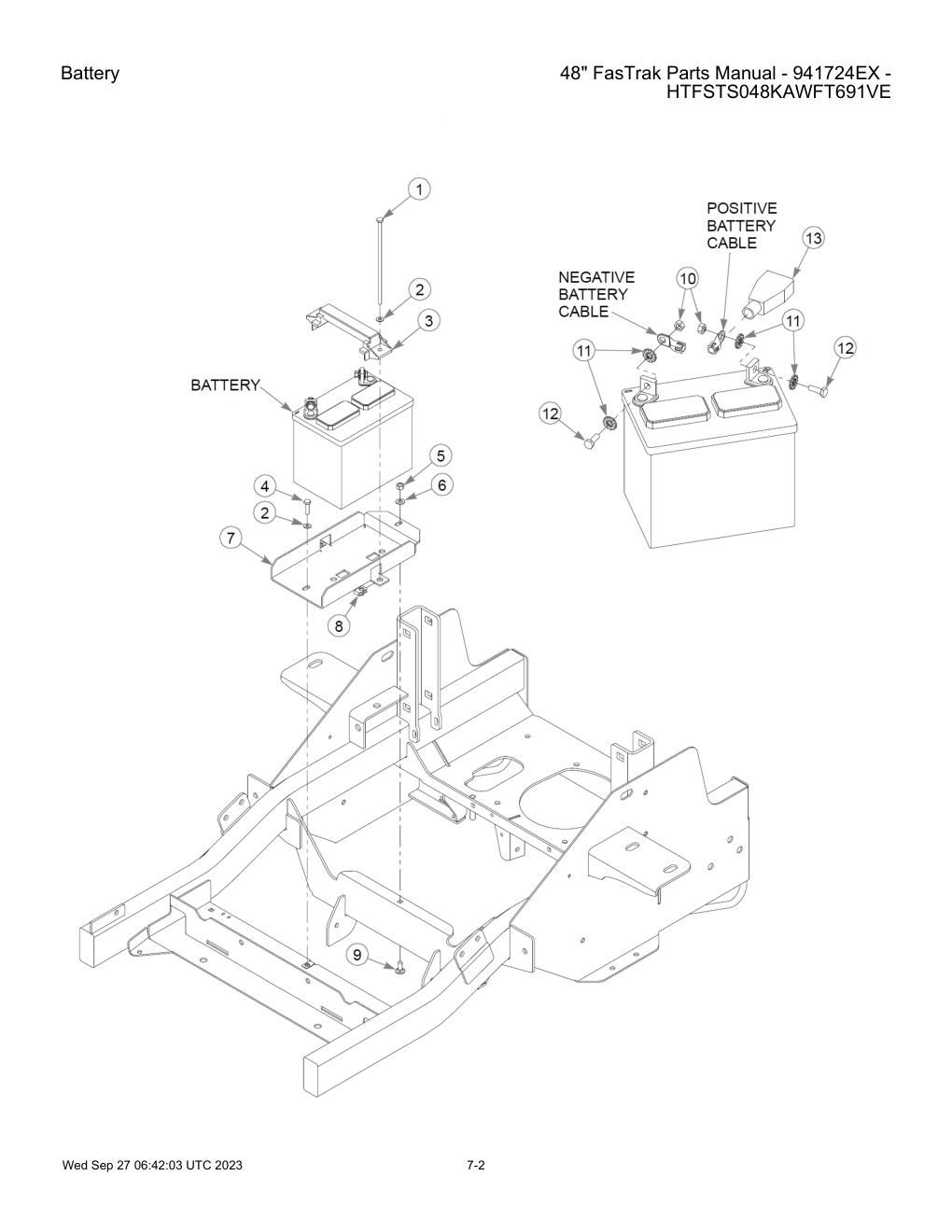

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20X7.50 HX G5 ZN | 604465 | 2 | 604465-Online |
| 2 | FW .250SAE | 017079 | 3 | 017079-Online |
| 3 | STRAP, TIE DOWN | 604178 | 1 | 604178-Online |
| 4 | CS .250-20X1.000HXG5 | 056077 | 1 | 056077-Online |
| 5 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 6 | FW .340X.68X.04 ZN | 604252 | 1 | 604252-Online |
| 7 | BATTERY TRAY | 127794-1 | 1 | 127794-1-Online |
| 8 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 9 | CB .312-18X .750 FUL ZN | 016253 | 1 | 016253-Online |
| 10 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 11 | LW .250 INTEXT ZN | 029868 | 4 | 029868-Online |
| 12 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 13 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |

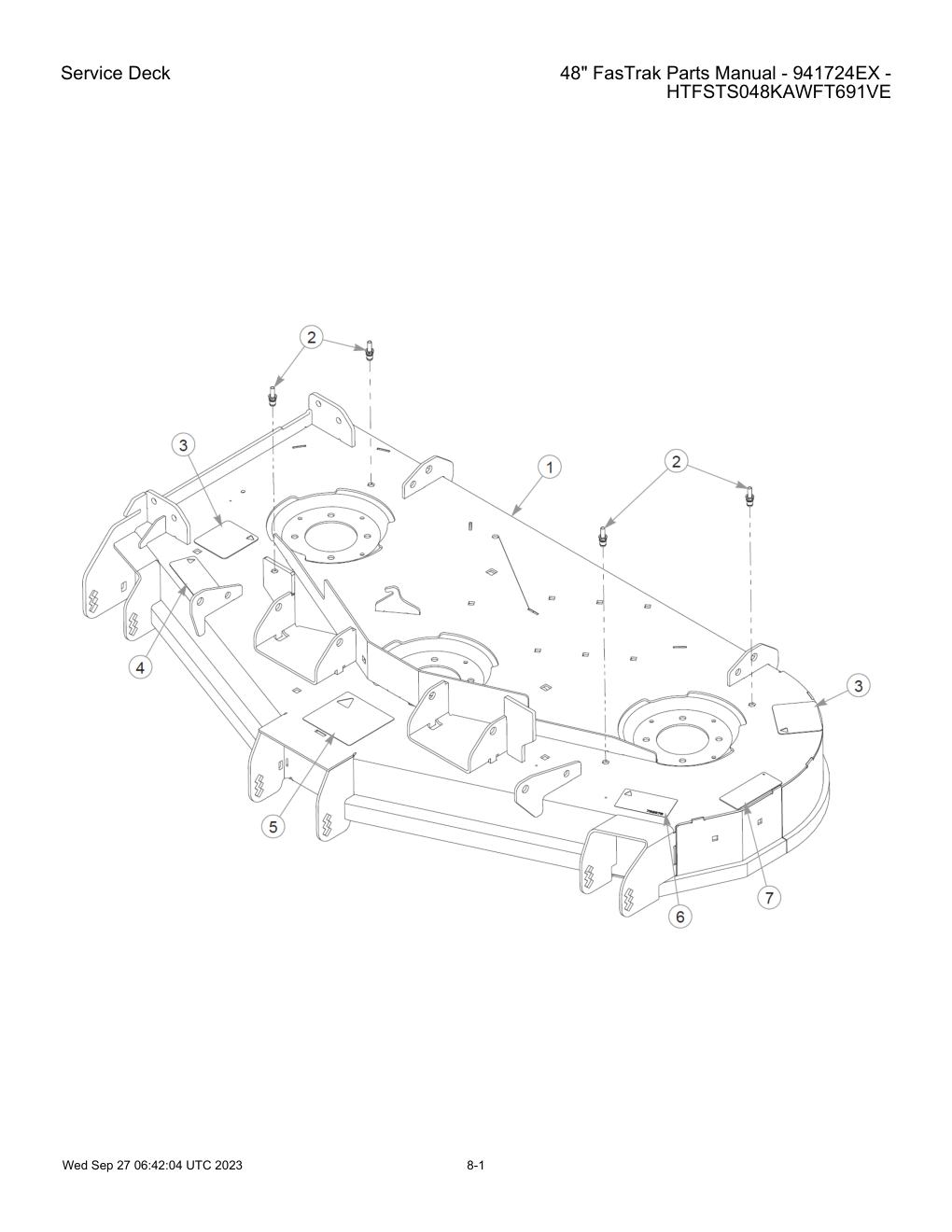

Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL | 556084 | 1 | 556084-Online |
| 2 | 0.25-20 X 0.625 | 607185 | 4 | 607185-Online |
| 3 | DECAL, DECK DANGERS | 601837 | 2 | 601837-Online |
| 4 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |
| 5 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 6 | DECAL,48"DECK ID | 793976 | 1 | 793976-Online |
| 7 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 2 | BELT GUIDE, 4.00" IDLER | 125847-4 | 1 | HT125847-4-Online |
| 3 | FW 0.531 X 0.90 X 0.134 | 607428 | 1 | 607428-Online |
| 4 | DUST SHIELD | 605467 | 3 | 605467-Online |
| 5 | 4" IDLER PULLEY | 605512 | 1 | 605512-Online |
| 6 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 7 | SLED, TENSIONER | 121052 | 1 | HT121052-Online |
| 8 | IDLER SLIDE, EXTRUDED | 604790 | 2 | 604790-Online |
| 9 | NT 0.312-18 FL NY G5 | 608059 | 7 | HT608059-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13X1.25 HX G5 ZN | 705954 | 3 | HT705954-Online |
| 12 | FW .515X1.65X.12 HD ZN | 798603 | 3 | 798603-Online |
| 13 | SPINDLE SPACER | 604777 | 3 | 604777-Online |
| 14 | PULLEY, DECK DRIVE B-SEC | 604665 | 3 | 604665-Online |
| 15 | FW 1.030X1.50X.13 HD ZN | 045765 | 3 | HT045765-Online |
| 16 | DUST SHIELD | 606362 | 3 | 606362-Online |
| 17 | NT .375-16 FL NY GF | 604515 | 12 | 604515-Online |
| 18 | FW .531X.812X.089 HD | 604486 | 2 | 604486-Online |
| 19 | IDLER PULLEY, 5.00" | 607479 | 2 | 607479-Online |
| 20 | BASE, IDLER PULLEY MOUNT | 605465 | 1 | 605465-Online |
| 21 | FW .440X1.00X0.08 ZN | 017129 | 1 | 017129-Online |
| 22 | FW .73X2.25X.31 ZN | 605508 | 1 | 605508-Online |
| 23 | BLADE SPINDLE ASSY | 607208 | 3 | 607208-Online |
| 24 | CB .312-18X .750 FUL ZN | 016253 | 7 | 016253-Online |
| 25 | FW 0.719 X 1.75 X 0.125 | 608374 | 2 | 608374-Online |
| 26 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |

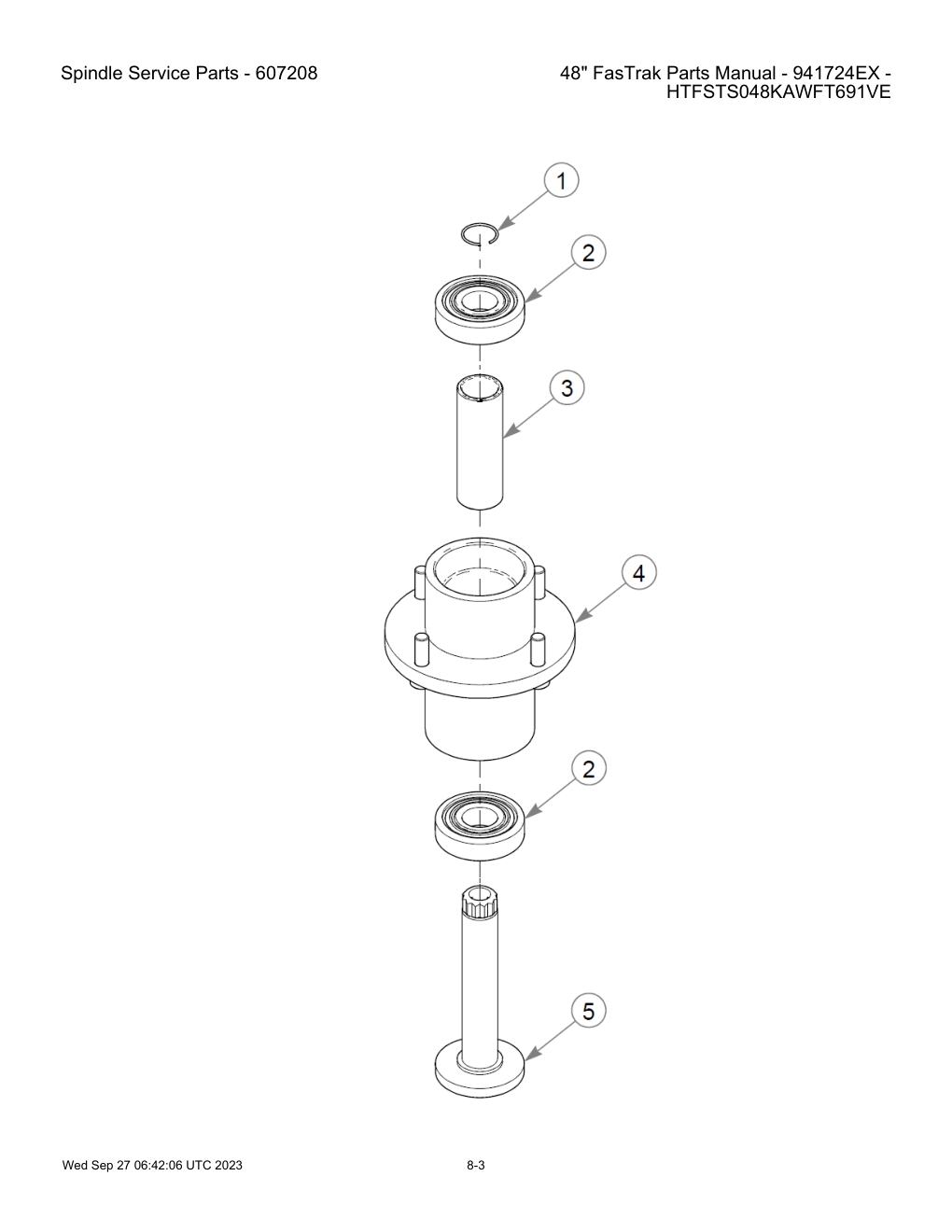

Spindle Service Parts - 607208
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RING, BLADE SPINDLE RET | 783548 | 1 | HT783548-Online |
| 2 | BLADE SPINDLE BEARING | 607275 | 2 | 607275-Online |
| 3 | BLADE SPINDLE SPACER | 607210 | 1 | 607210-Online |
| 4 | SVC, SPINDLE HOUSING | 607417 | 1 | 607417-Online |
| 5 | BLADE SPINDLE SHAFT | 607211 | 1 | 607211-Online |

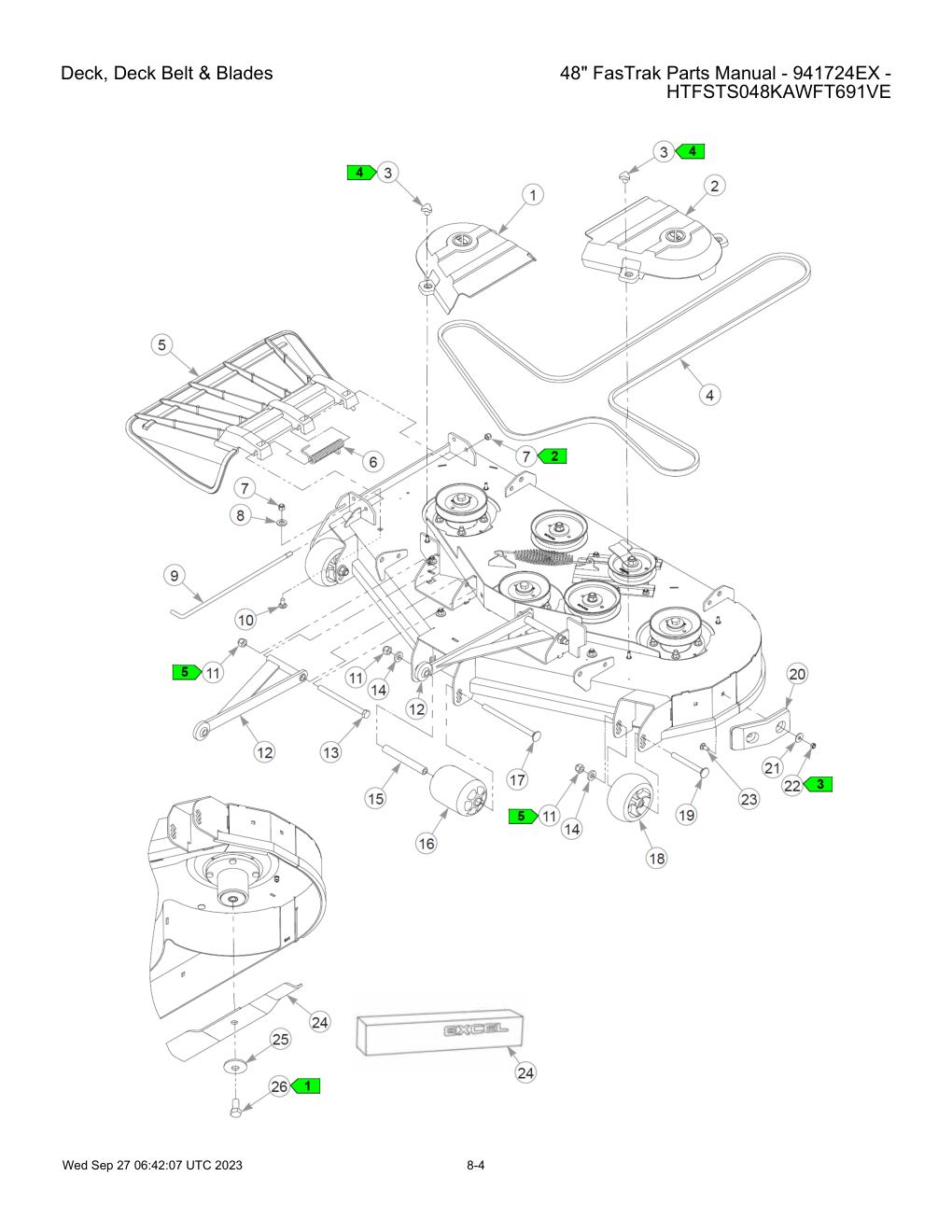

Deck, Deck Belt & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER, RH | 607865 | 1 | 607865-Online |
| 2 | PULLEY COVER, LH | 607866 | 1 | 607866-Online |
| 3 | .25-20 FEMALE KNOB | 607186 | 4 | 607186-Online |
| 4 | DECK BELT | 791335 | 1 | HT791335-Online |
| 4 | 20PK, DECK BELT | 791335X | 1 | 791335X-Online |
| 5 | DISCHARGE CHUTE | 605469 | 1 | 605469-Online |
| 6 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 7 | NT .375-16NLG8 | 086660 | 5 | HT086660-Online |
| 8 | FW .531x1.00x.090 ZN | 004168 | 4 | HT004168-Online |
| 9 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 10 | CB .375-16X .750 STD ZN | 011320 | 4 | 011320-Online |
| 11 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
| 12 | PULLER W/A 14.53" C/C | 113717 | 2 | HT113717-Online |
| 13 | CS .500-13X6.500HXG5 | 042630 | 2 | HT042630-Online |
| 14 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 15 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 16 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 17 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 18 | WHEEL, ANTI-SCALP | 604780 | 2 | 604780-Online |
| 19 | CB .50-13 X 4.50 STD ZN | 602339 | 2 | 602339-Online |
| 20 | DECK BUMPER | 605376 | 1 | 605376-Online |
| 21 | FW 0.344X1.0X0.06 ZN | 079210 | 2 | 079210-Online |
| 22 | NT .312-18 HXNL JAM G2ZN | 604251 | 2 | 604251-Online |
| 23 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 24 | BLADE, 16.5"-H-F-CW | 606252 | 3 | 606252-Online |
| 24 | 10PK BLADE 16.50"-H-F-CW | 606252X | 1 | 606252X-Online |
| 24 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 24 | 10PK BLADE, F16.50"-H-F- | 795757X | 1 | 795757X-Online |
| 24 | BLADE, F16.50"-L-F-CW | 601014 | 3 | 601014-Online |
| 24 | 10PK BLADE, F16.50-L-F-C | 601014X | 1 | 601014X-Online |
| 24 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 24 | 10PK BLADE, 16.50"-L-F-C | 601123X | 1 | 601123X-Online |
| 24 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 24 | 10PK BLADE, 16.50"-MUL-F | 796623X | 1 | 796623X-Online |
| 24 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
Deck, Deck Belt & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 25 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 26 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |

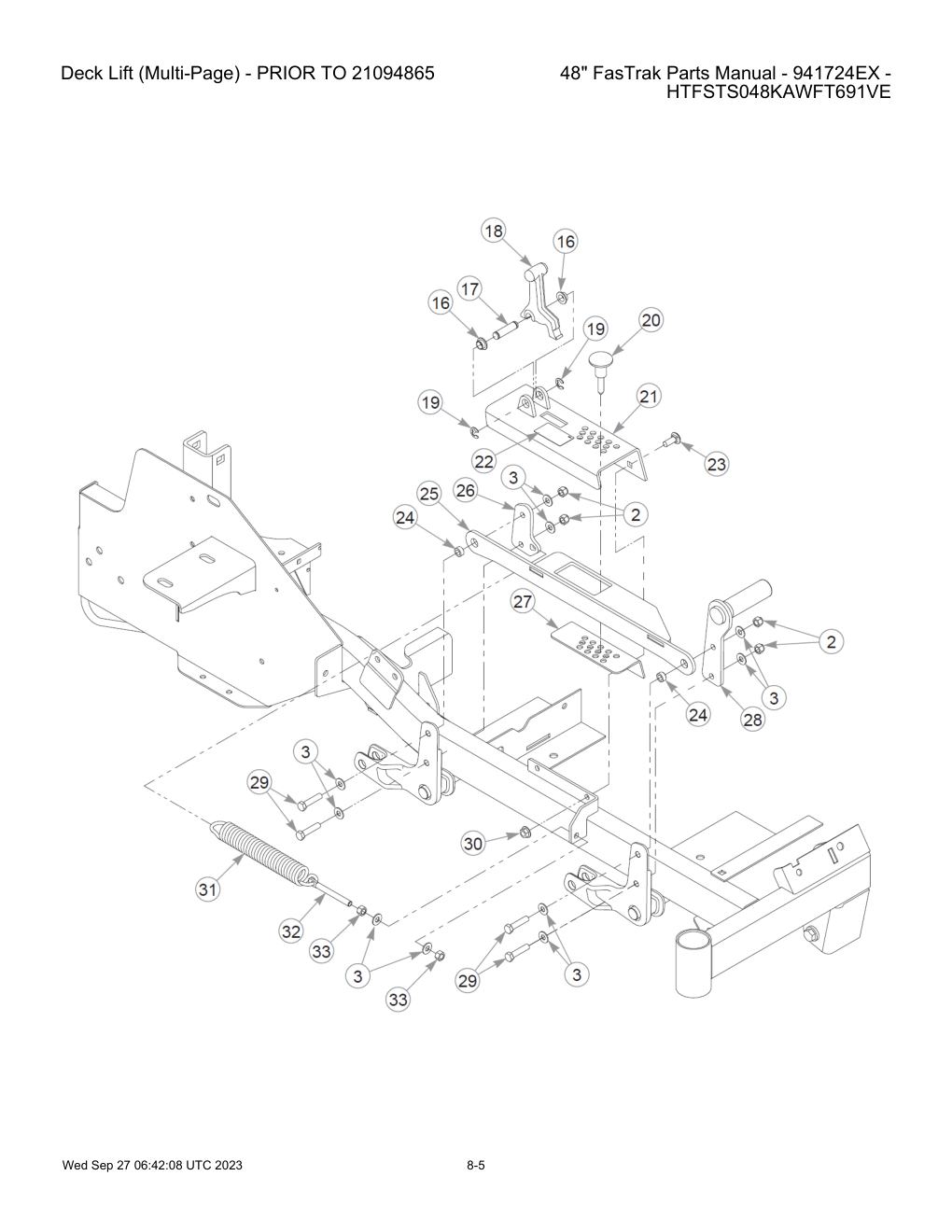

Deck Lift (Multi-Page) - PRIOR TO 21094865
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .3125 X 1.75 ZN G8 | 608658 | 8 | 608658-Online |
| 2 | NT .375-16NLG8 | 086660 | 8 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 14 | HT767954-Online |
| 4 | FW .41X.94X.25 UHMW | 605114 | 4 | 605114-Online |
| 5 | PIVOT, DECK LIFT | 607970 | 4 | 607970-Online |
| 6 | DECK LIFT W/A | 127784-1 | 2 | 127784-1-Online |
| 7 | CS .500-13X1.750HXG5 | 017616 | 4 | HT017616-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 9 | DECK HANGER | 127786 | 4 | 127786-Online |
| 10 | BUSHING, DECK LIFT | 607907 | 8 | 607907-Online |
| 11 | SUPPORT, DECK HANGER | 126369-1 | 4 | HT126369-1-Online |
| 12 | NT .312-18 HXNL JAM G2ZN | 604251 | 8 | 604251-Online |
| 13 | CS .500-13X2.000 FUL HX | 078949 | 2 | HT078949-Online |
| 14 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 15 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 16 | BUSHING,IGUS#0810 (FS) | 768259 | 2 | HT768259-Online |
| 17 | CE .500X2.00X1.63 | 605470 | 1 | 605470-Online |
| 18 | TRANSPORT LATCH | 605466 | 1 | 605466-Online |
| 19 | CLIP E,(1/2").80X.396X. | 793059 | 2 | 793059-Online |
| 20 | PIN, .375X1.62 MAGNETIC | 607039 | 1 | 607039-Online |
| 21 | SVC DECK HEIGHT | 556158 | 1 | 556158-Online |
| 22 | DECAL, DECK HEIGHT | 605538 | 1 | 605538-Online |
| 23 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 24 | SPACER, DECK LIFT LINK | 118900 | 2 | HT118900-Online |
| 25 | DECK LIFT LINK ZINC | 126374-4 | 1 | HT126374-4-Online |
| 26 | SPRING ASSIST PLATE | 126377-1 | 1 | 126377-1-Online |
| 27 | DECK HEIGHT BRACKET | 126370-1 | 1 | 126370-1-Online |
| 28 | PEDAL W/A | 607971-1 | 1 | 607971-1-Online |
| 29 | CS .375-16X1.625HXG5 | 705160 | 4 | 705160-Online |
| 30 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 31 | TENSION SPRING-PLATED | 008938 | 1 | HT008938-Online |
| 32 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 33 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |

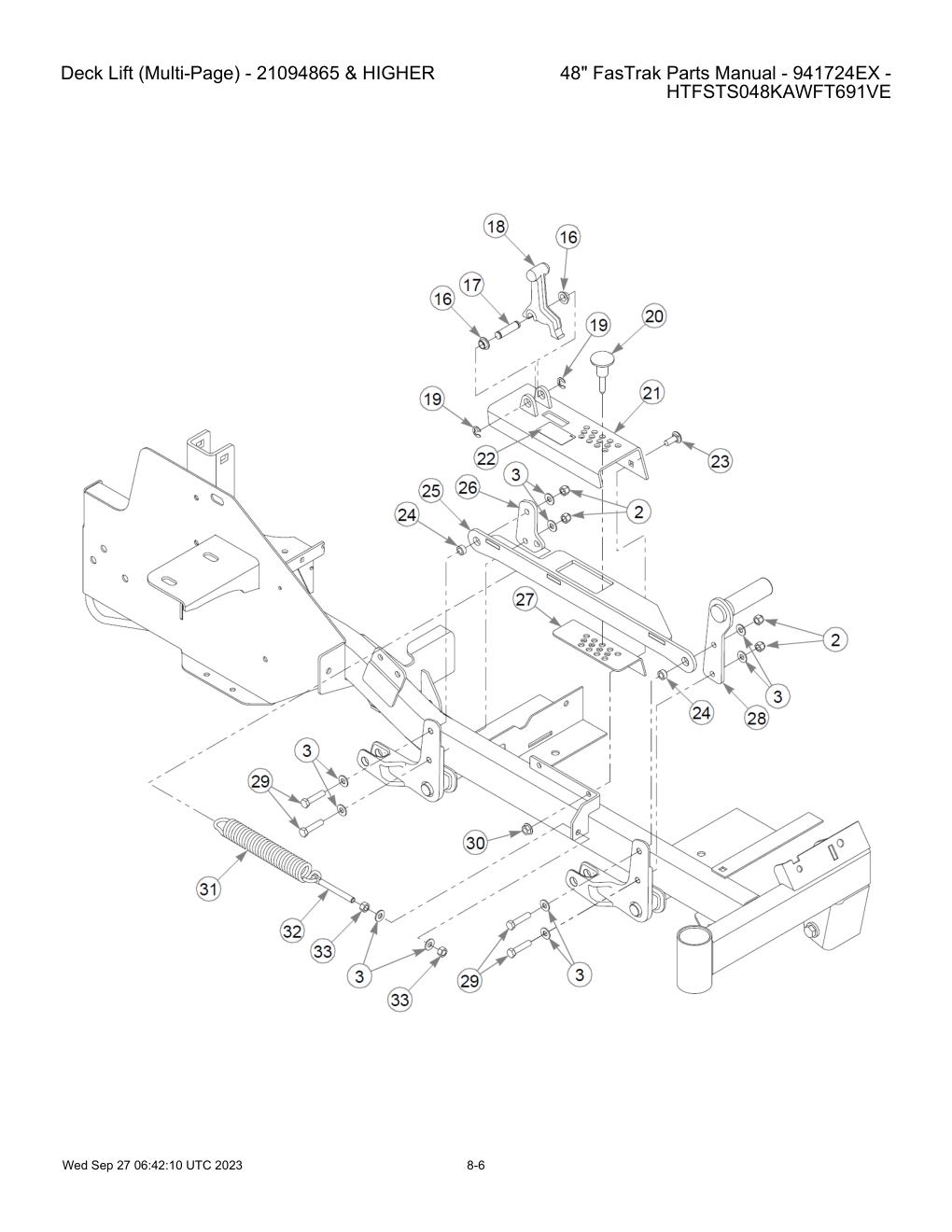

Deck Lift (Multi-Page) - 21094865 & HIGHER
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .3125 X 1.75 ZN G8 | 608658 | 8 | 608658-Online |
| 2 | NT .375-16NLG8 | 086660 | 8 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 14 | HT767954-Online |
| 4 | FW .41X.94X.25 UHMW | 605114 | 4 | 605114-Online |
| 5 | PIVOT, DECK LIFT | 607970 | 4 | 607970-Online |
| 6 | DECK LIFT W/A | 127784-1 | 2 | 127784-1-Online |
| 7 | CS .500-13X1.750HXG5 | 017616 | 4 | HT017616-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 9 | DECK HANGER | 127786 | 4 | 127786-Online |
| 10 | BUSHING, DECK LIFT | 607907 | 8 | 607907-Online |
| 11 | SUPPORT, DECK HANGER | 126369-1 | 4 | HT126369-1-Online |
| 12 | NT .312-18 HXNL JAM G2ZN | 604251 | 8 | 604251-Online |
| 13 | CS .500-13X2.000 FUL HX | 078949 | 2 | HT078949-Online |
| 14 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 15 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 16 | BUSHING,IGUS#0810 (FS) | 768259 | 2 | HT768259-Online |
| 17 | CE .500X2.00X1.63 | 605470 | 1 | 605470-Online |
| 18 | TRANSPORT LATCH | 605466 | 1 | 605466-Online |
| 19 | CLIP E,(1/2").80X.396X. | 793059 | 2 | 793059-Online |
| 20 | PIN, .375X1.62 MAGNETIC | 607039 | 1 | 607039-Online |
| 21 | SVC DECK HEIGHT | 556158 | 1 | 556158-Online |
| 22 | DECAL, DECK HEIGHT | 605538 | 1 | 605538-Online |
| 23 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 24 | SPACER, DECK LIFT LINK | 118900 | 2 | HT118900-Online |
| 25 | DECK LIFT LINK W/A | 608738-4 | 1 | 608738-4-Online |
| 26 | SPRING ASSIST PLATE | 126377-1 | 1 | 126377-1-Online |
| 27 | DECK HEIGHT BRACKET | 126370-1 | 1 | 126370-1-Online |
| 28 | PEDAL W/A | 607971-1 | 1 | 607971-1-Online |
| 29 | CS .375-16X1.625HXG5 | 705160 | 4 | 705160-Online |
| 30 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 31 | TENSION SPRING-PLATED | 008938 | 1 | HT008938-Online |
| 32 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 33 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |

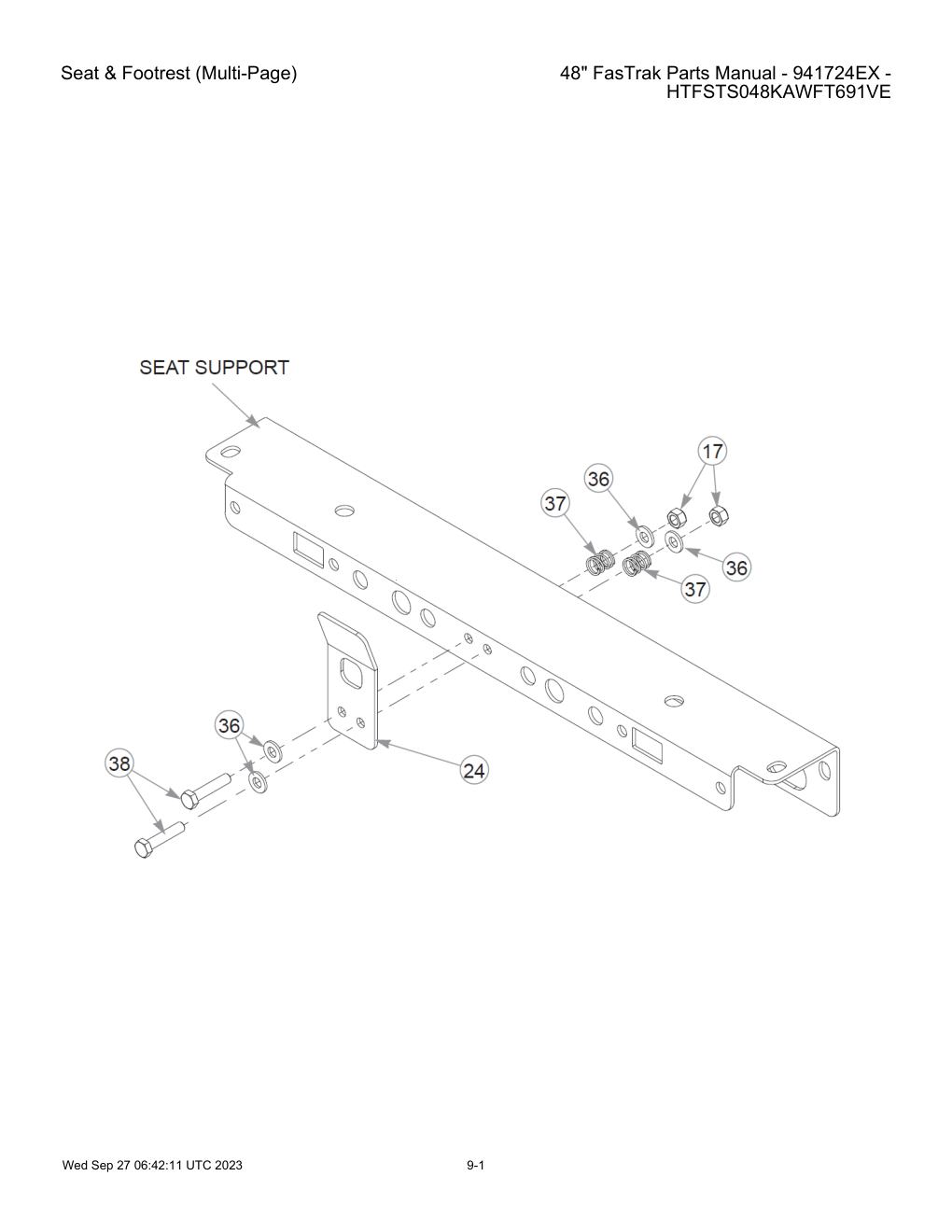

Seat & Footrest (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, SEATS INC 1110 | 608047 | 1 | 608047-Online |
| 2 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 4 | SVC FILLER PANEL | 556153 | 1 | 556153-Online |
| 5 | DECAL, FUEL SELECTOR | 608581 | 1 | 608581-Online |
| 6 | USB PORT DUAL CHARGE | 608492 | 1 | 608492-Online |
| 7 | FILLER PANEL RH | 127798-6 | 1 | 127798-6-Online |
| 8 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 9 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 10 | MOUNT, PUSH BUTTON | 604307 | 1 | 604307-Online |
| 11 | SVC SEAT PAN | 556151 | 1 | 556151-Online |
| 12 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 13 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 14 | DECAL, HOT & HYD OIL | 779280 | 1 | 779280-Online |
| 15 | DECAL, LEVEL FUEL FILL | 605688 | 1 | 605688-Online |
| 16 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 17 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 18 | SEAT STOP | 124558-4 | 1 | 124558-4-Online |
| 19 | CS .375-16X1.25 HX G5 ZN | 052860 | 3 | HT052860-Online |
| 20 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 21 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 22 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 23 | SEAT SUPPORT TEXT BLACK | 127799-6 | 1 | 127799-6-Online |
| 24 | LATCH, SEAT | 124572-4 | 1 | 124572-4-Online |
| 25 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 26 | PUSH IN RIVET | 607868 | 6 | 607868-Online |
| 27 | FLOOR MAT | 607864 | 1 | 607864-Online |
| 28 | CS .250-20X1.000HXG5 | 056077 | 1 | 056077-Online |
| 29 | FW 0.281SAE | 768515 | 1 | HT768515-Online |
| 30 | FLOOR PAN | 126382-1 | 1 | 126382-1-Online |
| 31 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 32 | SVC FOOTREST | 556150 | 1 | 556150-Online |
| 33 | DECAL, HUSTLER | 608095 | 1 | 608095-Online |
| 34 | CS .250-20X0.75 BH TX BZ | 605473 | 2 | 605473-Online |
| 35 | FW 0.281X.63X.07 ZB | 605628 | 2 | 605628-Online |
Seat & Footrest (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 37 | SPRING, COMPRESSION | 607046 | 2 | 607046-Online |
| 38 | CS .312-18X1.500HXG5 | 756270 | 2 | 756270-Online |
Seat Service Parts - 608047
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, ARMREST SET | 606080 | 1 | 606080-Online |
| 2 | SVC, ARM PAD | 606081 | 2 | 606081-Online |
| 3 | SVC, LOW BACK COVER | 608050 | 1 | 608050-Online |
| 4 | SVC, SEAT CUSHION COVER | 608049 | 1 | 608049-Online |
| 5 | SVC, SEAT FOAM 1110 | 608350 | 1 | 608350-Online |
| 6 | SVC RIDE ADJUST KNOB | 607214 | 1 | 607214-Online |
| 7 | SVC, SEAT BELT KIT | 607461 | 1 | 607461-Online |
| 8 | SVC, OPS | 606082 | 1 | 606082-Online |
| 9 | SVC, SEAT TRACK KIT | 607459 | 1 | 607459-Online |
| 10 | SVC, RUBBER BELLOW | 607460 | 1 | 607460-Online |
ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS ASSY | 605479 | 1 | 605479-Online |
| 2 | KIT, ROPS HARDWARE | 605044 | 1 | 605044-Online |
| 3 | KIT, POLY STOP (PAIR) | 605646 | 2 | 605646-Online |
| 4 | CB .50-13 X 3.25 GR5 | 607008 | 4 | 607008-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 6 | NT .500-13UNTG8 | 023317 | 4 | 023317-Online |
| 7 | DECAL, COMMERCIAL DUTY | 605691 | 1 | 605691-Online |
