Illustrated Parts List
Hustler Diesel Z Parts Manual - 109706
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 109706Model: 601789Model: 601367Model: 747782Model: 789537Model: 928648Model: 928655Model: 928663Model: 601424Model: 601531+21 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

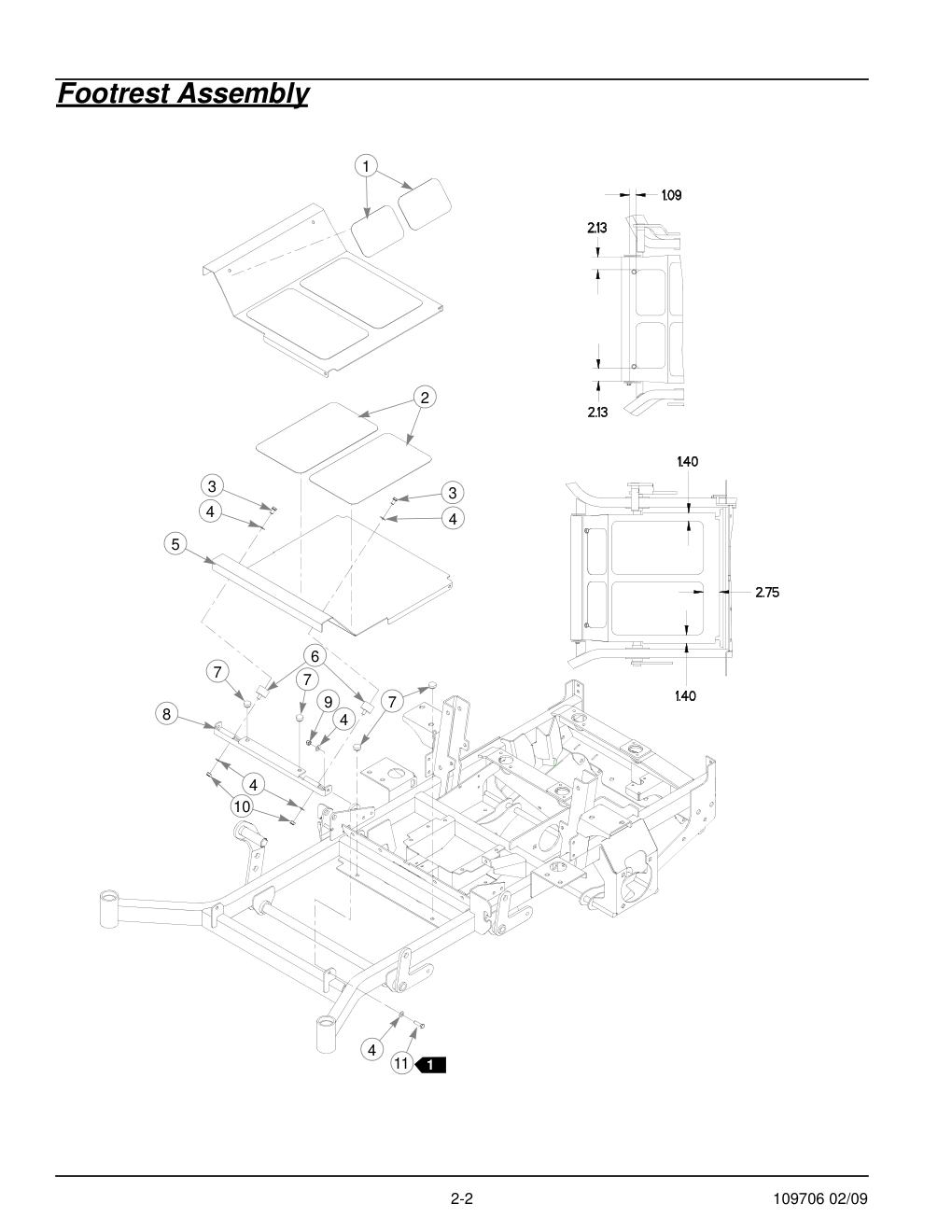

Footrest AssemblyRivet Nut InstallationHydraulic Component FittingsHydraulic Component MountingHydraulic Line ConnectionsSteering Sub-AssemblyEngine Sub-AssemblyBelt Drive SystemFirewall & ROPS AssemblyAir Filter InstallationCooling System InstallationEngine Cover InstallationFuel SystemBattery and Electrical ConnectionsInstrument PanelFront Wheel Assembly72" Side Discharge XR7 Deck Assembly60" Rear Discharge Deck Assembly60" Rear Discharge Deck Pulley AssemblyDeck InstallationSeat InstallationTractor Decals72" Side Discharge XR7 Deck Decals66" Side Discharge XR7 Deck Decals60" Side Discharge XR7 Deck Decals54" Side Discharge XR7 Deck Decals72" Rear Discharge Deck Decals60" Rear Discharge Deck DecalsFootrest Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 UPPER STEP TREAD 5.00 | 785485 | 785485 | 785485-Online |
| 2 | 2 LOWER STEP TREAD 9.00 | 785493 | 785493 | 785493-Online |
| 3 | 2 CS .375-16X .625 HX G5 | 056069 | 056069 | 056069-Online |
| 4 | 8 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 5 | 1 FLOOR PLATE HDZ | 549410 | 109104 | 549410-Online |
| 6 | 2 VIBRATION MOUNT | 601571 | 601571 | 601571-Online |
| 7 | 4 BUMPER .500X 1.00X .31 | 781880 | 781880 | HT781880-Online |
| 8 | 1 FLOOR PAN MOUNT STRAP | 109399 | 109399 | 109399-Online |
| 9 | 4 NT .375-16 HXZY NL | 086660 | 086660 | HT086660-Online |
| 10 | 2 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 11 | 2 CS .375-16X1.250 HX G5 | 052860 | 052860 | HT052860-Online |

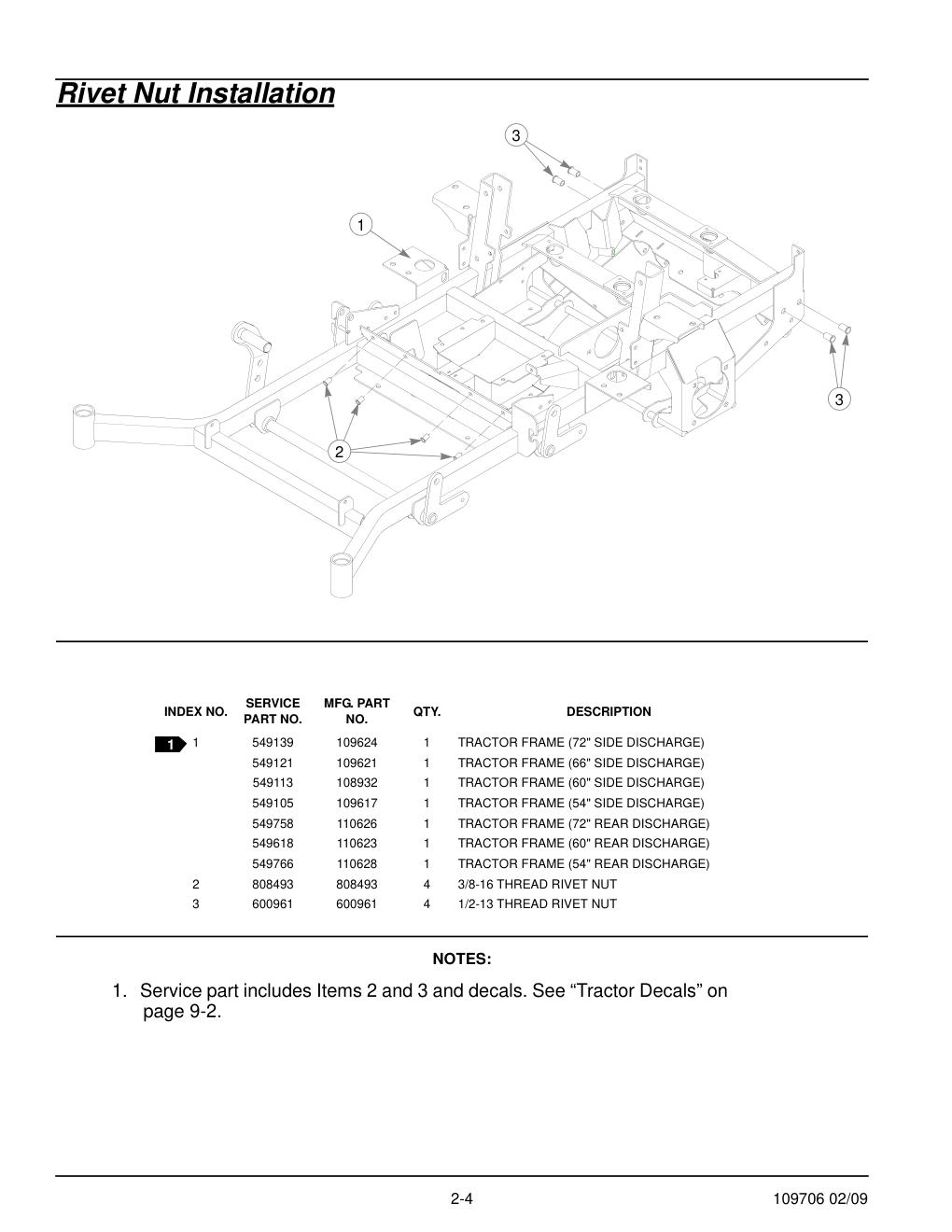

Rivet Nut Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 TRACTOR FRAME (72" SIDE DISCHARGE) | 549139 | 109624 | 549139-Online |
| 549121 | TRACTOR FRAME (66" SIDE DISCHARGE) | 109621 | 1 | 109621-Online |
| 549113 | TRACTOR FRAME (60" SIDE DISCHARGE) | 108932 | 1 | 108932-Online |
| 549105 | TRACTOR FRAME (54" SIDE DISCHARGE) | 109617 | 1 | 109617-Online |
| 549758 | TRACTOR FRAME (72" REAR DISCHARGE) | 110626 | 1 | 110626-Online |
| 549618 | TRACTOR FRAME (60" REAR DISCHARGE) | 110623 | 1 | 110623-Online |
| 549766 | TRACTOR FRAME (54" REAR DISCHARGE) | 110628 | 1 | 110628-Online |
| 2 | 4 3/8-16 THREAD RIVET NUT | 808493 | 808493 | 808493-Online |
| 3 | 4 1/2-13 THREAD RIVET NUT | 600961 | 600961 | 600961-Online |

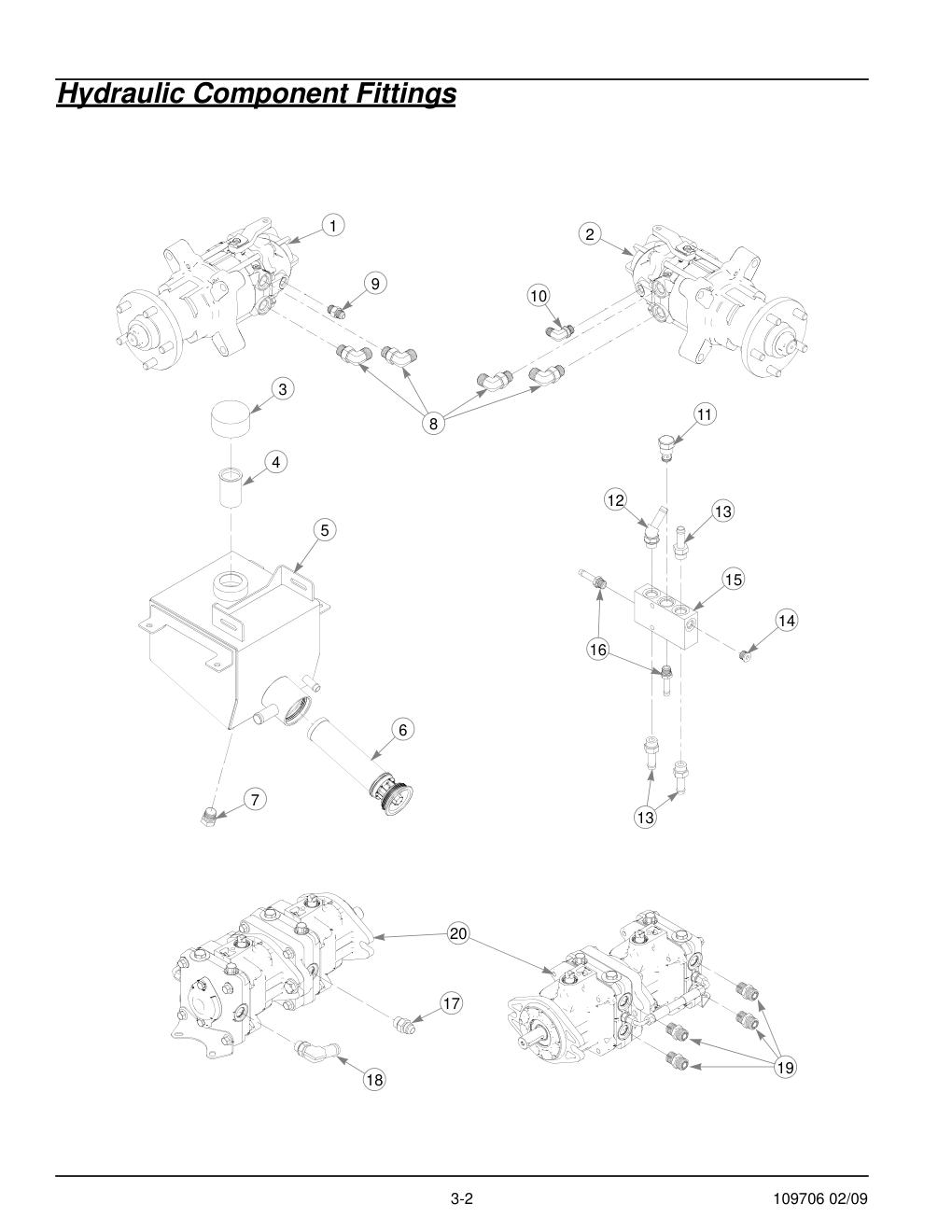

Hydraulic Component Fittings
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 WHEEL MOTOR RH | 601556 | 601556 | 601556-Online |
| 2 | 1 WHEEL MOTOR LH | 601557 | 601557 | 601557-Online |
| 3 | 1 BREATHER CAP | 032763 | 032763 | HT032763-Online |
| 4 | 1 STRAINER | 032771 | 032771 | 032771-Online |
| 5 | 1 RESERVOIR W/A HDZ | 549345 | 109366 | 549345-Online |
| 6 | 1 FILTER ELEMENT | 601413X | 601413 | 601413X-Online |
| 7 | 1 FITTING STR-8MORB/HEX | 781658 | N/A | 781658-Online |
| 8 | 4 FITTING 90-8MORB/-8MSL | 781542 | N/A | 781542-Online |
| 9 | 1 FITTING STR-6MORB/-6JI | 779132 | N/A | 779132-Online |
| 10 | 1 FITTING 90-6MORB/-6MJI | 795922 | N/A | HT795922-Online |
| 11 | 1 VALVE CARTRIDGE CHECK | 601568 | N/A | 601568-Online |
| 12 | 1 FITTING -8MORB/-8BEAD | 601592 | N/A | 601592-Online |
| 13 | 3 FITTING -8MORB/-8 BEAD | 601523 | N/A | 601523-Online |
| 14 | 1 FITTING PLUG -8MORB/HEX | 601569 | N/A | 601569-Online |
| 15 | 1 MANIFOLD CASE DRAIN | 601476 | N/A | 601476-Online |
| 16 | 2 FITTING -6MORB/-6 BEAD | 787473 | N/A | 787473-Online |
| 17 | 1 FITTING STR-8MORB/-8MJ | 771337 | N/A | 771337-Online |
| 18 | 1 FITTING -8MORB/-12 BEAD | 601524 | N/A | 601524-Online |
| 19 | 4 FITTING STR-8MORB/-8MS | 781534 | N/A | 781534-Online |
| 20 | 1 PUMP HG TANDEM 21 | 601318 | 601318 | 601318-Online |
| N/A | HYDRO KIT HDZ (INCLUDES 7-19) | 601498 | 1 | 601498-Online |

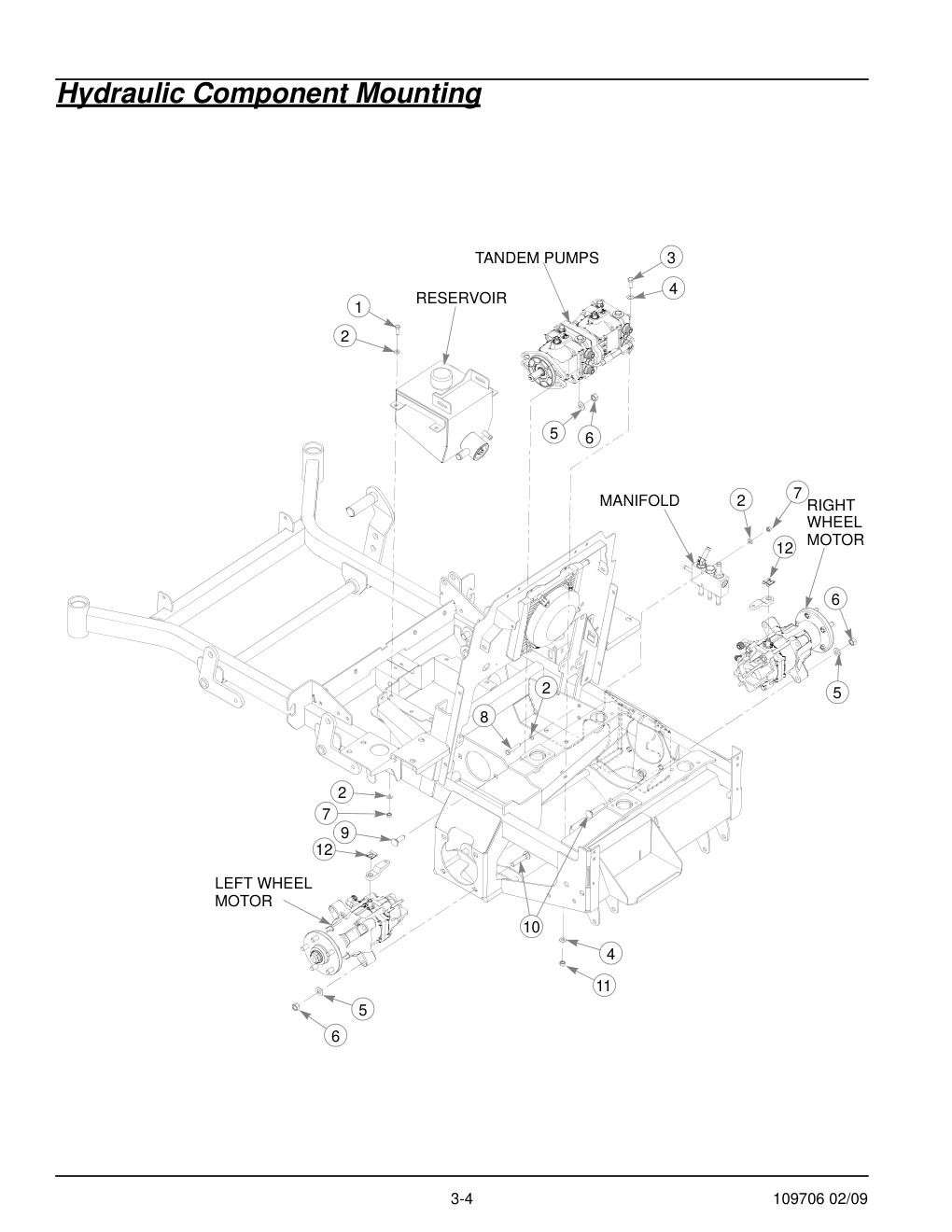

Hydraulic Component Mounting
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 4 CS .312-18X1.000 HX G5 | 036236 | 036236 | 036236-Online |
| 2 | 12 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 3 | 2 CS .375-16X1.000 HX G5 | 036244 | 036244 | HT036244-Online |
| 4 | 4 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 5 | 10 FW .531X 1.063X.090 SAE | 767962 | 767962 | HT767962-Online |
| 6 | 10 NT .500-13 HX G5 ZNYC | 008193 | 008193 | HT008193-Online |
| 7 | 6 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 8 | 2 CS .312-18X2.000 HX G5 | 064345 | 064345 | 064345-Online |
| 9 | 2 CB .500-13X 1.500 FULL | 028274 | 028274 | 028274-Online |
| 10 | 8 CB .500-13 X 2.500 G5 ZN | 601427 | 601427 | 601427-Online |
| 11 | 2 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 12 | 2 BRAKE ARM RETAINING CLIP 1 | 601247 | N/A | 601247-Online |

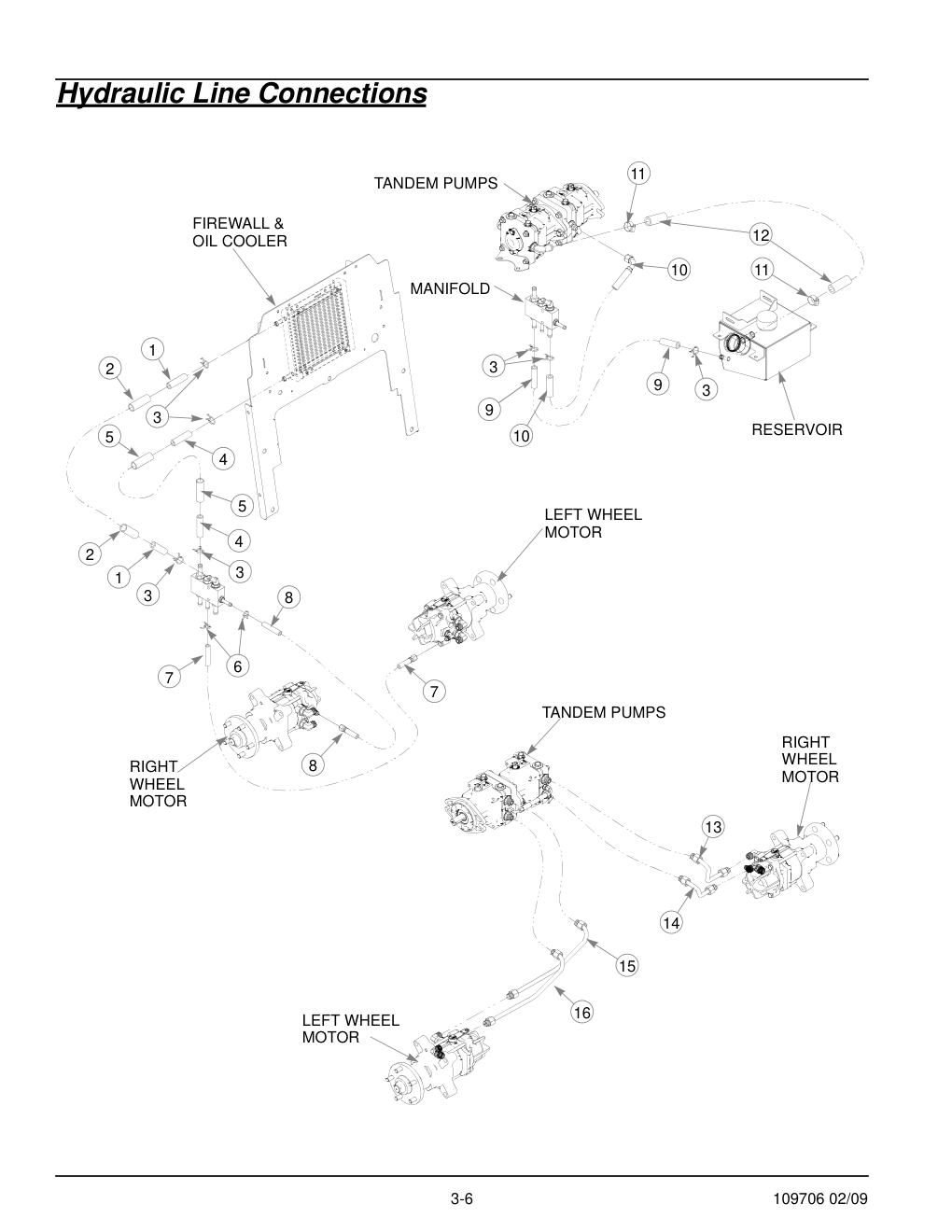

Hydraulic Line Connections
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 HOSE MANIFOLD BLOCK TO OIL COOLER | 601521 | N/A | 601521-Online |
| 2 | 1 HOSE MANIFOLD BLOCK | 601583 | N/A | 601583-Online |
| 3 | 7 SPRING CLAMP .75" DIA | 601001 | 601001 | 601001-Online |
| 4 | 1 HOSE RETURN COOLER TO MANIFOLD BLOCK | 601522 | N/A | 601522-Online |
| 5 | 1 HOSE MANIFOLD BLOCK | 601584 | N/A | 601584-Online |
| 6 | 2 SPRING CLAMP 5/8" DIA. | 601617 | 601617 | 601617-Online |
| 7 | 1 HOSE CASE DRAIN LEFT MOTOR | 601519 | N/A | 601519-Online |
| 8 | 1 HOSE CASE DRAIN RIGHT MOTOR | 601518 | N/A | 601518-Online |
| 9 | 1 HOSE RETURN MANIFOLD BLOCK TO RESERVOIR | 601570 | N/A | 601570-Online |
| 10 | 1 HOSE CASE DRAIN PUMP TO MANIFOLD | 601520 | N/A | 601520-Online |
| 11 | 2 CLAMP HOSE (FS) | 700484 | 700484 | 700484-Online |
| 12 | 1 HOSE SUCTION HDZ HYDRO | 601517 | N/A | 601517-Online |
| 13 | 1 TUBE TP-TM RT LOOP | 601494 | N/A | 601494-Online |
| 14 | 1 TUBE BP-BM RT LOOP | 601495 | N/A | 601495-Online |
| 15 | 1 TUBE TP-TM LT LOOP | 601496 | N/A | 601496-Online |
| 16 | 1 TUBE BP-BM LT LOOP | 601497 | N/A | 601497-Online |
| N/A | HYDRO KIT HDZ (INCLUDES 1, 2, 4, 5,7-10, & 12-16) | 601498 | 1 | 601498-Online |
Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 STEERING BAR GRIP | 781260 | N/A | 781260-Online |
| 2 | 2 HANDLE Z W/A | 109839 | 109839 | 109839-Online |
| 3 | 16 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 4 | 4 CS .375-16X1.000 HX G5 | 036244 | 036244 | HT036244-Online |
| 5 | 6 CS .375-16X1.750 HX G5 | 705178 | 705178 | HT705178-Online |
| 6 | 2 STEERING ARM MNT W/A | 348946 | 348946 | 348946-Online |
| 7 | 4 STEERLEVER BUSHING | 348862 | 348862 | HT348862-Online |
| 8 | 1 STEERING BOX W/A LH | 109260 | 109260 | 109260-Online |
| 109259 | STEERING BOX W/A RH | 109259 | 1 | 109259-Online |
| 9 | 4 BUSHING UHMW | 781153 | 781153 | HT781153-Online |
| 10 | 2 GM .750X.188X1.00X.12 | 047456 | 047456 | 047456-Online |
| 11 | 2 SS .500-13X 1.750 SH ZNY | 781716 | 781716 | 781716-Online |
| 12 | 6 NT .375-16 HXZY NL | 086660 | 086660 | HT086660-Online |
| 13 | 2 SWITCH PLUNGER | 601087 | 601087 | HT601087-Online |

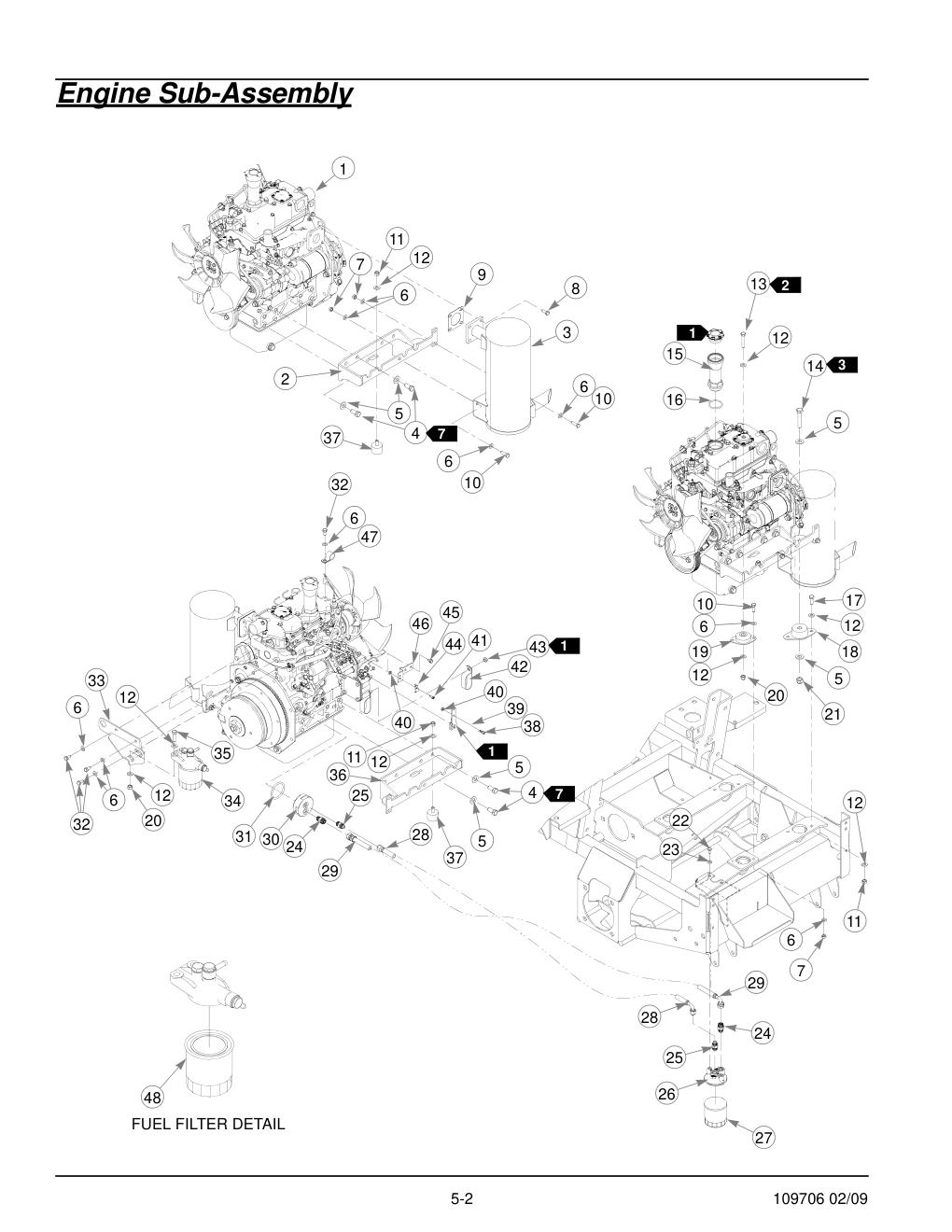

Engine Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 ENGINE, ISM S773L DIESEL | 601355 | 601355 | 601355-Online |
| 2 | 1 MOTOR MNT W/A RS, HDZ | 108976 | 108976 | 108976-Online |
| 3 | 1 MUFFLER, ISM S773L HDZ | 601361 | 601361 | 601361-Online |
| 4 | 16 CS M12-1.25 X 25 ZN | 601428 | 601428 | 601428-Online |
| 5 | 20 FW .531X 1.063X.090 SAE | 767962 | 767962 | HT767962-Online |
| 6 | 16 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 7 | 10 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 8 | 4 M8 X 1.25 X 20 BOLT | 011510820 | N/A | 011510820-Online |
| 9 | 1 MUFFLER GASKET | 314990013 | N/A | 314990013-Online |
| 10 | 6 CS .312-18X1.000 HX G5 | 036236 | 036236 | 036236-Online |
| 11 | 6 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 12 | 18 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 13 | 2 CS .375-16X2.00 G5 ZNYC | 016410 | 016410 | HT016410-Online |
| 14 | 2 CS .500-13X2.500 HX G5 | 008573 | 008573 | 008573-Online |
| 15 | 1 OIL FILLER EXTENSION | 110466031 | N/A | 110466031-Online |
| 16 | 1 OIL FILLER O-RING | 052100420 | N/A | 052100420-Online |
| 17 | 4 CS .375-16X1.000 HX G5 | 036244 | 036244 | HT036244-Online |
| 18 | 2 ISO MNT REAR ENG - HDZ | 601515 | 601515 | 601515-Online |
| 19 | 2 ISO MNT FRONT ENG - HDZ | 601516 | 601516 | 601516-Online |
| 20 | 4 NT .375-16 HXZY NL | 086660 | 086660 | HT086660-Online |
| 21 | 2 NT .500-13 HX G8 ZY NL | 781567 | 781567 | HT781567-Online |
| 22 | 2 CS .250-20X .500 HX G5 | 055947 | 055947 | 055947-Online |
| 23 | 2 FW .281X.625X.051/.080H | 768515 | 768515 | HT768515-Online |
| 24 | 2 FITTING STR-6MORB/-6MS | 792150 | N/A | 792150-Online |
| 25 | 2 FITTING STR-6MORB/-6JI | 779132 | N/A | 779132-Online |
| 26 | 1 FILTER HEAD HDZ | 601487 | 601487 | 601487-Online |
| 27 | 1 OIL FILTER | 140517020 | N/A | HT140517020-Online |
| 28 | 1 HOSE OIL FILTER RELOC | 601546 | N/A | 601546-Online |
| 29 | 1 HOSE OIL FILTER RELOC | 601547 | N/A | 601547-Online |
| 30 | 1 ADAPTER REMOTE OIL FILTER | 601526 | 601526 | 601526-Online |
| 31 | 1 O-RING HDZ REMOTE OIL FILTER | 601567 | 601567 | 601567-Online |
| 32 | 4 CS M 8-1.25X16 HX G8.8 | 053678 | 053678 | 053678-Online |
| 33 | 1 BRACKET FUEL FILTER W/A | 109358 | 109358 | 109358-Online |
| 34 | 1 FUEL FILTER ASS'Y (INCLUDES 130366120 FILTER) | 130306190 | N/A | 130306190-Online |
| 35 | 2 CS .375-16X1.375 HX G5 | 005116 | 005116 | HT005116-Online |
| 36 | 1 MOTOR MNT W/A LS HDZ | 109589 | 109589 | 109589-Online |
| 37 | 2 VIBRATION MOUNT | 601650 | 601650 | 601650-Online |
| 38 | 1 SB .250DX.250L 10-24 ZN | 601493 | 601493 | 601493-Online |
| 39 | 2 FW .250X .560X.04 SAE Z | 017079 | 017079 | 017079-Online |
| 40 | 2 NT #10-24 HXFLK ZN | 016774 | 016774 | 016774-Online |
| 41 | 1 CS 10-24 X .500 SKTHD Z | 794495 | 794495 | 794495-Online |
| 42 | 1 HOSE CLAMP 1" | 045088 | 045088 | 045088-Online |
| 43 | 1 M8 X 1.25 NUT | 023100008 | N/A | 023100008-Online |
| 44 | 1 CONDUIT CLIP | 011841 | 011841 | 011841-Online |
| 45 | 2 CS M 6-1.0 X 12 10.9 HX | 739144 | 739144 | 739144-Online |
| 46 | 1 THROTTLE BRACKET ISM ENGINE | 109419 | 109419 | 109419-Online |
| 47 | 1 CLIP - HOSE - SINGLE(FS) | 043570 | 043570 | 043570-Online |
| 48 | 2 FUEL SPIN ON FILTER | 130366120 | N/A | HT130366120-Online |

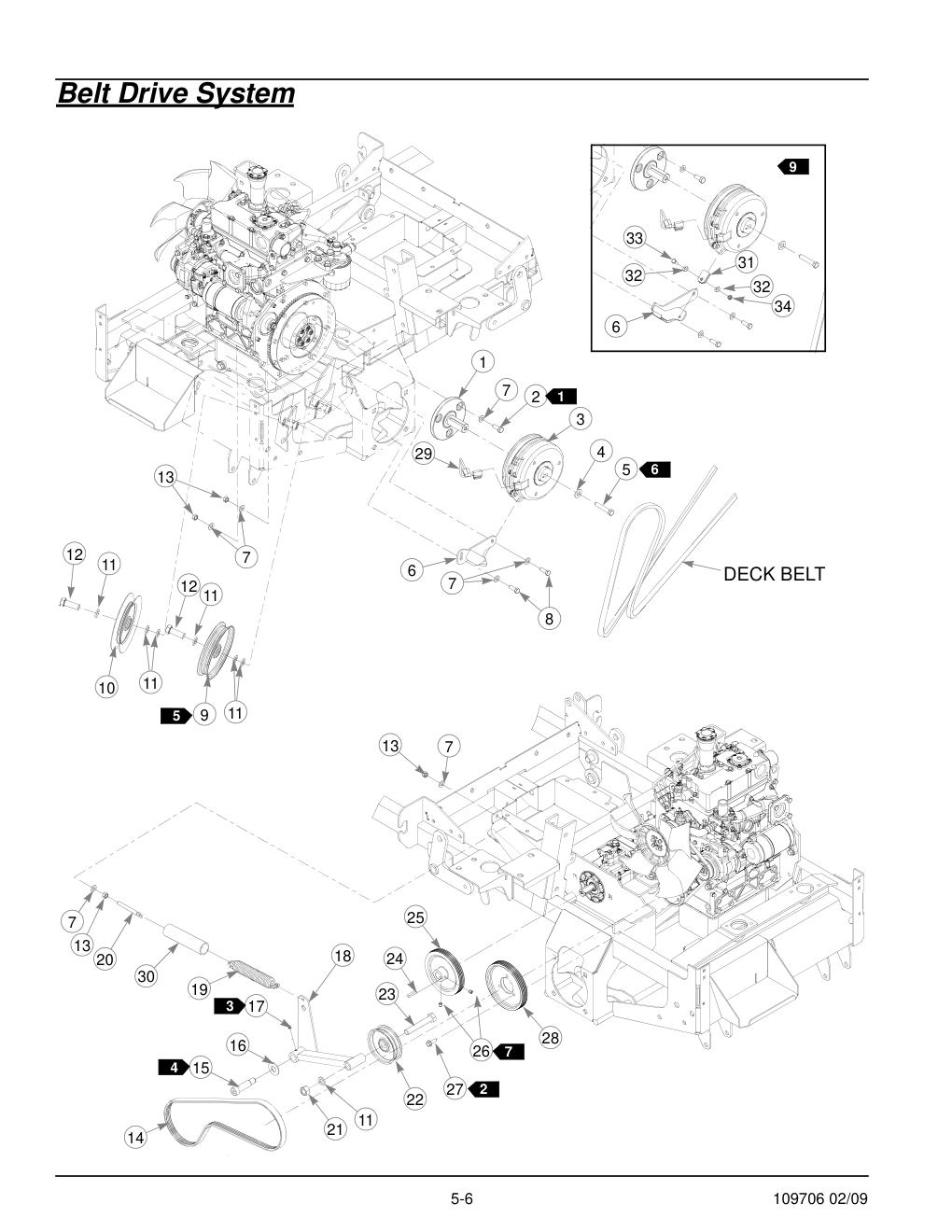

Belt Drive System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 STUB SHAFT, ISM 773 | 601279 | 601279 | 601279-Online |
| 2 | 3 CS M10-1.50X25 HX ZN | 038836 | 038836 | 038836-Online |
| 3 | 1 CLUTCH, CMS250 | 601278 | 601278 | 601278-Online |
| 4 | 1 FW .531X 1.063X.090 SAE | 767962 | 767962 | HT767962-Online |
| 5 | 1 CS .437-20X2.250 G5 ZNY | 778217 | 778217 | 778217-Online |
| 6 | 1 CLUTCH BRACKET ANCHOR HDZ | 109725 | 109725 | 109725-Online |
| 7 | 9 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 8 | 2 CS .375-16X1.000 HX G5 | 036244 | 036244 | HT036244-Online |
| 9 | 1 IDLER PULLEY NHI 6.00" (SIDE DISCH. ONLY) | 781385 | 781385 | HT781385-Online |
| 796714 | PULLEY 6" HB IDLER RD (REAR DISCH. ONLY) | 796714 | 1 | HT796714-Online |
| 10 | 1 PULLEY 6" HB IDLER RD | 796714 | 796714 | HT796714-Online |
| 11 | 7 FW .625X1.00X.134 ZNYC | 028118 | 028118 | HT028118-Online |
| 12 | 2 CS .625-11X1.750 HX G5 | 025007 | 025007 | HT025007-Online |
| 13 | 4 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 14 | 1 BELT 48.50 PVL X 4 | 601424 | 601424 | 601424-Online |
| 15 | 1 SB .750X 2.000 SH.625-11 | 601084 | 601084 | HT601084-Online |
| 16 | 1 FW .760X 1.625X.08 ZNYC | 025296 | 025296 | HT025296-Online |
| 17 | 1 GREASE FITTING STRAIGHT | 015495 | 015495 | HT015495-Online |
| 18 | 1 IDLER ARM W/A, HDZ | 109127 | 109127 | HT109127-Online |
| 19 | 1 IDLER SPRING | 601016 | 601016 | HT601016-Online |
| 20 | 1 EB, .375-16X3.00 FULTHD | 601486 | 601486 | 601486-Online |
| 21 | 1 NT .625-11 HX G5 ZNYC | 016972 | 016972 | HT016972-Online |
| 22 | 1 PULLEY, 4" FLAT IDLER | 601488 | 601488 | 601488-Online |
| 23 | 1 CS .625-11X4.000 HX G5 | 047712 | 047712 | 047712-Online |
| 24 | 1 KEY 1/4 X 1.375 LG | 601713 | 601713 | 601713-Online |
| 25 | 1 PULLEY, 5.625" MICRO V | 601422 | 601422 | 601422-Online |
| 26 | 2 SS .312-18X .312 SH BO | 600122 | 600122 | HT600122-Online |
| 27 | 3 CS M8-1.25X25 G10.9HXFL | 004317 | 004317 | 004317-Online |
| 28 | 1 PULLEY, 6.0" MICRO V | 601423 | 601423 | 601423-Online |
| 29 | 1 CLUTCH PIGTAIL HARNESS | 791251 | 791251 | HT791251-Online |
| 30 | 1 SPRING DAMPER TUBE | 601722 | 601722 | 601722-Online |
| 31 | 1 BUMPER, CLUTCH MOUNT | 601478 | 601478 | 601478-Online |
| 32 | 2 FW .281X.625X.051/.080H | 768515 | 768515 | HT768515-Online |
| 33 | 1 CS .250-20X .750 HX G5 | 055939 | 055939 | 055939-Online |
| 34 | 1 NT .250-20 HXZY NL | 068551 | 068551 | HT068551-Online |

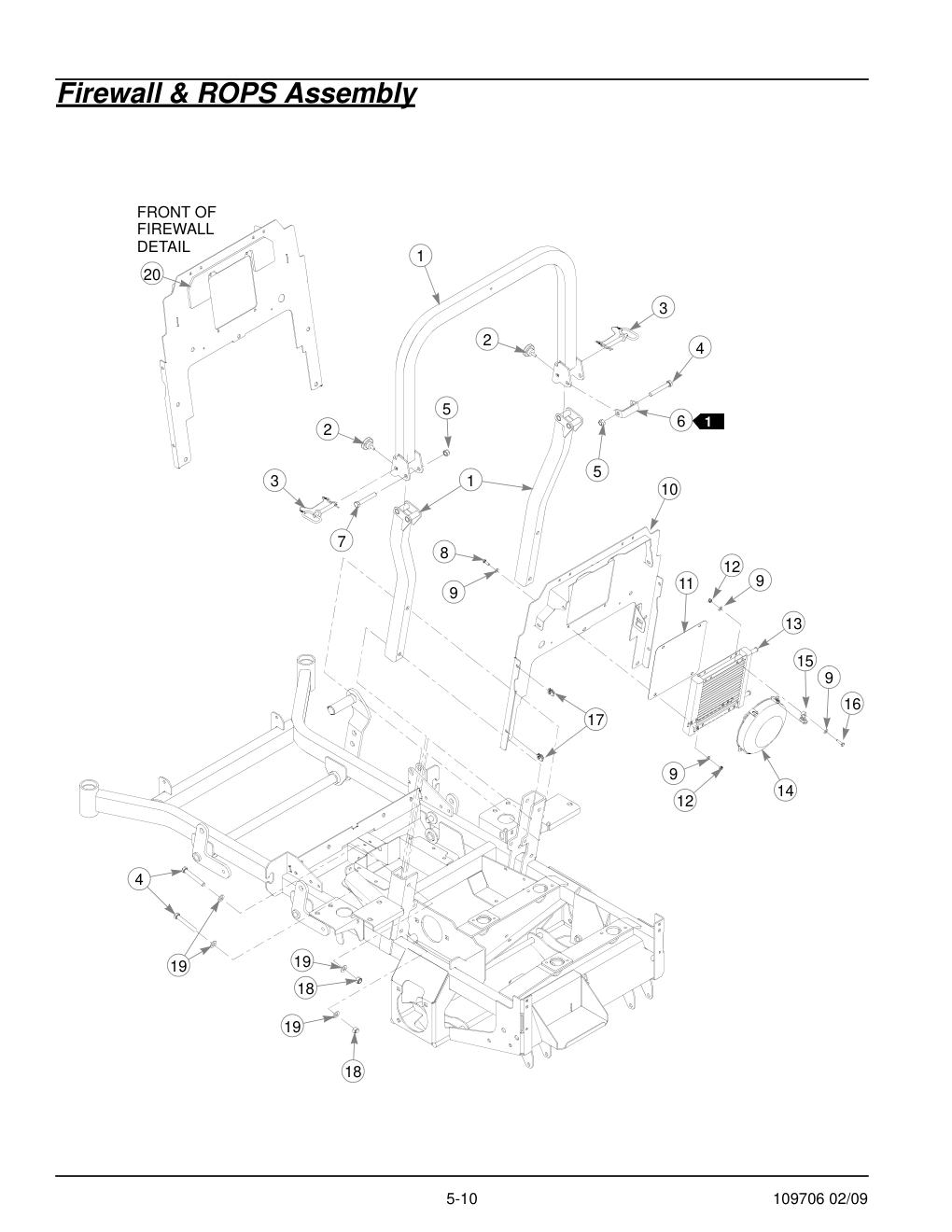

Firewall & ROPS Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 ROPS DZ FOLDING | 601443 | 601443 | 601443-Online |
| 2 | 2 KNOB HAND FOR ROPS | 601470 | 601470 | 601470-Online |
| 3 | 2 LYNCH PIN W/ LANYARD | 601471 | 601471 | 601471-Online |
| 4 | 5 CS .500-13X3.500 HX G5 | 061812 | 061812 | 061812-Online |
| 5 | 2 NT .500-13 UNT LK G5 ZN | 023317 | 023317 | 023317-Online |
| 6 | 1 ROPS STOP | 601472 | 601472 | 601472-Online |
| 7 | 1 CS .500-13X3.250 HX G5 | 077859 | 077859 | 077859-Online |
| 8 | 4 CS .250-20X .750 HX G5 | 055939 | 055939 | 055939-Online |
| 9 | 16 FW .281X.625X.051/.080H | 768515 | 768515 | HT768515-Online |
| 10 | 1 FIREWALL W/A HDZ | 549352 | 109547 | 549352-Online |
| 11 | 1 SCREEN OIL COOLER | 109401 | 109401 | 109401-Online |
| 12 | 8 NT .250-20 HXZY NL | 068551 | 068551 | HT068551-Online |
| 13 | 1 OIL COOLER 8" FAN ALUM | 601356 | 601356 | 601356-Online |
| 14 | 1 FAN ELECTRIC 8" 12VDC | 601357 | 601357 | 601357-Online |
| 15 | 4 ELECTRIC FAN FOOT | 601538 | 601538 | 601538-Online |
| 16 | 4 CS .250-20X1.000 HX G5 | 056077 | 056077 | 056077-Online |
| 17 | 4 CN .312-18X.200 MAX THK | 601069 | 601069 | HT601069-Online |
| 18 | 4 NT .500-13 HX G8 ZY NL | 781567 | 781567 | HT781567-Online |
| 19 | 1 FW .531X 1.063X.090 SAE | 767962 | 767962 | HT767962-Online |
| 20 | 1 SEAT PAD | 601559 | 601559 | 601559-Online |

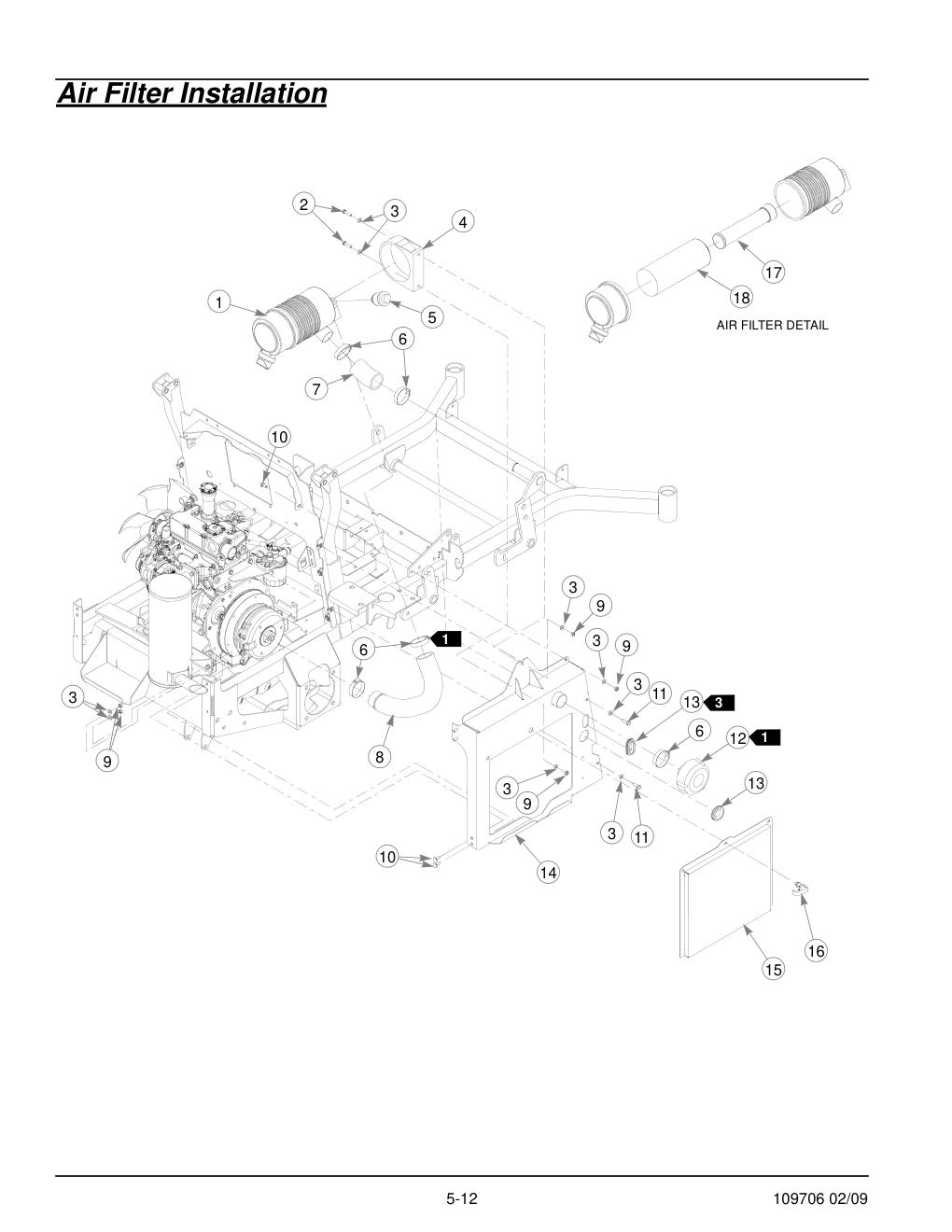

Air Filter Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DONALDSON AIR CLEANER | 782763 | 782763 | HT782763-Online |
| 2 | 2 CS .312-18X1.250 HX G5 | 079186 | 079186 | 079186-Online |
| 3 | 9 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 4 | 1 BAND AIR CLEANER MOUNT | 785741 | 785741 | 785741-Online |
| 5 | 1 AIR FILTER INDICATOR | 795138 | 795138 | 795138-Online |
| 6 | 5 HOSE CLAMP | 057661 | 057661 | 057661-Online |
| 7 | 1 HOSE FRESH AIR INTK HDZ | 601359 | 601359 | 601359-Online |
| 8 | 1 HOSE INTAKE HDZ | 601360 | 601360 | 601360-Online |
| 9 | 5 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 10 | 3 CB .312-18X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 11 | 2 CS .312-18X1.000 HX G5 | 036236 | 036236 | 036236-Online |
| 12 | 1 ENGINE CENTRIFICAL PREC | 775353 | 775353 | HT775353-Online |
| 13 | 2 GM 1.50 X 2.12 X 1.75 | 794644 | 794644 | 794644-Online |
| 706531 | GM 1.12X1.75X1.37X.12 | 706531 | 1 | 706531-Online |
| 14 | 1 PANEL W/A A/C MNT HDZ | 549394 | 109279 | 549394-Online |
| 15 | 1 SCREEN RS W/A HDZ | 109341 | 109341 | 109341-Online |
| 16 | 1 LATCH HEAVY DUTY SWELL | 791384 | 791384 | 791384-Online |
| 17 | 1 SAFETY AIR FILTER ELEMENT | 785279 | 785279 | 785279-Online |
| 18 | 1 MAIN AIR FILTER ELEMENT | 785261 | N/A | 785261-Online |

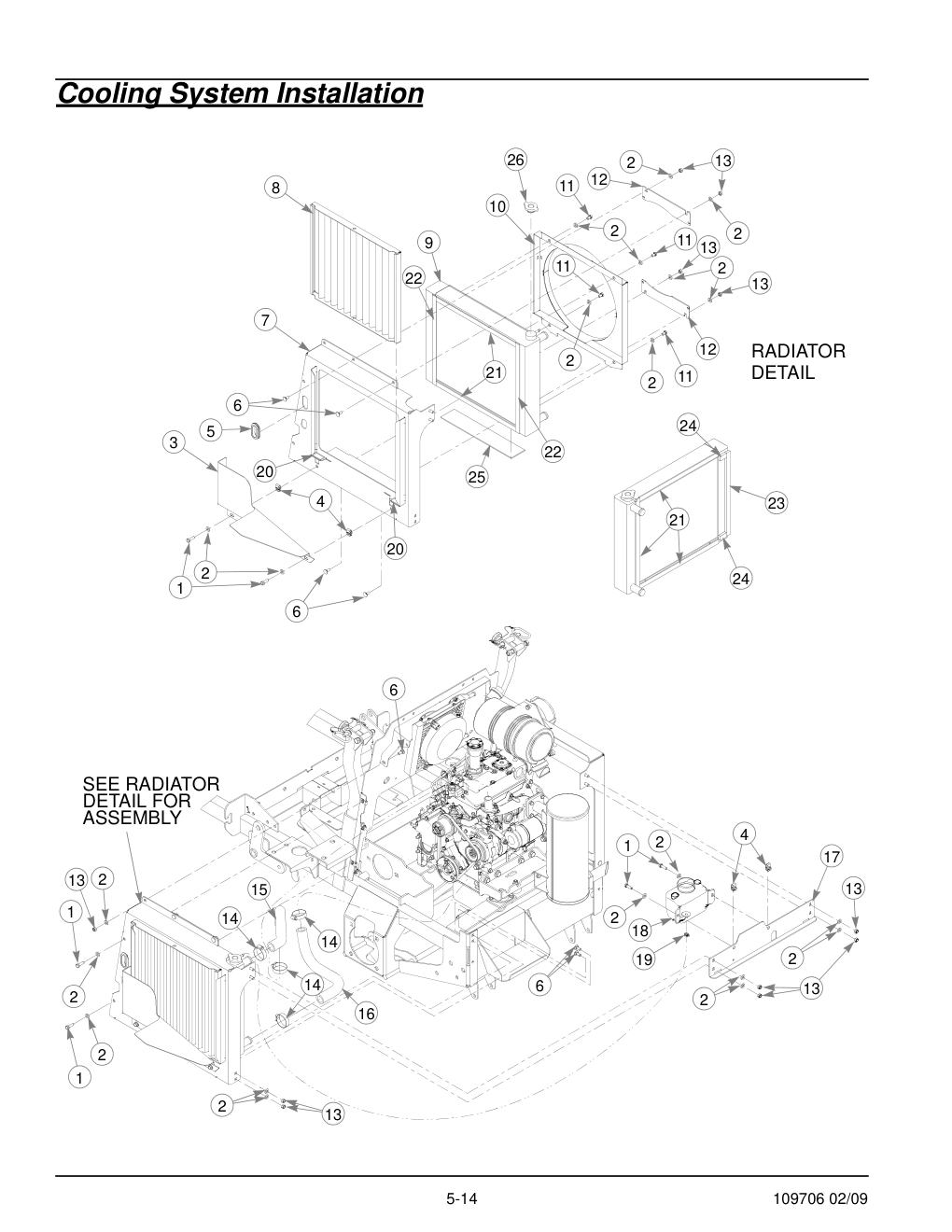

Cooling System Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 6 CS .312-18X1.000 HX G5 | 036236 | 036236 | 036236-Online |
| 2 | 21 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 3 | 1 INNER PANEL FENDER | 109559 | 109559 | 109559-Online |
| 4 | 4 CN .312-18X.200 MAX THK | 601069 | 601069 | HT601069-Online |
| 5 | 1 GM 1.50 X 2.12 X 1.75 | 794644 | 794644 | 794644-Online |
| 706531 | GM 1.12X1.75X1.37X.12 | 706531 | 1 | 706531-Online |
| 6 | 7 CB .312-18X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 7 | 1 RAD SCREEN PANEL W/A HDZ | 549360 | 109271 | 549360-Online |
| 8 | 1 RADIATOR SCREEN W/A HDZ | 109137 | 109137 | 109137-Online |
| 9 | 1 RADIATOR HDZ | 601295 | 601295 | 601295-Online |
| 10 | 1 SHROUD W/A HDZ | 109144 | 109144 | 109144-Online |
| 11 | 4 CS .312-18X .500 HX G5 | 068346 | 068346 | 068346-Online |
| 12 | 2 RAD MNT PLATE HDZ | 108977 | 108977 | 108977-Online |
| 13 | 11 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 4 HOSE CLAMP | 713040 | 713040 | 713040-Online |
| 15 | 1 UPPER RADIATOR HOSE | 601353 | 601353 | 601353-Online |
| 16 | 1 LOWER RADIATOR HOSE | 601354 | 601354 | 601354-Online |
| 17 | 1 HOOD SUPPORT | 549402 | 109073 | 549402-Online |
| 18 | 1 RADIATOR OVERFLOW BOTTLE | 601358 | 601358 | 601358-Online |
| 19 | 1 HOSE CLAMP | 041483 | 041483 | 041483-Online |
| 20 | 2 WEATHERSTRIP .12 X .75 X 1.5" | 033035 | 033035 | 033035-Online |
| 21 | 5 WEATHERSTRIP .12 X .75 X 16" | 033035 | 033035 | 033035-Online |
| 22 | 2 WEATHERSTRIP .12 X .75 X 15.5" | 033035 | 033035 | 033035-Online |
| 23 | 1 SEAL 3/8 X 3/4 X 14" | 713198 | 713198 | 713198-Online |
| 24 | 2 SEAL 3/8 X 3/4 X 1.25" | 713198 | 713198 | 713198-Online |
| 25 | 1 RADIATOR SUPPORT PAD | 601558 | 601558 | 601558-Online |
| 26 | 1 RADIATOR CAP | 600320 | N/A | 600320-Online |
Engine Cover Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 HOOD HDZ | 601363 | 601363 | 601363-Online |
| 2 | 2 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 3 | 8 NT .250-20 HXZY NL | 068551 | 068551 | HT068551-Online |
| 4 | 2 FW .344X 1.00X.12 HRD Z | 712927 | 712927 | HT712927-Online |
| 5 | 2 HINGE 3"X3" ZN W/ HOLES | 601364 | 601364 | 601364-Online |
| 6 | 8 CB .250-20 X .625 ZNYC | 601503 | 601503 | 601503-Online |
| 7 | 10 FW .281X.625X.051/.080H | 768515 | 768515 | HT768515-Online |
| 8 | 1 SB .375 X 1.50SH .312-18 | 601379 | 601379 | 601379-Online |
| 9 | 1 LIFT SUPPORT MOUNTING | 109745 | 109745 | 109745-Online |
| 10 | 1 SB .375X .500 SH .312-18 | 063297 | 063297 | 063297-Online |
| 11 | 1 GAS SPRING HDZ HOOD | 601564 | 601564 | 601564-Online |
| 12 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 13 | 4 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 14 | 4 RIVET .188 DIA BLK HD | 601089 | 601089 | 601089-Online |
| 15 | 2 LUDWIG SNAP FASTNER A-1 | 010306 | 010306 | 010306-Online |
| 16 | 1 FIREWALL ACCESS PANEL | 109136 | 109136 | 109136-Online |
| 17 | 1 OVER CNTR CATCH W/LCK H | 758821 | 758821 | 758821-Online |
| 18 | 1 COVER REAR W/A HDZ | 109413 | 109413 | 109413-Online |
| 19 | 2 GM .31X.81X.56X.18 | 031666 | 031666 | 031666-Online |
| 20 | 1 GUARD REAR ENGINE HDZ | 109105 | 109105 | 109105-Online |
| 21 | 4 FW .531X 1.063X.090 SAE | 767962 | 767962 | HT767962-Online |
| 22 | 4 CS .500-13X1.00 HX G5 Z | 016527 | 016527 | 016527-Online |
| 23 | 4 CS .250-20X .750 HX G5 | 055939 | 055939 | 055939-Online |
| 24 | 1 LATCH SLAM SOUTHCO | 601373 | 601373 | 601373-Online |
| 25 | 2 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 26 | 1 SOUTHCO LATCH BRACKET | 109721 | 109721 | 109721-Online |
| 27 | 2 LW .250 INT-EXT TOOTH Z | 029868 | 029868 | 029868-Online |
| 28 | 2 CS .312-18X1.000 HX G5 | 036236 | 036236 | 036236-Online |
| 29 | 2 FW 1.312X 2.250X .160 P | 781880 | 781880 | HT781880-Online |
| 30 | 1 LATCH STRIKER W/A | 109722 | 109722 | 109722-Online |
| 31 | 2 NT .312-18 HXZY NL | 058776 | 058776 | HT058776-Online |
| 32 | 2 WEATHERSTRIP .12 X.75 X 6.25" | 033035 | 033035 | 033035-Online |
| 33 | 1 WEATHERSTRIP .12 X.75 X 11.88" | 033035 | 033035 | 033035-Online |
| 34 | 1 WEATHERSTRIP .12 X.75 X 19.88" | 033035 | 033035 | 033035-Online |
| 35 | 2 SEAL 3/8 X 3/4 X 4.5" | 713198 | 713198 | 713198-Online |

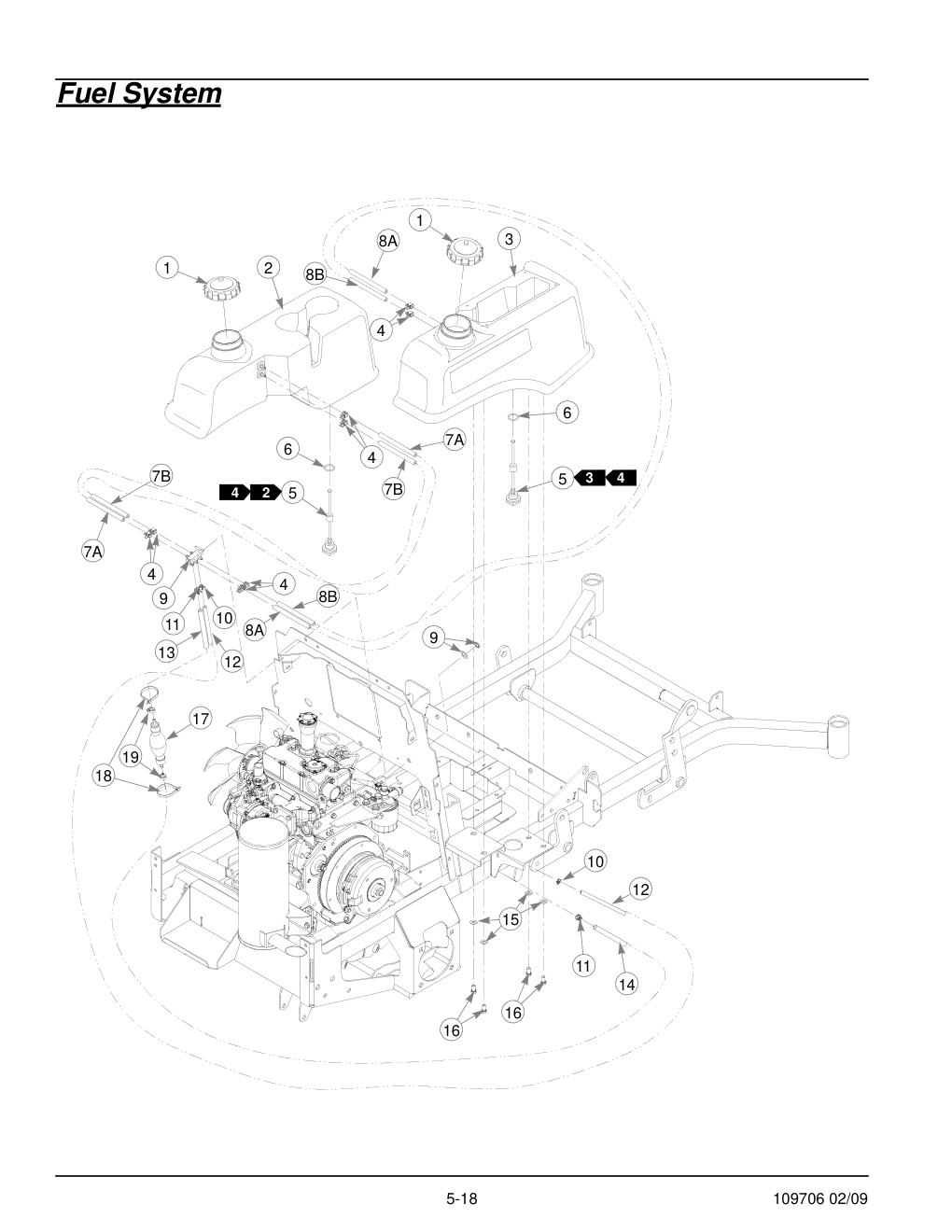

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 3.5" YELLOW FUEL CAP | 798470 | 798470 | HT798470-Online |
| 2 | 1 FUEL TANK LEFT SIDE HDZ | 601699 | 601699 | 601699-Online |
| 601366 | FUEL TANK LEFT SIDE HDZ | 601366 | 1 | 601366-Online |
| 3 | 1 FUEL TANK RIGHT SIDE HDZ | 601698 | 601698 | 601698-Online |
| 601365 | FUEL TANK RIGHT SIDE HDZ | 601365 | 1 | 601365-Online |
| 4 | 8 CLIP | 000323 | 000323 | 000323-Online |
| 5 | 2 FUEL LEVEL SENSOR HDZ | 601369 | 601369 | 601369-Online |
| 601369 | FUEL LEVEL SENSOR HDZ | 601369 | 2 | 601369-Online |
| 6 | 2 O-RING SAE-14 FUEL SENSOR | 601375 | 601375 | 601375-Online |
| 7A | 1 FUEL LINE 24.5" (SUPPLY LINE) | 015818 | 015818 | HT015818-Online |
| 015818 | FUEL LINE 31.5" (SUPPLY LINE) | 015818 | 1 | HT015818-Online |
| 7B | 1 FUEL LINE 24.5" (RETURN LINE) | 015818 | 015818 | HT015818-Online |
| 015818 | FUEL LINE 31.5" (RETURN LINE) | 015818 | 1 | HT015818-Online |
| 8A | 1 FUEL LINE 9" (SUPPLY LINE) | 015818 | 015818 | HT015818-Online |
| 015818 | FUEL LINE 16" (SUPPLY LINE) | 015818 | 1 | HT015818-Online |
| 8B | 1 FUEL LINE 9" (RETURN LINE) | 015818 | 015818 | HT015818-Online |
| 015818 | FUEL LINE 16" (RETURN LINE) | 015818 | 1 | HT015818-Online |
| 9 | 1 FUEL VALVE | 795542 | 795542 | 795542-Online |
| 10 | 2 HOSE CLAMP | 041483 | 041483 | 041483-Online |
| 11 | 2 HOSE CLAMP | 041491 | 041491 | 041491-Online |
| 12 | 1 FUEL HOSE 13" (RETURN FROM ENGINE TO VALVE) | 038398 | 038398 | 038398-Online |
| 13 | 1 FUEL LINE 12" (VALVE TO PRIMER BULB) | 791400 | 791400 | 791400-Online |
| 14 | 1 FUEL LINE 16" (PRIMER BULB TO FUEL PUMP) | 791400 | 791400 | 791400-Online |
| 15 | 8 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 16 | 8 CS .375-16X .750 HX G5 | 055822 | 055822 | HT055822-Online |
| 17 | 1 FUEL PRIMER BULB 5/16" ENDS | 601378 | 601378 | 601378-Online |
| 18 | 3 WIRE TIE BIG/LONG | 060889 | 060889 | 060889-Online |
| 19 | 2 HOSE CLAMP 1/4" - 5/8" | 601693 | 601693 | 601693-Online |

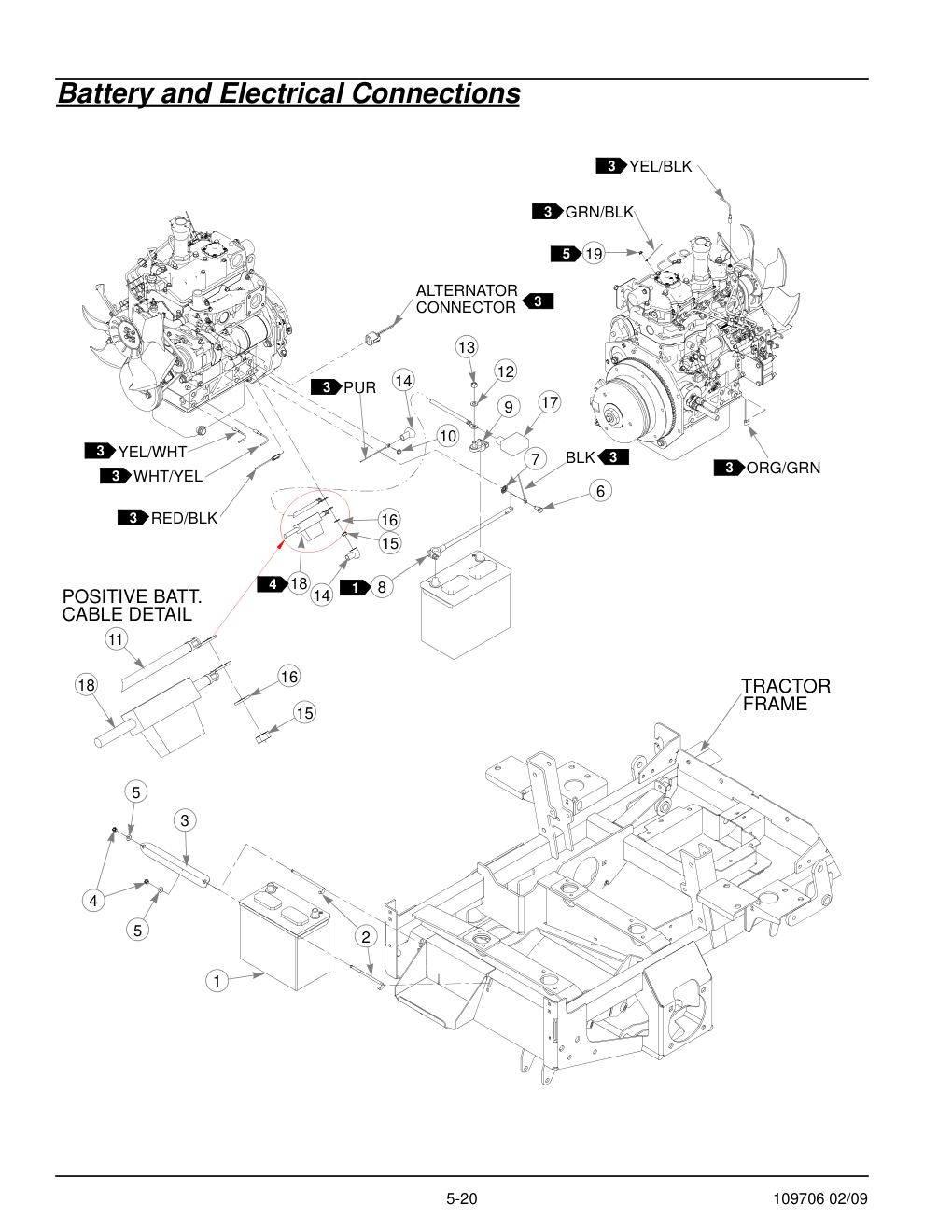

Battery and Electrical Connections
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 BATTERY GRP 45 480CCA | 601291 | 601291 | 601291-Online |
| 2 | 2 BATTERY CLAMP ROD | 793489 | 793489 | 793489-Online |
| 3 | 1 BATTERY HOLDDOWN CLAMP | 109108 | 109108 | 109108-Online |
| 4 | 2 NT .250-20 HXZY NL | 068551 | 068551 | HT068551-Online |
| 5 | 2 FW .281X.625X.051/.080H | 768515 | 768515 | HT768515-Online |
| 6 | 1 CS M 8-1.25X16 HX G8.8 | 053678 | 053678 | 053678-Online |
| 7 | 1 LW .312 INT-EXT TOOTH Z | 029876 | 029876 | 029876-Online |
| 8 | 1 NEG 12" POST/STUD CABLE | 601540 | 601540 | 601540-Online |
| 9 | 1 POS BAT MARINE POST | 601380 | 601380 | 601380-Online |
| 10 | 1 NT M6-1.0-10 HX FLG ZN | 005231 | 005231 | 005231-Online |
| 11 | 1 POS CABLE 9" | 601539 | 601539 | 601539-Online |
| 12 | 1 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 13 | 1 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 14 | 2 POS. BATTERY CABLE BOOT | 601319 | 601319 | 601319-Online |
| 15 | 1 NT M8X1.25 HX GR8.8 ZNY | 045336 | 045336 | 045336-Online |
| 16 | 1 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 17 | 1 POSITIVE BATTERY BOOT | 601381 | 601381 | 601381-Online |
| 18 | 1 WIRE HARNESS | 601789 | N/A | 601789-Online |
| 601367 | WIRE HARNESS | N/A | 1 | No SKU |
| 19 | 1 FLANGE NUT | 023100004 | N/A | 023100004-Online |

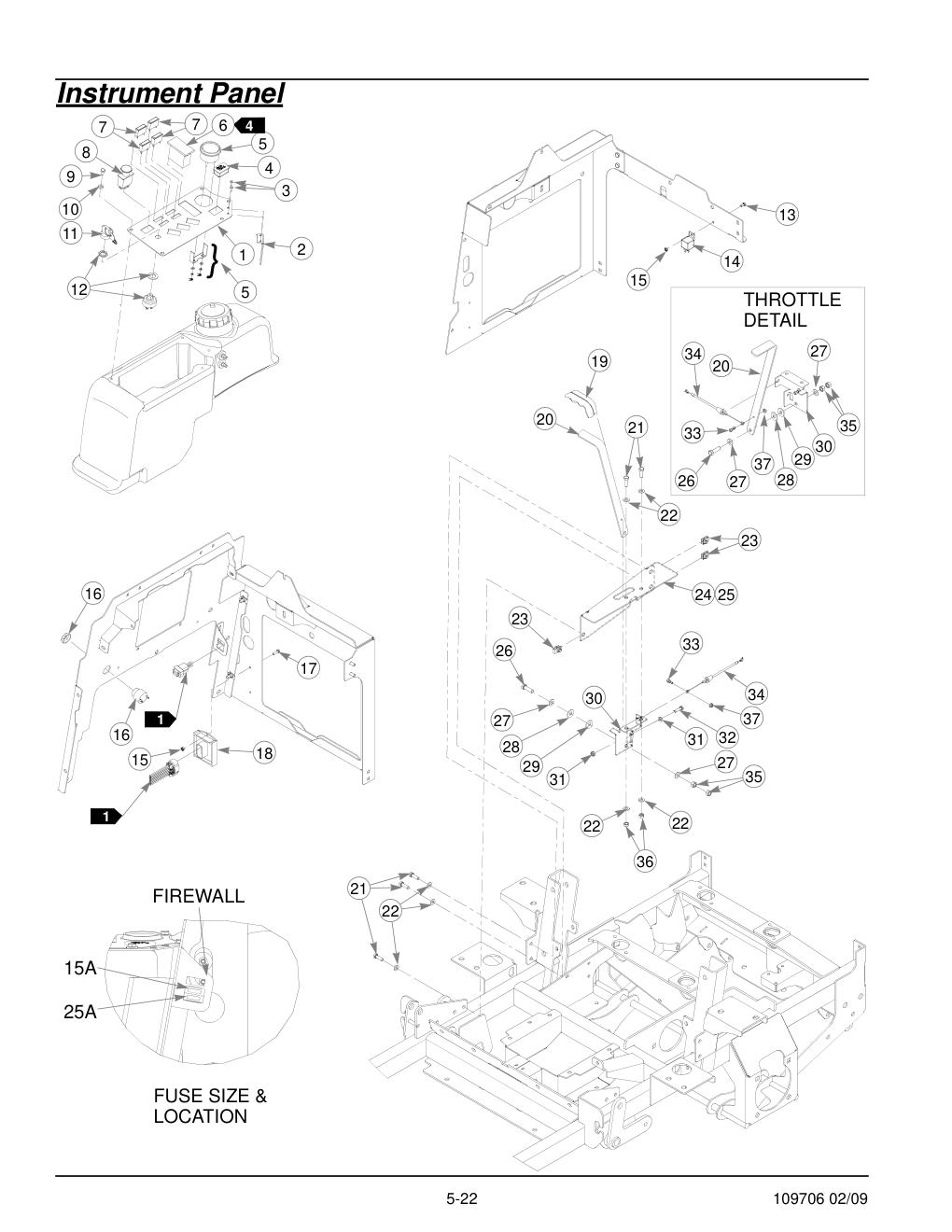

Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 INSTRUMENT PANEL HDZ 109557 N/A 1 INSTRUMENT PANEL HDZ 2 109729 109729 1 FUEL TANK COVER HDZ 3 601089 601089 2 RIVET .188 DIA BLK HD 4 769166 769166 1 HOUR METER 5 385710011 N/A 1 TEMPERATURE GAUGE HDZ 6 601764 601764 1 FUEL GAUGE DUAL TANK HDZ 601370 N/A 1 FUEL GAUGE DUAL TANK HDZ 7 712257 712257 4 RED INDICATOR LIGHT 8 776476 776476 1 PTO SWITCH 6201-321 9 055947 055947 5 CS .250-20X .500 HX G5 10 768515 768515 5 FW .281X.625X.051/.080H 11 785808 785808 1 KEY ASSEMBLY 12 045898 045898 1 IGN SWITCH INDAK 13 601098 601098 1 CB 10-24 X .500 ZYNC 14 601053 N/A 1 SEALED RELAY W/BRACKET 15 059832 059832 1 NT #10-24 HX NL ZN 16 794347 794347 1 ULTRA LOUD WARBLE ALARM 17 063198 063198 2 CS 10-24X .750 HXFLK ZN 18 601368 601368 1 CONTROLLER HDZ S773L 19 601371 601371 1 GRIP RED 3/16X1 BAR HDZ 20 109420 109420 1 THROTTLE LEVER HDZ 21 036236 036236 8 CS .312-18X1.000 HX G5 22 768523 768523 10 FW .343X.687X.051/.080H 23 601069 601069 6 CN .312-18X.200 MAX THK 24 549378 109530 1 SEAT PAN COVER RH SIDE 25 549386 109531 1 SEAT PAN COVER LH SIDE 26 052860 052860 1 CS .375-16X1.250 HX G5 27 767954 767954 2 FW .406X .812 X.060 SAE 28 601507 601507 1 FW .406X1.000X.06 NYLON 29 712919 712919 1 FW .406X 1.00X.12 HRD Z 30 109421 109421 1 THROTTLE LEVER PLATE 31 016816 016816 2 NT .250-20 HX FL LK ZNY 32 056077 056077 1 CS .250-20X1.000 HX G5 33 601493 601493 1 SB .250DX.250L 10-24 ZN 34 601362 601362 1 THROTTLE CABLE HDZ 35 054502 054502 2 NT .375-16 HX GRD 5 ZNY 36 034272 034272 2 NT .312-18 HX G5 ZNYC 37 016774 016774 1 NT #10-24 HXFLK ZN | 110760 | 110760 | 110760-Online |

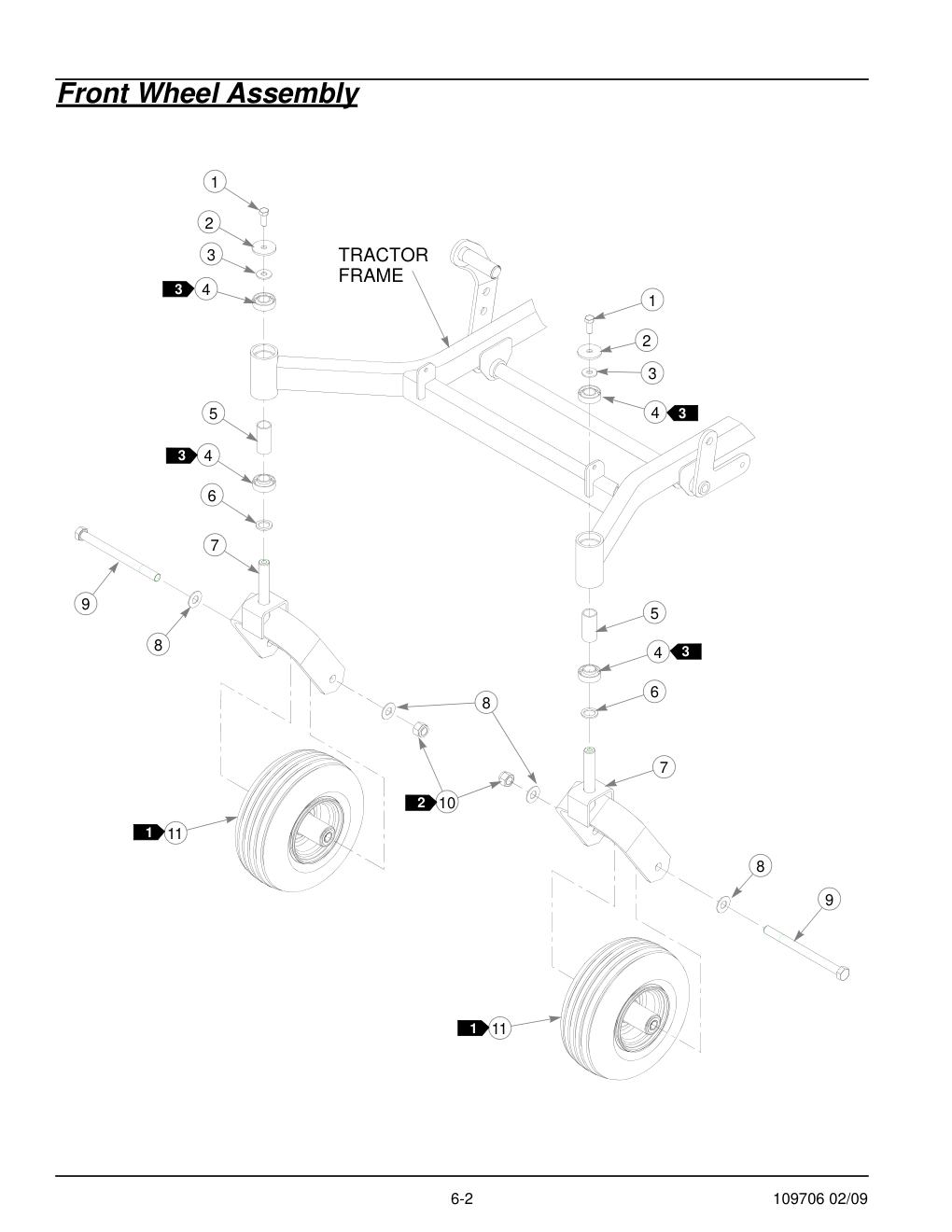

Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 CS .500-13X1.25 HX G5 Z | 705954 | 705954 | HT705954-Online |
| 2 | 2 FW .510X 2.15X.187 SPL | 344267 | 344267 | HT344267-Online |
| 3 | 2 FW .531X 1.375X.125 ZNY | 712967 | 712976 | 712967-Online |
| 4 | 4 BEARING W/O COLLAR | 784223 | 784223 | HT784223-Online |
| 5 | 2 SPACER, 1.07 X 1.312 X 2.793 | 387035 | 387035 | HT387035-Online |
| 6 | 2 FW 1.030X 1.500X.134 ZN | 045765 | 045765 | HT045765-Online |
| 7 | 2 FORK | 349266 | 349266 | HT349266-Online |
| 8 | 4 FW .760X 1.625X.08 ZNYC | 025296 | 025296 | HT025296-Online |
| 9 | 2 CS .750-10X9.50 HXZY | 041475 | 041475 | HT041475-Online |
| 10 | 2 NT .750-10 HXZY NL | 061101 | 061101 | HT061101-Online |
| 11 | 2 WHEEL & TIRE ASSY | 747782 | 747782 | 747782-Online |
| 12 | 2 OPTIONAL SEMI-PNEUMATIC WHEEL/TIRE ASSEMBLY | 789537 | N/A | 789537-Online |

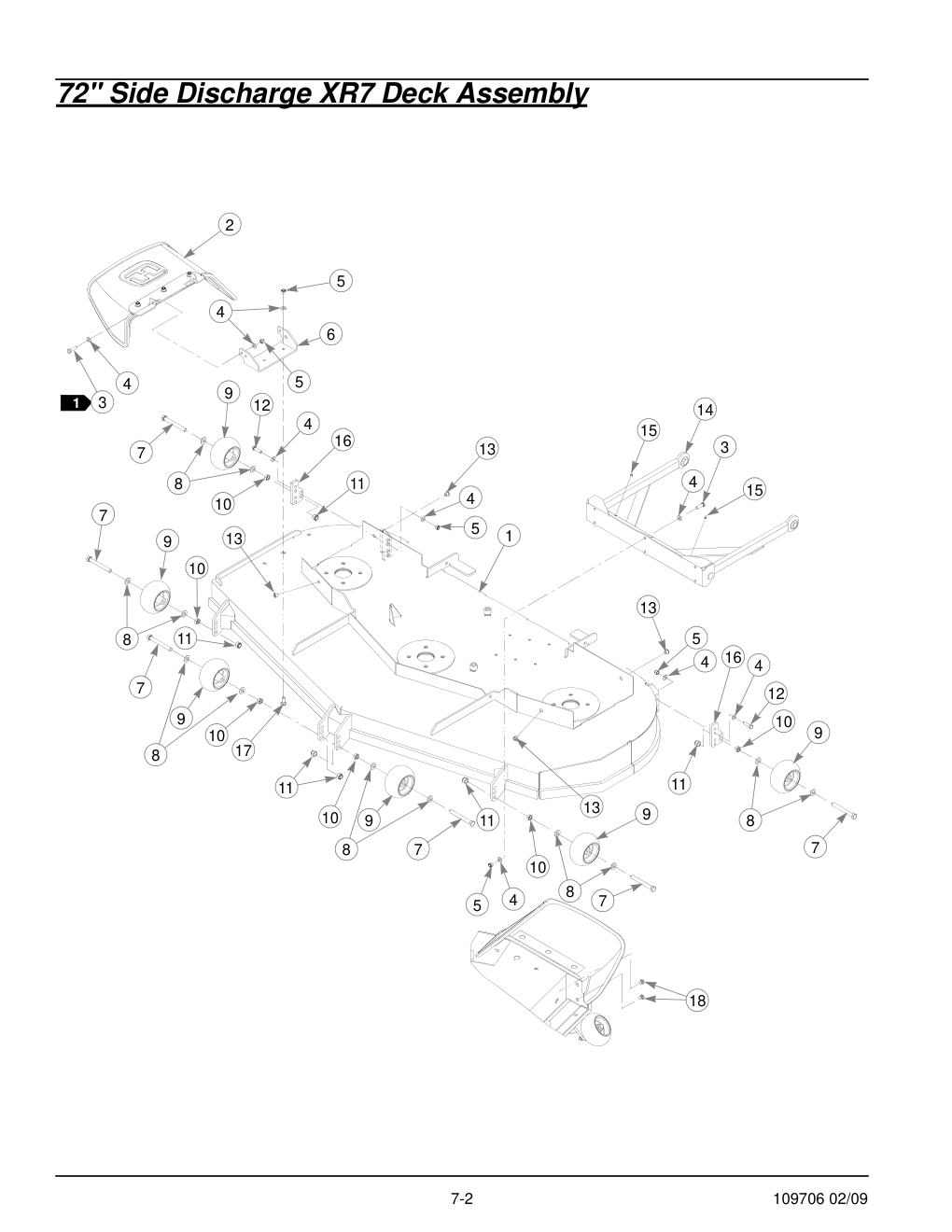

72" Side Discharge XR7 Deck Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 72" DECK WA CRATED | 549170 | 108649 | 549170-Online |
| 2 | 1 RUBBER CHUTE ASSEMBLY | 798694 | 798694 | HT798694-Online |
| 3 | 8 CS .375-19 X 1.250 HX G5 ZN | 052860 | 052860 | HT052860-Online |
| 4 | 26 FW .406 X .812 .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 5 | 14 NT .375-16 HXZY NL | 086660 | 086660 | HT086660-Online |
| 6 | 1 DISCHARGE CHUTE MOUNT BRACKET | 103010 | 103010 | 103010-Online |
| 7 | 6 CS .500-13 X 4.25 HX G5 ZN | 781708 | N/A | HT781708-Online |
| 8 | 12 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 9 | 6 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 10 | 6 NT .500-13 HX JAM ZN | 053199 | N/A | HT053199-Online |
| 11 | 6 NT .500-13 HX G8 ZY NL | 781567 | 781567 | HT781567-Online |
| 12 | 4 CS .375-16X1.375 HX G5 | 005116 | 005116 | HT005116-Online |
| 13 | 4 5/16-18 THREAD RIVET NUT | N/A | 808485 | No SKU |
| 14 | 1 PUSHER | 314104 | 314104 | HT314104-Online |
| 15 | 2 STRAIGHT GREASE FITTING | 015495 | 015495 | HT015495-Online |
| 16 | 2 REAR ANTI-SCALP BRACKET | 103184 | 103184 | 103184-Online |
| 17 | 2 CB .375-16 X 1.00 STD CD | 025395 | 025395 | HT025395-Online |
| 18 | 2 3/8-16 THREAD RIVET NUT | N/A | 808493 | No SKU |
| 788166 | ANTI SCALP WHEEL ASSY | 788166 | 6 | HT788166-Online |

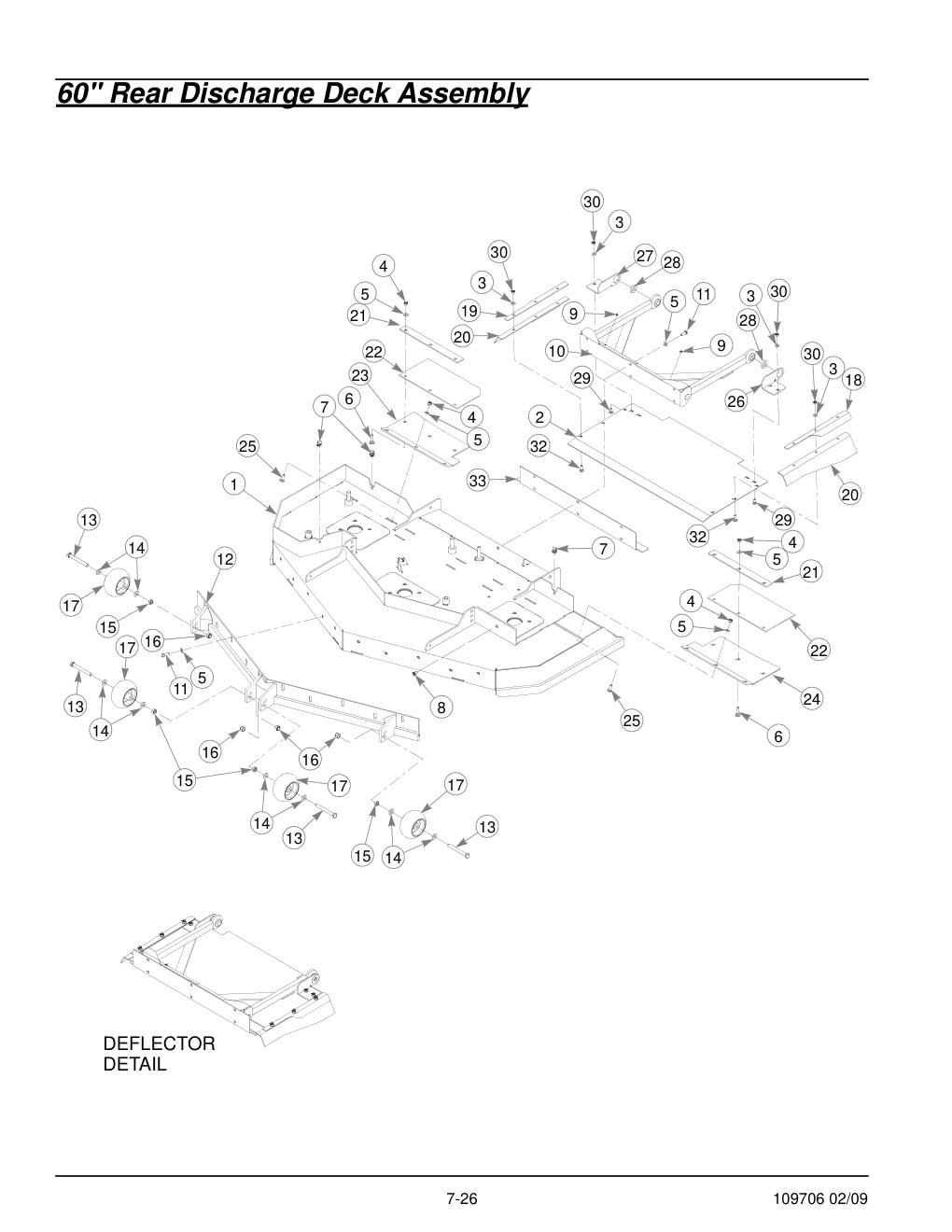

60" Rear Discharge Deck Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 60" REAR DISCHARGE DECK | 549592 | 110402 | 549592-Online |
| 2 | 1 DISCHARGE SHIELD | 109484 | 109484 | 109484-Online |
| 3 | 10 FW .343 X .687 X .051/.080 HD ZN | 768523 | 768523 | HT768523-Online |
| 4 | 12 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 5 | 28 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 6 | 6 CB .375-16X 1.50 STD G5 | 710194 | 710194 | 710194-Online |
| 7 | 3 CN .312-18X.200 MAX THK | 601069 | 601069 | HT601069-Online |
| 8 | 1 5/16-18 THREAD RIVET NUT HEX | 792887 | 792887 | 792887-Online |
| 9 | 2 STRAIGHT GREASE FITTING | 015495 | 015495 | HT015495-Online |
| 10 | 1 PUSHER | 349803 | 349803 | 349803-Online |
| 11 | 16 CS .375-16 X 1.00 HX G5 ZN | 036244 | 036244 | HT036244-Online |
| 12 | 1 60" REAR DISCHARGE FRONT ANGLE | 352591 | 352591 | 352591-Online |
| 13 | 4 CS .500-13 X 4.25 HX G5 ZN | 781708 | N/A | HT781708-Online |
| 14 | 8 FW .531 X 1.063 X.090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 15 | 4 NT .500-13 HX JAM ZN | 053199 | N/A | HT053199-Online |
| 16 | 4 NT .500-13 HX G8 ZY NL | 781567 | 781567 | HT781567-Online |
| 17 | 4 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 18 | 1 CLAMP ANGLE LS | 109486 | 109486 | 109486-Online |
| 19 | 1 CLAMP ANGLE RS | 109487 | 109487 | 109487-Online |
| 20 | 2 SIDE FLAP RUBBER | 601483 | 601483 | 601483-Online |
| 21 | 2 FLAP HOLD DOWN | 110182 | 110182 | 110182-Online |
| 22 | 2 RUBBER DISCHARGE FLAP | 601717 | 601717 | 601717-Online |
| 23 | 1 FLAP EXTENSION, RH | 110180 | 110180 | 110180-Online |
| 24 | 1 FLAP EXTENSION, LH | 110181 | 110181 | 110181-Online |
| 25 | 6 CB .375-16X 1.00 STD CD | 025395 | 025395 | HT025395-Online |
| 26 | 1 CHUTE BRACKET RS | 109482 | 109482 | 109482-Online |
| 27 | 1 CHUTE BRACKET LS | 109483 | 109483 | 109483-Online |
| 28 | 2 FW .781 X 1.375 X .250 ZNYC | 778399 | 778399 | 778399-Online |
| 29 | 4 CB .312-18 X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 30 | 10 NT .312-18 HXZY NL | 058776 | 058776 | HT058776-Online |
| 31 | 2 FW .760X 1.625X.08 ZNYC | 025296 | 025296 | HT025296-Online |
| 32 | 6 CB .312-18X 1.000 FUL Z | 037887 | 037887 | HT037887-Online |
| 33 | 1 GUARD MTG ANGLE | 109485 | 109485 | 109485-Online |
| 788166 | ANTI SCALP WHEEL ASSEMBLY | 788166 | 4 | HT788166-Online |
60" Rear Discharge Deck Pulley Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 BELT, BB-SEC 251.4" EL | 601673 | 601673 | 601673-Online |
| 2 | 1 PULLEY COVER, RH,60" | 110411 | 110411 | 110411-Online |
| 3 | 1 PULLEY COVER, LH,60" | 110412 | 110412 | 110412-Online |
| 4 | 1 CS .625-11X1.500 HX G5 | 794446 | 794446 | HT794446-Online |
| 5 | 7 FW .62 X 1.00 X .134 ZN | 028118 | 028118 | HT028118-Online |
| 6 | 5 6" HB IDLER PULLEY RD | 796714 | 796714 | HT796714-Online |
| 7 | 5 NT .500-13 HX G8 ZY NL | 781567 | 781567 | HT781567-Online |
| 8 | 12 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
| 9 | 1 BUSHING, PLAS .750X1(FS) | 770867 | 770867 | HT770867-Online |
| 10 | 6 BUSHING, IDLER PIVOT | 109549 | 109549 | HT109549-Online |
| 11 | 1 DECK IDLER SPACER | 600296 | 600296 | HT600296-Online |
| 12 | 1 IDLER ARM W/A | 109948 | 109948 | 109948-Online |
| 13 | 1 IDLER SLIDE UHMW | 601779 | 601779 | 601779-Online |
| 14 | 2 CS .312-18X1.50FLT SH ZY | 797910 | 797910 | HT797910-Online |
| 15 | 1 FW .500X 1.250X.075 ZNY | 704759 | 704759 | 704759-Online |
| 16 | 1 IDLER SPRING | 781302 | 781302 | 781302-Online |
| 17 | 1 DECK LIFT CHAIN (13 LINKS) | 259812 | 059931 | HT259812-Online |
| 18 | 4 NT .625-11 HX G5 ZNYC | 016972 | 016972 | HT016972-Online |
| 19 | 15 CS .500-13 X 1.00 HX G5 ZN | 016527 | 016527 | 016527-Online |
| 20 | 3 FW .510 X 1.75 X .18 ZN | 752386 | 752386 | HT752386-Online |
| 21 | 3 B-SECTION PULLEY | 770842 | 770842 | HT770842-Online |
| 22 | 4 5/16-18 X 3/4" MALE KNOB | 792002 | 792002 | HT792002-Online |
| 23 | 6 CW .631 X 2.250 X .187 PNT | 782474 | 782474 | HT782474-Online |
| 24 | 3 CS .625-11X3.00 FULL HX G5 ZN | 783738 | 783738 | HT783738-Online |
| 25 | 1 REAR DISCHARGE DECK SPINDLE ASSEMBLY | 796680X | 796680 | 796680X-Online |
| 26 | 2 DECK SPINDLE ASSY | 796235X | 796235 | 796235X-Online |
| 27 | 3 KEY 1/4 SQ X 1.00 LONG | 212472 | 212472 | HT212472-Online |
| 28 | 2 BLADE, F20.50"-L-F-CW | 600901 | 600901 | HT600901-Online |
| 29 | 1 BLADE, F20.50"-L-F-CCW | 795633 | 795633 | HT795633-Online |
| 30 | 1 CS .625-11 X 3.00 LH HX G | 796722 | 796722 | 796722-Online |
| 31 | 2 CS .625-11 X 3.00 HX G5 ZNYC | 029934 | 029934 | HT029934-Online |
| 32 | 1 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 33 | 1 NT .312-18 HXZY NL | 058776 | 058776 | HT058776-Online |

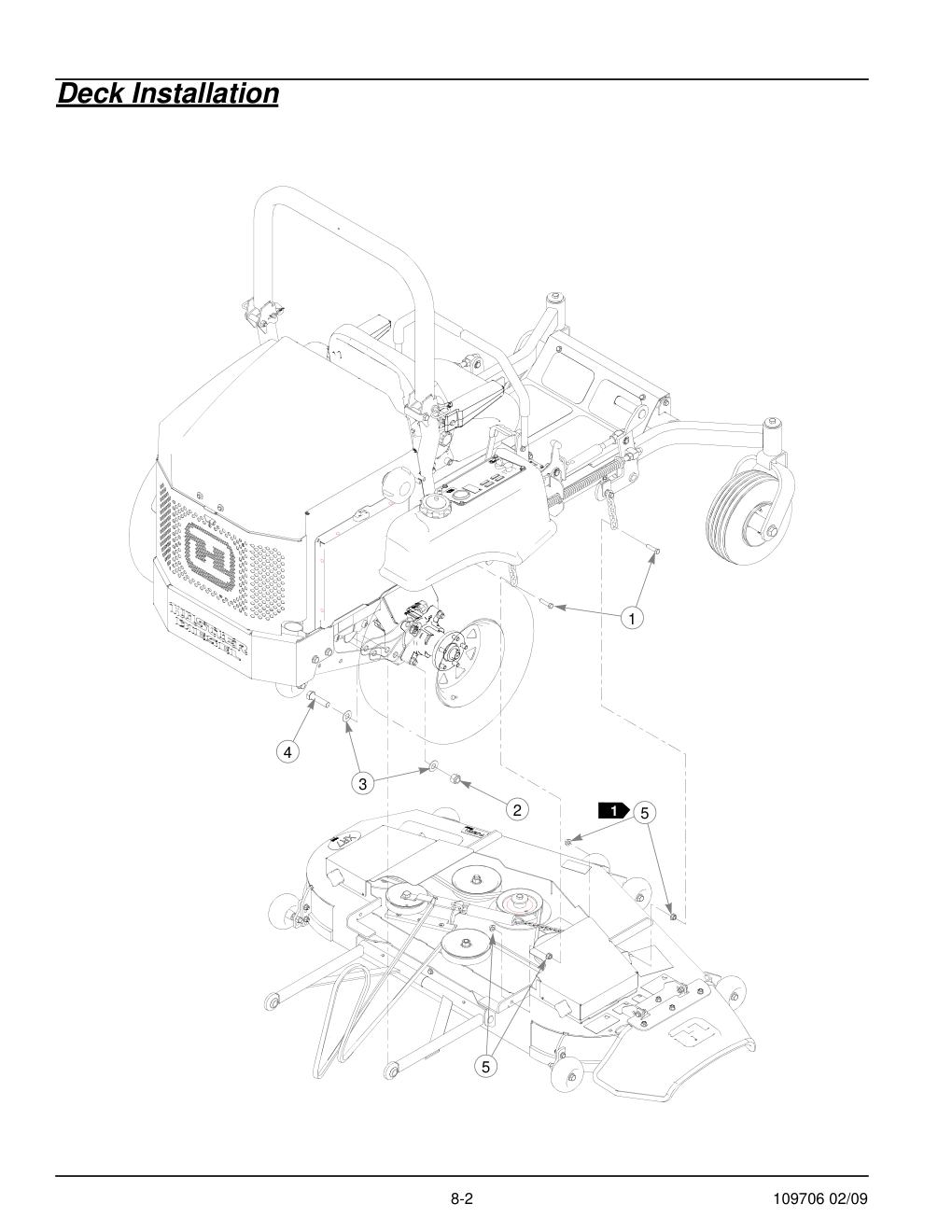

Deck Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 4 CS .437-14X1.750 HX G5 | 055749 | 055749 | HT055749-Online |
| 2 | 2 NT .750-10 HXZY NL | 061101 | 061101 | HT061101-Online |
| 3 | 4 FW .760X 1.625X.08 ZNYC | 025296 | 025296 | HT025296-Online |
| 4 | 2 CS .750-10X3.000 HX G5 | 051169 | 051169 | 051169-Online |
| 5 | 8 NT .437-14 HX FLG ZN | 704643 | 704643 | HT704643-Online |

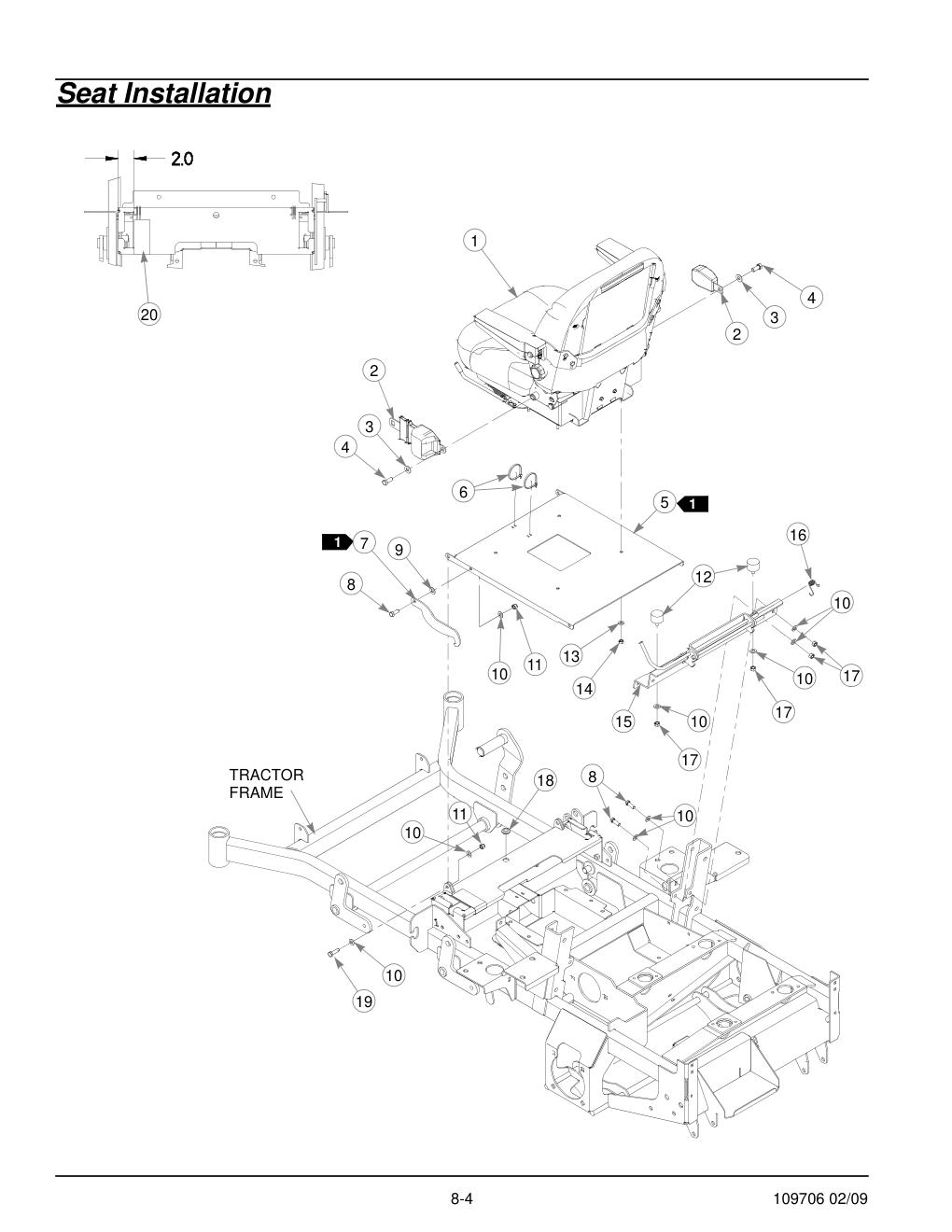

Seat Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 MICHIGAN SUSPENSION SEAT | 792051 | 792051 | 792051-Online |
| 2 | 1 SEAT BELT | 601444 | 601444 | 601444-Online |
| 3 | 2 FW .440X 1.000X.083 ZNY | 017129 | 017129 | 017129-Online |
| 4 | 2 CS .437-20X1.00 HXG8ZNYC | 797076 | 797076 | 797076-Online |
| 5 | 1 SEAT PAN HDZ | 549188 | 109106 | 549188-Online |
| 6 | 2 WIRE TIE SMALL/SHORT | 000331 | 000331 | 000331-Online |
| 7 | 1 SEAT PAN STOP | 350421 | 350421 | 350421-Online |
| 8 | 5 CS .375-16X1.000 HX G5 | 036244 | 036244 | HT036244-Online |
| 9 | 1 FIBER WASHER | 724716 | 724716 | 724716-Online |
| 10 | 15 FW .406X .812 X.060 SAE | 767954 | 767954 | HT767954-Online |
| 11 | 3 NT .375-16 HXZY NL | 086660 | 086660 | HT086660-Online |
| 12 | 2 VIBRATION MOUNT | 601650 | 601650 | 601650-Online |
| 13 | 4 FW .343X.687X.051/.080H | 768523 | 768523 | HT768523-Online |
| 14 | 4 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 15 | 1 SEAT CATCH W/A | 109684 | 109684 | 109684-Online |
| 16 | 1 TORSION SPRING - DIESEL | 795583 | 795583 | 795583-Online |
| 17 | 6 NT .375-16 HX GRD 5 ZNY | 054502 | 054502 | HT054502-Online |
| 18 | 1 GM .50X1.00X.75X.12 | 080358 | 080358 | 080358-Online |
| 19 | 2 CS .375-16X1.250 HX G5 | 052860 | 052860 | HT052860-Online |
| 20 | 1 SCOTCH POLYURETH 2" | 722199 | 722199 | 722199-Online |

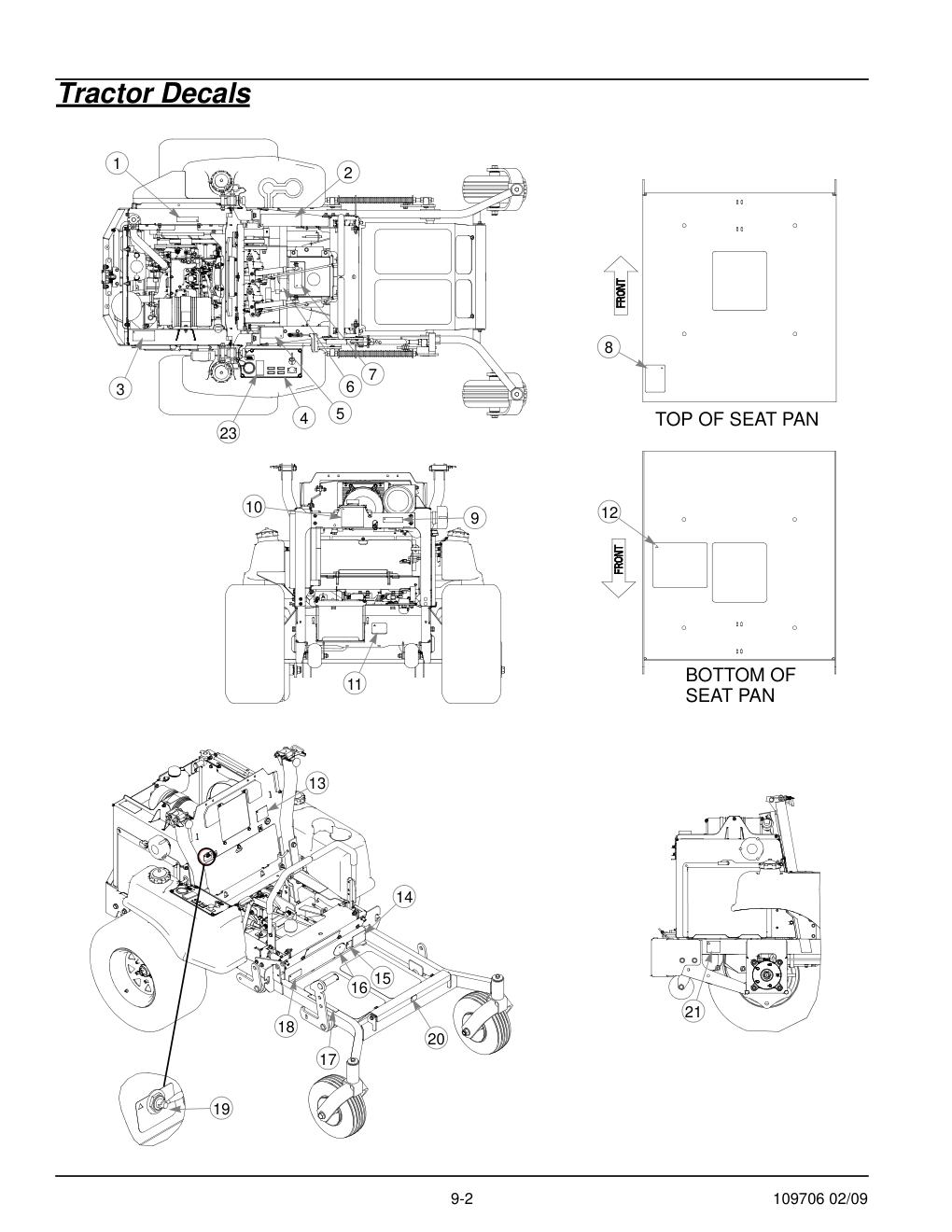

Tractor Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 FAN FINGER WARNING DECAL | 763805 | 763805 | 763805-Online |
| 2 | 1 OPERATION RIGHT DECAL | 785121 | 785121 | 785121-Online |
| 3 | 1 ENGINE COMPARTMENT DECAL | 788968 | 788968 | 788968-Online |
| 4 | 1 INSTRUMENT PANEL DECAL HDZ | 601790 | 601372 | 601790-Online |
| 601372 | INSTRUMENT PANEL DECAL HDZ | 601372 | 1 | 601372-Online |
| 5 | 1 PUMP BELT WARNING DECAL | 600899 | 600899 | 600899-Online |
| 6 | 1 HYD PRESSURE DECAL | 727008 | 727008 | 727008-Online |
| 7 | 1 HOT & HYD OIL DECAL | 779280 | 779280 | 779280-Online |
| 8 | 1 Z ARMREST WARNING DECAL | 785188 | 785188 | 785188-Online |
| 9 | 1 HOT DECAL | 727818 | 727818 | 727818-Online |
| 10 | 1 BATTERY DECAL | 727016 | 727016 | 727016-Online |
| 11 | 1 STABILIZER DECAL | 771436 | 771436 | 771436-Online |
| 12 | 1 Z SERVICE DECAL | 782128 | 782128 | 782128-Online |
| 13 | 1 CHECK ENG OIL DECAL | 601377 | 601377 | 601377-Online |
| 14 | 1 SERIAL NO PLATE TURF | N/A | 083279 | No SKU |
| 15 | 1 'MADE IN U.S.A.' DECAL | 727172 | 727172 | 727172-Online |
| 16 | 1 FIRST ZERO TURN DECAL | 782573 | 782573 | 782573-Online |
| 17 | 1 DECK HEIGHT INDICATOR DECAL | 781427 | 781427 | 781427-Online |
| 18 | 1 PATENTS DECAL | 600941 | 600941 | 600941-Online |
| 19 | 1 FUEL VALVE DECAL | 601246 | 601246 | 601246-Online |
| 20 | 1 HUSTLER NAME PLATE | 793588 | 793588 | 793588-Online |
| 21 | 1 BELT ROUTING DECAL | 601596 | 601596 | 601596-Online |
| 22 | 1 HUSTLER Z ID DECAL | 786426 | 786426 | 786426-Online |
| 23 | 1 FUEL GAUGE DECAL | 601374 | N/A | 601374-Online |

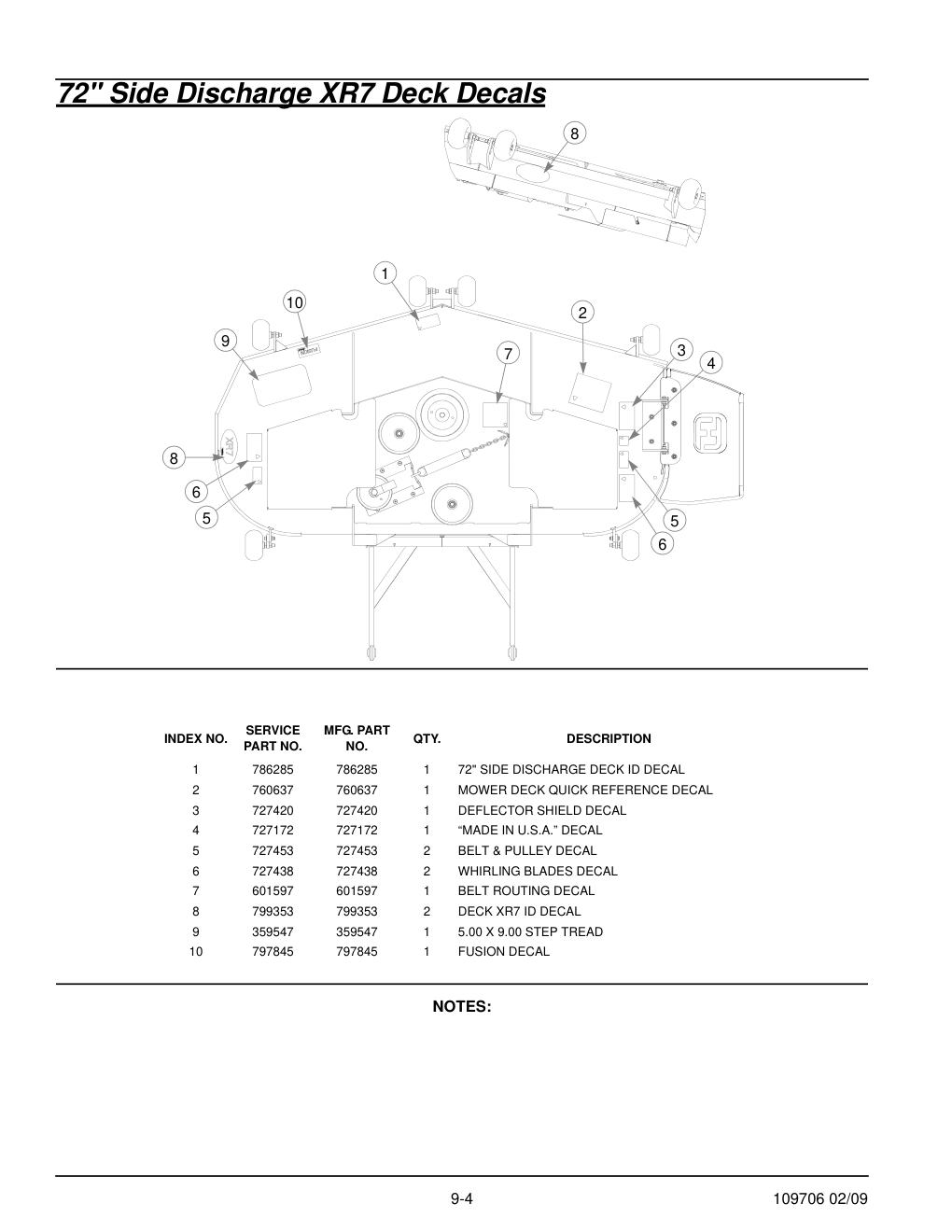

72" Side Discharge XR7 Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 72" SIDE DISCHARGE DECK ID DECAL | 786285 | 786285 | 786285-Online |
| 2 | 1 MOWER DECK QUICK REFERENCE DECAL | 760637 | 760637 | 760637-Online |
| 3 | 1 DEFLECTOR SHIELD DECAL | 727420 | 727420 | 727420-Online |
| 4 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 5 | 2 BELT & PULLEY DECAL | 727453 | 727453 | 727453-Online |
| 6 | 2 WHIRLING BLADES DECAL | 727438 | 727438 | 727438-Online |
| 7 | 1 BELT ROUTING DECAL | 601597 | 601597 | 601597-Online |
| 8 | 2 DECK XR7 ID DECAL | 799353 | 799353 | 799353-Online |
| 9 | 1 5.00 X 9.00 STEP TREAD | 359547 | 359547 | 359547-Online |
| 10 | 1 FUSION DECAL | 797845 | 797845 | 797845-Online |

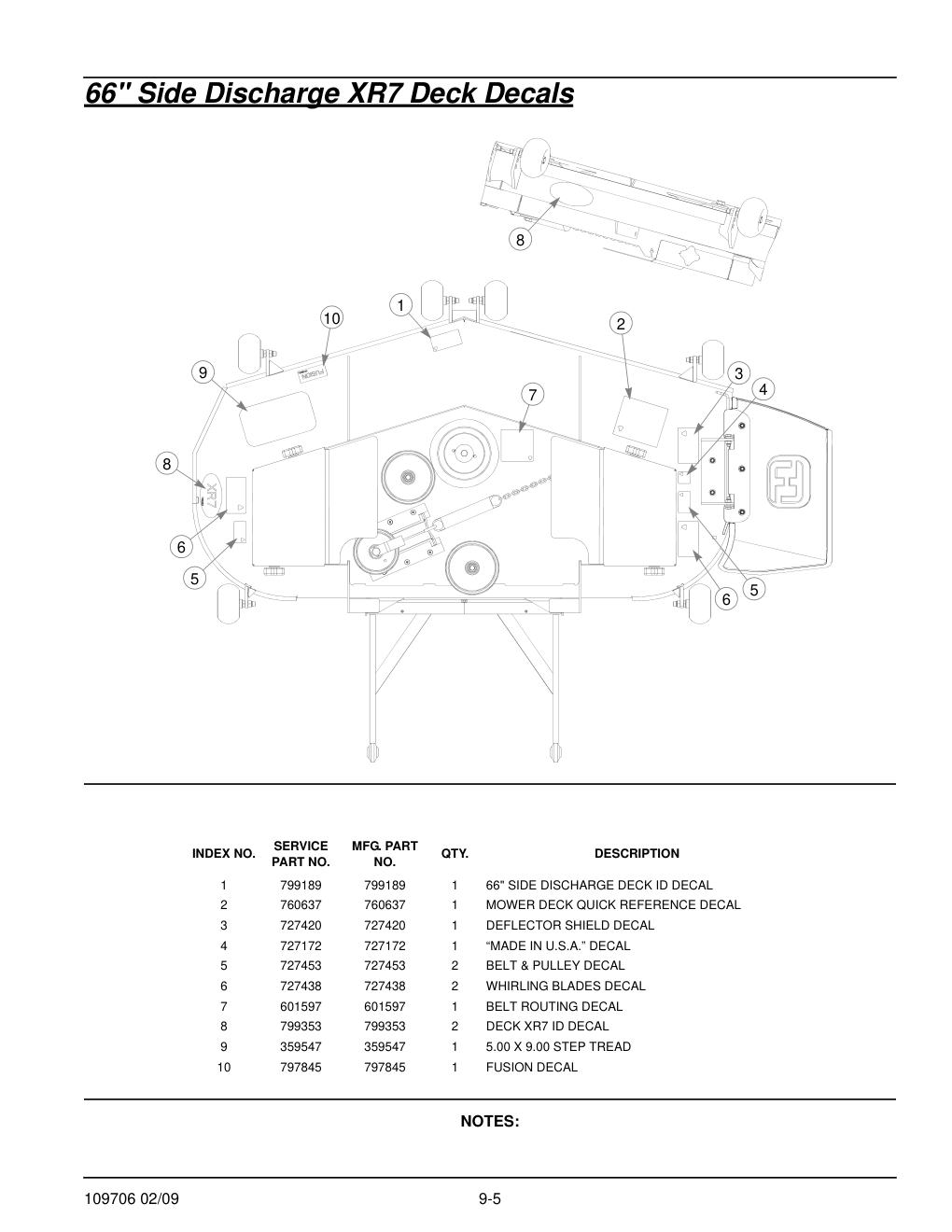

66" Side Discharge XR7 Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 66" SIDE DISCHARGE DECK ID DECAL | 799189 | 799189 | 799189-Online |
| 2 | 1 MOWER DECK QUICK REFERENCE DECAL | 760637 | 760637 | 760637-Online |
| 3 | 1 DEFLECTOR SHIELD DECAL | 727420 | 727420 | 727420-Online |
| 4 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 5 | 2 BELT & PULLEY DECAL | 727453 | 727453 | 727453-Online |
| 6 | 2 WHIRLING BLADES DECAL | 727438 | 727438 | 727438-Online |
| 7 | 1 BELT ROUTING DECAL | 601597 | 601597 | 601597-Online |
| 8 | 2 DECK XR7 ID DECAL | 799353 | 799353 | 799353-Online |
| 9 | 1 5.00 X 9.00 STEP TREAD | 359547 | 359547 | 359547-Online |
| 10 | 1 FUSION DECAL | 797845 | 797845 | 797845-Online |

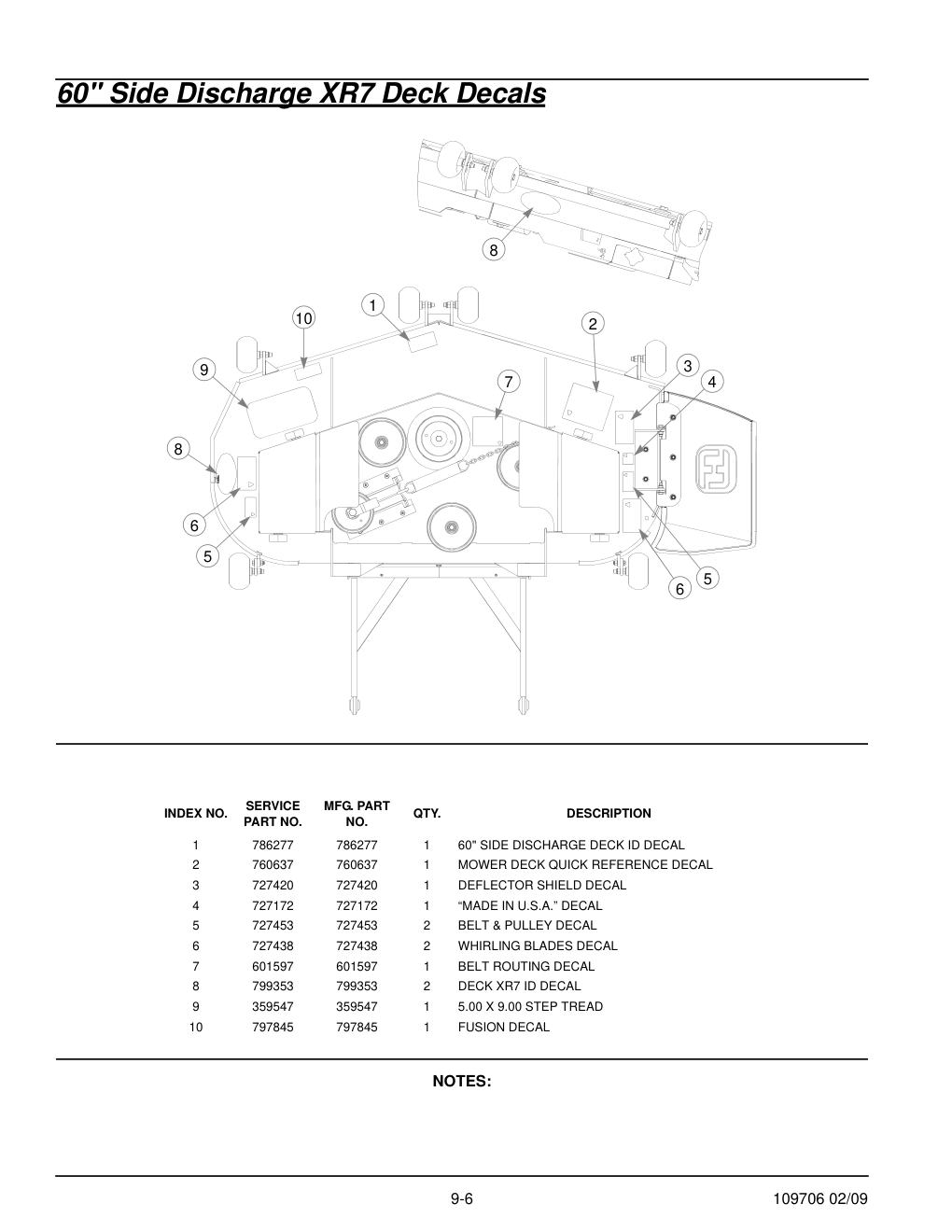

60" Side Discharge XR7 Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 60" SIDE DISCHARGE DECK ID DECAL | 786277 | 786277 | 786277-Online |
| 2 | 1 MOWER DECK QUICK REFERENCE DECAL | 760637 | 760637 | 760637-Online |
| 3 | 1 DEFLECTOR SHIELD DECAL | 727420 | 727420 | 727420-Online |
| 4 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 5 | 2 BELT & PULLEY DECAL | 727453 | 727453 | 727453-Online |
| 6 | 2 WHIRLING BLADES DECAL | 727438 | 727438 | 727438-Online |
| 7 | 1 BELT ROUTING DECAL | 601597 | 601597 | 601597-Online |
| 8 | 2 DECK XR7 ID DECAL | 799353 | 799353 | 799353-Online |
| 9 | 1 5.00 X 9.00 STEP TREAD | 359547 | 359547 | 359547-Online |
| 10 | 1 FUSION DECAL | 797845 | 797845 | 797845-Online |

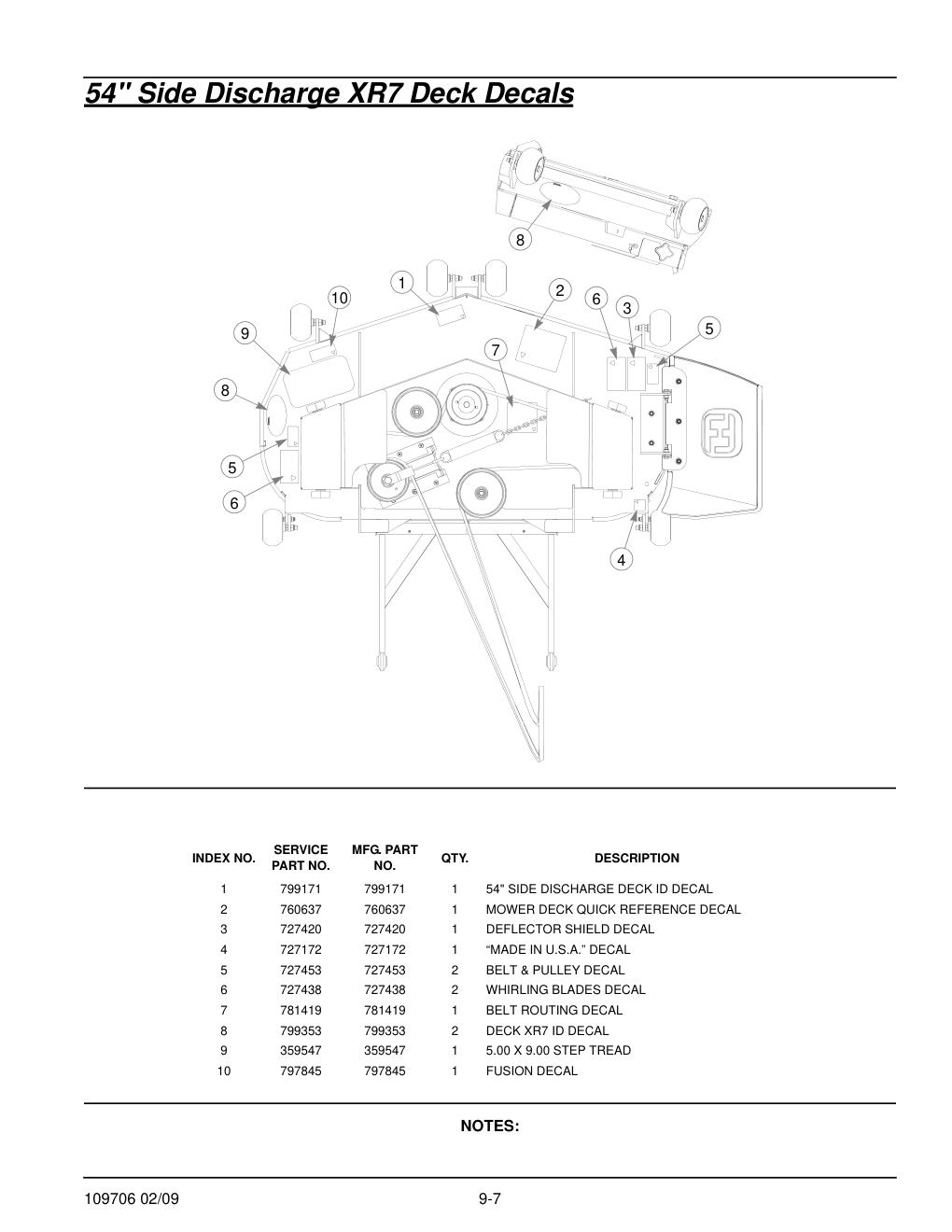

54" Side Discharge XR7 Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 54" SIDE DISCHARGE DECK ID DECAL | 799171 | 799171 | 799171-Online |
| 2 | 1 MOWER DECK QUICK REFERENCE DECAL | 760637 | 760637 | 760637-Online |
| 3 | 1 DEFLECTOR SHIELD DECAL | 727420 | 727420 | 727420-Online |
| 4 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 5 | 2 BELT & PULLEY DECAL | 727453 | 727453 | 727453-Online |
| 6 | 2 WHIRLING BLADES DECAL | 727438 | 727438 | 727438-Online |
| 7 | 1 BELT ROUTING DECAL | 781419 | 781419 | 781419-Online |
| 8 | 2 DECK XR7 ID DECAL | 799353 | 799353 | 799353-Online |
| 9 | 1 5.00 X 9.00 STEP TREAD | 359547 | 359547 | 359547-Online |
| 10 | 1 FUSION DECAL | 797845 | 797845 | 797845-Online |

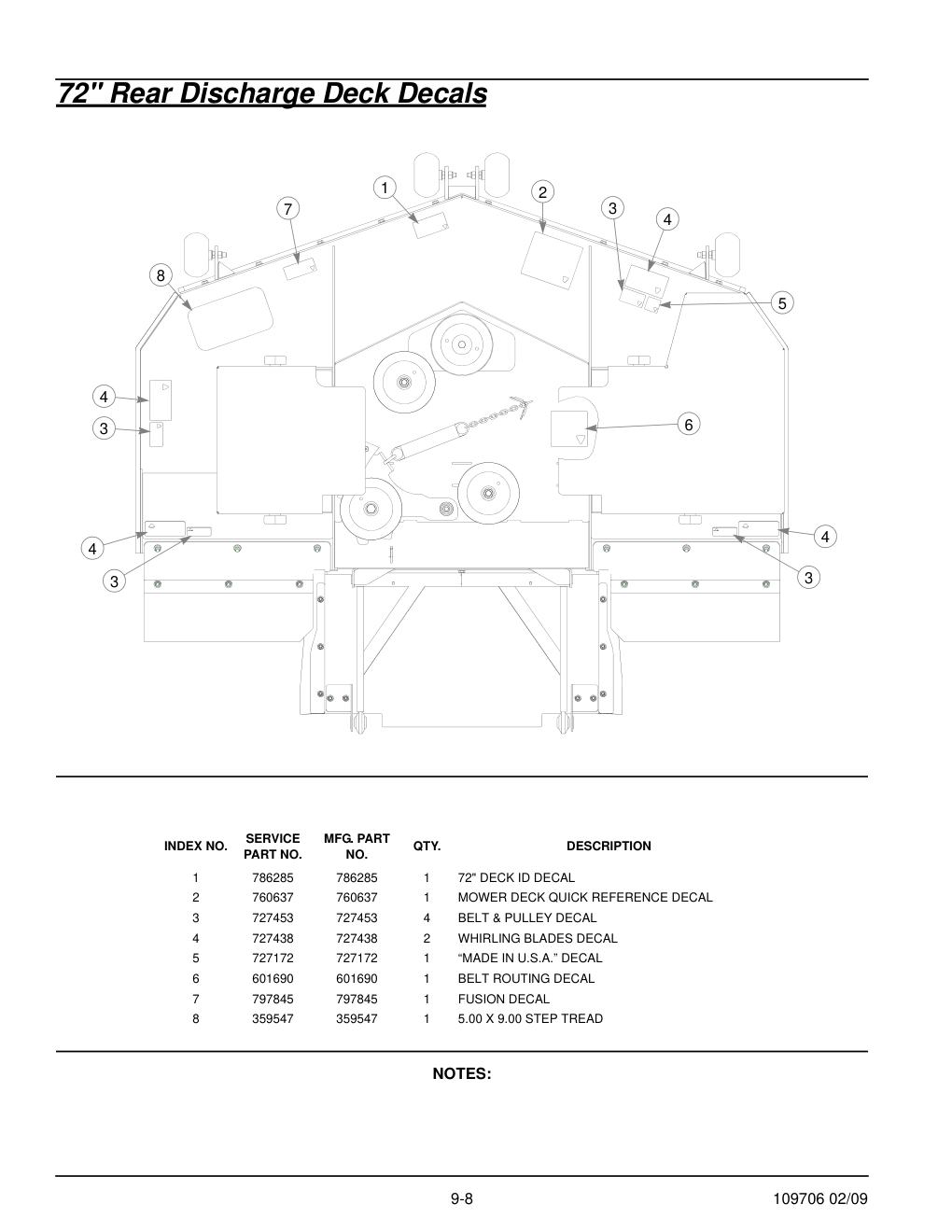

72" Rear Discharge Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 72" DECK ID DECAL | 786285 | 786285 | 786285-Online |
| 2 | 1 MOWER DECK QUICK REFERENCE DECAL | 760637 | 760637 | 760637-Online |
| 3 | 4 BELT & PULLEY DECAL | 727453 | 727453 | 727453-Online |
| 4 | 2 WHIRLING BLADES DECAL | 727438 | 727438 | 727438-Online |
| 5 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 6 | 1 BELT ROUTING DECAL | 601690 | 601690 | 601690-Online |
| 7 | 1 FUSION DECAL | 797845 | 797845 | 797845-Online |
| 8 | 1 5.00 X 9.00 STEP TREAD | 359547 | 359547 | 359547-Online |

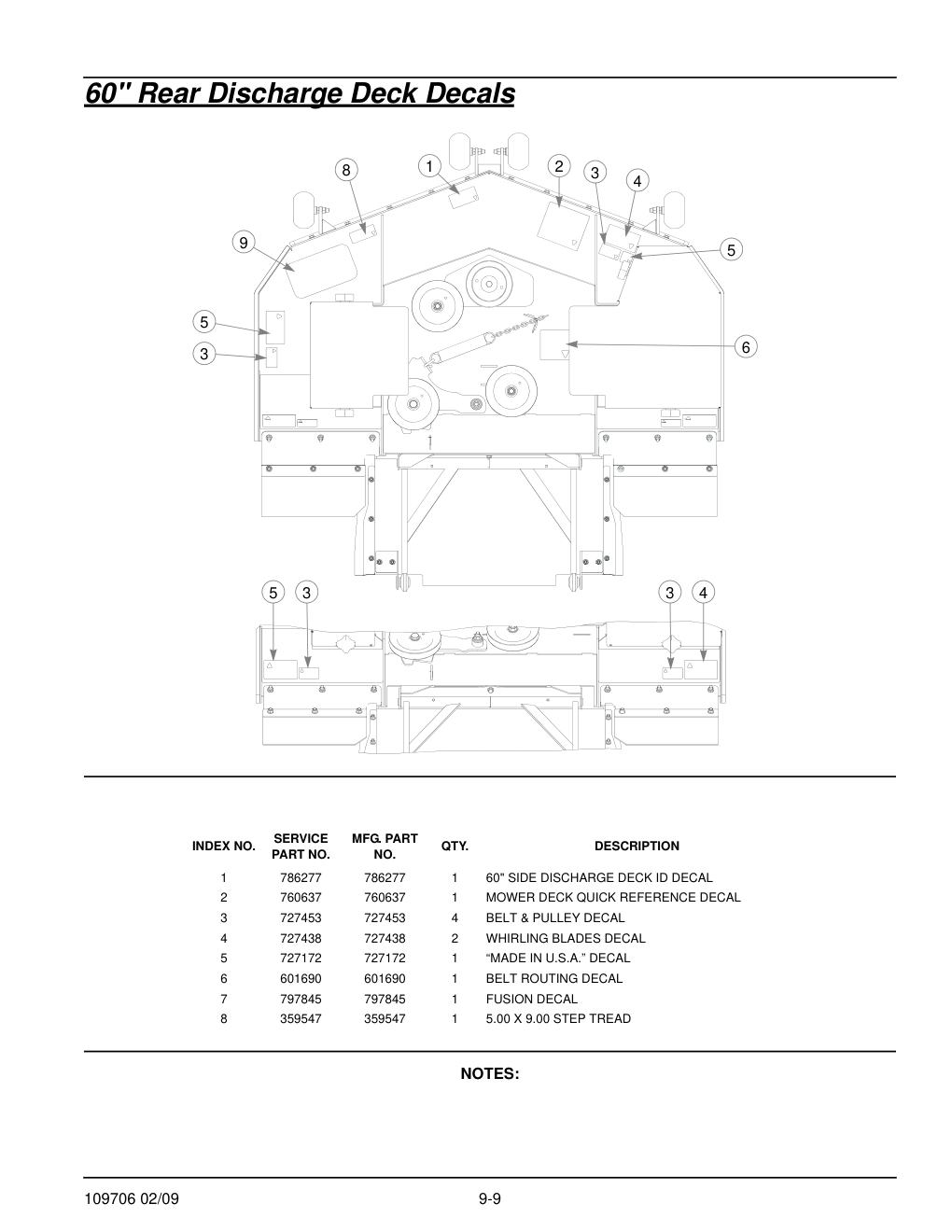

60" Rear Discharge Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 60" SIDE DISCHARGE DECK ID DECAL | 786277 | 786277 | 786277-Online |
| 2 | 1 MOWER DECK QUICK REFERENCE DECAL | 760637 | 760637 | 760637-Online |
| 3 | 4 BELT & PULLEY DECAL | 727453 | 727453 | 727453-Online |
| 4 | 2 WHIRLING BLADES DECAL | 727438 | 727438 | 727438-Online |
| 5 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 6 | 1 BELT ROUTING DECAL | 601690 | 601690 | 601690-Online |
| 7 | 1 FUSION DECAL | 797845 | 797845 | 797845-Online |
| 8 | 1 5.00 X 9.00 STEP TREAD | 359547 | 359547 | 359547-Online |
