Illustrated Parts List
Hustler Trimstar Parts Manual - 930388
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 930388Model: 930396Model: 930404Model: 930412Model: 930388USModel: 930396USModel: 601838Model: 793836Model: 600976Model: 603058+30 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
36" Frame48" & 54" Frame36" Cover48" & 54" Cover36" Hydraulic System36" Hydraulic System48" & 54" Hydraulic System48" & 54" Hydraulic SystemHandlebarThrottleInstrument PanelInstrument PanelInstrument PanelInstrument PanelInstrument Panel, Electric StartInstrument Panel, Electric StartInstrument Panel, Electric StartInstrument Panel, Electric Start36" Brake48" & 54" Brake36" Wheels & Tires48" & 54" Wheels & TiresCaster Wheel BreakdownDrive Wheel BreakdownEngine, FS481VFuel & Vapor Lines, FS481VEngine, FS541V & FS600VFuel & Vapor Lines, FS541V & FS600VEngine, FS691VEngine, FS691VFuel & Vapor Lines, FS691V36" Fuel System48" & 54" Fuel System36" EPA Fuel System48" & 54" EPA Fuel SystemBattery36" Deck Decals36" Deck Pulleys & Spindles36" Deck48" Deck Decals48" Deck Pulleys & Spindles48" Deck54" Deck Decals54" Deck Pulleys & Spindles54" Deck36" Deck Lift36" Deck Mounting48" & 54" Deck Lift48" & 54" Deck Mounting36" Frame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FRAME (WITH DECALS & HARDWARE) | 550226 | 1 | 550226-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 7 | HT601069-Online |
| 3 | HOT DECAL | 602041 | 1 | 602041-Online |
| 4 | BELT DECAL | 797647 | 1 | 797647-Online |
| 5 | SERIAL NO PLATE TURF | N/A | 3 | No SKU |
| 6 | TRIM | 033001 | 8" | 033001-Online |
| 7 | RIVET NUT, 5/16-18 | 808485 | 8 | HT808485-Online |

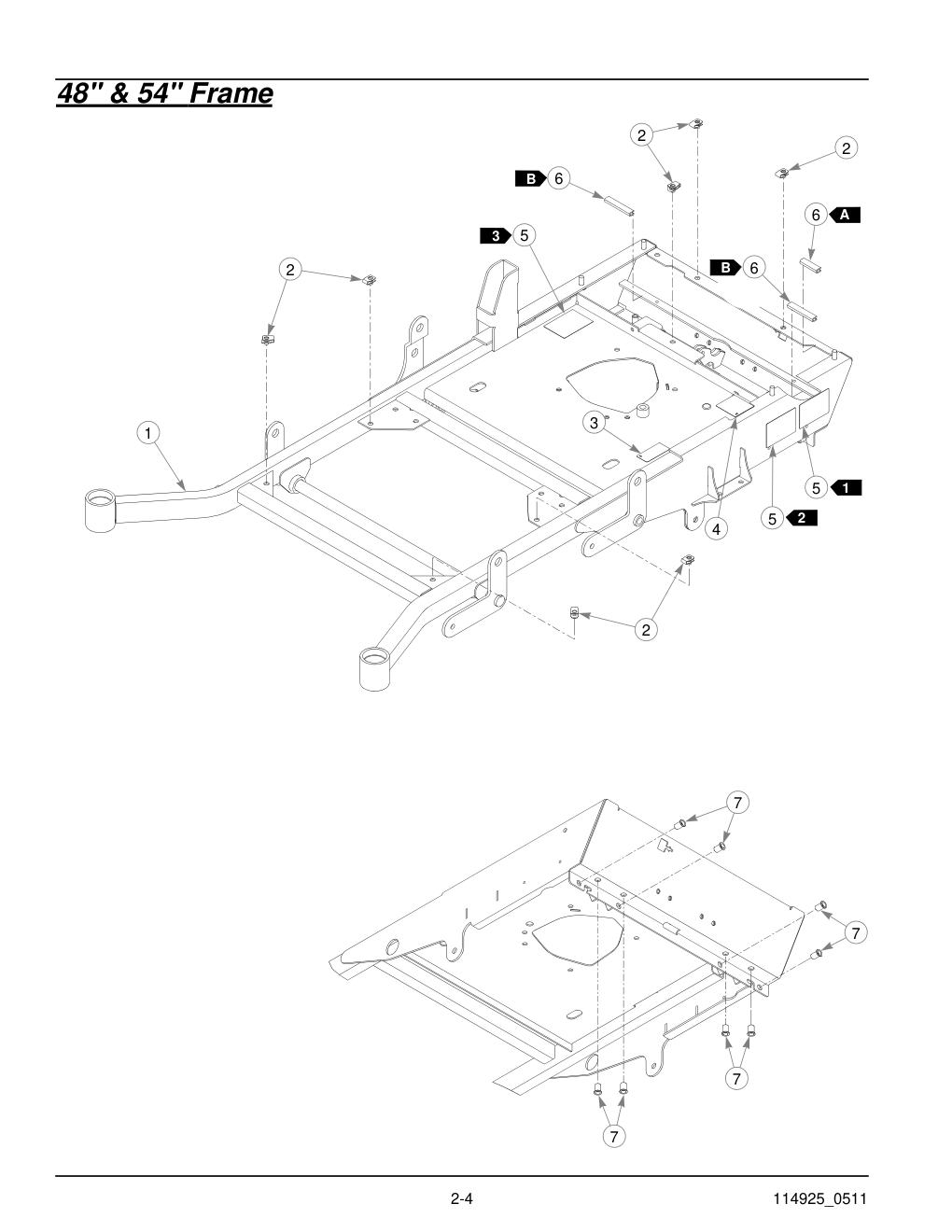

48" & 54" Frame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" FRAME (WITH DECALS & HARDWARE) | 550227 | 1 | 550227-Online |
| 1 | 54" FRAME (WITH DECALS & HARDWARE) | 550228 | 1 | 550228-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 7 | HT601069-Online |
| 3 | HOT DECAL | 602041 | 1 | 602041-Online |
| 4 | BELT ROUTING DECAL | 797647 | 1 | 797647-Online |
| 5 | TURF PRODUCTS SERIAL NO PLATE | N/A | 3 | No SKU |
| 6 | TRIM | 033001 | 8" | 033001-Online |
| 7 | RIVET NUT, 5/16-18 THREAD | 808485 | 8 | HT808485-Online |
36" Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 2 | DECK COVER, 36" | 114002 | 1 | 114002-Online |
| 3 | DECK HEIGHT IND DECAL | 602061 | 1 | 602061-Online |
| 4 | HEAT SHIELD | 114509 | 1 | 114509-Online |
| 5 | CS .375-16 X 1.000 HX G5 | 036244 | 2 | HT036244-Online |
| 6 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 7 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
48" & 54" Cover
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 2 | DECK COVER, 48/54" | 114003 | 1 | 114003-Online |
| 3 | HEAT SHIELD | 114509 | 1 | 114509-Online |
| 4 | CS .375-16 X 1.000 HX G5 | 036244 | 2 | HT036244-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
| 7 | DECK HEIGHT IND DECAL | 602061 | 1 | 602061-Online |
36" Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X .750 HX G5 | 034280 | 10 | HT034280-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 28 | HT768523-Online |
| 3 | NT .312-18 HX G5 ZNYC | 034272 | 12 | HT034272-Online |
| 4 | EXPANSION TANK | 601996 | 1 | 601996-Online |
| 5 | SPRING CLAMP | 601001 | 4 | 601001-Online |
| 7 | RING, 2" ID SPLIT | 778746 | 1 | HT778746-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 10 | BUSHING | 781153 | 2 | HT781153-Online |
| 11 | IDLER ARM | 110551 | 1 | HT110551-Online |
| 12 | IDLER PULLEY | 786848 | 1 | 786848-Online |
| 13 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 14 | SB .750 X 2.000 SH.625-11 | 601084 | 1 | HT601084-Online |
| 15 | FW .625 X 1.00 X .134 ZNYC | 028118 | 1 | HT028118-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 17 | BELT, A SEC 58.5" EL | 601838 | 1 | 601838-Online |
36" Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .312-18 X 2.500 HX G5 | 710087 | 8 | HT710087-Online |
| 19 | CB .250-20 X .625 ZNYC | 601503 | 2 | 601503-Online |
| 20 | TOW LINK ROD | 602228 | 2 | 602228-Online |
| 21 | TOW VALVE PLATE | 111157 | 2 | 111157-Online |
| 22 | RS TOW VALVE BRACKET | 111617 | 1 | 111617-Online |
| 22 | LS TOW VALVE BRACKET (NOT SHOWN) | 111616 | 1 | 111616-Online |
| 23 | FW .281 X .625 X .051/.080H | 768515 | 6 | HT768515-Online |
| 24 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 25 | SPRING | 041988 | 2 | 041988-Online |
| 26 | FTG, 90 - 9/16 SAE | 601219 | 2 | 601219-Online |
| 27 | RS TRANSMISSION | 601683 | 1 | 601683-Online |
| 28 | LS TRANSMISSION | 601682 | 1 | 601682-Online |
| 29 | CS .375-16 X 2.00 G5 ZNYC | 016410 | 2 | HT016410-Online |
| 30 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 31 | BALL STUD | 781922 | 2 | 781922-Online |
| 32 | SPACER TUBE | 110537 | 1 | 110537-Online |
| 33 | RS CHARGE PUMP COVER | 110731 | 1 | 110731-Online |
| 34 | LS CHARGE PUMP COVER | 110730 | 1 | 110730-Online |
| 35 | WIRE TIE, SMALL/SHORT | 000331 | 6 | 000331-Online |
48" & 54" Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 28 | HT768523-Online |
| 3 | NT .312-18 HXZY NL | 058776 | 2 | HT058776-Online |
| 4 | EXPANSION TANK | 601996 | 1 | 601996-Online |
| 5 | SPRING CLAMP | 601001 | 4 | 601001-Online |
| 6 | HOSE, 0.50" LOW PRESSURE | 787713 | 66" | HT787713-Online |
| 7 | RING, 2" ID SPLIT | 778746 | 1 | HT778746-Online |
| 8 | CHAIN | 259812 | 1 | HT259812-Online |
| 9 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 10 | BUSHING | 781153 | 2 | HT781153-Online |
| 11 | PUMP IDLER ARM | 110739 | 1 | 110739-Online |
| 12 | IDLER PULLEY | 786848 | 1 | 786848-Online |
| 13 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 14 | SB .750 X 2.000 SH.625-11 | 601084 | 1 | HT601084-Online |
| 15 | FW .625 X 1.00 X .134 ZNYC | 028118 | 1 | HT028118-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 17 | BELT, A 63" EL | 793836 | 1 | HT793836-Online |
48" & 54" Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .312-18 X 2.500 HX G5 | 710087 | 8 | HT710087-Online |
| 19 | CB .250-20 X .625 ZNYC | 601503 | 2 | 601503-Online |
| 20 | TOW LINK ROD | 602228 | 2 | 602228-Online |
| 21 | TOW VALVE PLATE | 111157 | 2 | 111157-Online |
| 22 | LS TOW VALVE BRACKET | 111616 | 1 | 111616-Online |
| 22 | RS TOW VALVE BRACKET (NOT SHOWN) | 111617 | 1 | 111617-Online |
| 23 | FW .281 X .625 X .051/.080H | 768515 | 6 | HT768515-Online |
| 24 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 25 | SPRING | 041988 | 2 | 041988-Online |
| 26 | FTG, 90 - 9/16 SAE | 601219 | 2 | 601219-Online |
| 27 | RS TRANSMISSION | 601730 | 1 | 601730-Online |
| 28 | LS TRANSMISSION | 601729 | 1 | 601729-Online |
| 29 | CS .375-16 X 2.00 G5 ZNYC | 016410 | 2 | HT016410-Online |
| 30 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 31 | BALL STUD | 781922 | 2 | 781922-Online |
| 32 | SPACER TUBE | 600987 | 1 | HT600987-Online |
| 33 | RS CHARGE PUMP COVER | 110731 | 1 | 110731-Online |
| 34 | LS CHARGE PUMP COVER | 110730 | 1 | 110730-Online |
| 35 | WIRE TIE, SMALL/SHORT | 000331 | 6 | 000331-Online |
| 36 | CS .312-18 X .750 HX G5 | 034280 | 8 | HT034280-Online |
| 37 | NT .312-18 HX G5 ZNYC | 034272 | 10 | HT034272-Online |
Handlebar
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GRIP, .875 X 4.562 BLK | 771139 | 2 | HT771139-Online |
| 2 | STEERING BEARING | 773556 | 2 | HT773556-Online |
| 3 | STEERING BAR | 110766 | 1 | 110766-Online |
| 4 | STEERING ROD, ADJUSTER | 785766 | 2 | HT785766-Online |
| 5 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 7 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 8 | SC #10 X .750 PHILLIPS T | 769299 | 6 | 769299-Online |
| 9 | STEERING COVER (WITH DECAL) | 550071 | 1 | 550071-Online |
| 10 | CB .312-18 X 1.750 SHTNK | 779157 | 2 | 779157-Online |
| 11 | NT .312-18 HXZY NL | 058776 | 2 | HT058776-Online |
| 12 | MS # 6-32 X 1.000 RD SL | 077842 | 4 | 077842-Online |
| 13 | OPC ARM | 341826 | 2 | 341826-Online |
| 14 | SWITCH SPACER | 342378 | 2 | 342378-Online |
| 15 | RP .078 X .50 LONG ZN | 779165 | 4 | 779165-Online |
| 16 | WN #6-32 X 1.00 TP 1116 | 039693 | 2 | 039693-Online |
| 17 | WIRE HARNESS, OPC | 601972 | 1 | 601972-Online |
| 18 | STEERING DECAL | 771030 | 1 | HT771030-Online |

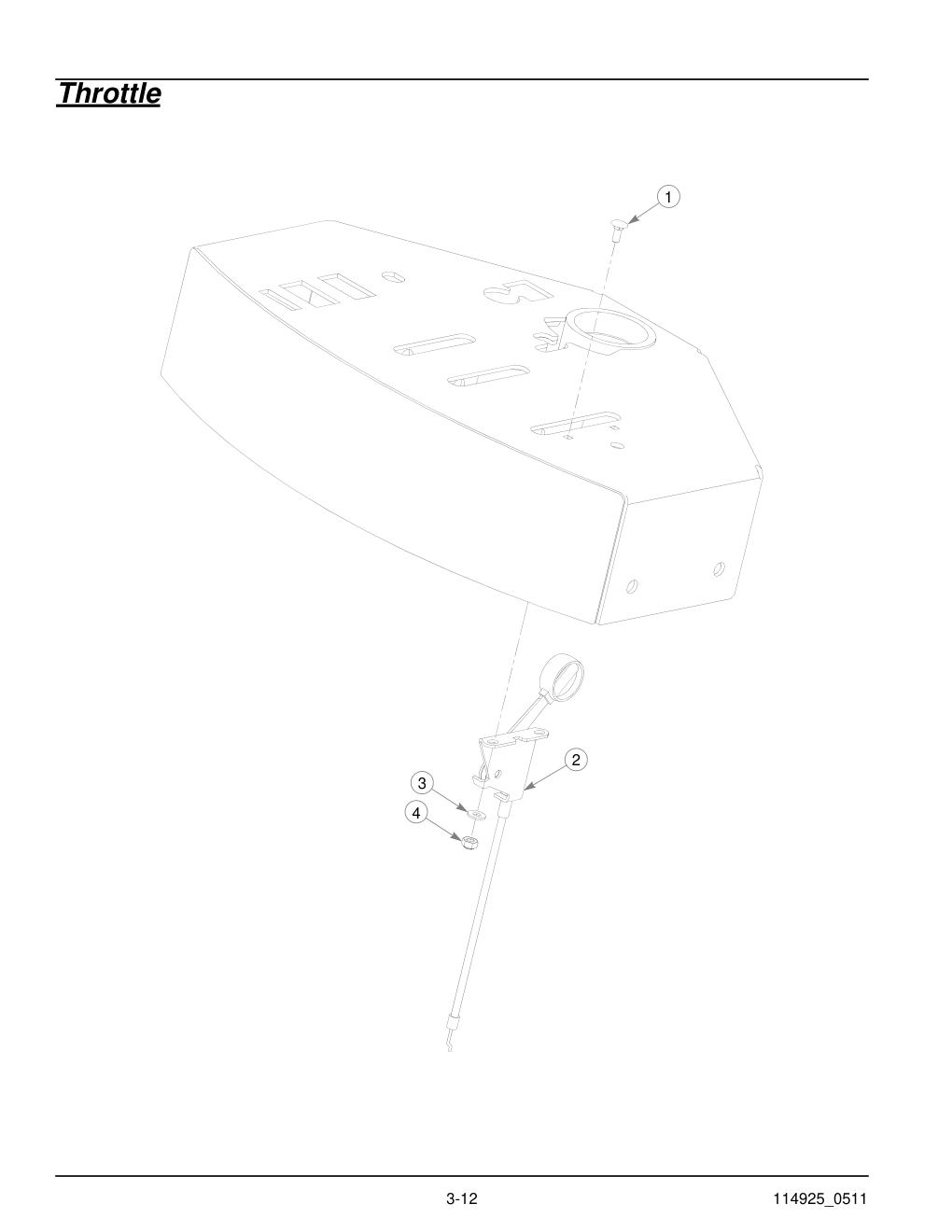

Throttle
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 2 | THROTTLE CABLE | 778365 | 1 | HT778365-Online |
| 3 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 4 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KNOB | 043299 | 1 | HT043299-Online |
| 2 | NEUTRAL LOCK HANDLE ROD | 110645 | 1 | HT110645-Online |
| 3 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
| 4 | FW 1.030 X 1.500 X .134 ZN | 045765 | 3 | HT045765-Online |
| 5 | BEARING | 784223 | 2 | HT784223-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 8 | CONSOLE ASSY (WITH DECALS) | 550072 | 1 | 550072-Online |
| 9 | TRIMSTAR DECAL | 788828 | 1 | 788828-Online |
| 10 | INSTRUMENT PANEL DECAL | 601934 | 1 | 601934-Online |
| 11 | STEERING DECAL | 771030 | 1 | HT771030-Online |
| 12 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 13 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 15 | CE .500 X 4.50 .156 X 4.34 | 073338 | 1 | 073338-Online |
| 16 | CP .156D X 1.000 LG HML Z | 017251 | 1 | HT017251-Online |
| 17 | NT .375-16 HX GRD 5 ZNY | 054502 | 6 | HT054502-Online |
| 18 | BUSHING | 768259 | 6 | HT768259-Online |
| 19 | NEUTRAL LOCK YOKE | 110932 | 1 | 110932-Online |
| 20 | FW .406 X 1.000 X .06 ZNYC | 076422 | 1 | 076422-Online |
| 21 | NT .375-16 HXZY NL | 086660 | 1 | HT086660-Online |
| 22 | PIVOT PIN | 305086 | 1 | 305086-Online |
| 23 | BELLCRANK | 110639 | 2 | 110639-Online |
| 24 | WASHER, WAVY .558 X 1.005 | 601953 | 1 | 601953-Online |
| 25 | LOCK COLLAR, .500 X 1.000 | 788554 | 1 | 788554-Online |
| 26 | NT .312-18 HXZY NL | 058776 | 3 | HT058776-Online |
| 27 | PUMP ADJUSTMENT ROD | 601952 | 2 | 601952-Online |

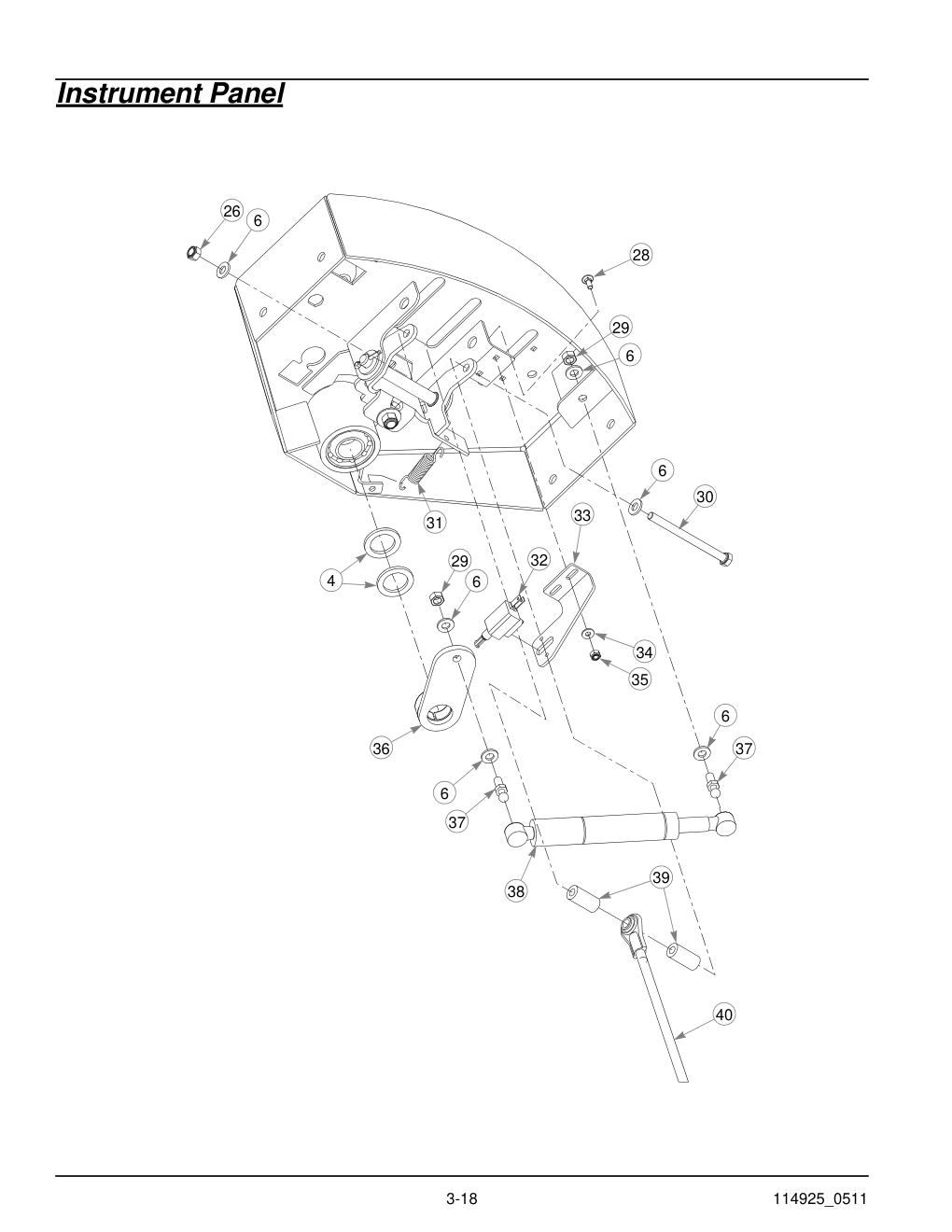

Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 28 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 29 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 30 | CS .312-18 X 4.250 HX G5 | 785113 | 1 | 785113-Online |
| 31 | SPRING 2.5 | 034652 | 1 | HT034652-Online |
| 32 | SWITCH | 792374 | 1 | HT792374-Online |
| 33 | NEUTRAL SWITCH BRACKET | 110646 | 1 | 110646-Online |
| 34 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 35 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 36 | ARM | 314351 | 1 | 314351-Online |
| 37 | BALL STUD | 781922 | 2 | 781922-Online |
| 38 | CENTERING DAMPER | 788349 | 1 | HT788349-Online |
| 39 | NEUTRAL LOCK SPACER | 110647 | 2 | 110647-Online |
| 40 | BRAKE ROD ASSY | 601798 | 1 | 601798-Online |
Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 41 | WIRE HARNESS | 603314 | 1 | 603314-Online |
| 42 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 43 | IGNITION SWITCH | 776518 | 1 | HT776518-Online |
| 44 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 45 | HOUR METER | 769166 | 1 | HT769166-Online |
| 46 | CHOKE CABLE | 601097 | 1 | HT601097-Online |
| 47 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 48 | CS .375-16 X .750 HX G5 | 055822 | 4 | HT055822-Online |
Instrument Panel, Electric Start
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KNOB | 043299 | 1 | HT043299-Online |
| 2 | NEUTRAL LOCK HANDLE ROD | 110645 | 1 | HT110645-Online |
| 3 | GM .750 X .188 X 1.00 X .12 | 047456 | 1 | 047456-Online |
| 4 | FW 1.030 X 1.500 X .134 ZN | 045765 | 3 | HT045765-Online |
| 5 | BEARING | 784223 | 2 | HT784223-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 7 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 8 | CONSOLE ASSY (WITH DECALS) | 550192 | 1 | 550192-Online |
| 9 | TRIMSTAR DECAL | 788828 | 1 | 788828-Online |
| 10 | INSTRUMENT PANEL DECAL | 601935 | 1 | 601935-Online |
| 11 | STEERING DECAL | 711030 | 1 | 711030-Online |
| 12 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 13 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
Instrument Panel, Electric Start
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 15 | CE .500 X 4.50 .156 X 4.34 | 073338 | 1 | 073338-Online |
| 16 | CP .156D X 1.000 LG HML Z | 017251 | 1 | HT017251-Online |
| 17 | NT .375-16 HX GRD 5 ZNY | 054502 | 6 | HT054502-Online |
| 18 | BUSHING | 768259 | 6 | HT768259-Online |
| 19 | NEUTRAL LOCK YOKE | 110932 | 1 | 110932-Online |
| 20 | FW .406 X 1.000 X .06 ZNYC | 076422 | 1 | 076422-Online |
| 21 | NT .375-16 HXZY NL | 086660 | 1 | HT086660-Online |
| 22 | PIVOT PIN | 305086 | 1 | 305086-Online |
| 23 | BELLCRANK | 110639 | 2 | 110639-Online |
| 24 | WASHER, WAVY .558 X 1.005 | 601953 | 1 | 601953-Online |
| 25 | LOCK COLLAR, .500 X 1.000 | 788554 | 1 | 788554-Online |
| 26 | NT .312-18 HXZY NL | 058776 | 3 | HT058776-Online |
| 27 | PUMP ADJUSTMENT ROD | 601952 | 2 | 601952-Online |
Instrument Panel, Electric Start
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 28 | CB 10-24 X .500 ZYNC | 601098 | 6 | 601098-Online |
| 29 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 30 | CS .312-18 X 4.250 HX G5 | 785113 | 1 | 785113-Online |
| 31 | SPRING 2.5 | 034652 | 1 | HT034652-Online |
| 32 | NT # 6-32 HX NL ZN | 055863 | 2 | 055863-Online |
| 33 | DOUBLE POLE SWITCH | 023002 | 1 | 023002-Online |
| 34 | NEUTRAL SWITCH BRACKET | 110646 | 1 | 110646-Online |
| 35 | FW .219 X .500 X .048 ZNYC | 704932 | 4 | HT704932-Online |
| 36 | NT #10-24 HX NL ZN | 059832 | 6 | 059832-Online |
| 37 | MS # 6-32 X 1.000 RD SL | 077842 | 2 | 077842-Online |
| 38 | ARM | 314351 | 1 | 314351-Online |
| 39 | BALL STUD | 781922 | 2 | 781922-Online |
| 40 | CENTERING DAMPER | 788349 | 1 | HT788349-Online |
| 41 | NEUTRAL LOCK SPACER | 110647 | 2 | 110647-Online |
| 42 | BRAKE ROD ASSY | 601798 | 1 | 601798-Online |
Instrument Panel, Electric Start
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 43 | WIRE HARNESS | 603316 | 1 | 603316-Online |
| 44 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 45 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 46 | HOUR METER | 769166 | 1 | HT769166-Online |
| 47 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 48 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 49 | CHOKE CABLE | 786657 | 1 | HT786657-Online |
| 50 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 51 | CS .375-16 X .750 HX G5 | 055822 | 4 | HT055822-Online |
| 52 | THROTTLE CABLE | 601094 | 1 | HT601094-Online |
36" Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .375-16 X 1.500 HX G5 | 080655 | 3 | HT080655-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 9 | HT767954-Online |
| 3 | LOWER BRAKE BELLCRANK | 110539 | 1 | 110539-Online |
| 4 | NT .375-16 HXZY NL | 086660 | 4 | HT086660-Online |
| 5 | BUSHING | 765339 | 1 | HT765339-Online |
| 6 | LOWER BRAKE ROD ASSY | 601710 | 1 | 601710-Online |
| 7 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 8 | CS .312-18 X .625 HX G5 | 064006 | 2 | 064006-Online |
| 9 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 10 | BRAKE PULL BRACKET | 110538 | 1 | 110538-Online |
| 11 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 12 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 13 | RS BRAKE SPRING LINK | 109202 | 1 | HT109202-Online |
| 14 | LS BRAKE SPRING LINK | 109203 | 1 | 109203-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 16 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 17 | BRAKE TENSION SPRING | 784421 | 1 | HT784421-Online |
48" & 54" Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HXZY NL | 086660 | 4 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 9 | HT767954-Online |
| 3 | LOWER BRAKE BELLCRANK | 110539 | 1 | 110539-Online |
| 4 | BUSHING | 765339 | 1 | HT765339-Online |
| 5 | CS .375-16 X 1.500 HX G5 | 080655 | 3 | HT080655-Online |
| 6 | LOWER BRAKE ROD ASSY | 601710 | 1 | 601710-Online |
| 7 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 8 | CS .312-18 X .625 HX G5 | 064006 | 2 | 064006-Online |
| 9 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 10 | BRAKE PULL BRACKET | 110601 | 1 | 110601-Online |
| 11 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 12 | BRAKE SPRING | 784421 | 1 | HT784421-Online |
| 13 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 14 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 15 | LS BRAKE SPRING LINK | 109202 | 1 | HT109202-Online |
| 16 | RS BRAKE SPRING LINK (NOT SHOWN) | 109203 | 1 | 109203-Online |
| 17 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
36" Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL, 18 X 6.50-8 | 785345 | 2 | HT785345-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13 X 1.25 HX G5 Z | 705954 | 2 | HT705954-Online |
| 4 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | NT .50-13 HXZY NL | 781567 | 2 | HT781567-Online |
| 9 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 10 | CASTER FORK | 339689 | 2 | HT339689-Online |
| 11 | CS .500-13 X 6.50 HX G5 Z | 042630 | 2 | HT042630-Online |
| 12 | TIRE/WHEEL, 11 X 4-5 | 788604 | 2 | 788604-Online |
| 13 | GAGE WHEEL SPACER | 306969 | 2 | HT306969-Online |
48" & 54" Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL | 600668 | 2 | HT600668-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13 X 1.25 HX G5 Z | 705954 | 2 | HT705954-Online |
| 4 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | NT .50-13 HXZY NL | 781567 | 2 | HT781567-Online |
| 9 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 10 | CASTER FORK | 339689 | 2 | HT339689-Online |
| 11 | CS .500-13 X 6.50 HX G5 Z | 042630 | 2 | HT042630-Online |
| 12 | TIRE/WHEEL ASSY 11 X 4-5 | 788604 | 2 | 788604-Online |
| 13 | GAGE WHEEL SPACER | 306969 | 2 | HT306969-Online |
Caster Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL ASSY 11X4-5 | 788604 | 1 | 788604-Online |
| 2 | BEARING CAP | 772806 | 2 | HT772806-Online |
| 3 | 3/4" ROLLER BEARING | 772814 | 1 | HT772814-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 18 X 6.50-8 4 PLY | 785337 | 2 | 785337-Online |
| 1 | TIRE 20 X 10-10 | 600684 | 2 | HT600684-Online |
| 2 | WHEEL 5.35 | 785303 | 2 | 785303-Online |
| 2 | WHEEL 10 X 7 RIM, 4-4BC | 600700 | 2 | HT600700-Online |
| 3 | TIRE VALVE TR-412 | 019521 | 2 | HT019521-Online |
Engine, FS481V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE, KAW FS481V | N/A | 1 | No SKU |
| 2 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 3 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 4 | NT .312-18 HXFLK ZNYC | 016832 | 5 | 016832-Online |
| 5 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 7 | CS .312-18X1.000 HX G5 | 036236 | 3 | 036236-Online |
| 8 | HOSE, 0.50" LOW PRESSURE | 787713 | 13" | HT787713-Online |
| 9 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 10 | MUFFLER | 603187 | 1 | 603187-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | MUFFLER MOUNT | 113983 | 1 | 113983-Online |
| 13 | CS .312-18 X .750 HX G5 | 034280 | 3 | HT034280-Online |
| 14 | ENGINE COVER PLATE | 110736 | 1 | 110736-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 16 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 17 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 18 | CLUTCH ANCHOR | 114571 | 1 | 114571-Online |
| 19 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 20 | PULLEY | 799429 | 1 | HT799429-Online |
| 21 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 22 | CLUTCH | 601325K | 1 | 601325K-Online |
| 23 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 24 | CS .437-20 X 3.00 HXG5 | 785048 | 1 | HT785048-Online |
Fuel & Vapor Lines, FS481V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 25 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 26 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 27 | 1/4" FUEL LINE | 015818 | 12" | HT015818-Online |
| 28 | 3/16" VAPOR LINE | 603326 | 34" | 603326-Online |
Engine, FS541V & FS600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE, KAW FS541V | N/A | 1 | No SKU |
| 1 | ENGINE, KAW FS600V | N/A | 1 | No SKU |
| 2 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 3 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 4 | NT .312-18 HXFLK ZNYC | 016832 | 5 | 016832-Online |
| 5 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 7 | CS .312-18X1.000 HX G5 | 036236 | 3 | 036236-Online |
| 8 | HOSE, 0.50" LOW PRESSURE | 787713 | 13" | HT787713-Online |
| 9 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 10 | MUFFLER | 603187 | 1 | 603187-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | MUFFLER MOUNT | 113983 | 1 | 113983-Online |
| 13 | CS .312-18 X .750 HX G5 | 034280 | 3 | HT034280-Online |
| 14 | PULLEY COVER | 110759 | 1 | 110759-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 16 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 17 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 18 | CLUTCH ANCHOR | 114571 | 1 | 114571-Online |
| 19 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 20 | PULLEY | 799429 | 1 | HT799429-Online |
| 21 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 22 | CLUTCH | 601325K | 1 | 601325K-Online |
| 23 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 24 | CS .437-20 X 3.00 HXG5 | 785048 | 1 | HT785048-Online |
Fuel & Vapor Lines, FS541V & FS600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 25 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 26 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 27 | 1/4" FUEL LINE | 015818 | 12" | HT015818-Online |
| 28 | 3/16" VAPOR LINE | 603326 | 34" | 603326-Online |
Engine, FS691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE, KAW FS691V | N/A | 1 | No SKU |
| 2 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 3 | HOSE, 0.50" LOW PRESSURE | 787713 | 1 | HT787713-Online |
| 4 | NT .312-18 HXFLK ZNYC | 016832 | 5 | 016832-Online |
| 5 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 7 | CS .312-18 X 1.000 HX G5 | 036236 | 3 | 036236-Online |
| 8 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 9 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 10 | MUFFLER | 603188 | 1 | 603188-Online |
| 11 | CB .312-18 X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 12 | MUFFLER MOUNT | 113983 | 1 | 113983-Online |
| 13 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 14 | CLUTCH ANCHOR | 114571 | 1 | 114571-Online |
| 15 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 16 | PULLEY | 799429 | 1 | HT799429-Online |
| 17 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 18 | CLUTCH | 601784K | 1 | 601784K-Online |
| 19 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 20 | CS .437-20 X 3.250 HXG5P85 | 601834 | 1 | 601834-Online |
Engine, FS691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 21 | CS .312-18 X .750 HX G5 | 034280 | 3 | HT034280-Online |
| 22 | PULLEY COVER (WITH DECAL) | 550151 | 1 | 550151-Online |
| 23 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 24 | BATTERY CABLE, POSITIVE | 792762 | 2 | 792762-Online |
| 25 | FW .281 X .625 X .051/.080H | 768515 | 7 | HT768515-Online |
| 26 | NT .250-20 HX GR.5 ZNYC | 024927 | 5 | HT024927-Online |
| 27 | BATTERY CABLE, NEGATIVE | 780015 | 1 | 780015-Online |
| 28 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 29 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 30 | CN .312-18 X .200 MAX THK | 601069 | 1 | HT601069-Online |
| 31 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 32 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 33 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 34 | CS .250-20 X .625 HX G5 | 064329 | 2 | 064329-Online |
Fuel & Vapor Lines, FS691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 35 | 1/4" FUEL LINE | 015818 | 12" | HT015818-Online |
| 36 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 37 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 38 | 3/16" VAPOR LINE | 603326 | 34" | 603326-Online |
36" Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP, 3.5" | 602916 | 1 | 602916-Online |
| 2 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 3 | 1/4" VAPOR LINE | 015818 | 14" | HT015818-Online |
| 4 | TANK | 603035 | 1 | 603035-Online |
| 5 | CONSOLE SUPPORT | 110511 | 1 | 110511-Online |
| 6 | NT .312-18 HX G5 ZNYC | 016832 | 1 | 016832-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 8 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 9 | VACUUM BREAKER | 603114 | 1 | 603114-Online |
| 10 | CS .312-18 X .750 HX G5 | 034280 | 4 | HT034280-Online |
| 11 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 12 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 13 | CS .312-18 X 1.000 HX G5 | 036236 | 1 | 036236-Online |
| 14 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 15 | GROMMET | 785295 | 1 | HT785295-Online |
| 16 | FUEL SHUT-OFF VALVE | 783944 | 1 | HT783944-Online |
| 17 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
48" & 54" Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP, 3.5" | 602916 | 1 | 602916-Online |
| 2 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 3 | 1/4" VAPOR LINE | 015818 | 14" | HT015818-Online |
| 4 | TANK | 603035 | 1 | 603035-Online |
| 5 | CONSOLE SUPPORT | 110602 | 1 | 110602-Online |
| 6 | NT .312-18 HX G5 ZNYC | 016832 | 1 | 016832-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 8 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 9 | VACUUM BREAKER | 603114 | 1 | 603114-Online |
| 10 | CS .312-18 X .750 HX G5 | 034280 | 4 | HT034280-Online |
| 11 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 12 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 13 | CS .312-18 X 1.000 HX G5 | 036236 | 1 | 036236-Online |
| 14 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 15 | GROMMET | 785295 | 1 | HT785295-Online |
| 16 | FUEL SHUT-OFF VALVE | 783944 | 1 | HT783944-Online |
| 17 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
36" EPA Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TANK | 603035 | 1 | 603035-Online |
| 2 | FUEL CAP, 3.5" | 602916 | 1 | 602916-Online |
| 3 | CONSOLE SUPPORT | 110511 | 1 | 110511-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 5 | CS .312-18 X .750 HX G5 | 034280 | 4 | HT034280-Online |
| 6 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 8 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 9 | CARBON CANISTER, 9 GAL. | 602982 | 1 | 602982-Online |
| 10 | FITTING, -4 BARB/-3 BARB STR | 603337 | 1 | 603337-Online |
| 11 | CUSHIONED CLAMP 3.0" | 602980 | 2 | 602980-Online |
| 12 | NT .312-18 HXFLK ZNYC | 016832 | 2 | 016832-Online |
| 13 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 14 | VAPOR LINE, 1/4" | 015818 | 24" | HT015818-Online |
| 15 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 16 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
| 17 | GROMMET | 785295 | 1 | HT785295-Online |
| 18 | FUEL SHUT-OFF VALVE | 783944 | 1 | HT783944-Online |

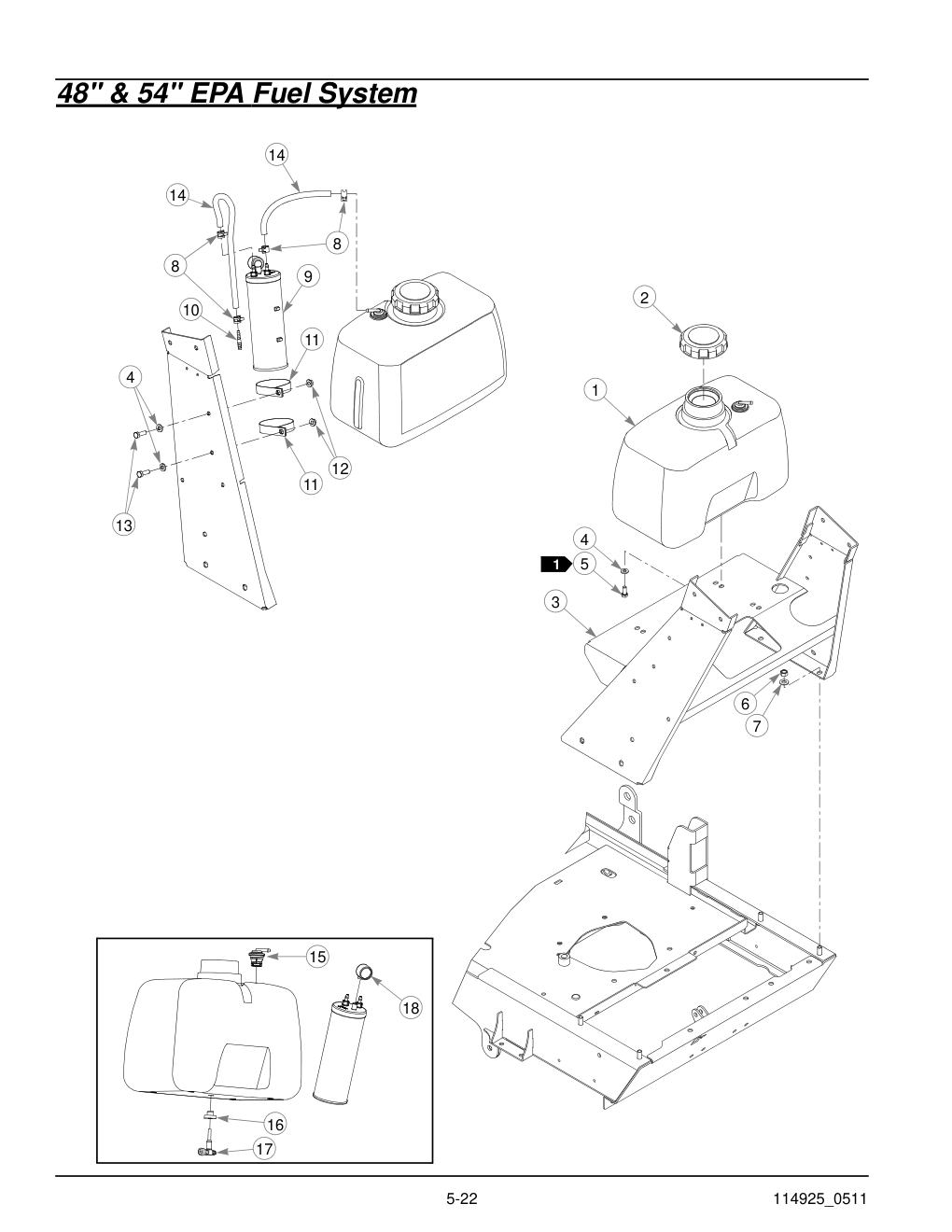

48" & 54" EPA Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TANK | 603035 | 1 | 603035-Online |
| 2 | RATCHETING GAS CAP, 3.5" | 602916 | 1 | 602916-Online |
| 3 | CONSOLE SUPPORT | 110602 | 1 | 110602-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 5 | CS .312-18 X .750 HX G5 | 034280 | 4 | HT034280-Online |
| 6 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 8 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 9 | CARBON CANISTER, 9 GAL. | 602982 | 1 | 602982-Online |
| 10 | FTG, -4 BARB/-3 BARB STR | 603337 | 1 | 603337-Online |
| 11 | 3.0" CUSHIONED CLAMP | 602980 | 2 | 602980-Online |
| 12 | NT .312-18 HXFLK ZNYC | 016832 | 2 | 016832-Online |
| 13 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 14 | 1/4" FUEL LINE | 015818 | 24" | HT015818-Online |
| 15 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 16 | GROMMET | 785295 | 1 | HT785295-Online |
| 17 | FUEL SHUT-OFF VALVE | 783944 | 1 | HT783944-Online |
| 18 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BATTERY HOLD DOWN COVER | 745166 | 1 | 745166-Online |
| 2 | NT .250-20 HX GR.5 ZNYC | 024927 | 4 | HT024927-Online |
| 3 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 4 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 5 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 6 | BATTERY BOX | 110865 | 1 | 110865-Online |
| 7 | CS .312-18 X 1.000 HX G5 | 036236 | 3 | 036236-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 9 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 10 | BATTERY CLAMP ROD | 793489 | 2 | 793489-Online |
| 11 | CN .312-18 X .200 MAX THK | 601069 | 1 | HT601069-Online |
36" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 36" DECK (WITH HARDWARE & DECALS) | 550229 | 1 | 550229-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECK WARNINGS DECAL | 601787 | 2 | 601787-Online |
| 4 | DISCHARGE CHUTE DECAL | 601796 | 1 | 601796-Online |
| 5 | 36" DECK ID DECAL | 793513 | 1 | 793513-Online |
| 6 | BELT ROUTING DECAL | 602243 | 1 | 602243-Online |
| 7 | THROWN OBJECTS DECAL | 601931 | 1 | 601931-Online |
36" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.750 HX G5 | 025007 | 2 | HT025007-Online |
| 2 | FW .656X 2.00 X .078 ZNYC | 046821 | 2 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYCG5 | 797449 | 2 | 797449-Online |
| 4 | IDLER PULLEY, 3.06" | 601162 | 1 | 601162-Online |
| 5 | DECK IDLER | 105031 | 1 | HT105031-Online |
| 6 | CS .312-18 X 1.250 FLT SH | 784199 | 6 | HT784199-Online |
| 7 | IDLER SLIDE | 601434 | 2 | 601434-Online |
| 8 | IDLER SPRING | 036384 | 1 | HT036384-Online |
| 9 | CHAIN | 259812 | 1 | HT259812-Online |
| 10 | CS .625-11 X 1.25 HX G5 Z | 781872 | 2 | HT781872-Online |
| 11 | CW .631 2.250 X .187 PNT | 782474 | 2 | HT782474-Online |
| 12 | PULLEY, 5.62 EOD, A-SEC | 796656 | 1 | HT796656-Online |
| 13 | PULLEY, 3.75 EOD, A-SEC | 796664 | 1 | HT796664-Online |
| 14 | PULLBAR | 330225 | 2 | HT330225-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 16 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 17 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 18 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 19 | PULLBAR PIN | 322974 | 2 | HT322974-Online |
| 20 | IDLER PULLEY, NHI 5.00” | 781856 | 1 | HT781856-Online |
| 21 | NT .375-16 HX GRD 5 ZNY | 054502 | 8 | HT054502-Online |
| 22 | FW .406 X .812 X.060 SAE | 767954 | 16 | HT767954-Online |
| 23 | BLADE SPINDLE ASSEMBLY | 783506 | 2 | 783506-Online |
| 24 | CS .375-16 X 1.375 HX G5 | 005116 | 8 | HT005116-Online |
36" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BELT, A 89.50 EL | 601786 | 1 | 601786-Online |
| 2 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 3 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 4 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 5 | CHUTE BRACKET | 114793 | 1 | HT114793-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 8 | RS PULLEY COVER | 114788 | 1 | HT114788-Online |
| 9 | LS PULLEY COVER | 114787 | 1 | HT114787-Online |
| 10 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 11 | BLADE, F20.50"-L-F-CW | 600901 | 1 | HT600901-Online |
| 12 | BLADE, F13.75"-L-F-CW | 600900 | 1 | HT600900-Online |
| 13 | CW .631 X 2.250 X .187 PNT | 782474 | 2 | HT782474-Online |
| 14 | CS .625-11 X 1.25 HX G5 Z | 781872 | 2 | HT781872-Online |
48" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" DECK (WITH HARDWARE & DECALS) | 550230 | 1 | 550230-Online |
| 2 | CN .312-18X.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECK WARNINGS DECAL | 601787 | 2 | 601787-Online |
| 4 | DISCHARGE CHUTE DECAL | 601796 | 1 | 601796-Online |
| 5 | DECK BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | 48" DECK ID DECAL | 793976 | 1 | 793976-Online |
| 7 | THROWN OBJECTS DECAL | 601931 | 1 | 601931-Online |

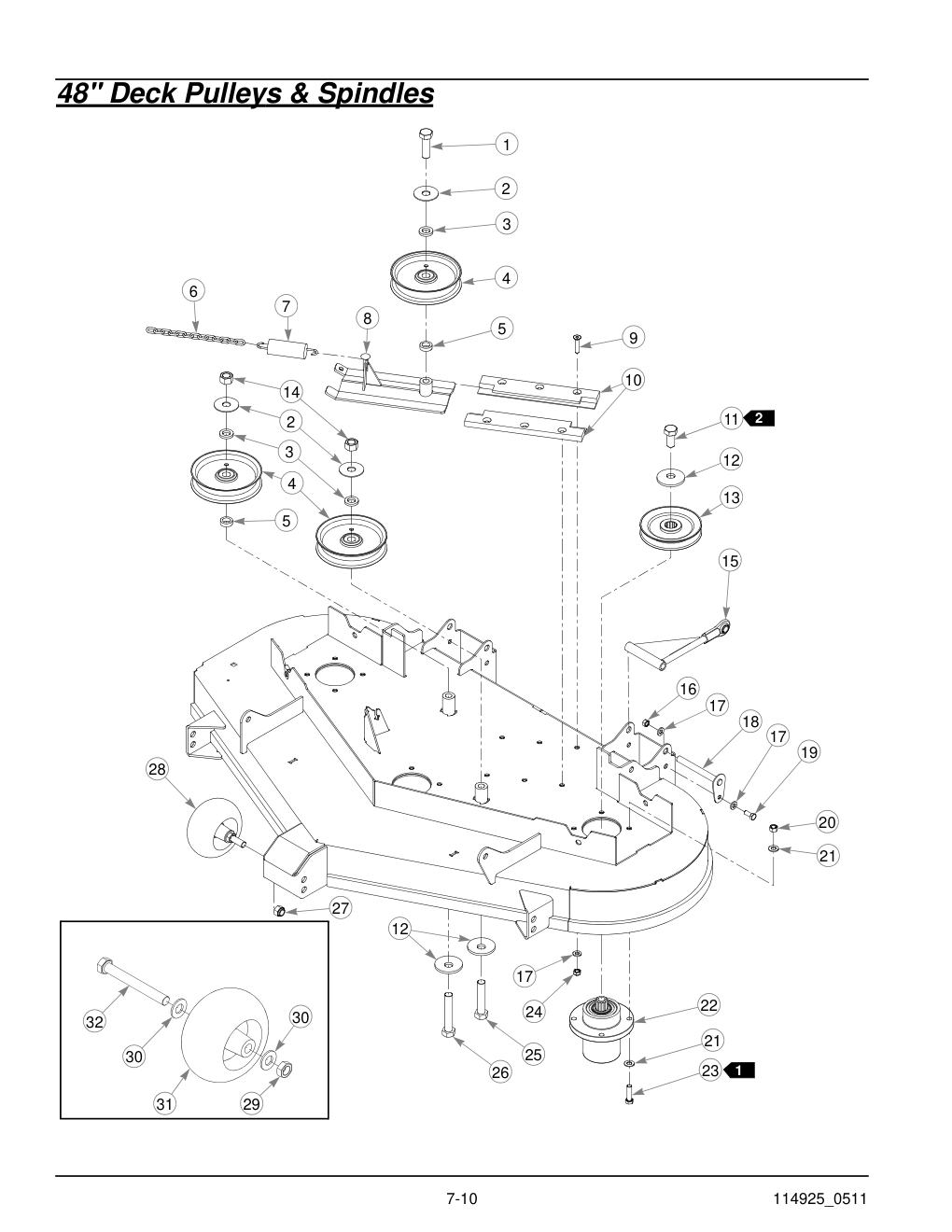

48" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYCG5 | 797449 | 3 | 797449-Online |
| 4 | IDLER PULLEY, NHI 5.0" | 781856 | 3 | HT781856-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | CHAIN | 259812 | 1 | HT259812-Online |
| 7 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 8 | DECK IDLER | 105031 | 1 | HT105031-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 12 | CW .631 X 2.250 X .187 PNT | 782474 | 5 | HT782474-Online |
| 13 | DRIVE PULLEY 5.19 OP | 792689 | 3 | HT792689-Online |
| 14 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 15 | PULLBAR | 330225 | 2 | HT330225-Online |
| 16 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 17 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 18 | PULLBAR PIN | 322974 | 2 | HT322974-Online |
| 19 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 20 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 21 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 22 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 23 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 24 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 25 | CS .625-11 X 3.00 FULL HX | 783738 | 1 | HT783738-Online |
| 26 | CS .625-11 X 3.500 FLTHD | 794875 | 1 | 794875-Online |
| 27 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 28 | ANTI-SCALP WHEEL (INCLUDES HARDWARE) | 788166 | 4 | HT788166-Online |
| 29 | NT .500-13 HX JAM ZNYC | 053199 | 4 | HT053199-Online |
| 30 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 31 | ANTI-SCALP WHEEL | 031997 | 4 | HT031997-Online |
| 32 | CS .500-13X4.250 HX G5 | 781708 | 4 | HT781708-Online |
48" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BELT, B 122.00 EL | 601969 | 1 | 601969-Online |
| 2 | RS PULLEY COVER | 114790 | 1 | 114790-Online |
| 3 | LS PULLEY COVER | 114789 | 1 | 114789-Online |
| 4 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 5 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 6 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 7 | CHUTE BRACKET | 114794 | 1 | HT114794-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 9 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 10 | KNOB | 792002 | 4 | HT792002-Online |
| 11 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 12 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 13 | CW .631 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 14 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
54" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK (WITH HARDWARE & DECALS) | 550231 | 1 | 550231-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECK WARNINGS DECAL | 601787 | 2 | 601787-Online |
| 4 | DISCHARGE CHUTE DECAL | 601796 | 1 | 601796-Online |
| 5 | DECK BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
| 7 | THROWN OBJECTS DECAL | 601931 | 1 | 601931-Online |
54" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYCG5 | 797449 | 3 | 797449-Online |
| 4 | IDLER PULLEY, NHI 5.0" | 781856 | 3 | HT781856-Online |
| 5 | DECK IDLER SPACER | 600296 | 2 | HT600296-Online |
| 6 | CHAIN | 259812 | 1 | HT259812-Online |
| 7 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 8 | DECK IDLER | 105031 | 1 | HT105031-Online |
| 9 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 10 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 11 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 12 | CW .631 X 2.250 X .187 PNT | 782474 | 5 | HT782474-Online |
| 13 | DRIVE PULLEY 5.68 OP | 786889 | 3 | HT786889-Online |
| 14 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 15 | PULLBAR | 330225 | 2 | HT330225-Online |
| 16 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 17 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 18 | PULLBAR PIN | 322974 | 2 | HT322974-Online |
| 19 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 20 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 21 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 22 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 23 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 24 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 25 | CS .625-11 X 3.00 FULL HX | 783738 | 1 | HT783738-Online |
| 26 | CS .625-11 X 3.500 FLTHD | 794875 | 1 | 794875-Online |
| 27 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 28 | ANTI-SCALP WHEEL (INCLUDES HARDWARE) | 788166 | 4 | HT788166-Online |
| 29 | NT .500-13 HX JAM ZNYC | 053199 | 4 | HT053199-Online |
| 30 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 31 | ANTI-SCALP WHEEL | 031997 | 4 | HT031997-Online |
| 32 | CS .500-13X4.250 HX G5 | 781708 | 4 | HT781708-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BELT, B 133.10 EL | 601788 | 1 | 601788-Online |
| 2 | RS PULLEY COVER | 114792 | 1 | 114792-Online |
| 3 | LS PULLEY COVER | 114791 | 1 | 114791-Online |
| 4 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 5 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 6 | CHUTE MOUNT | 114794 | 1 | HT114794-Online |
| 7 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 9 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 10 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 11 | KNOB | 792002 | 4 | HT792002-Online |
| 12 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 13 | CW .631 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 14 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
36" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GRIP | 792317 | 1 | HT792317-Online |
| 2 | DECK LIFT HANDLE | 110570 | 1 | HT110570-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 4 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 5 | NT .312-18 HX G5 ZNYC | 034272 | 3 | HT034272-Online |
| 6 | BUSHING | 765339 | 1 | HT765339-Online |
| 7 | HEIGHT ADJ STOP | 348284 | 1 | HT348284-Online |
| 8 | DECK INDICATOR | 110529 | 1 | 110529-Online |
| 9 | NT .375-16 HXZY NL | 086660 | 1 | HT086660-Online |
| 10 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 11 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 12 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 13 | NT .500-13 HX G5 ZNYC | 008193 | 2 | HT008193-Online |
| 14 | NT .750-10 HX G5 ZNYC | 008417 | 2 | 008417-Online |
| 15 | DECK LIFT BLOCK | 781930 | 1 | 781930-Online |
| 16 | LOWER HANDLE | 110530 | 1 | 110530-Online |
| 17 | DECK LIFT COVER | 110775 | 1 | 110775-Online |
| 18 | CS .375-16 X 1.000 HX G5 | 036244 | 1 | HT036244-Online |
| 19 | CS .500-13 X 1.25 HX G5 Z | 705954 | 2 | HT705954-Online |
| 20 | BEARING DISC | 263517 | 2 | 263517-Online |
| 21 | SB .50 X .75SH .375-16TD | 728550 | 1 | 728550-Online |
| 22 | WAVY WASHER | 601953 | 2 | 601953-Online |
| 23 | DECK LIFT ROD | 601942 | 1 | 601942-Online |
| 24 | E CLIP, 1.00 X .625 X .05 | 781294 | 3 | HT781294-Online |
| 25 | FW .781 X 1.50 X .120 ZNYC | 601681 | 3 | 601681-Online |
| 26 | GREASE FITTING STRAIGHT | 015495 | 3 | HT015495-Online |
| 27 | NT .437-14 HX FLG ZN | 704643 | 12 | HT704643-Online |
| 28 | DECK LIFT CHAIN | 360131 | 2 | HT360131-Online |
| 29 | DECK LIFT LINK | 111538 | 1 | HT111538-Online |
| 30 | CS .437-14 X 1.750 HX G5 | 055749 | 5 | HT055749-Online |
| 31 | YOKE, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 32 | CS .312-18 X 1.50 FLTHR G | 756270 | 1 | 756270-Online |
| 33 | CS .437-14 X 1.750 FULTH | 781831 | 1 | HT781831-Online |
36" Deck Mounting
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CS .500-13 X 2.00 GR ZN | 078949 | 2 | HT078949-Online |
| 35 | NT .50-13 HX LK NY | 781567 | 2 | HT781567-Online |
48" & 54" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GRIP | 792317 | 1 | HT792317-Online |
| 2 | DECK LIFT HANDLE | 110570 | 1 | HT110570-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 4 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 5 | NT .312-18 HX G5 ZNYC | 034272 | 3 | HT034272-Online |
| 6 | BUSHING | 765339 | 1 | HT765339-Online |
| 7 | HEIGHT ADJ STOP | 348284 | 1 | HT348284-Online |
| 8 | DECK INDICATOR | 110529 | 1 | 110529-Online |
| 9 | NT .375-16 HXZY NL | 086660 | 1 | HT086660-Online |
| 10 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 11 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 12 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 13 | NT .500-13 HX G5 ZNYC | 008193 | 2 | HT008193-Online |
| 14 | NT .750-10 HX G5 ZNYC | 008417 | 2 | 008417-Online |
| 15 | DECK LIFT MT BLOCK | 781930 | 1 | 781930-Online |
| 16 | LOWER HANDLE | 110530 | 1 | 110530-Online |
| 17 | DECK LIFT COVER | 550073 | 1 | 550073-Online |
| 18 | CS .375-16 X 1.000 HX G5 | 036244 | 1 | HT036244-Online |
| 19 | CS .500-13 X 1.25 HX G5 Z | 705954 | 2 | HT705954-Online |
| 20 | BEARING DISC | 263517 | 2 | 263517-Online |
| 21 | SB .50 X .75SH .375-16TD | 728550 | 1 | 728550-Online |
| 22 | WASHER, WAVY .558 X 1.005 | 601953 | 2 | 601953-Online |
| 23 | DECK LIFT ROD | 601942 | 2 | 601942-Online |
| 24 | E CLIP, 1.00 X .625 X .05 | 781294 | 5 | HT781294-Online |
| 25 | FW .781 X 1.50 X .120 ZNYC | 601681 | 5 | 601681-Online |
| 26 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 27 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 28 | DECK LIFT CHAIN | 360131 | 4 | HT360131-Online |
| 29 | CS .437-14 X 1.750 HX G5 | 055749 | 7 | HT055749-Online |
| 30 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 31 | CS .312-18 X 1.50 FLTHR G | 756270 | 1 | 756270-Online |
| 32 | CS .437-14 X 1.750 FULTH | 781831 | 1 | HT781831-Online |

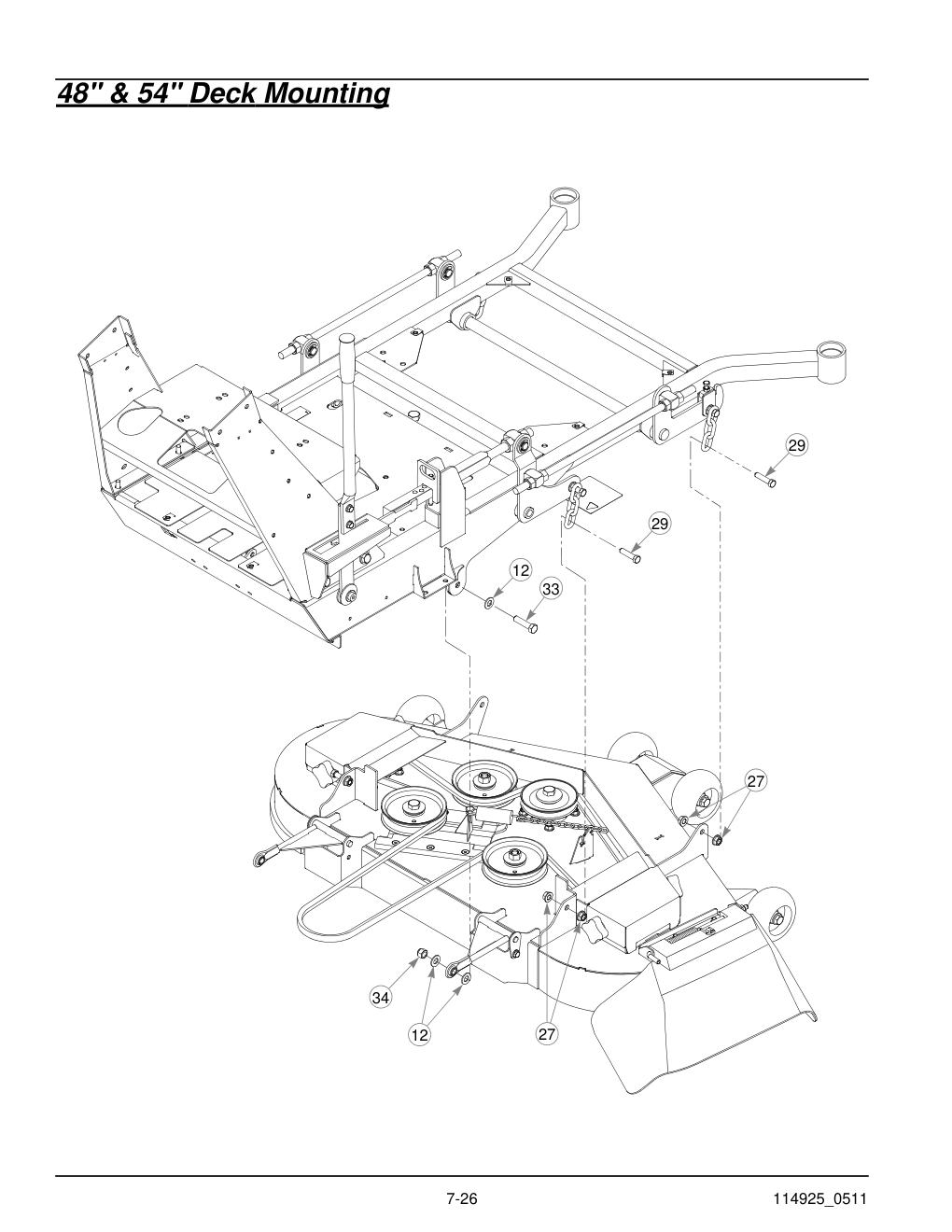

48" & 54" Deck Mounting
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 33 | CS .500-13 X 2.00 GR ZN | 078949 | 2 | HT078949-Online |
| 34 | NT .50-13 HX LK NY | 781567 | 2 | HT781567-Online |
