Illustrated Parts List
Hustler® Super Z HyperDrive Parts Manual - 932145
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 932145Model: 932152Model: 932160Model: 932178Model: 932186Model: 604460Model: 117590Model: 117592Model: 932103Model: 113722+16 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameHydraulic SystemHydraulic ReservoirOil Cooler MountPump DriveSteeringSteeringBrakeWheel & TireDrive Wheel BreakdownEngine, Kawasaki FX850VEngine, Kawasaki FX1000VFuel SystemBatteryInstrument Panel60" Side Discharge Service Deck60" Side Discharge Deck Pulleys & Spindles72" Side Discharge Service Deck72" Side Discharge Deck Pulleys & Spindles72" Side Discharge Deck60" Rear Discharge Service Deck60" Rear Discharge Deck Pulleys & Spindles60" Rear Discharge Deck Pulleys & Spindles60" Rear Discharge Dust Shield60" Rear Discharge Deck72" Rear Discharge Service Deck72" Rear Discharge Deck Pulleys & Spindles72" Rear Discharge Deck Pulleys & Spindles72" Rear Discharge Dust Shield72" Rear Discharge DeckDeck LiftDeck Mounting HardwareSeat, SuspensionROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" SD FRAME (WITH DECALS, RIVET NUTS, | 551763 | 1 | 551763-Online |
| 1 | 72" SD FRAME (WITH DECALS, RIVET NUTS, | 551765 | 1 | 551765-Online |
| 1 | 60" RD FRAME (WITH DECALS, RIVET NUTS, | 551766 | 1 | 551766-Online |
| 1 | 72" RD FRAME (WITH DECALS, RIVET NUTS, | 551767 | 1 | 551767-Online |
| 2 | BUMPER | 781880 | 5 | HT781880-Online |
| 3 | DECK HEIGHT DECAL | 781427 | 1 | 781427-Online |
| 4 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 5 | SERIAL NUMBER / SPEC DECAL | N/A | 3 | No SKU |
| 6 | 3/8-16 THREAD RIVET NUT | 808493 | 4 | 808493-Online |
| 7 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 8 | HOT DECAL | 602041 | 2 | 602041-Online |
| 9 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 10 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 11 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HYDRAULIC OIL COOLER | 602709 | 1 | 602709-Online |
| 2 | CS .375-16 X .625 HX G5 | 056069 | 1 | 056069-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 10 | HT767954-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 5 | VIBRATION MOUNT | 601571 | 1 | 601571-Online |
| 6 | CS M8-1.25 X 10 G10.9 SHBH | 603272 | 2 | 603272-Online |
| 7 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 8 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 9 | PUMP ARM | 602732 | 2 | 602732-Online |
| 10 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 11 | CS .250-20 X 1.50 HX G5 | 008581 | 2 | 008581-Online |
| 12 | FTG, -10MORB/-12BT 45° | 774968 | 2 | 774968-Online |
| 13 | LS PUMP | 602556 | 1 | 602556-Online |
| 13 | SEAL KIT, SAUER DDC20 | 603362 | 1 | 603362-Online |
| 14 | FTG, -8MORB/-8BT STR | 601523 | 2 | 601523-Online |
| 15 | FTG, -10MORB/-10MORFS 90° | 602443 | 8 | 602443-Online |
| 16 | TUBE, LP-BM LH LOOP | 602873 | 1 | 602873-Online |
| 17 | TUBE, RP-TM LH LOOP | 602874 | 1 | 602874-Online |
| 18 | RS PUMP | 602964 | 1 | 602964-Online |
| 18 | SEAL KIT, SAUER DDC20 | 603362 | 1 | 603362-Online |
| 19 | TUBE, RP-TM RH LOOP | 602876 | 1 | 602876-Online |
| 20 | TUBE, LP-BM RH LOOP | 602875 | 1 | 602875-Online |
| 21 | NT .500-13 HX G5 ZNYC | 008193 | 4 | HT008193-Online |
| 22 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 23 | NT .375-16 HX G5 ZNY | 054502 | 5 | HT054502-Online |
| 24 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 25 | RS CASE DRAIN HOSE | 603044 | 1 | 603044-Online |
| 26 | SPRING CLAMP | 601617 | 2 | 601617-Online |
| 27 | LS CASE DRAIN HOSE | 603043 | 1 | 603043-Online |
| 28 | WHEEL MOTOR | 602714 | 2 | 602714-Online |
| 29 | FW .531 X 1.063 X .090 SAE | 767962 | 12 | HT767962-Online |
| 30 | NT .500-13 UNT LK G8 ZN | 023317 | 8 | 023317-Online |
| 31 | CS .500-13 X 2.50 SQ G5 | 602256 | 8 | 602256-Online |
| 32 | CB .500-13 X 1.50 FULL | 028274 | 4 | 028274-Online |
Hydraulic Reservoir
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BREATHER CAP | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | HYDRAULIC RESERVOIR | 602767 | 1 | 602767-Online |
| 4 | HOSE CLAMP | 700484 | 6 | 700484-Online |
| 5 | PUMP SUCTION HOSE | 603045 | 2 | 603045-Online |
| 6 | HOSE, TO COOLER | 603046 | 1 | 603046-Online |
| 7 | FTG, -12MORB/-12MJIC 90° | 603189 | 2 | 603189-Online |
| 8 | HOSE, FROM COOLER | 603047 | 1 | 603047-Online |
| 9 | FTG, -12MORB/-12MORB STR | 603039 | 1 | 603039-Online |
| 10 | CHECK VALVE | 603053 | 1 | 603053-Online |
| 11 | FTG, -8MORB HEX PLUG | 603123 | 1 | 603123-Online |
| 12 | FTG, -8MORB/-8MJIC, 90° | 771311 | 2 | 771311-Online |
| 13 | HOSE, PUMP CASE DRAIN | 603042 | 2 | 603042-Online |
| 14 | CASE DRAIN MANIFOLD | 603000 | 1 | 603000-Online |
| 15 | SPRING CLAMP | 601001 | 2 | 601001-Online |
| 16 | SUPPORT BRACKET | 113623 | 1 | 113623-Online |
| 17 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 3 | HT768523-Online |
| 19 | CS .312-18 X .50 HX G8 | 068346 | 1 | 068346-Online |
| 20 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 21 | FTG, -8 MORB HEX PLUG | 781658 | 1 | 781658-Online |
| 22 | HYDRAULIC SUCTION FILTER | 602768 | 1 | 602768-Online |
| 23 | FTG, -8MORB/-6BT 90° | 603190 | 2 | 603190-Online |
| 24 | LS CASE DRAIN HOSE | 603043 | 1 | 603043-Online |
Oil Cooler Mount
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR SCOOP | 114038 | 1 | 114038-Online |
| 2 | LATCH | 791384 | 1 | 791384-Online |
| 3 | CS .250-20 X 4.50 HX G5 | 603229 | 4 | 603229-Online |
| 4 | FAN, 9" | 603066 | 1 | 603066-Online |
| 5 | OIL COOLER COVER | 117407 | 1 | 117407-Online |
| 6 | COOLER MOUNT FIREWALL | 114040 | 1 | 114040-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 8 | NT .312-18 HX G5 ZNYC | 034272 | 16 | HT034272-Online |
| 9 | HYPERDRIVE DECAL | 603290 | 2 | 603290-Online |
| 10 | GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 2 | 706531-Online |
| 11 | CB .312-18 X .75 FUL ZN | 016253 | 16 | 016253-Online |
| 12 | RS COOLER MOUNT | 117408 | 1 | 117408-Online |
| 13 | LS COOLER MOUNT | 117409 | 1 | 117409-Online |
| 14 | CS .250-20 X 4.00 HX G5 | 603228 | 2 | 603228-Online |
| 15 | UPPER COOLER MOUNT | 114039 | 1 | 114039-Online |
| 16 | WEATHERSTRIP | 033035 | 15.5" | 033035-Online |
| 17 | FRONT SCREEN MOUNT BRACKET | 114141 | 1 | 114141-Online |
| 18 | REAR SCREEN MOUNT BRACKET | 114142 | 1 | 114142-Online |
| 19 | NT .250-20 HX ZY NL | 068551 | 6 | HT068551-Online |
| 20 | SCREEN | 114165 | 1 | 114165-Online |
| 21 | 1/4-20 THREAD RIVET NUT | 808477 | 1 | 808477-Online |
| 22 | FW .281 X .625 X .051/.080H | 768515 | 1 | HT768515-Online |
| 23 | CS .250-20 X .75 HX G5 | 055939 | 1 | 055939-Online |
| 24 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 25 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 26 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 27 | WIRE TIE | 000331 | 1 | 000331-Online |
| 28 | WIRE TIE | 000430 | 2 | 000430-Online |
Pump Drive
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 5.00 HX G5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 3 | KEY 1/4 SQ X 1.50 LG | 212076 | 1 | HT212076-Online |
| 4 | PULLEY 7.0 OD X 1.125 SHFT | 602755 | 1 | 602755-Online |
| 5 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 6 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 7 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 8 | CS .437-20 X 3.00 HX G5 P85 | 785048 | 1 | HT785048-Online |
| 9 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 11 | KEY 1/4 SQ X 1.12 LONG | 210146 | 2 | HT210146-Online |
| 12 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 13 | CLUTCH ANCHOR | 113347 | 1 | HT113347-Online |
| 14 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 15 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 16 | PULLEY 7.35 OP X 0.875 SHFT | 602754 | 2 | 602754-Online |
| 17 | SS .312-18 X .75 SQ-HD | 083196 | 4 | 083196-Online |
| 18 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 19 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 20 | TENSIONER | 115536 | 1 | HT115536-Online |
| 21 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 1 | HT767962-Online |
| 23 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 24 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 25 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 26 | EB, .375-16 X 3.00 FULL THD | 601486 | 1 | 601486-Online |
| 27 | IDLER PULLEY | 603783 | 1 | 603783-Online |
| 28 | BELT, 64.89" B B-SECTION | 604208 | 1 | 604208-Online |

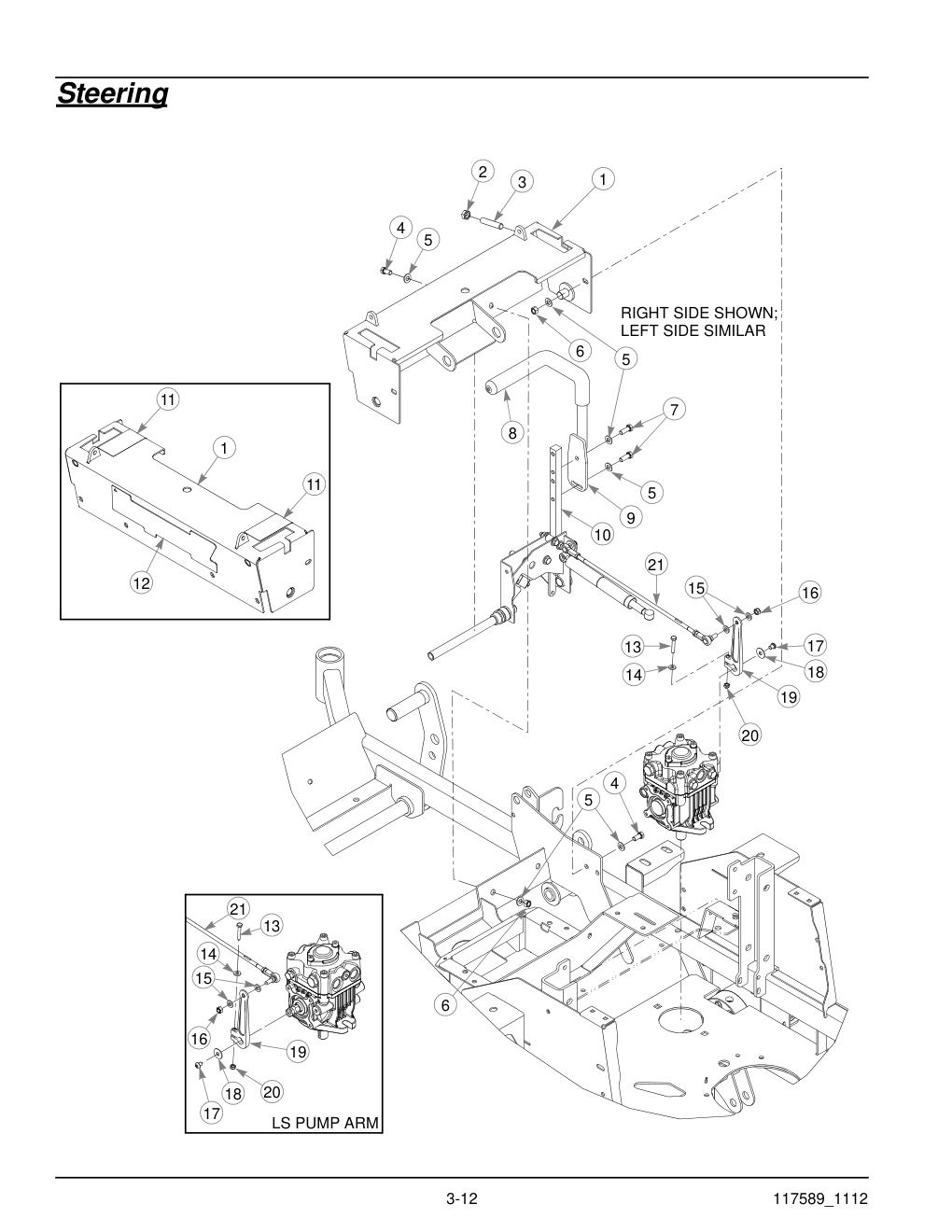

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING COVER (WITH DECALS) | 550818 | 1 | 550818-Online |
| 2 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 3 | SS 1/2-13 X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 4 | CS .375-16 X .75 HX G5 | 055822 | 6 | HT055822-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 28 | HT767954-Online |
| 6 | NT .375-16 HX GRD 5 ZNY | 054502 | 6 | HT054502-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 8 | STEERING BAR GRIP | 781260 | 2 | 781260-Online |
| 9 | HANDLE (WITH GRIP) | 109839 | 2 | 109839-Online |
| 10 | STEERING ARM | 113575 | 2 | 113575-Online |
| 11 | WEAR TAPE | 722199 | 11" | 722199-Online |
| 12 | SUPER Z DECAL | 603227 | 1 | 603227-Online |
| 13 | CS .250-20 X 1.50 HX G5 | 008581 | 2 | 008581-Online |
| 14 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 15 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 16 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 17 | CS M8-1.25 X 10 G10.9 SHBH | 603272 | 2 | 603272-Online |
| 18 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 19 | PUMP ARM | 602732 | 2 | 602732-Online |
| 20 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 21 | PUMP ROD ADJUSTER | 781286 | 2 | HT781286-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 22 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 23 | CS .375-16 X 1.75 HX G5 | 705178 | 6 | HT705178-Online |
| 24 | RS STEERING BOX | 112898 | 1 | 112898-Online |
| 25 | FW .750 X 1.50 X .156 ZN | 603078 | 2 | 603078-Online |
| 26 | BUSHING | 781153 | 6 | HT781153-Online |
| 27 | BALL STUD | 781922 | 4 | 781922-Online |
| 28 | STEER PIVOT TUBE | 113007 | 1 | 113007-Online |
| 29 | LOCK COLLAR, 0.757 ID | 784439 | 2 | HT784439-Online |
| 30 | LS STEERING BOX | 112899 | 1 | 112899-Online |
| 31 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 32 | DAMPER | 603192 | 2 | 603192-Online |
| 33 | SWITCH | 601087 | 2 | HT601087-Online |
| 34 | FW .344 X 1.00 X.12 HRD Z | 712927 | 2 | HT712927-Online |
| 35 | STEERLEVER BUSHING | 348862 | 4 | HT348862-Online |
| 36 | SS .500-13 X 2.00 SH ZY | 797738 | 2 | 797738-Online |
| 37 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 38 | NT .312-18 HX FLK ZNYC | 016832 | 2 | 016832-Online |
| 39 | GM .750 X .188 X 1.00 X .12 | 047456 | 2 | 047456-Online |
| 40 | CONNECTOR BODY | 601425 | 1 | 601425-Online |
| 41 | CAP LOCK | 601426 | 1 | 601426-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 3 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | LS BRAKE BELLCRANK | 112907 | 1 | 112907-Online |
| 6 | RS BRAKE BELLCRANK (NOT SHOWN) | 112906 | 1 | 112906-Online |
| 7 | BUSHING | 765339 | 4 | HT765339-Online |
| 8 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 9 | BRAKE LINK TURNBUCKLE | 350397 | 2 | 350397-Online |
| 10 | CS .375-16 X 1.375 HX G5 | 005116 | 4 | HT005116-Online |
| 11 | CS .375-16 X 4.50 HX G5 | 052514 | 2 | 052514-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 13 | BRAKE ARM | 111309 | 2 | HT111309-Online |
| 14 | CB .312-18 X 1.00 FULL ZN | 037887 | 4 | HT037887-Online |
| 15 | CS .312-18 X .875 HX G8 FLK | 604461 | 8 | 604461-Online |
| 16 | HUB ASSEMBLY (WITH STUDS) | 602384 | 2 | 602384-Online |
| 17 | BRAKE ASSEMBLY | 602383 | 2 | 602383-Online |
| 18 | STUD | 601085 | 5 | HT601085-Online |
Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 061077 | NUT | 10 | WHEEL | 10-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| NO. QTY DESCRIPTION | INDEXNO. | PART | INDEXNO.-Online |
Engine, Kawasaki FX850V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX850V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 3 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 4 | FITTING, STREET ELBOW 1/8 NPT BRASS | 601216 | 1 | 601216-Online |
| 5 | MUFFLER | 603012 | 1 | 603012-Online |
| 6 | POSITIVE BATTERY CABLE | 604029 | 1 | 604029-Online |
| 7 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 7 | HT768523-Online |
| 9 | NEGATIVE BATTERY CABLE | 604026 | 1 | 604026-Online |
| 10 | CLAMP | 045088 | 1 | 045088-Online |
| 11 | CLAMP, 3/16" | 603112 | 1 | 603112-Online |
| 12 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 13 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 14 | BRACE | 114578 | 1 | 114578-Online |
| 15 | NT .312-18 HXFLK ZNYC | 016832 | 3 | 016832-Online |
| 16 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 17 | 1/4" FUEL LINE | 015818 | 17" | HT015818-Online |
| 18 | 3/16" VAPOR LINE | 603326 | 34" | 603326-Online |
| 19 | WIRE TIE | 000331 | 4 | 000331-Online |
| 20 | FW .406 X .812 X .060 SAE | 767954 | 3 | HT767954-Online |
| 21 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 22 | LW .375 INT-EXT TOOTH | 793885 | 1 | 793885-Online |
| 23 | GROUND STRAP | 111894 | 1 | 111894-Online |
| 24 | CB .312-18 X 1.25 ZNYC | 602827 | 1 | 602827-Online |
Engine, Kawasaki FX1000V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FX1000V ENGINE | N/A | 1 | No SKU |
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | FITTING, STREET ELBOW 1/8 NPT BRASS | 601216 | 1 | 601216-Online |
| 4 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 5 | MUFFLER | 603708 | 1 | 603708-Online |
| 6 | POSITIVE BATTERY CABLE | 604029 | 1 | 604029-Online |
| 7 | NT .312-18 HX G5 ZNYC | 034272 | 8 | HT034272-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 11 | HT768523-Online |
| 9 | NEGATIVE BATTERY CABLE | 604026 | 1 | 604026-Online |
| 10 | CLAMP | 045088 | 1 | 045088-Online |
| 11 | CLAMP, 3/16" | 603112 | 1 | 603112-Online |
| 12 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 13 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 14 | BRACE | 114578 | 1 | 114578-Online |
| 15 | NT .312-18 HXFLK ZNYC | 016832 | 3 | 016832-Online |
| 16 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 17 | 1/4" FUEL LINE | 015818 | 17" | HT015818-Online |
| 18 | 3/16" VAPOR LINE | 603326 | 34" | 603326-Online |
| 19 | WIRE TIE | 000331 | 4 | 000331-Online |
| 20 | FW .406 X .812 X .060 SAE | 767954 | 3 | HT767954-Online |
| 21 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 22 | LW .375 INT-EXT TOOTH | 793885 | 1 | 793885-Online |
| 23 | GROUND STRAP | 111894 | 1 | 111894-Online |
| 24 | CB .312-18 X 1.25 ZNYC | 602827 | 1 | 602827-Online |
| 25 | MUFFLER MOUNT | 115889 | 1 | 115889-Online |
| 26 | CS .500-13 X 1.00 HX G5 Z | 016253 | 4 | 016253-Online |
Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP 3.5" | 603807 | 2 | 603807-Online |
| 2 | LS FUEL TANK ASSEMBLY | 604443 | 1 | 604443-Online |
| 3 | RS FUEL TANK ASSEMBLY | 604442 | 1 | 604442-Online |
| 4 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | 3/16" VAPOR LINE | 603326 | 74" | 603326-Online |
| 6 | PLASTIC TEE, 3/16" | 604281 | 2 | 604281-Online |
| 7 | 1/4" FUEL LINE | 015818 | 66" | HT015818-Online |
| 8 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 9 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 10 | FW .344 X 1.00 X .12 HRD Z | 712927 | 10 | HT712927-Online |
| 11 | CS .375-16 X .75 HX G5 | 055822 | 10 | HT055822-Online |
| 12 | CS .312-18 X 1.00 HX G5 | 036236 | 3 | 036236-Online |
| 13 | FW .343 X .687 X .051/.080H | 768523 | 3 | HT768523-Online |
| 14 | LOOP CLAMP | 043570 | 3 | 043570-Online |
| 15 | NT .312-18 HX FLK ZNYC | 016832 | 3 | 016832-Online |
| 16 | CS .250-20 X .50 HX G5 | 055947 | 4 | 055947-Online |
| 17 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 18 | TANK COVER | 115998 | 1 | 115998-Online |
| 19 | TANK COVER | 115999 | 1 | 115999-Online |
| 20 | WIRE TIE (NOT SHOWN) | 000331 | 1 | 000331-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 5.00 HX GR5 | 050823 | 2 | 050823-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 3 | BATTERY STRAP | 113676 | 1 | 113676-Online |
| 4 | CN .312-18 X .20 MAX THK | 601069 | 2 | HT601069-Online |
| 5 | WIRE TIE (NOT SHOWN) | 000331 | 2 | 000331-Online |
Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE (KAWASAKI FX850V ENGINE) | 785030 | 1 | HT785030-Online |
| 1 | CHOKE CABLE (KAWASAKI FX1000V ENGINE) | 601095 | 1 | HT601095-Online |
| 2 | KNOB | 603523 | 1 | 603523-Online |
| 3 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 4 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 5 | FUEL DISPLAY/HOUR METER | 603748 | 1 | 603748-Online |
| 6 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 7 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 8 | IGNITION CONTROLLER | 601554 | 1 | 601554-Online |
| 9 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 10 | CB 10-24 X .50 ZYNC | 601098 | 2 | 601098-Online |
| 11 | CS 10-24 X .75 HXFLK ZN | 063198 | 2 | 063198-Online |
| 12 | THROTTLE CABLE (KAWASAKI FX850V ENGINE) | 603409 | 1 | 603409-Online |
| 12 | THROTTLE CABLE (KAWASAKI FX1000V ENGINE) | 603847 | 1 | 603847-Online |
| 13 | FW .219 X .50 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 14 | CS .250-20 X .50 HX G5 | 055947 | 4 | 055947-Online |
| 15 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 16 | INSTRUMENT PANEL DECAL | 603916 | 1 | 603916-Online |
| 17 | INSTRUMENT PANEL (WITH DECAL) | 551451 | 1 | 551451-Online |
| 18 | WIRE TIE | 000430 | 1 | 000430-Online |
| 19 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 20 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 21 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 22 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 23 | WIRE HARNESS | 604241 | 1 | 604241-Online |
| 24 | WIRE TIE (NOT SHOWN) | 000331 | 6 | 000331-Online |
| 25 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
60" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" VX4 DECK (WITH DECALS & HARDWARE) | 550739 | 1 | 550739-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 5 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 8 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 9 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |
60" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 3 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 4 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 5 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 6 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN | 373191 | 1 | HT373191-Online |
| 8 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 11 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 12 | IDLER 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 13 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 14 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 15 | PULLEY DRIVE 7.00 EFF | 602745 | 3 | 602745-Online |
| 16 | FW 1.030 X 1.50 X .134 ZN | 045765 | 3 | HT045765-Online |
| 17 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 18 | PUSHER | 113340 | 1 | 113340-Online |
| 19 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 20 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 21 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 27 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 28 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 29 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 30 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 31 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 32 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 33 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 34 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
72" Side Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" VX4 DECK (WITH DECALS & HARDWARE) | 550751 | 1 | 550751-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | 72" DECK ID DECAL | 786285 | 1 | 786285-Online |
| 7 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 9 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
72" Side Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 3 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 4 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 5 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 6 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN | 373191 | 1 | HT373191-Online |
| 8 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 9 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 10 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 11 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 12 | IDLER 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 13 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 14 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 15 | DRIVE PULLEY 8.652 OP | 602746 | 3 | 602746-Online |
| 16 | FW 1.030 X 1.50 X .134 ZN | 045765 | 3 | HT045765-Online |
| 17 | PUSHER | 113340 | 1 | 113340-Online |
| 18 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 19 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 20 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 21 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE CW | 604255 | 3 | 604255-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 27 | CB .375-16 X 1.25 G5 ZN | 603113 | 6 | 603113-Online |
| 28 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 29 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 30 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 31 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 32 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 33 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 34 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
72" Side Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 112935 | 1 | 112935-Online |
| 2 | LS PULLEY COVER | 112936 | 1 | 112936-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | BELT, B 195" EL | 784207 | 1 | HT784207-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | CB .375-16 X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 15 | RS INNER WALL ADJ. | 112931 | 1 | HT112931-Online |
| 16 | LS INNER WALL ADJ. | 112932 | 1 | HT112932-Online |
| 17 | BLADE, F24.50"-EHN-F-CW | 602857 | 3 | 602857-Online |
| 17 | BLADE, F24.50"-H-F-CW | 798702 | 3 | 798702-Online |
| 17 | BLADE, 24.50"-MUL-F-CW | 798710 | 3 | HT798710-Online |
| 17 | BLADE, 24.50"-GAT-F-CW | 798728 | 3 | HT798728-Online |
| 18 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
60" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" RD DECK (WITH DECALS & HARDWARE) | 550935 | 1 | 550935-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | 2 BELT ROUTING DECAL | 603349 | 1 | 603349-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 6 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 7 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 9 | 5/16-18 THREAD HEX RIVET NUT | 792887 | 1 | 792887-Online |
60" Rear Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 12 | HT028118-Online |
| 3 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 4 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 5 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 6 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 7 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 8 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 9 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 10 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 11 | DUST SHIELD WITH OFFSET | 603057 | 4 | 603057-Online |
| 12 | PULLEY V-IDLER HBB 5.0" | 602672 | 2 | 602672-Online |
| 13 | CHAIN | 373191 | 2 | HT373191-Online |
| 14 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 15 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 16 | BUSHING | 770867 | 2 | HT770867-Online |
| 17 | BUSHING | 109549 | 1 | HT109549-Online |
| 18 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 19 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 20 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 25 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 26 | CS .625-11 X 2.00 HX G5 Z | 016642 | 3 | 016642-Online |
| 27 | 6" HB IDLER PULLEY | 796714 | 2 | HT796714-Online |
| 28 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 29 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 30 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 1 | HT783738-Online |
60" Rear Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CS .500-13 X 1.75 HX G5 | 017616 | 2 | HT017616-Online |
| 34 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 35 | PULLEY DRIVE 7.00 EFF | 602745 | 2 | 602745-Online |
| 36 | PULLEY | 770388 | 1 | 770388-Online |
| 37 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 38 | FW 1.030 X 1.50 X .134 ZN | 045765 | 2 | HT045765-Online |
| 39 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |
| 42 | BLADE SPINDLE CW | 604255 | 2 | 604255-Online |
60" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX ZY NL | 058776 | 10 | HT058776-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 3 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 6 | HT036244-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 6 | PUSHER | 113340 | 1 | 113340-Online |
| 7 | FW .781 X 1.375 X .25 ZNY | 778399 | 2 | 778399-Online |
| 8 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 9 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 10 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 11 | DUST SHIELD | 114440 | 1 | 114440-Online |
| 12 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 13 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 14 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 15 | DISCHARGE CHUTE ANGLE | 106716 | 2 | 106716-Online |
| 16 | RD REAR FLAP | 600254 | 2 | 600254-Online |
| 17 | DECK STIFFENER ANGLE | 351676 | 2 | 351676-Online |
| 18 | CB .312-18 X 1.00 FULL ZN | 037887 | 6 | HT037887-Online |
| 19 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 20 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 21 | CB .375-16 X 1.50 STD G5 | 710194 | 6 | 710194-Online |
60" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECALS) | 550939 | 1 | 550939-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 5 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 550938 | 1 | 550938-Online |
| 5 | LS PULLEY COVER | 114210 | 1 | 114210-Online |
| 6 | BELT, B 145.5" EL | 777185 | 1 | 777185-Online |
| 7 | BELT, B 138" EL | 027284 | 1 | 027284-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 11 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 12 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 13 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
72" Rear Discharge Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" RD DECK (WITH DECALS & HARDWARE) | 551049 | 1 | 551049-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 6 | HT601069-Online |
| 3 | 2 BELT ROUTING DECAL | 603349 | 1 | 603349-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 6 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 7 | 72" DECK ID DECAL | 786285 | 1 | 786285-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
72" Rear Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 14 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 5 | 603057-Online |
| 4 | PULLEY V-IDLER HBB 5.0" | 602672 | 4 | 602672-Online |
| 5 | CHAIN | 373191 | 2 | HT373191-Online |
| 6 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 7 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 8 | CS .312-18 X 1.25 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 10 | CS .625-11 X 2.00 HX G5 Z | 016642 | 4 | 016642-Online |
| 11 | CS .625-11 X 2.50 HX G5 | 025015 | 1 | HT025015-Online |
| 12 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 13 | DECK IDLER SPACER 1/2" LG | 603256 | 1 | 603256-Online |
| 14 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 15 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 16 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 17 | BUSHING | 770867 | 2 | HT770867-Online |
| 18 | BUSHING | 109549 | 1 | HT109549-Online |
| 19 | IDLER 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 20 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | FW .500 X 1.25 X .075 ZNY | 704759 | 1 | 704759-Online |
| 25 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 26 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 27 | IDLER PULLEY NHI 4.288" | 788364 | 1 | 788364-Online |
| 28 | CW .631 X 2.25 X .187 PNT | 782474 | 1 | HT782474-Online |
| 29 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 1 | HT783738-Online |
| 30 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 31 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |

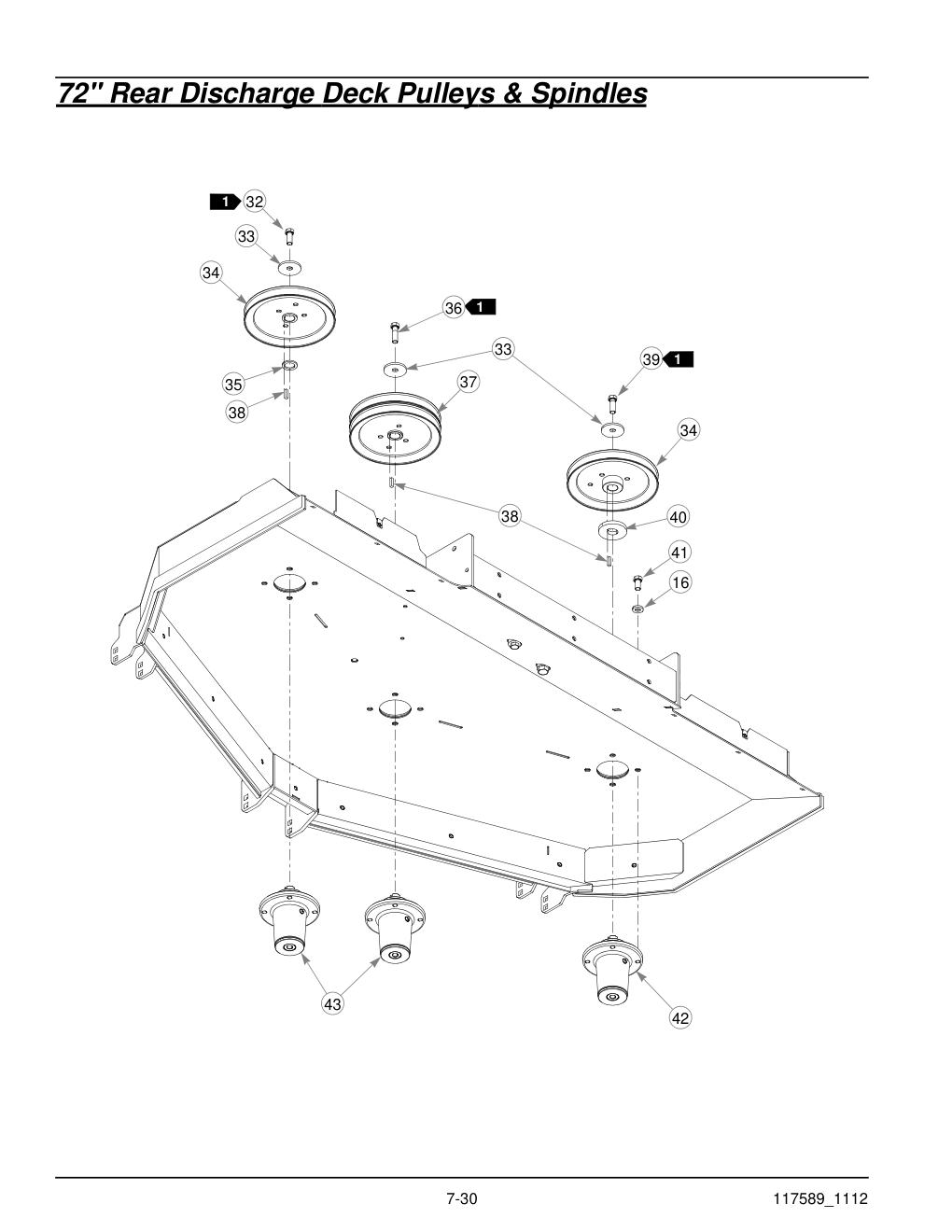

72" Rear Discharge Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | DRIVE PULLEY 8.652 OP | 602746 | 2 | 602746-Online |
| 35 | FW 1.03 X 1.50 X .134 ZN | 045765 | 1 | HT045765-Online |
| 36 | CS .500-13 X 1.75 HX G5 | 017616 | 1 | HT017616-Online |
| 37 | DOUBLE PULLEY 8.41" | 603226 | 1 | 603226-Online |
| 38 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 39 | CS .500-13 X 1.50 HX G5 | 074252 | 1 | HT074252-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 42 | BLADE SPINDLE CCW | 604256 | 1 | 604256-Online |
| 43 | BLADE SPINDLE CW | 604255 | 2 | 604255-Online |
72" Rear Discharge Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX ZY NL | 058776 | 10 | HT058776-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 3 | FW .781 X 1.375 X .250 ZNY | 778399 | 2 | 778399-Online |
| 4 | LS CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 5 | RS CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 6 | CS .375-16 X 1.00 HX G5 | 036244 | 6 | HT036244-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 8 | PUSHER | 113340 | 1 | 113340-Online |
| 9 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 10 | RS CLAMP ANGLE | 109487 | 1 | 109487-Online |
| 11 | RUBBER SIDE FLAP | 601483 | 2 | 601483-Online |
| 12 | CB .312-18 X 1.00 FULL ZN | 037887 | 6 | HT037887-Online |
| 13 | LS CLAMP ANGLE | 109486 | 1 | 109486-Online |
| 14 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 15 | DUST SHIELD | 114653 | 1 | 114653-Online |
| 16 | REAR DECK STOP | 114522 | 1 | 114522-Online |
| 17 | NT .375-16 HX ZY NL | 086660 | 6 | HT086660-Online |
| 18 | DISCHARGE CHUTE ANGLE | 107712 | 2 | 107712-Online |
| 19 | REAR FLAP | 600930 | 2 | 600930-Online |
| 20 | DECK STIFFENER ANGLE | 101360 | 2 | 101360-Online |
| 21 | CB .375-16 X 1.50 STD G5 | 710194 | 6 | 710194-Online |
72" Rear Discharge Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECAL) | 551050 | 1 | 551050-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 6 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 114209 | 1 | 114209-Online |
| 5 | LS PULLEY COVER | 114490 | 1 | 114490-Online |
| 6 | BELT, B 160.2" EL | 797928 | 1 | 797928-Online |
| 7 | BELT, HBB SECTION 140.3 | 603422 | 1 | 603422-Online |
| 8 | FLEX TRIM | 111339 | 4 | 111339-Online |
| 9 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 11 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 12 | SPACER 3.22 | 602345 | 2 | 602345-Online |
| 13 | PLASTIC WHEEL | 602263 | 2 | 602263-Online |
| 14 | PLASTIC WHEEL | 602341 | 1 | 602341-Online |
| 15 | SPACER 5.73 | 602344 | 1 | 602344-Online |
| 16 | CB .500-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 4 | DECK LIFT SPRING | 603184 | 2 | 603184-Online |
| 5 | CS .437-14 X 1.75 HX G5 | 055749 | 7 | HT055749-Online |
| 6 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 7 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 8 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 9 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 10 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 11 | FW .625 X 1.50 X .105 ZN | 704783 | 1 | 704783-Online |
| 12 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 14 | CS .312-18 X 1.50 FLTHR HX | 756270 | 1 | 756270-Online |
| 15 | CS .437-14 X 1.75 FULTH | 781831 | 1 | HT781831-Online |
| 16 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | NT .750-10 HXZY NL | 061101 | 2 | HT061101-Online |
| 18 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10 X 3.00 HX G5 | 051169 | 2 | 051169-Online |
Seat, Suspension
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUSPENSION SEAT | 792051 | 1 | 792051-Online |
| 2 | SEAT BELT | 601444 | 1 | 601444-Online |
| 3 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 4 | CS .437-20 X 1.00 HX G8 ZNYC | 797076 | 2 | 797076-Online |
| 5 | SEAT LATCH | 113157 | 1 | 113157-Online |
| 6 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 7 | SEAT PAN (WITH DECALS) | 550815 | 1 | 550815-Online |
| 8 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 9 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 10 | FW .406 X .812 X .060 SAE | 767954 | 11 | HT767954-Online |
| 11 | NT .375-16 HXZY NL | 086660 | 5 | HT086660-Online |
| 12 | NT .312-18 HX ZY NL | 058776 | 5 | HT058776-Online |
| 13 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 14 | WIRE TIE | 000331 | 2 | 000331-Online |
| 15 | FW .344 X 1.00 X.12 HRD Z | 712927 | 4 | HT712927-Online |
| 16 | FIBER WASHER | 724716 | 2 | 724716-Online |
| 17 | SEAT PAN STOP | 350421 | 2 | 350421-Online |
| 18 | CS .375-16 X 1.00 HX G5 | 036244 | 8 | HT036244-Online |
| 19 | FW .406 X 1.00 X .12 HRD Z | 712919 | 4 | HT712919-Online |
| 20 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 21 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 22 | HOT/HYDRO OIL DECAL | 601058 | 1 | 601058-Online |
| 23 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 24 | SEAT SUPPORT (WITH DECALS) | 550816 | 1 | 550816-Online |
| 25 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 26 | LS FRAME COVER (WITH DECALS) | 550823 | 1 | 550823-Online |
| 27 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 28 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 29 | CN .312-18 X .200 MAX THK | 601069 | 5 | HT601069-Online |
| 30 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 31 | RS FRAME COVER (WITH DECALS) | 550824 | 1 | 550824-Online |
| 32 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 33 | FLOOR PAN | 117323 | 1 | 117323-Online |
| 34 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |
| 35 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 36 | CS .312-18 X 1.00 HX G5 | 036236 | 5 | 036236-Online |
ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT (WITH DECALS, SEATBELT & HARDWARE) | 603338 | 1 | 603338-Online |
| 2 | HAND KNOB | 601470 | 2 | 601470-Online |
| 3 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 4 | CS .500-13 X 3.50 HX G5 | 061812 | 5 | 061812-Online |
| 5 | NT .500-13 UNT LK G8 ZN | 023317 | 6 | 023317-Online |
| 6 | ROPS STOP | 603099 | 1 | 603099-Online |
| 7 | CS .500-13 X 3.25 HX G5 | 077859 | 1 | 077859-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 9 | ROPS DECAL | 601635 | 2 | 601635-Online |
