Illustrated Parts List
60" X-ONE Parts Manual - 936799EX - HTX1TH060KAWFX850VE - 607407
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 607407Model: 936799EXSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameEngine GuardTransmissions & Drive BeltTransmission Service PartsSteeringSteering Cover Assembly (Multi-Page)Left Steering Box AssemblyRight Steering Box AssemblyBrakeWheel & TireFront Wheel Assembly BreakdownDrive Wheel BreakdownEngine, Muffler & Clutch (Multi-Page)Engine Service PartsFuel SystemFuel Tank Service PartsInstrument Panel & Wire HarnessBatteryService DeckDeck Pulleys & SpindlesSpindle Assembly Service Parts - 607407Deck, Discharge Chute, Belt, & BladesDeck Lift & Deck Height (Multi-Page)SeatSeat Service PartsROPSFrame
Diagram

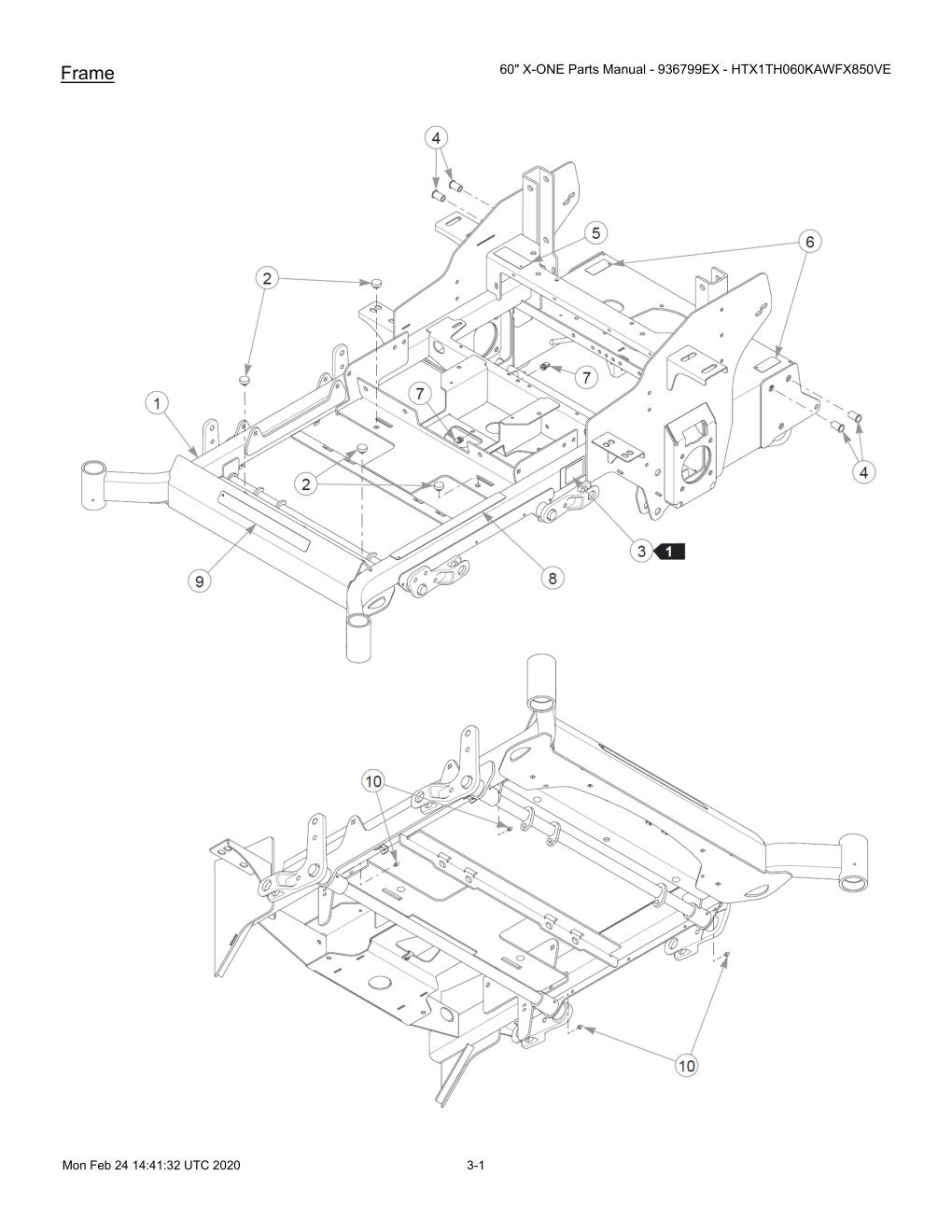

| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC FRAME | 554283 | 1 | 554283-Online |
| 2 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 3 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 4 | RIVET NUT, 1/2-13 THREAD | 600961 | 4 | 600961-Online |
| 5 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 6 | DECAL, HOT | 602041 | 2 | 602041-Online |
| 7 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |
| 8 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 9 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |

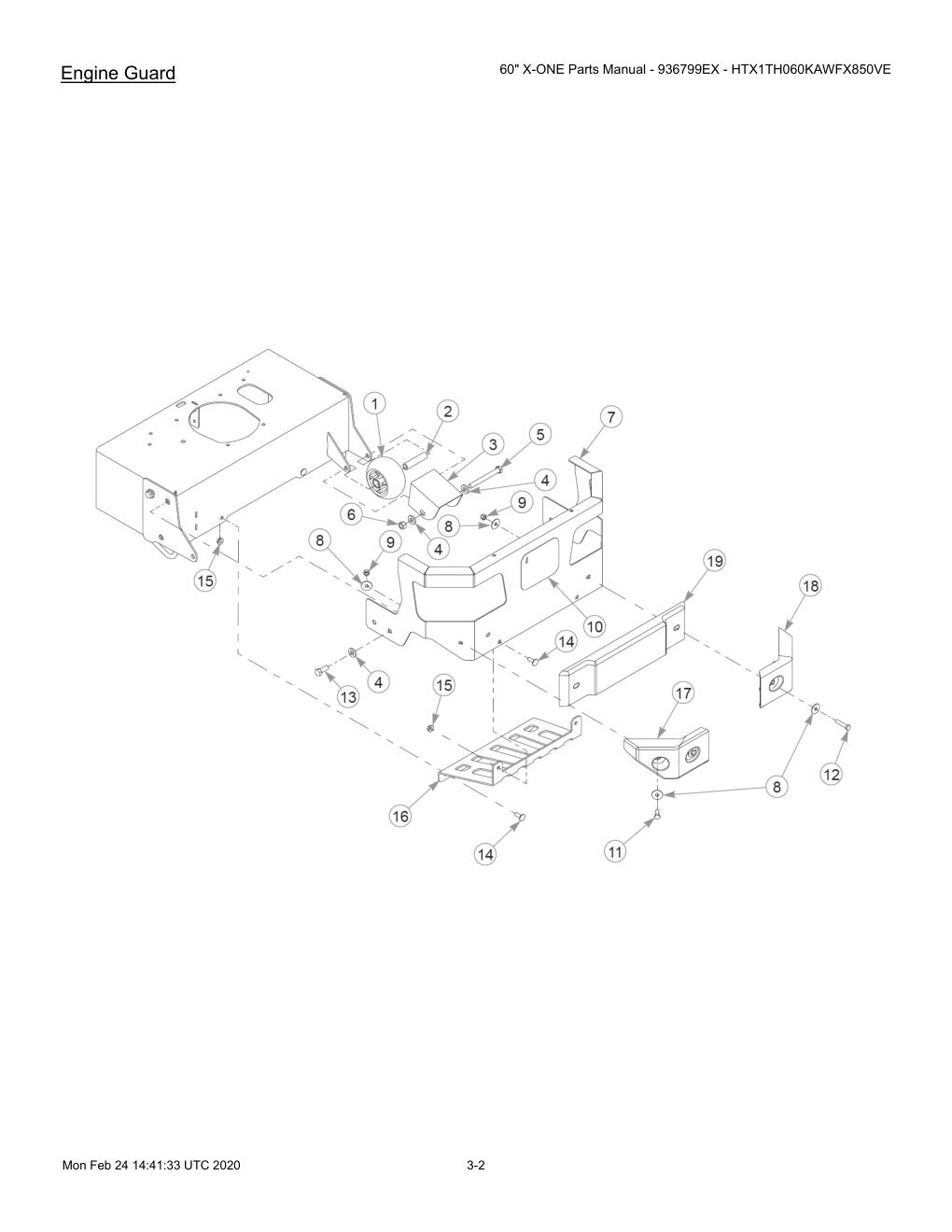

Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 2 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 3 | HEAT SHIELD, MMZ ROLLER | 377994 | 2 | 377994-Online |
| 4 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 5 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 6 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 7 | SVC, ENGINE GUARD X1 | 554288 | 1 | 554288-Online |
| 8 | FW 0.391X1.25X.06 ZY | 705137 | 8 | 705137-Online |
| 9 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 10 | DECAL, H LOGO | 606807 | 1 | 606807-Online |
| 11 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| 12 | CS .375-16X1.750HXG5 | 705178 | 2 | HT705178-Online |
| 13 | CS .500-13X1.25 HX G5 ZY | 705954 | 4 | HT705954-Online |
| 14 | CB .375-16X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 15 | NT .375-16HXG5 | 016899 | 4 | HT016899-Online |
| 16 | MUFFLER GUARD | 606483 | 1 | 606483-Online |
| 17 | PLASTIC BUMPER, LH | 606658 | 1 | 606658-Online |
| 18 | PLASTIC BUMPER, RH | 606659 | 1 | 606659-Online |
| 19 | PLASTIC BUMPER, CENTER | 606657 | 1 | 606657-Online |
Transmissions & Drive Belt
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X5.000HXG5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510X2.15X.19 ZY | 344267 | 1 | HT344267-Online |
| 3 | NT .500-13UNTG8 | 023317 | 8 | 023317-Online |
| 4 | FW .531 x 1.063 x .175 | 767962 | 9 | HT767962-Online |
| 5 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 6 | NT .375-16HXG5 | 016899 | 2 | HT016899-Online |
| 7 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| 8 | IDLER SPRING MOUNT | 124432-1 | 1 | 124432-1-Online |
| 9 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 10 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 11 | PULLEY, 5" FLAT IDLER | 602304 | 1 | 602304-Online |
| 12 | BUSHING, IDLER PIVOT | 602880 | 1 | 602880-Online |
| 13 | TENSIONER W/A | 122905 | 1 | HT122905-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 15 | BUSHING, IDLER PIVOT | 602879 | 1 | 602879-Online |
| 16 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 17 | DRIVE BELT | 606411 | 1 | 606411-Online |
| 18 | CS .500-13X1.750HXG5 | 017616 | 8 | HT017616-Online |
| 19 | TRANSMISSION, PARKER HTJ | 606401 | 1 | 606401-Online |
| 20 | TRANSMISSION, PARKER HTJ | 606402 | 1 | 606402-Online |

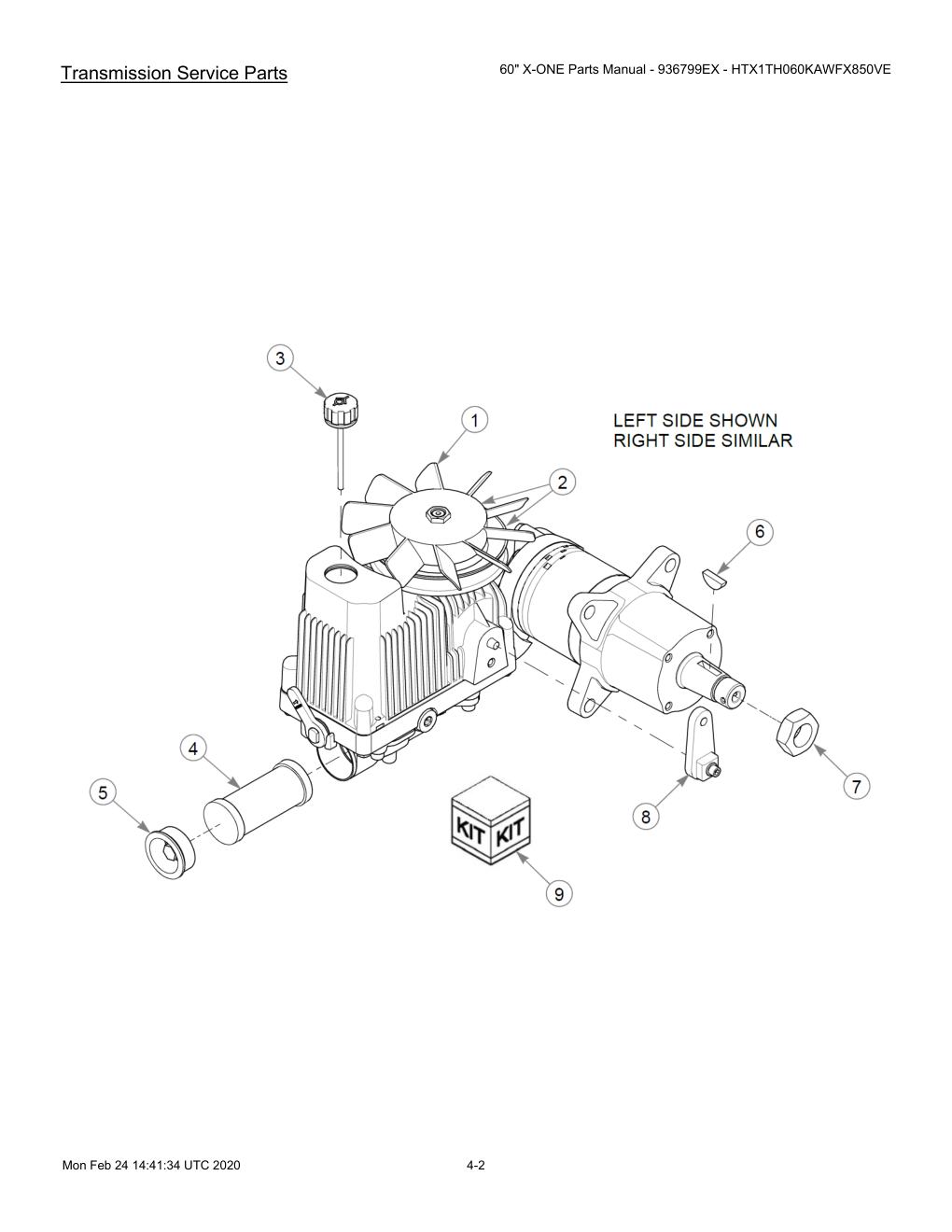

Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE KIT, FAN | 607509 | 1 | 607509-Online |
| 2 | SERVICE KIT, FAN/PULLEY | 604132 | 1 | 604132-Online |
| 3 | RESERVIOR CAP | 604131 | 1 | 604131-Online |
| 4 | HYDRAULIC OIL FILTER | 604126 | 1 | 604126-Online |
| 5 | PLUG & O-RING ASSEMBLY | 604130 | 1 | 604130-Online |
| 6 | ROSS WOODRUFF KEY | 064337 | 1 | HT064337-Online |
| 7 | ROSS NUT | 065516 | 1 | HT065516-Online |
| 8 | CONTROL LEVER PARKER | 606461 | 1 | 606461-Online |
| 9 | SEAL KIT - HTJ | 607751 | 1 | 607751-Online |

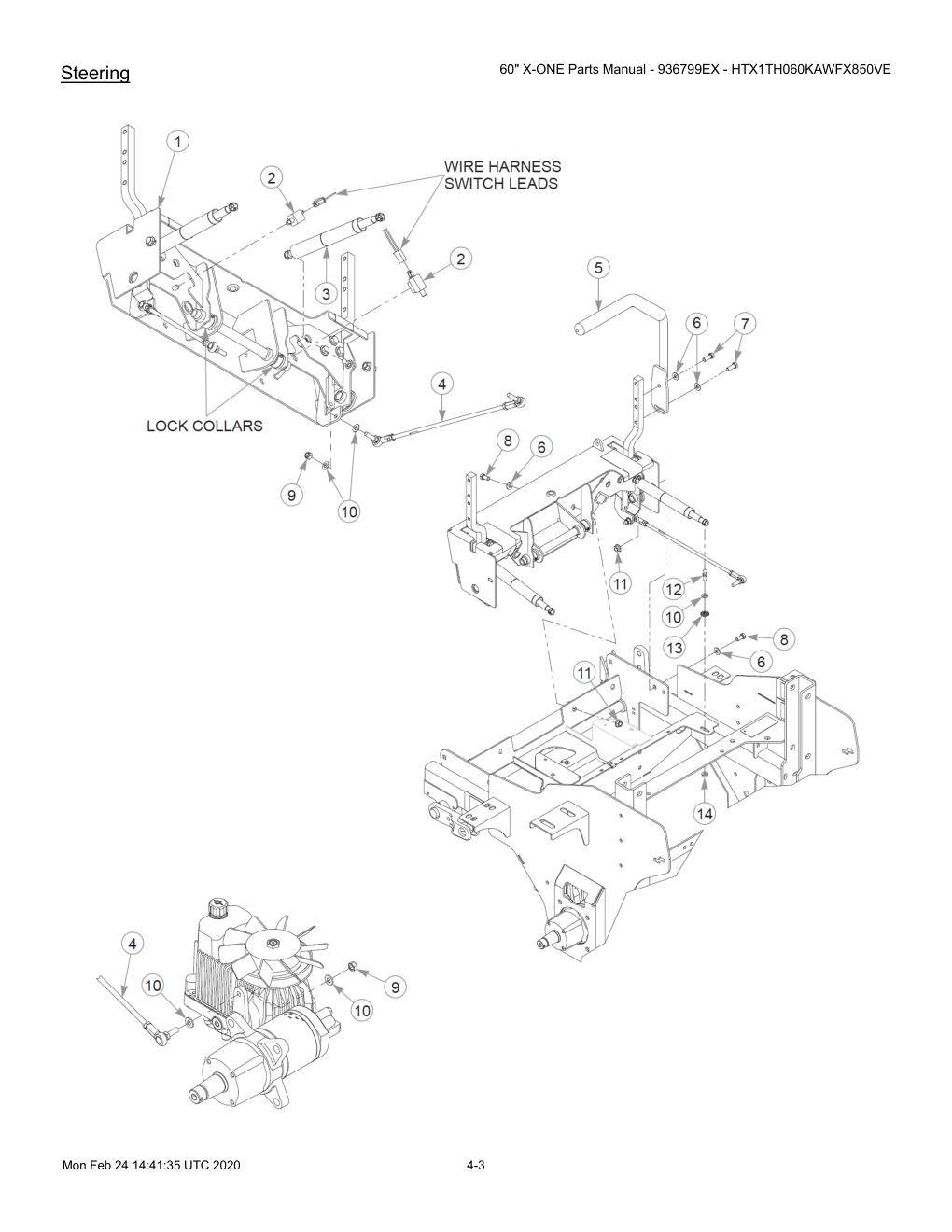

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
| 2 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 3 | DAMPER, CENTERING | 795351 | 2 | 795351-Online |
| 4 | PUMP ROD ASSEMBLY | 606521 | 2 | 606521-Online |
| 5 | STEERING BAR W/A | 605924 | 2 | 605924-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 6 | FW 0.379X.82X.06 HD ZY | 767954 | 8 | HT767954-Online |
| 7 | CS .375-16X1.00 HX G5 ZY | 036244 | 4 | HT036244-Online |
| 8 | CS .375-16X0.75 HX G5 ZY | 055822 | 4 | HT055822-Online |
| 9 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 10 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 11 | NT .375-16HXG5 | 016899 | 4 | HT016899-Online |
| 12 | BALL STUD | 781922 | 2 | 781922-Online |
| 13 | LW .312 INTEXT ZY | 029876 | 2 | 029876-Online |
| 14 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |

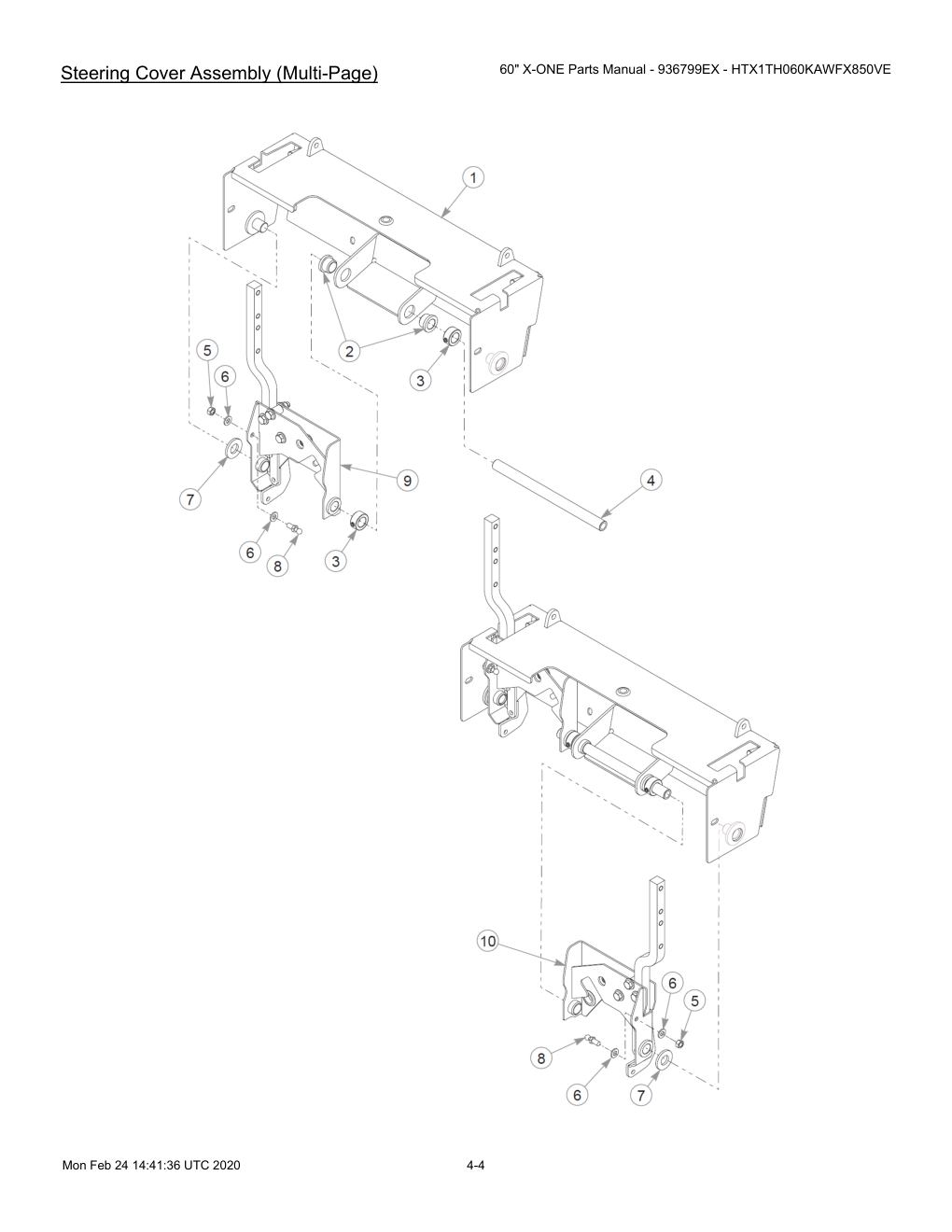

Steering Cover Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, STEERING COVER - X1 | 553839 | 1 | 553839-Online |
| 2 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 3 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 4 | STEER PIVOT TUBE, SZ | 113007 | 1 | 113007-Online |
| 5 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 6 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 7 | FW .750X1.50X.16 ZY | 603078 | 2 | 603078-Online |
| 8 | BALL STUD | 781922 | 2 | 781922-Online |
| 9 | STEERING BOX SUB, LH | 606511 | 1 | 606511-Online |
| 10 | STEERING BOX SUB, RH | 606510 | 1 | 606510-Online |
| 11 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 12 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 13 | SS .500-13X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 14 | DECAL, X-ONE | 605087 | 1 | 605087-Online |
| 15 | POLYURETHANE 2" (FS) | 722199 | 5.5" | 722199-Online |

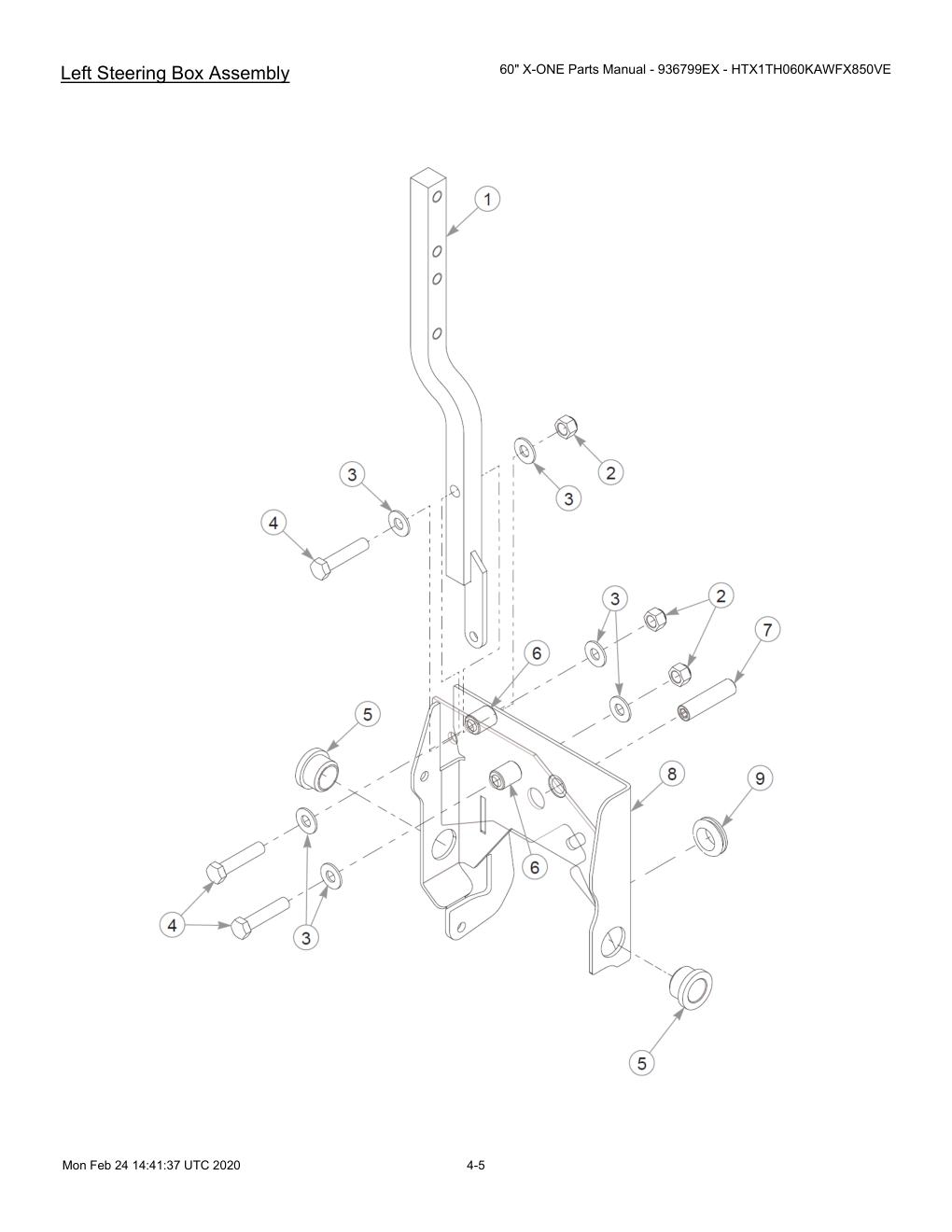

Left Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | NSS | 2 | NSS-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 6 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 7 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |
| 8 | STEERING BOX W/A, LH | 123305 | 1 | 123305-Online |
| 9 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
Right Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | NSS | 1 | NSS-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 6 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |
| 7 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 8 | STEERING BOX W/A, RH | 123306 | 1 | 123306-Online |
| 9 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .375-16x5.50 GR5 ZN | 748913 | 2 | 748913-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 12 | HT767954-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | CS .375-16X1.750HXG5 | 705178 | 2 | HT705178-Online |
| 7 | FW .406X .750X.250 ZNYC | 073858 | 2 | 073858-Online |
| 8 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 9 | BRAKE LINK TURNBUCKLE A | 350397 | 2 | 350397-Online |
| 10 | BELLCRANK, BRAKE - LH | 123435 | 1 | 123435-Online |
| 11 | BELLCRANK, BRAKE - RH | 123434 | 1 | 123434-Online |
| 12 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 13 | NT .312-18FLKG5 | 016832 | 4 | 016832-Online |
| 14 | CS .375-16X1.500HXG5 | 080655 | 2 | HT080655-Online |
| 15 | BRAKE ARM, LH | 123432 | 1 | 123432-Online |
| 16 | BRAKE ARM, RH | 123433 | 1 | 123433-Online |
| 17 | BRAKE ASSY, PARKER | 602383 | 2 | 602383-Online |
| 18 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 19 | CS .312-18X.75HXG8 FL | 604461 | 8 | 604461-Online |
| 20 | HUB ASSY, PARKER | 602384 | 2 | 602384-Online |
| 21 | STUD, WHEEL LUG 1/2-20 | 601085 | 10 | HT601085-Online |

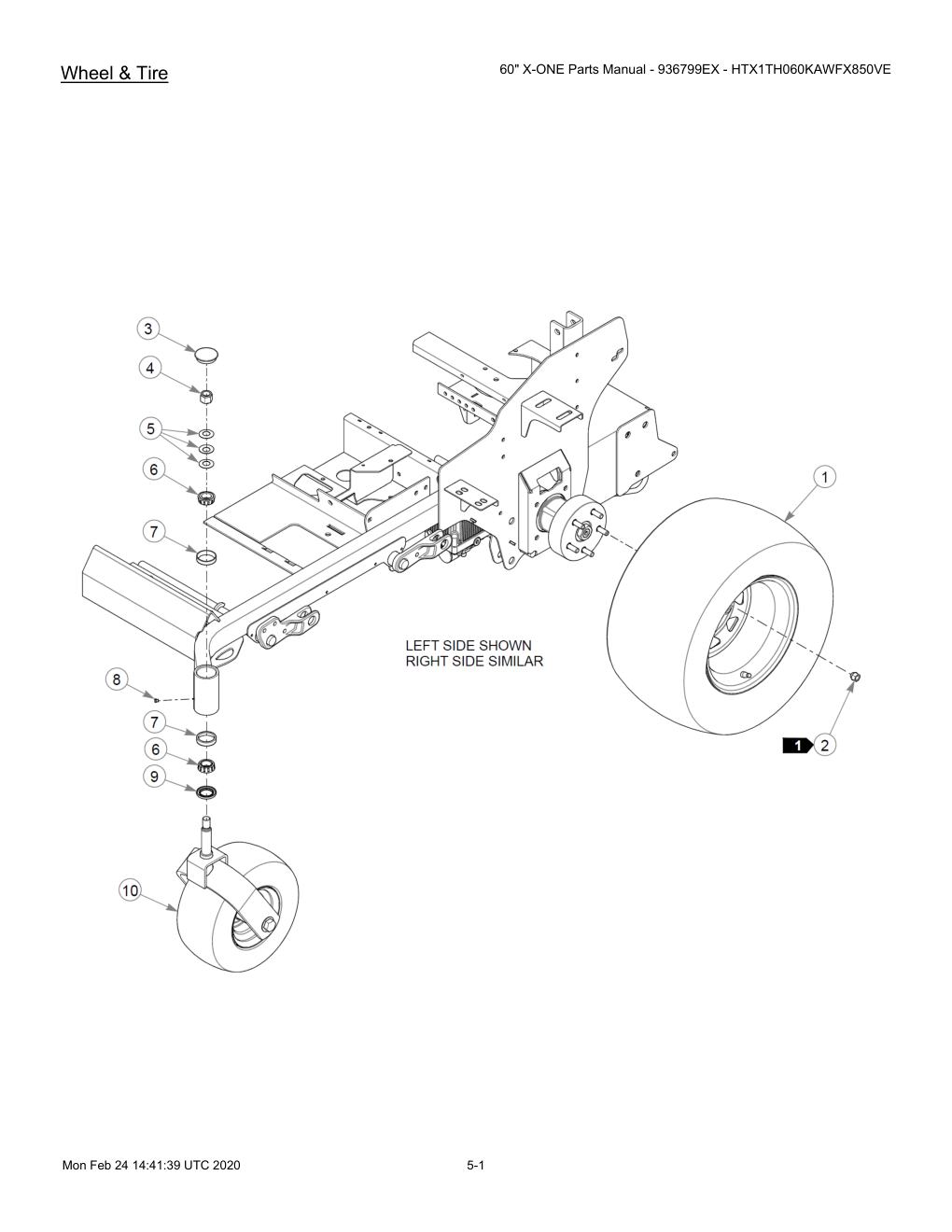

Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 24X12.00-12 SLV | 604108 | 2 | 604108-Online |
| 2 | WHEEL NUT | 061077 | 10 | HT061077-Online |
| 3 | DUST CAP | 606711 | 2 | 606711-Online |
| 4 | NT .750-10 HX ZY NL GR B | 061101 | 2 | HT061101-Online |
| 5 | CW 0.766 X 1.50 X .093 | 606715 | 6 | 606715-Online |
| 6 | BEARING, TAPERED ROLLER | 606712 | 4 | 606712-Online |
| 7 | RACE, TAPERE ROLLER | 606713 | 4 | 606713-Online |
| 8 | GREASE PLUG | 606817 | 2 | 606817-Online |
| 9 | SEAL, 1.25 X 1.98 | 606714 | 2 | 606714-Online |
| 9 | REFER TO "FRONT WHEEL ASSEMBLY BREAKDOWN" | 10 | 2 | 10-Online |
Front Wheel Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | W/A, CASTER FORK | 123644-1 | 1 | 123644-1-Online |
| 2 | NT .750-10 HX ZY NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZY | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZY | 041475 | 1 | HT041475-Online |
| 5 | TIR/WHL 13X6.50-6 SLV | 606744 | 1 | 606744-Online |
| 6 | TIR 13X6.50-6 B4R SMTH | 604843 | 1 | 604843-Online |
| 7 | WHL 6X4.50 SLV | 606751 | 1 | 606751-Online |
| 8 | DUST CAP, 0.752 ID | 606815 | 2 | 606815-Online |
| 9 | SPACER, 0.531 | 606778 | 2 | 606778-Online |
| 10 | SEAL | 606780 | 2 | 606780-Online |
| 11 | BEARING, TAPERED ROLLER | 606753 | 2 | 606753-Online |
| 12 | GREASE FITTING, M8X1.0 | 606126 | 1 | 606126-Online |
| 13 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 24X12.00-12 B4R GRMR | 606967 | 1 | 606967-Online |
| 2 | WHL 12X8.50 5X4.5 SLV | 604109 | 1 | 604109-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

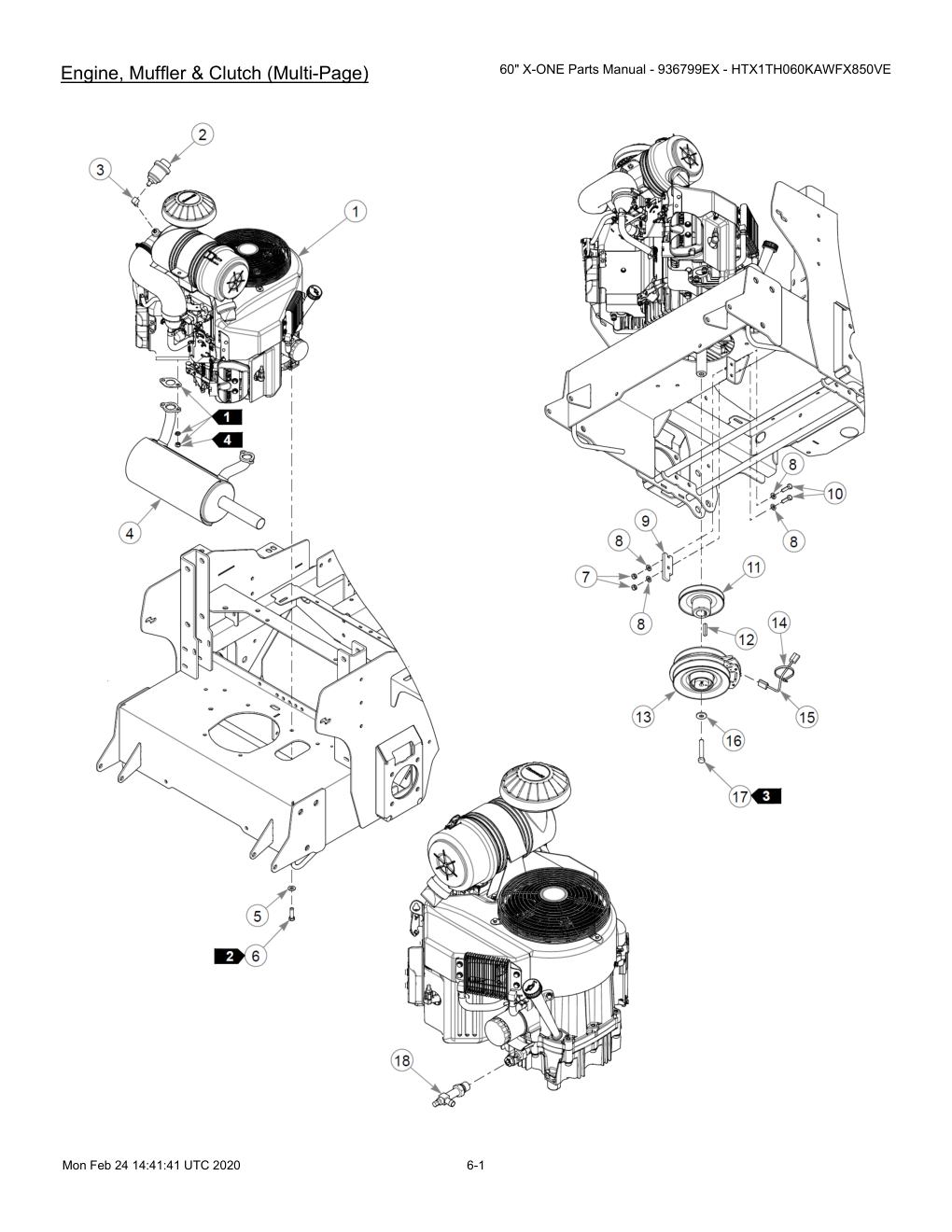

Engine, Muffler & Clutch (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | FTG, ELBOW, STREET | 601216 | 1 | 601216-Online |
| 4 | MUFFLER, FX850V | 603012 | 1 | 603012-Online |
| 5 | FW 0.379X.82X.06 HD ZY | 767954 | 4 | HT767954-Online |
| 6 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 7 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 8 | FW 0.343SAE | 768523 | 5 | HT768523-Online |
| 9 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 10 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 11 | PULLEY, ENG 5.318 OP | 606471 | 1 | 606471-Online |
| 12 | KEY 1/4 SQ X 1.50 LG(FS) | 212076 | 1 | HT212076-Online |
| 13 | CLUTCH KIT | 606404K | 1 | 606404K-Online |
| 14 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 15 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 16 | FW .453X1.12X.12 HRD ZY | 602680 | 1 | 602680-Online |
| 17 | CS .437-20X2.50 HXG5 P85 | 785659 | 1 | HT785659-Online |
| 18 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 19 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |
| 20 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 21 | BATTERY CABLE,NEG 36" D | 796219 | 1 | 796219-Online |
| 22 | LW .312 INTEXT ZY | 029876 | 1 | 029876-Online |
| 23 | BATTERY CABLE POSITIVE | 744276 | 1 | 744276-Online |
| 24 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | FUEL LINE, 1/4" | 015818 | 16.5" | HT015818-Online |
| 26 | VAPOR LINE, 3/16" | 603326 | 32" | 603326-Online |
| 27 | CLAMP, 3/16 FUEL | 603112 | 1 | 603112-Online |

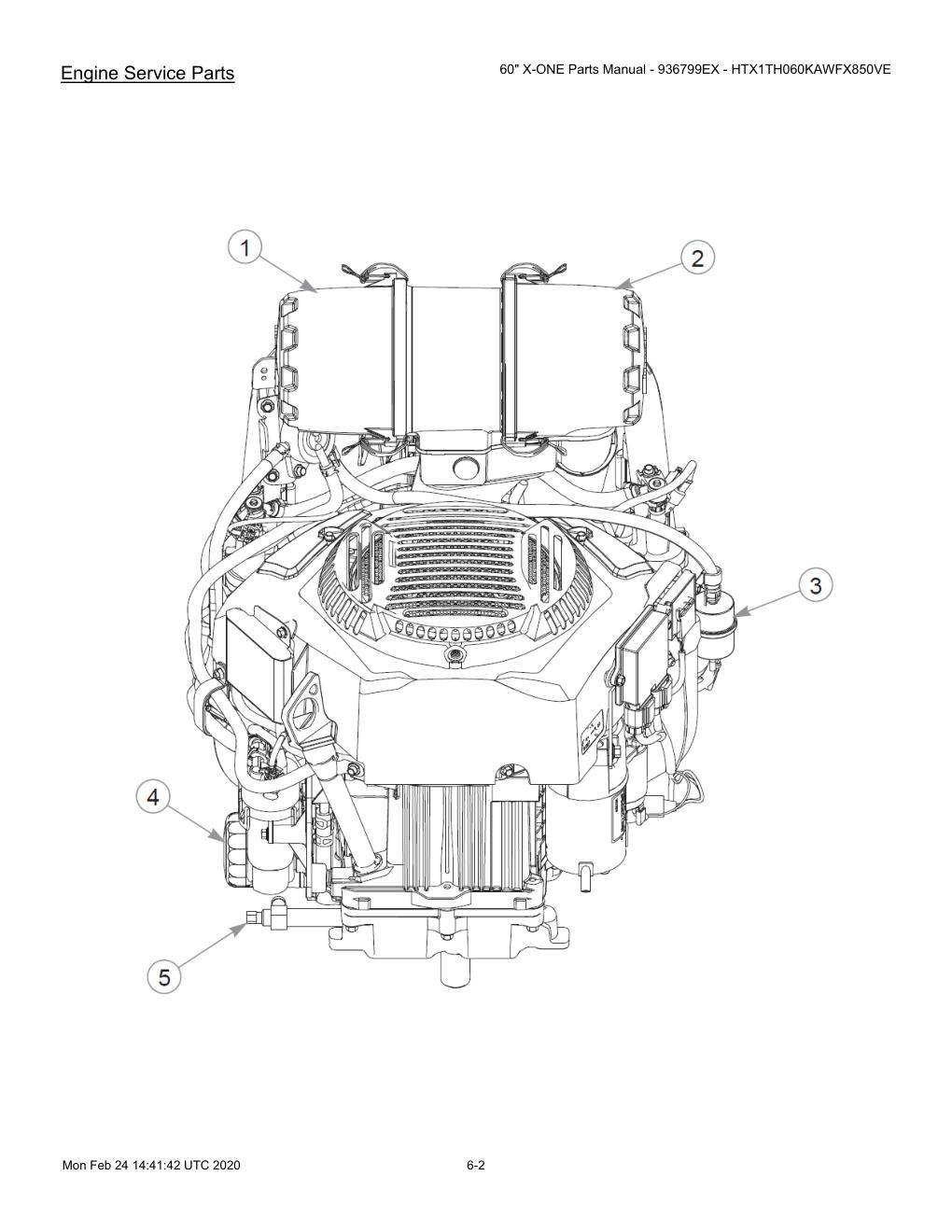

Engine Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER - MAIN | 602587 | 1 | 602587-Online |
| 2 | AIR FILTER - SAFETY | 602586 | 1 | 602586-Online |
| 3 | FUEL FILTER, KOH ECV | 606228 | 1 | 606228-Online |
| 4 | ENGINE OIL FILTER | 606095 | 1 | 606095-Online |
| 5 | VALVE,OIL DRAIN 3/8-18 | 796672 | 1 | 796672-Online |

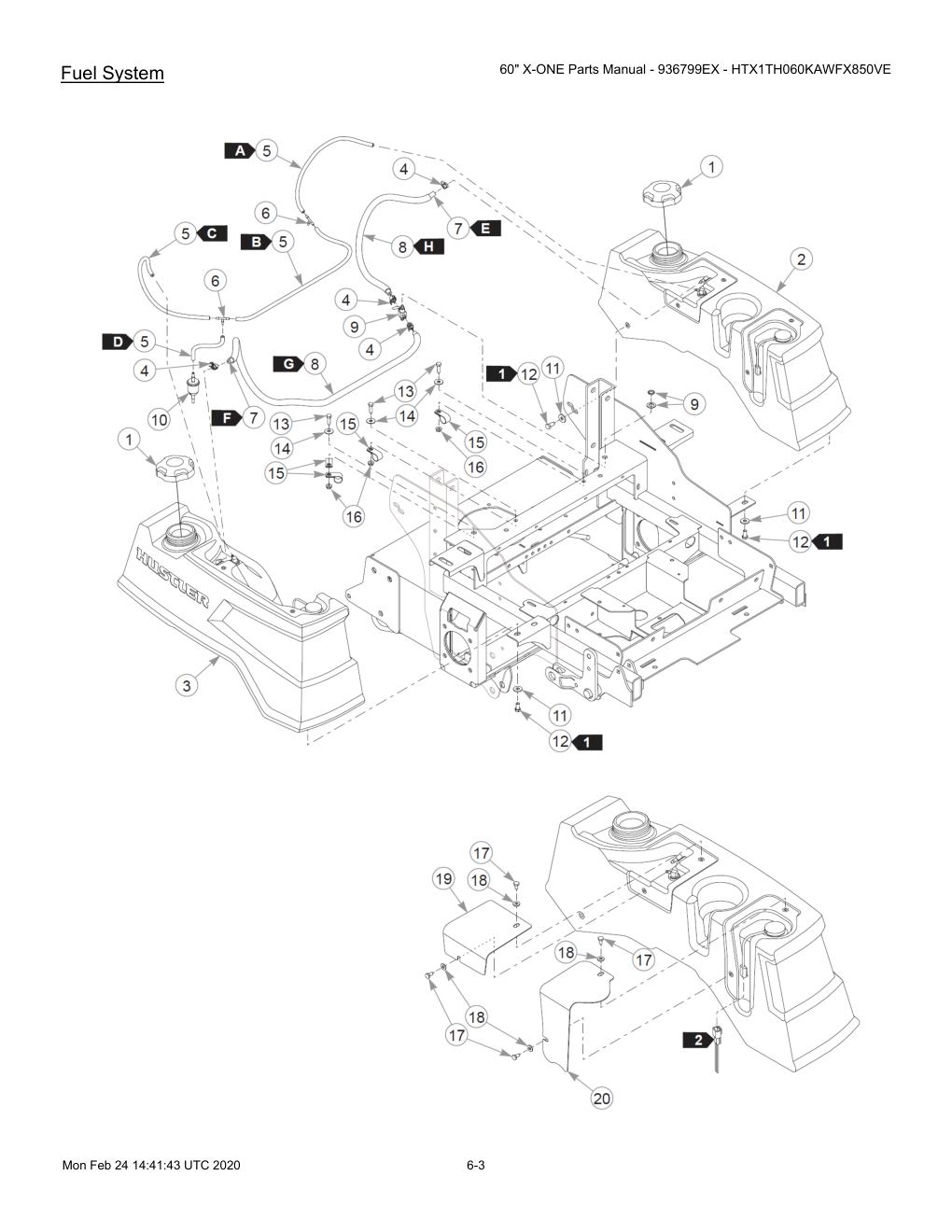

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, 3.5" RATCHETING GAS | 603807 | 2 | 603807-Online |
| 2 | TANK, FENDER LH ASSY | 606434 | 1 | 606434-Online |
| 3 | TANK, FENDER RH ASSY | 606433 | 1 | 606433-Online |
| 4 | CLIP, HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | VAPOR LINE, 3/16" | 603326 | 71.5" | 603326-Online |
| 6 | TEE, 3/16" PLASTIC | 604281 | 2 | 604281-Online |
| 7 | FUEL LINE, 1/4" | 015818 | 67" | HT015818-Online |
| 8 | FUEL LINE THERMAL SHIELD | 605215 | 65" | 605215-Online |
| 9 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 10 | FILTER, VAPOR SYSTEM | 604323 | 1 | 604323-Online |
| 11 | FW 0.406X1.00X.12 HD ZY | 712919 | 10 | HT712919-Online |
| 12 | CS .375-16X0.75 HX G5 ZY | 055822 | 10 | HT055822-Online |
| 13 | CS .312-18X1.000HXG5 | 036236 | 3 | 036236-Online |
| 14 | FW 0.344X1.0X0.06 ZY | 079210 | 3 | 079210-Online |
| 15 | CLIP - HOSE - SINGLE(FS) | 043570 | 4 | 043570-Online |
| 16 | NT .312-18FLKG5 | 016832 | 3 | 016832-Online |
| 17 | CS .250-20X0.50 HX G5 ZY | 055947 | 4 | 055947-Online |
| 18 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 19 | COVER, FUEL LINES | 123182 | 1 | 123182-Online |
| 20 | COVER, FUEL SENDER | 123181 | 1 | 123181-Online |
| 21 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

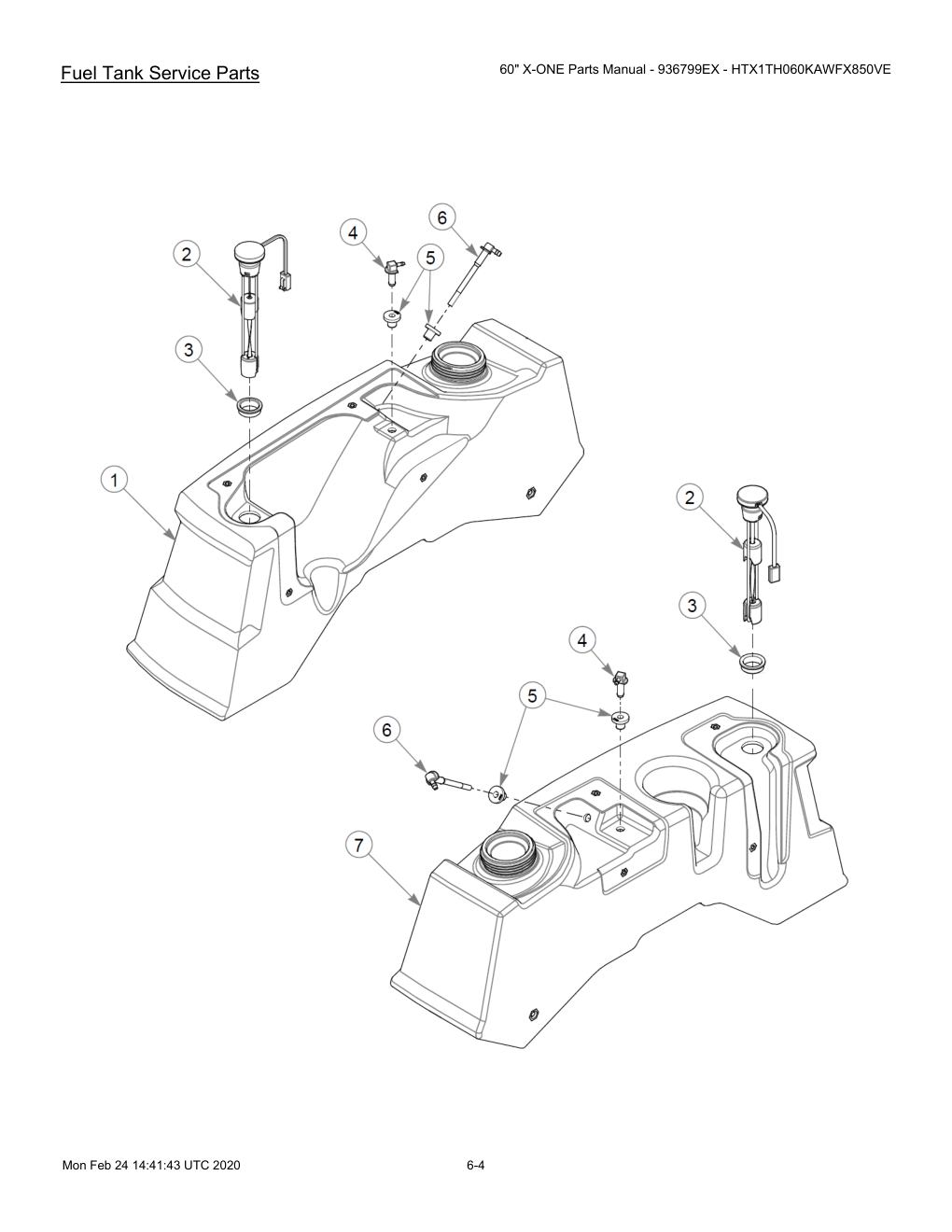

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TANK, FENDER RH ASSY | 606433 | 1 | 606433-Online |
| 2 | SVC KIT, FUEL SENDER | 603888K | 2 | 603888K-Online |
| 3 | SVC KIT, TANK GROMMET | 605648K | 2 | 605648K-Online |
| 4 | SVC KIT, VENT FITTING | 604287K | 2 | 604287K-Online |
| 5 | SVC KIT, GROMMET | 604200K | 4 | 604200K-Online |
| 6 | SVC KIT, SUCTION HOSE | 605159K | 2 | 605159K-Online |
| 7 | TANK, FENDER LH ASSY | 606434 | 1 | 606434-Online |
Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WIRE HARNESS, ATZ/SZ | 604241 | 1 | 604241-Online |
| 2 | CS .250-20X0.50 HX G5 ZY | 055947 | 4 | 055947-Online |
| 3 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 4 | WIRE TIE, SMALL/LONG | 000430 | 1 | 000430-Online |
| 5 | DECAL, INSTR PANEL | 606466 | 1 | 606466-Online |
| 6 | SVC, INSTR PANEL | 553845 | 1 | 553845-Online |
| 7 | CS .312-18X0.750HXG5 | 034280 | 1 | HT034280-Online |
| 8 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 9 | CLIP - HOSE - SINGLE(FS) | 043570 | 3 | 043570-Online |
| 10 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 12 | MOUNT, PUSH BUTTON | 604307 | 1 | 604307-Online |
| 13 | CS .312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 14 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 15 | GAUGE, FUEL/HOURMETER | 606068 | 1 | 606068-Online |
| 16 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 17 | CABLE, CHOKE | 786657 | 1 | HT786657-Online |
| 18 | KNOB | 603523 | 1 | 603523-Online |
| 19 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 20 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 21 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 22 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 23 | RELAY CONTROL MODULE | 604373 | 1 | 604373-Online |
| 24 | CS #10-24X0.750FLKG5 | 063198 | 2 | 063198-Online |
| 25 | CABLE, THRTL 43" | 603475 | 1 | 603475-Online |
| 26 | FW 0.219X.50X.05 ZY | 704932 | 2 | HT704932-Online |
| 27 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
| 28 | HOLDER, FUSE | 601047 | 1 | HT601047-Online |

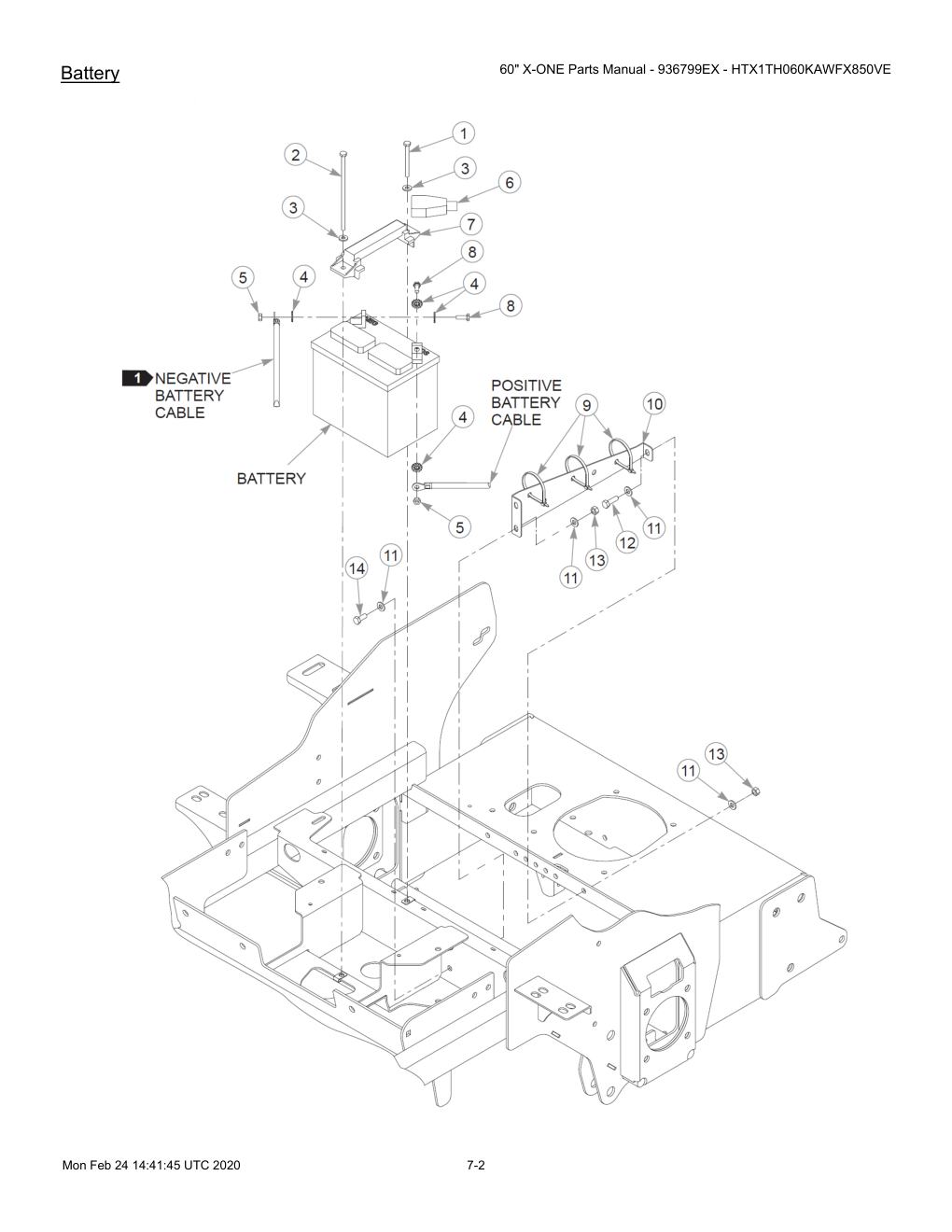

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20X2.750HXG5 | 794156 | 1 | 794156-Online |
| 2 | CS .250-20 X 6.50 HX G5 | 601930 | 1 | 601930-Online |
| 3 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 4 | LW .250 INTEXT ZY | 029868 | 4 | 029868-Online |
| 5 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 6 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 7 | STRAP, TIE DOWN | 604178 | 1 | 604178-Online |
| 8 | CS .250-20X0.75 HX G5 ZY | 055939 | 2 | 055939-Online |
| 9 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 10 | SUPPORT, CABLE | 124384-1 | 1 | 124384-1-Online |
| 11 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 12 | CS .312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 13 | NT .312-18HXG5 | 034272 | 3 | HT034272-Online |
| 14 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" SERVICE DECK | 554846 | 1 | 554846-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 4 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 5 | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 6 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |

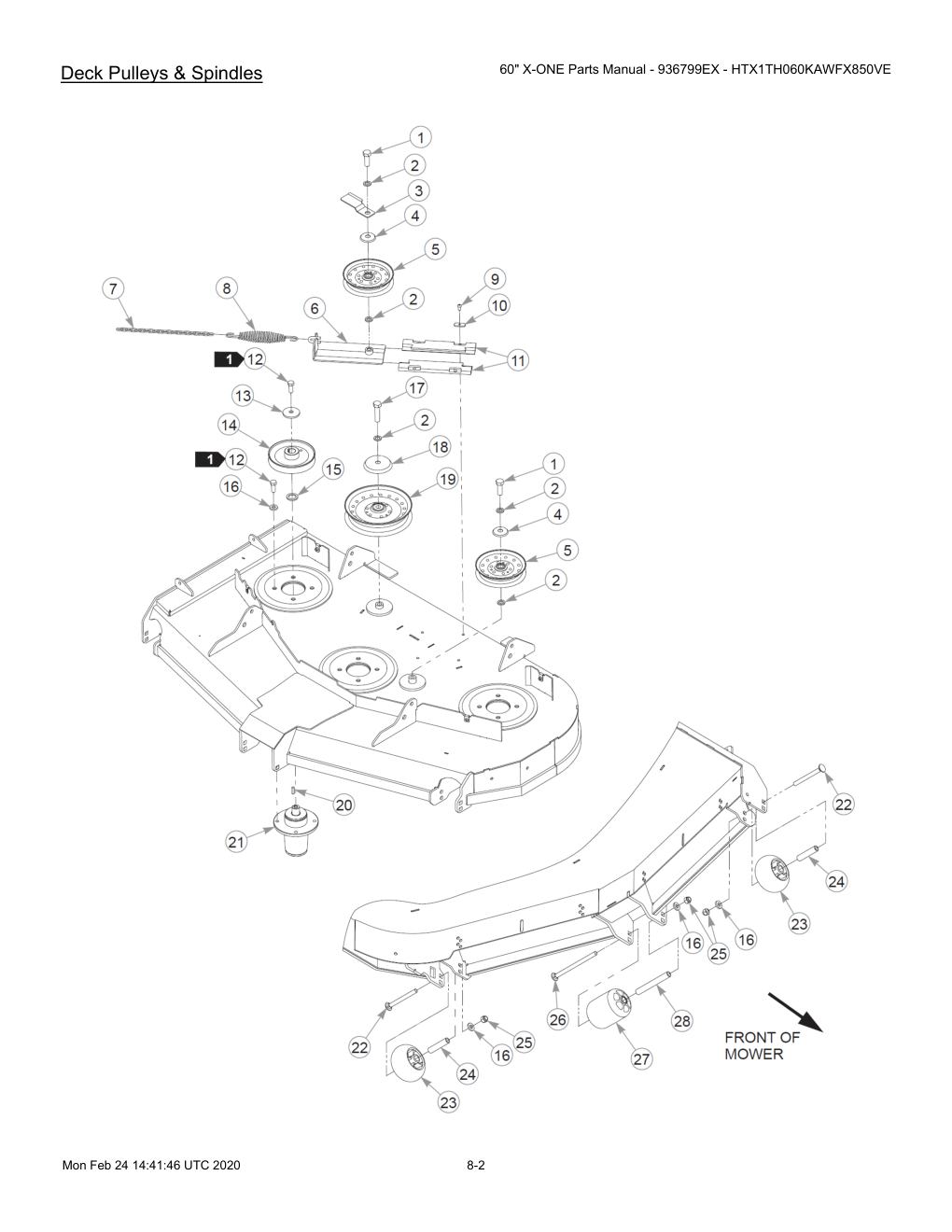

Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .62511X1.750HXG5 | 025007 | 2 | HT025007-Online |
| 2 | FW 0.625X1.00X.13 ZY | 028118 | 5 | HT028118-Online |
| 3 | GUIDE, BELT | 606460 | 1 | 606460-Online |
| 4 | DUST SHIELD, IDLER SM | 602935 | 2 | 602935-Online |
| 5 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 6 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 7 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 8 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 9 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 10 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 11 | IDLER SLIDE, UHMW | 602936 | 2 | 602936-Online |
| 12 | CS .500-13X1.25 HX G5 ZY | 705954 | 15 | HT705954-Online |
| 13 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 14 | PULLEY, DECK DRIVE | 770842 | 3 | HT770842-Online |
| 15 | FW 1.030X1.50X.13 HD ZY | 045765 | 3 | HT045765-Online |
| 16 | FW .531 x 1.063 x .175 | 767962 | 15 | HT767962-Online |
| 17 | CS .625-11X2.500HXG5 | 025015 | 1 | HT025015-Online |
| 18 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 19 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 20 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 21 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |
| 22 | CB .50-13X4.75 STD ZN | 607288 | 2 | 607288-Online |
| 23 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 24 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 25 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 26 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 27 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 28 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |

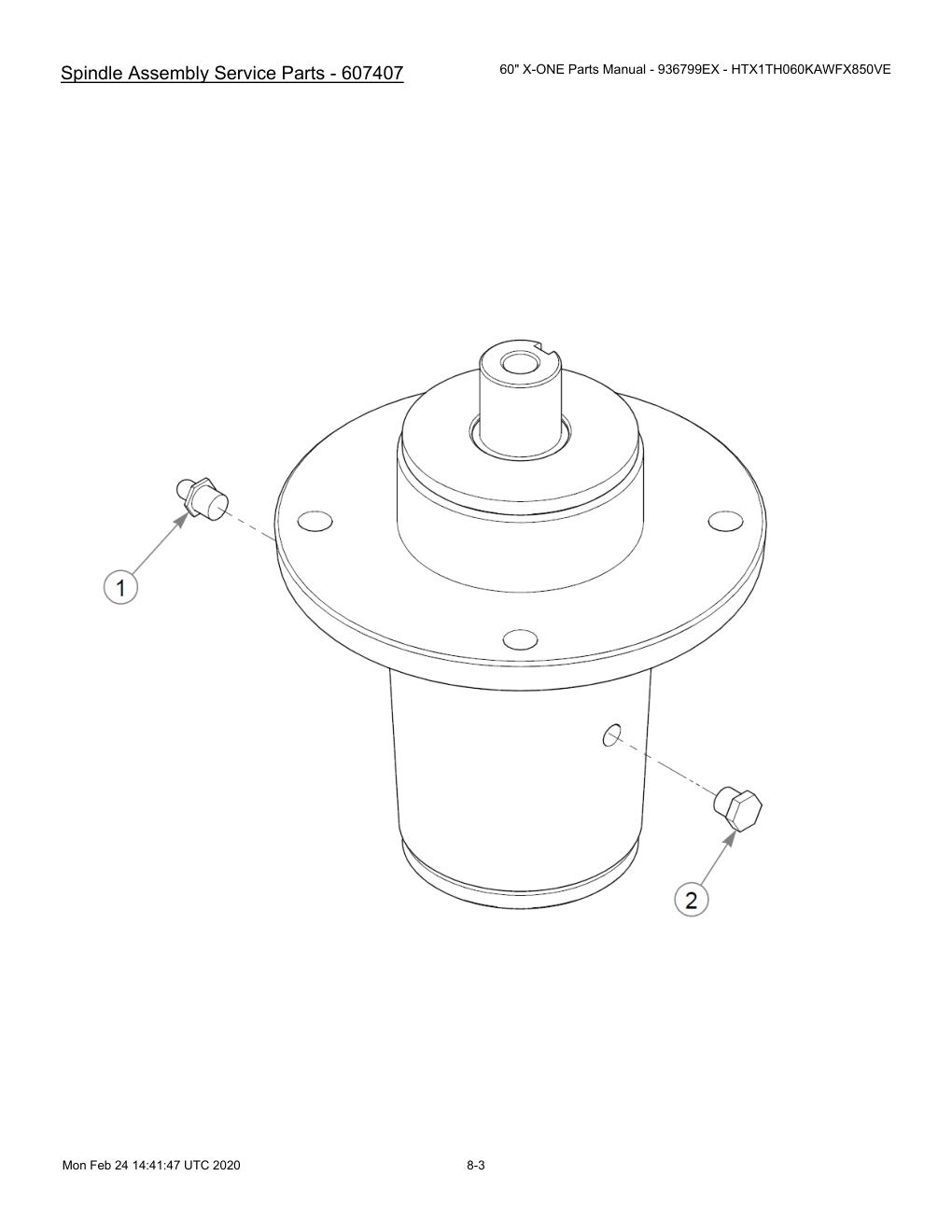

Spindle Assembly Service Parts - 607407
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GREASE ZERK | 607477 | 1 | 607477-Online |
| 2 | RELIEF FITTING | 607478 | 1 | 607478-Online |

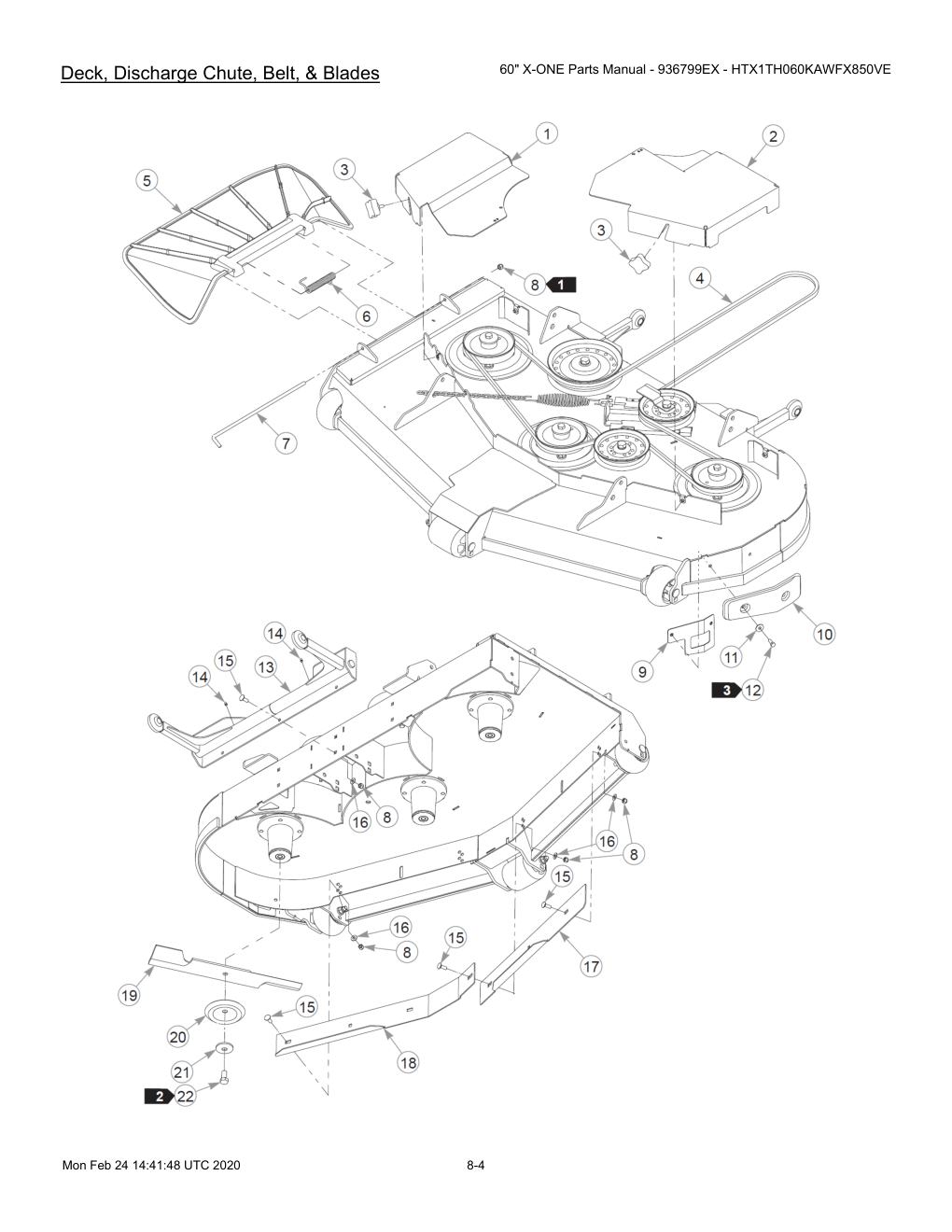

Deck, Discharge Chute, Belt, & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER, RS 60" | 123684-1 | 1 | 123684-1-Online |
| 2 | PULLEY COVER, LS 60" | 123685-1 | 1 | 123685-1-Online |
| 3 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 4 | DECK BELT | 600929 | 1 | HT600929-Online |
| 5 | CHUTE, DISCHARGE LG | 602891 | 1 | 602891-Online |
| 6 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 7 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 8 | NT .375-16NLG8 | 086660 | 13 | HT086660-Online |
| 9 | BACKING PLATE W/A | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW 0.344X1.0X0.06 ZY | 079210 | 2 | 079210-Online |
| 12 | CS .312-18X0.875HXG5 | 064014 | 2 | 064014-Online |
| 13 | PUSHER, W/A | 124086 | 1 | 124086-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 15 | CB .375-16X 1.00 G5 ZNY | 025395 | 12 | HT025395-Online |
| 16 | FW 0.379X.82X.06 HD ZY | 767954 | 12 | HT767954-Online |
| 17 | ADJ BAFFLE RS 60" VX4 | 123960-1 | 1 | 123960-1-Online |
| 18 | ADJ BAFFLE LS 60" VX4 | 123961-1 | 1 | 123961-1-Online |
| 19 | BLADE, F20.50" EHN-F-CW | 602771 | 3 | 602771-Online |
| Not Shown | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| Not Shown | BLADE,20.50"-CAT-F-CW | 793935 | 3 | HT793935-Online |
| 20 | SHIELD, BLADE BOLT | 114988 | 3 | HT114988-Online |
| 21 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 22 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |

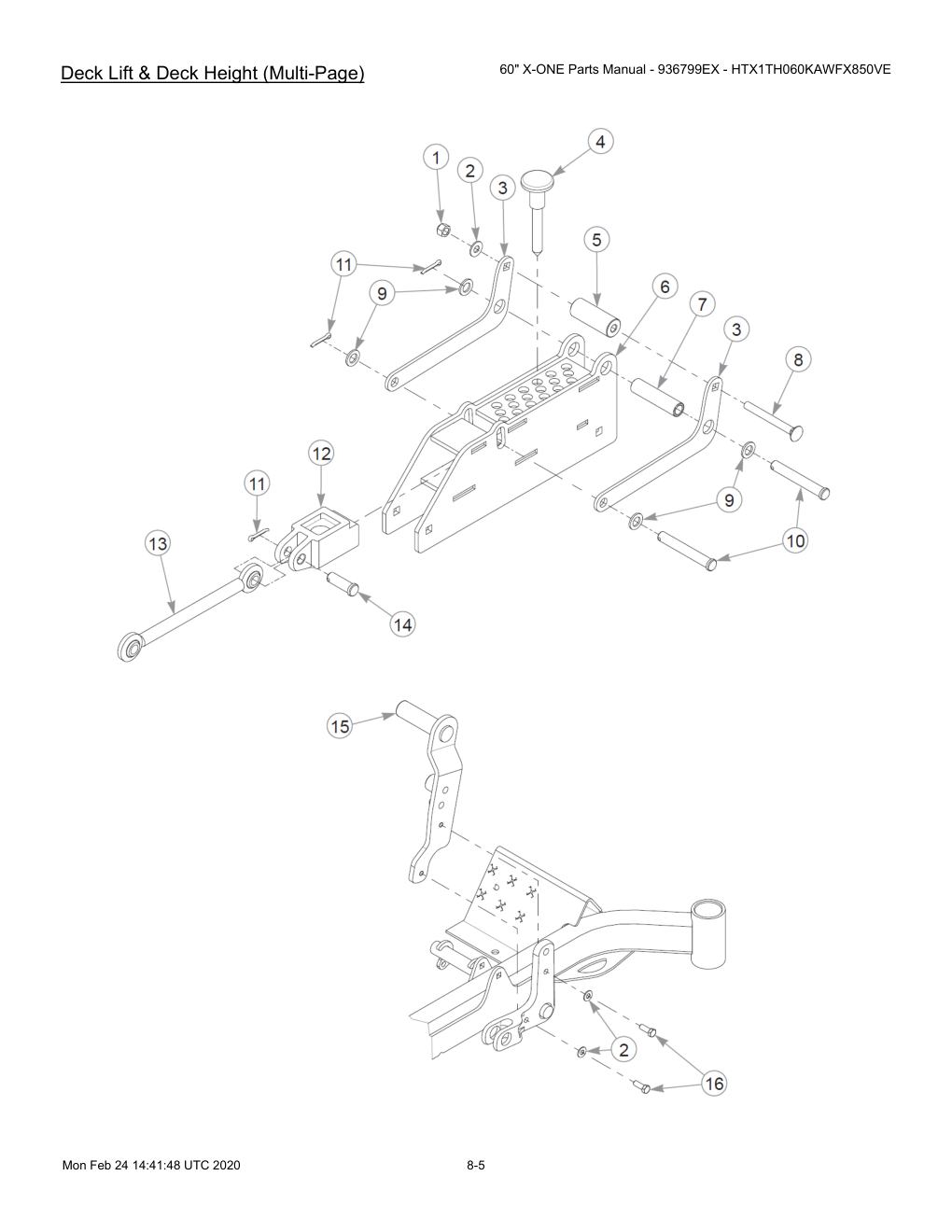

Deck Lift & Deck Height (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 7 | HT767954-Online |
| 3 | LATCH HANDLE | 124361-4 | 2 | 124361-4-Online |
| 4 | MAGNETIC PIN, 1/2 x 3.13 | 606918 | 1 | 606918-Online |
| 4 | KIT, TOP PIN DECK HT | NotShown | 1 | No SKU |
| 5 | SPACER, LATCH | 117489 | 1 | HT117489-Online |
| 6 | DECK HEIGHT W/A | 124357-1 | 1 | 124357-1-Online |
| 7 | SPACER, CYLINDER | 604075 | 1 | 604075-Online |
| 8 | CB .375-16X 3.500 FUL Z | 041848 | 1 | HT041848-Online |
| 9 | FW .516X.88X.09 ZY | 718288 | 7 | 718288-Online |
| 10 | CE .500X3.50 .156X3.34 | 025965 | 2 | HT025965-Online |
| 11 | CP .156DX1.000 LG HML Z | 017251 | 3 | HT017251-Online |
| 12 | SLIDER, DECK LIFT | 606895 | 1 | 606895-Online |
| 13 | DECK HEIGHT LINK, W/A | 122994 | 1 | 122994-Online |
| 14 | CE .500X1.50 .150X1.32 | 068056 | 1 | HT068056-Online |
| 15 | PEDAL W/A | 124291-1 | 1 | 124291-1-Online |
| 16 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| 17 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
| 18 | DECK LIFT LINK, W/A | 122987 | 1 | HT122987-Online |
| 19 | LINK SPACER | 122996 | 1 | 122996-Online |
| 20 | CB .375-16X 1.00 G5 ZNY | 025395 | 4 | HT025395-Online |
| 21 | FW .531x1.00x.090 ZY | 004168 | 5 | HT004168-Online |
| 22 | CS .500-13X1.50 HX G5 ZY | 074252 | 1 | HT074252-Online |
| 23 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 24 | CS .500-13X2.250HXG8 | 761544 | 6 | HT761544-Online |
| 25 | NT .500-13HXG5 | 008193 | 4 | HT008193-Online |
| 26 | EB, .500-13X3.00 FULTHD | 606478 | 2 | 606478-Online |
| 27 | SPRING, EXT 7.0 300LB/IN | 606454 | 2 | 606454-Online |
| 28 | NT 0.563-18 NLGC | 606316 | 4 | 606316-Online |
| 29 | DECK LEVEL SPACER | 606292 | 4 | 606292-Online |
| 30 | CS .750-10X3.500HXG5 | 789115 | 2 | 789115-Online |
| 31 | FW .760X1.63X0.08 ZY | 025296 | 4 | HT025296-Online |
| 32 | NT .750-10 HX ZY NL GR B | 061101 | 2 | HT061101-Online |
| 33 | DECK LEVEL PIVOT | 606291 | 4 | 606291-Online |
| 34 | W/A DECK LEVEL ROD END | 606290 | 4 | 606290-Online |
| 35 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |

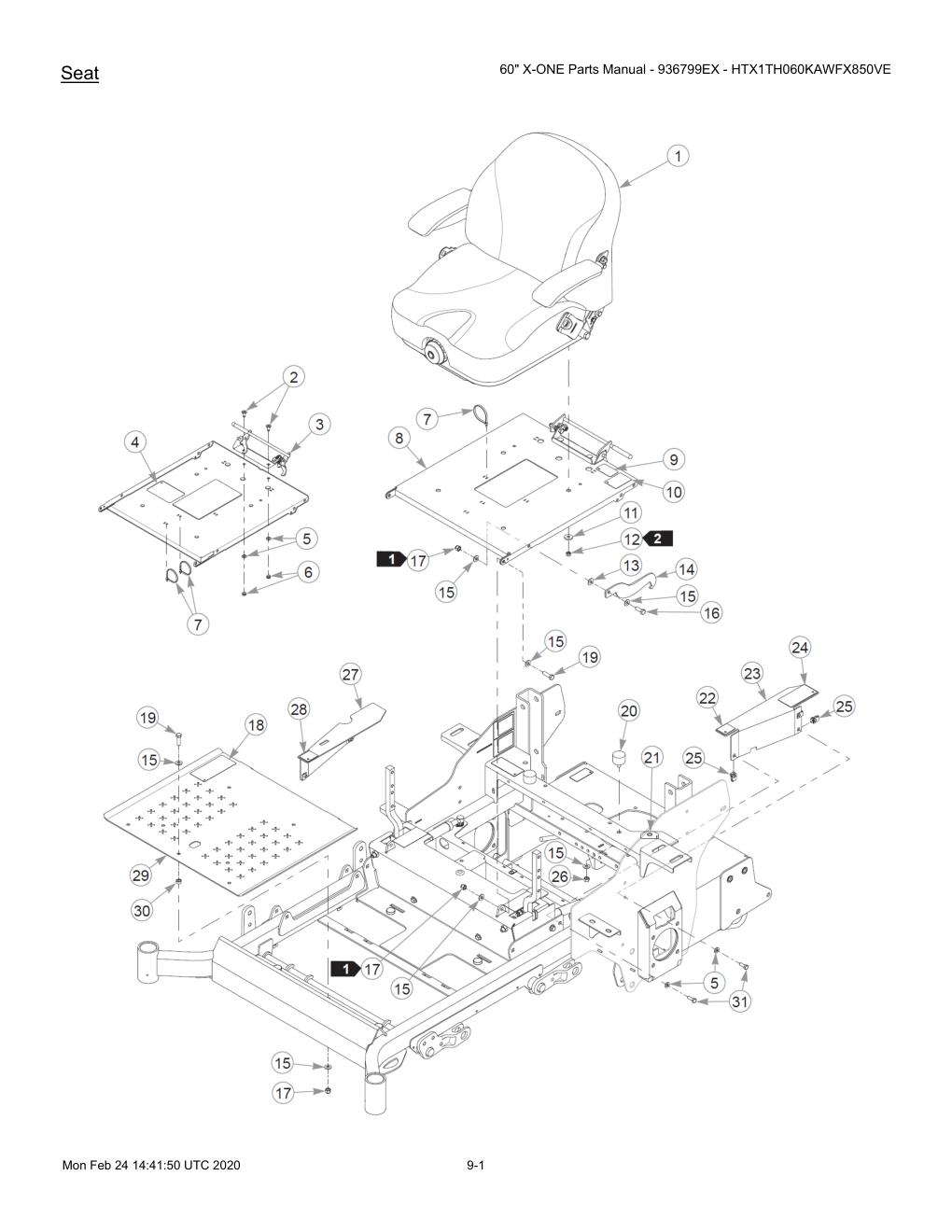

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, I3M SEATS INC | 607150 | 1 | 607150-Online |
| 2 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 3 | LATCH ASSEMBLY | 605907 | 1 | 605907-Online |
| 4 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 5 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 6 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 7 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 8 | SVC, SEAT PAN | 555027 | 1 | 555027-Online |
| 9 | DECAL, LEVEL FUEL FILL | 605688 | 1 | 605688-Online |
| 10 | DECAL, Z ARMREST WARNING | 785188 | 1 | 785188-Online |
| 11 | FW 0.344X1.00X.12 HD ZY | 712927 | 4 | HT712927-Online |
| 12 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 13 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 14 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 15 | FW 0.379X.82X.06 HD ZY | 767954 | 10 | HT767954-Online |
| 16 | CS .375-16X1.00 HX G5 ZY | 036244 | 1 | HT036244-Online |
| 17 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 18 | DECAL, DECK HEIGHT | 606894 | 1 | 606894-Online |
| 19 | CS .375-16X1.25 HX G5 ZY | 052860 | 3 | HT052860-Online |
| 20 | VIBRATION MOUNT 70DURO | 601650 | 2 | 601650-Online |
| 21 | DECAL, FUEL INDICATOR- M | 791848 | 1 | 791848-Online |
| 22 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 23 | FRAME COVER LS, SERVICE | 550823 | 1 | 550823-Online |
| 24 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 25 | CN .312-18x.200 MAX THK | 601069 | 5 | HT601069-Online |
| 26 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 27 | FRAME COVER RS, SERVICE | 550824 | 1 | 550824-Online |
| 28 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 29 | FLOOR PAN | 124956-1 | 1 | 124956-1-Online |
| 30 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 31 | CS .312-18X0.875HXG5 | 064014 | 5 | 064014-Online |

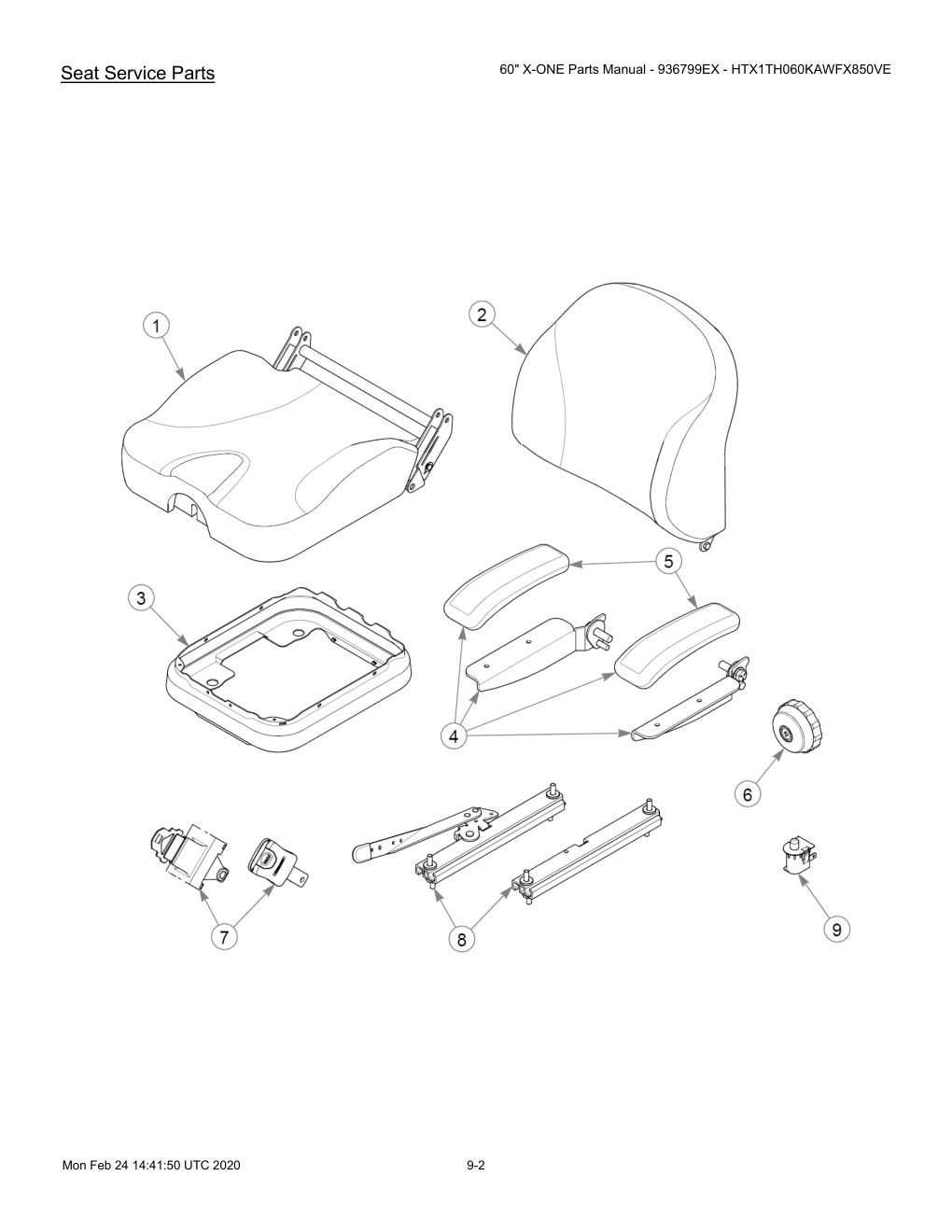

Seat Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| Not Shown | SEAT, I3M SEATS INC | 607150 | 1 | 607150-Online |
| 1 | SVC, COVER, SEAT CUSHION | 607165 | 1 | 607165-Online |
| 2 | SVC, COVER, SEAT BACK | 607164 | 1 | 607164-Online |
| 3 | SVC, BELLOWS | 607205 | 1 | 607205-Online |
| 4 | SVC, ARM REST KIT | 607166 | 1 | 607166-Online |
| 5 | SVC, ARM PADS | 606081 | 2 | 606081-Online |
| 6 | SVC, KNOB KIT | 607206 | 1 | 607206-Online |
| 7 | SVC, SEAT BELT | 607207 | 1 | 607207-Online |
| 8 | SVC, TRACK KIT | 607204 | 1 | 607204-Online |
| 9 | SVC, OPS | 606082 | 1 | 606082-Online |

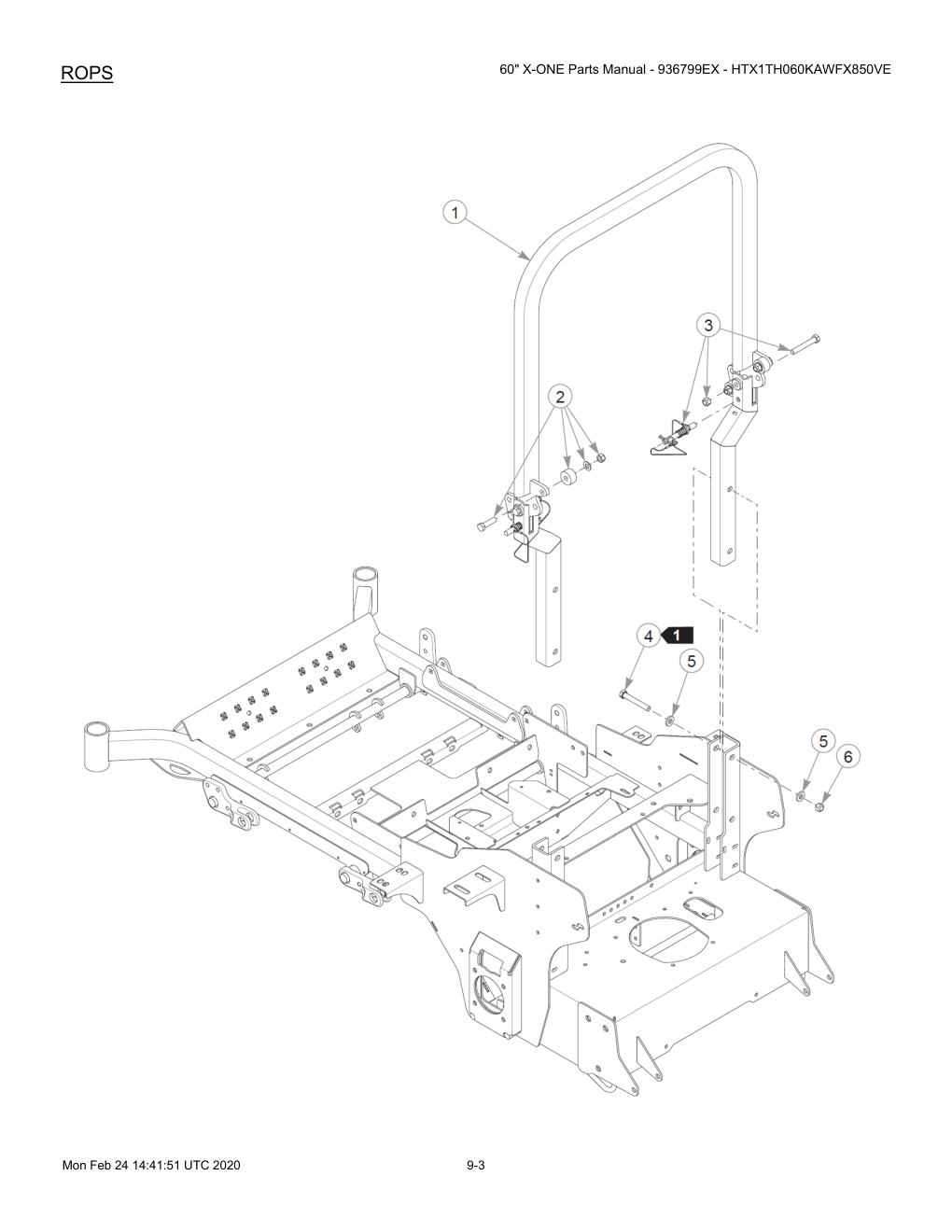

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS, COMPLETE | 605639 | 1 | 605639-Online |
| 2 | KIT, POLY STOP (SET) | 605731 | 2 | 605731-Online |
| 3 | ROPS HARDWARE KIT | 605638 | 1 | 605638-Online |
| 4 | CS .500-13X3.50 HX G5 ZY | 061812 | 4 | 061812-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 6 | NT .500-13UNTG8 | 023317 | 4 | 023317-Online |
