Echo HCR-185ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HCR-185ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

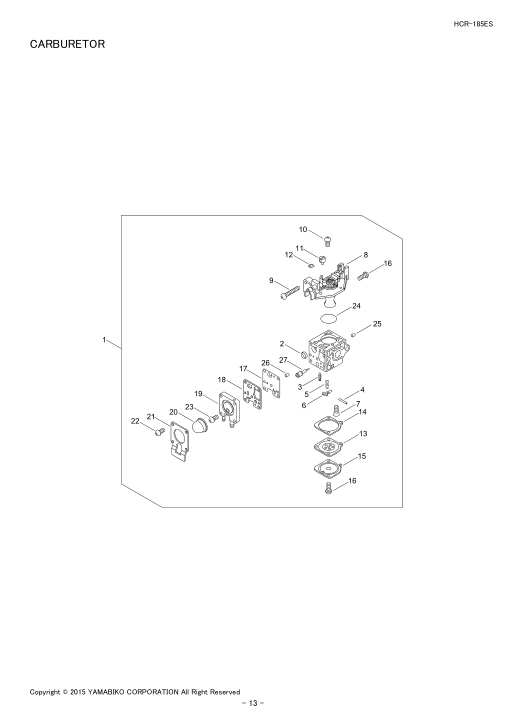

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Gear | P021-013070 | P021-013070-Online | 1 | 2 | + 880110-10860 | NIPPLE, GREASE | ||
| 3 | Bolt, Torx 6 | V806-000140 | V806-000140-Online | 3 TB-6*45 12.9 | ||
| 4 | Piece, Plate | C628-000160 | C628-000160-Online | |||
| 5 | Lid,Gearcase | C539-000021 | C539-000021-Online | |||
| 6 | Plate,Eye | V150-001810 | V150-001810-Online | 2 T0.5 | ||
| 7 | Gasket,Gear Case | V110-000060 | V110-000060-Online | 1 T0.3 | ||
| 8 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 6 TB-4*16 10.9 | ||
| 9 | Drum, Clutch | A556-001630 | A556-001630-Online | 1 50 T:1.4 | ||
| 10 | Gear,Spur | V650-000300 | V650-000300-Online | 1 46T | ||
| 11 | Bearing, Ball 6202 | 900812-06202 | 900812-06202-Online | 1 6202DDU(LLU) | ||
| 12 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 1 6202/C3 | ||
| 13 | Circlip 14 | 900701-00014 | 900701-00014-Online | 1 CS-14 | ||
| 14 | Circlip 35 | 900702-00035 | 900702-00035-Online | 1 CRｰ35 | ||
| 15 | Seal | V541-000140 | V541-000140-Online | |||
| 16 | Guide, Exhaust | A313-002000 | A313-002000-Online | |||
| 17 | Stay, Muffler | A319-000510 | A319-000510-Online | |||
| 18 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | 1 TB-5*10 10.9 | ||
| 19 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | 1 TB-4*10 10.9 | ||
| 20 | Rod, Connecting | C532-000170 | C532-000170-Online | 2 | GEAR CASE | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cutter,Asm | P100-002720 | P100-002720-Online | 1 | 2 | + X412-000650 | CUTTER | ||
| 12 | Blunt | X431-000210 | X431-000210-Online | |||
| 14 | Nut, Flange | 92108-05000 | 92108-05000-Online | 2 | BLADE | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft,Asy | A011-001360 | A011-001360-Online | |||
| 2 | Cylinder | A130-001960 | A130-001960-Online | |||
| 3 | Gasket,Cyl | V100-000720 | V100-000720-Online | |||
| 4 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 5 | Piston Kit | P021-037930 | P021-037930-Online | 1 | 6 | + A101-000090 | RING,PISTON | ||
| 11 | Crankcase Set | P021-046110 | P021-046110-Online | 1 | 12 | + 900810-36000 | BEARING, BALL |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001120 | A409-001120-Online | |||
| 2 | Coil, Ignition | A411-001490 | A411-001490-Online | |||
| 3 | Nut, Flange | 92105-06000 | 92105-06000-Online | 1 M6*1.0 L | ||
| 4 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 5 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 2 TB-4*16 10.9 | ||
| 6 | Pawl | A514-000260 | A514-000260-Online | |||
| 7 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 8 | Washer | 131911-03460 | 131911-03460-Online | |||
| 9 | Spacer | 178070-10860 | 178070-10860-Online | |||
| 10 | Bolt,5 | V203-000080 | V203-000080-Online | 2 5*14 | ||
| 11 | Spring,Torsion | V452-001370 | V452-001370-Online | |||
| 12 | Lead | V485-001220 | V485-001220-Online | 1 L:85 | ||
| 13 | Grommet,Ht Cord | V135-000150 | V135-000150-Online | |||
| 14 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 15 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 16 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | 1 | MAGNETO | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover,Cylinder | A160-002940 | A160-002940-Online | |||
| 2 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 1 TB-5*16 10.9 | ||
| 3 | Cover,Fan | A172-002610 | A172-002610-Online | |||
| 4 | Starter,Recoil Asy | A051-002373 | A051-002373-Online | 1 | 5 | + P022-036941 | CASE, STARTER | ||
| 15 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 4 TB-4*16 10.9 | ||
| 16 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | 1 TT-4*16 DG | 10.9 | ||
| 17 | Label,Echo | X502-000890 | X502-000890-Online | |||
| 18 | Label,Model | X543-004330 | X543-004330-Online | 1 HCR-185ES | RECOIL STARTER | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-004231 | A021-004231-Online | DIAPHRAGM | 1 RB-K119 | ||
| 2 | Clip | V490-001100 | V490-001100-Online | |||
| 3 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | 1 6 | ||
| 4 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 1 3N6 | ||
| 5 | Gasket,Intake | V103-001401 | V103-001401-Online | |||
| 6 | Insulator, Intake | A200-000941 | A200-000941-Online | |||
| 7 | Gasket,Intake | V103-001730 | V103-001730-Online | 1 T:1.0 | ||
| 8 | Plate, Insulator | A209-000610 | A209-000610-Online | |||
| 9 | Gasket,Intake | V103-001740 | V103-001740-Online | |||
| 10 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 2 TB-5*25 10.9 | ||
| 11 | Case,Cleaner | P021-046090 | P021-046090-Online | |||
| 12 | Plate,Prevent | A244-000070 | A244-000070-Online | |||
| 13 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | 2 TB-5*65 10.9 | ||
| 14 | Lid,Cleaner Asy | P021-046100 | P021-046100-Online | 1 | 15 | + V299-000410 | KNOB | ||
| 16 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 17 | Label, Choke | 890332-52730 | 890332-52730-Online | 1 | AIR CLEANER, CARBURETOR | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-004231 | A021-004231-Online | DIAPHRAGM | 1 RB-K119 | 2 | + P005-000010 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | A350-001880 | A350-001880-Online | |||
| 2 | Cushion | V420-004490 | V420-004490-Online | |||
| 3 | Fuel Cap Asy | P021-046080 | P021-046080-Online | 1 | 4 | + 131016-55830 | GASKET, FUEL CAP | ||
| 6 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 7 | Grommet,Fuel | V137-000000 | V137-000000-Online | |||
| 8 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 9 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | |||
| 10 | Pipe | V471-003510 | V471-003510-Online | 1 L=125 | ||
| 11 | Clip | V490-000500 | V490-000500-Online | |||
| 12 | Joint,Pipe | V186-000270 | V186-000270-Online | |||
| 13 | Pipe | V471-003500 | V471-003500-Online | 1 L=92 | ||
| 14 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | 1 3*6*85 YL | FUEL TANK | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler, Exhaust | A300-001860 | A300-001860-Online | |||
| 2 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | 2 TB-5*55 12.9 | ||
| 3 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 4 | Guide, Exhaust | A313-001990 | A313-001990-Online | 1 ID#2170 | ||
| 5 | Screen, Arrestor | A310-000470 | A310-000470-Online | |||
| 6 | Gasket,Exhaust | V104-002180 | V104-002180-Online | |||
| 7 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | 3 TB-4*8 10.9 | ||
| 8 | Gasket,Exhaust | V104-002190 | V104-002190-Online | |||
| 9 | Cover,Muffler | A320-001120 | A320-001120-Online | |||
| 10 | Bolt, Torx 5 | V805-000320 | V805-000320-Online | 2 TB-5*16 10.9 | ||
| 11 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | MUFFLER | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Clutch Asy | A056-000750 | A056-000750-Online | 1 | 2 | + A552-000400 | HUB, CLUTCH | ||
| 5 | Case,Clutch | A570-000320 | A570-000320-Online | |||
| 6 | Nut | 900565-00005 | 900565-00005-Online | 1 5 | CLUTCH | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle, Front | C400-000480 | C400-000480-Online | |||
| 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 2 TT-5*20 DG | 10.9 | ||
| 3 | Label,Caution | X505-002030 | X505-002030-Online | 1 37*35 | ||
| 4 | Frame | C600-001590 | C600-001590-Online | |||
| 5 | Bolt, Torx 5 | V805-000240 | V805-000240-Online | 2 TT-5*12 DG | 10.9 | ||
| 6 | Plate,Eye | V150-003890 | V150-003890-Online | |||
| 7 | Spring,Compression | V450-001910 | V450-001910-Online | |||
| 8 | Spring,Compression | V450-001920 | V450-001920-Online | |||
| 9 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 4 TB-5*16 10.9 | ||
| 10 | Switch,On Off | P021-049150 | P021-049150-Online | |||
| 11 | Handle Set, Rear | P021-046150 | P021-046150-Online | 1 | 12 | + P021-046140 | REAR HANDLE ASY | ||
| 14 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | 5 TT-4*16 DG | 10.9 | ||
| 15 | Lockout, Throttle | C460-000090 | C460-000090-Online | |||
| 16 | Control, Throttle | C450-000250 | C450-000250-Online | |||
| 17 | Spring,Torsion | V452-000300 | V452-000300-Online | |||
| 18 | Stopper, Handle | C427-000020 | C427-000020-Online | |||
| 19 | Spring,Torsion | V452-000310 | V452-000310-Online | |||
| 20 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | 1 TB-4*10 10.9 | ||
| 22 | Spring,Compression | V450-000630 | V450-000630-Online | 1 5.1/3.5 | ||
| 23 | Fixture, Handle | C423-000980 | C423-000980-Online | |||
| 24 | Label,Operation | X532-000740 | X532-000740-Online | 1 | HANDLE | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 2 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 3 | Scabbard,Blade | X495-000560 | X495-000560-Online | 1 L808 30IN | ACCESSORIES | HCR-185ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 6 | Bearing, Needle | 100113-05930 | 100113-05930-Online | |||
| 6 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 8 | Oilseal | 100212-61830 | 100212-61830-Online | |||
| 6 | Oilseal | 100213-61830 | 100213-61830-Online | |||
| 6 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 14 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 14 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 14 | Screw | 125339-42030 | 125339-42030-Online | |||
| 14 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |||
| 14 | Screw | 125344-13931 | 125344-13931-Online | |||
| 14 | Screw | 125344-52130 | 125344-52130-Online | |||
| 14 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 16 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | |||
| 16 | Washer | 131911-03460 | 131911-03460-Online | |||
| 8 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | |||
| 16 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 16 | Washer | 177214-21860 | 177214-21860-Online | |||
| 4 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |||
| 10 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 10 | Grip, Starter | 177228-44330 | 177228-44330-Online | |||
| 10 | Screw | 177236-61830 | 177236-61830-Online | |||
| 10 | Spacer | 178070-10860 | 178070-10860-Online | |||
| 22 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |||
| 2 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 12 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 24 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 24 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 12 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | |||
| 20 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 8 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 18 | Circlip 14 | 900701-00014 | 900701-00014-Online | |||
| 2 | Circlip 26 | 900702-00026 | 900702-00026-Online | |||
| 6 | Circlip 35 | 900702-00035 | 900702-00035-Online | |||
| 2 | Bearing, Ball | 900810-36000 | 900810-36000-Online | |||
| 6 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 2 | Bearing, Ball 6202 | 900812-06202 | 900812-06202-Online | |||
| 2 | Nut, Flange | 92105-06000 | 92105-06000-Online | |||
| 8 | Nut, Flange | 92108-05000 | 92108-05000-Online | |||
| 4 | Crankshaft,Asy | A011-001360 | A011-001360-Online | 6 | Part No | Part descrition | Page | ||
| 12 | Carburetor, | A021-004231 | A021-004231-Online | DIAPHRAGM | ||
| 14 | Starter,Recoil Asy | A051-002373 | A051-002373-Online | |||
| 10 | Clutch Asy | A056-000750 | A056-000750-Online | |||
| 20 | Ring,Piston | A101-000090 | A101-000090-Online | |||
| 6 | Cylinder | A130-001960 | A130-001960-Online | |||
| 6 | Cover,Cylinder | A160-002940 | A160-002940-Online | |||
| 10 | Cover,Fan | A172-002610 | A172-002610-Online | |||
| 10 | Insulator, Intake | A200-000941 | A200-000941-Online | |||
| 12 | Plate, Insulator | A209-000610 | A209-000610-Online | |||
| 12 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 12 | Plate,Prevent | A244-000070 | A244-000070-Online | |||
| 12 | Muffler, Exhaust | A300-001860 | A300-001860-Online | |||
| 18 | Screen, Arrestor | A310-000470 | A310-000470-Online | |||
| 18 | Guide, Exhaust | A313-001990 | A313-001990-Online | |||
| 18 | Guide, Exhaust | A313-002000 | A313-002000-Online | |||
| 2 | Stay, Muffler | A319-000510 | A319-000510-Online | |||
| 2 | Cover,Muffler | A320-001120 | A320-001120-Online | |||
| 18 | Tank, Fuel | A350-001880 | A350-001880-Online | |||
| 16 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 16 | Connector,Cap | A365-000060 | A365-000060-Online | |||
| 16 | Rotor, Magneto | A409-001120 | A409-001120-Online | |||
| 8 | Coil, Ignition | A411-001490 | A411-001490-Online | |||
| 8 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 8 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 8 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 8 | Pawl | A514-000260 | A514-000260-Online | |||
| 8 | Hub, Clutch | A552-000400 | A552-000400-Online | |||
| 20 | Drum, Clutch | A556-001630 | A556-001630-Online | |||
| 2 | Spring, Clutch | A566-000000 | A566-000000-Online | |||
| 20 | Case,Clutch | A570-000320 | A570-000320-Online | |||
| 20 | Handle, Front | C400-000480 | C400-000480-Online | |||
| 22 | Handle,Rear | C410-001350 | C410-001350-Online | |||
| 22 | Fixture, Handle | C423-000980 | C423-000980-Online | |||
| 22 | Stopper, Handle | C427-000020 | C427-000020-Online | |||
| 22 | Control, Throttle | C450-000250 | C450-000250-Online | |||
| 22 | Lockout, Throttle | C460-000090 | C460-000090-Online | |||
| 22 | Rod, Connecting | C532-000170 | C532-000170-Online | |||
| 2 | Lid,Gearcase | C539-000021 | C539-000021-Online | |||
| 2 | Frame | C600-001590 | C600-001590-Online | |||
| 22 | Piece, Plate | C628-000160 | C628-000160-Online | |||
| 2 | Strainer | P005-000010 | P005-000010-Online | |||
| 14 | Screw, | P005-000100 | P005-000100-Online | THROTTLEADJUST | ||
| 14 | E-Ring | P005-000190 | P005-000190-Online | 14 | Part No | Part descrition | Page | ||
| 14 | Retainer | P005-000250 | P005-000250-Online | |||
| 14 | Screw | P005-000270 | P005-000270-Online | |||
| 14 | O-Ring | P005-000280 | P005-000280-Online | |||
| 14 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 14 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 14 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |||
| 14 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 14 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |||
| 14 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |||
| 14 | Base, Asy Primer | P005-001890 | P005-001890-Online | |||
| 14 | Screw | P005-001900 | P005-001900-Online | |||
| 14 | Cover Asy, Rotor | P005-002050 | P005-002050-Online | |||
| 14 | Post | P005-002200 | P005-002200-Online | |||
| 14 | Diaphragm ,Metering | P005-002230 | P005-002230-Online | |||
| 14 | Pump, Primer | P005-003110 | P005-003110-Online | |||
| 14 | Case,Gear | P021-013070 | P021-013070-Online | |||
| 2 | Piston Kit | P021-037930 | P021-037930-Online | |||
| 6 | Fuel Cap Asy | P021-046080 | P021-046080-Online | |||
| 16 | Case,Cleaner | P021-046090 | P021-046090-Online | |||
| 12 | Lid,Cleaner Asy | P021-046100 | P021-046100-Online | |||
| 12 | Crankcase Set | P021-046110 | P021-046110-Online | |||
| 6 | Clutch Shoe Set | P021-046120 | P021-046120-Online | |||
| 20 | Rear Handle Asy | P021-046140 | P021-046140-Online | |||
| 22 | Handle Set, Rear | P021-046150 | P021-046150-Online | |||
| 22 | Switch,On Off | P021-049150 | P021-049150-Online | |||
| 22 | Rope, Starter | P022-006800 | P022-006800-Online | |||
| 10 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 10 | Drum, Starter | P022-027980 | P022-027980-Online | |||
| 10 | Case, Starter | P022-036941 | P022-036941-Online | |||
| 10 | Plate, Cam | P022-037310 | P022-037310-Online | |||
| 10 | Cutter,Asm | P100-002720 | P100-002720-Online | |||
| 4 | Gasket,Cyl | V100-000720 | V100-000720-Online | |||
| 6 | Gasket,Crankcase | V102-000240 | V102-000240-Online | |||
| 6 | Gasket,Intake | V103-001401 | V103-001401-Online | |||
| 12 | Gasket,Intake | V103-001730 | V103-001730-Online | |||
| 12 | Gasket,Intake | V103-001740 | V103-001740-Online | |||
| 12 | Gasket,Exhaust | V104-002180 | V104-002180-Online | |||
| 18 | Gasket,Exhaust | V104-002190 | V104-002190-Online | |||
| 18 | Gasket,Gear Case | V110-000060 | V110-000060-Online | |||
| 2 | Grommet,Ht Cord | V135-000150 | V135-000150-Online | |||
| 8 | Grommet,Fuel | V137-000000 | V137-000000-Online | |||
| 16 | Plate,Eye | V150-001800 | V150-001800-Online | |||
| 4 | Plate,Eye | V150-001810 | V150-001810-Online | 2 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | Joint,Pipe | V186-000270 | V186-000270-Online | |||
| 16 | Bolt,5 | V203-000080 | V203-000080-Online | |||
| 8 | Bolt | V204-000510 | V204-000510-Online | |||
| 4 | Knob | V299-000410 | V299-000410-Online | |||
| 12 | Washer | V304-000240 | V304-000240-Online | |||
| 4 | Collar | V353-000250 | V353-000250-Online | |||
| 4 | Cushion | V420-004490 | V420-004490-Online | |||
| 16 | Spring,Compression | V450-000630 | V450-000630-Online | |||
| 22 | Spring,Compression | V450-001910 | V450-001910-Online | |||
| 22 | Spring,Compression | V450-001920 | V450-001920-Online | |||
| 22 | Spring,Torsion | V452-000300 | V452-000300-Online | |||
| 22 | Spring,Torsion | V452-000310 | V452-000310-Online | |||
| 22 | Spring,Torsion | V452-001370 | V452-001370-Online | |||
| 8 | Pipe | V471-003500 | V471-003500-Online | |||
| 16 | Pipe | V471-003510 | V471-003510-Online | |||
| 16 | Lead | V485-001220 | V485-001220-Online | |||
| 8 | Clip | V490-000500 | V490-000500-Online | |||
| 16 | Clip | V490-001100 | V490-001100-Online | |||
| 12 | Seal | V541-000140 | V541-000140-Online | |||
| 2 | Pin,Eng 8 | V606-000020 | V606-000020-Online | |||
| 6 | Gear,Spur | V650-000300 | V650-000300-Online | |||
| 2 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 10 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 22 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | |||
| 18 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | |||
| 2 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | |||
| 22 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 2 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 8 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 10 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 22 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | |||
| 12 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | |||
| 2 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 10 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 22 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 4 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 12 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | |||
| 18 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 6 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 4 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 6 | Bolt, Torx 5 | V805-000240 | V805-000240-Online | |||
| 22 | Bolt, Torx 5 | V805-000320 | V805-000320-Online | |||
| 18 | Bolt, Torx 6 | V806-000140 | V806-000140-Online | |||
| 2 | Cutter | X412-000650 | X412-000650-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Support,Cutter | X425-000910 | X425-000910-Online | |||
| 4 | Blunt | X431-000210 | X431-000210-Online | |||
| 4 | Scabbard,Blade | X495-000560 | X495-000560-Online | |||
| 24 | Label,Echo | X502-000890 | X502-000890-Online | |||
| 10 | Label,Caution | X505-002030 | X505-002030-Online | |||
| 22 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 18 | Label,Operation | X532-000740 | X532-000740-Online | |||
| 22 | Label,Model | X543-004330 | X543-004330-Online | 10 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-243_HCR-185ES_37_37003461_24FEB2020.pdf. Generated 2026-06-25 14:39.
