Echo SRM-510 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-510-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.

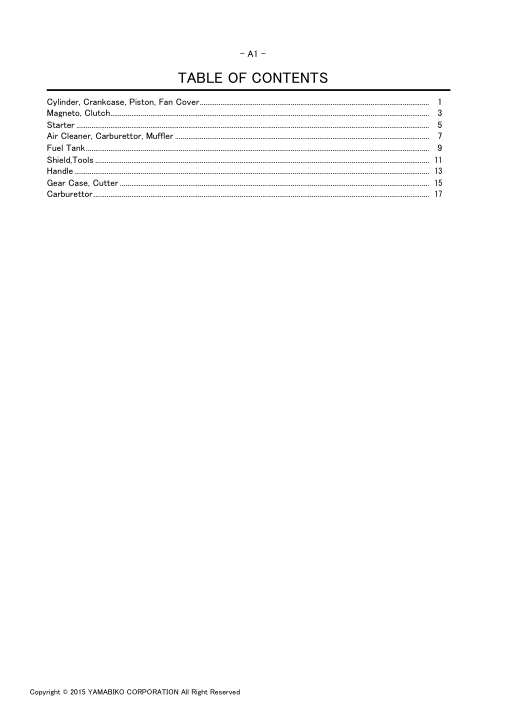

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

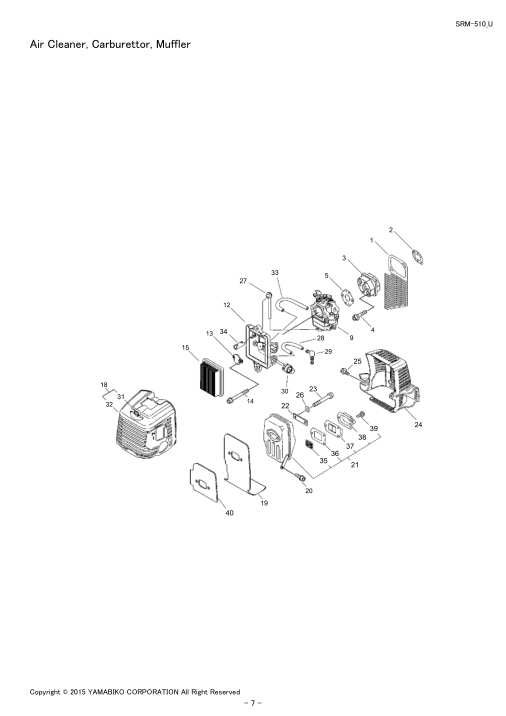

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

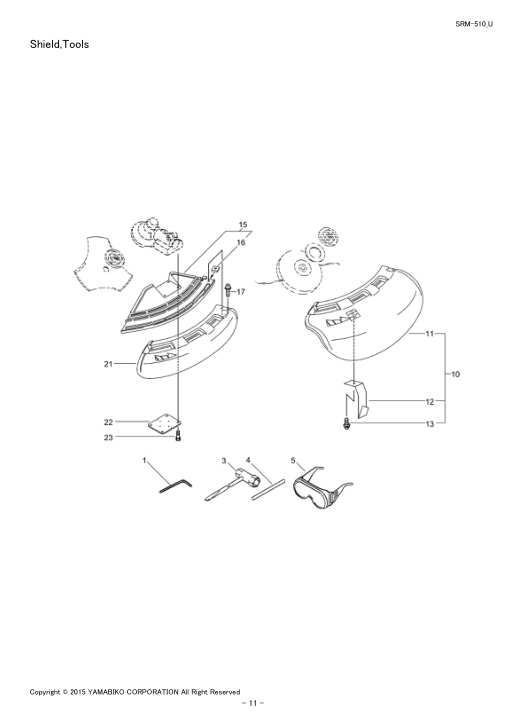

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

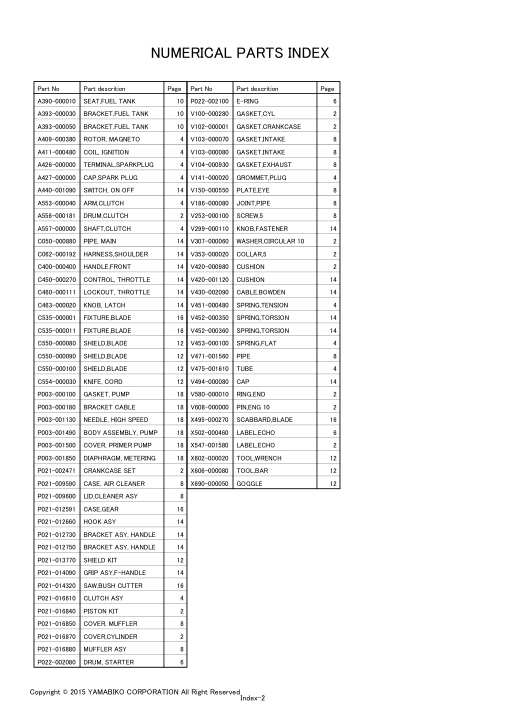

Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

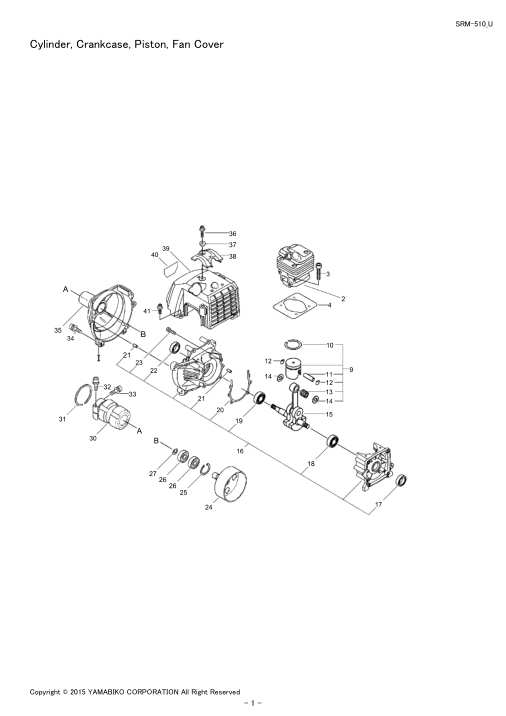

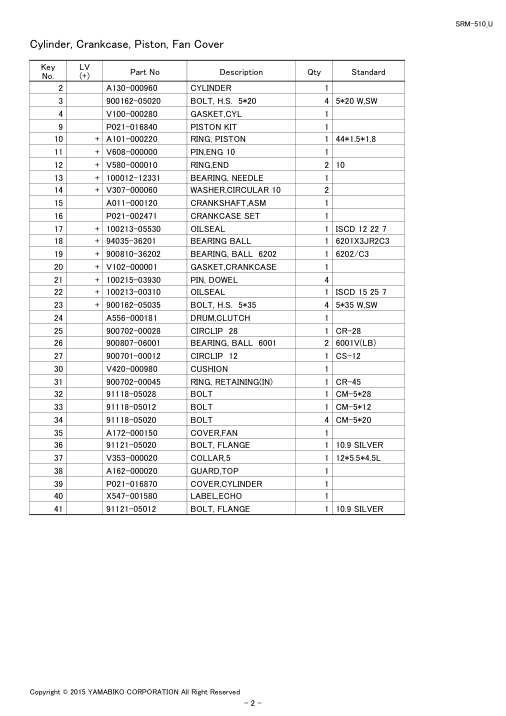

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Cylinder | A130-000960 | A130-000960-Online | |||
| 3 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 4 | Gasket,Cyl | V100-000280 | V100-000280-Online | |||
| 9 | Piston Kit | P021-016840 | P021-016840-Online | 1 | 10 | + A101-000220 | RING, PISTON | ||
| 15 | Crankshaft,Asm | A011-000120 | A011-000120-Online | |||
| 16 | Crankcase Set | P021-002471 | P021-002471-Online | 1 | 17 | + 100213-05530 | OILSEAL | ||
| 24 | Drum,Clutch | A556-000181 | A556-000181-Online | |||
| 25 | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | ||
| 26 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 2 6001V(LB) | ||
| 27 | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | ||
| 30 | Cushion | V420-000980 | V420-000980-Online | |||
| 31 | Ring, Retaining(In) | 900702-00045 | 900702-00045-Online | 1 CR-45 | ||
| 32 | Bolt | 91118-05028 | 91118-05028-Online | 1 CM-5*28 | ||
| 33 | Bolt | 91118-05012 | 91118-05012-Online | 1 CM-5*12 | ||
| 34 | Bolt | 91118-05020 | 91118-05020-Online | 4 CM-5*20 | ||
| 35 | Cover,Fan | A172-000150 | A172-000150-Online | |||
| 36 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 1 10.9 SILVER | ||
| 37 | Collar,5 | V353-000020 | V353-000020-Online | 1 12*5.5*4.5L | ||
| 38 | Guard,Top | A162-000020 | A162-000020-Online | |||
| 39 | Cover,Cylinder | P021-016870 | P021-016870-Online | |||
| 40 | Label,Echo | X547-001580 | X547-001580-Online | |||
| 41 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 1 10.9 SILVER | Cylinder, Crankcase, Piston, Fan Cover | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

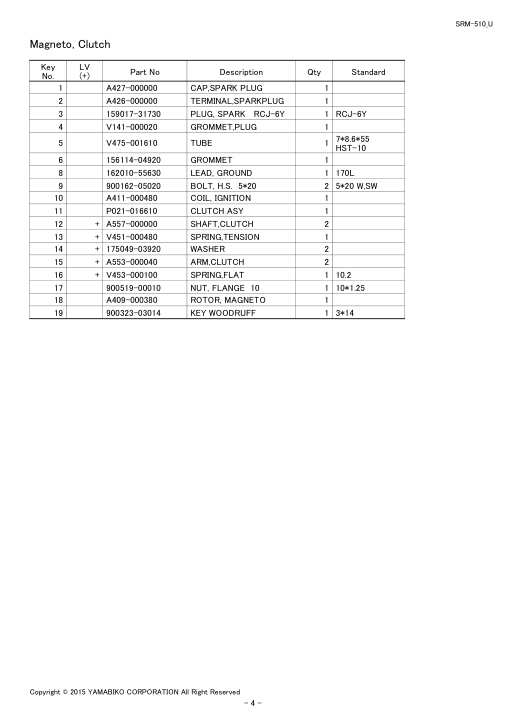

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | |||
| 2 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | |||
| 3 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | 1 RCJ-6Y | ||
| 4 | Grommet,Plug | V141-000020 | V141-000020-Online | |||
| 5 | Tube | V475-001610 | V475-001610-Online | 1 7*8.6*55 | HST-10 | ||
| 6 | Grommet | 156114-04920 | 156114-04920-Online | |||
| 8 | Lead, Ground | 162010-55630 | 162010-55630-Online | 1 170L | ||
| 9 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | ||
| 10 | Coil, Ignition | A411-000480 | A411-000480-Online | |||
| 11 | Clutch Asy | P021-016610 | P021-016610-Online | 1 | 12 | + A557-000000 | SHAFT,CLUTCH | ||
| 17 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 1 10*1.25 | ||
| 18 | Rotor, Magneto | A409-000380 | A409-000380-Online | |||
| 19 | Key Woodruff | 900323-03014 | 900323-03014-Online | 1 3*14 | Magneto, Clutch | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

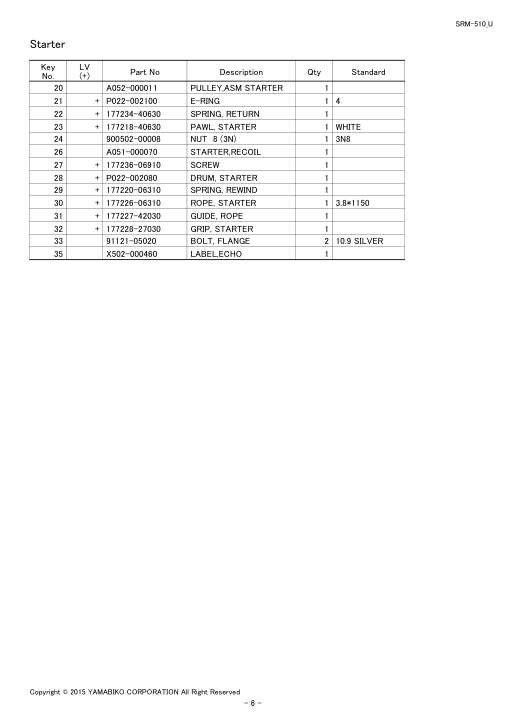

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | 1 | 21 | + P022-002100 | E-RING | ||
| 24 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 1 3N8 | ||
| 26 | Starter,Recoil | A051-000070 | A051-000070-Online | 1 | 27 | + 177236-06910 | SCREW | ||
| 33 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 2 10.9 SILVER | ||
| 35 | Label,Echo | X502-000460 | X502-000460-Online | 1 | Starter | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

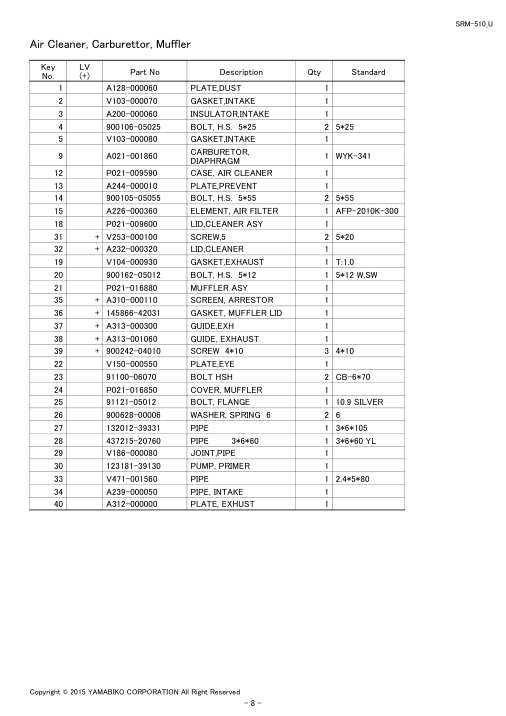

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Plate,Dust | A128-000060 | A128-000060-Online | |||
| 2 | Gasket,Intake | V103-000070 | V103-000070-Online | |||
| 3 | Insulator,Intake | A200-000060 | A200-000060-Online | |||
| 4 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 2 5*25 | ||
| 5 | Gasket,Intake | V103-000080 | V103-000080-Online | |||
| 9 | Carburetor, | A021-001860 | A021-001860-Online | DIAPHRAGM | 1 WYK-341 | ||
| 12 | Case, Air Cleaner | P021-009590 | P021-009590-Online | |||
| 13 | Plate,Prevent | A244-000010 | A244-000010-Online | |||
| 14 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 2 5*55 | ||
| 15 | Element, Air Filter | A226-000360 | A226-000360-Online | 1 AFP-2010K-300 | ||
| 18 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | 1 | 31 | + V253-000100 | SCREW,5 | ||
| 19 | Gasket,Exhaust | V104-000930 | V104-000930-Online | 1 T:1.0 | ||
| 20 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 1 5*12 W,SW | ||
| 21 | Muffler Asy | P021-016880 | P021-016880-Online | 1 | 35 | + A310-000110 | SCREEN, ARRESTOR | ||
| 22 | Plate,Eye | V150-000550 | V150-000550-Online | |||
| 23 | Bolt Hsh | 91100-06070 | 91100-06070-Online | 2 CB-6*70 | ||
| 24 | Cover, Muffler | P021-016850 | P021-016850-Online | |||
| 25 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 1 10.9 SILVER | ||
| 26 | Washer, Spring 6 | 900628-00006 | 900628-00006-Online | 2 6 | ||
| 27 | Pipe | 132012-39331 | 132012-39331-Online | 1 3*6*105 | ||
| 28 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 1 3*6*60 YL | ||
| 29 | Joint,Pipe | V186-000080 | V186-000080-Online | |||
| 30 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 33 | Pipe | V471-001560 | V471-001560-Online | 1 2.4*5*80 | ||
| 34 | Pipe, Intake | A239-000050 | A239-000050-Online | |||
| 40 | Plate, Exhust | A312-000000 | A312-000000-Online | 1 | Air Cleaner, Carburettor, Muffler | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

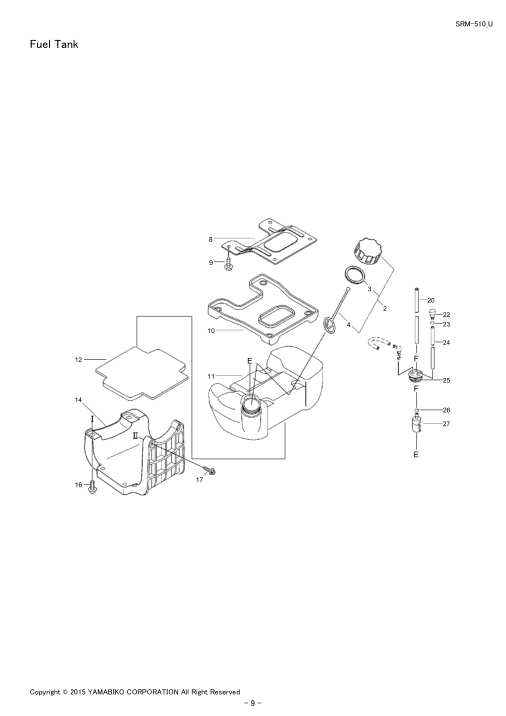

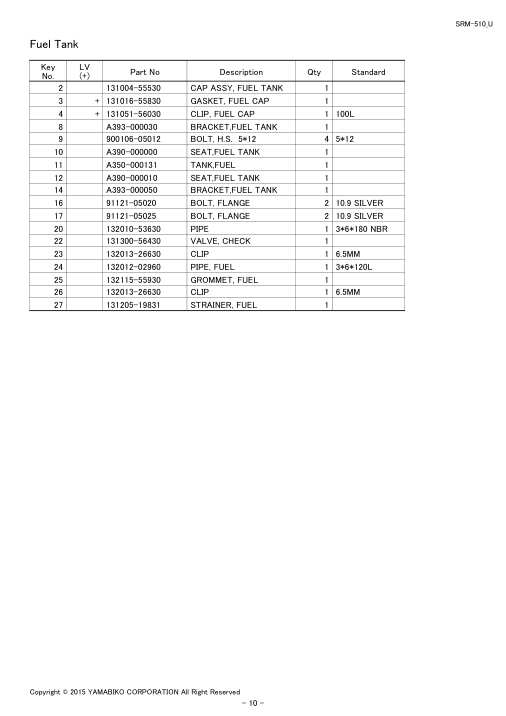

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 3 | + 131016-55830 | GASKET, FUEL CAP | ||
| 8 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | |||
| 9 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 4 5*12 | ||
| 10 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | |||
| 11 | Tank,Fuel | A350-000131 | A350-000131-Online | |||
| 12 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | |||
| 14 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | |||
| 16 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 2 10.9 SILVER | ||
| 17 | Bolt, Flange | 91121-05025 | 91121-05025-Online | 2 10.9 SILVER | ||
| 20 | Pipe | 132010-53630 | 132010-53630-Online | 1 3*6*180 NBR | ||
| 22 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 23 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 24 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 1 3*6*120L | ||
| 25 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 26 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 27 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | 1 | Fuel Tank | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

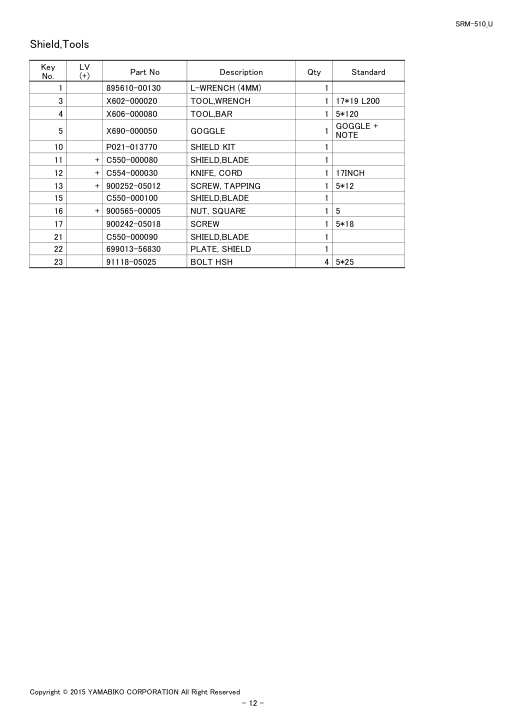

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 3 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | ||
| 4 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 5 | Goggle | X690-000050 | X690-000050-Online | 1 GOGGLE + | ||
| 10 | Shield Kit | P021-013770 | P021-013770-Online | 1 | 11 | + C550-000080 | SHIELD,BLADE | ||
| 15 | Shield,Blade | C550-000100 | C550-000100-Online | 1 | 16 | + 900565-00005 | NUT, SQUARE | ||
| 17 | Screw | 900242-05018 | 900242-05018-Online | 1 5*18 | ||
| 21 | Shield,Blade | C550-000090 | C550-000090-Online | |||
| 22 | Plate, Shield | 699013-56830 | 699013-56830-Online | |||
| 23 | Bolt Hsh | 91118-05025 | 91118-05025-Online | 4 5*25 | Shield,Tools | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

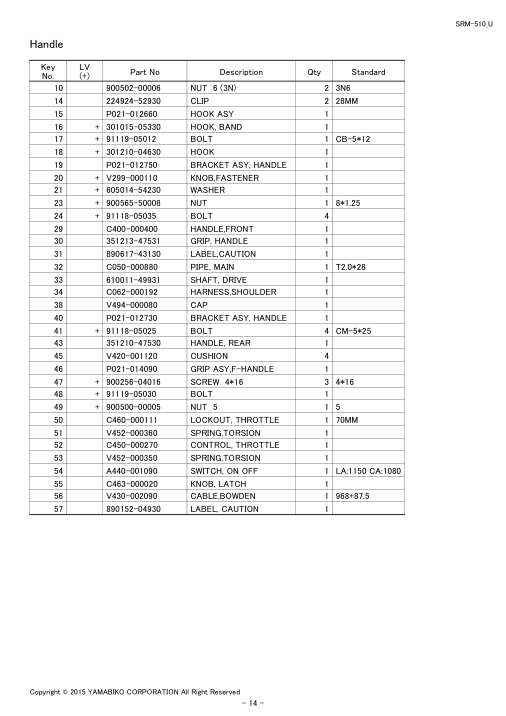

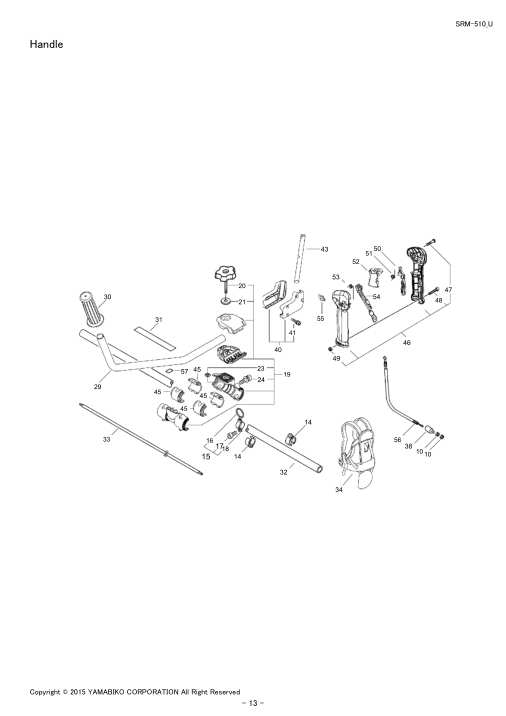

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 14 | Clip | 224924-52930 | 224924-52930-Online | 2 28MM | ||
| 15 | Hook Asy | P021-012660 | P021-012660-Online | 1 | 16 | + 301015-05330 | HOOK, BAND | ||
| 19 | Bracket Asy, Handle | P021-012750 | P021-012750-Online | 1 | 20 | + V299-000110 | KNOB,FASTENER | ||
| 29 | Handle,Front | C400-000400 | C400-000400-Online | |||
| 30 | Grip, Handle | 351213-47531 | 351213-47531-Online | |||
| 31 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 32 | Pipe, Main | C050-000880 | C050-000880-Online | 1 T2.0*28 | ||
| 33 | Shaft, Drive | 610011-49931 | 610011-49931-Online | |||
| 34 | Harness,Shoulder | C062-000192 | C062-000192-Online | |||
| 40 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | 1 | 41 | + 91118-05025 | BOLT | ||
| 43 | Handle, Rear | 351210-47530 | 351210-47530-Online | |||
| 45 | Cushion | V420-001120 | V420-001120-Online | |||
| 46 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | 1 | 47 | + 900256-04016 | SCREW 4*16 | ||
| 50 | Lockout, Throttle | C460-000111 | C460-000111-Online | 1 70MM | ||
| 51 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 52 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 53 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 54 | Switch, On Off | A440-001090 | A440-001090-Online | 1 LA:1150 CA:1080 | ||
| 55 | Knob, Latch | C463-000020 | C463-000020-Online | |||
| 56 | Cable,Bowden | V430-002090 | V430-002090-Online | 1 968+87.5 | ||
| 57 | Label, Caution | 890152-04930 | 890152-04930-Online | 1 | Handle | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Gear | P021-012591 | P021-012591-Online | 1 | 2 | + 610320-52130 | NUT 10 | ||
| 42 | Saw,Bush Cutter | P021-014320 | P021-014320-Online | 1 255*T3.0 | ||
| 43 | Scabbard,Blade | X495-000270 | X495-000270-Online | 1 | Gear Case, Cutter | SRM-510_U | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

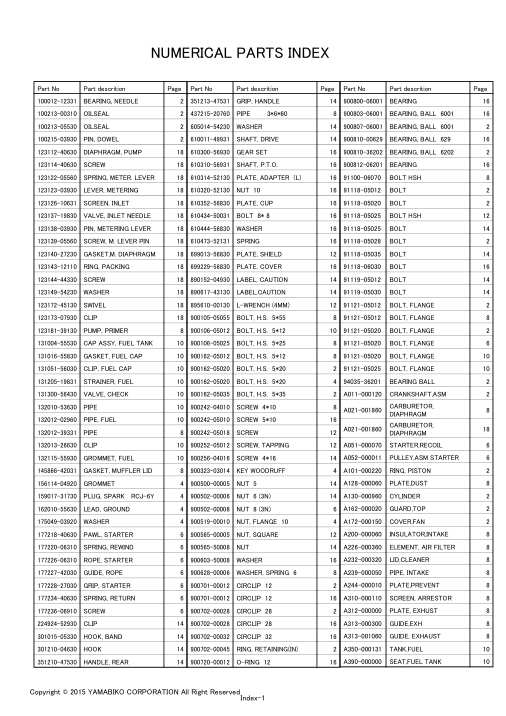

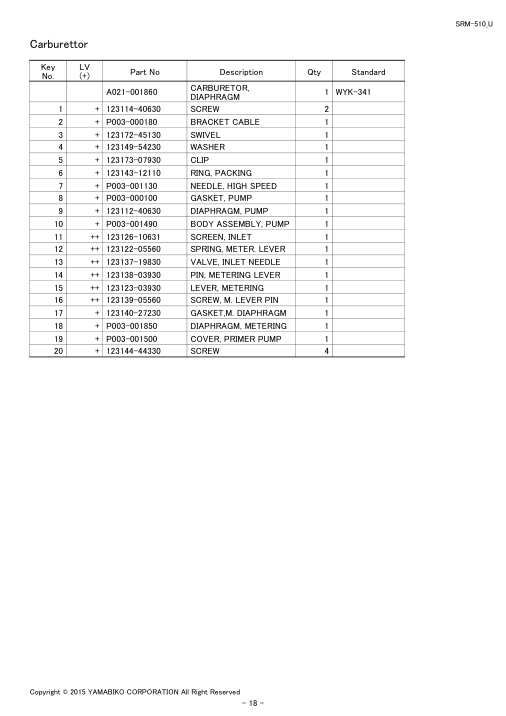

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Oilseal | 100213-00310 | 100213-00310-Online | |||
| 2 | Oilseal | 100213-05530 | 100213-05530-Online | |||
| 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 2 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |||
| 18 | Screw | 123114-40630 | 123114-40630-Online | |||
| 18 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | |||
| 18 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 18 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 18 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 18 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 18 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | |||
| 18 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |||
| 18 | Ring, Packing | 123143-12110 | 123143-12110-Online | |||
| 18 | Screw | 123144-44330 | 123144-44330-Online | |||
| 18 | Washer | 123149-54230 | 123149-54230-Online | |||
| 18 | Swivel | 123172-45130 | 123172-45130-Online | |||
| 18 | Clip | 123173-07930 | 123173-07930-Online | |||
| 18 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 8 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 10 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 10 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 10 | Pipe | 132010-53630 | 132010-53630-Online | |||
| 10 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | |||
| 10 | Pipe | 132012-39331 | 132012-39331-Online | |||
| 8 | Clip | 132013-26630 | 132013-26630-Online | |||
| 10 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 10 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |||
| 8 | Grommet | 156114-04920 | 156114-04920-Online | |||
| 4 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | |||
| 4 | Lead, Ground | 162010-55630 | 162010-55630-Online | |||
| 4 | Washer | 175049-03920 | 175049-03920-Online | |||
| 4 | Pawl, Starter | 177218-40630 | 177218-40630-Online | |||
| 6 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |||
| 6 | Rope, Starter | 177226-06310 | 177226-06310-Online | |||
| 6 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 6 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 6 | Spring, Return | 177234-40630 | 177234-40630-Online | |||
| 6 | Screw | 177236-06910 | 177236-06910-Online | |||
| 6 | Clip | 224924-52930 | 224924-52930-Online | |||
| 14 | Hook, Band | 301015-05330 | 301015-05330-Online | |||
| 14 | Hook | 301210-04630 | 301210-04630-Online | |||
| 14 | Handle, Rear | 351210-47530 | 351210-47530-Online | 14 | Part No | Part descrition | Page | ||
| 14 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | |||
| 8 | Washer | 605014-54230 | 605014-54230-Online | |||
| 14 | Shaft, Drive | 610011-49931 | 610011-49931-Online | |||
| 14 | Gear Set | 610300-56930 | 610300-56930-Online | |||
| 16 | Shaft, P.T.O. | 610310-56931 | 610310-56931-Online | |||
| 16 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |||
| 16 | Nut 10 | 610320-52130 | 610320-52130-Online | |||
| 16 | Plate, Cup | 610352-56830 | 610352-56830-Online | |||
| 16 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 16 | Washer | 610444-56830 | 610444-56830-Online | |||
| 16 | Spring | 610473-52131 | 610473-52131-Online | |||
| 16 | Plate, Shield | 699013-56830 | 699013-56830-Online | |||
| 12 | Plate, Cover | 699229-56830 | 699229-56830-Online | |||
| 16 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 14 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 14 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 12 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | |||
| 8 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | |||
| 10 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | |||
| 8 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | |||
| 8 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | |||
| 2 | Screw 4*10 | 900242-04010 | 900242-04010-Online | |||
| 8 | Screw 5*10 | 900242-05010 | 900242-05010-Online | |||
| 16 | Screw | 900242-05018 | 900242-05018-Online | |||
| 12 | Screw, Tapping | 900252-05012 | 900252-05012-Online | |||
| 12 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |||
| 14 | Key Woodruff | 900323-03014 | 900323-03014-Online | |||
| 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 14 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 14 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | |||
| 6 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | |||
| 4 | Nut, Square | 900565-00005 | 900565-00005-Online | |||
| 14 | Washer | 900603-50008 | 900603-50008-Online | |||
| 16 | Washer, Spring 6 | 900628-00006 | 900628-00006-Online | |||
| 8 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 2 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 16 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 2 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 16 | Circlip 32 | 900702-00032 | 900702-00032-Online | |||
| 16 | Ring, Retaining(In) | 900702-00045 | 900702-00045-Online | |||
| 2 | O-Ring 12 | 900720-00012 | 900720-00012-Online | 16 | Part No | Part descrition | Page | ||
| 16 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |||
| 16 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | |||
| 2 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |||
| 16 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 2 | Bearing | 900812-06201 | 900812-06201-Online | |||
| 16 | Bolt Hsh | 91100-06070 | 91100-06070-Online | |||
| 8 | Bolt | 91118-05012 | 91118-05012-Online | |||
| 2 | Bolt | 91118-05020 | 91118-05020-Online | |||
| 2 | Bolt Hsh | 91118-05025 | 91118-05025-Online | |||
| 12 | Bolt | 91118-05025 | 91118-05025-Online | |||
| 14 | Bolt | 91118-05028 | 91118-05028-Online | |||
| 2 | Bolt | 91118-05035 | 91118-05035-Online | |||
| 14 | Bolt | 91118-06030 | 91118-06030-Online | |||
| 16 | Bolt | 91119-05012 | 91119-05012-Online | |||
| 14 | Bolt | 91119-05030 | 91119-05030-Online | |||
| 14 | Bolt, Flange | 91121-05012 | 91121-05012-Online | |||
| 2 | Bolt, Flange | 91121-05012 | 91121-05012-Online | |||
| 8 | Bolt, Flange | 91121-05020 | 91121-05020-Online | |||
| 2 | Bolt, Flange | 91121-05020 | 91121-05020-Online | |||
| 6 | Bolt, Flange | 91121-05020 | 91121-05020-Online | |||
| 10 | Bolt, Flange | 91121-05025 | 91121-05025-Online | |||
| 10 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Crankshaft,Asm | A011-000120 | A011-000120-Online | |||
| 2 | Carburetor, | A021-001860 | A021-001860-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-001860 | A021-001860-Online | DIAPHRAGM | ||
| 18 | Starter,Recoil | A051-000070 | A051-000070-Online | |||
| 6 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | |||
| 6 | Ring, Piston | A101-000220 | A101-000220-Online | |||
| 2 | Plate,Dust | A128-000060 | A128-000060-Online | |||
| 8 | Cylinder | A130-000960 | A130-000960-Online | |||
| 2 | Guard,Top | A162-000020 | A162-000020-Online | |||
| 2 | Cover,Fan | A172-000150 | A172-000150-Online | |||
| 2 | Insulator,Intake | A200-000060 | A200-000060-Online | |||
| 8 | Element, Air Filter | A226-000360 | A226-000360-Online | |||
| 8 | Lid,Cleaner | A232-000320 | A232-000320-Online | |||
| 8 | Pipe, Intake | A239-000050 | A239-000050-Online | |||
| 8 | Plate,Prevent | A244-000010 | A244-000010-Online | |||
| 8 | Screen, Arrestor | A310-000110 | A310-000110-Online | |||
| 8 | Plate, Exhust | A312-000000 | A312-000000-Online | |||
| 8 | Guide,Exh | A313-000300 | A313-000300-Online | |||
| 8 | Guide, Exhaust | A313-001060 | A313-001060-Online | |||
| 8 | Tank,Fuel | A350-000131 | A350-000131-Online | |||
| 10 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | 10 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | |||
| 10 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | |||
| 10 | Rotor, Magneto | A409-000380 | A409-000380-Online | |||
| 4 | Coil, Ignition | A411-000480 | A411-000480-Online | |||
| 4 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | |||
| 4 | Cap,Spark Plug | A427-000000 | A427-000000-Online | |||
| 4 | Switch, On Off | A440-001090 | A440-001090-Online | |||
| 14 | Arm,Clutch | A553-000040 | A553-000040-Online | |||
| 4 | Drum,Clutch | A556-000181 | A556-000181-Online | |||
| 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | |||
| 4 | Pipe, Main | C050-000880 | C050-000880-Online | |||
| 14 | Harness,Shoulder | C062-000192 | C062-000192-Online | |||
| 14 | Handle,Front | C400-000400 | C400-000400-Online | |||
| 14 | Control, Throttle | C450-000270 | C450-000270-Online | |||
| 14 | Lockout, Throttle | C460-000111 | C460-000111-Online | |||
| 14 | Knob, Latch | C463-000020 | C463-000020-Online | |||
| 14 | Fixture,Blade | C535-000001 | C535-000001-Online | |||
| 16 | Fixture,Blade | C535-000011 | C535-000011-Online | |||
| 16 | Shield,Blade | C550-000080 | C550-000080-Online | |||
| 12 | Shield,Blade | C550-000090 | C550-000090-Online | |||
| 12 | Shield,Blade | C550-000100 | C550-000100-Online | |||
| 12 | Knife, Cord | C554-000030 | C554-000030-Online | |||
| 12 | Gasket, Pump | P003-000100 | P003-000100-Online | |||
| 18 | Bracket Cable | P003-000180 | P003-000180-Online | |||
| 18 | Needle, High Speed | P003-001130 | P003-001130-Online | |||
| 18 | Body Assembly, Pump | P003-001490 | P003-001490-Online | |||
| 18 | Cover, Primer Pump | P003-001500 | P003-001500-Online | |||
| 18 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |||
| 18 | Crankcase Set | P021-002471 | P021-002471-Online | |||
| 2 | Case, Air Cleaner | P021-009590 | P021-009590-Online | |||
| 8 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | |||
| 8 | Case,Gear | P021-012591 | P021-012591-Online | |||
| 16 | Hook Asy | P021-012660 | P021-012660-Online | |||
| 14 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | |||
| 14 | Bracket Asy, Handle | P021-012750 | P021-012750-Online | |||
| 14 | Shield Kit | P021-013770 | P021-013770-Online | |||
| 12 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | |||
| 14 | Saw,Bush Cutter | P021-014320 | P021-014320-Online | |||
| 16 | Clutch Asy | P021-016610 | P021-016610-Online | |||
| 4 | Piston Kit | P021-016840 | P021-016840-Online | |||
| 2 | Cover, Muffler | P021-016850 | P021-016850-Online | |||
| 8 | Cover,Cylinder | P021-016870 | P021-016870-Online | |||
| 2 | Muffler Asy | P021-016880 | P021-016880-Online | |||
| 8 | Drum, Starter | P022-002080 | P022-002080-Online | 6 | Part No | Part descrition | Page | ||
| 6 | Gasket,Cyl | V100-000280 | V100-000280-Online | |||
| 2 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |||
| 2 | Gasket,Intake | V103-000070 | V103-000070-Online | |||
| 8 | Gasket,Intake | V103-000080 | V103-000080-Online | |||
| 8 | Gasket,Exhaust | V104-000930 | V104-000930-Online | |||
| 8 | Grommet,Plug | V141-000020 | V141-000020-Online | |||
| 4 | Plate,Eye | V150-000550 | V150-000550-Online | |||
| 8 | Joint,Pipe | V186-000080 | V186-000080-Online | |||
| 8 | Screw,5 | V253-000100 | V253-000100-Online | |||
| 8 | Knob,Fastener | V299-000110 | V299-000110-Online | |||
| 14 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |||
| 2 | Collar,5 | V353-000020 | V353-000020-Online | |||
| 2 | Cushion | V420-000980 | V420-000980-Online | |||
| 2 | Cushion | V420-001120 | V420-001120-Online | |||
| 14 | Cable,Bowden | V430-002090 | V430-002090-Online | |||
| 14 | Spring,Tension | V451-000480 | V451-000480-Online | |||
| 4 | Spring,Torsion | V452-000350 | V452-000350-Online | |||
| 14 | Spring,Torsion | V452-000360 | V452-000360-Online | |||
| 14 | Spring,Flat | V453-000100 | V453-000100-Online | |||
| 4 | Pipe | V471-001560 | V471-001560-Online | |||
| 8 | Tube | V475-001610 | V475-001610-Online | |||
| 14 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |||
| 2 | Scabbard,Blade | X495-000270 | X495-000270-Online | |||
| 16 | Label,Echo | X502-000460 | X502-000460-Online | |||
| 6 | Label,Echo | X547-001580 | X547-001580-Online | |||
| 2 | Tool,Wrench | X602-000020 | X602-000020-Online | |||
| 12 | Tool,Bar | X606-000080 | X606-000080-Online | |||
| 12 | Goggle | X690-000050 | X690-000050-Online | 12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-556_SRM-510_U_36_36000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
