Echo PPT-265ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PPT-265ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

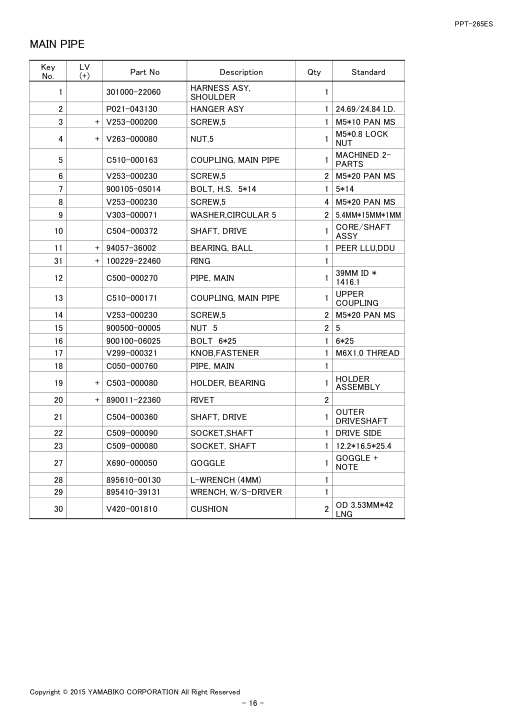

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.

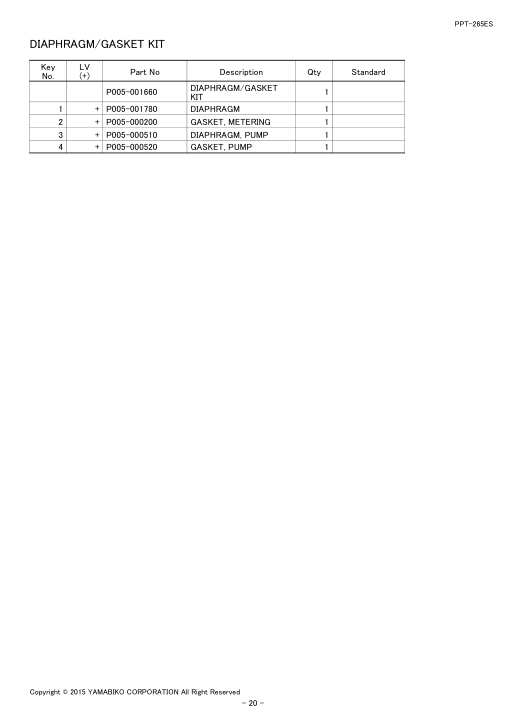

Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Screw, Tapping | 900256-05016 | 900256-05016-Online | 1 5*16 | ||
| 2 | Guard,Top | A162-000100 | A162-000100-Online | |||
| 3 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | ||
| 4 | Cover,Cylinder | A160-000780 | A160-000780-Online | |||
| 5 | Label,Echo | X547-000791 | X547-000791-Online | 1 PPT-265ES | ||
| 6 | Bolt | 91140-05012 | 91140-05012-Online | 1 M5*12 | ||
| 7 | Guard,Top | A162-000080 | A162-000080-Online | |||
| 8 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | 1 5*14 | ||
| 9 | Bolt, H.S. 5* 8 | 900106-05008 | 900106-05008-Online | 2 5*8 | ||
| 10 | Cover,Cylinder | A160-000691 | A160-000691-Online | |||
| 11 | Cylinder | A130-000761 | A130-000761-Online | |||
| 12 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 4 5*25 W,SW | ||
| 13 | Gasket,Cyl | V100-000210 | V100-000210-Online | 1 T0.5 38.1 | ||
| 14 | Piston Kit | P021-009771 | P021-009771-Online | 1 | 15 | + A101-000170 | RING, PISTON | ||
| 20 | Crankshaft,Asy | A011-000434 | A011-000434-Online | |||
| 21 | Crankcase Kit | P021-010801 | P021-010801-Online | 1 | 22 | + 100212-42031 | OILSEAL | ||
| 27 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 28 | Clamp | 159116-21231 | 159116-21231-Online | |||
| 29 | Bolt, H.S. 5*16 | 900162-05016 | 900162-05016-Online | 1 5*16 W,SW | ||
| 30 | Cover Asy, Fan | P021-013760 | P021-013760-Online | 1 | 31 | + A556-000280 | DRUM,CLUTCH | ||
| 35 | Bolt Hsh | 900163-04016 | 900163-04016-Online | |||
| 36 | Clip | V491-000180 | V491-000180-Online | |||
| 41 | Cover,Dust | A127-000160 | A127-000160-Online | |||
| 42 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 43 | Fixture,Main Pipe | P021-009380 | P021-009380-Online | 1 | 37 | + A575-000122 | FIXTURE,MAIN PIPE | ||
| 44 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 1 5*12 | ||
| 45 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 2 5*25 W,SW | CYLINDER, CRANKCASE, PISTON | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lead, Ground | 162010-04561 | 162010-04561-Online | 1 210L | ||
| 2 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 3 | Grommet,Ht Cord | V135-000030 | V135-000030-Online | |||
| 4 | Bolt,4 | V202-000130 | V202-000130-Online | 2 CBF-4*20 | ||
| 5 | Tube | V475-003380 | V475-003380-Online | |||
| 6 | Coil, Ignition | A411-000250 | A411-000250-Online | 1 ID#C10048 | ||
| 6 | Coil, Ignition | A411-000251 | A411-000251-Online | 1 ID#C10048 | ||
| 8 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 9 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 10 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 11 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 12 | Rotor, Magneto | A409-000310 | A409-000310-Online | 1 ID:C10744G | ||
| 13 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | |||
| 14 | Washer | 175049-56030 | 175049-56030-Online | 2 8.5*16*0.5 | ||
| 15 | Arm,Clutch | A553-000010 | A553-000010-Online | |||
| 16 | Washer (I) | 175048-05530 | 175048-05530-Online | 2 6.2*19*1.0 | ||
| 17 | Spring,Tension | V451-000400 | V451-000400-Online | |||
| 18 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | 1 | 19 | + P022-002100 | E-RING | ||
| 22 | Starter,Recoil Asy | A051-000940 | A051-000940-Online | 1 | 23 | + 177236-61830 | SCREW | ||
| 33 | Bolt Hsh | 900163-04016 | 900163-04016-Online | |||
| 34 | Label,Echo | X502-000330 | X502-000330-Online | 1 ECHO | ||
| 35 | Stand | A175-000030 | A175-000030-Online | |||
| 36 | Washer 5 | 900603-00005 | 900603-00005-Online | 4 5.5*12*0.8 | ||
| 37 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 4 5*25 W,SW | ||
| 38 | Washer,Circular 4 | V322-000031 | V322-000031-Online | |||
| 39 | Washer 4 | 900603-00004 | 900603-00004-Online | 2 4.5*10*0.8 | STARTER, MAGNETO, CLUTCH | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gasket,Intake | V103-000210 | V103-000210-Online | |||
| 2 | Insulator,Intake | A200-000200 | A200-000200-Online | |||
| 3 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 2 5*25 W,SW | ||
| 4 | Gasket,Intake | V103-000270 | V103-000270-Online | 1 T1.5-11 | ||
| 5 | Carburetor, | A021-001530 | A021-001530-Online | DIAPHRAGM | 1 RB-K | ||
| 6 | Case, Air Cleaner | P021-004480 | P021-004480-Online | |||
| 7 | Plate, Prevent | 129011-52730 | 129011-52730-Online | |||
| 8 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 2 5*65 | ||
| 9 | Filter, Air | 130310-54130 | 130310-54130-Online | |||
| 9 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 10 | Lid,Cleaner | A232-000330 | A232-000330-Online | |||
| 11 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 12 | Knob,Fastener | V299-000250 | V299-000250-Online | |||
| 13 | Cover,Muffler | A320-000341 | A320-000341-Online | |||
| 14 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | 1 5*14 | ||
| 15 | Muffler Asy | P021-011580 | P021-011580-Online | 1 | 16 | + 91367-04010 | SCREW | ||
| 20 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 21 | Washer, Nord-Lock | 92280-05000 | 92280-05000-Online | 2 NL5 5.4*9*1.8 | ||
| 22 | Plate,Eye | V150-001760 | V150-001760-Online | |||
| 23 | Gasket,Exhaust | V104-000780 | V104-000780-Online | |||
| 24 | Bolt,5 | V203-000120 | V203-000120-Online | 2 L=60 | ||
| 25 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |||
| 26 | Cable, Adjuster | C486-000000 | C486-000000-Online | 1 | AIR CLEANER, MUFFLER | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 2 | + 131016-55830 | GASKET, FUEL CAP | ||
| 4 | Tank,Fuel | P021-013640 | P021-013640-Online | |||
| 5 | Valve,Check | A356-000030 | A356-000030-Online | |||
| 6 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 7 | Pipe | V471-001180 | V471-001180-Online | 1 3*6*35 NBR | ||
| 8 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 9 | Clip | 132013-09820 | 132013-09820-Online | 1 6MM | ||
| 10 | Strainer, Fuel | A369-000000 | A369-000000-Online | 1 125-528 | ||
| 11 | Pipe | V470-000580 | V470-000580-Online | 1 3*5*195 | ||
| 13 | Pipe 3* 6* 75 | 132010-40830 | 132010-40830-Online | 1 3*6*75 YL | FUEL TANK | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Guard, Sprocket | C300-000361 | C300-000361-Online | |||
| 2 | Screw,5 | V253-000180 | V253-000180-Online | 1 M5*20 PAN | ||
| 3 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | 2 6 | ||
| 4 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 5 | Screw,4 | V252-000040 | V252-000040-Online | 1 4*8 PT SCREW | ||
| 6 | Bolt,5 | V203-000041 | V203-000041-Online | |||
| 7 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 8 | Gear,Bevel | V651-000310 | V651-000310-Online | 1 14 TEETH 3.0 | SQ. | ||
| 9 | Gear,Bevel | V651-000320 | V651-000320-Online | 1 14 TEETH 10MM | ||
| 10 | Ring | V583-000090 | V583-000090-Online | 1 EXTERNAL | RING | ||
| 11 | Washer,Circular 10 | V307-000160 | V307-000160-Online | 1 10.2*29.5*T=1.2 | ||
| 12 | Sprocket,Drive | C580-000070 | C580-000070-Online | |||
| 13 | Washer, Clutch | 175014-39131 | 175014-39131-Online | 1 10.2*24.5*1.2 | ||
| 14 | Oiler,Asm Auto | C022-000010 | C022-000010-Online | 1 | 15 | + 125327-15130 | CLIP | ||
| 22 | Pipe | V470-000180 | V470-000180-Online | |||
| 23 | Pad, Form | 437244-39130 | 437244-39130-Online | |||
| 24 | Pipe, Impulse | 130110-12330 | 130110-12330-Online | 1 3*6*70L | ||
| 25 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 26 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 27 | Screw,5 | V253-000200 | V253-000200-Online | 2 M5*10 PAN MS | ||
| 28 | Gear, Worm | 437063-38330 | 437063-38330-Online | |||
| 29 | Case,Gear | C531-000030 | C531-000030-Online | |||
| 30 | Screw,5 | V253-000240 | V253-000240-Online | 8 M5*25 PAN MS | ||
| 31 | Case,Gear | C531-000430 | C531-000430-Online | 1 LOWER | ||
| 32 | Bolt,Stud 6 | V224-000040 | V224-000040-Online | 2 15MM*19MM M6 | ||
| 33 | Hook | C649-000140 | C649-000140-Online | 1 BRANCH HOOK | ||
| 34 | Screw,5 | V253-000200 | V253-000200-Online | 3 M5*10 PAN MS | ||
| 35 | Screw,5 | V253-000200 | V253-000200-Online | 2 M5*10 PAN MS | ||
| 37 | Connector, Shaft | 610025-22361 | 610025-22361-Online | |||
| 38 | Circlip 12 | 900706-00012 | 900706-00012-Online | 1 WR-12 | ||
| 39 | Bearing Ball | 94052-06001 | 94052-06001-Online | 4 PEER LLU,DDU | 2RS | ||
| 57 | Gear, Shaft Kit | P021-015340 | P021-015340-Online | 1 | 40 | + V651-000210 | GEAR,BEVEL | ||
| 41 | Circlip 12 | 900706-00012 | 900706-00012-Online | 1 WR-12 | GEAR CASE, GUIDE BAR, CHAIN | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | Tank, Oil | C200-000080 | C200-000080-Online | |||
| 45 | Screw,5 | V253-000230 | V253-000230-Online | 2 M5*20 PAN MS | ||
| 46 | Screw,5 | V253-000240 | V253-000240-Online | 1 M5*25 PAN MS | ||
| 48 | Collar | 131045-28230 | 131045-28230-Online | |||
| 49 | Collar,6 | V354-000010 | V354-000010-Online | |||
| 50 | Valve, Check | 131314-06320 | 131314-06320-Online | |||
| 51 | Cap Assy, Oil | P021-014940 | P021-014940-Online | 1 | 52 | + 900720-00018 | O-RING 18 | ||
| 54 | Chain,Saw | 431611-22461 | 431611-22461-Online | 1 91VX44CQ | ||
| 55 | Bar,Guide 30 | X122-000150 | X122-000150-Online | 1 12A0CD3744 | ||
| 56 | Scabbard,Chain | X490-000050 | X490-000050-Online | 1 12ﾞ BAR | GEAR CASE, GUIDE BAR, CHAIN | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle,Asm Rear | C041-000000 | C041-000000-Online | 1 OVERMOLD - | RIGHT | ||
| 2 | Handle,Asm Rear | C041-000011 | C041-000011-Online | 1 OVERMOLD - | LEFT | ||
| 3 | Screw,5 | V253-000210 | V253-000210-Online | 7 M5*18 PAN PT | ||
| 4 | Control, Throttle | C450-000260 | C450-000260-Online | 1 PPT HANDLE | ||
| 5 | Cable Asy, Control | V043-000160 | V043-000160-Online | |||
| 6 | Knob,Switch | A444-000020 | A444-000020-Online | 1 ACT3020-14F | ||
| 7 | Screw Taptite-P | 91545-03010 | 91545-03010-Online | |||
| 8 | Spring,Torsion | V452-000330 | V452-000330-Online | 1 30MM*8 | DIA.*30MM | ||
| 9 | Lockout, Throttle | C460-000100 | C460-000100-Online | 1 PPT HANDLE | ||
| 10 | Spring,Torsion | V452-000340 | V452-000340-Online | 1 10.5MM I.D. | ||
| 11 | Band | V495-000680 | V495-000680-Online | |||
| 12 | Screw,5 | V253-000220 | V253-000220-Online | 2 M5*20 PAN SEM | ||
| 13 | Pipe, Main | C050-000770 | C050-000770-Online | 1 LOWER PIPE | ASSY | 14 | + V583-000110 | ||
| 16 | Tube | V475-004000 | V475-004000-Online | 1 | 25MM*32MM*35MM | ||
| 17 | Shaft, Flexible | C506-000100 | C506-000100-Online | 1 .264/.260 * 19.8 | HANDLE | PPT-265ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Harness Asy, | 301000-22060 | 301000-22060-Online | SHOULDER | ||
| 2 | Hanger Asy | P021-043130 | P021-043130-Online | 1 24.69/24.84 I.D. | 3 | + V253-000200 | SCREW,5 | ||
| 5 | Coupling, Main Pipe | C510-000163 | C510-000163-Online | 1 MACHINED 2- | ||
| 6 | Screw,5 | V253-000230 | V253-000230-Online | 2 M5*20 PAN MS | ||
| 7 | Bolt, H.S. 5*14 | 900105-05014 | 900105-05014-Online | 1 5*14 | ||
| 8 | Screw,5 | V253-000230 | V253-000230-Online | 4 M5*20 PAN MS | ||
| 9 | Washer,Circular 5 | V303-000071 | V303-000071-Online | 2 | 5.4MM*15MM*1MM | ||
| 10 | Shaft, Drive | C504-000372 | C504-000372-Online | 1 CORE/SHAFT | ASSY | 11 | + 94057-36002 | ||
| 12 | Pipe, Main | C500-000270 | C500-000270-Online | 1 39MM ID * | 1416.1 | ||
| 13 | Coupling, Main Pipe | C510-000171 | C510-000171-Online | 1 UPPER | COUPLING | ||
| 14 | Screw,5 | V253-000230 | V253-000230-Online | 2 M5*20 PAN MS | ||
| 15 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 16 | Bolt 6*25 | 900100-06025 | 900100-06025-Online | 1 6*25 | ||
| 17 | Knob,Fastener | V299-000321 | V299-000321-Online | 1 M6X1.0 THREAD | ||
| 18 | Pipe, Main | C050-000760 | C050-000760-Online | 1 | 19 | + C503-000080 | HOLDER, BEARING | ||
| 21 | Shaft, Drive | C504-000360 | C504-000360-Online | 1 OUTER | DRIVESHAFT | ||
| 22 | Socket,Shaft | C509-000090 | C509-000090-Online | 1 DRIVE SIDE | ||
| 23 | Socket, Shaft | C509-000080 | C509-000080-Online | 1 12.2*16.5*25.4 | ||
| 27 | Goggle | X690-000050 | X690-000050-Online | 1 GOGGLE + | ||
| 28 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 29 | Wrench, W/S-Driver | 895410-39131 | 895410-39131-Online | |||
| 30 | Cushion | V420-001810 | V420-001810-Online | 2 OD 3.53MM*42 | LNG | MAIN PIPE | PPT-265ES |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Pin, Piston | 100013-35430 | 100013-35430-Online | |||
| 2 | Spacer, Piston Pin | 100014-53630 | 100014-53630-Online | |||
| 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |||
| 6 | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 2 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 2 | Ring | 100229-22460 | 100229-22460-Online | |||
| 16 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 2 | Spring, Coil | 125322-07260 | 125322-07260-Online | |||
| 18 | Spring, Coil | 125322-07260 | 125322-07260-Online | |||
| 22 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 18 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 22 | Clip | 125327-15130 | 125327-15130-Online | |||
| 10 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 18 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 22 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 18 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 22 | Screw | 125339-42030 | 125339-42030-Online | |||
| 18 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |||
| 18 | Screw | 125344-13931 | 125344-13931-Online | |||
| 18 | Screw | 125344-52130 | 125344-52130-Online | |||
| 18 | Pump, Priming | 125381-46730 | 125381-46730-Online | |||
| 18 | Plate, Prevent | 129011-52730 | 129011-52730-Online | |||
| 6 | Pipe, Impulse | 130110-12330 | 130110-12330-Online | |||
| 10 | Filter, Air | 130310-54130 | 130310-54130-Online | |||
| 6 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 8 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 8 | Collar | 131045-28230 | 131045-28230-Online | |||
| 12 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 8 | Valve, Check | 131314-06320 | 131314-06320-Online | |||
| 12 | Pipe 3* 6* 75 | 132010-40830 | 132010-40830-Online | |||
| 8 | Clip | 132013-09820 | 132013-09820-Online | |||
| 8 | Clip | 132013-26630 | 132013-26630-Online | |||
| 8 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 10 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 8 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 6 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 4 | Lead, Ground | 156635-43130 | 156635-43130-Online | |||
| 2 | Clamp | 159116-21231 | 159116-21231-Online | |||
| 2 | Lead, Ground | 162010-04561 | 162010-04561-Online | |||
| 4 | Washer, Clutch | 175014-39131 | 175014-39131-Online | |||
| 10 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | |||
| 4 | Washer (I) | 175048-05530 | 175048-05530-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |||
| 4 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 4 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 4 | Screw | 177236-61830 | 177236-61830-Online | |||
| 4 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |||
| 4 | Harness Asy, | 301000-22060 | 301000-22060-Online | SHOULDER | ||
| 16 | Chain,Saw | 431611-22461 | 431611-22461-Online | |||
| 12 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | |||
| 10 | Gasket, Circular | 436012-37830 | 436012-37830-Online | |||
| 12 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 10 | Washer | 437029-37330 | 437029-37330-Online | |||
| 10 | Gear, Worm | 437063-38330 | 437063-38330-Online | |||
| 10 | Pad, Form | 437244-39130 | 437244-39130-Online | |||
| 10 | Connector, Shaft | 610025-22361 | 610025-22361-Online | |||
| 10 | Rivet | 890011-22360 | 890011-22360-Online | |||
| 16 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 6 | Wrench, W/S-Driver | 895410-39131 | 895410-39131-Online | |||
| 16 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 16 | Bolt 6*25 | 900100-06025 | 900100-06025-Online | |||
| 16 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | |||
| 2 | Bolt, H.S. 5*14 | 900105-05014 | 900105-05014-Online | |||
| 16 | Bolt, H.S. 5* 8 | 900106-05008 | 900106-05008-Online | |||
| 2 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | |||
| 6 | Bolt, H.S. 5*16 | 900162-05016 | 900162-05016-Online | |||
| 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 6 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | |||
| 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | |||
| 4 | Screw 5*65 | 900242-05065 | 900242-05065-Online | |||
| 6 | Screw, Tapping | 900256-05016 | 900256-05016-Online | |||
| 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 6 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 16 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | |||
| 4 | Washer 4 | 900603-00004 | 900603-00004-Online | |||
| 4 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 4 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 2 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 2 | Circlip 12 | 900706-00012 | 900706-00012-Online | |||
| 10 | O-Ring 18 | 900720-00018 | 900720-00018-Online | 12 | Part No | Part descrition | Page | ||
| 2 | Bolt | 91140-05012 | 91140-05012-Online | |||
| 2 | Screw | 91367-04010 | 91367-04010-Online | |||
| 6 | Screw Taptite-P | 91545-03010 | 91545-03010-Online | |||
| 14 | Washer, Nord-Lock | 92280-05000 | 92280-05000-Online | |||
| 6 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Bearing Ball | 94052-06001 | 94052-06001-Online | |||
| 10 | Bearing, Ball | 94057-36002 | 94057-36002-Online | |||
| 16 | Crankshaft,Asy | A011-000434 | A011-000434-Online | |||
| 2 | Carburetor, | A021-001530 | A021-001530-Online | DIAPHRAGM | ||
| 6 | Carburetor, | A021-001530 | A021-001530-Online | DIAPHRAGM | ||
| 18 | Starter,Recoil Asy | A051-000940 | A051-000940-Online | |||
| 4 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 4 | Ring, Piston | A101-000170 | A101-000170-Online | |||
| 2 | Cover,Dust | A127-000160 | A127-000160-Online | |||
| 2 | Cylinder | A130-000761 | A130-000761-Online | |||
| 2 | Cover,Cylinder | A160-000691 | A160-000691-Online | |||
| 2 | Cover,Cylinder | A160-000780 | A160-000780-Online | |||
| 2 | Guard,Top | A162-000080 | A162-000080-Online | |||
| 2 | Guard,Top | A162-000100 | A162-000100-Online | |||
| 2 | Stand | A175-000030 | A175-000030-Online | |||
| 4 | Insulator,Intake | A200-000200 | A200-000200-Online | |||
| 6 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 6 | Lid,Cleaner | A232-000330 | A232-000330-Online | |||
| 6 | Guide, Exhaust | A313-000830 | A313-000830-Online | |||
| 6 | Cover,Muffler | A320-000341 | A320-000341-Online | |||
| 6 | Valve,Check | A356-000030 | A356-000030-Online | |||
| 8 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 12 | Strainer, Fuel | A369-000000 | A369-000000-Online | |||
| 8 | Rotor, Magneto | A409-000310 | A409-000310-Online | |||
| 4 | Coil, Ignition | A411-000250 | A411-000250-Online | |||
| 4 | Coil, Ignition | A411-000251 | A411-000251-Online | |||
| 4 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 4 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 4 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 4 | Knob,Switch | A444-000020 | A444-000020-Online | |||
| 14 | Arm,Clutch | A553-000010 | A553-000010-Online | |||
| 4 | Drum,Clutch | A556-000280 | A556-000280-Online | |||
| 2 | Fixture,Main Pipe | A575-000122 | A575-000122-Online | |||
| 2 | Fixture,Main Pipe | A575-000132 | A575-000132-Online | |||
| 2 | Oiler,Asm Auto | C022-000010 | C022-000010-Online | |||
| 10 | Handle,Asm Rear | C041-000000 | C041-000000-Online | |||
| 14 | Handle,Asm Rear | C041-000011 | C041-000011-Online | |||
| 14 | Pipe, Main | C050-000760 | C050-000760-Online | 16 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | Tank, Oil | C200-000080 | C200-000080-Online | |||
| 12 | Guard, Sprocket | C300-000361 | C300-000361-Online | |||
| 10 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 10 | Control, Throttle | C450-000260 | C450-000260-Online | |||
| 14 | Lockout, Throttle | C460-000100 | C460-000100-Online | |||
| 14 | Cable, Adjuster | C486-000000 | C486-000000-Online | |||
| 6 | Pipe, Main | C500-000270 | C500-000270-Online | |||
| 16 | Holder, Bearing | C503-000080 | C503-000080-Online | |||
| 16 | Shaft, Drive | C504-000360 | C504-000360-Online | |||
| 16 | Shaft, Drive | C504-000372 | C504-000372-Online | |||
| 16 | Shaft, Flexible | C506-000100 | C506-000100-Online | |||
| 14 | Liner, Flexible | C507-000160 | C507-000160-Online | |||
| 14 | Socket, Shaft | C509-000080 | C509-000080-Online | |||
| 16 | Socket,Shaft | C509-000090 | C509-000090-Online | |||
| 16 | Coupling, Main Pipe | C510-000163 | C510-000163-Online | |||
| 16 | Coupling, Main Pipe | C510-000171 | C510-000171-Online | |||
| 16 | Case,Gear | C531-000030 | C531-000030-Online | |||
| 10 | Case,Gear | C531-000430 | C531-000430-Online | |||
| 10 | Shaft, Gear | C534-000430 | C534-000430-Online | |||
| 10 | Sprocket,Drive | C580-000070 | C580-000070-Online | |||
| 10 | Hook | C649-000140 | C649-000140-Online | |||
| 10 | Strainer | P005-000010 | P005-000010-Online | |||
| 18 | Strainer | P005-000010 | P005-000010-Online | |||
| 22 | Screw, | P005-000100 | P005-000100-Online | THROTTLEADJUST | ||
| 18 | E-Ring | P005-000190 | P005-000190-Online | |||
| 18 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 20 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 22 | Retainer | P005-000250 | P005-000250-Online | |||
| 18 | Screw | P005-000270 | P005-000270-Online | |||
| 18 | O-Ring | P005-000280 | P005-000280-Online | |||
| 18 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 20 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 22 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 18 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 20 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 22 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 18 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 22 | Post | P005-001240 | P005-001240-Online | |||
| 18 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |||
| 18 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | |||
| 18 | Screw,Mainn Mixture | P005-001290 | P005-001290-Online | 18 | Part No | Part descrition | Page | ||
| 20 | Diaphragm | P005-001780 | P005-001780-Online | |||
| 18 | Diaphragm | P005-001780 | P005-001780-Online | |||
| 22 | Base, Asy Primer | P005-001890 | P005-001890-Online | |||
| 18 | Screw | P005-001900 | P005-001900-Online | |||
| 18 | Cover Asy, Rotor | P005-001980 | P005-001980-Online | |||
| 18 | Rebuild Kit | P005-001990 | P005-001990-Online | |||
| 22 | Screw, Wirw Adjust | P005-002010 | P005-002010-Online | |||
| 18 | Case, Air Cleaner | P021-004480 | P021-004480-Online | |||
| 6 | Fixture,Main Pipe | P021-009380 | P021-009380-Online | |||
| 2 | Piston Kit | P021-009771 | P021-009771-Online | |||
| 2 | Crankcase Kit | P021-010801 | P021-010801-Online | |||
| 2 | Muffler Asy | P021-011580 | P021-011580-Online | |||
| 6 | Tank,Fuel | P021-013640 | P021-013640-Online | |||
| 8 | Cover Asy, Fan | P021-013760 | P021-013760-Online | |||
| 2 | Cap Assy, Oil | P021-014940 | P021-014940-Online | |||
| 12 | Gear, Shaft Kit | P021-015340 | P021-015340-Online | |||
| 10 | Hanger Asy | P021-043130 | P021-043130-Online | |||
| 16 | E-Ring | P022-002100 | P022-002100-Online | |||
| 4 | Spring, Return | P022-006510 | P022-006510-Online | |||
| 4 | Drum | P022-006830 | P022-006830-Online | |||
| 4 | Pawl, Starter | P022-006850 | P022-006850-Online | |||
| 4 | Rope | P022-008260 | P022-008260-Online | |||
| 4 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 4 | Plate, Cam(Ti12-511) | P022-008280 | P022-008280-Online | |||
| 4 | Cap, Oil Pump | P022-010640 | P022-010640-Online | |||
| 10 | Plunger | P022-010650 | P022-010650-Online | |||
| 10 | Spring | P022-010660 | P022-010660-Online | |||
| 10 | Spring | P022-010670 | P022-010670-Online | |||
| 10 | Screw Ass'Y, Adjust | P022-010680 | P022-010680-Online | |||
| 10 | Cable Asy, Control | V043-000160 | V043-000160-Online | |||
| 14 | Gasket,Cyl | V100-000210 | V100-000210-Online | |||
| 2 | Gasket,Intake | V103-000210 | V103-000210-Online | |||
| 6 | Gasket,Intake | V103-000270 | V103-000270-Online | |||
| 6 | Gasket,Exhaust | V104-000780 | V104-000780-Online | |||
| 6 | Gasket,Exhaust | V104-000790 | V104-000790-Online | |||
| 6 | Grommet,Ht Cord | V135-000030 | V135-000030-Online | |||
| 4 | Plate,Eye | V150-001760 | V150-001760-Online | |||
| 6 | Bolt,4 | V202-000130 | V202-000130-Online | |||
| 4 | Bolt,5 | V203-000041 | V203-000041-Online | |||
| 10 | Bolt,5 | V203-000120 | V203-000120-Online | |||
| 6 | Bolt,Stud 6 | V224-000040 | V224-000040-Online | |||
| 10 | Screw,4 | V252-000040 | V252-000040-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Screw,5 | V253-000200 | V253-000200-Online | |||
| 16 | Screw,5 | V253-000210 | V253-000210-Online | |||
| 14 | Screw,5 | V253-000220 | V253-000220-Online | |||
| 14 | Screw,5 | V253-000230 | V253-000230-Online | |||
| 12 | Screw,5 | V253-000230 | V253-000230-Online | |||
| 16 | Screw,5 | V253-000240 | V253-000240-Online | |||
| 10 | Screw,5 | V253-000240 | V253-000240-Online | |||
| 12 | Nut,5 | V263-000080 | V263-000080-Online | |||
| 16 | Knob,Fastener | V299-000250 | V299-000250-Online | |||
| 6 | Knob,Fastener | V299-000321 | V299-000321-Online | |||
| 16 | Washer,Circular 5 | V303-000071 | V303-000071-Online | |||
| 16 | Washer,Circular 10 | V307-000160 | V307-000160-Online | |||
| 10 | Washer,Circular 4 | V322-000031 | V322-000031-Online | |||
| 4 | Collar,6 | V354-000010 | V354-000010-Online | |||
| 12 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 10 | Cushion | V420-001081 | V420-001081-Online | |||
| 2 | Cushion | V420-001810 | V420-001810-Online | |||
| 16 | Spring,Tension | V451-000400 | V451-000400-Online | |||
| 4 | Spring,Torsion | V452-000330 | V452-000330-Online | |||
| 14 | Spring,Torsion | V452-000340 | V452-000340-Online | |||
| 14 | Pipe | V470-000180 | V470-000180-Online | |||
| 10 | Pipe | V470-000580 | V470-000580-Online | |||
| 8 | Pipe | V471-001180 | V471-001180-Online | |||
| 8 | Tube | V475-003380 | V475-003380-Online | |||
| 4 | Tube | V475-004000 | V475-004000-Online | |||
| 14 | Clip | V491-000180 | V491-000180-Online | |||
| 2 | Band | V495-000680 | V495-000680-Online | |||
| 14 | Seal,Oil 12 | V505-000050 | V505-000050-Online | |||
| 2 | Ring | V583-000090 | V583-000090-Online | |||
| 10 | Ring | V583-000110 | V583-000110-Online | |||
| 14 | Gear,Bevel | V651-000201 | V651-000201-Online | |||
| 10 | Gear,Bevel | V651-000210 | V651-000210-Online | |||
| 10 | Gear,Bevel | V651-000310 | V651-000310-Online | |||
| 10 | Gear,Bevel | V651-000320 | V651-000320-Online | |||
| 10 | Bar,Guide 30 | X122-000150 | X122-000150-Online | |||
| 12 | Scabbard,Chain | X490-000050 | X490-000050-Online | |||
| 12 | Label,Echo | X502-000330 | X502-000330-Online | |||
| 4 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 2 | Label,Echo | X547-000791 | X547-000791-Online | |||
| 2 | Goggle | X690-000050 | X690-000050-Online | 16 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-598_PPT-265ES_37_37004255_24FEB2020.pdf. Generated 2026-06-25 14:39.
