Echo SRM-3800 IPL / Parts List

Echo SRM-3800 IPL / Parts List

Echo SRM-3800 IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: SRM-3800-Online

Source Pages

Page 1

Echo SRM-3800 IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo SRM-3800 IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo SRM-3800 IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo SRM-3800 IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo SRM-3800 IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo SRM-3800 IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo SRM-3800 IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo SRM-3800 IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo SRM-3800 IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo SRM-3800 IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo SRM-3800 IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo SRM-3800 IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo SRM-3800 IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo SRM-3800 IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo SRM-3800 IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo SRM-3800 IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo SRM-3800 IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

Echo SRM-3800 IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

Echo SRM-3800 IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 20

Echo SRM-3800 IPL / Parts List source page 20

Tap or click the page image to enlarge it.

Page 21

Echo SRM-3800 IPL / Parts List source page 21

Tap or click the page image to enlarge it.

Page 22

Echo SRM-3800 IPL / Parts List source page 22

Tap or click the page image to enlarge it.

Page 23

Echo SRM-3800 IPL / Parts List source page 23

Tap or click the page image to enlarge it.

Page 24

Echo SRM-3800 IPL / Parts List source page 24

Tap or click the page image to enlarge it.

Page 25

Echo SRM-3800 IPL / Parts List source page 25

Tap or click the page image to enlarge it.

Page 26

Echo SRM-3800 IPL / Parts List source page 26

Tap or click the page image to enlarge it.

Page 27

Echo SRM-3800 IPL / Parts List source page 27

Tap or click the page image to enlarge it.

Page 4 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
5Screw 5*14900238-05014900238-05014-Online3 5*14
6Guard, Top159905-43130159905-43130-Online
7Screw 5*10900238-05010900238-05010-Online1 5*10
8Cover, Cylinder (Bs)101514-42230101514-42230-Online
9Cylinder101011-43130101011-43130-Online
10Bolt, H.S. 5*20900162-05020900162-05020-Online4 5*20 W,SW
11Gasket, Cyl. Base101010-42231101010-42231-Online
13Piston Kit100000-43130100000-43130-Online
13Piston Kit100000-43131100000-43131-Online1 | 12 | + 100011-42230 | RING, PISTON
18Oilseal100212-27930100212-27930-Online1 ISD 12 25 7
19Crankcase Set100200-42230100200-42230-Online1 | 20 | + 100215-02830 | PIN, DOWEL
21Bearing, Ball 6201900810-36201900810-36201-Online1 6201/C3
21Bearing Ball94035-3620194035-36201-Online1 6201X3JR2C3
22Crankshaft Assy100100-43130100100-43130-Online
23Key, Woodruff100142-12330100142-12330-Online
24Bearing, Ball 6202900810-36202900810-36202-Online1 6202/C3
25Gasket, Crankcase100242-42230100242-42230-Online
27Screw 4*10900238-04010900238-04010-Online4 4*10
28Plate, Guide101534-42230101534-42230-Online
29Cover, Fan (Bs)101511-42230101511-42230-Online
30Bolt, H.S. 5*25900162-05025900162-05025-Online4 5*25 W,SW
31Circlip 35900702-00035900702-00035-Online1 CRｰ35
32Oilseal100213-02830100213-02830-Online1 ISMX15,35,6
33Label, Model890611-43130890611-43130-Online1 | Cylinder, Crankcase, Piston, Fan Cover | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 6 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

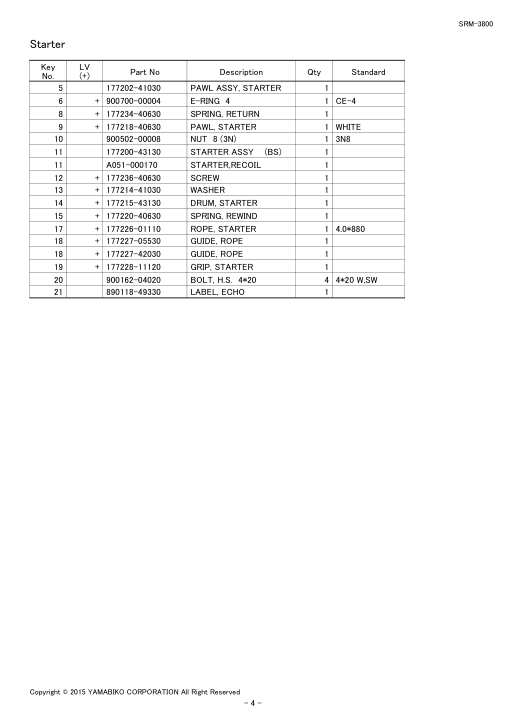

5Pawl Assy, Starter177202-41030177202-41030-Online1 | 6 | + 900700-00004 | E-RING 4
10Nut 8 (3N)900502-00008900502-00008-Online1 3N8
11Starter Assy (Bs)177200-43130177200-43130-Online
11Starter,RecoilA051-000170A051-000170-Online1 | 12 | + 177236-40630 | SCREW
20Bolt, H.S. 4*20900162-04020900162-04020-Online4 4*20 W,SW
21Label, Echo890118-49330890118-49330-Online1 | Starter | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 8 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
5Plug, Spark (Rcj-7Y)159017-10230159017-10230-Online1 RCJ-7Y
6Coil, Spark Plug159011-03432159011-03432-Online
7Cap, Spark Plug159012-03433159012-03433-Online
8Grommet156112-40630156112-40630-Online
9Coil, Ignition156626-42230156626-42230-Online
9Coil,Ignition156601-12920156601-12920-Online
10Screw 5*20900238-05020900238-05020-Online2 5*20
11Lead162021-42230162021-42230-Online
12Lead, Ground156635-43130156635-43130-Online
13Flywheel156801-42230156801-42230-Online
14Washer 10900600-00010900600-00010-Online1 10
15Washer, Spring 10900605-00010900605-00010-Online1 10
16Nut 10 (3N *1.25)900503-00010900503-00010-Online1 3N10*P1.25
17Washer175049-03920175049-03920-Online
18Shoe, Clutch175009-42231175009-42231-Online
19Spring, Clutch175018-42230175018-42230-Online
20Washer175048-03920175048-03920-Online
21Bolt, Clutch175046-06230175046-06230-Online
22Washer 6900600-00006900600-00006-Online2 6
23Screw 5*10900238-05010900238-05010-Online1 5*10 | Magneto, Clutch | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 10 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
4Nut 5900500-00005900500-00005-Online2 5
5Gasket, Intake130016-42231130016-42231-Online
6Insulator130017-43130130017-43130-Online
7Bolt, H.S. 5*25900162-05025900162-05025-Online2 5*25 W,SW
8Gasket130016-06231130016-06231-Online
8Gasket, Intake130016-06232130016-06232-Online
9Carburetor Assy123000-51430123000-51430-Online1 WT-297
10Rod, Choke178510-43130178510-43130-Online
11Case, Air Cleaner130301-43130130301-43130-Online1 | 12 | + 178810-05230 | GROMMET
13Shutter, Choke178515-43130178515-43130-Online
14Spacer178516-00830178516-00830-Online2 5.2*8*0.8T
15Plate129006-43130129006-43130-Online
16Screw 5*57900242-05057900242-05057-Online2 5*57
17Filter, Air130310-43130130310-43130-Online
18Cover Assy, Air Cln.130302-43131130302-43131-Online
18Cover Assy, Air Cln.130302-43132130302-43132-Online1 | 19 | + 900720-00004 | O RING
21Label, Choke890121-47530890121-47530-Online1 | Air Cleaner | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 12 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
2Cap Assy, Fuel Tank131004-46730131004-46730-Online
2Cap Assy, Fuel131004-08960131004-08960-Online1 | 3 | + 131016-40930 | GASKET, FUEL CAP
5Pipe132010-51230132010-51230-Online1 3*5*60 NBR
6Pipe 3*5* 90132012-51030132012-51030-Online1 3*5*90 ﾋﾞﾆｰﾙ
6Pipe 3*6*90132010-56330132010-56330-Online1 3*6*90 YL
7Cushion131923-11120131923-11120-Online
8Tank, Fuel131010-43130131010-43130-Online
8Tank, Fuel131010-46930131010-46930-Online
8Tank, Fuel131010-46931131010-46931-Online
9Cushion131924-43130131924-43130-Online
10Bracket,Fueltank(Bl)131910-43130131910-43130-Online
11Screw 5*14900238-05014900238-05014-Online2 5*14
12Cover, Vent131328-40630131328-40630-Online
13Valve, Check131300-40630131300-40630-Online
13Valve, Check131300-56430131300-56430-Online
14Clip130111-00530130111-00530-Online1 5.5
15Pipe, Fuel132010-13930132010-13930-Online1 3*5*180L NBR
17Strainer, Fuel131205-19830131205-19830-Online
18Grommet, Fuel132115-46730132115-46730-Online
19Clip132013-09820132013-09820-Online1 6MM
20Gasket, Muffler145510-42231145510-42231-Online
22Muffler (Bl)145610-43130145610-43130-Online
23Bolt, H.S. 5*20900162-05020900162-05020-Online2 5*20 W,SW
25Gasket, Muffler Lid145866-43131145866-43131-Online
26Holder (Bl)145867-43130145867-43130-Online
26Lid, Muffler145867-43131145867-43131-Online
27Screw 4*10900238-04010900238-04010-Online7 4*10
28Cover, Muffler145871-43130145871-43130-Online
29Screw 5*14900238-05014900238-05014-Online1 5*14 | Muffler, Fuel Tank | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

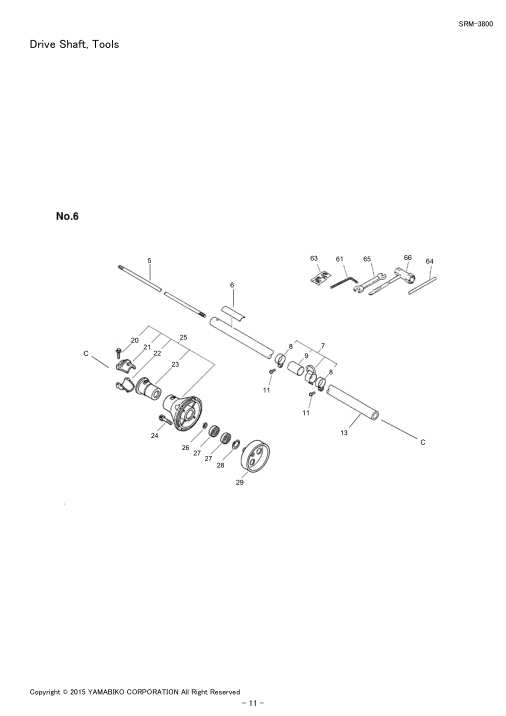

Page 14 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

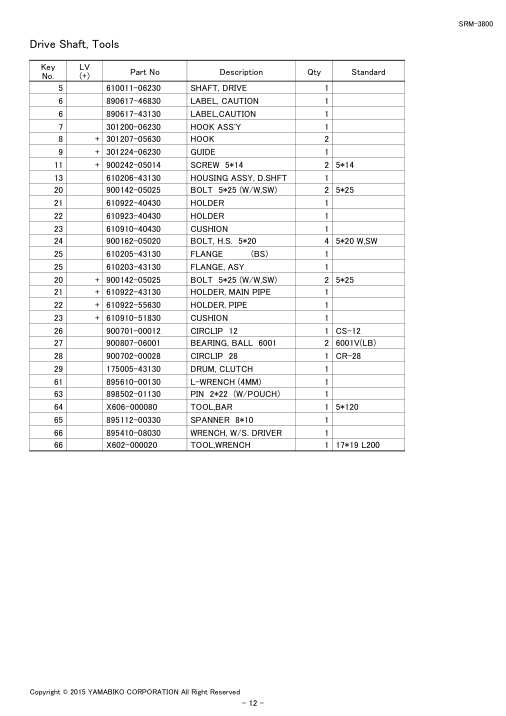

5Shaft, Drive610011-06230610011-06230-Online
6Label, Caution890617-46830890617-46830-Online
6Label,Caution890617-43130890617-43130-Online
7Hook Ass'Y301200-06230301200-06230-Online1 | 8 | + 301207-05630 | HOOK
13Housing Assy, D.Shft610206-43130610206-43130-Online
20Bolt 5*25 (W/W,Sw)900142-05025900142-05025-Online2 5*25
21Holder610922-40430610922-40430-Online
22Holder610923-40430610923-40430-Online
23Cushion610910-40430610910-40430-Online
24Bolt, H.S. 5*20900162-05020900162-05020-Online4 5*20 W,SW
25Flange (Bs)610205-43130610205-43130-Online
25Flange, Asy610203-43130610203-43130-Online1 | 20 | + 900142-05025 | BOLT 5*25 (W/W,SW)
26Circlip 12900701-00012900701-00012-Online1 CS-12
27Bearing, Ball 6001900807-06001900807-06001-Online2 6001V(LB)
28Circlip 28900702-00028900702-00028-Online1 CR-28
29Drum, Clutch175005-43130175005-43130-Online
61L-Wrench (4Mm)895610-00130895610-00130-Online
63Pin 2*22 (W/Pouch)898502-01130898502-01130-Online
64Tool,BarX606-000080X606-000080-Online1 5*120
65Spanner 8*10895112-00330895112-00330-Online
66Wrench, W/S. Driver895410-08030895410-08030-Online
66Tool,WrenchX602-000020X602-000020-Online1 17*19 L200 | Drive Shaft, Tools | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 16 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

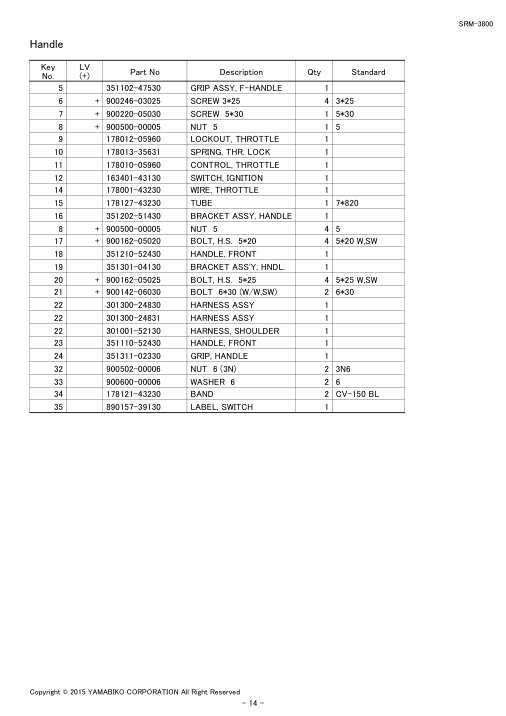

5Grip Assy, F-Handle351102-47530351102-47530-Online1 | 6 | + 900246-03025 | SCREW 3*25
9Lockout, Throttle178012-05960178012-05960-Online
10Spring, Thr. Lock178013-35631178013-35631-Online
11Control, Throttle178010-05960178010-05960-Online
12Switch, Ignition163401-43130163401-43130-Online
14Wire, Throttle178001-43230178001-43230-Online
15Tube178127-43230178127-43230-Online1 7*820
16Bracket Assy, Handle351202-51430351202-51430-Online1 | 8 | + 900500-00005 | NUT 5
18Handle, Front351210-52430351210-52430-Online
19Bracket Ass'Y, Hndl.351301-04130351301-04130-Online1 | 20 | + 900162-05025 | BOLT, H.S. 5*25
22Harness Assy301300-24830301300-24830-Online
22Harness Assy301300-24831301300-24831-Online
22Harness, Shoulder301001-52130301001-52130-Online
23Handle, Front351110-52430351110-52430-Online
24Grip, Handle351311-02330351311-02330-Online
32Nut 6 (3N)900502-00006900502-00006-Online2 3N6
33Washer 6900600-00006900600-00006-Online2 6
34Band178121-43230178121-43230-Online2 CV-150 BL
35Label, Switch890157-39130890157-39130-Online1 | Handle | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 18 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

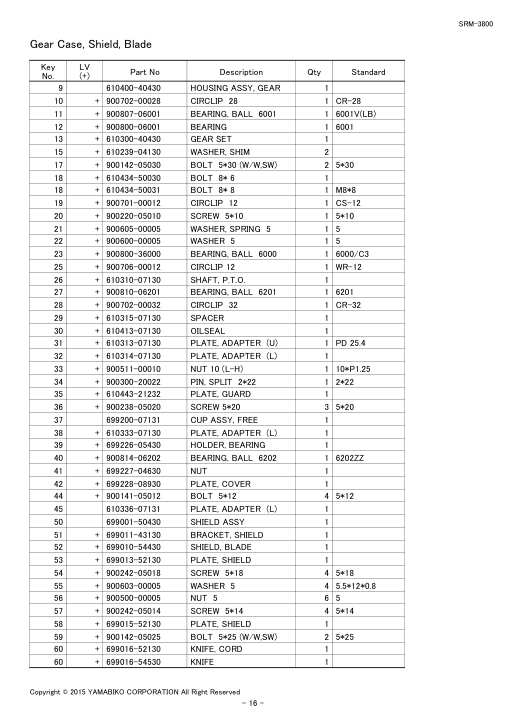

9Housing Assy, Gear610400-40430610400-40430-Online1 | 10 | + 900702-00028 | CIRCLIP 28
37Cup Assy, Free699200-07131699200-07131-Online1 | 38 | + 610333-07130 | PLATE, ADAPTER (L)
45Plate, Adapter (L)610336-07131610336-07131-Online
50Shield Assy699001-50430699001-50430-Online1 | 51 | + 699011-43130 | BRACKET, SHIELD

Page 20 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
65Scabbard Kit, Blade898503-50030898503-50030-Online1 | 66 | + 898562-43230 | FIXTURE, SCABBARD
68Saw,Circular 10 *80P695001-01230695001-01230-Online
68Saw,Circular 10*80T695001-55630695001-55630-Online
69Blade, 8-Cutter 10In696001-01130696001-01130-Online
69Blade, 8-Cutter 10In696001-55630696001-55630-Online1 | Gear Case, Shield, Blade | SRM-3800 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved

Page 24 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Repair Kit123100-51430123100-51430-Online1 WT-297 | 9-1 | + 123110-43130 | SCREW

Page 25 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
2Piston Kit100000-43131100000-43131-Online
2Ring, Piston100011-42230100011-42230-Online
2Bearing, Needle100012-12331100012-12331-Online
2Bearing, Needle100012-27930100012-27930-Online
2Pin, Piston100013-00410100013-00410-Online
2Spacer, Piston Pin100014-17330100014-17330-Online
2Circlip, Piston Pin100015-00120100015-00120-Online
2Crankshaft Assy100100-43130100100-43130-Online
2Key, Woodruff100142-12330100142-12330-Online
2Crankcase Set100200-42230100200-42230-Online
2Oilseal100212-27930100212-27930-Online
2Oilseal100213-02830100213-02830-Online
2Pin, Dowel100215-02830100215-02830-Online
2Gasket, Crankcase100242-42230100242-42230-Online
2Gasket, Cyl. Base101010-42231101010-42231-Online
2Cylinder101011-43130101011-43130-Online
2Cover, Fan (Bs)101511-42230101511-42230-Online
2Cover, Cylinder (Bs)101514-42230101514-42230-Online
2Plate, Guide101534-42230101534-42230-Online
2Carburetor Assy123000-51430123000-51430-Online
8Carburetor Assy123000-51430123000-51430-Online
20Repair Kit123100-51430123100-51430-Online
22Diaphragm/Gasket123101-52130123101-52130-Online
22Screw123110-43130123110-43130-Online
20Screw123110-43130123110-43130-Online
22Diaphragm, Fuel Pump123112-09560123112-09560-Online
20Diaphragm, Fuel Pump123112-09560123112-09560-Online
22Spring, Thrt. Return123113-15030123113-15030-Online
20Screw123114-03930123114-03930-Online
20Screw123114-38830123114-38830-Online
20Valve, Throttle123116-10530123116-10530-Online
20Shaft, Throttle123117-05020123117-05020-Online
20Needle, Idle123118-37330123118-37330-Online
20Spring, Needle123119-22130123119-22130-Online
22Needle, High Speed123120-51430123120-51430-Online
20Spring, Needle123121-22130123121-22130-Online
22Spring, Meter. Lever123122-06530123122-06530-Online
20Spring, Meter. Lever123122-06530123122-06530-Online
22Lever, Metering123123-03930123123-03930-Online
20Lever, Metering123123-03930123123-03930-Online
22Cover, Fuel Pump123124-51430123124-51430-Online20 | Part No | Part descrition | Page
20Gasket, Fuel Pump123125-09560123125-09560-Online
22Screen, Inlet123126-10631123126-10631-Online
20Screen, Inlet123126-10631123126-10631-Online
22Clip, Throttle Shaft123127-03930123127-03930-Online
20Screw123130-02960123130-02960-Online
22Spring, Idle Adjust123133-04260123133-04260-Online
20Screw, Idle Adjust123134-04260123134-04260-Online
20Valve, Inlet Needle123137-04260123137-04260-Online
22Pin, Metering Lever123138-03930123138-03930-Online
20Pin, Metering Lever123138-03930123138-03930-Online
22Screw, M. Lever Pin123139-03930123139-03930-Online
20Screw, M. Lever Pin123139-03930123139-03930-Online
22Gasket, M. Diaphragm123140-03930123140-03930-Online
20Gasket, M. Diaphragm123140-03930123140-03930-Online
22Diaphragm, Metering123141-03930123141-03930-Online
20Diaphragm, Metering123141-03930123141-03930-Online
22Cover, M. Diaphragm123142-03930123142-03930-Online
20Cover, Primer Pump123142-09560123142-09560-Online
20Plug, Welch123146-10631123146-10631-Online
22Plug, Cup123146-17330123146-17330-Online
20Plug, Cup123146-17330123146-17330-Online
22Washer123149-26030123149-26030-Online
20Screen123168-10631123168-10631-Online
20Ring, Retaining123169-10630123169-10630-Online
20Valve, Check123171-35630123171-35630-Online
20Swivel123172-26030123172-26030-Online
20Clip123173-07930123173-07930-Online
20Pump, Primer123181-09560123181-09560-Online
20Plate129006-43130129006-43130-Online
8Gasket130016-06231130016-06231-Online
8Gasket, Intake130016-06232130016-06232-Online
8Gasket, Intake130016-42231130016-42231-Online
8Insulator130017-43130130017-43130-Online
8Clip130111-00530130111-00530-Online
10Case, Air Cleaner130301-43130130301-43130-Online
8Cover Assy, Air Cln.130302-43131130302-43131-Online
8Cover Assy, Air Cln.130302-43132130302-43132-Online
8Filter, Air130310-43130130310-43130-Online
8Screw130415-40630130415-40630-Online
8Cap Assy, Fuel131004-08960131004-08960-Online10 | Part No | Part descrition | Page
10Tank, Fuel131010-43130131010-43130-Online
10Tank, Fuel131010-46930131010-46930-Online
10Tank, Fuel131010-46931131010-46931-Online
10Gasket, Fuel Cap131016-40930131016-40930-Online
10Gasket, Fuel Cap131016-55830131016-55830-Online
10Connector, Cap131051-52430131051-52430-Online
10Strainer, Fuel131205-19830131205-19830-Online
10Valve, Check131300-40630131300-40630-Online
10Valve, Check131300-56430131300-56430-Online
10Cover, Vent131328-40630131328-40630-Online
10Bracket,Fueltank(Bl)131910-43130131910-43130-Online
10Cushion131923-11120131923-11120-Online
10Cushion131924-43130131924-43130-Online
10Pipe, Fuel132010-13930132010-13930-Online
10Pipe132010-51230132010-51230-Online
10Pipe 3*6*90132010-56330132010-56330-Online
10Pipe 3*5* 90132012-51030132012-51030-Online
10Clip132013-09820132013-09820-Online
10Grommet, Fuel132115-46730132115-46730-Online
10Gasket, Muffler145510-42231145510-42231-Online
10Muffler (Bl)145610-43130145610-43130-Online
10Gasket, Muffler Lid145866-43131145866-43131-Online
10Holder (Bl)145867-43130145867-43130-Online
10Lid, Muffler145867-43131145867-43131-Online
10Cover, Muffler145871-43130145871-43130-Online
10Grommet156112-40630156112-40630-Online
6Coil,Ignition156601-12920156601-12920-Online
6Coil, Ignition156626-42230156626-42230-Online
6Lead, Ground156635-43130156635-43130-Online
6Flywheel156801-42230156801-42230-Online
6Coil, Spark Plug159011-03432159011-03432-Online
6Cap, Spark Plug159012-03433159012-03433-Online
6Plug, Spark (Rcj-7Y)159017-10230159017-10230-Online
6Guard, Top159905-43130159905-43130-Online
2Lead162021-42230162021-42230-Online
6Switch, Ignition163401-43130163401-43130-Online
14Drum, Clutch175005-43130175005-43130-Online
12Shoe, Clutch175009-42231175009-42231-Online
6Spring, Clutch175018-42230175018-42230-Online
6Bolt, Clutch175046-06230175046-06230-Online
6Washer175048-03920175048-03920-Online
6Washer175049-03920175049-03920-Online
6Starter Assy (Bs)177200-43130177200-43130-Online
4Pawl Assy, Starter177202-41030177202-41030-Online4 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1

Page 26 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
4Drum, Starter177215-43130177215-43130-Online
4Pawl, Starter177218-40630177218-40630-Online
4Spring, Rewind177220-40630177220-40630-Online
4Rope, Starter177226-01110177226-01110-Online
4Guide, Rope177227-05530177227-05530-Online
4Guide, Rope177227-42030177227-42030-Online
4Grip, Starter177228-11120177228-11120-Online
4Spring, Return177234-40630177234-40630-Online
4Screw177236-40630177236-40630-Online
4Wire, Throttle178001-43230178001-43230-Online
14Control, Throttle178010-05960178010-05960-Online
14Lockout, Throttle178012-05960178012-05960-Online
14Spring, Thr. Lock178013-35631178013-35631-Online
14Band178121-43230178121-43230-Online
14Tube178127-43230178127-43230-Online
14Rod, Choke178510-43130178510-43130-Online
8Shutter, Choke178515-43130178515-43130-Online
8Spacer178516-00830178516-00830-Online
8Grommet178810-05230178810-05230-Online
8Harness, Shoulder301001-52130301001-52130-Online
14Hook Ass'Y301200-06230301200-06230-Online
12Hook301207-05630301207-05630-Online
12Guide301224-06230301224-06230-Online
12Harness Assy301300-24830301300-24830-Online
14Harness Assy301300-24831301300-24831-Online
14Grip Assy, F-Handle351102-47530351102-47530-Online
14Handle, Front351110-52430351110-52430-Online
14Bracket Assy, Handle351202-51430351202-51430-Online
14Handle, Front351210-52430351210-52430-Online
14Bracket Ass'Y, Hndl.351301-04130351301-04130-Online
14Grip, Handle351311-02330351311-02330-Online
14Shaft, Drive610011-06230610011-06230-Online
12Flange, Asy610203-43130610203-43130-Online
12Flange (Bs)610205-43130610205-43130-Online
12Housing Assy, D.Shft610206-43130610206-43130-Online
12Washer, Shim610239-04130610239-04130-Online
16Gear Set610300-40430610300-40430-Online
16Shaft, P.T.O.610310-07130610310-07130-Online
16Plate, Adapter (U)610313-07130610313-07130-Online
16Plate, Adapter (L)610314-07130610314-07130-Online
16Spacer610315-07130610315-07130-Online
16Plate, Adapter (L)610333-07130610333-07130-Online
16Plate, Adapter (L)610336-07131610336-07131-Online
16Housing Assy, Gear610400-40430610400-40430-Online16 | Part No | Part descrition | Page
16Bolt 8* 6610434-50030610434-50030-Online
16Bolt 8* 8610434-50031610434-50031-Online
16Plate, Guard610443-21232610443-21232-Online
16Cushion610910-40430610910-40430-Online
12Cushion610910-51830610910-51830-Online
12Holder610922-40430610922-40430-Online
12Holder, Main Pipe610922-43130610922-43130-Online
12Holder, Pipe610922-55630610922-55630-Online
12Holder610923-40430610923-40430-Online
12Saw,Circular 10 *80P695001-01230695001-01230-Online
18Saw,Circular 10*80T695001-55630695001-55630-Online
18Blade, 8-Cutter 10In696001-01130696001-01130-Online
18Blade, 8-Cutter 10In696001-55630696001-55630-Online
18Shield Assy699001-50430699001-50430-Online
16Shield, Blade699010-54430699010-54430-Online
16Bracket, Shield699011-43130699011-43130-Online
16Plate, Shield699013-52130699013-52130-Online
16Plate, Shield699015-52130699015-52130-Online
16Knife, Cord699016-52130699016-52130-Online
16Knife699016-54530699016-54530-Online
16Cup Assy, Free699200-07131699200-07131-Online
16Holder, Bearing699226-05430699226-05430-Online
16Plate, Cover699228-08930699228-08930-Online
16Label, Echo890118-49330890118-49330-Online
4Label, Choke890121-47530890121-47530-Online
8Label, Switch890157-39130890157-39130-Online
14Label, Model890611-43130890611-43130-Online
2Label,Caution890617-43130890617-43130-Online
12Label, Caution890617-46830890617-46830-Online
12Spanner 8*10895112-00330895112-00330-Online
12Wrench, W/S. Driver895410-08030895410-08030-Online
12L-Wrench (4Mm)895610-00130895610-00130-Online
12Pin 2*22 (W/Pouch)898502-01130898502-01130-Online
12Scabbard Kit, Blade898503-50030898503-50030-Online
18Fixture, Scabbard898562-43230898562-43230-Online
18Bolt 5*12900141-05012900141-05012-Online
16Bolt 5*25 (W/W,Sw)900142-05025900142-05025-Online
12Bolt 5*25 (W/W,Sw)900142-05025900142-05025-Online
16Bolt 5*30 (W/W,Sw)900142-05030900142-05030-Online
16Bolt 6*30 (W/W,Sw)900142-06030900142-06030-Online
14Bolt, H.S. 4*20900162-04020900162-04020-Online
4Bolt, H.S. 5*20900162-05020900162-05020-Online
2Bolt, H.S. 5*20900162-05020900162-05020-Online10 | Part No | Part descrition | Page
12Bolt, H.S. 5*20900162-05020900162-05020-Online
14Bolt, H.S. 5*25900162-05025900162-05025-Online
2Bolt, H.S. 5*25900162-05025900162-05025-Online
8Bolt, H.S. 5*25900162-05025900162-05025-Online
14Bolt, H.S. 5*30900162-05030900162-05030-Online
2Screw 5*10900220-05010900220-05010-Online
16Screw 5*30900220-05030900220-05030-Online
14Screw 4*10900238-04010900238-04010-Online
2Screw 4*10900238-04010900238-04010-Online
10Screw 5*10900238-05010900238-05010-Online
2Screw 5*10900238-05010900238-05010-Online
6Screw 5*14900238-05014900238-05014-Online
2Screw 5*14900238-05014900238-05014-Online
10Screw 5*20900238-05020900238-05020-Online
6Screw 5*20900238-05020900238-05020-Online
16Screw 5*12900242-05012900242-05012-Online
18Screw 5*14900242-05014900242-05014-Online
12Screw 5*14900242-05014900242-05014-Online
16Screw 5*18900242-05018900242-05018-Online
16Screw 5*57900242-05057900242-05057-Online
8Screw 3*25900246-03025900246-03025-Online
14Pin, Split 2*22900300-20022900300-20022-Online
16Nut 5900500-00005900500-00005-Online
8Nut 5900500-00005900500-00005-Online
14Nut 5900500-00005900500-00005-Online
16Nut 6 (3N)900502-00006900502-00006-Online
14Nut 8 (3N)900502-00008900502-00008-Online
4Nut 10 (3N *1.25)900503-00010900503-00010-Online
6Nut 10 (L-H)900511-00010900511-00010-Online
16Washer 5900600-00005900600-00005-Online
16Washer 6900600-00006900600-00006-Online
6Washer 6900600-00006900600-00006-Online
14Washer 10900600-00010900600-00010-Online
6Washer 5900603-00005900603-00005-Online
16Washer, Spring 5900605-00005900605-00005-Online
16Washer, Spring 10900605-00010900605-00010-Online
6E-Ring 4900700-00004900700-00004-Online
4Circlip 12900701-00012900701-00012-Online
12Circlip 12900701-00012900701-00012-Online
16Circlip 28900702-00028900702-00028-Online
12Circlip 28900702-00028900702-00028-Online
16Circlip 32900702-00032900702-00032-Online
16Circlip 35900702-00035900702-00035-Online
2Circlip 12900706-00012900706-00012-Online16 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2

Page 27 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
8Bearing900800-06001900800-06001-Online
16Bearing, Ball 6000900800-36000900800-36000-Online
16Bearing, Ball 6001900807-06001900807-06001-Online
12Bearing, Ball 6001900807-06001900807-06001-Online
16Bearing, Ball 6201900810-06201900810-06201-Online
16Bearing, Ball 6201900810-36201900810-36201-Online
2Bearing, Ball 6202900810-36202900810-36202-Online
2Bearing, Ball 6202900814-06202900814-06202-Online
16Bearing Ball94035-3620194035-36201-Online
2Starter,RecoilA051-000170A051-000170-Online
4Washer,Circular 10V307-000050V307-000050-Online
2Tool,WrenchX602-000020X602-000020-Online
12Tool,BarX606-000080X606-000080-Online12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-3

Source PDF: 20200529-704_SRM-3800_.pdf. Generated 2026-06-25 14:40.

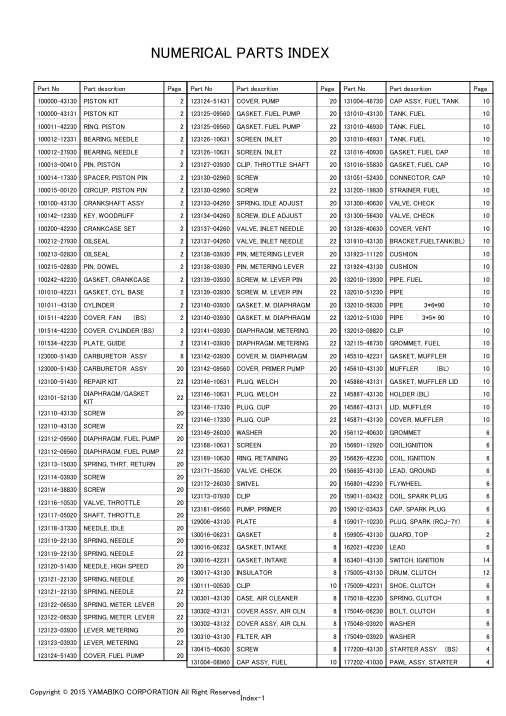

×Enlarged Echo SRM-3800 IPL / Parts List source page 1

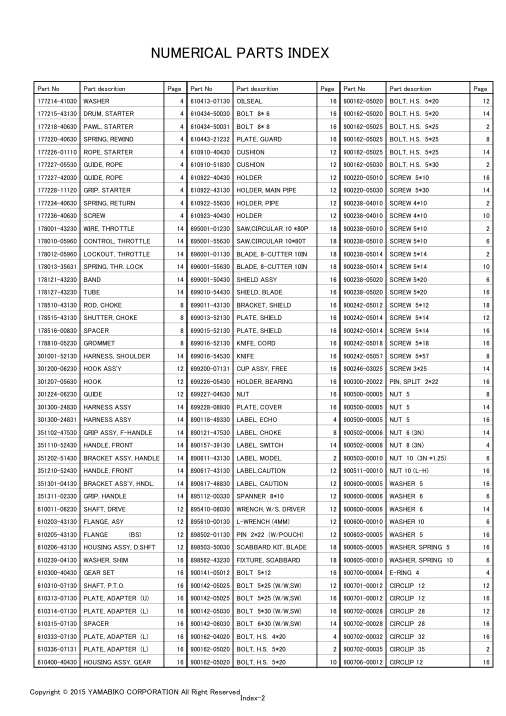

Echo SRM-3800 IPL / Parts List - source page 1
×Enlarged Echo SRM-3800 IPL / Parts List source page 2
Echo SRM-3800 IPL / Parts List - source page 2
×Enlarged Echo SRM-3800 IPL / Parts List source page 3
Echo SRM-3800 IPL / Parts List - source page 3
×Enlarged Echo SRM-3800 IPL / Parts List source page 4
Echo SRM-3800 IPL / Parts List - source page 4
×Enlarged Echo SRM-3800 IPL / Parts List source page 5
Echo SRM-3800 IPL / Parts List - source page 5
×Enlarged Echo SRM-3800 IPL / Parts List source page 6
Echo SRM-3800 IPL / Parts List - source page 6
×Enlarged Echo SRM-3800 IPL / Parts List source page 7
Echo SRM-3800 IPL / Parts List - source page 7
×Enlarged Echo SRM-3800 IPL / Parts List source page 8
Echo SRM-3800 IPL / Parts List - source page 8
×Enlarged Echo SRM-3800 IPL / Parts List source page 9
Echo SRM-3800 IPL / Parts List - source page 9
×Enlarged Echo SRM-3800 IPL / Parts List source page 10
Echo SRM-3800 IPL / Parts List - source page 10
×Enlarged Echo SRM-3800 IPL / Parts List source page 11
Echo SRM-3800 IPL / Parts List - source page 11
×Enlarged Echo SRM-3800 IPL / Parts List source page 12
Echo SRM-3800 IPL / Parts List - source page 12
×Enlarged Echo SRM-3800 IPL / Parts List source page 13
Echo SRM-3800 IPL / Parts List - source page 13
×Enlarged Echo SRM-3800 IPL / Parts List source page 14
Echo SRM-3800 IPL / Parts List - source page 14
×Enlarged Echo SRM-3800 IPL / Parts List source page 15
Echo SRM-3800 IPL / Parts List - source page 15
×Enlarged Echo SRM-3800 IPL / Parts List source page 16
Echo SRM-3800 IPL / Parts List - source page 16
×Enlarged Echo SRM-3800 IPL / Parts List source page 17
Echo SRM-3800 IPL / Parts List - source page 17
×Enlarged Echo SRM-3800 IPL / Parts List source page 18
Echo SRM-3800 IPL / Parts List - source page 18
×Enlarged Echo SRM-3800 IPL / Parts List source page 19
Echo SRM-3800 IPL / Parts List - source page 19
×Enlarged Echo SRM-3800 IPL / Parts List source page 20
Echo SRM-3800 IPL / Parts List - source page 20
×Enlarged Echo SRM-3800 IPL / Parts List source page 21
Echo SRM-3800 IPL / Parts List - source page 21
×Enlarged Echo SRM-3800 IPL / Parts List source page 22
Echo SRM-3800 IPL / Parts List - source page 22
×Enlarged Echo SRM-3800 IPL / Parts List source page 23
Echo SRM-3800 IPL / Parts List - source page 23
×Enlarged Echo SRM-3800 IPL / Parts List source page 24
Echo SRM-3800 IPL / Parts List - source page 24
×Enlarged Echo SRM-3800 IPL / Parts List source page 25
Echo SRM-3800 IPL / Parts List - source page 25

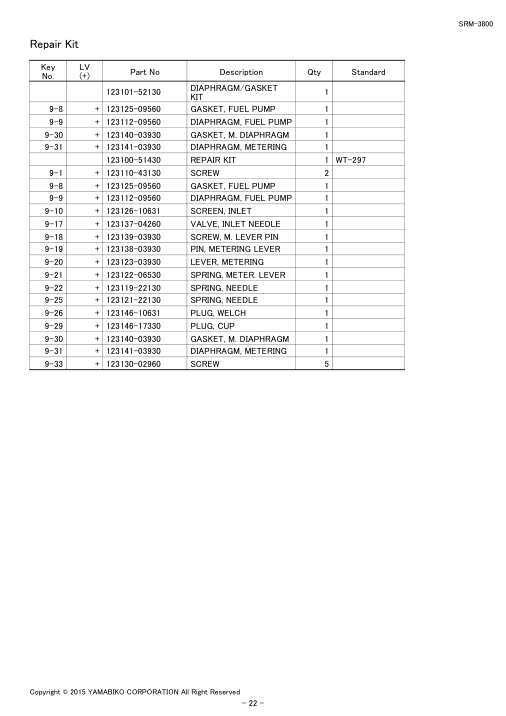

×Enlarged Echo SRM-3800 IPL / Parts List source page 26
Echo SRM-3800 IPL / Parts List - source page 26
×Enlarged Echo SRM-3800 IPL / Parts List source page 27
Echo SRM-3800 IPL / Parts List - source page 27
\n
\n
